A Switchable Cholesteric Phase Grating with a Low Operating Voltage

Abstract

We demonstrate a simple fabrication method of a uniform-lying-helix (ULH) cholesteric liquid crystal (ChLC) cell for phase grating device applications. To utilize a stable ULH state, we set the pitches of ChLCs as half of the cell gap to obtain the fingerprint texture with homeotropic anchoring. With the given grating period, the diffraction efficiency of the ULH cell can be maximized by optimizing the cell gap. We found that the fabricated grating device can provide a large diffraction angle of 10° and a low operating voltage of 3 V with a diffraction efficiency of 30%. We expect potential applications of the device for diffraction optics, optical interconnects, and beam steering devices.

1. Introduction

Cholesteric liquid crystals (ChLC) have always been actively studied because of their helical structure. Recently, interest in ChLCs has grown due to their possible non-display applications, such as beam deflectors [1], controlled mirrors [2], light shutters [3,4,5,6,7], laser elements [8,9,10,11,12,13], and diffraction grating elements [14,15,16,17]. ChLCs commonly exhibit three different textures depending on the boundary conditions and the pitch: planar, fingerprint, and focal-conic textures. In the planar state, the liquid crystals (LCs) align parallel to the substrates so that the helical axis is perpendicular to the substrates. In this state, ChLCs exhibit light reflection along the helical axis provided; the wavelength is set by the pitch.

In the fingerprint state, the axis of the helical superstructure is parallel to the substrates. Usually, the helical axis orientation is degenerate, i.e., they can be aligned randomly, yielding a polydomain sample. A uniform lying helix (ULH) structure has a unique direction of the helical axis [18]. In this state, the effective refractive index periodically changed along the helical axis. Consequently, in such a configuration, the ChLC cell acts as a diffraction grating. When the pitch length of ChLCs is changed by various external stimuli, such as the electric field, temperature, light, and humidity, the diffraction angle can also be controlled. Since the late 1980s, the problem of obtaining a stable and uniform ULH texture has been reported. It requires cooling the LCs from the isotropic phase while applying an electric field to obtain the ULH texture. Mechanical shearing [19] and polymer stabilization [20,21,22,23] have been proposed to stabilize the ULH structure.

In this paper, we propose an LC phase grating device with a large diffraction angle and low operating voltage. The phase grating was realized with the ULH state of ChLC. To utilize a stable ULH state, we set the pitches of ChLCs as half of the cell gap, where ChLCs show the fingerprint state with homeotropic anchoring. We fabricated an LC cell with the mechanical rubbing to give the orientation preference of the helical axis perpendicular to the rubbing direction. We confirmed the alignment of the ULH state with polarized optical microscope (POM) images. We measured the diffraction angle and efficiency as we varied the pitch of the cell. We found that, with the given grating period, the diffraction efficiency of a ULH cell can be maximized by optimizing the cell gap. We confirmed that the fabricated grating device exhibited a large diffraction angle of 10°, a low operating voltage of 3 V, and diffraction efficiency of 30%.

2. Cell Fabrication

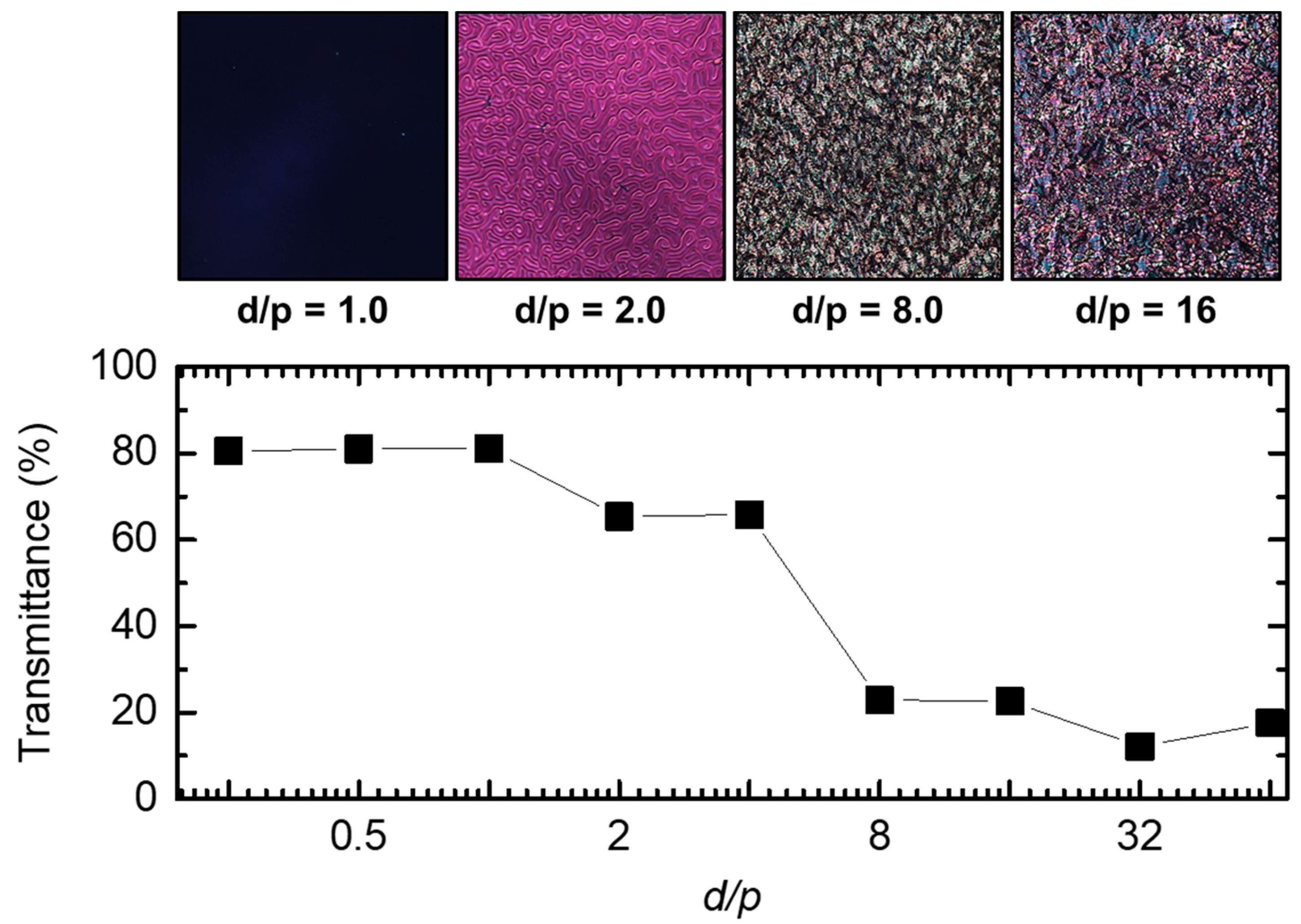

To fabricate a ChLC cell in the ULH state, it is necessary to align the helical axis of the ChLCs parallel to the substrate. Uniform homeotropic alignment can support the configuration in which the helical axis is parallel to the substrates. However, if the chiral dopant is not sufficient, the ChLCs cannot maintain the chiral state. The minimal helical pitch length p_th for the homeotropic state can be expressed as p_th = 2dk₂/k₃ [24,25,26,27,28], where d is the cell gap, and K₂ and K₃ are the twist and bend elastic constants, respectively. If the pitch length is longer than the p_th, the chiral torque is too weak. Therefore, the LCs are unable to twist, and the LC cell shows the homeotropic alignment of LCs. When the pitch length is shorter than p_th, the chiral torque is sufficiently strong. Therefore, the various chiral structures, such as fingerprint state and focal-conic state, can be observed. Figure 1 depicts the transmittance and POM images of LC cells with the homeotropic anchorings as functions of the d/p. The transmittance was measured as the ratio of the incident light intensity and the transmitted light without polarizers. The transmittance of the LC cell decreased with the increase in d/p because of the light scattering in the fabricated LC cell. To utilize a stable ULH state with homeotropic anchoring, we set the pitches of ChLCs as d/p = 2 for which the cell is in the fingerprint state.

The nematic LC E7 (Merck) (dielectric anisotropy Δε = 13.8, refractive indices n_o = 1.52 and n_e = 1.75, elastic constants K₁, K₂, and K₃ are 10.3, 7.4, and 16.5 pN, respectively) was doped with chiral dopant R5011 (HCCH), which has a high helical twist power of about 117 μm^–1, to obtain a ChLC with a pitch length of 0.16 ~ 20 μm. The LC mixture was stirred continuously for 24 h at 120 °C. The mixture was then filled into an empty cell at 70 °C. The empty cells were fabricated using ITO coated glasses. The thickness of the ChLC layer was fixed to 10 μm. ITO-coated glass slides were spin-coated with homeotropic polyimide, SE-5662 (Nissan chemical), for vertical anchoring at the surface. Spin coating was made at 4500 rpm for 50 s. Then, ITO-coated glass slides were baked at 230 °C for 1 hour. By employing suitable protocols, the ULH state can be achieved from polydomain fingerprint textures. Mechanical rubbing can give orientation preference of the helical axis perpendicular to the rubbing direction [29]. The rubbing condition was set as follows: the average values of the fiber diameter, the fiber length, and the fiber density were 15 μm, 2.5 mm, and 1040 cm⁻², respectively. The diameter of the rubbing roller and the rubbing depth were 60 and 0.25 mm, respectively. The rotation speed of the roller was 800 rpm and the substrate proceeding speed was 33 mm/s, respectively. Therefore, we used this rubbing method for ULH alignment.

3. Results and Discussion

We compared the diffraction characteristics by controlling the pitch length between 1.25 and 10 μm. A He-Ne laser (Newport) emitting λ = 543 nm was used as a probing beam with a polarizer. The transmission axis of the polarizer was set perpendicular to the helical axis of ULH cells. During the optical measurement, fabricated ULH cells were driven by a square-wave voltage at 1 kHz.

The obtained ULH textures were visually captured by observation of the sample using a polarized optical microscope (POM). As shown in Figure 2a, POM images of the fabricated cell showed well-formed periodic structures with the pitches as designed. The measured grating periods Λ of the ULH cells were 2.5, 5, 10, and 20 μm, which are twice the cholesteric pitches, respectively, because the helix could be distorted by confining ChLCs between the two substrates coated to produce homeotropic boundary conditions [25]. To further the dependence of a ULH grating on the grating period Λ, polarized light from the green laser is normally incident to the cell. The diffraction pattern was captured with a digital camera. As shown in Figure 2b, it was confirmed that the smaller the grating period, the narrower the interval between each pattern.

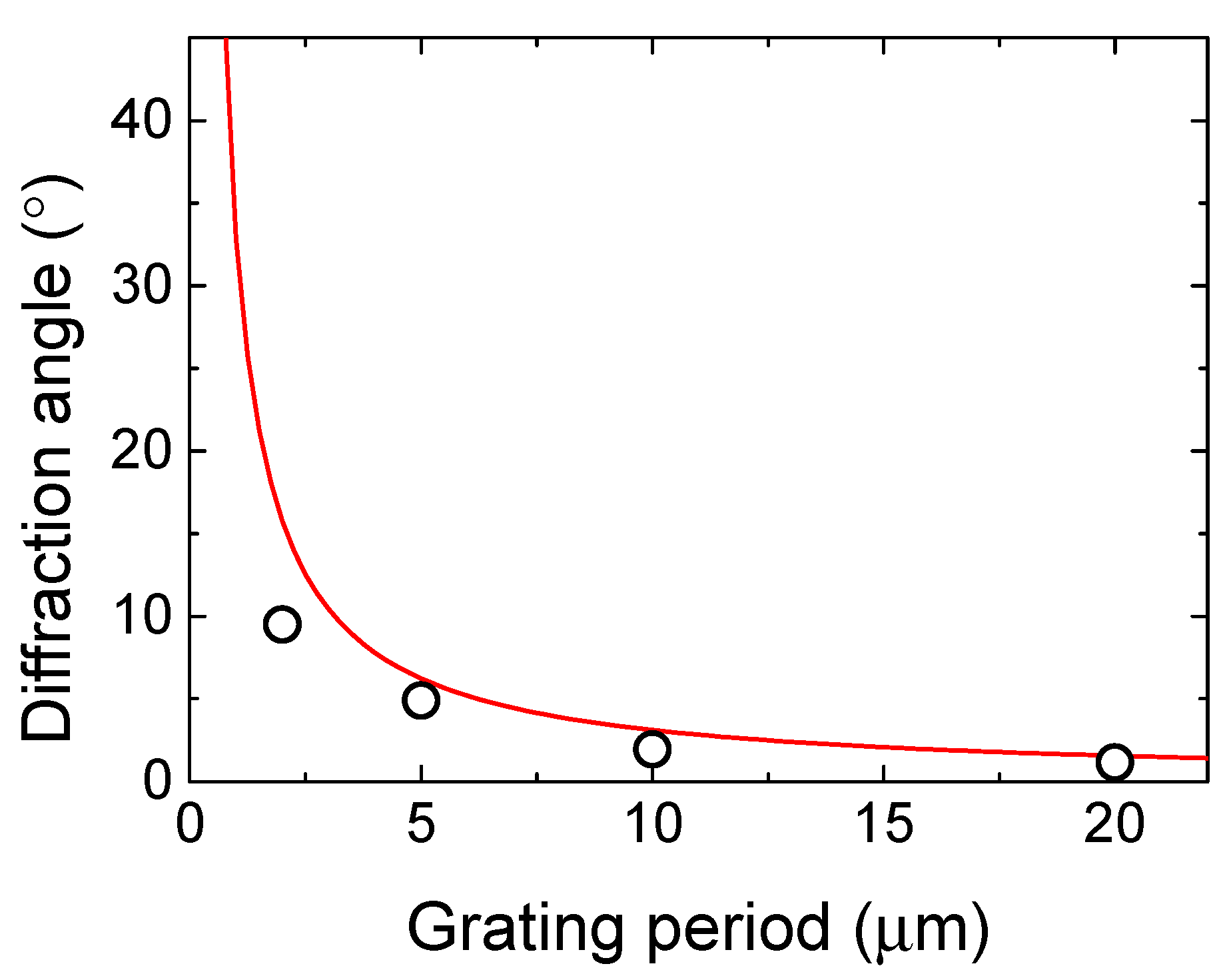

We investigated the diffraction angle and the first-order diffraction efficiency. The diffraction efficiency is the ratio of the first- to the zeroth-order diffraction intensities, as represented by η = I₁/I₀. I₀ and I₁ are the zeroth-order and the first-order diffraction efficiencies, respectively. Figure 3 shows the diffraction angles of fabricated ULH cells as a function of the grating period Λ. The increase in the grating period Λ was accompanied by the decrease in the diffraction angle θ (dots). To compare the measured results, we calculated the diffraction angles with

$$\sin \theta =\frac{\lambda }{\Lambda }$$

(1)

where λ and Λ are the wavelengths of the probe beam and grating period of the diffraction grating element, respectively [30]. The calculated diffraction angles show good agreement with the measured results, as shown in Figure 3.

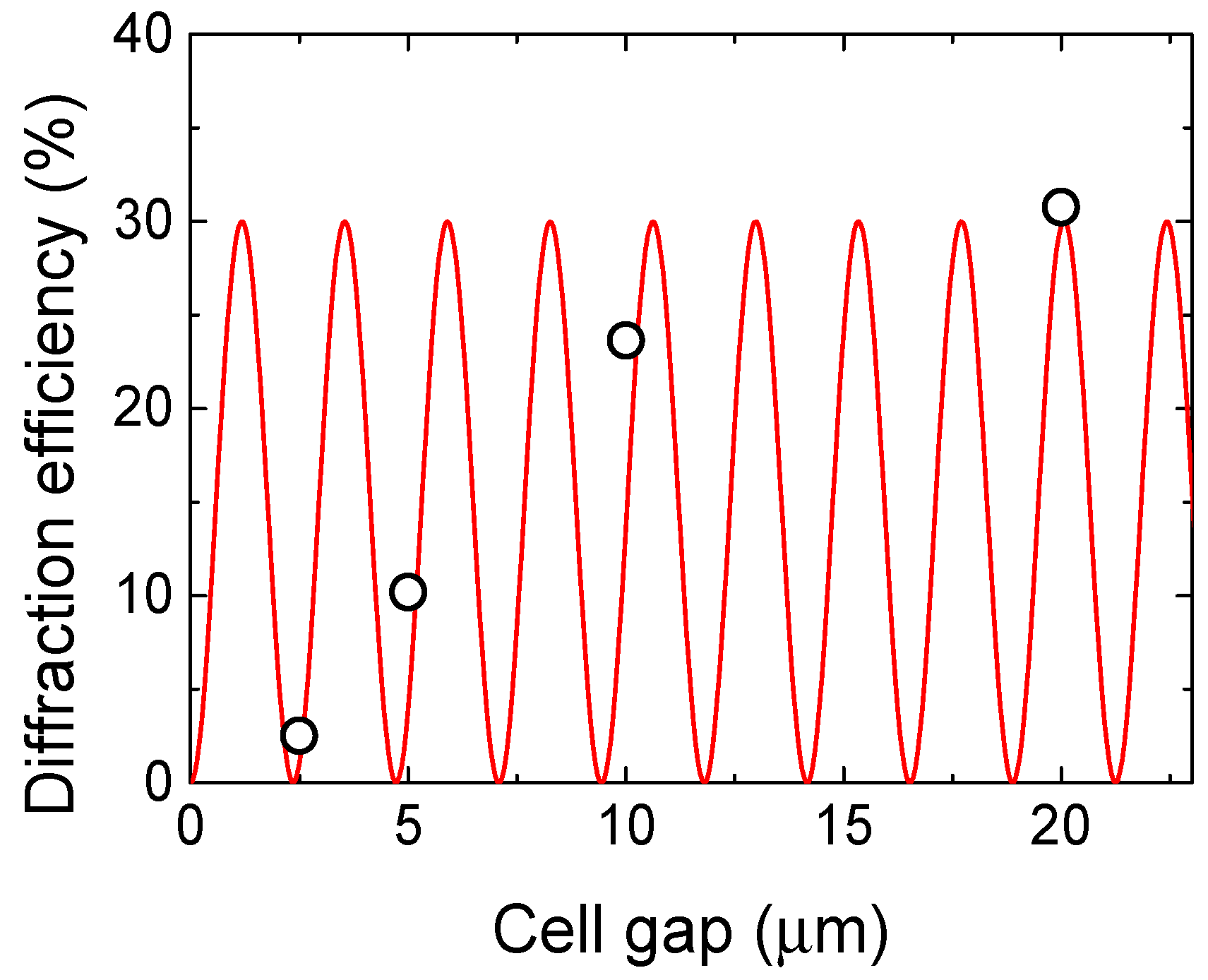

Figure 4 shows the change in first-order diffraction efficiency as a function of the cell gap. The diffraction efficiency is proportional to the square of a sinusoidal function with a period of (π∆nd)/(λcosβ), where λ and β are the wavelength and the incident angle of the probe beam, respectively; d is the thickness of the liquid crystal layer; ∆n is the refractive index difference in the grating [31]. As shown in Figure 1, the measured results (dots) show the same periodicity with the proportional expression.

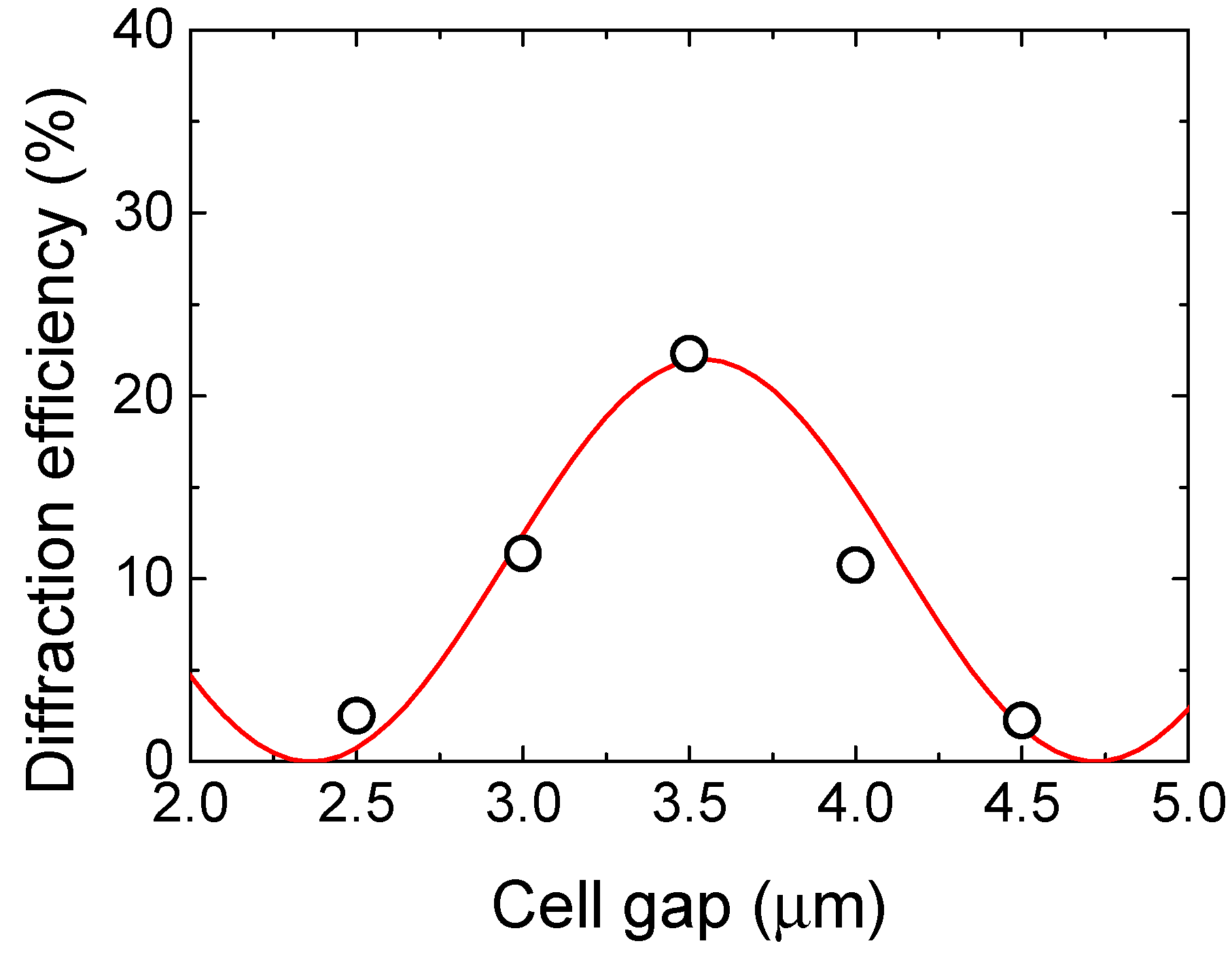

With a cell gap of 2.5 μm, the fabricated ULH cell showed a large diffraction angle, but the diffraction efficiency was relatively low (2.5%). With the fixed pitch length, which is associated with the grating period, we can maximize the diffraction efficiency by optimizing the cell gap. Figure 5 shows the diffraction efficiency of the fabricated ULH cell as a function of the cell gap for a fixed pitch length of 1.25 μm. We varied the cell gap within the range of 1.44 < d/p < 4, which is required to maintain the fingerprint states. The diffraction efficiency was highest at a cell gap of 3.5 μm. As shown in Figure 5, the diffraction efficiency can be increased simply by optimizing the cell gap.

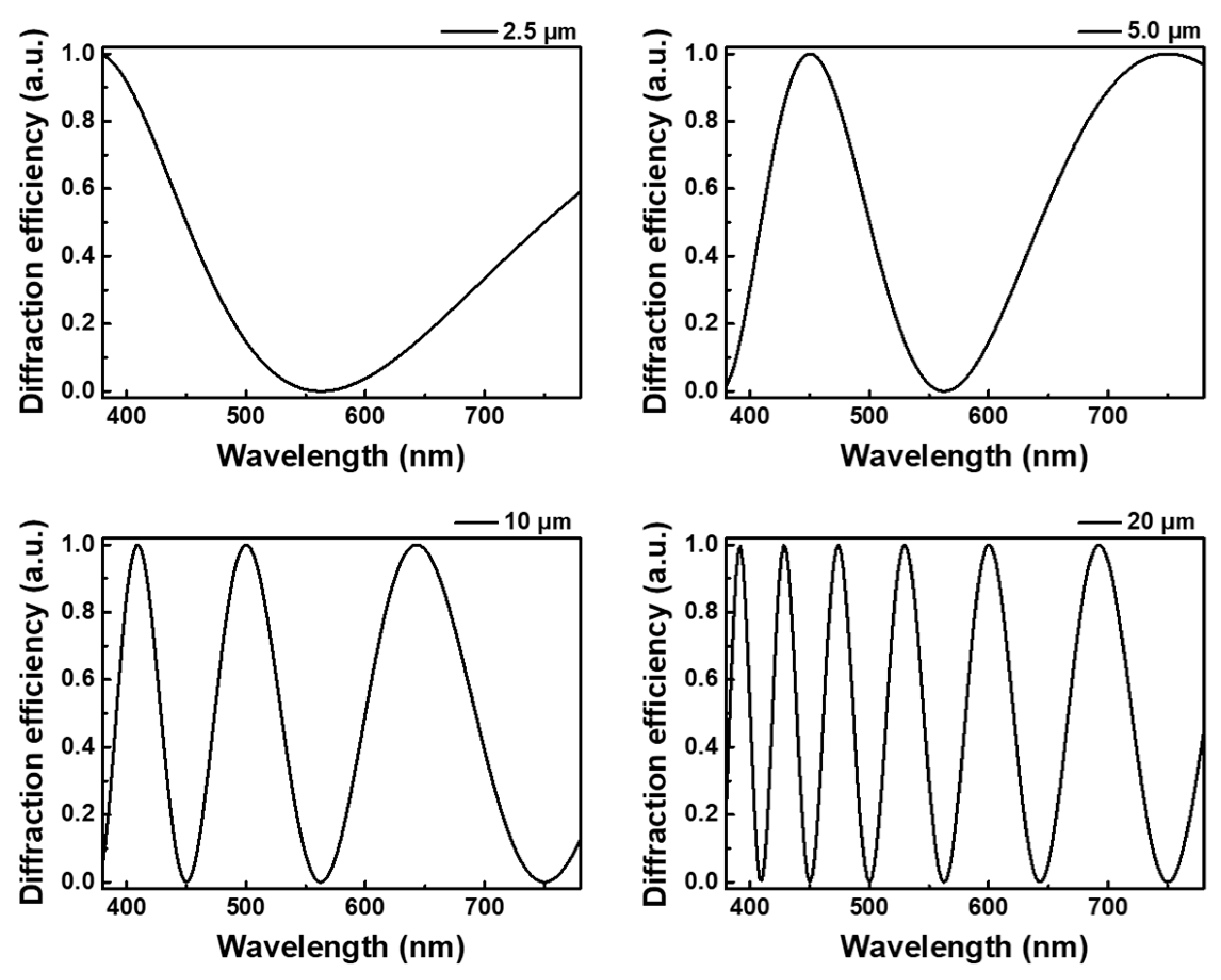

The diffraction efficiency can also be affected by the wavelength of the incident light. Figure 6 shows the wavelength dependence of the diffraction efficiency with the cell gap as a parameter. We found that, once the wavelength of the incident light is chosen, we can maximize the diffraction efficiency by optimizing the cell gap of a ULH cell.

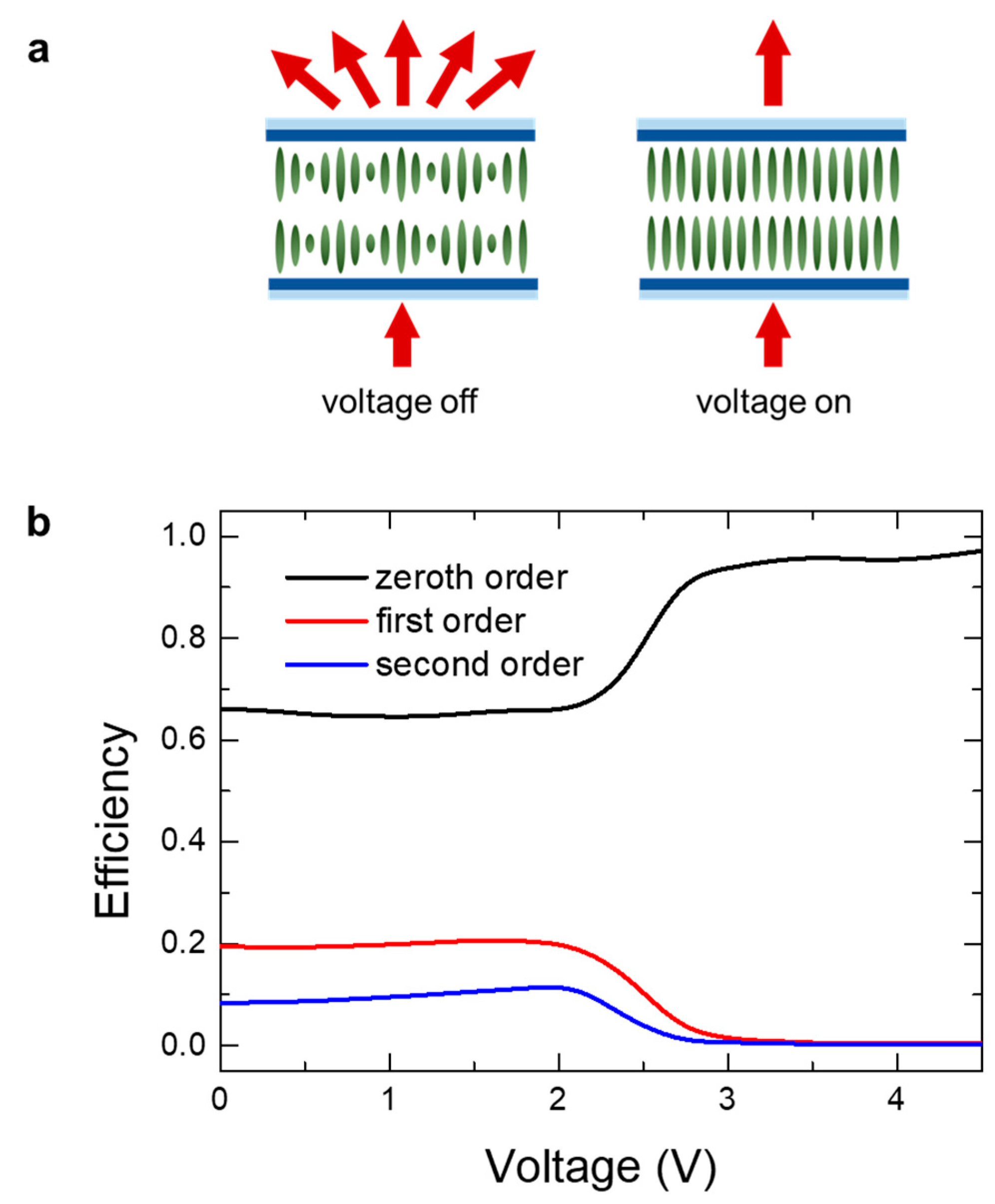

The fabricated ULH cell is switchable by merely applying a voltage wave. Figure 7a shows the schematic operation of the fabricated ULH cell. Initially, the incident light is diffracted by the ULH texture. When a vertical electric field is applied to the cell, the LC molecules are reoriented along the vertical direction. Therefore, the light passes through the cell with no diffraction. Figure 7b shows the measured diffraction efficiency for each order η_m = I_m/I₀ as the applied voltage is increased. Initially, the diffraction efficiency of the zeroth-, first-, and second-order was 66.1%, 19.5%, and 8.4%, respectively. As expected, the increase in the applied voltage led to increased zeroth-order efficiency and a decrease in other orders. When the applied voltage was over 3 V, the diffraction efficiency of the zeroth-order became 93.7%. The fabricated ULH cell can be switched at a low operating voltage of 3 V.

4. Conclusions

In summary, we have demonstrated a simple fabrication method of ULH cells for phase grating device applications. First, we found the condition for which the helical axis is aligned parallel to the substrates. Then, we fabricated the ULH cell by aligning LCs in one direction through the mechanical rubbing process. We measured the diffraction properties, such as diffraction angle and diffraction efficiency, and compared them with the calculated results. We confirmed that the diffraction efficiency could be maximized by optimizing the cell gap. It is switchable by merely controlling the applied voltage with a low operating voltage of 3 V. We can expect potential applications for diffraction optics, optical interconnect, and beam steering devices.
