In Situ Growth of Ti3C2/UiO-66-NH2 Composites for Photoreduction of Cr(VI)

by
Huan He
1,
Xusheng Wang
1,2,*,
Qin Yu
1,
Wenbin Wu
1,
Xinya Feng
1,
Deyu Kong
1,
Xiaohui Ren
3 and
Junkuo Gao
1,*
1
Institute of Functional Porous Materials, School of Materials Science and Engineering, Zhejiang Sci-Tech University, Hangzhou 310018, China
2
Guangdong Provincial Key Laboratory of Functional Supramolecular Coordination Materials and Applications, College of Chemistry and Materials Science, Jinan University, Guangzhou 510632, China
3
The State Key Laboratory of Refractories and Metallurgy, School of Materials and Metallurgy, Wuhan University of Science and Technology, Wuhan 430081, China
*
Authors to whom correspondence should be addressed.
Catalysts 2023, 13(5), 876; https://doi.org/10.3390/catal13050876
Submission received: 18 April 2023 / Revised: 8 May 2023 / Accepted: 10 May 2023 / Published: 12 May 2023
(This article belongs to the Special Issue Applications and New Trends in Catalysts and Photocatalytic Nanomaterials for Environmental Remediation)
Browse Figures
Review Reports Versions Notes

Abstract

Cr(VI) is one of the most toxic heavy metals, posing multiple threats to humans and ecosystems. Photoreduction of toxic Cr(VI) to para-toxic Cr(III) is one of the most effective ways to remove heavy metal chromium but is still challenging. Herein, Ti3C2/UiO-66-NH2 composites with different ratio of Ti3C2 were synthesized via an in situ solvothermal process and used for the enhanced photocatalytic removal of Cr(VI) for the first time. The UiO-66-NH2 nanoparticles were dispersed on the surface and slits of accordion-like Ti3C2 homogeneously. A strong interfacial interaction between Ti3C2 and UiO-66-NH2 was formed, which was indicated by the XPS. The Fermi level of the MXene cocatalyst is lower than UiO-66-NH2; thus, Ti3C2 can serve as the electron sink and accumulate photogenerated electrons from UiO-66-NH2 on its surface. A depletion layer was also formed due to the different Fermi levels of UiO-66-NH2 and Ti3C2, which prevents electrons from flowing back to UiO-66-NH. The strong interfacial interaction and formed depletion layer are beneficial for the following charge transfer from UiO-66-NH2 to Ti3C2 after light irradiation and for suppressing the photogenerated charge recombination. With suitable band positions and enhanced charge separation ability, Ti3C2/UiO-66-NH2 composites exhibited better photoreduction efficiency of Cr2O72− than pure Ti3C2 and UiO-66-NH2, with optimized samples reaching 100% in 40 min. The photoreduction kinetics of Cr2O72− by 2-T/U was also studied, with a photoreduction rate of 0.0871 min−1, which is about 2.6 times higher than that of the pure UiO-66-NH. This research provides a new type of efficient and environmentally friendly photocatalysts for the photoreduction of Cr2O72−.

Graphical Abstract

1. Introduction

The concentration of heavy metals (chromium, lead, arsenic, cadmium, mercury, etc.) in aquatic systems has increased at an alarming rate with the development of the economy. These heavy metals have posed multiple threats to humans and ecosystems. Of the various heavy metals, chromium is reported to be one of the most common and toxic contaminants in aquatic systems and is in the list of top 20 hazardous pollutants [1]. Generally, Cr(VI) is toxic, while Cr(III) is para-toxic and easily forms a precipitate that can be removed [2]. The main sources of Cr(VI) are diverse, including the metal processing, dyes, automobile, leather, mining, and textile industries. Thus, it is important to develop effective purification technologies including chemical precipitation, adsorption, filtration, and biological treatment. However, the use of these techniques also suffers from expensive processing, high consumption of chemicals, and poor possibilities of sustainable development [3]. Therefore, it is urgent to find an effective way to eliminate emerging hazardous pollutants such as Cr(VI). Photocatalytic techniques are an emerging method for solar fuel production and environmental remediation, with the help of clean solar energy and high performance photocatalysts [4,5,6,7,8,9,10,11,12,13,14,15,16,17]. In this respect, photocatalytic techniques are also found to be an effective and ecofriendly approach to convert toxic Cr(VI) into hypo-toxic Cr(III) forms [18,19,20,21].
Metal–organic frameworks (MOFs) are a kind of emerging porous material with a highly ordered network, high adsorption capacity, tunable pore sizes, large surface area, and rich active sites [22,23,24,25]. These outstanding characteristics have made them successfully applicable in gas capture/storage/separation, photo/electro-catalysis, sensing, drug delivery, batteries, etc. [26,27,28,29,30,31]. Constructing MOFs with light harvesting abilities is easy and convenient because of the richness of organic linkers, thereby making them unique platforms for photocatalysis [32,33,34,35]. In recent years, several MOFs have been utilized for hexavalent chromium reduction in aqueous solutions [2,20,21,36]. For example, two famous MOFs, UiO-66-NH2 and MIL-125-NH2, were first applied for this reaction, due to their light absorption ability and porous structures [37,38]. Further functionalization of MOFs by introducing strong anions adsorption structures and visible-light absorption porphyrin units simultaneously, allowing for MOFs with stronger Cr(VI) ions adsorption and light-harvesting abilities, and further enhancing the photoreduction efficiency [39]. Though some progress has been achieved using pure MOFs for photoreduction of toxic Cr(VI) to para-toxic Cr(III), the lack of enough active sites and the low conductivity of MOFs has still restricted their catalytic performance.
MXenes are a kind of two-dimensional (2D) material, including transition metal carbides, nitrides, or carbonitrides [40]. They have excellent mechanical, electrical, and thermal properties, and can be applied for photo/electro-catalysis, energy storage, sensors, etc. [41]. They can also be further functionalized to expand their range of applications and properties [42]. With the excellent electrical conductivity and abundant uncoordinated metal sites of Ti3C2 MXene, intimate contact with MOFs has been achieved, benefitting the further separation of photogenerated charge carriers during photocatalysis [43,44]. Thus, formed functional photocatalysts combining MXene with MOFs are expected to be suitable for the photoreduction of toxic Cr(VI) to para-toxic Cr(III), but have not yet been realized.
Herein, Ti3C2/UiO-66-NH2 with different ratio of Ti3C2 was synthesized via an in situ solvothermal process for enhancing the photoreduction efficiency of Cr(VI) for the first time. The UiO-66-NH2 nanoparticles were dispersed on the surface and slits of accordion-like Ti3C2 homogeneously. A strong interfacial interaction between Ti3C2 and UiO-66-NH2 was formed, as indicated by the XPS. The Fermi level of the MXene cocatalyst is lower than UiO-66-NH2; thus, Ti3C2 can work as an electron sink, accumulating photogenerated electrons from UiO-66-NH2 on its surface. A depletion layer was also formed due to the different Fermi levels of UiO-66-NH2 and Ti3C2, which prevents electrons from flowing back to UiO-66-NH. The strong interfacial interaction and formed depletion layer are beneficial for the following charge transfer from UiO-66-NH2 to Ti3C2 after light irradiation and for suppressing the photogenerated charge recombination. With suitable band positions and enhanced charge separation ability, Ti3C2/UiO-66-NH2 composites exhibited better photoreduction efficiency of Cr2O72− than pure Ti3C2 and UiO-66-NH2, with optimized samples reaching 100% in 40 min. The photoreduction mechanism was also well studied.

2. Results and Discussion

2.1. Structural Characterizations

A schematic diagram for Ti3C2 MXene and Ti3C2/UiO-66-NH2 composites synthesis is shown in Scheme 1. The commercial Ti3AlC2 powder showed typical peaks of Ti3AlC2 phase based on JCPDS card #52-0875 centered at 9.62° (002), 19.24° (004), 34.10° (101), 36.82° (103), 39.08° (104), 41.84° (105), and 48.53° (107) (Figure 1a). Ti3C2 MXene was synthesized by etching Ti3AlC2 powder with HF [45]. The diffraction peak at 39.08° (104) in Ti3AlC2 disappeared after etching, which demonstrated the successful elimination of Al layers after HF etching to form 2D Ti3C2 MXene. The main peaks of the obtained Ti3C2 MXene centered at 9.0° (002) and 18.3° (004) were slightly shifted from the 9.62° (002) and 19.24° (004) of Ti3AlC2, indicating a change in c-lattice parameter after elimination of Al layers [46]. The obtained Ti3C2 MXene also showed similar peaks to those in previous reported literature (9.0°, 18.3°, 27.7°, 36.1°, 41.9°, and 61.0°) [47]. UiO-66-NH2 was further prepared using the traditional solvothermal method [48]. The successful synthesis of UiO-66-NH2 was also proved by PXRD patterns with peak positions at 7.36°, 8.48°, 12.04°, 25.68°, and 33.12° in the region of 3–50°, which is similar to the previous reported literature (Figure 1b) [49]. Ti3C2/UiO-66-NH2 composites were further synthesized by in situ growth of MOFs on the Ti3C2 surface in solvothermal conditions. Contents of 5 wt%, 10 wt%, 15 wt%, and 20 wt% Ti3C2 in Ti3C2/UiO-66-NH2 composites were obtained by adjusting the ratio of Ti3C2 and the precursor UiO-66-NH2, and named as 1-T/U, 2-T/U, 3-T/U, and 4-T/U, respectively. The 1-T/U and 2-T/U had no obvious characteristic peak of Ti3C2 (9°), which is attributed to their low content of MXene (Figure 1b). As expected, the characteristic peak of Ti3C2 (9°) appeared in 3-T/U and 4-T/U due to the increasing content of Ti3C2.
The distribution of UiO-66-NH2 in the Ti3C2/UiO-66-NH2 composites was characterized by scanning electron microscopy (SEM). Ti3C2 exhibited accordion-like structures after etching by HF, further confirming that the Al layers of Ti3AlC2 were successfully removed (Figure 2a). The morphology of UiO-66-NH2 is regularly octahedral, which was also revealed by the SEM pictures (Figure 2b). The morphology of both UiO-66-NH2 and Ti3C2 were maintained in the Ti3C2/UiO-66-NH2 composites, and the UiO-66-NH2 nanoparticles were dispersed on the surface and slits of Ti3C2 (Figure 2c–f). EDS and mapping of Ti3C2/UiO-66-NH2 composites has been added as Figures S1 and S2 and Table S1. Take 4-T/U as an example: all the elements of O, N, Ti, F, and Zr can be found in the EDX of 4-T/U (Figure S1, Table S1). A low Ti element content was found, with 1.27 wt.% and 0.52 atom%, respectively, indicating that Ti3C2 had been well covered by UiO-66-NH. The mapping of Ti3C2/UiO-66-NH2 composites further indicated that the UiO-66-NH2 nanoparticles were dispersed homogeneously on the surface and slits of Ti3C2 (Figure S2).
The valence state, chemical composition, and possible interfacial interaction between UiO-66-NH2 and MXene of Ti3C2/UiO-66-NH2 composites were further characterized by X-ray photoelectron spectroscopy (XPS) (Figure 3 and Figure S3). All the spectra were calibrated by C 1s (Figure S3). Figure 3a showed the survey spectra of Ti3C2, 2-T/U, and UiO-66-NHIn Ti3C2. F and O elements were present but not C and Ti, indicating surface functional groups were introduced after etching the Ti3AlC2 powder. All the Zr, C, O, and N elements were present in UiO-66-NH2, and both Ti3C2 and UiO-66-NH2 were proven to be present in 2-T/U because of the existence of all elements of those two parts. High-resolution Ti 2p XPS in Ti3C2 and 2-T/U were further studied in Figure 3b. Ti 2p in Ti3C2 can be deconvoluted into two pairs of peaks with Ti 2p3/2, located at 455.2 and 456.4 eV, which were related with Ti-C and terminal Ti-O/F, respectively (Figure 3b) [50]. Compared with Ti3C2, Ti-C in 2-T/U moved to 455.0 eV and terminal Ti-O/F moved in the opposite direction to 458.0 eV (Figure 3b). The shifting of the binding energy of Ti 2p in 2-T/U might be ascribed to the newly formed coordination bond between carboxylate and Ti from UiO-66-NH2 and Ti3C2, respectively. Therefore, a strong interfacial interaction between Ti3C2 and UiO-66-NH2 in 2-T/U was formed, which is beneficial for the following charge transfer between UiO-66-NH2 and Ti3C2 after light irradiation. In addition, compared with UiO-66-NH2, the binding energy of both N 1s and Zr 3d in 2-T/U were not moved in 2-T/U, implying those two elements were not participants in the formation of a new coordination bond (Figure 3c,d).
FT-IR spectroscopy analysis of the chemical structures of the as-prepared samples was also conducted. As shown in Figure 4a, the FT-IR spectra of x-T/U (x = 1, 2, 3, 4) are very similar to those of UiO-66-NH2, indicating the presence of UiO-66-NH2 in the x-T/U photocatalyst. The large and broad absorption peak at 3430 cm−1 is due to the -NH2 and -OH groups in UiO-66-NH2 [51]. The two peaks at 1580 cm−1 and 1440 cm−1 are attributed to the stretching vibrations of the benzene ring, with a carbon-based stretching vibration also observed at 1580 cm−1 [52]. The peaks at 1260 cm−1 and 1390 cm−1 were assigned to the C-N bond, while the peak at 769 cm−1 is likely because of the C-H bond bending vibration in the benzene ring [53]. The peak at 667 cm−1 was assigned to the Zr-O bond stretching vibration [54].
The porosity properties of the photocatalysts were measured using N2 sorption isotherms (Figure 4b). UiO-66-NH2 showed type-I isotherms with high N2 sorption levels, suggesting it is a highly porous material with the presence of uniform micropore. After combination with Ti3C2, the Ti3C2/UiO-66-NH2 composites still kept their highly porous structure. The highly porous structure of photocatalysts will benefit their concentration of pollution and light harvesting abilities [55].

2.2. Photoelectrochemical Characterizations of Photocatalysts

To study the light harvesting abilities and bandgap of the prepared samples, solid UV–Vis diffusion reflectance spectroscopy (UV–Vis DRS) spectra of the photocatalysts were further investigated. Ti3C2 showed a high visible light absorption range but had no obvious absorption edge due to its metallic nature (Figure 5a) [50,55]. UiO-66-NH2 exhibited a strong visible light harvesting ability to 450 nm. Compared with UiO-66-NH2, a red shift of the absorption range was found in 2-T/U. The bandgap energy (Eg) of UiO-66-NH2 and 2-T/U were further calculated using the Kubelka–Munk equation ((αhν)2 = A(hν − Eg)). As shown in Figure 5b, the bandgap of 2-T/U was calculated to be 2.86 eV, which was somewhat smaller than that of the pure UiO-66-NH2 (2.93 eV). The decreasing of the bandgap originated from the formed heterojunction between UiO-66-NH2 and Ti3C2, which affected the later photoreduction performance [56]. To fully obtain the bandgap information of UiO-66-NH2, the conduction band (CB) potential was investigated by Mott–Schottky plot. As shown in Figure 6a, UiO-66-NH2 showed a typical n-type semiconductor behavior with positive slopes. The CB potential of UiO-66-NH2 was calculated to be −0.79 eV versus NHE. Combined with the bandgap of 2.93 eV, the valence band (VB) can be calculated to be 2.14 eV. In Ti3C2/UiO-66-NH2, the Fermi level of MXene cocatalyst is lower than UiO-66-NH. Therefore, Ti3C2 will serve as the electron sink, and lower the CB position of Ti3C2/UiO-66-NH. With the VB of 2.14 eV and bandgap of 2.86 eV of 2-T/U, the CB position can be calculated to be −0.72 eV.
To explore the photogenerated charge separation ability, transient photocurrent (TPC) response and steady photoluminescence (PL) spectra were studied. The TPC responses of UiO-66-NH2 and 2-T/U were conducted under visible light irradiation. As shown in Figure 6b, the 2-T/U composite showed a much stronger signal compared with UiO-66-NH2, indicating a more efficient photogenerated charge separation ability. The excellent performance of 2-T/U might be attributed to the Schottky heterojunction formed between UiO-66-NH2 and Ti3C. The excellent charge separation ability of 2-T/U was also confirmed by the steady PL spectra, where the excitation wavelength was set at 390 nm. As shown in Figure 6c, UiO-66-NH2 showed a strong emission peak at 465 nm, which can be attributed to the high recombination rate of photo-generated charge carriers. After the introduction of Ti3C2, the peak intensity of 2-T/U decreased significantly, indicating that the recombination of the charge carriers was greatly suppressed [57]. The charge transfer efficiency of UiO-66-NH2 and 2-T/U were also studied using electrochemical impedance spectroscopy (EIS). As shown in Figure 6d, 2-T/U showed the smaller arc radius compared with UiO-66-NH2, indicating a better charge transfer ability [43].

2.3. Photocatalytic Performance of Photocatalysts

Encouraged by the strong light harvesting ability and efficient separation ability of photogenerated charge carriers, the Ti3C2/UiO-66-NH2 composites were applied for the photoreduction of toxic Cr(VI) to para-toxic Cr(III) under visible light irradiation. Previous studies have revealed that the photoreduction of Cr(VI) can be accelerated at low pH values, and in acidic conditions the present form of Cr(VI) is mainly Cr2O72− anions [39]. Therefore, this reaction was conducted at pH = 2, and the residual Cr2O72− was monitored by the UV–Vis spectra of diphenylcarbazide (DPC)-Cr2O72− solutions. As shown in Figure 7a,b, MXene can only adsorb Cr2O72− but not convert it to Cr3+ under visible light. In contrast, both UiO-66-NH2 and Ti3C2/UiO-66-NH2 composites can promote the adsorption of Cr2O72− anions, and further convert the adsorbed Cr2O72− to reduced Cr3+ smoothly. The removal of Cr2O72− by UiO-66-NH2 can reach 80% after 40 min visible light irradiation. The removal was enhanced dramatically after the introduction of MXene in the Ti3C2/UiO-66-NH2 composites, especially for the optimal 2-T/U, which can reach 100% under the same conditions. Digital photographs of the solution also prove that almost of all the Cr2O72− anions had been removed (Figure S4). The effect of catalyst dose and substrate concentration were also examined (Figure S5). A higher dose of Ti3C2/UiO-66-NH2 is beneficial for the photoreduction rate, and it is hard to remove all the Cr2O72− anions with a concentration above 100 ppm.
To further evaluate their photoreduction performance, the photoreduction kinetics (Figure 7c) of Cr2O72− by photocatalysts were examined based on the data in Figure 7a and all the samples were found to follow pseudo-first-order kinetics. The observed photoreduction rate of the optimized Ti3C2/UiO-66-NH2 composite, 2-T/U, achieved a photoreduction rate of 0.0871 min−1, which is about 2.6 times higher than that of the pure UiO-66-NH. The much higher photoreduction rate of 2-T/U might be ascribed to the formed heterojunction structure between Ti3C2 and UiO-66-NH2, which can promote the separation of photogenerated electrons and holes [43]. The comparison of photoreduction performance of our results with previous studies also proved that 2-T/U is an excellent photocatalyst for the removal of Cr2O72− anion (Tables S2–S4).
Moreover, 2-T/U showed excellent chemical stability, which had been proved by the recycling experiments, and retained PXRD patterns after photoreduction (Figure 7d and Figure S6).
ESR analyses of ·O2− and ·OH produced by Ti3C2/UiO-66-NH2 were further conducted, as shown as Figure 7e,f. These species were not detected without light irradiation. After exposure to visible light for 10 min, obvious DMPO-·O2− and DMPO-·OH− peaks were detected [58]. The photoreduction mechanisms of Cr2O72− by Ti3C2/UiO-66-NH2 were further proposed based on the previous results. In Ti3C2/UiO-66-NH2, the Fermi level of the MXene cocatalyst is lower than that of UiO-66-NH. Therefore, Ti3C2 can serve as the electron sink, and accumulates photogenerated electrons from UiO-66-NH2 on its surface [59]. A depletion layer was also formed due to the different Fermi levels of UiO-66-NH2 and Ti3C2, which prevents electrons from flowing back to UiO-66-NH. Therefore, the accumulated electrons on Ti3C2 in the Ti3C2/UiO-66-NH2 composites can further reduce the Cr2O72− to Cr3+. These accumulated electrons can also reduce O2 to ·O2− species, which was detected using ESR experiments. The produced ·O2− species can also help to reduce the Cr2O72− to Cr3+ [60]. Correspondingly, the residual holes in the VB of Ti3C2/UiO-66-NH2 can oxide H2O to ·OH, which was proved via ESR experiments. The formed ·OH mainly facilitates the separation of photogenerated charge carriers to improve the reduction of Cr2O72− [60].

3. Materials and Methods

3.1. Chemical Regents

Titanium aluminum carbide (Ti3AlC2, 98%, 200 mesh, Maclin), zirconium chloride (ZrCl4, 98%, Maclin), 2-aminoterephthalic acid (BDC-NH2, 98%, Maclin), and hydrofluoric acid (HF, 40%, Maclin), N, N-dimethylformamide (AR, DMF, Aladdin), acetic acid (AR, HAc, Aladdin), methanol (AR, Aladdin), absolute ethyl alcohol (AR, Aladdin), K2Cr2O7 (99.8%, Tianjin Jinnan), isopropanol (AR, Aladdin), H2SO4 (AR, 95–98%, Shuanglin chemical regent), Na2SO4 anhydrase (AR, Maclin), Nafion ‘D-521 dispersion, 5% w/w in water and 1-propanol (Alfa Aesar), diphenylcarbazide (AR, Maclin), acetone (99.5%, Shuanglin chemical regent), and HCl (36–38%, Shuanglin chemical regent) were used directly without further purification.

3.2. Synthesis of Accordion-Like Ti3C2 MXene

Ti3C2 MXenes were synthesized based on the previous literature [1]. Typically, 1 g Ti3AlC2 powder was mixed with 35 mL of 40% concentrated HF while stirring at room temperature for 24 h. Then, the suspension was ultrasonically treated for 1 h in an ultrasonic bath. The obtained suspension was washed with deionized water and alcohol by centrifugation until the pH of the solution reached 2. At last, the Ti3C2 MXene powder was obtained after freeze-drying for 2 days.

3.3. Synthesis of UiO-66-NH2

UiO-66-NH2 was synthesized based on the previous reported literature with a slight modification [48]. A typical synthetic procedure was used, as follows: 0.1433 g ZrCl4 was dissolved in 25 mL DMF for 1 h stirring, then 0.1114 g BDC-NH2 was added with another 20 min stirring. Afterwards, 5 mL of HAc was added to the above solution, and then transferred into a 100 mL autoclave heated at 120 °C for 4 h. After cooling naturally to room temperature, the precipitate was washed with DMF and anhydrous methanol. Finally, the obtained yellow solids were dried at 80 °C in a vacuum overnight to obtain the UiO-66-NH2.

3.4. Synthesis of Ti3C2/UiO-66-NH2

The Ti3C2/UiO-66-NH2 was synthesized as follows: 0.1433 g ZrCl4 was pre-dissolved in a solvent mixture of 25 mL DMF and 5 mL HAc, then quantitative Ti3C2 (25, 50, 75, and 100 mg) were added into the above solution. After stirring for 1 h, pre-dissolved BDC-NH2 (0.137 g) in 10 mL DMF was added into the solution and stirred for another 0.5 h. Afterwards, the above mixture was transferred into a 100 mL autoclave and kept at 120 °C for 24 h. After cooling naturally to room temperature, the precipitate was washed with DMF and anhydrous methanol. Finally, the obtained yellow solids were dried at 80 °C in a vacuum overnight, and named as 5 wt% Ti3C2/UiO-66-NH2, 10 wt% Ti3C2/UiO-66-NH2, 15 wt% Ti3C2/UiO-66-NH2, and 20 wt% Ti3C2/UiO-66-NH2, abbreviated as 1-T/U, 2-T/U, 3-T/U, and 4-T/U, respectively.

3.5. Material Characterizations

The purity and crystal phase of the photocatalysts were characterized using a powder X-ray diffractometer (PXRD, D8 ADVANCE, Bruker, MA, USA). The specific surface areas (Brunauer−Emmett−Teller, BET) of those photocatalysts were calculated using N2 sorption isotherms measured at 77 K on a micromeritics (BSD instrument, Beijing, China). Morphologies of the photocatalysts were characterized via scanning electron microscopy (SEM, JEOL, Akishima, Japan). To obtain Fourier transform infrared spectra (FTIR), the photocatalysts were mixed in potassium bromide to form a pellet and characterized on a Thermo Scientific Nicolet iS50 FT-IR spectrometer (Thermo Scientific, Waltham, MA, USA). X-ray photoelectron spectroscopy (XPS) spectra were obtained on X-ray photoelectron spectrometer (Escalab 250Xi, Thermo Scientific, Waltham, MA, USA). With C 1s peak (284.8 eV, surface adventitious carbon) as reference, the binding energy of all photocatalysts was calibrated. The photoluminescence (PL) spectra were analyzed using a FLS980 Series of Fluorescence Spectrometers with an excitation wavelength of 390 nm (OXFORD instrument, Oxford, England). The electrochemical impedance spectroscopy (EIS) spectra, Mott–Schottky, and transient photocurrent (TPC) response were measured via a CHI660E electrochemical workstation (Chenhua, Shanghai, China) in a standard three-electrode configuration. The light harvesting abilities of the photocatalysts were measured using a UV–Vis spectrophotometer (UH4150, Hitachi, Tokyo, Japan).

3.6. Photoelectrochemical Characterizations

The photoelectrochemical characterizations were conducted on a CHI660E electrochemical workstation. A three-electrode configuration with a Pt plate as the counter electrode and an Ag/AgCl electrode as the reference electrode was used. The working electrode was prepared on a carbon cloth, which was first cleaned in isopropyl alcohol and naphthyl hydroxide for 40 min, respectively, by ultrasonication. Afterwards, the carbon cloth was dried at 60 °C overnight. Typically, the photocatalyst (10 mg) was ultrasonicated in isopropyl alcohol (1.0 mL) and naphthyl hydroxide (30 μL) to form a homogeneous slurry, then the slurry was dispersed onto the carbon cloth with an area of 1.0 cm2 and dried. The electrolyte was then applied for Mott–Schottky, photocurrent, and electrochemical impedance spectra (EIS) measurement in 0.1 M Na2SO4 solution.

3.7. Photocatalytic Activity

The photoreduction of Cr(VI) by Ti3C2, UiO-66-NH2, and Ti3C2/UiO-66-NH2 composites was conducted at room temperature under visible light irradiation. A 300 W Xe lamp (420 nm < λ < 780 nm) was utilized as the light source, a home-made photoreactor as the photoreaction vessel, and 10 mg of photocatalyst was added to a 40 mL K2Cr2O7 solution with a concentration of 100 mg/L and pH of 2. The suspension solution was first stirred in the dark for 30 min, and then 2 mL of the suspension was collected every 10 min after irradiation using a 300 W Xe light with a L42 light cutter for 40 min. The obtained suspension solution was filtered with a 0.22 μm microporous membrane, and analyzed via the diphenylcarbazide colorimetric method, using a UV–Vis Spectro photometer (U-3900, Hitachi, Japan). The absorbance at 542 nm (the maximum absorption wavelength of Cr(VI)) gradually decreased as reaction time increased [28,29]. The removal efficiency of Cr(VI) was calculated using the following equation: Cr(VI) removal (%) = (1 − C/C0) × 100%. For the recycling experiment, 10 mg of 2-T/U was added into 40 mL of K2Cr2O7 solution (100 mg/L, pH = 2) stirring for 30 min in dark. Then, the suspension was irradiated using a 300 W Xe light with a L42 light cutter for 40 min. After the reaction, 2 mL of the suspension was collected and filtered with a 0.22 μm microporous membrane, and analyzed via the diphenylcarbazide colorimetric method, using a UV–Vis Spectro photometer (U-3900, Hitachi, Japan). The suspension was then centrifuged at 10,000 rpm for 5 min and washed with water until the pH reach 6. Then the obtained 2-T/U was dried at 60 °C and used for the next run. It should be noted that a little of the samples (around 2 mg) was lost during operation, and a little fresh sample was added to make sure the weight of 2-T/U was maintained at 10 mg for the next run.

3.8. Standard Curve Diagram

First, 0.25 g potassium dichromate, deionized water, and hydrochloric acid solution were added to a 250 mL volumetric flask to prepare a mother potassium dichromate solution with a pH = 2 and a concentration of 1000 mg/L, respectively. Using the mother solution, potassium dichromate solutions of 0, 20, 40, 60, 80, and 100 ppm with pH = 2 were prepared. The potassium dichromate solutions with different concentrations were measured using a UV–Vis Spectrophotometer (U-3900, Hitachi, Japan), using the diphenylcarbazide colorimetric method (Figure S7).

4. Conclusions

In this work, we synthesized several Ti3C2/UiO-66-NH2 composites using an in situ solvothermal method. The ratio of Ti3C2 to UiO-66-NH2 can be easily adjusted. Contents of 5 wt%, 10 wt%, 15 wt%, and 20 wt% Ti3C2 in Ti3C2/UiO-66-NH2 composites were obtained by adjusting the ratio of Ti3C2 and the precursor UiO-66-NH2, and named as 1-T/U, 2-T/U, 3-T/U, and 4-T/U, respectively. The successful synthesis of Ti3C2/UiO-66-NH2 composites was proven by PXRD, SEM, XPS, FT-IR, etc. The morphology of both UiO-66-NH2 and Ti3C2 were maintained in the Ti3C2/UiO-66-NH2 composites, and the UiO-66-NH2 nanoparticles were dispersed on the surface and slits of Ti3C. A strong interfacial interaction between Ti3C2 and UiO-66-NH2 was formed, as indicated by the XPS. The optimized Ti3C2/UiO-66-NH2 with 10 wt% Ti3C2, named as 2-T/U, showed the best photoreduction performance, able to remove 100% Cr2O72− in 40 min. The photoreduction kinetics of Cr2O72− by 2-T/U were also studied, with a photoreduction rate of 0.0871 min−1, which is about 2.6 times higher than that of the pure UiO-66-NH. The much higher photoreduction rate of 2-T/U might be ascribed to the formed heterojunction structure between Ti3C2 and UiO-66-NH2, which can promote the separation of photogenerated charge carriers. This research provides a new type of efficient and environmentally friendly photocatalyst for the photoreduction of Cr2O72−.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/catal13050876/s1, Figure S1: EDX (a) and the corresponding area (b) of 4-T/U; Figure S2: Mapping of 4-T/U; Figure S3: XPS spectra of C 1s in 2-T/U and UiO-66-NH2; Figure S4: Digital photographs of all adsorption and photoreduction experiments by 10 mg of 2-T/U. (a) K2Cr2O7 solution and (b) diphenylcarbazide colorimetric method treated K2Cr2O7 solution. The times for samples from left to right for both (a) and (b) are −30, 0, 10, 20, 30, 40 min; Figure S5: The effect of catalyst dose (a) and substrate concentration (b) on photoreduction performance; Figure S6: PXRD patterns of 2-T/U before and after photocatalysis; Figure S7: Standard curve of potassium dichromate solution; Table S1: Mass and atom percentage of O, N, Ti, F, Zr elements in 4-T/U; Table S2: Comparison of photoreduction performance of our results with other photocatalysts [60,61,62,63,64,65,66,67,68]; Table S3: Kinetics values of photocatalysts in this work; Table S4: Kinetics values of photocatalysts in previous works [60,61,62,63,64,65,66,67,68].

Author Contributions

Conceptualization, X.W. and J.G.; methodology, H.H. and X.W.; software, H.H. and X.W.; validation, H.H. and X.W.; formal analysis, H.H. and X.W.; investigation, H.H., Q.Y., W.W., X.F., X.R. and D.K.; resources, X.W. and J.G.; data curation, X.W. and J.G.; writing—original draft preparation, H.H.; writing—review and editing, X.W.; visualization, H.H.; supervision, X.W. and J.G.; project administration, X.W. and J.G.; funding acquisition, X.W. and J.G. All authors have read and agreed to the published version of the manuscript.

Funding

We are grateful for the financial support from the Guangdong Basic and Applied Basic Research Foundation (No. 2020A1515110003), the National Natural Science Foundation of China (No. 22001094), research funds of Zhejiang Sci-Tech University (No. 21212302-Y), and the open fund of Guangdong Provincial Key Laboratory of Functional Supramolecular Coordination Materials and Applications (No. 2022A06).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wakeel, A.; Xu, M. Chromium morpho-phytotoxicity. Plants 2020, 9, 564. [Google Scholar] [CrossRef] [PubMed]
  2. Kumar, V.; Singh, V.; Kim, K.-H.; Kwon, E.E.; Younis, S.A. Metal-organic frameworks for photocatalytic detoxification of chromium and uranium in water. Coord. Chem. Rev. 2021, 447, 214148. [Google Scholar] [CrossRef]
  3. Chen, D.D.; Yi, X.H.; Zhao, C.; Fu, H.; Wang, P.; Wang, C.C. Polyaniline modified MIL-100(Fe) for enhanced photocatalytic Cr(VI) reduction and tetracycline degradation under white light. Chemosphere 2020, 245, 125659. [Google Scholar] [CrossRef] [PubMed]
  4. Liu, C.; Qian, X.; Wei, Q.; Chen, Z.; Chen, J.; Wang, W.; Chen, X.; Gao, J.; Liu, Y.; Xie, L. Construction of hydrostable cesium lead bromide-titania for visible-light degradation of tetracycline hydrochloride in water. J. Clean. Prod. 2022, 365, 132830. [Google Scholar] [CrossRef]
  5. Gao, J.; Qian, X.; Wei, Q.; Chen, Z.; Liu, C.; Wang, W.; Chen, J.; Chen, X.; Liu, Y.; Wei, G. Construction of core-shell cesium lead bromide-silica by precipitation coating method with applications in aqueous photocatalysis. J. Colloid Interface Sci. 2022, 623, 974–984. [Google Scholar] [CrossRef]
  6. Yang, X.; Chen, Z.; Zhao, W.; Liu, C.; Qian, X.; Zhang, M.; Wei, G.; Khan, E.; Hau Ng, Y.; Sik Ok, Y. Recent advances in photodegradation of antibiotic residues in water. Chem. Eng. J. 2021, 405, 126806. [Google Scholar] [CrossRef]
  7. Xiong, Q.; Chen, Y.; Xu, T.; Zhu, Z.; Chen, W.; Lu, W. Highly efficient purification of emerging pollutants and bacteria in natural water by g-C3N4-sheltered fibers containing TiO2. Appl. Surf. Sci. 2021, 559, 149839. [Google Scholar] [CrossRef]
  8. Wang, T.; Dai, Z.; Kang, J.; Fu, F.; Zhang, T.; Wang, S. A TiO2 nanocomposite hydrogel for hydroponic plants in efficient water improvement. Mater. Chem. Phys. 2018, 215, 242–250. [Google Scholar] [CrossRef]
  9. Zhang, Y.; Wang, X.; Ren, X.; Luo, S.; Huang, H.; Chen, R.; Shao, S.; Liu, D.; Gao, J.; Gui, J.; et al. Building rapid charge transfer channel via engineering Ni coordinated flexible polymer for efficient solar hydrogen evolution. Chem. Eng. J. 2023, 456, 141032. [Google Scholar] [CrossRef]
  10. Sun, Y.; Luo, Y.; Zhu, Y.; Fu, Y. Improved visible-light photocatalytic activity of sodium tantalum oxide via biomass-derived silk fibroin doping. Text. Res. J. 2018, 89, 1332–1339. [Google Scholar] [CrossRef]
  11. Jiang, T.; Jiang, G.; Li, L.; Chen, H.; Zhou, H.; Yao, J.; Kong, X.; Chen, W. N-Doped carbon hybrid conjugates as vectors for photocatalytic CS2 production. Mater. Res. Express 2015, 2, 045603. [Google Scholar] [CrossRef]
  12. Liu, B.; Xu, Y.; Cui, J.; Wang, S.; Wang, T. Carbon nanotubes-dispersed TiO2 nanoparticles with their enhanced photocatalytic activity. Mater. Res. Bull. 2014, 59, 278–282. [Google Scholar] [CrossRef]
  13. Wang, K.; Li, Y.; Li, J.; Zhang, G. Boosting interfacial charge separation of Ba5Nb4O15/g-C3N4 photocatalysts by 2D/2D nanojunction towards efficient visible-light driven H2 generation. Appl. Catal. B Environ. 2020, 263, 117730. [Google Scholar] [CrossRef]
  14. Jiang, L.; Li, J.; Wang, K.; Zhang, G.; Li, Y.; Wu, X. Low boiling point solvent mediated strategy to synthesize functionalized monolayer carbon nitride for superior photocatalytic hydrogen evolution. Appl. Catal. B Environ. 2020, 260, 118181. [Google Scholar] [CrossRef]
  15. Jamshaid, M.; Nazir, M.A.; Najam, T.; Shah, S.S.A.; Khan, H.M.; Rehman, A.U. Facile synthesis of Yb3+-Zn2+ substituted M type hexaferrites: Structural, electric and photocatalytic properties under visible light for methylene blue removal. Chem. Phys. Lett. 2022, 805, 139939. [Google Scholar] [CrossRef]
  16. Jamshaid, M.; Khan, M.I.; Fernandez, J.; Shanableh, A.; Hussain, T.; Rehman, A.U. Synthesis of Ti4+ doped Ca-BiFO3 for the enhanced photodegradation of moxifloxacin. New J. Chem. 2022, 46, 19848–19856. [Google Scholar] [CrossRef]
  17. Jamshaid, M.; Khan, H.M.; Nazir, M.A.; Wattoo, M.A.; Shahzad, K.; Malik, M.; Rehman, A.-U. A novel bentonite–cobalt doped bismuth ferrite nanoparticles with boosted visible light induced photodegradation of methyl orange: Synthesis, characterization and analysis of physiochemical changes. Int. J. Environ. Anal. Chem. 2022, 1–16. [Google Scholar] [CrossRef]
  18. Wang, C.C.; Ren, X.; Wang, P.; Chang, C. The state of the art review on photocatalytic Cr(VI) reduction over MOFs-based photocatalysts: From batch experiment to continuous operation. Chemosphere 2022, 303, 134949. [Google Scholar] [CrossRef]
  19. Liu, Z.; Yu, Y.; Zhu, X.; Fang, J.; Xu, W.; Hu, X.; Li, R.; Yao, L.; Qin, J.; Fang, Z. Semiconductor heterojunctions for photocatalytic hydrogen production and Cr(VI) Reduction: A review. Mater. Res. Bull. 2022, 147, 111636. [Google Scholar] [CrossRef]
  20. Jafarzadeh, M. Recent progress in the development of MOF-based photocatalysts for the photoreduction of Cr(VI). ACS Appl. Mater. Interfaces 2022, 14, 24993–25024. [Google Scholar] [CrossRef]
  21. Liu, W.; Guo, Z.; Jin, Z.; Chen, D.; Lu, T.; Jia, P.; Xing, H. Visible-light-driven sonophotocatalysis for enhanced Cr(VI) reduction over mixed-linker zirconium-porphyrin MOFs. Catal. Sci. Technol. 2022, 12, 2176–2183. [Google Scholar] [CrossRef]
  22. Wang, X.; Yang, X.; Chen, C.; Li, H.; Huang, Y.; Cao, R. Graphene quantum dots supported on Fe-based metal-organic frameworks for efficient photocatalytic CO2 reduction. Acta Chim. Sin. 2022, 80, 22–28. [Google Scholar] [CrossRef]
  23. Hu, N.; Cai, Y.; Li, L.; Wang, X.; Gao, J. Amino-functionalized titanium based metal-organic framework for photocatalytic hydrogen production. Molecules 2022, 27, 4241. [Google Scholar] [CrossRef]
  24. Lei, Z.; Tang, Q.; Ju, Y.; Lin, Y.; Bai, X.; Luo, H.; Tong, Z. Block copolymer@ZIF-8 nanocomposites as a pH-responsive multi-steps release system for controlled drug delivery. J. Biomater. Sci. Polym. Ed. 2020, 31, 695–711. [Google Scholar] [CrossRef] [PubMed]
  25. Li, G.; Cai, H.; Li, X.; Zhang, J.; Zhang, D.; Yang, Y.; Xiong, J. Construction of hierarchical NiCo2O4@Ni-MOF hybrid arrays on carbon cloth as superior battery-type electrodes for flexible solid-state hybrid supercapacitors. ACS Appl. Mater. Interfaces 2019, 11, 37675–37684. [Google Scholar] [CrossRef]
  26. Khan, U.; Nairan, A.; Gao, J.K.; Zhang, Q.C. Current progress in 2D metal-organic frameworks for electrocatalysis. Small Struct. 2022, 2200109. [Google Scholar] [CrossRef]
  27. Cai, Y.; Chen, H.; Liu, P.; Chen, J.; Xu, H.; Alshahrani, T.; Li, L.; Chen, B.; Gao, J. Robust microporous hydrogen−bonded organic framework for highly selective purification of methane from natural gas. Microporous Mesoporous Mater. 2023, 352, 112495. [Google Scholar] [CrossRef]
  28. Li, Y.W.; Wu, Y.H.; Li, T.T.; Lu, M.T.; Chen, Y.; Cui, Y.J.; Gao, J.K.; Qian, G.D. Tuning the electronic structure of a metal-organic framework for an efficient oxygen evolution reaction by introducing minor atomically dispersed ruthenium. Carbon Energy 2023, 5, e265. [Google Scholar] [CrossRef]
  29. Zhang, J.; Huang, J.; Wang, L.; Sun, P.; Wang, P.; Yao, Z.; Yang, Y. Coupling bimetallic NiMn-MOF nanosheets on NiCo2O4 nanowire arrays with boosted electrochemical performance for hybrid supercapacitor. Mater. Res. Bull. 2022, 149, 111707. [Google Scholar] [CrossRef]
  30. Yu, Z.; Kang, S.; Wang, J.; Tai, M.; Wang, X.; Ding, Y.; Jin, D.; Wang, L. Highly improved photoluminescence properties of novel ternary Eu(cpioa)phen metal–organic frameworks. Funct. Mater. Lett. 2022, 15, 2251026. [Google Scholar] [CrossRef]
  31. Sun, P.; Zhang, J.; Huang, J.; Wang, L.; Wang, P.; Cai, C.; Lu, M.; Yao, Z.; Yang, Y. Bimetallic MOF-derived (CuCo)Se nanoparticles embedded in nitrogen-doped carbon framework with boosted electrochemical performance for hybrid supercapacitor. Mater. Res. Bull. 2021, 137, 111196. [Google Scholar] [CrossRef]
  32. Fan, L.; Yu, Q.; Chen, J.; Khan, U.; Wang, X.; Gao, J. Achievements and perspectives in metal–organic framework-based materials for photocatalytic nitrogen reduction. Catalysts 2022, 12, 1005. [Google Scholar] [CrossRef]
  33. Wang, X.S.; Li, L.; Li, D.; Ye, J. Recent progress on exploring stable metal–organic frameworks for photocatalytic solar fuel production. Sol. RRL 2020, 4, 1900547. [Google Scholar] [CrossRef]
  34. Li, L.; Wang, X.S.; Liu, T.F.; Ye, J. Titanium-based MOF materials: From crystal engineering to photocatalysis. Small Methods 2020, 4, 2000486. [Google Scholar] [CrossRef]
  35. Huang, H.; Wang, X.-S.; Philo, D.; Ichihara, F.; Song, H.; Li, Y.; Li, D.; Qiu, T.; Wang, S.; Ye, J. Toward visible-light-assisted photocatalytic nitrogen fixation: A titanium metal organic framework with functionalized ligands. Appl. Catal. B Environ. 2020, 267, 118686. [Google Scholar] [CrossRef]
  36. Wang, C.-C.; Du, X.-D.; Li, J.; Guo, X.-X.; Wang, P.; Zhang, J. Photocatalytic Cr(VI) reduction in metal-organic frameworks: A mini-review. Appl. Catal. B Environ. 2016, 193, 198–216. [Google Scholar] [CrossRef]
  37. Shen, L.; Liang, R.; Luo, M.; Jing, F.; Wu, L. Electronic effects of ligand substitution on metal-organic framework photocatalysts: The case study of UiO-66. Phys. Chem. Chem. Phys. 2015, 17, 117–121. [Google Scholar] [CrossRef]
  38. Wang, H.; Yuan, X.; Wu, Y.; Zeng, G.; Chen, X.; Leng, L.; Wu, Z.; Jiang, L.; Li, H. Facile synthesis of amino-functionalized titanium metal-organic frameworks and their superior visible-light photocatalytic activity for Cr(VI) reduction. J. Hazard Mater. 2015, 286, 187–194. [Google Scholar] [CrossRef]
  39. Wang, X.-S.; Chen, C.-H.; Ichihara, F.; Oshikiri, M.; Liang, J.; Li, L.; Li, Y.; Song, H.; Wang, S.; Zhang, T.; et al. Integration of adsorption and photosensitivity capabilities into a cationic multivariate metal-organic framework for enhanced visible-light photoreduction reaction. Appl. Catal. B Environ. 2019, 253, 323–330. [Google Scholar] [CrossRef]
  40. Lamiel, C.; Hussain, I.; Warner, J.H.; Zhang, K. Beyond Ti-based MXenes: A review of emerging non-Ti based metal-MXene structure, properties, and applications. Mater. Today 2023, 63, 313–338. [Google Scholar] [CrossRef]
  41. Li, X.; Huang, Z.; Shuck, C.E.; Liang, G.; Gogotsi, Y.; Zhi, C. MXene chemistry, electrochemistry and energy storage applications. Nat. Rev. Chem. 2022, 6, 389–404. [Google Scholar] [CrossRef] [PubMed]
  42. Solangi, N.H.; Karri, R.R.; Mazari, S.A.; Mubarak, N.M.; Jatoi, A.S.; Malafaia, G.; Azad, A.K. MXene as emerging material for photocatalytic degradation of environmental pollutants. Coord. Chem. Rev. 2023, 477, 214965. [Google Scholar] [CrossRef]
  43. Wang, H.; Zhao, R.; Qin, J.; Hu, H.; Fan, X.; Cao, X.; Wang, D. MIL-100(Fe)/Ti3C2 MXene as a schottky catalyst with enhanced photocatalytic oxidation for nitrogen fixation activities. ACS Appl. Mater. Interfaces 2019, 11, 44249–44262. [Google Scholar] [CrossRef] [PubMed]
  44. Khazaei, M.; Ranjbar, A.; Arai, M.; Sasaki, T.; Yunoki, S. Electronic properties and applications of MXenes: A theoretical review. J. Mater. Chem. C 2017, 5, 2488–2503. [Google Scholar] [CrossRef][Green Version]
  45. Naguib, M.; Kurtoglu, M.; Presser, V.; Lu, J.; Niu, J.; Heon, M.; Hultman, L.; Gogotsi, Y.; Barsoum, M.W. Two-dimensional nanocrystals produced by exfoliation of Ti3AlC2. Adv. Mater. 2011, 23, 4248–4253. [Google Scholar] [CrossRef][Green Version]
  46. Wen, Y.; Rufford, T.E.; Chen, X.; Li, N.; Lyu, M.; Dai, L.; Wang, L. Nitrogen-doped Ti3C2Tx MXene electrodes for high-performance supercapacitors. Nano Energy 2017, 38, 368–376. [Google Scholar] [CrossRef]
  47. Zhao, X.; Liu, M.; Chen, Y.; Hou, B.; Zhang, N.; Chen, B.; Yang, N.; Chen, K.; Li, J.; An, L. Fabrication of layered Ti3C2 with an accordion-like structure as a potential cathode material for high performance lithium–sulfur batteries. J. Mater. Chem. A 2015, 3, 7870–7876. [Google Scholar] [CrossRef]
  48. Katz, M.J.; Brown, Z.J.; Colon, Y.J.; Siu, P.W.; Scheidt, K.A.; Snurr, R.Q.; Hupp, J.T.; Farha, O.K. A facile synthesis of UiO-66, UiO-67 and their derivatives. Chem. Commun. 2013, 49, 9449–9451. [Google Scholar] [CrossRef]
  49. Yang, Y.; Yao, H.-F.; Xi, F.-G.; Gao, E.-Q. Amino-functionalized Zr(IV) metal–organic framework as bifunctional acid–base catalyst for Knoevenagel condensation. J. Mol. Catal. A Chem. 2014, 390, 198–205. [Google Scholar] [CrossRef]
  50. Cao, S.; Shen, B.; Tong, T.; Fu, J.; Yu, J. 2D/2D heterojunction of ultrathin MXene/Bi2WO6 nanosheets for improved photocatalytic CO2 reduction. Adv. Funct. Mater. 2018, 28, 1800136. [Google Scholar] [CrossRef]
  51. Zeng, H.; Yu, Z.; Shao, L.; Li, X.; Zhu, M.; Liu, Y.; Feng, X.; Zhu, X. A novel strategy for enhancing the performance of membranes for dyes separation: Embedding PAA@UiO-66-NH2 between graphene oxide sheets. Chem. Eng. J. 2021, 403, 126281. [Google Scholar] [CrossRef]
  52. Zahid, M.; Zhang, D.; Xu, X.; Pan, M.; Ul Haq, M.H.; Reda, A.T.; Xu, W. Barbituric and thiobarbituric acid-based UiO-66-NH2 adsorbents for iodine gas capture: Characterization, efficiency and mechanisms. J. Hazard Mater. 2021, 416, 125835. [Google Scholar] [CrossRef]
  53. Lin, K.A.; Liu, Y.T.; Chen, S.Y. Adsorption of fluoride to UiO-66-NH2 in water: Stability, kinetic, isotherm and thermodynamic studies. J. Colloid Interface Sci. 2016, 461, 79–87. [Google Scholar] [CrossRef] [PubMed]
  54. Zhao, F.; Yang, W.X.; Han, Y.; Luo, X.L.; Tang, W.Z.; Yue, T.L.; Li, Z.H. A straightforward strategy to synthesize supramolecular amorphous zirconium metal-organic gel for efficient Pb(II) removal. Chem. Eng. J. 2021, 407, 126744. [Google Scholar] [CrossRef]
  55. Dong, F.; Wang, Z.; Li, Y.; Ho, W.K.; Lee, S.C. Immobilization of polymeric g-C3N4 on structured ceramic foam for efficient visible light photocatalytic air purification with real indoor illumination. Environ. Sci. Technol. 2014, 48, 10345–10353. [Google Scholar] [CrossRef]
  56. Low, J.; Zhang, L.; Tong, T.; Shen, B.; Yu, J. TiO2/MXene Ti3C2 composite with excellent photocatalytic CO2 reduction activity. J. Catal. 2018, 361, 255–266. [Google Scholar] [CrossRef]
  57. Ran, J.; Gao, G.; Li, F.T.; Ma, T.Y.; Du, A.; Qiao, S.Z. Ti3C2 MXene co-catalyst on metal sulfide photo-absorbers for enhanced visible-light photocatalytic hydrogen production. Nat. Commun. 2017, 8, 13907. [Google Scholar] [CrossRef][Green Version]
  58. Wang, Z.; Wang, K.; Li, Y.; Jiang, L.; Zhang, G. Novel BiSbO4/BiOBr nanoarchitecture with enhanced visible-light driven photocatalytic performance: Oxygen-induced pathway of activation and mechanism unveiling. Appl. Surf. Sci. 2019, 498, 143850. [Google Scholar] [CrossRef]
  59. Long, R.; Yu, Z.; Tan, Q.; Feng, X.; Zhu, X.; Li, X.; Wang, P. Ti3C2 MXene/NH2-MIL-88B(Fe): Research on the adsorption kinetics and photocatalytic performance of an efficient integrated photocatalytic adsorbent. Appl. Surf. Sci. 2021, 570, 151244. [Google Scholar] [CrossRef]
  60. Yi, X.-H.; Ma, S.-Q.; Du, X.-D.; Zhao, C.; Fu, H.; Wang, P.; Wang, C.-C. The facile fabrication of 2D/3D Z-scheme g-C3N4/UiO-66 heterojunction with enhanced photocatalytic Cr(VI) reduction performance under white light. Chem. Eng. J. 2019, 375, 121944. [Google Scholar] [CrossRef]
  61. Du, X.; Yi, X.; Wang, P.; Deng, J.; Wang, C.-C. Enhanced photocatalytic Cr(VI) reduction and diclofenac sodium degradation under simulated sunlight irradiation over MIL-100(Fe)/g-C3N4 heterojunctions. Chin. J. Catal. 2019, 40, 70–79. [Google Scholar] [CrossRef]
  62. Wang, J.-W.; Qiu, F.-G.; Wang, P.; Ge, C.; Wang, C.-C. Boosted bisphenol A and Cr(VI) cleanup over Z-scheme WO3/MIL-100(Fe) composites under visible light. J. Clean. Prod. 2021, 279, 123408. [Google Scholar] [CrossRef]
  63. Li, Y.X.; Wang, X.; Wang, C.C.; Fu, H.; Liu, Y.; Wang, P.; Zhao, C. S-TiO2/UiO-66-NH2 composite for boosted photocatalytic Cr(VI) reduction and bisphenol A degradation under LED visible light. J. Hazard Mater. 2020, 399, 123085. [Google Scholar] [CrossRef] [PubMed]
  64. Zhou, Y.-C.; Wang, P.; Fu, H.; Zhao, C.; Wang, C.-C. Ternary Ag/Ag3PO4/MIL-125-NH2 Z-scheme heterojunction for boosted photocatalytic Cr(VI) cleanup under visible light. Chin. Chem. Lett. 2020, 31, 2645–2650. [Google Scholar] [CrossRef]
  65. He, Q.; Fu, Y.; Ge, X.; Al-Enizi, A.M.; Nafady, A.; Wang, Q.; Ma, S. Facile fabrication of Fe-BDC/Fe-2MI heterojunction with boosted photocatalytic activity for Cr(VI) reduction. J. Environ. Chem. Eng. 2021, 9, 105961. [Google Scholar] [CrossRef]
  66. Chen, D.D.; Yi, X.H.; Ling, L.; Wang, C.C.; Wang, P. Photocatalytic Cr(VI) sequestration and photo-Fenton bisphenol A decomposition over white light responsive PANI/MIL-88A(Fe). Appl. Organomet. Chem. 2020, 34, e5795. [Google Scholar] [CrossRef]
  67. Wei, X.; Wang, C.C.; Li, Y.; Wang, P.; Wei, Q. The Z-scheme NH2-UiO-66/PTCDA composite for enhanced photocatalytic Cr(VI) reduction under low-power LED visible light. Chemosphere 2021, 280, 130734. [Google Scholar] [CrossRef] [PubMed]
  68. Zhao, C.; Wang, J.; Chen, X.; Wang, Z.; Ji, H.; Chen, L.; Liu, W.; Wang, C.C. Bifunctional Bi12O17Cl2/MIL-100(Fe) composites toward photocatalytic Cr(VI) sequestration and activation of persulfate for bisphenol A degradation. Sci. Total Environ. 2021, 752, 141901. [Google Scholar] [CrossRef]
Catalysts 13 00876 sch001

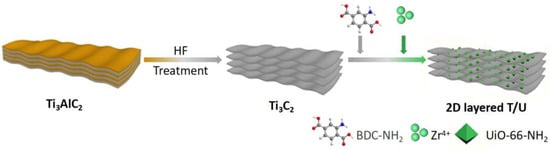

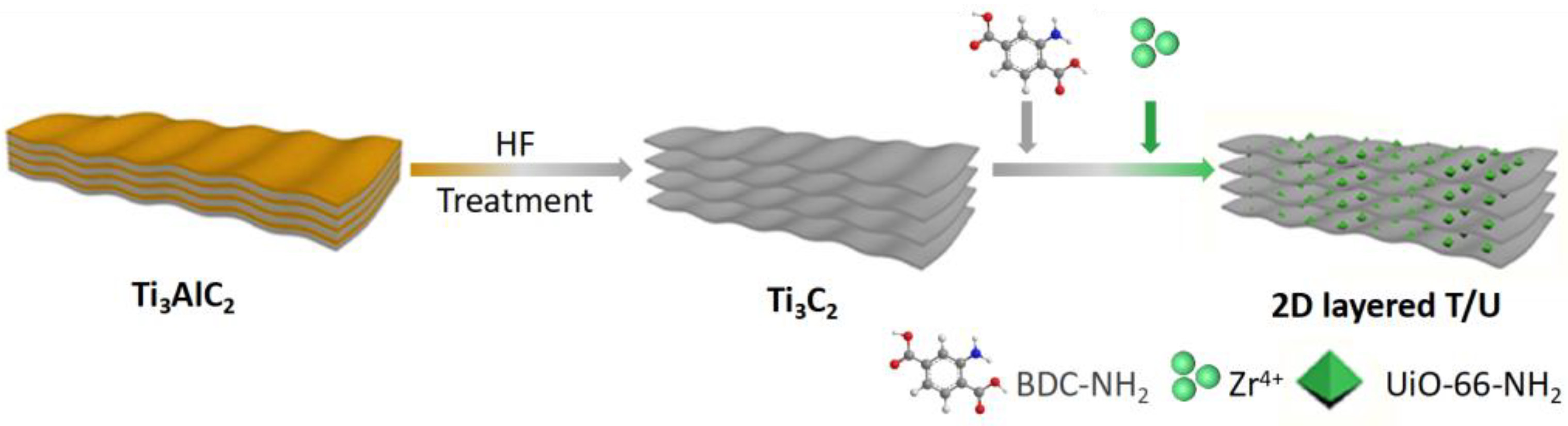

Scheme 1. Schematic diagram for Ti3C2 MXene and Ti3C2/UiO-66-NH2 composites synthesis.
Scheme 1. Schematic diagram for Ti3C2 MXene and Ti3C2/UiO-66-NH2 composites synthesis.
Catalysts 13 00876 sch001
Catalysts 13 00876 g001

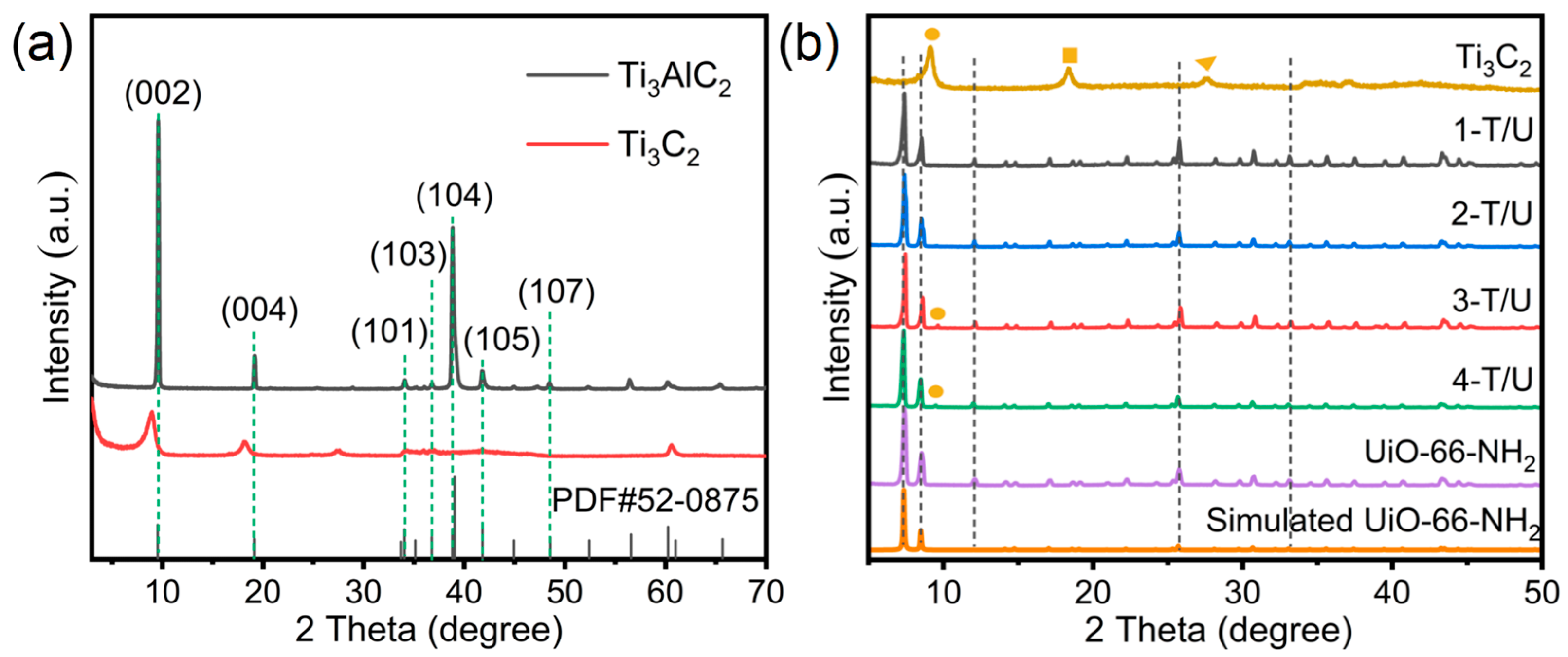

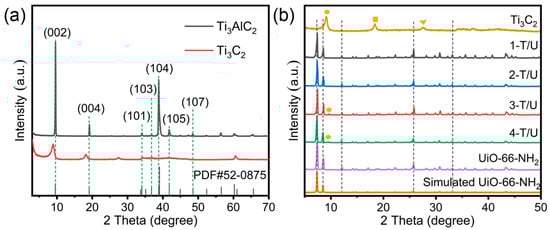

Figure 1. (a) PXRD patterns of Ti3C2 and Ti3AlC2; (b) PXRD patterns of Ti3C2, UiO-66-NH2, 1-T/U, 2-T/U, 3-T/U and 4-T/U.
Figure 1. (a) PXRD patterns of Ti3C2 and Ti3AlC2; (b) PXRD patterns of Ti3C2, UiO-66-NH2, 1-T/U, 2-T/U, 3-T/U and 4-T/U.
Catalysts 13 00876 g001
Catalysts 13 00876 g002
Figure 2. SEM images of Ti3C2 (a), UiO-66-NH2 (b), 1-T/U (c), 2-T/U (d), 3-T/U (e), and 4-T/U (f).
Figure 2. SEM images of Ti3C2 (a), UiO-66-NH2 (b), 1-T/U (c), 2-T/U (d), 3-T/U (e), and 4-T/U (f).
Catalysts 13 00876 g002
Catalysts 13 00876 g003

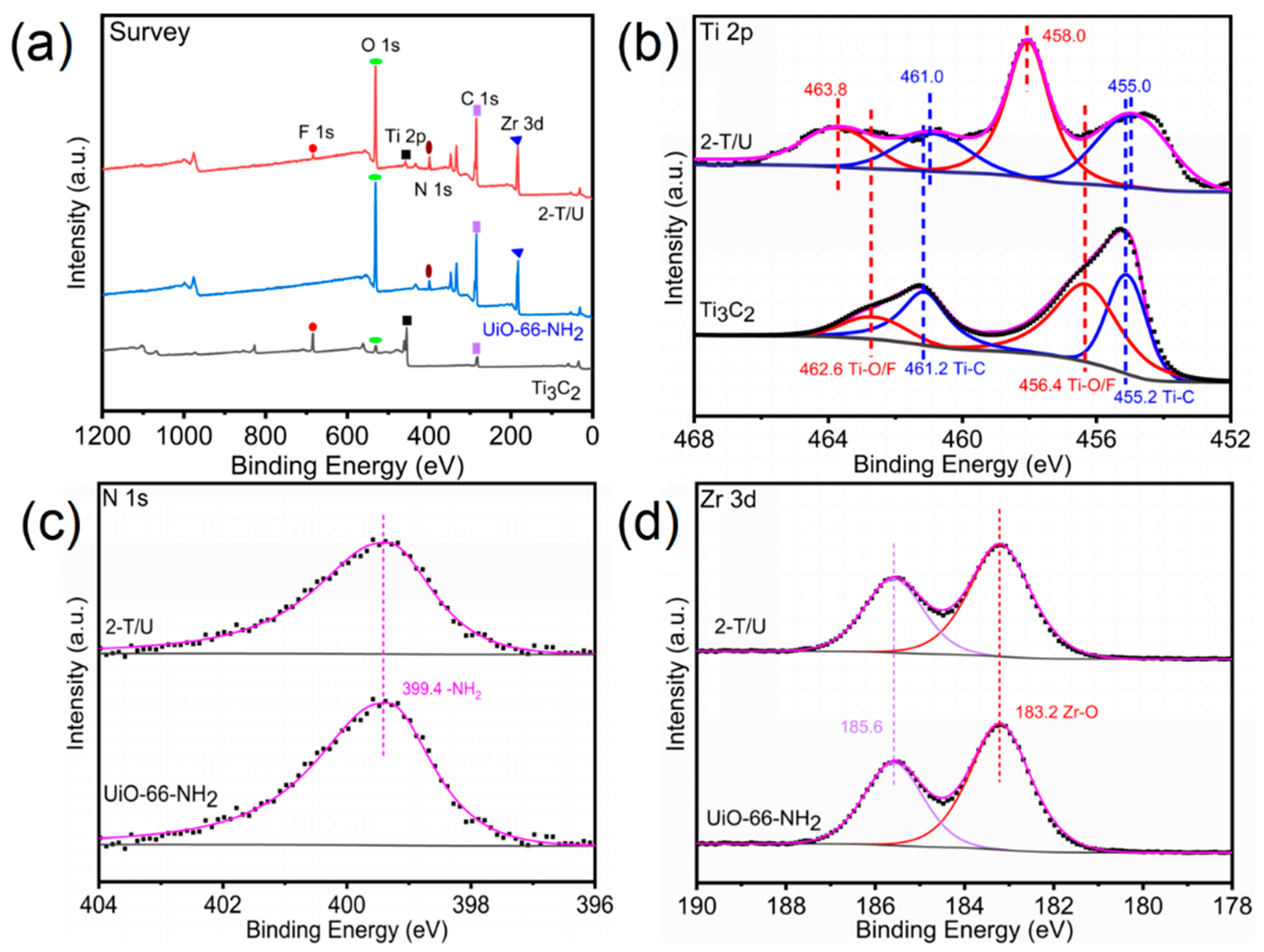

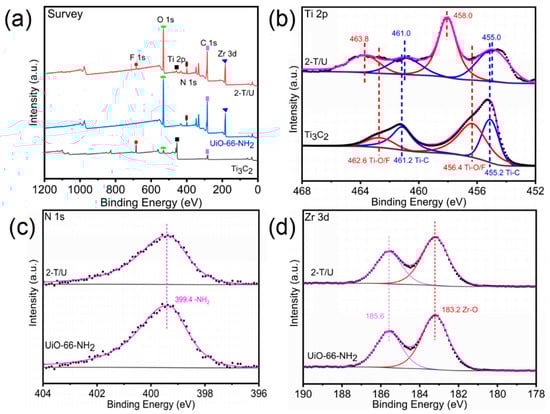

Figure 3. (a) X-ray photoelectron survey spectra of Ti3C2, UiO-66-NH2 and 2-T/U; high-resolution X-ray photoelectron spectra of Ti 2p (b) in Ti3C2 and 2-T/U, and N 1s (c) and Zr 3d (d) in 2-T/U and UiO-66-NH2. Blue and red lines in (b) are corresponding to Ti-C and Ti-O/F, respectively. Red and purple lines in (d) are corresponding to Zr 3d5/2 and Zr 3d3/2 Zr-O, respectively.
Figure 3. (a) X-ray photoelectron survey spectra of Ti3C2, UiO-66-NH2 and 2-T/U; high-resolution X-ray photoelectron spectra of Ti 2p (b) in Ti3C2 and 2-T/U, and N 1s (c) and Zr 3d (d) in 2-T/U and UiO-66-NH2. Blue and red lines in (b) are corresponding to Ti-C and Ti-O/F, respectively. Red and purple lines in (d) are corresponding to Zr 3d5/2 and Zr 3d3/2 Zr-O, respectively.
Catalysts 13 00876 g003
Catalysts 13 00876 g004

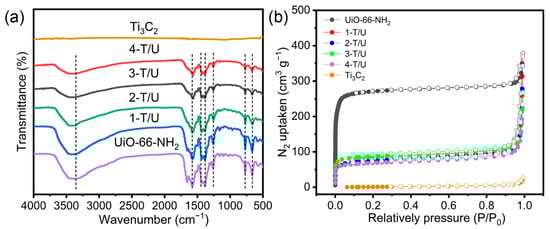

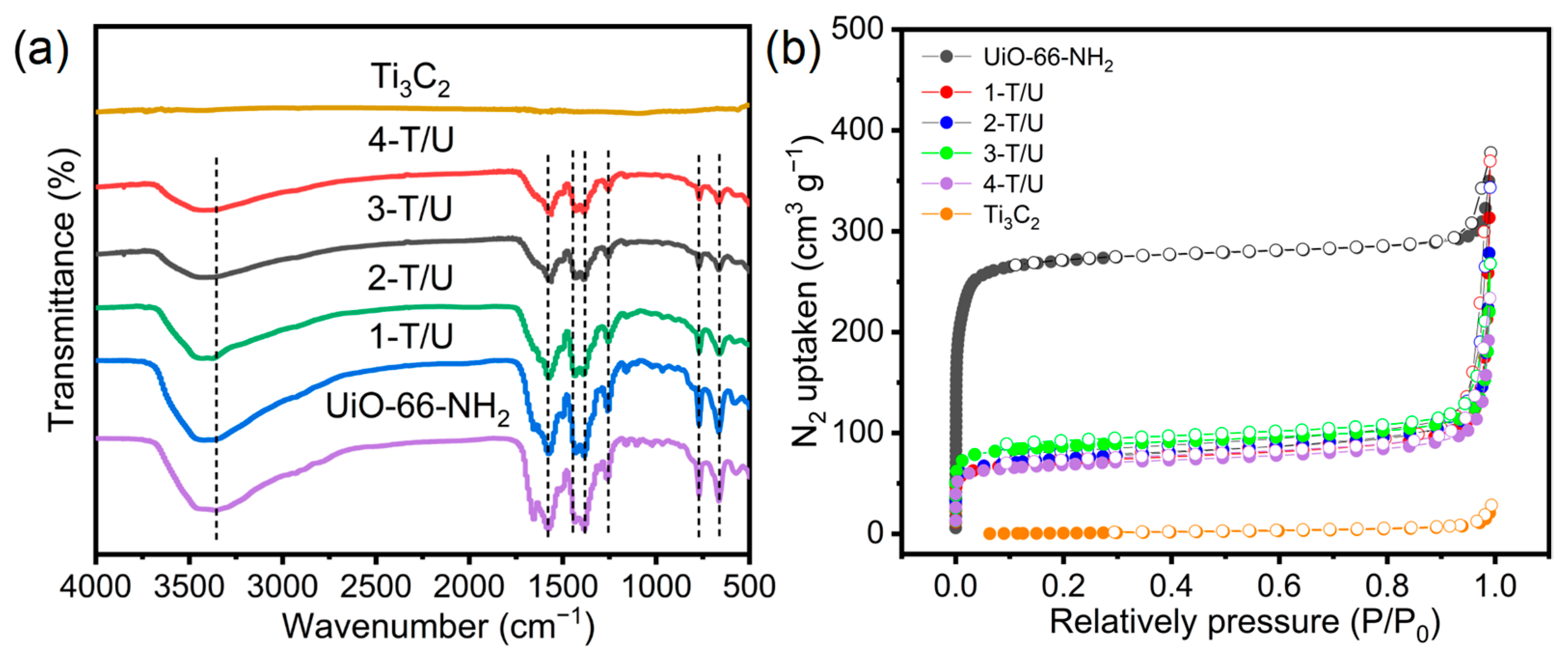

Figure 4. The FTIR spectra (a) and N2 sorption isotherms (b) of Ti3C2, UiO-66-NH2 and their composites.
Figure 4. The FTIR spectra (a) and N2 sorption isotherms (b) of Ti3C2, UiO-66-NH2 and their composites.
Catalysts 13 00876 g004
Catalysts 13 00876 g005

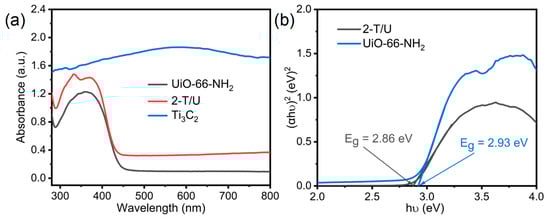

Figure 5. (a) Solid UV–Vis diffusion reflectance spectroscopy (DRS) spectra of Ti3C2, 2-T/U and UiO-66-NH2; (b) plots derived from UV–Vis DRS spectra of 2-T/U and UiO-66-NH2 for bandgap calculation.
Figure 5. (a) Solid UV–Vis diffusion reflectance spectroscopy (DRS) spectra of Ti3C2, 2-T/U and UiO-66-NH2; (b) plots derived from UV–Vis DRS spectra of 2-T/U and UiO-66-NH2 for bandgap calculation.
Catalysts 13 00876 g005
Catalysts 13 00876 g006

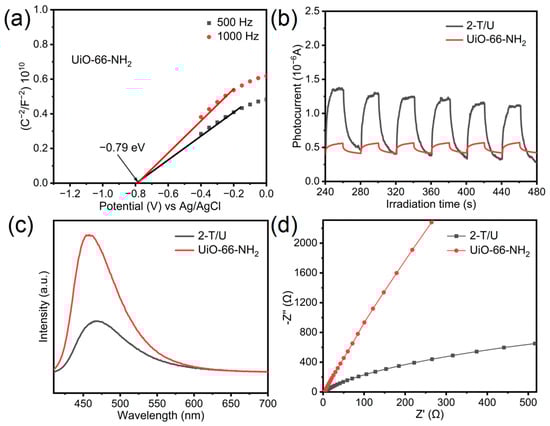

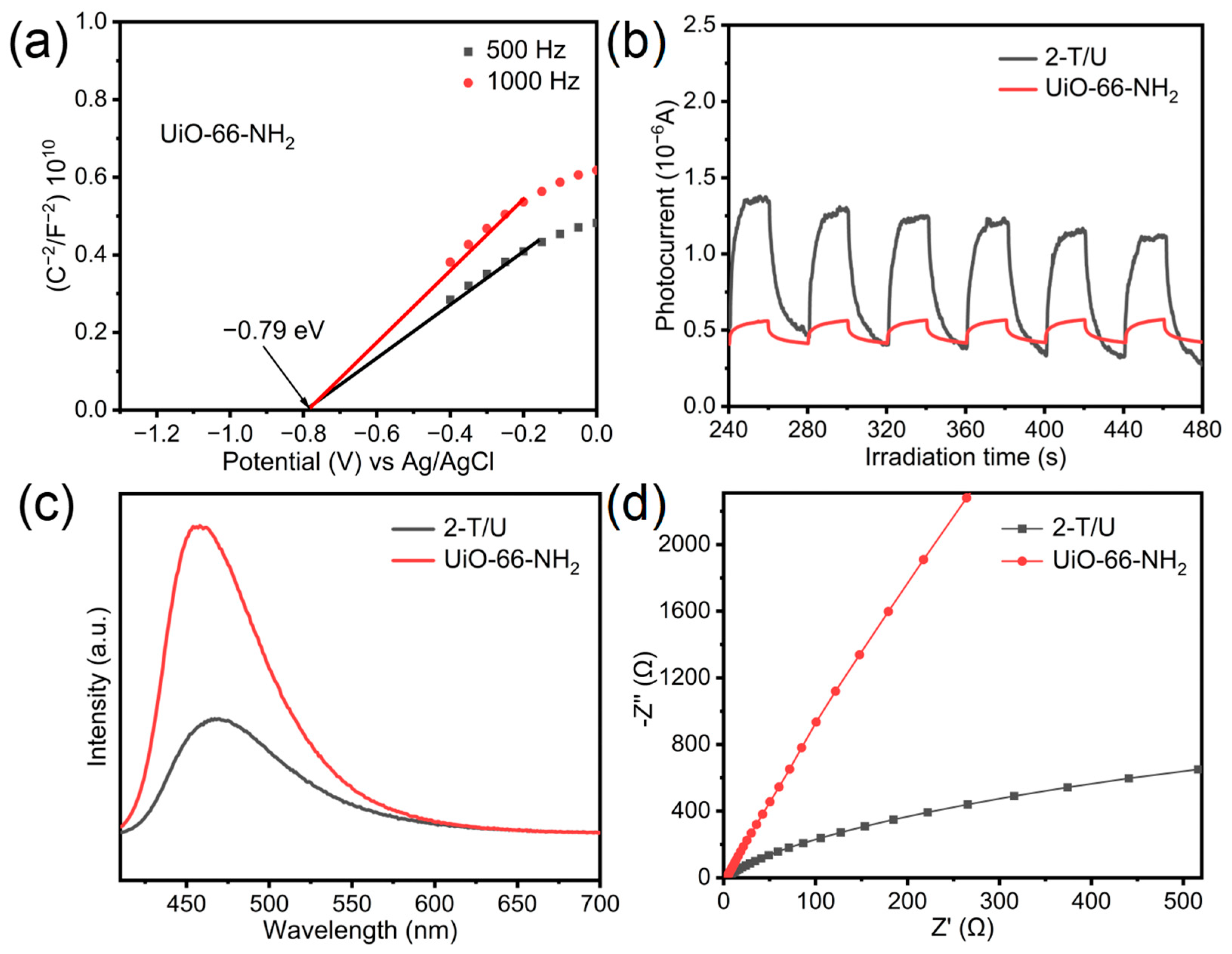

Figure 6. (a) Mott–Schottky plots for sample of UiO-66-NH2; (b) transient photocurrent response, (c) steady photoluminescence spectra, and (d) electrochemical impedance spectroscopy for samples of UiO-66-NH2 and 2-T/U.
Figure 6. (a) Mott–Schottky plots for sample of UiO-66-NH2; (b) transient photocurrent response, (c) steady photoluminescence spectra, and (d) electrochemical impedance spectroscopy for samples of UiO-66-NH2 and 2-T/U.
Catalysts 13 00876 g006
Catalysts 13 00876 g007

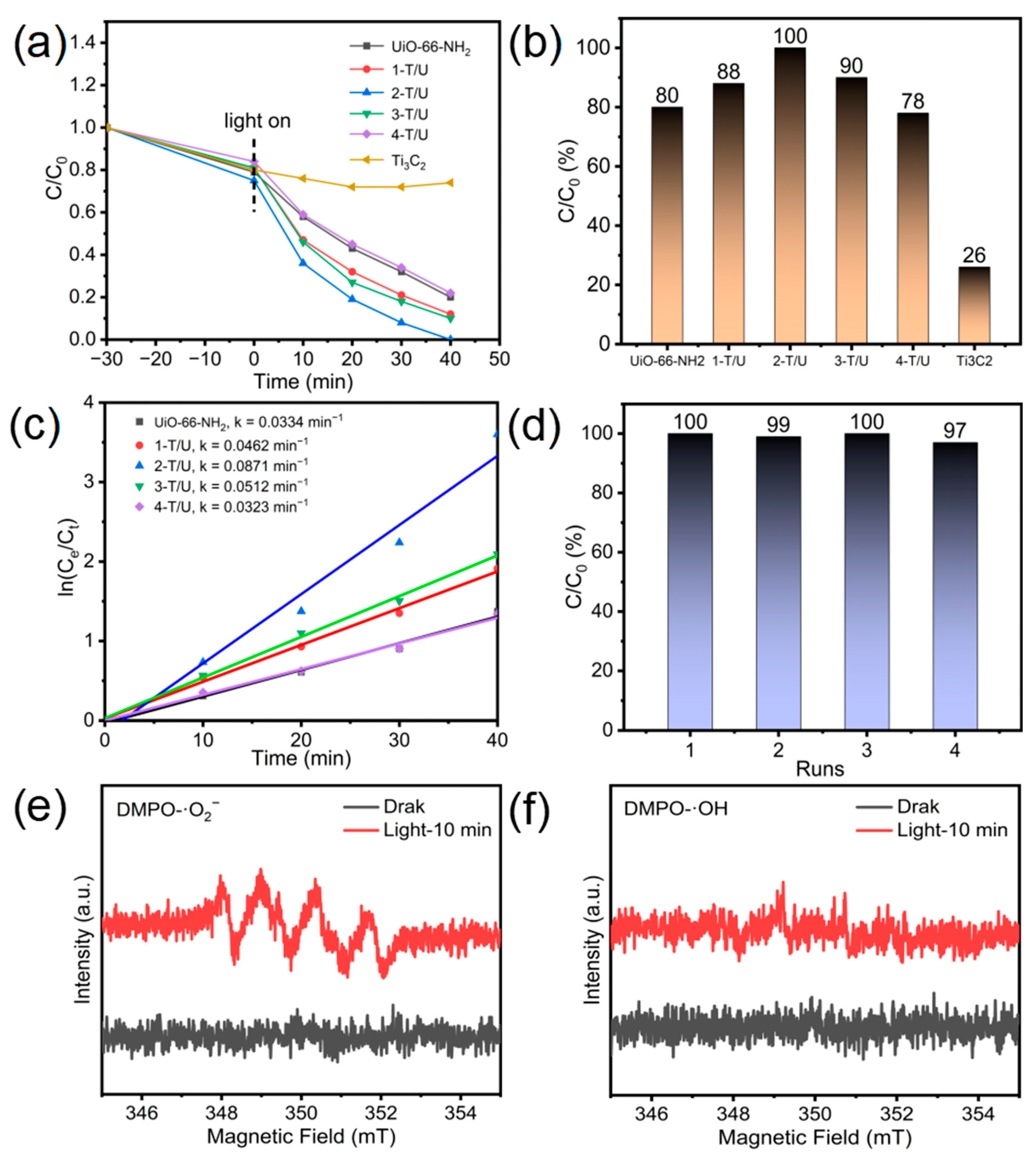

Figure 7. (a,b) Removal of Cr2O72− over Ti3C2, UiO-66-NH2, 1-T/U, 2-T/U, 3-T/U, and 4-T/U; (c) photoreduction kinetics and rate of Cr2O72− over photocatalysts (UiO-66-NH2, 1-T/U, 2-T/U, 3-T/U, and 4-T/U); (d) recycling ability of 2-T/U; the ESR spectra of active species trapped by DMPO in aqueous dispersion for ·O2− (e) and ·OH (f) over 2-T/U.
Figure 7. (a,b) Removal of Cr2O72− over Ti3C2, UiO-66-NH2, 1-T/U, 2-T/U, 3-T/U, and 4-T/U; (c) photoreduction kinetics and rate of Cr2O72− over photocatalysts (UiO-66-NH2, 1-T/U, 2-T/U, 3-T/U, and 4-T/U); (d) recycling ability of 2-T/U; the ESR spectra of active species trapped by DMPO in aqueous dispersion for ·O2− (e) and ·OH (f) over 2-T/U.
Catalysts 13 00876 g007
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

He, H.; Wang, X.; Yu, Q.; Wu, W.; Feng, X.; Kong, D.; Ren, X.; Gao, J. In Situ Growth of Ti3C2/UiO-66-NH2 Composites for Photoreduction of Cr(VI). Catalysts 2023, 13, 876. https://doi.org/10.3390/catal13050876

AMA Style

He H, Wang X, Yu Q, Wu W, Feng X, Kong D, Ren X, Gao J. In Situ Growth of Ti3C2/UiO-66-NH2 Composites for Photoreduction of Cr(VI). Catalysts. 2023; 13(5):876. https://doi.org/10.3390/catal13050876

Chicago/Turabian Style

He, Huan, Xusheng Wang, Qin Yu, Wenbin Wu, Xinya Feng, Deyu Kong, Xiaohui Ren, and Junkuo Gao. 2023. "In Situ Growth of Ti3C2/UiO-66-NH2 Composites for Photoreduction of Cr(VI)" Catalysts 13, no. 5: 876. https://doi.org/10.3390/catal13050876

APA Style

He, H., Wang, X., Yu, Q., Wu, W., Feng, X., Kong, D., Ren, X., & Gao, J. (2023). In Situ Growth of Ti3C2/UiO-66-NH2 Composites for Photoreduction of Cr(VI). Catalysts, 13(5), 876. https://doi.org/10.3390/catal13050876

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
