VOCs Photothermo-Catalytic Removal on MnO_x-ZrO₂ Catalysts

Abstract

Solar photothermo-catalysis is a fascinating multi-catalytic approach for volatile organic compounds (VOCs) removal. In this work, we have explored the performance and the chemico-physical features of non-critical, noble, metal-free MnO_x-ZrO₂ mixed oxides. The structural, morphological, and optical characterizations of these materials pointed to as a low amount of ZrO₂ favoured a good interaction and the ionic exchange between the Mn and the Zr ions. This favoured the redox properties of MnO_x increasing the mobility of its oxygens that can participate in the VOCs oxidation through a Mars-van Krevelen mechanism. The further application of solar irradiation sped up the oxidation reactions promoting the VOCs total oxidation to CO₂. The MnO_x-5 wt.%ZrO₂ sample showed, in the photothermo-catalytic tests, a toluene T₉₀ (temperature of 90% of conversion) of 180 °C and an ethanol T₉₀ conversion to CO₂ of 156 °C, 36 °C, and 205 °C lower compared to the thermocatalytic tests, respectively. Finally, the same sample exhibited 84% toluene conversion and the best selectivity to CO₂ in the ethanol removal after 5 h of solar irradiation at room temperature, a photoactivity similar to the most employed TiO₂-based materials. The as-synthetized mixed oxide is promising for an improved sustainability in both catalyst design and environmental applications.

1. Introduction

Nowadays, the quality of air, both in indoor and outdoor environments, is an extremely important concern. Furthermore, the COVID-19 emergency has pointed to the necessity of clean air to discourage virus infection. Among the air pollutants, volatile organic compounds (VOCs) include many of the most dangerous substances for both human health and the environment. Different strategies were employed to remove VOCs from the air, and an innovative and sustainable solution is represented by solar photocatalytic or photothermo-catalytic oxidation [1,2]. Compared to the most used catalytic or non-catalytic VOCs combustion, the photocatalytic process allows one to exploit solar irradiation with green advantages to work at milder conditions using renewable energy [2]. However, the performance of the photocatalysts is much lower compared to the catalysts employed for the thermocatalytic removal of VOCs [3], and for these reasons, the multi-catalytic approach of the photothermo-catalysis is a fascinating way to obtain high VOCs removal values of thermocatalysis but at lower temperatures, increasing, at the same time, the energy efficiency of the process. To design performing photothermo catalysts, different properties are required [4,5]. Analogously to photocatalysis, it is necessary to have a semiconductor material that, after solar irradiation, is able to generate photoelectrons and photoholes in its conduction (CB) and valence (VB) bands, respectively. It should have redox properties activated with the temperature; in this way, the superficial/mobile oxygens of the catalyst or of the support can participate in the oxidation of VOCs increasing the overall activity [3,6]. Finally, the photothermo catalysts should be resistant to both long-time irradiation and heating. The preparation of mixed oxides or composites is the best and easiest way to combine all of these features. Indeed, with the formation of a suitable heterojunction, it is possible to exploit solar irradiation, decreasing the bandgap (E_g) of the main semiconductor oxide, profiting from both the photocatalytic activity of the principal oxides and the thermocatalytic activity of the hosted oxide. Moreover, the introduction of host ions in the lattice of the main oxide allows one to create defects and oxygen vacancies that favour VOCs oxidation [7,8].

The TiO₂-CeO₂ composites showed promising performance in the photo-thermal approach for both VOCs removal and CO₂ reduction [3,9]; however, one of the side effects of the current pandemic situation is the crisis of raw materials exportation, and as a consequence, in 2020, titanium featured in the EU critical raw materials list [10]. Considering that up until now, TiO₂ is the most studied and applied semiconductor, both in academia and in industrial research focused on photocatalytic applications, the exploration of unconventional non-critical (photo)catalysts is highly required.

In this work, we have investigated the photothermo-catalytic properties of MnO_x-ZrO₂ mixed oxides, with the aim of finding new and sustainable alternatives to the most common TiO₂-based photocatalysts, and without the addition of noble metal co-catalysts, usually used in the catalytic and photocatalytic removal of VOCs [11], to obtain even more environmentally friendly catalysts, in the end.

Manganese oxide exists in four stable forms (MnO, MnO₂, Mn₃O₄ and Mn₂O₃), and all of them own a semiconductor electronic structure characterized by the partially filled d orbitals which permit the electronic d-d transitions under UV or visible light irradiation [12]. Based on the preparation method, it is common to obtain a non-stoichiometric oxide or a mixture of different MnO_x oxides with the +II, +III and/or +IV oxidation states. The high mobility/reducibility of manganese oxide lattice oxygens is particularly useful for VOCs removal [13,14], whereas the redox properties of MnO_x can be particularly advantageous for the photothermo-catalytic oxidation of VOCs, as well as its low bandgap (in the range 2.0–3.5 eV depending of the crystalline structure [12,15]) that can allow a more efficient use of solar radiation.

Zirconium oxide (zirconia) was largely used as a support of several noble metal-based catalysts used for the thermocatalytic oxidation of VOCs, due to its high stability, thermal resistance, and ionic conductivity [16,17]. Furthermore, it is a large bandgap semiconductor (E_g of about 5.0 eV [18] or lower depending to the zirconia synthesis). Therefore, its coupling with a lower bandgap semiconductor (as MnO_x) can be a performing and fascinating strategy to reduce the odds of charge recombination (a common reason for photocatalysts deactivation) and to synergistically exploit both the thermal stability and the redox properties of MnO_x and ZrO₂ [19,20] together with their photocatalytic features.

We have also determined the chemico-physical and the photocatalytic, thermocatalytic and photothermo-catalytic activities of MnO_x-ZrO₂ oxides in the oxidation of toluene and ethanol, chosen as VOCs models, due to the high toxicity nature of toluene and to the wide use of ethanol as a solvent in many industrial processes and as an octane booster in combustion engines, whose incomplete oxidation can give the emission of dangerous compounds, as acetaldehyde, in the environment [21].

2. Results

2.1. Structural, Morphological, Textural and Optical Properties of the Samples

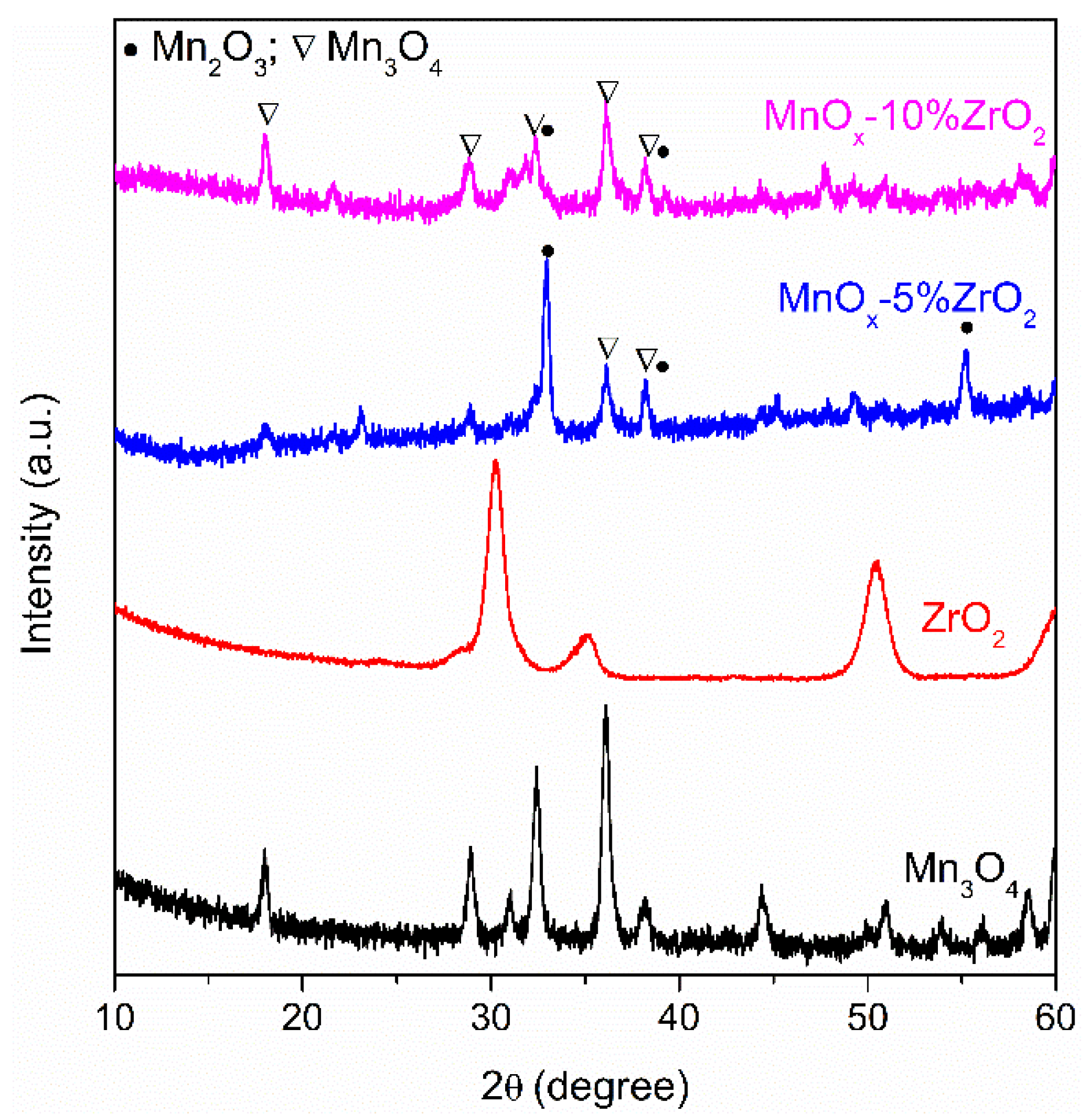

The XRD patterns of the analysed samples are shown in Figure 1. The precipitation of manganese chloride (II) with NaOH and the employed calcination temperature (600 °C for 2 h) allowed to obtain the Mn₃O₄.The signals at 2θ = 18.1°, 28.9°, 31.0°, 32.4°, 36.0°, 38.1°, 44.3° and 50.8° are, indeed, in accordance with the PDF card. No.: 00-080-0382 of pure Mn₃O₄ (Hausmannite). Bare ZrO₂ was obtained with the ammonia-driven precipitation of zirconyl nitrate. The signals fitted with the PDF card No. 00-079-1771 of zirconium oxide, with the typical diffraction peaks at 2θ = 30.2°, 35.2° and 50.3°. Interestingly, the co-precipitation with NaOH of both metals salt precursors created substantial changes in the crystalline structure of manganese oxide. The addition of 5 wt.% of zirconium oxide led to a mixed Mn₂O₃/Mn₃O₄ phase being present the diffraction peak at 2θ = 32.9°; that is, the typical fingerprint of Mn₂O₃ (PDF card No. 00-071-0636, [12,22]), together with the signals at 2θ = 38.2° (overlapped with the signal of Mn₃O₄) and 55.1° that are also ascribed to manganese (III) oxide [12,22]. The increase of ZrO₂ content (MnO_x-10%ZrO₂ sample) restored the main presence of Mn₃O₄ with a trace of Mn₂O₃. In both the mixed oxides, the signals related to ZrO₂ are absent, probably due to the low amount of hosted oxide and/or to the good dispersion of zirconium oxide on manganese oxide.

The ion radius of Zr⁴⁺ (0.84 Å) is similar of Mn²⁺(0.83 Å), and this can favour the ionic exchange between these cations [20,23]. On the contrary, the smaller radius of Mn³⁺ (0.64 Å) makes the Zr⁴⁺/Mn³⁺ exchange more difficult. Probably, when the amount of ZrO₂ is low, the Zr ions partially replace the Mn²⁺ promoting, in this way, the main presence of Mn³⁺, whereas a higher amount of ZrO₂ led to a preferential surface covering of the MnO_x instead of a lattice incorporation of the zirconium ions in MnO_x [20,23]. Thus, it can explain the major presence of Mn (III) on MnO_x-5%ZrO₂ sample, and the coexistence of Mn II and III in the MnO_x-10%ZrO₂. The main crystalline size of the samples (

Table 1. Structural, textural and optical properties of the examined samples.

Sample	Crystallite Size (nm) a	BET Surface Area (m2/g)	Eg (eV)
Mn3O4	14.5	99.6	3.29
ZrO2	8.1	26.2	3.02
MnOx-5%ZrO2	17.9	85.4	3.26
MnOx-10%ZrO2	18.2	86.1	3.27

^a Estimated by XRD.

) was determined by applying the Scherrer formula on the principal diffraction peaks of the oxides (2θ = 36.0° for Mn₃O₄, 30.2° for ZrO₂, 32.9° for MnO_x-5% ZrO₂, whereas for MnO_x-10% ZrO₂, the value was mediated considering both the 2θ = 32.4° and 36.0° signals). The addition of zirconium oxide led to a slight increase of the crystalline size of manganese oxide, whereas the bare ZrO₂ showed the lowest crystalline size (8 nm). However, this latter oxide, in accordance with the surface area values reported in the literature [18], showed the lowest surface area (Table 1, 26.2 m²/g), whereas the bare Mn₃O₄ exhibited the highest BET surface area (99.6 m²/g). Compared to the bare Mn₃O₄, the slight increase of the crystallite size of the mixed oxides determined a decrease of their surface area, which were about 85–86 m²/g for both the MnO_x-ZrO₂ samples (Table 1).

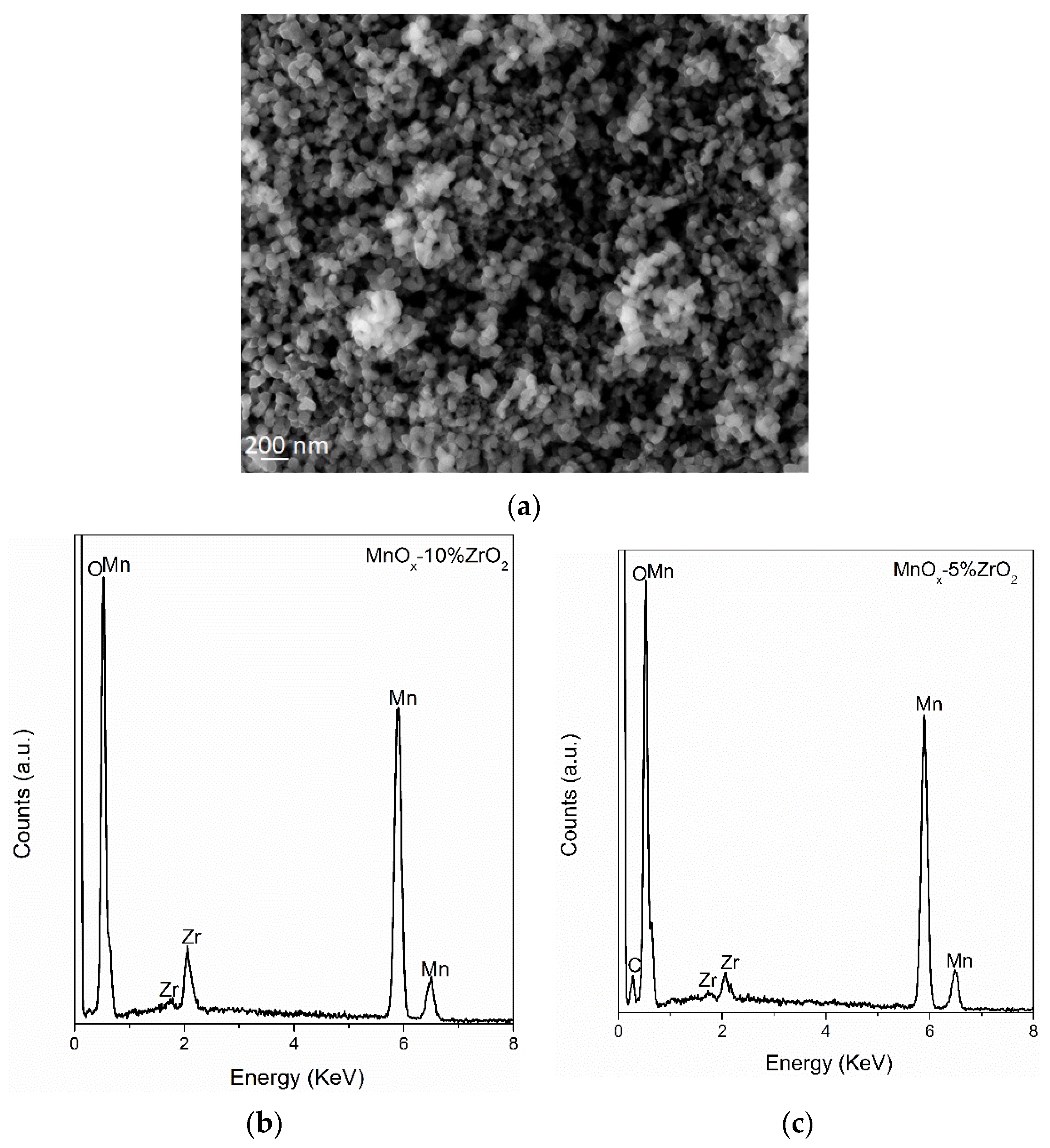

The SEM-EDX measurements (Figure 2) were performed to evaluate the presence of zirconium oxide on MnO_x. The adopted precipitation methods led to, indifferently to the investigated samples, a non-homogenous morphology with spherical particles (Figure 2a and Figure S1). From the EDX elemental analysis (Figure 2b,c,

Table 2. EDX elemental analysis of the examined samples. The presence of carbon was due to the carbon tape used to perform the measurements.

Sample	Element	wt.%
MnOx-5%ZrO2	C	1.71
	O	28.32
	Mn	67.51
	Zr	2.46
MnOx-10%ZrO2	C	1.23
	O	22.0
	Mn	67.66
	Zr	9.11

), it is possible to note that a little surface segregation of zirconium in the MnO_x-10%ZrO₂ sample was detected, whose zirconium wt.% was 3.7 times higher (instead of twice as expected considering the nominal concentration) compared to the MnO_x-5%ZrO₂. In accordance with the XRD data, the increase of the amount of ZrO₂ led to an enrichment of zirconium oxide on the surface of MnO_x, whereas in the MnO_x-5%ZrO₂ mixed oxide, the ZrO₂ was mainly embedded in the lattice of MnO_x.

The surface valence state of the components of the catalysts were analysed through X-ray photoelectron spectroscopy (XPS) (

Table 3. XPS analysis and binding energy (BE in eV) of the components of the investigated samples.

Sample	Mn 2p3/2 BE	Mn3+/Mn2+ Ratio	Zr 3d5/2 BE	O 1s BE	Oα/Oβ Ratio
Mn3O4	641.2	0.52	182.1	529.8	1.50
ZrO2	/	/	182.0	529.9	1.48
MnOx-5%ZrO2	640.9	0.69	181.9	529.9	1.69
MnOx-10%ZrO2	641.1	0.55	182.0	530.0	1.53

). Interestingly, on the surface of MnO_x-based samples, the ratio of the Mn³⁺/Mn²⁺ ions obtained considering the area of the deconvoluted spectra (see Figure S2, spectra of MnO_x-5%ZrO₂ as representative sample) was the highest for the MnO_x-5%ZrO₂ mixed oxide. As pointed to also by the structural properties determined by XRD, in this sample, a strong ionic interaction between the Mn²⁺ and the Zn⁴⁺ was particularly favoured, leading to an increase in the amount of Mn³⁺ ions. Moreover, in this sample, the ratio between the surface lattice oxygen (O_α) located at about 530 eV and the chemisorbed/defective oxygen (O_β) at 532 eV was also the highest (Table 3, Figure S2), suggesting that the ionic exchange between the zirconium and the manganese ions also promoted a higher concentration of the manganese oxide surface oxygens. These, as reported, can participate in VOCs oxidation, improving the catalytic activity of the catalysts [24]. Finally, the binding energy of the Zr 3d_5/2 at about 182.0 eV is the typical fingerprint of ZrO₂ [25]. The surface atomic percentage of Zr was 3.5 higher (2.77%) on the MnO_x-10%ZrO₂ compared to MnO_x-5%ZrO₂ (0.73%) confirming, as too stated by the EDX analysis, the surface covering of zirconia on manganese oxide, verified increasing the amount of ZrO₂.

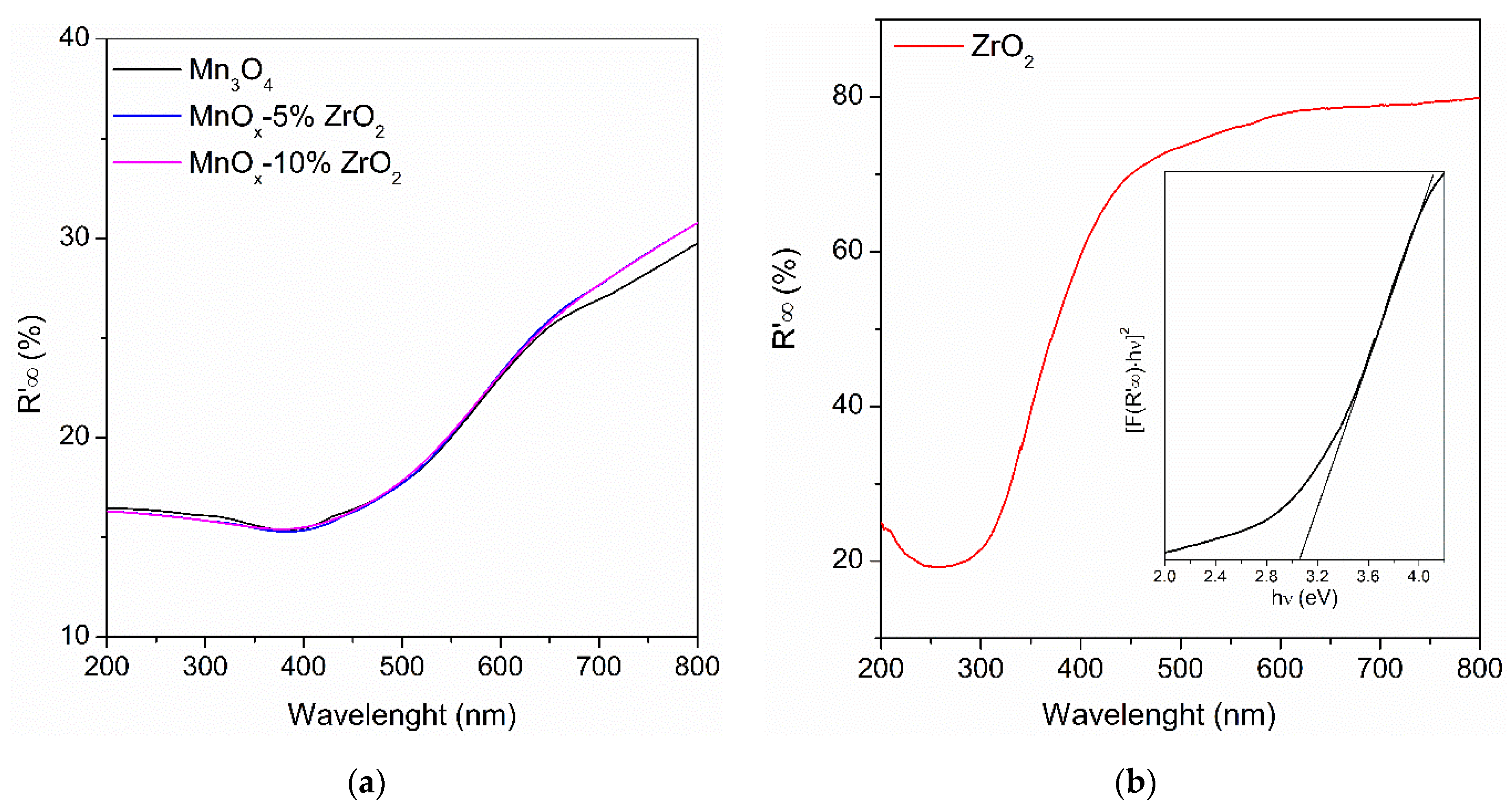

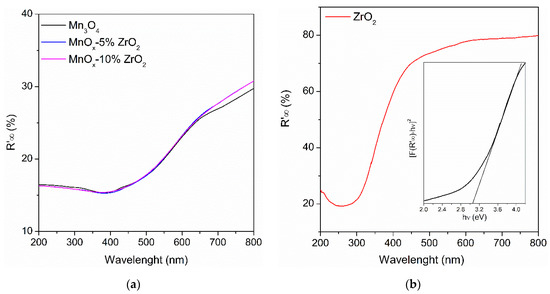

The UV-DRS of the samples were reported in the Figure 3. The MnO_x-based samples (Figure 3a) showed a remarkable lower reflectance compared to the bare ZrO₂ (Figure 3b), and thus can be highlighted considering also the colours of the as-synthesized powders (dark brown for the MnO_x-based materials and white for the zirconium oxide). The optical bandgaps of the semiconductor oxides were estimated plotting the modified Kubelka–Munk function versus hν, as reported in the literature ([26], inset Figure 3b as representative sample). Interestingly, as established by XRD, the good crystallinity of ZrO₂ and its nano-size (8 nm, Table 1) allowed us to obtain a ZrO₂ with a lower bandgap (3.02 eV) compared to the other E_g reported in the literature for this oxide (about 5.0 eV that, however, can be narrowed down to 2–1.5 eV on the basis of the adopted preparation method [18,27]). No substantial variations were observed comparing the unmodified Mn₃O₄ and the MnO_x-ZrO₂ based-oxides, with an E_g of 3.26–3.29 eV (Table 1). Probably, the low amount and the good dispersion of ZrO₂ on MnO_x did not alter the bandgap of the manganese oxide. All the manganese oxide-based samples exhibited a similar E_g to TiO₂ (3.0–3.2 eV on the basis of the crystalline form [28]); thus, they can exploit the UV-A portion of solar irradiation.

2.2. Photocatalytic, Thermocatalytic and Photothermo-Catalytic Removal of Toluene in Gas Phase

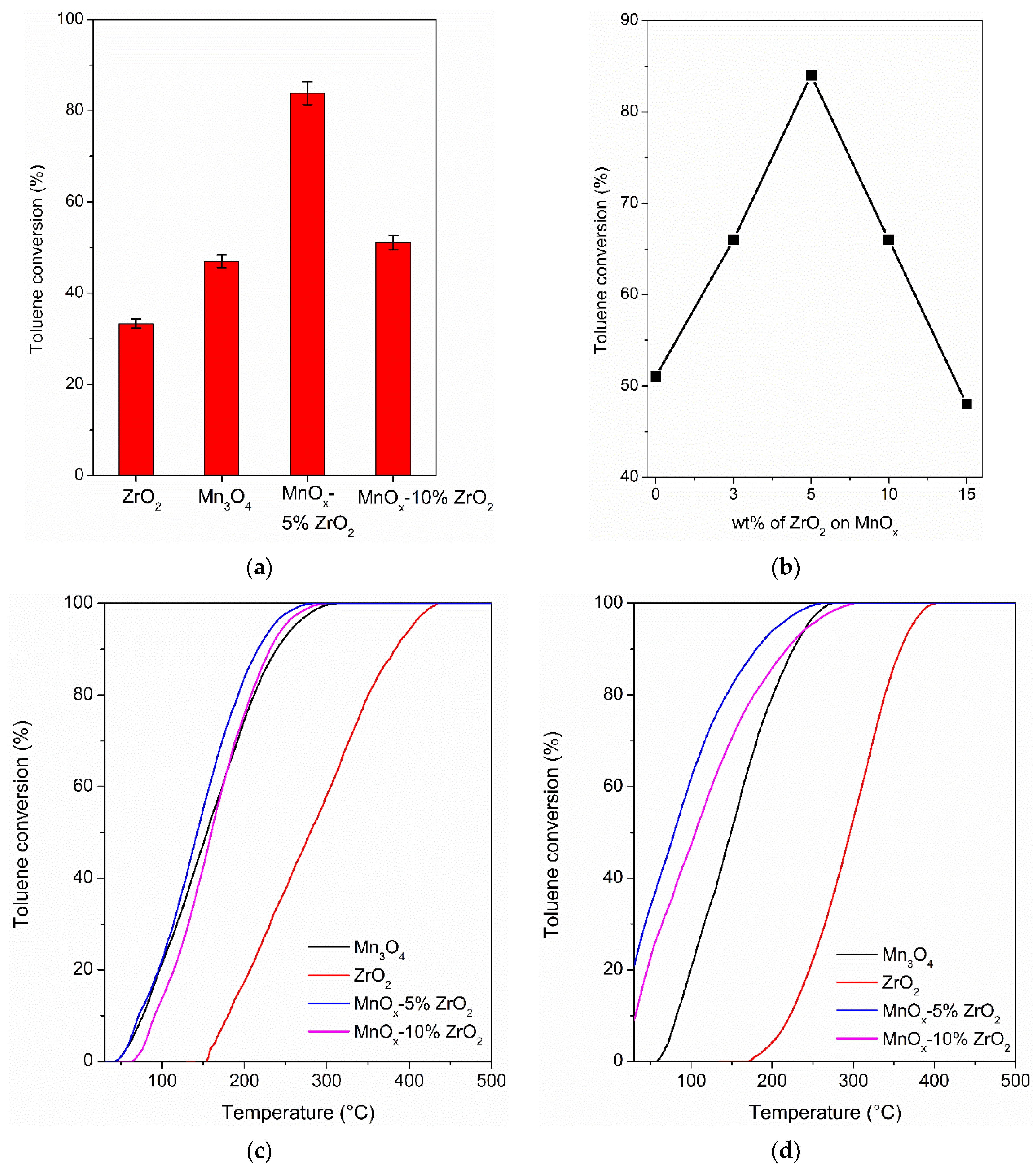

Figure 4a shows the solar photocatalytic activity in the oxidation of toluene at room temperature after 5 h of irradiation. The highest conversion value was obtained with the MnO_x-5% ZrO₂ (84%) followed by the MnO_x-10% ZrO₂ and the bare Mn₃O₄ (51% and 47%, respectively), whereas pure ZrO₂ exhibited the lowest conversion value (33%). In accordance with the literature [3,29], in our experimental condition, the only detected by-products were carbon dioxide and water with traces of benzaldehyde (selectivity in the range 1–3%). Although a real comparison with the other reported data for this reaction is very difficult, due to the various experimental conditions adopted by the other research groups (

Table 4. Data comparison of the photocatalytic oxidation of toluene.

Catalysts	Experimental Conditions	Toluene Conversion	Ref.
MnOx-5%ZrO2	1000 ppm Toluene, 5 h irradiation solar lamp (300 W, 10.7 mW/cm2), room T, 150 mg catalyst	84%	this work
Brookite TiO2-5% CeO2	1000 ppm Toluene, 2 h irradiation solar lamp (300 W, 10.7 mW/cm2), room T, 150 mg catalyst	25%	[3]
TiO2-C3N4	665 ppm Toluene, 6 h irradiation, solar lamp (300 W, 612 mW/cm2), 100 mg catalyst	93%	[30]
TiO2-MnO2	200 ppmv Toluene, 1 h irradiation, 25 LEDs (λmax = 465 nm)	43%	[31]
0.5% Co/TiO2	150 ppmv Toluene, 140 min irradiation, solar light (1000 mW/cm2), 25 °C	96.5%	[32]
Ag4Bi2O5	220 ppm Toluene, 60 min irradiaton, Xe lamp with a 420 nm cut off filter (300 W, 0.25 mW/cm2), 50 mg catalyst	93.1%	[33]
Fe2O3/In2O3	200 ppm Toluene, 8 h irradiation, Xenon lamp with an optical UV-cutoff filter (500 W, 40 mW/cm2)	88.3%	[34]

), the performance of MnO_x-5% ZrO₂ mixed oxide is very promising, being similar to (considering the initial concentration of 1000 ppm of toluene) or slightly lower than the most used TiO₂-based photocatalysts, or to other unconventional semiconductors (Table 4).

It is worth noting that 5 wt.% of zirconia was the best amount to obtain a synergistic positive effect on the MnO_x. Indeed, the samples prepared with the same procedures reported in the par. 4.1 but adding the 3 wt.% and 15 wt.% of zirconium oxide caused a decrease of activity (66% of toluene conversion for MnO_x-3% ZrO₂ and 48 % for MnO_x-15% ZrO₂, i.e., the same conversion value of the bare manganese oxide). The results pointed to a photocatalytic “volcano” trend (Figure 4b). The positive effects of the addition of ZrO₂ on MnO_x reached the maximum with 5% of zirconia, following a progressive decrease at higher amounts. This can be reasonably due, as confirmed by XRD, SEM-EDX and XPS measurements, to a progressive surface coverage of MnO_x, due to the presence of a large amount of ZrO₂. This caused a decrease in the photoactivity considering also the lower photocatalytic performance of bare ZrO₂ compared to manganese oxide (Figure 4a). The detection of a specific amount of the hosted oxide on the main oxide is a typical trend of the mixed oxide-based semiconductors. A large amount of the second component (hosted oxide) can cover the surface active sites of the main oxide, decreasing the overall photocatalytic activity of the photocatalyst [35,36].

Thermal catalytic combustion is the most used process to increase the removal efficiency of toluene. The thermocatalytic activity of the investigated samples is reported in the Figure 4c. Moreover, for this catalytic approach, MnO_x-5% ZrO₂ gave the best results. The T₉₀ (the temperature at which the 90% of toluene conversion was reached) values were 216 °C, 231 °C, 240 °C and 383 °C for MnO_x-5% ZrO₂, MnO_x-10% ZrO₂, Mn₃O₄, and the bare ZrO₂ respectively, confirming the order of activity measured in the photocatalytic tests at room temperature.

To further decrease toluene T₉₀, the solar photothermo-catalytic tests were employed on the same investigated samples (Figure 4d). The solar-assisted thermo catalytic approach allowed one to decrease the T₉₀ of 36 °C (180 °C) with respect to thermocatalytic tests on the best mixed oxide, the MnO_x-5% ZrO₂ catalyst, and in general, a decrease of T₉₀ was verified for all the catalysts, with even the same order of activity: MnO_x-5% ZrO₂ > MnO_x-10% ZrO₂ (T₉₀ = 217 °C) > Mn₃O₄ (T₉₀ = 226 °C) > ZnO₂ (T₉₀ = 245 °C). Interestingly, the highest T₉₀ decrease was verified with the bare zirconium oxide (138 °C lower compared to the thermocatalytic toluene T₉₀) where the activation of the zirconia photocatalytic properties was fundamental to promote the toluene total oxidation.

The positive synergistic effect due to the addition of a small amount of zirconia on the MnO_x and the solar multi-catalytic approach led to obtaining a low toluene T₉₀, considering the absence of noble metals co-catalysts. The obtained value of T₉₀ with the MnO_x-5% ZrO₂ sample (180 °C) is comparable or lower with respect to the other MnO_x-based catalysts reported in the literature (in the range 200 °C–270 °C considering an initial toluene concentration of 1000 ppm [20,37]).

The influence of the gas hourly space velocity (GSHV) was reported in the Figure S3a considering the best sample (MnO_x-5% ZrO₂). We have chosen, for all the tests, a GSHV of 8 × 10⁴ mL/g_cat·h, indeed, as expected, and as reported in the literature [38], with a high flow rate; the conversion rate of toluene to CO₂ and water (the only by-products detected also in all the thermo and photothermo-catalytic tests) was slower, whereas a GSHV < 8 × 10⁴ mL/g_cat·h did not substantially modify the conversion rate.

2.3. Photocatalytic, Thermocatalytic and Photothermo-Catalytic Removal of Ethanol in Gas Phase

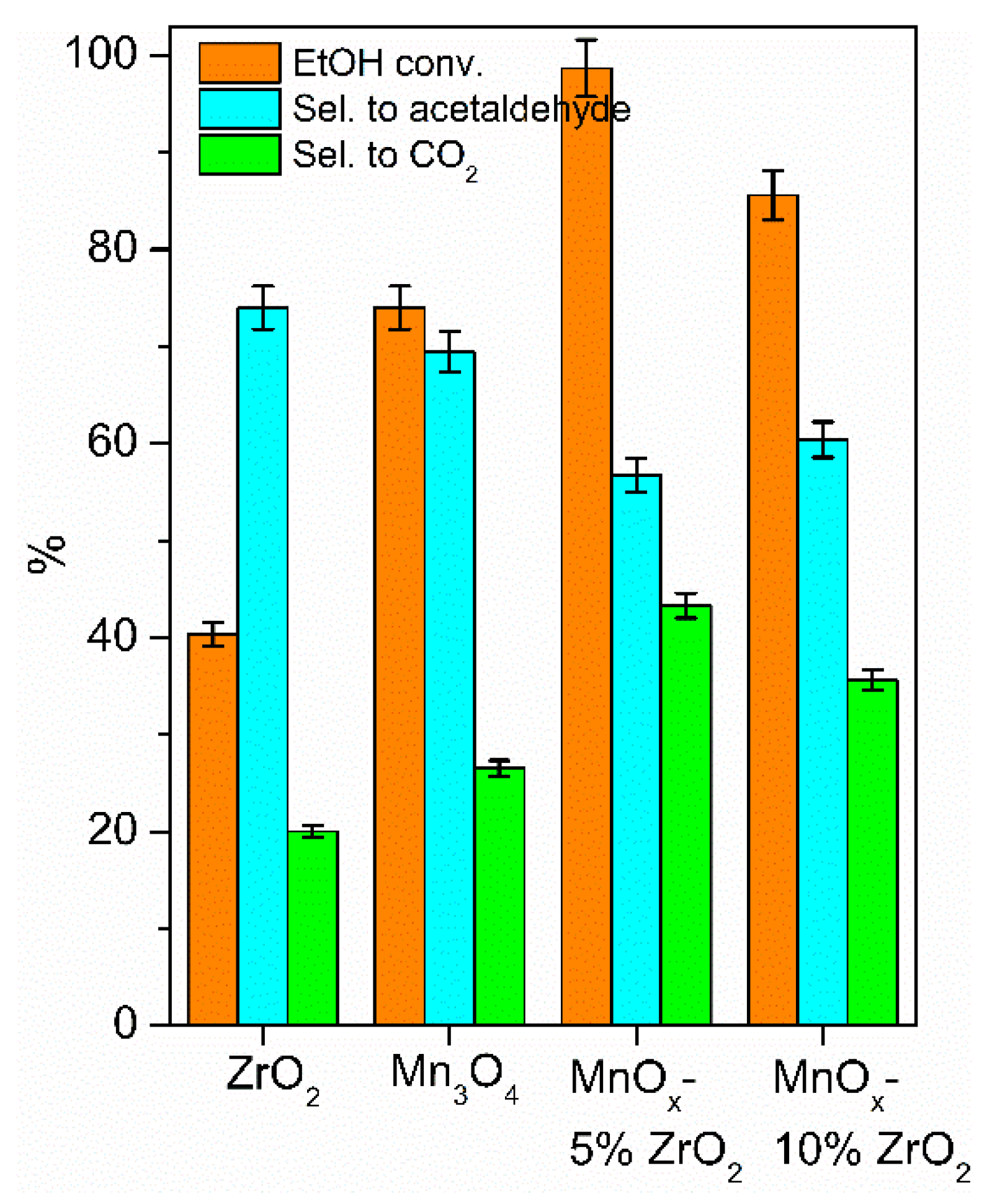

The ethanol being an alcohol was more reactive than the aromatic toluene, but its oxidation can give various by-products; the most common in the gas phase oxidation was acetaldehyde [3,31,39], which is also the main by-product detected in all the investigated catalytic approaches here discussed, whereas a very low selectivity (<2%) was detected in CO, formic acid, and acetic acid. In the solar photocatalytic tests, MnO_x-5% ZrO₂ confirmed its highest activity compared to the other samples (Figure 5) with an ethanol conversion of 98% and the highest selectivity to CO₂ (43%), the most important feature for the VOCs removal. The mixed oxide with the 10 wt.% of ZrO₂ showed a little decrease of photoactivity (ethanol conversion of 86%) and a higher selectivity to acetaldehyde (60%) with respect to CO₂ (36%). These data, in line with the photo-oxidation of toluene (Figure 4a), pointed to, in our experimental conditions, the 5 wt.% being the optimal amount of zirconia to have a synergistic effect with MnO_x. Among the bare oxides, the manganese oxide showed a higher ethanol conversion, with a higher selectivity to CO₂ compared to ZrO₂. This latter oxide promoted the partial oxidation to acetaldehyde (selectivity of 74%) and consequently exhibited the lowest selectivity to CO₂ (22%).

In

Table 5. Data of the thermocatalytic oxidation of ethanol on the investigated samples.

Sample	Ethanol Conversion	Conversion to CO2	Maximum Conversion to Acetaldehyde
Mn3O4	T10 = 95 °C	T10 = 217 °C
	T50 = 167 °C	T50 = 299 °C	65% (226 °C)
	T90 = 239 °C	T90 = 411 °C
ZrO2	T10 = 221 °C	T10 = 428 °C
	T50 =292 °C	T50 = 453 °C	98% (409 °C)
	T90 =382 °C	T90 = 474 °C
MnOx-5%ZrO2	T10 = 45 °C	T10 = 167 °C
	T50 = 116 °C	T50 = 249 °C	66% (176 °C)
	T90 = 189 °C	T90 = 361 °C
MnOx-10%ZrO2	T10 = 70 °C	T10 = 182 °C
	T50 = 141 °C	T50 = 264 °C	66% (200 °C)
	T90 = 214 °C	T90 = 376 °C

and Figure S4, the data of the thermocatalytic oxidation of ethanol are reported. MnO_x-5%ZrO₂ showed, also for this VOC, the best performance, with the lowest T₉₀ (189 °C) and a maximum conversion to acetaldehyde of 66% at 176 °C. Moreover, MnO_x-10%ZrO₂ and Mn₃O₄ showed the same maximum conversion to acetaldehyde, but at a higher temperature (200 °C for MnO_x-10%ZrO₂ and 226 °C for bare manganese oxide). Consequently, MnO_x-5%ZrO₂ also exhibited the lowest T₉₀ related to the conversion to CO₂ (361 °C). It is verified also for this approach, a little negative effect of the increased amount of zirconium oxide on the MnO_x, with higher T₉₀ of MnO_x-10%ZrO₂ compared to MnO_x-5%ZrO₂. The highest conversion to acetaldehyde was obtained with the bare zirconia (maximum conversion of 98% at 409 °C) confirming, as also detected in the photocatalytic tests at room temperature, the tendency of this catalyst to promote the partial oxidation of ethanol instead of the total combustion.

Interestingly also for the removal of ethanol, the multi-catalytic reaction (i.e., the photothermo-catalysis) allowed us to improve the performance related to ethanol oxidation (

Table 6. Data of the photothermo-catalytic oxidation of ethanol on the investigated samples.

Sample	Ethanol Conversion	Conversion to CO2	Maximum Conversion to Acetaldehyde
Mn3O4	T10 = 48 °C	T10 = 150 °C
	T50 = 126 °C	T50 = 249 °C	58% (187 °C)
	T90 = 214 °C	T90 = 367 °C
ZrO2	T10 = 205 °C	T10 = 397 °C
	T50 =277 °C	T50 = 437 °C	91% (378 °C)
	T90 =369 °C	T90 = 476 °C
MnOx-5%ZrO2	T10 = 51 °C	T10 = 119 °C
	T50 = 123 °C	T50 = 137 °C	35% (118 °C)
	T90 = 154 °C	T90 = 156 °C
MnOx-10%ZrO2	T10 = 74 °C	T10 = 123 °C
	T50 = 145 °C	T50 = 165 °C	24% (127 °C)
	T90 = 204 °C	T90 = 207 °C

, Figure S5). With MnO_x-5%ZrO₂, the T₉₀ of ethanol conversion was lowered to 34 °C (154 °C), a value that is comparable or lower, considering an initial ethanol concentration of 1000 ppm, with respect to the other MnO_x-based materials reported in the literature (in the range 127 °C (initial ethanol concentration of 300 ppm) −200 °C (initial ethanol concentration of 600–1945 ppm) [37,40]). The total oxidation to CO₂ was favoured on this sample, and for this reason, the maximum conversion to acetaldehyde was low (35% at 118 °C), with a decrease of 205 °C of the T₉₀ related to the conversion to CO₂ compared to the thermocatalytic tests.

A further decrease of the maximum conversion to acetaldehyde was verified with MnO_x-10%ZrO₂ (24%), but at a higher temperature (127 °C) compared to the MnO_x-5%ZrO₂, confirming that, with these mixed oxides, the combustion of ethanol was favoured with respect to its partial oxidation. For all the tested samples, similar to the photothermal oxidation of toluene, there was a positive effect of the solar light irradiation, with a contextual decrease of conversion temperatures compared to the thermocatalytic tests (comparison between Table 5 and Table 6). The unmodified zirconia remained the less active catalyst, however, the solar-assisted reaction decreased T₉₀ of ethanol conversion of 13 °C compared to the tests without irradiation.

3. Discussion

The mixed oxides MnO_x-ZrO₂ here investigated showed promising performance in the removal of VOCs in the gas phase, considering the absence of noble metals co-catalysts and an initial VOCs concentration of 1000 ppm. The amount of zirconium oxide added on manganese oxide is a key parameter to improve the catalytic and the photocatalytic performance. The as-synthesized samples showed a comparable optical bandgap, in the range 3.0–3.3 eV (Table 1), similar to the TiO₂, and able to exploit the UV-A portion of the solar light. The addition of zirconia on manganese oxide led to a slight decrease of the surface area (Table 1) that, however, did not comprise the catalytic activity of the mixed oxides.

The presence of a small amount of zirconium oxide on MnO_x allowed, as stated by XRD and SEM-EDX, an ionic exchange between Zr⁴⁺ and Mn²⁺; this favoured the formation of a synergistic effect between the two oxides, with structural changes in the bulk of MnO_x. These modifications led to increasing the (photo)catalytic activity compared to the bare oxides. Indeed, when reducible oxides, i.e., which own mobile/reducible oxygens, were used for the oxidation of VOCs, the total oxidation to CO₂ is favoured, because these oxygens can participate in the reaction with a Mars–Van Krevelen (MvK) mechanism [41,42]. The oxygen vacancies on the surface of the oxide will be subsequently filled by the O₂ present in the gas phase.

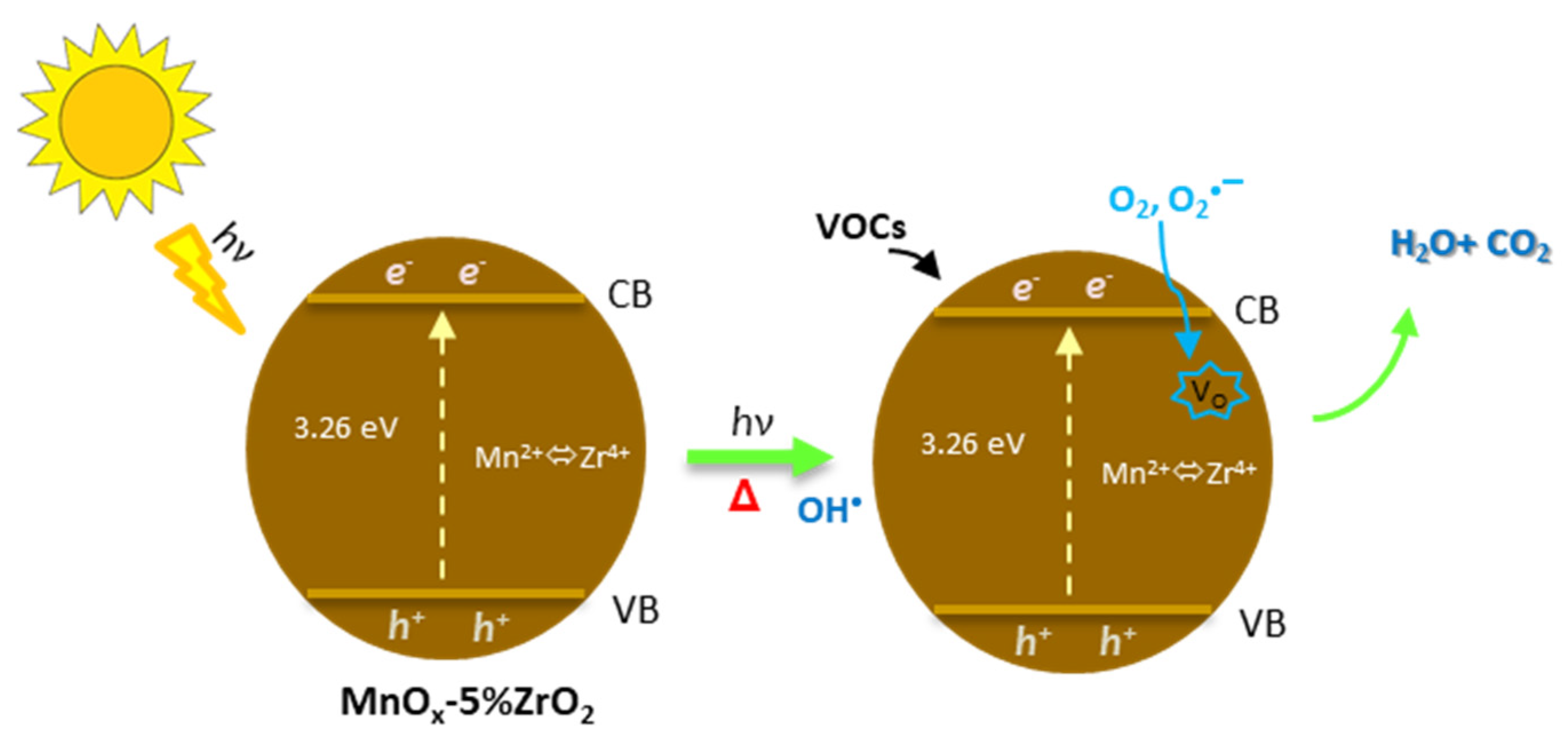

This mechanism was boosted up with the photothermo-catalytic approach because the photocatalytic mechanism generated the superoxide (O₂^•−) and hydroxyl (OH^•) radicals [43,44], that being more reactive of the molecular O₂, increased the rate of the total oxidation of VOCs (reactions a–i, Figure 6) and the re-filling of the oxygen vacancies, being the mobile oxygens of MnO_x activated by the heating [13,45]. For these reasons, the conversion temperatures of both toluene and ethanol oxidation were sensibly lower compared to the thermocatalysis, especially with the MnO_x-5%ZrO₂ sample. In this way, it was possible to exploit a double positive effect: (i) the solar irradiation effect: that allowed the formation of more reactive species, (ii) the thermal effect: that activated the redox mobility of the manganese oxide oxygens [13,20,45].

Photothermo-catalytic mechanism:

(i)

Solar irradiation effect (VB and CB indicate the valence and the conduction bands):

(a)

Charge carriers formation: MnO_x-5%ZrO₂ + hν(solar) → MnO_x-5%ZrO₂ (h_VB⁺+ e⁻_CB)

(b)

Formation of hydroxyl radical: h⁺_VB + H₂O (g) → OH^• + H⁺_aq

(c)

Formation of superoxide radical: e⁻_CB + O₂ → O₂^•−

(ii)

Thermal effect (Vo = oxygen vacancy)

(d)

Oxygen from the mixed oxide: MnO_x-5%ZrO₂ → MnO_x-5%ZrO₂ (V_o) + 1/2 O₂(g)_{from oxide}

(e)

VOC oxidation: VOC + O₂ (g) + O₂(g)_{from oxide} ${\displaystyle \stackrel{\mathrm{heat}}{\to }}$ CO₂ + H₂O

(f)

Oxygen restoring: MnO_x-5%ZrO₂ (V_o) + 1/2 O₂(g) → MnO_x-5%ZrO₂

(iii)

Solar photothermal effect

(g)

MnO_x-5%ZrO₂ + hν $\stackrel{\mathrm{heat}}{\to }$ MnO_x-5%ZrO₂ (V_o) + 1/2 O₂(g)_{from oxide} + OH^• + O₂^•−

(h)

Improved VOC oxidation: VOC + O₂ (g) + O₂(g)_{from oxide} + OH^• + O₂^•− → CO₂ + H₂O

(i)

Oxygen speeded up restoring: MnO_x-5%ZrO₂ (V_o) + 1/2 O₂(g) + O₂^• → MnO_x-5%ZrO₂

It is worth noting that the reactions (a–c) and (d–f) are also involved in the solar photocatalysis at room temperature and in the bare thermocatalytic tests, respectively. The multi-catalytic effect (reactions g–i) allowed one to increase the performance and to favour the total oxidation of the employed VOCs to CO₂.

Another confirmation of the proposed MvK mechanism was reported in the Figure S3b. In the phothermo-catalytic oxidation of toluene with the MnO_x-5%ZrO₂ sample, the air (more interesting from a practical point of view) was replaced in the gas mixture with the pure oxygen. It is possible to note that the presence of oxygen led to a beneficial effect for the toluene conversion to CO₂, being the T₉₀ lower of 25 °C (155 °C) compared to the test with air (180 °C). This can be reasonably ascribed to the easier oxygen restoring on the catalyst surface (reaction i), in an oxygen-rich environment, favouring, in this way, the MvK route.

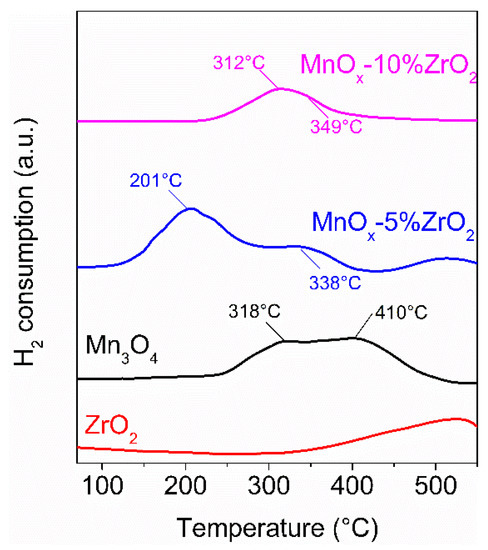

As stated by the characterization data, the good interaction between the manganese and zirconium oxide (especially at low amount of ZrO₂) improved the photothermo-catalytic mechanism with the redox process on MnO_x that was favoured by the ionic exchange between the zirconium and the manganese ions. On the contrary, an increased amount of zirconium oxide led to a progressive deposition of the hosted oxide on the surface of MnO_x covering, in this way, the surface-active sites of manganese oxide [35,36]. For these reasons, the optimal performance was obtained with 5 wt.% of ZrO₂. In this contest, the mobility of the surface oxygens of the MnO_x-5%ZrO₂ sample was favoured by the MnO_x redox properties, and consequently, it is strictly related to its reducibility. Furthermore, the amount of the surface oxygens on MnO_x-5%ZrO₂ was higher compared to the other samples, as detected by XPS. To have a further confirmation of the high reducibility/mobility of the surface oxygens of MnO_x-5%ZrO₂, the H₂-temperature-programmed reduction (TPR) measurements were carried out, and the sample profiles were reported in Figure 7. In accordance with the literature data [20,46], the TPR profiles of the MnO_x-based samples were characterized to broad reduction peaks, due to the occurrence of several reduction processes of the Mn ions. As expected, the MnO_x-5%ZrO₂ sample showed the lowest reduction feature (201 °C) attributed to the reduction of Mn₂O₃ to Mn₃O₄ [46], 111 °C and 117 °C lower compared to the same reduction feature of Mn₃O₄ and MnO_x-10%ZrO₂, respectively. This reduction peak was also more intense for the MnO_x-5%ZrO₂ compared to the other MnO_x-based samples confirming, as detected by XRD and XPS, the major presence of Mn³⁺ ions on MnO_x-5%ZrO₂. The higher temperature reduction signals in the range 300–480° were ascribed to the further reduction of Mn₃O₄ to MnO [46]. Moreover, in this case, the sample with 5 wt.% of ZrO₂ showed the highest reducibility (i.e., the lowest peak temperature). This is connected to the highest mobility/reducibility of the surface oxygens of MnO_x-5%ZrO₂, which favours the MvK mechanism, and therefore a better VOCs abatement. The reduction temperature of bare ZrO₂ started at a temperature above 500 °C [47], and for this reason, in our analysis (in the range 50–550°C), its reduction peak was not complete.

Between the photocatalytic, the thermocatalytic and the photothermo-catalytic removal of VOCs, although the solar photocatalytic reaction has the advantages of work at room temperature and that with the MnO_x-5%ZrO₂, it reached a similar activity of the most used TiO₂-based materials (Table 4); to have a complete VOCs removal, it is necessary to have contextual heating. For this purpose, the solar photothermo-catalysis can be an optimal solution to obtain the good performance of the thermocatalysis, but with an energy saving, due to the lower temperature required for the VOCs conversion. Indeed, the best sample (MnO_x-5%ZrO₂) tested in our experimental conditions showed a decrease of 36 °C and 34 °C of the toluene and ethanol T₉₀ conversion compared to the thermocatalytic tests favouring in both the reactions; the total oxidation to CO₂ (the T₉₀ of ethanol conversion to CO₂ was lowered of 205 °C, Table 5 and Table 6).

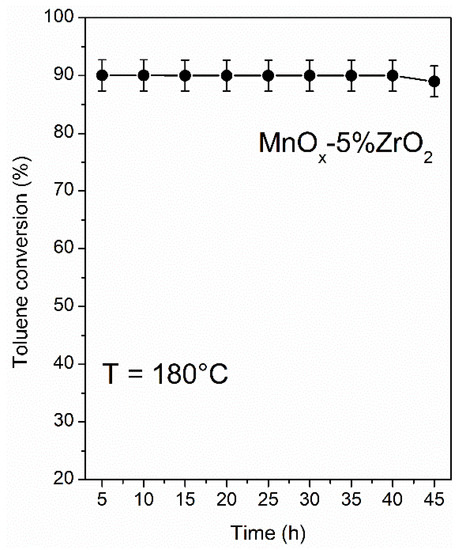

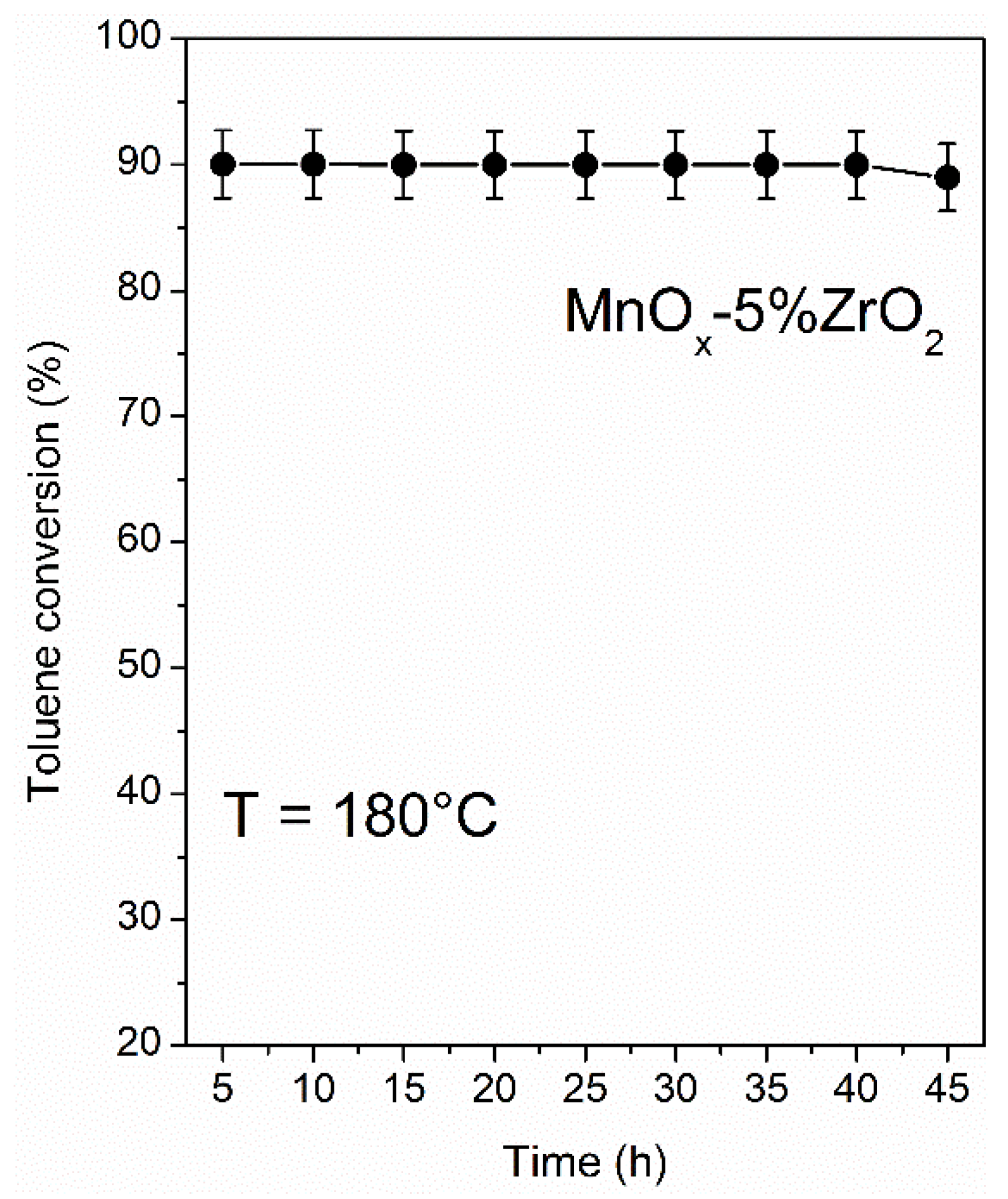

Finally, the stability in the time-on steam toluene removal of MnO_x-5%ZrO₂ was good (Figure 8, toluene solar photothermo-oxidation) and pointed to the MnO_x-ZrO₂ catalyst being a promising versatile material for application in thermocatalysis, photocatalysis, and photothermo-catalysis.

4. Materials and Methods

4.1. Catalysts Synthesis

Bare manganese oxide was prepared by chemical precipitation with NaOH (1 M) (Panreac Química SLU, Castellar del Vallès (Barcelona), Spain). In particular, a certain amount of manganese (II) chloride tetrahydrate (Sigma-Aldrich, Buchs, Switzerland) was dissolved in demineralized water and heated at 70 °C. After the NaOH was added dropwise until the pH = 10. Successively, the solution was stirred and kept at 70 °C for 2 h. After digestion for 24 h, the slurry was filtered and dried at 120 °C overnight. Finally, the resultant powders were calcined in air at 600 °C for 2 h.

A similar procedure was followed for the bare ZrO₂. In this case, the zirconyl nitrate hydrate (Fluka, Buchs, Switzerland) and ammonia (as precipitant agent, 25–28%, Sigma-Aldrich, Buchs, Switzerland) were used, following the same procedures reported above, and the same thermal treatments (drying at 120 °C, and calcination at 600 °C for 2 h).

For the MnO_x-ZrO₂ mixed oxides, the NaOH-driven precipitation was employed using the required stoichiometric amount of zirconyl nitrate hydrate to obtain the chosen nominal concentration in weight percentage (wt.%) of ZrO₂. Moreover, in this case, the samples were dried at 120 °C and calcined in air at 600 °C for 2 h.

4.2. Catalysts Characterization

The sample structures were determined through the X-ray powder diffraction (XRD) using a Smartlab Rigaku diffractometer (Rigaku Europe SE, Hugenottenallee 167 Neu-Isenburg 63263, Germany) in Bragg–Brentano mode, equipped with a rotating anode of Cu Kα radiation operating at 45 kV and 200 mA. The surface morphology was examined with field emission scanning electron microscopy (FE-SEM) using a ZEISS SUPRA 55 VP (Carl Zeiss QEC Gmb, Garching b. München, Germany). The composition of the powders was carried out by the energy dispersive X-ray (EDX) analysis using an INCA-Oxford (Oxford Instruments plc, Tubney Woods, Abingdon, Oxfordshire, United Kingdom) windowless detector, and a resolution of 127 eV determined using the half-height amplitude (FWHM) of the Kα of Mn.

The BET surface area values were determined by N₂ adsorption–desorption measurements with a Sorptomatic 1990 instrument (Thermo Quest, Milano, Italy). Before the measurements, the catalysts were outgassed overnight at 200 °C.

The UV-vis Diffuse Reflectance spectra (UV-Vis DRS, Diffuse Reflectance Spectroscopy) measurements were performed with a Jasco V- 670 spectrometer (Jasco Europe S.R.L., Cremella, Italy) provided with an integration sphere and using barium sulphate (Fluka, Buchs, Switzerland) as standard. The estimation of the optical band gap of the samples was determined using the Kubelka–Munch function [26].

The X-ray photoelectron spectroscopy (XPS) was performed with a K-alpha X-ray photoelectron instrument (Thermo Fisher Scientific, Waltham, MA, USA), employing the C 1s peak at 284.9 eV (of adventitious carbon) as reference.

The H₂-TPR (Temperature programmed reduction) profiles of the samples were obtained using a home-made flow equipment (gas-mixture 5 vol.% H₂ in Ar) and a TCD detector, following the procedures reported in ref. [48].

4.3. Photo, Thermo and Photothermo-Catalytic Oxidation of VOCs

The thermocatalytic removal of VOCs in gas phase and atmospheric pressure was carried out in a fixed bed flow reactor packed with the powder catalysts (0.15 g, 80–140 mesh), using the same experimental conditions described in the ref. [3]. A heating ramp of 10 °C was used in all the tests from room temperature to 500 °C. To assure a steady-state before the catalytic measurements, the gas mixture (1000 ppm VOCs; 10 vol.% air, rest He) was flowed on the catalyst for 30 min. No substantial contribution due to the adsorption process was detected. The reaction products were analysed by a gas chromatography (Smart-IQ+ Thermo Onix, Thermo Fisher Scientific 168 Third Avenue, Waltham, MA, USA 0245) utilizing a packed column with 10% FFAP on Chromosorb W (from Merck KGaA, Darmstadt, Germany) with a FID (Flame Ionization Detector), coupled with a quadrupole mass spectrometer (VG quadropoles, Fergutec B.V. Dragonder 13 C, 5554 GM Valkenswaard, The Netherlands).

The photocatalytic and the photothermo-catalytic tests were performed with the same instruments described above. The simultaneous irradiation in the phothermo-catalytic tests was made with an artificial solar lamp (OSRAM Vitalux 300 W, 10.7 mW/cm², OSRAM Opto Semiconductors GmbH, Leibniz, Regensburg Germany). In the photocatalytic tests, a fan located near the reactor allowed us to maintain a constant temperature, avoiding the overheating effects due to lamp emission.

5. Conclusions

The MnO_x-ZrO₂ mixed oxides exhibited promising performance in the removal of toluene and ethanol in the gas phase, especially in the multi-catalytic solar photothermal approach. The ionic interaction between the manganese and the zirconium ions exploited with the addition of a low amount of zirconium oxide allowed us to boost up the Mars–van Krevelen mechanism of the VOCs oxidation favouring the total oxidation of VOCs to CO₂. Furthermore, with the photothermo-catalysis, a decrease of the conversion temperatures compared to the thermocatalysis was verified, and MnO_x-5 wt.%ZrO₂ also showed good stability. Finally, with the same catalyst in the solar photocatalytic tests at room temperature, a similar activity of the most used TiO₂-based materials was obtained, pointing to the fact that this sample can be promising for the VOCs remediation technologies, being cheaper, not critical, and performing considering the absence of noble metal co-catalysts.
