Enhanced Photocatalytic CO₂ Reduction over TiO₂ Using Metalloporphyrin as the Cocatalyst

Abstract

The photocatalytic reduction of carbon dioxide (CO₂) into CO and hydrocarbon fuels has been considered as an ideal green technology for solar-to-chemical energy conversion. The separation/transport of photoinduced charge carriers and adsorption/activation of CO₂ molecules play crucial roles in photocatalytic activity. Herein, tetrakis (4-carboxyphenyl) porphyrin (H₂TCPP) was incorporated with different metal atoms in the center of a conjugate macrocycle, forming the metalloporphyrins TCPP-M (M = Co, Ni, Cu). The as-obtained metalloporphyrin was loaded as a cocatalyst on commercial titania (P25) to form TCPP-M@P25 (M = Co, Ni, Cu) for enhanced CO₂ photoreduction. Among all of the TCPP-M@P25 (M = Co, Ni, Cu), TCPP-Cu@P25 exhibited the highest evolution rates of CO (13.6 μmol⋅g⁻¹⋅h⁻¹) and CH₄ (1.0 μmol⋅g⁻¹⋅h⁻¹), which were 35.8 times and 97.0 times those of bare P25, respectively. The enhanced photocatalytic activity could be attributed to the improved photogenerated electron-hole separation efficiency, as well as the increased adsorption/activation sites provided by the metal centers in TCPP-M (M = Co, Ni, Cu). Our study indicates that metalloporphyrin could be used as a high-efficiency cocatalyst to enhance CO₂ photoreduction activity.

1. Introduction

In view of global warming and the energy crisis, the photocatalytic reduction of carbon dioxide (CO₂) into CO and hydrocarbon fuels, which is known as artificial photosynthesis, has long been considered an ideal green technology for solar-to-chemical energy conversion [1,2,3]. Owing to its environmentally friendliness and sustainability, photocatalytic CO₂ reduction has attracted tremendous attention in recent years [4,5,6]. So far, however, the efficiencies of the currently reported photocatalysis systems are still very low [7,8,9,10], which can mainly be attributed to inefficient photogenerated charge-carrier separation and migration, and the poor adsorption and activation of CO₂ molecules [11,12,13]. Introducing cocatalysts provides a new perspective to overcome the weaknesses mentioned above [14,15]. Most of the efficient cocatalysts developed up to date consisted of noble metals, such as Au, Ag, Pt and their alloys, or bimetallic core-shell structures [16,17], which have large work functions that favor the separation of photogenerated electrons and holes [18]. However, their high cost and rarity restrict their further development and extensive application. In addition, such noble metals usually fail to exhibit an outstanding capacity for capturing and activating CO₂ molecules [19]. In this context, exploring efficient noble-metal-free cocatalysts has aroused great interest [20,21,22].

In the natural photosynthesis process, chlorophyll serves as the photosynthetic center in green plants for fixing carbon dioxide in the atmosphere [23,24]. Among all the components of chlorophyll, porphyrin is believed to be the most effective one in harvesting sunlight, inspiring scientists to apply porphyrins and their derivatives to artificial photosynthesis [25]. It has been discovered that the electron fluidity within the conjugate macrocycle in porphyrin molecules renders them a class of excellent exciton transfer intermediate [26,27], and porphyrin rings are highly qualified for capturing CO₂ molecules and consequently benefit the conversion of carbon dioxide [28,29]. In terms of fabrication, porphyrins are often designed to assemble metal-organic framework materials, or to coordinate with metals to form metalloporphyrins [30,31,32]. In fact, several previous researchers have demonstrated that earth-abundant-metal atoms (e.g., Co, Cu, Zn etc.) could be incorporated into porphyrin-based materials to serve as not only the catalytic sites but also as the adsorption center of CO₂ molecules, thereby enhancing photocatalytic activity [33,34]. Thus, the above-mentioned facts suggest that metalloporphyrin can behave as a highly promising noble-metal-free cocatalyst to facilitate the photoinduced electron transfer process and to fix the CO₂ molecules in photocatalytic CO₂ reduction under sunlight irradiation.

In this work, we used 4,4′,4″,4‴-(porphyrin-5,10,15,20-tetrayl) tetra-benzoate (H₂-TCPP) as the porphyrin matrix to incorporate various metal atoms M (M = Co, Ni, Cu), and the as-formed metalloporphyrin TCPP-M was loaded as a new noble-metal-free cocatalyst onto commercial titanium dioxide (P25) through a straightforward synthetic route. Owing to the remarkable photoconductivity of metalloporphyrin [35,36], the photocatalytic CO₂ reduction activity of the assembled TCPP-M@TiO₂ M (M = Co, Ni, Cu) nanocomposite was significantly improved. In the TCPP-Cu@TiO₂, the CO and CH₄ evolution rates were 13.6 μmol⋅g⁻¹⋅h⁻¹ and 1.0 μmol⋅g⁻¹⋅h⁻¹, which were 35.8-fold and 97.0-fold those of bare P25, respectively. The dramatically enhanced photocatalytic activity could be ascribed to the increased electron transfer from photoexcited TiO₂ to the metal center of the porphyrin ring. In addition, the incorporated metal atoms also play an important role in the adsorption/activation of CO₂ molecules, as evidenced by both theoretical calculation and experimental measurement. Our work has provided a new strategy for the enhancement of photocatalytic CO₂ reduction by employing metalloporphyrin as an efficient noble-metal-free cocatalyst.

2. Results and Discussion

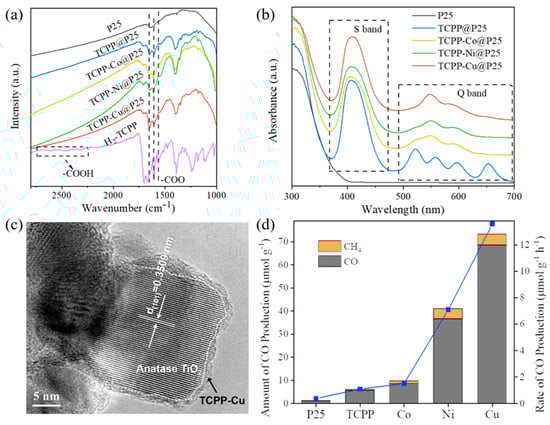

From the FT–IR spectra in Figure 1a, the successful synthesis of TCPP@P25 and TCPP-M (M = Co, Ni, Cu) @P25 was confirmed by the characteristic bands of porphyrins from 1600 to 1400 cm⁻¹, in which the bands at 1652, 1605 and 1556 cm⁻¹ could be assigned to carboxylates (–COOM) [37]. Besides this, the broad and small bands of H₂-TCPP ligand at 2700–2350 cm⁻¹ are generally considered to be caused by the frequency multiplication of the O–H bond deformation vibration in the carboxylic group, which cannot be observed after bonding with P25 [38]. Compared to H₂-TCPP, the hydroxy bands in TCPP@P25 and TCPP-M (M = Co, Ni, Cu) @P25 disappeared, indicating that the porphyrin molecules were jointed to the surface of the titanium dioxide by coordinating the carboxylic end group with Ti atoms.

In the UV–Vis diffuse reflectance spectra, the TCPP@P25 showed four weak Q absorption bands at 522, 558, 595 and 653 nm (see the blue curve in Figure 1b), respectively, which were characteristic for the porphyrin family. After metalation of the porphyrin ring with Co, Ni or Cu, only two Q bands were observed because of the higher symmetry of the porphyrin unit in TCPP-M@P25 (M = Co, Ni, Cu) [38]. The XPS results (Figure S1) further confirmed the existence of the central metal coordination. The original porphyrin ring in TCPP@P25 contains two chemically different types of nitrogen atoms, –NH (green peak in Figure S1a) and = N–(red peak in Figure S1a). In the XPS spectra of TCPP-Cu@P25 (Figure S1b), the peak for = N– shifted to a high value at 398.56 eV, which corresponded to the binding energy between copper and porphyrin [33], confirming the electron transfer from the porphyrin rings to coordinated metal atoms. In contrast, the green peak remained at ~ 400.10 eV, but the intensity decreased significantly, probably because a small percentage of N failed to coordinate with copper [32]. The above-mentioned FT–IR, UV–Vis and XPS results confirmed that the porphyrin coordinated with metal atoms in the center was indeed loaded onto P25 via carboxylic bonds.

From the XRD patterns (Figure S2), all the diffraction peaks of the as-prepared samples could be indexed as anatase (PDF#21-1272) and rutile titanium dioxide (PDF#21-1276), being consistent with the intrinsic two-phase P25. However, the TCPP in TCPP@P25 and TCPP-M (M = Co, Ni, Cu) @P25 hybrids could not be detected because of its small amount (<5 wt%). Almost no change in the morphology and particle size of P25 was observed from the SEM (Figure S3) and TEM (Figure S4) images after incorporating with TCPP-Cu. The lattice fringes in the TEM image corresponded to the (101) planar space of anatase TiO₂ (Figure 1c).

Photocatalytic reactions over P25 with or without TCPP-M (M = Co, Ni, Cu) as cocatalyst were carried out using water as the electron donor. From Figure 1d and Figure S5, we can see that the pure P25 showed rather low activity (0.39 μmol⋅g⁻¹⋅h⁻¹ for CO; 0.01 μmol⋅g⁻¹⋅h⁻¹ for CH₄). Loading TCPP with TiO₂ increased the yields of both CO (1.08 μmol⋅g⁻¹⋅h⁻¹) and CH₄ (0.06 μmol⋅g⁻¹⋅h⁻¹). More interestingly, when TCPP was incorporated with different metal atoms, the photoreduction activity of TCPP-M@P25 (M = Co, Ni, Cu) was further improved significantly. The dependence of photocatalytic performances on the loading amount of TCPP-Cu (Figure S6) showed that, when loading 1.0 wt% TCPP-Cu onto P25, the resultant sample exhibited a significant increase in photocatalytic activity for CO evolution (6.39 μmol⋅g⁻¹⋅h⁻¹), confirming the validity of the cocatalyst. With an optimal loading amount of TCPP-Cu (5 wt%), the TCPP-M@P25 showed the highest efficiency of CO₂ reduction, with a CO evolution rate of 13.6 μmol⋅g⁻¹⋅h⁻¹, which was 35.8 times and 12.4 times those of bare P25 and TCPP@P25, respectively. The evolution rate of CH₄ (1.0 μmol⋅g⁻¹⋅h⁻¹) was 97.0-fold and 16.5-fold that of bare P25 and TCPP@P25, respectively. As for TCPP-Co@P25, the optimal CO and CH₄ generation rates were 1.51 μmol⋅g⁻¹⋅h⁻¹ and 0.27 μmol⋅g⁻¹⋅h⁻¹, respectively. For TCPP-Ni@P25, the optimal activities were 7.08 μmol⋅g⁻¹⋅h⁻¹ (CO) and 0.89 μmol⋅g⁻¹⋅h⁻¹ (CH₄). The reason for the activities of TCPP-Co@P25 and TCPP-Ni@P25 being lower than TCPP-Cu@P25 will be discussed below, along with the adsorption results. We need to mention that further increasing the loading amount of TCPP-Cu decreased the activity, although TCPP itself could absorb a wide wavelength range of light [35]. However, no CO or CH₄ could be detected when using an L42 filter to cut off the light with wavelengths shorter than 420 nm (Figure S7a). A photoluminescence (PL) investigation showed that no fluorescence peak of porphyrin (630–850nm) was observed in TCPP-Cu@P25 (see Figure S8), indicating that the porphyrin itself might not be excited upon light irradiation. Moreover, neither pure H₂-TCPP ligand nor TCPP-Cu complex showed activity for CO₂ photoreduction (Figure S7b). Thus, we could reasonably judge that loading excess TCPP would probably shield P25 from incident light, leading to reduced activity.

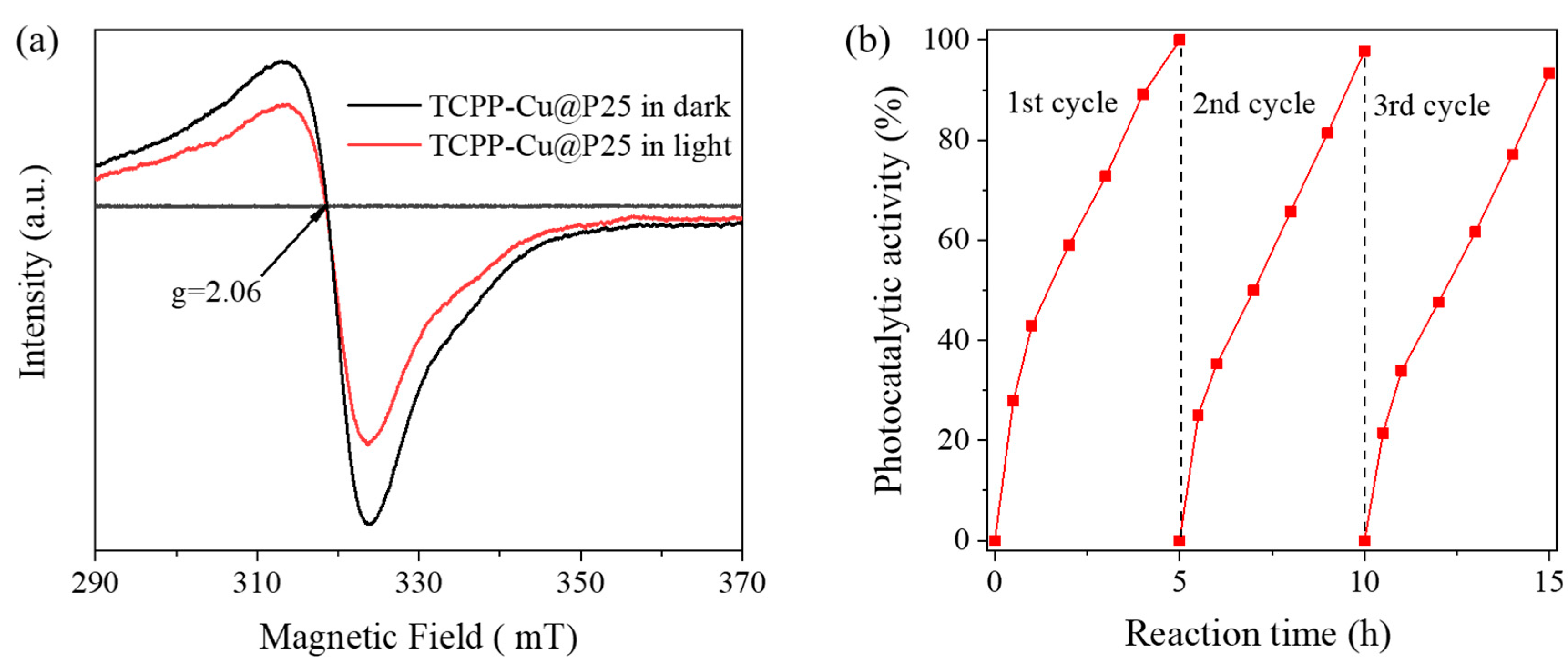

To exclude the possibility that the CO and CH₄ were from the carbon contained in TCPP, TCPP-M or the adsorbed impurities on the TiO₂, we performed a reaction by replacing the CO₂ gas with Ar gas whilst keeping other conditions identical. Neither CO nor CH₄ were detected (Figure S9), indicating that the obtained CO and CH₄ originated from the photoreduction of CO₂. Besides this, removing H₂O from the reaction system also yielded neither CO nor CH₄, verifying the role of H₂O as the electron donor in the photoreduction of CO₂. Although we did not detect O₂ gas, the XPS result (see Table S1) indicated that the samples probably produced other forms of oxidized products during the process of the reaction, which is a common phenomenon in the photocatalytic reduction of CO₂ over TiO₂ [22,39]. The above results demonstrate clearly the significant role of TCPP-M as an effective cocatalyst in boosting the photocatalytic activity of TCPP-Cu@P25 for CO₂ reduction.

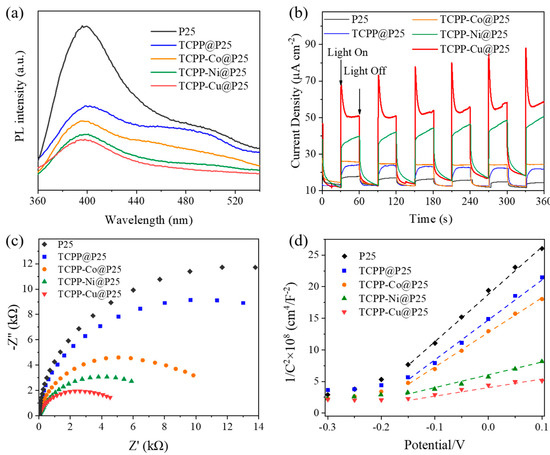

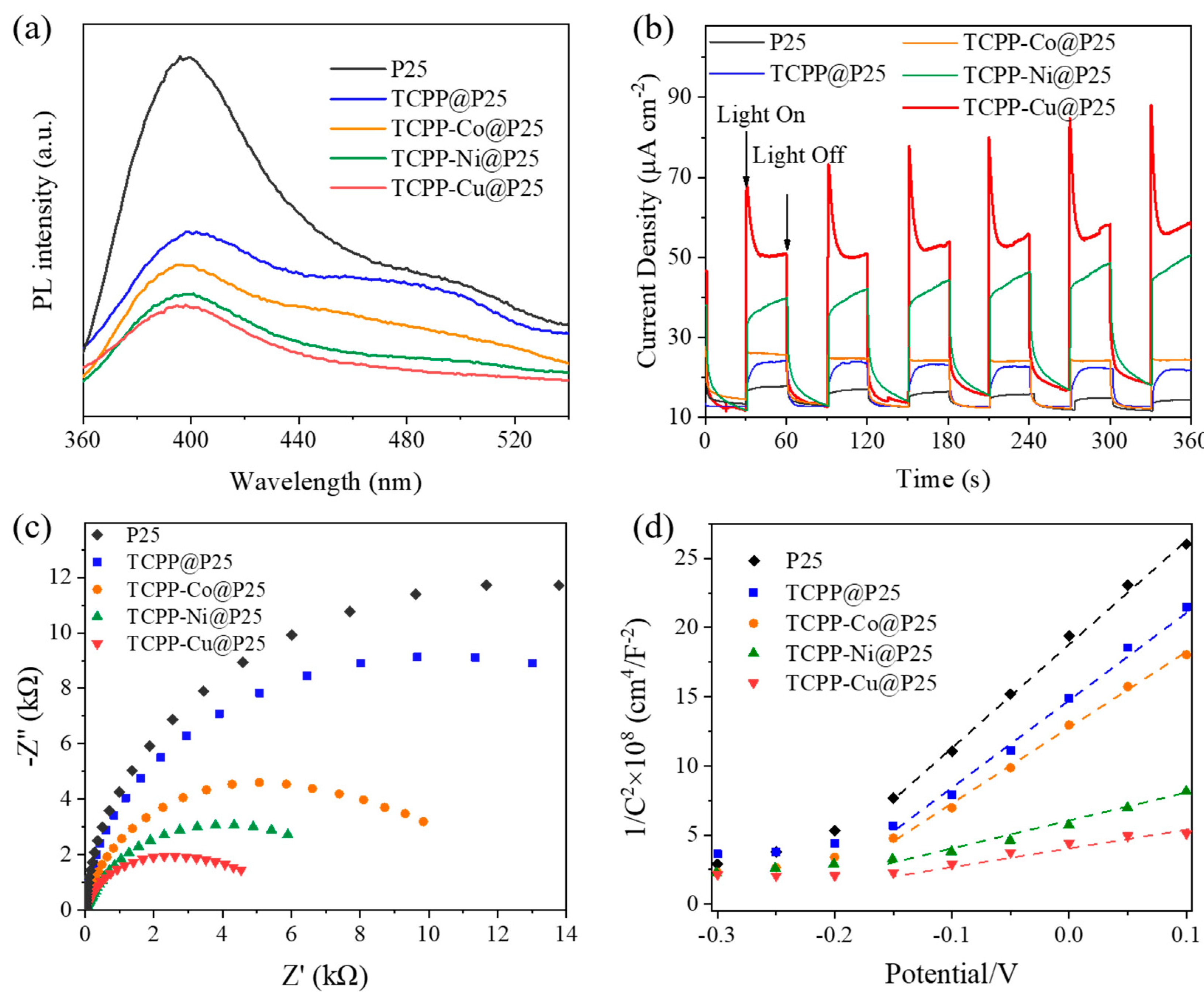

It is well known that the charge carrier separation plays an important role in the photocatalytic reaction [18]. As shown in Figure 2a, the PL intensity decreased after loading with TCPP or TCPP-M, which could be attributed to improved charge separation efficiency [22]. Moreover, transient photocurrent (TPC) response and electrochemical impedance spectroscopy (EIS) were also studied. Figure 2b shows that TCPP-Cu@P25 exhibited the highest photocurrent density, followed by TCPP-Ni@P25, both of which were much higher than TCPP@P25 or pure P25. However, the photocurrent response of TCPP-Co@P25 was very close to that of TCPP@P25. The EIS graph (Figure 2c) shows the smaller semicircle diameters of TCPP-M@P25 (M = Co, Ni, Cu) in comparison with TCPP@P25 and pure P25, indicating enhanced charge transfer efficiency after the conjugation of metalloporphyrins [36]. The charge transfer process was also studied by Mott–Schottky (M–S) curves analysis (Figure 2d). All the samples showed a positive slope in the M–S plots, as expected for an n-type semiconductor. The TCPP-Cu@P25 showed the smallest slopes on the M–S plot, compared to TCPP-Ni@P25, TCPP-Co@P25 and TCPP@P25, confirming that the introduction of metalloporphyrin led to faster charge transfer, especially for the TCPP-Cu@P25. The above results verify that the metalloporphyrin-based cocatalyst greatly promoted the separation of photogenerated electron-hole pairs, thereby resulting in the dramatically enhanced activity of TCPP-Cu@P25.

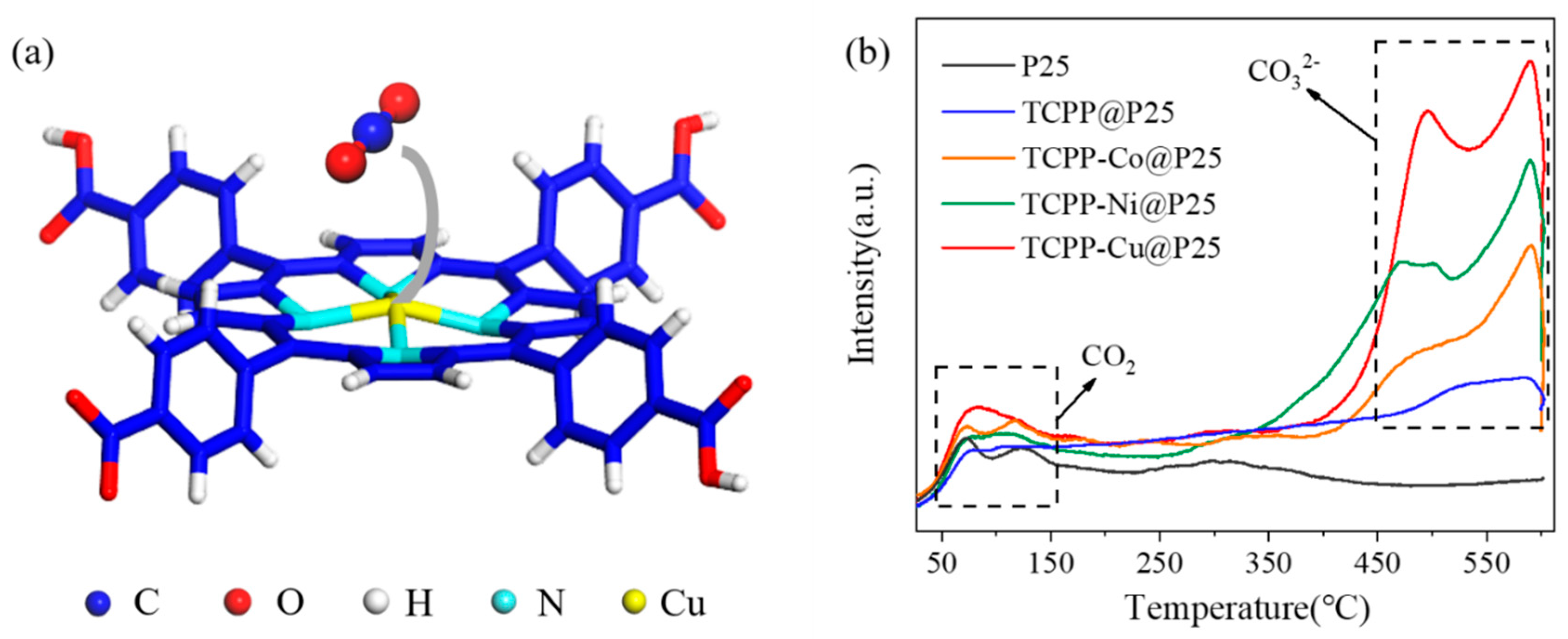

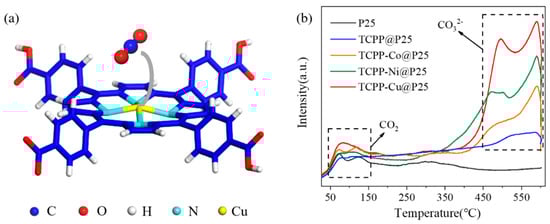

Owing to the large dissociation energy (ca. 750 kJ mol⁻¹) of the C=O bond, CO₂ is an extremely stable molecule in terms of thermodynamics [40]. Therefore, the adsorption/activation of CO₂ molecules into the reactive intermediates (e.g., HCO₃⁻, HCO₂⁻ or CO₃²⁻) is of vital importance to the subsequent photocatalytic reduction process. While loading metalloporphyrins on P25 decreased the specific surface area (Figure S10), the incorporated metal atoms could provide active sites for increasing the adsorption of CO₂ molecules (see Figure 3a) [32]. The first principle calculation also proved that the metal centers could bring down the adsorption energy from −0.02 eV (for TCPP@P25) to −0.11 eV (for TCPP-Cu@P25). To clarify whether the CO₂ molecules captured by the porphyrin rings were activated or not, a CO₂-TPD (Temperature Programmed Desorption) measurement was conducted. As shown in Figure 3b, the small peaks which appeared below 180 °C could be ascribed to the physically adsorbed CO₂ molecules, which could not be activated for subsequent photocatalytic reduction reactions. The two peaks at 380–550 °C and 550–600 °C correspond to the desorption of bidentate carbonates (b-CO₃²⁻) and monodentate carbonates (m-CO₃²⁻), respectively [41]. The b-CO₃²⁻ and m-CO₃²⁻ species were generated from CO₂ molecules combined with oxygen atoms, or both the oxygen and metal atoms of the cocatalysts. While the surface area of bare P25 was as high as 84.69 m² g⁻¹, only a small amount of CO₂ was adsorbed, indicating a weak interaction between CO₂ and TiO₂. As for TCPP@P25, the appearance of the peaks at higher temperatures indicated that the introduction of porphyrin strengthened the interaction between CO₂ and TiO₂. Further coordination of metal atoms remarkably enhanced the intensity of the desorption peaks at 380–550 °C and 550–600 °C, suggesting that the anchored metal atoms greatly promoted the chemisorption of CO₂. We noticed that the b-CO₃²⁻ peak for TCPP-Cu@P25 was higher than that for either TCPP-Co@P25 or TCPP-Ni@P25. In addition, the peak for TCPP-Cu@P25 shifted to a higher temperature, suggesting that the binding strength between Cu sites and the adsorbed CO₂ molecules was higher than in the cases of TCPP-Co@P25 and TCPP-Ni@P25. As a result, TCPP-Cu@P25 exhibited the highest photocatalytic activity for CO₂ reduction. As mentioned above, the incorporation of a metal center in the porphyrin ring plays a crucial role in the adsorption and activation of CO₂ molecules for significantly enhanced photocatalytic CO₂ reduction over TCPP-M@P25 (M = Co, Ni, Cu). In particular, the strongest bond between Cu-porphyrin and CO₃²⁻ endowed the highest activity of TCPP-Cu@P25.

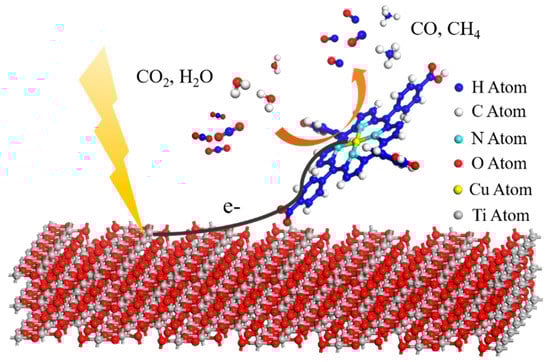

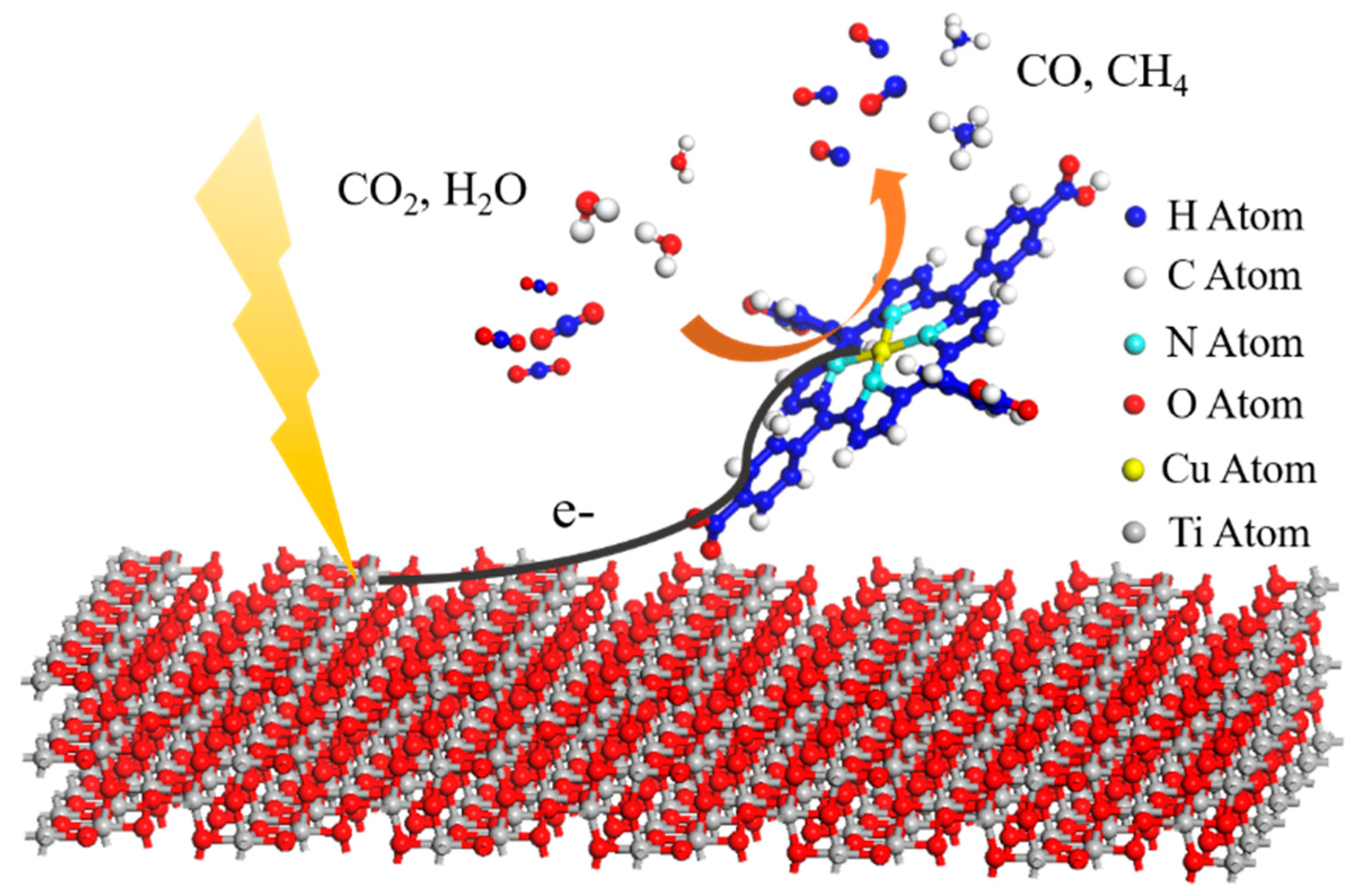

To unravel the electron transfer process in TCPP-Cu@P25, some blank experiments were performed over Cu@P25 and Cu@TCPP/P25 under conditions identical to TCPP-Cu@P25, as described in Figure 1d. The sample denoted as Cu@P25 was obtained by the photodeposition of Cu onto P25 (Figure S11). Low photoactivity was observed on Cu@P25, primarily due to the inefficient separation/migration of photoexcited electron-hole pairs. For Cu@TCPP/P25, Cu was photodeposited onto the surface of TCPP/P25, rather than coordinating in the center of porphyrin ring. The sample Cu@TCPP/P25 showed a much lower photoactivity than TCPP-Cu@P25 (Figure S11). Thus, we could infer that only when a Cu atom was coordinated in the center of porphyrin ring could it serve as the destination of the electron transfer process. In fact, the ESR measurement demonstrated that Cu²⁺ was partially reduced to Cu⁺ after light irradiation, which was evidenced by a decline in the Cu²⁺ peak at g = 2.06, as shown in Figure 4a [42,43]. Furthermore, the long-term course of CO₂ reduction over TCPP-Cu@P25 running for three cycles showed stable CO evolution (see Figure 4b), suggesting that the conversion from Cu²⁺ to Cu⁺ was invertible. Based on the above-mentioned results and discussion, we propose in Figure 5 the process of photocatalytic CO₂ reduction over TCPP-Cu@P25. Upon light irradiation, photoelectrons generated in P25 quickly transfer to Cu²⁺ in the center of porphyrin ring, where the CO₂ molecules are preferentially adsorbed and activated, and finally reduced into CO and CH₄ photocatalytically.

3. Materials and Methods

3.1. Materials and Synthesis

Titanium (IV) dioxide (TiO₂, P25 99%) was purchased from Sinopharm Chemical Reagent Co., Ltd. Tetrakis (4-carboxyphenyl) porphyrin (H₂TCPP, 97%) and N,N-dimethylformamide (DMF, 97%) were purchased from TCI (Tokyo Chemical Industry). Other reagents of analytical grade were used without further purification.

TCPP@P25 was synthesized via a ‘one-pot’ solvothermal method. Titanium dioxide (P25, 500 mg) was first added to N,N-dimethylformamide (DMF, 30 mL) and sonicated for 30 min, then tetrakis (4-carboxyphenyl) porphyrin (25 mg) was added to the solution. The mixture was transferred into a Teflon-lined autoclave and heated at 150 °C for 12 h. The as-obtained product was washed and centrifugated three times with DMF and six times with ethanol. Finally, the TCPP@P25 was obtained after drying in a vacuum oven at 60 °C for 48 h. TCPP-M (M = Co, Ni, Cu) @P25 was sythesized following the same procedures as those of TCPP@P25. The raw materials were titanium dioxide (P25, 500 mg), tetrakis (4-carboxyphenyl) porphyrin (25 mg) and cobalt acetate tetrahydrate (C₄H₆CoO₄ 4H₂O, 7.9 mg, for TCPP-Co@P25), nickel acetate tetrahydrate (C₄H₆NiO₄ 4H₂O, 7.9 mg, for TCPP-Ni@P25), copper acetate hydrate (C₄H₆CuO₄ H₂O, 6.3 mg, for TCPP-Cu@P25) and DMF (30 mL) as the solvent for each sample.

The photodeposition of Cu nanoparticles onto P25 was conducted by dispersing P25 (100 mg) and CuSO₄ (0.8 mg) with a magnetic stirrer in an aqueous methanol solution (220 mL of H₂O and 70 mL of methanol) under 300 W Xe lamp irradiation for 1 h. After washing, centrifugation and desiccation, Cu@P25 was obtained. The synthesis procedure of Cu@TCPP/P25 was same as that of Cu@P25, replacing P25 (100 mg) with the pre-synthesized TCPP@P25 (100 mg).

3.2. Characterization

The Fourier transform infrared (FT–IR) spectrum was measured on a spectrometer (Nicolet-6700, Thermo Scientific) in the range of 3000–400 cm⁻¹. The UV–Vis diffuse reflectance spectrum was recorded on a spectrophotometer (UV-2700, Shimadzu) using BaSO₄ as the standard reference, and then converted into absorption spectra via the Kubelka–Munk function. Morphology and microstructure were observed on a field emission scanning electron microscope (FESEM; S4800, Hitachi, Japan) and a transmission electron microscope (TEM, FEI Tecnai-G2-F20). X-ray diffraction (XRD) patterns were acquired on a diffractometer (Rigaku D/MAX-2500) equipped with Cu-Kα radiation (λ = 0.1538 nm). X-ray photoelectron spectra (XPS) were detected on a Thermo Scientific Escalab 250Xi, and all binding energies were calibrated by the C 1s peaks (284.6 eV) of the surface adventitious carbon. The photoluminescence (PL) spectrum was measured on a spectrofluorometer (Fluorolog-2, Horiba Jobin Yvon); the excitation wavelength was 335 nm.

Electron spin resonance (ESR) was conducted on an ESR spectrometer (JES-FA 200, JEOL) under the following conditions: central field, 330 mT; scanning frequency, 9.45 GHz; scanning width, 20 mT; scanning power, 0.998 mW; scanning temperature, 25 °C. The Brunauer–Emmett–Teller (BET) surface area was analyzed on a Quantachrome Autosorb iQ2 using N₂ adsorption isotherms at 77 K. CO₂ adsorption isotherm was obtained on a BEL SORP-mini II. CO₂-TPD (Temperature Programmed Desorption) was measured on a multifunction chemisorption analyzer (Pengxiang Technology, PX 200A) with a quartz U-tube reactor, and was monitored by a thermal conductivity detector. The sample (100 mg) was heated to 250 °C at a rate of 10 °C/min and then cooled to room temperature. After the pretreatment, CO₂ flow (20 mL/min) passed through the catalyst bed for 30 min, then the TPD analysis was performed by heating the sample to 620 °C at a rate of 10 °C/min. The whole process of TPD measurement was performed under Ar gas flow (28 mL/min).

3.3. Photocatalytic Performance Evaluation and Photoelectrochemical Measurement

The photocatalytic experiment was carried out in a vacuum reaction system with a total volume of about 330 mL. In the center of the reaction cell, a 50 mg sample was uniformly dispersed on a porous quartzose slice fixed on the stage of the reactor. In total, 3 mL of deionized water was injected into the cell as sacrificial agent. After evacuating the system, 70 kPa CO₂ was introduced and a 300 W Xe lamp was employed as the light source. with a water filter to cut off infrared light. The incident light intensity in the reaction was measured to be 83.5 mW cm⁻².

Photoelectrochemical performance was tested on an electrochemical workstation (CHI 660D, Chenhua, Shanghai) connected to a three-electrode quartz glass cell, using a piece of Pt plate as the counter electrode and an Ag/AgCl electrode as the reference electrode. In total, 2 mg of the sample was spin-coated on an area of ~ 1 cm² of thin FTO film, forming the photoelectrode. Photoresponse was then measured in 0.1 M K₂SO₄ aqueous solution under 300 W Xe lamp irradiation.

3.4. Computational Details

The theoretical calculations were carried out with the Vienna Ab initio Simulation Package (VASP), based on density functional theory (DFT) [44]. The projector augmented wave (PAW) pseudopotentials and the generalized gradient approximation (GGA) with the Perdew–Burke–Ernzerhof (PBE) functional were adopted in the calculations [45,46]. The Grimme method (DFT-D2) was used for the van der Waals (VdW) interaction corrections [47]. The wave-functions were expanded by plane-wave with a cutoff energy of 450 eV, and the energy and force convergence threshold were set to 10⁻⁵ eV and 10⁻² eV Å⁻¹, respectively. The 1 × 1 × 1 Monkhorst–Pack k-points mesh was employed for the molecular model simulation, with a vacuum layer of 16 Å in three directions.

4. Conclusions

In summary, porphyrin-based noble-metal-free cocatalysts were developed via a facile solvothermal synthesis route. With metal atoms anchored in the center of porphyrin rings, the metalloporphyrin TCPP-M (M = Co, Ni, Cu) was loaded onto TiO₂ through bonding between the end group carboxyl and Ti atoms, forming TCPP-M@TiO₂ (M = Co, Ni, Cu) nanohybrids. TCPP-Cu@TiO₂ was found to show the best activity for photocatalytic CO₂ reduction into CO (13.6 μmol⋅g⁻¹⋅h⁻¹) and CH₄ (1.0 μmol⋅g⁻¹⋅h⁻¹), which were 35.8 times and 97.0 times those of bare P25, respectively. The remarkably enhanced activity of TCPP-Cu@TiO₂ could be attributed to the excellent photogenerated charge carrier separation/transport and the CO₂ adsorption/activation ability endowed by the Cu atoms coordinated in the center of porphyrin rings in TCPP-Cu. The present study suggests that metalloporphyrin could be employed as an efficient noble-metal-free cocatalyst for photocatalytic CO₂ reduction.
