Article

Poisoning Effects of Phosphorus, Potassium and Lead on V2O5-WO3/TiO2 Catalysts for Selective Catalytic Reduction with NH3

by
Jifa Miao
1,2,3,
Xianfang Yi
1,2,3,
Qingfa Su
1,2,3,
Huirong Li
1,2,3,
Jinsheng Chen
1,2,* and
Jinxiu Wang
1,2,*
1
Center for Excellence in Regional Atmospheric Environment, Institute of Urban Environment, Chinese Academy of Sciences, Xiamen 361021, China
2
Key Laboratory of Urban Environment and Health, Institute of Urban Environment, Chinese Academy of Sciences, Xiamen 361021, China
3
University of Chinese Academy of Sciences, Beijing 100049, China
*
Authors to whom correspondence should be addressed.
Catalysts 2020, 10(3), 345; https://doi.org/10.3390/catal10030345
Submission received: 13 February 2020 / Revised: 17 March 2020 / Accepted: 17 March 2020 / Published: 20 March 2020
(This article belongs to the Section Environmental Catalysis)
Browse Figures
Versions Notes

Abstract

The poisoning effect of single elements on commercial V2O5-WO3/TiO2 catalysts has been studied in the past decades. In this study, the combined effects of two multi-element systems (phosphorus-potassium and phosphorus-lead) on V2O5-WO3/TiO2 catalysts were studied by diverse characterizations. The results show that potassium and lead can result in the deactivation of catalysts to different degrees by reacting with active acid sites and reducing the amount of V5+. However, phosphorus displays slight negative influence on the NOx conversion of the catalyst due to the comprehensive effect of reducing V5+ amount and generating new acid sites. The samples poisoned by phosphorus–potassium and phosphorus–lead have higher NOx conversion than that by potassium or lead, because doped potassium or lead atoms may react with new acid sites generated by phosphate, which liberates more V–OH on the surface of catalysts and reduces the poisoning effects of potassium or lead on vanadium species and active oxygen species.

Graphical Abstract

1. Introduction

The selective catalytic reduction (SCR) of nitrogen oxides (NOx) with ammonia is one of the most effective technologies to reduce NOx emission generated by combustion process [1,2,3], such as coal-fired power plants and municipal solid waste incinerators [4]. The catalyst mostly used for this purpose is V2O5-WO3/TiO2. V2O5 is considered as the active phase and WO3 is considered as a promoter that inhibits the transformation of anatase to rutile, favors the spreading of the vanadia on the catalyst surface, and increases the acidity of the catalyst [5,6].
Though V2O5-WO3/TiO2 catalysts show excellent activity in NH3-SCR process, many compounds including alkali/alkali earth metal elements, Pb, Zn, P and As are found in exhaust flue gas streams, which can lead to the deactivation of SCR catalysts in their lifetime. The deactivation mechanism of single element was studied in the past decades [1,7,8,9,10,11,12,13]. Recently, the combined effects of different elements in the flue gas aroused the attention of scholars. Yu et al. [14,15] suggested that SO2 in the flue gas promoted the activity of K- and Pb-poisoned catalysts. Kong et al. [16] discovered that new acid sites generated on the SCR catalyst by loading HgCl2. Our recent work indicated SO2 and HCl can promote the activity of Pb-poisoned SCR catalyst [4]. However, few studies were about the combined effects of P and other poisoning elements. Schobing et al. [1] found the simultaneous presence of Ca and Zn on the catalyst increased the deactivation, but the additivity of individual effects was not observed and the presence of phosphates anions reduced the poisoning effects of Ca and Zn. Klimczak et al. [17] found an alleviated poisoning of Ca in the presence of phosphates and sulfates due to a regeneration of the ammonia adsorption capacity of the catalyst. It seems that phosphorus (P) could neutralize the negative effects of some poisoning elements, even though P has relatively small negative influence on V2O5-WO3/TiO2 catalysts in consideration of the large amount of phosphorus addition. However, Chen et al. [18] discovered that alkali metal had the strongest poisoning effect on the V-based catalyst, and the poisoning effect of Pb was between K2O and Na2O (K2O > PbO > Na2O). And K is a major component of alkali metals in the coal-fired flue gas. Tokarz et al. [19] measured a large amount of Pb contained in the flue gas of municipal solid waste incinerators. It is; therefore, desirable to study the combined poisoning effects of P and K or Pb on commercial V2O5-WO3/TiO2 catalysts.
In this work, the commercial V2O5-WO3/TiO2 catalyst was deactivated by P, K, Pb and the combination of P and K or Pb. The combined poisoning effects of P and K or Pb were studied by a series of characterizations. The influence of surface O, V, P and Ti species was investigated by X-ray photoelectron spectroscopy (XPS) and the amount and types of acid sites present in catalysts were further studied by temperature-programmed desorption of NH3 (NH3-TPD) and in situ diffuse reflectance infrared Fourier-transform spectroscopy (in situ DRIFTS).

2. Results and Discussion

2.1. Catalytic Activity

Figure 1a shows the SCR activity of the catalyst samples in the temperature range of 250 to 380 °C under a GHSV of 60,000 h−1. The experiments at each specific temperature were maintained for 1 h. The NOx conversion of fresh sample keeps around 90% in the temperature range of 250 to 380 °C. Compared with fresh sample, the NOx conversion of D-P (poisoned by P) decreases slightly (~4%). The poisoning effects of K and Pb on the V2O5-WO3/TiO2 catalyst obviously decrease the NOx conversion of D-K (poisoned by K) and D-Pb (poisoned by Pb) sample. However, the NOx conversion rates of D-P-K (poisoned by P and K) and D-P-Pb (poisoned by P and Pb) pretreated with (NH4)2HPO4 are higher than that of D-K and D-Pb, respectively. It implies that the treatment with (NH4)2HPO4 counteracts the poisoning effects of K and Pb on the catalyst to some degree. Furthermore, Figure S1a shows the N2 selectivity of poisoned catalyst increases at increasing temperature in the range 250–280 °C. Then N2 selectivity of poisoned catalyst decreases with increasing temperature above 300 °C.
Figure 1b shows the NOx conversion of the fresh catalyst and poisoned samples at 350 °C for 3500 min. The fresh catalyst shows high stability. Its NOx conversion reaches the stable stage in 10 min and keeps around 95% until the end of the test. The NOxconversion rates of D-K and D-Pb samples also slightly decrease with time. The NOx conversion rates of the catalysts treated by (NH4)2HPO4 (D-P, D-P-K and D-P-Pb) decrease by 2%, 3% and 3%, respectively, in the first 1500 min, and then are relatively stable during the test. The N2 selectivity of fresh sample keeps stable, and that of the poisoned catalyst decreases a little during the test (Figure S1b).

2.2. Structure and Surface Acid Sites

XRD patterns of fresh catalyst and poisoned samples are displayed in Figure 2. The 2θ = 25.30°, 36.95°, 37.79°, 38.57°, 48.04°, 53.89°, 55.06°, 62.11°, 62.69°, 68.76°, 70.29°, 74.05° and 76.03° diffraction peaks correspond to tetragonal anatase phase of titanium dioxide (PDF card-03-065-5714). Only anatase phase TiO2 is observed in all samples and it indicates that the dopants do not change the crystal type of TiO2. In addition, it also suggests the finely dispersed or amorphous V2O5 and other dopants on the surface of TiO2. The SEM-EDS images of V and W evidence the presence of W, V and the dopants on the catalyst surface (Figure S2).
Table 1 summarizes the element loading amount, specific surface areas (SBET), total pore volume (Vp) and average pore diameter (DA) for all catalysts. The N2 adsorption-desorption isotherms of all samples and pore size distribution are displayed in Figures S3 and S4. According to the International Union of Pure and Applied Chemistry (IUPAC) classification, the isotherms are type-IV nitrogen isotherm corresponding to typical mesoporous materials. The SBET and Vp of the D-Pb and D-K samples are almost similar to the fresh catalyst, suggesting that Pb and K have little influence on the pore structure of the catalyst. The treatment with (NH4)2HPO4 decreases the SBET and increases the DA of the samples, The SEM images of fresh catalysts and poisoned samples are exhibited in Figure S5. A little agglomeration is observed on the samples containing P, which may block the pores and change SBET and Vp of the samples.
The results of structure analysis imply that significant deactivation effect of Pb and K may well result from the chemical reaction between poisoning elements and active sites over catalysts. Moreover, the NOx conversion of samples containing P and another poisoning element is not affected by the reduced SBET. There may be other reasons for the activity change of these samples. Therefore, further characterizations were conducted.
It has been recognized that the surface acid sites over V2O5-WO3/TiO2 catalyst play a crucial role in the selective catalytic reduction process [4,20]. Therefore, the NH3-TPD was performed to investigate the combined effects of poison elements on acid sites of the catalyst. The NH3-TPD profile are exhibited in Figure 3. It shows that all curves recorded from 100–600 °C are divided into two parts. The part below 280 °C is attributed to NH3 desorption on the weak acid sites, and the other part above 280 °C is ascribed to NH3 desorption on the strong acid sites. The total amounts of NH3 adsorption on each sample are calculated from the integrated areas of the corresponding curves and normalized by the value of Fresh sample. They are sequenced as follows: D-P (1.27) > fresh (1.00) > D-P-Pb (0.68) > D-Pb (0.64) > D-P-K (0.60) > D-K (0.23). It shows that the amount of desorbed NH3 on the D-P sample increases by 27% compared with fresh sample especially the amount of NH3 adsorbed on the weak acid sites. However, the Mass Spectrum (MS) signal of desorbed NH3 decreases obviously with doping K (by 77%) or Pb (by 36%), which suggests the doping of K or Pb reduces the acidity of catalyst significantly. The treatment with (NH4)2HPO4 increases the amount of NH3 adsorption of K and Pb poisoning samples by 161% and 6%, respectively. It may be the reason that D-P-K and D-P-Pb samples have higher DeNOx efficiency than D-K and D-Pb samples.
Besides the surface concentration of acid sites, the types of acid sites are also important for the SCR catalysts [21]. Therefore, a set of in situ DRIFTS experiments was conducted to obtain a thorough understanding of the interaction between NH3 and the surface acid sites.
The in situ DRIFTS results of samples exposed to 500 ppm NH3 in N2 at 350 and 200 °C for 30 min are displayed in Figure 4. Figure 4a shows that three bands at 1605, 1401 and 1238 cm−1 are detected in the Fresh catalyst at 350 °C. It is recognized that the bands located at 1605 and 1238 cm−1 are ascribed to NH3 adsorbed on Lewis acid sites [21,22,23,24], and the band at 1401 cm−1 is associated with asymmetric deformation modes of ammonium ions on Brønsted acid sites [25,26]. The observed bands at 1610, 1426, 1409 and 1659 cm−1 on D-P sample are stronger obviously than that on fresh sample at 350 °C. The band located at 1659, 1426 and 1409 cm−1 were proved to be NH3 adsorbed on the Brønsted acid sites [23,27,28]. It implies that the treatment with (NH4)2HPO4 generates new Brønsted and Lewis acid sites and improves the acidity of V2O5-WO3/TiO2 catalyst [29,30,31]. For the in situ DRIFTS spectrum of D-K and D-Pb, only very weak bands are detected. It indicates that K and Pb can result in huge damage to Lewis acid sites and Brønsted acid sites. However, when K or Pb is introduced to the sample pretreated with (NH4)2HPO4, the bands attributed to NH3 adsorbed on Lewis acid sites and Brønsted acid sites can be detected with enhanced intensity. It suggests the treatment with (NH4)2HPO4 can weaken the poisoning effects of K and Pb on the V2O5-WO3/TiO2 catalyst.
The stability of the adsorbed ammonia on the catalysts was analyzed by comparing the spectra of samples collected at 200 and 350 °C, respectively. The intensity of all peaks due to the adsorbed ammonia decreased with increasing temperature except the peaks detected on D-P. As shown in Figure 4b, the bands located at 1662, 1608, 1445, 1298 and 1238 cm−1 are observed on the fresh catalysts. The bands at 1662 and 1445 cm−1 are assigned to NH4+ chemisorbed on Brønsted acid site. The bands at 1608, 1298 and 1238 cm−1 are attributed to NH3 adsorbed on the Lewis acid sites [21,32,33]. When the temperature reaches 350 °C, the bands on the fresh catalysts become to weaken and the band at 1298 cm−1 vanishes. However, the bands on the D-P samples still keep strong intensity especially the bands at 1426 and 1409 cm−1. It implies that the acid sites generated by P species have higher thermo stability. This is maybe the reason the D-P has good NOx conversion at high temperature. The Brønsted acid sites on the D-P-K and D-P-Pb decrease with increasing temperature clearly. The doped K and Pb atoms tend to react with acid sites generated by P species. The results suggest that the treatment with (NH4)2HPO4 can weaken the poisoning effect of Pb and K on fresh catalyst because of the formation of new Lewis acid sites and Brønsted acid sites.
A total of 500 ppm NO and 5% O2 were introduced to the D-P sample and fresh sample pretreated with NH3 and purged with N2 for 10 min. The reaction spectra between NO + O2 and adsorbed NH3 species are presented in Figure 5. For the spectrum of fresh catalyst, the band at 1238 cm−1 gradually weakens with time and vanishes after NO + O2 is introduced for 30 min, and the bands at 1605 and 1401 cm−1 weaken during the test. In addition, new bands are detected at 1626 and 1599 cm−1, which could be assigned to adsorbed NO2 and bridged nitrate [34,35]. The results indicate that adsorbed NH3 species on fresh sample are consumed in the NO + O2 stream. For the spectrum of D-P sample, the bands at 1659, 1607, 1426 and 1409 cm−1 weaken during test time and the band at 1659 cm−1 almost vanishes for 30 min. A new band located at 1595 cm−1 assigned to adsorbed bridged nitrate is detected. The results indicate that adsorbed NH3 species on Lewis acid sites and Brønsted acid sites, partly generated by the treatment of (NH4)2HPO4, can be consumed in the NO + O2 stream as well. The above experiments suggest that the reaction mechanism on the samples pretreated with (NH4)2HPO4 still follows the Eley–Rideal mechanism: Adsorbed ammonia species react with gas-phase or weakly-adsorbed NO [36].

2.3. Surface Chemical State

XPS was carried out to illustrate the change of oxidation state of the active species after poisoning. Figure 6 shows the XPS results of O 1s, V 2p3/2, P 2p and Ti 2p. The spectra of O 1s were fitted into three peaks which are the lattice oxygen in the metal oxides (Oγ), the surface oxygen by hydroxyl species (Oβ) and the absorbed oxygen or/and weakly bonded oxygen species (Oα) [21,37,38]. The positions and concentrations of oxygen species are displayed in the Table 2. Surface chemisorbed oxygen has been reported to be the most active oxygen and plays an important role in oxidation reactions [20,39]. It can be found that Oβ concentration of D-P sample is higher than that of fresh sample, indicating that there are more hydroxyl species (–OH) after doping which can form P–OH on the surface of catalysts [31]. However, the D-P sample has lower NOx conversion than fresh catalyst, indicating P-OH has lower activity than that of V–OH. The Oβ concentration of D-K and D-Pb samples is lower than that of fresh sample, suggesting K and Pb can react with surface hydroxyl species and form –O–K or –O–Pb–O–, in accordance with other researches [20,40]. For D-P-K and D-P-Pb samples, it can be found that Oβ concentration increases largely, suggesting more –OH species still exist on the catalyst surface. The binding energy value of Oγ shifts from 529.9 to 529.7 and 529.8 eV after the Pb and K doping. This may be because Pb and K donates electrons to lattice oxygen. However, in the D-P-K and D-P-Pb samples, the binding energy value of Oγ keeps similar to the fresh catalyst. It suggests that the treatment with (NH4)2HPO4 may obstruct the electron interaction of Pb and K and the catalyst.
Based on previous reports [41,42], the SCR activity of catalyst is positively correlated with the surface V5+/V4+ ratio. The spectra of V 2p3/2 are fitted into two peaks related to V5+ (~ 517.1 eV) and V4+ (~ 516.2 eV) [43]. The atomic ratio of V5+/V4+ can be determined according to the peaks area ratio of V5+/V4+. Table 3 summarizes the peak position and atomic ratio of V5+/V4+ in different samples. The atomic ratio of V5+/V4+ decreases obviously after doping poisoning elements, indicating P, Pb and K can result in the transformation from V5+ into V4+ in V2O5-WO3/TiO2 catalysts. However, the adverse influence of P on surface V5+/V4+ ratio was much weaker than K and Pb. The atomic ratio of V5+/V4+ decreases from 1.21 to 0.43 and 0.51 after doping with K and Pb. Compared with D-K and D-Pb, the atomic ratio of V5+/V4+ in D-P-K and D-P-Pb samples increases largely. The result indicates that the treatment with (NH4)2HPO4 can inhibit the transformation from V5+ into V4+ resulting from the adverse influence of Pb and K.
The P 2p binding energy of samples containing P is detected at 133.8 eV, suggesting that P in the samples exists in a pentavalent-oxidation state (P5+) [44], and no peak is observed at 128.6 eV that is the characteristic binding energy of P 2p in Ti-P, indicating the absence of Ti-P bonds in the samples [29,30,45].
For the spectra of Ti 2p, two peaks centered at 458.6–459 eV and 464.4–464.9 eV can be ascribed to Ti 2p3/2 and Ti 2p1/2, respectively, suggesting the presence of Ti4+ in all samples [25,46]. When the catalyst treated with (NH4)2HPO4, the Ti 2p3/2 and Ti 2p1/2 peaks shift to higher energies, from 458.7 to 458.9 eV and 464.6 to 464.8 eV, respectively. It means the titanium species in D-P samples have lower density of electron cloud density than that in fresh samples [45,47]. It may because the electrons around the titanium species transfer to oxygen species, which interact with P dopants. It also proves that P5+ can replace part of Ti4+ in TiO2 lattice to form a Ti–O–P linkage. The similar location of the Ti 2p peaks for fresh, D-K and D-Pb samples, indicates that K and Pb may not react with TiO2 [4,48]. In addition, D-P-K and D-P-Pb have a similar Ti 2p peak center with D-P, which implies that K or Pb does not affect the reaction between P species and TiO2. The XPS spectra of W 4f were displayed in the Figure S6 and the information was supplied in the Supplementary Materials.

2.4. Poisoning Effect of Phosphorus, Potassium and Lead on V2O5-WO3/TiO2 Catalysts

Based on the NH3-TPD, DRIFT, XPS spectra analysis and previous studies [29,49,50], the proposed combined poisoning effect of phosphorus, potassium or lead on V2O5-WO3/TiO2 can be concluded in Figure 7. For fresh catalyst, based on Eley–Rideal mechanism, the adsorbed NH4+ species on –OH can be activated by V5+ active sites and react with NO in the flue gas [51,52]. The poisoning effects of K and Pb on the catalyst can be assigned to the neutralization of the acid sites, the decrease of surface chemisorption oxygen and the reduction of V5+ species [10,40]. This results in weakening the NH3 adsorption capacity and reducibility of the catalyst. After the treatment with (NH4)2HPO4, the doped P species occupy the acid sites. However, new Brønsted acid sites (P–OH) form [31], and the acid sites also have the ability to adsorb NH3. The NH4+ species adsorbed on the Brønsted acid sites (P–OH) could be activated by surface V active sites due to the excellent redox property of nearby V5+ species. Hence, the slightly weakened NH3-SCR performance of D-P samples can be assigned to the reduction of V5+ species. For D-P-K and D-P-Pb, the in situ DRIFTS analysis results suggest doped Pb and K atoms may react with acid sites generated by phosphate, and make them inactive in the adsorption of NH3. Each K atom consumes one acid site, and each Pb atom reacts with two acid sites. Hence, it seems that more K and Pb around the P atom will liberate more V–OH on the surface of catalysts, so the treatment with (NH4)2HPO4 alleviates the poisoning effect of potassium or lead on the catalysts [53].

3. Materials and Methods

3.1. Catalysts Preparation

The commercial V2O5-WO3/TiO2 catalyst (named as Fresh, with 1.16 wt.% V and 2.42 wt.% W) was ground and sieved to 60–80 mesh. All the chemicals used in the catalyst preparation process were analytical grade and purchased from Sinopharm Chemical Reagent Co., Ltd (Shanghai, China). The P poisoned samples were prepared by impregnating the commercial catalyst particles into aqueous (NH4)2HPO4 (0.25 mol/L) solution for 6 h at room temperature. Then the samples were dried at 105 °C for 12 h followed by calcination at 500 °C for 4 h in a muffle furnace. The P poisoned catalyst was denoted as D-P. Fresh catalysts and D-P sample were impregnated into aqueous KNO3 (0.13 mol/L) or Pb(NO3)2 (0.25 mol/L) solution for 6 h at room temperature. Then the samples were dried at 105 °C for 12 h followed by calcination at 500 °C for 4 h in a muffle furnace. The samples were denoted as D-K, D-Pb, D-P-K and D-P-Pb. The element loading amount detected by SEM-EDS is summarized in Table 1.

3.2. Activity Test

The catalytic activities of the samples were evaluated in a simulated fixed-bed reactor made of quartz tube with the dimensions of Φ 6.2 × 580 mm in the laboratory. The simulated flue gas consisted of 500 ppm NO, 500 ppm NH3, 5% O2 and N2 balance. In each experimental run, the catalysts loaded in the reactor were 1.2 cm3 and the gas hourly space velocity (GHSV) was kept at 60,000 h−1. For this system, the concentrations of NO, NO2 and NH3 were measured by an Antaris IGS analyzer (Thermo Fisher Company, Waltham, M.A., USA) and the concentration of O2 was measured by a flue gas analyzer (T-350, Testo Company, Hampshire, United Kingdom).
The conversion of NOx was defined as:
NO x   conversion = C N O x , i n − C N O x , o u t C N O x , i n × 100 %
N 2   selectivity = 1 - 2 C N 2 O , o u t C N O x , i n + C N H 3 , i n − C N O x , o u t − C N H 3 , o u t × 100 %
where C N O x , i n and C N O x , o u t are the NOx concentration (NO + NO2) of the simulated gas stream in the inlet and outlet of the reactor, C N H 3 , i n and C N H 3 , o u t are the inlet and outlet concentrations of NH3, and C N 2 O , o u t is the outlet concentration of N2O.

3.3. Catalysts Characterization

The morphology and elemental analysis of samples was conducted by scanning electron microscope-energy dispersive X-ray spectrometer (SEM-EDS, S-4800, Hitachi, Tokyo, and 51-ADD0009, Horiba, Tokyo; Japan) and X-ray fluorescence spectrometer (XRF, Axios mAX, PANalytical B.V., Almelo, Netherlands) equipped with a Rh-anode X-ray tube. The Brunauer–Emmett–Teller (BET) specific surface area and porosities of the samples were measured on a NOVA 1200e surface area and pore size analyzer (Quantachrome, Boynton Beach, F.L., USA) at 77 K. X-ray diffraction (XRD) patterns were recorded on X Pert Pro XRD diffractometer (PANalytical B.V., Almelo, Netherlands) with Cu Kα radiation (40 kV, 40 mA).
The temperature-programmed desorption of ammonia (NH3-TPD) on samples was carried out on a chemisorption analyzer (ChemBET-3000TPR-TPD, Quantachrome, Boynton Beach, F.L., USA)-mass spectrum (DYCOR LC-D200, Ametek, Kent, O.H., USA). A total of 100 mg of the sample was treated in helium at 500 °C for 1 h and cooled to room temperature. Then the sample was exposed to 5% NH3 for 40 min and subsequently purged with helium at 100 °C for 30 min to remove weakly-adsorbed NH3 from the surface. Finally, the sample was heated to 600 °C at a rate of 10 °C/min in He and the signal of NH3 was recorded by mass spectrum.
In situ diffuse reflectance infrared Fourier-transform spectra (DRIFTS) were collected using a Bruker Vertex 70 infrared spectrometer (Billerica, M.A., USA) with KBr optics and a mercury-cadmium-telluride (MCT) detector. The sample was treated at 500 °C for 1 h and then cooled to the desired temperature in N2 atmosphere. The spectra were collected with 500 ppm NH3 in N2 at the set time. All the spectra were collected at a resolution of 4 cm−1 by accumulating 64 scans. The spectra obtained in this study were transformed into absorption spectra by using Kubelka–Munk function.
X-ray photoelectron spectra (XPS) were measured with a Thermo ESCALAB 250 (Waltham, M.A., USA) using monochromated Al Kα X-rays (h = 1486.6 eV) as a radiation source at 150 W. Sample charging effects were eliminated by correcting the observed spectra with the C 1s binding energy (BE) value of 284.6 eV. The analysis of XPS spectra of samples was conducted by “Avantage” software supplied by Thermo Fisher Scientific Corporation, and uses “Scofield factor” as sensitive factor.

4. Conclusions

In this study, P, K and Pb decrease the DeNOx efficiency of commercial V2O5-WO3/TiO2 catalysts to different degrees. Furthermore, the doping of P, K and Pb does not change crystalline phase and textural structure of commercial catalysts. However, the treatment with (NH4)2HPO4 improves the NOx conversion of Pb- and K-poisoned catalysts. That may be because the samples pretreated with (NH4)2HPO4 have higher content of acid sites with higher thermal stability. Moreover, they have increased V5+/V4+ ratio and active oxygen species, including V-OH and P-OH, on the surface of catalysts. It is believed that the treatment with (NH4)2HPO4 can decrease the poisoning effects of K and Pb on commercial V2O5-WO3/TiO2 catalysts. This work may offer the reference to further research in the complex poisoning effects of multiple elements on commercial V2O5-WO3/TiO2 catalysts.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/10/3/345/s1, Figure S1: (a) The N2 selectivity of fresh and poisoned samples; (b) the N2 selectivity of fresh and poisoned samples at 350 °C with time, Figure S2: The SEM-EDS images of fresh and poisoned catalyst, Figure S3: N2 adsorption-desorption isotherm of fresh and poisoned samples, Figure S4: The pore size distribution of fresh and poisoned samples, Figure S5: The SEM images of fresh catalysts and poisoned samples, Figure S6: XPS spectra of the W 4f of fresh and poisoned samples.

Author Contributions

Conceptualization, J.M., J.W. and J.C.; Data curation, J.W.; Investigation, J.M., X.Y. and Q.S.; Supervision, J.C. and J.W.; Writing—original draft, J.M.; Writing—review and editing, J.C. and J.W. All authors have read and agree to the published version of the manuscript.

Funding

This work is financially supported by Youth Innovation Promotion Association, Chinese Academy of Sciences (2020309), the Strategic Priority Research Program of the Chinese Academy of Sciences (XDB05050500), Bureau of Science and Technology, Fujian Province, China (2015H0043) and Fujian Institute of Innovation, Chinese Academy of Sciences.

Acknowledgments

The authors are grateful to the tests offered by the Analysis and Testing Center, Institute of Urban Environment, Chinese Academy of Sciences, Xiamen.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Schobing, J.; Tschamber, V.; Brilhac, J.F.; Auclaire, A.; Vonarb, R. Investigation of the impact of calcium, zinc and phosphorus on DeNOx activity of a commercial SCR catalyst. Top. Catal. 2016, 59, 1013–1019. [Google Scholar] [CrossRef]
  2. Peng, Y.; Li, J.; Si, W.; Luo, J.; Wang, Y.; Fu, J.; Li, X.; Crittenden, J.; Hao, J. Deactivation and regeneration of a commercial SCR catalyst: Comparison with alkali metals and arsenic. Appl. Catal. B Environ. 2015, 168, 195–202. [Google Scholar] [CrossRef]
  3. Putluru, S.S.R.; Schill, L.; Gardini, D.; Mossin, S.; Wagner, J.B.; Jensen, A.D.; Fehrmann, R. Superior DeNOx activity of V2O5–WO3/TiO2 catalysts prepared by deposition–precipitation method. J. Mater. Sci. 2014, 49, 2705–2713. [Google Scholar] [CrossRef]
  4. Miao, J.; Li, H.; Su, Q.; Yu, Y.; Chen, Y.; Chen, J.; Wang, J. The combined promotive effect of SO2 and HCl on Pb-poisoned commercial NH3-SCR V2O5-WO3/TiO2 catalysts. Catal. Commun. 2019, 125, 118–122. [Google Scholar] [CrossRef]
  5. Nicosia, D.; Elsener, M.; Kröcher, O.; Jansohn, P. Basic investigation of the chemical deactivation of V2O5/WO3-TiO2 SCR catalysts by potassium, calcium, and phosphate. Top. Catal. 2007, 42, 333–336. [Google Scholar] [CrossRef]
  6. Madia, G.; Elsener, M.; Koebel, M.; Raimondi, F.; Wokaun, A. Thermal stability of vanadia-tungsta-titania catalysts in the SCR process. Appl. Catal. B Environ. 2002, 39, 181–190. [Google Scholar] [CrossRef]
  7. Kling, Å.; Andersson, C.; Myringer, Å.; Eskilsson, D.; Järås, S.G. Alkali deactivation of high-dust SCR catalysts used for NOx reduction exposed to flue gas from 100 MW-scale biofuel and peat fired boilers: Influence of flue gas composition. Appl. Catal. B Environ. 2007, 69, 240–251. [Google Scholar] [CrossRef]
  8. Khodayari, R.; Odenbrand, C.U.I. Deactivating effects of lead on the selective catalytic reduction of nitric oxide with ammonia over a V2O5/WO3/TiO2 catalyst for waste incineration applications. Ind. Eng. Chem. Res. 1998, 37, 1196–1202. [Google Scholar] [CrossRef]
  9. Hu, W.; Gao, X.; Deng, Y.; Qu, R.; Zheng, C.; Zhu, X.; Cen, K. Deactivation mechanism of arsenic and resistance effect of SO42- on commercial catalysts for selective catalytic reduction of NOx with NH3. Chem. Eng. J. 2016, 293, 118–128. [Google Scholar] [CrossRef]
  10. Chen, J.P.; Yang, R.T. Mechanism of poisoning of the V2O5/TiO2 catalyst for the reduction of NO by NH3. J. Catal. 1990, 125, 411–420. [Google Scholar] [CrossRef]
  11. Hiroyuki, K.; Katsumi, T.; Odenbrand, C.U.I. The role of K2O in the selective reduction of NO with NH3 over a V2O5(WO3)-TiO2 commercial selective catalytic reduction catalyst. J. Mol. Catal. A Chem. 1999, 139, 189–198. [Google Scholar]
  12. Larsson, A.C.; Einvall, J.; Sanati, M. Deactivation of SCR catalysts by exposure to aerosol particles of potassium and zinc salts. Aerosol Sci. Technol. 2007, 41, 369–379. [Google Scholar] [CrossRef]
  13. Odenbrand, C.U.I. CaSO4 deactivated V2O5-WO3/TiO2 SCR catalyst for a diesel power plant. Characterization and simulation of the kinetics of the SCR reactions. Appl. Catal. B Environ. 2018, 234, 365–377. [Google Scholar] [CrossRef]
  14. Yu, Y.; Wang, J.; Chen, J.; Meng, X.; Chen, Y.; Chi, H. Promotive effect of SO2 on the activity of a deactivated commercial selective catalytic reduction catalyst: An in situ DRIFT study. Ind. Eng. Chem. Res. 2014, 53, 16229–16234. [Google Scholar] [CrossRef]
  15. Yu, Y.; Miao, J.; He, C.; Chen, J.; Li, C.; Douthwaite, M. The remarkable promotional effect of SO2 on Pb-poisoned V2O5-WO3/TiO2 catalysts: An in-depth experimental and theoretical study. Chem. Eng. J. 2018, 338, 191–201. [Google Scholar] [CrossRef]
  16. Kong, M.; Liu, Q.; Jiang, L.; Guo, F.; Ren, S.; Yao, L.; Yang, J. Property influence and poisoning mechanism of HgCl2 on V2O5-WO3/TiO2 SCR-DeNOx catalysts. Catal. Commun. 2016, 85, 34–38. [Google Scholar] [CrossRef]
  17. Klimczak, M.; Kern, P.; Heinzelmann, T.; Lucas, M.; Claus, P. High-throughput study of the effects of inorganic additives and poisons on NH3-SCR catalysts—Part I: V2O5–WO3/TiO2 catalysts. Appl. Catal. B Environ. 2010, 95, 39–47. [Google Scholar] [CrossRef]
  18. Chen, J.P.; Buzanowski, M.A.; Yang, R.T.; Cichanowicz, J.E. Deactivation of the vanadia catalyst in the selective catalytic reduction process. J. Air Waste Manage. Assoc. 1990, 40, 1403–1409. [Google Scholar] [CrossRef]
  19. Tokarz, M.; Järårs, S.; Persson, B. Poisoning of De-NOx SCR catalyst by flue gases from a waste incineration plant. Stud. Surf. Sci. Catal. 1991, 68, 523–530. [Google Scholar]
  20. Chen, L.; Li, J.; Ge, M. The poisoning effect of alkali metals doping over nano V2O5–WO3/TiO2 catalysts on selective catalytic reduction of NOx by NH3. Chem. Eng. J. 2011, 170, 531–537. [Google Scholar] [CrossRef]
  21. Song, L.; Zhang, R.; Zang, S.; He, H.; Su, Y.; Qiu, W.; Sun, X. Activity of selective catalytic reduction of NO over V2O5/TiO2 catalysts preferentially exposed anatase [18] and [10] facets. Catal. Lett. 2017, 147, 934–945. [Google Scholar] [CrossRef]
  22. Yu, W.; Wu, X.; Si, Z.; Weng, D. Influences of impregnation procedure on the SCR activity and alkali resistance of V2O5–WO3/TiO2 catalyst. Appl. Surf. Sci. 2013, 283, 209–214. [Google Scholar] [CrossRef]
  23. Wang, S.; Guo, R.; Pan, W.; Li, M.; Sun, P.; Liu, S.; Liu, S.; Sun, X.; Liu, J. The deactivation mechanism of Pb on the Ce/TiO2 catalyst for the selective catalytic reduction of NOx with NH3: TPD and DRIFT studies. Phys. Chem. Chem. Phys. 2017, 19, 5333–5342. [Google Scholar] [CrossRef] [PubMed]
  24. Cao, J.; Yao, X.; Yang, F.; Chen, L.; Fu, M.; Tang, C.; Dong, L. Improving the denitration performance and K-poisoning resistance of the V2O5-WO3/TiO2 catalyst by Ce4+ and Zr4+ co-doping. Chin. J. Catal. 2019, 40, 95–104. [Google Scholar] [CrossRef]
  25. Zhang, S.; Zhong, Q. Surface characterization studies on the interaction of V2O5–WO3/TiO2 catalyst for low temperature SCR of NO with NH3. J. Solid State Chem. 2015, 221, 49–56. [Google Scholar] [CrossRef]
  26. Shi, Y.; Shu, H.; Zhang, Y.; Fan, H.; Zhang, Y.; Yang, L. Formation and decomposition of NH4HSO4 during selective catalytic reduction of NO with NH3 over V2O5-WO3/TiO2 catalysts. Fuel Process. Technol. 2016, 150, 141–147. [Google Scholar] [CrossRef]
  27. Peng, Y.; Si, W.; Li, X.; Chen, J.; Li, J.; Crittenden, J.; Hao, J. Investigation of the poisoning mechanism of lead on the CeO2-WO3 catalyst for the NH3-SCR reaction via in situ IR and Raman spectroscopy measurement. Environ. Sci. Technol. 2016, 50, 9576–9582. [Google Scholar] [CrossRef]
  28. Gan, L.; Chen, J.; Peng, Y.; Yu, J.; Tran, T.; Li, K.; Wang, D.; Xu, G.; Li, J. NOx removal over V2O5/WO3–TiO2 prepared by a grinding method: Influence of the precursor on vanadium dispersion. Ind. Eng. Chem. Res. 2017, 57, 150–157. [Google Scholar] [CrossRef]
  29. Li, X.; Li, K.; Peng, Y.; Li, X.; Zhang, Y.; Wang, D.; Chen, J.; Li, J. Interaction of phosphorus with a FeTiOx catalyst for selective catalytic reduction of NOx with NH3: Influence on surface acidity and SCR mechanism. Chem. Eng. J. 2018, 347, 173–183. [Google Scholar] [CrossRef]
  30. Shao, G.; Wang, F.; Ren, T.; Liu, Y.; Yuan, Z. Hierarchical mesoporous phosphorus and nitrogen doped titania materials: Synthesis, characterization and visible-light photocatalytic activity. Appl. Catal. B Environ. 2009, 92, 61–67. [Google Scholar] [CrossRef]
  31. Hiroyuki, K.; Katsumi, T.; Odenbrand, C.U.I. Surface acid property and its relation to SCR activity of phosphorus added to commercial V2O5(WO3)/TiO2 catalyst. Catal. Lett. 1998, 53, 65–71. [Google Scholar]
  32. Dong, Y.; Qu, R.; Hao, S.; Zheng, C.; Cen, K. Investigation of the promotion effect of WO3 on the decomposition and reactivity of NH4HSO4 with NO on V2O5-WO3/TiO2 SCR catalysts. RSC Adv. 2016, 6, 55584–55592. [Google Scholar]
  33. Parvulescu, V.I.; Boghosian, S.; Parvulescu, V.; Jung, S.M.; Grange, P. Selective catalytic reduction of NO with NH3 over mesoporous V2O5–TiO2–SiO2 catalysts. J. Catal. 2003, 217, 172–185. [Google Scholar] [CrossRef]
  34. Chen, L.; Li, J.; Ge, M. Promotional effect of Ce-doped V2O5-WO3/TiO2 with low vanadium loadings for selective catalytic reduction of NOx by NH3. J. Phys. Chem. C 2009, 113, 21177–21184. [Google Scholar] [CrossRef]
  35. Jiang, B.Q.; Wu, Z.B.; Liu, Y.; Lee, S.C.; Ho, W.K. DRIFT study of the SO2 effect on low-temperature SCR reaction over Fe-Mn/TiO2. J. Phys. Chem. C 2010, 114, 4961–4965. [Google Scholar] [CrossRef]
  36. Nova, I.; Lietti, L.; Tronconi, E.; Forzatti, P. Dynamics of SCR reaction over a TiO2-supported vanadia–tungsta commercial catalyst. Catal. Today 2000, 60, 73–82. [Google Scholar] [CrossRef]
  37. Guo, R.; Wang, Q.; Pan, W.; Chen, Q.; Ding, H.; Yin, X.; Yang, N.; Lu, C.; Wang, S.; Yuan, Y. The poisoning effect of heavy metals doping on Mn/TiO2 catalyst for selective catalytic reduction of NO with NH3. J. Mol. Catal. A Chem. 2015, 407, 1–7. [Google Scholar] [CrossRef]
  38. Chang, H.Z.; Shi, C.N.; Li, M.G.; Zhang, T.; Wang, C.Z.; Jiang, L.L.; Wang, X.Y. The effect of cations (NH4+, Na+, K+, and Ca2+) on chemical deactivation of commercial SCR catalyst by bromides. Chin. J. Catal. 2018, 39, 710–717. [Google Scholar] [CrossRef]
  39. Yin, X.; Han, H.; Gunji, I.; Endou, A.; Ammal, S.S.C.; Kubo, M.; Miyamoto, A. NH3 adsorption on the brönsted and lewis acid sites of V2O5 (010): A periodic density functional study. J. Phys. Chem. B 1999, 103, 4701–4706. [Google Scholar] [CrossRef]
  40. Ye, J.; Gao, X.; Zhang, Y.; Wu, W.; Song, H.; Luo, Z.; Cen, K. Effects of PbCl2 on selective catalytic reduction of NO with NH3 over vanadia-based catalysts. J. Hazard. Mater. 2014, 274, 270–278. [Google Scholar]
  41. Yang, Y.; Xu, W.; Wu, Y.; Wang, J.; Zhu, T. Inhibition effect of HBr over a commercial V2O5-WO3/TiO2 catalyst in a NH3-SCR process. Catal. Commun. 2017, 94, 82–85. [Google Scholar] [CrossRef]
  42. Yang, J.; Yang, Q.; Sun, J.; Liu, Q.; Zhao, D.; Gao, W.; Liu, L. Effects of mercury oxidation on V2O5–WO3/TiO2 catalyst properties in NH3-SCR process. Catal. Commun. 2015, 59, 78–82. [Google Scholar] [CrossRef]
  43. Sheng, H.; Zhou, J.; Zhu, Y.; Luo, Z.; Ni, M.; Cen, K. Mercury oxidation over a Vanadia-based selective catalytic reduction catalyst. Energy Fuels 2009, 23, 253–259. [Google Scholar]
  44. Sudarsan, V.; Muthe, K.P.; Vyas, J.C.; Kulshreshtha, S.K. PO43- tetrahedra in SbPO4 and SbOPO4: A 31P NMR and XPS study. J. Alloys Compd. 2002, 336, 119–123. [Google Scholar] [CrossRef]
  45. Jiang, H.; Wang, Q.; Zang, S.; Li, J.; Wang, Q. Enhanced photoactivity of Sm, N, P-tridoped anatase-TiO2 nano-photocatalyst for 4-chlorophenol degradation under sunlight irradiation. J. Hazard. Mater. 2013, 261, 44–54. [Google Scholar] [CrossRef] [PubMed]
  46. Lei, T.; Li, Q.; Chen, S.; Liu, Z.; Liu, Q. KCl-induced deactivation of V2O5-WO3/TiO2 catalyst during selective catalytic reduction of NO by NH3: Comparison of poisoning methods. Chem. Eng. J. 2016, 296, 1–10. [Google Scholar] [CrossRef]
  47. Zhang, S.; Li, H.; Zhong, Q. Promotional effect of F-doped V2O5–WO3/TiO2 catalyst for NH3-SCR of NO at low-temperature. Appl. Catal. A Gen. 2012, 435–436, 156–162. [Google Scholar] [CrossRef]
  48. Li, Q.; Chen, S.; Liu, Z.; Liu, Q. Combined effect of KCl and SO2 on the selective catalytic reduction of NO by NH3 over V2O5/TiO2 catalyst. Appl. Catal. B Environ. 2015, 164, 475–482. [Google Scholar] [CrossRef]
  49. You, Y.; Shi, C.; Chang, H.; Guo, L.; Xu, L.; Li, J. The promoting effects of amorphous CePO4 species on phosphorus-doped CeO2/TiO2 catalysts for selective catalytic reduction of NOx by NH3. Mol. Catal. 2018, 453, 47–54. [Google Scholar] [CrossRef]
  50. van Der Bij, H.E.; Weckhuysen, B.M. Phosphorus promotion and poisoning in zeolite-based materials: Synthesis, characterisation and catalysis. Chem. Soc. Rev. 2015, 44, 7406–7428. [Google Scholar] [CrossRef]
  51. Yang, S.; Wang, C.; Ma, L.; Peng, Y.; Qu, Z.; Yan, N.; Chen, J.; Chang, H.; Li, J. Substitution of WO3 in V2O5/WO3–TiO2 by Fe2O3 for selective catalytic reduction of NO with NH3. Catal. Sci. Technol. 2013, 3, 161–168. [Google Scholar] [CrossRef]
  52. Szaleniec, M.; Drzewiecka-Matuszek, A.; Witko, M.; Hejduk, P. Ammonium adsorption on Brønsted acidic centers on low-index vanadium pentoxide surfaces. J. Mol. Model. 2013, 19, 4487–4501. [Google Scholar] [CrossRef] [PubMed]
  53. Shen, B.; Wang, F.; Zhao, B.; Li, Y.; Wang, Y. The behaviors of V2O5–WO3/TiO2 loaded on ceramic surfaces for NH3–SCR. J. Ind. Eng. Chem. 2016, 33, 262–269. [Google Scholar] [CrossRef]
Catalysts 10 00345 g001

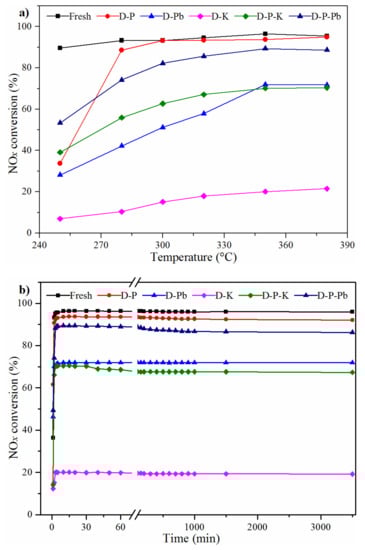

Figure 1. (a) NOx conversion of fresh catalyst and poisoned catalyst. (b) NOx conversion of fresh catalyst and poisoned catalyst at 350 °C with time. Reaction conditions: [NO] = [NH3] = 500 ppm, [O2] = 5 vol. %, total flow rate = 1.2 L/min, GHSV = 60,000 h−1.
Figure 1. (a) NOx conversion of fresh catalyst and poisoned catalyst. (b) NOx conversion of fresh catalyst and poisoned catalyst at 350 °C with time. Reaction conditions: [NO] = [NH3] = 500 ppm, [O2] = 5 vol. %, total flow rate = 1.2 L/min, GHSV = 60,000 h−1.
Catalysts 10 00345 g001
Catalysts 10 00345 g002

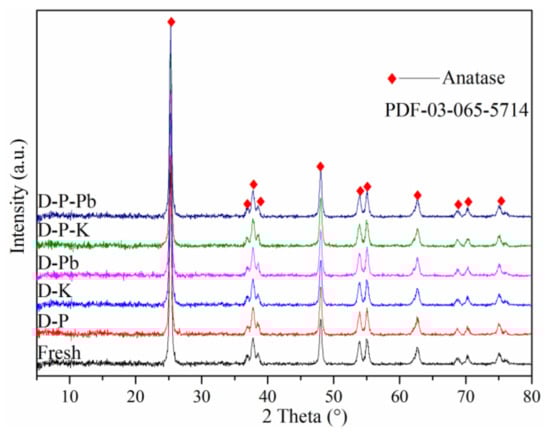

Figure 2. XRD patterns of fresh and poisoned catalysts.
Figure 2. XRD patterns of fresh and poisoned catalysts.
Catalysts 10 00345 g002
Catalysts 10 00345 g003

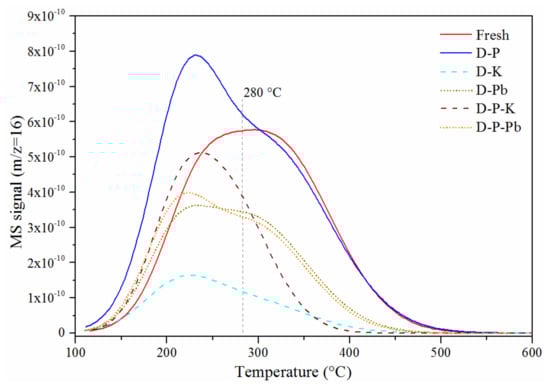

Figure 3. NH3-TPD profiles of fresh and poisoned catalyst samples.
Figure 3. NH3-TPD profiles of fresh and poisoned catalyst samples.
Catalysts 10 00345 g003
Catalysts 10 00345 g004

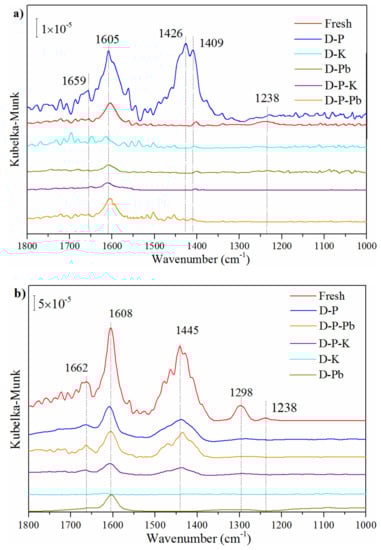

Figure 4. In situ DRIFTS spectra of NH3 adsorption on fresh and poisoned catalysts at 350 °C (a) and 200 °C (b) for 30 min.
Figure 4. In situ DRIFTS spectra of NH3 adsorption on fresh and poisoned catalysts at 350 °C (a) and 200 °C (b) for 30 min.
Catalysts 10 00345 g004
Catalysts 10 00345 g005

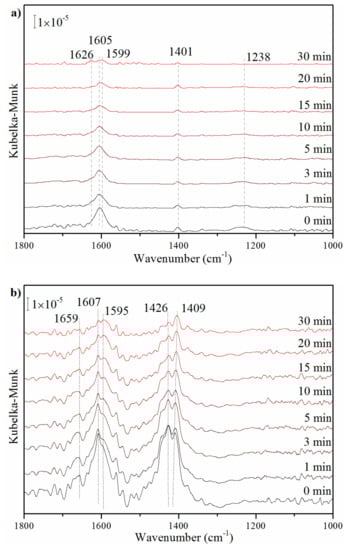

Figure 5. In situ DRIFTS spectra of the reaction between NO + O2 and adsorbed NH3 species over (a) fresh and (b) D-P at 350 °C.
Figure 5. In situ DRIFTS spectra of the reaction between NO + O2 and adsorbed NH3 species over (a) fresh and (b) D-P at 350 °C.
Catalysts 10 00345 g005
Catalysts 10 00345 g006aCatalysts 10 00345 g006b

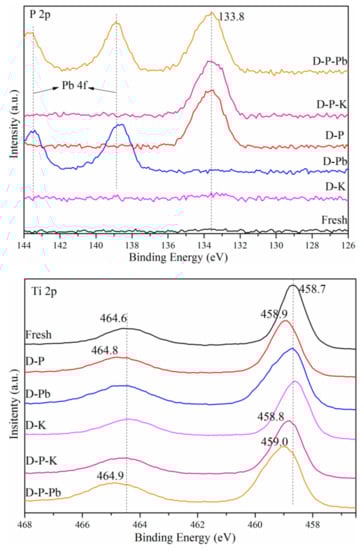

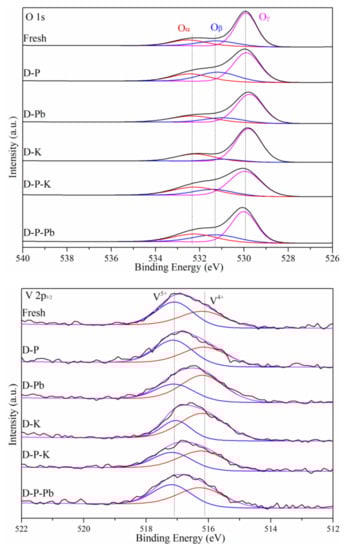

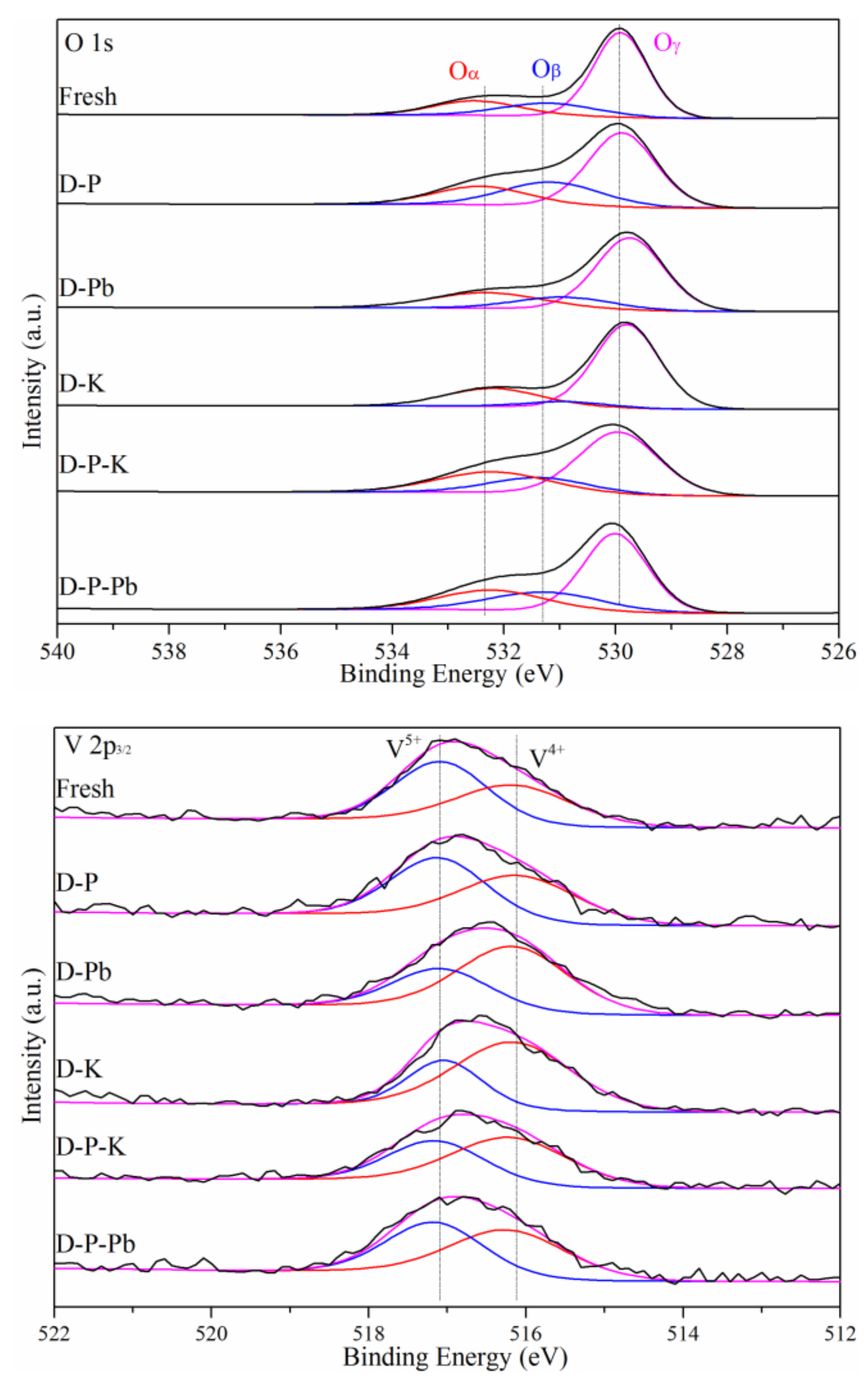

Figure 6. XPS spectra of the O 1s, V 2p3/2, P 2p and Ti 2p of fresh and poisoned samples.
Figure 6. XPS spectra of the O 1s, V 2p3/2, P 2p and Ti 2p of fresh and poisoned samples.
Catalysts 10 00345 g006aCatalysts 10 00345 g006b
Catalysts 10 00345 g007

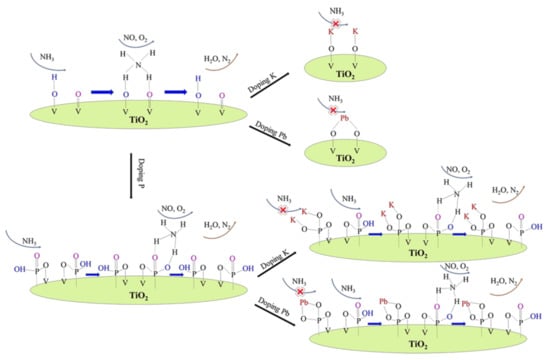

Figure 7. Schematic diagram of the combined effect of phosphorus, potassium and or lead on V2O5-WO3/TiO2.
Figure 7. Schematic diagram of the combined effect of phosphorus, potassium and or lead on V2O5-WO3/TiO2.
Catalysts 10 00345 g007
Table 1. Element loading amount, specific surface areas, total pore volume and average pore diameter of samples.
Table 1. Element loading amount, specific surface areas, total pore volume and average pore diameter of samples.
SampleLoading Amount (wt %)SBET (m2/g)VP* (cm3/g)DA (nm)
PKPb
Fresh---41.80.23111.06
D-P0.95--34.30.20712.09
D-Pb--0.8641.60.22710.74
D-K-0.48-41.50.23412.75
D-P-K0.910.45-31.30.22514.38
D-P-Pb0.88-0.8734.90.21512.34
* VP is obtained at the relative pressure of P/P0 = 0.99; - denotes it is not detected by SEM-EDS.
Table 2. The position and atom ratio of O spices in XPS spectra for each sample.
Table 2. The position and atom ratio of O spices in XPS spectra for each sample.
SamplesOα %Oβ %Oγ %
Fresh532.4 (18.1)531.3 (17.4)529.9 (64.5)
D-P532.3 (19.3)531.2 (25.4)529.9 (55.3)
D-Pb532.3 (22.1)531.0 (14.6)529.7 (63.3)
D-K532.3 (22.9)531.0 (5.7)529.8 (71.4)
D-P-Pb532.4 (22.8)531.4 (22.8)529.9 (54.4)
D-P-K532.3 (26.2)531.3 (17.9)530.0 (55.9)
Table 3. XPS results of V 2p3/2 and surface atomic ratio of V5+/V4+ for each sample.
Table 3. XPS results of V 2p3/2 and surface atomic ratio of V5+/V4+ for each sample.
SamplesBinding Energy (eV)V5+/V4+
V4+V5+
Fresh516.1517.11.21
D-P516.2517.10.86
D-Pb516.1517.10.51
D-K516.2517.10.43
D-P-K516.2517.10.71
D-P-Pb516.3517.20.83
