Eco-Friendly Mechanochemical Preparation of Ag2O–MnO2/Graphene Oxide Nanocomposite: An Efficient and Reusable Catalyst for the Base-Free, Aerial Oxidation of Alcohols

by
Syed Farooq Adil
1,*,
Mohamed E. Assal
1,
Mujeeb Khan
1,
Mohammed Rafi Shaik
1,
Mufsir Kuniyil
1,
Doumbia Sekou
1,
Ahmed Z. Dewidar
2,
Abdulrahman Al-Warthan
1 and
Mohammed Rafiq H. Siddiqui
1,*
1
Chemistry Department, College of Science, King Saud University, P.O. 2455, Riyadh 11451, Saudi Arabia
2
Agricultural Engineering Department, King Saud University, P.O. Box 2460, Riyadh 11451, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Catalysts 2020, 10(3), 281; https://doi.org/10.3390/catal10030281
Submission received: 5 February 2020 / Revised: 19 February 2020 / Accepted: 19 February 2020 / Published: 1 March 2020
(This article belongs to the Special Issue Graphene Nanocomposites: Environmentally Friendly Synthesis and Applications)
Browse Figures
Versions Notes

Abstract

:
Recently, the development of eco-friendly mechanochemical approaches for the preparation of novel catalysts with enhanced activity and selectivity has gained considerable attention. Herein, we developed a rapid and solvent-less mechanochemical method for the preparation of mixed metal oxide (Ag2O–MnO2) decorated graphene oxide (GRO)-based nanocomposites (Ag2O–MnO2/(X wt.%)GRO), as the Ag2O–MnO2/(X wt.%)GRO nanocomposite was fabricated by the physical grinding of freshly prepared GRO and pre-annealed (300 °C) mixed metal oxide nanoparticles (NPs) (Ag2O–MnO2) using an eco-friendly milling procedure. The as-prepared nanocatalysts were characterized by using various techniques. Furthermore, the nanocomposites were applied as a heterogeneous catalyst for the oxidation of alcohol by employing gaseous O2 as an eco-friendly oxidant under base-free conditions. The mechanochemically obtained GRO-based composite exhibited noticeable enhancement in the surface area and catalytic performance compared to the pristine Ag2O–MnO2. The results revealed that (1%)Ag2O–MnO2/(5 wt.%)GRO catalyst exhibited higher specific performance (13.3 mmol·g−1·h−1) with a 100% conversion of benzyl alcohol (BnOH) and >99% selectivity towards benzaldehyde (BnH) within 30 min. The enhancement of the activity and selectivity of GRO-based nanocatalyst was attributed to the presence of various oxygen-containing functional groups, a large number of defects, and a high specific surface area of GRO. In addition, the as-prepared nanocatalyst also demonstrated excellent catalytic activity towards the conversion of a variety of other alcohols to respective carbonyls under optimal conditions. Besides, the catalyst ((1%)Ag2O–MnO2/(5 wt.%)GRO) could be efficiently recycled six times with no noticeable loss in its performance and selectivity.

1. Introduction

Catalytic oxidation of alcohol to their analogous carbonyls is one of the key organic reactions in both scientific and industrial applications, with universal production of 10,000 million tons/year of carbonyls in the 20th century [1]. Such as, aldehyde and ketone derivatives are extensively employed as precursors in insecticide, flame-retardant, cosmetic, confectionery, flavoring, pharmaceutical, and beverage industries [2]. Traditionally, the current oxidation process depends on the utilization of strong stoichiometric oxidizing agents, which are usually expensive and toxic (e.g., permanganate, hypochlorite, or dichromate, etc.) [3]. Moreover, the strong nature of these conventional oxidizing agents leads to an over-oxidation of alcohols to CO2 or carboxylic acids, thus decreasing the selectivity towards aldehydes [4]. Alternatively, due to the growing environmental concerns, the applications of eco-friendly oxidants, such as molecular O2 and aqueous H2O2, have been preferred, which only produces water as the by-product [5].
Moreover, graphene-based materials have also attracted increasing attention in the field of catalysis due to their extraordinary optical, electronic, and catalytic properties [6]. The unique 2D structure of graphene allows introducing a variety of functionalities on its surface through covalent and non-covalent interactions [7]. This property can be successfully exploited for the development of graphene-based sustainable catalysts [8]. In this regard, the precursors of graphene, i.e., graphene oxide (GRO)-based materials, have generated significant excitements in the field of catalysis due to their remarkable physicochemical and surface properties [9]. Particularly, the presence of a variety of oxygenated groups, a large number of defects, and a unique 2D structure have rendered graphene oxide as perfect material in catalysis [10]. In addition, the negatively charged surface of GRO can be easily exploited for the dispersion of other catalytically active materials, including metal and metal oxide nanoparticles (NPs), on its surface to enhance their resulting properties [11,12] Several metal and/or metal oxide NPs like Pd [13], Ag [14], Co3O4 [15], ZrO2 [16], and Fe2O3 [17] have incorporated on GRO nanolayers and achieved superior performance and selectivity. Recently, GRO-based metal nanocomposites have been explored and exhibited considerable potential in the oxidation of various organic moieties, including alcohols [18], cyclohexane [19], amines [20], benzene [21], aryl benzene [22], and alkenes [23]. It has been found that the GRO in these nanocomposites has a positive impact in enhancing the catalytic efficiency and selectivity.
The methods for the binding of nanomaterials on the surface of GRO are broadly classified in two different categories, i.e., post immobilization (ex-situ hybridization) and in situ binding (in-situ crystallization). In the post immobilization method, separately prepared dispersions of graphene or graphene oxide and pre-synthesized NPs are mixed to obtain nanocomposite, whereas in-situ binding is performed by the simultaneous reduction of graphene oxide and metal precursors [24]. So far, several methods have been reported for the synthesis of graphene-based nanocomposites, including chemical, electrochemical, microwave-based synthesis, etc. Among these methods, the chemical method is widely used for the large-scale synthesis of graphene-based nanocomposites. However, this method typically involves hazardous chemicals and functionalization ligands, which often have adverse effects on the environment. This gave the impetus to researchers to find alternative eco-friendly methods for the synthesis of graphene-based nanocomposites [25]. Recently, environmentally friendly mechanochemical preparation methods have emerged as a suitable alternative to the commonly applied chemical approaches for the preparation of nanomaterials with outstanding properties for advanced applications. Nowadays, these methods are also gaining significant popularity for the preparation of graphene-based nanocomposites [26]. For instance, in a recent study, Zhao et al. demonstrated the preparation of FeO(OH)-nanoflake/graphene and nano-Fe3O4/graphene composites using a simple and low-cost solid-state mechanochemical process [27].
Herein, we reported the eco-friendly fabrication of Ag2O–MnO2/GRO nanocomposites by the solid-state mixing of separately prepared GRO and Ag2O–MnO2 NPs using a mechanochemical ball milling method. The as-obtained catalysts were fully characterized using X-ray powder diffraction (XRD), High-resolution transmission electron microscopy (HR-TEM), Scanning electron microscope (SEM), Energy-dispersive X-ray spectroscopy (EDX), Brunauer–Emmett–Teller (BET), Thermal gravimetric analysis (TGA), Fourier-transform infrared spectroscopy (FTIR), and Raman spectroscopy. Subsequently, to study the catalytic effect of GRO, the as-prepared catalysts were tested towards the aerial oxidation of a variety of alcohols, as displayed in Scheme 1. To the best of our knowledge, this was the first study of utilizing Ag2O–MnO2/GRO composite as a catalyst for the oxidation of alcohols, highlighting the catalytic efficiency of GRO. The catalytic activity of Ag2O–MnO2/GRO nanocomposite was also compared with the highly reduced graphene oxide (HRG)-based catalyst that was prepared by the same protocol reported earlier, i.e., Ag2O–MnO2/HRG nanocomposite, and the conclusions were drawn [28].

2. Results and Discussion

2.1. Characterizations

XRD analysis is an imperative technique to study the crystallinity of the synthesized samples. Figure 1 illustrates XRD patterns of the pure graphite, GRO, (1%)Ag2O–MnO2 (without GRO), and (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite. Pure graphite exhibited an intensive diffraction peak at 2θ = 26.5° (cf. Figure 1, green line), which corresponded to the (0 0 2) lattice plane with an interlayer spacing of approximately 3.4 Å [29]. The appearance of a diffraction peak at 2θ = 11.6° (cf. Figure 1, cyan line) corresponded to the (002) lattice plane of GRO, and the disappearance of characteristic graphite peak at 2θ = 26.5° confirmed the complete oxidation of graphite to GRO [30]. After the oxidation, the interlayer distance of graphite was increased to 6.4 Å due to the existence of oxygenated groups on the surface and edges of each nanosheet [31]. The XRD spectrum of (1%)Ag2O–MnO2 (without GRO, Figure 1 orange line) contained characteristic diffraction peaks of pyrolusite MnO2, which were in complete agreement with the published data of (JCPDS file no. 24-0735) [32]. On the other hand, the (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite possessed all the diffraction peaks corresponding to the (1%)Ag2O–MnO2, and, in addition, it also contained the characteristic (002) peak of GRO at 11.6° (cf. Figure 1, blue line), confirming the formation of nanocomposite.
The thermal stability of (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite had been compared with the thermal properties of the precursors, like pure graphite, GRO, and (1%)Ag2O–MnO2 utilizing TGA, as shown in Figure 2. The samples were heated between RT and 800 °C with 10 °C/minute heating rate in N2 atmosphere. The TGA graph of graphite exhibited only ~1% of weight loss [33]. On the contrary, the thermal degradation behavior of GRO was significantly lower compared to the graphite due to the existence of oxygen functionalities on the surface of GRO. GRO exhibited three steps of degradation. The first weight loss began at nearly 100 °C, which was ascribed to the evaporation of physisorbed H2O. The second thermal degradation occurred in the temperature range of 200–370 °C with a noticed weight loss of 43.5% due to the pyrolysis of labile oxygen-containing functionalities, such as CO, CO2, etc. The third degradation stage occurred in the range of 350–800 °C, with 11% weight loss attributed to the combustion of the residual carbonaceous skeleton of the graphene layer [34]. This data was in complete agreement with previously reported studies [31,35]. In comparison, the (1%)Ag2O–MnO2/(5 wt.%)GRO composite exhibited a much enhanced thermal stability, which lost only ~18% of its overall weight at 800 °C (cf. Figure 2, purple line), probably owing to the pyrolysis of GRO when exposed to an elevated temperatures [36]. This indicated the high stability of the (1%)Ag2O–MnO2/(5 wt.%)GRO composite when compared to pristine GRO and (1%)Ag2O–MnO2 NPs; however, it was slightly less stable than pure graphite.
Raman analyses were also performed for the samples, including GRO, (1%)Ag2O–MnO2, and (1%)Ag2O–MnO2/(5 wt.%)GRO, as displayed in Figure 3. The Raman spectra of the (1%)Ag2O–MnO2 and (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite exhibited a characteristic peak centered at 642 cm−1. The presence of this peak could be attributed to the symmetric lattice vibration of Mn–O, which pointed towards the existence of manganese dioxide in both (1%)Ag2O–MnO2 and (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite [37]. Additionally, the Raman spectra of the composite also possessed two different characteristic peaks of GRO at 1594 cm−1 and 1340 cm−1, which were assigned to D- and G-band of GRO, respectively [38]. On the other hand, the pristine GRO possessed G- and the D-bands at 1604 cm−1 and 1345 cm−1, respectively [39]. Notably, when compared to the pristine GRO, the G-band in nanocomposite was shifted ~10 cm−1 from 1604 cm−1 to 1594 cm−1, while a small shift was detected in the D-band from 1345 cm−1 to 1340 cm−1. These small shifts could be attributed to the interaction between MnO2 and GRO [40].
The morphology and particle size of GRO, (1%)Ag2O–MnO2, and (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite were analyzed by HR-TEM. Figure 4a demonstrates highly exfoliated GRO nanolayers, which had a transparent thin flake morphology. HR-TEM images of the synthesized (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite distinctly disclosed that the size of the Ag2O nanoparticles in the catalyst with 0.83 ± 0.12 nm as average size with spherical shape was well dispersed on the crumpled GRO nanolayers, as demonstrated in Figure 4c,d. Notably, the HR-TEM micrograph of the (1%)Ag2O–MnO2 without GRO showed the average diameter of Ag2O NPs in the range of 2.09 ± 0.35 nm, which was larger than the Ag2O NPs present in the composite, as displayed in Figure 4b [6]. Presumably, the mechanochemical forces applied during the ball milling process facilitated the formation of the smaller size of NPs in the composite. The presence of smaller size of NPs in the composite, as confirmed by the HR-TEM analysis, was also reflected by the enhanced surface area and catalytic activity of sample when compared to the (1%)Ag2O–MnO2.
The morphology of the as-prepared (1%)Ag2O–MnO2 and (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite was also examined by SEM, as displayed in Figure 5. The SEM micrographs of the catalyst without GRO, i.e., (1%)Ag2O–MnO2, showed well-defined cuboidal shaped particles with micro size. Whereas, the nanocomposite displayed much smaller cuboidal shaped microparticles due to ball mill process. The nanoparticles after ball milling caused a smaller but wide size distribution. This led to an increase in the total surface area of the catalyst. In addition, the elemental results of the obtained (1%)Ag2O–MnO2/(5 wt.%)GRO by means of EDX are also illustrated in Figure 6. The figure clearly showed the presence of Ag, Mn, O, and C in the sample.
Furthermore, the BET analysis revealed the surface area of the samples; the surface area of (1%)Ag2O–MnO2 (without GRO) was approximately 84 m2.g−1, as demonstrated in Table 1. Whereas, the nanocomposite after doping with GRO demonstrated an enhanced surface area of 158 m2.g−1. These results were in good agreement with the results of SEM and TEM analyses, which revealed the presence of small-sized nanoparticles in the composite. Hence, it was assumed that the preparation of (1%)Ag2O–MnO2/(5 wt.%)GRO by the induction of GRO through an eco-friendly mechanochemical process leads to the formation of a stable and efficient nanocatalyst.

2.2. Catalytic Assessment

To assess the catalytic efficacy of the as-prepared nanocomposites, oxidation of benzyl alcohol (BnOH) utilizing molecular O2 as an eco-friendly oxidizing agent was employed as a model substrate, as demonstrated in Scheme 2. Various catalysts were fabricated by changing the weight percentage of GRO in the nanocomposite. In addition, the influence of catalyst weight, reaction temperature, and time on the performance of the prepared catalysts was thoroughly examined to determine the optimum conditions, as demonstrated in Figure 7, Figure 8, Figure 9 and Figure 10 and Table 1 and Table 2.

2.2.1. Influence of wt% GRO

The efficacy of the catalytic performance could be enhanced using graphene or its derivatives as supporting material and an efficient promoter [41,42]. Previously, we showed that the silver oxide nanoparticles were an efficacious promoter to the manganese dioxide, and the (1%)Ag2O–MnO2 catalyst annealed at 400 °C, exhibiting the superior activity for aerial oxidation of alcohols employing gaseous O2 as a clean oxidizing agent [32]. Therefore, herein, the (1%)Ag2O–MnO2 catalyst was selected with a target to compare the support effects. However, in order to enhance the catalytic efficiency, the initial studies were done to know the convenient weight percentage of GRO (wt.%) in the synthesized nanocomposite.
First of all, we tested the performance of pure GRO (300 g) for the aerial oxidation of BnOH with O2 as an environmentally-friendly oxidant. It was found that the GRO was not active for the BnOH oxidation. However, when the various weight percentages of GRO were introduced to the prepared nanocomposite, i.e., (1%)Ag2O–MnO2/(X wt.%)GRO (X = 1–7), it was found to have a strong impact on the catalytic efficacy. The obtained results from the catalytic tests are summed up in Table 2 and plotted in Figure 7.
As seen in Table 2 and Figure 7, the catalyst without GRO ((1%)Ag2O–MnO2) afforded a 65% BnOH conversion within only 30 min. However, after doping of the prepared catalyst with 1 and 3 wt.% of GRO, i.e., (1%)Ag2O–MnO2/(1 wt.%)GRO and (1%)Ag2O–MnO2/(3 wt.%)GRO, the nanocomposites yielded BnOH conversion of 68.1% and 85.4%, respectively, under the identical circumstances. By further increasing the wt.% of GRO in the nanocomposite, i.e., (1%)Ag2O–MnO2/(5 wt.%)GRO, the catalytic efficiency remarkably increased and gave a 100% conversion after 30 min in addition to 13.3 mmol·g−1·h−1 specific performance. Further increase in the weight percentage of GRO led to a slight decline in the effectiveness of the nanocomposite, presumably ascribed to the blocking effect of GRO that could cover the active sites of the catalyst, owing to the high wt.% of GRO. Meanwhile, the benzaldehyde (BnH) selectivity still remained motionless during all oxidation processes (<99%). Accordingly, it was deduced that the GRO had a crucial influence in promoting the performance of the current catalytic strategy for this transformation.

2.2.2. Role of Various Graphene Supports

Based on our former reported publications, we also compared the efficiency of Ag2O NPs/MnO2 immobilized on various graphene supports, such as GRO, and highly reduced graphene oxide (HRG) for the oxidation of BnOH to understand the role of graphene. The obtained data are compiled in Table 1 and depicted in Figure 8. As displayed in Table 1, the MnO2 without Ag2O NPs yielded a 40.7% BnOH conversion after 30 min, while after doping it with 1 wt.% of Ag2O NPs in MnO2, i.e., (1%)Ag2O–MnO2, the performance significantly improved and gave 65% conversion of BnOH under the same circumstances. This was further raised to 100% conversion when 5 wt.% of GRO was utilized, i.e., (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite. This catalyst showed remarkably higher catalytic activity, giving a full BnOH conversion within only 30 min.
It is interesting to note that the catalytic activity of HRG-based catalyst protocol, i.e., (1%)Ag2O–MnO2/(5 wt.%)HRG nanocomposite, reported earlier was compared with the catalytic efficacy of the (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite [28]. It was found that the (1%)Ag2O–MnO2/(5 wt.%)HRG showed lower catalytic efficiency, which afforded a 94.1% conversion of BnOH alongside 12.5 mmol·g−1·h−1 specific performance within 30 min at 100 °C, while (1%)Ag2O–MnO2/(5 wt.%)GRO gave 100% conversion with 13.3 mmol·g−1·h−1 specific performance under similar circumstances. The higher activity of the catalyst could be attributed to the addition of GRO, which might provide additional defects/nucleation sites (which possesses abundant oxygen-carrying groups on the surface of GRO) to the catalytic nanocomposite along with the already existing active sites of Ag2O NPs–MnO2. Nevertheless, with respect to HRG, the nucleation sites were less in number that resulted in more aggregated growth of an active catalyst. In addition, the specific surface area of GRO-based nanocomposite was higher than that of HRG nanocomposite. Therefore, it could be stated that utilizing GRO for synthesizing the metallic oxide catalysts could be useful for the homogeneous growth of catalyst on the surface.

2.2.3. Impact of Temperature

In general, the temperature played an important role in the catalytic system and had an obvious impact on the catalytic efficacy of the catalyst. Therefore, a series of reactions were carried out at different temperatures, viz. RT, 40, 60, 80, and 100 °C, catalyzed by MnO2, (1%)Ag2O–MnO2, and (1%)Ag2O–MnO2/(5 wt.%)GRO by maintaining other factors constant. The data presented in Figure 9 showed that the temperature had a positive effect on the effectiveness of all catalysts employed in the present study. While the selectivities to BnH were achieved <99% for all catalysts.
Figure 9 shows that the optimum catalyst showed the highest activity in the (1%)Ag2O–MnO2/(5 wt.%)GRO catalyst. At RT, a lower alcohol conversion of 38.2% was obtained. Unsurprisingly, the elevated reaction temperatures assisted in the higher catalytic efficiency of the catalyst. At 100 °C, a 100% transformation of alcohol was achieved under the same catalytic circumstances. Consequently, 100 °C could be considered as the optimum reaction temperature for a higher conversion rate. Hence, it was selected for further studies.

2.2.4. Impact of Catalyst Dosage

To evaluate the influence of varying amount of catalysts (MnO2, (1%)Ag2O–MnO2, and (1%)Ag2O–MnO2/(5 wt.%)GRO), six different quantities (50, 100, 150, 200, 250, and 300 mg) were taken with keeping all other factors constant, and the attained catalytic data were plotted, as shown in Figure 10. It clearly shows that BnOH conversion increased linearly as the catalyst doses raised from 50 mg to 300 mg. However, the selectivity to aldehyde was almost motionless throughout the oxidation processes (<99%). Among all catalysts employed in this study, the (1%)Ag2O–MnO2/(5 wt.%)GRO catalyst showed superior activity towards BnOH oxidation; when the catalyst amount raised from 50 mg to 300 mg, the conversion of BnOH markedly increased from 29.9% to 100% after 30 min. The current study demonstrated that only 300 mg of the catalyst was needed for accomplishing the complete conversion of BnOH after a short period.
Under the optimum conditions, a blank test (without reactant, i.e., BnOH) was performed using (1%)Ag2O–MnO2/(5 wt.%)GRO catalyst in the presence of the solvent, i.e., toluene, to assure that there was no function of solvent in BnOH oxidation. However, no oxidative product (BnH) was detected, implying that the BnH was only produced from the catalytic oxidation of BnOH and not from toluene oxidation. Additionally, a blank test (no catalyst) was also carried out at the optimized circumstances to ascertain that the produced BnH was being obtained, owing to the catalytic efficacy of the fabricated catalyst. No BnH was noticed, proving that the synthesized catalyst was indispensable for this transformation. Furthermore, to illustrate the importance of the oxidizing agent (O2), the experiment was performed over (1%)Ag2O–MnO2/(5 wt.%)GRO catalyst using air without bubbling O2. At the optimum circumstances, the obtained data displayed that only 31.8% conversion of BnOH was detected, which was much lesser than that of 100% convertibility achieved when the process was conducted using gaseous O2.

2.3. Reusability Tests

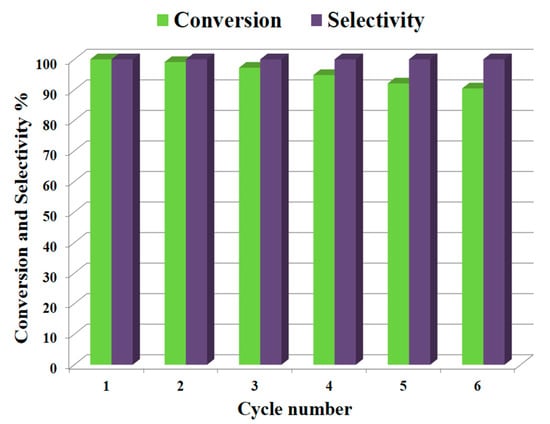

Recyclability and stability of the catalyst is a significant aspect in the enhancement of heterogeneous catalysis systems for industrial applications. The reusability of the (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite was investigated for the catalytic oxidation of BnOH at the optimal circumstances. The catalytic activities of the (1%)Ag2O–MnO2/(5 wt.%)GRO catalyst at different cycles for BnOH oxidation are illustrated in Figure 11. The reusability data disclosed that we were able to reuse the fabricated catalyst for six runs with no manifest loss in its performance after every cycle. The BnOH conversion decreased slightly from 100% to 90.46% after six recycling experiments, presumably ascribed to the mass loss through the retrieving step [43]. It was interesting to note that BnH selectivity stayed motionless (<99%) through all recycling reactions. The attained data displayed that our catalyst was resistant to deactivation in aerial oxidation of BnOH.
Moreover, to further elucidate the superior efficacy of the (1%)Ag2O–MnO2/(5 wt.%)GRO catalyst, this catalyst was compared with formerly recorded graphene containing catalysts, as displayed in Table 3. By comparing our catalyst with the other catalysts compiled in Table 3, (1%)Ag2O–MnO2/(5 wt.%)GRO catalyst, in this study, exhibited higher conversion and specific performance within shorter reaction time. Therefore, it could be said that our catalyst was the most efficient catalyst for BnOH oxidation with regard to higher conversion, selectivity, and specific performance, as well as lower reaction time. The (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite afforded 100% BnOH conversion and <99% selectivity for BnH within 30 min alongside outstanding specific performance (13.3 mmol·g−1·h−1). For instance, Rana et al., [44] fabricated Cu supported amine-functionalized graphene oxide (Cu@AGO) and employed it for the catalytic oxidation of BnOH. The Cu@AGO catalyst gave 92% conversion and BnH selectivity (99%) with the specific performance of 2 mmol·g−1·h−1 within 3 h. Feng et al., [45] reported the employ of CuNPs@rGO composite as an effective catalyst for the BnOH oxidation, but it needed a relatively long reaction time (16 h) to give <99% conversion and 98.6% selectivity towards BnH alongside the lower specific performance of 8 mmol·g−1·h−1.

2.4. General Applicability

Moreover, Ag2O–MnO2/(5 wt.%)GRO was found to be an efficient and selective for the aerial oxidation of various kinds of alcohols, an indication of its considerable versatility. According to Table S1, all primary benzylic alcohols were easily oxidized to their respective aldehyde derivatives with 100% conversions within relatively short periods (Table S1, entries 1–20). Besides, perfect selectivities (<99%) toward respective aldehydes were accomplished for all alcohols used in this study without further oxidation to carboxylic acids. It could be observed that the nature of substituents (electron-releasing or electron-withdrawing) on the benzylic alcohols had an explicit impact on the oxidation rate. Benzylic alcohols bearing electron-releasing groups were found to be more active and were oxidized to the respective aldehydes in shorter reaction periods. The rate of the oxidation process was slower when the benzyl alcohol contained an electron-withdrawing group. That might be ascribed to the decrease of electronic cloud density on the aromatic ring caused by -ve induction effect [52]. Additionally, it was observed that the para-substituted benzyl alcohols were easily oxidized by comparing with the ortho- and meta-substituted alcohols, presumably because the para-derivative has lower steric hindrance by comparing with other derivatives [53]. In this regard, p-methylbenzyl alcohol was wholly converted to p-methylbenzaldehyde within only 35 min (Table S1, entry 3), whereas o- and m-methylbenzyl alcohol were fully oxidized within longer times of 45 and 50 min, correspondingly (Table S1, entries 7 and 10). It was also found that the steric hindrance had a significant effect on the oxidation rate; the bulk group (e.g., trifluoromethyl, trimethoxy, dichloro, and pentaflouro) connected to benzyl alcohol reduced the efficiency of the oxidation process, might be owing to the steric hindrance that prohibited oxidation of the alcohols possessing bulk groups (Table S1, entries 17–20) [54]. It is noteworthy to mention that cinnamyl alcohol, as an example of allylic alcohol, achieved 100% conversion and <99% selectivity of cinnamaldehyde within 50 min (Table S1, entry 21). The furfuryl alcohol, as an example of hetero-aromatic alcohol, was also wholly transformed to furfural after 110 min (Table S1, entry 22). Moreover, the current catalytic methodology was also applicable to the oxidation of secondary benzylic alcohols, and complete convertibility and selectivity to the respective ketone derivatives was achieved at the same circumstances (Table S1, entries 23–28).
Indeed, the oxygenation of aliphatic alcohols is significantly more complicated with respect to the aromatic counterparts [55], and excellent results are obtained by oxidation of primary aliphatic alcohols using the present catalytic strategy. In this regard, the oxidation of cyclohexyl methanol, 5-hexenol, 1-octanol, and citronellol into their corresponding aliphatic aldehydes took place in relatively longer reaction times (Table S1, entries 29–32). Compared to secondary benzylic alcohols, the oxidation of secondary aliphatic alcohols showed a lower reactivity towards this oxidation transformation (Table S1, entries 33–35). Obviously, it was indispensable to elongate the time because the oxidation of benzylic secondary alcohols was easier than that of aliphatic ones. As estimated, full oxidation of α-phenyl-ethanol occurred within only 25 min, while the entire oxidation of 2-octanol occurred after a long time of 240 min (Table S1, entries 25 and 35). Accordingly, the present catalytic methodology was impacted by dual factors—electronic and steric impacts. As a conclusion, in general, the current catalytic oxidation protocol was found to be efficacious for oxygenation of various kinds of alcohols, including benzylic, aliphatic, allylic, heterocyclic, primary, and secondary alcohols, indicating the versatility of Ag2O–MnO2/(5 wt.%)GRO catalyst for aerial selective alcohol oxidation.

3. Experimental

3.1. Synthesis of GRO

Initially, GRO was fabricated from pristine graphite through Hummer’s method [56].

3.2. Synthesis of Ag2O–MnO2 Nanoparticles

The Ag2O–MnO2 was prepared separately through a co-precipitation procedure. In brief, stoichiometric amounts of AgNO3 and Mn(NO3)2 were dissolved in distilled water (100 mL), followed by the dropwise addition of 0.5 M NaHCO3 solution at 100 °C for 3 h (till the pH of the resultant solution reached to 9). The vigorous stirring of the resultant mixture was continued overnight at RT. The reaction mixture was filtered via centrifugation and dried at 70 °C for 12 h. The as-obtained nanomaterial was annealed at 300 °C for 24 h and further used for the preparation of nanocomposite. Subsequently, the previously prepared GRO, dried at 70 °C, was introduced in the Ag2O–MnO2 by milling to synthesize the desired (1%)Ag2O–MnO2/GRO catalyst. It is important to note that if GRO was incorporated before the calcination process, there was a significant decrease in weight and catalytic activity.

3.3. Synthesis of Ag2O–MnO2/GRO Nanocomposite

For this purpose, the GRO was prepared using a previously reported modified Hummer’s method using natural graphite and dried overnight at 40 °C. Approximately, 1.90 g of Ag2O–MnO2 nanoparticles and 0.1 g of GRO powder were milled using Fritsch Pulverisette P7 (Idar-Oberstein, Germany) planetary ball mill. The graphite oxide powder and stainless steel balls (5 mm diameter) with the ball to powder weight ratio of 11:1 were introduced into the stainless steel container. The milling of the powder was performed for 16 h. In order to maintain the temperature inside the container, the milling process was paused at regular intervals.

3.4. Catalyst Characterization

The prepared materials were characterized using several instruments, and all experimental details are described in the supplementary file.

3.5. Catalytic Assessment

Oxidation of benzyl alcohol was performed in a glass flask equipped with a magnetic stirrer, reflux condenser, and thermometer. A mixture of benzyl alcohol (2 mmol), toluene (10 mL), and the catalyst (0.3 g) was transferred in a glass three-necked round-bottomed flask; the resulting mixture was then heated to the desired temperature with vigorous stirring. The oxidation experiment was started by bubbling O2 gas at a flow rate of 20 mL.min–1 into the reaction mixture. After the reaction, the solid catalyst was filtered off by centrifugation, and the liquid products were analyzed by gas chromatography to determine the conversion of the alcohol and product selectivity by (GC, 7890A) Agilent Technologies Inc (Santa Clara, CA, United States), equipped with a flame ionization detector (FID) and a 19019S-001 HP-PONA column.

3.6. Reusability Tests

After the completion of the first oxidation process, the used catalyst was separated by centrifugation (HERMLE Labortechnik GmbH, · Wehingen, Germany ), then washed many times with toluene and dried at 95 °C for 5 h for the next run. The dried catalyst was used for the next run under similar aforementioned conditions.

4. Conclusions

Herein, we reported a cost-effective and eco-friendly mechanochemical approach for the preparation of GRO-based Ag2O–MnO2 nanocatalyst for the aerial oxidation of a variety of alcohols. The nanocatalyst demonstrated a high conversion ability (~100%) and excellent selectivity in the presence of O2 as a clean oxidant without utilizing any hazardous surfactants or bases. Under the optimum conditions, (1%)Ag2O–MnO2/(5 wt.%)GRO catalyst exhibited better catalytic performance (100% conversion) in comparison with Ag2O–MnO2 catalyst. The higher catalytic properties of the nanocomposite were attributed to the presence of GRO, which exhibited extraordinary catalytic properties like high surface area, excellent chemical compatibility and stability, superior mechanical and thermal stability, as well as the presence of several defects. The eco-friendly, physical blending of the components, including GRO and Ag2O–MnO2 NPs, at RT avoided the pyrolysis of oxygen-containing functional groups, which allowed to preserve the defects and active sites of the resulting composite. Therefore, (1%)Ag2O–MnO2/(5 wt.%)GRO showed a 100% conversion of BnOH with ~99% selectivity towards the formation of BnH within a relatively short time. The obtained specific performance (13.3 mmol·g−1·h−1) was much better than that presented in previous literature. Our catalytic strategy was highly selective, producing only desired products with no over-oxygenation to carboxylic acids. The merits of our catalytic methodology were: (a) facile process, (b) inexpensive and clean oxidant, (c) no surfactants or nitrogenous bases were required, (d) mild catalytic conditions, (e) cost-effective recoverable catalyst, (f) complete convertibility, (g) full selectivity, (h) rapid process, and (i) applicable to virtually all types of alcohols. So, these highlights made this catalytic strategy to be highly applicable in the industrial applications for manufacturing of carbonyls.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/10/3/281/s1, Figure S1: FTIR spectrum of GRO and (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite. Table S1: Aerial oxidation of several kinds of alcohols using Ag2O–MnO2/(5 wt.%)GRO with O2 under alkali free conditions.

Author Contributions

S.F.A. designed the project; M.E.A., M.K. (Mujeeb Khan), and M.R.S. helped to write the manuscript; M.E.A. and M.K. (Mufsir Kuniyil) performed the experimental section and some part of characterization; D.S. and A.Z.D. performed some part of characterization; A.A.-W. and M.R.H.S. provided scientific guidance for the successful completion of the project and helped to draft the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research and APC was funded by Deanship of Scientific Research, King Saud University, Research group project No. RG-1436-032.

Acknowledgments

The authors extend their appreciation to the Deanship of Scientific Research at King Saud University for funding this work through the research group project No. RG-1436-032.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kolobova, E.; Kotolevich, Y.; Pakrieva, E.; Mamontov, G.; Farias, M.; Corberán, V.C.; Bogdanchikova, N.; Hemming, J.; Smeds, A.; Mäki-Arvela, P. Modified Ag/TiO2 systems: Promising catalysts for liquid-phase oxidation of alcohols. Fuel 2018, 234, 110–119. [Google Scholar] [CrossRef]
  2. Faqeeh, A.J.; Ali, T.T.; Basahel, S.N.; Narasimharao, K. Nanosized samarium modified Au-Ce0.5Zr0.5O2 catalysts for oxidation of benzyl alcohol. Mol. Catal. 2018, 456, 10–21. [Google Scholar] [CrossRef]
  3. Liu, K.; Qin, T.; Sun, Y.; Hou, C.; Cao, X.; Jiang, S. Synergistic effect between Ag and Mn3O4 in the gas phase oxidation of alcohols. Catal. Commun. 2018, 113, 15–18. [Google Scholar] [CrossRef]
  4. Dai, X.; Rasamani, K.D.; Wu, S.; Sun, Y. Enabling selective aerobic oxidation of alcohols to aldehydes by hot electrons in quantum-sized Rh nanocubes. Mater. Today Energy 2018, 10, 15–22. [Google Scholar] [CrossRef]
  5. Biella, S.; Rossi, M. Gas phase oxidation of alcohols to aldehydes or ketones catalysed by supported gold. Chem. Commun. 2003, 378–379. [Google Scholar] [CrossRef]
  6. Khan, M.; Tahir, M.N.; Adil, S.F.; Khan, H.U.; Siddiqui, M.R.H.; Al-warthan, A.A.; Tremel, W. Graphene based metal and metal oxide nanocomposites: Synthesis, properties and their applications. J. Mater. Chem. A 2015, 3, 18753–18808. [Google Scholar] [CrossRef] [Green Version]
  7. Loh, K.P.; Bao, Q.; Ang, P.K.; Yang, J. The chemistry of graphene. J. Mater. Chem. 2010, 20, 2277–2289. [Google Scholar] [CrossRef]
  8. Fan, X.; Zhang, G.; Zhang, F. Multiple roles of graphene in heterogeneous catalysis. Chem. Soc. Rev. 2015, 44, 3023–3035. [Google Scholar] [CrossRef]
  9. Su, C.; Loh, K.P. Carbocatalysts: Graphene oxide and its derivatives. Acc. Chem. Res. 2013, 46, 2275–2285. [Google Scholar] [CrossRef]
  10. Su, C.; Acik, M.; Takai, K.; Lu, J.; Hao, S.-j.; Zheng, Y.; Wu, P.; Bao, Q.; Enoki, T.; Chabal, Y.J. Probing the catalytic activity of porous graphene oxide and the origin of this behaviour. Nat. Commun. 2012, 3, 1298. [Google Scholar] [CrossRef]
  11. Ali, A.A.; Madkour, M.; Sagheer, F.A.; Zaki, M.I.; Abdel Nazeer, A. Low-Temperature Catalytic CO Oxidation Over Non-Noble, Efficient Chromia in Reduced Graphene Oxide and Graphene Oxide Nanocomposites. Catalysts 2020, 10, 105. [Google Scholar] [CrossRef] [Green Version]
  12. Gopiraman, M.; Saravanamoorthy, S.; Deng, D.; Ilangovan, A.; Kim, I.S.; Chung, I.M. Facile mechanochemical synthesis of nickel/graphene oxide nanocomposites with unique and tunable morphology: Applications in heterogeneous catalysis and supercapacitors. Catalysts 2019, 9, 486. [Google Scholar] [CrossRef] [Green Version]
  13. Sun, W.; Lu, X.; Tong, Y.; Zhang, Z.; Lei, J.; Nie, G.; Wang, C. Fabrication of highly dispersed palladium/graphene oxide nanocomposites and their catalytic properties for efficient hydrogenation of p-nitrophenol and hydrogen generation. Int. J. Hydrogen Energy 2014, 39, 9080–9086. [Google Scholar] [CrossRef]
  14. Shao, L.; Huang, X.; Teschner, D.; Zhang, W. Gold supported on graphene oxide: An active and selective catalyst for phenylacetylene hydrogenations at low temperatures. ACS Catal. 2014, 4, 2369–2373. [Google Scholar] [CrossRef]
  15. Xu, C.; Wang, X.; Zhu, J.; Yang, X.; Lu, L. Deposition of Co3O4 nanoparticles onto exfoliated graphite oxide sheets. J. Mater. Chem. 2008, 18, 5625–5629. [Google Scholar] [CrossRef]
  16. Adil, S.F.; Assal, M.E.; Shaik, M.R.; Kuniyil, M.; AlOtaibi, N.M.; Khan, M.; Sharif, M.; Alam, M.M.; Al-Warthan, A.; Mohammed, J.A. A Facile Synthesis of ZrOx-MnCO3/Graphene Oxide (GRO) Nanocomposites for the Oxidation of Alcohols using Molecular Oxygen under Base Free Conditions. Catalysts 2019, 9, 759. [Google Scholar] [CrossRef] [Green Version]
  17. Liu, Y.; Jin, W.; Zhao, Y.; Zhang, G.; Zhang, W. Enhanced catalytic degradation of methylene blue by α-Fe2O3/graphene oxide via heterogeneous photo-Fenton reactions. Appl. Catal. B Environ. 2017, 206, 642–652. [Google Scholar] [CrossRef]
  18. Assal, M.E.; Shaik, M.R.; Kuniyil, M.; Khan, M.; Al-Warthan, A.; Siddiqui, M.R.H.; Khan, S.M.; Tremel, W.; Tahir, M.N.; Adil, S.F. A highly reduced graphene oxide/ZrOx–MnCO3 or–Mn2O3 nanocomposite as an efficient catalyst for selective aerial oxidation of benzylic alcohols. RSC Adv. 2017, 7, 55336–55349. [Google Scholar] [CrossRef] [Green Version]
  19. Arumugam, S.; Mohan, B.C.; Vasudevan, S.V.; Vanaraj, R.; Rukmanikrishnan, B.; Periyasamy, T.; Asrafali, S.P. Selective Oxidation of Cyclohexane Using Graphene Oxide-Supported Ceria Nanocomposites with Exposed Active {1 0 0} Facets. ChemistrySelect 2017, 2, 6223–6230. [Google Scholar] [CrossRef]
  20. Zhao, B.; Liu, J.; Zhou, L.; Long, D.; Feng, K.; Sun, X.; Zhong, J. Probing the electronic structure of M-graphene oxide (M= Ni, Co, NiCo) catalysts for hydrolytic dehydrogenation of ammonia borane. Appl. Surf. Sci. 2016, 362, 79–85. [Google Scholar] [CrossRef]
  21. Wang, C.; Hu, L.; Hu, Y.; Ren, Y.; Chen, X.; Yue, B.; He, H. Direct hydroxylation of benzene to phenol over metal oxide supported graphene oxide catalysts. Catal. Commun. 2015, 68, 1–5. [Google Scholar] [CrossRef]
  22. Diao, J.; Liu, H.; Wang, J.; Feng, Z.; Chen, T.; Miao, C.; Yang, W.; Su, D.S. Porous graphene-based material as an efficient metal free catalyst for the oxidative dehydrogenation of ethylbenzene to styrene. Chem. Commun. 2015, 51, 3423–3425. [Google Scholar] [CrossRef] [PubMed]
  23. Zhao, Q.; Bai, C.; Zhang, W.; Li, Y.; Zhang, G.; Zhang, F.; Fan, X. Catalytic epoxidation of olefins with graphene oxide supported copper (Salen) complex. Ind. Eng. Chem. Res. 2014, 53, 4232–4238. [Google Scholar] [CrossRef]
  24. Al-Marri, A.H.; Khan, M.; Shaik, M.R.; Mohri, N.; Adil, S.F.; Kuniyil, M.; Alkhathlan, H.Z.; Al-Warthan, A.; Tremel, W.; Tahir, M.N. Green Synthesis of Pd@ Graphene Nanocomposite: Catalyst for the Selective Oxidation of Alcohols. Arab. J. Chem. 2016, 9, 835–845. [Google Scholar] [CrossRef] [Green Version]
  25. Al-Marri, A.H.; Khan, M.; Khan, M.; Adil, S.F.; Al-Warthan, A.; Alkhathlan, H.Z.; Tremel, W.; Labis, J.P.; Siddiqui, M.R.H.; Tahir, M.N. Pulicaria glutinosa extract: A toolbox to synthesize highly reduced graphene oxide-silver nanocomposites. Int. J. Mol. Sci. 2015, 16, 1131–1142. [Google Scholar] [CrossRef] [Green Version]
  26. Rincon, E.; Garcia, A.; Romero, A.A.; Serrano, L.; Luque, R.; Balu, A.M. Mechanochemical preparation of novel polysaccharide-supported Nb2O5 catalysts. Catalysts 2019, 9, 38. [Google Scholar] [CrossRef] [Green Version]
  27. Zhao, B.; Zheng, Y.; Ye, F.; Deng, X.; Xu, X.; Liu, M.; Shao, Z. Multifunctional iron oxide nanoflake/graphene composites derived from mechanochemical synthesis for enhanced lithium storage and electrocatalysis. Acs Appl. Mater. Interfaces 2015, 7, 14446–14455. [Google Scholar] [CrossRef]
  28. Assal, M.E.; Shaik, M.R.; Kuniyil, M.; Khan, M.; Al-Warthan, A.; Alharthi, A.I.; Varala, R.; Siddiqui, M.R.H.; Adil, S.F. Ag2O nanoparticles/MnCO3,–MnO2 or–Mn2O3/highly reduced graphene oxide composites as an efficient and recyclable oxidation catalyst. Arab. J. Chem. 2019, 12, 54–68. [Google Scholar] [CrossRef]
  29. Sandhya, P.K.; Jose, J.; Sreekala, M.S.; Padmanabhan, M.; Kalarikkal, N.; Thomas, S. Reduced graphene oxide and ZnO decorated graphene for biomedical applications. Ceram. Int. 2018, 44, 15092–15098. [Google Scholar] [CrossRef]
  30. Ma, Z.; Yu, T.; Bi, L. Ru-containing polyoxometalate fabricated on graphene oxide: Preparation, characterization and catalytic activity. J. Solid State Chem. 2019, 275, 16–22. [Google Scholar] [CrossRef]
  31. Vithalani, R.; Patel, D.; Modi, C.K.; Som, N.N.; Jha, P.K.; Kane, S. Enhancing the potency of surface hydroxyl groups of graphene oxide for selective oxidation of benzyl alcohol. Diam. Relat. Mater. 2018, 90, 154–165. [Google Scholar] [CrossRef]
  32. Assal, M.E.; Shaik, M.R.; Kuniyil, M.; Khan, M.; Kumar, J.; Alzahrani, A.Y.; Al-Warthan, A.; Al-Tamrah, S.A.; Siddiqui, M.R.H.; Hashmi, S.A. Silver-doped manganese based nanocomposites for aerial oxidation of alcohols. Mater. Express 2018, 8, 35–54. [Google Scholar] [CrossRef]
  33. Santra, S.; Hota, P.K.; Bhattacharyya, R.; Bera, P.; Ghosh, P.; Mandal, S.K. Palladium nanoparticles on graphite oxide: A recyclable catalyst for the synthesis of biaryl cores. ACS Catal. 2013, 3, 2776–2789. [Google Scholar] [CrossRef]
  34. Wang, Z.-l.; Xu, D.; Huang, Y.; Wu, Z.; Wang, L.-m.; Zhang, X.-b. Facile, mild and fast thermal-decomposition reduction of graphene oxide in air and its application in high-performance lithium batteries. Chem. Commun. 2012, 48, 976–978. [Google Scholar] [CrossRef] [PubMed]
  35. Geng, L.; Wu, S.; Zou, Y.; Jia, M.; Zhang, W.; Yan, W.; Liu, G. Correlation between the microstructures of graphite oxides and their catalytic behaviors in air oxidation of benzyl alcohol. J. Colloid Interface Sci. 2014, 421, 71–77. [Google Scholar] [CrossRef] [PubMed]
  36. Metin, Ö.; Kayhan, E.; Özkar, S.; Schneider, J.J. Palladium nanoparticles supported on chemically derived graphene: An efficient and reusable catalyst for the dehydrogenation of ammonia borane. Int. J. Hydrogen Energy 2012, 37, 8161–8169. [Google Scholar] [CrossRef]
  37. Han, G.; Liu, Y.; Kan, E.; Tang, J.; Zhang, L.; Wang, H.; Tang, W. Sandwich-structured MnO2/polypyrrole/reduced graphene oxide hybrid composites for high-performance supercapacitors. Rsc Adv. 2014, 4, 9898–9904. [Google Scholar] [CrossRef]
  38. Gil, S.; Muñoz, L.; Sánchez-Silva, L.; Romero, A.; Valverde, J.L. Synthesis and characterization of Au supported on carbonaceous material-based catalysts for the selective oxidation of glycerol. Chem. Eng. J. 2011, 172, 418–429. [Google Scholar] [CrossRef]
  39. Liu, S.; Yan, J.; He, G.; Zhong, D.; Chen, J.; Shi, L.; Zhou, X.; Jiang, H. Layer-by-layer assembled multilayer films of reduced graphene oxide/gold nanoparticles for the electrochemical detection of dopamine. J. Electroanal. Chem. 2012, 672, 40–44. [Google Scholar] [CrossRef]
  40. Rajesh, D.; Mahendiran, C.; Suresh, C.; Pandurangan, A.; Maiyalagan, T. Hydrothermal synthesis of three dimensional reduced graphene oxide-multiwalled carbon nanotube hybrids anchored with palladium-cerium oxide nanoparticles for alcohol oxidation reaction. Int. J. Hydrogen Energy 2019, 44, 4962–4973. [Google Scholar] [CrossRef]
  41. Hu, Z.; Zhao, Y.; Liu, J.; Wang, J.; Zhang, B.; Xiang, X. Ultrafine MnO2 nanoparticles decorated on graphene oxide as a highly efficient and recyclable catalyst for aerobic oxidation of benzyl alcohol. J. Colloid Interface Sci. 2016, 483, 26–33. [Google Scholar] [CrossRef] [PubMed]
  42. Wu, G.; Wang, X.; Guan, N.; Li, L. Palladium on graphene as efficient catalyst for solvent-free aerobic oxidation of aromatic alcohols: Role of graphene support. Appl. Catal. B Environ. 2013, 136, 177–185. [Google Scholar] [CrossRef]
  43. Yu, X.; Huo, Y.; Yang, J.; Chang, S.; Ma, Y.; Huang, W. Reduced Graphene Oxide Supported Au Nanoparticles as an Efficient Catalyst for Aerobic Oxidation of Benzyl Alcohol. Appl. Surf. Sci. 2013, 280, 450–455. [Google Scholar] [CrossRef]
  44. Rana, S.; Jonnalagadda, S.B. Cu doped amine functionalized graphene oxide and its scope as catalyst for selective oxidation. Catal. Commun. 2017, 100, 183–186. [Google Scholar] [CrossRef]
  45. Feng, X.; Lv, P.; Sun, W.; Han, X.; Gao, L.; Zheng, G. Reduced graphene oxide-supported Cu nanoparticles for the selective oxidation of benzyl alcohol to aldehyde with molecular oxygen. Catal. Commun. 2017, 99, 105–109. [Google Scholar] [CrossRef]
  46. Ramirez-Barria, C.S.; Isaacs, M.; Parlett, C.; Wilson, K.; Guerrero-Ruiz, A.; Rodríguez-Ramos, I. Ru nanoparticles supported on N-doped reduced graphene oxide as valuable catalyst for the selective aerobic oxidation of benzyl alcohol. Catal. Today 2019. [Google Scholar] [CrossRef]
  47. Zahed, B.; Hosseini-Monfared, H. A comparative study of silver-graphene oxide nanocomposites as a recyclable catalyst for the aerobic oxidation of benzyl alcohol: Support effect. Appl. Surf. Sci. 2015, 328, 536–547. [Google Scholar] [CrossRef]
  48. Zhang, W.-H.; Shen, J.-J.; Wu, J.; Liang, X.-Y.; Xu, J.; Liu, P.; Xue, B.; Li, Y.-X. An amphiphilic graphene oxide-immobilized polyoxometalate-based ionic liquid: A highly efficient triphase transfer catalyst for the selective oxidation of alcohols with aqueous H2O2. Mol. Catal. 2017, 443, 262–269. [Google Scholar] [CrossRef]
  49. Jha, A.; Mhamane, D.; Suryawanshi, A.; Joshi, S.M.; Shaikh, P.; Biradar, N.; Ogale, S.; Rode, C.V. Triple nanocomposites of CoMn2O4, Co3O4 and reduced graphene oxide for oxidation of aromatic alcohols. Catal. Sci. Technol. 2014, 4, 1771–1778. [Google Scholar] [CrossRef]
  50. Liu, K.; Chen, T.; Hou, Z.; Wang, Y.; Dai, L. Graphene Oxide as Support for the Immobilization of Phosphotungstic Acid: Application in the Selective Oxidation of Benzyl Alcohol. Catal. Lett. 2014, 144, 314–319. [Google Scholar] [CrossRef]
  51. Rana, S.; Maddila, S.; Jonnalagadda, S.B. Synthesis and characterization of Pd (II) dispersed over diamine functionalized graphene oxide and its scope as a catalyst for selective oxidation. Catal. Sci. Technol. 2015, 5, 3235–3241. [Google Scholar] [CrossRef]
  52. Xu, C.; Zhang, L.; An, Y.; Wang, X.; Xu, G.; Chen, Y.; Dai, L. Promotional synergistic effect of Sn doping into a novel bimetallic Sn-W oxides/graphene catalyst for selective oxidation of alcohols using aqueous H2O2 without additives. Appl. Catal. A Gen. 2018, 558, 26–33. [Google Scholar] [CrossRef]
  53. Hosseini-Sarvari, M.; Ataee-Kachouei, T.; Moeini, F. A novel and active catalyst Ag/ZnO for oxidant-free dehydrogenation of alcohols. Mater. Res. Bull. 2015, 72, 98–105. [Google Scholar] [CrossRef]
  54. Borthakur, R.; Asthana, M.; Kumar, A.; Lal, R.A. Cooperative Catalysis by Polymetallic Copper–Zinc Complexes in the Efficient Oxidation of Alcohols under Solvent Free Condition. Inorg. Chem. Commun. 2014, 46, 198–201. [Google Scholar] [CrossRef]
  55. Assady, E.; Yadollahi, B.; Riahi Farsani, M.; Moghadam, M. Zinc polyoxometalate on activated carbon: An efficient catalyst for selective oxidation of alcohols with hydrogen peroxide. Appl. Organomet. Chem. 2015, 29, 561–565. [Google Scholar] [CrossRef]
  56. Hummers, W.S., Jr.; Offeman, R.E. Preparation of graphitic oxide. J. Am. Chem. Soc. 1958, 80, 1339. [Google Scholar] [CrossRef]
Catalysts 10 00281 sch001 550

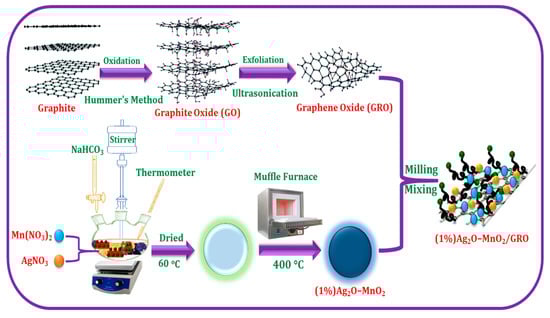

Scheme 1. Fabrication of (1%)Ag2O–MnO2/GRO nanocomposite. GRO: graphene oxide.
Scheme 1. Fabrication of (1%)Ag2O–MnO2/GRO nanocomposite. GRO: graphene oxide.
Catalysts 10 00281 sch001
Catalysts 10 00281 g001 550

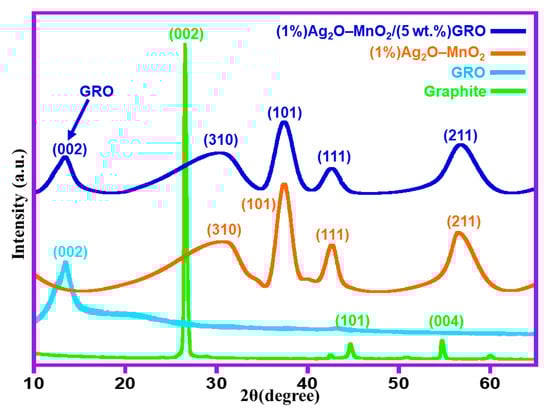

Figure 1. XRD analysis of the graphite, GRO, (1%)Ag2O–MnO2, and (1%)Ag2O–MnO2/(5 wt.%)GRO. GRO: graphene oxide.
Figure 1. XRD analysis of the graphite, GRO, (1%)Ag2O–MnO2, and (1%)Ag2O–MnO2/(5 wt.%)GRO. GRO: graphene oxide.
Catalysts 10 00281 g001
Catalysts 10 00281 g002 550

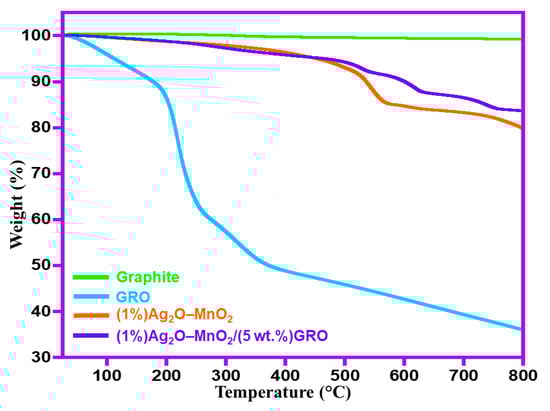

Figure 2. TGA graphs of the graphite, GRO, (1%)Ag2O–MnO2, and (1%)Ag2O–MnO2/(5 wt.%)GRO.
Figure 2. TGA graphs of the graphite, GRO, (1%)Ag2O–MnO2, and (1%)Ag2O–MnO2/(5 wt.%)GRO.
Catalysts 10 00281 g002
Catalysts 10 00281 g003 550

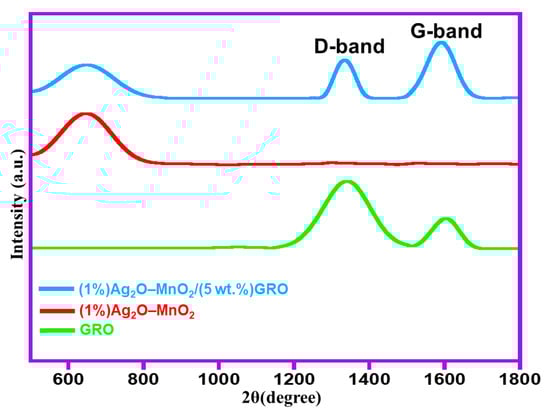

Figure 3. Raman spectra of GRO, (1%)Ag2O–MnO2, and (1%)Ag2O–MnO2/(5 wt.%)GRO.
Figure 3. Raman spectra of GRO, (1%)Ag2O–MnO2, and (1%)Ag2O–MnO2/(5 wt.%)GRO.
Catalysts 10 00281 g003
Catalysts 10 00281 g004 550

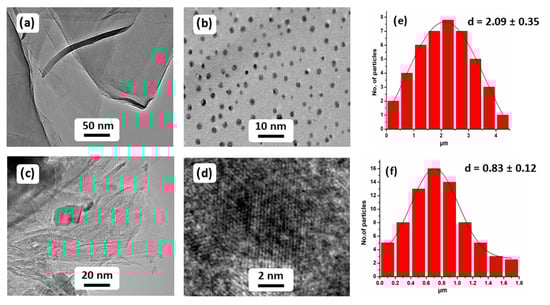

Figure 4. HR-TEM images of (a) GRO, (b) (1%)Ag2O–MnO2 catalyst (without GRO), (c,d) (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite, (e,f) particle size distribution of (1%)Ag2O–MnO2 and (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite, correspondingly.
Figure 4. HR-TEM images of (a) GRO, (b) (1%)Ag2O–MnO2 catalyst (without GRO), (c,d) (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite, (e,f) particle size distribution of (1%)Ag2O–MnO2 and (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite, correspondingly.
Catalysts 10 00281 g004
Catalysts 10 00281 g005 550

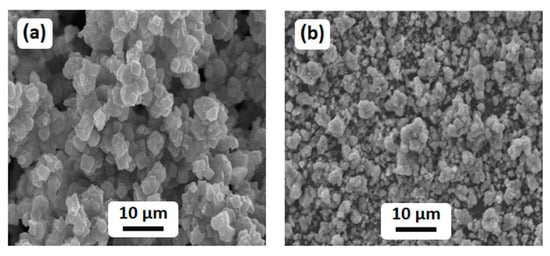

Figure 5. SEM analysis of (a) (1%)Ag2O–MnO2 and (b) (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite.
Figure 5. SEM analysis of (a) (1%)Ag2O–MnO2 and (b) (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite.
Catalysts 10 00281 g005
Catalysts 10 00281 g006 550

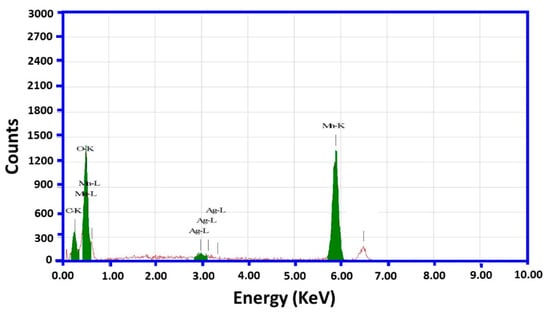

Figure 6. EDX spectrum of the (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite.
Figure 6. EDX spectrum of the (1%)Ag2O–MnO2/(5 wt.%)GRO nanocomposite.
Catalysts 10 00281 g006
Catalysts 10 00281 sch002 550

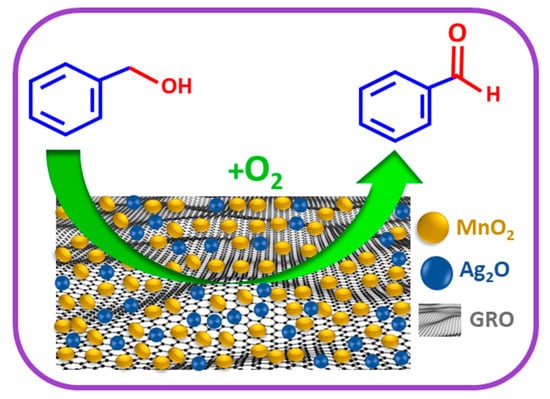

Scheme 2. Schematic representation of benzyl alcohol (BnOH) oxygenation, employing O2 over the prepared nanocomposite.
Scheme 2. Schematic representation of benzyl alcohol (BnOH) oxygenation, employing O2 over the prepared nanocomposite.
Catalysts 10 00281 sch002
Catalysts 10 00281 g007 550

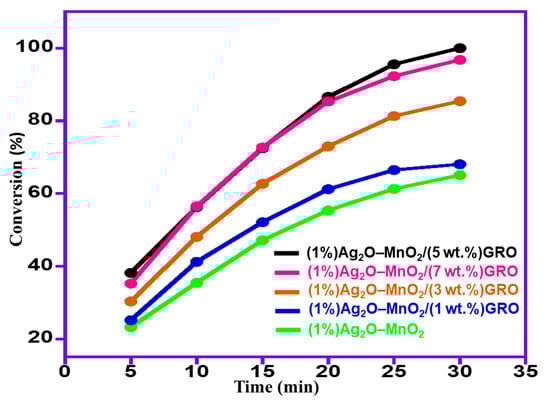

Figure 7. Graphical representation of BnOH oxidation, using catalysts with various percentages of GRO.
Figure 7. Graphical representation of BnOH oxidation, using catalysts with various percentages of GRO.
Catalysts 10 00281 g007
Catalysts 10 00281 g008 550

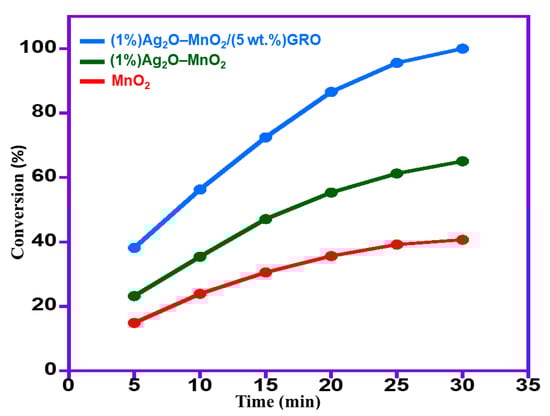

Figure 8. Impact of time on catalytic performances of fabricated catalysts.
Figure 8. Impact of time on catalytic performances of fabricated catalysts.
Catalysts 10 00281 g008
Catalysts 10 00281 g009 550

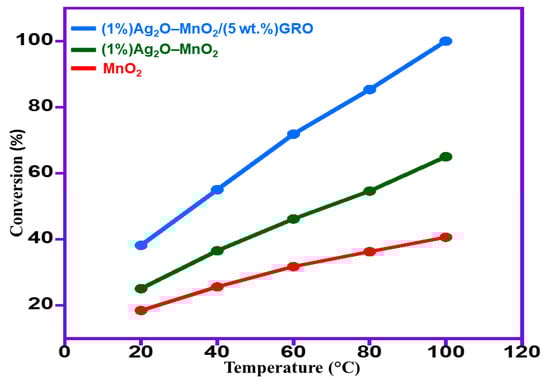

Figure 9. Impact of temperature on the benzyl alcohol (BnOH) conversion using various catalysts.
Figure 9. Impact of temperature on the benzyl alcohol (BnOH) conversion using various catalysts.
Catalysts 10 00281 g009
Catalysts 10 00281 g010 550

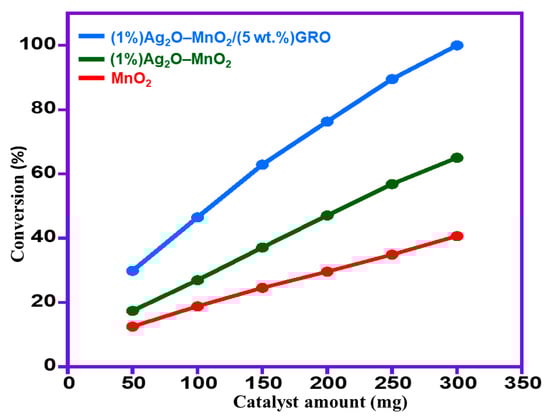

Figure 10. Impact of catalyst quantity on the oxidation of BnOH using various catalysts.
Figure 10. Impact of catalyst quantity on the oxidation of BnOH using various catalysts.
Catalysts 10 00281 g010
Catalysts 10 00281 g011 550
Figure 11. Reusability of (1%)Ag2O–MnO2/(5 wt.%)GRO catalyst for BnOH oxidation, Conditions: 300 g catalyst, 20 mL.min−1 O2 rate, 15 mL toluene, 2 mmol BnOH, 100 °C, 30 min.
Figure 11. Reusability of (1%)Ag2O–MnO2/(5 wt.%)GRO catalyst for BnOH oxidation, Conditions: 300 g catalyst, 20 mL.min−1 O2 rate, 15 mL toluene, 2 mmol BnOH, 100 °C, 30 min.
Catalysts 10 00281 g011
Table
Table 1. Catalytic oxidation of BnOH, catalyzed by different catalysts.
Table 1. Catalytic oxidation of BnOH, catalyzed by different catalysts.
EntryCatalystSurface Area (m2.g−1)Conv. (%)Sp. Performance (mmol·g−1·h−1)Sel. (%)
1GRO85.43.20.43<99
2HRG78.23.00.39<99
3MnO239.340.75.4<99
4(1%)Ag2O–MnO284.365.08.6<99
5(1%)Ag2O–MnO2/(5 wt.%)HRG149.194.112.5<99
6(1%)Ag2O–MnO2/(5 wt.%)GRO158.7100.013.3<99
Conditions: 300 mg catalyst, 15 mL toluene, 20 mL.min−1 O2 rate, 2 mmol BnOH, 100 °C, 30 min. HRG: highly reduced graphene oxide.
Table
Table 2. Oxidation of BnOH using several wt.% of GRO.
Table 2. Oxidation of BnOH using several wt.% of GRO.
EntryCatalystConv. (%)Sp. Performance (mmol·g−1·h−1)Sel. (%)
1GRO3.20.43<99
2(1%)Ag2O–MnO265.08.6<99
3(1%)Ag2O–MnO2/(1 wt.%)GRO68.19.1<99
4(1%)Ag2O–MnO2/(3 wt.%)GRO85.411.3<99
5(1%)Ag2O–MnO2/(5 wt.%)GRO100.013.3<99
6(1%)Ag2O–MnO2/(7 wt.%)GRO96.812.9<99
Conditions: 300 mg catalyst, 20 mL.min−1 O2 rate, 15 mL toluene, 2 mmol BnOH, 100 °C, 30 min. BnOH: benzyl alcohol; GRO: graphene oxide.
Table
Table 3. Comparison of various graphene catalysts for selective oxidation of BnOH.
Table 3. Comparison of various graphene catalysts for selective oxidation of BnOH.
CatalystConv. (%)Sel. (%)t.T. (°C)Sp. Performance (mmol·g−1·h−1)Ref.
Ag2O–MnO2/(5 wt.%)GRO100<9930 min10013.3This work
Ag2O–MnO2/(5 wt.%)HRG94.1<9930 min10012.5[28]
Cu@AGO92993 h702.1[44]
CuNPs@rGO<9998.616 h80 8.3[45]
Ru(CO)/NrGO46<9924 h906.4[46]
AgNPs/GRO335524 h802.8[47]
AgNPs/rGO12824 h801.0[47]
Im-PW/GRO 90.899.27 h908.6[48]
Au/RGO65938 h100 5.4[43]
Pd NPs/GRO3634.16 h110 1.0[42]
1%RGO–MnCoO781002 h 14012.6[49]
GRO–N–PW76996 h 10010.6[50]
MnO2/GRO971003 h1101.6[41]
Pd(II)-AAPTMS@GRO96993 h602.1[51]

Share and Cite

MDPI and ACS Style

Adil, S.F.; Assal, M.E.; Khan, M.; Shaik, M.R.; Kuniyil, M.; Sekou, D.; Dewidar, A.Z.; Al-Warthan, A.; Siddiqui, M.R.H. Eco-Friendly Mechanochemical Preparation of Ag2O–MnO2/Graphene Oxide Nanocomposite: An Efficient and Reusable Catalyst for the Base-Free, Aerial Oxidation of Alcohols. Catalysts 2020, 10, 281. https://doi.org/10.3390/catal10030281

AMA Style

Adil SF, Assal ME, Khan M, Shaik MR, Kuniyil M, Sekou D, Dewidar AZ, Al-Warthan A, Siddiqui MRH. Eco-Friendly Mechanochemical Preparation of Ag2O–MnO2/Graphene Oxide Nanocomposite: An Efficient and Reusable Catalyst for the Base-Free, Aerial Oxidation of Alcohols. Catalysts. 2020; 10(3):281. https://doi.org/10.3390/catal10030281

Chicago/Turabian Style

Adil, Syed Farooq, Mohamed E. Assal, Mujeeb Khan, Mohammed Rafi Shaik, Mufsir Kuniyil, Doumbia Sekou, Ahmed Z. Dewidar, Abdulrahman Al-Warthan, and Mohammed Rafiq H. Siddiqui. 2020. "Eco-Friendly Mechanochemical Preparation of Ag2O–MnO2/Graphene Oxide Nanocomposite: An Efficient and Reusable Catalyst for the Base-Free, Aerial Oxidation of Alcohols" Catalysts 10, no. 3: 281. https://doi.org/10.3390/catal10030281

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
