Synthesis and Characterization of Amorphous Molybdenum Sulfide (MoS_x)/CdIn₂S₄ Composite Photocatalyst: Co-Catalyst Using in the Hydrogen Evolution Reaction

Abstract

Co-catalyst deposition is used to improve the surface and electrical properties of photocatalysts. In this work, MoS_x/CdIn₂S₄ nanocomposites were prepared by a facile hydrothermal and photodeposition route. The basic crystalline phases and morphology of the as-prepared samples were determined, and these results showed that MoS_x was tightly anchored onto CdIn₂S₄ by sharing the same S atom. In the hydrogen production experiments, MoS_x/CdIn₂S₄-40 displayed the optimal photocatalytic hydrogen production yield in 4 h. The H₂ evolution rate reached 2846.73 μmol/g/h, which was 13.6-times higher than that of pure CdIn₂S₄. Analyzing the photocatalytic enhancement mechanisms revealed that this unique structure had a remarkable photogenerated electron-hole pair separation efficiency, rapid charge carrier transfer channels, and more abundant surface reaction sites. The use of co-catalyst (MoS_x) greatly improved the photocatalytic activity of CdIn₂S₄.

1. Introduction

Hydrogen is a renewable energy source that can possibly solve the energy crisis and environmental pollution, but its conversion method must be further explored to enable its practical application. Various scholars have studied methods to efficiently produce hydrogen [1,2]. Photocatalysis is a low-cost and convenient method to convert solar energy into hydrogen energy [3]. This energy transformation method requires a photocatalyst that can absorb solar energy to drive the hydrogen evolution reaction. Numerous studies have reported developing photocatalysts such as metal oxides [4], nitrides [5], sulfides [6], and metal-free semiconductors [7]. Unfortunately, it is difficult for these semiconductors to achieve efficient hydrogen production in practical applications because of their poor visible light absorption, which leads to low hydrogen production [8].

Various photocatalysts have been explored to absorb more visible light for photocatalytic hydrogen production. Among them, typical layered transition metal chalcogenides (TMCs) have garnered much attention due to their high-performance hydrogen production capacities and tunable band gaps [9]. Cadmium indium sulfide (CdIn₂S₄) is a TMC with excellent visible light-harvesting capacity due to its suitable and tunable band gap [10]. Its regular shape and convenient preparation method have caused it to receive significant attention as a hydrogen production photocatalyst. For example, Li described the controllable synthesis of CdIn₂S₄, whose band gap (2.06–2.85 eV) could be regulated by adjusting the Cd/In ratio to allow CdIn₂S₄ to harvest more visible light [11]. As a result, CdIn₂S₄ showed remarkable photocatalytic activity compared with CdS; however, the photocatalyst only showed good photocatalytic hydrogen production efficiency when it was attached to a noble metal [12]. This work indirectly verified that pure CdIn₂S₄ cannot satisfy the requirements of practical applications, despite the above advantages. In another study, its lower photocatalytic hydrogen production efficiency was attributed to the recombination of photogenerated carriers and a low surface area for the hydrogen evolution reaction [13]; therefore, it is important to further enhance the photocatalytic performance of pure CdIn₂S₄.

Many efforts have been made to improve the hydrogen production capability using co-catalyst deposition [14], doping [15], morphology designing [16,17], and heterojunction construction [18]. Among these, co-catalyst deposition is well-known for its ability to modify photocatalysts, and a good photocatalytic co-catalyst must exhibit effective electron transport channels and a promising capacity for the hydrogen evolution reaction [14]. Co-catalysts such as Pt have been used to improve the photocatalytic capacity because Pt offers a promising reaction surface for hydrogen production as well as a remarkable electron transfer rate during photogenerated electron transport. It has been widely used in contact photocatalysts such as TiO₂, C₃N₄, and CdS [19]; however, noble metals cannot be used for large-scale applications because they are expensive. Thus, it is essential to rationally combine co-catalysts for higher hydrogen production efficiencies.

This problem can be solved by using amorphous molybdenum sulfides (MoS_x), which have been shown to greatly activate and stabilize the hydrogen evolution reaction (HER), especially in acidic solutions. They are also expected to become substitutes for noble metals [20]. Compared with MoS₂, MoS_x can also be synthesized in a milder environment. Though the S atoms in amorphous molybdenum sulfides show long-range disorder, short-range atomic arrangements offer more surface area for the hydrogen evolution reaction. Due to this, the deposition of amorphous molybdenum sulfides has proven to be a promising way to improve photocatalytic hydrogen production. MoS_x not only offers electron transport channels that promote the separation of electron-hole pairs, but also act as active reaction sites [21,22,23]. MoS_x is a noble-metal-free material whose hydrogen evolution activity is better than that of MoS₂. Moreover, MoS_x/CdS composite photocatalysts were synthesized by assembling MoS_x onto CdS nanorods for hydrogen production. MoS_x shared an S atom with CdS during deposition, which helped build rapid electron transport channels between CdS and MoS_x, leading to a remarkable hydrogen production yield [22]. According to the survey above, this paper aimed to synthesize MoS_x/CdIn₂S₄ composite photocatalysts with improved hydrogen production.

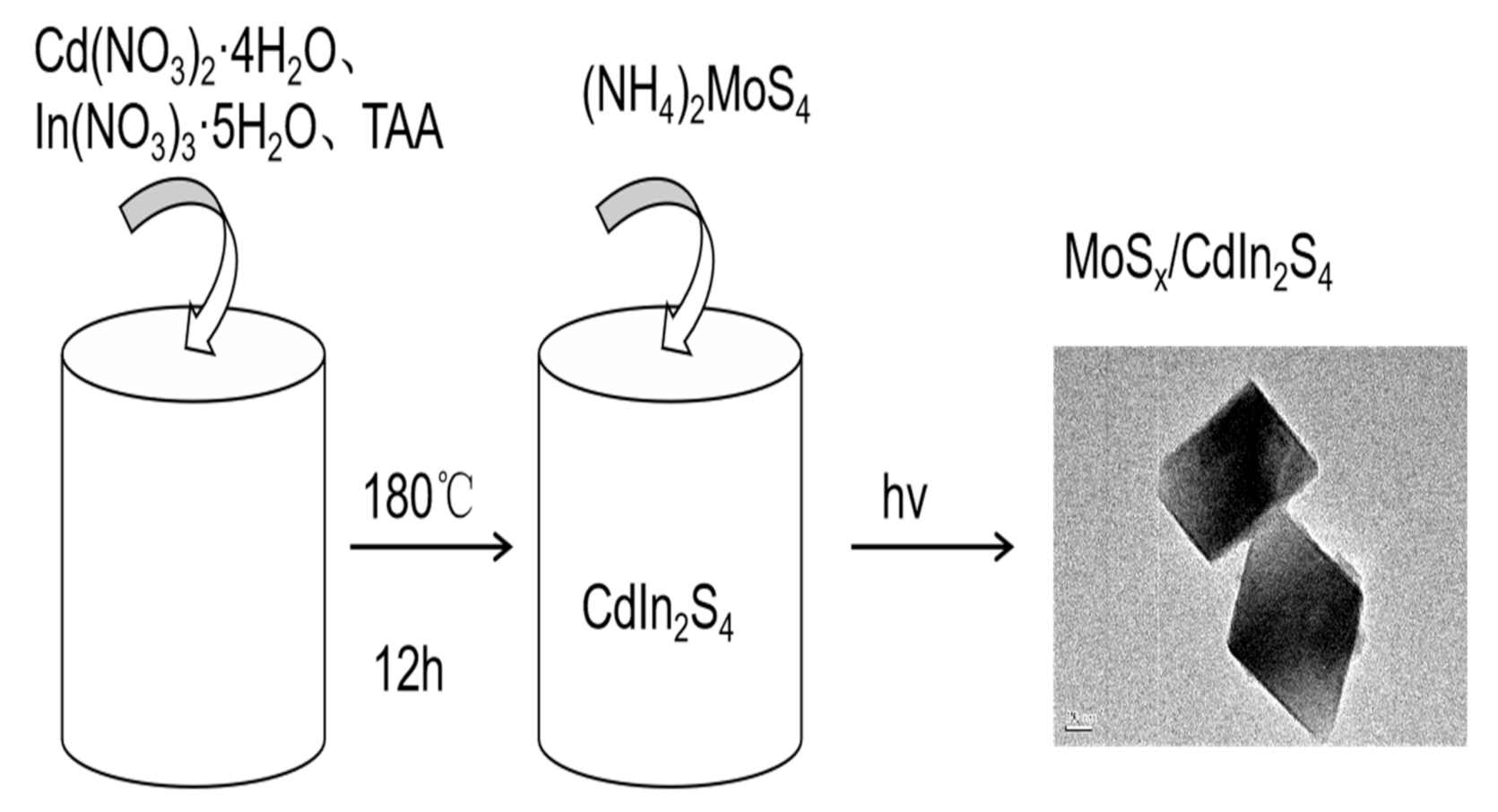

In this study, pure CdIn₂S₄ was prepared by a one-step hydrothermal method, and MoS_x was then deposited onto the surface of CdIn₂S₄ via a photodeposition method for the HER (Figure 1). The crystalline phase and morphologies of MoS_x/CdIn₂S₄ composites were systematically studied to verify how MoS_x deposition affected the morphology and crystalline phases. The MoS_x/CdIn₂S₄ photocatalyst showed remarkable photocatalytic activity, and the optimal deposition ratio of MoS_x for the HER was investigated. MoS_x/CdIn₂S₄-40 showed the best hydrogen production yield, which was 13.6 times higher than that of CdIn₂S₄, and its H₂ evolution rate reached 2846.73 μmol/g/h. The optical and electrochemical characteristics of MoS_x/CdIn₂S₄ composites were measured to explore the improvement mechanism. In the photocatalyst system, MoS_x provided sites for hydrogen production and acted as a charge acceptor to separate photogenerated electron-hole pairs. In all, considering the convenient and mild preparation conditions of MoS_x/CdIn₂S₄, MoS_x helped improve the photocatalytic capacity of CdIn₂S₄ and offers an attractive method to enhance the photocatalytic hydrogen evolution using CdIn₂S₄.

2. Results

2.1. Crystalline Structure

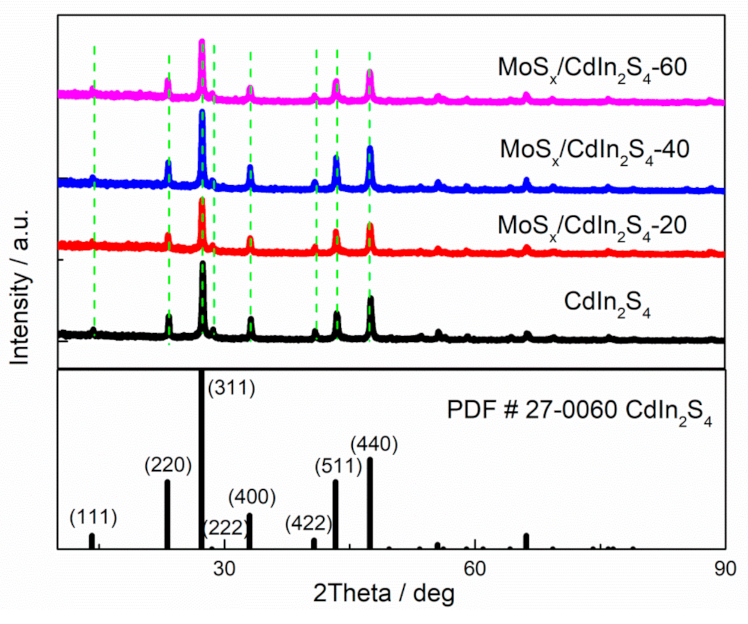

First, X-Ray Diffraction (XRD) patterns were collected to verify the chemical components of test samples (Figure 2). All samples displayed similar XRD patterns, with main peaks at 14.14°, 23.18°, 27.25°, 28.48°, 33.00°, 40.74°, 43.32°, and 47.41° for crystalline CdIn₂S₄. These peaks were fitted to the (111), (220), (311), (222), (400), (442), (511), and (440) planes of cubic CdIn₂S₄ (PDF#27-0060) [11]. The above results indicated that all samples contained cubic CdIn₂S₄, and that the main photocatalyst CdIn₂S₄ remained unchanged during synthesis; however, no XRD peak for MoS_x was observed in the MoS_x/CdIn₂S₄ samples, mainly because of the amorphous structure of MoS_x [22]. Therefore, it is necessary to use a different method to detect the presence of MoS_x.

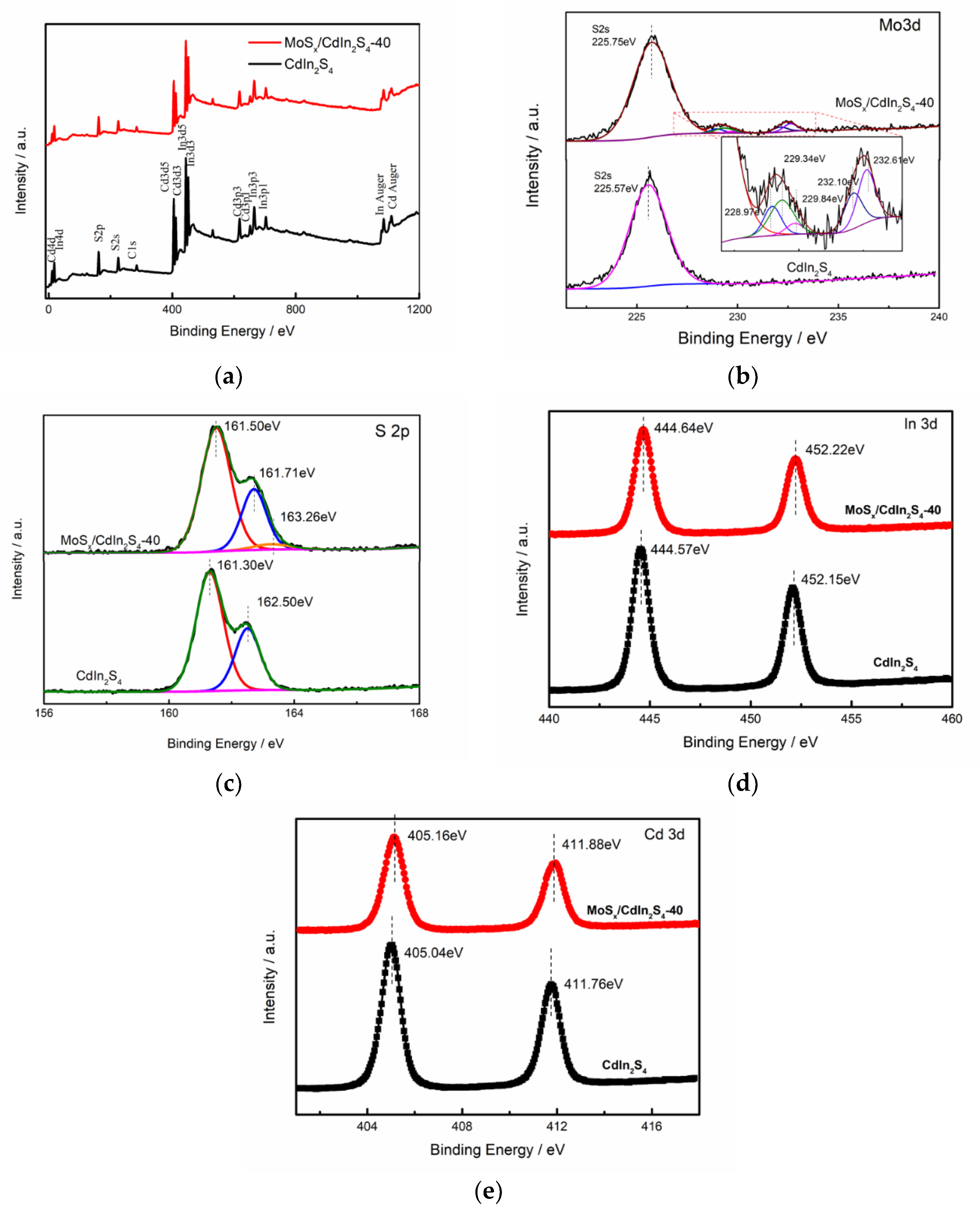

X-ray photoelectron spectrcopy (XPS) spectra were collected to investigate the surface chemical composition and states of the as-prepared samples. The survey spectra of Cd, In, and S of pure CdIn₂S₄ and MoS_x-CdIn₂S₄-40 are shown in Figure 3. The Mo spectrum was not detected in the survey spectra of MoS_x/CdIn₂S₄ due to the low Mo content. The high-resolution S 2p spectra of CdIn₂S₄ can be deconvoluted into two peaks at 161.30 eV and 162.50 eV, which were assigned to the 2 p_3/2 and 2 p_1/2 chemical states levels of S²⁻ [11]. After deposition with MoS_x, the S 2p spectrum can be divided into three peaks, and the extra weak peak at 163.26 eV was identified as unsaturated S, which is its typical chemical state in MoS_x [22,23]. Previous reports also support the observation that MoS_x contains special unsaturated active S, further indicating the presence of MoS_x on the surface. Compared with bare CdIn₂S₄, MoS_x/CdIn₂S₄ displays weak Mo 3d peaks at 228.04 eV, 229.40 eV, 229.74 eV, 232.10 eV, and 232.61 eV. The peaks at 228.04 eV, 229.40 eV, and 229.74 eV belonged to Mo 3 d5, Mo 3d, and Mo S2 due to Mo⁴⁺ in MoS₂ or MoS₃ [20,23,24] The doublet peaks at 232.1 and 232.61 eV were assigned to Mo⁶⁺ in MoS₃. The slight increase in peak value of the high-resolution Cd 3d and In 3d spectra was mainly caused by interactions between MoS_x and CdIn₂S₄. These results revealed that MoS_x existed on the surface of CdIn₂S₄. Combined, the XPS and XRD results showed that the as-prepared sample was mainly composed of MoS_x and CdIn₂S₄.

2.2. Morphology

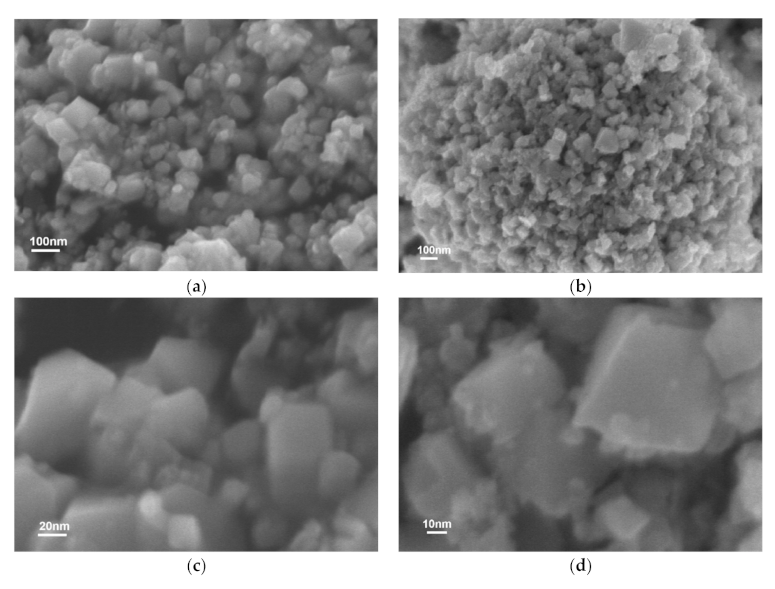

Scanning electron microscope (SEM) was used to characterize the morphology of all samples, and EDS was used to determine the corresponding dispersion of elements. As displayed in Figure 4, pure CdIn₂S₄ showed many symmetrical nanoflake microspheres that were 50–70 nm long, which were stacked into large nanoparticles. These small symmetrical nanoflake microspheres provided a large surface area for solar energy harvesting and hydrogen evolution reaction, which led to remarkable photocatalytic efficiency. However, nothing obvious changed in the MoS_x/CdIn₂S₄ composite after photodeposition, mainly because of the low concentration of MoS_x. This result does not indicate that MoS_x was deposited onto the surface of CdIn₂S₄ in situ, but it does confirm that CdIn₂S₄ remained unchanged during photodeposition.

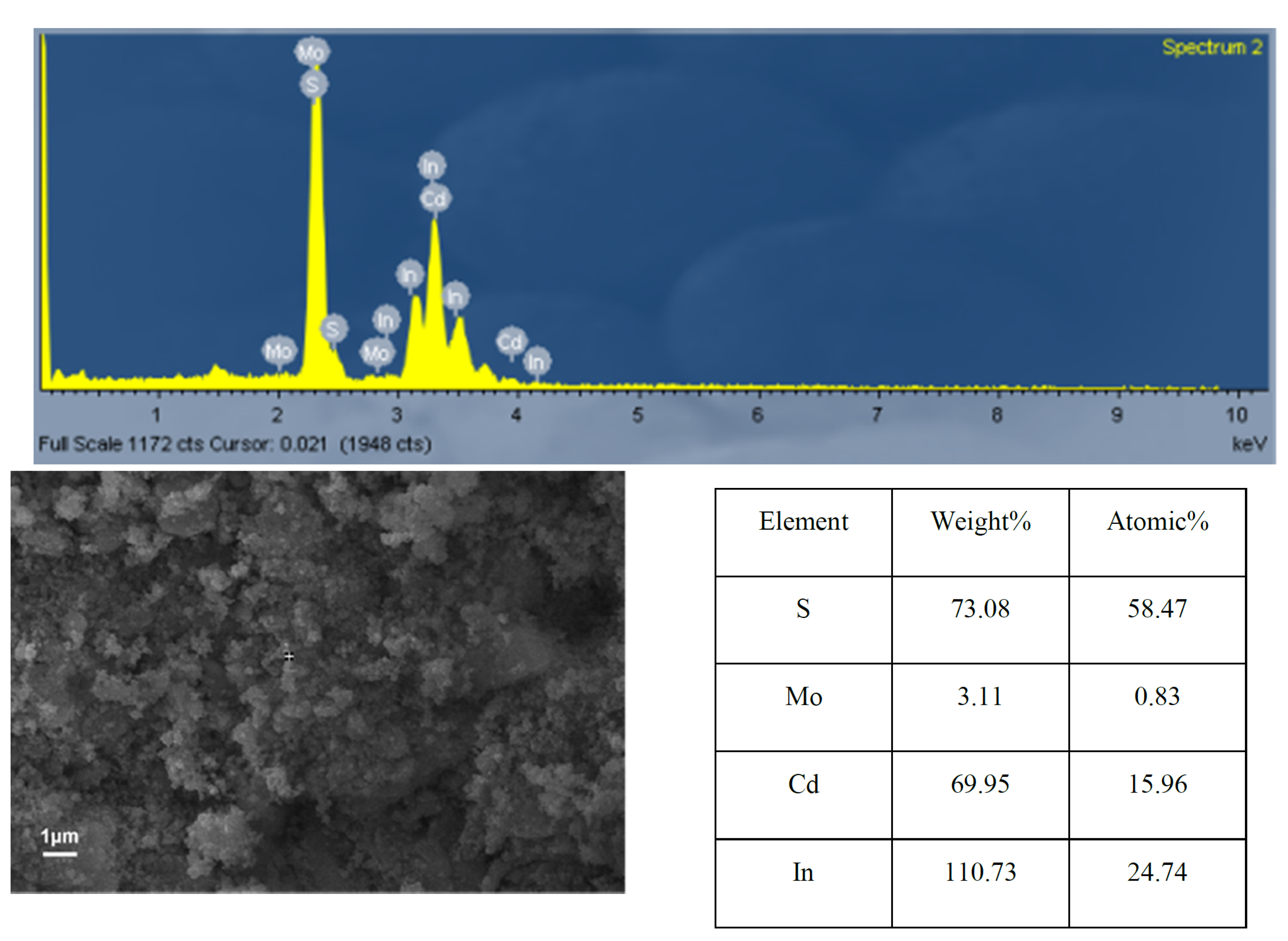

To further determine the corresponding concentrations of elements, Energy Dispersive Spectroscopy (EDS) was carried out. The EDS (Figure 5) results of MoS_x/CdIn₂S₄ showed a low Mo content in the composite, which indirectly indicates that MoS_x was present in 0.83% (the content of MoS_x also shown in Table S2). The elemental mapping image shows that Mo was uniformly dispersed on the composite surface, which confirmed that MoS_x was very evenly distributed in the composite.

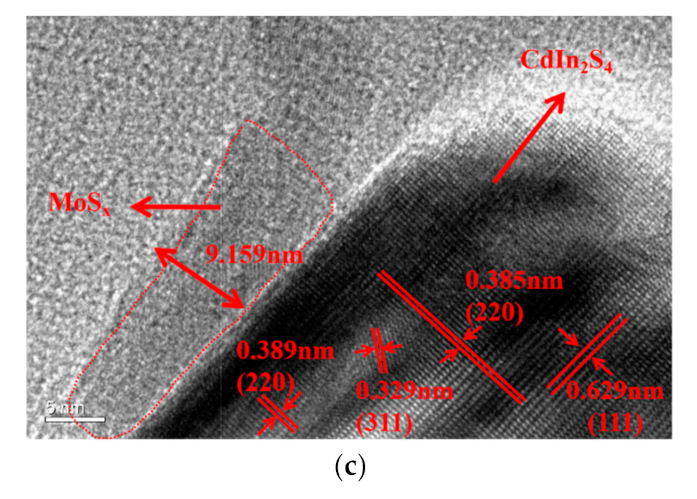

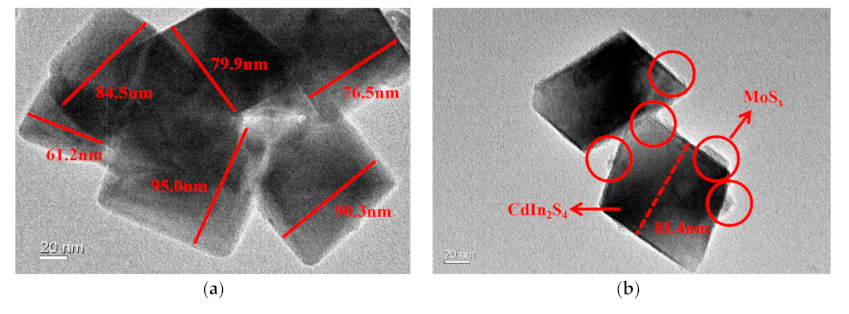

Transmission electron microscope (TEM) and high resolution transmission electron microscopy (HRTEM) were used to confirm the crystallinity and morphology of samples in Figure 6. The images showed the morphology of bare CdIn₂S₄, which contained thin nanoflakes with a few curved nanoflakes. Each nanoflake in the SEM image was about 40–80 nm wide. The crystal lattice spacing of CdIn₂S₄ determined by HRTEM was 0.329 nm, 0.385 nm, and 0.629 nm, which can be indexed to the (311), (220), and (111) planes of cubic spinel CdIn₂S₄ from the comparison with XRD patterns. The TEM images after deposition showed that the surface of CdIn₂S₄ was covered with irregular MoS_x nanoparticles with edge lengths of 9.159 nm. The HRTEM image showed that highly disordered crystals were attached to the nanoflakes, which showed similar singe-crystal lattices. This confirmed that MoS_x was closely attached to the CdIn₂S₄ surface via a common S atom, which helped construct rapid electron transport channels that may improve the photocatalytic capacity.

2.3. Photocatalytic Activity

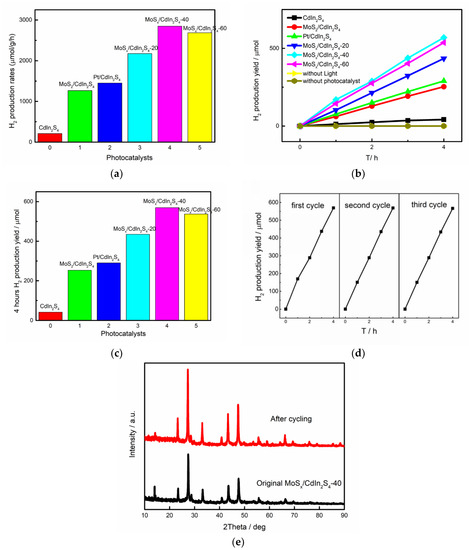

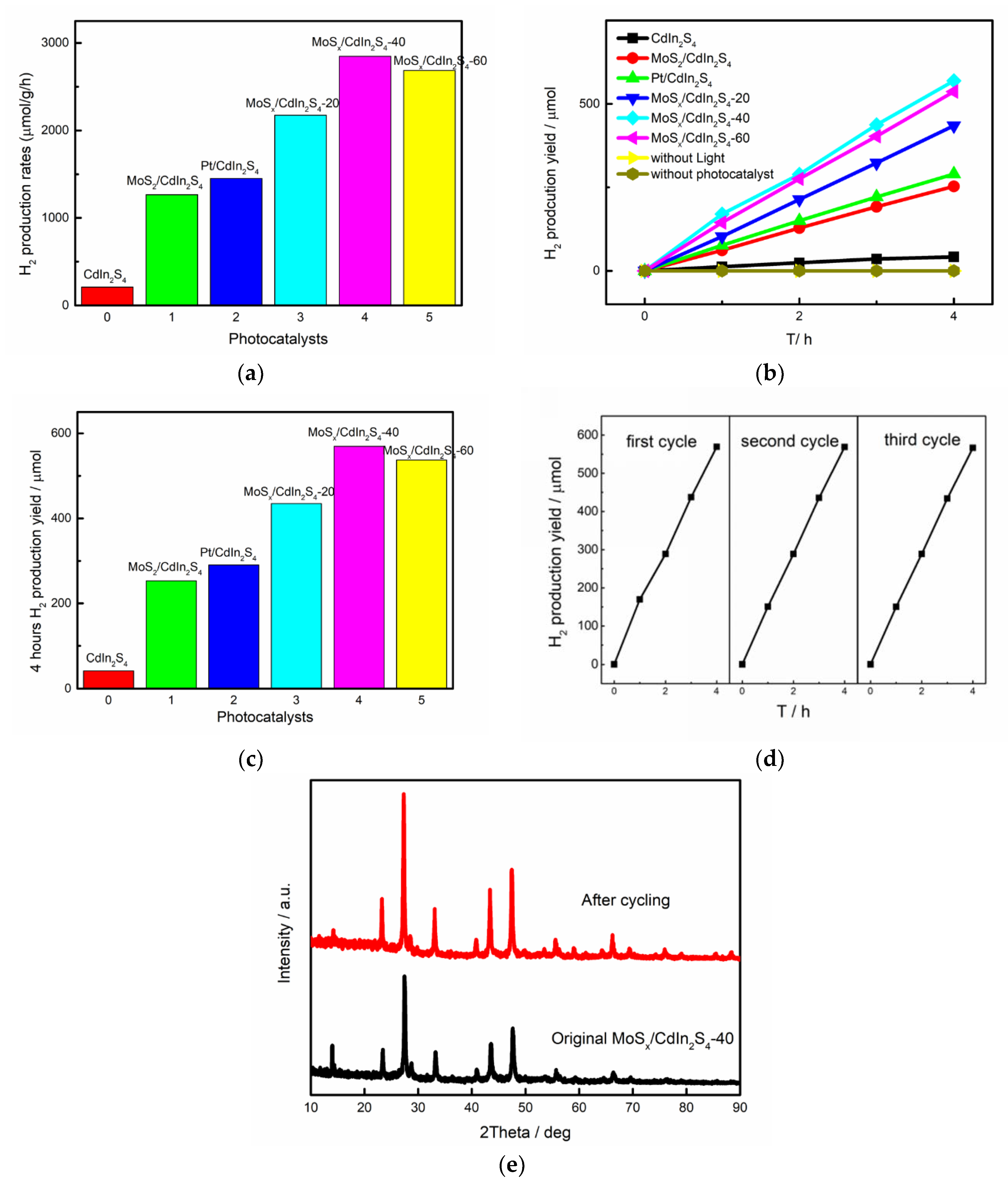

Hydrogen evolution experiments were carried out under visible light irradiation to measure the photocatalytic capacity of the as-prepared samples. The sacrificial reagent (0.1 M Na₂SO₃/Na₂S solution) was used to react with photogenerated holes. As shown in Figure 7, the same condition without sunlight and the same condition with blank samples were performed to determine the effects of disturbed elements. The photocatalytic production yields of pure samples of CdIn₂S₄, Pt/CdIn₂S₄(XRD was shown in Figure S1), MoS₂/CdIn₂S₄, and MoS_x/CdIn₂S₄ were also presented. Pure CdIn₂S₄ showed minimal H₂ evolution yield under visible light irradiation, and the average rate reached 209.41 μmol/g/h in 4 h. After co-catalyst deposition, the hydrogen evolution of MoS₂/CdIn₂S₄ and Pt/CdIn₂S₄ reached 1265.12 μmol/g/h and 1451.71 μmol/g/h, respectively. This result was attributed to the fact that co-catalyst deposition increased the number of active sites, and many electron transport channels emerged [25]. In this work, the hydrogen production yields of MoS_x/CdIn₂S₄-20, MoS_x/CdIn₂S₄-40, and MoS_x/CdIn₂S₄-60 were greatly enhanced due to the presence of the MoS_x co-catalyst. MoS_x/CdIn₂S₄-40 displayed the greatest H₂ evolution rate of 2846.73 μmol/g/h, which indicates that MoS_x/CdIn₂S₄ was the best photocatalyst. Its hydrogen evolution rate was about 13.6 and 2.25 times higher than pure CdIn₂S₄ and MoS₂/CdIn₂S₄. In addition, the MoS_x content also affected the photocatalytic hydrogen production, and the hydrogen evolution rates first increased upon increasing the deposited amount of MoS_x and then decreased. This revealed that the optimal amount of MoS_x on CdIn₂S₄ affected the photocatalytic hydrogen production capacity of the composites. All hydrogen evolution experimental results showed that MoS_x/CdIn₂S₄ is a promising photocatalyst for hydrogen production.

Photocatalyst stability is also important for practical applications; therefore, the cycling runs of hydrogen production were carried out to determine the photocatalyst stability. The picture displays the hydrogen production amounts of the as-prepared composites for different numbers of 4-h photocatalytic hydrogen production cycles. The hydrogen production amount only slightly decreased after each cycle, showing that the photocatalytic capacity of MoS_x/CdIn₂S₄-40 remained nearly constant. The photocatalyst crystal structure stability can be further characterized by comparing the pattern of MoS_x/CdIn₂S₄-40 before hydrogen evolution and after three cycles. The crystal structure of the photocatalyst exhibited similar XRD patterns before and after the cycle experiments, suggesting that MoS_x/CdIn₂S₄-40 is a sufficiently stable photocatalyst for practical applications.

2.4. Photocatalytic Mechanism

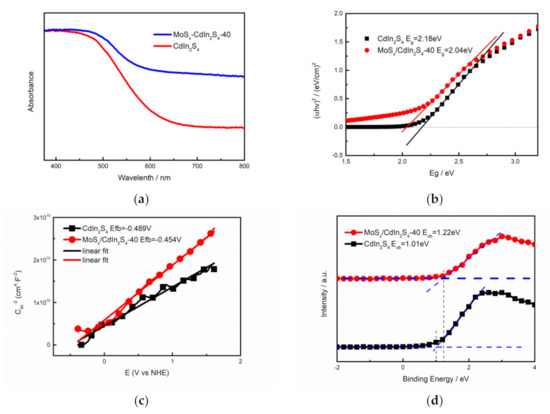

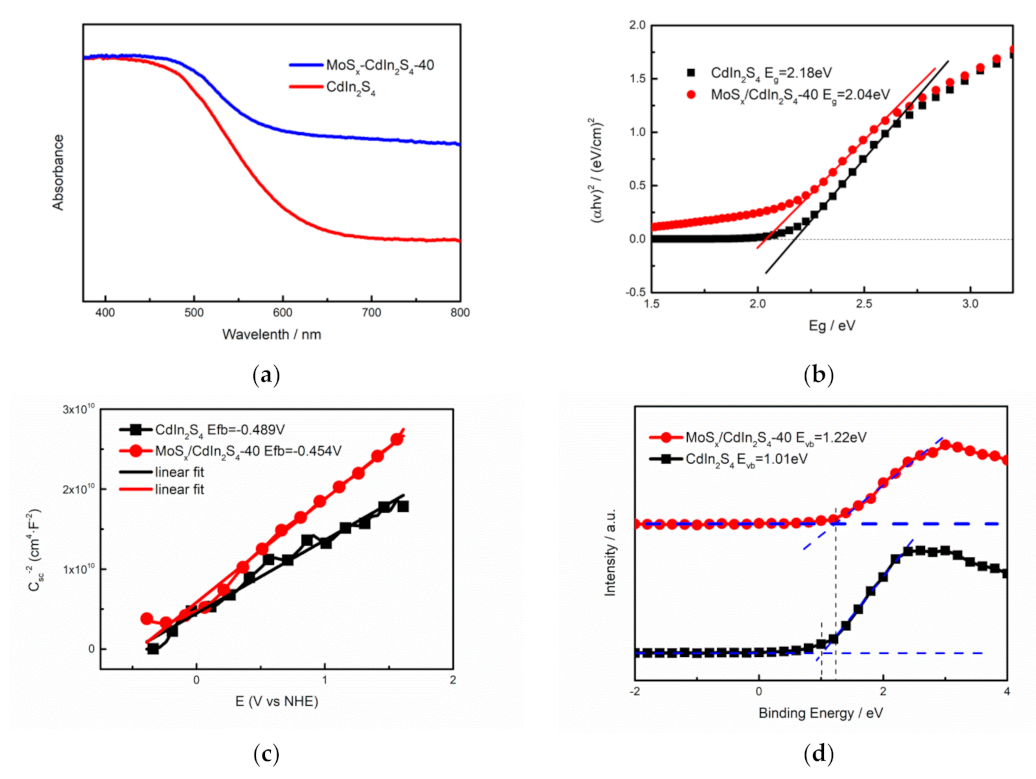

The photocatalytic hydrogen production yield closely depends on the generation, transport, and reactions of photogenerated charge carriers. The generation of electron-hole pairs is determined by a material’s bandgap, and a bandgap that matches harvested visible light is required. Ultraviolet-visible (UV–Vis) spectra, XPS valence band spectra, and Mott–Schottky spectra were obtained to explore the bandgaps of the as-prepared samples. As illustrated in Figure 8a, pure CdIn₂S₄ showed a fundamental absorption edge at 470 nm, which revealed that pure CdIn₂S₄ has broad light absorption in the visible light region. However, the absorption edge of the MoS_x/CdIn₂S₄ composites was located at 500 nm, and this blue-shift means that the photocatalyst had improved visible light absorption, which should sharply increase the photogenerated charge carriers. This result was attributed to the fact that MoS_x shared S atom with CdIn₂S₄ during photodeposition, which changed a small portion of the crystalline phase on the surface, leading to a blue-shift of the absorption edge. Similar to the literature, the bandgap of the as-prepared composite can be calculated by the formula: αhν = C (hν − E_g)². The band gap of pure CdIn₂S₄ was 2.18 eV, which is similar to a previous report [25]. However, the bandgap of MoS_x/CdIn₂S₄ was 2.04 eV, which was attributed to the addition of MoS_x, which improved the visible light harvesting. To further explore the photocatalytic band structures, XPS valence band spectroscopy and impedance-potential tests were carried out. XPS valence band spectra were used to directly determine the valence band (VB) of the as-prepared samples and their flat-band (FB) potentials, which were roughly equivalent to the conduction band (CB). These were calculated by the Mott–Schottky plot of the impedance–potential test. The E_fB of CdIn₂S₄ and MoSx/CdIn₂S₄ were −0.489 and −0.454 V vs. NHE, and E_fB of the sample, according to the ordinate of the fitted straight line in the Mott–Schottky plot. According to the formula: E_CB = E_VB − Eg and E_CB ≈ E_fB, the E_VB was calculated using E_CB. The general band structures (shown in the plot) were determined from the UV–Vis spectra and E_fB. MoS_x/CdIn₂S₄ had the optimal band structure of all materials, which should boost the hydrogen production yield.

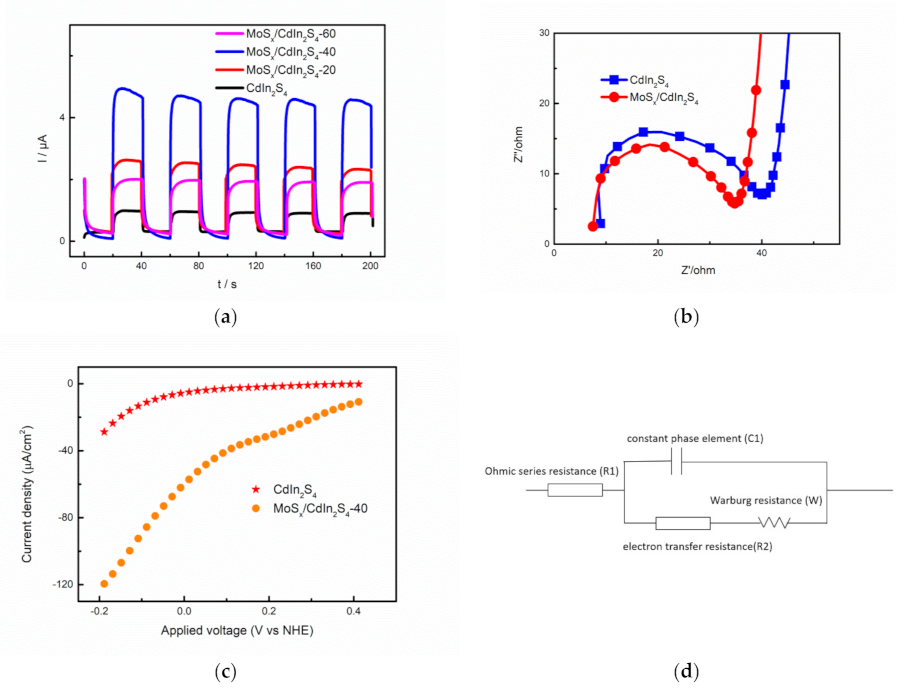

Photoelectrochemical characterization techniques were used to further investigate the interfacial photogenerated charge separation and transfer in the as-prepared samples. The transient photocurrent responses of CdIn₂S₄, MoS_x/CdIn₂S₄-20, MoS_x/CdIn₂S₄-40, and MoS_x/CdIn₂S₄-60 were tested. As shown in Figure 9a, the photocurrent rapidly reached a maximum when the light was switched on, indicating that photogenerated electron-hole pairs were produced by visible light. The significant differences in photocurrent density depended on the photogenerated charge separation and transfer. The pure CdIn₂S₄ photocatalyst showed a low photocurrent density, which means that photogenerated charge separation and transfer represented a considerable loss in energy. Similar to a previous report [26], pure CdIn₂S₄ consumed significant amounts of energy because of the rapid recombination of photogenerated electron-hole pairs. The introduction of MoSx solved this problem, and the photocurrents of MoS_x/CdIn₂S₄-20, MoS_x/CdIn₂S₄-40, and MoS_x/CdIn2S4-60 sharply increased to 2.71, 4.56, and 1.91 μA, respectively. The photocurrent of MoS_x/CdIn₂S₄-40 was 7.5 times higher than that of CdIn₂S₄. Noticeably, corresponding to the hydrogen production yields, MoS_x/CdIn₂S₄-40 showed the highest photocurrent intensity. The transient photocurrent responses of the as-prepared samples confirmed that MoS_x improved the charge separation and transfer capacity in CdIn₂S₄, which should lead to remarkable hydrogen production.

Electrochemical Impedance Spectroscopy (EIS) was used to measure the charge transfer efficiency. Nyquist plots can be obtained by EIS, and the Nyquist plots of the as-prepared samples were explained by a circuit model. This circuit model includes ohmic series resistance (R1), electron transfer resistance (R2), a constant-phase element (C1), and Warburg resistance (W). The electron transfer resistance (R2) corresponds to the diameter of the semicircular arc, in which a smaller diameter indicates a smaller resistance, which leads to the rapid transfer of photogenerated charge carriers [25]. The diameter of the semicircular arc of MoS_x/CdIn₂S₄-40 was smaller than that of CdIn₂S₄, revealing that the mobility of photogenerated charges was higher in MoS_x/CdIn₂S₄-40.

Photogenerated charges were separated and transferred to the surface reaction sites to participate in the hydrogen evolution reaction. Linear sweep voltammograms (LSV) of the as-prepared samples were obtained to determine the surface hydrogen production reaction s of CdIn₂S₄ and MoS_x/CdIn₂S₄-40. In the LSV polarization curves of the as-prepared samples, MoS_x/CdIn₂S₄ displayed a larger slope and current compared with bare CdIn₂S₄, which means that MoS_x/CdIn₂S₄-40 more easily produced hydrogen at the same photovoltage. This reveals that faster hydrogen production would occur using MoS_x/CdIn₂S₄-40 at the same voltage. These results reveal that MoS_x/CdIn₂S₄-40 has superior reaction sites for hydrogen production.

The combined results showed that the MoS_x/CdIn₂S₄-40 photocatalyst showed remarkable photocatalytic hydrogen evolution because of its unique structure. Pure CdIn₂S₄ photocatalyst shares the same S atom with MoS_x, which provided the perfect anchor point for MoS_x, leading to tight bonding between CdIn₂S₄ with MoS_x. This unique linking improved the light-harvesting of the pure CdIn₂S₄ photocatalyst and increased the separation and transfer of photogenerated charges. MoS_x is an efficient co-catalyst with abundant hydrogen evolution sites. Furthermore, MoS_x and CdIn₂S₄ formed a classical Schottky structure with tight linking, and this structure further improved the charge carrier separation and electron transfer. This increased the number of reacting electrons, which ultimately led to its remarkable photocatalytic hydrogen production rate.

3. Experimental

3.1. Chemical Reagents

All chemical reagents were analytical reagent grade, and they were used as received without further purification. Indium nitrate hydrate (In(NO₃)₃·5H₂O), cadmium nitrate tetrahydrate (Cd(NO₃)₂·4H₂O), sodium sulfide nonahydrate (Na₂S·9H₂O), sodium sulfite (Na₂SO₃), sodium sulfate (Na₂SO₄), thioacetamide (TAA), and ethanol were obtained from Aladdin (Shanghai, China).

3.2. Synthesis of MoS_x/CdIn₂S₄ Composites

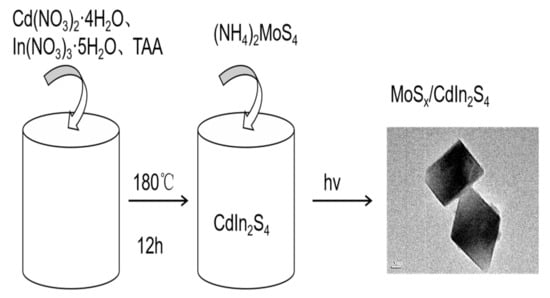

The synthesis process of MoS_x/CdIn₂S₄ composites is shown in Figure 1.

Pure CdIn₂S₄ was prepared by a simple hydrothermal method according to the literature [10]. Briefly, 0.1232 g of Cd(NO₃)₂·4H₂O, 0.3056 g of In(NO₃)₃·5H₂O, and 0.2404 g of TAA were successively added in 15 mL deionized water. After that, this mixture was vigorously stirred for 0.5 h. The solution was then placed into a 50 mL Teflon-lined autoclave and kept at 180 °C for 12 h. Afterward, yellow samples, which were pure CdIn₂S₄, were obtained by filtration and washed with deionized water and ethanol. The desired product was dried at 60 °C.

MoS_x/CdIn₂S₄ composites were prepared by a photodeposition method according to the literature [22]. In this experiment, 100 mg pure CdIn₂S₄ nanoparticles were added to a mixed solvent (water:ethanol = 4:1) with stirring. After 20 min stirring, 8.5 mg (NH₄)₂MoS₄ (synthesized using a previously reported method [22]) were dissolved into the mixed solution. Then, this suspension was stirred for 30 min to reach the adsorption–desorption equilibrium. The as-prepared mixture was poured into a photocatalytic reactor. During photodeposition, a 300 W Xenon lamp was used to simulate solar irradiation, and the mixture was held at 6 °C with continuous stirring for 40 min. After photodeposition, a greenish-yellow product was obtained after centrifugation and washing. The product was dried at 60 °C, and the as-prepared sample was named MoS_x/CdIn₂S₄-40. Similar products were prepared by changing the exposure time and were named MoS_x/CdIn₂S₄-20 and MoS_x/CdIn₂S₄-60. MoS₂/CdIn₂S₄ and Pt/CdIn₂S₄ were prepared by the method similar to the report [17].

3.3. Characterization

X-ray diffraction (XRD) patterns of synthesized catalysts were obtained on a D8-advance x-ray diffractometer (Bruker, Billerica, MA, USA) using Cu Kα (λ = 0.15406 nm) radiation. The UV–Vis diffuse reflectance spectra (DRS) were obtained on a UV-2550 UV–Vis spectrophotometer (Shimadzu, Tokyo, Japan), which used BaSO₄ as a reflectance standard. The scanning electron microscope (SEM) images and energy-dispersive x-ray spectra (EDS) were recorded by a HITACHI S-4800 field emission SEM. Transmission electron microscope (TEM) and high-resolution TEM (HRTEM) images were obtained using a high-resolution TEM (JEOL, JSM-2100F, Tokyo, Japan).

3.4. Hydrogen Production and Electrochemical Experiments

The photocatalytic performance was characterized by hydrogen production experiments, in which 50 mg of the as-prepared photocatalysts was dispersed in 50 mL aqueous solution with string. Then, 0.1 M aqueous Na₂S/Na₂SO₃ was used as the sacrificial agent. After that, the solution was dropped into a photocatalytic reactor that was irradiated by a 300 W Xenon lamp to simulate visible light irradiation. The entire photocatalytic reaction system was held at 7 °C to produce hydrogen. The final obtained generated hydrogen yields were detected by gas chromatography (GC-7900, TCD, Ar carrier).

An electrochemical workstation was used to measure the electrochemical characteristics of the photocatalysts. In these experiments, samples were prepared by coating them onto indium tin oxide (ITO) glass. This test system was a three-electrode cell, with ITO as the working electrode, Ag/AgCl as the reference electrode, and a 1 cm × 1 cm platinum film as the counter electrode. Similar to the hydrogen production experiment, a 300 W Xenon lamp was used to simulate solar light. The photocurrent was recorded at a bias voltage of 0.2 V (vs. Ag/AgCl) with light irradiation. The electrochemical impedance spectra (EIS) were obtained in the frequency range from 1 to 106 Hz. The flat-band voltage was measured at bias voltages between 1 V to −1 V (vs. Ag/AgCl).

4. Conclusions

The composite photocatalyst MoS_x/CdIn₂S₄ was synthesized by a facile photodeposition method. XRD, XPS, SEM, EDS, and TEM were used to determine the chemical phase characteristics of the as-prepared catalysts. The results verified the intimate contact between MoS_x and CdIn₂S₄. The as-prepared MoS_x/CdIn₂S₄-40 composite showed a remarkable hydrogen production rate that was 13.6 times higher than that of pure CdIn₂S₄. From the optical and photoelectrochemical techniques, this was attributed to intimate interfacial contact, which produced abundant reaction sites, better charge separation, and better electron transfer efficiency. MoS_x offers many hydrogen evolution sites for hydrogen production. In addition, MoS_x/CdIn₂S₄-40 exhibited outstanding stability (Table S1), which will advance its practical applications, and this study offers guidance for photocatalytic hydrogen production.
