Non-Thermal Plasma-Modified Ru-Sn-Ti Catalyst for Chlorinated Volatile Organic Compound Degradation

Abstract

Chlorinated volatile organic compounds (CVOCs) are vital environmental concerns due to their low biodegradability and long-term persistence. Catalytic combustion technology is one of the more commonly used technologies for the treatment of CVOCs. Catalysts with high low-temperature activity, superior selectivity of non-toxic products, and resistance to chlorine poisoning are desirable. Here we adopted a plasma treatment method to synthesize a tin-doped titania loaded with ruthenium dioxide (RuO₂) catalyst, possessing enhanced activity (T_90%, the temperature at which 90% of dichloromethane (DCM) is decomposed, is 262 °C) compared to the catalyst prepared by the conventional calcination method. As revealed by transmission electron microscopy, X-ray diffraction, N₂ adsorption, X-ray photoelectron spectroscopy, and hydrogen temperature-programmed reduction, the high surface area of the tin-doped titania catalyst and the enhanced dispersion and surface oxidation of RuO₂ induced by plasma treatment were found to be the main factors determining excellent catalytic activities.

1. Introduction

Chlorinated volatile organic compounds (CVOCs), such as dichloromethane (DCM), chlorobenzene (CB) and dichloroethylene (DCE), are considered to be extremely toxic pollutants due to their high carcinogenicity, low biodegradability, and long-term persistence [1,2,3,4]. CVOCs are widely used in detergent, degreasant, chemical extractant, and paint additive, and contribute to the formation of tropospheric ozone, photochemical smog, and haze [5,6,7,8]. Consequently, versatile methods have been developed to reduce their environmental impacts, including adsorption recovery [9], photothermal decomposition [10], direct thermal combustion [11], and catalytic combustion [12,13]. Among them, catalytic combustion is considered to be a promising technique due to its high activity, high selectivity, good stability, and low energy consumption. Recently, transition metal oxides loaded with noble metal oxides have gained wide attention due to their high catalytic activities, superb resistance against chlorine-poisoning, and strong stability [14,15,16]. However, the catalysts synthesized by the conventional calcination method were reported to lack oxidation activity in low temperatures. The calcination process often led to the aggregation of particles, over-growth of crystalline, and pore collapse, which finally lowered the efficiency of pollutant decomposition [13]. It has been reported that the particle size and surface area of catalysts [17], the dispersion of active components on support [18], and the oxidation state of the active sites [19], are the critical factors controlling the activities.

Non-thermal plasma (NTP) has been widely applied in surface modification [20,21,22,23], offering the advantages of room-temperature operation and non-equilibrium processes. In catalyst preparation, NTP could transform the precursor into oxide and simultaneously avoid the loss of activity caused by the high-temperature conditions in conventional calcination methods [24,25,26]. During the NTP process, the generated energetic clusters and active radicals are capable of dispersing precursors into smaller particles and inducing the active sites to higher oxidation states. This process makes NTP treatment an efficient strategy for the morphology reconstruction of catalysts with higher porosity. More importantly, the low-temperature feature of NTP treatment could avoid the particle aggregation [27,28], crystal sublimation, crystal growth [29,30] and pore collapse issuess [31,32], which were inevitable in conventional calcination methods.

TiO₂ was widely surveyed for its low cost and stability in the reaction atmosphere, while the rutile phase had great chemical reactive activity [33,34]. It was previously found that tin-doped titanium dioxide (Sn-TiO₂) loaded with ruthenium dioxide (RuO₂), which was dominated with rutile phase, showed excellent catalytic activities at high temperatures (>350 °C) in the oxidative removal of DCM, with high carbon dioxide (CO₂) selectivity and strong stability under HCl/Cl-containing atmosphere [14,35]. The loading of RuO₂ would induce the Cl to be mainly converted to Cl₂ with poor adsorption on the active sites [18]. Nonetheless, this kind of catalyst still suffers from insufficient low-temperature activity and particle agglomeration.

In the present work, non-thermal plasma treatment is employed for the preparation of RuO₂/SnTiO₂ catalysts, exhibiting enhanced DCM oxidation activities compared to the calcined counterpart. To understand the promotional effects triggered by plasma treatment, hydrogen temperature-programmed reduction, X-ray diffraction, X-ray photoelectron spectroscopy (XPS), and CO pulse chemisorption were conducted on the catalysts. The increased specific surface area and oxidation activity induced by the NTP treatment were found to be the origins of the enhanced catalytic performance.

2. Results

2.1. Catalytic Performance Evaluation

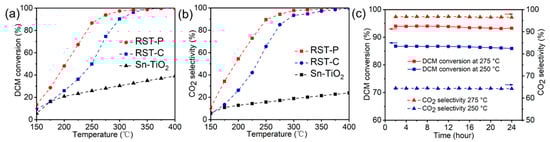

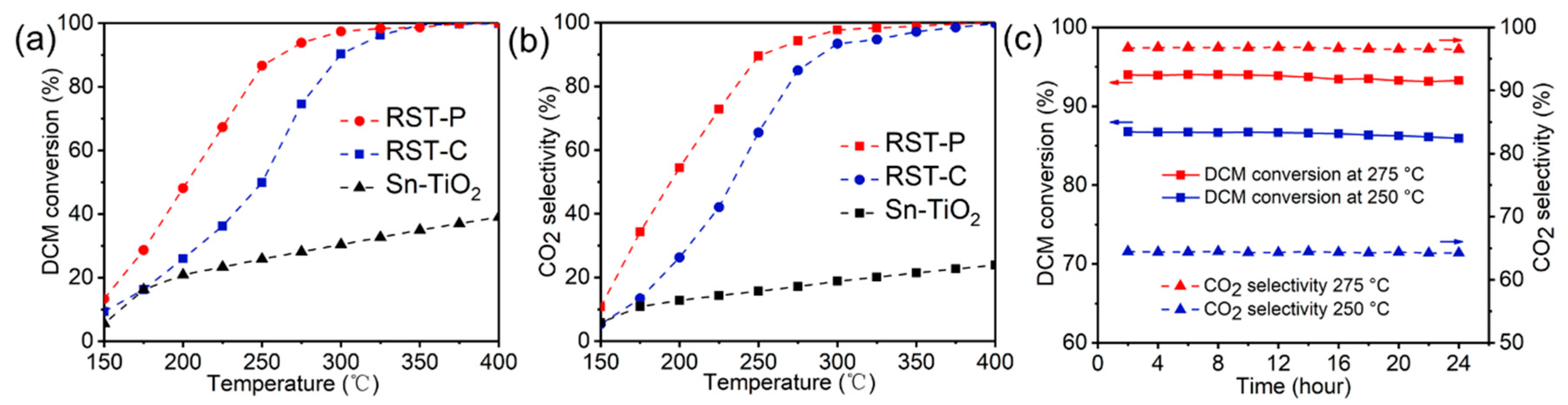

Sn-TiO₂ solid solutions were prepared via the co-precipitation method, and RuO₂ was loaded by the dipping method to gain Ru-SnTiO₂ (denoted as RST). The RST samples were respectively treated by plasma atmosphere with 20% O₂ (denoted as RST-P) and by calcination at 550 °C for 5 h in air (denoted as RST-C). The catalytic performance of the samples was evaluated in a quartz tube reactor. The reactive atmosphere was under 1000 ppm DCM, 20% O₂ and balanced rest with N₂. The DCM oxidation activity over the RuO₂/Sn_0.2Ti_0.8O₂ catalysts, which were prepared by thermal calcination treatment (RST-C) or by plasma treatment (RST-P), was surveyed and the results are demonstrated in Figure 1a. It can be found that the catalytic activity of RST-P (T_90% was 262 °C) was significantly higher than that of RST-C (T_90% was 299 °C). RST-P also possessed good stability without perceivable deactivation for 24 h at 250 and 275 °C (Figure 1c). Furthermore, RST-P had a greater oxidation activity in low temperature, and its DCM conversion rate increased from 25.9% to 48.1% at 200 °C. These results indicated that air–plasma treatment is beneficial for the enhancement of catalytic activity. Figure 1b shows the selectivity of CO₂ from DCM oxidation over different samples. According to the carbon equilibrium before and after reaction, the more DCM is converted to CO₂, the less toxic the organic byproducts that are produced. It was shown that the selectivity of CO₂ was significantly improved with plasma treatment compared to the calcined counterpart, especially at temperatures lower than 250 °C. The DCM conversion rate reached 90%, with the corresponding selectivity of CO₂ above 90%, at 275 °C. These results showed the promotional effects of plasma for DCM oxidation activity.

2.2. Catalyst Morphology and Crystallinity

To understand the effects of plasma treatment on the catalytic activities of the RST catalysts, the catalyst morphology and crystallinity were characterized. The surface area estimated by BET method and the pore properties of the two samples are shown in

Table 1. Specific surface area and pore properties of two samples.

Samples	Specific Surface Area (m2/g) 1	Pore Volume (cm3/g) 2	Pore Size (nm) 3
Ru-SnTiO2-P	46.807	0.185151	15.8225
Ru-SnTiO2-C	37.397	0.185883	19.8823

¹ Determined from N₂ isotherm (BET method). ² Total pore volume. ³ Adsorption average pore diameter

. It was shown that the specific surface area of the plasma-treated sample increased to 46.807 m²/g (37.397 m²/g with RST-C). The high specific surface area favored the exposure of more active sites to improve the catalytic activities of DCM oxidation [36,37,38,39]. It was proposed that the plasma preferred to discharge near the inner walls of pores [40,41], destroying the original pore structure and sequentially reconstructing it, resulting in the increase of specific surface area with almost the same total pore volume. High porosity promotes the accessibility of active sites, and facilitates the contact between DCM molecules and the surface active sites, enhancing the oxidation of DCM.

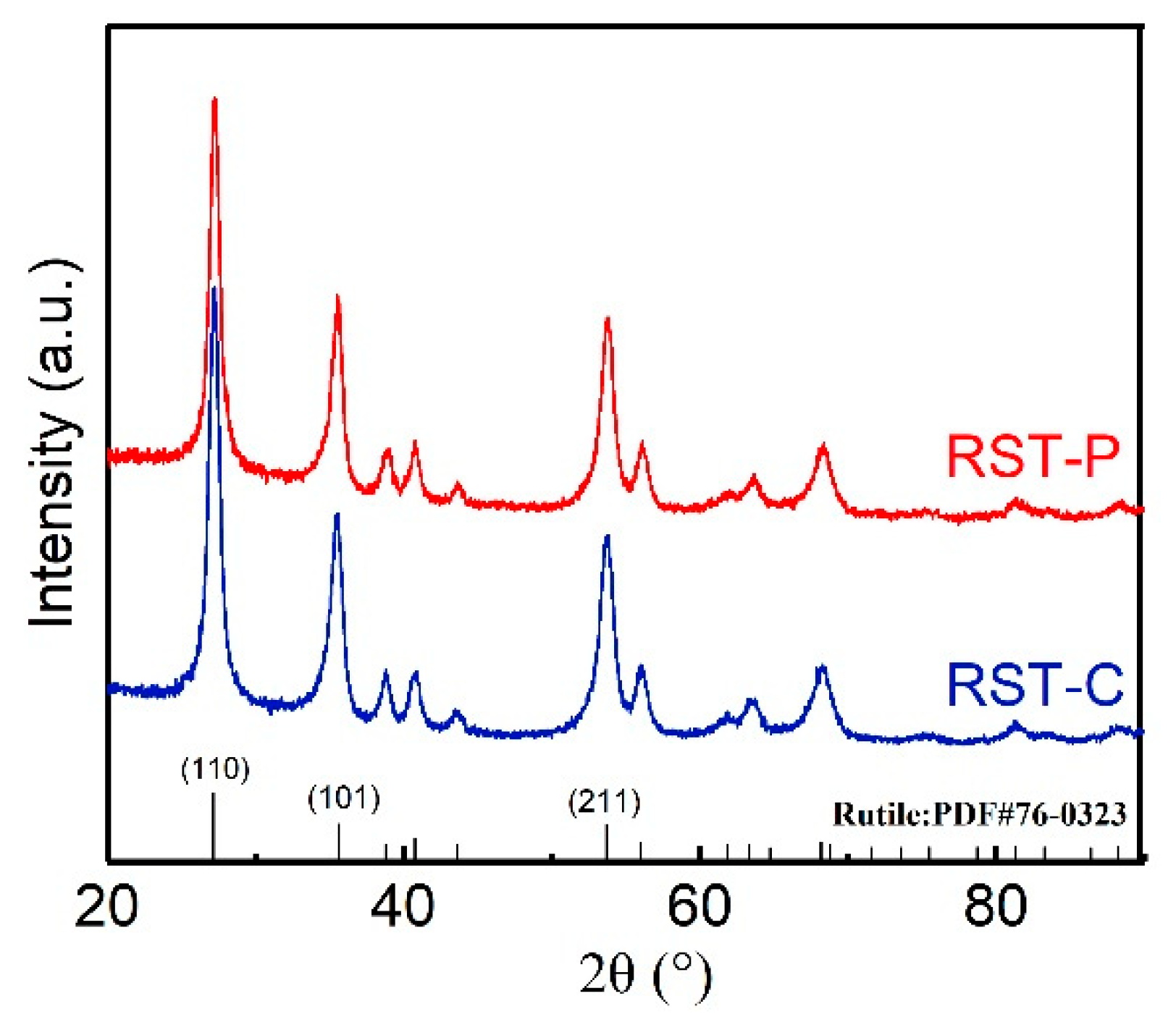

Figure 2 presents the XRD patterns of RST-C and RST-P. The main peaks at around ~27.2°, 35.4°, and 53.7° were close to the (110), (101), and (211) planes of rutile (PDF#76-0323), indicating the dominant rutile phase in the RST catalysts. The characteristic peaks of ruthenium oxide crystals, at around 35.3° and 54.6° (PDF#88-0322), were not distinguished due to their similar peak positions with the rutile phase. It was reported that the highly dispersed RuO₂ particles smaller than 3 nm on the surface of the catalyst were formed amorphously, so the XRD peaks were not detected [14]. Comparing the two samples, it is inferred that the plasma treatment had no obvious effect on the original crystal structure. In order to determine the structural changes of these samples, the Rietveld method was conducted to refine the XRD patterns based on the Inorganic Crystal Structure Database (ICSD), and the results are presented in

Table 2. Rietveld refinement of the XRD patterns.

Samples	a(Å)	b(Å)	c(Å)	Crystalline Size (nm)
RST-P	4.6233	4.6233	2.9932	9.3
RST-C	4.6259	4.6259	2.9876	12.3

. In this process, Chebyschev polynomials were used to fit the background, and subsequently the pseudo-Voigt approximation of the Voigt function is used for cell refinement. There is no significant difference in cell parameters. However, RST-C attained a bigger grain size than RST-P, due to the growth of catalyst crystals at high temperatures. The low-temperature plasma treatment induced a decreased grain size, resulting in the higher specific surface area of RST-P.

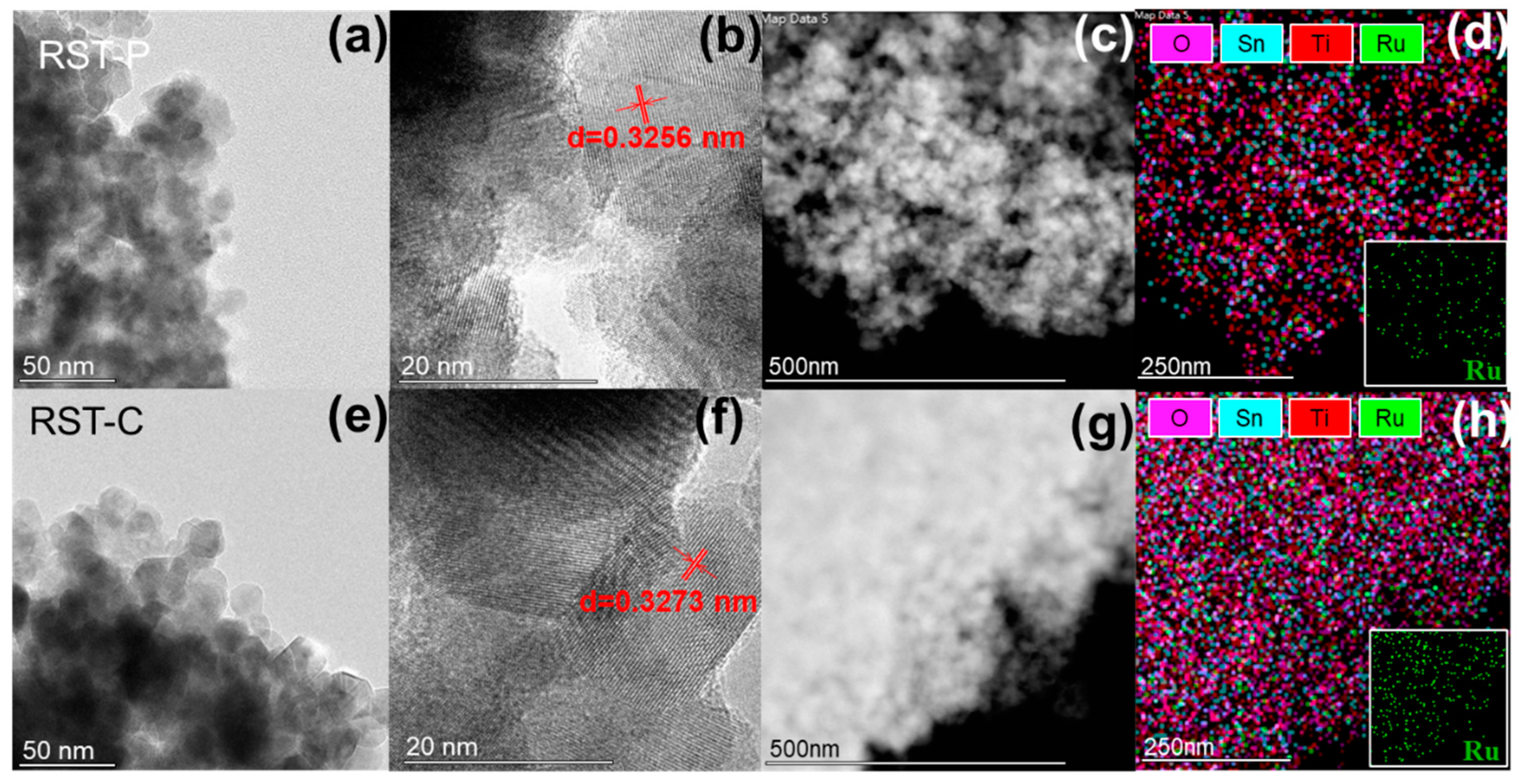

Transmission electron microscopy (TEM) was employed in order to further investigate the impact of plasma treatment on the catalyst structure. TEM images of RST-C and RST-P are presented in Figure 3a,e. It is obvious that particles of RST-P possess better dispersion and smaller particle size than RST-C (the average diameter of RST-C was approximately 23 nm and that of RST-P was about 15nm). The electrons generated by plasma were inclined to gather on the surface of the nanomaterial, which made them repel each other, avoiding the agglomeration of the particles. As shown in Figure 3b,f, the crystal of TiO₂ (110), with interplanar spacing of 0.3256 and 0.3273 nm, can be apparently observed in RST-P and RST-C, respectively. This decrease in interplanar spacing was caused by the charging process in the plasma generation process. Previous works showed that a highly charged atmosphere could force the precursors to be charged and repel from each other, which eventually causes the migration of the doping component to the surface [22], which might cause the migration of Sn in RST-P. On the other hand, the electrons formed a strong electric field on the surface of the catalyst, where RuO₂ existed in a hemispherical shape. This led to the enhancement of the interaction between RuO₂ and TiO₂, so that the Ru was essentially getting closer to Sn-TiO₂. To conclude, given that the radius of Sn⁴⁺ is larger than Ti⁴⁺, while the ion radius of Ru⁴⁺ (0.62 nm) is greater than that of Ti⁴⁺ (0.53 nm), the promotion of the contact will increase the overall crystallite size of the catalyst.

The EDS mapping characterization results are shown in Figure 3d,h. These characteristics reveal that both samples attained the macroscopic homogenous distribution of Sn and Ru in the rutile matrices. According to previous studies, anatase converts into the rutile type, on which RuO₂ could epitaxially grow, with the doping of Sn [14]. This homogenous structure promoted the dispersion of RuO₂, which was beneficial to the catalytic DCM oxidation for both samples.

2.3. Surface Properties of the Catalysts

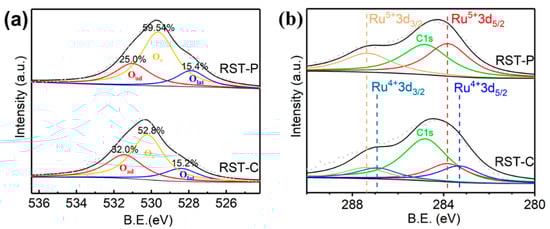

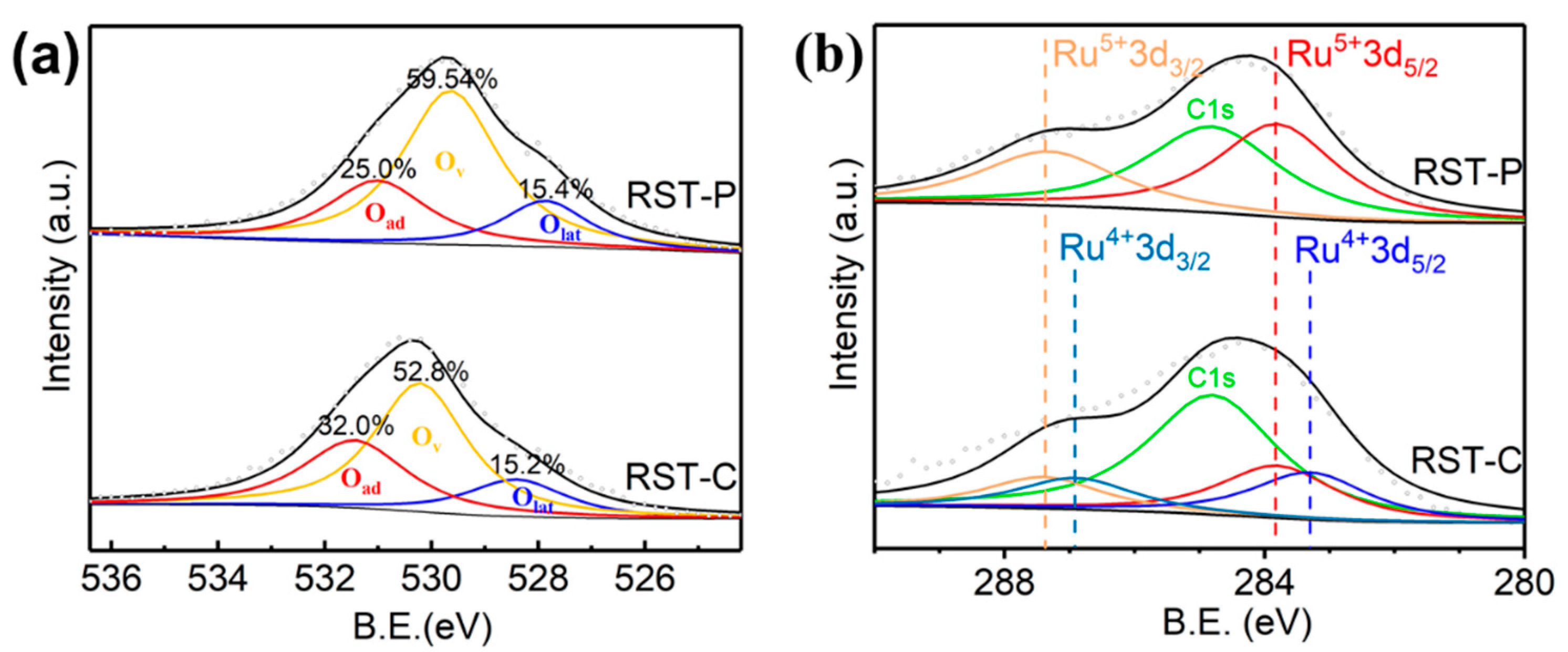

Since catalytic reactions occurred on the catalyst surface, XPS characterization was further used to study the oxidation states of the surface Ru and oxygen species. Figure 4a indicates that the oxygen species on both samples can be divided into the three parts: surface chemisorbed oxygen (peaks at about 531.5 eV, denoted as O_ad), oxygen vacancies (peaks at about 531.1 eV, denoted as O_v) and lattice oxygen (peaks at around 528.4 eV, denoted as O_lat) [42,43]. The fitting results indicated that RST-P had a greater proportion of oxygen vacancies, without any loss of surface adsorption oxygen. Previous studies showed that the adsorbed oxygen species on the surface promoted the deep oxidation of the intermediate reaction species, followed by the improvement of the CO₂ selectivity [44]. Correspondingly, the oxygen vacancy was regarded as the adsorption site for DCM, and the activation of the C–Cl bond in the DCM molecules might be promoted by oxygen vacancies [45]. Meanwhile, catalysts with more oxygen vacancies after plasma treatment were more favorable for DCM oxidation, which was consistent with the characterization results of the catalytic performance.

The distribution of surface Ru species is shown in Figure 4b. It was suggested that the peaks located at the binding energies of 283.3 eV and 286.9 eV were assigned to Ru⁴⁺ 3d_5/2 and Ru⁴⁺ 3d_3/2, respectively, while those of 283.8 eV and 287.4eV were assigned to Ru⁵⁺ 3d_5/2 and Ru⁵⁺ 3d_3/2 [46]. After plasma modification, Ru⁵⁺ is the dominant oxidation state of surface Ru in RST-P compared with RST-C. It is proposed that during plasma treatment, the interaction between Ru and Sn-TiO₂ was enhanced, which means Ru transferred more electrons to Sn-TiO₂ to become more oxidized. Meanwhile, RuO₂ is highly dispersed on the surface of the rutile Sn_0.2Ti_0.8O₂ carrier as a result of TEM, so more RuO₂ is in direct contact with the Sn-TiO₂ via the chemical bonds formed in the plasma atmosphere, by which the electron transfer was facilitated.

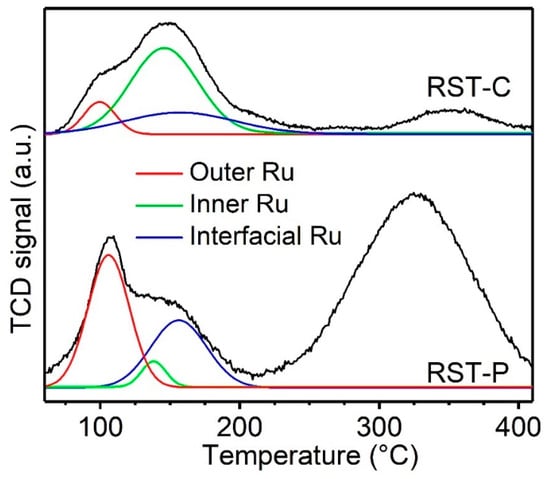

The oxidation activity performance of the RST catalysts was investigated by H₂-TPR. As shown in Figure 5, the reduction peak of inner RuO₂ (139 °C) dominates the type of ruthenium oxide for RST-C. RST-P showed the main reduction peak of outer RuO₂ (97 °C), which indicated that the low-temperature redox performance of the catalysts had been significantly improved. In order to further identify the oxidation performance, the total low-temperature reduction peaks of the two RuO₂-loaded catalysts were fitted into three peaks around 97.0 °C, 139 °C and 167 °C, which is presented in

Table 3. Proportion of different peaks in H₂-TPR.

Temperature (°C)	RST-C	RST-P	Ru Species
97	13.21%	56.66%	Outer Ru
139	60.17%	10.15%	Inner Ru
167	26.61%	33.19%	Interfacial Ru

[47]. It is worth noting that the peaks mentioned above were attributed to different forms of RuO₂ [48]. The 97 °C reduction peak was related to an easier reduction pathway, which was interpreted as the outer RuO₂ species exposed to the gas phase, directly contacting the DCM molecules; correspondingly, the 139 °C reduction peak can be regarded as the inner RuO₂ species that required more energy as a result of the indirect contact with the gas molecules, while the 167 °C peak refers to the interfacial part of the RuO₂ particle with Sn-TiO₂.

RST-P showed the dominant reduction peak at 97 °C, rather than at 139 °C, which was mainly occupied in RST-C, while the reduction peak at 167 °C became higher. This result was attributed to the decrease in RuO₂ size and the promotion of contact between RuO₂ and Sn-TiO₂ [49]. During plasma treatment, RuO₂ particles were charged and repelled from each other to get dispersed, leading to the increase in outer RuO₂ and decrease in inner RuO₂. This trend was further supported by the enhanced metallic dispersion from CO pulse chemisorption (

Table 4. Metallic dispersion by CO pulse chemisorption.

Project	RST-C	RST-P
Metallic dispersion 1	1.7827%	10.5071%
Metallic Surface Area(m2/g) sample 2	0.1936	1.1412
Metallic Surface Area(m2/g) metal 3	8.4961	50.0766

¹ The ratio of active metal atoms to the total metal atoms on the surface of catalysts. ² Surface area of Ru species per unit mass of total sample. ³ Surface area of Ru species per unit mass of Ru.

). At the same time, the charge captured by RuO₂ enhanced the contact between RuO₂ and Sn-TiO₂, which was also expected to transform the content of the inner RuO₂ to the form of interfacial RuO₂. At the temperature of 300–400 °C, both samples displayed a broad reduction peak, which was mainly assigned to the reduction of Sn⁴⁺ species. RST-P attained a violent increase in Sn⁴⁺ reduction peak, thanks to the migration of Sn to the surface of the solid solution, which coincided with the TEM result.

3. Discussion

During plasma treatment, the discharged atmosphere played an important role in catalyst modification. Considering the increased density of the electric charge, the charged active species mainly concentrated in the micropores of the metal oxide, which changed the microstructure of the catalyst in a physical way, and promoted the properties of the catalyst with high specific surface area and small particle size. From a chemical perspective, the highly charged atmosphere oxidized RuO₂ to a higher oxidation state, which was beneficial to the DCM oxidation. At the same time, the electric charge concentrated on RuO₂ was found to cause a high dispersion of RuO₂. Therefore, the superior catalytic performance is mainly attributed to the discharged atmosphere generated by DBD plasma, whereby a high surface area, a good dispersion of RuO₂ and a high oxidation of Ru species were formed to help the catalyst gain a superb oxidation activity.

4. Materials and Methods

4.1. Synthesis of Ru-Sn-Ti Catalysts

4.1.1. Synthesis of Sn_0.2Ti_0.8O₂ Support

Sn_0.2Ti_0.8O₂ solid solutions were prepared via the co-precipitation method [35]; 2.77 g SnCl₄ (Macklin) was dissolved in 120 mL deionized water with stirring for 2 h. Then 14.49 g tetrabutyl titanate (TBT, Sinopharm) was added dropwise at a speed of 2 mL/min into the solution with vigorous stirring for 2 h till the suspension became uniform. We then added ammonium hydroxide (Sinopharm) with mechanical stirring controlled with the speed of 3 mL/min until the pH value reached 10. The mixture was aged overnight, washed with deionized water and ethanol 3 times each, and centrifuged to obtain the sediment. The solid product was dried at 110 °C for 12 h and subsequently calcinated at 550 °C for 5 h at a ramping rate of 10 °C/min.

4.1.2. Synthesis of RuO₂/Sn_0.2Ti_0.8O₂

The RuO₂ nanoparticles were prepared by first dissolving 195 mg of RuCl₃·H₂O (Aladdin) in 40 mL deionized water. Then, 39 mL 15% H₂O₂ (Sigma-Aldrich) solution was added dropwise to the RuCl₃ solution with violent whisking. The mixture was stirred at 95 °C in an oil bath for 2 h and then cooled to room temperature to obtain a black suspension of RuO₂ nanoparticles. Afterwards, 5g Sn_0.2Ti_0.8O₂ powder was added into the above suspension until fully immersed. The solvent was evaporated and the solid was dried and ground to obtain RuO₂/Sn_0.2Ti_0.8O₂ (RST) precursor. The obtained solid was divided into two portions. One portion of RST precursor was treated by DBD-induced plasma atmosphere with 20% O₂ for 90 min in the discharging tube denoted as RST-P, where the air atmosphere was used to make it low-cost for catalyst preparation. The discharge parameters were determined to reach the maximum of what the reactor could withstand, and these were as follows: frequency 9 kHz, discharge voltage 10 kV and discharge power 100 W. For comparison, the other portion was calcined at 550 °C for 5 h in air (denoted as RST-C).

4.2. Material Characterizations

The X-ray diffraction patterns (XRD) of samples were collected from 10° to 90° by a Cu Kα radiation APEXII powder diffractometer with 0.02° as the step size, presented by X-pert Powder (PANalytical B.V., Netherlands). The specific surface area was measured with an Autosorb-1-C instrument at −196.15 °C and calculated using the BET method. XPS spectra were presented by a Thermo VG ESCALAB MARK II with 1453.6 eV Mg Kα radiation at a step of 0.2 eV, which was corrected by C1s with the binding energy of 284.8eV. A JEOL 2100F HR-TEM/STEM microscope with X-ray energy dispersive (XEDS) spectra was employed to attain different element composition analyses and TEM images. XEDS mapping was used to analyze the distribution of different elements via an INCA x-sight (Oxford Instruments, Abingdon, United Kingdom). The specimens were prepared by dropping the sample powder, which was dispersed in ethanol suspension, upon the perforated carbon film. CO pulse chemical adsorption was performed by using an AutoChem II 2920 instrument for CO adsorption at a low temperature. The sample was heated to 573 K in an He/Ar flow and held at this temperature for 15 min. After purging with He/Ar, the sample was reduced in 10% H₂/Ar for 15 min and then cooled to 323 K in an He/Ar flow. The catalyst oxidation was obtained using an AutoChem II 2920 (Micromeritics Instrument Corporation, Norcross, GA, USA) equipped with a thermal conductivity detector. First, pretreatment, whereby the samples were heated up to 300 °C for 1 h in helium, was performed. After purging, H₂-TPD was carried out from 30 °C to 600 °C at a rate of 10 °C /min, recorded ten times every second.

4.3. Catalytic Activity Measurements

The catalytic performance of samples was evaluated from 150 °C to 500 °C, in a quartz tube reactor of which the inner diameter was 6 mm, at a feed flow of 75 mL/min. The reactive atmosphere consisted of 1000 ppm DCM, 20% O₂ and the rest was balanced with N₂. The tested catalysts were transformed into 40–60 mesh size, and sequentially packed into the reactor. The weight hourly space velocity (WHSV) was determined to reach 45,000 mL/(g·h) when 200 mg of catalyst was added. An FT-IR gas analyzer (Gasmet Dx4000, Temet Instrument Oy, Helsinki, Finland) was used to measure the concentration of DCM, CO₂, and other products in the reactor effluent. T90% was calculated by linear fitting between adjacent data points.

The chemical equation was applied accordingly:

$${\mathrm{CH}}_2{\mathrm{Cl}}_2+{\mathrm{O}}_2\to {\mathrm{CO}}_2+\mathrm{CO}+{\mathrm{H}}_2\mathrm{O}+\mathrm{HCl}+{\mathrm{Cl}}_2+{\mathrm{CH}}_{\mathrm{x}}{\mathrm{Cl}}_{\mathrm{y}}{\mathrm{O}}_{\mathrm{z}}$$

(1)

It is expected to calculate the total conversion rate of DCM, α, and product selectivity, S, by:

$${\mathsf{\alpha }}_{\mathrm{DCM}}=\frac{{\mathrm{c}}_{\mathrm{in}}-{\mathrm{c}}_{\mathrm{out}}}{{\mathrm{c}}_{\mathrm{in}}}\times 100\%$$

(2)

$${\mathrm{S}}_{{\mathrm{CO}}_2}=\frac{{\mathrm{c}}_{{\mathrm{CO}}_2}}{{\mathrm{c}}_{\mathrm{in}}-{\mathrm{c}}_{\mathrm{out}}}\times 100\%$$

(3)

where c_in and c_out are the detected concentrations of DCM at the inlet and outlet, and ${\mathrm{c}}_{{\mathrm{CO}}_2}$ is the concentration of CO₂ at the outlet.

5. Conclusions

DBD plasma treatment was adopted to prepare the RuO₂/Sn_0.2Ti_0.8O₂ catalyst, which showed better catalytic activity and CO₂ selectivity after plasma modification compared to the catalyst prepared by the calcination method. During the catalyst preparation, the discharge atmosphere plays a key role in modifying the catalyst and promoting catalytic performance. Non-thermal plasma allows a low temperature discharge, which prevents the growth of crystals and the agglomeration of particles in order to obtain highly specific surface area and small particle sizes. Plasma treatment also promoted the transferring of electrons from Ru to Sn-TiO₂, and sequentially pushed the oxidation from Ru⁴⁺ to Ru⁵⁺, which was expected to offer the catalyst better oxidation activity. The superior catalytic performance is mainly attributed to the high specific surface area and good dispersion of RuO₂ on the Sn-Ti support. Abundant Ru⁵⁺ species were also formed to help the catalyst gain a superb oxidation activity.
