Simulation Study of 4H-SiC Trench Insulated Gate Bipolar Transistor with Low Turn-Off Loss

by
Hong-kai Mao
1,
Ying Wang
1,*,
Xue Wu
2 and
Fang-wen Su
1
1
The Key Laboratory of RF Circuits and Systems, Ministry of Education, Hangzhou Dianzi University, Hangzhou 310018, China
2
National Key Laboratory of Analog Integrated Circuits, Chongqing 400060, China
*
Author to whom correspondence should be addressed.
Micromachines 2019, 10(12), 815; https://doi.org/10.3390/mi10120815
Submission received: 18 October 2019 / Revised: 11 November 2019 / Accepted: 15 November 2019 / Published: 26 November 2019
(This article belongs to the Special Issue Wide Bandgap Based Devices: Design, Fabrication and Applications)
Browse Figures
Versions Notes

Abstract

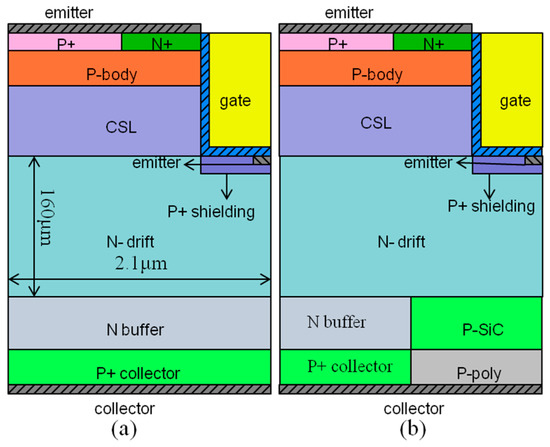

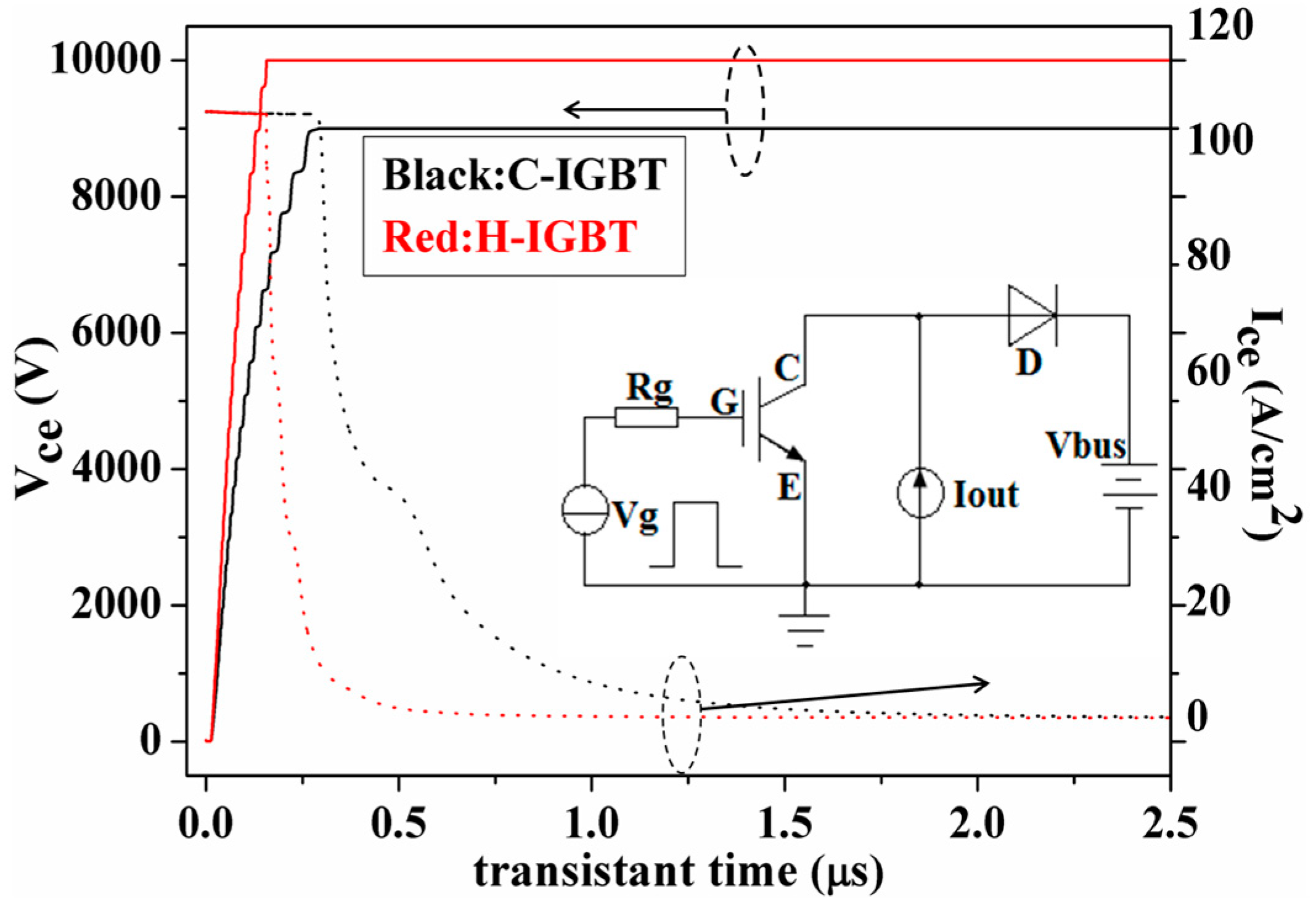

In this work, an insulated gate bipolar transistor (IGBT) is proposed that introduces a portion of the p-polySi/p-SiC heterojunction on the collector side to reduce the tail current during device turn-offs. By adjusting the doping concentration on both sides of the heterojunction, the turn-off loss is further reduced without sacrificing other characteristics of the device. The electrical characteristics of the device were simulated through the Silvaco ATLAS 2D simulation tool and compared with the traditional structure to verify the design idea. The simulation results show that, compared with the traditional structure, the turn-off loss of the proposed structure was reduced by 58.4%, the breakdown voltage increased by 13.3%, and the forward characteristics sacrificed 8.3%.
Keywords: 4H-SiC; turn-off loss; ON-state voltage; breakdown voltage (BV); IGBT 4H-SiC; turn-off loss; ON-state voltage; breakdown voltage (BV); IGBT
