# Comparison of Three Modelling Approaches for Predicting Deoxynivalenol Contamination in Winter Wheat

^{1}

^{2}

^{3}

^{*}

^{st}International MYCOKEY Conference: Advances on Mycotoxin Reduction in the Food and Feed Chain)

## Abstract

**:**

**Key Contribution:**Cross-validation of the three modelling techniques was done to further understand the advantages and disadvantages of each technique, and contribute to future research and progress in the prediction of mycotoxin contamination in food and feed. Adapting a mycotoxin forecasting model that was developed for certain agronomic and weather conditions to other conditions should always be done with the utmost care and proper model testing and validation.

## 1. Introduction

## 2. Results

#### 2.1. Mixed Effect Logistic Regression Model

#### 2.1.1. Model C (for Farmers W0–W4)

#### 2.1.2. Model D (for Collectors W0–W6)

#### 2.2. Bayesian Network Model

#### 2.3. Mechanistic Model

#### 2.4. Validation of Three Models

## 3. Discussion and Conclusions

## 4. Materials and Methods

#### 4.1. Data

- W0: FD − 24 1 pm to FD − 17 12 am,
- W1: FD − 17 1 pm to FD − 10 12 am,
- W2: FD − 10 1 pm to FD − 3 12 am,
- W3: FD − 3 1 pm to FD + 4 12 am,
- W4: FD + 4 1 pm to FD + 11 12 am,
- W5: FD + 11 1 pm to HD − 3 12 am,
- W6: HD − 3 1 pm to HD + 4 12 am

- Tavg: Average hourly temperature in the time window (°C)
- Tmin: Minimum hourly temperature in the time window (°C)
- Tmax: Maximum hourly temperature in the time window (°C)
- P: Sum of the precipitation in the time window (mm)
- RHh80: Number of hours that relative humidity was higher than 80% (hour)
- Th25: Number of hours that temperature was higher than 25 °C (hour)

#### 4.2. Mixed Effect Logistic Regression Model

^{th}subset was used to test the model’s performance. This process was repeated 10 times, every time with a different test subset. So, all of the records were used for both training and testing, and each record was used for validation once. The mean area under the curve (AUC) was calculated.

#### 4.3. Bayesian Network Model

#### 4.4. Mechanistic Model

#### 4.5. Validation of Three Models

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Van der Fels-Klerx, H.; Liu, C.; Battilani, P. Modelling climate change impacts on mycotoxin contamination. World Mycotoxin J.
**2016**, 9, 717–726. [Google Scholar] [CrossRef] [Green Version] - Van der Fels-Klerx, H.; Olesen, J.E.; Madsen, M.; Goedhart, P. Climate change increases deoxynivalenol contamination of wheat in North-Western Europe. Food Addit. Contam. Part A
**2012**, 29, 1593–1604. [Google Scholar] [CrossRef] [PubMed] - Van Der Fels-Klerx, H.; Burgers, S.L.; Booij, C. Descriptive modelling to predict deoxynivalenol in winter wheat in the Netherlands. Food Addit. Contam.
**2010**, 27, 636–643. [Google Scholar] [CrossRef] [PubMed] - Landschoot, S.; Waegeman, W.; Audenaert, K.; Van Damme, P.; Vandepitte, J.; De Baets, B.; Haesaert, G. A field-specific web tool for the prediction of Fusarium head blight and deoxynivalenol content in Belgium. Comput. Electron. Agric.
**2013**, 93, 140–148. [Google Scholar] [CrossRef] - Rossi, V.; Giosuè, S.; Terzi, V.; Scudellari, D. A decision support system for Fusarium head blight on small grain cereals. EPPO Bull.
**2007**, 37, 359–367. [Google Scholar] [CrossRef] - Gourdain, E.; Piraux, F.; Barrier-Guillot, B. A model combining agronomic and weather factors to predict occurrence of deoxynivalenol in durum wheat kernels. World Mycotoxin J.
**2011**, 4, 129–139. [Google Scholar] [CrossRef] - Klem, K.; Vanova, M.; Hajslova, J.; Lancová, K.; Sehnalová, M. A neural network model for prediction of deoxynivalenol content in wheat grain based on weather data and preceding crop. Plant Soil Environ.
**2007**, 53, 421. [Google Scholar] [CrossRef] - Musa, T.; Hecker, A.; Vogelgsang, S.; Forrer, H. Forecasting of Fusarium head blight and deoxynivalenol content in winter wheat with FusaProg. EPPO Bull.
**2007**, 37, 283–289. [Google Scholar] [CrossRef] - Bouzembrak, Y.; Marvin, H.J. Prediction of food fraud type using data from Rapid Alert System for Food and Feed (RASFF) and Bayesian network modelling. Food Control
**2016**, 61, 180–187. [Google Scholar] [CrossRef] - Marvin, H.J.; Bouzembrak, Y.; Janssen, E.M.; van der Fels-Klerx, H.; van Asselt, E.D.; Kleter, G.A. A holistic approach to food safety risks: Food fraud as an example. Food Res. Int.
**2016**, 89, 463–470. [Google Scholar] [CrossRef] [PubMed] - Nasrabadi, N.M. Pattern recognition and machine learning. J. Electron. Imaging
**2007**, 16, 049901. [Google Scholar] - Walker, S.H.; Duncan, D.B. Estimation of the probability of an event as a function of several independent variables. Biometrika
**1967**, 54, 167–179. [Google Scholar] [CrossRef] [PubMed] - Nielsen, T.D.; Jensen, F.V. Bayesian Networks and Decision Graphs; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2009. [Google Scholar]
- Bonafede, C.E.; Giudici, P. Bayesian networks for enterprise risk assessment. Phys. A Stat. Mech. Its Appl.
**2007**, 382, 22–28. [Google Scholar] [CrossRef] - Buriticá, J.A.; Tesfamariam, S. Consequence-based framework for electric power providers using bayesian belief network. Int. J. Electr. Power Energy Syst.
**2015**, 64, 233–241. [Google Scholar] [CrossRef] - Rossi, V.; Giosuè, S.; Pattori, E.; Spanna, F.; Del Vecchio, A. A model estimating the risk of Fusarium head blight on wheat. EPPO Bull.
**2003**, 33, 421–425. [Google Scholar] [CrossRef] - Rossi, V.; Giosuè, S.; Delogu, G. A model estimating risk for Fusarium mycotoxins in wheat kernels. Asp. Appl. Biol.
**2003**, 68, 229–234. [Google Scholar] - Bottalico, A.; Perrone, G. Toxigenic Fusarium species and mycotoxins associated with head blight in small-grain cereals in Europe. Eur. J. Plant Pathol.
**2002**, 108, 611–624. [Google Scholar] [CrossRef] - Van der Fels-Klerx, H.; De Rijk, T.; Booij, C.; Goedhart, P.; Boers, E.; Zhao, C.; Waalwijk, C.; Mol, H.; Van der Lee, T. Occurrence of Fusarium head blight species and Fusarium mycotoxins in winter wheat in the Netherlands in 2009. Food Addit. Contam. Part A
**2012**, 29, 1716–1726. [Google Scholar] [CrossRef] [PubMed] - Krska, R.; De Nijs, M.; McNerney, O.; Pichler, M.; Gilbert, J.; Edwards, S.; Suman, M.; Magan, N.; Rossi, V.; van der Fels-Klerx, H. Safe food and feed through an integrated toolbox for mycotoxin management: The mytoolbox approach. World Mycotoxin J.
**2016**, 9, 487–495. [Google Scholar] [CrossRef] - Spanjer, M.C.; Rensen, P.M.; Scholten, J.M. LC-MS/MS multi-method for mycotoxins after single extraction, with validation data for peanut, pistachio, wheat, maize, cornflakes, raisins and figs. Food Addit. Contam.
**2008**, 25, 472–489. [Google Scholar] [CrossRef] [PubMed] - Oliver, M.A.; Webster, R. Kriging: A method of interpolation for geographical information systems. Int. J. Geogr. Inf. Syst.
**1990**, 4, 313–332. [Google Scholar] [CrossRef] - Friedman, N.; Geiger, D.; Goldszmidt, M. Bayesian network classifiers. Mach. Learn.
**1997**, 29, 131–163. [Google Scholar] [CrossRef] - Scutari, M. Learning Bayesian networks with the bnlearn R package. arXiv, 2009; arXiv:0908.3817. [Google Scholar]
- Laffelaar, P.A.; Ferrari, T.J. Some Elements of Dynamic Simulation; Pudoc: Wageningen, The Netherlands, 1989. [Google Scholar]
- Rossi, V.; Giosuè, S.; Caffi, T. Modelling plant diseases for decision making in crop protection. In Precision Crop Protection—The Challenge and Use of Heterogeneity; Springer: Berlin, Germany, 2010; pp. 241–258. [Google Scholar]
- González-Domínguez, E.; Caffi, T.; Ciliberti, N.; Rossi, V. A mechanistic model of Botrytis cinerea on grapevines that includes weather, vine growth stage, and the main infection pathways. PLoS ONE
**2015**, 10, e0140444. [Google Scholar] [CrossRef] [PubMed]

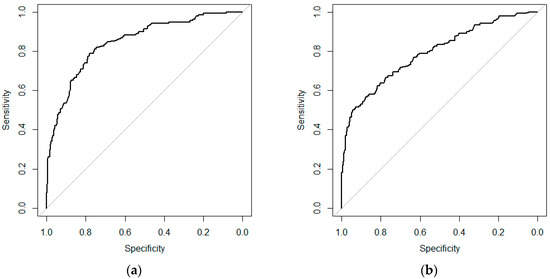

**Figure 1.**Mean receiver operating characteristic (ROC) curves for 10-fold cross-validation of Model C class low/medium (

**a**), and Model C class medium/high (

**b**).

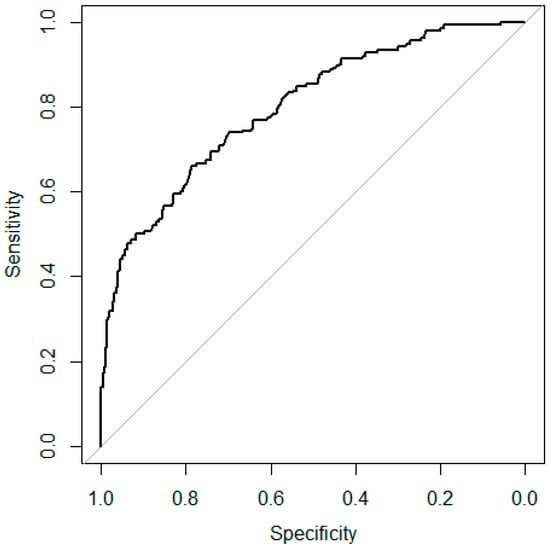

**Figure 2.**Mean receiver operating characteristic (ROC) curves for 10-fold cross validation on the Model D medium/high class.

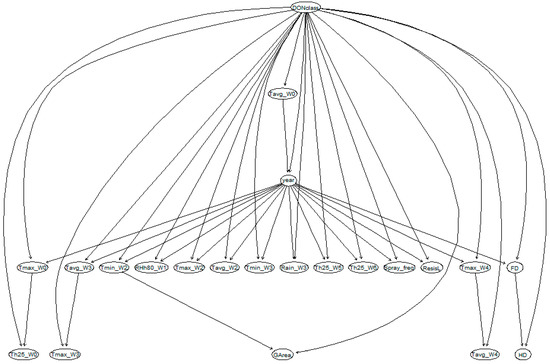

**Figure 3.**The Bayesian network model structure resulting from learning the model with field data collected during 2001–2013 in the Netherlands. Circles represent nodes of the Bayesian network model, and arrows indicate the relationship/conditional dependencies among the nodes. Tavg_W0–W4: average temperature in the time windows W0 to W4; Tmax_W0–W4; maximum temperature in the time windows W0 to W4; Tmin_W2–W3: minimum temperature in the time window W2 to W3 ; RHh80_W1: number of hours that relative humidity is higher than 80% in the time window W1; Th25_W0–W5: number of hours that average temperature is higher than 25°C in the time windows W0 to W5; Spray_freq: frequency of fungicides application around wheat flowering for controlling Fusarium head blight; FD: flowering date; HD: harvesting date.

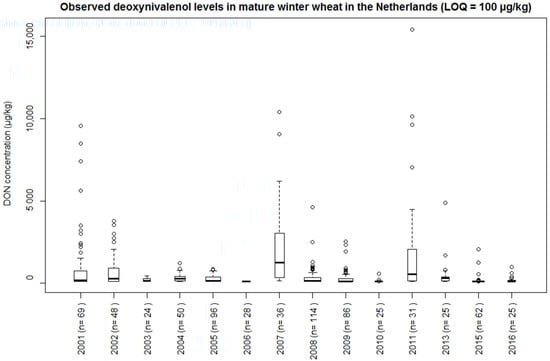

**Figure 4.**Observed deoxynivalenol (DON) concentrations in mature winter wheat in the Netherlands, 2001–2011, 2013, and 2015–2016. The midline (bold) of the box represents the median of the data, with the upper and lower limits of the box being the third and first quartile (75

^{th}and 25

^{th}percentile), respectively. The whiskers extend 1.5 times the interquartile range, from the top/bottom of the box to the furthest value within that distance. Data beyond that distance are represented individually as outliers (black circles). The box width is proportional to the square roots of the number of observations in that year. In all of the samples from 2006, the DON concentration was below the (highest) limit of quantification (100 µg/kg).

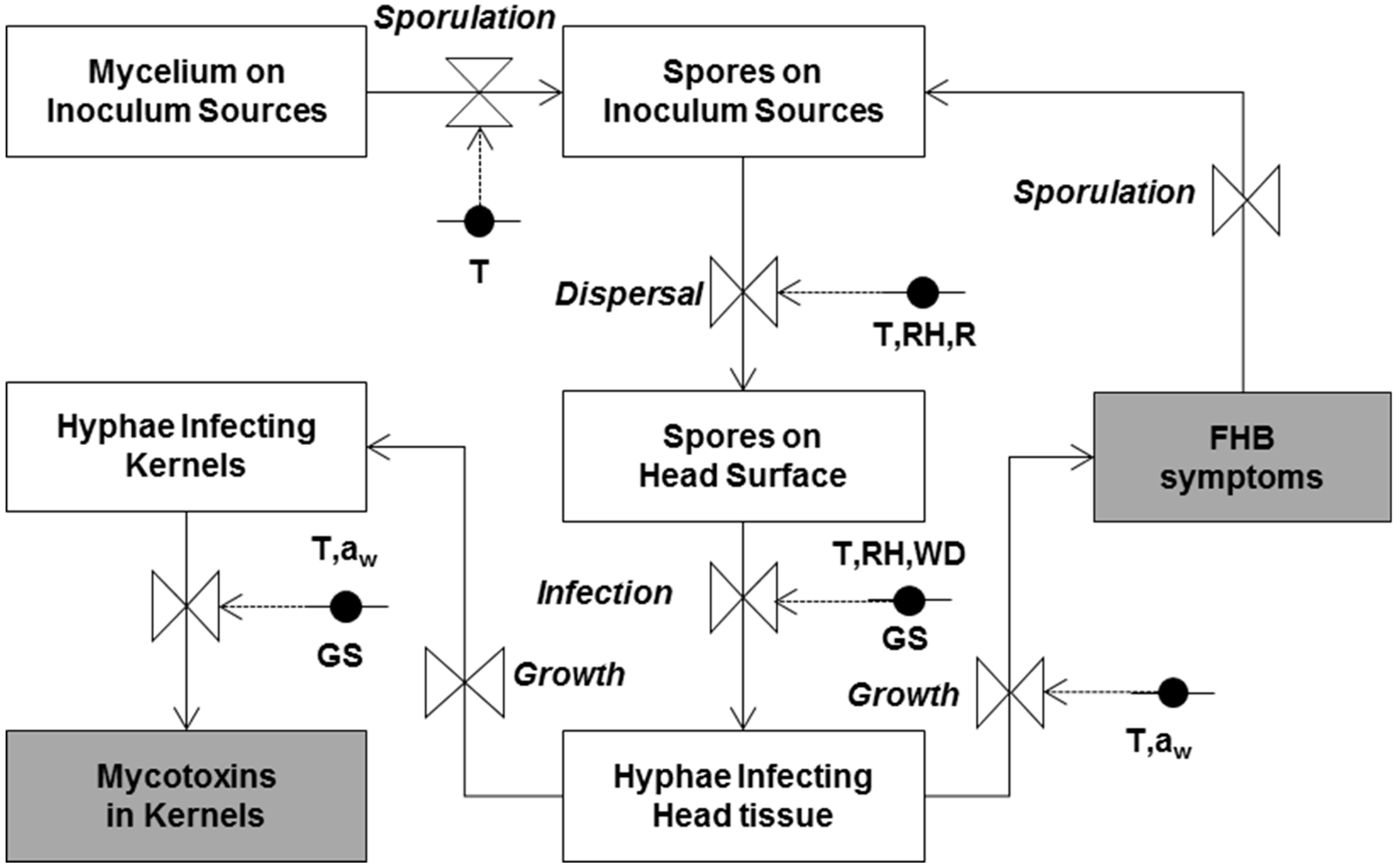

**Figure 5.**Simplified relational diagram of the Fusarium head blight (FHB) model predicting the probability of DON contamination in wheat. T = temperature; WD = leaf wetness duration; RH = relative humidity; GS = wheat growth stage; a
