Remote Sens. 2017, 9(12), 1248;

On-Orbit Radiometric Calibration for a Space-Borne Multi-Camera Mosaic Imaging Sensor

2,* , 3
School of Geography and Remote Sensing, Nanjing University of Information Science & Technology, Nanjing 210044, China
School of Urban-Rural Planning and Architecture, Xuchang University, Xuchang 461000, China
State Key Laboratory of Remote Sensing Science, Institute of Remote Sensing and Digital Earth, Chinese Academy of Sciences, Beijing 100101, China
Author to whom correspondence should be addressed.
Received: 3 November 2017 / Revised: 26 November 2017 / Accepted: 28 November 2017 / Published: 1 December 2017
Full-Text   |   PDF [9456 KB, uploaded 1 December 2017]   |

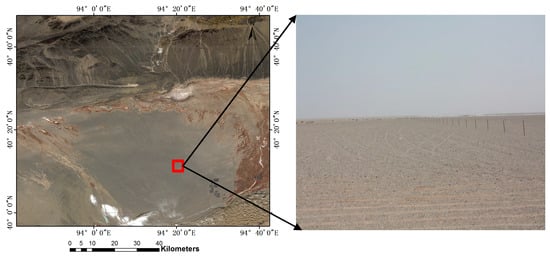

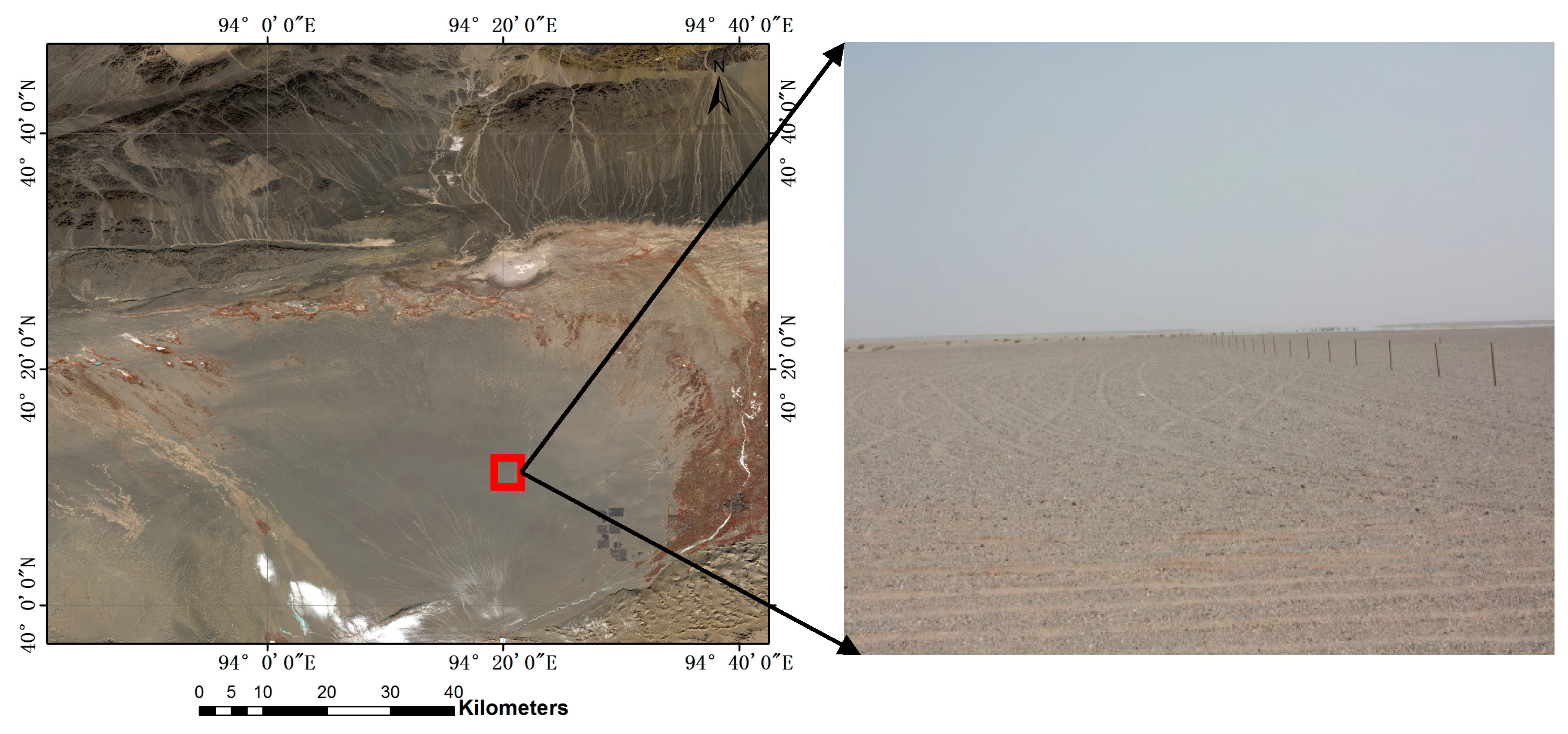

As the core and foundational technology, on-orbit radiometric calibration of a space-borne sensor is of great importance for quantitative remote sensing applications. As for the space-borne multi-camera mosaic imaging sensor, however, the currently available on-orbit radiometric calibration method cannot carry out the integrated processing of on-orbit absolute radiometric calibration and relative radiometric correction simultaneously between cameras, influencing the accuracy of quantitative applications. Therefore, taking the GaoFen-1 (GF-1) wide-field-of-view (WFV) sensor as an example in this research, an innovative on-orbit radiometric calibration method is proposed to overcome this bottleneck. Firstly, according to the principle of the cross-calibration approach, we retrieve valid MODIS and GF-1 WFV image pairs over the Dunhuang radiometric calibration sites (DRCS) in China by using a set of criteria and extract the radiometric control points (RCPs) connecting in both images. Secondly, the DEM-aided block adjustment of the rational function model is applied to eliminate the geometrical misalignment of GF-1 WFV images at the same orbit. Then, the average digital numbers of spectral and spatial homogeneous surfaces are calculated and chosen as the radiometric tie points (RTPs) extracted from the overlapping region of the adjacent WFV cameras. Thirdly, the radiometric block adjustment (RBA) algorithm is introduced into on-orbit radiometric calibration of the space-borne multi-camera mosaic imaging sensor. Finally, the radiometric calibration coefficients are solved by the least square method. The validation results indicate that our proposed method can acquire high absolute radiometric calibration accuracy and achieve relative radiometric correction between cameras. Compared with the results using the cross-calibration method to calibrate each WFV camera independently, the advantages of RBA are presented. In addition, the uncertainties caused by RCPs’ distribution are discussed, which is beneficial to further optimize the calibration program. View Full-Text
Keywords: on-orbit radiometric calibration; multi-camera mosaic imaging; radiometric block adjustment; validation and evaluation on-orbit radiometric calibration; multi-camera mosaic imaging; radiometric block adjustment; validation and evaluation
