Open AccessArticle

Determination of the Downwelling Diffuse Attenuation Coefficient of Lake Water with the Sentinel-3A OLCI

Key Laboratory of Watershed Geographic Sciences, Nanjing Institute of Geography and Limnology, Chinese Academy of Sciences, Nanjing 210008, China
University of Chinese Academy of Sciences, Beijing 100049, China
Dipartimento di Biotecnologie, Chimica e Farmacia, University of Siena, CSGI, Via Aldo Moro 2, Siena 53100, Italy
ICube—SERTIT, Université de Strasbourg, Institut Telecom Physiques Strasbourg, Parc d’Innovation, 300, Bd Sébastien Brant, BP 10413, F-67412 Illkirch Graffenstaden, France
Author to whom correspondence should be addressed.
Remote Sens. 2017, 9(12), 1246;
Received: 1 November 2017 / Revised: 27 November 2017 / Accepted: 29 November 2017 / Published: 1 December 2017
(This article belongs to the Special Issue Remote Sensing of Floodpath Lakes and Wetlands)

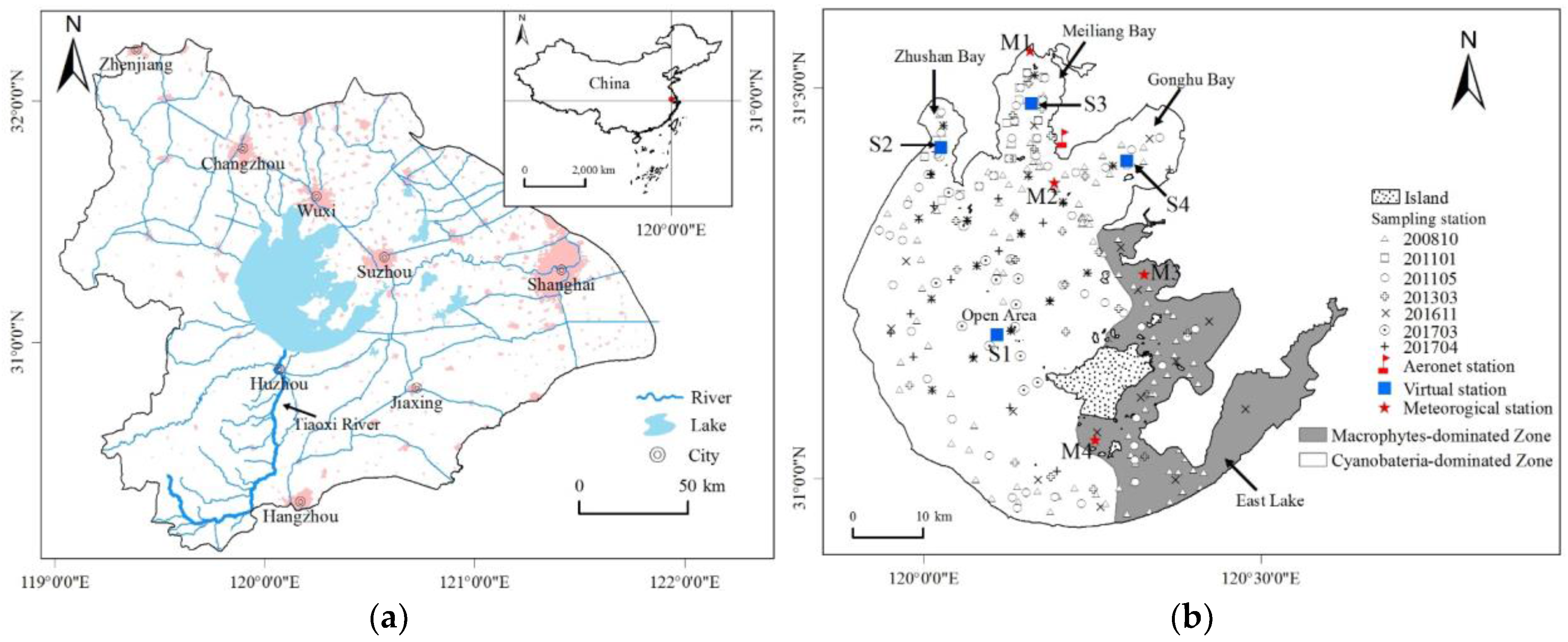

The Ocean and Land Color Imager (OLCI) on the Sentinel-3A satellite, which was launched by the European Space Agency in 2016, is a new-generation water color sensor with a spatial resolution of 300 m and 21 bands in the range of 400–1020 nm. The OLCI is important to the expansion of remote sensing monitoring of inland waters using water color satellite data. In this study, we developed a dual band ratio algorithm for the downwelling diffuse attenuation coefficient at 490 nm (Kd(490)) for the waters of Lake Taihu, a large shallow lake in China, based on data measured during seven surveys conducted between 2008 and 2017 in combination with Sentinel-3A-OLCI data. The results show that: (1) Compared to the available Kd(490) estimation algorithms, the dual band ratio (681 nm/560 nm and 754 nm/560 nm) algorithm developed in this study had a higher estimation accuracy (N = 26, coefficient of determination (R2) = 0.81, root-mean-square error (RMSE) = 0.99 m−1 and mean absolute percentage error (MAPE) = 19.55%) and validation accuracy (N = 14, R2 = 0.83, RMSE = 1.06 m−1 and MAPE = 27.30%), making it more suitable for turbid inland waters; (2) A comparison of the OLCI Kd(490) product and a similar Moderate Resolution Imaging Spectroradiometer (MODIS) product reveals a high consistency between the OLCI and MODIS products in terms of the spatial distribution of Kd(490). However, the OLCI product has a smoother spatial distribution and finer textural characteristics than the MODIS product and contains notably higher-quality data; (3) The Kd(490) values for Lake Taihu exhibit notable spatial and temporal variations. Kd(490) is higher in seasons with relatively high wind speeds and in open waters that are prone to wind- and wave-induced sediment resuspension. Finally, the Sentinel-3A-OLCI has a higher spatial resolution and is equipped with a relatively wide dynamic range of spectral bands suitable for inland waters. The Sentinel-3B satellite will be launched soon and, together with the Sentinel-3A satellite, will form a two-satellite network with the ability to make observations twice every three days. This satellite network will have a wider range of application and play an important role in the monitoring of inland waters with complex optical properties. View Full-Text
Keywords: diffuse attenuation coefficient; Sentinel-3A OLCI; Lake Taihu; remote sensing diffuse attenuation coefficient; Sentinel-3A OLCI; Lake Taihu; remote sensing
Show Figures

Graphical abstract

MDPI and ACS Style

Shen, M.; Duan, H.; Cao, Z.; Xue, K.; Loiselle, S.; Yesou, H. Determination of the Downwelling Diffuse Attenuation Coefficient of Lake Water with the Sentinel-3A OLCI. Remote Sens. 2017, 9, 1246.
