Open AccessArticle
Remote Sens. 2011, 3(2), 305-318;

Spaceborne Differential SAR Interferometry: Data Analysis Tools for Deformation Measurement

Institute of Geomatics, Av. Gauss 11, E-08860 Castelldefels, Spain
Department of Earth Sciences, University of Milan, Via Cicognara 7, I-20129 Milan, Italy
Author to whom correspondence should be addressed.
Received: 30 November 2010 / Revised: 13 January 2011 / Accepted: 10 February 2011 / Published: 15 February 2011
(This article belongs to the Special Issue 100 Years ISPRS - Advancing Remote Sensing Science)
Full-Text   |   PDF [2146 KB, uploaded 19 June 2014]   |

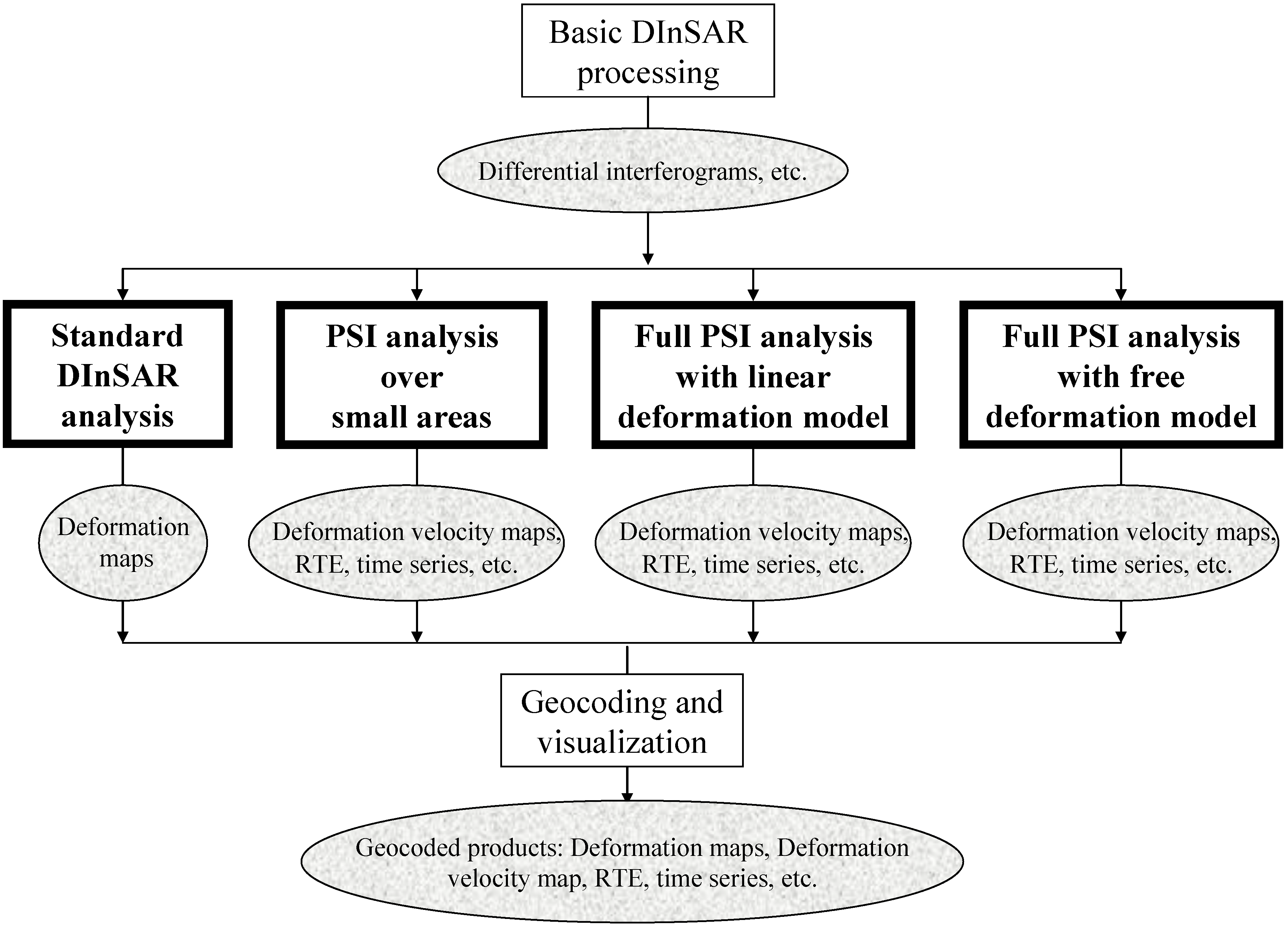

This paper is focused on spaceborne Differential Interferometric SAR (DInSAR) for land deformation measurement and monitoring. In the last two decades several DInSAR data analysis procedures have been proposed. The objective of this paper is to describe the DInSAR data processing and analysis tools developed at the Institute of Geomatics in almost ten years of research activities. Four main DInSAR analysis procedures are described, which range from the standard DInSAR analysis based on a single interferogram to more advanced Persistent Scatterer Interferometry (PSI) approaches. These different procedures guarantee a sufficient flexibility in DInSAR data processing. In order to provide a technical insight into these analysis procedures, a whole section discusses their main data processing and analysis steps, especially those needed in PSI analyses. A specific section is devoted to the core of our PSI analysis tools: the so-called 2+1D phase unwrapping procedure, which couples a 2D phase unwrapping, performed interferogram-wise, with a kind of 1D phase unwrapping along time, performed pixel-wise. In the last part of the paper, some examples of DInSAR results are discussed, which were derived by standard DInSAR or PSI analyses. Most of these results were derived from X-band SAR data coming from the TerraSAR-X and CosmoSkyMed sensors. View Full-Text
Keywords: X-band; very high resolution imagery; TerraSAR-X; CosmoSkyMed X-band; very high resolution imagery; TerraSAR-X; CosmoSkyMed

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Share & Cite This Article

MDPI and ACS Style

Crosetto, M.; Monserrat, O.; Cuevas, M.; Crippa, B. Spaceborne Differential SAR Interferometry: Data Analysis Tools for Deformation Measurement. Remote Sens. 2011, 3, 305-318.
