Mapping Maize Water Stress Based on UAV Multispectral Remote Sensing

Abstract

Mapping maize water stress status and monitoring its spatial variability at a farm scale are a prerequisite for precision irrigation. High-resolution multispectral images acquired from an unmanned aerial vehicle (UAV) were used to evaluate the applicability of the data in mapping water stress status of maize under different levels of deficit irrigation at the late vegetative, reproductive and maturation growth stages. Canopy temperature, field air temperature and relative humidity obtained by a handheld infrared thermometer and a portable air temperature/relative humidity meter were used to establish a crop water stress index (CWSI) empirical model under the weather conditions in Ordos, Inner Mongolia, China. Nine vegetation indices (VIs) related to crop water stress were derived from the UAV multispectral imagery and used to establish CWSI inversion models. The results showed that non-water-stressed baseline had significant difference in the reproductive and maturation stages with an increase of 2.1 °C, however, the non-transpiring baseline did not change significantly with an increase of 0.1 °C. The ratio of transformed chlorophyll absorption in reflectance index (TCARI) and renormalized difference vegetation index (RDVI), and the TCARI and soil-adjusted vegetation index (SAVI) had the best correlations with CWSI. R² values were 0.47 and 0.50 for TCARI/RDVI and TCARI/SAVI at the reproductive and maturation stages, respectively; and 0.81 and 0.80 for TCARI/RDVI and TCARI/SAVI at the late reproductive and maturation stages, respectively. Compared to CWSI calculated by on-site measurements, CWSI values retrieved by VI-CWSI regression models established in this study had more abilities to assess the field variability of crop and soil. This study demonstrates the potentiality of using high-resolution UAV multispectral imagery to map maize water stress.

1. Introduction

Water resource scarcity is one of the most important challenges for agricultural water management, especially in arid and semi-arid areas all over the world. Due to drought associated with climate change, agricultural water resources will be reduced, it is necessary to achieve maximum production per unit of applied irrigation water. As one of the important ways to enhance water-use efficiency, regulated deficit irrigation may solve this dilemma [1,2,3,4]. However, to achieve a delicate balance between yield and irrigation water, effective monitoring methods for crop water stress are necessary [5,6,7].

Currently, crop water stress can be detected based on soil moisture content, crop physiological characteristics (e.g., stomatal conductance, leaf water potential) and remote-sensing technology [8]. On-site measurements of soil water content and crop physiological characteristics are time-consuming, laborious and costly, and do not take into account the spatial variability of soil and crops [9,10]. Measurements of canopy temperature or canopy reflectance based on remote-sensing technology have the advantages of being easy, non-destructive and of low labor intensity [8,11].

Since numerous data from various remote sensing imagery platforms have become available, studies of monitoring crop water stress have been done by satellite [12,13,14] and aerial [15,16,17,18] remote-sensing technology. However, crop monitoring applications are highly demanding with respect to temporal frequency (1–3 days revisit) of key image acquisition, and spatial resolution requirements are driven by the minimum management unit that can be in the range of 1–10 m [19]. Satellite remote sensing has the disadvantages of low spatial-temporal resolution and vulnerability to weather. For instance, Landsat and SPOT has spatial resolution of 30 and 20 m, and revisit time 16 and 26 days, respectively. It is often difficult to meet the monitoring need of crop water stress at a farm scale. Aerial remote sensing has the disadvantages of high operational difficulty and high operating cost. Due to the advantages of low cost, easy to construct, convenient transportation, high flexibility, short operating cycle and high spatial-temporal resolution, an unmanned aerial vehicle (UAV) remote-sensing system could collect crop information in a desirable spatial-temporal resolution [20,21,22]. This makes it more suitable to monitor crop water stress quickly and meticulously at a farm scale.

Due to the principle that crop canopy temperature (Tc) rises with increasing water stress in comparison to crop under well irrigation condition [23], several researchers integrated thermal cameras into UAV platforms to evaluate crop water stress of the entire field. Zhang et al. [24] used canopy temperature characteristics derived from UAV thermal images to monitor cotton water status. The results suggested canopy temperature standard deviation (CTSD) was sensitive to crop water stress with a coefficient of determination (R²) of 0.88 between CTSD and stomatal conductance. Martínez et al. [25] assessed the potential of UAV thermal imaging for monitoring plant water stress in a commercial sugar beet field. The results indicated that a lightweight UAV canopy temperature system including an infrared thermometer and a microcontroller board as data logger, was robust and reliable, but there were some constraints related to weather conditions and delimitation of the area covered by the infrared sensor.

However, Tc is not only affected by water supply but also by the actual micro-meteorological conditions (such as, air temperature (Ta), relative humidity (RH) and vapor pressure deficit (VPD)). Therefore, aiming to reduce the influence of meteorological conditions, several temperature-based indices were developed over the last few decades [17]. The crop water stress index (CWSI) based on canopy temperature and some meteorological parameters has been investigated as an effective method to monitor the water status of various plants by many previous researchers, such as maize [26,27,28,29], cotton [30,31], grapevine [16,32,33,34], peaches [35,36,37] and olives [38,39,40]. Good relationships between CWSI and other on-site crop water stress indicators have been shown, such as soil water content [41,42,43,44], leaf water potential [16,45,46] and stomatal conductance [32,33,47]. There are two widely used CWSI models: the empirical model proposed by Idso et al. [48] and the theoretical model proposed by Jackson et al. [49]. Compared to the theoretical model, the empirical model is easier to establish and only needs Tc, Ta and RH.

When establishing the CWSI empirical model, there are two common methods to establish non-water-stressed baseline (NWSB) and non-transpiring (stomata fully closed) baseline (NTB), namely using wet and dry reference, and using the linear segment in the plot of dT_LL (the lower limit of canopy-air temperature difference) vs. VPD (vapor pressure deficit). For example, Wang et al. [44] established the CWSI empirical model for winter wheat planted in Luancheng area, Hebei Province, China, by using wet and dry reference to establish NWSB and NTB. However, to ensure the monitoring effect of crop water stress, it is necessary to select the wet and dry reference position in practical applications carefully. Taghvaeian et al. [42] established the CWSI empirical model for maize planted in Northeastern Colorado, USA by using the linear segment in the plot of dT_LL vs. VPD. Compared to using wet and dry reference, it is easier to establish NWSB and NTB by using the linear segment in the plot of dT_LL vs. VPD in practical applications.

As the key parameter to estimate CWSI, Tc conventionally relies on manual or continuous point measurements [4,31,50]. However, the ground-based handheld thermometer approach is labor-intensive, costly, and impractical when monitoring large areas; furthermore, water stress status at the agricultural fields commonly has spatial variability due to spatially heterogeneous biophysical conditions between plants or even within a plant [51,52,53,54]. To monitor crop water stress and its spatial variability at a field scale, several researchers started to obtain CWSI maps based on a UAV remote-sensing system. Bellvert et al. [55] characterized the spatial variability in water status across vineyards by CWSI maps. The results showed that the CWSI maps thus obtained by UAV thermal imagery were effective in assessing the spatial variability of water stress across the vineyard. Zhang et al. [30] evaluated cotton water stress and its spatial variability by UAV thermal remote-sensing system. The results showed that the R² between CWSI and leaf stomatal conductance of cotton planted in Yangling, Shaanxi, China was 0.84.

However, due to the load capacity limitation of UAV platforms, the thermal infrared sensors currently mounted are mostly lightweight uncooled thermal infrared cameras that have the problems of unstable canopy temperature acquisition, low mosaic precision (e.g., number of tie-points, number of geolocated images and mean re-projection error etc.) and needing complex pretreatments (e.g., radiometric calibration, temperature correction and canopy temperature extraction) [17,56]. Compared to the thermal infrared system, a UAV-based multispectral remote-sensing system has the advantages of stable information acquisition and mature mosaic technology. It could be a supplement to ground-based infrared thermometry to obtain CWSI maps with a high spatial-temporal resolution at the field scale.

A vegetation index (VI), which is the mathematical operation result of reflectivity of vegetation and other ground objects in the corresponding band [57], can be used to monitor surface vegetation condition. VI has been successfully applied to land cover classification, environmental change, and drought monitoring [33]. Water stress could affect crop canopy structure, photosynthesis and leaf moisture content. VIs used to monitor crop water stress can be divided into four categories: structure index, chlorophyll index, lutein index and moisture index [8]. The structure and chlorophyll indices based on visible, near infrared and red-edge bands are more widely used, such as normalized difference vegetation index (NDVI) [58], renormalized difference vegetation index (RDVI) [33], soil-adjusted vegetation index (SAVI) [59], optimization of soil-adjusted vegetation index (OSAVI) [60], transformed chlorophyll absorption in reflectance index (TCARI) [60]. To reduce the sensitivity of TCARI to canopy structure changes, TCARI/OSAVI was used by Haboudane et al. [60]. When structure index was used to describe canopy structure, its effect would be affected by the soil, crops, and planting structure. To reduce the sensitivity of TCARI to canopy structure changes, in this study NDVI, RDVI, SAVI and OSAVI were used, respectively.

To map maize water status and monitor its spatial variability at a farm scale, in this study, the CWSI empirical model was developed by the ground-based data and high-resolution UAV-based multispectral images of maize under various levels of deficit irrigation at different growth stages. The linear segment in the plot of dT_LL vs. VPD was used to establish the NWSB and NTB. VIs related to water stress derived from multispectral imagery were used to establish CWSI inversion model. Since, the local conditions, irrigation technique, and management practices can greatly influence the applicability of remote sensing systems for water status evaluation. The specific objectives of this study were:

(1)

To develop the NWSB and NTB for maize under the weather condition in Ordos, Inner Mongolia, China;

(2)

To evaluate UAV-based multispectral VIs that are sensitive to maize water stress and establish CWSI regression models;

(3)

To obtain CWSI maps with high spatial-temporal resolution at the field scale using the CWSI regression models.

2. Materials and Methods

2.1. Study Site

This study was conducted in a 1.13 ha research field (40°26′0.29″N, 109°36′25.99″E, Elev. 1010 m), located in Zhaojun Town, Dalate Banner, Ordos, Inner Mongolia, China. Soil samples at the depths of 30, 60 and 90 cm were collected from the sampling plot (yellow circle in Figure 1a) to estimate the field hold capacity (volumetric) which were 13.6%, 13.2% and 12.3%, respectively. The average permanent wilting point of the soil profile was assumed to be 5.6% (volumetric) according to Lv et al. [61]. The soil bulk density was 1.56. The mixture of soil samples at the depths of 30, 60 and 90 cm were used to estimate other soil characteristics. The soil type was a loamy sand (80.7% sand, 13.7% powder, and 5.6% clay), using the United States Department of Agriculture soil taxonomy. The soil pH, organic matter and C content were 9.27, 47.17 g/Kg and 27.35 g/Kg, respectively. Maize (Junkai 918) was planted on 20 May 2017, with 0.58 m row spacing and 0.25 m plant spacing and the row direction was East-West. The maize emerged on June 1, headed on July 20, was harvested on September 7 (silage) with a 110-day lifespan.

2.2. Experimental Design

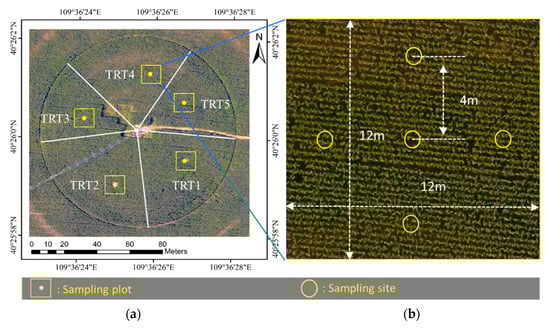

The study field was divided into five treatment (TRT) regions (Figure 1a) with different levels of deficit irrigation at the crop late vegetative, reproductive and maturation growth stages. A 12 × 12 m² area within each TRT region was chosen as a sampling plot for the TRT (Figure 1a) and data collection from five sampling sites within the sampling plot were indicated in Figure 1b. The non-stressed crop evapotranspiration (ET) was estimated by reference evapotranspiration and single crop coefficient approach [62]. The crop coefficient was equal to 0.55, 1.09 and 0.45 in the initial, mid-season and late-season development stages. The total crop water requirement of the full watered maize during the late vegetation, reproductive and maturation stages was 407 mm which was close to the total applied water (402 mm) of the control treatment region (TRT 1). Therefore, different levels of deficit irrigation were described by the percentages of applied water depth of TRT 1 during the late vegetation, reproductive and maturation stages. For example, during the late vegetation stage, 84% of the applied water depth at TRT 1 was applied to TRT 2 (

Table 1. Experimental treatments and total applied water depth (percentage of full irrigation treatment in parentheses) that includes amount of irrigation and precipitation in the late vegetative, reproductive and maturation stages in 2017.

Treatment	Applied Water Depth/mm
	Late Vegetative (07.04–07.28)	Reproductive (07.29–08.20)	Maturation (08.21–09.07)	Total
TRT 1	188 (100%)	132 (100%)	82 (100%)	402
TRT 2	158 (84%)	128 (97%)	43 (52%)	329
TRT 3	158 (84%)	125 (95%)	43 (52%)	326
TRT 4	158 (84%)	91 (69%)	23 (28%)	272
TRT 5	158 (84%)	124 (94%)	82 (100%)	365

)

Irrigation was applied during the growing season by using a center pivot sprinkler system (Valmont Industries, Inc., Omaha, NE, USA) that has two spans and one end gun with a total length of 143.7 m. More detailed information about the center pivot sprinkler system can be found in Li et al. [63]. The uniformity test of water application of the center pivot irrigation system was conducted in accordance with the standard ANSI/ASAE S436.1 and ISO 11545. The coefficient of uniformity of the first span (research field) calculated by the modified formula of Heermann and Hein [64] was 82.7% under a walking speed of 20% of the full speed and 88.3% under a walking speed of 40% of the full speed using R3000 sprinklers. The amount of water applied to each treatment was measured and recorded by MIK-2000H flow meters (Meacon Automation Technology Co., Ltd, Hangzhou, China). The actual amount of irrigation and rainfall at each grown stage were shown in Table 1. In order to eliminate the interference of nutritional stress and weeds, fertilizer and herbicide were applied according to the planting experience.

2.3. Measurement of Maize Canopy Temperature

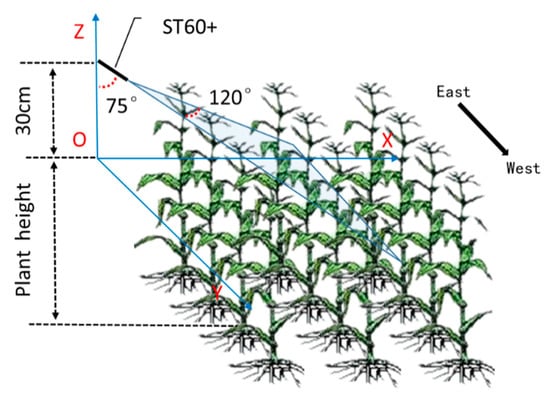

Maize canopy temperature (Tc) and UAV multispectral data were synchronously collected under clear sky conditions between 11:00–13:00 local time (Chinese standard time, 11:44–13:44) during the study period (2017.08.06~29, including the reproductive and maturation stages). Tc was measured by a handheld infrared thermometer (RAYTEK, ST60+, Raytek Inc, Santa Cruz, CA, USA). The temperature range and spectral range were −32–600 °C and 8–14 μm, respectively. The measurement error was ±1% of reading or ±1 °C, the lager value was adopted in the practical application. The emissivity value was set to 0.97. To avoid the interference of the soil, the handheld infrared thermometer was used to sweep the canopy (about 120°) perpendicular to the row with 30 cm above the canopy and 15° horizontal angle (Figure 2). At each sampling site three measurements of Tc were taken and the average value of these three readings was used to represent the sampling site. The average value of Tc measured at the five sampling sites (yellow circle in Figure 1b) was used to represent the status of the sampling plot. During each data collection day, a total of 15 canopy temperature measurements were obtained for each sampling plot. During the reproductive and maturation stages, the average plant heights were 263, 258, 252, 253 and 261 cm for TRTs 1~5, respectively.

2.4. Meteorological Data

The field air temperature and relative humidity (Ta_f and RH_f) of each sample plots was obtained by a handheld hygrometer (Klimalogg Pro, TFA, Germany). During the study period Ta_f and RH_f were measured synchronously with Tc at a height of 2.2 m above the ground. The average of Ta_f and RH_f collected at the five sampling sites (Figure 1b) represented the status of one sampling plot. The weather data were measured at an automated weather station adjacent to the research field, which included rainfall, Ta and RH, net solar radiation, and wind speed (2 m above the reference grass surface). In addition to rainfall, the data acquisition interval was 30 min. The main mean meteorological data during the study period including reproductive stage (07.29–08.20) and maturation stage (08.21–29) were shown in

Table 2. The main mean meteorological data during the study period including the reproductive stage and maturation stages in 2017.

Parameter	Reproductive (07.29–08.20)	Maturation (08.21–29)
Mean air temp./°C	22.11	17.21
Max. air temp./°C	31.31	25.46
Min. air temp./°C	13.61	9.24
Min. relative humidity/%	29.78	33.23
Mean net solar radiation/MJ·m−2·day−1	10.98	3.00
Mean wind speed/m·s−1	0.47	0.28

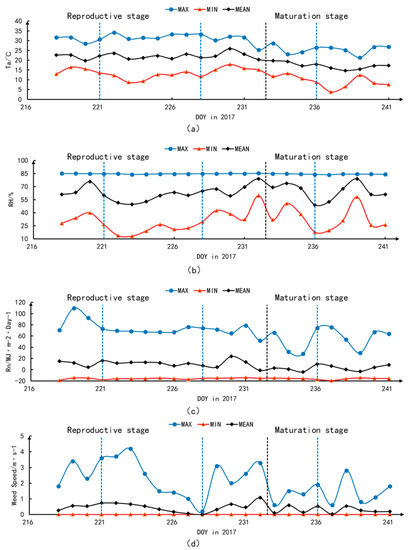

. The changing curves of meteorological data were shown in Figure A1.

2.5. Soil Water Content Data

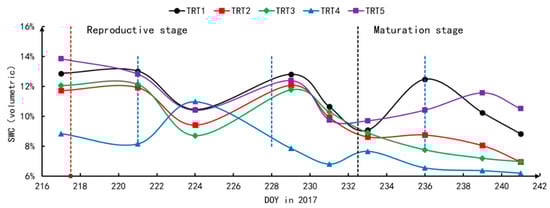

Soil water content (SWC) was measured two or three times each week on the days before or after irrigation in each sampling plot by the traditional gravimetric method. At each sampling plot, three sampling locations were randomly chosen around the center. At each sampling site, soil samples at the depths of 30, 60 and 90 cm were collected by using soil augers. Soil samples were put in aluminum boxes to avoid the influence of evaporation. An electronic balance (DJ-2000A, Suzhou Jiangdong Precision Instrument CO., Ltd., Suzhou, China) with a measurement accuracy of 0.01 g was used to measure the weight of the aluminum boxes with and without soil samples. After weighting, uncapped aluminum boxes were dried to a constant weight by putting in an oven under 105 °C. SWC (volumetric) could be calculated by using Equation (1):

$$SWC=\frac{W_1-W_2}{W_2-W_3}\times 1.56$$

(1)

where W₁ presents the weight of aluminum box and soil sample before drying; W₂ presents the weight of aluminum box and soil sample after drying; W₃ presents the weight of aluminum box without soil sample; 1.56 is the specific soil bulk density of this study site. The changing curve of the average SWC (volumetric) at the depths of 30, 60 and 90 cm during the reproductive and maturation stages is shown in Figure 3.

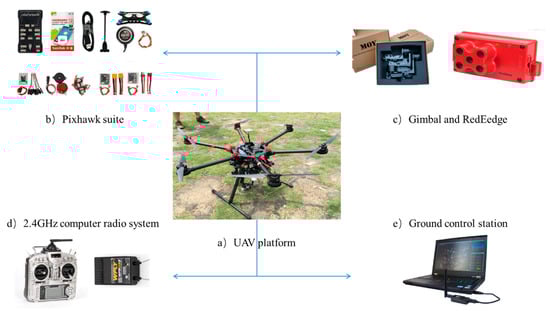

2.6. Unmanned Aerial Vehicle (UAV) Multispectral System and Data Collection

Three types of UAV remote-sensing systems are generally used to collect agricultural information, namely fixed-wing, single-rotor and multi-rotors UAVs [65]. When selecting a kind of UAV platform, factors such as takeoff requirements, coverage area, load capacity, wind resistance, and cost and maintenance cost are needed to be considered [56]. In this study, a hexacopter UAV multispectral remote-sensing system (Figure 4) was developed with a Pixhawk autopilot (CUAV, Guangzhou, China), a RedEdge multispectral camera (MicaSense, Inc., WA, USA) and a MOY brushless gimbal (Moyouzhijia, Huizhou, China). This system had the advantages of easy to takeoff and land, low operation cost and maintenance cost. The core of the UAV system was a Flight Control board, Pixhawk, based on one 32 bit STM32F427 Cortex M4 core with float point unit and one 32 bit STM32F103 failsafe co-processor, which communicated with the six brushless controllers by six two-wire bi-directional wires (pulse width modulation). Pixhawk integrated two gyroscopes, two accelerometers, one magnetometer, and one barometer. The gimbal maintained the multispectral camera under a relatively stable state during the flight to obtain good quality multispectral images. The flight planning was conducted with ground control station software, Mission Planner, which allowed the user to generate a route of waypoints as a function of the sensor field of view (FOV), the degree of overlap between images and the ground resolution needed. Mission Planner could also display real-time flight data. Its main technical parameters were shown in

Table 3. Main parameters of UAV multispectral image acquisition system.

Parameter		Value
UAV	Wheelbase	900 mm
	Takeoff weight	6 kg
	Payload	2 kg
	Flight time	18 min
	Communication radius	3 km
	Speed	5 m/s
RedEdge	Camera	MicaSense RedEdge
	Imager resolution	1280 × 960 pixels
	Imager size	4.8 mm × 3.6 mm
	Spectral bands	Blue (475 nm), Green (560 nm), Red (668 nm), Near infrared (IR) (840 nm), Red-edge (717 nm)
	Lens focal length	5.5 mm fixed lens
	Lens field of view	47.2° horizontal field of view (HFOV)
	Weight	150 g
	Dimension	121 mm × 66 mm × 46 mm

.

During the study period (2017.06.20~08.29), eleven UAV flights were conducted on sunny day between 11:00–13:00 local time (Chinese standard time, 11:44–13:44) with the RedEdge camera lens vertically downwards, and 80% heading and side overlap. The flight height, speed and ground sample distance were 70 m (relative flying height), 5 m/s and 4.7 cm, respectively; 2185 images (5 bands) were collected during a single flight and Pix4DMapper software was used for image mosaicking. The multispectral images of diffuse reflector (reflectivity 58%, size 3 × 3 m, Group VIII, USA) collected simultaneously at the same height were used to perform radiometric correction. Then, spectral reflectance of the objects was obtained.

2.7. Vegetation Indices’ Selection and Calculation

To establish a regression mode between UAV-based multispectral VI and CWSI, nine VIs, NDVI, RDVI, SAVI, OSAVI, TCARI, TCARI/NDVI, TCARI/RDVI, TCARI/SAVI, and TCARI/OSAVI were selected. Their calculation formulas are as follows:

$$NDVI=\frac{{\rho }_{nir}-{\rho }_{red}}{{\rho }_{nir}+{\rho }_{red}}$$

(2)

$$RDVI=\frac{{\rho }_{nir}-{\rho }_{red}}{\sqrt{{\rho }_{nir}+{\rho }_{red}}}$$

(3)

$$SAVI=\frac{(1+0.5)\ast ({\rho }_{nir}-{\rho }_{red})}{{\rho }_{nir}-{\rho }_{red}+0.5}$$

(4)

$$OSAVI=\frac{(1+0.16)\ast ({\rho }_{nir}-{\rho }_{red})}{{\rho }_{nir}-{\rho }_{red}+0.16}$$

(5)

$$TCARI=3\left[({\rho }_{rededge}-{\rho }_{red})-0.2({\rho }_{rededge}-{\rho }_{green})\ast ({\rho }_{rededge}/{\rho }_{red})\right]$$

(6)

where ${\rho }_{nir}$, ${\rho }_{red}$, ${\rho }_{rededge}$ and ${\rho }_{green}$ are reflectance values of ground objects in near-infrared, red, red-edge and green bands. A linear regression analysis between CWSI and VI was conducted to obtain the VI vs. CWSI regression model based on CWSI and VI of sampling plots. For statistical analysis, R programming language (R-3.4.3, https://www.r-project.org/) and the lm() function were used. The coefficient of determination (R²) and root mean square error (RMSE) were used as evaluating indicators.

2.8. Crop Water Stress Index (CWSI) Calculation

The empirical CWSI could be calculated by using Equations (7)–(10):

$$CWSI=\frac{d{T}_m-d{T}_{LL}}{d{T}_{UL}-d{T}_{LL}}$$

(7)

where $d{T}_m$, $d{T}_{LL}$, $d{T}_{UL}$ are actual measurement, lower limit and upper limit of canopy-temperature difference, respectively. The upper and lower limit canopy-air temperature difference are the so-called non-water-stressed baseline (NWSB) and non-transpiring baseline (NTB). They could be calculated by Equations (8) and (9) [22,37]:

$$d{T}_{LL}=m\times VPD+b$$

(8)

$$d{T}_{UL}=m\times VPG+b$$

(9)

where m, b are slope and intercept, respectively; VPD (vapor pressure deficit) is related to Ta and RH, and calculated by the following Equation (10) with the description of Walter et al. [66]:

$$VPD=0.6108\times \exp (\frac{17.27T_a}{T_a+237.3})\times (\frac{100-RH}{100})$$

(10)

where Ta is air temperature, RH is relative humidity. Vapor pressure gradient (VPG) is the change of VPD when the Ta increase by b, and calculated by the following Equation (11):

$$VPG=0.6108\times \exp (\frac{17.27(T_a+b)}{(T_a+b)+237.3})\times (\frac{100-RH}{100})-VPD$$

(11)

where b is the intercept in Equations (8) and (9). When CWSI is 0, it indicates no water stress, while CWSI is 1, it indicates most severe stress.

After effective irrigation/rainfall, it is assumed that the soil water deficit is fully replenished and crop could obtain sufficient water. Thus, non-water-stressed condition exist and Tc-Ta values could be regarded as the values of the lower limit of canopy-air temperature difference [29,42]. Graph of hourly $d{T}_{LL}$ vs. VPD has a linear segment that extended for 2 h before and 2 h after the solar noon. This linear segment could be extracted to obtain the coefficients of Equations (8) and (9) by using simple linear regression [42,67]. In this study, after effective irrigation/rainfall, clear sky sunny days were chosen to continuously collect (local time 10:00~14:00, with an interval of 15 min) Tc, Ta_f and RH_f in the full irrigation region (TRT1) during the reproductive and maturation stages. During the reproductive stage, 9 August and 16 August 2017 (clear sky sunny day, day of year (DOY) 221 and 228) were chosen and 28 groups of samples (Tc, Ta_f and RH_f) were obtained. During the maturation stage, 24 August, 2017 (clear sky sunny day, DOY 236) was chosen and 13 groups of samples were obtained. When drawing the $d{T}_{LL}$~VPD scatterplot, three-step moving average was used to reduce volatility according to Idso (1981) [48], making the fitting curve could represent the lower limit of Tc-Ta better under different saturated VPD.

3. Results

3.1. Non-Water-Stressed Baselines (NWSBs) and Non-Transpiring Baselines (NTBs) of CWSI

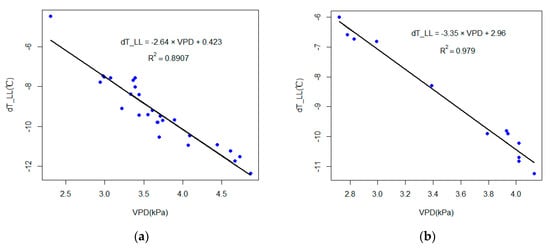

It was observed that the slope and intercept of NWSB changed in the maturation stage. A similar observation was made by previous researchers among crops, such as sunflower [43,68], wheat [69], barley [69] and maize [70]. Hence, different NWSBs were developed in this study for the reproductive and maturation stages. The dT_LL vs. VPD scatterplots were shown in Figure 5a and Figure 5b, respectively. The corresponding NWSBs were shown as Equations (12) and (13). The average NWSBs of the reproductive and maturation stages were −11.0 °C and −8.9 °C, rose by 2.1 °C. In calculating CWSI, the NTB is estimated using the same coefficients developed for NWSB, and using VPG instead of VPD. The change in NWSB coefficients from the reproductive to maturation stage resulted a small change in NTB estimations. The average NTBs of the reproductive and maturation stages were 0.7 °C and 0.8 °C, with a rise of 0.1 °C. Taghvaeian et al. [42,67] also showed a negligible variation when to estimate maize NTB in northern Colorado.

$$d{T}_{LL}=-2.64\times VPD+0.42 (R^2=0.89)$$

(12)

$$d{T}_{LL}=-3.35\times VPD+2.96 (R^2=0.98)$$

(13)

3.2. CWSI of Maize

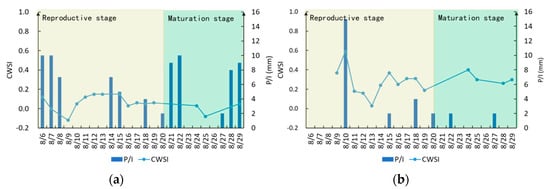

Finally, the CWSI empirical model was obtained by using Tc, Ta_f and RH_f collected in the sampling plot. Figure 6 depicts the daily changes of CWSI and irrigation/rainfall events for the TRT 1 (Figure 6a) and TRT 4 (Figure 6b) during 2017.08.06~29. CWSI decreased after irrigation/rainfall, reached a minimum around the third day and then slowly increased, responding well to irrigation/rainfall events. When irrigation/rainfall was less, no more than 4 mm, CWSI did not change significantly. The average CWSI for the different levels of deficit irrigation in the reproductive and maturation stages had a clear numerical gradient (

Table 4. Mean CWSI for each deficit irrigation treatment during the reproductive and maturation stages in 2017.

Treatment	Reproductive (08.06–08.20)	Maturation (08.21–08.29)
TRT 1	0.07	0.03
TRT 2	0.12	0.14
TRT 3	0.09	0.12
TRT 4	0.27	0.32
TRT 5	0.05	0.03

). For example, the average CWSI was 0.11 and 0.27 for TRT 1 and TRT 4 in the reproductive stage, respectively. The average CWSI was 0.03, 0.14 and 0.32 for TRT 1, TRT 2, and TRT 4 in the maturation stage, respectively.

3.3. Vegetation Indices

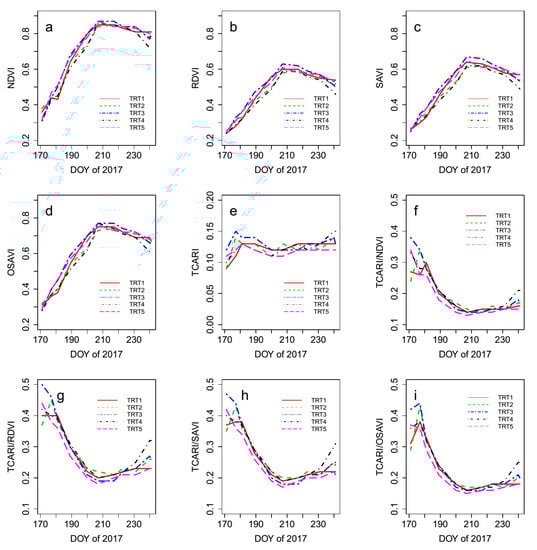

Figure 7 shows the changes of NDVI, RDVI, SAVI, OSAVI, TCARI, TCARI/NDVI, TCARI/RDVI, TCARI/SAVI, and TCARI/OSAVI during DOY 171–241 (20 June—29 August 2017). Since NDVI, RDVI, SAVI, and OSAVI were closely related to the canopy structure; they increased with the growth of maize and reached the maximum on DOY 207 (26 July), decreased with the gradual maturity of maize. Previous studies showed that maize reaches full cover at a SAVI value of 0.64 [42,71]. SAVI of each deficit irrigation region was greater than 0.61 on DOY 207, meaning maize canopy had reached effective coverage. NDVI had the slowest decline rate and the other three VIs were relatively close. Before the effective coverage of canopy (DOY 207), NDVI, RDVI, SAVI, and OSAVI did not effectively distinguish deficit irrigation treatments. For example, During DOY 185 (the start of deficit irrigation) to 206, the RDVI values of TRT 1, TRT 3 and TRT 5 were 0.76, 0.74 and 0.73, respectively, with small difference no more than 0.03. The RDVI values of TRT 2 and TRT 4 were 0.69 and 0.67 with a small difference of 0.02. There was clear difference between TRT 3 and TRT 4 that had the same deficit irrigation level (84%) with a difference value of 0.07. However, when the canopy reached effective coverage, NDVI, RDVI, SAVI, and OSAVI started to show obvious differences between different deficit irrigation treatments, especially in the maturation stage. For example, during the maturation stage (DOY233~241), the RDVI values of TRT1 and TRT5 (100%), TRT2 and TRT3 (52%), and TRT4 (28%) were 0.54 and 0.54, 0.52 and 0.51, and 0.47, respectively. There was a clear numerical gradient among different levels of deficit irrigation treatments.

In the case of TCARI, there were no significant changes during DOY 171–241. At the late reproductive and maturation stages (DOY 231–241), different levels of deficit irrigation treatments could be distinguished gradually by TCARI. Similar to NDVI, RDVI, SAVI, and OSAVI, TCARI/NDVI, TCARI/RDVI, TCARI/SAVI and TCARI/OSAVI which normalized by NDVI, RDVI, SAVI and OSAVI, changed with the growth of maize, reached minimum when the canopy reached effective coverage (DOY 207), and then slowly increased. Before the canopy reached effective coverage, they could not effectively distinguished water stress. However, when canopy reached effective coverage, they started to distinguish deficit irrigation treatments gradually.

3.4. Correlations between Vegetation Indices (VIs) and CWSI

Table 5. Coefficient of determination (R²), root mean square error (RMSE) from different predictions with CWSI vs. nine VIs based on VIs and CWSI data from three (DOY 231, 240 and 241) or four (DOY 223, 231, 240 and 241) days.

Vegetation Index	Three Corresponding Data		Four Corresponding Data
	R2 (n = 15)	RMSE	R2 (n = 20)	RMSE
Structural
NDVI	0.72 ***	0.046	0.34 **	0.063
RDVI	0.81 ***	0.038	0.29 *	0.065
SAVI	0.81 ***	0.037	0.27 *	0.066
OSAVI	0.74 ***	0.044	0.29 *	0.065
Chlorophyll
TCARI	0.55 **	0.058	0.35 **	0.062
TCARI/NDVI	0.69 ***	0.048	0.42 **	0.059
TCARI/RDVI	0.81 ***	0.037	0.47 ***	0.056
TCARI/SAVI	0.80 ***	0.039	0.50 ***	0.055
TCARI/OSAVI	0.77 ***	0.041	0.46 **	0.057

* p < 0.05; ** p < 0.01; *** p < 0.001.

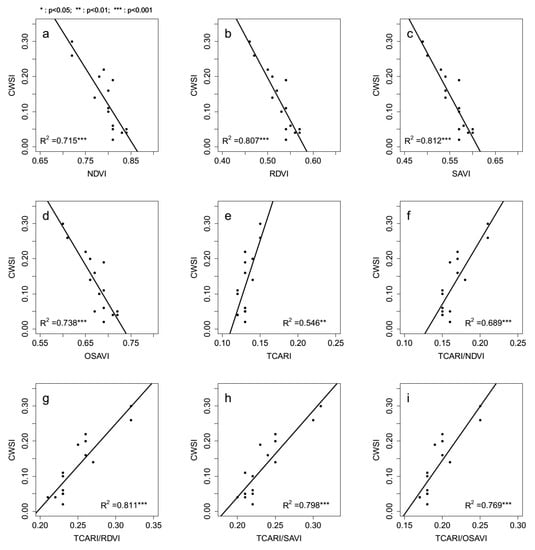

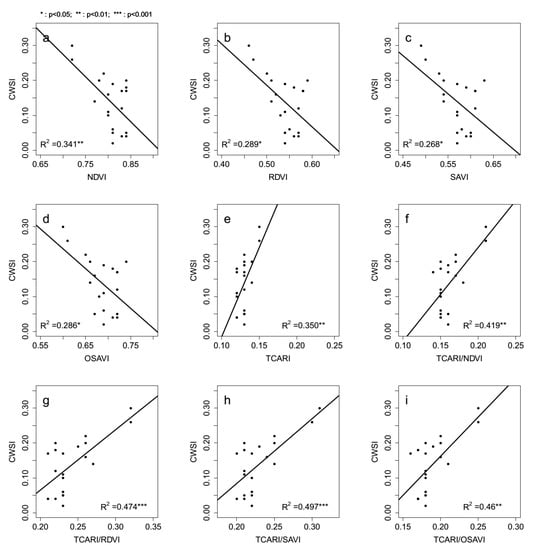

shows a description of correlations between nine VIs and CWSI (corresponding scatter plots are shown in Figure A2 and Figure A3). When VIs and CWSI data from four days (DOY 223, 231, 240 and 241) in the reproductive and maturation stages were used to perform linear regression analysis, R² were all less than 0.50. Among the four canopy structure VIs, NDVI had the best relationship (R² = 0.34, p < 0.01). In the case of the five chlorophyll-related VIs, they all had a relatively better correlation (all R² were greater than 0.35). Both TCARI/RDVI and TCARI/SAVI had significant correlation with CWSI (p < 0.001) and R² were greater than 0.47. When VIs and CWSI data from three days (DOY 231, 240 and 241) in the late reproductive and maturation stages were used, the correlations were significantly improved except for TCARI. All R² were greater than 0.68 (p < 0.001). TCARI/RDVI and TCARI/SAVI had the best relationship (both R² ≥ 0.80, p < 0.001) Therefore, this paper choose TCARI/RDVI and TCARI/SAVI to establish linear regression models between VI and CWSI. To rescale the CWSI value between 0 and 1, the linear regression models were shown as Equations (14) and (15), respectively.

$$CWSI-1=\{\begin{array}{cc}0& (TCARI/RDVI\le 0.195)\hfill \\ 2.41\ast (TCARI/RDVI)-0.47& (0.195<TCARI/RDVI<0.609)\hfill \\ 1& (0.609\le TCARI/RDVI)\hfill \end{array}$$

(14)

$$CWSI-2=\{\begin{array}{cc}0& (TCARI/SAVI\le 0.182)\hfill \\ 2.46\ast (TCARI/SAVI)-0.45& (0.182<TCARI/SAVI<0.589)\hfill \\ 1& (0.589\le TCARI/SAVI)\hfill \end{array}$$

(15)

3.5. Maize Water Stress Maps Based on UAV Multispectral Remote-Sensing Imagery

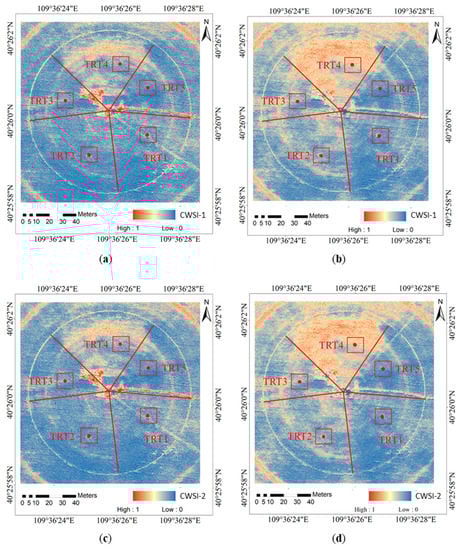

Equations (14) and (15) were used to retrieve maize water stress maps based on UAV TCARI/RDVI and TCARI/SAVI maps (Figure 8) for the reproductive (DOY 231) and maturation (DOY 240) stages.

Table 6. Comparison of CWSI values (at DOY 231 and DOY 240) using two different methods. (1) CWSI values calculated by on-site measurements within each sampling plot, and (2) CWSI values retrieved from CWSI vs. VI regression models (Equations (14) and (15)). CWSI-1 and CWSI-2 were the average value of the entire treatment region.

Treatment	Reproductive (DOY 231)			Maturation (DOY 240)
	CWSI	CWSI-1	CWSI-2	CWSI	CWSI-1	CWSI-2
TRT 1	0.06	0.09	0.09	0.02	0.11	0.11
TRT 2	0.04	0.08	0.08	0.20	0.18	0.18
TRT 3	0.05	0.09	0.09	0.14	0.23	0.22
TRT 4	0.19	0.19	0.18	0.26	0.40	0.39
TRT 5	0.04	0.08	0.08	0.10	0.13	0.12

shows the comparison of CWSI values (at DOY 231 and DOY 240) using two different methods. In the first method, CWSI values were calculated by on-site measurements within each sampling plot, and in the second method, CWSI values, CWSI-1 and CWSI-2, retrieved from CWSI vs. VI regression models (Equations (14) and (15)). The value of CWSI-1 and CWSI-2 was the average value of the entire treatment region.

4. Discussion

Previous research has reported that one of the drawbacks of CWSI empirical model was the variability of NWSB [26,48,72,73]. Idso et al., (1981) reported that different crops had their own unique NWSBs. Even for the same crop, NWSB will consequently change at different locations. For instance, the slopes of maize NWSBs established at different locations vary from −1.10 to −3.77 °C/kPa, and the corresponding intercepts vary from 0.42 to 3.11 °C. Most previous researchers ascribe this change to the following factors:

(1)

Climate variables [45,74,75,76], such as radiation and wind speed;

(2)

Ta, RH measurement sitting [28,67,72], for example, Taghvaeian et al. [43] found that if Ta and RH sensor was installed at full irrigation region, larger NWSB for sunflower would have been assigned to deficit irrigation region;

(3)

Tc monitoring instrument and its measure method [26,72];

(4)

Specific hybrid differences [72,73], but previous studies have also suggested that the same NWSBs can be used for similar varieties of maize [67] and wheat [77].

Many previous researchers have also observed that the coefficients of NWSB among annual crops will change in different grown stages, such as maize, wheat, barley and sunflower. Idso et al. [69] reported that the NWSBs of wheat and barley shifted significantly, as they move from the vegetative to reproductive stage. The change of wheat and barley NWSBs was ascribed to the seed-heads that absorbed the radiant energy, converted it into sensible heat, and provided a very effective aerodynamic barrier against the transfer of sensible heat to the transpiring surfaces. Taghvaeian et al. [43] and Nielsen [68] also observed significant differences in the coefficients of sunflower NWSBs during the reproductive and maturation stages. The difference of sunflower NWSBs was attributed to the decrease in sunflower transpiration and increase in head temperature after sunflower transitioned into maturation stage. A similar observation was made by this study when to establish NWSBs for maize during the reproductive and maturation stages.

When trying to explain the difference of NWSBs among annual crops in different grown stages, previous researchers focused on the change of crop physiological characteristics, but ignored the change of microclimate, such as Ta and RH. In this study, compared to the reproductive stage, the average daily maximum temperature in the maturation stage decreased from 31.31 °C to 25.46 °C and average daily minimum relative humidity increased from 29.78% to 33.23%, with a decrease of 5.85 °C and an increase of 3.45%, respectively (Table 2). The average daily maximum temperature and average daily minimum relative humidity had a similar changing trend in the study of Taghvaeian et al. [43]. Figure 9a shows the changing trend of VPD along with Ta and RH. The increase of RH and decrease of Ta will lead to a decrease of VPD. This result will lead to a decrease in transpiration rate of crops under well-watered conditions, which means the difference between Tc and Ta will lower. In other words, the decrease in VPD will lead to an increase in NWSB. In this study, compared to the reproductive stage, VPD decreased in the maturation stage with average value of 0.8 kPa, and NWSB increased with average value of 2.1 °C.

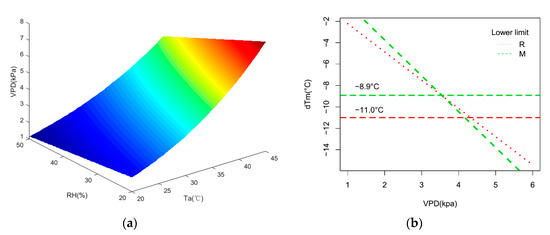

In general terms, plants under well irrigation condition have specific non-water stress lines that corresponding to average CWSI values. Previous studies about the use of the CWSI as a water stress indicator in olive and vineyards orchards have indicated that average CWSI in a well irrigation condition was less than 0.5 [4,16,40,78]. For maize, in this study, average CWSI values were no more than 0.12 in the reproductive stage, and a much smaller average CWSI, a value of 0.03, in the maturation stage. An interesting result could be found that average CWSI value for maize under full irrigation condition, the non-water stress line, was much smaller, compared to the reproductive stage. The same average CWSI calculated by on- site measurements represented more serious water stress in the maturation stage than the reproductive stage. For example, the average CWSI of TRT 2 in the reproductive stage was 0.12, while the average CWSI of TRT 3 in the maturation stage was also 0.12, with 45% water applied difference. The average CWSI of TRT 4 in the reproductive stage was 0.27, while the average CWSI of TRT 4 in the maturation stage was 0.32. 43% water applied difference corresponded to a 0.05 difference of CWSI value. Similar phenomenon had been observed by Han Ming et al. [26] for maize in Greeley, CO, USA. In the reproductive stage, average CWSI values were no more than 0.16, and 0.5 in the maturation stage. This phenomenon may be explained in two ways:

(1)

The change of maize physiological characteristics and microclimate from the reproductive to the maturation stage causes significant difference in NWSBs and insignificant difference in NTBs.

(2)

The crop and soil characteristics in the field have significant variability in each deficit irrigation treatment regions. One sample plot could not represent the entire treatment region well (Figure 8). Santesteban et al. [79] had also found that an 18-year-old vineyard under same irrigation condition and without significant pets and diseases had significant variability in water status.

Previous studies in the vineyard have indicated that multispectral VIs acquired from remote-sensing images have a significantly high correlation with water stress indicators, revealing the potential to assess water stress and its variability by using multispectral VIs. Espinoza et al. [80] found a high correlation (r = 0.65, p < 0.01) between GNDVI and stomatal conductance. Baluja et al. [81] found a R² value of 0.68 (n = 10) from the linear regression between NDVI and stem water potential. Zarco-Tejada et al. [33] found a R² value of 0.77 (n = 9) between PRI_norm and CWSI. However, the relationship between UAV multispectral VIs and CWSI is not well documented for maize.

In this study, a higher significantly correlation between VIs acquired from UAV multispectral images and CWSI was found. In particular, compared to CWSI, the R² values of TCARI/RDVI and TCARI/SAVI were 0.81 and 0.80 (n = 15) in the late reproductive and maturation stages. A similar observation was made by Baluja et al. [81] in a commercial vineyard, with the R² values of TCARI/OSAVI were 0.58 and 0.84 (n = 10) compared to stem water potential and stomatal conductance, respectively. The results showed that TCARI/OSAVI were probably reflecting the result of cumulative water deficits, and hence a long-term response. In this study similar results were found, namely, when using UAV multispectral VIs to estimate maize water stress, their effects was influenced by the extended period of water stress. With the prolongation of water stress, UAV multispectral VIs could better distinguish different levels of deficit irrigation treatments (Figure 7). A similar phenomenon was also found by Espinoza et al. [80], Li et al. [82] and Zulini et al. [83]. Perhaps, this could explain that the R² values of VIs-CWSI were higher in the late reproductive and maturation stages (DOY 231, 240 and 241) than in the reproductive and maturation stages (DOY 223, 231, 240 and 241) (Table 5). However, Zarco-Tejada et al. [84] found that TCARI/OSAVI was less correlated with leaf stomatal conductance and water potential in Citrus orchards, with the R² values of 0.45 and 0.51. The reason for the different observations might be that TCARI/OSAVI are more related to plant vigor than the plant dynamic physiological status, with the result that it might correlate well in crops where the biomass proportionally increases in parallel to photosynthesis, however, in the case of evergreen crop species, results were not so satisfactory [85].

TCARI/OSAVI, similar to TCARI/RDVI and TCARI/SAVI in this study, was established by Haboudane et al. [60] to make accurate predictions of maize chlorophyll content from hyperspectral remote-sensing imagery in Canada. The results showed that TCARI/OSAVI was both very sensitive to chlorophyll content variations and very resistant to the variations of leaf area index (LAI). The results of Zarco-Tejada et al. [86] in vineyard showed that TCARI/OSVAI was also correlated with xanthophyll and the carotenoid content with R² value of 0.51 (p < 0.01). Under water stress condition, transpiration rate of crop may reduce, resulting a reduction of cooling effect [87,88]. To avoid damage to the tissues, crops need to reduce the absorption of light and dissipate the extra energy through the reduction of chlorophyll b and the interconversion of the xanthophyll cycle pigments, respectively [89]. Therefore, the correlations of TCARI/OSAVI with chlorophyll and xanthophyll content may be the crop physiological basis of why TCARI/OSAVI family of indices could monitor crop water stress status. Future, related research is still needed.

From the CWSI maps retrieved by TCARI/RDVI and TCARI/SAVI, we could find that the water stress status of maize in each irrigation treatment had spatial variations. Compared to CWSI calculated by on-site measurements, CWSI based on VI-CWSI regression models could better reflect water stress conditions of maize in the field scale. Taking CWSI-2 as an example, the average CWSI-2 could reflect TRT 4 (69%) and TRT 1(100%) in the reproductive stage, with the values of 0.18 and 0.09, respectively; and could reflect TRT4 (28%), TRT2 and TRT3 (52%), and TRT1 (100%) in the maturation stage, with the value of 0.39, 0.18 and 0.22, and 0.11, respectively. Compared with CWSI calculated by on-site measurements, CWSI-2 was more reasonable (Table 6).

5. Conclusions

As one of the most important remote-sensing platforms, an unmanned aerial vehicle (UAV) system could obtain key information (e.g., water stress status) about a crop at high temporal frequency (1–3 days revisit) and high spatial resolution (centimeter scale). This study investigated whether a UAV-based multispectral remote sensing system could map the water stress status of maize at a farm scale, as a supplement to ground-based empirical crop water stress index (CWSI) model. Since, the local weather condition and management practices can greatly influence the applicability of the empirical CWSI model, changes of the non-water stress baseline (NWSB) and the non-transpiring baseline (NTB) were also analyzed. Our results confirmed that NWSB had a significant difference in the reproductive and maturation stages, however NTB did not change significantly. The shift of NWSB from the reproductive to maturation stage is not only related to the change of maize characteristics (e.g., canopy structure and transpiration rate), but also related to the change of microclimate, such as air temperature and relative humidity. The ratio of transformed chlorophyll absorption in the reflectance index (TCARI) and renormalized difference vegetation index (RDVI), and the TCARI and soil-adjusted vegetation index (SAVI) had high correlations with CWSI. R² values were 0.47 and 0.50 for TCARI/RDVI at the reproductive and maturation stages, respectively; and 0.81 and 0.80 for TCARI/SAVI at the late reproductive and maturation stages, respectively. This study demonstrates the feasibility of mapping maize crop water status and monitoring its spatial variability at a farm scale by using UAV-based multispectral VI-CWSI regression models established in this study. As a future work, research into the influence of other meteorological parameters (e.g., extreme illumination) on the water stress monitoring effect of CWSI will be conducted. What changes of crop physiological characteristics (e.g., the changes of chlorophyll and xanthophyll caused by photoprotection) enable the vegetation index (e.g., TCARI/SAVI) to be used to monitor the water stress status of maize will also be studied.
