Online Correction of the Mutual Miscalibration of Multimodal VIS–IR Sensors and 3D Data on a UAV Platform for Surveillance Applications

Institute of Micromechanics and Photonics, Warsaw University of Technology, 8 Św. A. Boboli St., 02-525 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Remote Sens. 2019, 11(21), 2469; https://doi.org/10.3390/rs11212469
Received: 9 September 2019 / Revised: 17 October 2019 / Accepted: 21 October 2019 / Published: 23 October 2019

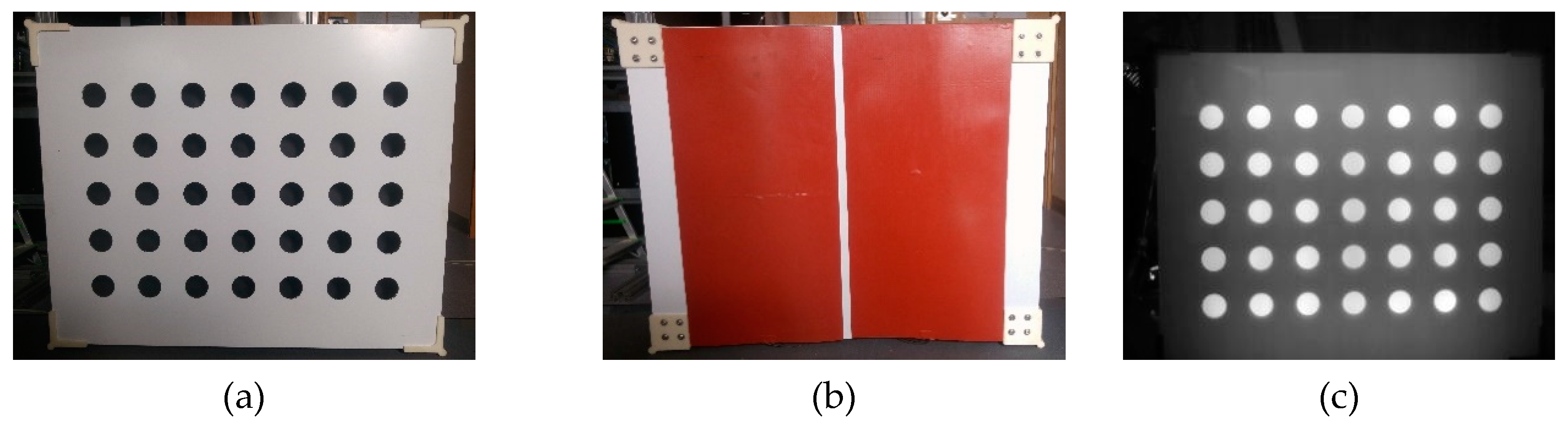

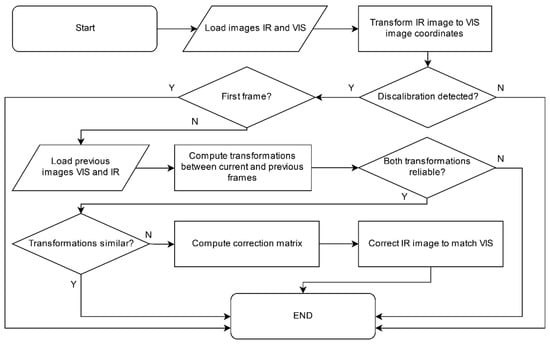

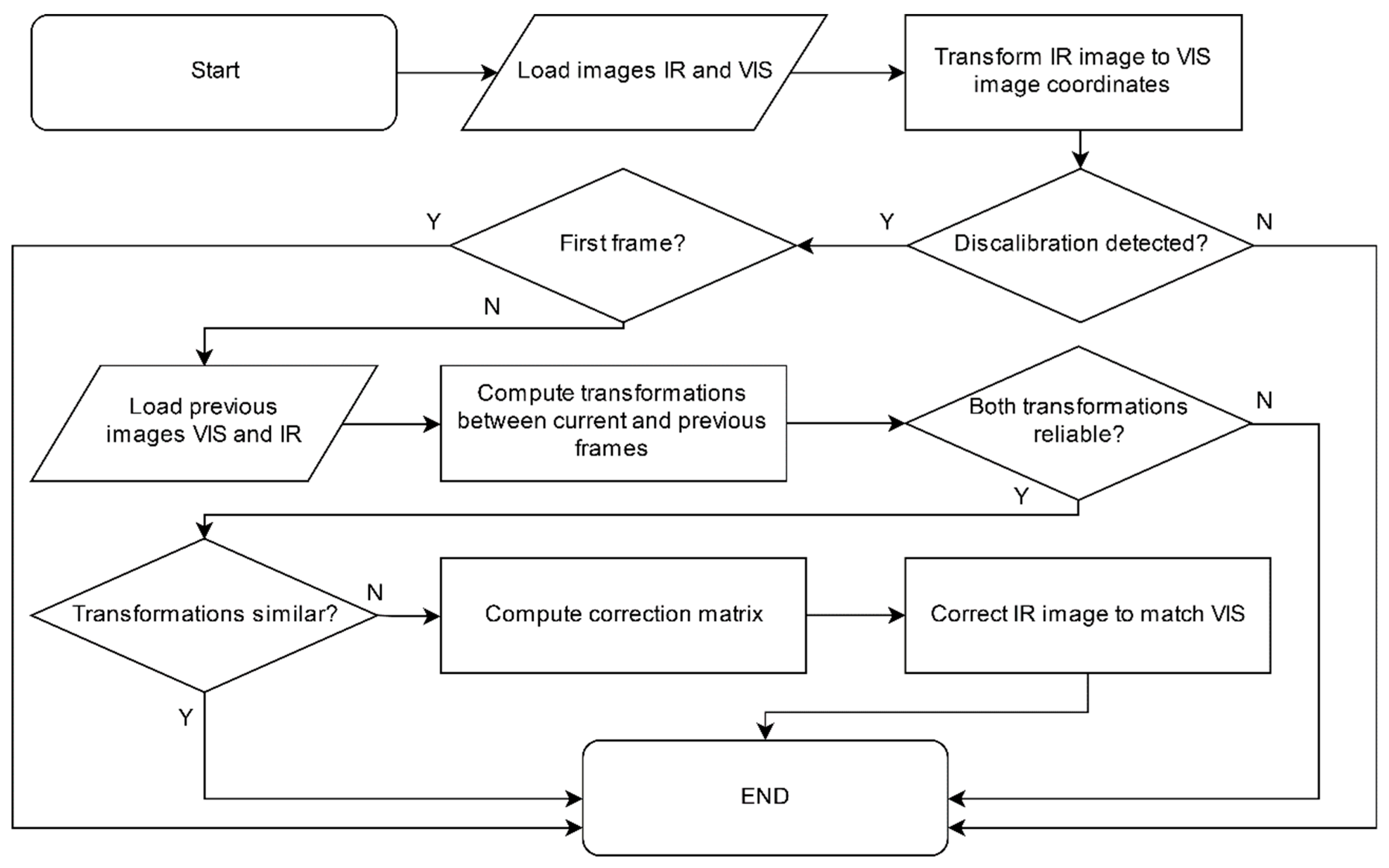

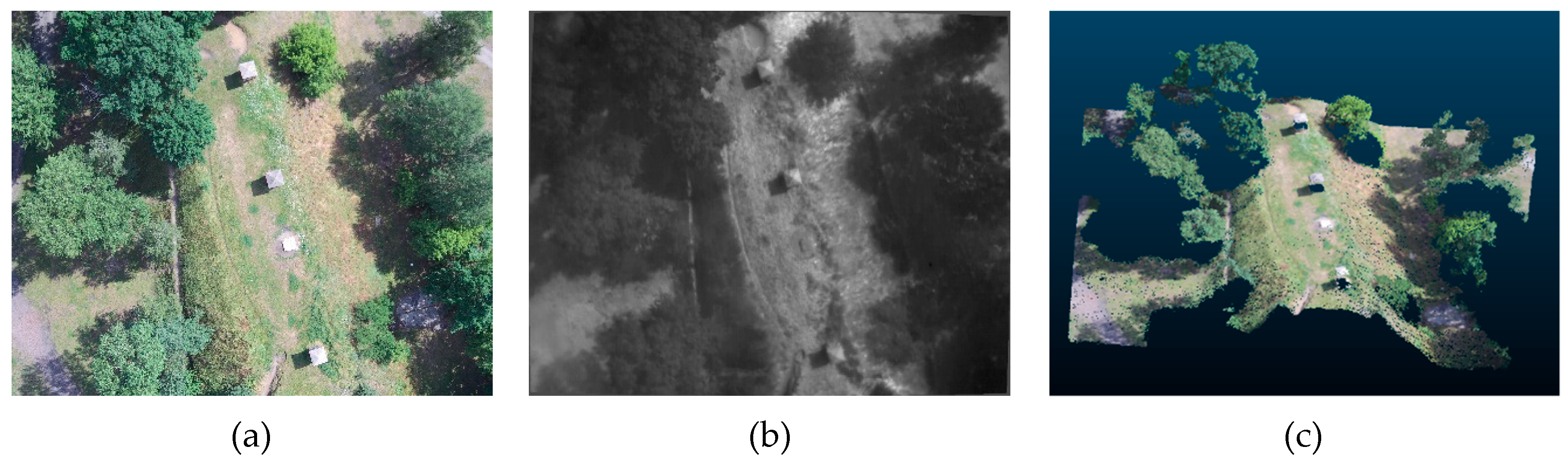

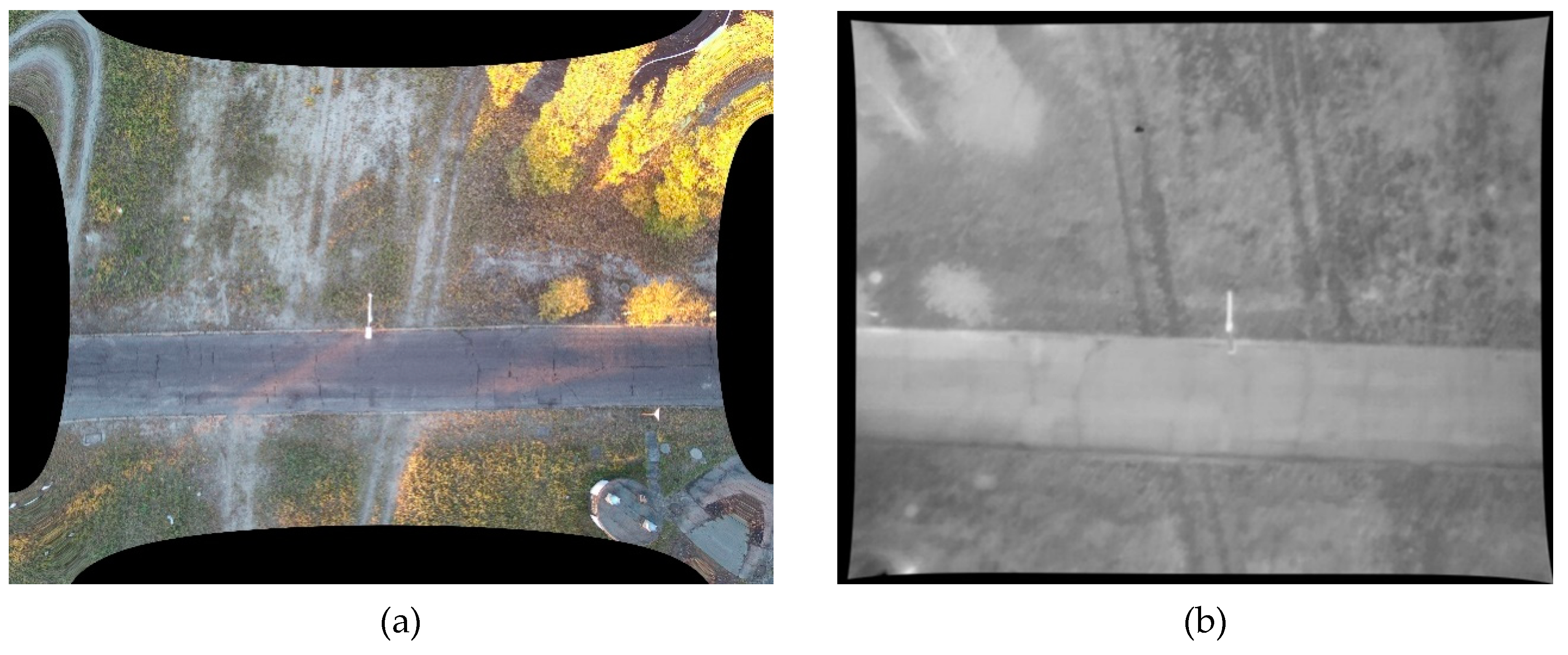

Unmanned aerial vehicles (UAVs) are widely used to protect critical infrastructure objects, and they are most often equipped with one or more RGB cameras and, sometimes, with a thermal imaging camera as well. To obtain as much information as possible from them, they should be combined or fused. This article presents a situation in which data from RGB (visible, VIS) and thermovision (infrared, IR) cameras and 3D data have been combined in a common coordinate system. A specially designed calibration target was developed to enable the geometric calibration of IR and VIS cameras in the same coordinate system. 3D data are compatible with the VIS coordinate system when the structure from motion (SfM) algorithm is used. The main focus of this article is to provide the spatial coherence between these data in the case of relative camera movement, which usually results in a miscalibration of the system. Therefore, a new algorithm for the detection of sensor system miscalibration, based on phase correlation with automatic calibration correction in real time, is introduced. View Full-Text
Keywords: UAVs; calibration; multimodal sensors; thermovision; camera; surveillance UAVs; calibration; multimodal sensors; thermovision; camera; surveillance
Show Figures

Graphical abstract

MDPI and ACS Style

Siekański, P.; Paśko, S.; Malowany, K.; Malesa, M. Online Correction of the Mutual Miscalibration of Multimodal VIS–IR Sensors and 3D Data on a UAV Platform for Surveillance Applications. Remote Sens. 2019, 11, 2469.
