Retrieval of the Fraction of Radiation Absorbed by Photosynthetic Components (FAPARgreen) for Forest Using a Triple-Source Leaf-Wood-Soil Layer Approach

1
State Key Laboratory of Remote Sensing Science, Institute of Remote Sensing and Digital Earth, Chinese Academy of Sciences, Beijing 100094, China
2
College of Geomatics, Xi’an University of Science and Technology, Xi’an 710054, China
3
College of Resources and Environment, University of Chinese Academy of Sciences, Beijing 100049, China
4
State Key Laboratory of Remote Sensing Science, Beijing Key Laboratory of Environmental Remote Sensing and Digital City, School of Geography, Beijing Normal University, Beijing 100875, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2019, 11(21), 2471; https://doi.org/10.3390/rs11212471
Received: 12 September 2019 / Revised: 10 October 2019 / Accepted: 18 October 2019 / Published: 23 October 2019
(This article belongs to the Special Issue Remote Sensing of Biophysical Parameters)

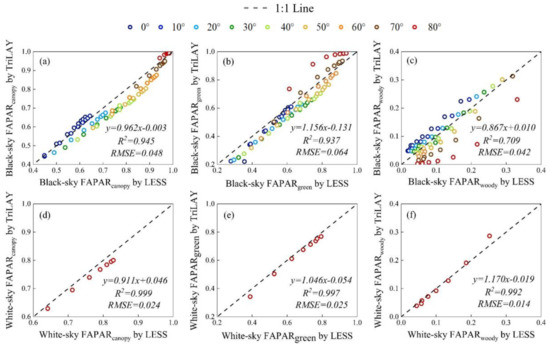

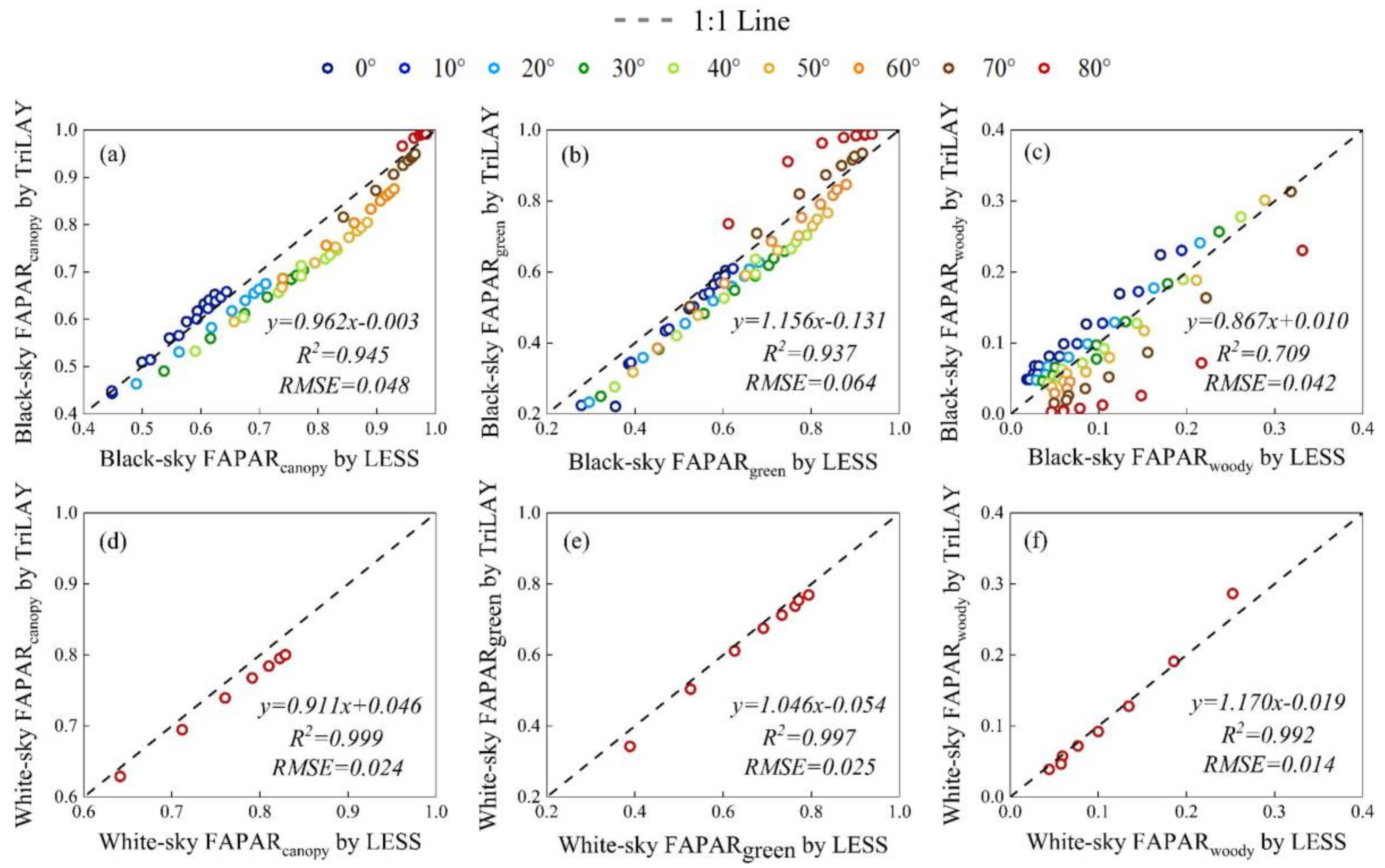

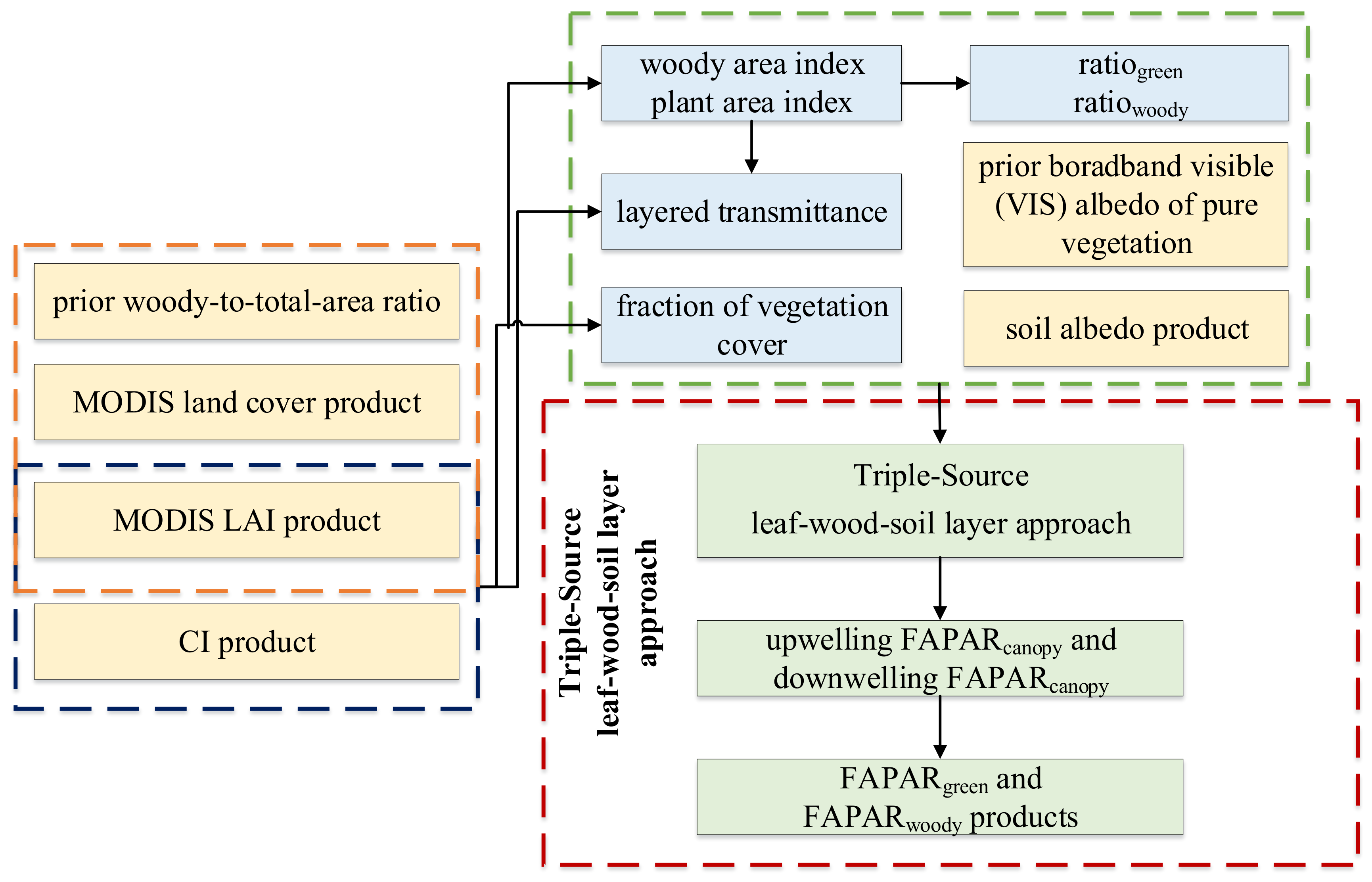

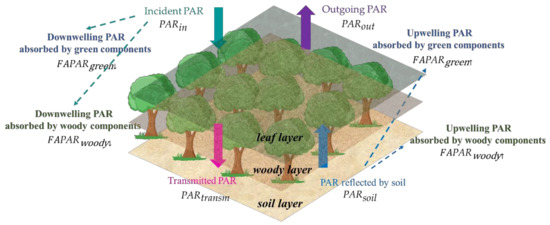

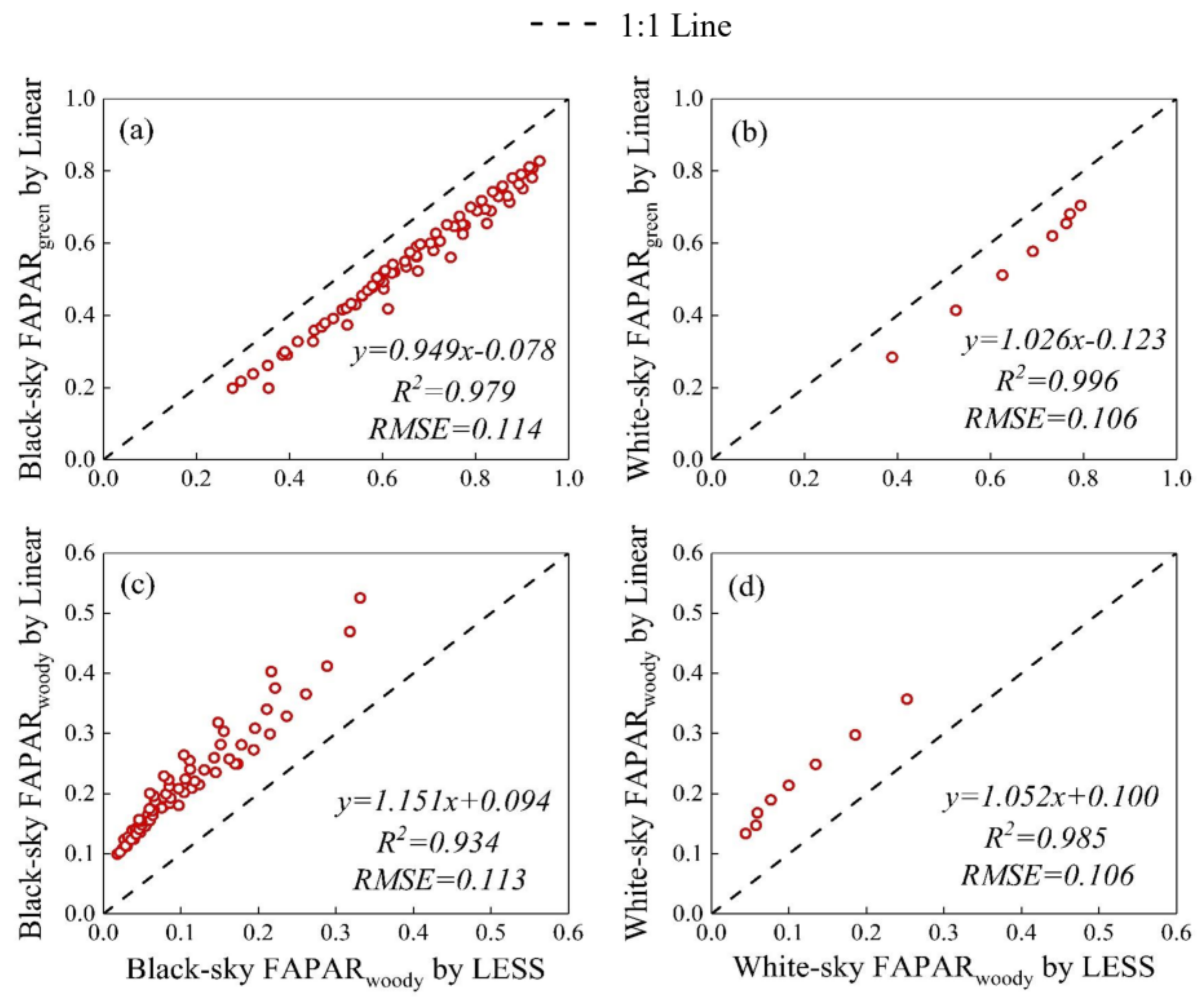

The fraction of absorbed photosynthetically active radiation (FAPAR) is generally divided into the fraction of radiation absorbed by the photosynthetic components ( F A P A R g r e e n ) and the fraction of radiation absorbed by the non-photosynthetic components ( F A P A R w o o d y ) of the vegetation. However, most global FAPAR datasets do not take account of the woody components when considering the canopy radiation transfer. The objective of this study was to develop a generic algorithm for partitioning F A P A R c a n o p y into F A P A R g r e e n and F A P A R w o o d y based on a triple-source leaf-wood-soil layer (TriLay) approach. The LargE-Scale remote sensing data and image simulation framework (LESS) model was used to validate the TriLay approach. The results showed that the TriLay F A P A R g r e e n had higher retrieval accuracy, as well as a significantly lower bias (R2 = 0.937, Root Mean Square Error (RMSE) = 0.064, and bias = −6.02% for black-sky conditions; R2 = 0.997, RMSE = 0.025 and bias = −4.04% for white-sky conditions) compared to the traditional linear method (R2 = 0.979, RMSE = 0.114, and bias = −18.04% for black-sky conditions; R2 = 0.996, RMSE = 0.106 and bias = −16.93% for white-sky conditions). For FAPAR that did not take account of woody components ( F A P A R n o W A I ), the corresponding results were R2 = 0.920, RMSE = 0.071, and bias = −7.14% for black-sky conditions, and R2 = 0.999, RMSE = 0.043, and bias = −6.41% for white-sky conditions. Finally, the dynamic F A P A R g r e e n , F A P A R w o o d y , F A P A R c a n o p y and F A P A R n o W A I products for a North America region were generated at a resolution of 500 m for every eight days in 2017. A comparison of the results for F A P A R g r e e n against those for F A P A R n o W A I and F A P A R c a n o p y showed that the discrepancy between F A P A R g r e e n and other FAPAR products for forest vegetation types could not be ignored. For deciduous needleleaf forest, in particular, the black-sky F A P A R g r e e n was found to contribute only about 23.86% and 35.75% of F A P A R c a n o p y at the beginning and end of the year (from January to March and October to December, JFM and OND), and 75.02% at the peak growth stage (from July to September, JAS); the black-sky F A P A R n o W A I was found to be overestimated by 38.30% and 28.46% during the early (JFM) and late (OND) part of the year, respectively. Therefore, the TriLay approach performed well in separating F A P A R g r e e n from F A P A R c a n o p y , which is of great importance for a better understanding of the energy exchange within the canopy. View Full-Text
Keywords: the fraction of radiation absorbed by photosynthetic components (FAPARgreen); triple-source; leaf area index (LAI); woody area index (WAI); clumping index (CI); Moderate Resolution Imaging Spectroradiometer (MODIS); soil albedo the fraction of radiation absorbed by photosynthetic components (FAPARgreen); triple-source; leaf area index (LAI); woody area index (WAI); clumping index (CI); Moderate Resolution Imaging Spectroradiometer (MODIS); soil albedo
Show Figures

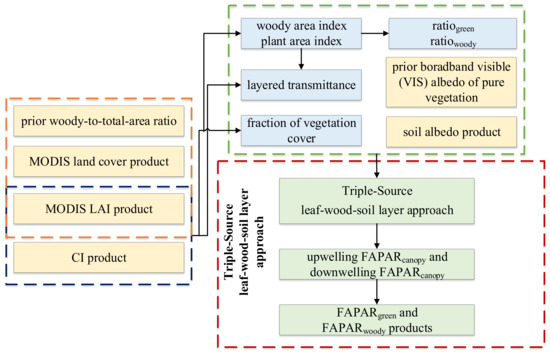

Graphical abstract

MDPI and ACS Style

Chen, S.; Liu, L.; Zhang, X.; Liu, X.; Chen, X.; Qian, X.; Xu, Y.; Xie, D. Retrieval of the Fraction of Radiation Absorbed by Photosynthetic Components (FAPARgreen) for Forest Using a Triple-Source Leaf-Wood-Soil Layer Approach. Remote Sens. 2019, 11, 2471.
