Open AccessArticle

The Use of Sentinel-1 Time-Series Data to Improve Flood Monitoring in Arid Areas

1
German Remote Sensing Data Center (DFD), German Aerospace Center (DLR), Oberpfaffenhofen, D-82234 Wessling, Germany
2
Department of Civil, Geo and Environmental Engineering, Technical University of Munich, D-80333 Munich, Germany
*
Author to whom correspondence should be addressed.
Remote Sens. 2018, 10(4), 583; https://doi.org/10.3390/rs10040583
Received: 21 March 2018 / Revised: 29 March 2018 / Accepted: 30 March 2018 / Published: 9 April 2018
(This article belongs to the Special Issue Remote Sensing of Hydrological Extremes)
  |
PDF [4783 KB, uploaded 3 May 2018]
  |

Abstract

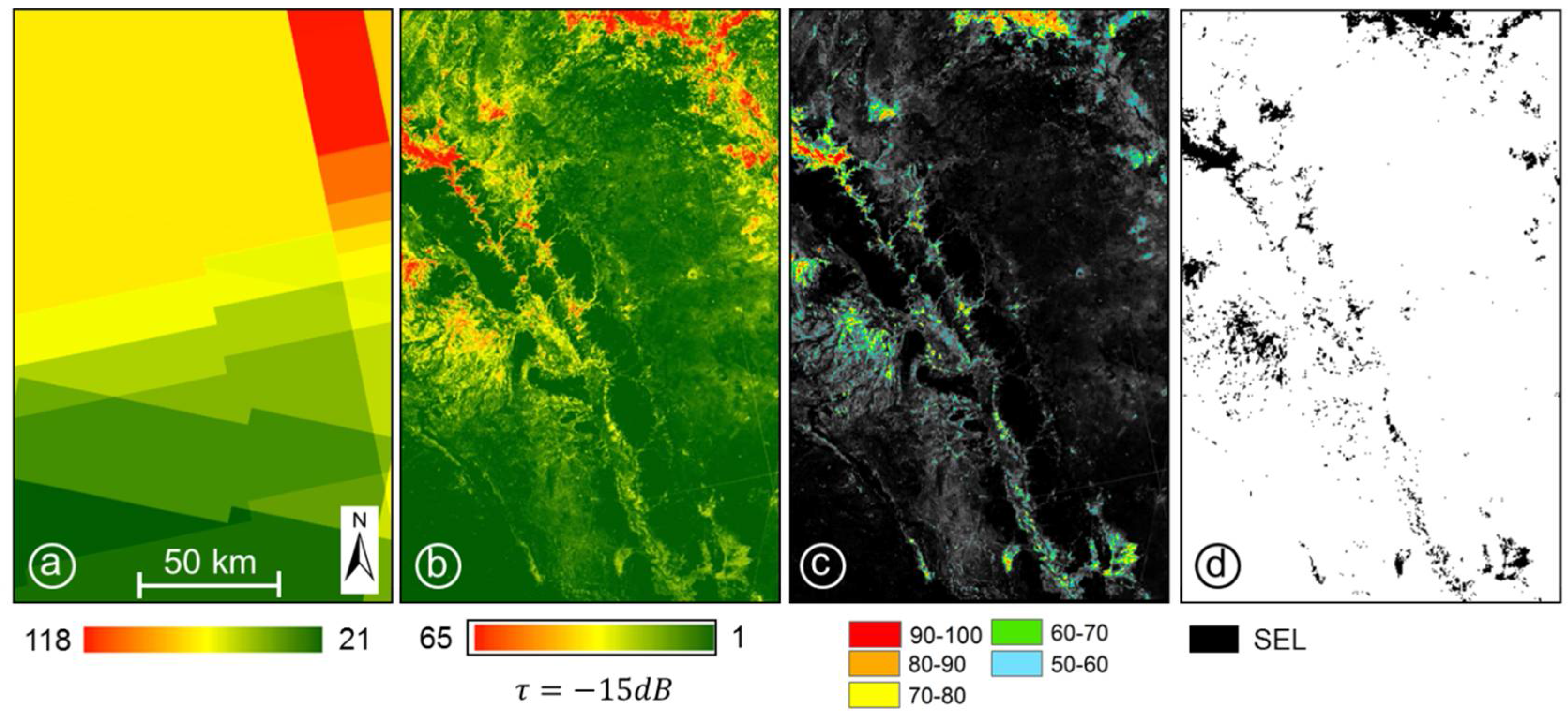

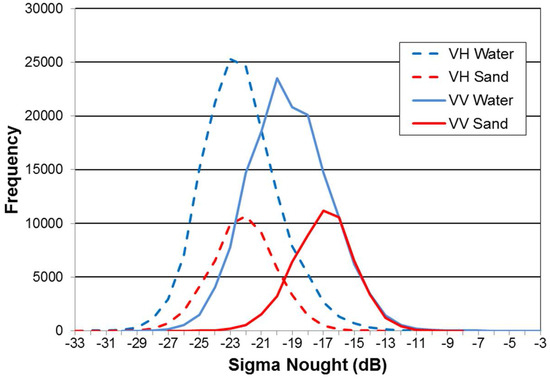

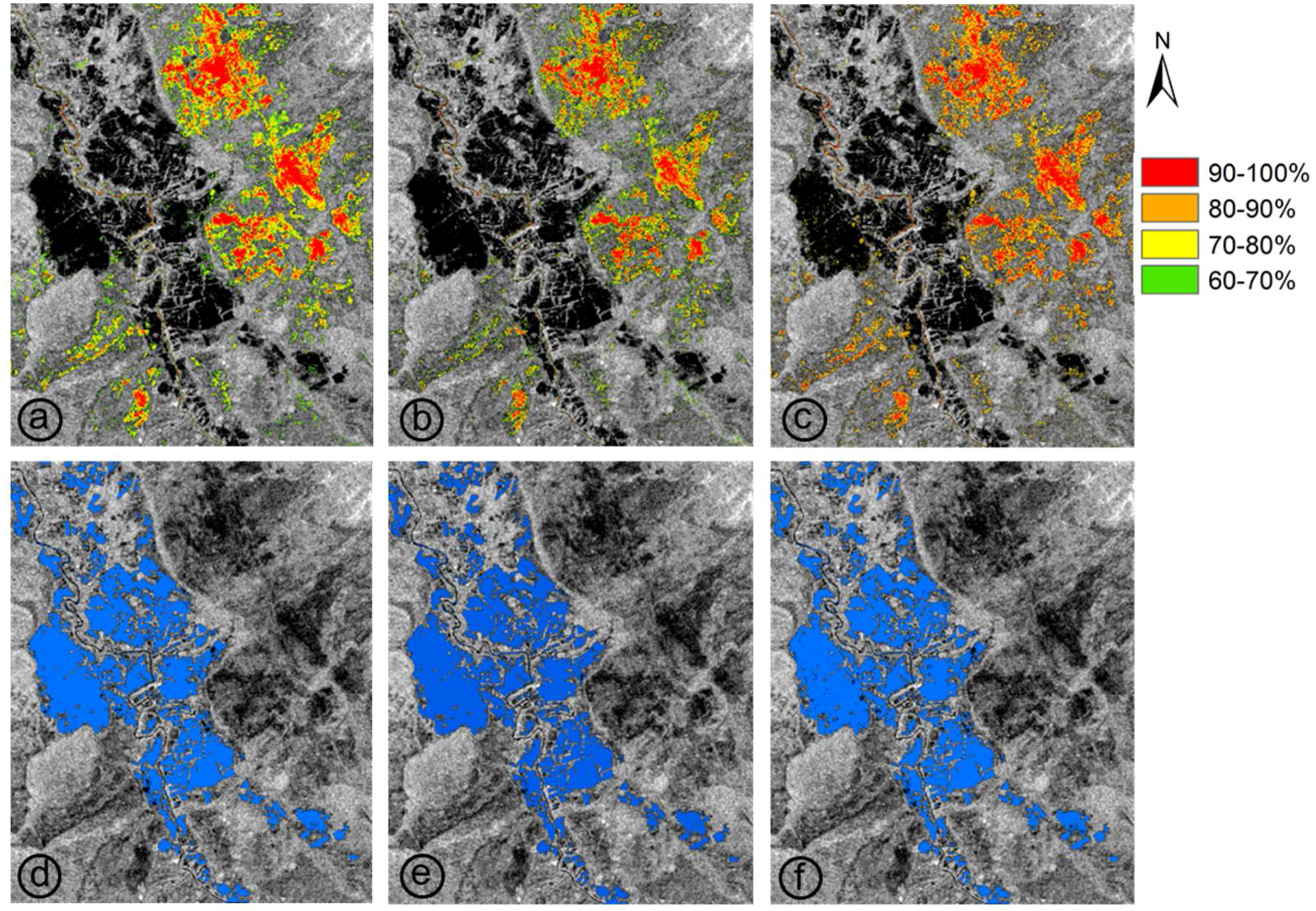

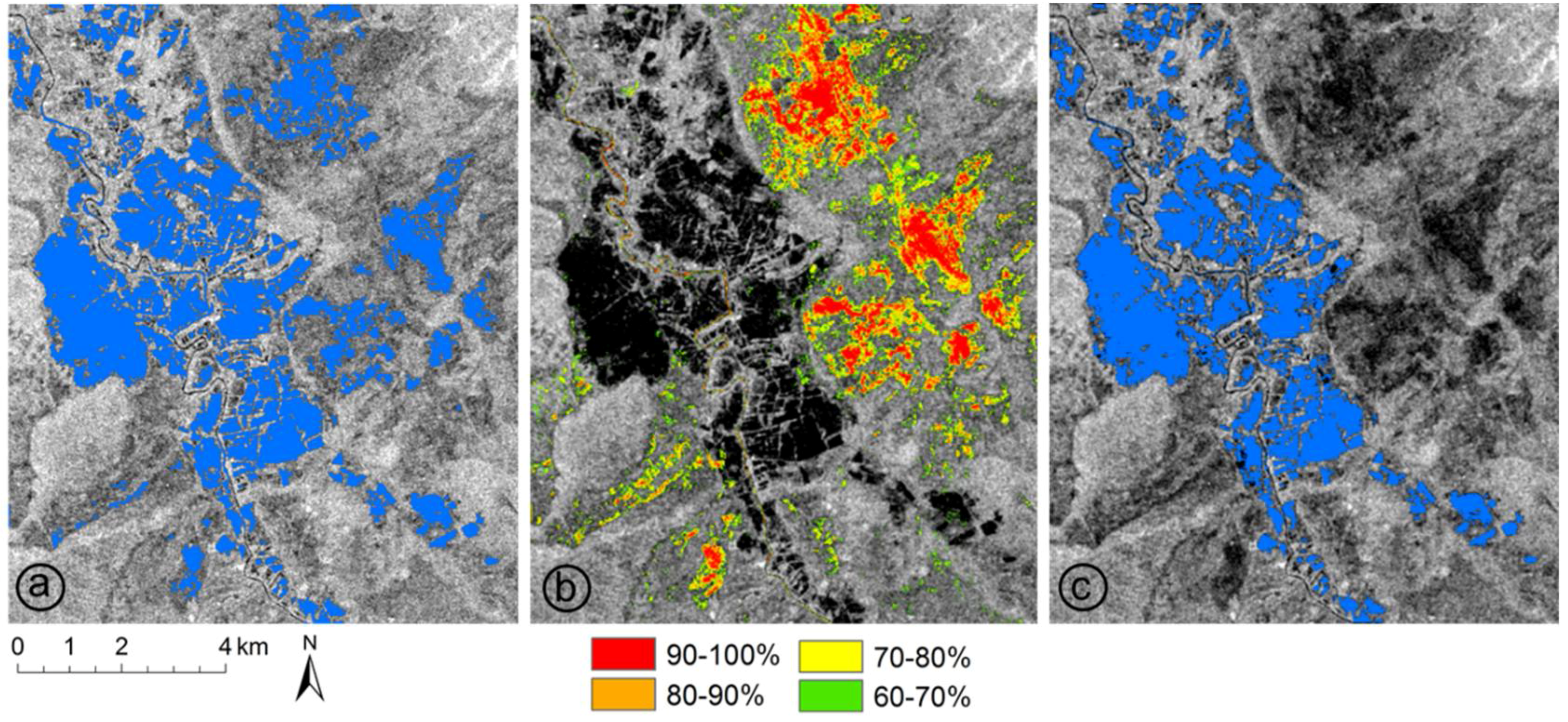

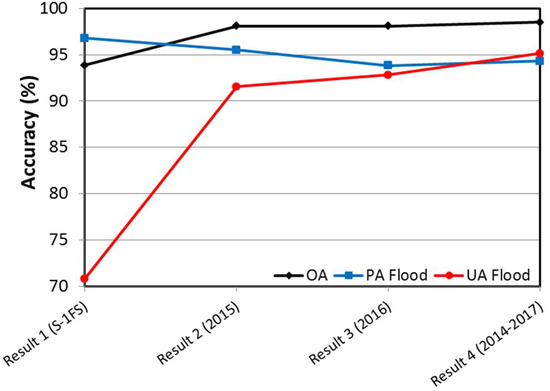

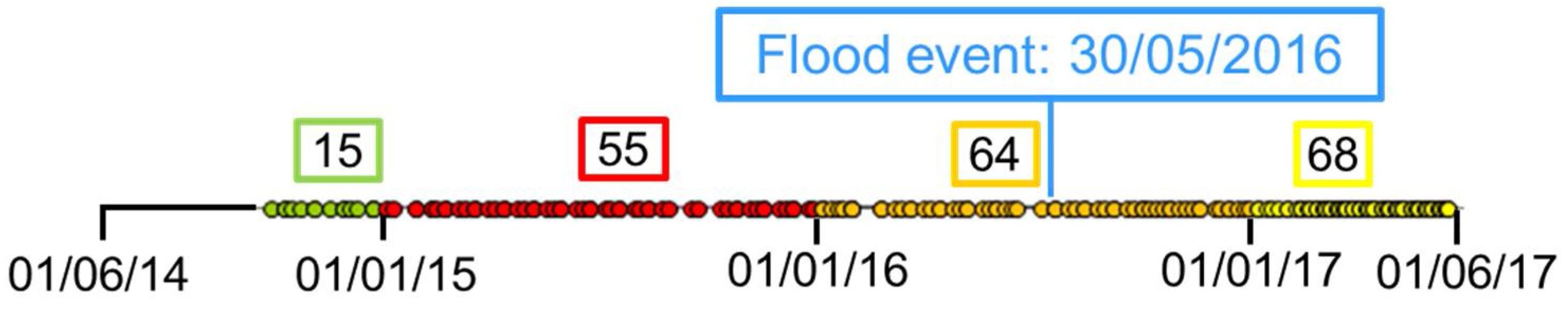

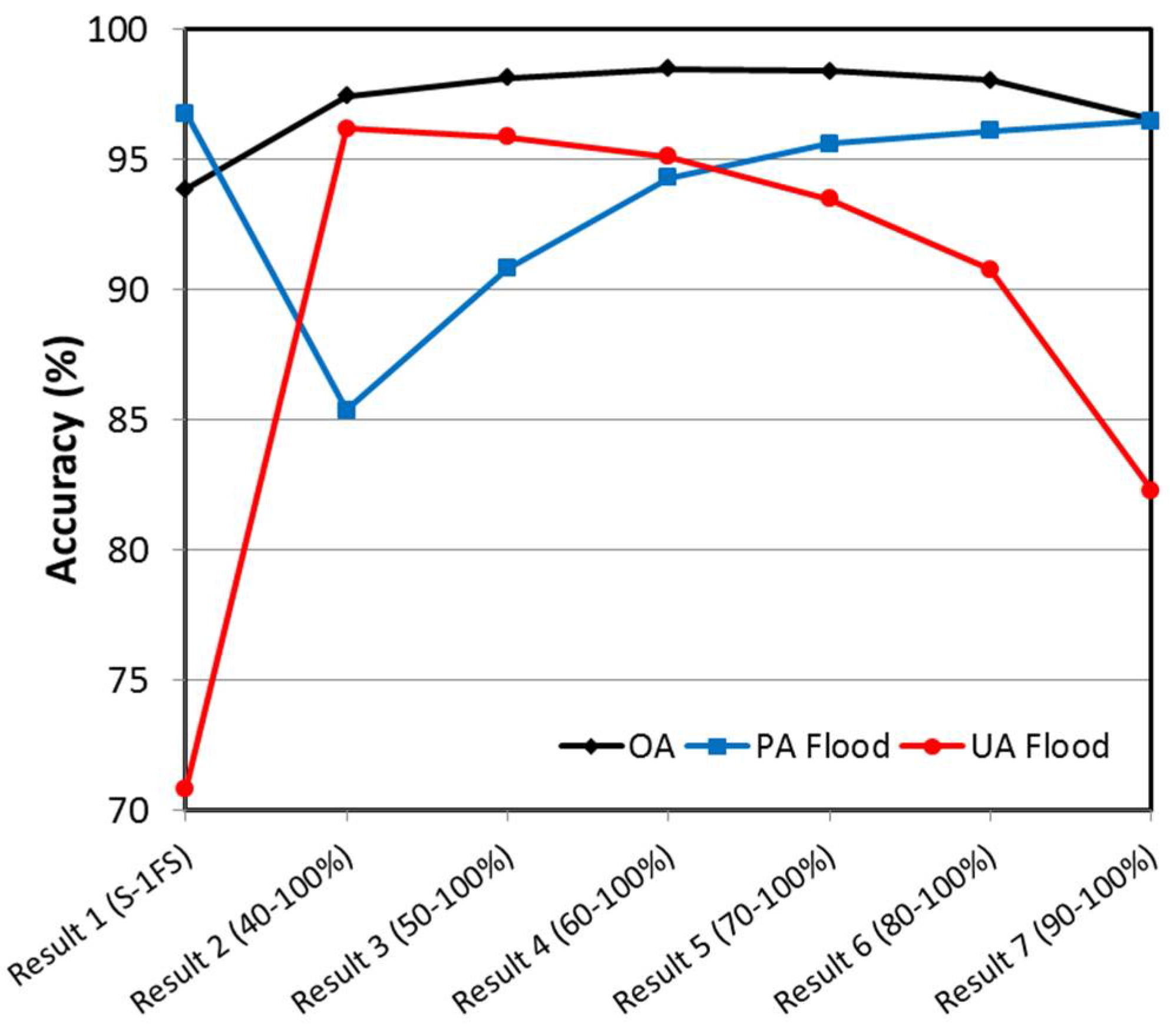

Due to the similarity of the radar backscatter over open water and over sand surfaces a reliable near real-time flood mapping based on satellite radar sensors is usually not possible in arid areas. Within this study, an approach is presented to enhance the results of an automatic Sentinel-1 flood processing chain by removing overestimations of the water extent related to low-backscattering sand surfaces using a Sand Exclusion Layer (SEL) derived from time-series statistics of Sentinel-1 data sets. The methodology was tested and validated on a flood event in May 2016 at Webi Shabelle River, Somalia and Ethiopia, which has been covered by a time-series of 202 Sentinel-1 scenes within the period June 2014 to May 2017. The approach proved capable of significantly improving the classification accuracy of the Sentinel-1 flood service within this study site. The Overall Accuracy increased by ~5% to a value of 98.5% and the User’s Accuracy increased by 25.2% to a value of 96.0%. Experimental results have shown that the classification accuracy is influenced by several parameters such as the lengths of the time-series used for generating the SEL. View Full-Text
Keywords: SAR (Synthetic Aperture Radar); water bodies; inundation; flood detection; Sentinel-1; time-series; sand surfaces; arid areas SAR (Synthetic Aperture Radar); water bodies; inundation; flood detection; Sentinel-1; time-series; sand surfaces; arid areas
Figures

Figure 1
