Improvement of Printability Properties of High-Protein Food from Mealworm (Tenebrio molitor) Using Guar Gum for Sustainable Future Food Manufacturing

Abstract

Increasing the availability of alternative protein from insects is important for solving food shortages. Not only are insects a rich source of protein, but using insect as ingredients could reduce food waste. Insects are thus a potentially valuable ingredient for food industries and even sustainable food. The three-dimensional production of food for future food has gained attention owing to its potential to reduce autonomous food production and produce sustainable food. This study investigated the printability and rheological properties of a high-protein food system derived from mealworms and guar gum used to improve printability. The stability and rheological properties were analyzed for various printing parameters. The results indicate that the yield stress of the mealworm paste dramatically increased (39 to 1096 Pa) with even a small guar gum concentration resulting in an increase (0 to 1.75%). Increasing the guar gum concentration thus resulted in a mealworm paste that had a more significant value of hardness and cohesiveness but reduced adhesiveness (p < 0.05). In conclusion, the addition of guar gum increased viscosity, and caused the paste to exhibit a shear thinning behavior and ability to support itself and was thus more stable. In summary, introducing guar gum resulted in a mealworm paste with rheological properties more suitable for printing in terms of printability and stability.

1. Introduction

There is a demand for sustainable protein sources owing to concerns about a lack of food resources and the environmental effects of agriculture. Many researchers have thus investigated alternative protein sources, one of which is insect protein. Insects have long been consumed in various cultures worldwide, but their potential as a sustainable protein source is only now being recognized on a global scale [1]. Insects are highly nutritious, require minimal resources for production, and emit lower amounts of greenhouse gases than traditional livestock [2]. Insects, with their rich protein content and high feed conversion efficiency, are thus a viable solution for addressing the increasing demand for protein in a sustainable manner.

The mealworm (Tenebrio molitor) is an insect that is bred and eaten in its larval stage. Mealworms have the potential to be an insect-based protein product owing to their rich protein content and nutrition [3]. The larvae have various nutrients such as crude protein (43–46%), crude fat (32–39%), crude fiber (4–11.5%), chitin ash (2–22%), nitrogen-free extract (2.1–2.3%), and various amino acids [4,5,6]. In recent years, human interest in using mealworms as a future food and alternative protein source such as mealworm powder as a food ingredients [7]. Karin et al. [8] reported that mealworms have a nutty flavor that was acceptable to panelists. Many studies have focused on substituting ingredients in food with mealworms. Anna et al. [9], for example, studied mealworm flour substitution in protein-rich crackers and found that the crackers with substituted mealworm flour had higher protein content than the original crackers. Mealworms thus have potential uses in protein-rich products. In addition, mealworm larvae containing a high level of protein readily develop on the detritus of low-nutrient plants [10,11]. Mealworms are thus a potential sustainable food source that can be produced on a large scale. Not only does low-cost production occur during the breeding stage, but the whole mealworm can be consumed without any leftovers. This dual benefit addresses food waste not only during consumption but also in the breeding stage, making mealworm production significantly more environmentally friendly and sustainable for future food production [12]. This approach aligns with the United Nations’ Sustainable Development Goals, specifically contributing to the realization of SDGs such as zero hunger and responsible consumption and production. In a specific application, mealworms are a potential sustainable food source in the human exploration of distant planets and other long-duration human space missions [13] because their rapid growth and rich nutrition enable efficient food production [14]. Jones [15] suggested that the daily consumption of roasted mealworms on a long-duration space mission could reach 14,720 g or 161,920 mealworms, considering that 11 mealworms of medium size have a combined mass of 100 g. The potential use of mealworms as a source of protein in deep-space exploration could therefore alleviate logistical challenges and provide astronauts with a sustainable and locally producible meat source [16].

Moreover, three-dimensional (3D) food printing has the potential to address the challenges posed by the long duration and limited resources of deep-space missions [17]. This technology could enable astronauts to produce customized, nutritious meals on demand using readily available ingredients and to reduce food waste. The adoption of 3D food printing on space missions could reduce the reliance on pre-packaged meals and provide astronauts with diets that are more sustainable and diverse. In addition, 3D food printing enables the creation of intricately designed and personalized meals, catering to specific dietary needs and preferences. Furthermore, 3D food printing can enhance the nutritional content of food through the incorporation of fortified ingredients or alternative protein sources [18]. This technology has the potential to reduce food waste through the efficient use of ingredients and minimization of excess production [19].

The printability of a material is the most important factor affecting 3D food printing [20] and is determined by the rheological properties of the printed material [21]. The rheological properties that affect material behavior are the yield stress, viscosity, shear thinning behavior, storage modulus, and shear recovery [22]. Hydrocolloids, when mixed with water, form a gel or colloidal structure and improve material printability [23].

Guar gum is a hydrocolloid that originates from the seeds of the Cyamopsis tetragonoloba, which belongs to the Leguminosae family [24]. Guar gum has remarkable properties, including its thickening property, enabling excellent water binding, enhancing viscosity, and improving the shear thinning properties of fluids [25]. These characteristics make guar gum an important ingredient in 3D food printing. In addition, guar gum prevents the structural collapse of the printed food in the deposition stage of printing, and thus, guar gum can improve printability with only a small amount of added guar gum [26]. Moreover, guar gum cannot cause unintentional gelation. The gel may stick at the tip of the print nozzle and prevent the sample from being extruded during the extrusion stage. Dick et al. [27] reported that the addition of guar gum made from ground pork provided a printed product with mechanical strength and a self-supporting ability.

The present study investigated the rheological properties of dried mealworms improved with the addition of guar gum and its effects on the printability of dried mealworm paste (MP) in terms of the yield stress, shear thinning property, and stability after printing. The results provide guidelines for food production from insect protein using 3D food printing technology.

2. Materials and Methods

2.1. Material and Preparation

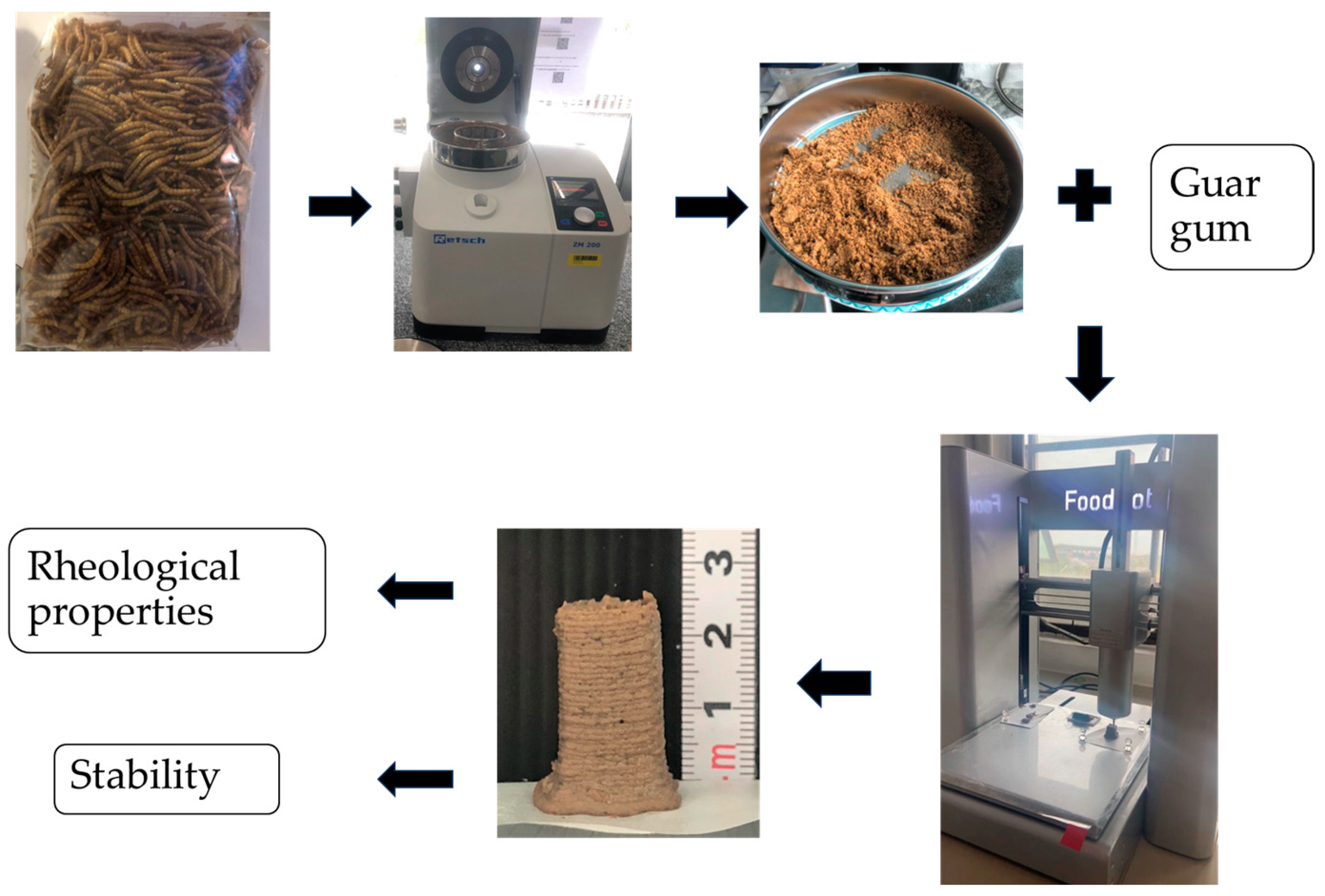

Dried mealworm (Tenebrio molitor) was finely ground into powder using an Ultra Centrifugal Mill (Ultra Centrifugal Mill ZM 200, Retsch, Haan, Germany) with a stainless-steel ring sieve with a pore size of 1.0 mm as shown in Figure 1. The ground dried mealworm powder was sealed in a zip-lock plastic bag and kept at 4 °C.

2.2. MP Preparation

The dried powdered mealworm was mixed with hot water at a ratio of 1:1 w/w and then blended in a blender (HR2221/00, PHILIPS, Eindhoven, The Netherlands). A hand homogenizer was used for subsequent blending until the sample was well mixed into an MP. The MP was then mixed with guar gum at concentrations of 0, 1, 1.25, 1.5, and 1.75% w/w and labeled as MP 0, MP 1, MP 1.25, MP 1.5, and MP 1.75, respectively. The samples were kept at 4 °C overnight before printing, as shown in Figure 1. All samples were prepared with 3 replicates for each experiment.

2.3. 3D Printing

The 3D printer (Shinnove-S2, Shiyin Technology, Hangzhou, China) was an extrusion-based printer. The MPs prepared with different concentrations of guar gum were manually inserted into a syringe, and the syringe was inserted into the barrel of the 3D printer. The MP was printed into a square sample with dimensions of 12.5 mm × 12.5 mm × 25 mm at a printing speed of 17.5 mm/s, with a nozzle size of 1.0 mm, layer height of 0.7 mm, and infill percentage of 50% as printing parameters.

2.4. Proximate Analysis

A proximate analysis was performed by adopting the Association of Official Analytical Chemists (AOAC) methods. Specifically, the water content was evaluated through drying, the protein content was evaluated using the Kjeldahl method, the total fat content was evaluated through acid hydrolysis and solvent extraction, the carbohydrate content was evaluated using the difference method, and the ash and mineral contents were evaluated through dry ashing [28].

2.5. Rheological Properties

A HAAKE MAR III rheometer (Thermo Scientific, Waltham, MA, USA) with two parallel plates (P35 Ti L) was used to measure the rheological properties of the MPs, [29]. Approximately 5 g of each MP was placed on the bottom plate. The measurement was performed at 25 °C.

2.5.1. Yield Stress

The yield stress was obtained by applying an oscillatory shear stress with a frequency of 1 Hz, and increasing from 1 to 1500 Pa at a temperature of 25 °C. The cross-over point between G′ and G″ was taken as the yield stress of the MP [30].

2.5.2. Shear Thinning Behavior

The shear thinning behavior was measured by adopting a shear rate ranging from 0.01 to 10/s at a temperature of 25 °C to estimate the viscosity of the MP during the printing process. The relationship between the shear rate and viscosity follows the equation of the Ostwald de Waale model [31]:

$$\mathsf{\eta }=K{\mathsf{\gamma }}^{n-1},$$

(1)

where η is the viscosity (Pa·s), Κ is the consistency index (Pa·sⁿ), γ is the shear rate (1/s), and n is the flow behavior index. The correlation coefficient (R²) of the model exceeded 0.99.

2.5.3. Frequency Sweep

A frequency sweep was conducted from 0.1 to 100 rad/s at 1% invariant strain to estimate the linear viscoelastic region of the MPs in the printing process. The G′ and G″ values were recorded. A power law model was used to determine the frequency dependence of G′ and G″ of the sample [32]:

$$G^{\prime }=k^{\prime }{f}^{m^{\prime }},$$

(2)

$$G^{″}=k″f^{m^{″}},$$

(3)

where k′ and k″ are model parameters (Pa/sⁿ), f is the frequency (Hz), and m′ and m″ are indices of the dimensionless frequency. The correlation coefficient (R²) exceeded 0.99.

2.6. Stability

A square model, with dimensions of 12.5 mm × 12.5 mm × 25 mm, was used in printing. Guar gum concentrations of 0%, 1%, 1.25%, 1.5%, and 1.75% w/w, nozzle sizes of 1.0, 1.3, and 1.6 mm, and infill percentages of 20%, 30%, 40%, and 50% were set as the printing parameters affecting stability. The size of the nozzle refers to the width of the hole at the tip of the extruder and the infill percentage refers to the ratio of MP in the printed sample. The sample height was measured immediately after printing using a digital vernier. This moment is considered to be time zero. The height was measured again after the sample had been left at room temperature for 30 min. The stability of the 5 replicates of each MP sample was calculated as [30]

$$Stability(\%)=\frac{H_{30}}{H_0}\times 100$$

(4)

where H₃₀ is sample height (mm) 30 min after printing and H₀ is the sample height (mm) 0 min after printing.

2.7. Texture Profile Analysis (TPA)

The 3D printed samples of the MPs were analyzed by using a texture analyzer (TA-XT plus, Stable Micro Systems, Ltd., Surrey, England) to measure the texture profile, using a 50 mm diameter cylindrical probe at room temperature. The 12.5 × 12.5 × 25 mm printed sample was subject to two compression cycles. The parameters set were as follows: the pre-test speed was 1 mm/s; the test speed was 1 mm/s; and the post-test speed was 3 mm/s. The probe proceeded downward until it reached 75% strain [33], and then it returned to the sample’s initial point of contact and waited for a predetermined amount of time (5 s) before starting the next compression cycle. The sample’s resistance was measured every 0.01 s and plotted into a force–time curve.

2.8. Statistical Analysis

The statistical analyses of the results were performed using Minitab 19 Statistical Software. All data are presented as mean ± standard deviation (SD) of the three replicates of each sample and significant differences were determined using Tukey test at a confidence level of 95%. p < 0.05 was considered statistically significant.

3. Results and Discussion

3.1. Proximate Analysis and Feasibility for Sustainable Future Food

The results of the proximate analysis of the dried mealworm (

Table 1. Proximate analysis of dried mealworm.

Parameter	Result
Moisture (% wet basis)	6.07 ± 0.04
Crude protein (g/100 g)	47.70 ± 0.38
Crude fat (g/100 g)	30.50 ± 0.39
Crude fiber (g/100 g)	6.02 ± 0.07
Ash (g/100 g)	3.47 ± 0.09
Carbohydrate (g/100 g)	6.24 ± 0.26

) show that the dried mealworm had a rich protein content. The protein content of the dried mealworm is similar to the crude protein content of mealworm reported by Chewaka et al. [3]. The food system investigated in the present study is thus representative of food systems with high protein contents. The MP contained approximately 24 g of protein per 100 g as calculated using the Kjeldahl method. With its high amount of protein content, mealworms hold the potential to become a sustainable food source for the future, particularly in challenging environments such as space missions. The challenges in calculating food supplies for sustaining life support during space missions highlight the importance of developing a food production system that not only functions in space but can also be applied to sustainable food production on Earth. For the specific case of sustainable future food for space missions, Jones [15] calculated the total consumption of protein by 160 crew members on a long-duration space mission as 8160 g per day. This calculation was based on the Institute of Medicine’s recommended protein intake for men and women aged 17–90 years of 56 and 46 g per day, respectively [34]. In that scenario, the consumption of MP would be 34,000 g per day or 212.5 g per person, which is approximately 106 g of dried mealworm per person. Meanwhile, the Deep Space Food Challenge (DSFC) requires four crew members to be fed on a mission lasting 3 years [35]. The requirement of dried mealworm on such a mission would be 446,760 g according to the DSFC’s criteria. It would thus be possible to design a mealworm farm to be used in space to meet the protein needs of crew members depending on the mission duration and number of crew members.

However, through the drying process, some proteins lose their gelling properties [36], causing the MP to lose its ability to support itself and maintain its shape, as shown in

Table 2. Summary of MPs printed with dimensions of 12.5 mm × 12.5 mm × 25 mm.

Parameter	Printed Sample	Guar Gum Conc. (%)	Nozzle Size (mm)	Infill Percentage (%)
Guar gum		0 (a), 1 (b), 1.25 (c), 1.5 (d), and 1.75 (e)	1.0	50
Nozzle size		1	1.0 (a), 1.3 (b) and 1.6 (c)	50
Infill percentage		1	1.0	20% (a), 30% (b), 40% (c), and 50% (d)

. This poses an obstacle to 3D printing. A thickening agent is thus needed to improve printability. It has been suggested that guar gum has the potential to improve rheological properties. Sánchez et al. [37] studied the rheological properties and water-binding capacity of food gums mixed with isolated soy protein. They found that soy protein acts synergistically with guar gum, increasing the consistency coefficient of the mixed system by 81% to 139% through shear thinning behavior. They also obtained a high water-binding capacity (40 mL/g) owing to the interaction of the soy protein and guar gum. Their results thus show the feasibility of using guar gum to improve the rheological properties of a system with a high protein content.

3.2. Rheological Properties

3.2.1. Yield Stress

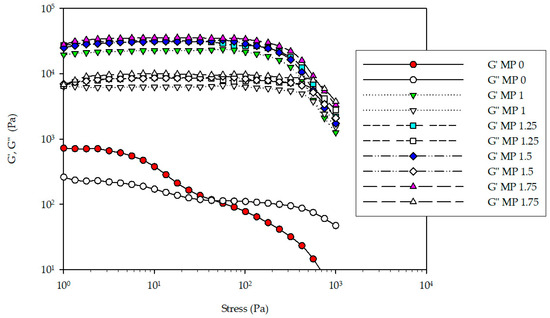

The yield stress represents the minimum force required to initiate fluid flow and thus the carrying capacity of the stacked layer of the filament [38]. Figure 2 presents the cross-over points of G′ and G″ (where G′ is equal to G″) of the MPs. It can be seen that the yield stress of the MPs increased from 39 Pa for MP 0 to 1096 Pa for MP 1.75. Increasing the guar gum concentration thus resulted in a higher yield stress of the MP and thus a higher minimum force required to extrude the sample from the extruder in the printing process and greater ability to stack layers. In addition, Figure 5 presented later in the paper shows that increasing the guar gum concentration resulted in higher stability. The observed yield stress has a trend similar to that obtained by Lee and Chang [39], who studied the effect of guar gum concentration on the rheological properties of yogurt made from skim milk, which contains a high protein level, i.e., Lee and Chang found that increasing the guar gum concentration increased the yield stress. This result may be due to the interaction between protein and guar gum.

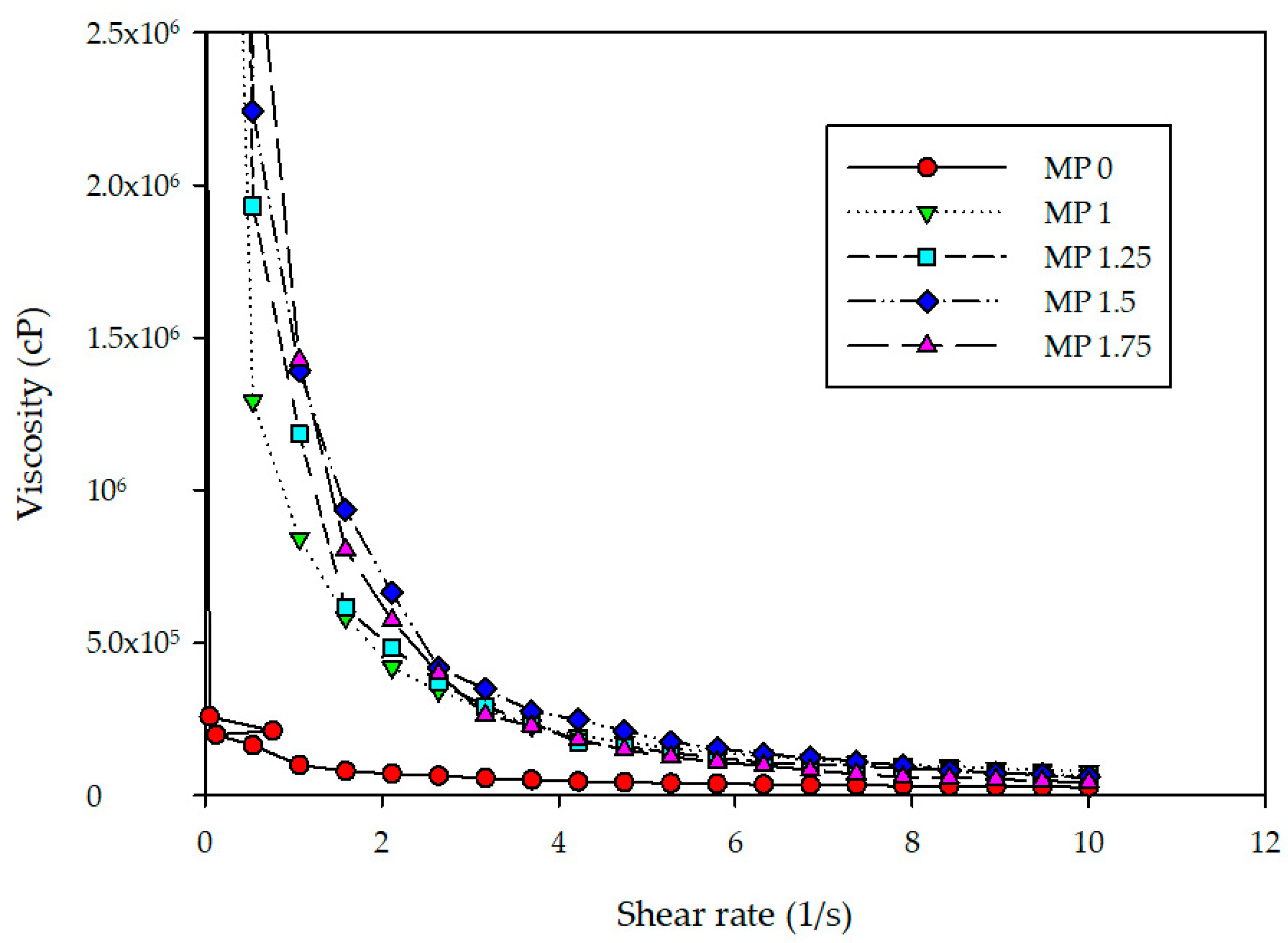

3.2.2. Shear Thinning Behavior

A shear thinning behavior is important to printability. The printing material should have a viscosity that is sufficiently low to allow the material to flow through the nozzle tip at a high shear rate. Still, the material has to recover its viscosity during the deposition stage to support the structure [40]. Figure 3 shows that all the MP samples in the present study exhibited a non-Newtonian shear thinning behavior, with guar gum supplementation strengthening this behavior. An MP is thus extruded more easily from the nozzle tip by adding guar gum to the formulation. At the same shear rate, an increase in the concentration of guar gum increased the viscosity of the MP. Owing to the increased hydrogen bonding activity of the guar gum due to the hydroxyl group of the guar gum molecule [41], a small amount of guar gum notably affects the electrokinetic properties of the system [42].

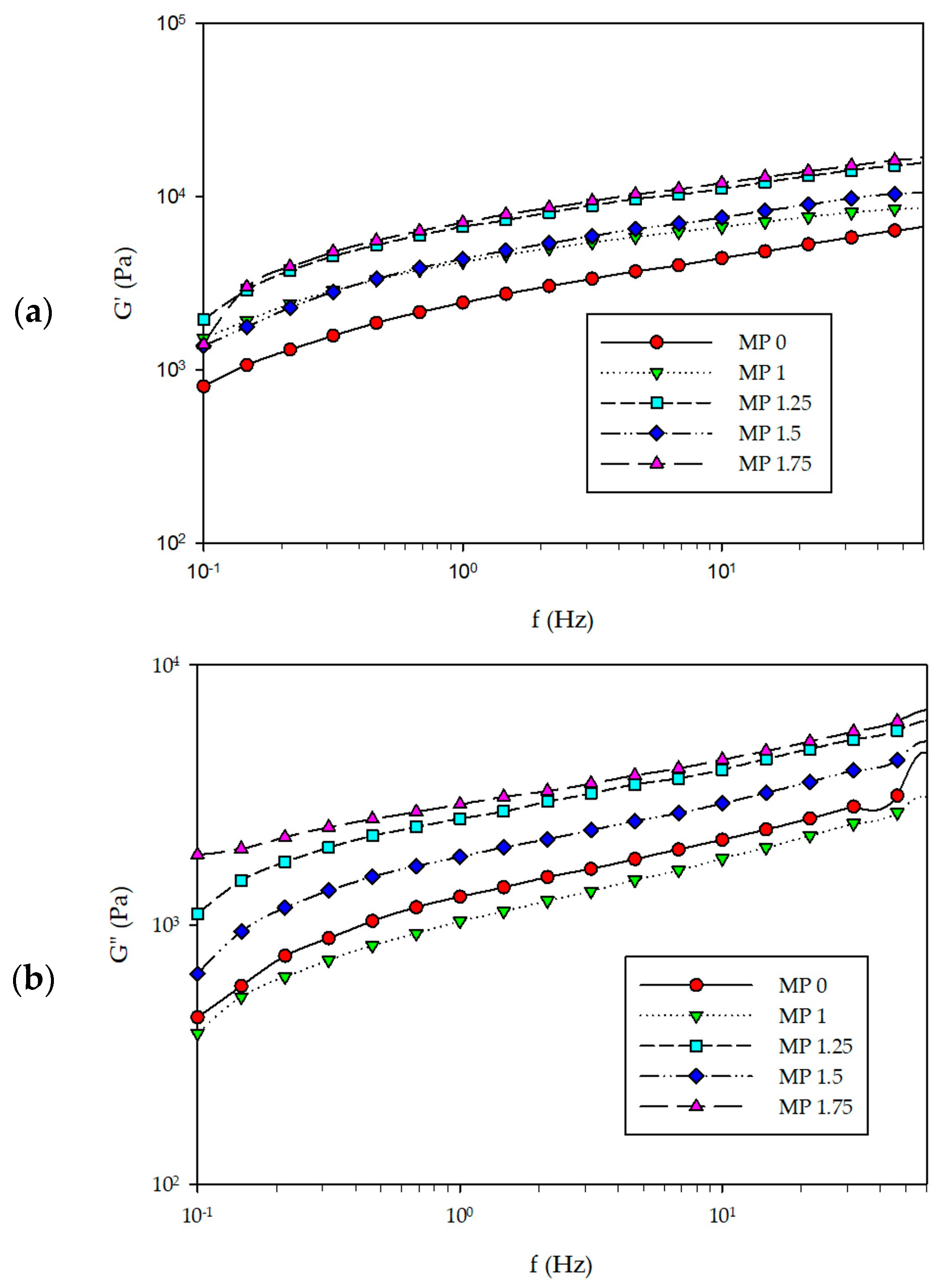

3.2.3. Frequency Sweep

The viscoelastic properties of the MP samples in the deposition stage were obtained using a frequency sweep. The G′ value of the MPs increased from 803 to 10,761 Pa for MP 0 and from 1407 Pa to 20,028 Pa for MP 1.75 with the frequency increasing from 0.1 to 100 Hz, as shown in Figure 4a, whereas the G″ value increased from 440 to 3313 Pa for MP 0 and from 1861 Pa to 4594 Pa for MP 1.75, as shown in Figure 4b. Continuous molecular interactions result in high values of G′ and G″ [43]. MP 0, which did not contain guar gum, had the lowest G′ value, which suggests that MP 0 was the weakest of the MPs. The increases in G′ and G″ with frequency indicate that an increase in the guar gum concentration strengthens an MP and enables self-support after the deposition stage. The stability results presented in Figure 5 have a similar trend in that increasing the guar gum concentration stabilized the MP samples after printing. The results of the present study exhibit a similar trend to that reported by Dick et al. [27], who studied the printability and rheological properties of pork with regard to dysphagia patients, and found that the G′ and G″ values increased with the addition of guar gum.

The proximate analysis (Table 1) showed that the MPs had a high protein content. The strength of the gel may therefore be due to the interaction between the galactomannan of the guar gum and protein, strengthening the network structure of the system [44]. The frequency sweep results indicate that G′ increased with the concentration of guar gum, possibly owing to the network structure of galactomannan and protein and hydrogen bonds. Lei et al. [45] studied the effect of guar gum on the linear rheological properties of phycocyanin and found that samples containing guar gum had higher G′ and G″ values. Still, as the concentration increased, G′ and G″ decreased owing to the increased entanglement of galactomannan chains, which prevented interaction with proteins. This result is consistent with the results of the present study in that MP 1.5 had a low value of G′, which may be due to less interaction between galactomannan and protein, whereas MP 1.75 had a high value of G′, presumably because of greater hydrogen bonding.

3.3. Stability

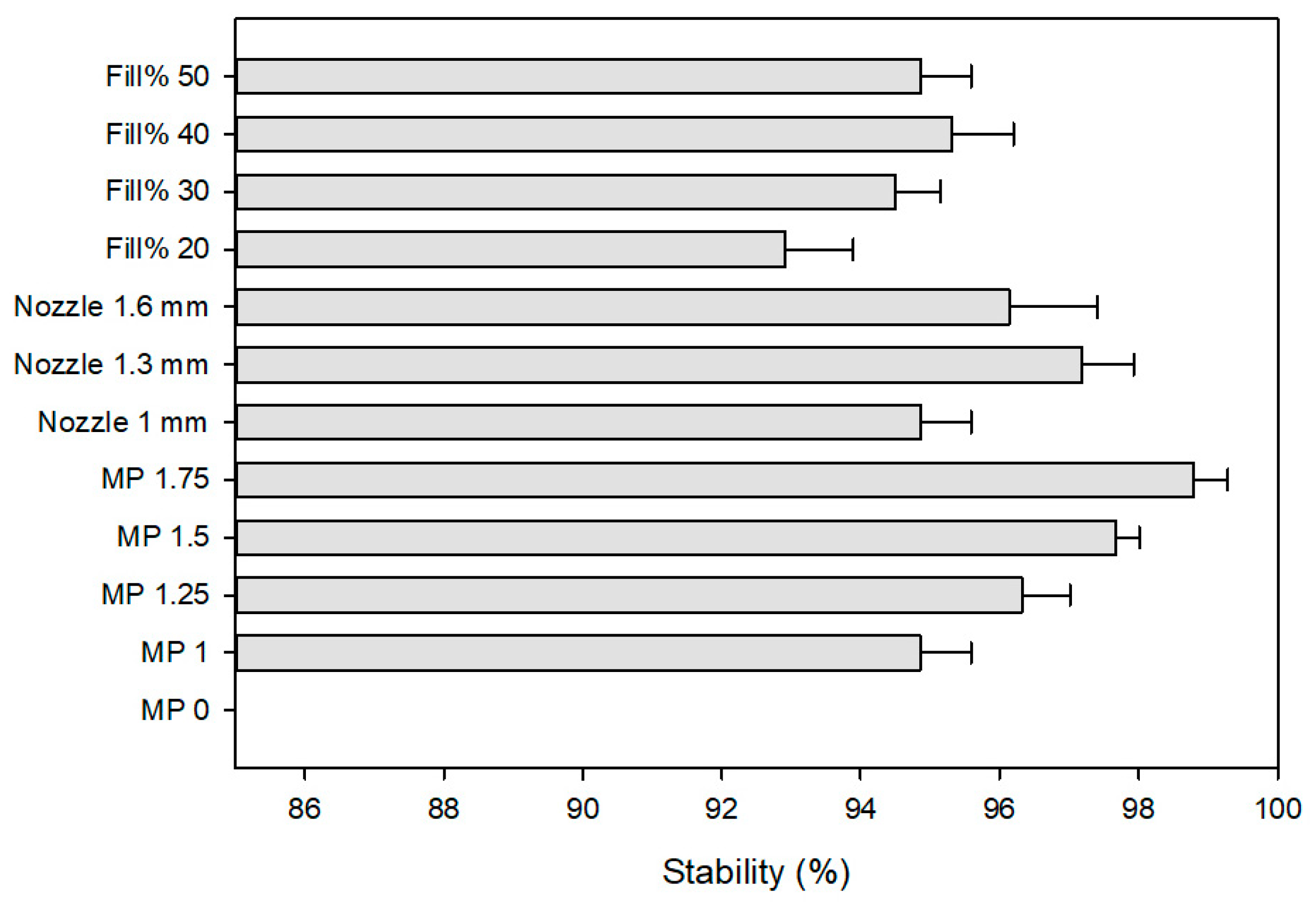

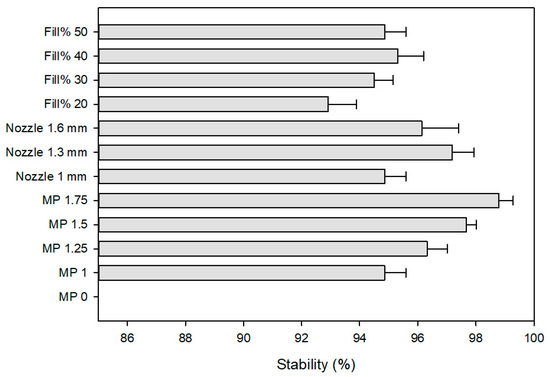

Figure 5 shows the stability of the MPs printed and left at room temperature for 30 min. It can be seen that increasing the guar gum concentration resulted in a more stable MP, which relates to the yield stress result that increasing the guar gum concentration made it easier to stack layers of an MP. The printing of MPs using nozzles of different sizes revealed that the sample printed with a nozzle size of 1.3 mm had the highest stability. The printing of MPs with different infill percentages showed that the sample printed with an infill percentage of 40% had the highest stability. The printed sample without guar gum (MP 0) could not support itself, resulting in the collapse of the structure in the deposition stage. Increasing the guar gum concentration improved the self-supporting ability of the MPs. This result is supported by the yield stress and frequency sweep results presented in Figure 3 and Figure 5, which showed that sample MP 0 had the lowest yield stress and lowest G′ and thus the lowest printability.

The above results reveal that the stability of MPs was not directly proportional to the increase in nozzle size and infill percentage, but the stability of MPs requires specific suitable printing parameters. This can be observed from the sample printed with a nozzle size of 1.3 mm and infill percentage of 40% having the best stability, while the stability at a nozzle size of 1.6 mm and infill percentage of 50% was lower. On the other hand, increasing the guar gum concentration has a direct effect on the stability of MPs which could be observed from MP 1.75 having the best stability and rheological properties. Thus, MP 1.75 printed with a nozzle size of 1.3 mm and infill percentage of 40% had the best printability.

3.4. Texture Analysis Profile (TAP)

The texture profile of the printed MPs (

Table 3. Texture characteristics of the 3D-printed MPs with different guar gum concentrations.

Condition	Hardness (N)	Adhesiveness (N.s)	Springiness	Cohesiveness	Gumminess (N)
MP 1	0.880 ± 0.070 a	−0.0869 ± 0.010 a	0.079 ± 0.006 a	0.141 ± 0.016 a	0.123 ± 0.005 a
MP 1.25	0.966 ± 0.040 ab	−0.1081 ± 0.001 b	0.078 ± 0.007 a	0.142 ± 0.005 a	0.137 ± 0.003 ab
MP 1.5	0.979 ± 0.020 ab	−0.1302 ± 0.003 c	0.076 ± 0.009 a	0.173 ± 0.010 ab	0.170 ± 0.009 bc
MP 1.75	1.116 ± 0.100 b	−0.1377 ± 0.004 c	0.079 ± 0.007 a	0.183 ± 0.015 b	0.205 ± 0.034 c

MP 1, 1.25, 1.5, and 1.75 indicate a concentration of guar gum of 1, 1.25, 1.5, and 1.75% w/w, respectively. Different letters (a–c) in the same column indicate statistically significant differences at a 95% confidence level (p < 0.05).

) indicated that increasing the guar gum concentration tends to result in the MP having more hardness and cohesiveness but reduced adhesiveness. The Hardness value represents the minimum force required to break the sample. The printed MP 1 and MP 1.75 show significantly different hardness values (p < 0.05) with increasing guar gum concentration. Cohesiveness indicates the ability of samples to adhere to each other. The increased guar gum concentration resulted in the MP tending to have more cohesiveness; it can be observed that MP1 and MP 1.75 have significantly different cohesiveness values. On the other hand, the adhesiveness value tended to decrease when the guar gum concentration increased. The adhesiveness value represents its ability to adhere to other materials such as the surface of the sample container. MP 1.5 showed significantly less adhesiveness than MP 1.

The results of the texture profile from Table 3 show the relationship between guar gum concentration and the texture profile of MP. A higher guar gum concentration resulted in the MP having a greater ability to adhere to itself due to an increased cohesiveness value. When MPs can adhere to itself more, it results in an increased hardness value. Therefore, the MP has less ability to adhere to other surfaces and the adhesiveness value is reduced. Guar gum makes the MP adhere to itself instead. This is probably due to the interaction of water and guar gum [46]; thus, when the amount of guar gum increases, this interaction increases as well. This resulted in the MP adhering to itself and an increased hardness value.

4. Conclusions

This study found that introducing guar gum enhanced the printability of MPs. Increasing the concentration of guar gum increased the MP yield stress, which resulted in a stronger force being required to push the MP out of the extruder and being able to stack more layers of the MP. Moreover, the addition of guar gum provided the MP with non-Newtonian rheological properties. The increase in guar gum concentration may have caused more shear thinning behavior and enhanced the viscoelastic properties of the MP, so that the MP maintained its shape after printing. Increasing the guar gum concentration also increased the MP stability. Furthermore, the printing parameters affected the printability of the MPs. The MP printed with a nozzle size of 1.3 mm and infill percentage of 40% was the most stable. In summary, introducing guar gum provided the MP with rheological properties that are more suitable for printing, such that the MP had better printability and stability.

The high protein content of MPs means that MPs are suited to the production of sustainable food sources. This potential becomes more tangible when considering the development of a calculated farming system designed to serve as a reliable source of sustainable food production. Thus, mealworms have the potential to be a sustainable food source for solving the food supply problem on Earth. However, the present study investigated only the printability and feasibility of MPs in a model system to understand the rheological behaviors of a food system with a high level of protein. Further research on the relationship between chemical interactions and rheological properties is required. Furthermore, MP recipes need to be test in complex systems in future research such as 3D food printing and sustainable food for consumption on Earth.
