Scientometric Review of Sustainable Fire-Resistant Polysaccharide-Based Composite Aerogels

Abstract

Fire safety is a critical concern in various industries necessitating the development of sustainable and effective fire-resistant materials. Sustainable fire-resistant polysaccharide-based composite aerogels are regarded as an innovative solution in fire safety applications, and as such, research in this field has increased consistently over the past few years. Despite the plethora of literature on this important subject, only a few studies have attempted to map the global research of sustainable fire-resistant polysaccharide-based composite aerogels to identify the geospatial collaborative network and trend of research. This study utilizes a scientometric review of global trends in sustainable fire-resistant polysaccharide-based composite aerogels research between 2003 and 2023 using VOSviewer and biblioshiny to analyze co-author, co-word, co-citation, clusters, and geospatial maps. A total of 234 bibliographic records from the Scopus database were analyzed to generate the study’s research power networks and geospatial map. The most significant contributions in sustainable fire-resistant polysaccharide-based composite aerogels come from China, the United States, Australia, Canada, and India with records of 194, 20, 11, 9, and 8, respectively. The top five sources for articles in this area of research include ACS Applied Materials and Interfaces, Chemical Engineering Journal, Composite Engineering, ACS Sustainable Chemistry and Engineering, and Carbohydrate Polymers. The application of sustainable fire-resistant polysaccharide-based composite aerogels spans the engineering and construction fields. The versatility in the fabrication and customization allows for seamless integration into diverse applications. The article concludes by emphasizing the significance of sustainable fire-resistant polysaccharide-based composite aerogels as a promising advancement in fire safety technology, combining sustainability, fire resistance, versatility, and mechanical strength to address critical challenges in the field. This review provides important insight into the research challenges, trends, and patterns of sustainable fire-resistant polysaccharide-based composite aerogel research worldwide.

1. Introduction

Fire safety is a top priority in a variety of sectors and applications, from building construction to transportation and aircraft [1,2]. Traditional fire-resistants (mostly halogen-based such as tris(2-chloroethyl) phosphate, tris(1,3-dichloroisopropyl) phosphate, pentabromobenzyl acrylate, and tris(1-chloro-2-propyl) phosphate) frequently rely on non-renewable resources and can have negative environmental consequences. More especially, fire retardant materials derived from petrochemical sources raise significant concerns related to environmental sustainability, health, and long-term impacts [3,4]. The challenges associated with the use of these traditional flame retardants have spurred the demand for sustainable, and eco-friendly alternatives [5,6], and this has driven significant advancement in fire safety technology. One such breakthrough is the development of sustainable fire-resistant polysaccharide-based composite aerogels. These composite aerogels derived from renewable sources such as cellulose, chitosan, starch, or other polysaccharides, offer a unique combination of fire resistance, sustainability, versatility, and mechanical strength suitable for various applications. Polysaccharide-based aerogels may not naturally possess high levels of fire resistance, however, this characteristic can be enhanced because of their adaptability to changes in the aerogel preparation process. Therefore, numerous strategies have been used in the preparation of fire-resistant aerogels, including the use of additives, coatings, insertion of nanoparticles, metal and silicate oxides. Polysaccharide-based composite aerogels offer an effective and versatile solution for improving fire safety in various applications, such as building construction, transportation, and electronics [7]. Their ability to withstand high temperatures, slow down the spread of fire, and reduce smoke production makes them an essential component of modern fire safety strategies [8].

The utilization of polysaccharides in the production of fire-resistant composite aerogels addresses two critical issues of polymers; environmental sustainability and fire safety [9]. Polysaccharides are abundant in nature and derived from sources such as plants, fungi, and crustacean shells. By utilizing these naturally occurring materials, the need for non-renewable resources is reduced, thereby mitigating the environmental impact associated with conventional fire-resistant materials [10,11]. The potential of polysaccharide-based aerogels to replace conventional petrochemical-based fire retardants is mainly due to their environmentally friendly nature and the fact that these polysaccharides are renewable compared to petrochemical-based flame retardants. More so, the use of such renewable sources aligns with the global shift towards sustainable practices and the pursuit of a greener future. The fire-resistant properties of these composite aerogels are exceptional and surpass most of the conventional alternatives [11,12,13,14]. Through careful material design and composition, these aerogels can exhibit outstanding flame retardancy [15,16,17], effectively preventing the spread of fire and reducing the risk of combustion. Most of the composite aerogels have gone through rigorous testing and evaluation and have demonstrated their ability to withstand high temperatures and resist ignition, making them ideal for enhancing fire safety in a wide range of applications [18,19].

Another key advantage of sustainable fire-resistant polysaccharide-based composite aerogels lies in their lightweight and versatile nature [14]. The unique porous structure of aerogels, combined with their low density (approximately 0.001 to 0.5 g per cubic centimeter (g/cm³) depending on the material), makes them highly efficient thermal insulators [19]. The inimitable nanoporous structure of aerogels, composed of interconnected particles, creates a sponge-like material with a vast surface area and a high percentage of air-filled voids. These air-filled pores contribute to the low density, exceptional thermal insulation properties, and other unique characteristics of aerogels These aerogels can effectively reduce heat transfer and provide excellent insulation, resulting in energy conservation and improved overall energy efficiency [20,21]. Their lightweight nature also contributes to their ease of use, enabling seamless integration into various products, systems, and structures without compromising performance or adding excessive weight [22,23]. The fabrication and customization of these composite aerogels are relatively straightforward. They can be manufactured in different shapes and sizes tailored to specific application requirements. This adaptability allows for their seamless integration into existing materials or systems, as well as their incorporation into new construction projects or retrofitting applications. The versatility of these aerogels extends their potential use across diverse industries, ranging from building construction to automotive, aerospace, and beyond [24,25,26].

Furthermore, the improved thermal conductivity (range of 0.015 to 0.035 watts per meter kelvin (W/m·K) compared to the thermal conductivity of air is around 0.025 W/m·K at room temperature), the compressive mechanical strength (approximately 10 to 30 MPa depending on the composite design and reinforcement material) of sustainable fire-resistant polysaccharide-based composite aerogels has improved over the years and that has helped extend their durability in some typical applications [27]. They can withstand demanding environments, maintaining their fire-resistant properties over extended periods. This reliability and robustness make them suitable for critical applications where safety and long-term performance are paramount [28,29,30]. Sustainable fire-resistant polysaccharide-based composite aerogels represent a significant advancement in fire safety technology. Despite the breakthrough in this field, few studies have attempted to map the global research of sustainable fire-resistant polysaccharide-based composite aerogels.

This scientometric review aims to map the global research of sustainable fire-resistant polysaccharide-based composite aerogels to provide researchers in this innovative field with an extensive understanding of the salient research themes, trends, and patterns of sustainable fire-resistant composite aerogel research worldwide. This research will provide an in-depth understanding of the field and help researchers harness renewable sources and combine exceptional fire resistance with sustainability and versatility. Their potential applications span across industries, making them a promising choice for enhancing fire safety in diverse settings. As the world embraces sustainable practices, these composite aerogels serve as a testament to the power of innovation and the quest for safer, greener solutions in fire safety.

Research Significance

Sustainability is a wide and complex research field with several applications in different disciplines and industries. This scientometric review on sustainable fire-resistant polysaccharide-based composite aerogels will help consolidate the existing knowledge on the subject by systematically collecting, organizing, and analyzing the published research. The article will provide an overview of the research landscape, highlighting key concepts, trends, and knowledge gaps, which can serve as a valuable resource for researchers, policymakers, and industry professionals working in this field, aiding them in making informed decisions and advancing the development and applications of these innovative materials—a gap the current study intends to bridge.

Furthermore, researchers from various geographical areas may profit from the graphical depiction based on a scientometric evaluation when forging research alliances, developing joint ventures, and exchanging revolutionary technologies and ideas. The scientometric analyses use measures such as citation counts and h-index to assess the influence of specific publications, authors, and organizations. This evaluation can assist in identifying significant academics, institutions, or research groups in the subject of polysaccharide-based composite aerogels, as well as providing insights into the most influential papers and their contributions. By analyzing the publication trends, citation patterns, and collaborations among researchers, this scientometric review identifies the emerging research trends in polysaccharide-based composite aerogels. This information is valuable for researchers, policymakers, and funding agencies to understand the current focus of research and allocate resources effectively. Furthermore, this study discusses the most active research areas and sustainability aspects related to polysaccharide-based composite aerogels systems and their possible commercialization. The study further discusses the challenges associated with synthesis and the application of polysaccharide-based composite aerogels.

2. Methodology

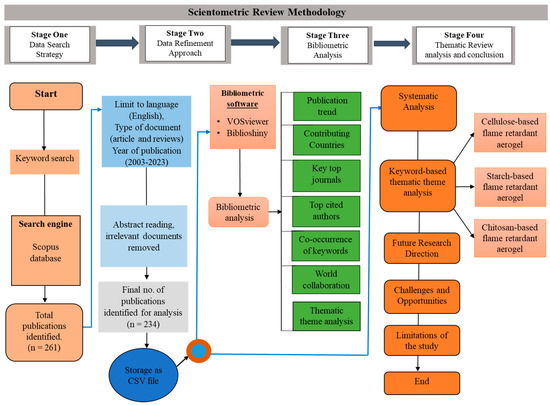

The bibliometric data on recent advancements in polysaccharide-based composite aerogels are examined scientometrically in this research. The evidence that subjective evaluations of engineering studies undertaken by academics are prone to inaccuracy is the primary reason for designing a scientometric review technique [31]. When employed alone, scientometrics delivers more reasonable and less biased findings since it is not impacted by any one person’s point of view [30]. This study provides a quantitative as well as a qualitative evaluation of the research that has been performed over the previous two decades by measuring research progress using maps and links between bibliometric data. In conducting such an important review, selecting the most correct database is crucial because many papers have been published. Scopus and Web of Science are the two most efficient, thorough, and objective databases for performing literature searches.

Compared to Web of Science (WoS), Scopus has wider bibliometric coverage and more recent data [32,33]. For several reasons, Scopus is more effective for carrying out daily research tasks and assessing research findings. First, Scopus offers more comprehensive coverage of content. Secondly, Scopus is easier to use because of the availability of personalized profiles for all authors, institutions, and serial sources as well as the connected database (DB) interface. Thirdly, the research analysis metrics and impact indicators are superior to the metrics offered by WoS [34,35], and also less prone to manipulation, and are accessible for all serial sources across all disciplines [35]. More crucially, Scopus is subscribed as a single DB, removing any ambiguity or extra limitations on the accessibility of the content [35]. Additionally, Scopus offers free access to authors and source information, including metrics, and it is more open to society [34,36]. Based on these obvious advantages, Scopus was used to compile bibliometric data for the current analysis of sustainable fire-resistant polysaccharide-based composite aerogels. The methodology used for this research is shown in Figure 1. The bibliometric data search in the Scopus database was conducted in June 2023.

The search string was “flame AND retardant AND aerogel”. The search string resulted in 261 initial documents and a final 234 documents as shown in Table S1 after applying all filters. Data refinement options were used to eliminate irrelevant articles. Only “articles” and “review” were selected from the “document type” drop-down menu. Additionally, only “journal” was chosen as the “source type”, while “English” was chosen as the “language”. This study limited the “publication year” from 2003 to 2023. After applying these filters, the resulting documents shown in Table S1 were saved and manual screening of article titles was performed to ensure duplicates were removed. Data were exported from Scopus in the Comma Separated Values (CSV) format for analysis using VOSviewer developed by Nees Jan van Eck and Ludo Waltman [37], and biblioshiny by Massimo Aria and Corrado Cuccurullo [38] for scientific mapping and visualizations. The free and open-source visualization tools are used in a wide range of industries and are endorsed by academic literature [39,40,41]. With the “type of data” option set to “create a map from bibliographic data” and the “data source” parameter set to “read data from bibliographic database files,” the analysis in the VOSviewer was performed. Data was imported into VOSviewer and biblioshiny, and reliably analyzed while retaining consistency. Regions’ involvement, the most popular authors and articles, the most frequently appearing keywords, and the sources of articles were all examined as part of the science mapping review. Tables provide a numerical summary of the results, while maps show the different parameter correlations and co-occurrence.

3. Results and Discussion

3.1. Annual Publication Sources and Impacts

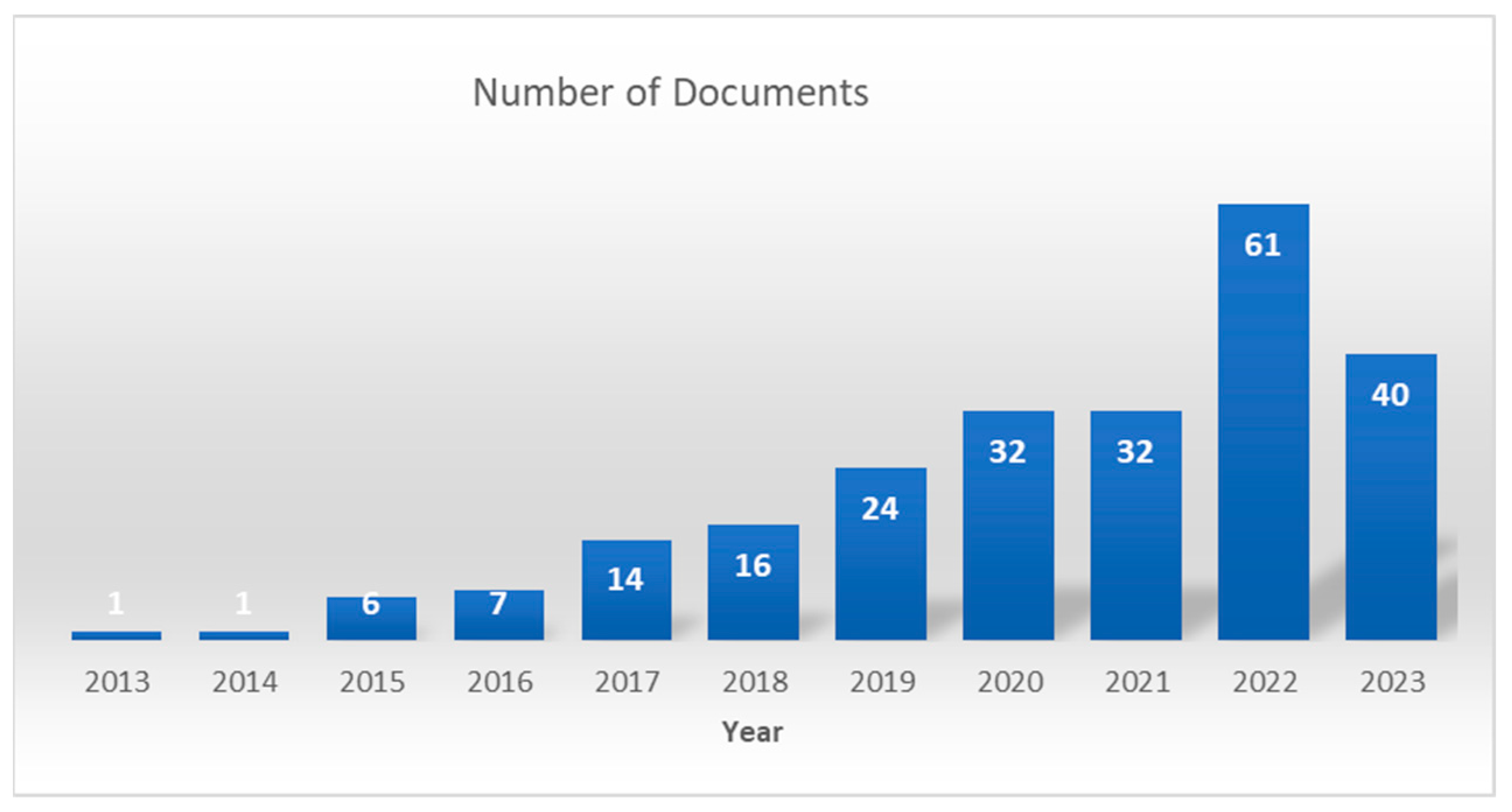

Polysaccharide-based aerogels have emerged as a fascinating class of materials with unique properties and numerous potential applications. As a result, research in this field has witnessed a significant surge, leading to a wealth of knowledge being disseminated through various publication sources by different authors and institutions around the globe. To understand the trend of publication on this subject and appreciate the contribution of various institutions and authors, descriptive statistics have been used to determine the phenomena in terms of the number of articles, the trajectory of their growth, and the geographical distribution of authors [42]. An analysis of the number of papers produced per year indicates a notable output of scholarly works, followed by a reasonably steady and exponential rise over the past 10 years. (Figure 2). The interest in aerogels, derived from renewable sources such as cellulose, chitosan, starch, or other polysaccharides that have unique combinations of fire resistance, sustainability, versatility, and mechanical strength is influenced by the continuous reports on fire safety challenges. The increasing research interest in this area provides an in-depth understanding of the field and helps researchers harness renewable sources and combine exceptional fire resistance functionality with sustainability and versatility. Sustainable fire-resistant polysaccharide-based composite aerogels usually possess excellent mechanical strength and offer a compelling solution to address fire safety challenges making them a promising choice for enhancing fire safety in diverse settings. As the world embraces sustainable practices, these composite aerogels serve as a testament to the power of innovation and the quest for safer, and greener solutions in fire safety.

As can be seen in Figure 2, the examination of the primary sources reveals that between 2003 and 2016, there were a total of 16 publications, making this time frame suitable for the label of an emerging phase. Following that, a gradual rise in the number of publications was seen from 2017 to 2020 (a total of 86 publications), and this time may be referred to as the pick-up and tempo phase. Notably, the last three years (2021–2023) have witnessed an exponential rise of 133 total publications and this can be termed a rapid growth period. Considering the total number of publications as of June 2023 on the subject, it is anticipated research in sustainable fire-resistant polysaccharides will increase astronomically in light of the global shift towards sustainability. It is, therefore, not surprising to see how academics are increasingly focusing their research on sustainable fire-resistant polysaccharides. The sharp increase in publications on sustainable fire-resistant polysaccharides can be attributed to a combination of environmental concerns, advancements in material science, changing regulations, industry demands, and collaborative efforts. It suffices to indicate that as the field continues to evolve, the insights gained from these publications are likely to lead to the development of more effective, eco-friendly, and fire-safe materials in various industries.

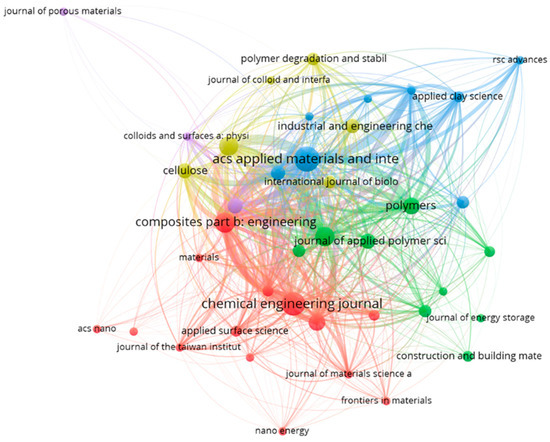

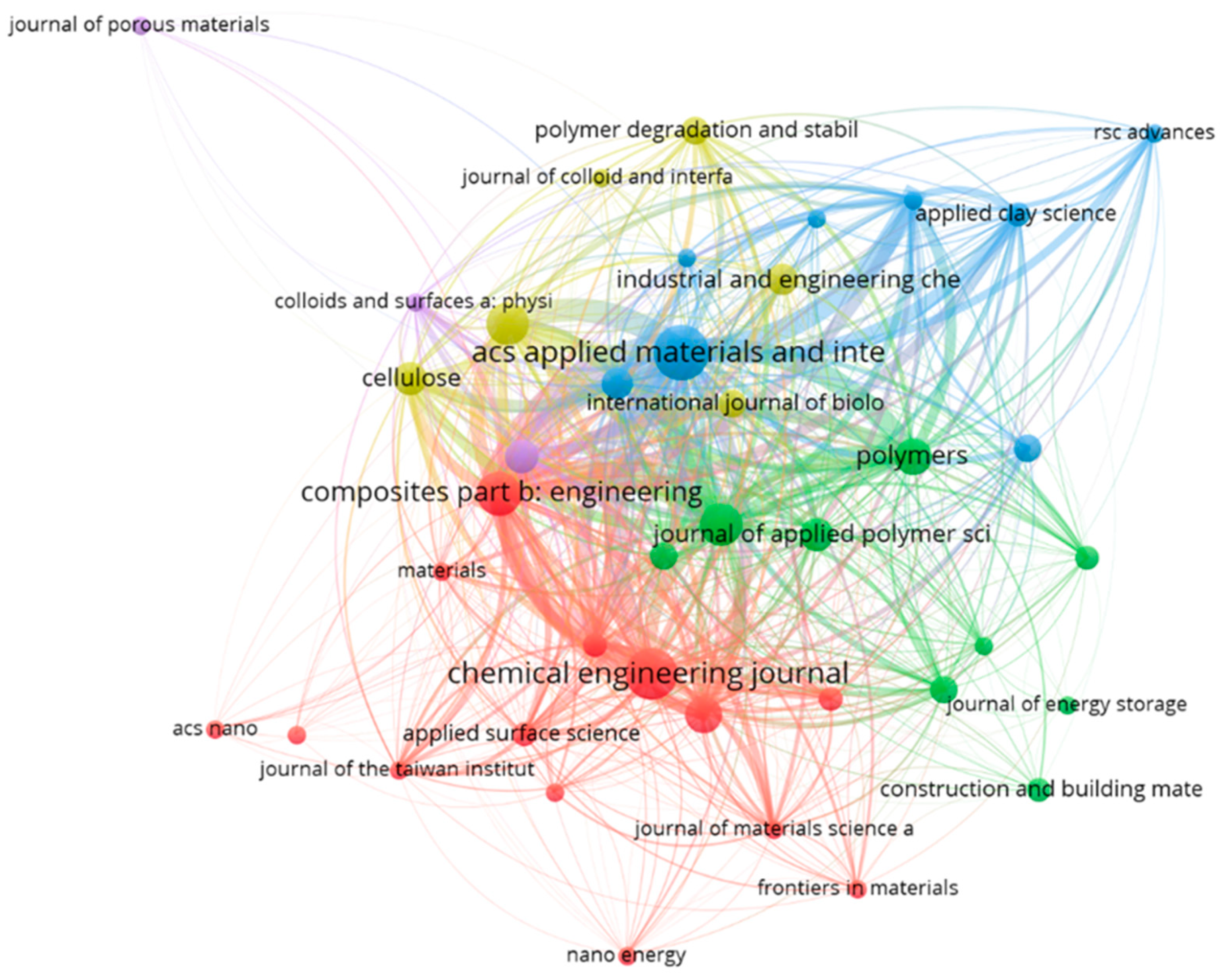

Top publication sources were analyzed with the VOSviewer using the bibliometric data generated from Scopus. A source’s minimum number of documents was set at two, and 40 of the 103 sources met this condition.

Table 1. List of the primary sources in the relevant field of study.

S/N	Source	Documents	Citations	Total Link Strength
1	ACS Applied Materials and Inter-faces	16	1054	1163
2	Chemical Engineering Journal	14	614	599
3	Composites Part B: Engineering	10	238	992
4	ACS Sustainable Chemistry and Engineering	9	565	817
5	Carbohydrate Polymers	9	469	569
6	Composites Part A: Applied Science and Manufacturing	7	149	404
7	Cellulose	6	74	368
8	Journal of Applied Polymer Science	6	87	180
9	Journal of Hazardous Materials	6	266	332
10	ACS Applied Polymer Materials	5	36	317

shows the top 10 primary sources (a list of the 40 sources can be found in Table S2) that have published at least two papers on sustainable fire-resistant polysaccharide aerogels, as well as their citation counts and total link strength.

The top five sources in terms of published documents are ACS Applied Materials and Interfaces, Chemical Engineering Journal, Composites Part B: Engineering, ACS Sustainable Chemistry and Engineering, and Carbohydrate Polymers with respective documents of 16, 14, 10, 9, and 9. However, the top three journals with respect to citation count are ACS Applied Materials and Interfaces having 1054, Chemical Engineering Journal with 614, and ACS Sustainable Chemistry and Engineering with 565 citations. The network visualization of journals with at least two articles published is shown in Figure 3. The node size corresponds to the contribution of the journal’s article count, where a bigger node size suggests a greater contribution. Typically, ACS Applied Materials and Interfaces has the bigger node, indicating their higher impact in the research area and connecting the other sources, with much collaboration with Composites Part B: Engineering. Furthermore, nodes (sources/journals) of the same color show clusters of connected journals detected using VOSviewer. Five clusters have been observed shown by red, green, blue, yellow, and purple. Cluster 1 (red) comprised 14 items, cluster 2 (green) contained 9 items, cluster 3 (blue) has 8 items, cluster 4 (yellow) comprised 6 items and cluster 5 (purple) has 3 items. From the publication sources visualization, it can be concluded that ACS Applied Materials and Interfaces, Chemical Engineering Journal, Composites Part B: Engineering, ACS Sustainable Chemistry and Engineering, and Carbohydrate Polymers published a relatively higher number of papers within the analyzed dataset, suggesting their prominence in the field of sustainable polysaccharide-based flame-retardant composite aerogels.

Additionally, the top contributing authors in sustainable fire-retardant polysaccharide-base composite aerogels were analyzed as shown in Figure 4. Once again, a document’s minimum number of citations was set at two, and 180 of the 234 documents met this condition. Of the 180 cited documents, the largest set of connecting items was 173. The visualization as presented by the VOSviewer software (version 1.6.19) is grouped into seven different clusters represented by Figure 4, and made of colors; cluster 1 (red) comprising of 44 items, cluster 2 (green) contains 35 items, cluster 3 (blue) has 35 items, cluster 4 (yellow) contains 31 items, cluster 5 (purple) has 18 items, cluster 6 (yellow) has 7 items and cluster 7 (orange) has 3 items. As shown in Figure 4, a bigger node indicates the number of times a document has been referenced by other scholars in the field. From this translation, Wicklen B, author of “thermally insulating and fire-retardant lightweight anisotropic foams based on nanocellulose and graphene oxide (2015) published in the Journal of Nature Nanotechnology is most influential with 975 citations. It is worth noting and mentioning, the influence of Wicklen B, concluding from the size of the node, he is the most linked to numerous other papers. Wicklen B. influenced the direction and advancements of research in sustainable fire-retardant polysaccharide-based composite aerogels. This phenomenon suggests that the findings, theories, and methodologies developed by Wicklen B. have influenced subsequent studies and shaped the scientific discourse in their domains. The top cited documents are presented in Table S3 with their citation counts and total link strength. The “total link strength of citations” is the sum of all the weights of the citation links for a particular document. It indicates the cumulative strength or importance of the citation connections that a document has with other documents in the network. Liang C. (2020) and Wang N.-N. (2019) had 299 and 162 citations with total link strengths of 13 and 60, respectively, indicating that highly cited documents may not be necessarily interrelated with each other in terms of citation. It is observed that some of the recently published articles, for instance, Zuo B. (2021) “Flame-retardant cellulose nanofiber aerogel modified with graphene oxide and sodium montmorillonite and its fire-alarm application” and Wang L. (2021) “Metal-graphene-synergized melamine aerogel with robust elasticity and flame-retardancy for thermal-insulated-packaging industry” had relatively low citations of 23 and 7 but high total link strength of 198 apiece. Compared to other documents published earlier with relatively higher citations, it suffices to state that these documents possess significant influence/centrality for some of the most recently published documents within the citation network. More importantly, the visual closeness of the recently published documents, with the exception of Wang X. (2016), shows how interrelated these documents are with each other in terms of citation. It is important to note that while high citation counts are indicative of research impact and influence, they should not be the sole measure of an author’s contributions. It is essential to consider other factors such as the quality of the publications, the breadth and depth of the research portfolio, and the overall impact on the scientific community.

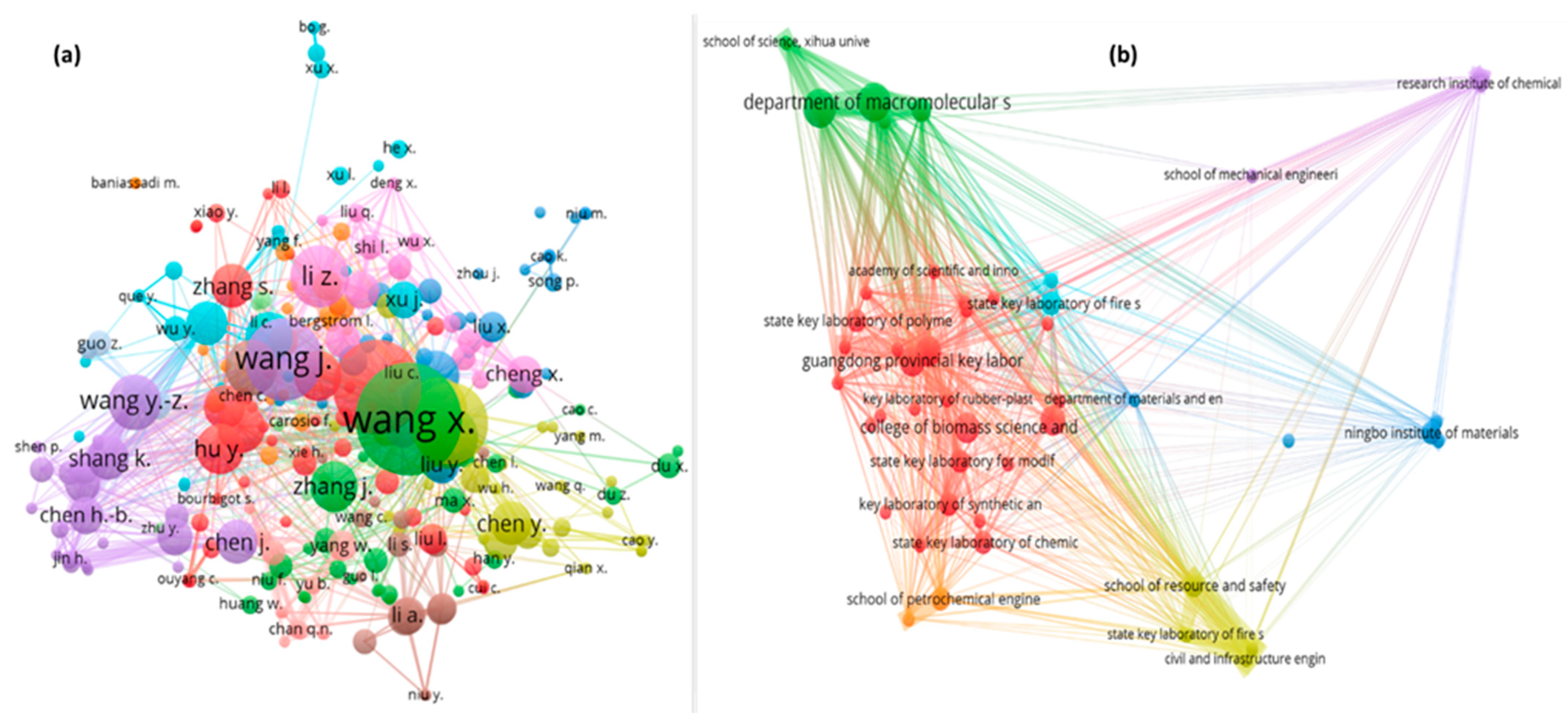

To obtain information on the most cited authors and top cited organizations, under the publication source category, “Bibliographic coupling” was chosen as the “analysis type,” and “authors” was chosen as the “analysis unit”. A researcher’s influence in an area is measured by the number of citations according to their names [43]. It has been established that the knowledge base of a field is the set of articles most cited by current research—also known as the intellectual base [42]. An author’s minimum number of documents was set at two, and 270 of the 847 authors met this condition as shown in Figure 5a, in 12 varying clusters. From the analysis, the powerhouse connecting items are Wang X., Zhang X., Wang J., and Zhang L., serving as the bridge to the other authors in the research domain. Being the most cited authors as shown by the size of the node in Figure 5a can be an indication of several factors, including the quality, originality, and significance of their research contributions. It suggests that their work has made a notable impact on the scholarly community and is often considered influential in this field.

A visualization network between organizations was established to provide researchers in the area the opportunity to visualize the organizations that are committed and spearheading the research in sustainable fire-resistant polysaccharide-based aerogels. On the count of organization, “bibliographic coupling” was chosen as the “analysis type,” and “organization” was chosen as the “analysis unit”. An organization’s minimum number of documents was set at two, and 49 of the 510 organizations met this condition. The list of most active organizations in terms of the number of publications and citations is presented in Table S4. The total number of documents, citations, and connections demonstrates the impact of an organization. Out of the total 49 organizations making the list, the largest set of connecting items was proven to be 48 by transcribes from the software and are summarized into seven clusters. These clusters are however, elaborated as; cluster 1 (red) consists of 26 items, cluster 2 (green) consists of 2 items, cluster 3 (blue) made of 5 items, cluster 4 (yellow) comprises 4 items, cluster 5 (purple) consists of 4 items, cluster 6 (sea blue) has 2 items and cluster 7 (orange) with 2 items (refer to Figure 5b). Additionally, there exists much collaboration between the School of Science, Xihua University, Department of Macromolecular Science and Engineering, and the Institute of Nuclear Physics and Chemistry, China. Similarly, constant collaboration between Civil and Infrastructure Engineering and the School of Resource and Safety is identifiable. Finally, under the last set of criteria for Bibliographic coupling analysis, the “analysis type,” was set to bibliographic coupling” and “country” was chosen as the “analysis unit”. The network visualization of VOSviewer on the citations by country gives an immediate indication of the main national clusters (the size of a circle and its label is proportional to its weight, the lines between circles represent their links, and the distance between two circles shows their relatedness) [42].

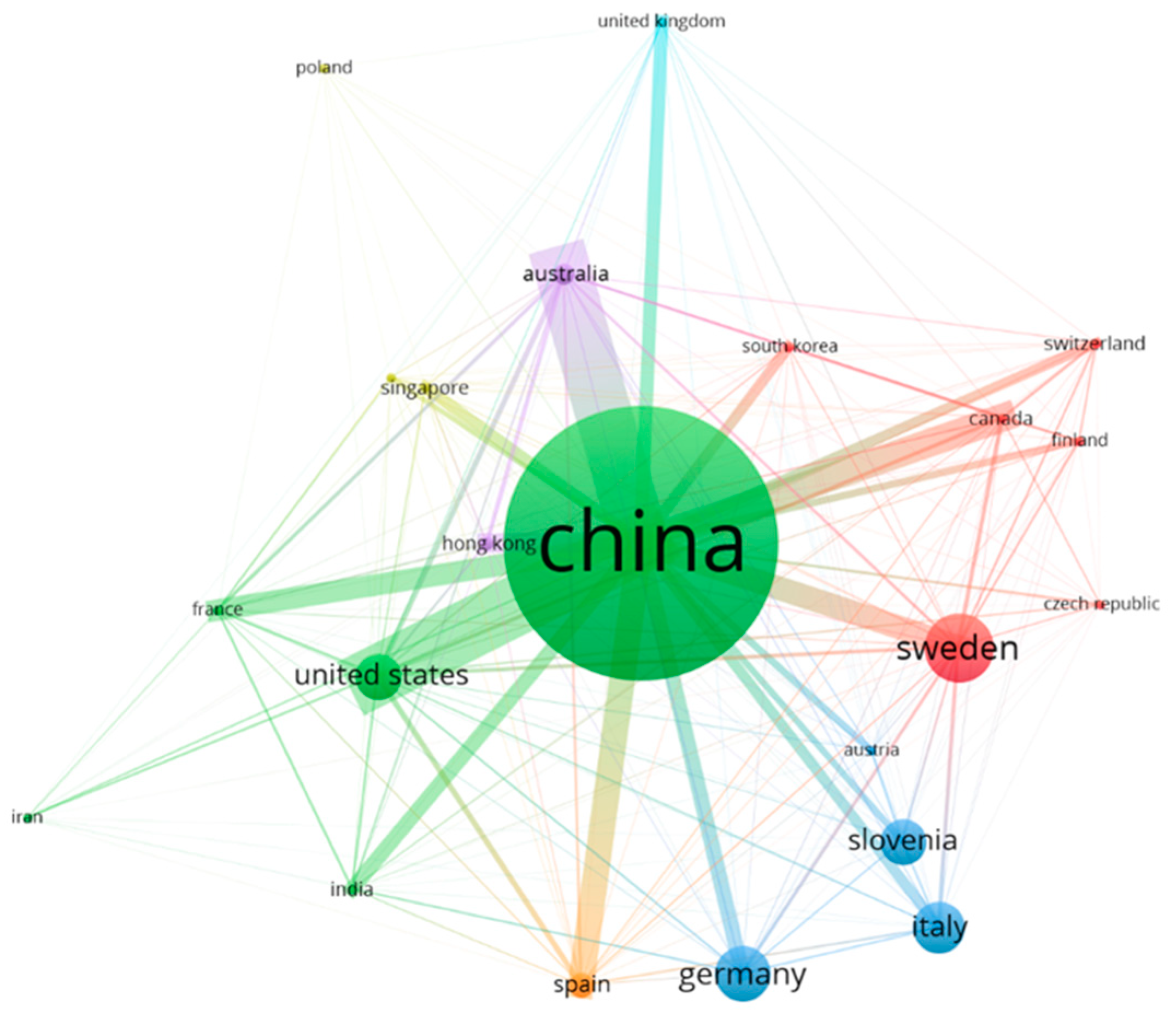

Geospatial analysis provides useful information relating to leading nations throughout the years. In this regard, the minimum number of documents for a country was set at two, and 22 out of 29 countries met the threshold as presented in

Table 2. List of top ten influential countries based on the number of documents.

S/N	Country	Documents	Citations	Mean Citations	Total Link Strength
1	China	194	5932	30.57	16,432
2	United States	20	991	49.55	4596
3	Australia	11	461	41.9	4177
4	Canada	9	209	23	2329
5	India	8	165	20.62	1166
6	Sweden	8	1520	190	2341
7	Spain	7	542	77.42	1972
8	France	6	68	11.3	1674
9	South Korea	6	124	20.6	812
10	Singapore	5	180	36	883

. By dividing the total number of citations by the total number of articles indexed, the mean citation for the relevant nation can be calculated.

The total number of citations and connections demonstrates the impact of a country on the present research field, and the total link strength indicates how much a country’s papers influence other countries in this study field. The links and density of countries based on citations are shown in Figure 6. The size of the nodes indicates how much a country has contributed to the field of study. From the analysis, based on citations is a predominance of China ranking first with 5932, Sweden in second position with 1520, Germany ranks third with 1215, Italy is in fourth position with 1136, and the United States fifth with 991, all making it into the top list. As shown in Figure 6, it is evident that China has been the major contributor to sustainable fire-resistant polysaccharide-based aerogels and again serves as the powerhouse for collaboration with most significantly, Australia, the United States, Sweden, Canada, Spain, France, Germany, Italy, Slovenia, United Kingdom, Switzerland, etc. In the Asia pacific region, the most significant collaboration exists between China and Singapore, South Korea, India, and Hong Kong. Additionally, outside the Asia pacific region, a significant link is noticed between Australia and Finland, the USA, Sweden, France, and Spain. This finding suggests that researchers from these countries have been actively collaborating on research projects, highlighting the transfer of knowledge and expertise across borders leading to the exchange of ideas, joint publications, and mutual acknowledgment of each other’s work. This phenomenon is very important for advancing the frontiers of knowledge in sustainable fire-resistant polysaccharide-based composite aerogels.

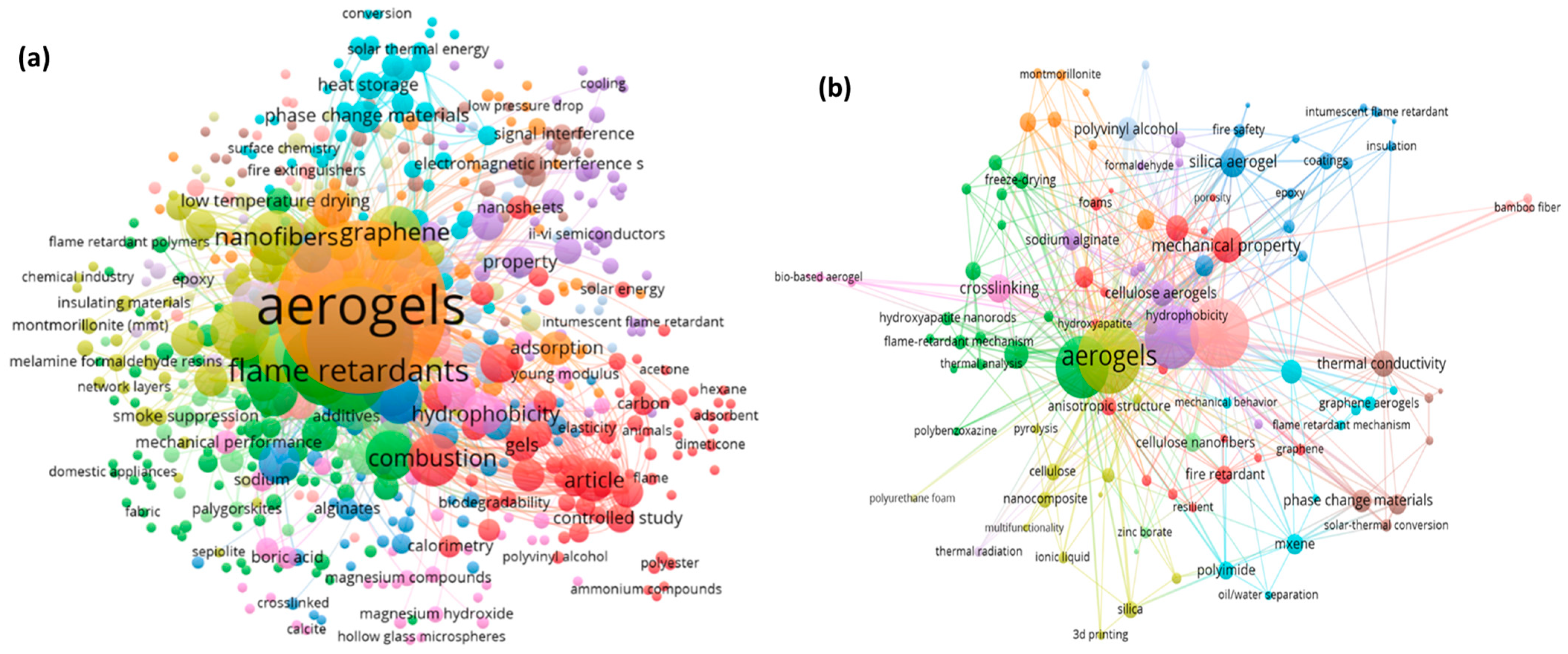

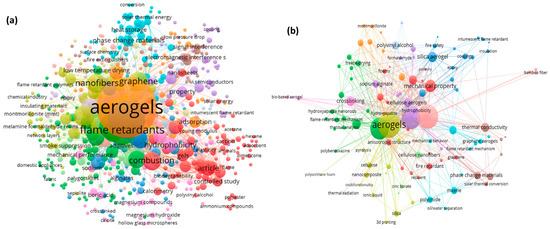

Keywords are important research metrics because they identify and represent the research domain’s fundamental field [43]. For this analysis, “co-occurrence” was chosen as the “kind of analysis,” and “index keywords” was chosen as the “unit of analysis” in VOSviewer. The minimum number of repetitions for an indexed keyword was set to two, and 603 of the 1975 keywords met the requirement (see Figure 7a and the top ten indexed keywords in

Table 3. List of the top ten index keywords in the relevant field of study.

S/N	Keyword	Occurrences	Total Link Strength
1	Aerogels	207	3036
2	Thermal Insulation	96	1493
3	Thermal Conductivity	91	1502
4	Flame Retardants	61	943
5	Cellulose	48	751
6	Low Thermal Conductivity	36	579
7	Composite Aerogel	33	467
8	Silica	33	487
9	Graphene	31	474
10	Nanofibers	31	460

). In the case of connecting links to the index keywords, the network visualization in VOSviewer provided visuals on the interconnectivity (see Figure 7b) of the used keywords in varying colors grouped into clusters of 14 namely cluster 1 red (77 items), cluster 2 green (75 items), cluster 3 blue (53 items), cluster 4 yellow (53), cluster 5 (purple) consists of 51 items, cluster 6 (sea blue) has 48 items, cluster 7 (orange) has 44 items, cluster 8 (wine) has 41 items, cluster 9 (pale purple) has 40 items, cluster 10 (tinted red) has 38 items, cluster 11 (yellow) has 31 items, cluster 12 (light blue) comprises of 25 items, cluster 13 (light yellow) consists of 24 items and cluster 14 (light purple) has 18 items. It is worthy of mention that on the premise of link strength, it is evident that within the scope of the study, the emphasis of researchers has been on aerogels and their flame and fire-retardant abilities. It is not surprising that aerogels, flame retardant, and flame retardancy have the largest nodes across the last two decades as can be seen from Figure 7a,b. The most frequently occurring keyword indicates the dominant research theme or topic within the field and reflects the primary area of interest and focus among researchers in sustainable fire-resistant polysaccharide-based composite aerogels. This also suggests that the topic is of significant interest to the scientific community and shows its particular relevance in these times. The associated big nodes could also indicate an emerging trend within the field which may reflect new research directions, technologies, or methodologies gaining traction among researchers. Generally, comparing the most repeated indexed keywords to the least repeated ones in VOSviewer analysis provides a comprehensive view of the research landscape. It offers valuable information about the dominant research areas, potential collaborations, emerging trends, and knowledge gaps, guiding researchers in navigating the literature and identifying research opportunities within their domain of interest.

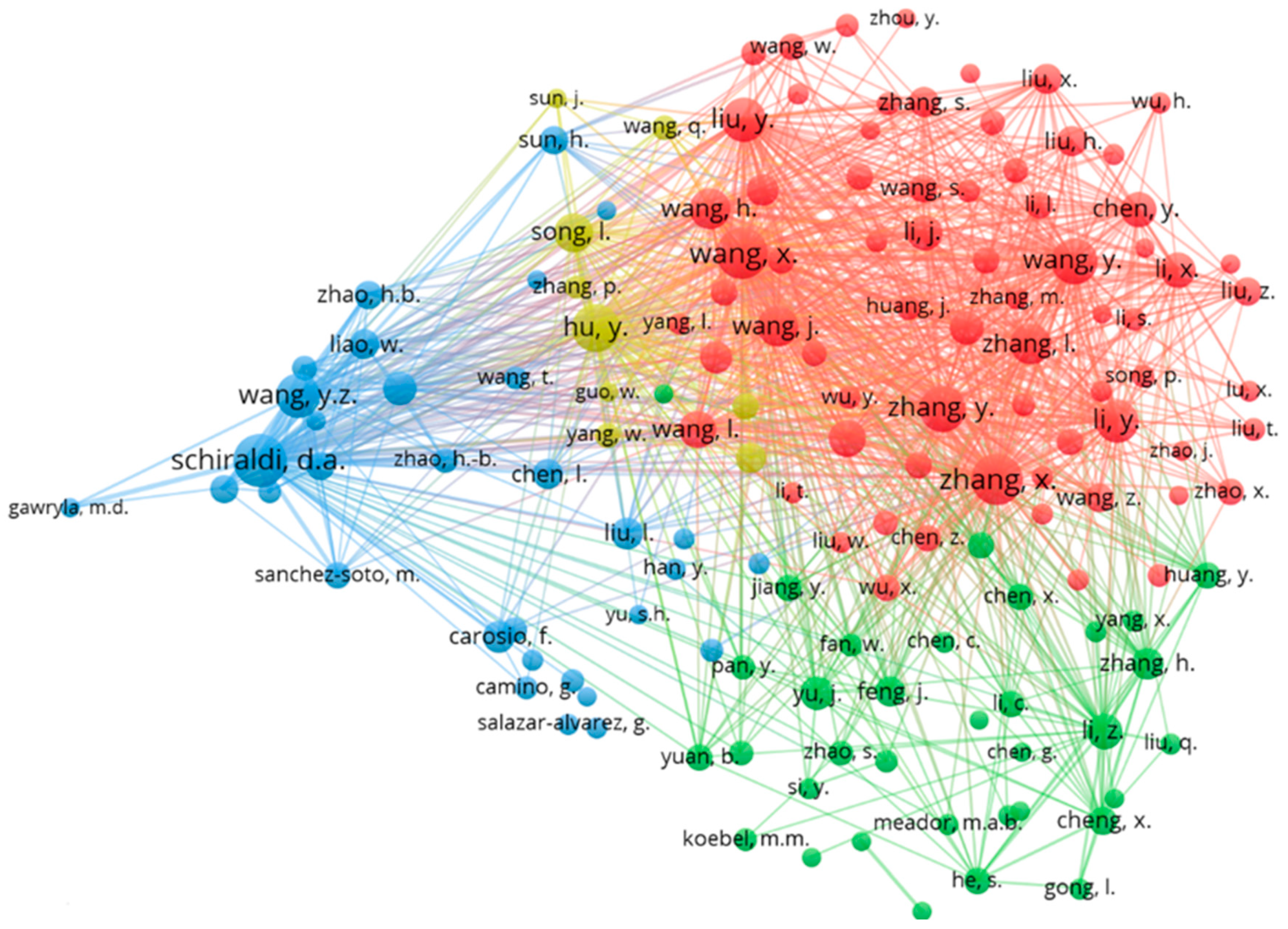

A researcher’s influence in an area is measured by the number of citations according to their names [43,44]. To obtain a better-defined picture, the study of the number of articles per author needs to be integrated with other types of analysis, such as citations, co-authorship, or network visualization. The research question intends to reveal the knowledge base of sustainable fire-resistant polysaccharides through the identification of key authors. The minimum number of documents for an author was set to two and 270 of the 847 total authors met the requirement (see

Table 4. List of the top ten authors with a minimum of two documents.

S/N	Author	Documents	Citations	Mean Citations	Total Link Strength
1	Wang X.	18	687	38.16	67
2	Zhang X.	15	442	29.46	42
3	Wang J.	13	239	18.38	60
4	Zhang L.	13	684	52.61	65
5	Li Z.	10	142	14.2	53
6	Wang H.	10	380	38	48
7	Wang Y.	10	137	13.7	38
8	Wang L.	9	177	19.6	29
9	Wang Y.-Z.	9	583	64.7	37
10	Hu Y.	8	107	13.37	38

for top ten influencers). The full table can be found in Table S6), with 263 authors largely connected. The connecting network is between Zhang L., Zang X., and Wang X, bridging all other authors together as shown in Figure 8a, into fifteen (15) different cluster units. The total number of citations was divided by each author’s total number of publications (documents) in attaining the mean citation count per paper. In terms of co-citation, an author’s minimum citation count was set at 50, and 145 of the 15,276 authors met this requirement (refer to Figure 8b). The visualization is categorized into four clusters, thus; cluster 1 (red) comprising 70 items, cluster 2 (green) with 34 items, cluster 3 (blue) has 32 items, and cluster 4 (yellow) also has 9 items. From the VOSviewer translation, it is apparent that over the last two decades, co-authors, Schiraldi D.A. have been cited the most with 363 citations, followed by Wang X. with 345 citations, Zhang X. ranking third with 339 citations to his name, Hu Y. and Wang Y. ranking fourth and fifth, respectively, with 294 and 280 citations each. These stronger links indicate a higher level of collaboration and interaction between researchers within the scientific community as it provides insights into collaborative networks, research clusters, and research communities within the scientific domain. The stronger links are an indication of knowledge sharing and accelerated scientific progress, which resulted in impactful research outcomes. Additionally, collaborative efforts could result in increased visibility and recognition for individual authors and their institutions.

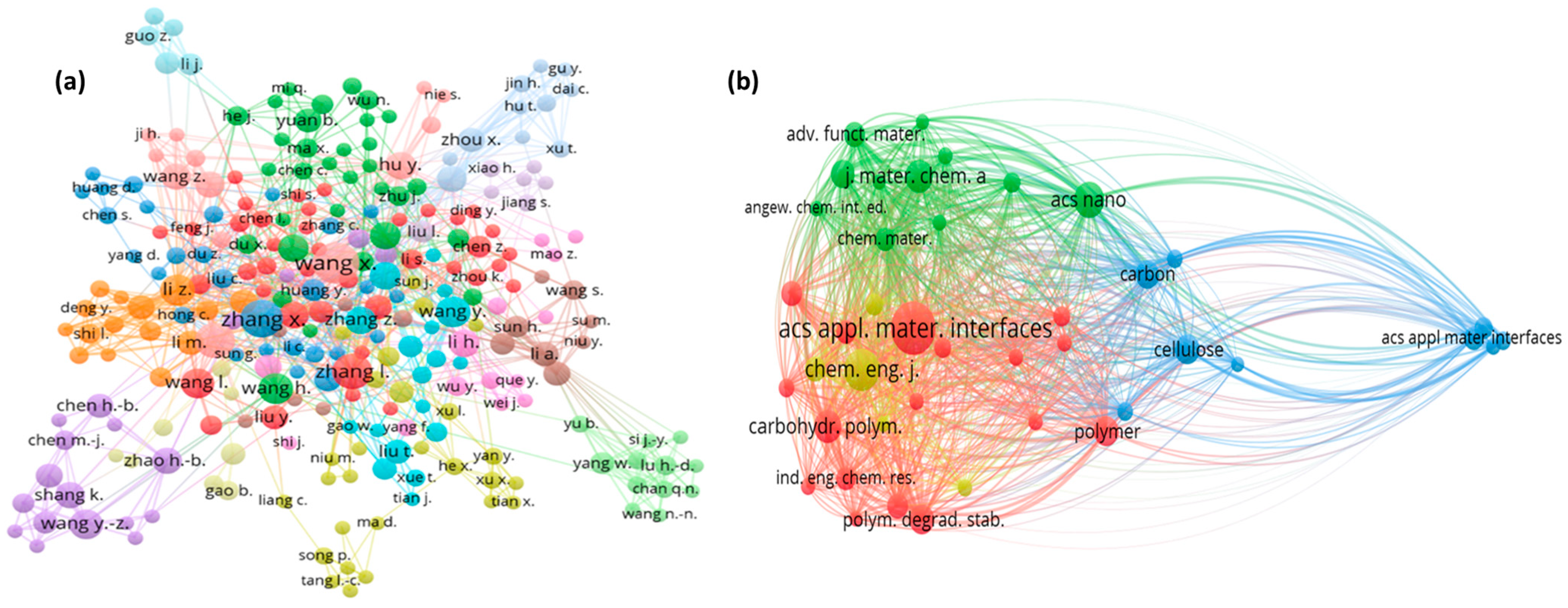

Additionally, a second analysis was conducted under the general theme “top cited co-authors”. Here, the “type of analysis” was set to “co-citation” and the “unit of analysis” to “cited sources” in the VOSviewer. A source’s minimum citation was set at 50 and 42 of the total 1901 sources met the criteria. The detailed quantitative data is provided in Table S2 whereas Figure 9 represents a visualization of the discussion in four clusters. Cluster 1 (red) has 17 items, cluster 2 (green) has 11 items, cluster 3 (blue) has 9 items and cluster 4 (yellow) has 5 items. The discussion concludes that the top five co-cited sources are ACS Appl. Mater. Interfaces with 536 citations, Chem. Eng. J. with 330 citations, ACS Nano in third place with 246 citations, Carbohydr. Polym. in fourth place with 211 citations, and the Journal of Material Chemistry ranked fifth with 204 citations. In the case of Total Link Strength (TLS), ACS Applied Material Interfaces ranked first with 13,471, Chemical Engineering Journal in second position with 7869, ACS Nano in third place with 5829, Journal of Material Chemistry A in fourth position with 5359, and Carbohydrate Polymers in fifth position with 5153 total link strength. The presence of certain publications among the top co-cited sources indicates that they are considered landmark or foundational works in the field. These publications have significantly influenced subsequent research and are commonly referenced together. Additionally, the top co-cited sources are likely related to specific research themes or topics that are of great interest within the field and thus represent core literature that provides a foundation for ongoing research in those areas. Moreover, the co-cited sources can reveal clusters of related research papers that are frequently cited together, which could be an indication of areas of specialization or research subfields within the broader domain. Lastly, top co-cited sources may be authored by researchers who are part of intellectual networks, collaborating closely or sharing similar research interests. These intellectual networks can drive knowledge exchange and mutual influence.

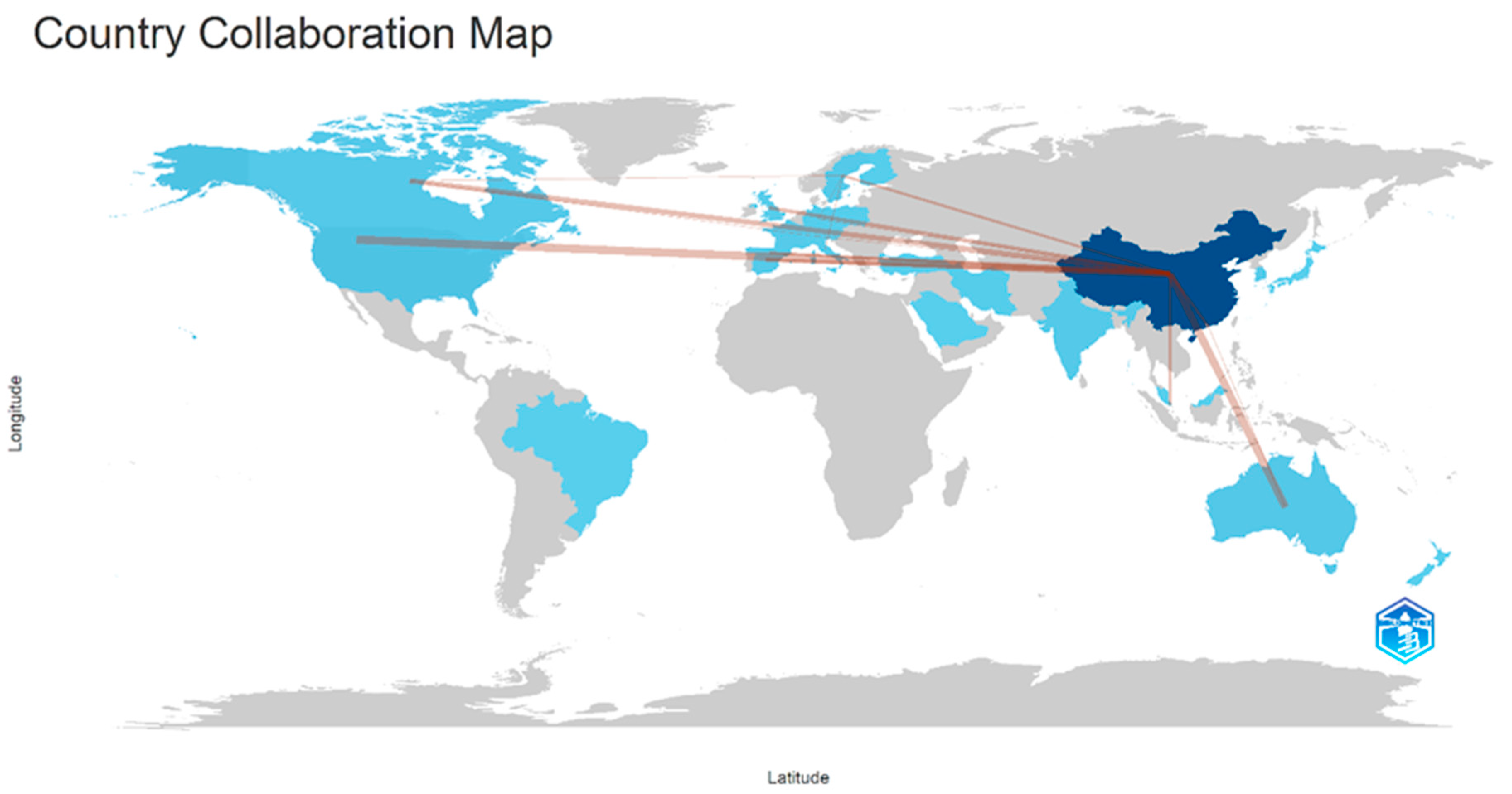

Globally, many countries have been involved in the studies of sustainable fire-resistant polysaccharide-based aerogels. Over the last two decades, the following countries (see Table S5) China, United States, Australia, Canada, India, Sweden, Spain, France, South Korea, and Singapore spanning four continents have engaged in many publications, with China recording the highest number of publications and citations. A world collaboration map analysis (Figure 10 and Table S6) indicates significant collaboration between China and other countries such as Canada, the United States, Spain, Italy, France, Australia, Malaysia, Finland, and Sweden, with China serving as the country from which these collaborations emanate. It is interesting to note the importance of Spain as the mid-point of the collaboration between European countries and authors in the Asia–Pacific region although Sweden boasts of significant publication in this field. On the issue of cross-continent collaborations, key alliances happened between Australia and China and then Hong Kong (though Hong Kong is considered a Special Administrative Region (SAR) of China but regarded as a country by the Biblitex software, V4.0). It is worth noting that Canada collaborates most with the Scandinavian countries (Sweden, Switzerland, and Finland) than its closest neighbors in this field of research. Additionally, the powerhouse, China collaborates more with countries such as Australia, the United States, Canada, and Hong Kong (SAR), with minimal involvement with others such as France, Germany, Singapore, and Italy, to mention a few.

Interestingly, although the United States of America and Canada are neighboring countries, there appears to be no collaboration between authors researching sustainable fire-resistant polysaccharide-based aerogels. Likewise, Russia and China are border countries, however, there appears to be no collaboration at the moment between these neighboring countries specifically on sustainable fire-resistant polysaccharide-based aerogels. Similarly, Australia is quite close to Indonesia but there seems to be no collaboration between authors of these countries. This phenomenon calls for a close collaboration between authors of neighboring countries to engage across borders to advance the field of sustainable fire-resistant polysaccharide-based aerogels. Similarly, in Africa, no country has been involved in research on sustainable fire-resistant polysaccharide-based aerogels according to this finding.

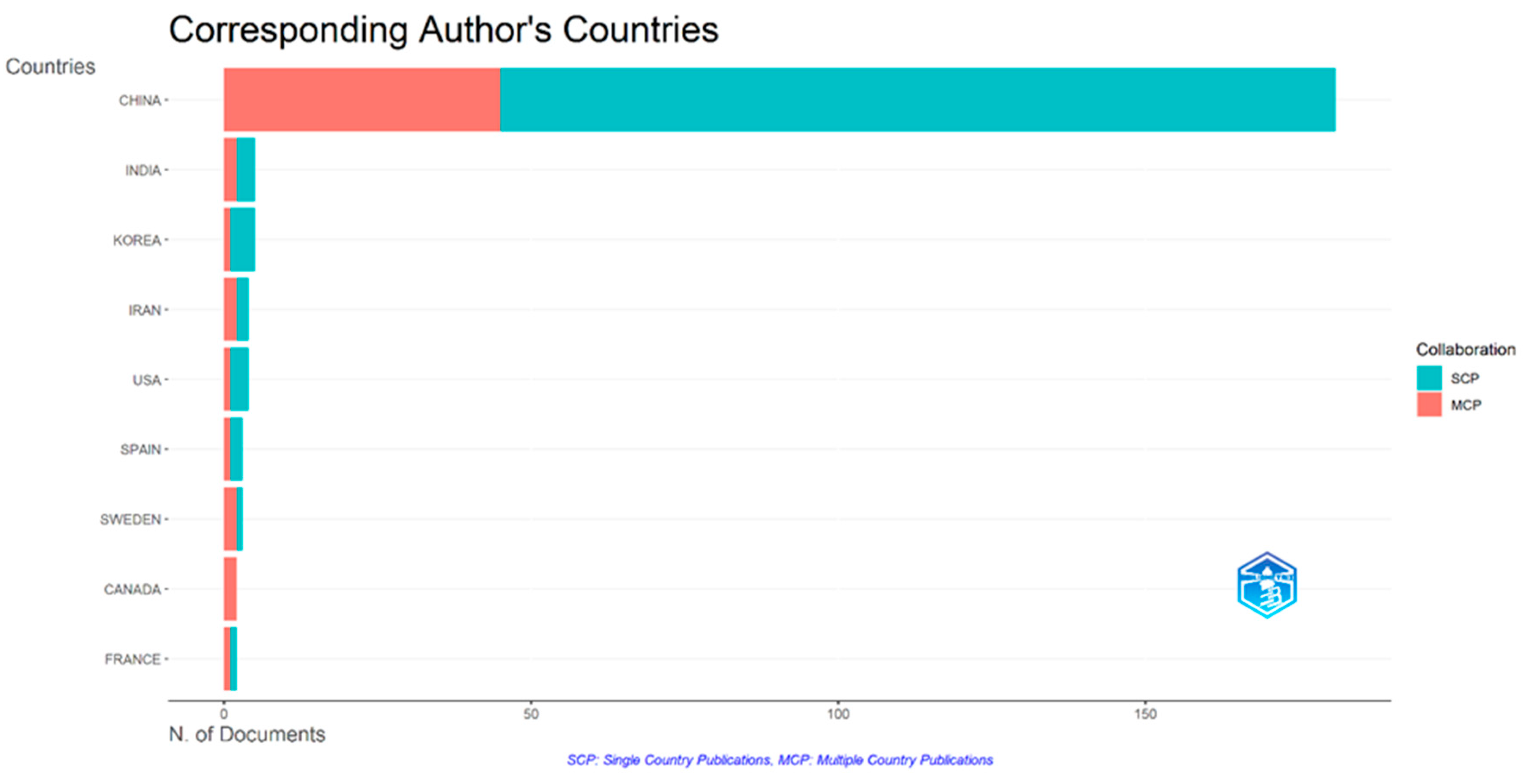

The scientific production is based on corresponding authors from diverse countries regarding publication and multi-country collaboration in research (Figure 11 SCP is the abbreviation for Single Country Publications and MCP for Multiple Country Publications). From these results, it is shown that China has the highest list of corresponding authors in the research domain in both SCP and MCP areas and covers the largest set of analysis ratios. This is followed by India with moderate involvement on both local and global scales before South Korea’s fair involvement on the local level and little collaboration globally. However, some observations can be made regarding the MCP of the USA, decreasing by an average rate to that of countries such as Spain and France. This highlights Spain’s fair involvement single-country-wise to that of multi collaborations with other nations. Meanwhile, countries such as Canada are recognized for their contributions, however, it cannot boast of any local collaboration that will promote knowledge sharing and expand the frontiers of sustainable flame-resistant polysaccharide-based aerogels. However, it is worth mentioning that Canada has significant international collaborations with many countries on different continents. It is important to state that MCPs often cover diverse research topics and methodologies and therefore, such collaborations bring together researchers with complementary expertise, leading to multidisciplinary and cross-disciplinary research contributions, which is very important for driving research innovations and providing practical solutions to the issue of fire safety while prioritizing sustainability. Again, the geographic distribution of countries involved in MCPs revealed patterns of regional collaboration on sustainable polysaccharide-based composites showing that neighboring or geographically close countries are not collaborating more frequently despite the convenience of proximity and possible shared research interests. The pattern of MCPs analysis on sustainable polysaccharide-based composites shows that researchers from different countries need to collaborate effectively by creating future partnership initiatives that will further expand the frontiers of knowledge on the subject.

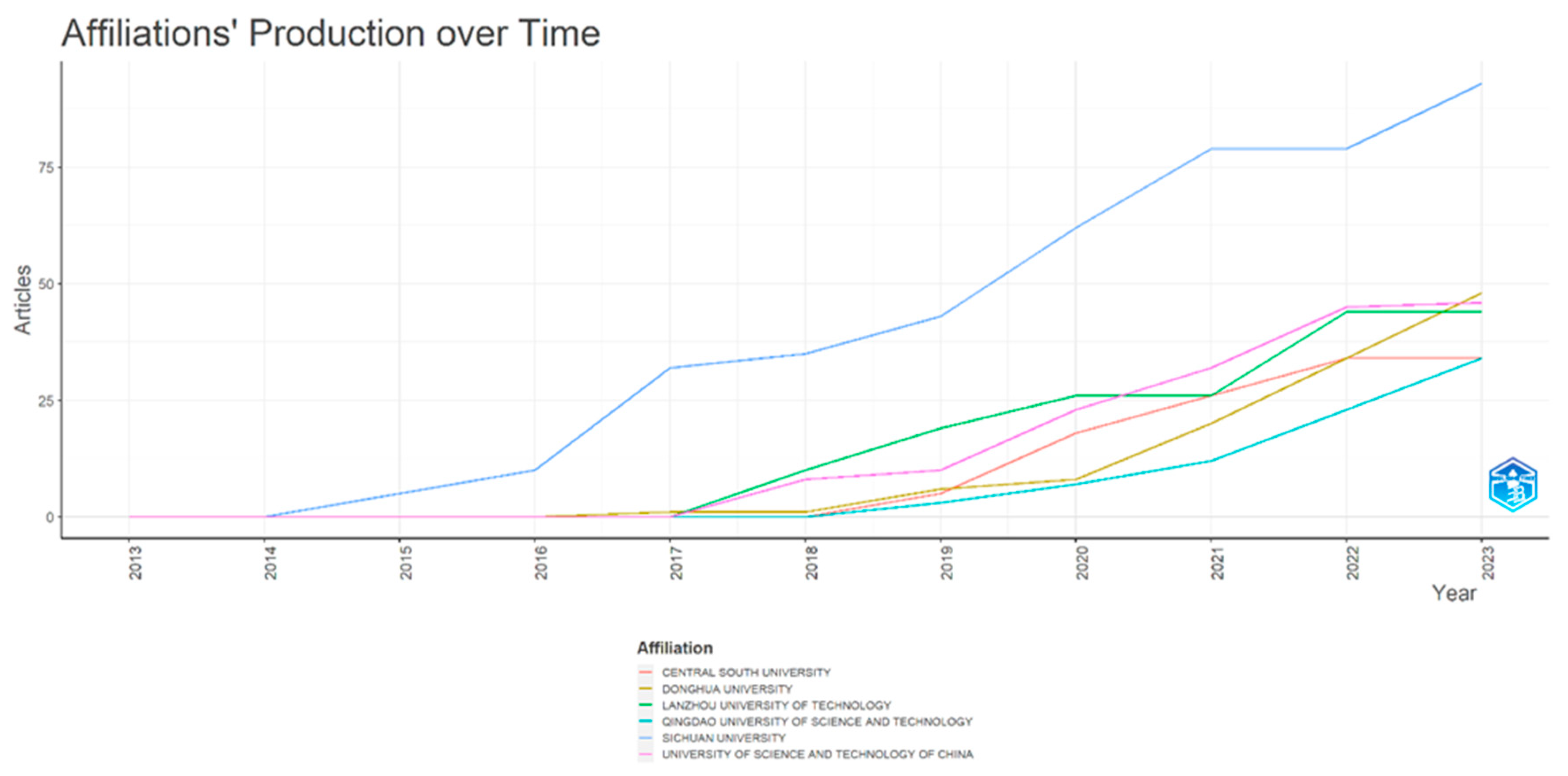

To understand trends in top cited institutions and appreciate the highest contributing institution to the body of knowledge over the years, biblioshiny was used based on the data obtained from Scopus. As presented in Figure 12, it is evident that over the past 18 years, Central South University has been the frontrunner in the relevant field of study, followed closely by Donghua University, Lanzhou University of Technology, Qingdao University of Science and Technology, Sichuan University and the University of Science and Technology of China, all serving as notable institutions in driving forward the future of research in sustainable polysaccharide-based composites.

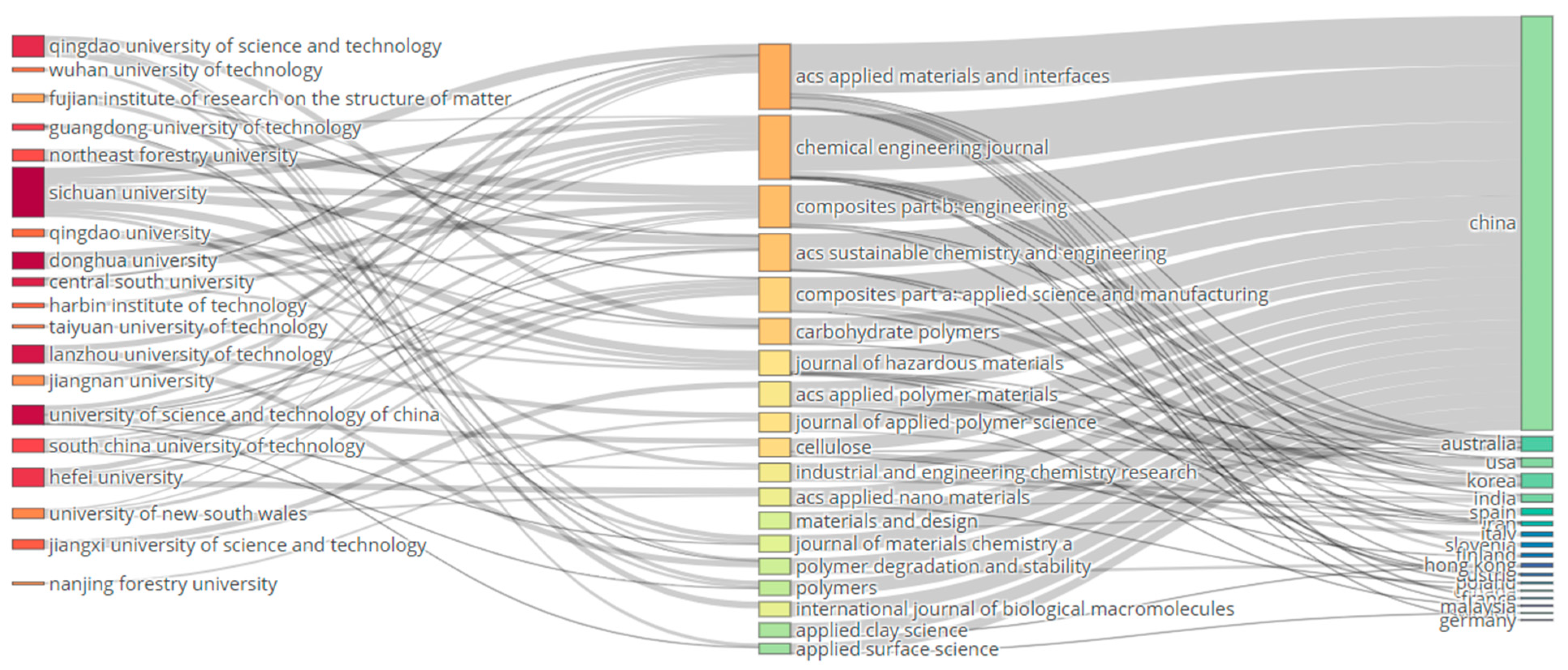

Three-fields plot analysis was conducted using biblioshiny to investigate the interconnections between journals, top authors, and countries. The interaction between top institutions (left), journals (middle), and countries (right) are illustrated in a three-field plot (Figure 13). The visualization demonstrates that most publications for aerogels and flame retardants originate from China and are mostly published in the top four journals in this field, namely, ACS Applied Materials and Interfaces, Chemical Engineering Journal, ACS Sustainable Chemistry and Engineering, and Composites Part B: Engineering. Again, the three top authors in this field are Chen Y., Zhang L., and Liu Y., with the majority of these publications coming from China, illustrating their lead in this field. The topmost institutions in sustainable fire-retardant polysaccharide-based aerogels are Qingdao University of Science and Technology, Huazhong University of Science and Technology, and the Wuhan University of Technology. On the country level, it is obvious that China, Australia, and the United States of America are the leading countries with a majority of these publications coming from China. It is fair to conclude that China is the powerhouse of research in Asia and globally in sustainable fire-resistant polysaccharide-based aerogels.

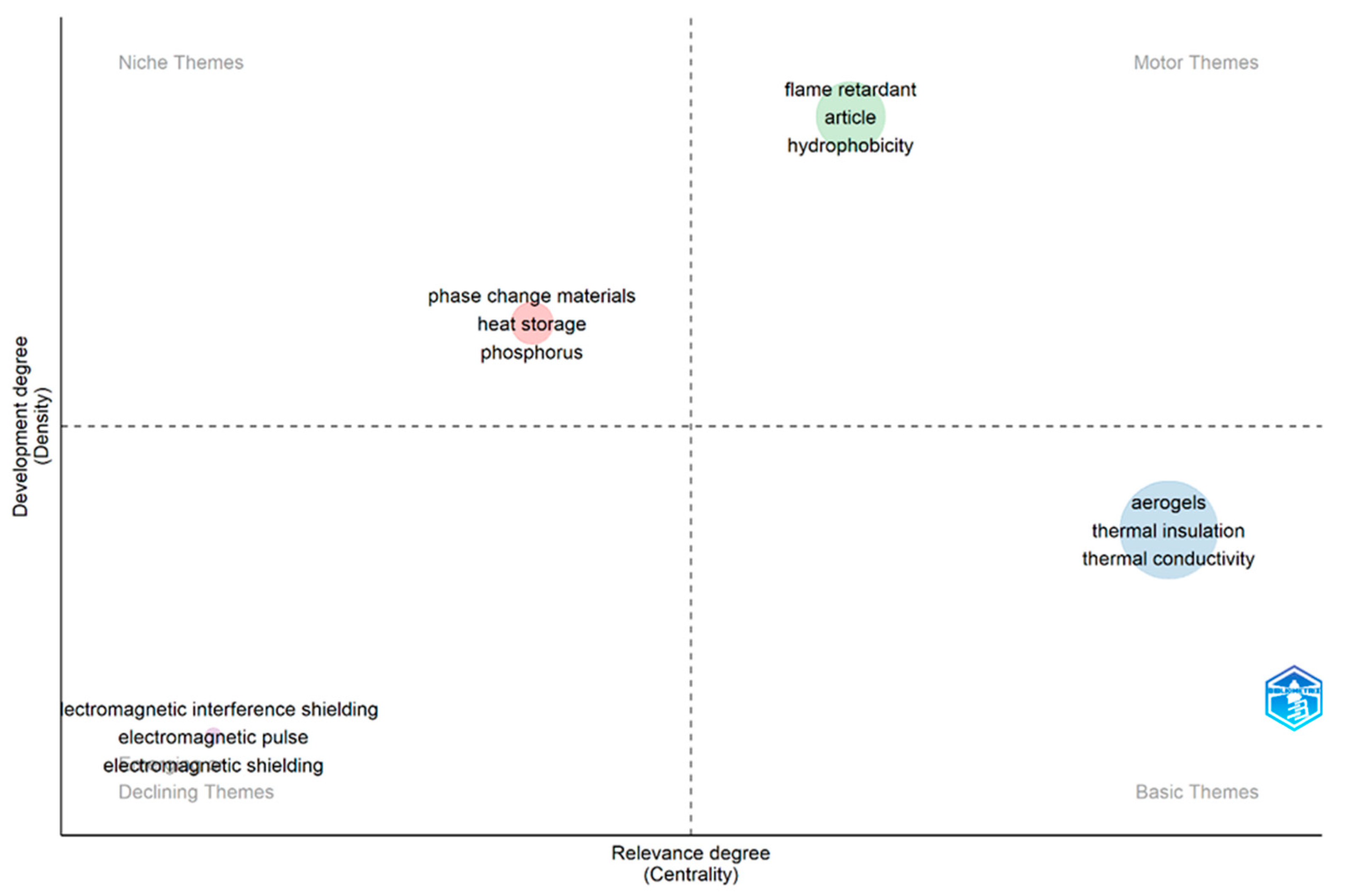

In the keyword thematic map (Figure 14), the keywords “aerogel, thermal insulation, and thermal conductivity” are placed in the lower-right quadrant representing a basic theme that has a high centrality and low density and is considered important and not yet developed for the research field. Similarly, “phase change materials, heat storage, and phosphorus” are niche themes with high density and low centrality, considered as well-researched with marginal importance in the study area. In the upper-right quadrant are the motor themes with high centrality and density, considered well-researched and important. In this quadrant, are “flame retardant, article, and hydrophobicity” representing the authors’ attribution and which are believed to have evolved from the basic themes.

Finally, themes emerging in the lower left quadrant are declining or emerging themes with low centrality and density and are considered not well-developed with marginal importance and are made of words “electromagnetic interference shielding, electromagnetic pulse, and electromagnetic shielding”. Based on the importance of the basic theme, the technological advancements in sustainable fire-resistant polysaccharide-based aerogels were identified and a comprehensive qualitative review was conducted.

3.2. Technological Advancements in Sustainable Fire-Resistant Polysaccharide-Based Aerogels

The frequent occurrence of fire outbreaks in structures, industries, and other sectors has sped up the development of creative and strategic management techniques for slowing or reducing burn rates while maintaining sustainability over the course of their lifecycles. It is imperative to state that efforts aimed at improving fire resistance will remain palpably ineffective unless preferences, costs, and environmental impacts are taken into account [45]. The manufacturing of sustainable fire-resistant polysaccharide-based composite aerogels made from renewable sources, such as cellulose, chitosan, starch, or other polysaccharides, represent a breakthrough since it combines fire resistance with sustainability, adaptability, and mechanical strength in a novel way [46,47]. Therefore, the creation of renewable raw materials for housing and construction is essential for the accomplishment of the twelfth Sustainable Development Goal (“Ensure sustainable consumption and production patterns”) agreed to by more than 150 UN member states [47]. Aerogel is a unique class of solid that is synthesized using the sol-gel technique with branching, and porous nanostructures. Aerogel exhibits little shrinking because the liquid–vapor phase is absent and has an intact structure since there is no surface tension on the gel. The sol-gel process remains a highly versatile and effective method for synthesizing functional aerogels [48]. This technique enables the production of aerogels with tailored properties, making them suitable for a wide range of applications. Unlike conventional gels, where the liquid is evaporated to produce a solid material, aerogels are dried using a unique process called supercritical drying or freeze-drying. In supercritical drying, the liquid solvent is removed under carefully controlled conditions, transforming the gel into an aerogel without causing significant shrinkage or structural collapse [49]. This process preserves the highly porous structure of the aerogel, ensuring its exceptional properties, such as low density and high surface area.

Thanks to Steven Kistler’s ingenuity in 1932, composite aerogel was first produced using the supercritical drying method [50]. These composite materials have outstanding fire resistance qualities that compare with the traditional flame retardants due to meticulous material design and composition, which successfully stops the propagation of fire and lowers the risk of combustion [51]. As observed from the keyword thematic analysis, “aerogel, thermal insulation, and thermal conductivity” are the basic themes with high centrality and low density—which are considered important and not yet fully developed for the research field. Polysaccharide-based aerogel composites under this theme include chitin (CT)/chitosan (CS), hyaluronic acid (HA), chondroitin sulfate (CRS), cellulose (Cel), starch (St), pectin (Pec), pullulan (Pul), dextran (Dex), salecan (SL), and xanthan gum (XG) [52]. It is important to state that aerogels have not been developed based on all these varieties of polysaccharides, hence, a brief qualitative study of available polysaccharide-based aerogels has been reviewed.

Cellulose-based aerogels have been the front-runners in replacing the conventional petro-polymers in most applications due to their high porosity, wide specific surface area, low density, high insulation, low thermal conductivity, sustainability, biocompatibility, biodegradability, and low price [50,53]. As a result, cellulose at the nanoscale level, is a great option for replacing synthetic materials such as steel, Kevlar, poly (vinyl alcohol) (PVA), and polyurethane (PU) [53]. These nano cellulose-based aerogel composites are used in a variety of industries, including aerospace, lightweight construction, automotive interiors, packaging, insulation, flexible devices, effluent treatment, etc. [46]. The polysaccharide portion of -D-glucopyranose units, which is connected by -1,4-linkages, constitutes cellulose’s makeup as shown in Figure 15a. Sugar molecules that are both reducing and non-reducing stabilize the end terminal of cellulose polymer chains. The cellulose’s C-2, C-3, and C-6 positions have the -OH active side group, which is responsible for the chemical alteration and cellulose characteristics with each unit having three hydroxyl groups [53]. However, cellulose also has a limiting oxygen index (LOI) of 18%, making it a combustible substance [53]. Because of this, efforts to improve the flame retardancy of cellulose aerogels while preserving their distinctive characteristics have increased over the years.

Mostly, the use of materials such as clay, organic/inorganic materials [46], MOFs, and nanofiller [53] composites have become the surest way to improve their flame resistance due to their smoke suppression, sustainability, as well as their structure and chemical composition. In this regard, the cellulose-aerogel composites with a sandwich-like structure were fabricated by in situ polymerization of aniline and PDMS/CNT after freeze-drying. The fire retardancy of the composite aerogel was subjected to an open flame-retardant test and the results showed outstanding synergistic effects between the PDMS/CNT/PANI cellulose aerogel with the other flame-retardant properties improving by ca 84% [54]. Similarly, a cellulose-based MgAl-layered double hydroxide (MgAl-LDH) aerogel was fabricated and freeze-dried as shown in Figure 15b. The flame-retardant properties of the cellulose-based MgAl-LDH aerogel improved significantly with a reduction in the peak heat release rate (PHRR) by 50% and total smoke produced by 75% [46]. The composite aerogel could not be ignited easily, and the burning could not be sustained once it is moved away from the flame. The excellent flame retardancy of the composite was attributed principally to the physical barrier and carbonization impact of LDH, or dual gas-phase and condensed phase flame retardant processes.

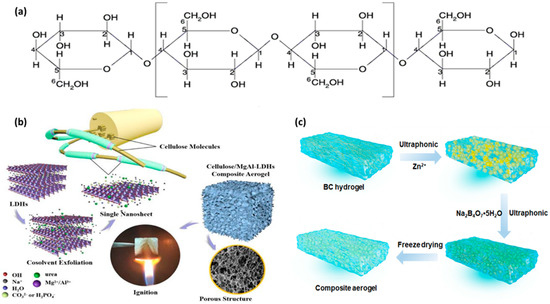

Figure 15. (a) Chemical structure of cellulose [53] (b) Schematic illustrations of the fabrication of flame retardants cellulose/LDH composite aerogel [46] (c) In situ synthesis of the BC/ZB composite aerogels [55].

Figure 15. (a) Chemical structure of cellulose [53] (b) Schematic illustrations of the fabrication of flame retardants cellulose/LDH composite aerogel [46] (c) In situ synthesis of the BC/ZB composite aerogels [55].

Additionally, bacterial cellulose (BC) aerogel flame retardants have become a focus of research in the search for sustainable flame-retardant options because BC is a type of maintainable material that combines the exceptional properties of extremely porous aerogels, such as being ultralight, having a highly specific surface area, and insulation, low density, and thermal conductivity, as well as advantages in biodegradability and biocompatibility. In this regard, Wang and co-workers [55] fabricated a sustainable bacterial cellulose-based retardant composite aerogel (Figure 15c) possessing heat-insulating properties by introducing zinc borate (ZB) particles into BC via an ultrasound-assistant deposition process and achieved a significant reduction in the heat release capacity (only 8 J·g⁻¹ k⁼¹), exhibiting excellent flame retardancy. The plausible mechanism was the dehydration of ZB particles lowering the surface temperature by releasing the bound water and simultaneously producing metallic oxides (ZnO and B₂O₃) for retarding the spread of heat and isolating the flammable fibrils within the combustion area. A list of other cellulose-based flame-retardant composite aerogels, their fabrication method, and flame-retardant evaluation results are presented in

Table 5. Summarized cellulose-based composite flame-retardant aerogels.

Type of Cellulose-Based Aerogel	Flame Retardant Additive	Fabrication Method	Drying Method	FR Mechanism	PHRR Reduction (%)	LOI (%)	VBT/HBT Rating	Ref.
PolyMXene (PCM)	Phosphorus and Mxene	Ice-induced assembly and in situ mineralization	Freeze-drying	Gas phase flame inhibition and intumescence effect	-	45.3	N/A	[56]
Cellulose nanofibers/Sepiolite clay	MTMS (Methyltrimethoxysilane), Sepiolite nanoclay	Chemo-mechanical means	Freeze-drying	Barrier effect	N/A	N/A	VBT = V-0 HBT = HB	[50]
Cellulose nanofibers	Phosphorus-containing flame-retardant modifier agent (DOPO-IA)	Simple esterification	Freeze-drying	Gas phase inhibition, intumescence effect	67.8	27	VBT = V-2	[12]
ZIF-8@cellulose composite aerogels	2-methylimidazole, ZIF-8	In situ polymerization	Freeze-drying	Barrier effect by	49.36	49.36	VBT = V-0	[57]
Cellulose nanofiber (CNF)/boron phosphate (BP) hybrid aerogels	Boron phosphorus	Cation-induced gelation	Freeze-drying	Gas phase flame inhibition and intumescent effect	73	23.9	N/A	[58]
Cellulose nanofibrils (CNF)	Melamine Formaldehyde (MF) and Methyltrimethoxysilane (MTMS)	Simple crosslinking reaction	Freeze-drying	Gas phase flame inhibition and barrier effect	50.6	37.1	VBT = V-0	[59]
Cellulose nanofibrils (CNFs)	Sodium alginate, boric acid	Divalent cation crosslinking	Freeze-drying	Gas phase flame inhibition and barrier effect	44.6	39.5	VBT = V-1	[60]
Polyvinyl alcohol/cellulose nanofibers hybrid aerogel	Microencapsulated ammonium polyphosphate (MCAPP)	Crosslinking reaction	Freeze-drying	Intumescent effect	48.48	37.5	VBT = V-0	[61]
Alginate-based	Magnesium hydroxide	Post-crosslinking method	Simple freeze-drying	Barrier effect	28.91	60	VBT = V-0	[62]
Tubular cellulose aerogels (kapok)	(NH4)2HPO4 and MMT	Hydrogen bonding and crosslinking	Oven drying	Gas phase flame inhibition and intumescent effect	26.64	43	N/A	[63]
Cellulose-silica	1-allyl-methylimidazole chloride (AmimCl), silica	In situ formation	Supercritical CO2 drying	Barrier effect and gas phase inhibition	15.51	34	N/A	[13]

LOI = Limiting Oxygen Index, VBT = Vertical Burning Test, HBT = Horizontal Burning Test.

.

Starch is also an interesting material for preparing aerogels because it is biobased and biodegradable [64,65]. Additionally, it is widely used owing to its excellent mechanical properties, low density, environmental friendliness, biodegradability, and is abundantly available from bioresources [53]. Starch is the main storage carbohydrate in higher plants. Starch contains two D-glucan biopolymers, i.e., amylose, a relatively linear 1,4-α-D-glucan with a small number of long branches; and amylopectin, mainly a 1,4-α-D-glucan containing high-density branches (ca. 5% of glycosidic bonds are α-1,6) [66,67] as shown in Figure 16a.

The performance of starch differs greatly depending on the composition of amylose and amylopectin. Because the heterogeneous structure of pure amylose cannot withstand the pressure during the freezing process, it cannot form aerogels. However, the inclusion of amylose can enhance the specific surface area of the aerogel while decreasing its density. Furthermore, the kind of starch and amylose/amylopectin ratio is critical for the microstructure of aerogels, resulting in varied characteristics. The amylose content of starch, for example, might influence the mechanical characteristics of aerogels [68]. Starch, on the other hand, is typically regarded as a naturally flame-retardant substance due to its good char-forming characteristics, which emits CO₂, CO, and creates a carbon layer upon combustion, hence limiting the spread of heat and oxygen [69]. Despite the outstanding advantages of starch aerogel, there remain some drawbacks, such as low hardness. However, the mechanical property can be improved through start materials modified in the preparation process of aerogels [69,70]. Hence, different modification techniques have been used to alter starch-based products to be good as flame retardant materials. Therefore, Glenn and Irving [64] reported the preparation of unmodified wheat starch (B28% amylose and B72% amylopectin), corn starch (B28% amylose and B72% amylopectin), and high-amylose corn starch (B70% amylose and B30% amylopectin) based aerogels. These aerogels were conditioned at 50% relative humidity for at least 48 h before analysis. Among these starch-based aerogels, the corn starch with a high-amylose content aerogel had a nanostructured morphology, whereas corn starch and wheat starch-based aerogels showed 2D sheet-like morphology with macropores and flame-retardant properties and thermal insulation properties. In general, starch-based aerogel can be fabricated in two steps, starch-based hydrogel formation and drying [71]. The supercritical CO₂ drying-based technique is commonly used for production [68] similar to the freeze-drying technique. However, the information regarding the production, processing, properties, and uses of starch-based aerogels is rather scattered.

In a recent study, the use of starch as an intumescent flame-retardant synergist for replacing petroleum-based char-forming agents through modifications with expandable graphite (EG) and H₃PO₄ for the preparation of aerogel by hot vacuum drying has been reported [72]. A portentous decline in peak heat release rate (PHRR) (33.5%) was achieved—attributable to the conjunct physicochemical action of EG and H₃PO₄ as shown in the quality of the charring layer in Figure 16b.

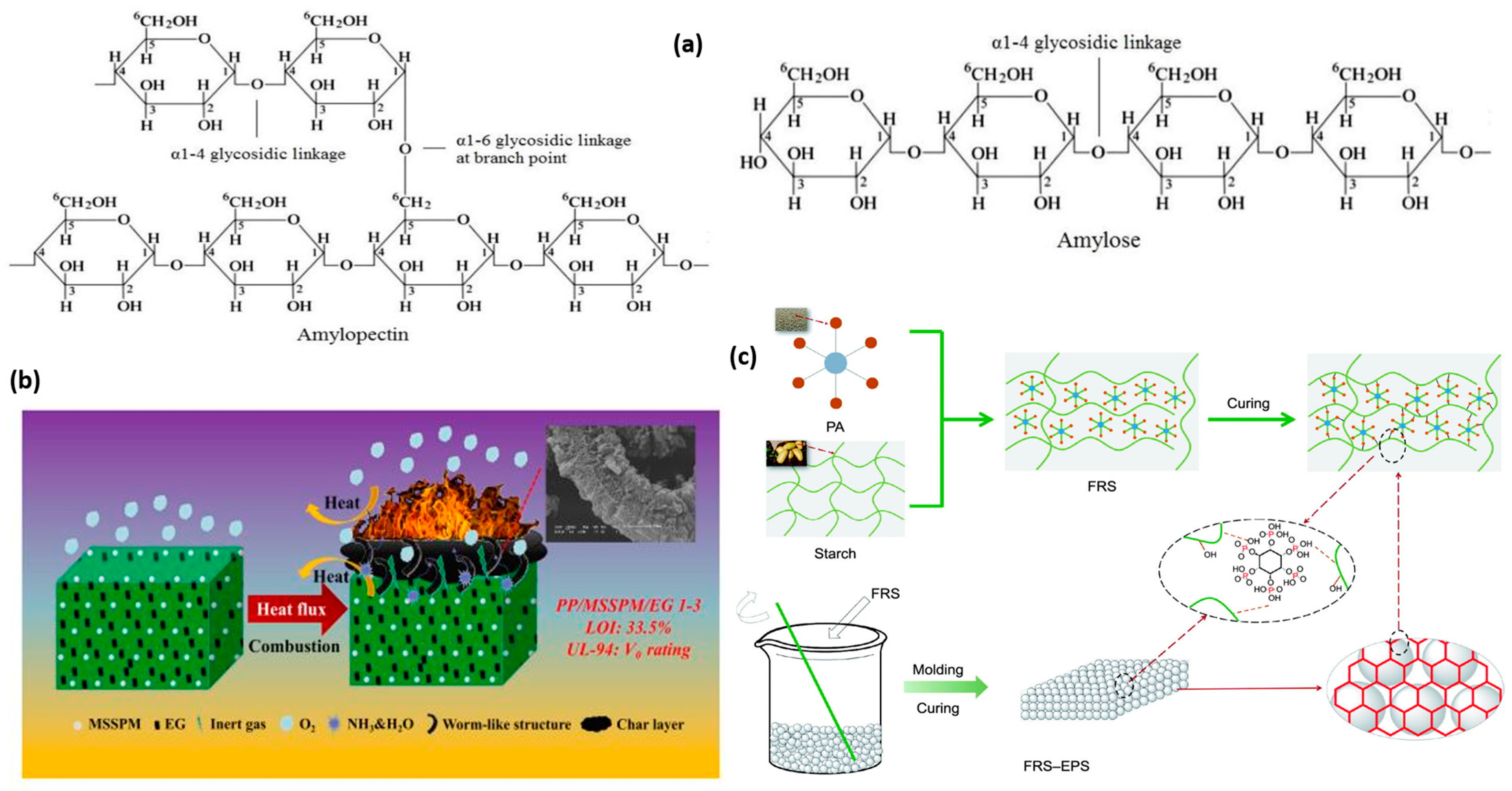

Figure 16. (a) Structure of starch [67] (b) Starch-based synergistic EG and H₃PO₄ intumescent flame-retardant aerogel [72], (c) Porous bio-based flame-retardant coating via esterification from starch modified with phytic acid (PA) [73].

Figure 16. (a) Structure of starch [67] (b) Starch-based synergistic EG and H₃PO₄ intumescent flame-retardant aerogel [72], (c) Porous bio-based flame-retardant coating via esterification from starch modified with phytic acid (PA) [73].

Similarly, a porous bio-based flame-retardant coating via an esterification interaction designed from starch modified with phytic acid (PA) (see Figure 16c) for reducing the flammability of expanded polystyrene aerogel that acts as both a flame retardant and an adhesive was reported [73]. The resultant FR coated aerogel showed an 83.3% reduction in peak heat release and smoke production, indicating its excellent fire retardancy. It also exhibited excellent self-extinguishing behavior in the vertical burning tests with an LOI of 35.5%. Equally, eco-friendly aerogels with high mechanics and fire resistance from naturally occurring pea starch were used to fabricate composite aerogels via a freeze–drying method resulting in the formation of a multi-crosslinked hybrid network and the application of borax and polyvinyl alcohol (PVA) as an additive in enhancing its performance [69]. The peak heat release rate decreased by 74.5%. Not only did the experiment result in the formation of borate ester bonds acting as covalent linkages, but also, the multi-crosslinked hybrid network structure resulted in high mechanics and good thermal insulation. It is important to indicate that research on starch-based materials for the fabrication of sustainable fire-resistant aerogel is still in the infant stages and more research will be needed in this direction to realize the full potential of this important polysaccharide-based resource.

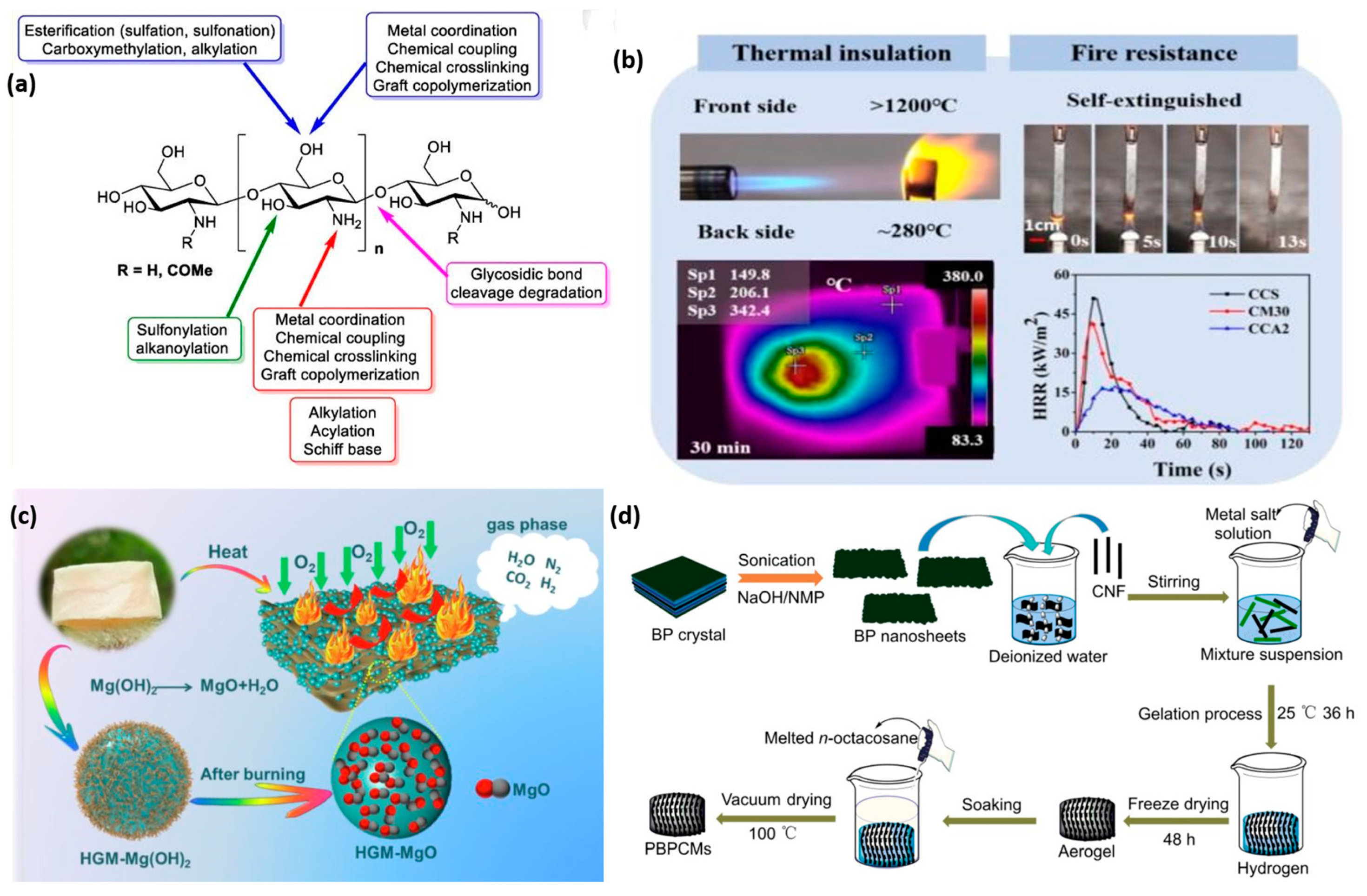

Chitosan-based flame-retardant composite aerogels have emerged as a promising and innovative fire safety solution at the molecular scale [74]. Chitosan, a biopolymer derived from chitin found in the exoskeletons of crustaceans and insects, possesses inherent flame-retardant properties [75]. When combined with other additives and engineered into an aerogel form, chitosan-based composites exhibit enhanced flame retardancy and mechanical strength, making them suitable for diverse applications, including thermal insulation, protective coatings, and fire-resistant barriers [76,77]. This aspect of the review provides a snippet of the properties, production methods, and applications of chitosan as a great promise in mitigating fire hazards and advancing the realm of flame-retardant technology. Chitin/chitosan is a family of linear polysaccharides made up of different proportions of N-acetyl-2 amino-2-deoxy-D-glucose (glucosamine, GlcN) and 2-amino-2-deoxy-D-glucose (N-acetyl-glucosamine, GlcNAc) residues known as chitin and its deacetylated derivative, chitosan [78,79,80] (See Figure 17a). Chitosan is soluble in aqueous acidic conditions by primary amine protonation as well as in several crustacean derivatives.

Because of the presence of abundant hydroxyl and amino groups, carboxymethyl chitosan (CCS) is a promising alternative to conventional flame retardants. This gives CCS aerogel superior charring and thermal insulation properties. Additionally, when exposed to a flame, CCS can more securely connect with different 2D nanomaterials to create compact char layers, which will shield the aerogel from burning easily [82]. Biopolymer aerogels, such as CCS aerogel, are typically more plastically bendable and less brittle than inorganic aerogels. To achieve this objective, an ultrasensitive fire-warning and high fire-resistance chitosan/montmorillonite/carbon was fabricated via a freeze-drying method at a temperature of 45 °C [81]. The PHRR was reduced by ca 73% and a V = 0 rating with the composite aerogel serving as a heat sink as shown in Figure 17b.

Similarly, Zhu et al. [75] prepared a sustainable novel porous, yet mechanically tough, vertical directional channel composite aerogel by incorporating Mg (OH)₂ coated hollow glass microspheres (HGM) into a chitosan (CSA) matrix and crosslinking it with glutaraldehyde as shown in Figure 17c. The composite aerogel obtained a V =0 rating with a substantial reduction in PHRR with the potential for scaling up for large-scale production. To expand the application possibilities of these sustainable aerogels, Du et al. [58] developed flame-retardant and form-stable phase change composites based on black phosphorus nanosheets/cellulose nanofiber aerogels (See Figure 17d) with extremely high energy storage density and superior solar-thermal conversion efficiency. The form-stable phase change composites aerogel had extremely high n-alkane loading capacity and thermal storage density of ca 247.0–251.6 J g⁻¹. The thermal conductivity and the solar-thermal conversion and storage efficiency of the composite aerogel increased by 89.0% and 87.6%, respectively, whereas the PHRR decreased considerably with a marginal improvement in the LOI value. Further, Yang and co-workers [83] designed and synthesized intrinsic flame-retardant and thermal-conductive vanillin-based epoxy/graphene aerogel (GA) composites with excellent flexural strength and modulus in addition to excellent flame retardancy.

Table 6. Summarized works by other scholars on chitosan/chitin-based flame-retardant composite aerogels.

Chitosan/Chitin-Based Aerogel	Flame Retardant Additives	Fabrication Method	Drying Method	FR Mechanism	PHRR Reduction (%)	LOI (%)	UL-94 Rating (VBT/HBT)	Ref.
Phosphorylatedchitosan (PCS)	H3PO4, Chitosan	Freeze thawing	Freeze-drying and Freeze thawing	Gas phase flame inhibition and barrier effect	91	80	VBT = V-0	[84]
Sodium alginate chitosan, sodium carboxymethylcellulose	Sodium hypophosphiteAlginate, chitosan	Post-crosslinking	Freeze-drying	Gas phase flame inhibition and barrier effect	19.94	37.7	VBT = V-0	[28]
Carboxymethylchitosan (CCS)	Montmorillonite (MMT), carbon nanotubes	Ionic interaction	Freeze-drying	Barrier effect	-	85	VBT = V-0	[85]
Chitosan nanofiller (CNF)	Montmorillonite (MMT) powder	Chemicalcrosslinking via Schiff base reaction	Directional freezing, and Freeze-drying	Barrier effect, slightly gas phase phenomenon	-	43	N/A	[77]
Chitosan-aluminum/PVA	Aluminum, chitosan	Crosslinking and chemical vapor deposition	Freeze-drying	Gas phase dilution and barrier effect	77.68	41	VBT = V-0	[86]
Chitosan (CS) hydrogels	MXene, CS	Facile water evaporation-induced self-assembly	Freeze-drying	Barrier effect	25.6	N/A	N/A	[87]
Biopolymer chitosan (CS) and ammonium polyphosphate (APP)	Boric acid, APP, CS	Crosslinking	Freeze-drying	Gas phase inhibition, barrier effect	23.0	N/A	VBT = V-0	[88]
Chitosan (CS)/APP	APP, CS	Layer-by-Layer (LbL) assembly	Vacuum oven drying	Gas phase, barrier effect	27.6	23.8	N/A	[89]
Hydroxyapatite (HAP) and chitosan (CS)	HAP	Chemical crosslinking	UnidirectionalFreeze-drying methods	Barrier effect	-	-	-	[90]
Chitosan (CS)	APP and polyethyleneimine (BPEI)	Strong hydrogenbonding	Simple drying	Gas phase flame inhibition, barrier effect	28.87	32.7	N/A	[91]

LOI = Limiting Oxygen Index, VBT = Vertical Burning Test, HBT = Horizontal Burning Test.

provides summarized works by other scholars on chitosan/chitin-based flame-retardant composite aerogels.

3.3. Processing Conditions for Drying of Polysaccharide-Based Composite Aerogels and Structural Properties

In the fabrication of polysaccharide-based composite aerogels, material drying plays a crucial role in the achievement of structurally tough and functional composite aerogel. The wet gel’s solvent is eliminated during the drying phase leaving a highly porous solid structure with a low-density aerogel behind [92,93]. For the aerogel to stay intact and retain its desirable qualities, the drying process must be controlled properly [92,94]. Gel formation is usually obtained through a simple process, but the solvent exchange and drying processes are more challenging, time-consuming, and can cause structural damage. Typically, the supercritical CO₂ drying process requires careful alteration of experimental process to ensure the aerogels’ rheological behavior can be managed such that the dried aerogel will be structurally intact [95]. The drying conditions for polysaccharide-based aerogels must be carefully controlled to minimize structural collapse, cracking, or shrinking due to sensitivity [96]. Typically, polar solvents with high surface tension are employed to dissolve polymers; and as a result, direct drying of these solvents results in significant shrinkage due to capillary pressure during the drying process [97]. The most effective and widely adopted method for solving this problem is supercritical CO₂ drying (SCD) [98,99,100] where the solvent within the gel is converted into a supercritical fluid by adjusting temperature and pressure conditions above its critical point. The drawbacks of this process include expensive prices and potential safety hazards, as well as the need for extremely harsh drying conditions. The freeze-drying approach is another regularly used method that involves freezing a wet gel to create a solid ice matrix and then sublimating that ice directly into vapor under reduced pressure, by skipping the liquid phase [101,102]. Lyophilization and pre-freezing are two categories of freeze-drying. The liquid in the wet gel is either swiftly frozen using liquid at 196 °C for 10 s or slowly frozen over the course of 24 h using a freezer at 18 °C in the pre-freezing process. The next process is lyophilization, which involves desorption and reduction in moisture content from 7% to between 0.5 and 2.0%. The generated aerogels tend to be fragile due to the rearrangement of water molecules during freeze-drying, and the drying period is typically very long even though the technique preserves the porous structure of the gel and produces a lightweight aerogel with minimum shrinkage [101,102]. Vacuum drying (VD) and ambient pressure drying (APD) are the most practical and economical choices [103,104]. These techniques are difficult to apply because wet gel pores typically cannot withstand the strong capillary forces created when solvents are evaporated inside of them. This causes significant shrinkage and the loss of the porous structure. To lessen the effects of the solid–solvent interaction and meniscus force of deformation during drying, APD, and VD procedures often rely on surface modification and/or solvent exchange by a liquid with low surface tension.

Structurally, most aerogels contain 99% air, making them one of the lightest substance known to man [96,105]. The density of aerogel can be as low as 0.004–0.5 g/cm³ with a high porosity of up to 99.8% and a large specific surface area of 100–1600 m²/g [92]. To view the network structure and pore morphologies in the aerogel, SEM is mostly utilized. The drying process and the aerogel component concentrations are two examples of variables that affect the properties of pore size and distribution. The crucial network structure that connects the components and creates the porous structure is critically examined [106]. By observing the evolving morphology across several works, it is possible to determine the effectiveness of drying during aerogel creation. The morphological structure of most aerogels can be damaged during the drying–adsorption cycle, particularly when the free-drying techniques are employed, because of the quick transition from liquid to crystal form. Network structural changes may also result from the addition of additives to the aerogel structure. Lately, a variety of crosslinking chemicals, including aldehydes, divinylsulfone, cellulose nanofibrils, borax, CaCl₂, and bio-based gelatin, are used to improve the mechanical properties of polymer aerogels [107]. For instance, Jaafar et al. found that the viscosity of the XG/CNC colloidal dispersion increased when xyloglucan (XG) was added to a cellulose nanocrystal (CNC) aerogel, causing the morphology to change from a lamellar to an alveolar form [108].

Common characteristics of flame-retardant polysaccharide composite aerogels are their enhanced porosity, which is closely related to their morphologies and mechanical properties, thermal stability, flame retardant performance, dimensional stability, and moisture resistance rate [109]. Hence, the mechanical properties of aerogels are improved using additives. The compressive stress of ZIF-8@cellulose composite aerogel, showed significant improvement due to the dense structure of ZIF-8 with NC serving as cellulose skeleton. The ZIF-8 reinforcement protects the porous structures from collapsing, thereby improving the mechanical properties [57]. Additionally, the addition of inorganic clay fillers as additives is claimed to improve aerogel’s compressive modulus and also improves the FR performance aerogels [63]. A tubular composite aerogel morphology with enhanced compressive strength, high density, thermal-insulating and flame-retardant properties has been reported by the incorporation of NC and nanoparticles [64]. Similarly, silica is reported to significantly improve the compressive strength of aerogels when combined with NC and other flame-retardant materials [13]. Typically, composite aerogels with high silica content have outstanding toughness because they can be crushed without rupturing more than 50%. Generally, aerogels with honeycomb-like structure enhance low-frequency sound absorption capabilities with an anisotropic structure that supports the mechanical, thermal, and heat-resistant properties of aerogels.

3.4. Challenges and Opportunities in Sustainable Fire-Resistant Polysaccharide-Based Aerogels

Polysaccharide aerogels made of cellulose, chitosan, and starch have a lot of potential as environmentally friendly substitutes for fire-resistant materials. These materials provide several benefits, including their accessibility, biodegradability, and inherent non-toxicity [110]. However, some obstacles reduce their full potential from being realized as fire-resistant aerogels for many applications. The poor mechanical strength of polysaccharide aerogels has been identified as one of the main development concerns. These aerogels frequently show brittleness and fragility when compared to conventional insulation materials [110,111]. Crosslinking and composite creation are two strengthening techniques that are being investigated and used more frequently to improve materials’ mechanical strength to make them suitable for real-world applications. Additionally, the extended thermal stability of polysaccharide aerogels presents a substantial additional obstacle. As a result, these materials are less useful in fire-resistant applications at extremely high temperatures due to their susceptibility to thermal degradation. For this reason, material additives found extensive application in composite aerogel matrixes to help them tolerate extended heat (temperature) exposure.

Moreover, many polysaccharide aerogels are hygroscopic, making them capable of absorbing and holding onto moisture from their surroundings, as shown in numerous research articles [112,113]. Their moisture sensitivity adversely affects their fire-resistance qualities, causing them to lower their ignition point and hasten to burn. Research must thus overcome this obstacle by creating moisture-resistant coatings or adding hydrophobic chemicals to the aerogel matrices. The most often employed compounds for increasing the hydrophobicity of hydrophilic surfaces are silanes [114].

Large-scale manufacturing of polysaccharide aerogels has proven challenging, despite the encouraging results of laboratory-scale production. For these materials to be used commercially, the scalability of manufacturing techniques and the accompanying cost-effectiveness must be addressed. To make polysaccharide aerogels commercially feasible, efforts should be directed at streamlining the manufacturing process, lowering the cost of raw materials, and improving production techniques.

With regards to the opportunities, most polysaccharides are readily accessible renewable resources that can be used to meet the demands of sustainability and the public’s urge to practice climate justice. The abundance of these raw minerals offers a great chance to lessen reliance on fossil fuels and help create a more sustainable future. By exploiting leftover biomass or agricultural byproducts for fire-resistant aerogels, one can contribute to the development of a circular economy. Compared to conventional insulation materials, polysaccharide aerogels have significant environmental benefits. They are produced using renewable resources, biodegrade, and do not produce or burn toxic volatile organic compounds (VOCs). Utilizing polysaccharide aerogels can help foster a greener, more sustainable construction sector by reducing the environmental effect of insulation materials [115]. Although polysaccharide aerogels may not naturally have a high level of fire resistance, this property can be improved due to their versatility of modification. Their fire-resistant performance can be improved chemically through surface functionalization or nanoparticle doping. The use of flame-retardant chemicals can also improve the materials’ fire resistance. Beyond insulation and fire resistance, polysaccharide aerogels offer the potential for multifunctionality that can be of use in a variety of industrial applications with the proper adjustments. Their adaptability creates a variety of opportunities for many businesses and enables the creation of effective and sustainable solutions in fire science in numerous fields.

3.5. Limitations of the Study

Although we (the authors) put in place a mechanism to address the possible limitations of this sciento-qualitative review, we acknowledge the fact that the literature included in this work may be subject to publication bias where positive or significant findings related to the effectiveness or advantages of aerogel-based fire retardants are more likely to be published, while negative or inconclusive results may be underrepresented. More so, assessing the quality and reliability of the included publications was quite challenging because the review includes articles with varying levels of rigor, such as peer-reviewed journal papers, conference proceedings, and sometimes gray literature. Additionally, the use of different terminologies and descriptors across publications made it challenging to accurately capture and analyze the relevant literature. Variations in terminology and indexing keywords (although rigorous manual screening was performed) could still lead to missed or duplicated studies, which could affect the completeness and accuracy of the results. The issue of time lag and knowledge cut-off is acknowledged as a possible limitation because this sciento-qualitative review was based on existing literature captured from the Scopus database on 12 June 2023, and there could be a possible time lag between the publication of research findings and their inclusion in bibliographic databases. Therefore, depending on the currency of the Scopus database and the knowledge cut-off we chose, recent publications and emerging trends may not be adequately captured. It is also important to state that the findings from this sciento-qualitative review may or may not necessarily be directly applicable or generalizable to real-world situations. This is so because the studies included in the review may have been conducted under specific conditions or in laboratory settings, which may not fully represent practical applications of sustainable fire-resistant polysaccharide-based aerogels in different industries or environments.

4. Conclusions

The development of sustainable, fire-resistant polysaccharide-based composite aerogels has attracted increasing interest due to their potential for use in a variety of applications as observed from the annual publication trends on fire-resistant polysaccharide-based composite aerogels. The increase is attributable to the global shift towards a sustainable world in addressing environmental issues. A total of 234 articles obtained from the Scopus database were analyzed scientometrically with the aid of VOSviewer and biblioshiny software to generate clusters, maps, and research trends after which a mini qualitative review was performed to provide a complete perspective on the subject. China emerged as the global powerhouse for research in fire-retardant polysaccharide-based aerogels in terms of the total number of publications and citations in the field of fire-resistant polysaccharide-based composite aerogels, followed by the USA, Australia, Canada, India, Sweden, Spain, France, South Korea, and Singapore.

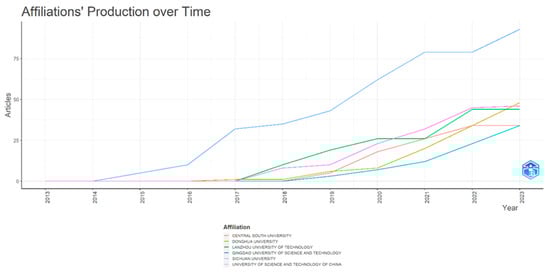

In terms of institution’s production over the time in review, Central South University has been the frontrunner in the relevant field of study, followed closely by Donghua University, Lanzhou University of Technology, Qingdao University of Science and Technology, Sichuan University, and the University of Science and Technology of China, driving the frontier of knowledge in this field. The basic research theme identified in this study is the thermal insulation and conductivity of flame-resistant polysaccharide-based aerogels. The usage of polysaccharides in fire-resistant aerogels has the potential to lower energy usage and waste creation, which have important environmental implications. The adoption of environmentally friendly materials in these applications also helps many sectors reduce their carbon footprints. The significance of interdisciplinary cooperation in the creation of long-lasting fire-resistant aerogels cannot be overemphasized, and the discovery of new materials and the optimization of already existing ones may result from the multidisciplinary approach necessary to make research discoveries that can more easily be converted into useful applications with the help of industry–academia collaboration. The investigation revealed some gaps in the existing body of knowledge on sustainable fire-resistant polysaccharide-based composite aerogels. These restrictions include a lack of standardization in the manufacture (fabrication) and characterization of these materials, a dearth of knowledge of the unique mechanisms underlying fire-resistant polysaccharide-based composite aerogels, and the requirement for more thorough life cycle analyses to assess the environmental impact of these materials.

To fully realize the potential of polysaccharide aerogels derived from starch, chitosan, cellulose, and other auxiliary polysaccharides as sustainable fire-resistant materials, the issues related to mechanical strength, thermal stability, moisture sensitivity, and cost-effectiveness must be resolved. However, there are several potentials for the development of sustainable solutions across numerous industries due to the availability of raw materials, environmental friendliness, fire resistance, and multi-functionality. Polysaccharide aerogels can significantly contribute to the development of a safer and more ecologically friendly future by addressing these difficulties.
