An Empirical Study for Real Options of Water Management in the Three Gorges Reservoir Area

Abstract

This paper investigates an empirical evaluation of water management on agricultural irrigation. To address this problem, a real options model was proposed. This model analysis the choice of investment in water savings. Also, the model discusses a linear complementary problem that can be transformed into the inequalities of parabolic variational. By using a power penalty method, we solved the parabolic variational inequalities. The results depicted that the nonlinear parabolic equations’ solution is converges to the rate of order $O(h^{-\frac{k}{2}})$. A numerical example is given at the end of the paper to demonstrate the theoretical analysis follows from the Three Gorges Reservoir Area.

1. Introduction

Water resource security is recognized as one of the most severe challenges with which mankind is facing, especially in agriculture. There is a critically uneven distribution of water resources in agricultural irrigation water resources in China [1]. Per capital available water is bountiful in the south, but few in the north. The irrigation of China in water consumption needs not only large but also excess waste. Especially in the areas with abundant water resources [2], they possess no strong sense for saving water and have low utilization efficiency of irrigation water.

The Three Gorges Reservoir Area [3] is such a region we mentioned. Since the establishment of the Three Gorges Dam, it directly inundated the 682 square kilometers of the valley area and spread to 19 counties and cities with an area of 6 square kilometers. This leads to plenty of water resources with the poor ability of soil and water inadequate conservation in the Three Gorges Reservoir Area. Even, there have led to a significant decline in forest coverage because the hill slope area accounted for 97.3 percent of which the slope area over 30 degrees is more than half of the slope area, unreasonable farming practices on arable land and deforestation [4]. Affected by the flooding of the reservoir and the second occupation of land by immigrants, the per capita cultivated land area in the Three Gorges Reservoir Area decreased from 73 square meters to 60 square meters. So challenges are seriously confronted with the sustainable development of agriculture.

According to the survey [5], however, the current effective irrigation rate is only 25.9%. The rest which depends on rains belongs to no irrigation facilities. Paddy field is the main part of the current irrigation areas, accounting for 47.3% of the total irrigation areas, but the only 59.6% of paddy fields can be irrigated, while only 16.4% of drylands and 19.5% of garden lands can be irrigated. The main source of irrigation water is small-scale water supply projects [6]. In the existing projects, pond reservoir is the main body of water supply, accounting for 62.3% of the total water supply capacity. Followed by reservoirs, accounting for 16.1%, stone river weirs, cisterns, pumping stations, and spring weirs accounted for 10.6%, 2.92%, 2.68%, and 1.28% in proper sequence.

The demand for freshwater in agriculture application is growing rapidly throughout the Three Gorges Reservoir Area. Although water-saving exercises have been developed to reduce irrigation application requirements and to improve growing conditions, a lot of water is wasted because of leaking enough irrigation systems [6]. Thus, it is imperative to enhance the effectiveness of irrigation and water conservation.

The large amount of water consumed in irrigation means every increase in efficiency can greatly reduce water consumption [7]. The effectiveness of agricultural water management in the area with plenty of water resources but a larger amount of water wasted needs suitable and efficient methods. But the indeterminacy on water, the price will influence irrigators on making decisions where they elect the timing of investment in the Three Gorges Reservoir Area. Therefore, we choose the real options method to manage problems of the decision making [8,9,10,11,12,13].

Water management relies on both the price of water and time. And the value of the European and American real option is determined by a linear complementarity problem [14]. By adopting the method of power penalty, to approximate the nonlinear parabolic equations [15], and we discuss it subsequently [16,17]. Accordingly, the uniqueness of the solution is obtained. Meanwhile, we show the the nonlinear parabolic equations’ solution is converges to the rate of order $O\left(h^{-\frac{k}{2}}\right)$, where h is the penalty number.

2. Materials and Methods

Time and water price are two crucial parameters on decision making problems [18]. Therefore, in this paper, we introduce the rules of a financial market into strategic investment decision-making. The stochastic result of water price can be presented via the geometric Brownian motion [19], thus we set $P_t$ is the water price, then it holds that

$$d{P}_t=\alpha P_{t}dt+\sigma P_{t}dW,$$

(1)

where W expresses the Brownian motion. The fluctuation of water price is constant and $V\left(P\right)$ which denotes the expected present value [10] is preset by

$$V\left(P\right)=\frac{P{a}^0}{\delta }-\frac{Q}{\gamma },$$

(2)

where P denotes the water price, $a^0$ denotes water conservation via using new technologies, Q denotes the direct cost, and $\delta$ denotes the discount rate.

Irrigators have the right opts to suspend making use of waters that spend more than operating costs and buy some necessary water in irrigation from the marketplace [12]. Hence the value of the project can be presented

$$\frac{1}{2}{\sigma }^2{P}^2{V}^{\prime \prime }\left(P\right)+(\gamma -\delta )P{V}^{\prime }\left(P\right)-\gamma V\left(P\right)+\Gamma \left(P\right)=0,$$

(3)

where $\Gamma \left(P\right)=max\{P{a}^0-Q,0\}$. After analysis, there holds that

$$\begin{array}{c}\hfill V\left(P\right)=\left\{\begin{array}{cc}{\beta }_1{P}^{{\mathcal{T}}_1},\hfill & P{a}^0<Q,\hfill \\ {\beta }_2{P}^{{\mathcal{T}}_2}+\frac{P{a}^0}{\delta }-\frac{Q}{\gamma },\hfill & P{a}^0\ge Q,\hfill \end{array}\right.\end{array}$$

(4)

where ${\mathcal{T}}_1$ and ${\mathcal{T}}_2$ can be gained by the quadratic equation as follows:

$$\frac{1}{2}{\sigma }^2\mathcal{T}(\mathcal{T}-1)-(\gamma -\delta )\mathcal{T}-\gamma =0.$$

We introduce the expresses of ${\beta }_1$ and ${\beta }_2$, it holds that

$${\beta }_1=\frac{Q\left(\frac{{\mathcal{T}}_1-1}{\delta }-\frac{{\mathcal{T}}_1}{\gamma }\right)}{{\mathcal{T}}_2-{\mathcal{T}}_1}{\left(\frac{Q}{a^0}\right)}^{-{\mathcal{T}}_1}+Q\left(\frac{1}{\delta }-\frac{1}{\gamma }\right){\left(\frac{Q}{a^0}\right)}^{-{\mathcal{T}}_1},$$

and

$${\beta }_2=\frac{Q\left(\frac{{\mathcal{T}}_1-1}{\delta }-\frac{{\mathcal{T}}_1}{\gamma }\right)}{{\mathcal{T}}_2-{\mathcal{T}}_1}{\left(\frac{Q}{a^0}\right)}^{-{\mathcal{T}}_2}.$$

We adopt dynamic programming method to evaluate real options, the investors can continue to wait or invest to get rewards

$$F^0\left(P\right)=V\left(P\right)-I,$$

If $\rho =\gamma$, then the real option value [18,20] is giveing by:

$$F(P,t)=max\left\{F^0\left(P\right),\frac{1}{1+\rho dt}{E}_t\left[F(P+dP,t+dt)|P\right]\right\}.$$

(5)

If

$$F^0\left(P\right)>\frac{1}{1+\rho dt}{E}_t\left[F(P+dP,t+dt)|P\right],$$

then we have

$$F(P,t)=F^0\left(P\right),$$

so

$$F(P,t)>\frac{1}{1+\rho dt}{E}_t\left[F(P+dP,t+dt)|P\right].$$

thus we have

$$\rho F(P,t)dt>E_t\left[dF(P,t)\right].$$

Combining with Ito’s Lemma yields

$$\rho Fdt>\frac{\partial F}{\partial t}dt+\frac{1}{2}{\sigma }^2{P}^2\frac{{\partial }^{2}F}{\partial P^2}dt-\alpha P\frac{\partial F}{\partial P}dt.$$

Then we obtain

$$LF>0,$$

we set the partial differential operator L

$$LF=-\frac{\partial F}{\partial t}-\frac{1}{2}{\sigma }^2{P}^2\frac{{\partial }^{2}F}{\partial P^2}-\alpha P\frac{\partial F}{\partial P}+\rho F.$$

(6)

Otherwise,

$$F(P,t)=\frac{1}{1+\rho dt}{E}_t\left[F(P+dP,t+dt)|P\right]>F^0,$$

which means that

$$LF=0\mathrm{and}F-F^0>0.$$

In brief, the partial differential complementarity problem is gained as follows:

$$\begin{array}{c}\hfill \left\{\begin{array}{c}LF\ge 0,\hfill \\ F-F^0\ge 0,\hfill \\ LF·(F-F^0)=0,\hfill \end{array}\right.\end{array}$$

(7)

the boundary conditions is given by

$$F(0,t)=0\mathrm{and}F(P_{\max },t)=V\left(P_{\max }\right)-I,$$

(8)

and the terminal condition

$$F(P,t=T)=F^0\left(P\right).$$

(9)

Our goal is to find the best $P^0\left(t\right)$, it satisfies $F(P^0,t)=F^0\left(P^0\right)$ and $F^{\prime }\left(P^0\right)={\left(F^0\right)}^{\prime }\left(P^0\right)$ are used to depict the exercise boundary [21].

3. Results

In order to facilitate theoretical analysis, we rewrite (6) as follows:

$$LF=-\frac{\partial F}{\partial t}-\frac{\partial }{\partial P}\left(\epsilon P^2\frac{\partial F}{\partial P}+ϵPF\right)+\vartheta F,$$

where $\epsilon =\frac{1}{2}{\sigma }^2,ϵ=\alpha -{\sigma }^2,\mathrm{and}\vartheta =\rho +\alpha -{\sigma }^2.$

Next, an equivalent form that satisfies the same kind of Dirichlet boundary will apply for discussing convenience. But the first is to introduce a new function, namely, let $F_0\left(P\right)$ be a twice differentiable function, and there holds

$$u(P,t)=e^{\mathcal{T}t}(F_0-F),$$

(10)

where $\mathcal{T}={\sigma }^2$. Transforming F from (7) into the above (10) we have

$$\begin{array}{c}\hfill \left\{\begin{array}{c}\mathcal{L}u\le f,\hfill \\ u-u^0\le 0,\hfill \\ (\mathcal{L}u-f)·(u-u^0)=0,\hfill \end{array}\right.\end{array}$$

(11)

$$\begin{array}{c}\hfill \left\{\begin{array}{c}\mathcal{L}u=-u_t-\frac{\partial }{\partial P}\left(\epsilon P^2\frac{\partial u}{\partial P}+ϵPu\right)+\xi u,\hfill \\ \xi =\vartheta +\mathcal{T},u^0=e^{\mathcal{T}t}\left(F_0-F^0\right),f(p,t)=e^{\mathcal{T}t}L{F}_0.\hfill \end{array}\right.\end{array}$$

(12)

Under the transformation (10), (8) and (9) change into

$$u(0,t)=0=u(P_{\max },t)\mathrm{and}u(P,T)=u^0(P,T).$$

Let $\Omega =(0,P_{\max })$, the $H_{\omega }^1(\Omega )$ is defined by

$$H_{\omega }^1(\Omega )=\left\{v:v,P{v}_P\in L^2(\Omega )\right\},$$

the norm ${\parallel ·\parallel }_{1,\omega }$ is defined by

$${\parallel v\parallel }_{1,\omega }^2={\int }_0^{P_{\max }}\left(P^2{\left(\frac{\partial v}{\partial P}\right)}^2+v^2\right)dP.$$

Suppose that

$$H_{0,\omega }^1(\Omega )=\left\{v:v\in H_{\omega }^1{(\Omega ),v|}_{\partial \Omega }=0\right\},$$

and

$$\Lambda =\left\{v\left(t\right):v\left(t\right)\in H_{0,\omega }^1(\Omega ),v\left(t\right)\le u^0\left(t\right),\mathrm{a}.\mathrm{e}.\mathrm{in}(0,T)\right\}.$$

Apparently, $\Lambda$ is a subset of $H_{0,\omega }^1(\Omega )$. We write $v(·,t)$ as $v\left(t\right)$, the independent time variable t to avoid confusion in doing so. For any Hilbert space $H(\Omega )$, the norm of $L^p(0,T;H(\Omega ))$ such that

$${\parallel v\parallel }_{L^p(0,T;H(\Omega ))}={\left({\int }_0^T{\parallel v(·,t)\parallel }_H^{p}dt\right)}^{1/p}.$$

Then

$$\left(-\frac{\partial u}{\partial t},v-u\right)+B(u,v-u;t)\ge (f,v-u),\mathrm{a}.\mathrm{e}.\mathrm{in}(0,T),$$

(13)

where $B(u,v;t)$ is defined as

$$B(u,v;t)=\left(\epsilon P^2\frac{\partial u}{\partial P}+ϵPu,\frac{\partial v}{\partial P}\right)+(\xi u,v),\forall u,v\in H_{0,\omega }^1(\Omega ).$$

(14)

Therefore, we can obtain the Theorem 1.

Theorem 1.

Equations (13) and (14) are the variational form of the complementarity problem (11).

Proof.

For $w\in \Lambda$ recalling the definition of $\Lambda$, we have

$$w-u^0\le 0,\mathrm{a}.\mathrm{e}.\mathrm{on}\Psi =\Omega \times (0,T).$$

As for Equation (11), we use $w-u^0$ to multiply both sides of the first inequality and then we have

$$\left(-\frac{\partial u}{\partial t},w-u^0\right)+B(u,w-u^0;t)\ge (f,w-u^0),\mathrm{a}.\mathrm{e}.\mathrm{in}(0,T).$$

(15)

On one hand, if writing $w=\theta v+(1-\theta )u$, (15) changes into

$$\begin{array}{cc}\hfill & \left(-\frac{\partial u}{\partial t},\theta (v-u)\right)+B(u,\theta (v-u);t)\ge (f,\theta (v-u))\hfill \\ \hfill & -\left(\left(-\frac{\partial u}{\partial t},u-u^0\right)+B(u,u-u^0;t)-(f,u-u^0)\right),\mathrm{a}.\mathrm{e}.\mathrm{in}(0,T),\hfill \end{array}$$

(16)

on the other hand, it follows from (11) that

$$(\mathcal{L}u-f,u-u^0)=0.$$

Consequently, it holds that

$$\left(-\frac{\partial u}{\partial t},u-u^0\right)+B(u,u-u^0;t)-(f,u-u^0)=0.$$

(17)

Namely (17) simplifies as

$$\begin{array}{c}\hfill \left(-\frac{\partial u}{\partial t},\theta (v-u)\right)+B(u,\theta (v-u);t)\ge (f,\theta (v-u)).\end{array}$$

Then there holds

$$\begin{array}{c}\hfill \left(-\frac{\partial u}{\partial t},v-u\right)+B(u,v-u;t)\ge (f,v-u),\mathrm{a}.\mathrm{e}.\mathrm{in}(0,T).\end{array}$$

To sum up, we prove this Theorem. □

Lemma 1.

We set a positive constant c, such that for arbitrary $v,w\in H_{0,\omega }^1(\Omega )$, it holds that

$$\begin{array}{c}\hfill B(v,v;t)\ge {c\parallel v\parallel }_{1,\omega }^2\mathrm{and}\left|B(v,w;t)\right|\le {C\parallel v\parallel }_{1,\omega }{\parallel w\parallel }_{1,\omega }.\end{array}$$

Proof.

For arbitrary $v\in H_{0,\omega }^1(\Omega )$, we obtain

$${\int }_0^{P_{\max }}ϵPv{v}^{\prime }dP=-\frac{1}{2}{\int }_0^{P_{\max }}ϵv^{2}dP.$$

Combining with $B(·,·;t)$ in (14), we obtain

$$\begin{array}{cc}\hfill B(v,v;t)& =(\epsilon P^2{v}^{\prime }+bPv,v^{\prime })+(\xi v,v)\hfill \\ \hfill & =(\epsilon P^2{v}^{\prime },v^{\prime })+\left(\left(\rho +ϵ+\mathcal{T}-\frac{ϵ}{2}\right),v\right)\hfill \\ \hfill & =(\epsilon P^2{v}^{\prime },v^{\prime })+\frac{1}{2}\left((3\rho +2\mathcal{T}-{\sigma }^2)v,v\right)\hfill \\ \hfill & \ge \frac{1}{2}min({\sigma }^2,3\rho )\left[(P^2{v}^{\prime },v^{\prime })+(v,v)\right]\hfill \\ \hfill & ={c\parallel v\parallel }_{1,\omega }^2.\hfill \end{array}$$

Now, for arbitrary $v,w\in H_{0,\omega }^1(\Omega )$, it yields

$$\begin{array}{cc}\hfill \left|B\right(v,w;t\left)\right|=& |(\epsilon P^2{v}^{\prime },w^{\prime })+(ϵPv,w^{\prime })+(\xi v,w)|\hfill \\ \hfill \le & |(\epsilon P^2{v}^{\prime },w^{\prime })+(\xi v,w)|+|(ϵPv,w^{\prime })|\hfill \\ \hfill \le & \left|{\int }_0^{P_{\max }}\left(\epsilon P^2{v}^{\prime }{w}^{\prime }+\xi vw\right)dP\right|+\left|{\int }_0^{P_{\max }}ϵP{v}^{\prime }wdP\right|\hfill \\ \hfill \le & C({\left({\int }_0^{P_{\max }}{P}^2{v}^{\prime 2}dP\right)}^{\frac{1}{2}}{\left({\int }_0^{P_{\max }}{P}^2{w}^{\prime 2}dP\right)}^{\frac{1}{2}}\hfill \\ \hfill & +{\left({\int }_0^{P_{\max }}{v}^{2}dP\right)}^{\frac{1}{2}}{\left({\int }_0^{P_{\max }}{w}^{2}dP\right)}^{\frac{1}{2}}+\left|{\int }_0^{P_{\max }}vwdP\right|)\hfill \\ \hfill \le & C\left({\left({\int }_0^{P_{\max }}(P^2{v}^{\prime 2}+v^2)\right)}^{\frac{1}{2}}{\left({\int }_0^{P_{\max }}(P^2{w}^{\prime 2}+w^2)\right)}^{\frac{1}{2}}+{\parallel v\parallel }_{0,\omega }{\parallel w\parallel }_{0,\omega }\right)\hfill \\ \hfill \le & C(\parallel v{\parallel }_{1,\omega }\parallel w{\parallel }_{1,\omega }+\parallel v{\parallel }_{0,\omega }\parallel w{\parallel }_{0,\omega })\hfill \\ \hfill \le & {C\parallel v\parallel }_{1,\omega }{\parallel w\parallel }_{1,\omega }.\hfill \end{array}$$

In conclusion, the proof is finished. □

Theorem 2.

Equations (13) and (14) have a unique solution.

Proof.

It follows from Lemma 1 that Equations (13) and (14) exists a unique solution. □

Next considering the nonlinear variable inequality, namely, find $u_h\in H_{0,\omega }^1(\Omega )$ such that

$$\left(-\frac{\partial u_h}{\partial t},v-u_h\right)+B(u_h,v-u_h;t)+s\left(v\right)-s\left(u_h\right)\ge (f,v-u_h)\mathrm{a}.\mathrm{e}.\mathrm{in}(0,T),$$

(18)

and

$$\begin{array}{c}\hfill s\left(v\right)=\frac{hk}{k+1}{[v-u^0]}_{+}^{\frac{k+1}{k}},k>0,h>1,\end{array}$$

(19)

Theorem 3.

Equation (18) has a unique solution.

Proof.

It follows from Lemma 1 that the bilinear operator B possesses the properties of coerciveness and continuity. By force of (19), s owns the property of semi-continuity. Hence, the properties of stability of B and s guarantee the uniqueness of the solution of (18). □

Since $s\left(v\right)$ is differentiable so (18) can be change into: Find $u_h\in H_{0,\omega }^1(\Omega )$ for arbitrary $v\in H_{0,\omega }^1(\Omega )$, there exists

$$\begin{array}{c}\hfill \left(-\frac{\partial u_h}{\partial t},v\right)+B(u_h,v;t)+(s^{\prime }\left(u_h\right),v)\ge (f,v)\mathrm{a}.\mathrm{e}.\mathrm{in}(0,T),\end{array}$$

(20)

and

$$\begin{array}{c}\hfill s^{\prime }\left(v\right)=h{[v-u^0]}_{+}^{\frac{1}{k}}.\end{array}$$

(21)

Pointing out that (20) and (21) to (13), (20) and (21), there holds that

$$\begin{array}{c}\hfill \mathcal{L}{u}_h+h{[u_h-u^0]}_{+}^{\frac{1}{k}}=f,(P,t)\in \Psi ,\end{array}$$

(22)

follows from the initial boundary conditions

$$\begin{array}{c}\hfill u_h{(P,t)|}_{\partial \Omega }=0\mathrm{and}{u}_h(P,t)=u^0(P,t).\end{array}$$

(23)

Giving a description that if $k=\frac{1}{2}$, the penalty method corresponds to the second penalty method.

Now, we are in the position to investigate that the convergence rates of $u_h$ to u as $h\to \infty$. Let’s start with the following Lemma [6,22].

Lemma 2.

Let $u_h$ be the solution of (13) and (14) and if $u_h\in L^p(\Omega \times (0,T))$, then there holds

$$\begin{array}{cc}\hfill & ||{[u_h-u^0]}_{+}{\parallel }_{L^p\left(\Psi \right)}\le \frac{C}{h^k},\hfill \\ \hfill & ||{[u_h-u^0]}_{+}{\parallel }_{L^{\infty }(0,T;L^2(\Omega ))}+\parallel {[u_h-u^0]}_{+}{\parallel }_{L^2(0,T;H_0^1(\Omega ))}\le \frac{C}{h^{k/2}},\hfill \end{array}$$

(24)

Lemma 3.

Let $u_h$ be the solution of (20) and (21) and if $u_h\in L^p\left(\Psi \right)$, then there holds

$$\begin{array}{cc}\hfill & ||{[u_h-u^0]}_{+}{\parallel }_{L^p\left(\Psi \right)}\le \frac{C}{h^{k/2}},\hfill \\ \hfill & ||{[u_h-u^0]}_{+}{\parallel }_{L^{\infty }(0,T;L^2(\Omega ))}+\parallel {[u_h-u^0]}_{+}{\parallel }_{L^2(0,T;H_{0,\omega }^1(\Omega ))}\le \frac{C}{h^{k/2}},\hfill \end{array}$$

(25)

where $p=1+1/k$.

Based on Lemma 2 and 3, the solution of (20) and (21) is convergent to that of (13) and (14) at the order $O\left(h^{-\frac{k}{2}}\right)$ as $h\to \infty$.

Lemma 4.

Let u and $u_h$ be the solutions to (13), (14), (20) and (21), respectively. If $u_h\in L^p\left(\Psi \right)$ and $\frac{\partial u}{\partial t}\in L^{k+1}\left(\Psi \right)$, then

$$\parallel u-u_h{\parallel }_{L^{\infty }(0,T;L^2(\Omega ))}+{\parallel u-u_h\parallel }_{L^2(0,T;H_{0,\omega }^1(\Omega ))}\le \frac{C}{h^{k/2}},$$

(26)

4. Discussion

In this section, we will provide an empirical study by using the finite volume method. We set $\theta =0.5$, $h=10$ and $k=4$.

Now, we are in the position to carry out an empirical study where we take Wanzhou District of Chongqing City as an example to strengthen our theoretical analysis. We find that the water price in Wanzhou The district is 1000–2500 yuan per ton. Based on the new irrigation technology, the water-saving efficiency is increased to 30 percent. Then we choose $a^0=380\times 30\%=114$ million liters per year where the total agricultural water consumption in Wanzhou District is 380 million liters per year. In addition, the total operating cost and the total investment cost of agricultural water management in Wanzhou districts are 64,050 and 91,500 thousand yuan, respectively. So, we choose $Q=$ 64,050 and $I=$ 91,500. According to [19], some important invariant parameters are given in Table 1.

Table 1. European real option with parameters for (2).

${\mathit{P}}_{\max }$ = 2500	$\mathit{Q}=$ 64,050	$\mathit{I}=$ 91,500	$\mathit{T}=1$	$\mathit{\alpha }=0.03$
$a^0=114$	$\sigma =0.21$	$\gamma =0.06$	$\rho =0.06$	$\delta =0.04$

We first here to illustrate the convergence rate. Putting $(0,P_{\max })$ and $(0,T)$ into 49 × 49 sub-intervals to solve with the parameters from the Table 1, we obtain the result as shown in the Figure 1.

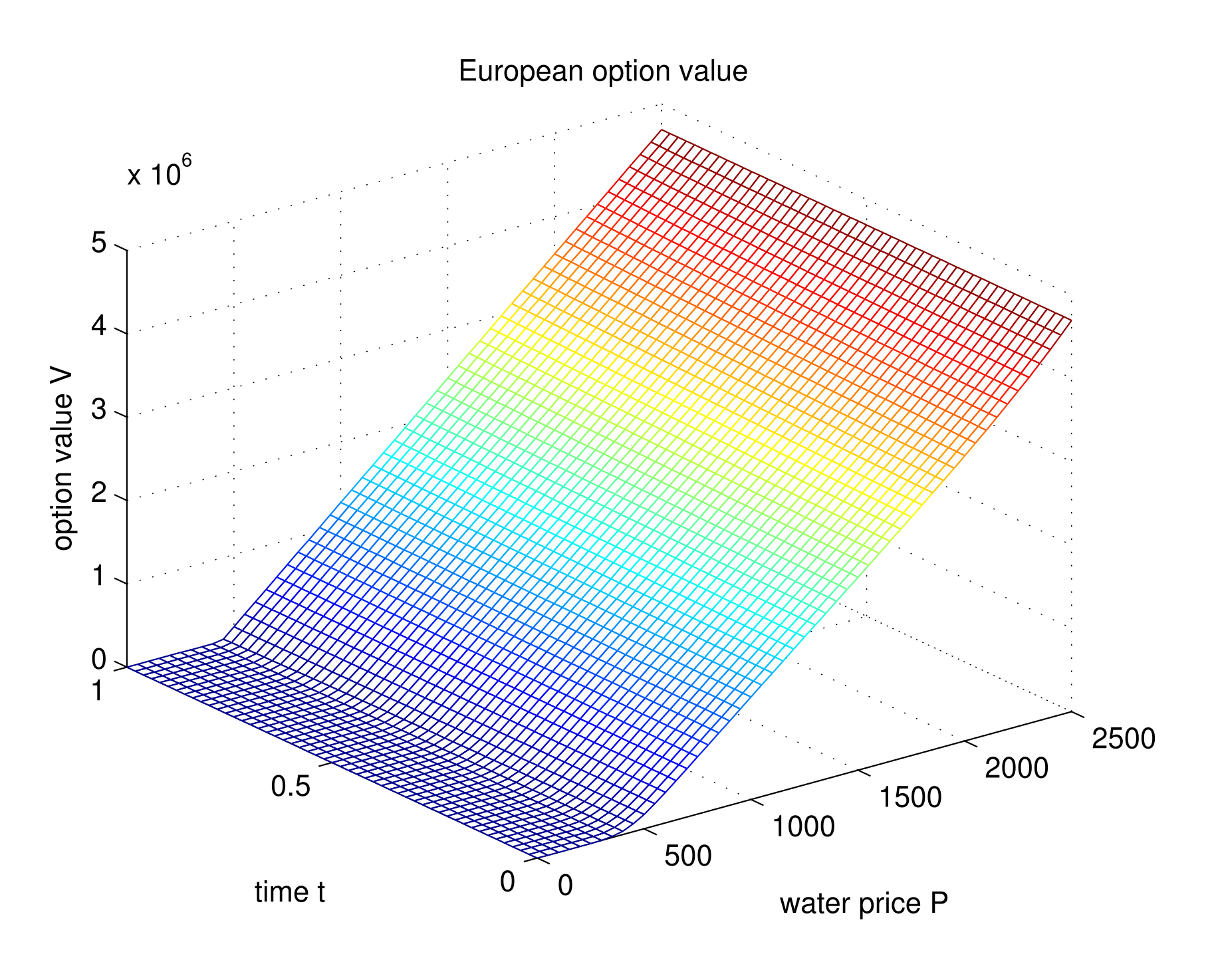

Figure 1. The values of European real option follows from Table 1.

The solution is provided on $N=2^{16}$ and $M=2^{15}$, then we draw Table 2, and the rate is given by

$$\mathrm{rate}=\frac{\parallel F_h^{\Delta t}{-F\parallel }_{\infty }}{\parallel F_{h/2}^{\Delta t/2}{-F\parallel }_{\infty }}.$$

and the error estimates via

$$\parallel F-F_h{\parallel }_{\infty }\equiv 0.2685h^{1.9724},$$

that tells

$$\parallel F-F_h{\parallel }_{\infty }\le C{h}^2.$$

Table 2. The errors of the $L^{\infty }$-norm.

Mesh	${\mathit{L}}^{\mathit{\infty }}$-Norm	Ratio	Mesh	${\mathit{L}}^{\mathit{\infty }}$-Norm	Ratio
$2^5\times 2^4$	1245.4000		$2^{11}\times 2^{10}$	0.8553	1.9681
$2^6\times 2^5$	998.1352	1.2477	$2^{12}\times 2^{11}$	0.6930	1.2342
$2^7\times 2^6$	83.4338	11.9632	$2^{13}\times 2^{12}$	0.0561	12.3603
$2^8\times 2^7$	74.1436	1.1253	$2^{14}\times 2^{13}$	0.0283	1.9852
$2^9\times 2^8$	42.5721	1.7416	$2^{15}\times 2^{14}$	0.0140	2.0213
$2^{10}\times 2^9$	1.6833	12.9047	$2^{16}\times 2^{15}$	0.0012	11.9687

Similar to the European real option, we adopt the similar data, of which the source is the same as the European real option in Table 3, to describe the numerical experiments to the American real option [19].

Table 3. The parameters for (2) of American real option.

${\mathit{P}}_{\max }$ = 2500	$\mathit{Q}=$ 64,050	$\mathit{I}=$ 91,500	$\mathit{T}=1$	$\mathit{\alpha }=0.03$
$a^0=114$	$\sigma =0.21$	$\gamma =0.06$	$\rho =0.06$	$\delta =0.04$

We plot the profiles of the value of $\Delta$ showed in Figure 2 and Figure 3. In addition, we provide the optimal exercise boundary in Figure 4 and we draw the optimal exercise boundaries for different parameters in Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9 where we can evaluate how parameters affect the timing of investment.

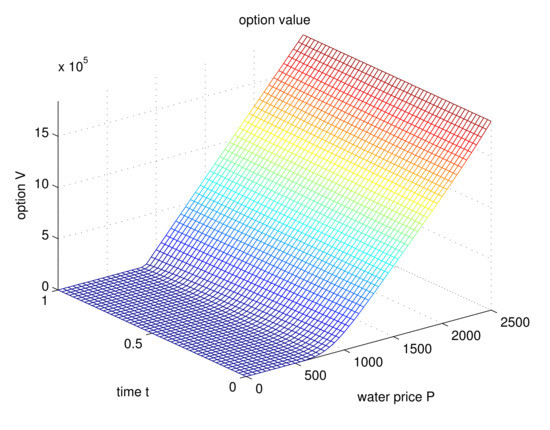

Figure 2. The values of American real option follows from Table 3.

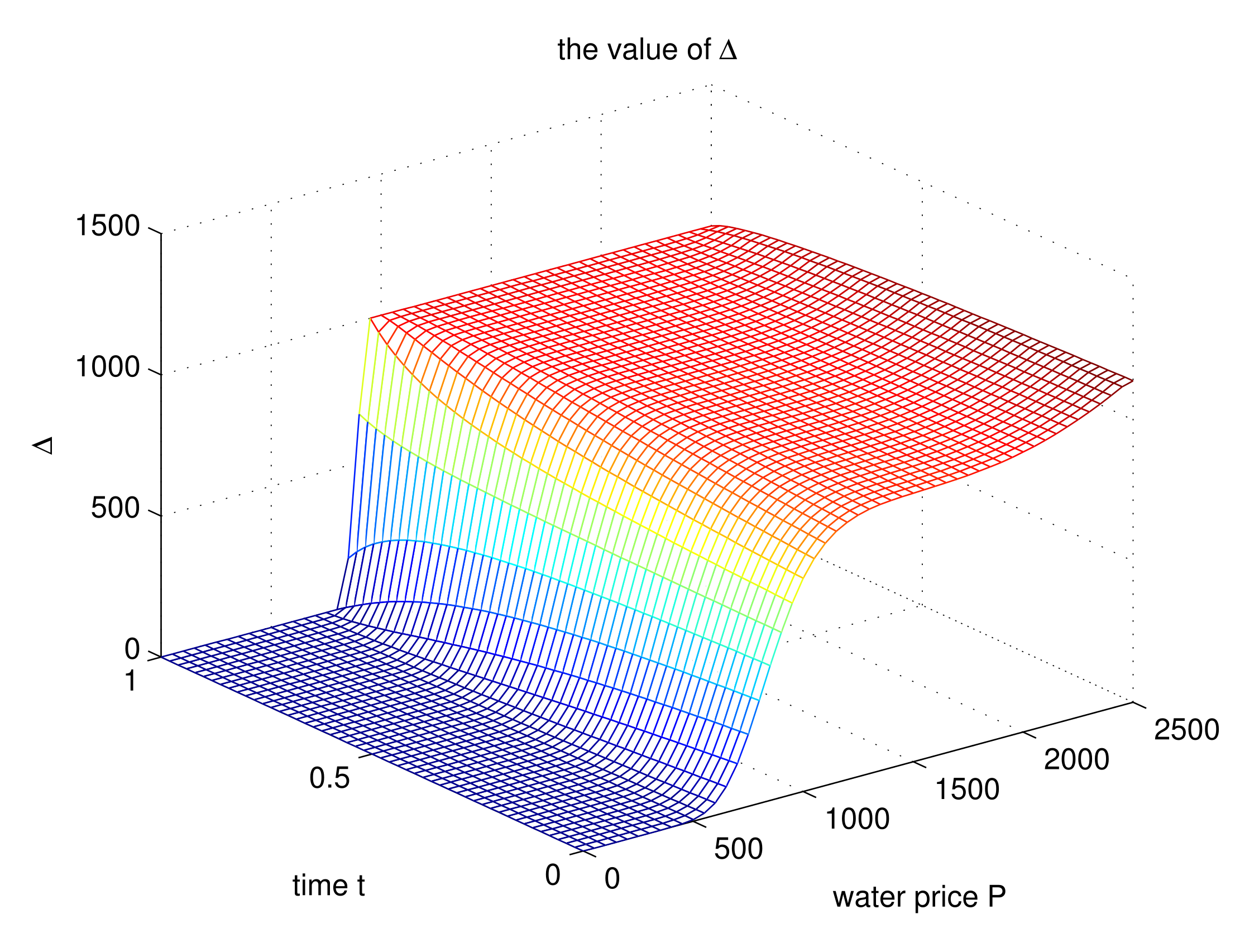

Figure 3. The value of $\Delta$ for Table 3.

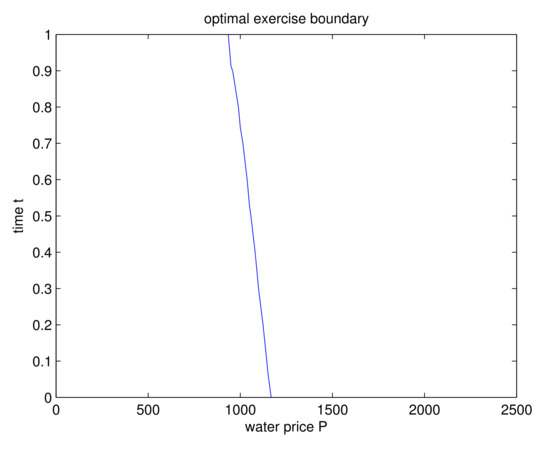

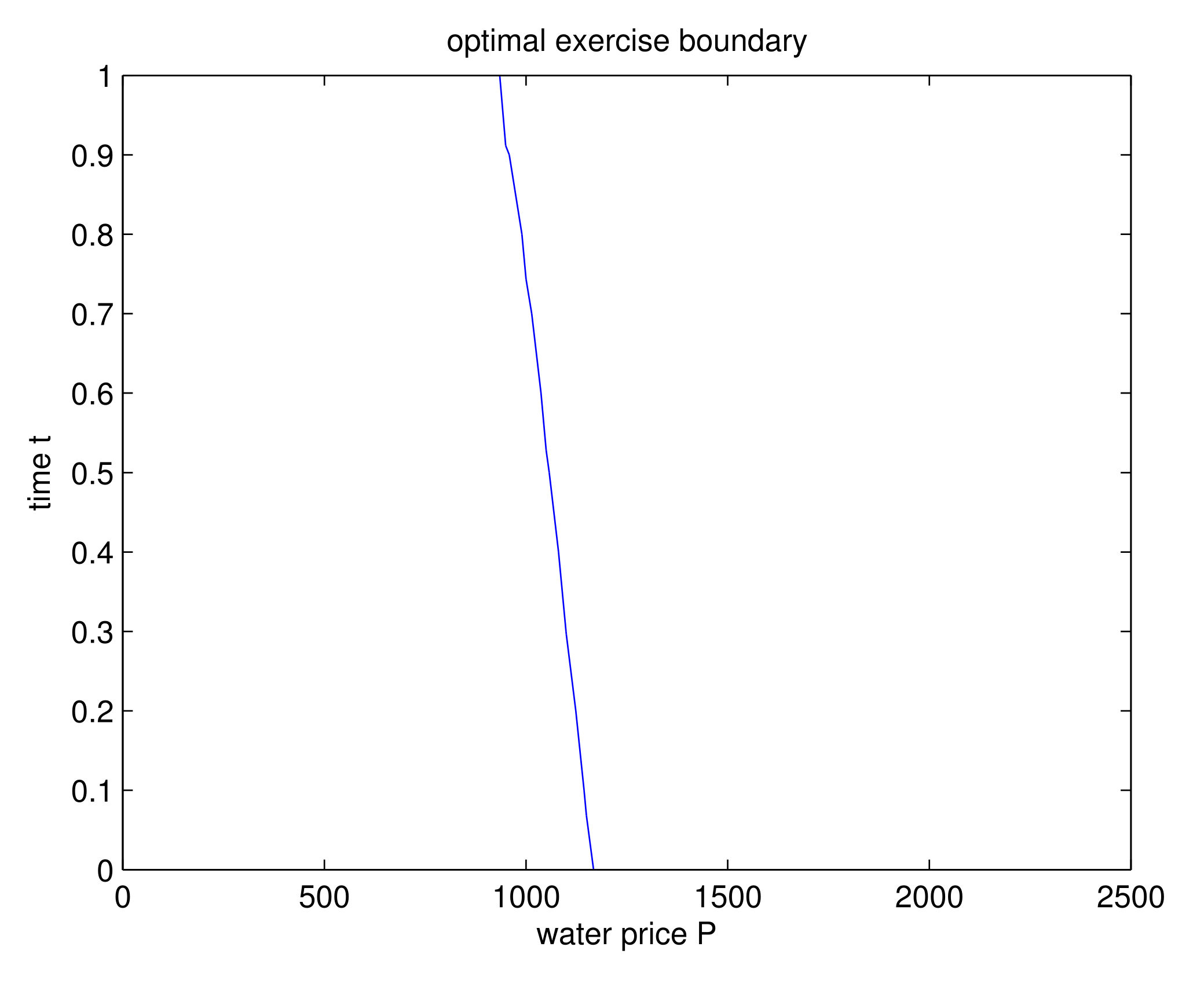

Figure 4. The boundary of optimal exercises follows form Table 3.

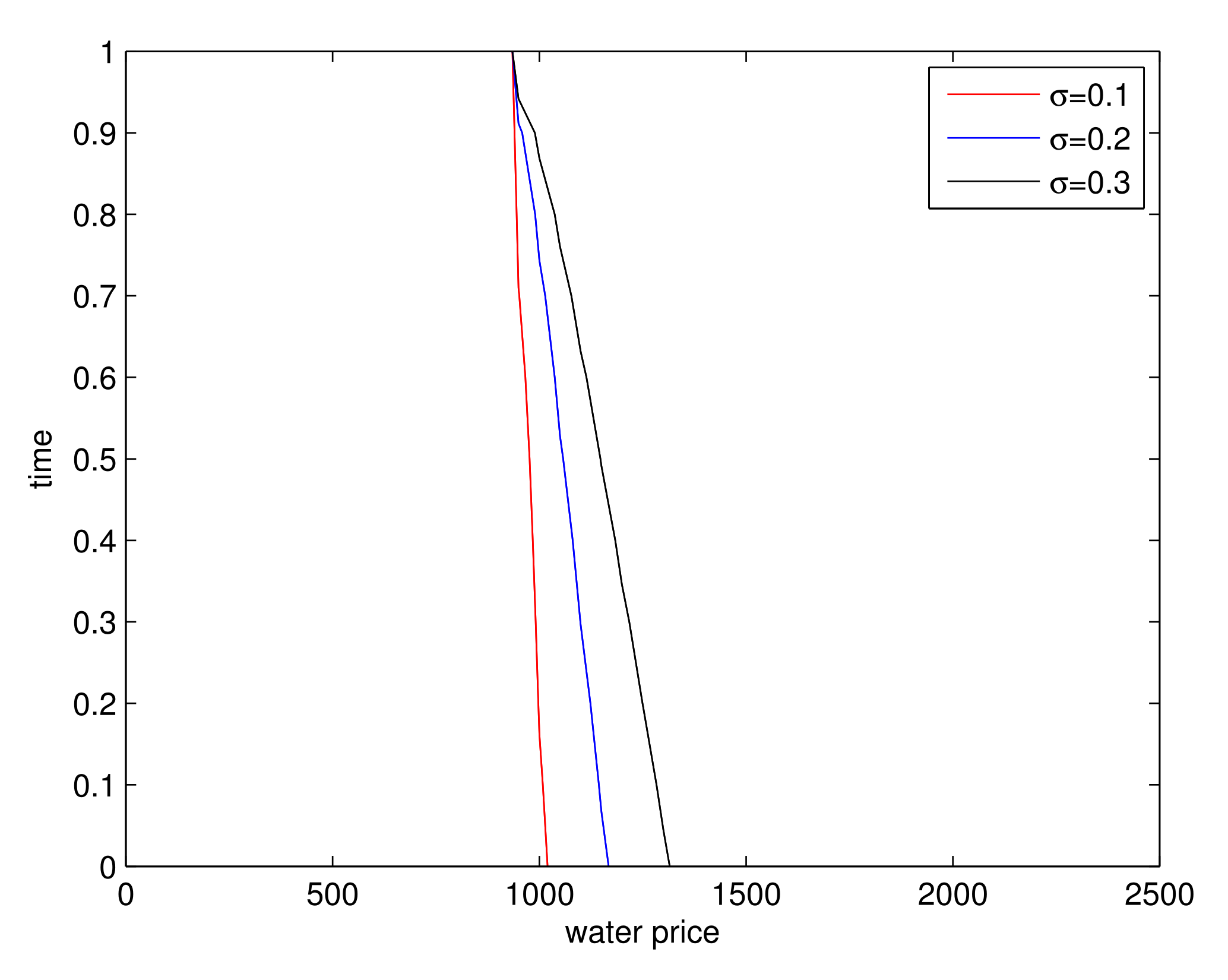

Figure 5. Comparison based on different $\sigma$ for Table 3.

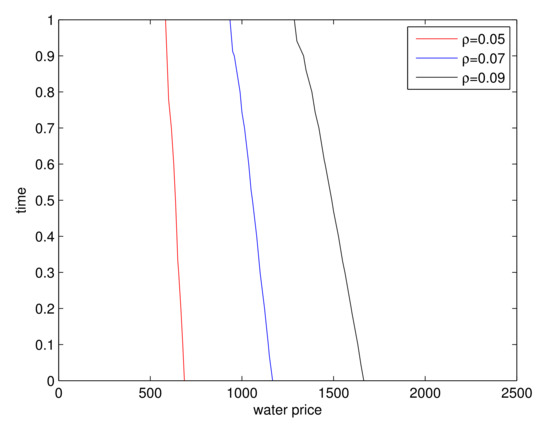

Figure 6. Comparison based on different $\rho$ for Table 3.

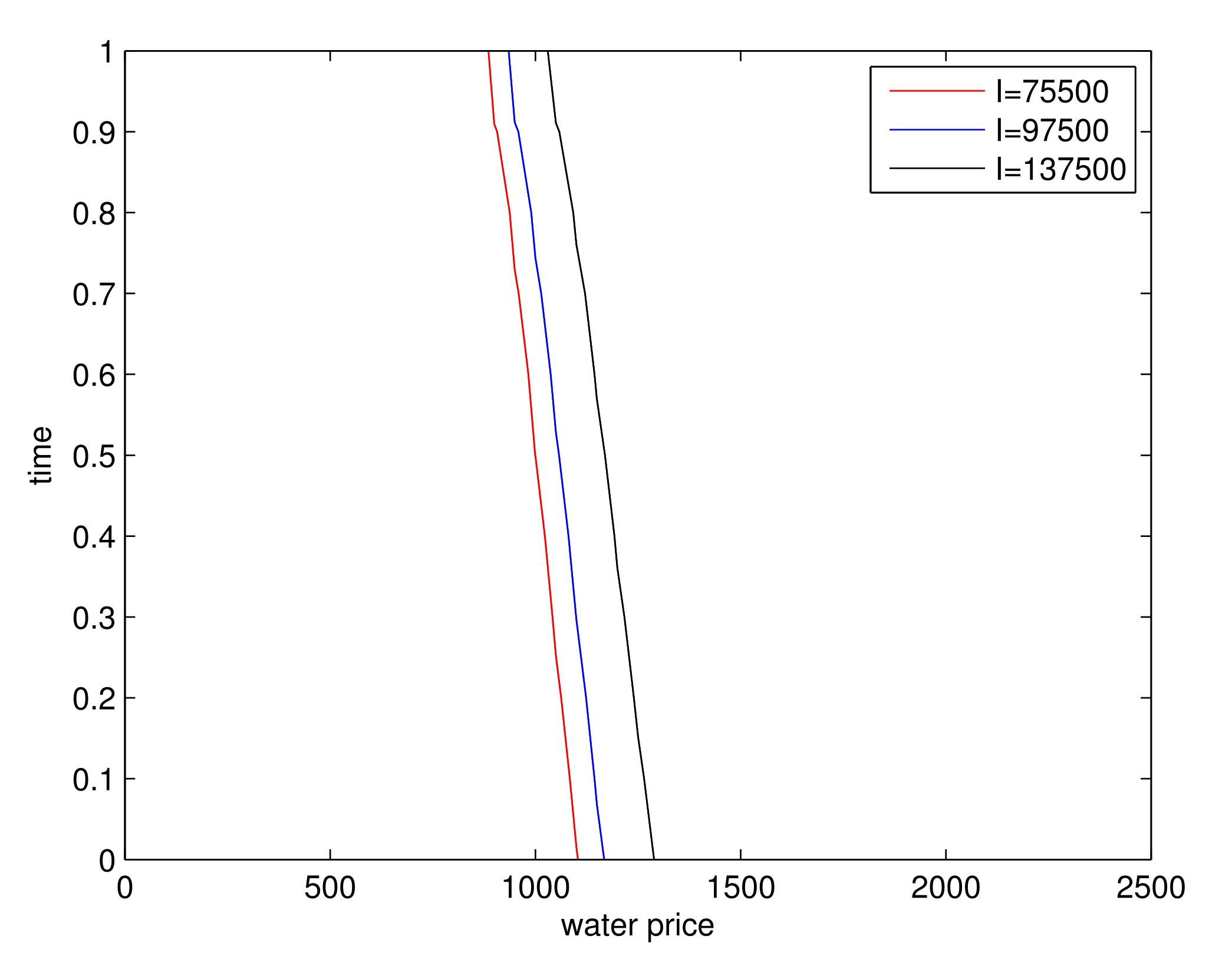

Figure 7. Comparison based on different I for Table 3.

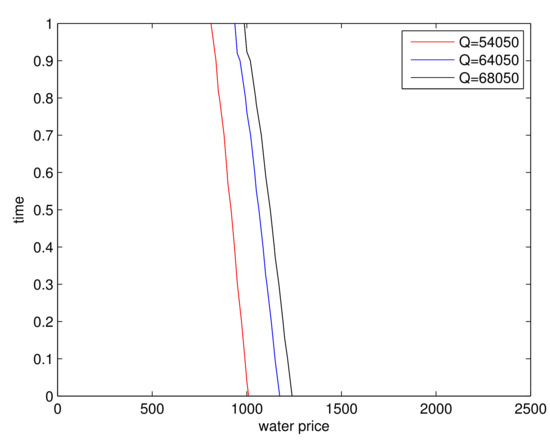

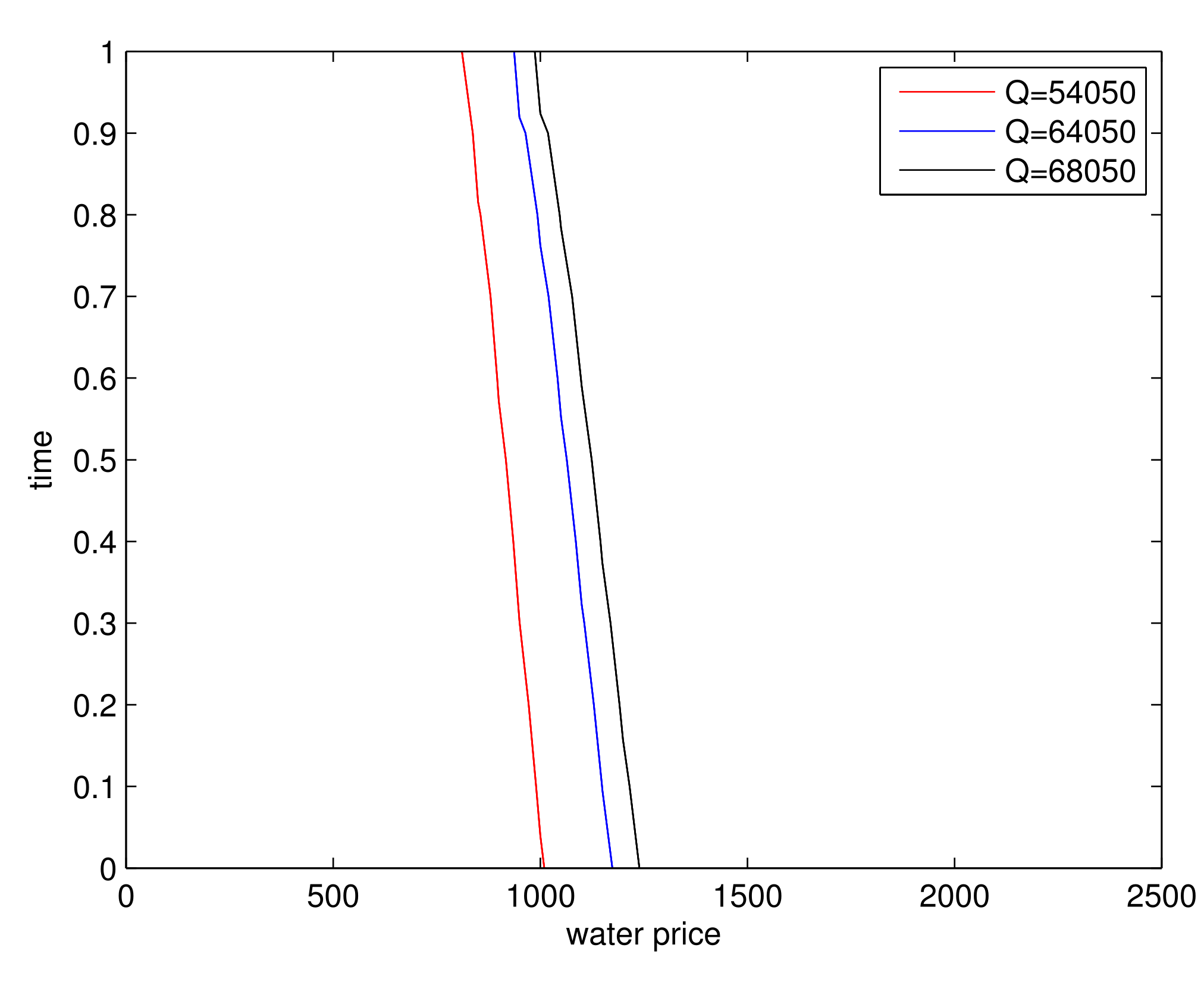

Figure 8. Comparison based on different Q for Table 3.

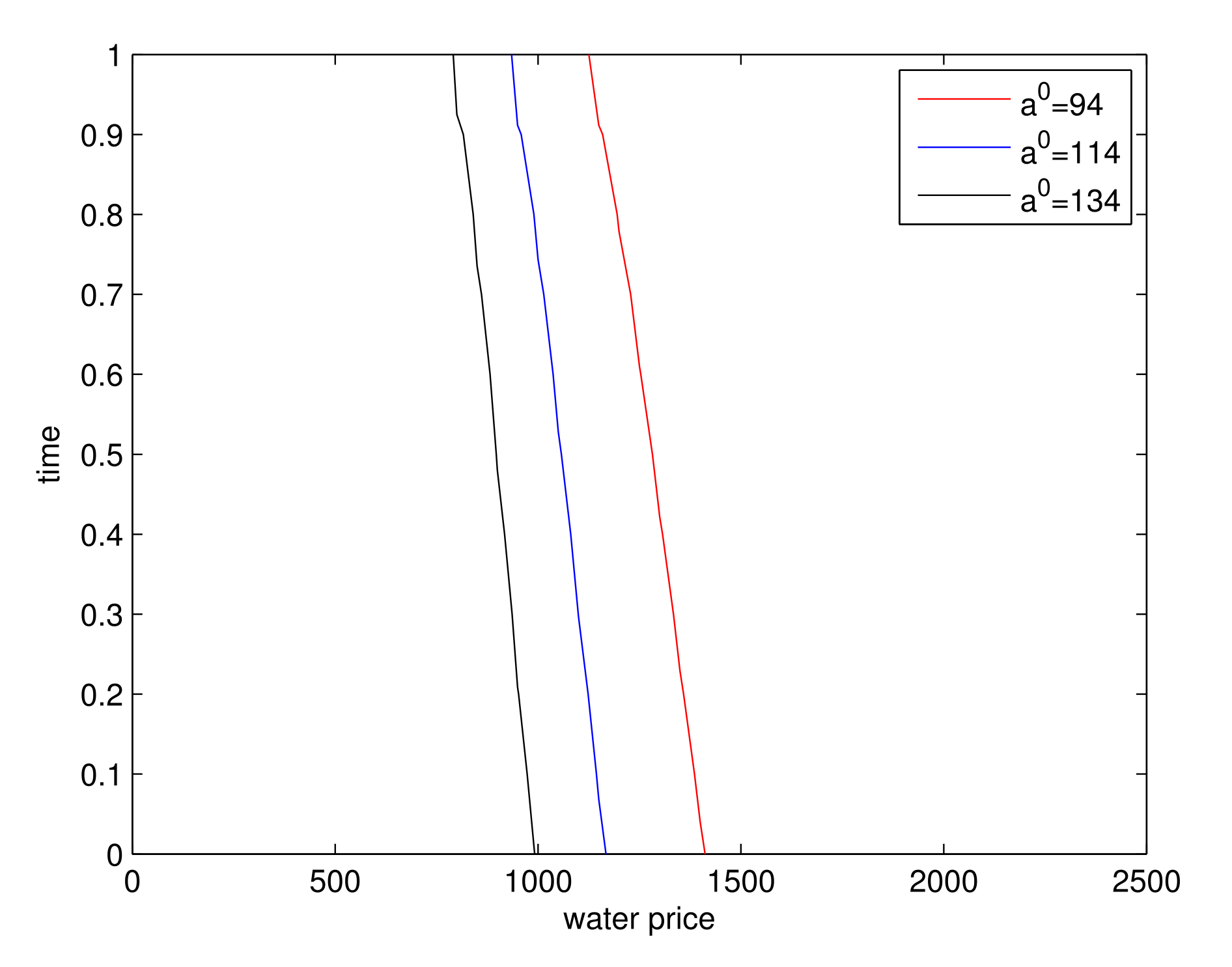

Figure 9. Comparison based on different $a^0$ for Table 3.

Obviously, from Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9, we require something as follows: the non-investment area becomes larger and the investment area becomes smaller. Beyond that, the boundary is less sensitive to Q and $a^0$ than $\sigma ,\rho ,\mathrm{and}I$. In addition, compared with other parameters, the subjective discount rate has the greatest impact on the investment boundary.

Now, we take Kaizhou District adjacent to Wanzhou District for the experiment object to the American real option. We find that the water price in Kaizhou District is 1000–2500 yuan per ton. The water-saving efficiency is increased to 30 percent due to the new irrigation technology. Then we choose $a^0=280\times 30\%=84$ million liters per year where the total agricultural water consumption in Kaizhou District is 280 million liters per year. Besides, the total operating cost and the total investment cost of agricultural water management in the Kaizhou District are 11,910 and 39,700 thousand yuan, respectively. Thus, we choose $Q=$ 11,910 and $I=$ 39,700. According to [19], some important invariant parameters are given in Table 4.

Table 4. The parameters for (4) of American real option with.

${\mathit{P}}_{\max }$ = 2500	$\mathit{Q}=$ 11,910	$\mathit{I}=$ 39,700	$\mathit{T}=1$	$\mathit{\alpha }=0.02$
$a^0=84$	$\sigma =0.2$	$\gamma =0.07$	$\rho =0.07$	$\delta =0.05$

Similar treatment which divided $(0,P_{\max })$ and $(0,T)$. The derivative of $V\left(P\right)$ concerning P under circumstances of (4), thus we draw the real option value in Figure 10 while the value of $\Delta$, and we draw the Figure 11 and Figure 12. Furthermore, we draw the optimal exercise boundaries for different parameters in Figure 13, Figure 14, Figure 15, Figure 16 and Figure 17, respectively.

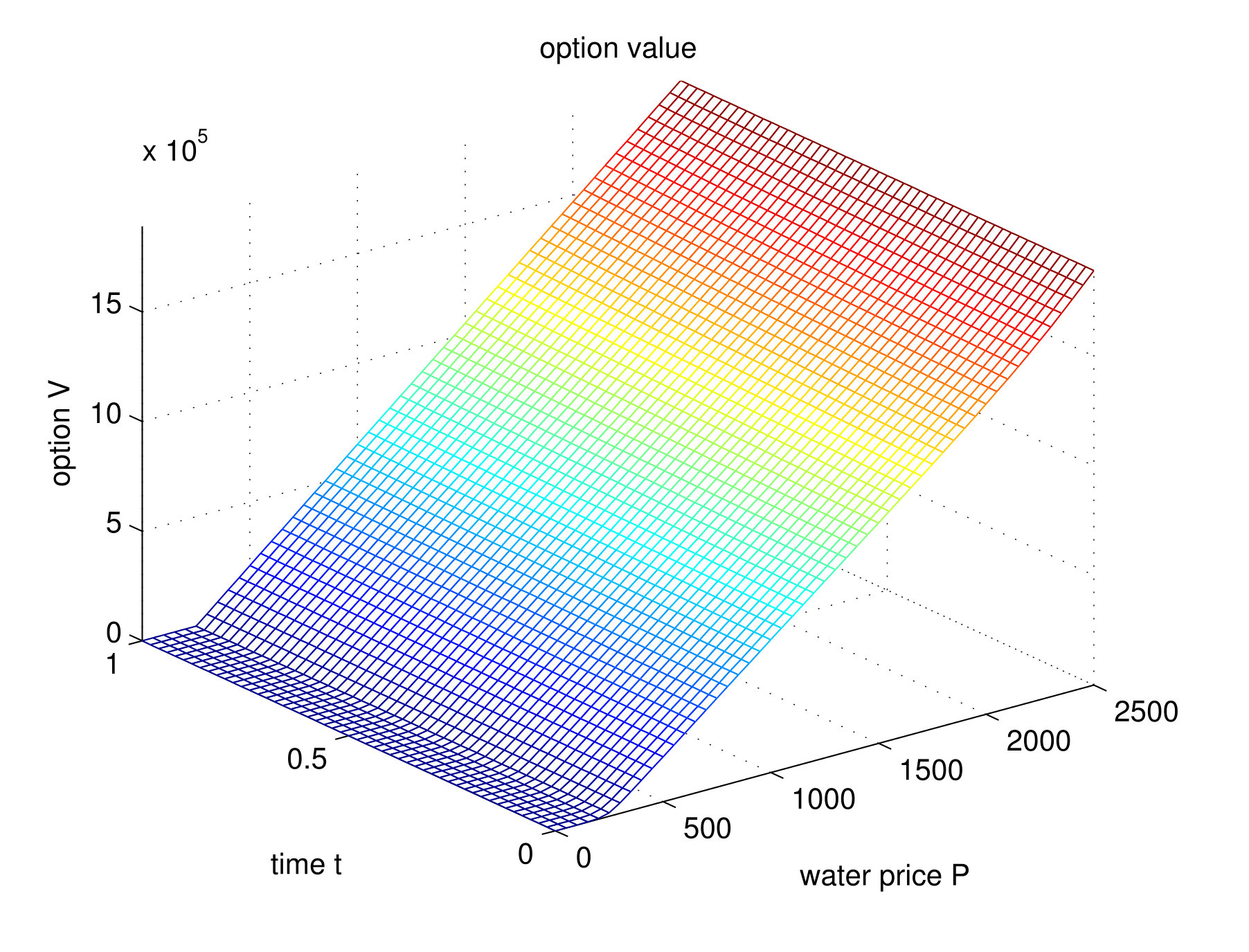

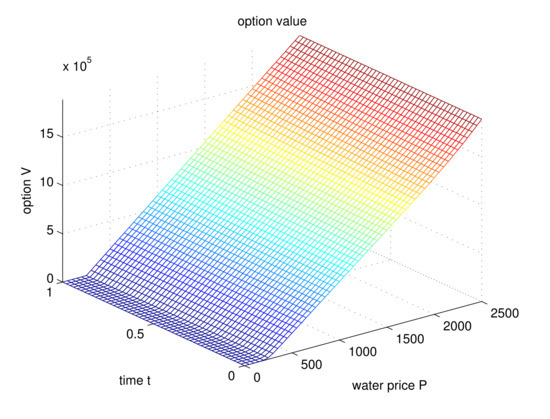

Figure 10. The values of American real option follows from Table 4.

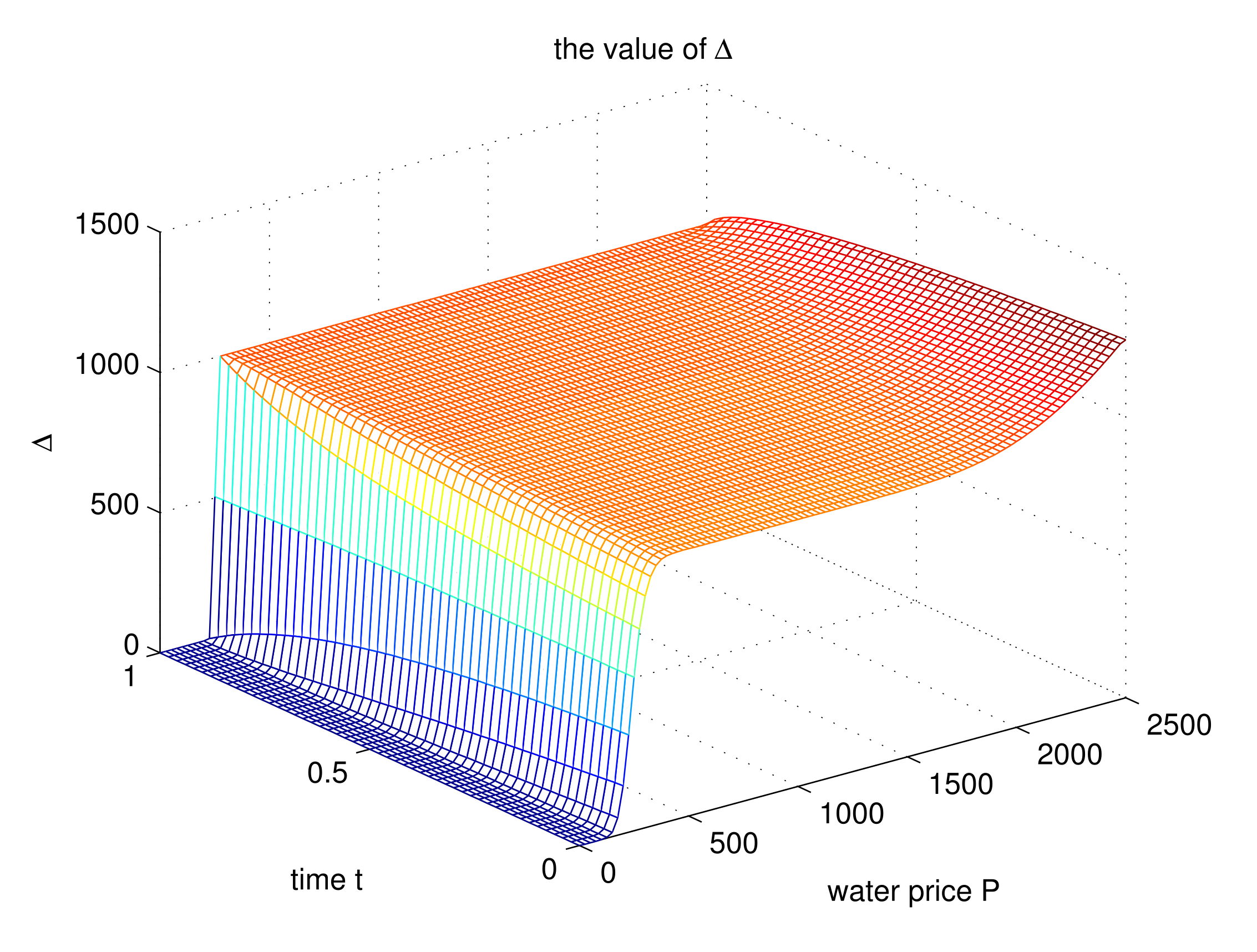

Figure 11. The value of $\Delta$ for Table 4.

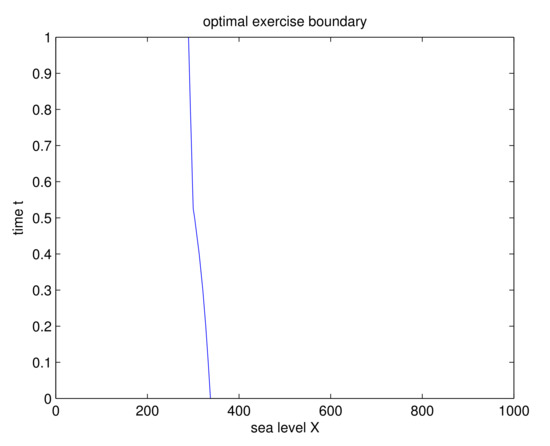

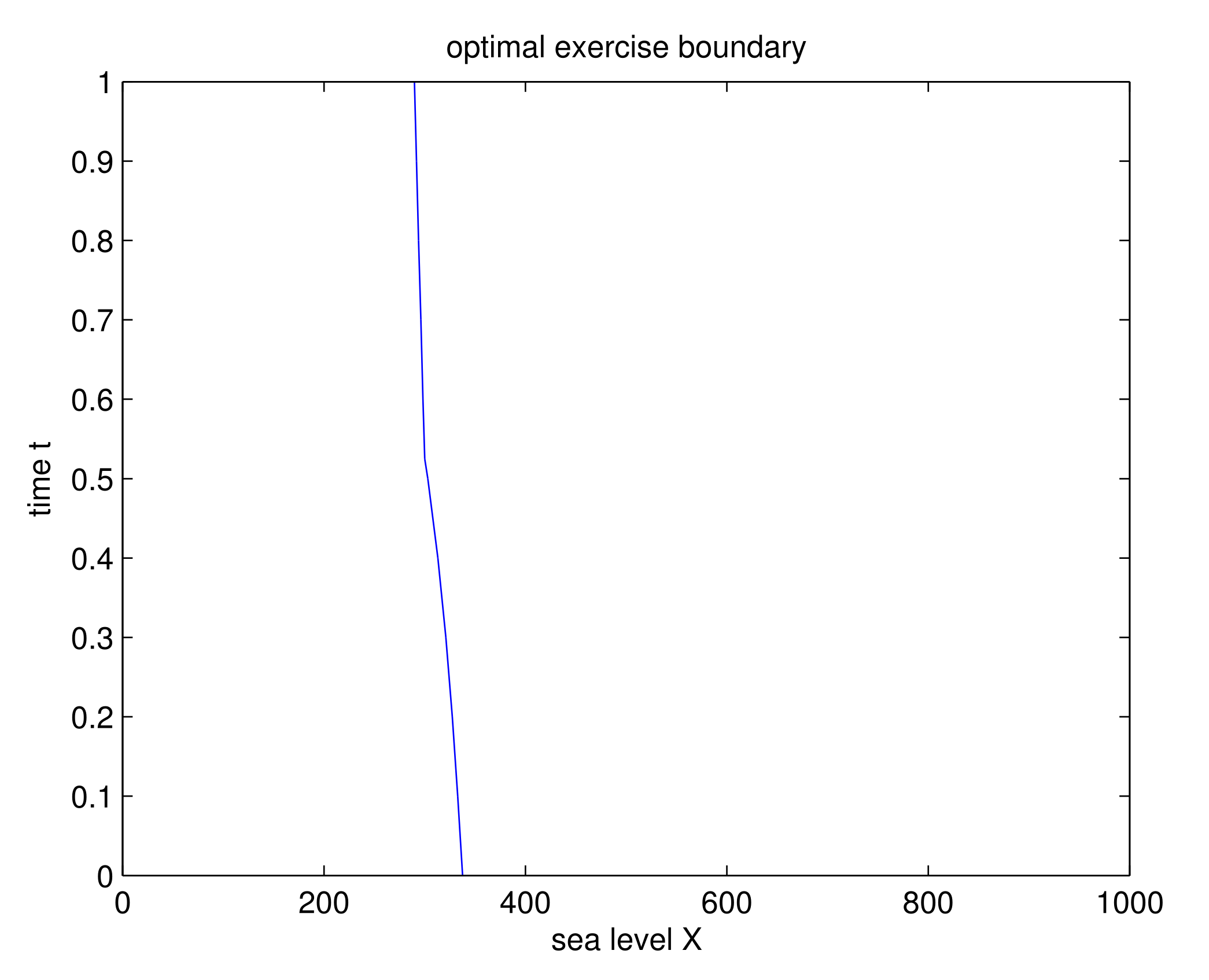

Figure 12. The optimal exercises boundary for Table 4.

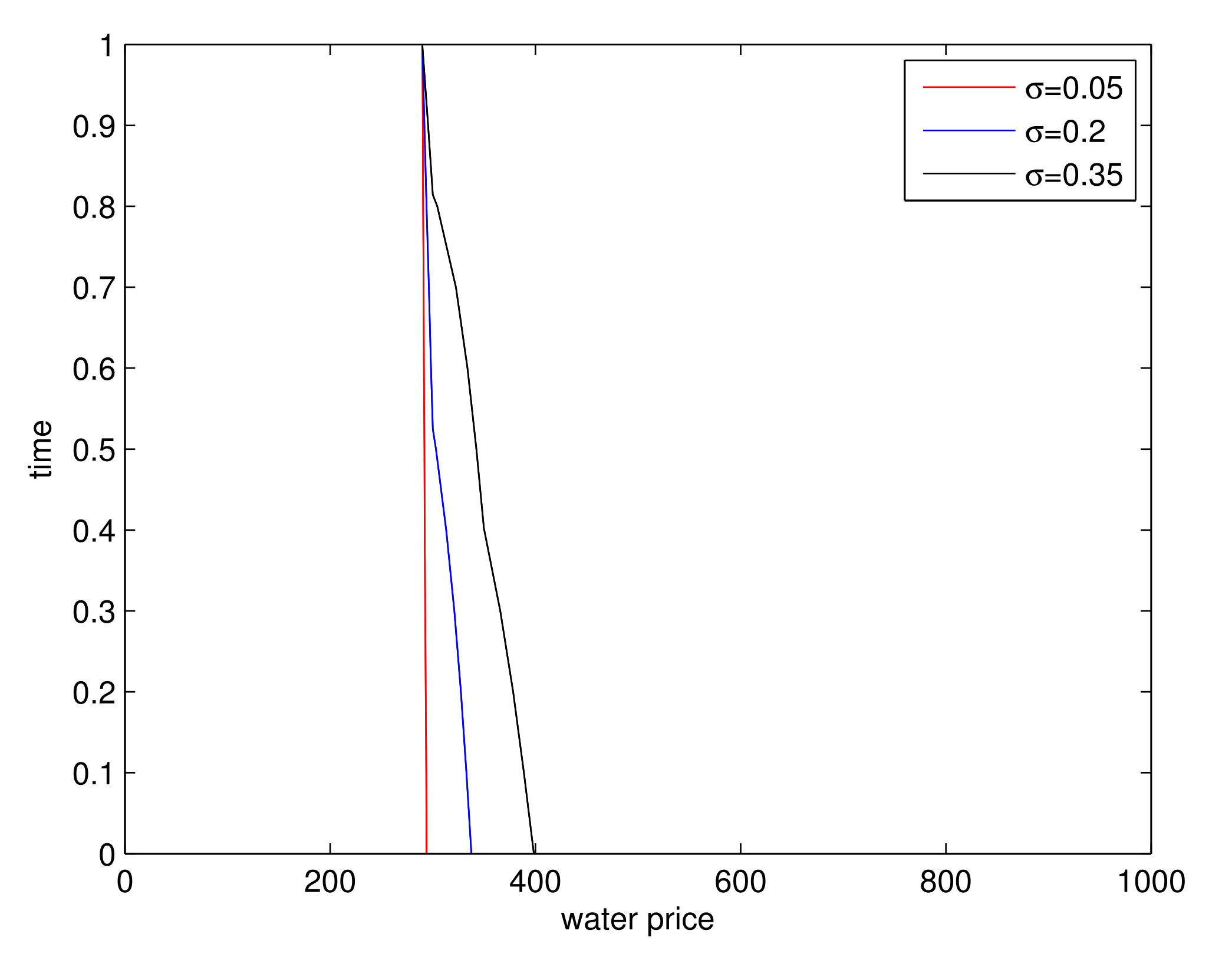

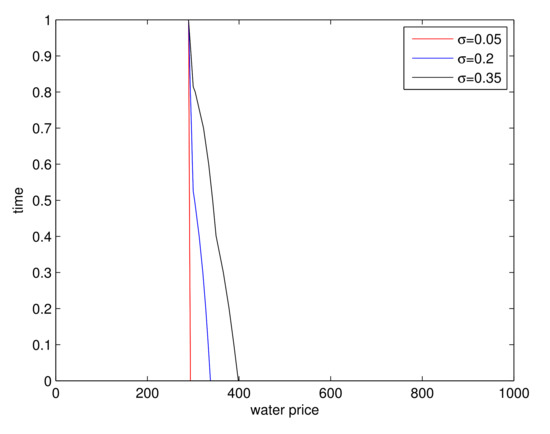

Figure 13. Comparison based on different $\sigma$ for Table 4.

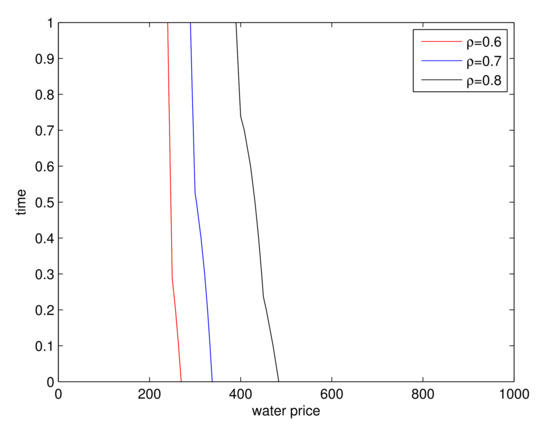

Figure 14. Comparison based on different $\rho$ for Table 4.

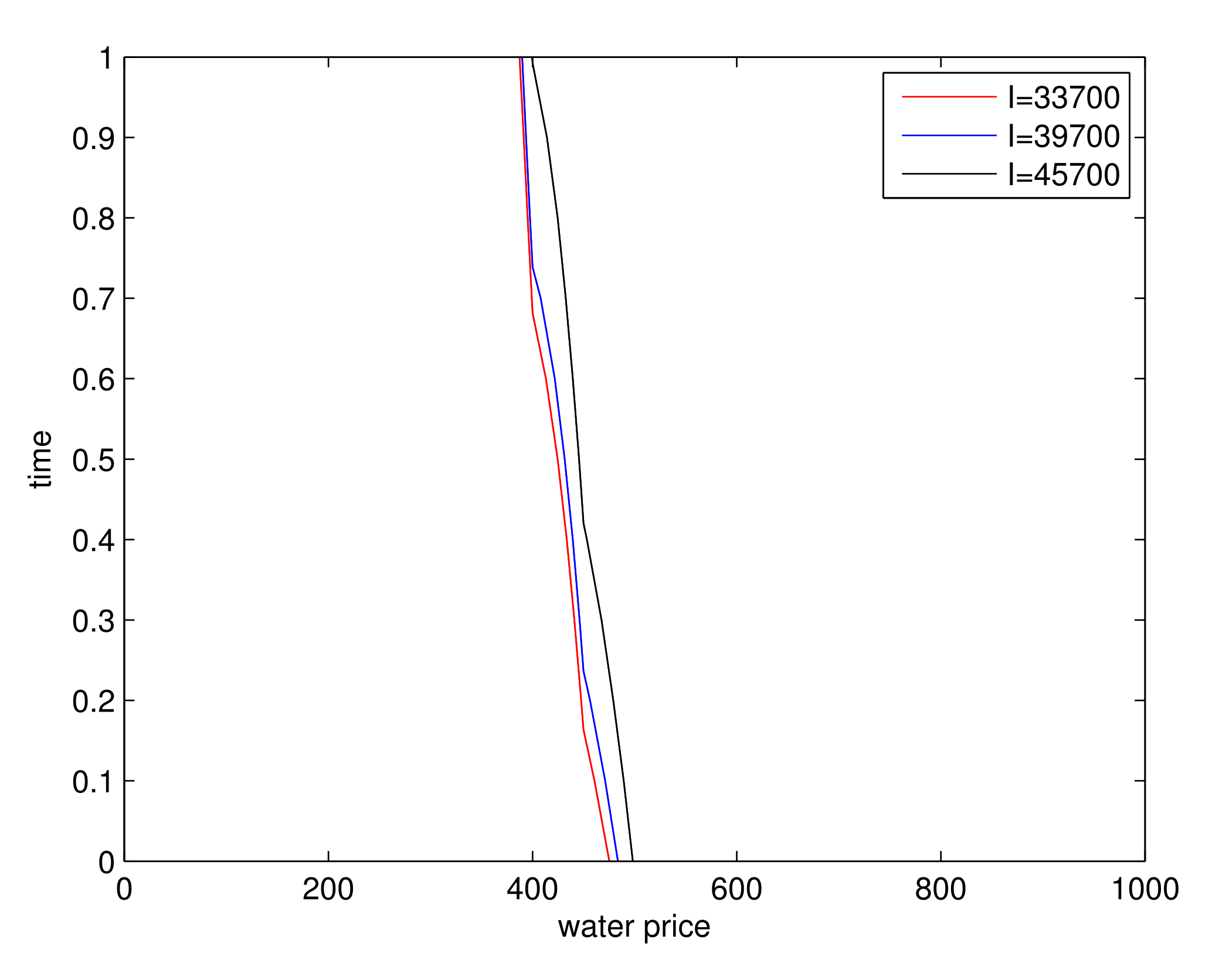

Figure 15. Comparison based on different I for Table 4.

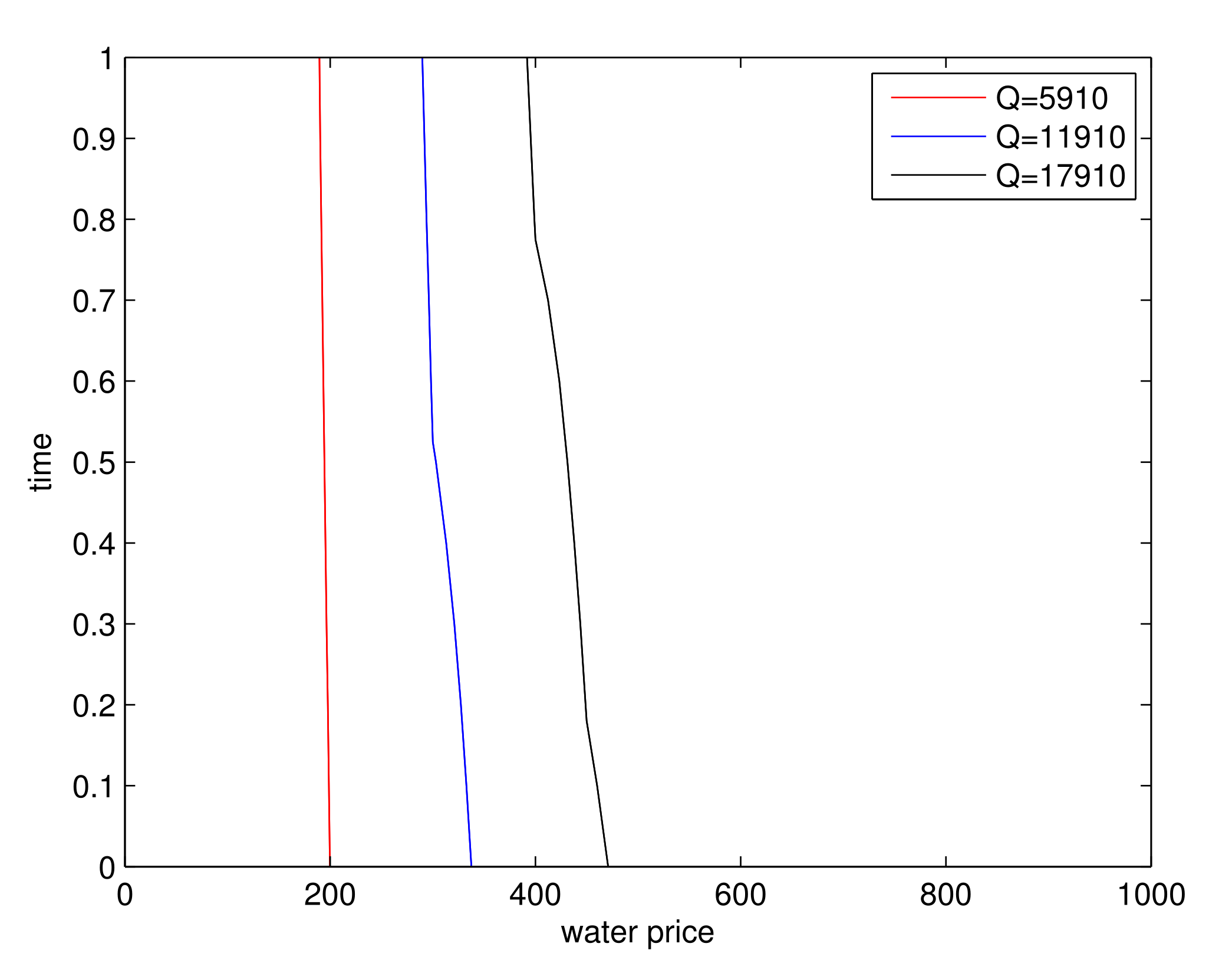

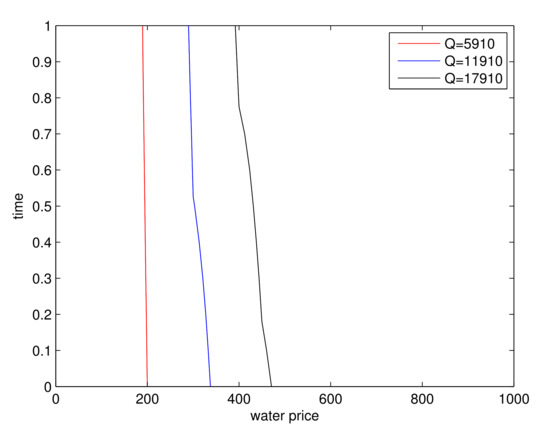

Figure 16. Comparison based on different Q for Table 4.

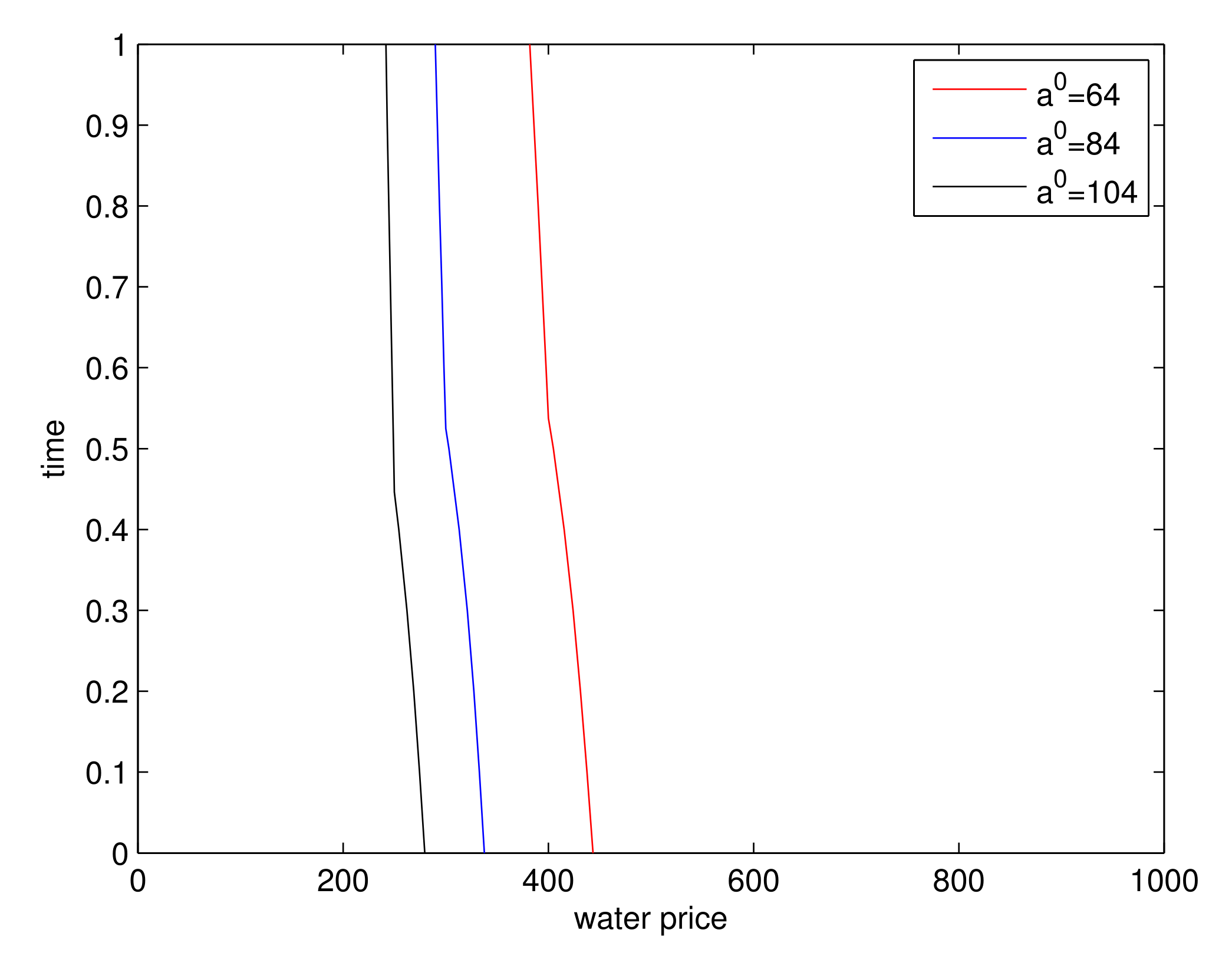

Figure 17. Comparison based on different $a^0$ for Table 4.

Comparing Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9 with Figure 13, Figure 14, Figure 15, Figure 16 and Figure 17, we debug the impact of different parameters on investment boundaries, we still require that suspending options will affect the timing of investment for decision-making problems.

The reason why we need to study the water management of water irrigation is that imperfect irrigation system that leads to serious waste of water resources. By using real options model to study water management and empirical analysis of measured data of water irrigation in some areas, we find that this model is not only effective and practical, but also can provide decision-making reference for water irrigation management.

The empirical examples of real options on water management can be found that this model has positive significance in management and economics. Farmland irrigation infrastructure is seriously inadequate. The existing facilities are generally aging and damaged with lower water supply capacity, which are far from meeting the production needs of residents. It is necessary to take effective measures to construct and improve farmland irrigation facilities to promote the stability and the prosperity of migrants and the stable development of the social economy in the reservoir area where improvement measures should pay attention to local conditions, long-term effect, mainly small water supply projects.

5. Conclusions

In this paper, we propose a model about water management to analysis the choice of investment in water savings. Ultimately, it is of vital importance to manage water efficiency from our model numerical examples. Water savings in irrigation-based on water resources and the patterns of agricultural water demand can effectively save water resources. In addition, the investment timing is influenced by the water price. then we use a method to conduct a model in water management by a linear parabolic variational inequality. Beyond that, we obtained the vary type boundary conditions. And switch the linear parabolic variational inequalities into nonlinear parabolic equations via a method called the power penalty approach. Hereafter, we found that the solutions are converges to the rate of order $O\left({\lambda }^{-\frac{k}{2}}\right)$.
