IoT-Based Hybrid Renewable Energy System for Smart Campus

,
,
and
1
Saudi Electricity Company Chair in Power System Reliability and Security, King Saud University, Riyadh 11421, Saudi Arabia
2
Sustainable Energy Technologies Center, King Saud University, Riyadh 11421, Saudi Arabia
3
Electrical Engineering Department, Mansoura University, Mansoura 35516, Egypt
4
Department of Electrical Engineering, College of Engineering, King Saud University, Riyadh 11421, Saudi Arabia
Sustainability2021, 13(15), 8555;https://doi.org/10.3390/su13158555
This article belongs to the Special Issue Smartgrids and Microgrids Based on Renewable Sources
Version Notes
Order Reprints

Abstract

There is a growing interest in increasing the penetration rate of renewable energy systems due to the drawbacks associated with the use of fossil fuels. However, the grid integration of renewable energy systems represents many challenging tasks for system operation, stability, reliability, and power quality. Small hybrid renewable energy systems (HRES) are small-scale power systems consisting of energy sources and storage units to manage and optimize energy production and consumption. Appropriate real-time monitoring of HRES plays an essential role in providing accurate information to enable the system operator to evaluate the overall performance and identify any abnormal conditions. This work proposes an internet of things (IoT) based architecture for HRES, consisting of a wind turbine, a photovoltaic system, a battery storage system, and a diesel generator. The proposed architecture is divided into four layers: namely power, data acquisition, communication network, and application layers. Due to various communication technologies and the missing of a standard communication model for HRES, this work, also, defines communication models for HRES based on the IEC 61850 standard. The monitoring parameters are classified into different categories, including electrical, status, and environmental information. The network modeling and simulation of a university campus is considered as a case study, and critical parameters, such as network topology, link capacity, and latency, are investigated and discussed.

1. Introduction

The advances in information and communication technologies (ICT) play an essential role in future smart grids, covering generation, transmission, distribution, and consumption. The smart grid aims to improve operation, monitoring, reliability, efficiency, and stability for both consumers and service providers [1,2]. In this direction, the internet of things (IoT) is a promising technology that, expected, to play an essential role in enabling the electric power system to achieve planned goals in monitoring, protection, and control. This can be done by incorporating sensors, actuators, and metering devices and supporting various systems automation and network functions [3,4]. The emerging IoT technologies provide reliable infrastructures that enable data acquisition, processing, transmission, and storage for different smart grid applications [1]. IoT technology has received significant attention across multiple application domains such as smart homes/buildings [5], healthcare [6], agriculture [7], and cities [8].
Today, the smart grid is supporting, and operating with, many new applications, such as smart meters, distributed energy resources (DERs), and energy storage systems [9]. Among these applications, hybrid renewable energy systems (HRES) are expected to play an essential role in future smart power systems, considering their potential economic and environmental benefits. HRES can support different applications covering residential, commercial, military, and remote communities, based on the quantity of power to be handled [10].
Small HRES are power systems that consist of micro power sources, energy storage systems, loads, and control devices. The integration of HRES can benefit the power system provider by reducing expansion costs, minimizing feeder power losses, increasing network reliability, and achieving faster recovery in case of network faults [11]. However, the integration of HRES in the power distribution system represents many technical problems such as voltage fluctuation, harmonics, frequency deviation, and grid instability.
Communication networks and security are among the open research topics for IoT systems covering different smart grid domains such as generation, transmission, distribution, and consumption [1]. However, there has been less research on the underlying communication infrastructures that support the operation of HRES, and even less work on the communication infrastructures for power distribution systems [1,2,3,9,10,11]. Wired and wireless communication technologies are highly required to maintain reliable operation, management, and monitoring for different smart grid applications.
Although there are numerous studies on HRES, the design of communication networks is rarely discussed, assuming that the communication network is always available, and so too for communication with the controllers. The communication infrastructure is one of the most critical components supporting different smart grid applications and an essential part of the IoT architecture because it manages the transfer of all system data.
This work aims to develop an IoT-based architecture to support the integration of HRES in the power distribution system. Four layers make the proposed architecture: namely power, data acquisition, communication network, and application layers. The performance analysis and practical feasibility of the communication network layer for HRES are evaluated for a real case study on a university campus.
The paper is organized as follows. Section 2 provides the related work and the state-of-the-art for HRES. Section 3 describes the proposed IoT-based architecture for HRES. Section 4 provides details modeling for different components of HRES, including wind turbines, photovoltaics, energy storage systems, and diesel generators. Section 5 shows the performance evaluations and simulation results. Finally, Section 6 presents the conclusion and suggested future work.

3. IoT-Based Architecture for Hybrid Renewable Energy System

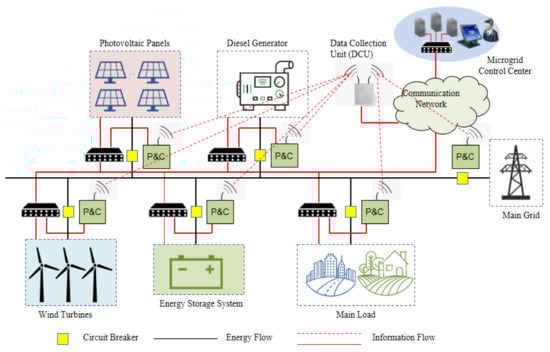

In HRES, communication infrastructures are crucial elements that are responsible for data exchange among data resources (sensors and meters), controllers, and the control center. In order to support remote monitoring and control operation, the information flow from different entities defines the system architecture [19]. The IoT technology will provide great opportunities for sensing, communication, processing, and actuating to support various microgrid applications. First, measured data are acquired and transmitted to the local control center using a communication network. Then, decisions are made with this data, and control commands are sent through the communication network where the control commands are run using controllable devices. Two main types of communication schemes could be considered: centralized schemes and distributed schemes. In the centralized scheme, all data are transmitted to a central control center where data are processed and control commands are transmitted to controllable entities. In the distributed scheme, all data are received and processed using the local controller. In order to control the entire system, local control centers need to share information with each other through the communication network.
This work focuses on the communication level between the local controller of HRES and the microgrid control center, where the status of different renewable energy sources and loads can be collected and communicated to a central controller that determines an appropriate action in the system. Figure 2 shows the IoT-based architecture for HRES which consists of four main layers: the power layer, the data acquisition layer, the communication network layer, and the application layer [20,21,22,23].

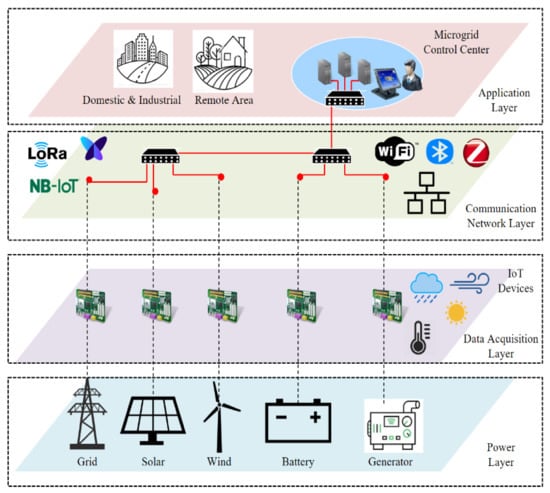

Figure 2. IoT-based architecture for smart hybrid energy system.

3.1. Power Layer

The power layer covers residential power generation and consumption. Examples of power consumption are residential homes/buildings that include different applications such as heating, ventilation, and air conditioning (HVAC), lighting, electric vehicles, and various appliances. Residential energy generation consists of various renewable energy sources, such as wind and solar power, conventional sources, such as diesel generators, and energy storage systems, such as batteries. Other elements that are part of the power layer are transformers, buses, and loads. Loads could be classified into three main types: residential, commercial, and industrial. In addition, various sensor nodes, measuring devices, and actuators are attached to the power system layer.

3.2. Data Acquisition Layer

The data acquisition layer includes different types of sensor nodes and measurement devices connected to different subsystems of HRES. Data collected utilizing various sensor nodes and measurement devices is transmitted to the application layer through the communication network layer. Based on the data from different energy sources such as wind energy, photovoltaic system, diesel generator, and battery storage, HRES can be operated in island mode or grid-connected mode.

3.3. Communication Network Layer

The communication network layer is responsible for receiving the data from sensor nodes and measuring devices in the power layer and sending it to the control center. This can be done through various network services, including home area network (HAN), building area network (BAN), neighborhood area network (NAN), and wide area network (WAN). Based on the type of communication technology, the communication network can be divided into wired-based solutions (PLC, Ethernet, optical fibers, etc.) and wireless-based solutions (Wi-Fi, ZigBee, WiMAX, LoRa, Cellular, etc.). The communication network layer enables data collection and transmission from each system component using intelligent electronic devices (IEDs) and remote terminal units (RTUs). The data is stored in the control center for different services such as human-machine interfaces (HMI), application servers, historians, databases, and web servers.

3.4. Application Layer

The main function of the application layer is real-time monitoring and control. All monitoring data and status information are received, stored, and processed for different services at the local control center. The control center incorporates a local area network (LAN) which enables communication with different protection and control devices such as IEDs and RTUs. Examples of smart home/building applications are energy consumption management, environmental control, and HVAC management. Other applications for power service providers are DER management, demand response, and EMS. The control center coordinates the system operation by receiving and analyzing the monitoring data received from the communication network layer.

4. Modeling of Hybrid Renewable Energy System

HRES are designed to generate electric power using different power generation sources, such as small-scale wind turbines, photovoltaic systems and/or other conventional sources, such as diesel generators. These systems can support power ranging from a single house/building to a large system such as a village or an island. Based on the connection with the main grid, the system can be classified as in standalone mode or grid-connected mode [24]. In the case of the standalone mode, HRES should be designed to meet the required power demand. There are different configurations for the hybrid renewable energy system such as AC, DC, and hybrid AC/DC, based on the voltage of the main bus linking all assets. In the AC configuration, all assets are connected to an AC bus directly or via converts, while all assets are connected to a DC bus for the DC configuration [25].
In this work, the main components of HRES are energy sources (PV systems, wind turbines, diesel generators, and electric grids), energy storage system, and load. The selection of HRES elements is based on the scenario of Saudi Arabia because the electricity generation costs for isolated areas, such as mountainous, villages, and desert areas are expensive and face many challenges, such as difficult access to remote sites and low population density. Therefore, hybrid renewable energy generation would benefit such remote areas and reduce dependence on fossil fuels. Different standards have been considered for the information model of the hybrid energy system, such as IEC 61400-25, IEC 61850, and IEC 61850-7-420 [26]. The information model uses the logical node concept to represent the information model for a real device that needs to be exchanged with other devices and/or systems. Figure 3 shows the basic building blocks of the energy management system (EMS) for the hybrid energy system. It consists of two main parts: EMS sensing devices and EMS analytics.

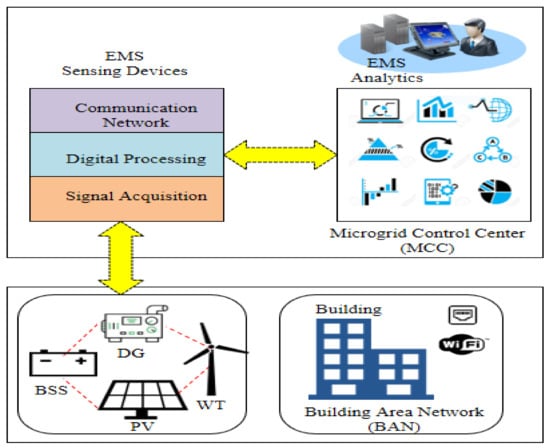

Figure 3. Energy management system for a hybrid renewable energy system.
The EMS sensing devices represent different sensor nodes, meters, and monitoring devices connected to HRES subsystems that are responsible for generating the monitoring data for the system. The EMS analytics aims to provide information about the system operation for the end-user based on the data received from EMS sensing devices. EMS solutions for HRES are different concerning types of sensors/measurements, short/long time scale monitoring, and targeted EMS analytics.
Figure 4 shows the modeling of HRES. Sensing devices represent sensor nodes and measuring devices connected to HRES to measure electrical and environmental parameters. Examples of these parameters are given in Table 3, Table 4, Table 5 and Table 6. Table 3 shows the sensing devices for the wind turbine system based on the IEC 61400-25-2 standard [27]. Based on the IEC 61400-25-2 standard, a wind turbine is represented as a virtual device that includes different logical nodes. Each logical node consists of different types of information, such as analogue measurements, status information, and control information. Ref. [28] gives a detailed description for network modeling of communication network architecture for the wind turbine system.

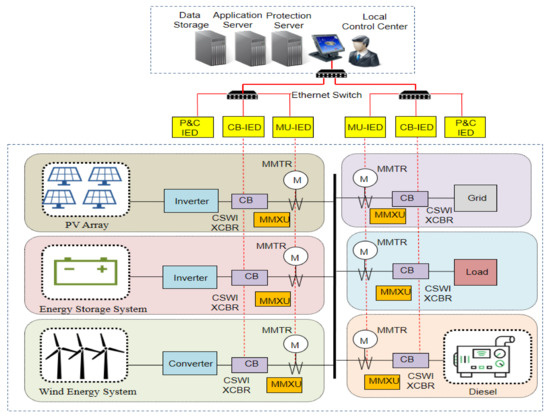

Figure 4. Modeling of the hybrid renewable energy system.
Table 3. Sensing devices for wind turbine system.
Table 4. Sensing devices for photovoltaic system.
Table 5. Sensing devices for diesel system.
Table 6. Sensing devices for battery system.
Table 4 shows the sensing devices for the photovoltaic system based on the IEC 61724 standard [27]. The operation of the PV system can be affected by different factors, such as shading, dust, cell damage, faults, and degradation. The amount of data generated from various sensor nodes is calculated based on the sampling frequency and the number of channels. Ref. [29] gives a detailed description for network modeling of communication network architecture for PV systems. In the case of small PV systems, the main parameters are voltage, current, power, irradiation, and ambient temperature.
The diesel generator is usually used as a backup if the wind turbines, PV systems, and battery storage systems are insufficient. The information model of the diesel generator includes functions and states of the engine characteristics such as status information, measured value, and control. The status information comprises engine status (ON/OFF) and measured values such as output power, fuel consumption, engine speed, etc. Table 5 shows the description of the logical nodes of the diesel system [30].
The battery storage system is used in case of an energy deficit. If there is an excess of energy produced, the batteries will be operating in charging mode. At the same time, if there is a deficit of energy produced, the batteries will be operating in discharging mode. In order to avoid undercharging and overcharging, the batteries are restricted with minimum and maximum storage capacities. Table 6 shows the description of the logical nodes of the battery system [30].
The selection of appropriate communication technology to support system performance as such delay and packet losses represents a challenging task. The delay requirements for different information types are given in Table 7 [32,33].
Table 7. Requirements for data transmission.

5. Simulation Results

The performance of the communication network for HRES is evaluated using OPNET Modeler. The HRES consists of wind energy, a conventional distributed generator (diesel generator), a photovoltaic system, a battery storage system, and loads. Wind energy and photovoltaic systems are among the most widely used renewable electricity generators to support smart home/building loads. The battery energy storage system is used to store the excess power generated from wind turbines and photovoltaic panels. During periods of higher-demand load (greater than the generated power), the battery systems are discharging and supporting the load.
Two scenarios are considered for grid integration of HRES in a university campus: Building Area Network (BAN) for a single building and Campus Area Network (CAN) for a group of buildings. We considered a system consists of a hybrid PV/wind/battery/diesel energy system. It is assumed that each building has a local building energy management system (BEMS), and the campus has a central campus control center (CCC). The communication network is responsible for receiving/transmitting the monitoring data among local controllers.
The measuring requirements for different sensor nodes, measuring devices, and IEDs of HRES are given in Table 8 and Table 9, respectively. Each component of HRES is modeled with different IEDs: a circuit breaker (CB-IED), a merging unit (MU-IED), and a protection and control (P&C-IED). The data generated from various IEDs is transmitted to the BEMS and/or local control center.
Table 8. Measuring requirements for meteorological data.
Table 9. IEDs configurations for HRES.

5.1. Building Area Network Results

Figure 5 shows the detailed communication network configuration of HRES for the smart building scenario. The communication network model is built in OPNET Modeler. The dimensions of the communication network model are 10 m × 10 m. The network configuration includes network setup, configure network traffic, packet size, start time and stop time, source, and destination. The communication network is configured as Ethernet LAN, consisting of 7 subnets: Grid_subnet, Load_subnet, ESS_subnet, Diesel_subnet, Turbine_subnet; PV_subnet; and Met_subnet. All subnets are connected to the building local control center via an Ethernet switch considering a star topology.

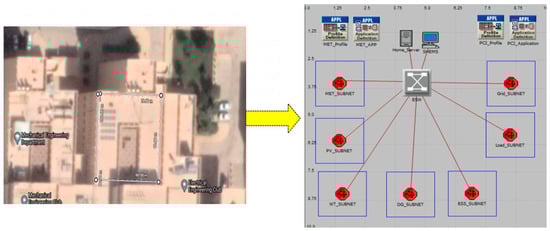

Figure 5. OPNET model for building area network (BAN) scenario.
Each subnet is modeled using one CB-IED, one MU-IED, one P&C-IED, and one Ethernet switch. The data flow is between individual IEDs and the local control center. We considered two different communication technologies: Ethernet-based and Wi-Fi-based configurations with different data rates. The transmission line speed of Ethernet is configured with 10 Mbps, 100 Mbps, and 1 Gbps, while Wi-Fi-based configuration considered different data rates of 54 Mbps. 24 Mbps and 11 Mbps. The data flow between different subsystems and the building control center is configured as given in Table 10. The IED type, data type, and data size are given in Table 11.
Table 10. Monitoring scope and control decisions.
Table 11. IEDs configuration.
The following metrics are considered for performance evaluation of the communication network: received traffic at the server (bytes/s) and end-to-end delay. The received traffic at the server compares the amount of received traffic with the amount of generated traffic. The Ethernet LAN delay represents the end-to-end delay of all packets received by all the sensor nodes. The wireless LAN delay represents the end-to-end delay of all packets received by the wireless LAN MACs of all WALN nodes in the network.
The network topology is configured as a star topology, where the data flow is mainly between individual controllers and the building control center. The impact of the communication technology for Ethernet-based architecture and Wi-Fi architecture is quantified with respect to latency and data rate. First, we validated the simulation models by comparing the amount of received traffic at the server. Each CB-IED transmits the status information to the building control center, where the message size is configured as 16 bytes. The voltage and current measurements are communicating through the MU-IED. The message size is configured as 76,800 bytes. The amount of data received are as follows: 2 bytes/s (temperature), 200 bytes/s (irradiance), 6 bytes/s (wind speed), 6 bytes/s (wind direction), 96 bytes/s (CB-IEDs), and 460,800 bytes/s (MU-IEDs). All data received correctly and consistently with the calculations.
The results of different scenarios configured for Ethernet-based and Wi-Fi-based architectures are given in Table 12 and Table 13. Table 12 shows the simulation results for the end-to-end delay over Ethernet LAN. The results show that the end-to-end delay is about 19.44 ms and 0.19 ms for channel capacity of 100 Mbps and 1000 Mbps, respectively. This indicates that Ethernet-based architecture can support the data transmission for HRES system at the building level. For Wi-Fi-based architecture, the results show that the end-to-end delay is about 3.86 ms and 13.62 ms for a data rate of 54 Mbps and 11 Mbps, respectively, as shown in Figure 6.
Table 12. End-to-end delay (ms) for Ethernet-based architecture for a standalone building.
Table 13. End-to-end delay (ms) for Wi-Fi-based architecture for a standalone building.

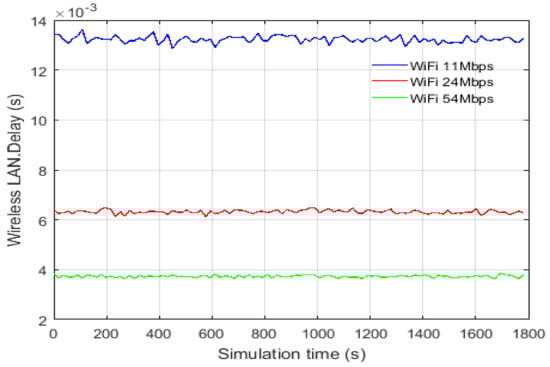

Figure 6. End-to-end delay for Wi-Fi-based architecture of the building area network scenario.

5.2. Campus Area Network Results

We considered different scenarios for a group of buildings on the university campus. We assumed that each building would be integrated with HRES that can be operated in a standalone mode or grid-connected mode. The dimensions of the network model are set as 100 m × 100 m. Different scenarios have been configured in the simulation with a different number of buildings. The communication network has been configured using Ethernet-based architecture. The configuration of the traffic flow is based on file transfer protocol (FTP). The network models have been validated by comparing the received amount of traffic at the server-side.
The results show that there is a loss of data and high end-to-end delay using the link capacity of 10 Mbps with the number of buildings is more than 3, as shown in Figure 7 and Figure 8. As a result, the configurations have been adjusted for using only Fast Ethernet (100 Mbps) and Gigabit Ethernet (1 Gbps). Table 14 summarizes the end-to-end delay with respect to the number of buildings. The OPNET model of the campus area network is shown in Figure 9. The results show that the communication network using Ethernet-based architecture with Fast Ethernet and Gigabit Ethernet can support the operation of HRES.

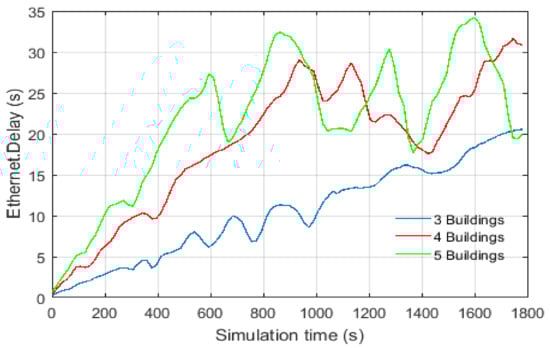

Figure 7. End-to-end delay for Ethernet-based architecture of the campus area network scenario.

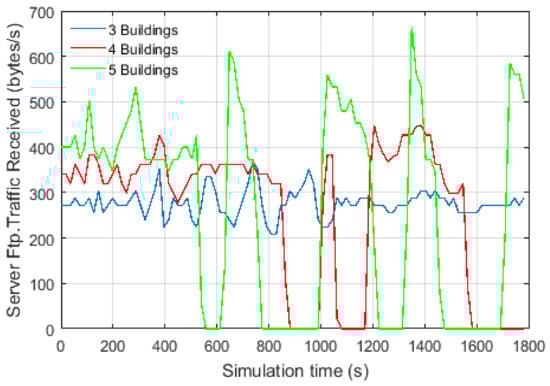

Figure 8. Traffic received (bytes/s) for CB-IEDs with channel capacity of 10 Mbps for 3, 4 and 5 buildings scenario.
Table 14. End-to-end delay (ms) for Ethernet-based architecture.

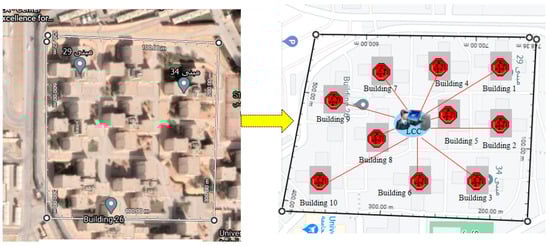

Figure 9. OPNET model for campus area network (CAN) scenario.
As discussed in this work, IoT technologies will play important roles in future energy supply using HRES. The main contributions of this study can be summarized in the following point:
  • This paper proposed a framework for IoT-based architecture for a hybrid energy system, which consists of four main layers: namely the power, the data acquisition, the communication network, and the application layers.
  • The framework studied the communication network associated with the grid integration of a hybrid energy system in a university campus consists of a small-scale wind turbine, PV system, diesel generator, and battery storage system.
  • The monitoring system has been defined based on the IEC 61850 standard, which consists of sensor nodes, data acquisition units, local control units, and a control center.
  • The OPNET Modeler has been used for network modeling and simulation of the developed communication network models.
  • The performance of the communication network model depends on different parameters such as the number of sensor nodes and measuring devices, number of given channels, data size, and sampling rate.
  • The simulation results showed the feasibility of Ethernet-based and Wi-Fi-based architectures for control and monitoring HRES.

6. Conclusions

This work presents an IoT-based architecture to support the grid integration of a hybrid renewable energy system in a university campus. The proposed architecture consists of four layers: the power, the data acquisition, the communication network, and the application layers. The communication models for the hybrid energy system consisting of a small-scale wind turbine, PV system, diesel generator, and battery storage system based on IEC 61850 standard, which is suitable for the isolated and small power system have been designed and implemented in different scenarios. The performance has been evaluated with respect to end-to-end delay using Ethernet-based and Wi-Fi-based communication architectures. The simulation results showed that the performance is sufficient for the operation using Fast Ethernet and Gigabit Ethernet, which ensures the latency requirements. This work contributes to the development of smart microgrid systems in Saudi Arabia and the integration of hybrid renewable energy systems.
The future work aims to complete the prototyping of HRES, implement the proposed architecture in a laboratory environment, and comparing the performance of the real prototype with the simulation models. Furthermore, network security and data transmission are among the most important issues that need to be considered including, cyber attacks and false data injection.

Author Contributions

Conceptualization, A.M.E. and M.A.A. (Mohamed A. Ahmed); Methodology, A.M.E. and M.A.A. (Mohamed A. Ahmed); Software, M.A.A. (Mohamed A. Ahmed); Validation, A.M.E., M.A.A. (Mohamed A. Ahmed), M.A.A. (Majed A. Alotaibi), and A.I.A.; Formal Analysis, A.M.E., M.A.A. (Mohamed A. Ahmed), M.A.A. (Majed A. Alotaibi) and A.I.A.; Supervision, A.M.E.; Project Administration, A.M.E.; Writing – Original Draft Preparation, A.M.E., M.A.A. (Mohamed A. Ahmed), M.A.A. (Majed A. Alotaibi) and A.I.A.; Writing – Review & Editing, A.M.E., M.A.A. (Mohamed A. Ahmed), M.A.A. (Majed A. Alotaibi) and A.I.A. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the deanship of scientific research at King Saud University, Saudi Arabia for funding this work through research group No (RG-1441-422).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

IoTInternet of Things
HRESHybrid Renewable Energy System
IECInternational Electrotechnical Commission
ICTInformation and Communication Technologies
DERDistributed Energy Resources
EMAEnergy Management Agent
SCADASupervisory Control and Data Acquisition
PLCProgrammable Logic Control
PVPhotovoltaic
PSOParticle Swarm Optimization
BABat Algorithm
WTWind Turbine
FCFuel Cell
BSSBattery Storage System
HVACHeating, Ventilation and Air Condition
LoRaLong Range
NB-IoTNarrow Band IoT
HANHome Area Network
BANBuilding Area Network
NANNeighborhood Area Network
WANWide Area Network
PLCPower Line communication
IEDIntelligent Electronic Device
RTURemote Terminal Unit
HMIHuman Machine Interface
LANLocal Area Network
EMSEnergy Management System
DGdiesel Generator
MCCMicrogrid Control Center
SDSensing Devices
CANCampus Area Network
BEMSBuilding Energy Management System
CCCCentral Control Center
CBCircuit Breaker
MUMerging Unit
P&CProtection and Control
LCLocal Controller
LCCLocal Control Center
GCGeneration Control
ESSEnergy Storage System
FTPFile Transfer Protocol
