# Post-Earthquake Damage Assessment—Case Study of the Educational Building after the Zagreb Earthquake

^{*}

## Abstract

**:**

## 1. Introduction

_{L}= 5.5, and intensity of VII, in the epicenter, according to the EMS-98 scale [1]. At 7 h 1 min followed the strongest subsequent earthquake of magnitude M

_{L}= 5.0 and intensity of VI. The main earthquake damaged most of the buildings in the Lower Town, including residential buildings, universities, schools, kindergartens, hospitals and public buildings. The vast majority of buildings built after the first mandatory earthquake regulations in former Yugoslavia (1964) [2,3] either remained intact or suffered small damage. Nonetheless, the larger part of the city’s historical center (Upper and Lower Town) was severely damaged because the buildings in the center were built before any seismic regulations. The damage to historical buildings is enormous. Numerous museums, churches and university buildings have been severely damaged (Figure 1). At the end of the year, Croatia was hit by another devastating earthquake with an epicenter in Petrinja, located approx. 50 km from Zagreb (M

_{L}= 6.3). The quake caused subsequent damage to already damaged buildings, but to a lesser extent.

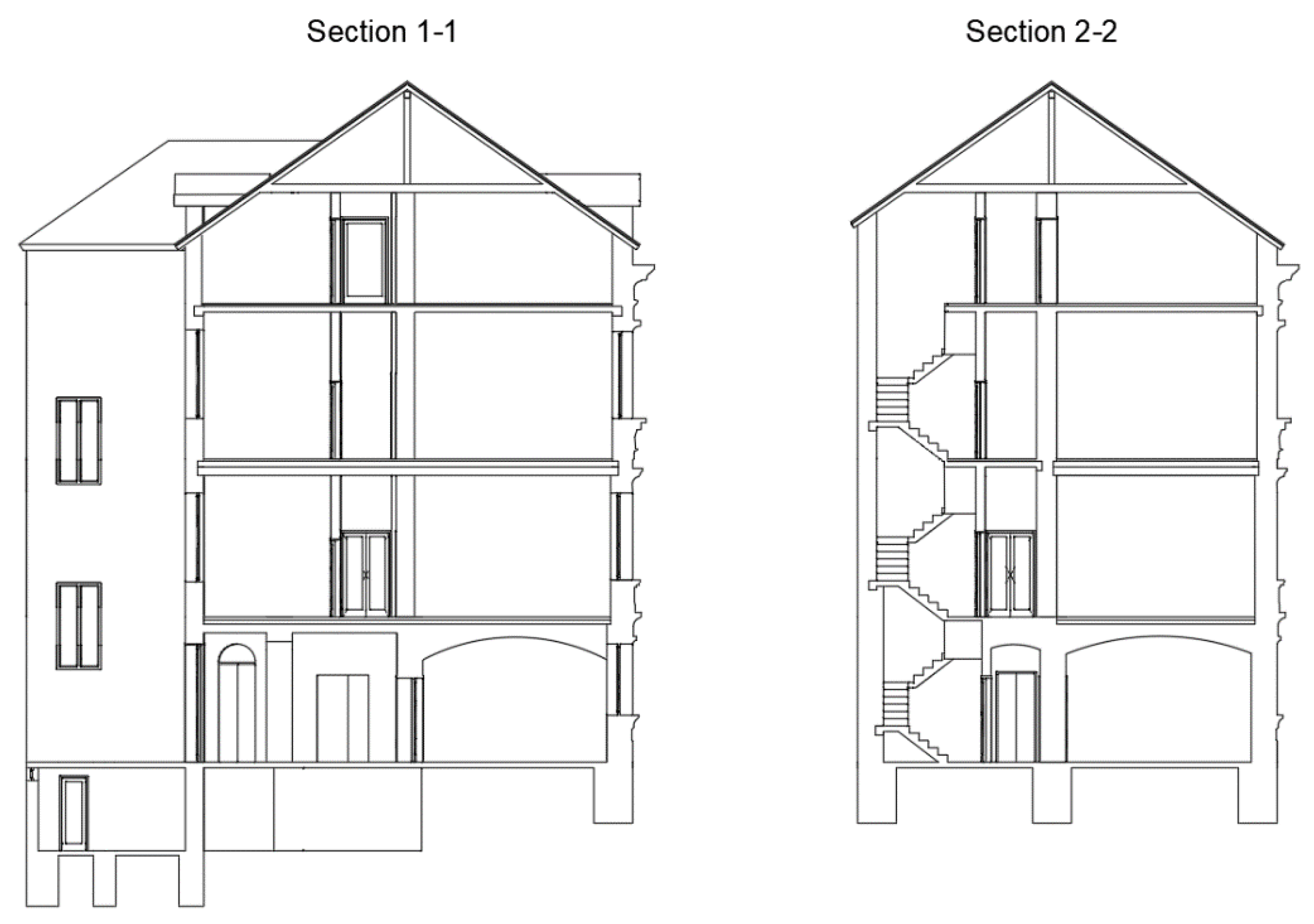

## 2. The Case Study

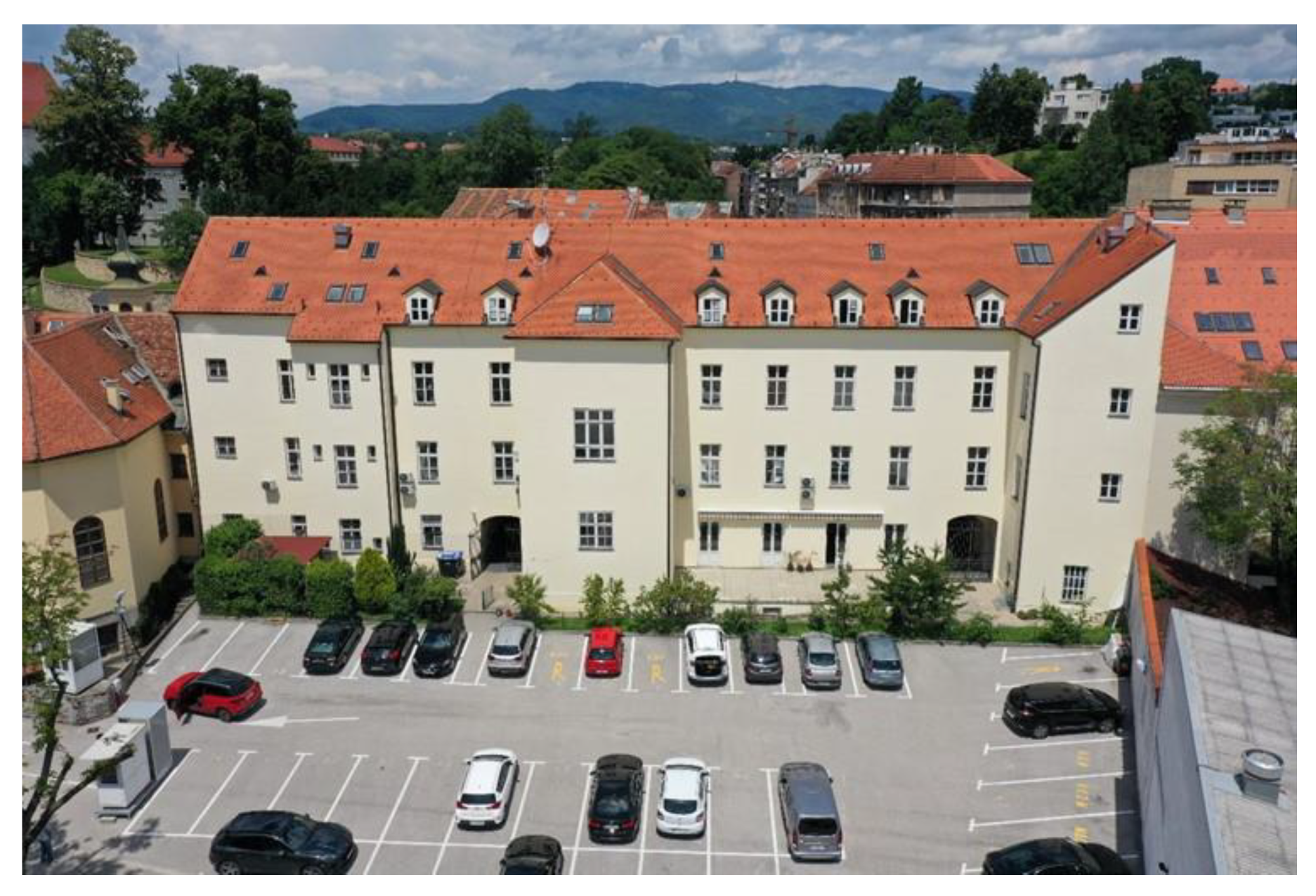

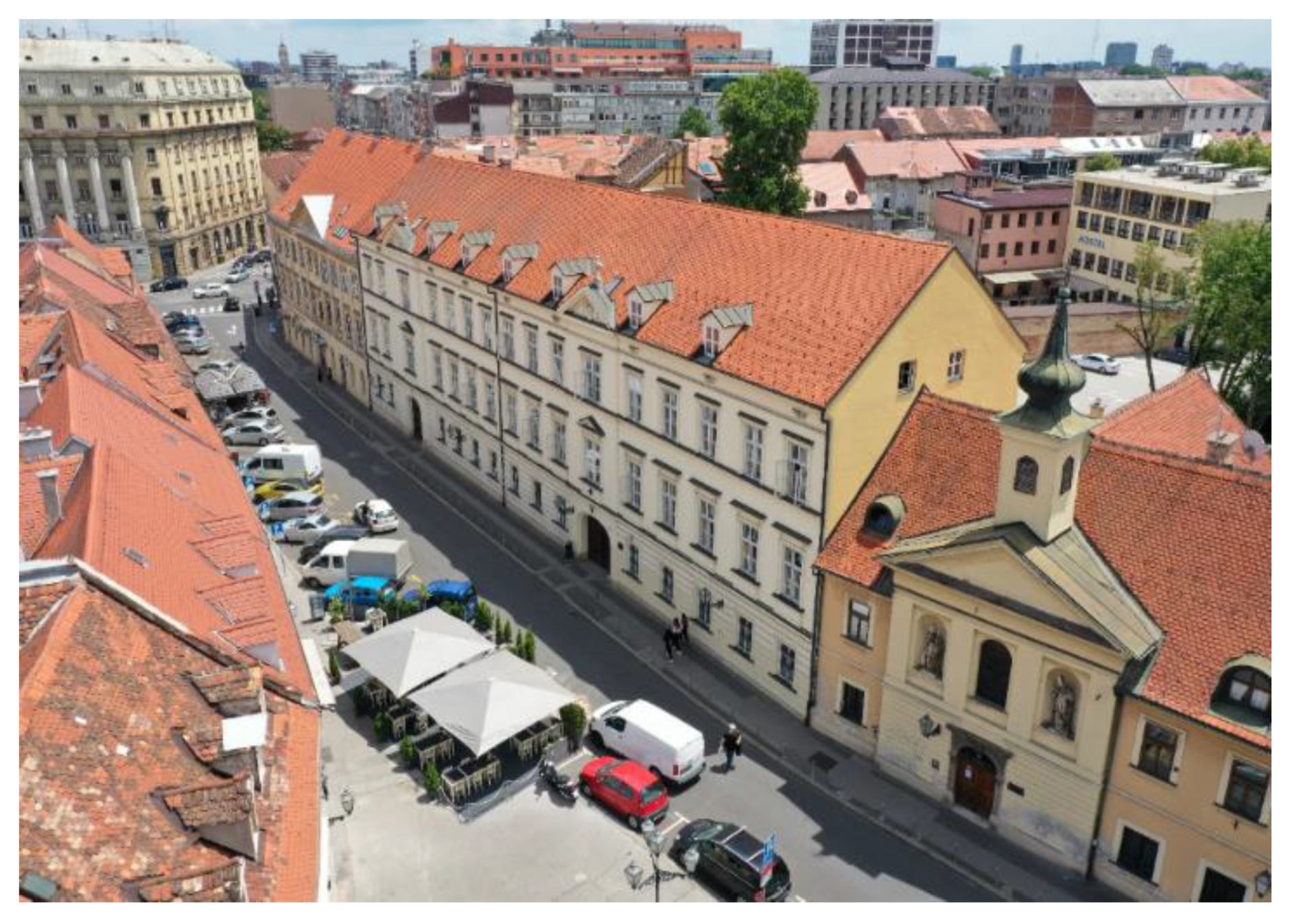

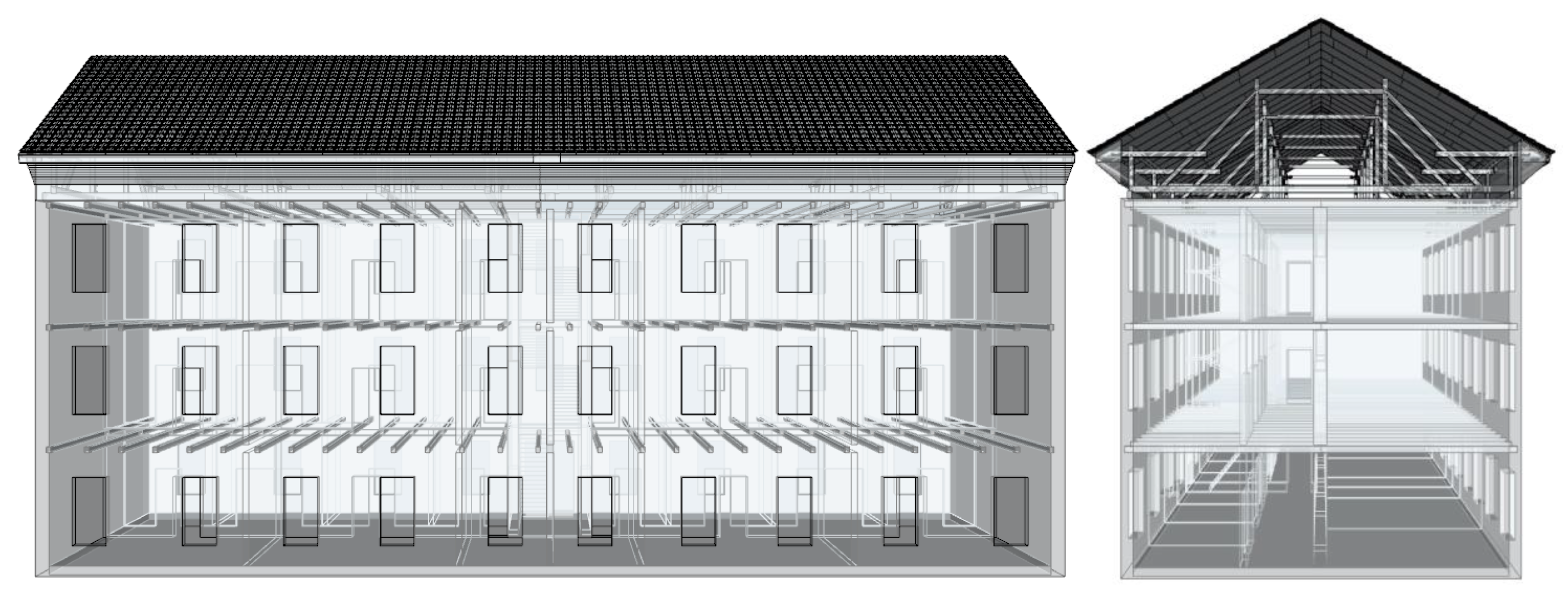

^{2}. The building consists of a basement, first, second, third floor and attic. According to the Croatian seismic hazard map [24], the building is located in the area of peak ground acceleration intensity of a

_{gR}= 0.255 g for a return period of 475 years. The building serves as an educational-scientific institution. The condition of the building before the earthquake, regarding the vertical loads, was satisfactory, and the building was regularly maintained.

## 3. Methodology

#### 3.1. Assessment Procedure

#### 3.2. Rapid Preliminary Assessment Results

- Separation and local decay of plaster;

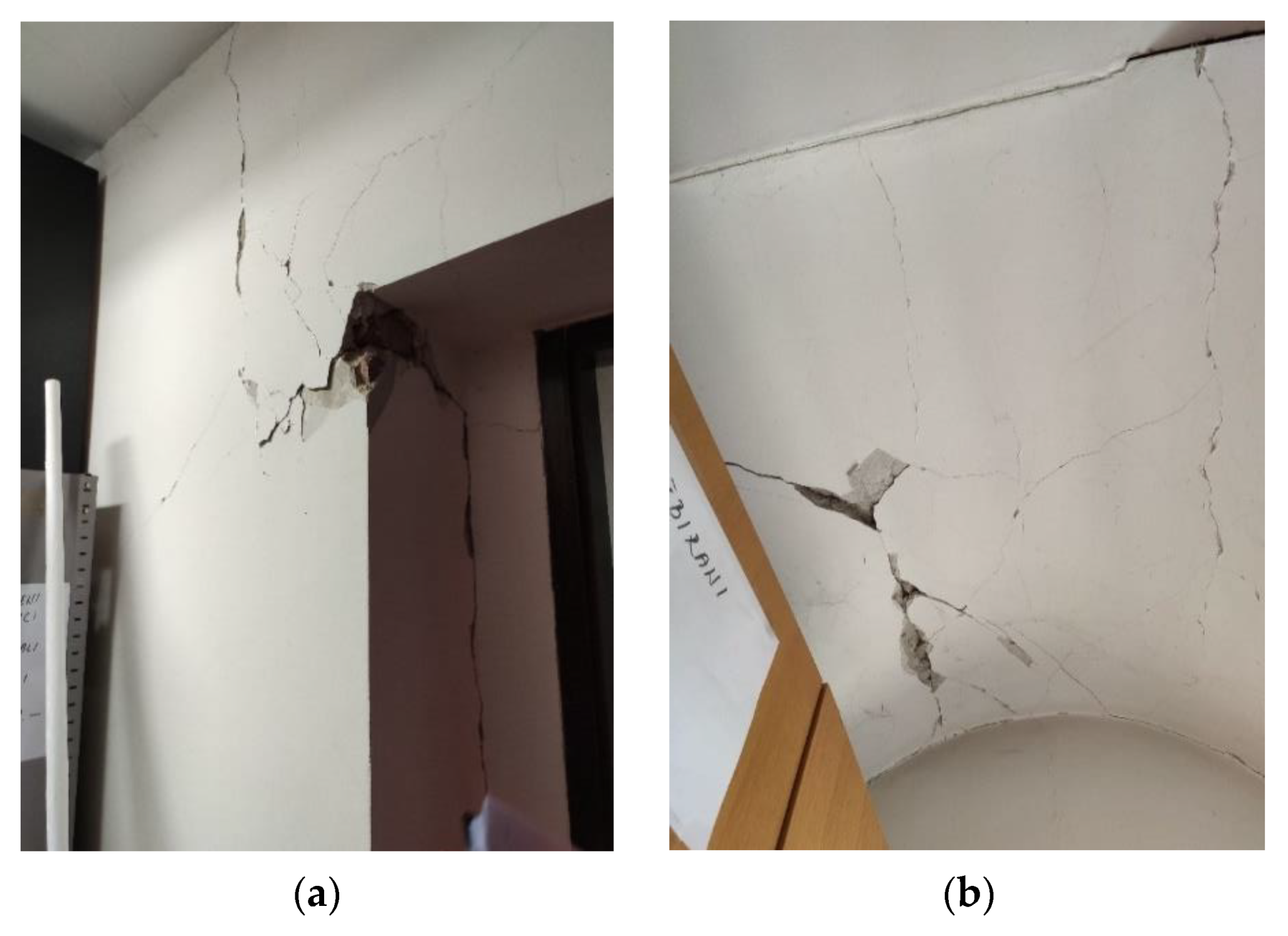

- Minor local damage is visible on structural elements (walls, columns, arches);
- In the eastern part of the building, diagonal cracks are visible on the load-bearing walls.

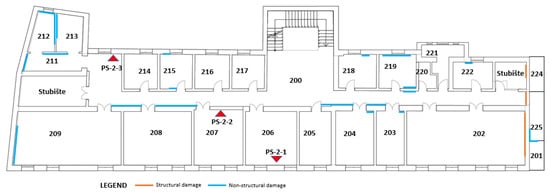

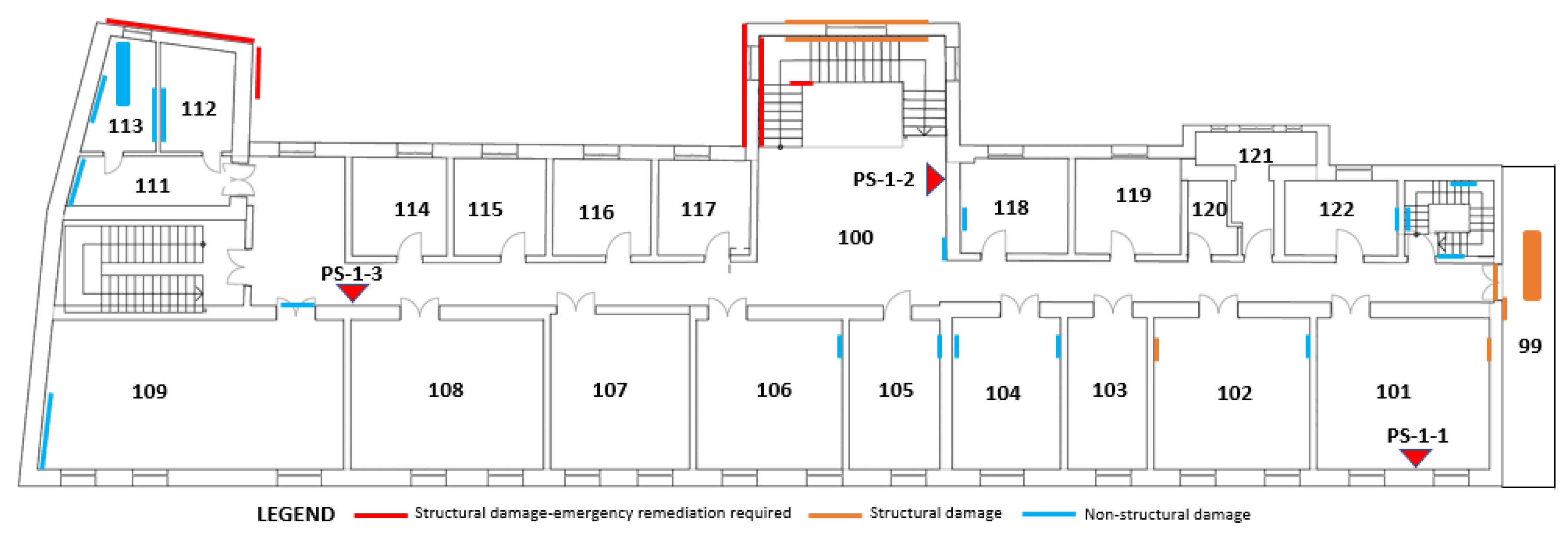

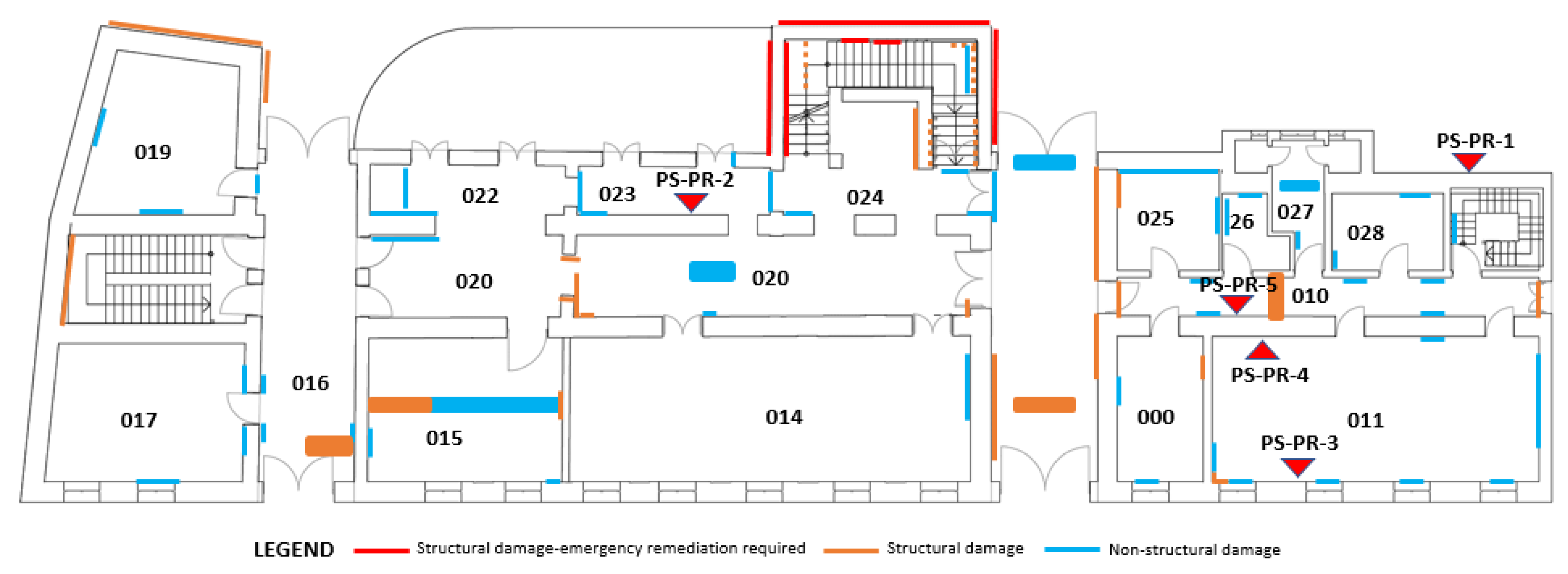

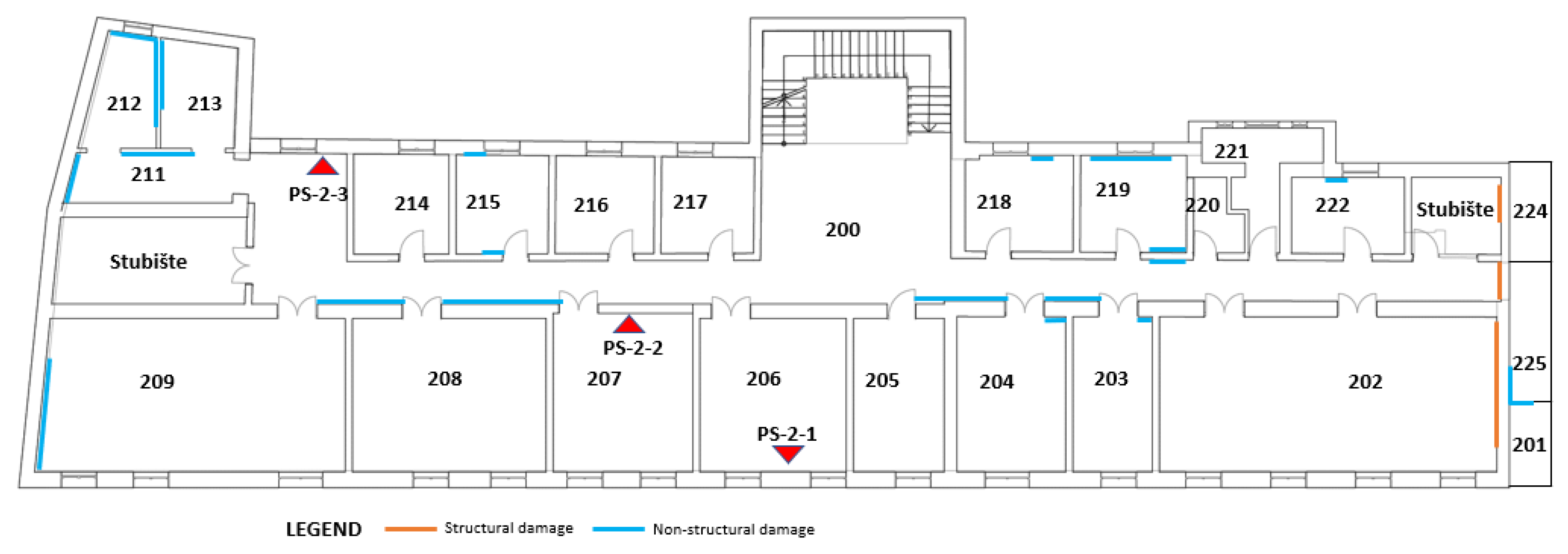

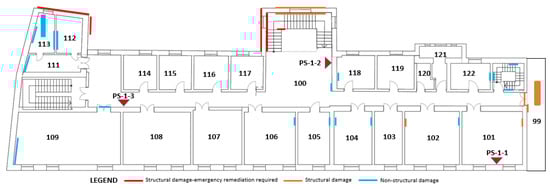

#### 3.3. Detailed Assessment Results

#### 3.4. In Situ Masonry Shear Strength Tests

#### Results of the Shear Strength Tests

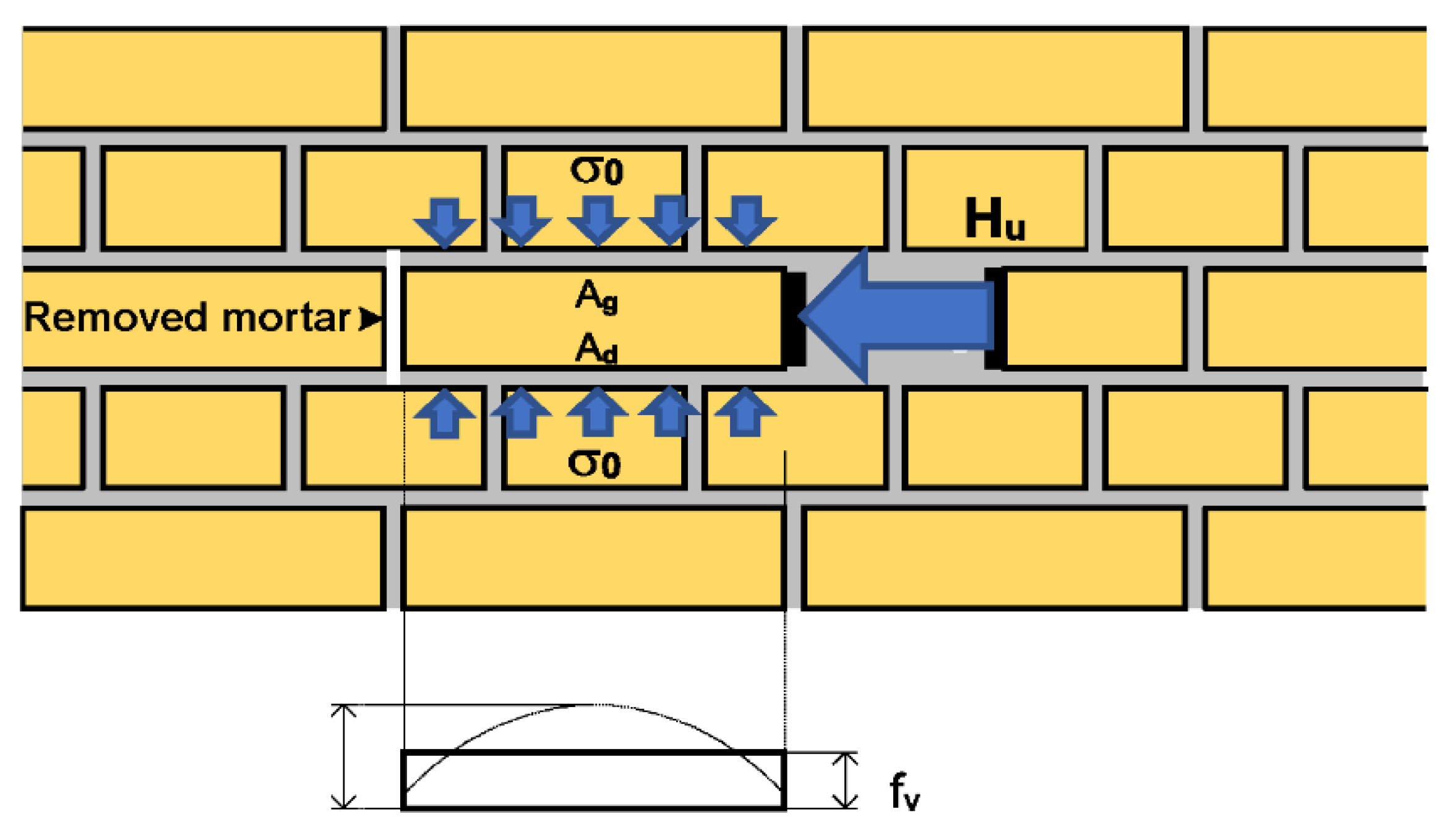

_{umax}acting on one brick at the time of reaching the shear strength in that brick and the corresponding mortar area on both sides of the shear is transmitted (Ag + Ad). The test method can be seen in Figure 17 and photographs (Figure 18 and Figure 19).

_{v}with the contribution of σ

_{0}—vertical stress. During the test, each measuring position is precisely located to calculate the vertical load (G

_{0}), that is, vertical stress (σ

_{0}) from the numerical model. Therefore, for each test site, in addition to the floor plan position, the height of the measuring position from the upper edge of the ceiling structure (h) is recorded. When analyzing the shear strength of mortar, the vertical constant load is taken into account, that is, vertical stresses at a particular test position. Shear strength according to Mohr–Coulomb law is calculated by Equation (1).

_{vm}= μ · σ

_{0}+ f

_{vm0}

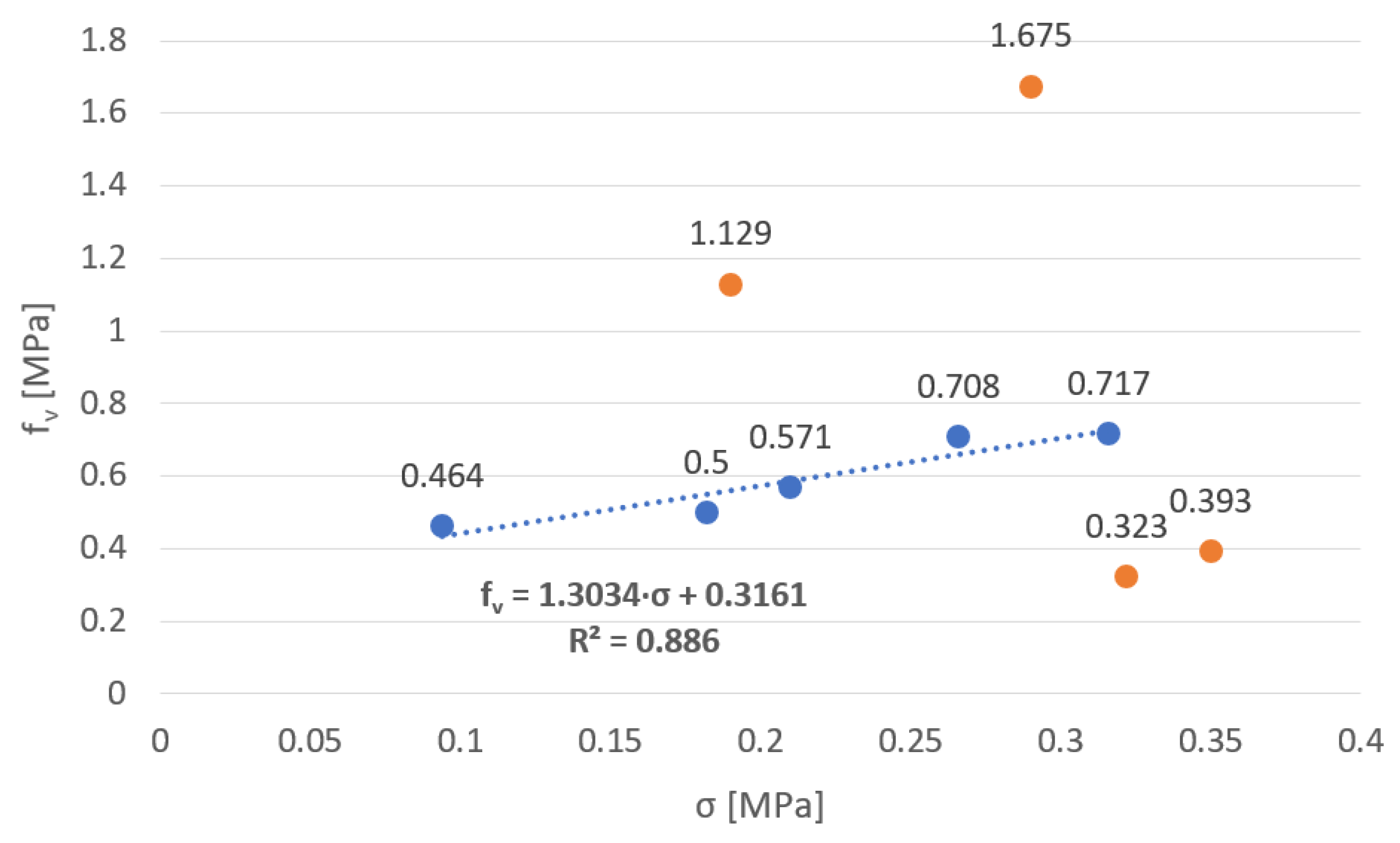

_{vm0}= 0.32 MPa > 0.10 MPa). The results show that the quality of masonry is good in contrast to similar buildings from that period.

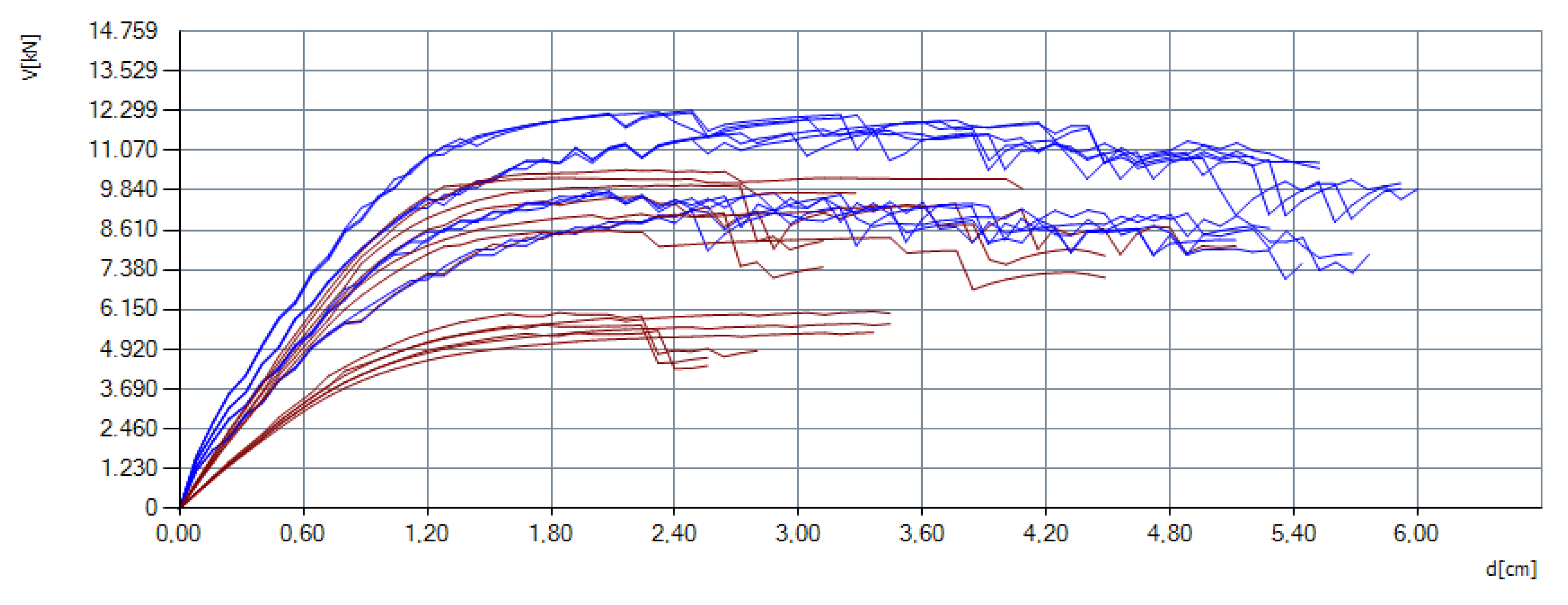

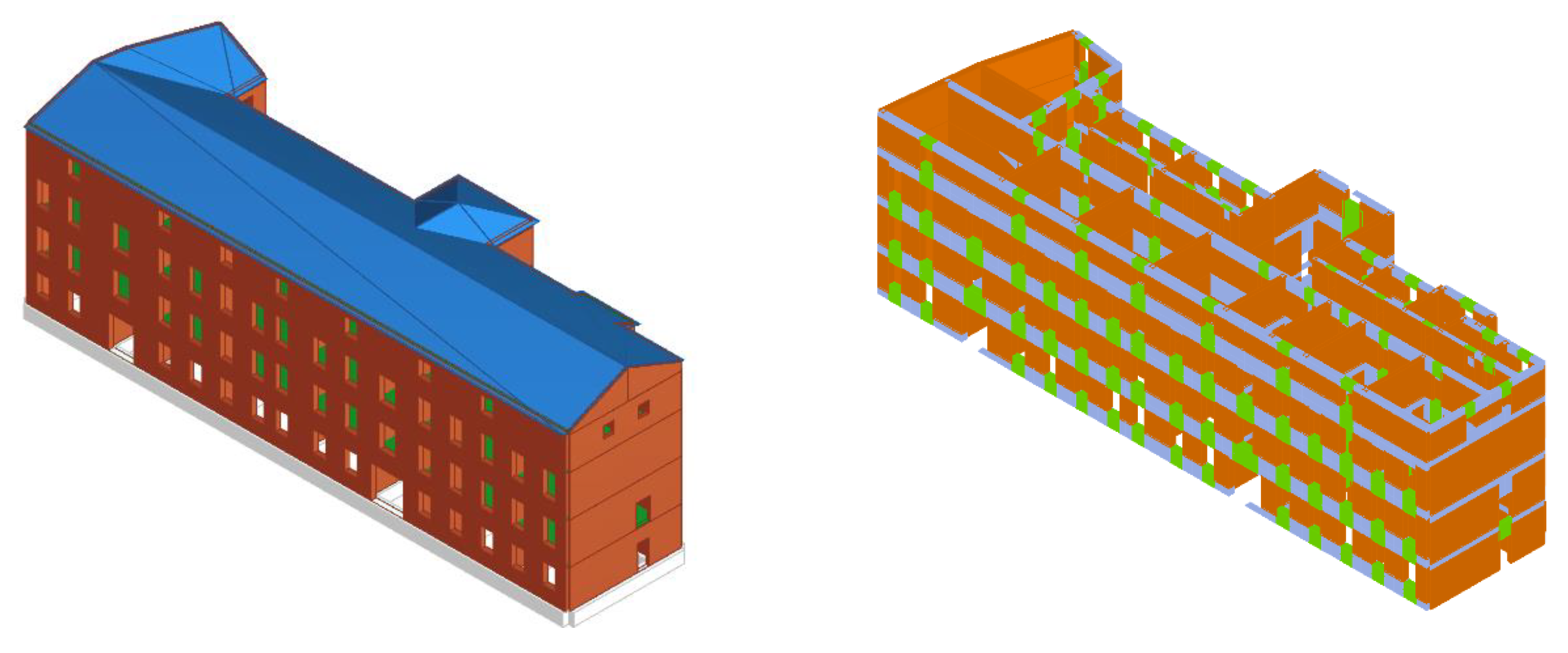

#### 3.5. Numerical Modeling

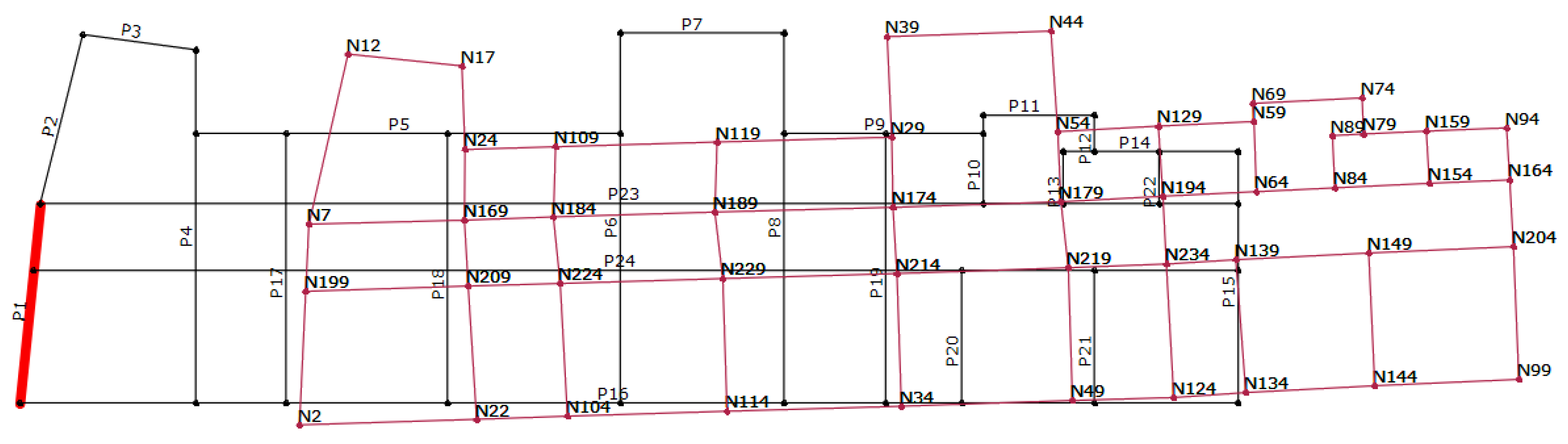

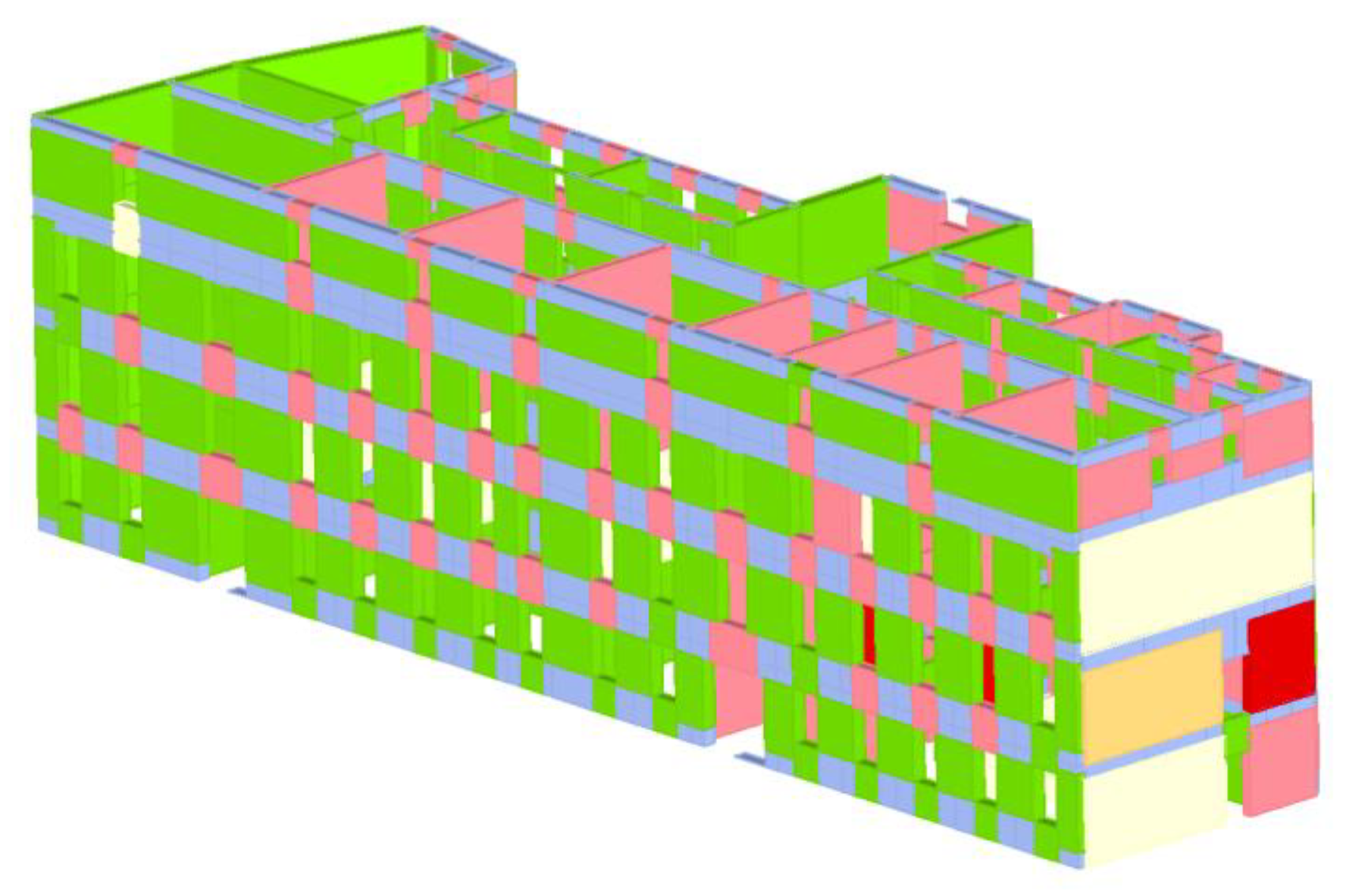

_{I}= 1.2. Three PGA values are used for two limit states. According to the new law “Law on the Reconstruction of Earthquake-Damaged Buildings in the City of Zagreb, Krapina-Zagorje County and Zagreb County (NN 102/2020)” [54], ultimate limit state return period can be different depending on the level of strengthening for old masonry buildings damaged in the recent earthquakes. Limit state of significant damage with a return period of 475 and limit state of damage limitation with a return period of 95 years were checked [55]. In the new law [54], the return period of 225 years which corresponds to a probability of exceedance of 20% in 50 years is introduced for a limit state of significant damage.

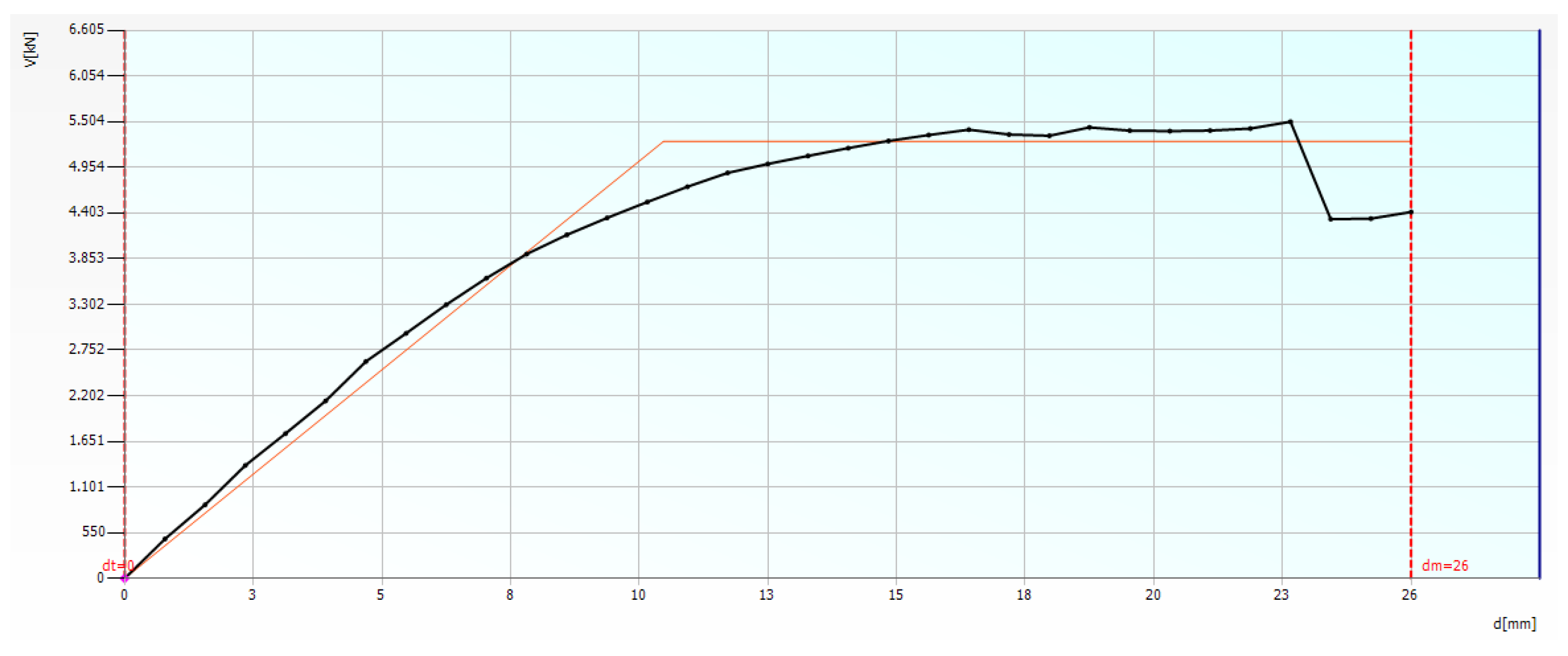

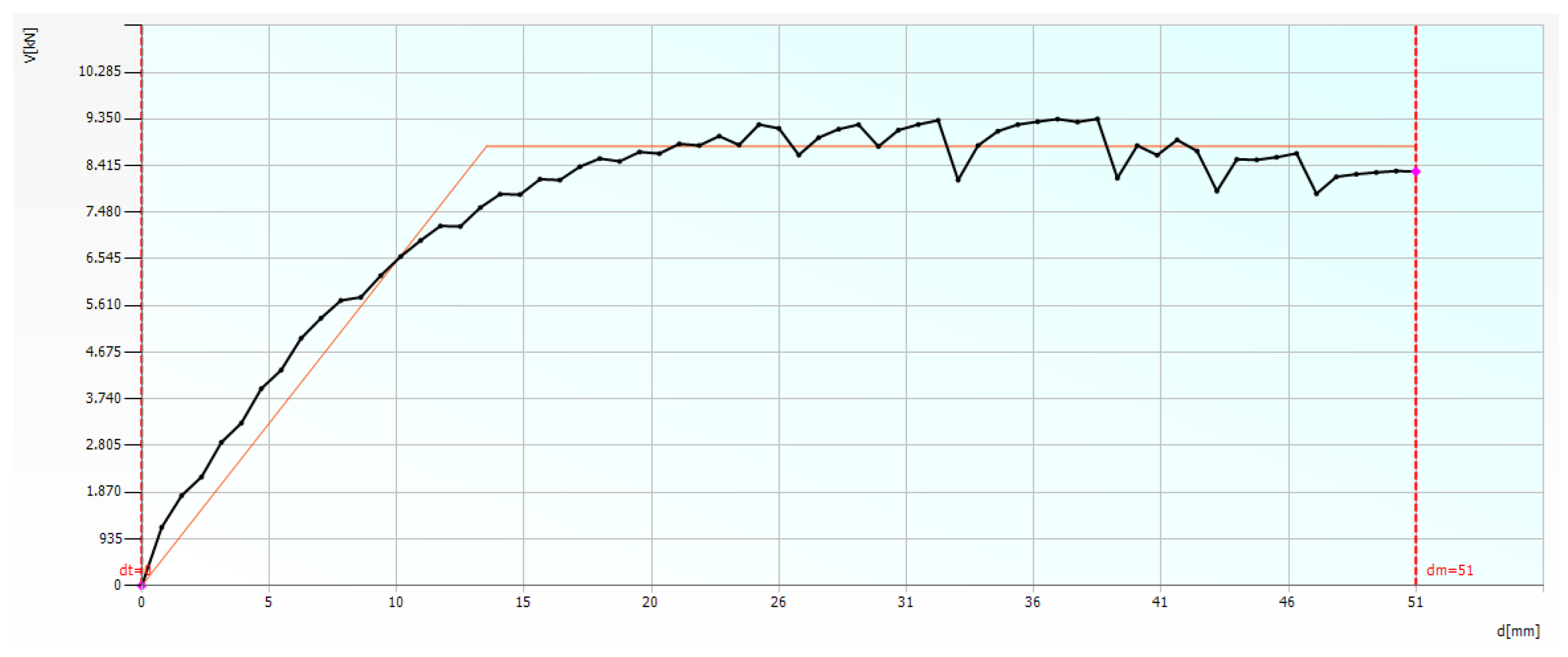

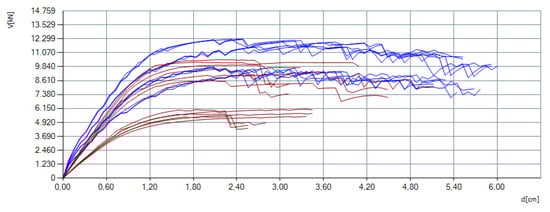

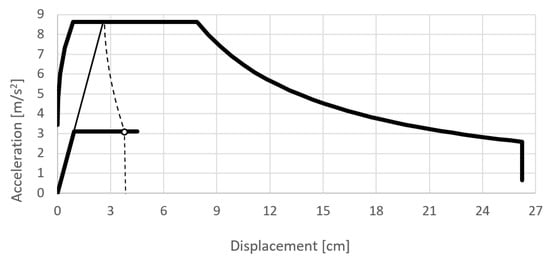

_{C}, the target displacement is determined by the procedure for short periods shown in Figure 29. Buildings with short natural periods of vibration do not comply with the equal displacement rule [56] as buildings with medium-long and long natural periods of vibration.

_{Rd}/M

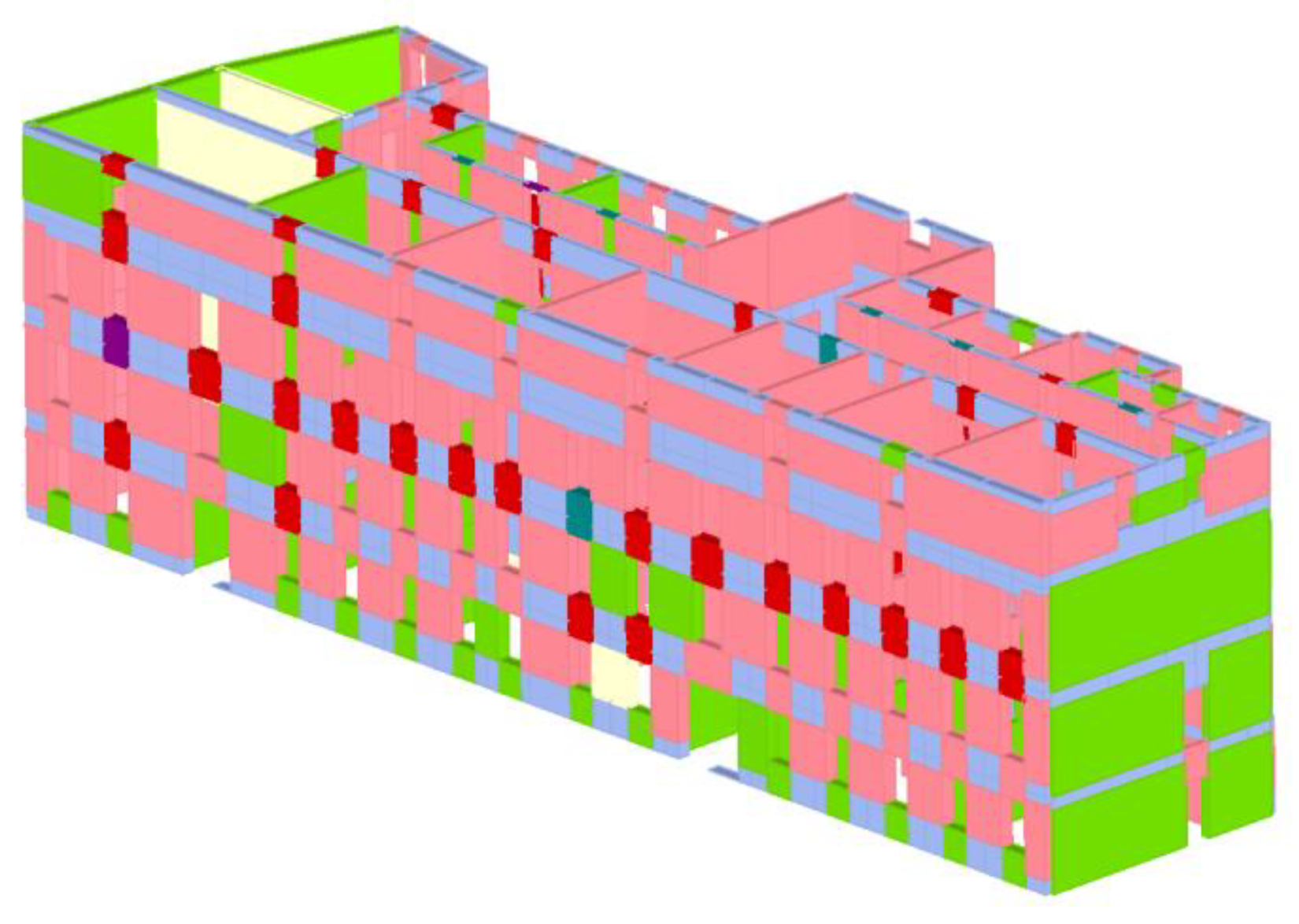

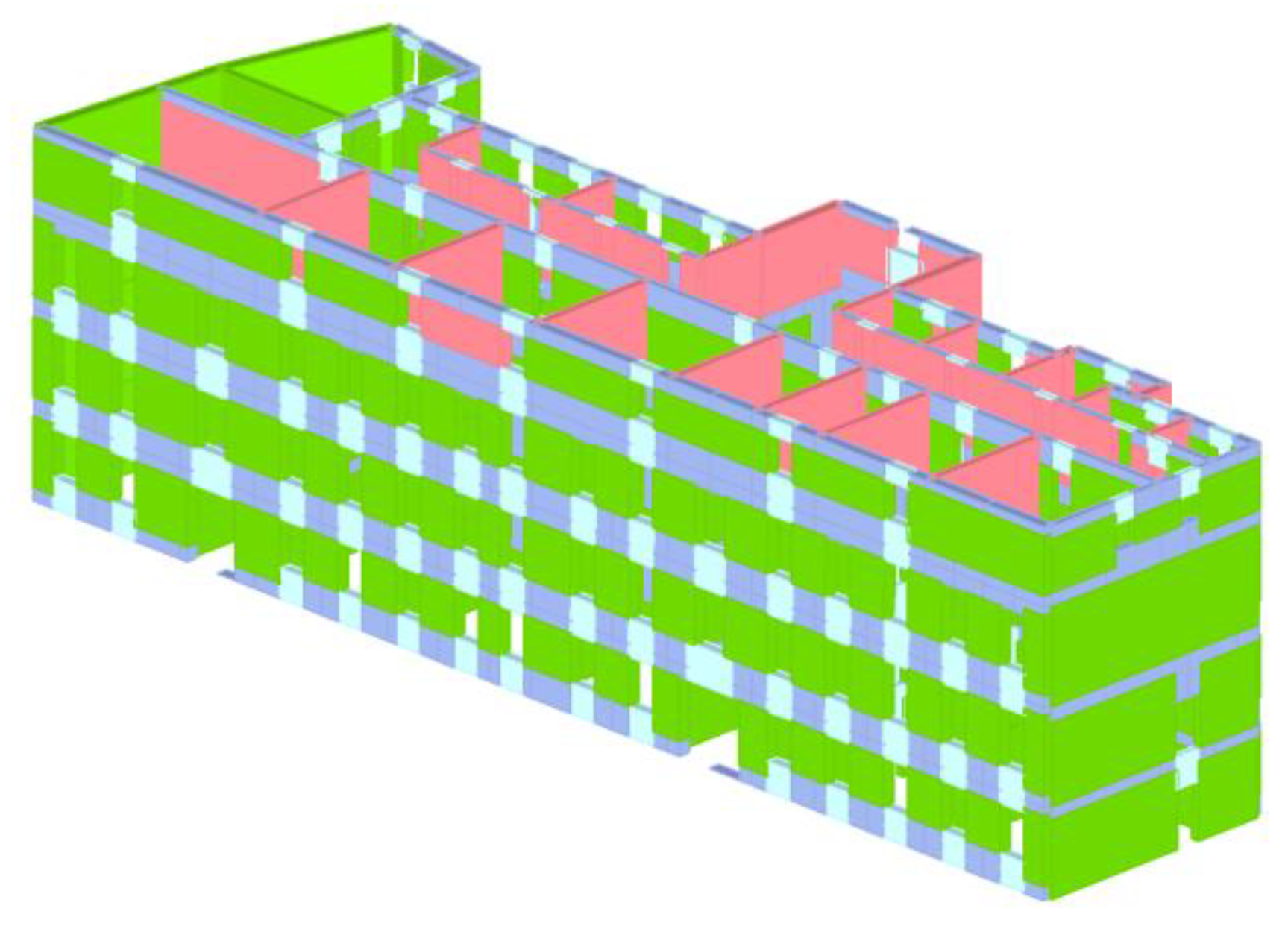

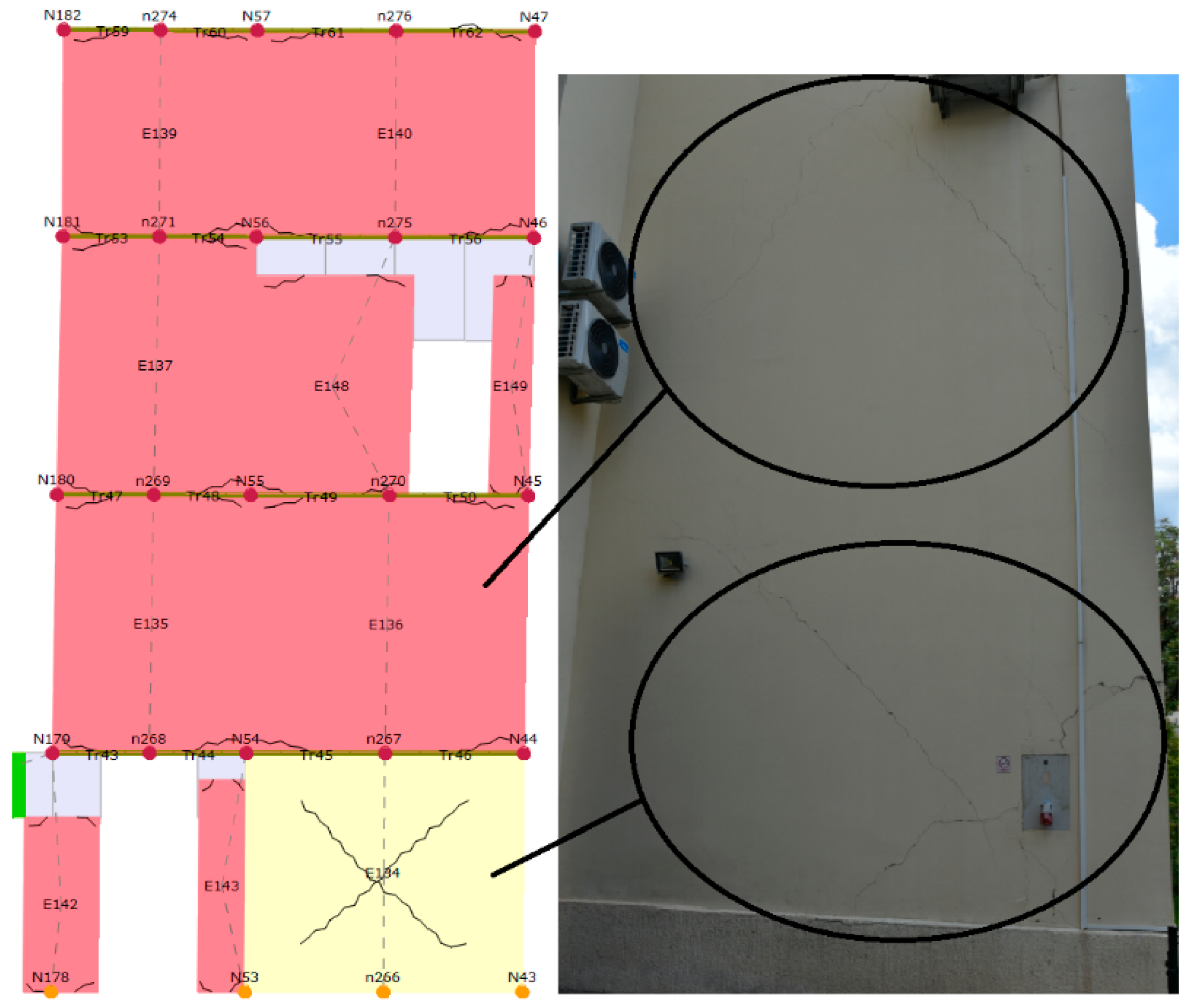

_{Ed}ratio is greater than or equal to 1.0. In Figure 30, walls that did not satisfy the check are colored red.

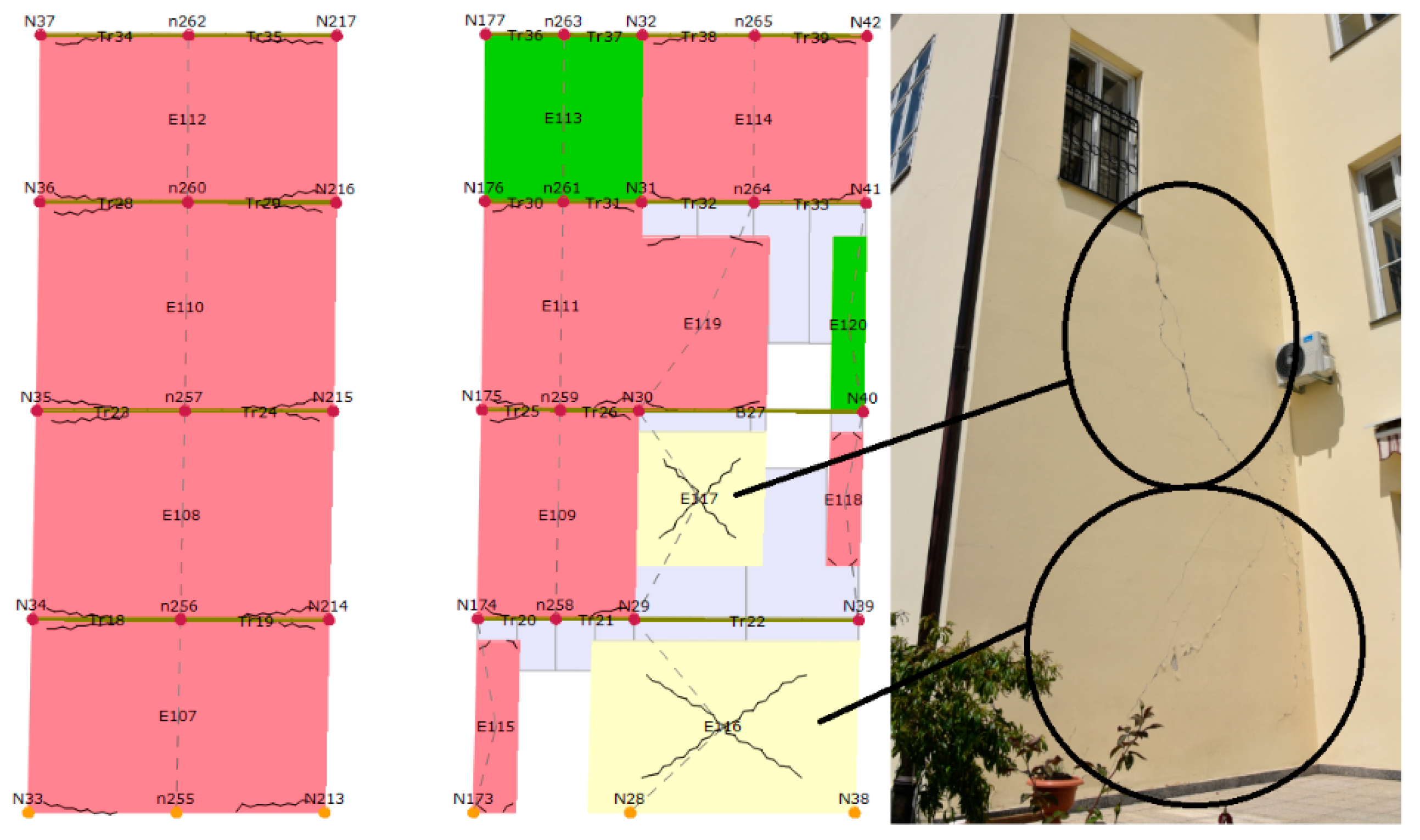

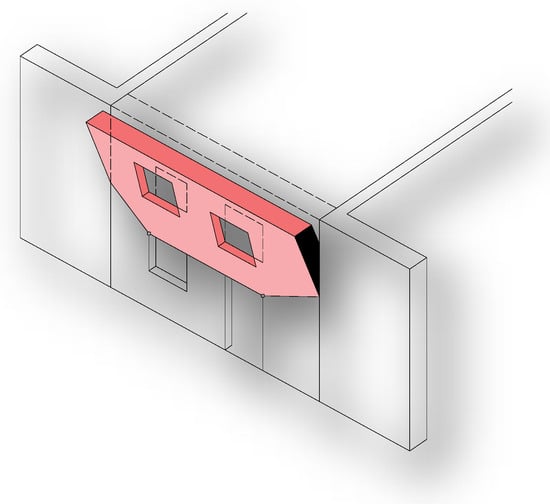

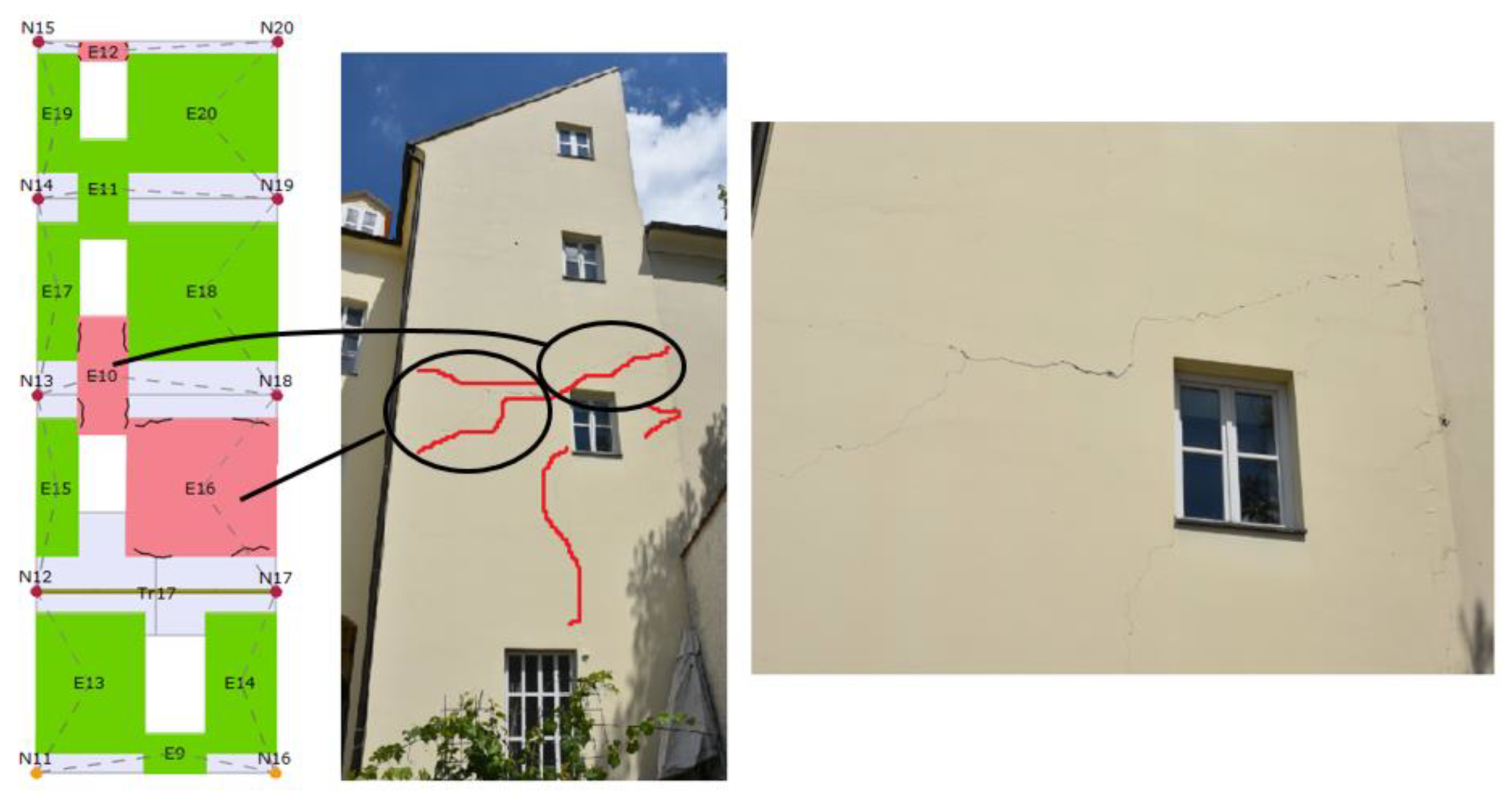

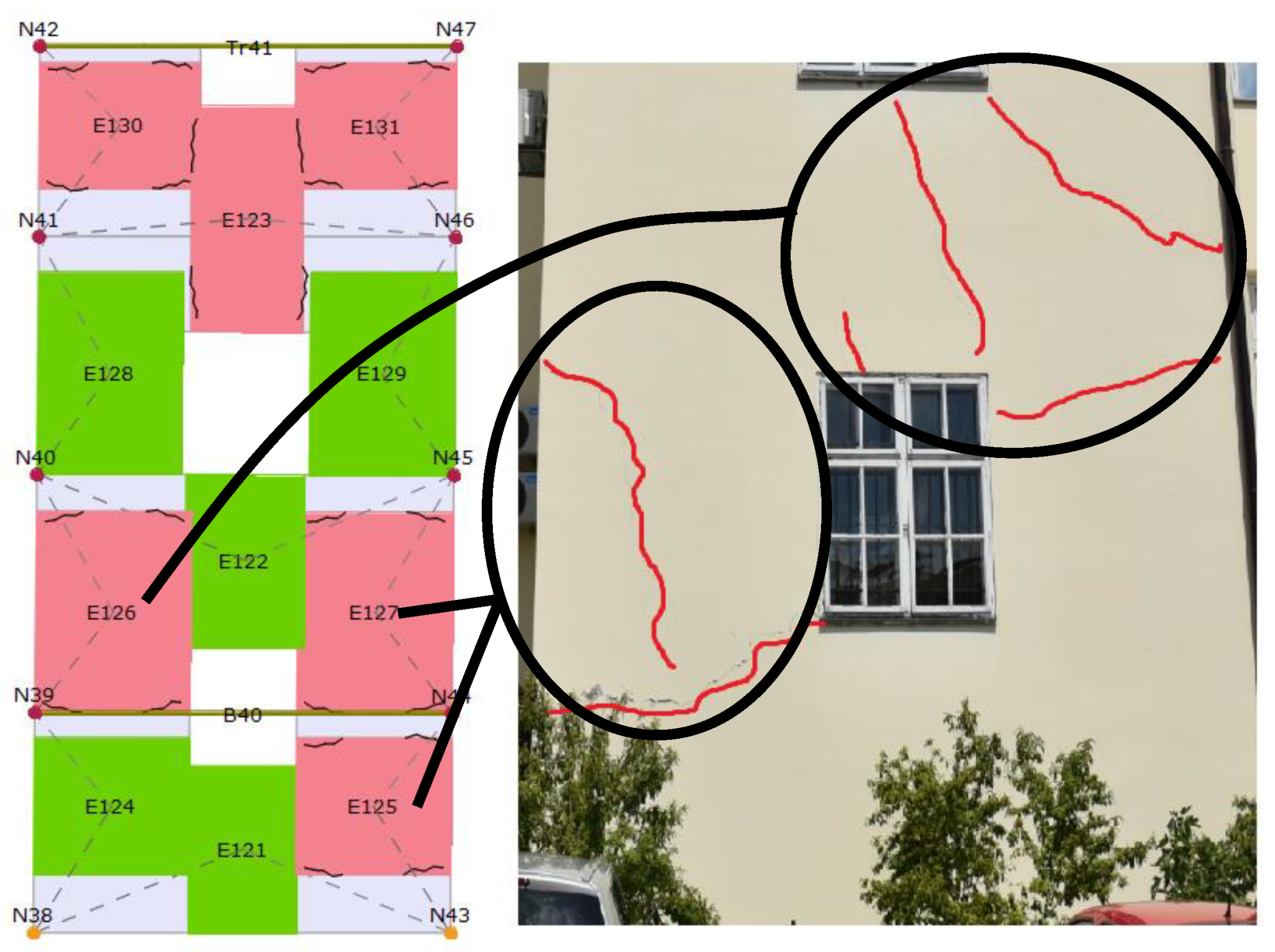

## 4. Discussion and Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References and Note

- Stepinac, M.; Lourenço, P.B.; Atalić, J.; Kišiček, T.; Uroš, M.; Baniček, M.; Šavor Novak, M. Damage classification of residential buildings in historical downtown after the ML5.5 earthquake in Zagreb, Croatia in 2020. Int. J. Disaster Risk Reduct.
**2021**, 56, 102140. [Google Scholar] [CrossRef] - Federal Republic of Yugoslavia (FRY) Official Journal. Ordinance on Technical Standards for the Construction of High-Rise Buildings in Seismic Areas. No. 31/81, 49/82, 29/83, 20/88, 52/90, 1 February 2021. [Google Scholar]
- Federal Republic of Yugoslavia (FRY) Official Journal. Ordinance on Temporary Technical Regulations for Construction in Seismic Areas. No. 39/64, 1 February 2021. [Google Scholar]
- ARES Project 1st Workshop. Available online: www.grad.hr/ares (accessed on 15 February 2021).
- Atalić, J.; Šavor Novak, M.; Uroš, M. Seismic risk for Croatia: Overview of research activities and present assessments with guidelines for the future. Građevinar.
**2019**, 71, 923–947. [Google Scholar] - Stepinac, M.; Gašparović, M. A Review of Emerging Technologies for an Assessment of Safety and Seismic Vulnerability and Damage Detection of Existing Masonry Structures. Appl. Sci.
**2020**, 10, 5060. [Google Scholar] [CrossRef] - Ortega, J.; Vasconcelos, G.; Rodrigues, H.; Correia, M.; Ferreira, T.M.; Vicente, R. Use of post-earthquake damage data to calibrate, validate and compare two seismic vulnerability assessment methods for vernacular architecture. Int. J. Disaster Risk Reduct.
**2019**, 39, 101242. [Google Scholar] [CrossRef] - Rodríguez, A.S.; Rodríguez, B.R.; Rodríguez, M.S.; Sánchez, P.A. 9-Laser Scanning and Its Applications to Damage Detection and Monitoring in Masonry Structures. Woodhead Publishing Series in Civil and Structural Engineering, Long-term Performance and Durability of Masonry Structures; Ghiassi, B., Lourenço, P.B., Eds.; Woodhead Publishing, 2019; pp. 265–285. Available online: https://www.sciencedirect.com/science/article/pii/B9780081021101000091 (accessed on 15 February 2021).
- Yavari, S.; Chang, S.E.; Elwood, K.J. Modeling post-earthquake functionality of regional health care facilities. Earthq. Spectra.
**2010**, 26, 869–892. [Google Scholar] [CrossRef] - Marshall, J.D.; Jaiswal, K.; Gould, N.; Turner, F.; Lizundia, B.; Barnes, J.C. Post-earthquake building safety inspection: Lessons from the canterbury, New Zealand, earthquakes. Earthq. Spectra.
**2013**, 29, 1091–1107. [Google Scholar] [CrossRef] - Didier, M.; Baumberger, S.; Tobler, R.; Esposito, S.; Ghosh, S.; Stojadinovic, B. Improving post-earthquake building safety evaluation using the 2015 Gorkha, Nepal, Earthquake rapid visual damage assessment data. Earthq. Spectra.
**2017**, 33, 415–438. [Google Scholar] [CrossRef] - Zhang, Y.; Burton, H.V.; Sun, H.; Shokrabadi, M. A machine learning framework for assessing post-earthquake structural safety. Struct. Saf.
**2018**, 72, 1–16. [Google Scholar] [CrossRef] - Kim, T.; Song, J.; Kwon, O.S. Pre- and post-earthquake regional loss assessment using deep learning. Earthq. Eng. Struct. Dyn.
**2020**, 49, 657–678. [Google Scholar] [CrossRef] - Naito, S.; Tomozawa, H.; Mori, Y.; Nagata, T.; Monma, N.; Nakamura, H.; Fujiwara, H.; Shoji, G. Building-damage detection method based on machine learning utilizing aerial photographs of the Kumamoto earthquake. Earthq. Spectra.
**2020**, 36, 1166–1187. [Google Scholar] [CrossRef] - Bialas, J.; Oommen, T.; Rebbapragada, U.; Levin, E. Object-based classification of earthquake damage from high-resolution optical imagery using machine learning. J. Appl. Remote Sens.
**2016**, 10, 036025. [Google Scholar] [CrossRef][Green Version] - Republic of Croatia Ministry of Construction and Physical Planning. Proposal of the Long-Term Strategy for Mobilising Investment in the Renovation of the National Building Stock of the Republic of Croatia. 2014. Available online: https://mgipu.gov.hr/UserDocsImages//dokumenti/Engleska//HR-Art4BuildingStrategy_en.pdf (accessed on 15 February 2021).
- Papadimitriou, P.; Kapetanidis, V.; Karakonstantis, A.; Spingos, I.; Kassaras, I.; Sakkas, V.; Kouskouna, V.; Karatzetzou, A.; Pavlou, K.; Kaviris, G.; et al. First Results on the Mw=6.9 Samos Earthquake of 30 October 2020. Bull. Geol. Soc. Greece.
**2020**, 56, 251–279. [Google Scholar] [CrossRef] - Günaydin, M.; Atmaca, B.; Demir, S.; Altunişik, A.C.; Hüsem, M.; Adanur, S.; Ateş, Ş.; Angin, Z. Seismic damage assessment of masonry buildings in Elazığ and Malatya following the 2020 Elazığ-Sivrice earthquake, Turkey. Bull. Earthq. Eng.
**2021**, 19, 2421–2456. [Google Scholar] [CrossRef] - Casapulla, C.; Argiento, L.U.; Maione, A. Seismic safety assessment of a masonry building according to Italian Guidelines on Cultural Heritage: Simplified mechanical-based approach and pushover analysis. Bull. Earthq. Eng.
**2018**, 16, 2809–2837. [Google Scholar] [CrossRef] - Grillanda, N.; Valente, M.; Milani, G.; Chiozzi, A.; Tralli, A. Advanced numerical strategies for seismic assessment of historical masonry aggregates. Eng. Struct.
**2020**, 212, 110441. [Google Scholar] [CrossRef] - Valente, M.; Milani, G. Damage assessment and collapse investigation of three historical masonry palaces under seismic actions. Eng. Fail. Anal.
**2019**, 98, 10–37. [Google Scholar] [CrossRef] - Ortega, J.; Vasconcelos, G.; Rodrigues, H.; Correia, M. Assessment of the influence of horizontal diaphragms on the seismic performance of vernacular buildings. Bull. Earthq. Eng.
**2018**, 16, 3871–3904. [Google Scholar] [CrossRef] - Endo, Y.; Pelà, L.; Roca, P. Review of Different Pushover Analysis Methods Applied to Masonry Buildings and Comparison with Nonlinear Dynamic Analysis. J. Earthq. Eng.
**2017**, 21, 1234–1255. [Google Scholar] [CrossRef][Green Version] - Herak, M.; Allegretti, I.; Herak, D.; Ivančić, I.; Kuk, V.; Marić, K.; Markušić, S.; Sović, I. Seismic Hazard Map of Croatia for a Return Periods of 95, 225 and 475 years. Available online: http://seizkarta.gfz.hr/karta.php (accessed on 15 February 2021).
- Uroš, M.; Šavor Novak, M.; Atalić, J.; Sigmund, Z.; Baniček, M.; Demšić, M.; Hak, S. Post-earthquake damage assessment of buildings–procedure for conducting building inspections. Gradjevinar
**2020**, 72, 1089–1115. [Google Scholar] [CrossRef] - Stepinac, M.; Rajčić, V.; Barbalić, J. Inspection and condition assessment of existing timber structures. Gradjevinar
**2017**, 69, 861–873. [Google Scholar] [CrossRef][Green Version] - Dall’Asta, A.; Leoni, G.; Meschini, A.; Petrucci, E.; Zona, A. Integrated approach for seismic vulnerability analysis of historic massive defensive structures. J. Cult. Herit.
**2019**, 35, 86–98. [Google Scholar] [CrossRef] - Betti, M.; Bonora, V.; Galano, L.; Pellis, E.; Tucci, G.; Vignoli, A. An Integrated Geometric and Material Survey for the Conservation of Heritage Masonry Structures. Heritage
**2021**, 4, 35. [Google Scholar] [CrossRef] - Stepinac, M.; Kisicek, T.; Renić, T.; Hafner, I.; Bedon, C. Methods for the assessment of critical properties in existing masonry structures under seismic loads-the ARES project. Appl. Sci.
**2020**, 10, 1576. [Google Scholar] [CrossRef][Green Version] - The Database of Usability Classification, Croatian Centre of Earthquake Engineering (HCPI—Hrvatski Centar za Potresno Inženjerstvo), Faculty of Civil Engineering, University of Zagreb and The City of Zagreb. June 2020. Available online: https://www.hcpi.hr/ (accessed on 15 February 2021).
- Seismic and Geological Micro-Zoning of a Part of the City of Zagreb, Book 1—Seismic and Geological Micro-Zoning, Croatian Geological Institute, Zagreb. 2019. Available online: https://www.hgi-cgs.hr/studija-seizmicka-i-geoloska-mikronizacija-dijela-grada-zagreba/ (accessed on 15 February 2021).
- Krolo, J.; Damjanović, D.; Duvnjak, I.; Smrkić, M.F.; Bartolac, M.; Košćak, J. Methods for determining mechanical properties of walls. Gradjevinar
**2021**, 73, 127–140. [Google Scholar] [CrossRef] - Methods of Test for Masonry—Part 3: Determination of Initial Shear Strength. Available online: https://standards.iteh.ai/catalog/standards/cen/bbead1e6-bd33-4a25-bc75-c023da989f65/en-1052-3-2002 (accessed on 15 February 2021).
- Eurocode 8: Design of Structures for Earthquake Resistance—Part 3: Assessment and Retrofitting of Buildings. Available online: https://www.phd.eng.br/wp-content/uploads/2014/07/en.1998.3.2005.pdf (accessed on 15 February 2021).
- Mouyiannou, A.; Rota, M.; Penna, A.; Magenes, M. Identification of Suitable Limit States from Nonlinear Dynamic Analyses of Masonry Structures. J. Earthq. Eng.
**2014**, 18, 231–263. [Google Scholar] [CrossRef] - Lamego, P.; Lourenço, P.B.; Sousa, M.L.; Marques, R. Seismic vulnerability and risk analysis of the old building stock at urban scale: Application to a neighbourhood in Lisbon. Bull. Earthq. Eng.
**2017**, 15, 2901–2937. [Google Scholar] [CrossRef] - Formisano, A.; Marzo, A. Simplified and refined methods for seismic vulnerability assessment and retrofitting of an Italian cultural heritage masonry building. Comput. Struct.
**2017**, 180, 13–26. [Google Scholar] [CrossRef][Green Version] - Malcata, M.; Ponte, M.; Tiberti, S.; Bento, R.; Milani, G. Failure analysis of a Portuguese cultural heritage masterpiece: Bonet building in Sintra. Eng. Fail. Anal.
**2020**, 115, 104636. [Google Scholar] [CrossRef] - Fajfar, P.; Fischinger, M. N2—a method for non-linear seismic analysis of regular buildings. In Proceedings of the 9th World conference in earthquake engineering, Tokyo-Kyoto, Japan, 2–9 August 1998; pp. 111–116. [Google Scholar]
- Cerovečki, A.; Kraus, I.; Morić, D. N2 building design method. Gradjevinar
**2018**, 70, 509–518. [Google Scholar] [CrossRef][Green Version] - 3muri User Manual 12.2.1. Available online: https://www.3muri.com/en/brochures-and-manuals/ (accessed on 11 January 2021).
- Kišiček, T.; Stepinac, M.; Renić, T.; Hafner, I.; Lulić, L. Strengthening of masonry walls with FRP or TRM. Gradjevinar
**2020**, 72, 937–953. [Google Scholar] [CrossRef] - Lagomarsino, S.; Penna, A.; Galasco, A.; Cattari, S. TREMURI program: An equivalent frame model for the nonlinear seismic analysis of masonry buildings. Eng. Struct.
**2013**, 56, 1787–1799. [Google Scholar] [CrossRef] - Penna, A.; Lagomarsino, S.; Galasco, A. A nonlinear macroelement model for the seismic analysis of masonry buildings. Earthq. Eng. Struct. Dyn.
**2014**, 43, 159–179. [Google Scholar] [CrossRef] - Turnšek, V.; Čačovič, F. Some Experimental Results on the Strength of Brick Masonry Walls. Available online: http://www.hms.civil.uminho.pt/ibmac/1970/149.pdf (accessed on 8 February 2021).
- Tomaževič, M. Shear resistance of masonry walls and Eurocode 6: Shear versus tensile strength of masonry. Mater. Struct. Mater. Constr.
**2009**, 42, 889–907. [Google Scholar] [CrossRef] - Borri, A.; Castori, G.; Corradi, M.; Speranzini, E. Shear behavior of unreinforced and reinforced masonry panels subjected to in situ diagonal compression tests. Constr. Build. Mater.
**2011**, 25, 4403–4414. [Google Scholar] [CrossRef] - Borri, A.; Corradi, M.; Castori, G.; De Maria, A. A method for the analysis and classification of historic masonry. Bull. Earthq. Eng.
**2015**, 13, 2647–2665. [Google Scholar] [CrossRef] - Borri, A.; Corradi, A.; De Maria, A.; Sisti, R. Calibration of a visual method for the analysis of the mechanical properties of historic masonry. Procedia Struct. Integr.
**2018**, 11, 418–427. [Google Scholar] [CrossRef] - Borri, A.; Corradi, M.; De Maria, A. The Failure of Masonry Walls by Disaggregation and the Masonry Quality Index. Heritage
**2020**, 3, 65. [Google Scholar] [CrossRef] - Ghiassi, B.; Vermelfoort, A.T.; Lourenço, P.B. Masonry Mechanical Properties; Ghiassi, B., Milani, G., Eds.; Woodhead Publishing, 2019. Chapter 7. pp. 239–261. Available online: https://www.sciencedirect.com/science/article/pii/B9780081024393000075 (accessed on 8 February 2021). [CrossRef]
- Eurocode 8: Design of Structures for Earthquake Resistance—Part 1: General Rules, Seismic Actions and Rules for Buildings. Available online: https://www.phd.eng.br/wp-content/uploads/2015/02/en.1998.1.2004.pdf (accessed on 8 February 2021).
- Eurocode 6: Design of Masonry Structures—Part 1-1: General Rules for Reinforced and Unreinforced Masonry Structures. Available online: https://www.phd.eng.br/wp-content/uploads/2015/02/en.1996.1.1.2005.pdf (accessed on 8 February 2021).
- Law on the Reconstruction of Earthquake-Damaged Buildings in the City of Zagreb, Krapina-Zagorje County and Zagreb County (NN 102/2020). Available online: https://www.zakon.hr/z/2656/Zakon-o-obnovi-zgrada-o%C5%A1te%C4%87enih-potresom-na-podru%C4%8Dju-Grada-Zagreba,-Krapinsko-zagorske-%C5%BEupanije,-Zagreba%C4%8Dke-%C5%BEupanije,-Sisa%C4%8Dko-moslava%C4%8Dke-%C5%BEupanije-i-Karlova%C4%8Dke-%C5%BEupanije (accessed on 9 February 2021).
- Eurocode 8: Design of Structures for Earthquake Resistance—Part 3: Assessment and Retrofitting of Buildings—National Annex.
- Sürmeli, M.; Yüksel, E. An adaptive modal pushover analysis procedure (VMPA-A) for buildings subjected to bi-directional ground motions. Bull. Earthq. Eng.
**2018**, 16, 5257–5277. [Google Scholar] [CrossRef] - Fagundes, C.; Bento, R.; Cattari, S. On the seismic response of buildings in aggregate: Analysis of a typical masonry building from Azores. Structures
**2017**, 10, 184–196. [Google Scholar] [CrossRef] - Senaldi, I.; Magenes, G.; Penna, A. Numerical Investigations on the Seismic Response of Masonry Building Aggregates. Adv. Mater. Res.
**2010**, 133–134, 715–720. [Google Scholar] [CrossRef] - Formisano, A.; Massimilla, A. A Novel Procedure for Simplified Nonlinear Numerical Modeling of Structural Units in Masonry Aggregates. Int. J. Archit. Herit.
**2018**, 12, 1162–1170. [Google Scholar] [CrossRef] - Stavroulaki, M.E. Dynamic Behavior of Aggregated Buildings With Different Floor Systems and Their Finite Element Modeling. Front. Built Environ.
**2019**, 5, 138. [Google Scholar] [CrossRef][Green Version] - Tomić, I.; Penna, A.; DeJong, M.; Butenweg, C.; Correia, A.; Candeias, P.; Senaldi, I.; Guerrini, G.; Malomo, D.; Beyer, K. Seismic Testing of Adjacent Interacting Masonry Structures (AIMS). In Proceedings of the 17th World Conference on Earthquake Engineering, Sendai, Japan, 27 September–2 October 2021. [Google Scholar]
- Formisano, A.; Landolfo, R.; Mazzolani, F.M.; Florio, G. A Quick Methodology for Seismic Vulnerability Assessment of Historical Masonry Aggregates. 2010. Available online: https://www.researchgate.net/publication/266617700_A_quick_methodology_for_seismic_vulnerability_assessment_of_historical_masonry_aggregates (accessed on 8 February 2021).
- Formisano, A.; Florio, G.; Landolfo, R.; Mazzolani, F.M. Numerical calibration of an easy method for seismic behaviour assessment on large scale of masonry building aggregates. Adv. Eng. Softw.
**2015**, 80, 116–138. [Google Scholar] [CrossRef][Green Version] - Benedetti, D.; Benzoni, G.; Parisi, M.A. Seismic vulnerability and risk evaluation for old urban nuclei. Earthq. Eng. Struct. Dyn.
**1988**, 16, 183–201. [Google Scholar] [CrossRef] - Formisano, A. Theoretical and Numerical Seismic Analysis of Masonry Building Aggregates: Case Studies in San Pio Delle Camere (L’Aquila, Italy). J. Earthq. Eng.
**2017**, 21, 227–245. [Google Scholar] [CrossRef][Green Version] - da Porto, F.; Munari, M.; Prota, A.; Modena, C. Analysis and repair of clustered buildings: Case study of a block in the historic city centre of L’Aquila (Central Italy). Constr. Build. Mater.
**2013**, 38, 1221–1237. [Google Scholar] [CrossRef] - Lucibello, G.; Brandonisio, G.; Mele, E.; De Luca, A. Seismic damage and performance of Palazzo Centi after L’Aquila earthquake: A paradigmatic case study of effectiveness of mechanical steel ties. Eng. Fail. Anal.
**2013**, 34, 407–430. [Google Scholar] [CrossRef] - Chieffo, N.; Formisano, A. Comparative Seismic Assessment Methods for Masonry Building Aggregates: A. Case Study. Front. Built Environ.
**2019**, 5, 123. [Google Scholar] [CrossRef] - Boschi, S.; Borghini, A.; Pintucchi, B.; Bento, R.; Milani, G. Seismic vulnerability of historic masonry buildings: A case study in the center of Lucca. Procedia Struct. Integr.
**2018**, 11, 169–176. [Google Scholar] [CrossRef] - Fortunato, G.; Funari, M.F.; Lonetti, P. Survey and seismic vulnerability assessment of the Baptistery of San Giovanni in Tumba (Italy). J. Cult. Herit.
**2017**, 26, 64–78. [Google Scholar] [CrossRef] - Stepinac, M.; Šušteršič, I.; Gavrić, I.; Rajcic, V. Seismic design of timber buildings: Highlighted challenges and future trends. Appl. Sci.
**2020**, 10, 1380. [Google Scholar] [CrossRef][Green Version] - Funari, M.F.; Mehrotra, A.; Lourenço, P.B. A Tool for the Rapid Seismic Assessment of Historic Masonry Structures Based on Limit Analysis Optimisation and Rocking Dynamics. Appl. Sci.
**2021**, 11, 942. [Google Scholar] [CrossRef] - Funari, M.F.; Spadea, S.; Lonetti, P.; Fabbrocino, F.; Luciano, R. Visual programming for structural assessment of out-of-plane mechanisms in historic masonry structures. J. Build. Eng.
**2020**, 31, 101425. [Google Scholar] [CrossRef] - Milovanović, B.; Bagarić, M. How to achieve Nearly zero-energy buildings standard. Gradjevinar
**2020**, 72, 703–720. [Google Scholar] [CrossRef] - Valluzzi, M.R.; Salvalaggio, M.; Croatto, G.; Dorigatti, G.; Turrini, U. Nested Buildings: An Innovative Strategy for the Integrated Seismic and Energy Retrofit of Existing Masonry Buildings with CLT Panels. Sustainability
**2021**, 13, 1188. [Google Scholar] [CrossRef] - Ortega, J.; Vasconcelos, G.; Rodrigues, H.; Correia, M.; Lourenço, P.B. Traditional earthquake resistant techniques for vernacular architecture and local seismic cultures: A literature review. J. Cult. Herit.
**2017**, 27, 181–196. [Google Scholar] [CrossRef] - Skejić, D.; Lukačević, I.; Ćurković, I.; Čudina, I. Application of steel in refurbishment of earthquake-prone buildings. Gradjevinar
**2020**, 72, 955–966. [Google Scholar] [CrossRef] - Kouris, L.A.S.; Triantafillou, T.C. State-of-the-art on strengthening of masonry structures with textile reinforced mortar (TRM). Constr. Build. Mater.
**2018**, 188, 1221–1233. [Google Scholar] [CrossRef]

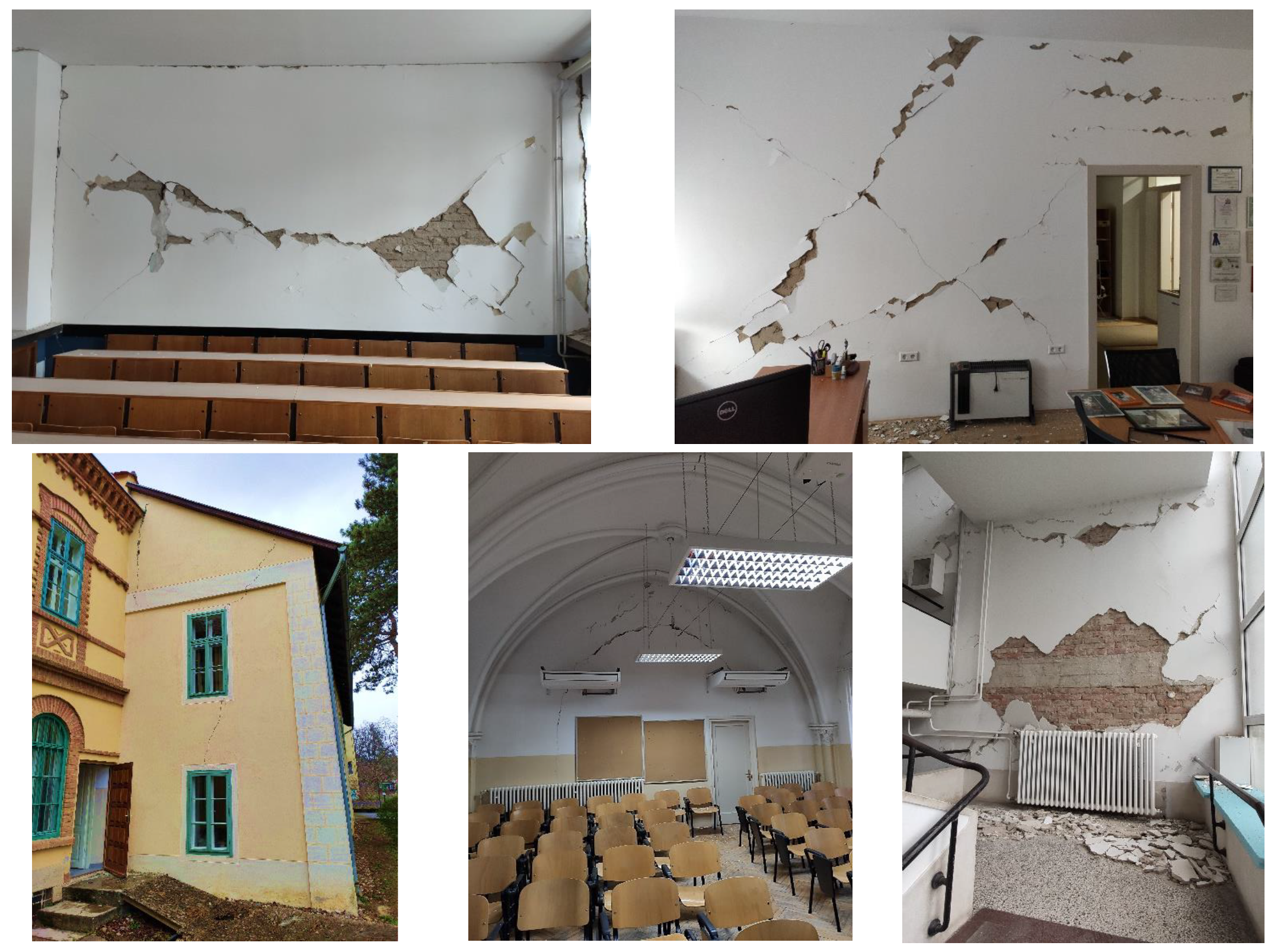

**Figure 1.**Typical damage to educational buildings after the Zagreb earthquake (photo credit: M. Stepinac).

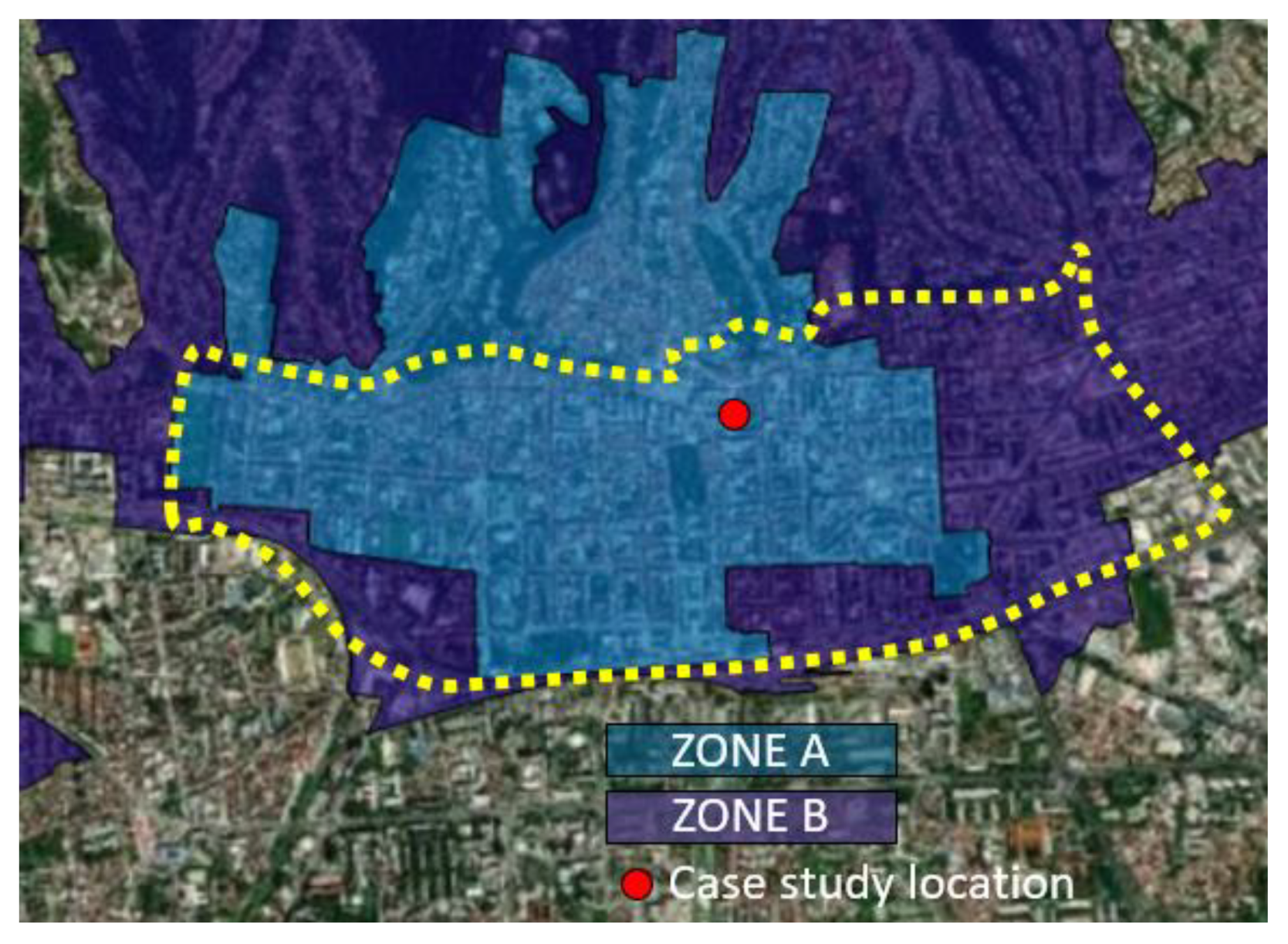

**Figure 2.**Protected zones A and B with the location of the case study inside the Lower Town of Zagreb (yellow dashed line).

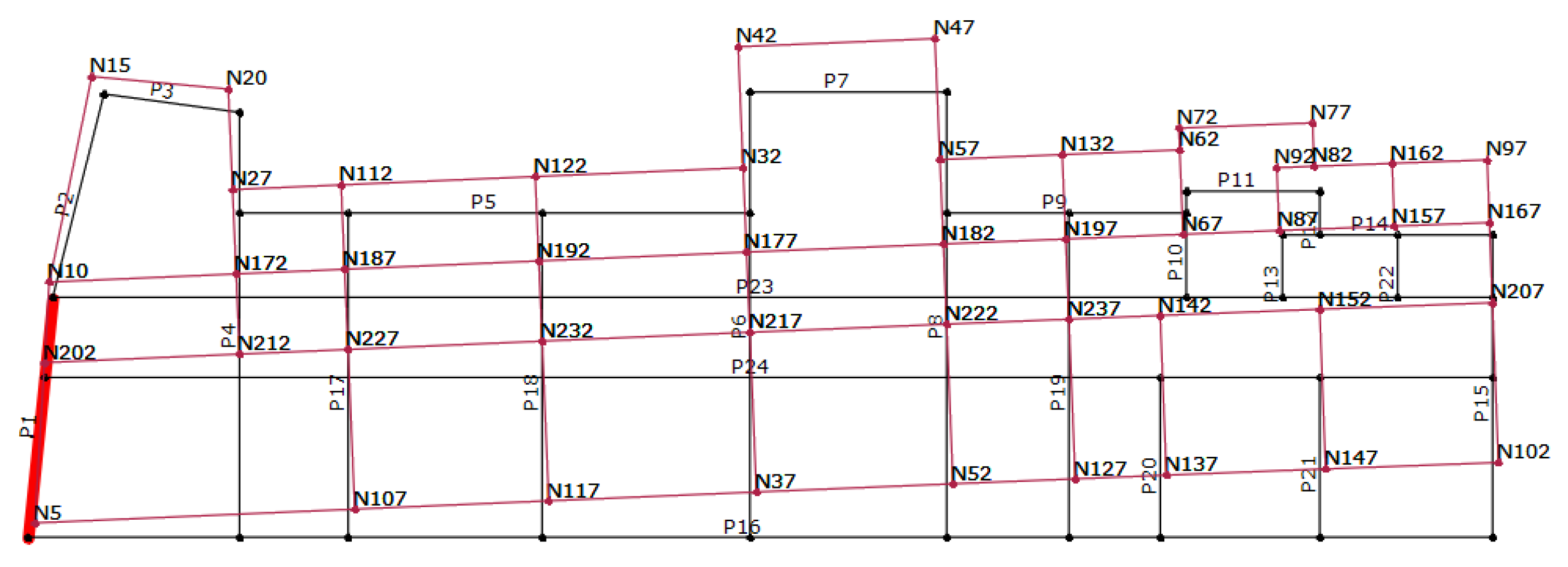

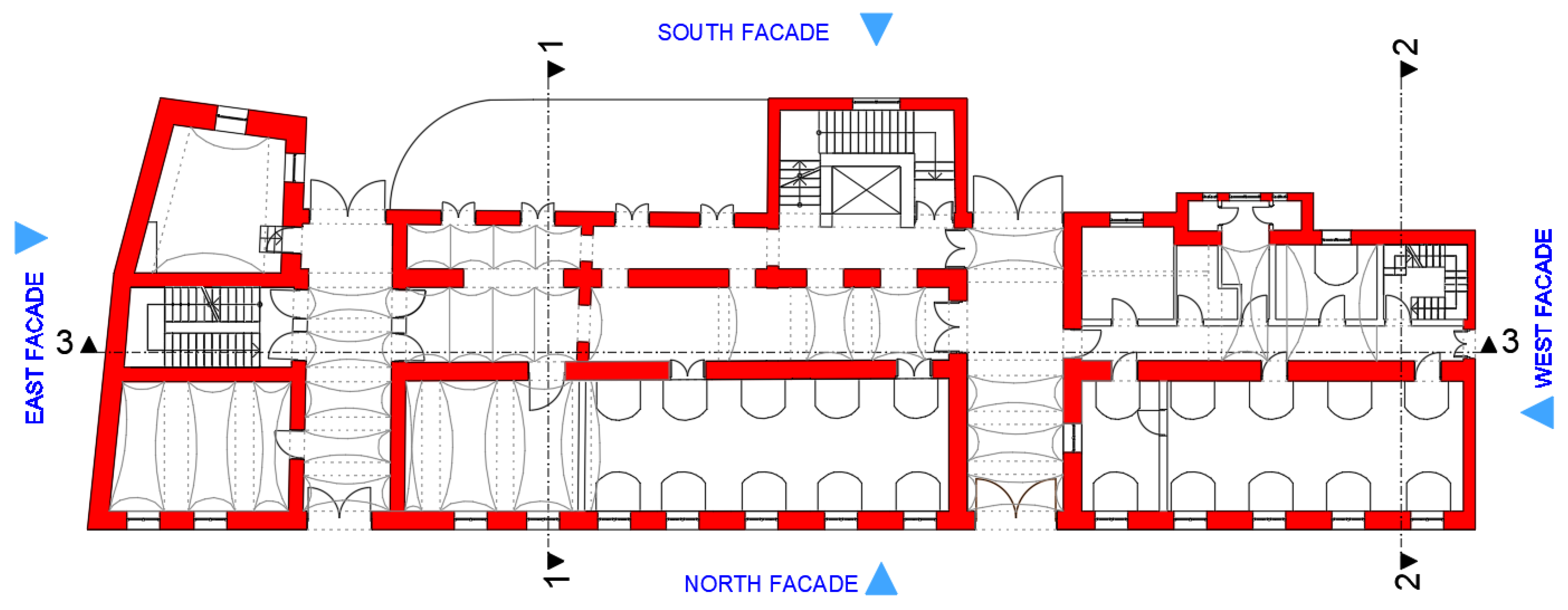

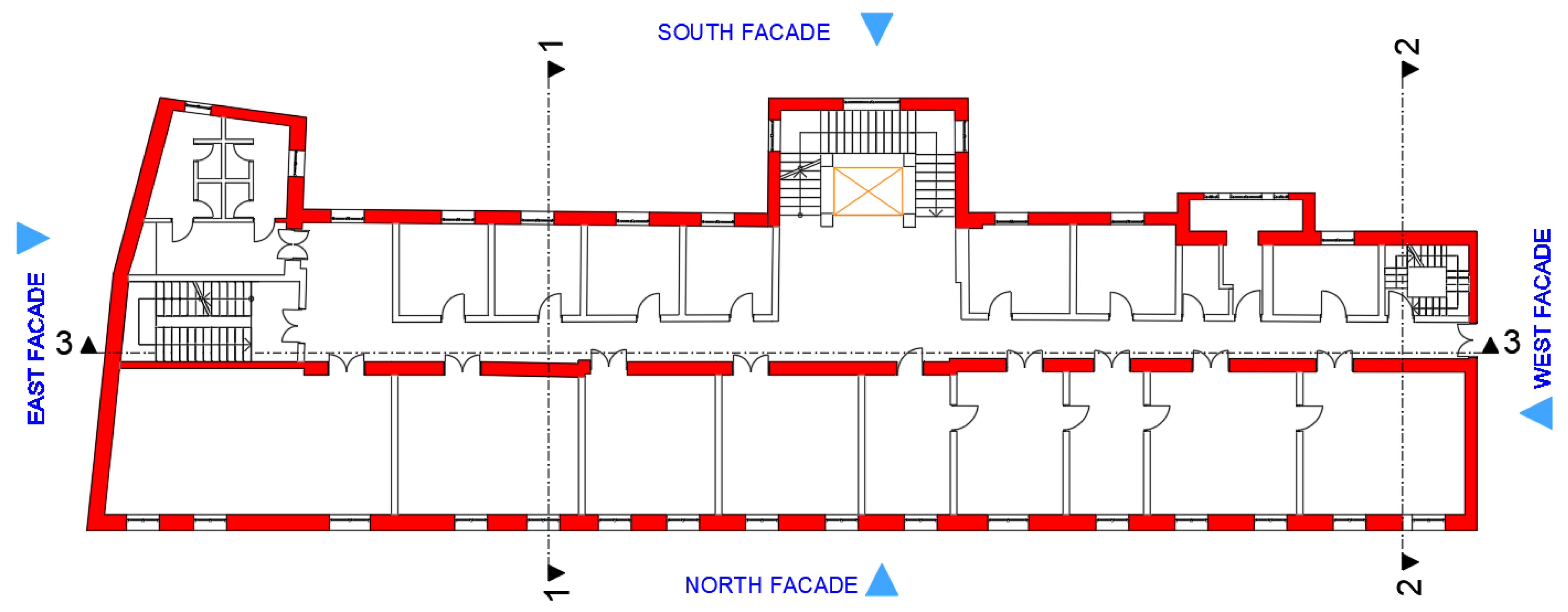

**Figure 7.**1st floor plan with load-bearing walls in red. The floor plan of the 2nd floor is identical to the 1st floor plan.

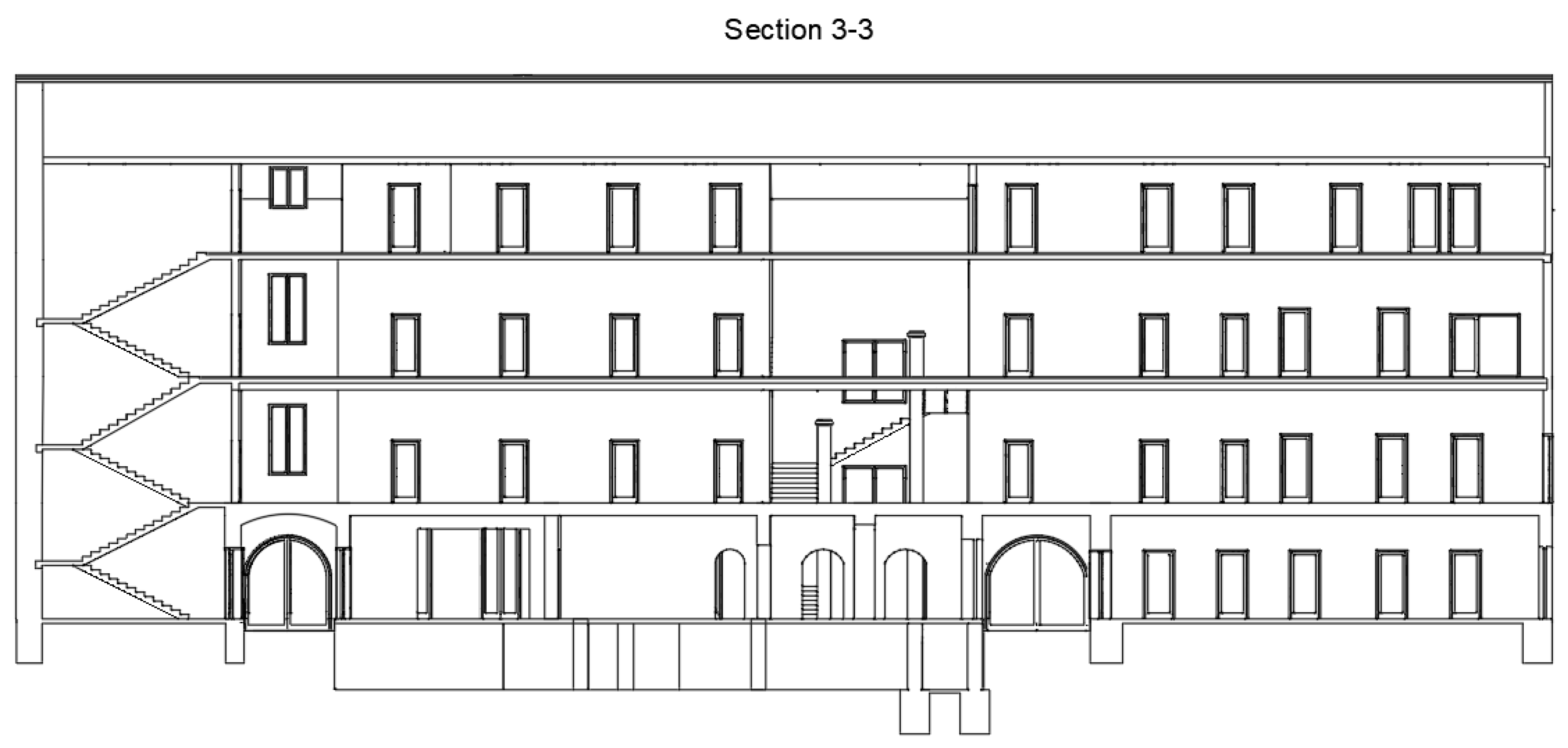

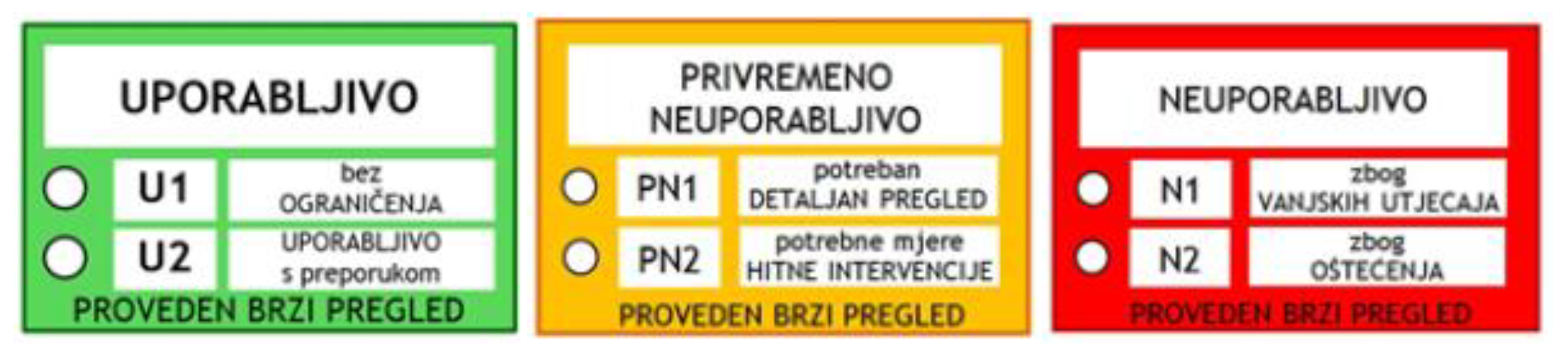

**Figure 10.**Six categories of usability divided into three original labels (in Croatian) [30].

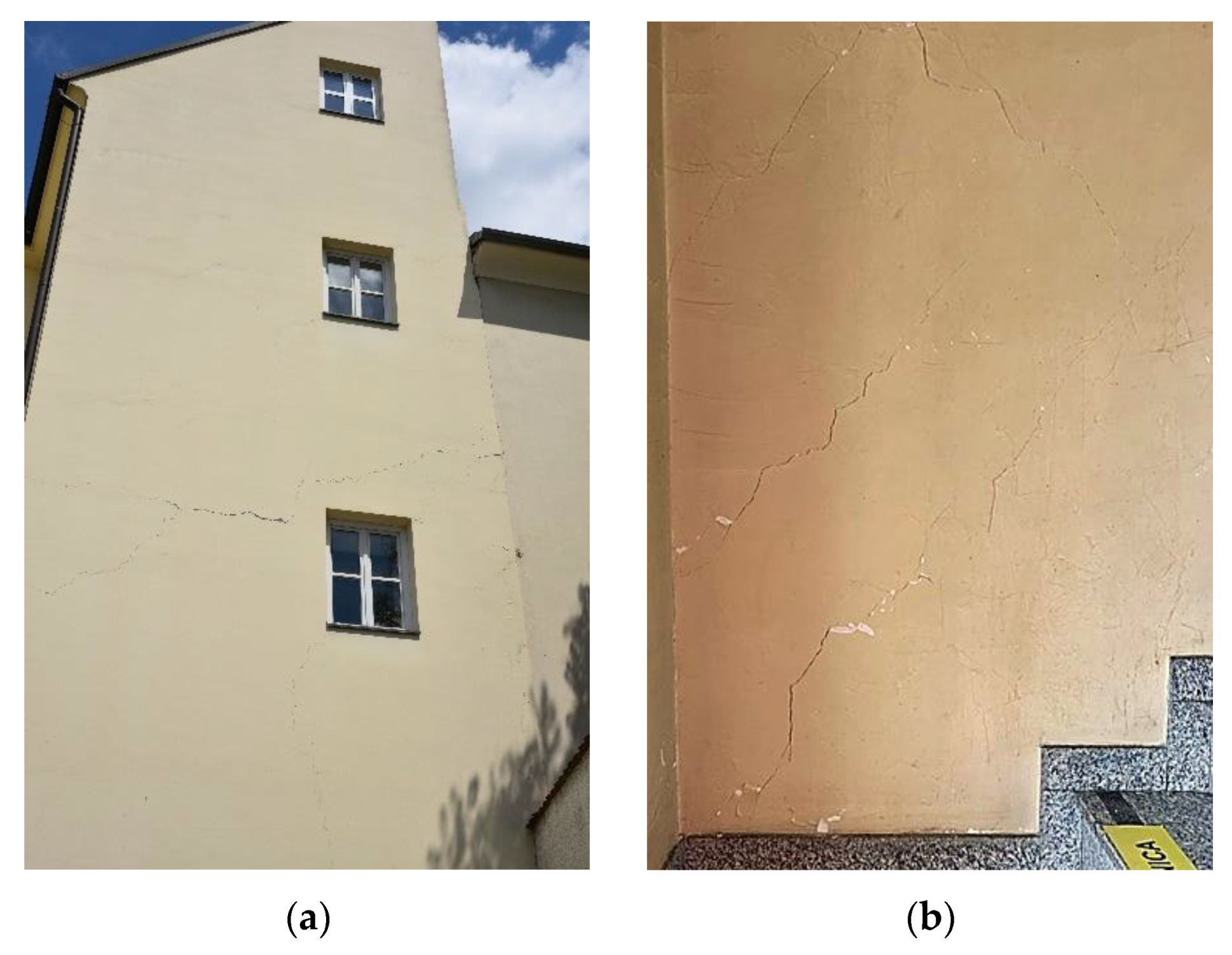

**Figure 12.**Cracks on the eastern staircase: exterior (

**a**) and interior (

**b**) (photo credit: I. Hafner).

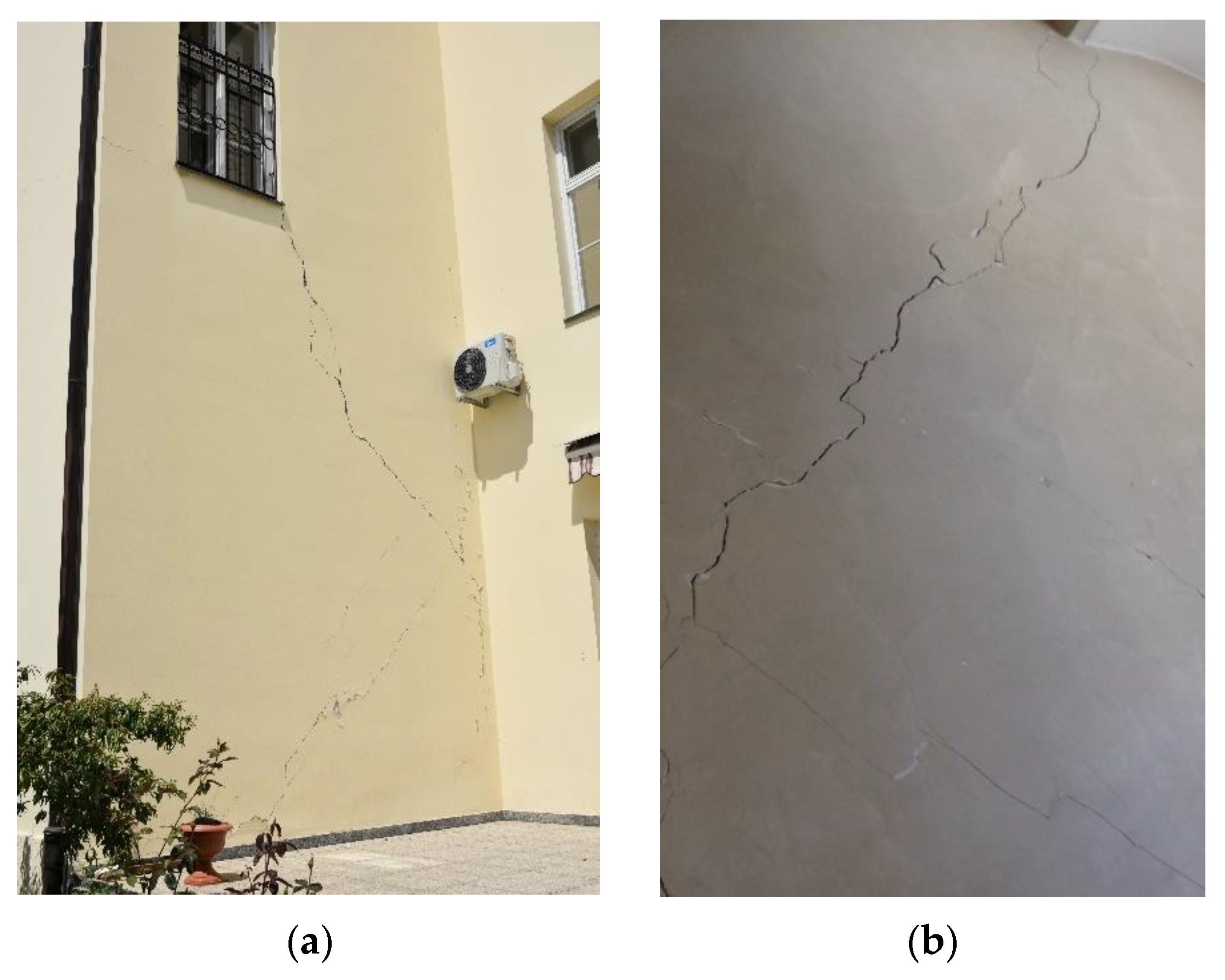

**Figure 13.**Diagonal cracks on the central staircase: exterior (

**a**) and interior (

**b**) (photo credit: I. Hafner).

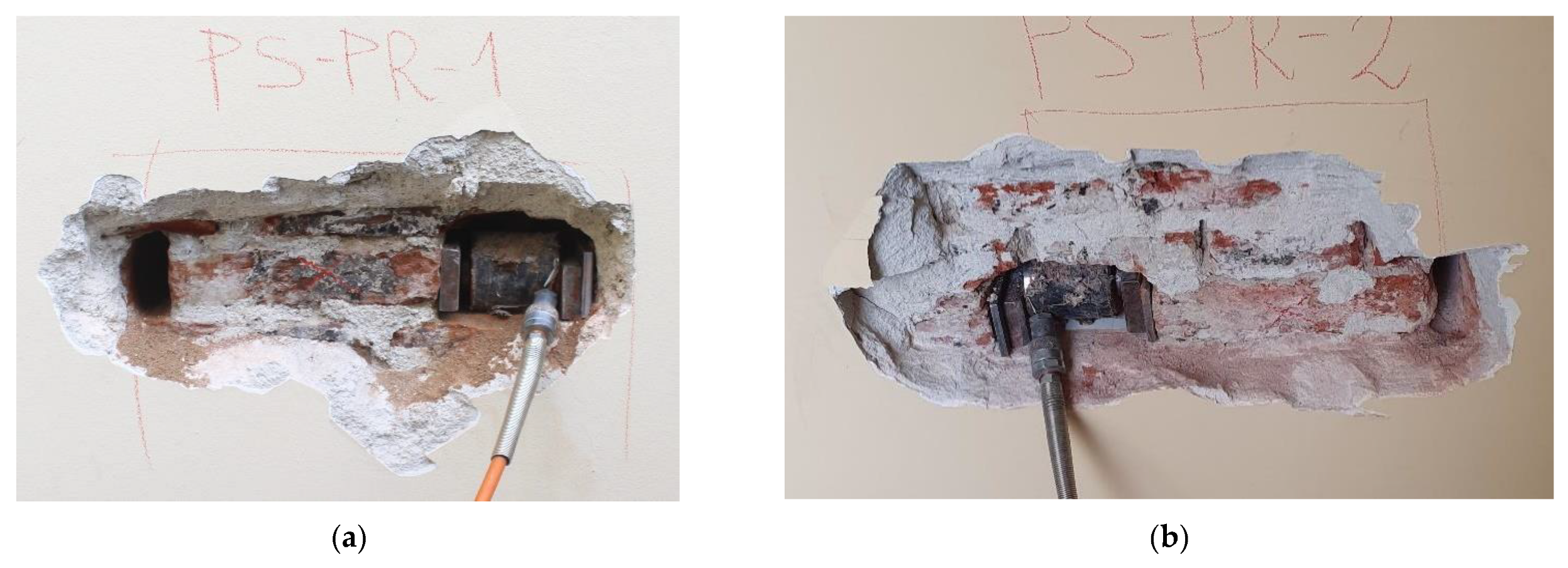

**Figure 18.**Masonry shear strength tests at measuring positions PS-PR-1 (

**a**) and PS-PR-2 (

**b**) on the ground floor (photo credit: L. Lulić).

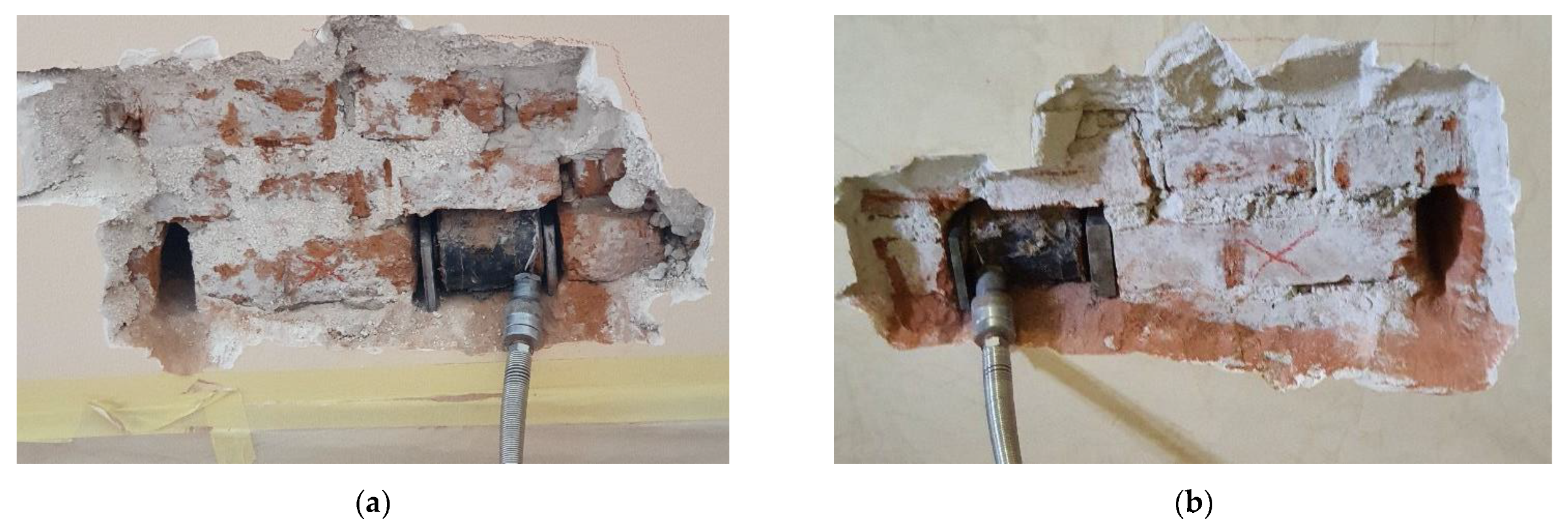

**Figure 19.**Masonry shear strength tests at measuring positions PS-1-1 (
