# Smooth Switching Method for Multi-Mode Synchronous Space Vector Modulation of NPC Three-Level Inverter

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

_{s}of the inverter is only a few hundred hertz [9,10]. However, the range of output fundamental frequency f

_{e}is wide, resulting in a large change in pulse number P = f

_{s}/f

_{e}. To solve the above problem, asynchronous modulation is usually used in the low fundamental frequency region. While in the middle and high fundamental frequency region, multi-mode synchronous modulation is often adopted to ensure the synchronization and symmetry of the output waveform [11].

## 2. Synchronous Space Vector Modulation Method for Three-Level Inverter

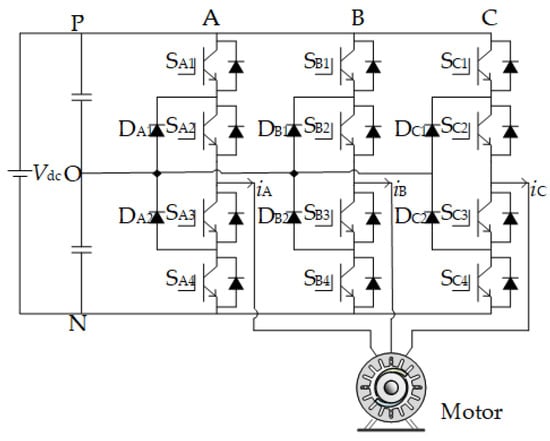

_{dc}is the DC-link voltage, the upper and lower capacitors C

_{1}and C

_{2}are capacitors in parallel with the DC bus, each shares half of the DC bus voltage, and the values are defined as v

_{C1}and v

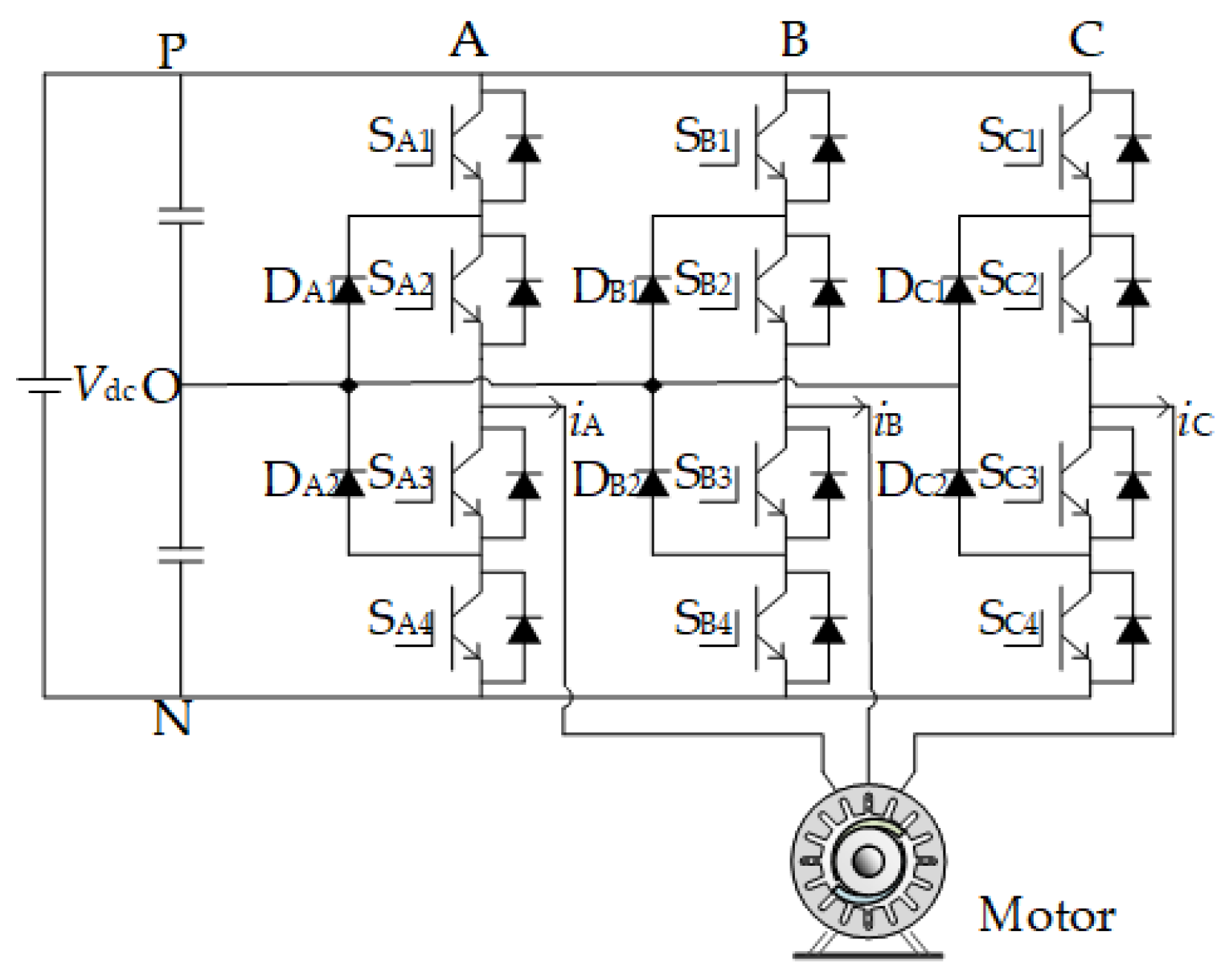

_{C2}, respectively. The AC side is composed of three-phase bridge arms, representing A, B and C phases, each phase has two clamping diodes D

_{X}

_{1}~D

_{X}

_{2}in series and four insulated gate bipolar transistor (IGBT) S

_{X}

_{1}~S

_{X}

_{4}in series, i

_{X}is the three-phase load current, where X∈{A, B, C}.

_{X}. The two clamping diodes are connected to the midpoint O, which can clamp the output of the inverter to the O state, so that the inverter can obtain three working states of P, O and N.

#### 2.1. Basic Principle of Synchronous Space Vector Modulation

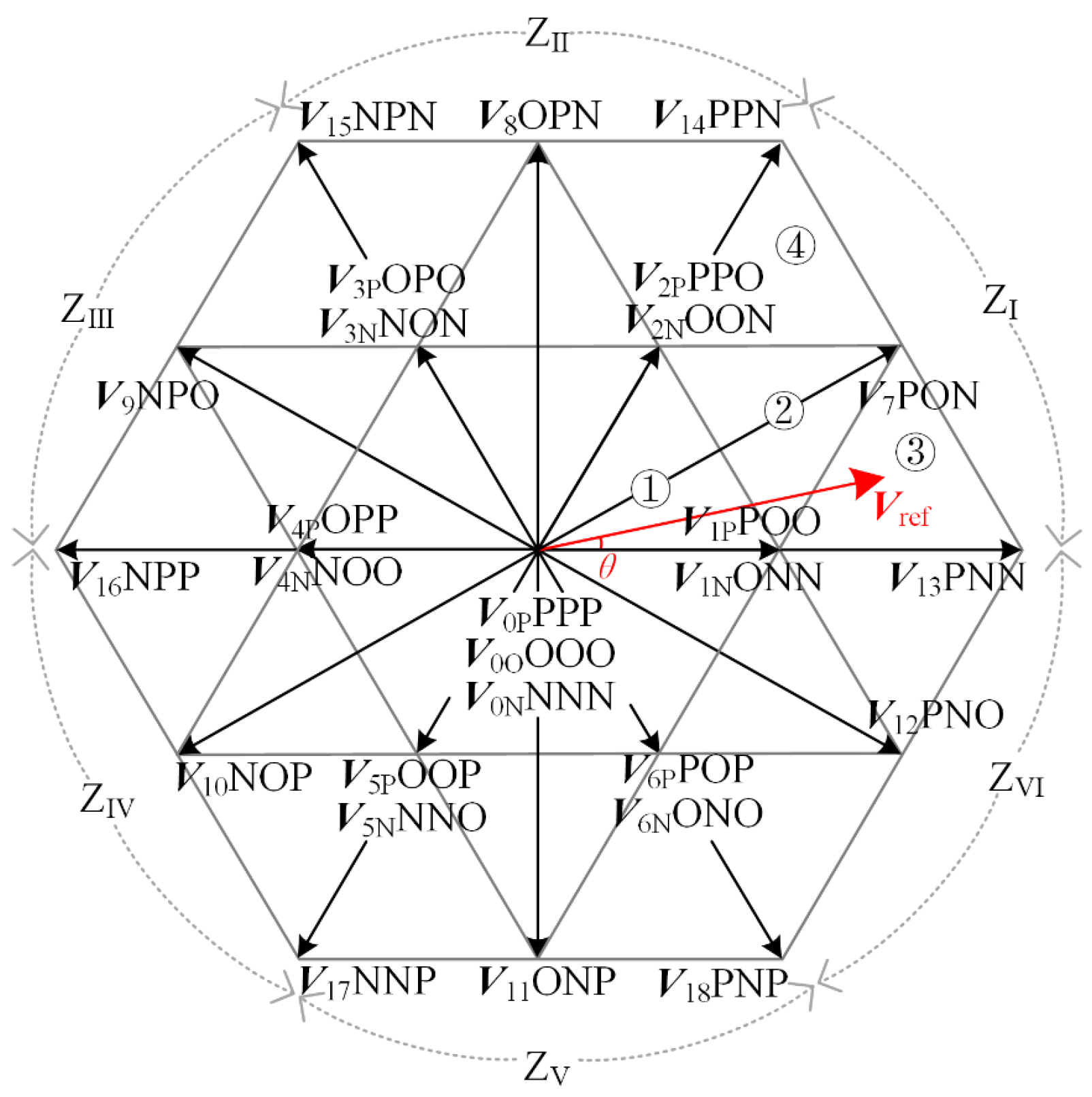

^{3}= 27 switching states corresponding to 27 basic voltage vectors. According to the magnitude, the basic voltage vectors can be divided into zero vectors (

**V**

_{0P},

**V**

_{0O},

**V**

_{0N}), small vectors (

**V**

_{1P}~

**V**

_{6P},

**V**

_{1N}~

**V**

_{6N}), medium vectors (

**V**

_{7}~

**V**

_{12}), large vectors (

**V**

_{13}~

**V**

_{18}). The space vector diagram can be divided into six sectors Z

_{I}~Z

_{VI}with the middle vector as the boundary. Connect the summits of the separated middle vectors sequentially, and each sector can further be divided into four triangles ①~④,

**V**

_{ref}is the reference voltage vector, θ is the angle between reference voltage vector and α axis. The basic voltage vector and reference voltage vector corresponding to each switching state are shown in Figure 2.

**V**

_{X},

**V**

_{Y}and

**V**

_{Z}represent the three basic vectors participating in the synthesis of the reference voltage vector

**V**

_{ref}. T

_{X}, T

_{Y}and T

_{Z}represent the action time of each basic voltage vector in a sub-cycle T

_{S}.

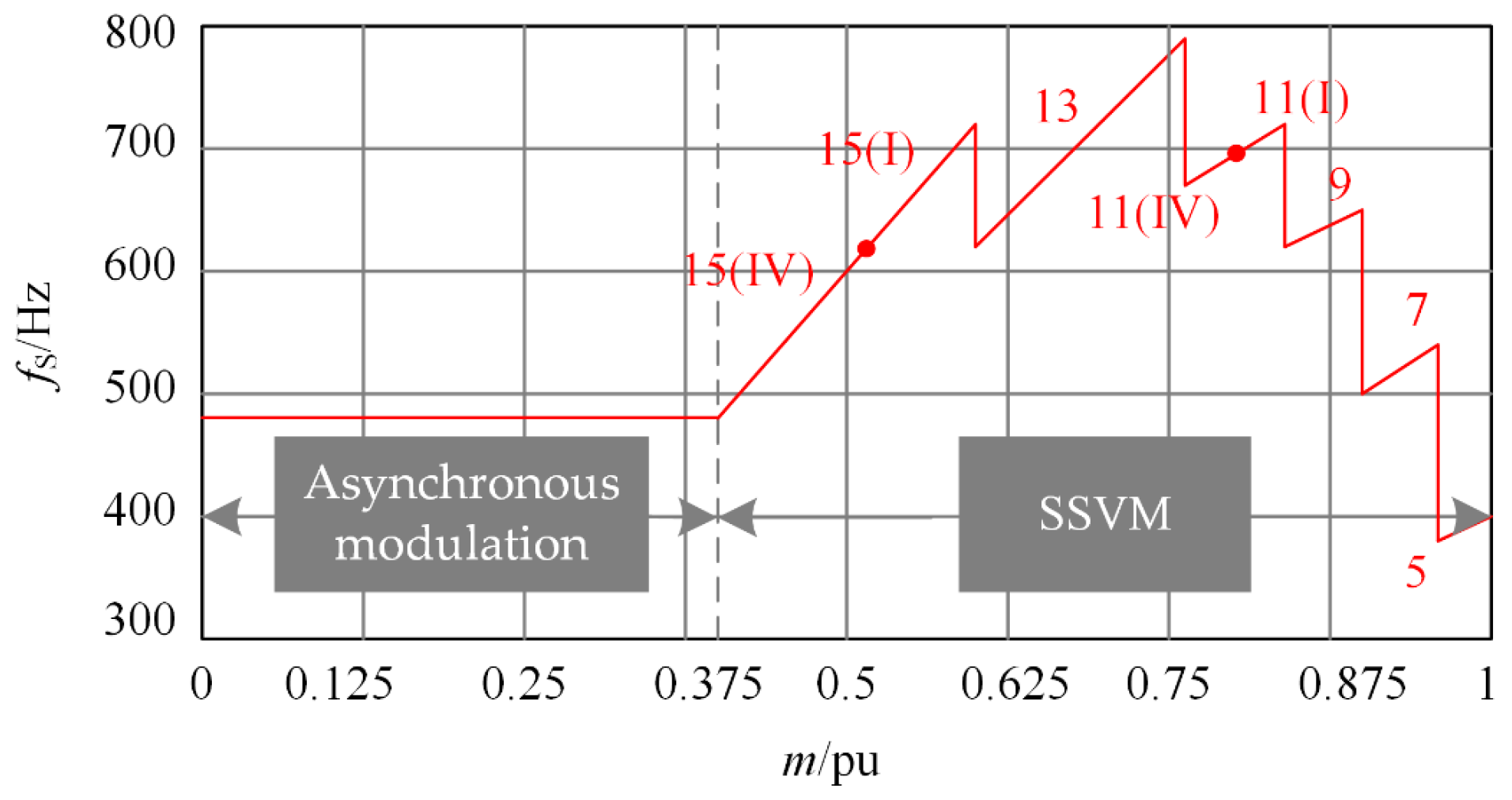

#### 2.2. Multi-Mode Synchronous Space Vector Modulation Method

## 3. Stator Flux Trajectories of Synchronous Space Vector Modulation

#### 3.1. The Change of Stator Flux Trajectories during Pulse Pattern Switching

_{I}sector is shown in Figure 4a. Due to the difference of flux trajectories change rate of two pulse numbers, the flux trajectories of SSVM_5 will deviate from the flux trajectories of SSVM_7, and rotate along the new flux circle. The flux trajectories will deviate as shown in Figure 4b. Therefore, in order to eliminate the phenomenon of stator flux trajectories deviation after switching. It is necessary to compensate the phase angle of the reference voltage vector before switching, so that it changes along the original flux trajectories.

#### 3.2. Stator Flux Trajectories Calculation

**ψ**

_{S}and the reference voltage vector

**V**

_{ref}is shown in Equation (2):

_{1}is the angular velocity of the motor during constant rotation, and θ is the angle between the reference voltage and the α axis, Equation (2) can be derived simultaneously on both sides:

_{1}as the stator flux trajectories, and Equation (3) is rewritten in incremental form:

**ψ**

_{S}is the change rate of the flux trajectories, the reference voltage vector and the stator flux vector correspond to each other in the sub-cycle T

_{S}. When the motor works at a constant speed, it can be considered that the amplitude of the stator flux trajectories and the reference voltage is constant, so the flux trajectories’ deviation can be corrected by changing the phase angle of the reference voltage.

_{S}can be obtained. Taking P = 5 as an example, the position of the reference voltage vector ${\mathit{V}}_{\mathrm{r}1}^{5}$ is shown in Figure 5a, ${T}_{\mathrm{S}}^{5}$ = 1/30 f

_{e}, and ${\mathit{\psi}}_{\mathrm{S}}^{5}$ rotates 12° per sub-cycle. The switching sequence used to synthesize ${\mathit{V}}_{\mathrm{r}1}^{5}$ is:

**V**

_{1P}→

**V**

_{7}→

**V**

_{13}, and the flux trajectories of ${\mathit{V}}_{\mathrm{r}1}^{5}$ is shown in Figure 5b. In the figure, the black solid line is the actual flux trajectories change, and the red dotted line is the equivalent flux trajectories change rate.

## 4. Smooth Switching Method

#### 4.1. Switch between Asynchronous Modulation and SSVM_15 (IV)

#### 4.2. Switching between Different Clamping Methods of SSVM

#### 4.3. Switching between Different Pulse Numbers of SSVM

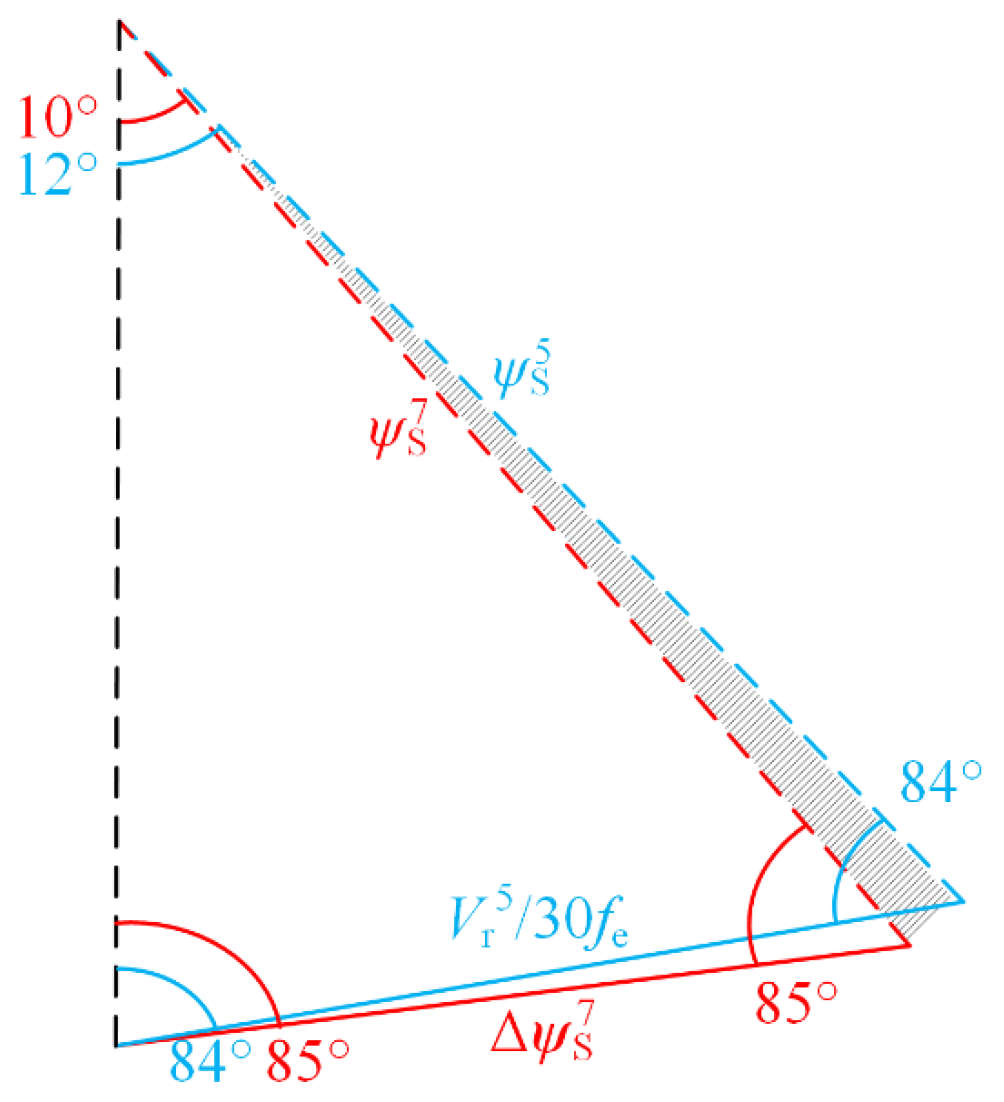

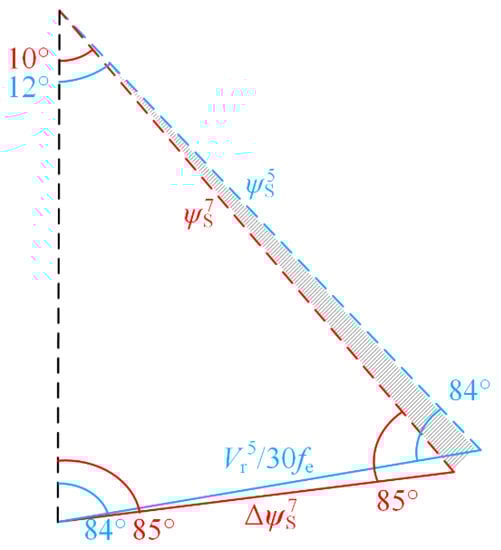

_{e}, ${\mathit{\psi}}_{\mathrm{S}}^{7}$ rotates 10° per sub-cycle. The flux trajectories change rates of the two pulse numbers under the action of the first reference voltage vector in the Z

_{I}sector are shown in Figure 6.

_{e}. According to Equation (4), SSVM_7 flux trajectories change rate Δ${\mathit{\psi}}_{\mathrm{S}}^{7}$ is:

_{7_5}is:

^{j5°}, ${\psi}_{\mathrm{S}}^{5}$e

^{j282°}and ${\psi}_{\mathrm{S}}^{7}$e

^{j270°}indicate that the stator flux vector

**ψ**

_{s}rotates from 270° to 282°. The complex compensation gain k

_{7_5}= e

^{j0.85°}can be obtained by substituting Equations (6) and (7) into Equation (8), since the value of the complex compensation gain k is a constant independent of any parameter, its value can be calculated offline.

_{5_7}can be calculated:

^{j6°}, complex compensation gain k

_{5_7}= e

^{j−0.82°}. Therefore, the reference voltage phase angle of SSVM_5 should be compensated by −0.82° and then switching, and the compensated reference voltage vector phase angle is 60°·n − 54°.

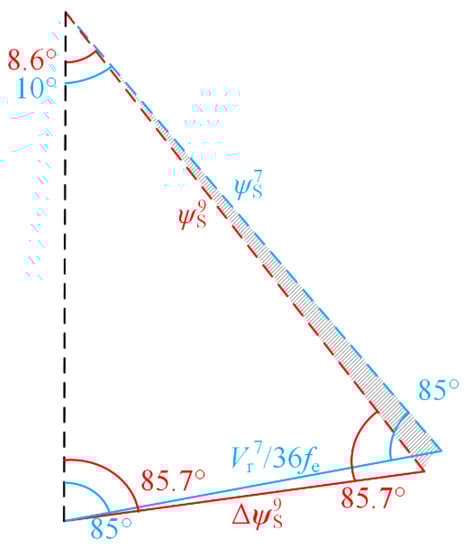

_{e}, ${\mathit{\psi}}_{\mathrm{S}}^{9}$ rotates 8.57° per sub-cycle. The flux trajectories change rates of the two pulse numbers under the action of the first reference voltage vector in the Z

_{I}sector are shown in Figure 7.

_{9_7}is:

^{j4.3°}, complex compensation gain k

_{9_7}= e

^{j−0.6°}. Therefore, the reference voltage phase angle of SSVM_9 should be compensated by −0.6° and then switching, and the compensated reference voltage vector phase angle is 60°·n − 55.7°.

_{7_9}can be calculated:

^{j5°}, complex compensation gain k

_{7_9}= e

^{j0.69°}. Therefore, the reference voltage phase angle of SSVM_9 should be compensated by 0.69° and then switched, and the compensated reference voltage vector phase angle is 60°·n − 55°.

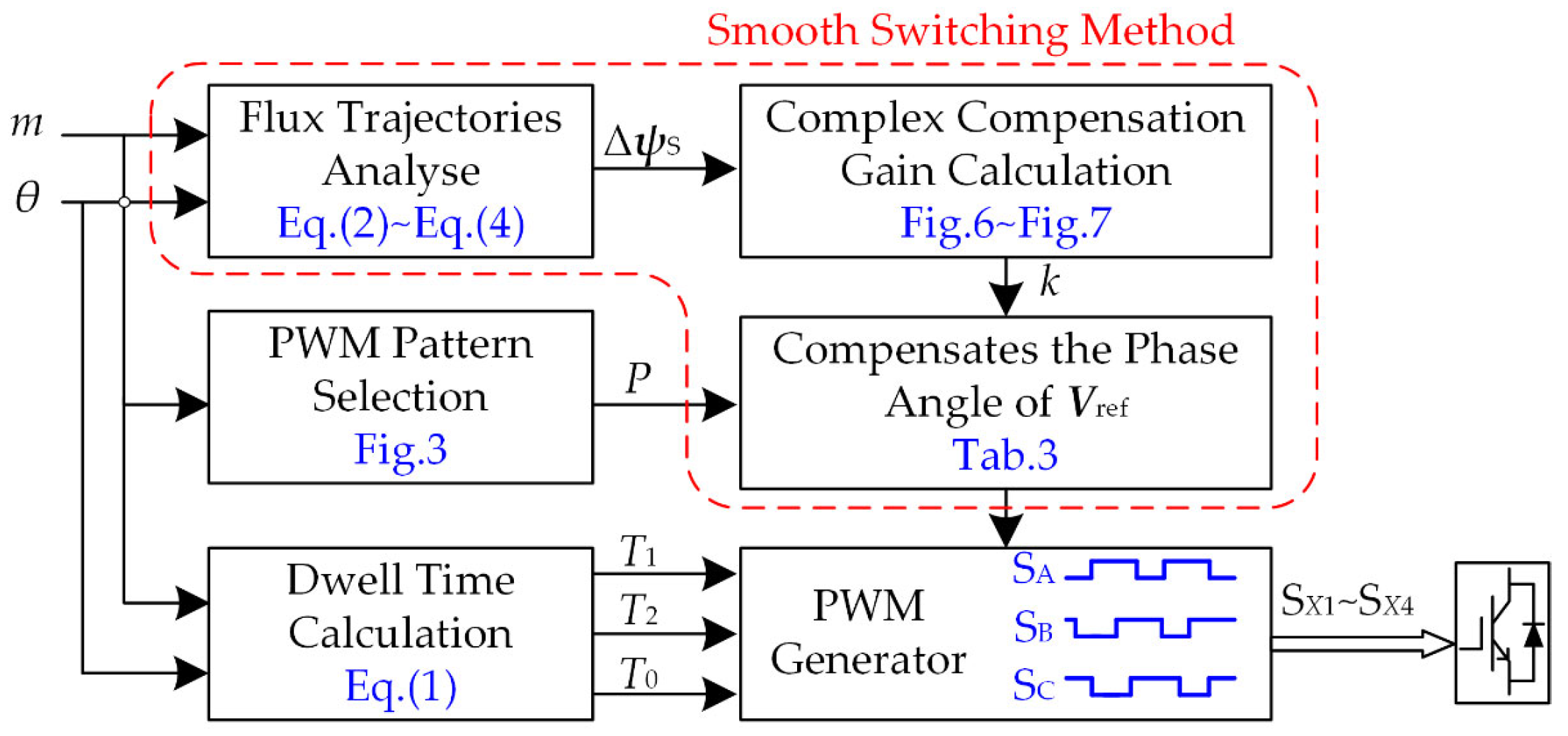

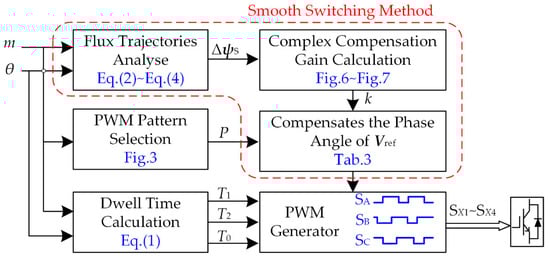

## 5. Experimental Result

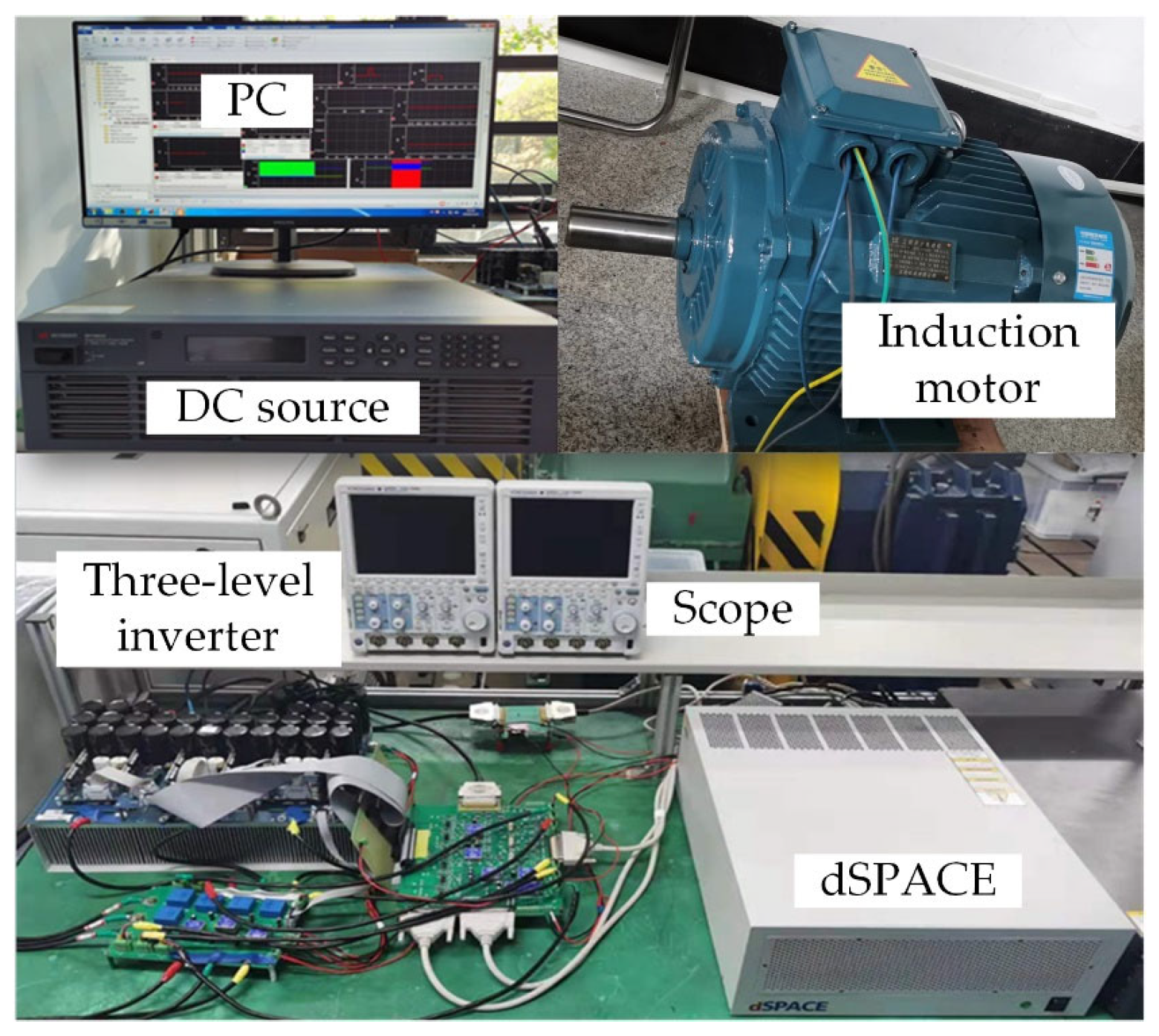

^{®}DS1007 rapid prototyping experimental system is used as the controller, the Infineon

^{®}IGBT module F3L75R07W2E3 is used as the power circuit. The experimental system also includes DC power supply, voltage/current sensor, PC and signal conversion circuit. Then, the experimental verification is carried out in a 7.5 kW induction motor. In order to clearly prove that the smooth switching of the motor can be achieved by using only the modulation strategy, the asynchronous motor is directly powered by an open-loop NPC inverter, and the sampling frequency of the dSPACE board is set to 50 kHz. A comparative analysis was conducted, about the phase angle of the reference voltage vector is not compensated and compensated when switching different pulse numbers. The experimental system and experimental parameters are shown in Table 4 and Figure 9.

#### 5.1. Switching Experiment of Asynchronous Modulation and Synchronous Modulation

_{A1}and S

_{A2}, phase voltage v

_{AO}, three-phase current i

_{A}, i

_{B}, i

_{C}. Since there is no deviation in the stator flux trajectories during switching, the three-phase current has no impulse oscillation, achieving smooth switching.

#### 5.2. Switching Experiment of Different Clamping Methods of SSVM

#### 5.3. Switching Experiment of Different Pulse Numbers of SSVM

_{A1}and S

_{A2}, and the position of the switching point can be seen through the waveform when the motor frequency rises in the multi-mode SSVM method. When switching between different pulse numbers, the three-phase current waveform will produce impulse oscillation due to flux trajectories deviation. As the number of pulses decreases during switching, the impact oscillation becomes more and more obvious, as shown in the left experimental results. After using complex compensation gain to compensate the reference voltage vector phase angle before switching, flux trajectories deviation was corrected. From the right experimental results, the three-phase current does not appear impulse oscillation, and smooth switching is achieved. Similarly, the fundamental frequency of the motor decreases, the three-phase current will not also impulse oscillation.

_{THD}as the quality evaluation standard of inverter output waveform, analyze the A-phase output current i

_{A}during switching. It can be seen from the current harmonic content in Figure 12, after the smooth switching method is adopted, the harmonic content and total harmonic distortion rate in the current are significantly reduced. Among them, the amplitude of low-order harmonics mainly by second and fourth harmonics decreases obviously, and more than ten times higher harmonic amplitude has also been reduced, resulting in the inverter having better output waveform quality.

#### 5.4. Output Waveform Quality

_{THD}and A-phase current total harmonic distortion i

_{THD}of the multi-mode SSVM with different pulse numbers are shown in Figure 13. It can be seen that due to the symmetry and synchronization of synchronous space vector modulation, the v

_{THD}and i

_{THD}are reduced at a lower switching frequency. As the number of pulses decreases after the fundamental frequency increases, v

_{THD}and i

_{THD}do not increase significantly.

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

Switching frequency | f_{s} |

Output fundamental frequency | f_{e} |

Pulse number | P |

Complex compensation gain | k |

Phase current | i_{X}, X∈{A, B, C}. |

Reference voltage vector | V_{ref} |

reference voltage vector phase angle | θ |

Sub-cycle times | T_{S} |

Modulation index | m |

Stator flux vector | ψ_{S} |

Stator flux trajectories change rate | Δψ_{S} |

Voltage total harmonic distortion | v_{THD} |

Current total harmonic distortion | i_{THD} |

## References

- Zhang, G.; Su, Y.; Zhou, Z.; Geng, Q. A Carrier-Based Discontinuous PWM Strategy of NPC Three-Level Inverter for Common-Mode Voltage and Switching Loss Reduction. Electronics
**2021**, 10, 3041. [Google Scholar] [CrossRef] - Ouanjli, N.E.; Derouich, A.; Ghzizal, A.E.; Taoussi, M.; Bossoufi, B. Direct Torque Control of Doubly Fed Induction Motor Using Three-Level NPC Inverter. Prot. Control Mod. Power Syst.
**2019**, 4, 17. [Google Scholar] [CrossRef] [Green Version] - Saady, I.; Karim, M.; Bossoufi, B.; Ouanjli, N.E.; Motahhir, S.; Majout, B. Optimization and Control of Photovoltaic Water Pumping System Using Kalman Filter Based MPPT and Multilevel Inverter Fed DTC-IM. Results Eng.
**2023**, 17, 100829. [Google Scholar] [CrossRef] - Alawieh, H.; Tehrani, K.A.; Azzouz, Y.; Dakyo, B. A New Active Common-Mode Voltage Elimination Method for Three-Level Neutral-Point Clamped Inverters. In Proceedings of the Conference of the IEEE Industrial Electronics Society (IECON), Dallas, TX, USA, 29 October–1 November 2014; pp. 1060–1066. [Google Scholar]
- Ma, Z.; Niu, H.; Wu, X.; Zhang, X.; Lin, G. An Improved Overmodulation Strategy for a Three-Level NPC Inverter Considering Neutral-Point Voltage Balance and Common-Mode Voltage Suppression. Sustainability
**2022**, 14, 12558. [Google Scholar] [CrossRef] - Ahmadi, S.; Poure, P.; Khaburi, D.A.; Saadate, S. A Remedial Control for Short-Circuit Fault in NPC/H-Bridge Inverters without Redundant Component. Electronics
**2021**, 10, 2411. [Google Scholar] [CrossRef] - Tehrani, K.A.; Bendjedia, M.; Azzouz, Y. Design of RST and Fractional Order PID Controllers for an Induction Motor Drive for Electric Vehicle Application. In Proceedings of the IET International Conference on Power Electronics, Manchester, UK, 8–10 April 2014. [Google Scholar]
- Szular, Z.; Rozegnal, B.; Mazgaj, W.A. New Soft-Switching Solution in Three-Level Neutral-Point-Clamped Voltage Source Inverters. Energies
**2021**, 14, 2247. [Google Scholar] [CrossRef] - Rathore, R.; Holtz, J.; Boller, T. Generalized Optimal Pulsewidth Modulation of Multilevel Inverters for Low-Switching-Frequency Control of Medium-Voltage High-Power Industrial AC Drives. IEEE Trans. Ind. Appl.
**2013**, 60, 4215–4224. [Google Scholar] [CrossRef] - Zhang, G.; Peng, S.; Geng, Q.; Shi, T.; Xia, C. Hybrid Discontinuous Space Vector PWM Strategy for Three-Level Inverters Under Two-Phase Loads Condition. IEEE Trans. Power Electron.
**2021**, 37, 1711–1721. [Google Scholar] [CrossRef] - Gao, Z.; Ge, Q.; Li, Y.; Zhao, L.; Zhang, B.; Wang, K. Hybrid Improved Carrier-Based PWM Strategy for Three-Level Neutral-Point-Clamped Inverter With Wide Frequency Range. IEEE Trans. Power Electron.
**2021**, 36, 8517–8538. [Google Scholar] [CrossRef] - Fei, W.; Du, X.; Wu, B. A Generalized Half-Wave Symmetry SHE-PWM Formulation for Multilevel Voltage Inverters. IEEE Trans. Ind. Electron.
**2010**, 57, 3030–3038. [Google Scholar] - Memon, M.A.; Mekhilef, S.; Mubin, M.; Aamir, M. Selective Harmonic Elimination in Inverters Using Bio-Inspired Intelligent Algorithms for Renewable Energy Conversion Applications: A Review. Renew. Sustain. Energy Rev.
**2018**, 82, 2235–2253. [Google Scholar] [CrossRef] - Zhang, Z.; Ge, X.; Tian, Z.; Zhang, X.; Tang, Q.; Fang, X. A PWM for Minimum Current Harmonic Distortion in Metro Traction PMSM With Saliency Ratio and Load Angle Constrains. IEEE Trans. Power Electron.
**2018**, 33, 4498–4511. [Google Scholar] [CrossRef] - He, K.; Li, J.; Xiao, L.; Xiong, Y.; Wu, L. Randomized Pulse Pattern Strategy of Synchronized SVPWM for Low-Frequency-Ratio Applications. IEEE Trans. Power Electron.
**2021**, 36, 6404–6414. [Google Scholar] [CrossRef] - Zhang, G.; Wei, B.; Gu, X.; Li, M.; Zhou, Z.; Chen, W. Sector Subdivision Based SVPWM Strategy of Neutral-Point-Clamped Three-Level Inverter for Current Ripple Reduction. Energies
**2019**, 12, 2734. [Google Scholar] [CrossRef] [Green Version] - Mo, X.; Huang, K.; Fan, H.; Wu, H.; Chen, L. Segmented Multi-mode Modulation Algorithm Based on Synchronized SVPWM for Rail Transit Traction Motor. In Proceedings of the International Conference on Electrical Machines and Systems (ICEMS), Harbin, China, 11–14 August 2019; pp. 1–4. [Google Scholar]
- Zhou, M.; Liu, W.; Qiu, T.; Wang, C.; You, X. A Genaral Switching Strategy for Multi-Mode Pulse Width Modulation. Proc. CSEE
**2019**, 39, 2125–2132. [Google Scholar] - Chu, Y.; Zhou, M.; Dong, S.; Wang, C.; Wang, B. A General Switching Strategy of Multimode Modulation Based on Flux Deviation Vector. Proc. CSEE
**2022**, 42, 4162–4170. [Google Scholar] - Wang, C.; Wang, K.; You, X. Research on Synchronized SVPWM Strategies Under Low Switching Frequency for Six-Phase VSI-Fed Asymmetrical Dual Stator Induction Machine. IEEE Trans. Power Electron.
**2016**, 63, 6767–6776. [Google Scholar] [CrossRef] - Wang, K.; You, X.; Wang, C.; Zhou, M. Research on Synchronized SVPWM Strategies Under Low Switching Frequency. Proc. CSEE
**2015**, 35, 4175–4183. [Google Scholar] - Zhang, G.; Zhou, Z.; Shi, T.; Xia, C. An Improved Multimode Synchronized Space Vector Modulation Strategy for High-Power Medium-Voltage Three-Level Inverter. IEEE Trans. Power Electron.
**2020**, 36, 4686–4696. [Google Scholar] [CrossRef]

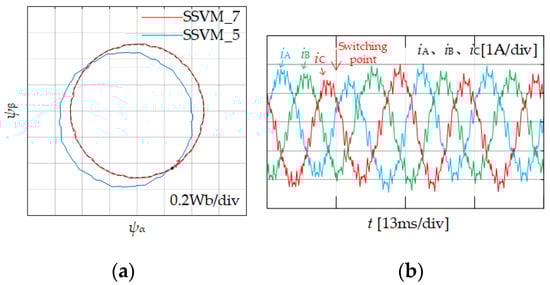

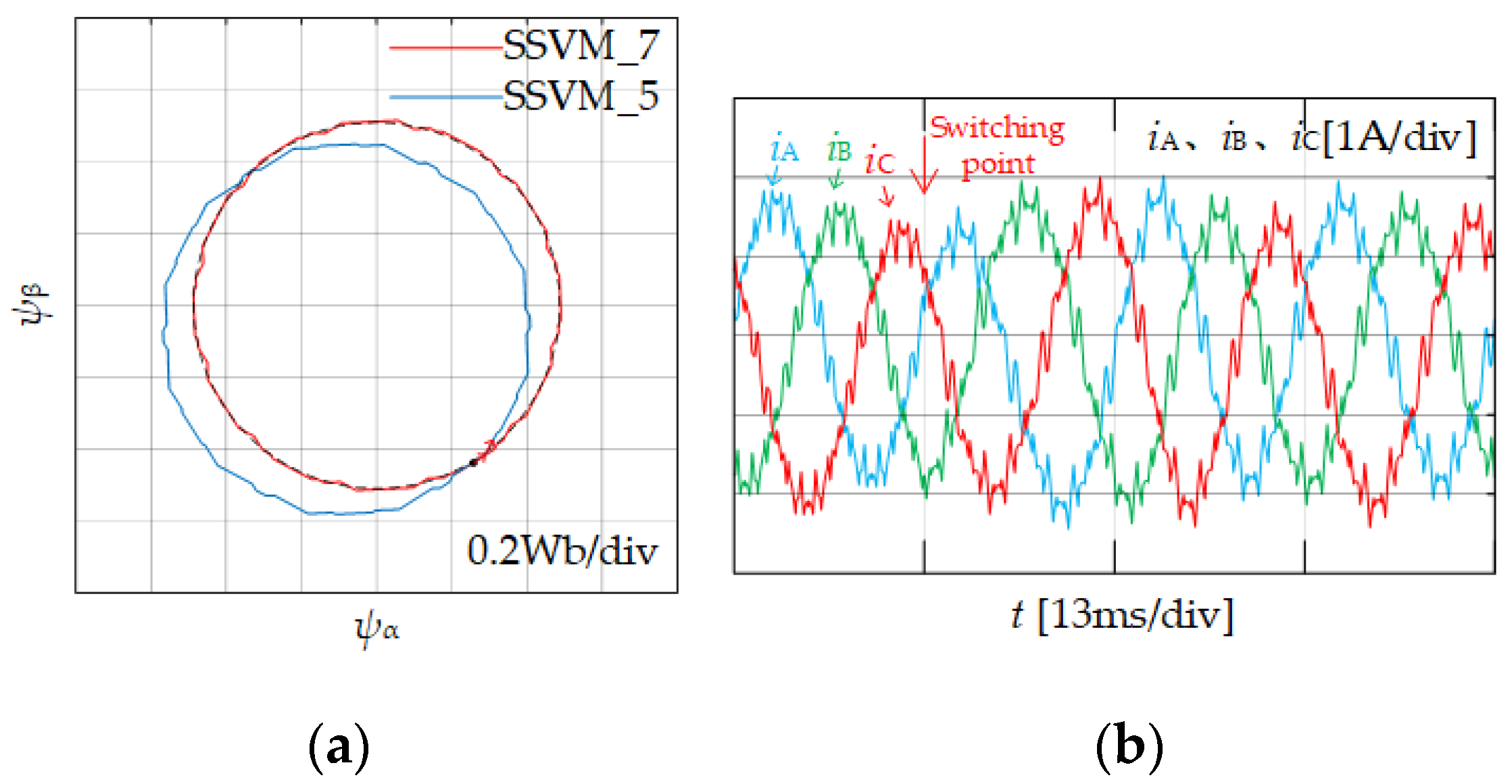

**Figure 4.**Stator flux trajectories and current change during switching. (

**a**) Stator flux trajectories change. (

**b**) Current change.

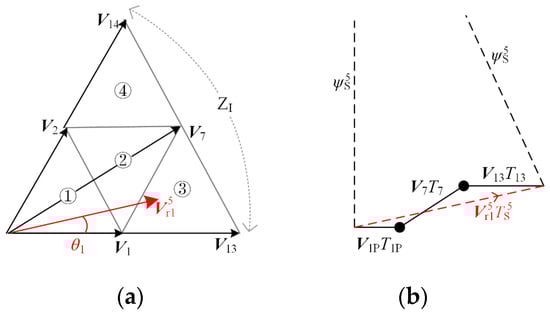

**Figure 5.**Relationship between space vector and flux trajectories. (

**a**) ${\mathit{V}}_{\mathrm{r}1}^{5}$ in sectors Z

_{I}. (

**b**) Flux trajectories change in subcycle.

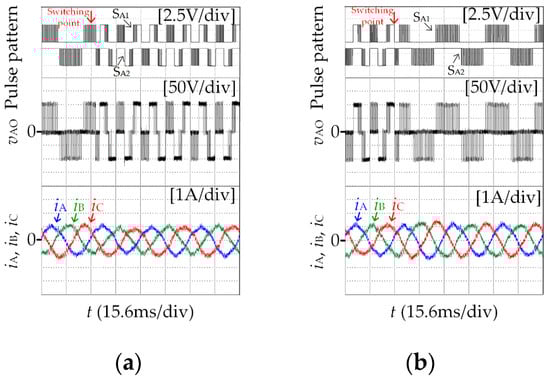

**Figure 10.**Experimental results of asynchronous modulation and SSVM_15(IV) switching. (

**a**) Asynchronous modulation→SSVM_15 (IV). (

**b**) SSVM_15 (IV)→asynchronous modulation.

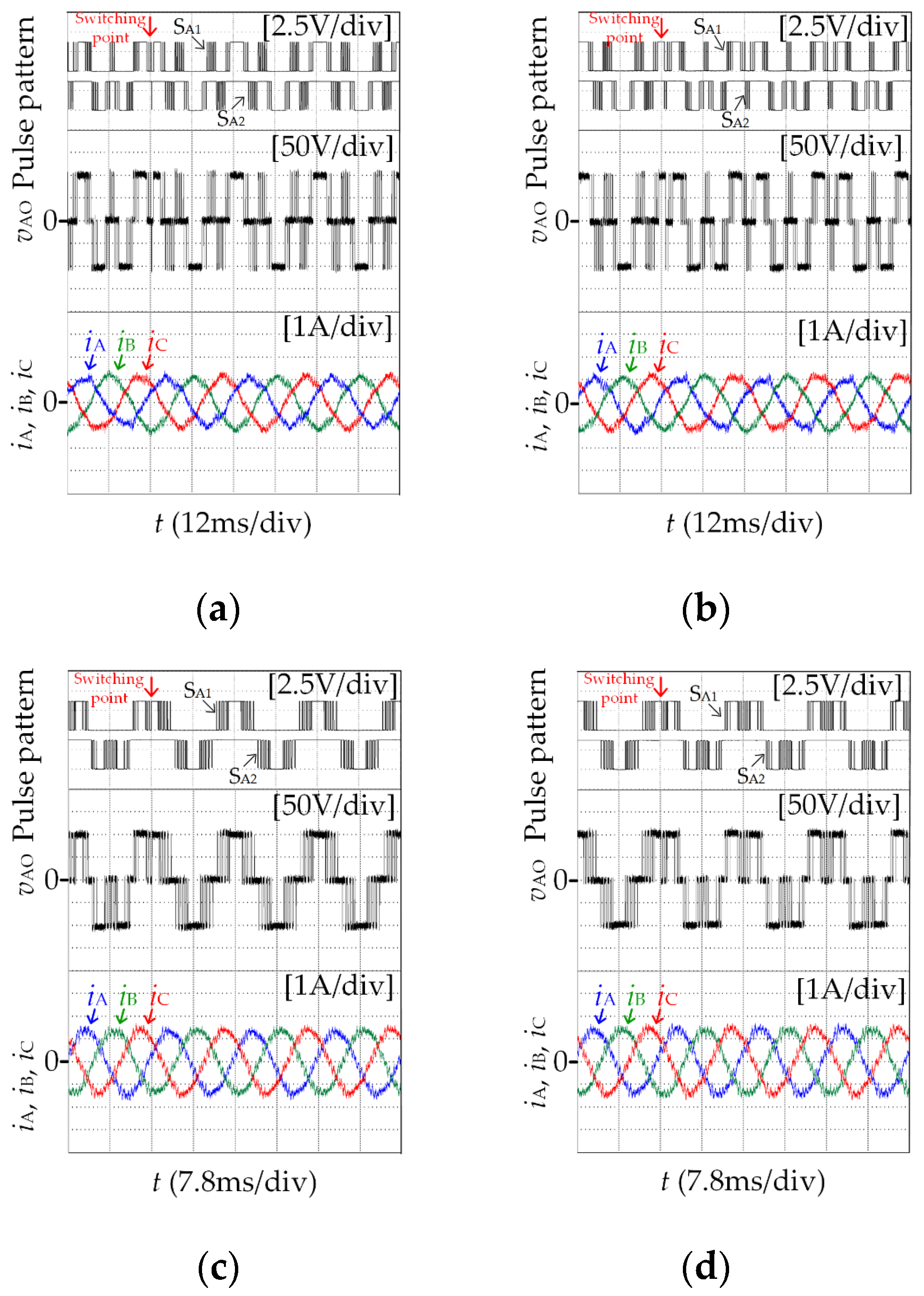

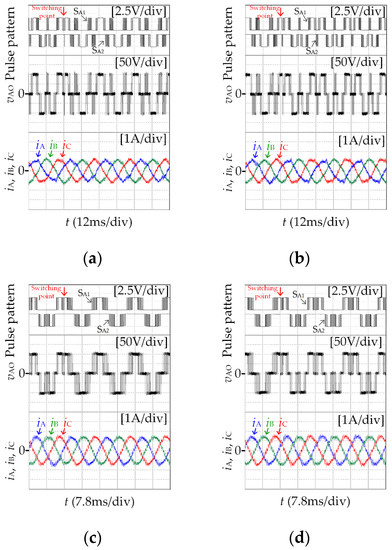

**Figure 11.**Experimental results of different clamping method switching of SSVM. (

**a**) SVM_15(IV)→SSVM_15(I). (

**b**) SSVM_15(I)→SSVM_15(IV). (

**c**) SVM_11(IV)→SSVM_11(I). (

**d**) SSVM_11(I)→SSVM_11(IV).

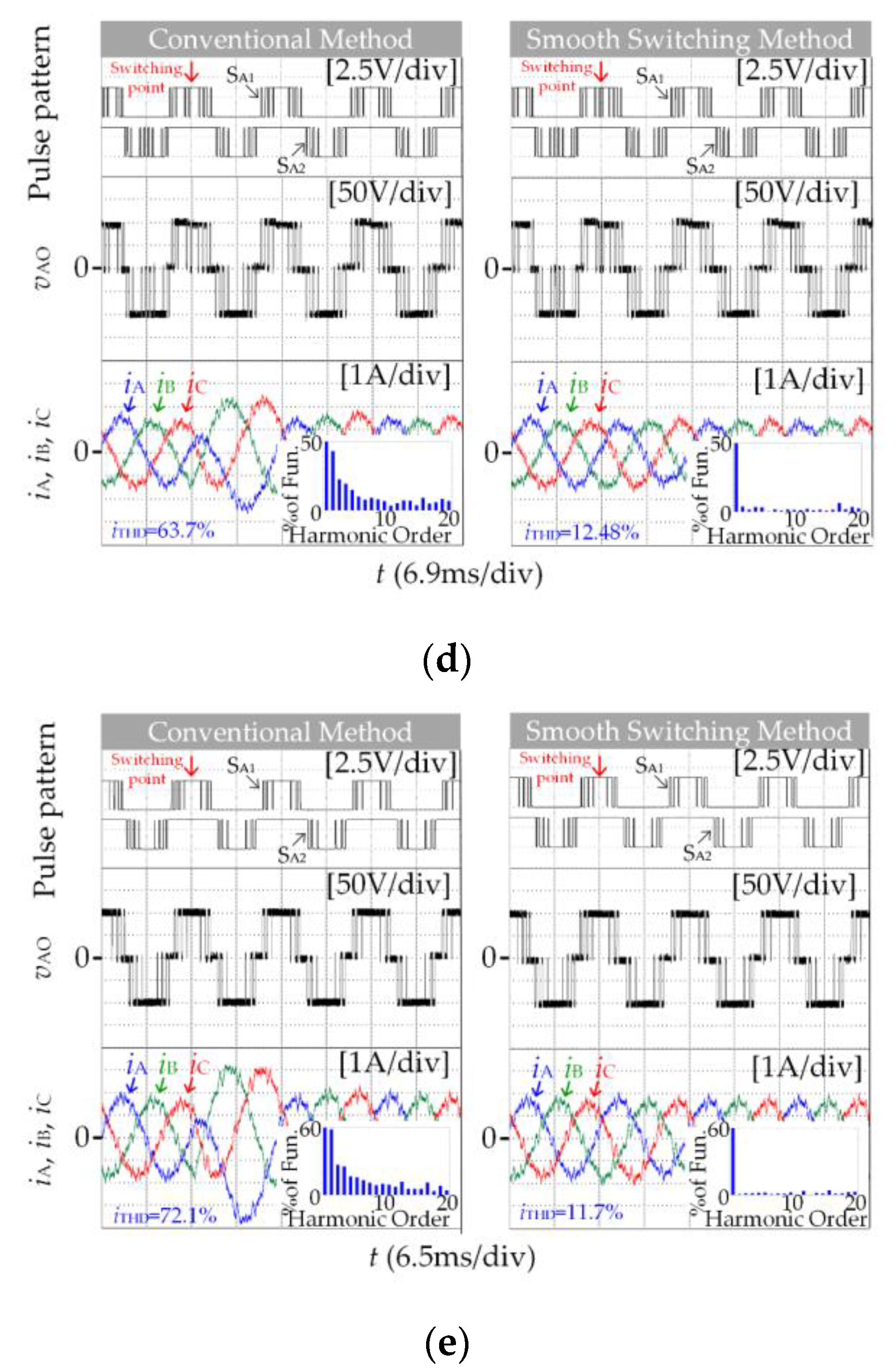

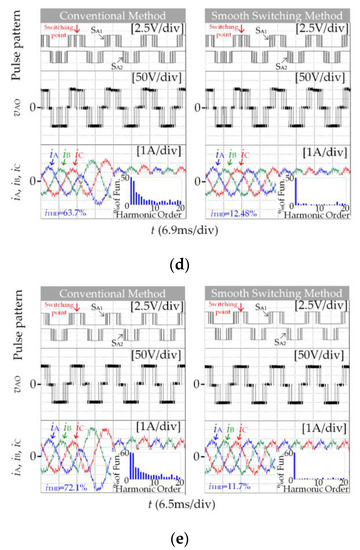

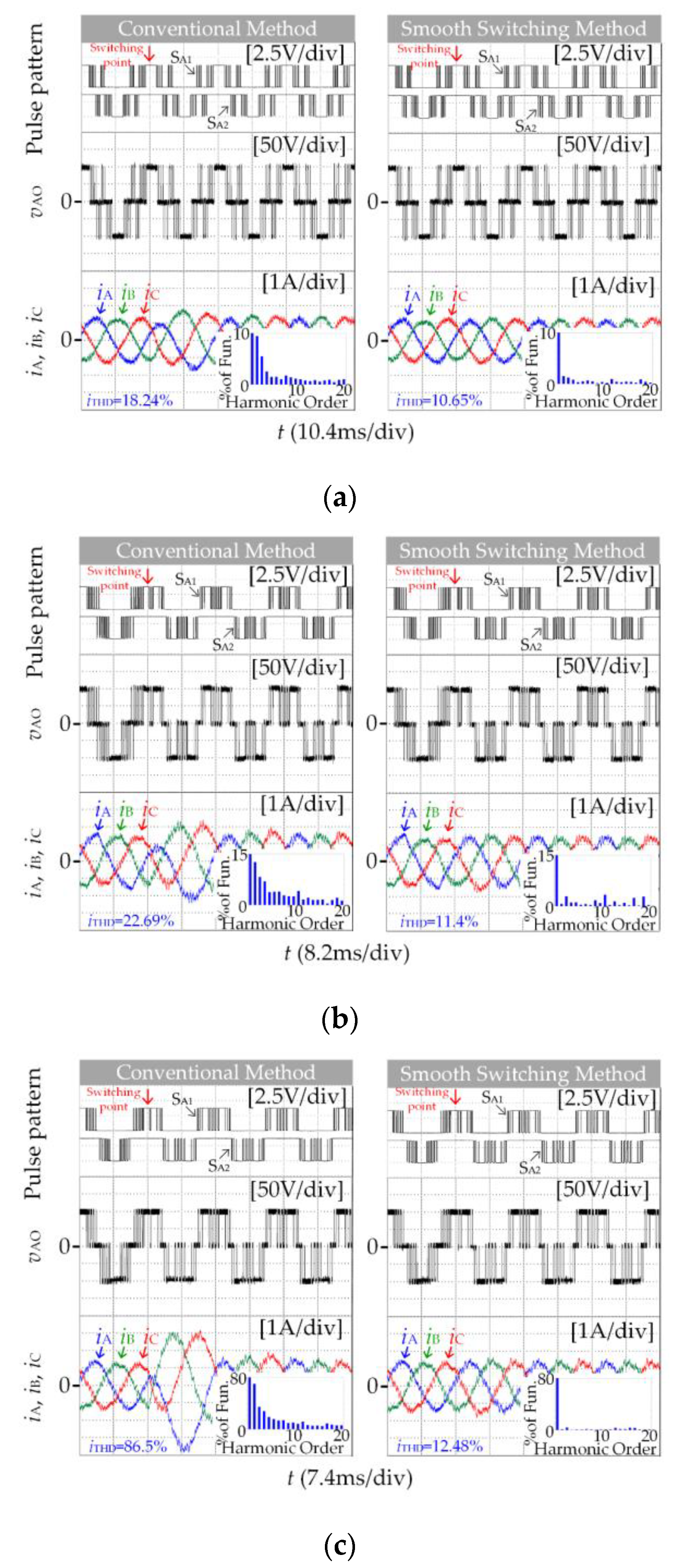

**Figure 12.**Experimental results of different pulse numbers switching. (

**a**) m = 0.6, SSVM_15(I)→SSVM_13. (

**b**) m = 0.76, SSVM_13→SSVM_11(IV). (

**c**) m = 0.84, SSVM_11(I)→SSVM_9. (

**d**) m = 0.9, SSVM_9→SSVM_7. (

**e**) m = 0.96, SSVM_7→SSVM_5.

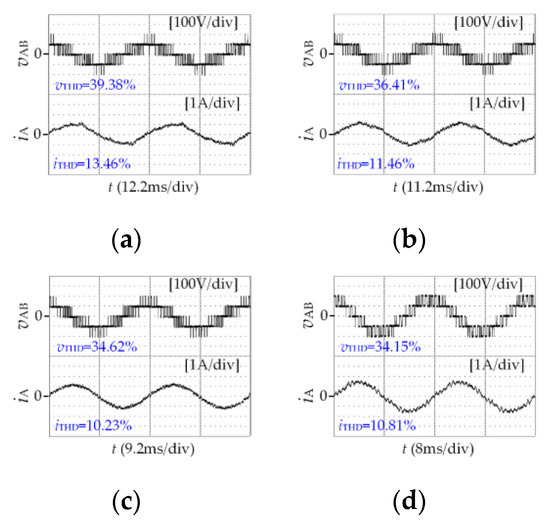

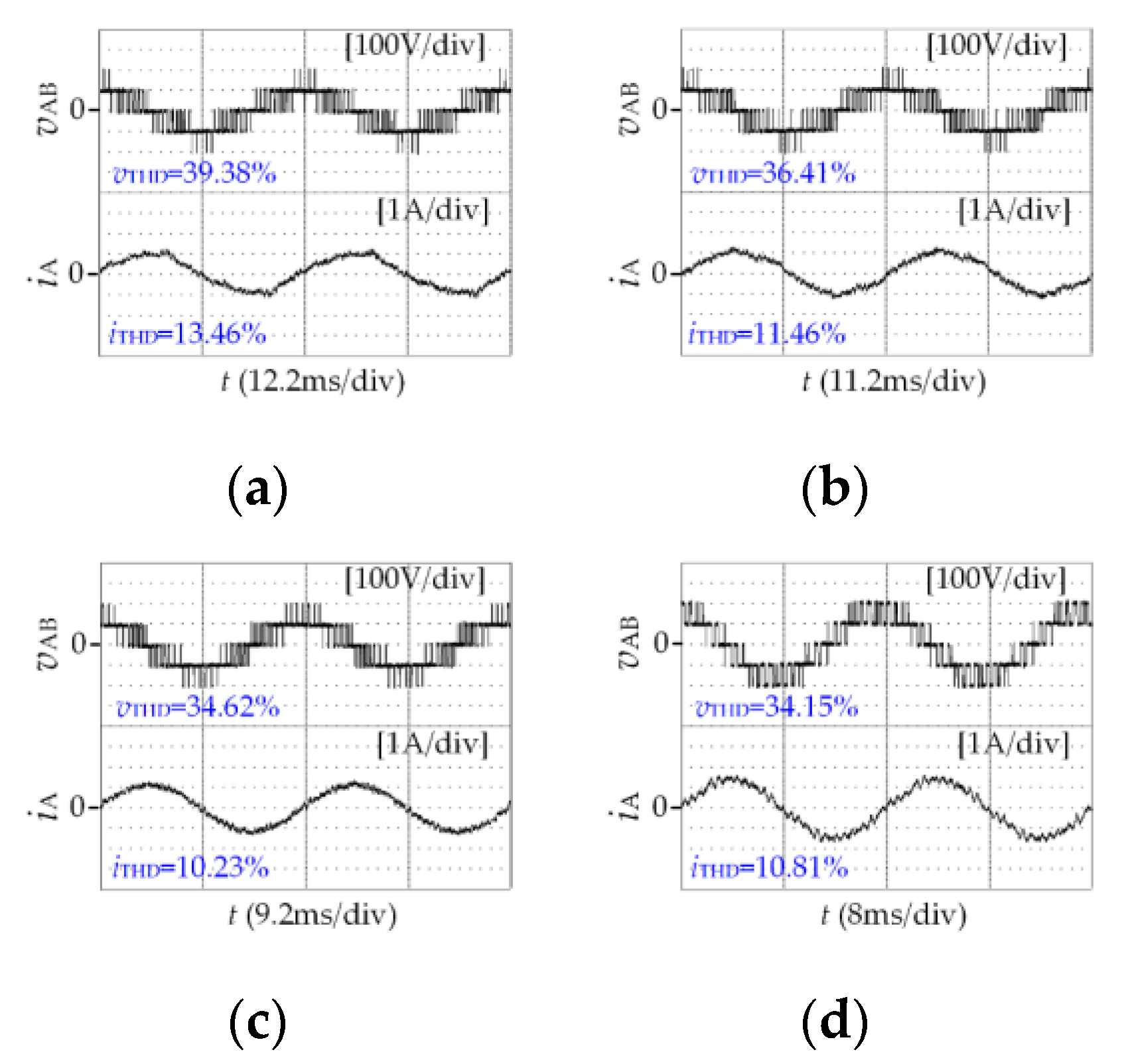

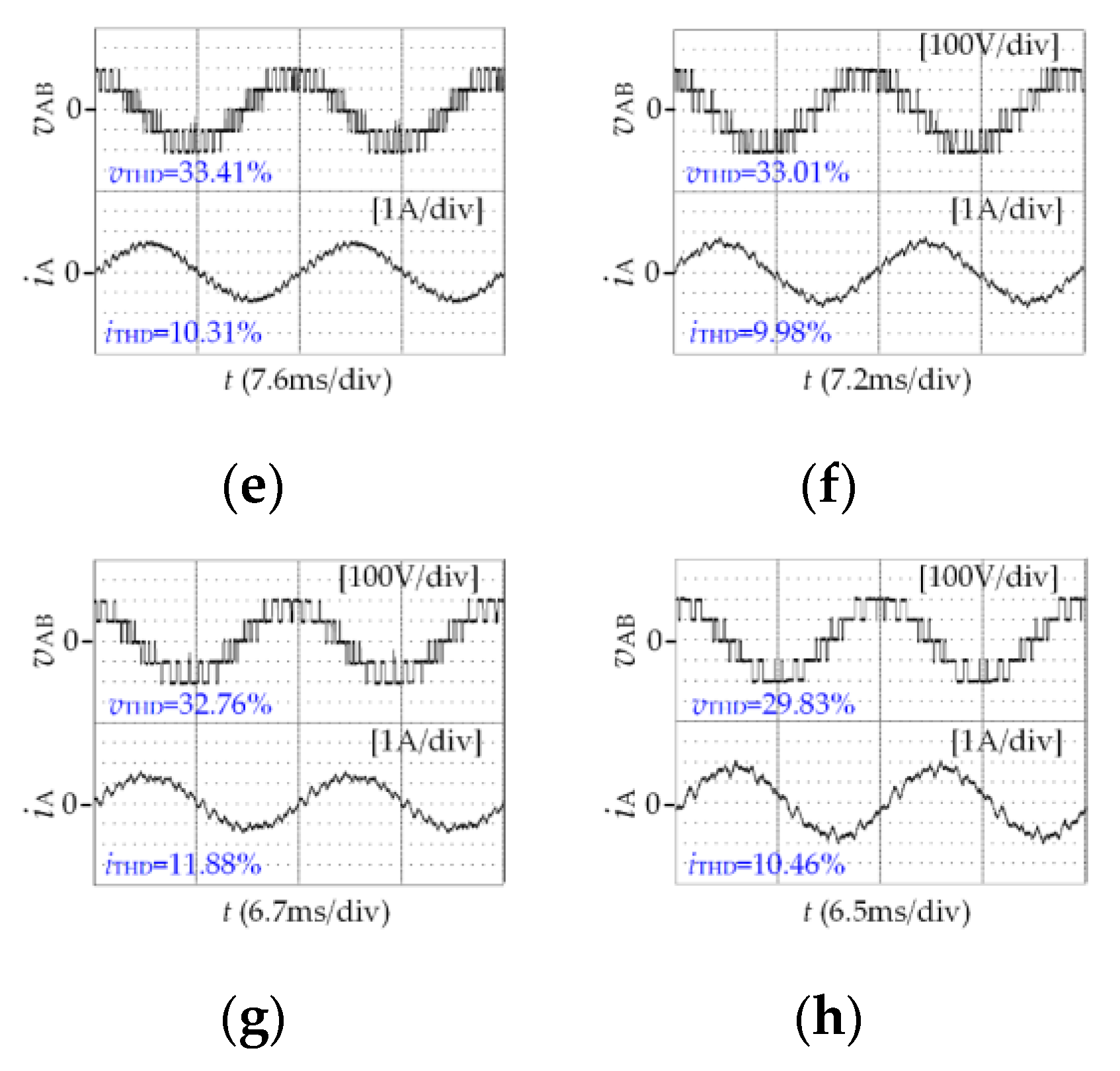

**Figure 13.**Experimental results of v
