# Toward Synthetic Data Generation to Enhance Skidding Detection in Winter Conditions

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

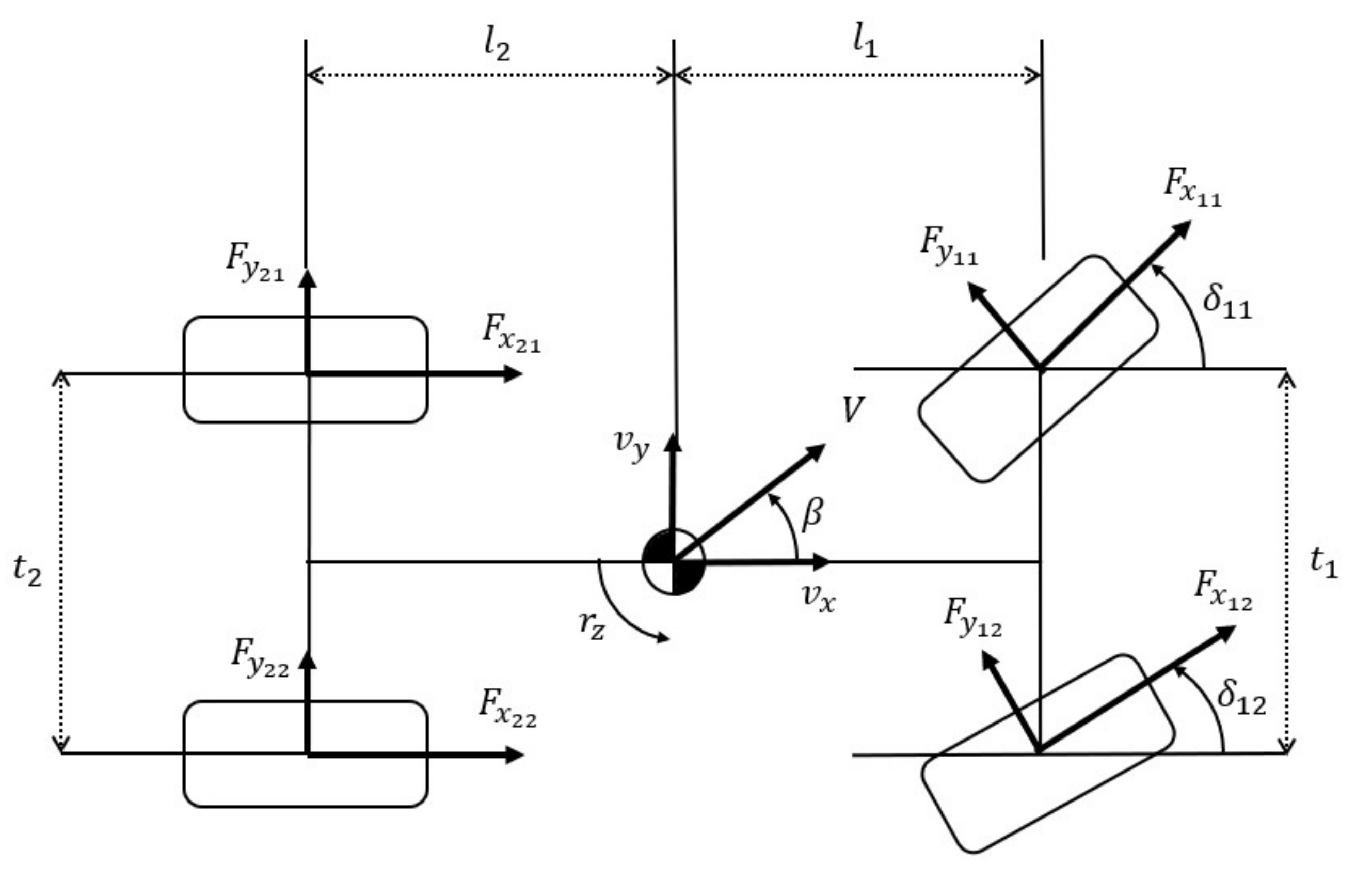

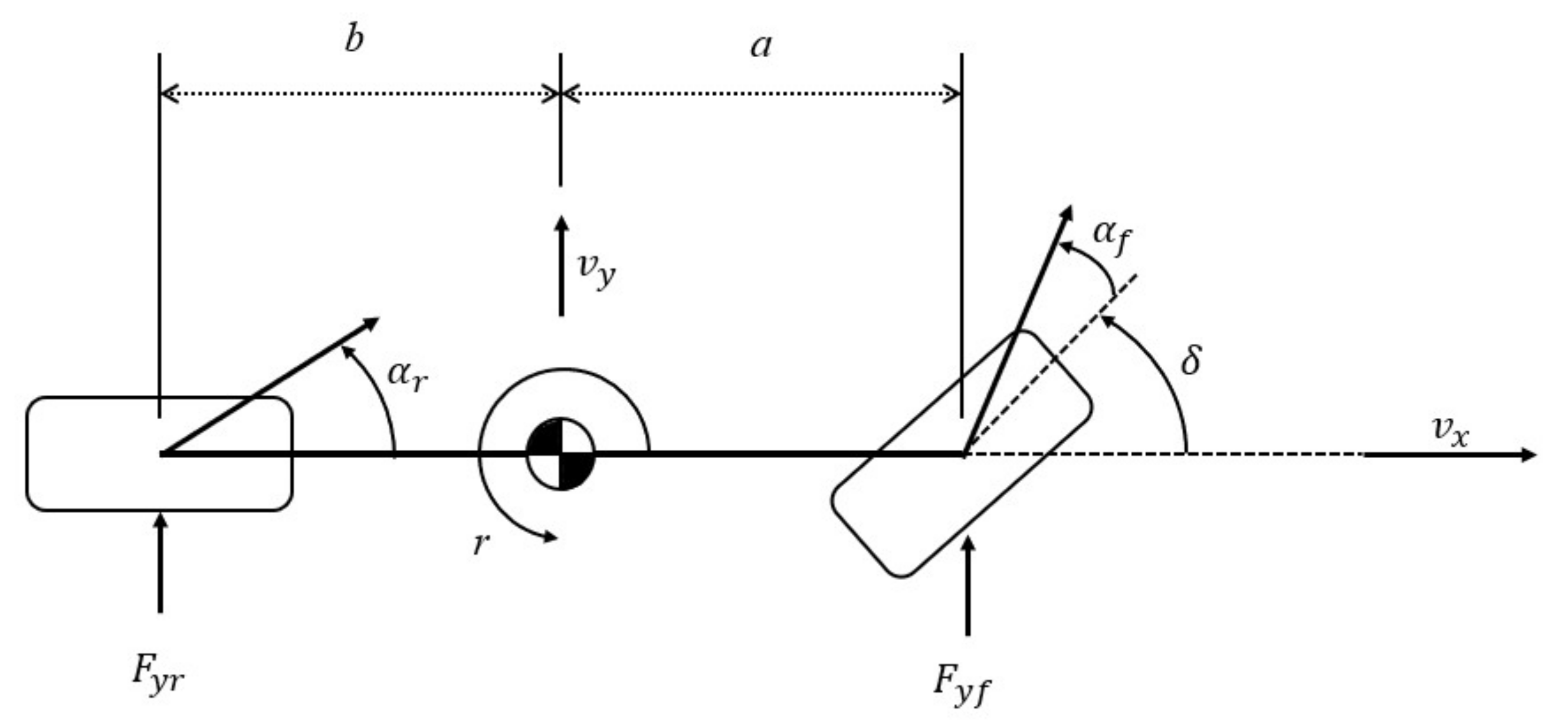

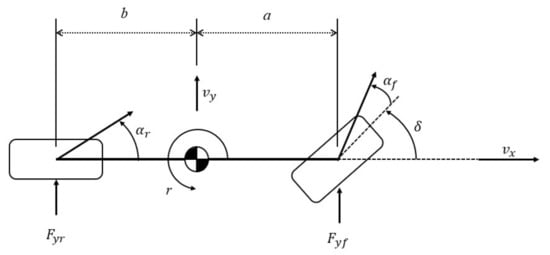

#### 2.1. Vehicle Models Commonly Used

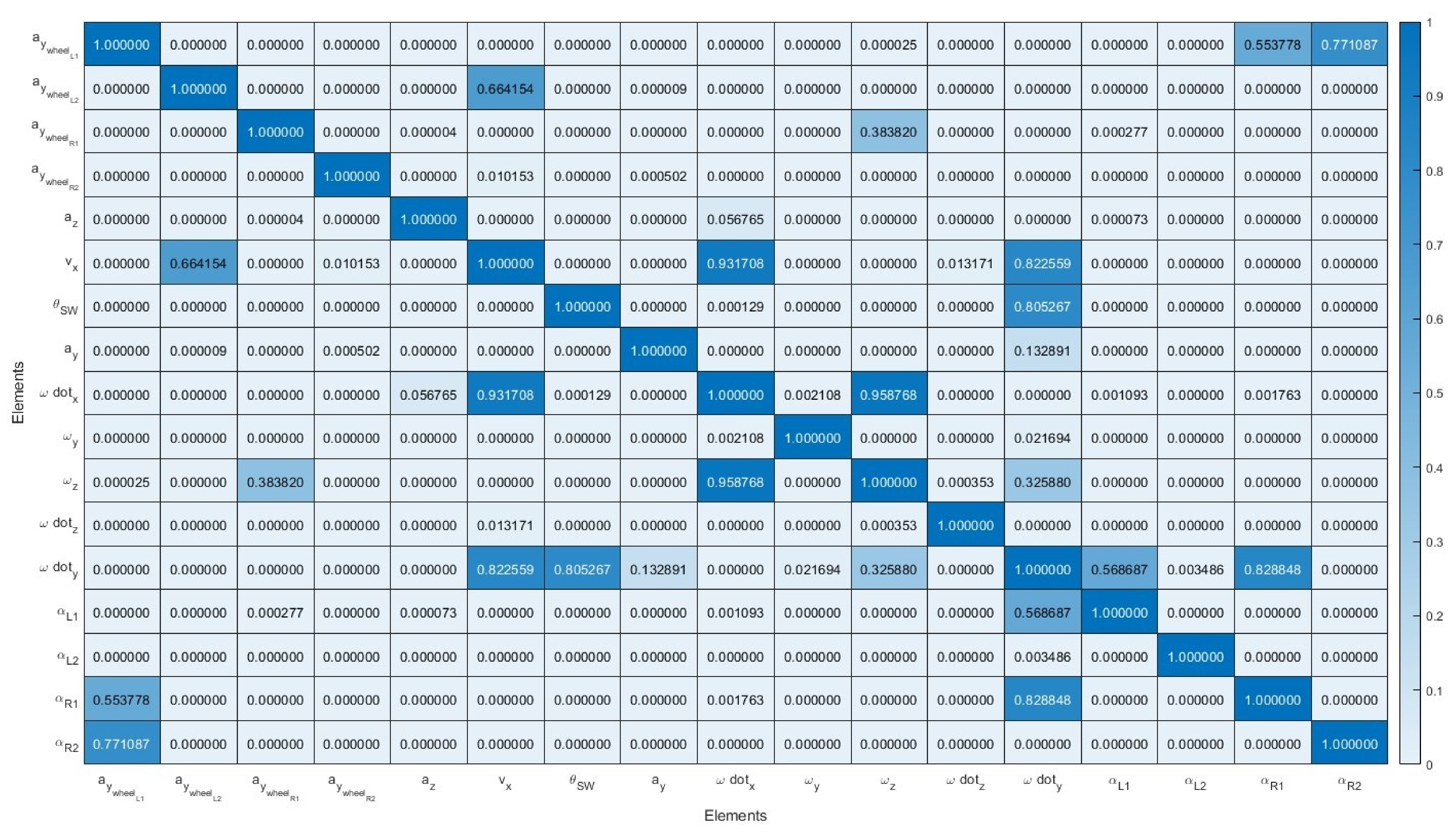

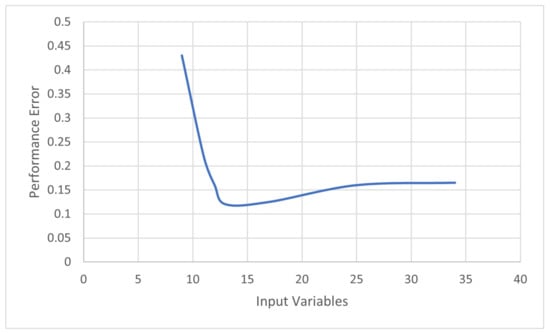

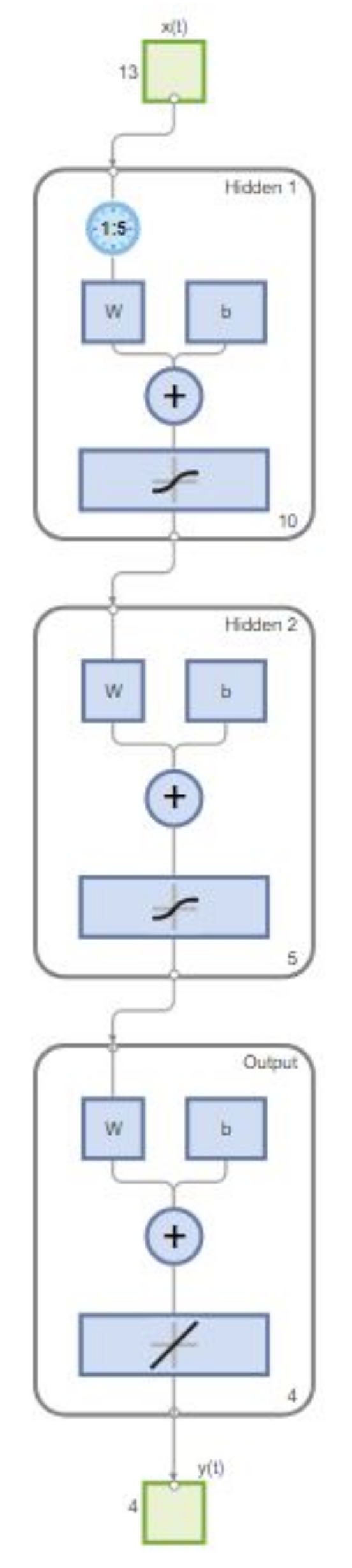

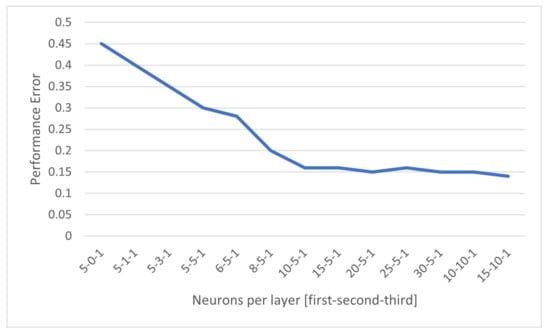

#### 2.2. Neural Network Structures

## 3. Results

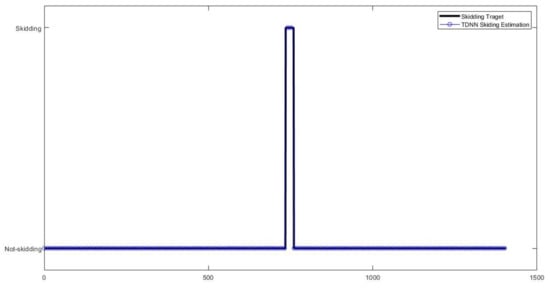

#### 3.1. Simulated Vehicle Dynamics

#### 3.2. Real Vehicle Dynamics

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

ANN | Artificial neuaral network |

CAN | Controller area network |

GNSS | Global navigation satellite system |

GoG | Center of Gravity |

MEMS | Micro-electro-mechanical systems |

TDNN | Time-delayed neural network |

NAR | nonlinear auto-regressive |

NARX | nonlinear auto-regressive network with exogenous inputs |

SNR | Signal to noise ration |

OBD2 | On-board diagnostic 2 |

## References

- Klouttse Ayevide, F. (Univérsité du Québec à Trois-Rivières, Trois-Rivières, Québec, Canada). Internal Literature Review, 2021.
- Mohammed, A.S.; Amamou, A.; Ayevide, F.K.; Kelouwani, S.; Agbossou, K.; Zioui, N. The Perception System of Intelligent Ground Vehicles in All Weather Conditions: A Systematic Literature Review. Sensors
**2020**, 20, 6532. [Google Scholar] [CrossRef] [PubMed] - D. O. Transport. Weather Impact on Safety. Available online: https://ops.fhwa.dot.gov/weather/q1_roadimpact.htm (accessed on 20 September 2022).
- NHTSA. Traffic Safety Facts. Available online: https://crashstats.nhtsa.dot.gov/Api/Public/ViewPublication/812806 (accessed on 20 September 2022).
- SAE J3016: Levels of Driving Automation. S. International. 2019. Available online: https://www.sae.org/news/2019/01/sae-updates-j3016-automated-driving-graphic (accessed on 20 September 2022).
- Ahn, C.; Peng, H.; Tseng, H.E. Robust Estimation of Road Frictional Coefficient. IEEE Trans. Control Syst. Technol.
**2013**, 21, 1–13. [Google Scholar] [CrossRef] - Nam, K. Application of Novel Lateral Tire Force Sensors to Vehicle Parameter Estimation of Electric Vehicles. Sensors
**2015**, 15, 385–401. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Nanthakumar, A.J.D.; Baisya, D.; Shrivastava, S. Development of mathematical model for real time estimation and comparison of individual lateral tire force generation. Mater. Today Proc.
**2021**, 45, 6755–6766. [Google Scholar] [CrossRef] - Angelo, B.; Andrea, F.S.T.; Nicola, A. Combined regression and classification artificial neural networks for sideslip angle estimation and road condition identification. Veh. Syst. Dyn.
**2019**, 58, 1766–1787. [Google Scholar] - Thomaidis, G.; Kotsiourou, C.; Grubb, G.; Lytrivis, P.; Karaseitanidis, G.; Amditis, A. Multi-sensor tracking and lane estimation in highly automated vehicles. IET Intell. Transp. Syst.
**2013**, 7, 160–169. [Google Scholar] [CrossRef] - Zang, S.; Ding, M.; Smith, D.; Tyler, P.; Rakotoarivelo, T.; Kaafar, M.A. The Impact of Adverse Weather Conditions on Autonomous Vehicles: How Rain, Snow, Fog, and Hail Affect the Performance of a Self-Driving Car. IEEE Veh. Technol. Mag.
**2019**, 14, 103–111. [Google Scholar] [CrossRef] - Lee, U.; Jung, J.; Shin, S.; Jeong, Y.; Park, K.; Shim, D.H.; Kweon, I.S. EureCar turbo: A self-driving car that can handle adverse weather conditions. In Proceedings of the IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Daejeon, Korea, 9–14 October 2016; pp. 2301–2306. [Google Scholar]
- Novi, T.; Capitani, R.; Annicchiarico, C. An integrated artificial neural network–unscented Kalman filter vehicle sideslip angle estimation based on inertial measurement unit measurements. Proc. Inst. Mech. Eng. Part J. Automob. Eng.
**2018**, 233, 1864–1878. [Google Scholar] [CrossRef] - Marti, E.; de Miguel, M.A.; Garcia, F.; Perez, J. A Review of Sensor Technologies for Perception in Automated Driving. IEEE Intell. Transp. Syst. Mag.
**2019**, 11, 94–108. [Google Scholar] [CrossRef] [Green Version] - Grip, H.; Imsland, L.; Johansen, T.; Kalkkuhl, J.; Suissa, A. Vehicle sideslip estimation. IEEE Control. Syst.
**2009**, 29, 36–52. [Google Scholar] - Hsu, Y.H.J.; Laws, S.M.; Gerdes, J.C. Christian. Estimation of Tire Slip Angle and Friction Limits Using Steering Torque. IEEE Trans. Control Syst. Technol.
**2010**, 18, 896–907. [Google Scholar] [CrossRef] - Melzi, S.; Sabbioni, E. On the vehicle sideslip angle estimation through neural networks: Numerical and experimental results. Mech. Syst. Signal Process.
**2011**, 25, 2005–2019. [Google Scholar] [CrossRef] - Fang, P.; Cai, Y.; Chen, L.; Wang, H.; Li, Y.; Sotelo, M.A.; Li, Z. A high-performance neural network vehicle dynamics model for trajectory tracking control. Inst. Mech. Eng. Part D J. Automob. Eng.
**2022**. [Google Scholar] [CrossRef] - Lu, X.; Zhang, X.; Zhang, G.; Fan, J.; Jia, S. Neural network adaptive sliding mode control for omnidirectional vehicle with uncertainties. ISA Trans.
**2019**, 86, 201–214. [Google Scholar] [CrossRef] - Zhang, C.; Wang, C.; Wei, Y.; Wang, J. Neural network adaptive position tracking control of underactuated autonomous surface vehicle. J. Mech. Sci. Technol
**2020**, 34, 855–865. [Google Scholar] [CrossRef] - Huang, W.; Wong, P.K.; Wong, K.I.; Vong, C.M.; Zhao, J. Adaptive neural control of vehicle yaw stability with active front steering using an improved random projection neural network. Veh. Syst. Dyn.
**2019**, 59, 396–414. [Google Scholar] [CrossRef] - Russell, S.J.; Norvig, P. Learning. In Artificial Intelligence: A Modern Approach, 3rd ed.; Pearson Education: Upper Saddle River, NJ, USA, 2010; pp. 706–868. [Google Scholar]
- Aalizadeh, B. Comparison of neural network and neurofuzzy identification of vehicle handling under uncertainties. Trans. Inst. Meas. Control.
**2019**, 41, 4230–4239. [Google Scholar] [CrossRef] - Rajamani, R. Lateral vehicle dynamics. In Vehicle Dynamics and Control, 2nd ed.; Ling, F.F., Ed.; Springer: New York, NY, USA, 2006; pp. 15–48. [Google Scholar]
- Pi, D.W.; Chen, N.; Wang, J.X.; Zhang, B.J. Design and evaluation of sideslip angle observer for vehicle stability control. Int. J. Automot. Technol.
**2011**, 12, 391–399. [Google Scholar] [CrossRef] - Pacejika, H.B. Tire and Vehicle Dynamics, 3rd ed.; Butterworth-Heinemann: Oxford, UK, 2012. [Google Scholar]
- Cheng, S.; Li, L.; Yan, B.; Liu, C.; Wang, X.; Fang, J. Simultaneous estimation of tire side-slip angle and lateral tire force for vehicle lateral stability control. Mech. Syst. Signal Process.
**2019**, 132, 168–182. [Google Scholar] [CrossRef] - Singh, K.B.; Ali, A.M.; Taheri, S. An Intelligent Tire Based Tire-Road Friction Estimation Technique and Adaptive Wheel Slip Controller for Antilock Brake System. J. Dyn. Syst. Meas. Control.
**2013**, 135, 031002. [Google Scholar] [CrossRef] - Hashemi, E.; Pirani, M.; Khajepour, A.; Kasaiezadeh, A.; Chen, S.-K.; Litkouhi, B. Corner-based estimation of tire forces and vehicle velocities robust to road conditions. Control. Eng. Pract.
**2017**, 61, 28–40. [Google Scholar] [CrossRef] [Green Version] - Kanghyun, N.; Fujimoto, H.; Hori, Y. Lateral Stability Control of In-Wheel-Motor-Driven Electric Vehicles Based on Sideslip Angle Estimation Using Lateral Tire Force Sensors. IEEE Trans. Veh. Technol.
**2012**, 61, 1972–1985. [Google Scholar] [CrossRef] - Kunsoo, H.J.K.; Kyongsu, Y.; Dong-Il, D.C. Monitoring system design for estimating the lateral tire force. In Proceedings of the 2002 American Control Conference (IEEE Cat. No.CH37301), Anchorage, AK, USA, 8–10 May 2002; Volume 2, pp. 875–880. [Google Scholar] [CrossRef]
- Lian, Y.F.; Zhao, Y.; Hu, L.L.; Tian, Y.T. Cornering stiffness and sideslip angle estimation based on simplified lateral dynamic models for four-in-wheel-motor-driven electric vehicles with lateral tire force information. Int. J. Automot. Technol.
**2015**, 16, 669–683. [Google Scholar] [CrossRef] - Liu, J.; Zhang, L.; Wang, Z. A Time-delay Neural Network of Sideslip Angle Estimation for In-wheel Motor Drive Electric Vehicles. In Proceedings of the IEEE 91st Vehicular Technology Conference (VTC2020-Spring), Antwerp, Belgium, 25–28 May 2020. [Google Scholar]
- Liu, W.; He, H.; Sun, F. Vehicle state estimation based on Minimum Model Error criterion combining with Extended Kalman Filter. J. Frankl. Inst.
**2016**, 353, 834–856. [Google Scholar] [CrossRef] - Nam, K.; Fujimoto, H.; Hori, Y. Advanced Motion Control of Electric Vehicles Based on Robust Lateral Tire Force Control via Active Front Steering. IEEE/Asme Trans. Mechatronics
**2014**, 19, 289–299. [Google Scholar] [CrossRef] - Jin, X.; Yin, G. Estimation of lateral tire–road forces and sideslip angle for electric vehicles using interacting multiple model filter approach. J. Frankl. Inst.
**2015**, 352, 686–707. [Google Scholar] [CrossRef] - Jing, H.W.; Hu, C.; Wang, J.; Yan, F.; Chan, N. Vehicle lateral motion control considering network-induced delay and tire force saturation. In Proceedings of the 2016 American Control Conference, Boston, MA, USA, 6–8 July 2016. [Google Scholar]
- Singh, K.B.; Taheri, S. Accelerometer Based Method for Tire Load and Slip Angle Estimation. Vibration
**2019**, 2, 174–186. [Google Scholar] [CrossRef] [Green Version] - Wei, W.; Shaoyi, B.; Lanchun, Z.; Kai, Z.; Yongzhi, W.; Weixing, H. Vehicle Sideslip Angle Estimation Based on General Regression Neural Network. Math. Probl. Eng.
**2016**, 2016, 3107910. [Google Scholar] [CrossRef] [Green Version] - Zhang, Z.; Chu, L.; Zhang, J.; Guo, C.; Li, J. Design of Vehicle Stability Controller Based on Fuzzy Radial Basis Neural Network Sliding Mode Theory with Sideslip Angle Estimation. Appl. Sci.
**2021**, 11, 1231. [Google Scholar] [CrossRef] - Niskanen, A.; Tuononen, A. Three Three-Axis IEPE Accelerometers on the Inner Liner of a Tire for Finding the Tire-Road Friction Potential Indicators. Sensors
**2015**, 14, 51–63. [Google Scholar] [CrossRef] [Green Version] - Park, H.; Gerdes, J.C. Analysis of Feasible Tire Force Regions for Optimal Tire Force Allocation with Limited Actuation. IEEE Intell. Transp. Syst. Mag.
**2017**, 9, 75–87. [Google Scholar] [CrossRef] - Singh, K.B.; Arat, M.A.; Taheri, S. Literature review and fundamental approaches for vehicle and tire state estimation. Veh. Syst. Dyn.
**2018**, 57, 1643–1665. [Google Scholar] [CrossRef] - Singh, K.B.; Taheri, S. Estimation of tire–road friction coefficient and its application in chassis control systems. Syst. Sci. Control. Eng.
**2014**, 3, 39–61. [Google Scholar] [CrossRef] [Green Version] - Kanghyun, N.; Sehoon, O.; Hiroshi, F.; Yoichi, H. Estimation of Sideslip and Roll Angles of Electric Vehicles Using Lateral Tire Force Sensors Through RLS and Kalman Filter Approaches. IEEE Trans. Ind. Electron.
**2013**, 60, 988–1000. [Google Scholar] - Eunjae, L.; Hojin, J.; Seibum, C. Tire Lateral Force Estimation Using Kalman Filter. Int. J. Automot. Technol.
**2018**, 19, 669–676. [Google Scholar] - Acosta, M.; Kanarachos, S. Tire lateral force estimation and grip potential identification using Neural Networks, Extended Kalman Filter, and Recursive Least Squares. Neural Comput. Appl.
**2017**, 30, 3445–3465. [Google Scholar] [CrossRef] - ISO-26262-1-5:2018; Road Vehicles Functional Safety. ISO: Geneva, Switzerland, 2018.
- Wang, H.; Xu, Z.; Do, M.T.; Zheng, J.; Cao, Z.; Xie, L. Neural-network-based robust control for steer-by-wire systems with uncertain dynamics. Neural Comput. Appl.
**2015**, 26, 1575–1586. [Google Scholar] [CrossRef] - Gao, J.; Zhang, Y.; Du, Y.; Li, Q. Optimization of the tire ice traction using combined Levenberg–Marquardt (LM) algorithm and neural network. Ournal Braz. Soc. Mech. Sci. Eng.
**2019**, 41, 40. [Google Scholar] [CrossRef] - De Jesús Rubio, J. Stability Analysis of the Modified Levenberg–Marquardt Algorithm for the Artificial Neural Network Training. IEEE Trans. Neural Net. Learn. Syst.
**2021**, 8, 3510–3524. [Google Scholar] [CrossRef] - Kermani, B.G.; Schiffman, S.S.; Nagle, H.T. Performance of the Levenberg–Marquardt neural network training method in electronic nose applications. Sens. Actuators
**2005**, 110, 13–22. [Google Scholar] [CrossRef] - Rana, M.J.; Shahriar, M.S.; Shafiullah, M. Levenberg—Marquardt neural network to estimate UPFC-coordinated PSS parameters to enhance power system stability. Neural Comput. Appl.
**2019**, 31, 1237–1248. [Google Scholar] [CrossRef]

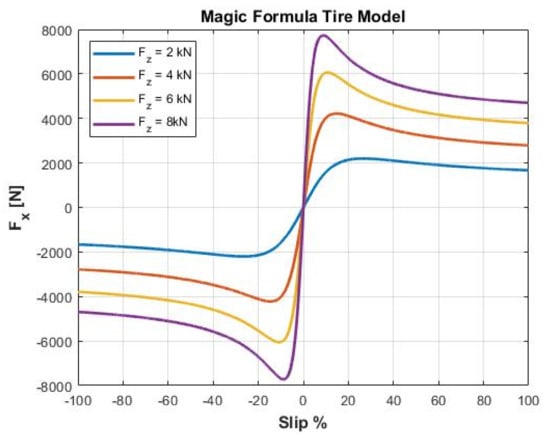

**Figure 3.**Generic tire longitudinal slip ratio vs. longitudinal force for different normal tire force cases.

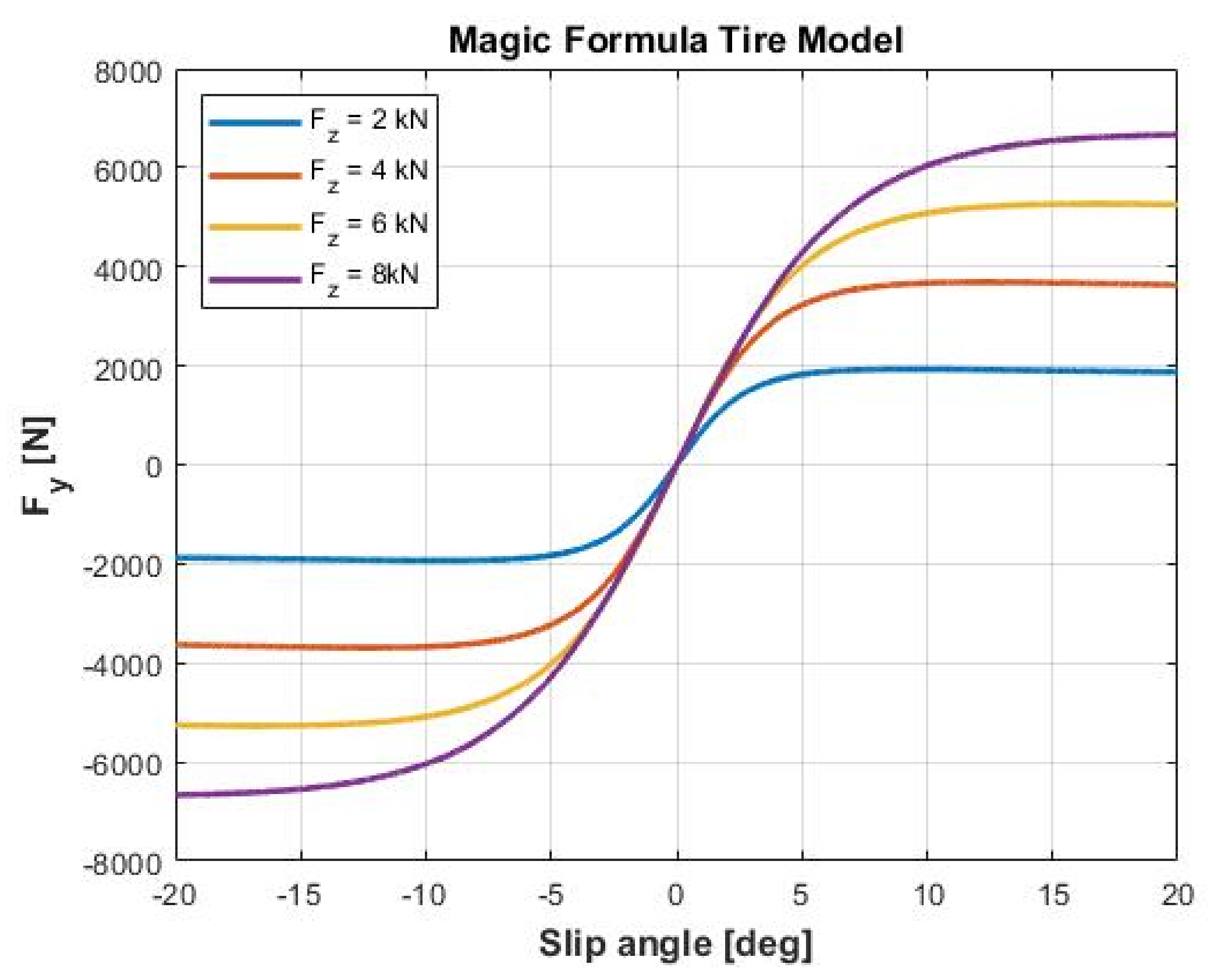

**Figure 4.**Generic tire lateral side slip angle vs. lateral force for different normal tire force cases.
