# Particle-Scale Modeling to Understand Liquid Distribution in Twin-Screw Wet Granulation

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Particle Scale Modeling Approach

#### 2.1. Particle Flow Model

#### 2.2. Liquid Bridge Model

#### Liquid Loading, Bridge Volume Fraction & Liquid Bridge Coordination Number

#### 2.3. Simulation Set-Up and Input Parameters

#### 2.3.1. Simple Periodic Simulation Box

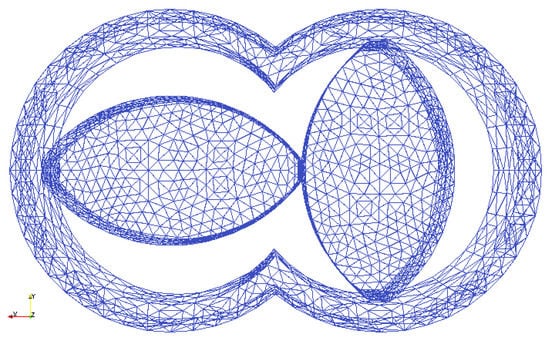

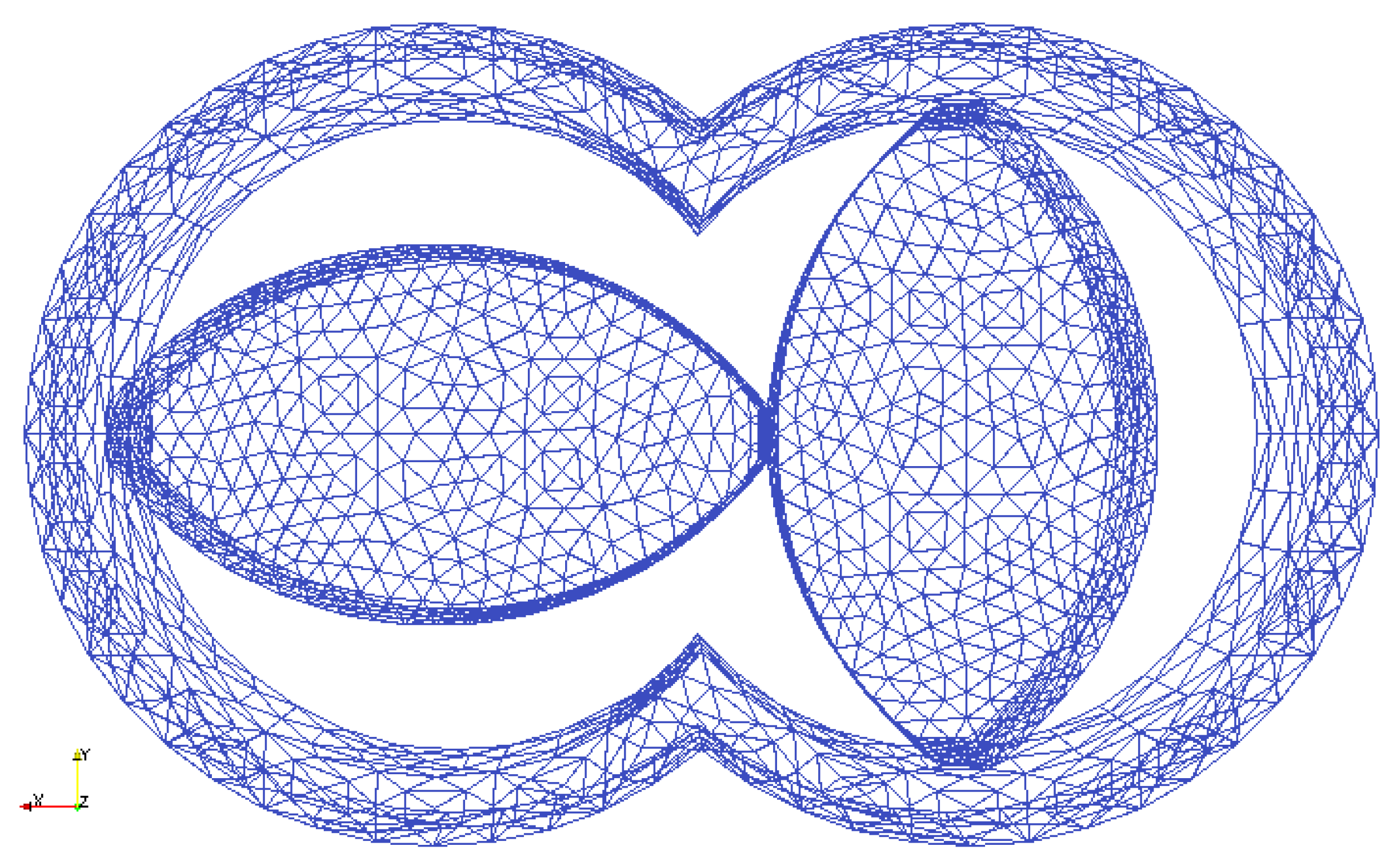

#### 2.3.2. Mixing Zone of a TSG

## 3. Results and Discussion

#### 3.1. Solid-Liquid Mixing in the Simple Periodic Simulation Box

#### 3.1.1. Effect of Change in Volume Fraction of Particles

#### 3.1.2. Effect of Change in Liquid Loading on Particles

#### 3.1.3. Effect of Change in Liquid Addition Zone Width

#### 3.2. Solid-Liquid Mixing in the Mixing Zone of a TSG

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Acknowledgments

## Conflicts of Interest

## Abbreviations

List of Acronyms | |

DEM | discrete element method. |

HSWG | high shear wet granulation. |

PBE | population balance equation. |

PBM | population balance model. |

TSG | twin-screw granulator. |

List of Symbols | |

${t}_{c}$ | Characteristic contact time $\left[\mathrm{s}\right]$. |

${c}_{f}$ | Dimensionless filling rate coefficient $[-]$. |

$\delta $ | Normal overlap between particles i and j [m]. |

${d}_{p}$ | Particle diameter $\left[\mathrm{m}\right]$. |

$\u03f5$ | Dimensionless reference film thickness $[-]$. |

${\eta}_{n}$ | Normal damping coefficient $[\mathrm{Ns}/\mathrm{m}]$. |

${e}_{n}$ | Normal coefficient of restitution $[-]$. |

${\eta}_{t}$ | Tangential damping coefficient $[\mathrm{Ns}/\mathrm{m}]$. |

${F}_{i}^{b}$ | body force of a particle i $\left[\mathrm{N}\right]$. |

${F}_{ij}^{coh}$ | Cohesion force between particle i and j $\left[\mathrm{N}\right]$. |

${F}_{ij}^{con}$ | Contact force between particle i and j $\left[\mathrm{N}\right]$. |

${\mathbf{F}}_{i}^{c,n}$ | Normal component of force acting on particle i $\left[\mathrm{N}\right]$. |

${\mathbf{F}}_{i}^{c,t}$ | Tangential component of force acting on particle i $\left[\mathrm{N}\right]$. |

$\gamma $ | Shear rate $[1/\mathrm{s}]$. |

${\gamma}^{*}$ | Scaled shear rate $[-]$. |

${h}_{0}$ | Dimensional reference film thickness [m]. |

${k}_{n}$ | Normal spring stiffness $[\mathrm{N}/\mathrm{m}]$. |

${k}_{t}$ | Tangential spring stiffness $[\mathrm{N}/\mathrm{m}]$. |

${L}_{p}$ | Volume of liquid present on the particle $\left(\right)$. |

${L}_{p,0}$ | Reference liquid content on the particles $[-]$. |

${m}_{\mathrm{eff}}$ | Effective mass of the particle [kg]. |

${\mu}_{l}$ | Dynamic viscosity of liquid $\left(\right)$. |

${n}_{b,i}$ | Number of liquid bridge connected to particle i $[-]$. |

${n}_{p}$ | Number of particles $[-]$. |

${n}_{p,liq}$ | Number of particles in the liquid addition region $[-]$. |

${\mathbf{n}}_{ij}$ | Unit normal vector $[-]$. |

$\omega $ | Eigen frequency of damped harmonic oscillator $[1/\mathrm{s}]$. |

$\varphi $ | Volume fraction of particles $[-]$. |

${\varphi}_{tr}$ | Fraction of liquid on the surface that is transferred into the bridge $[-]$. |

${Q}_{i}$ | Liquid addition rate to particle i in the liquid addition region $\left(\right)$. |

${Q}_{lod}$ | Dimensionless liquid load per particle $[-]$. |

${Q}_{tr}$ | Liquid transfer rate for particle $\left(\right)$. |

r | Radius of the particle $\left[\mathrm{m}\right]$. |

${\mathbf{r}}^{*}$ | Position vector of the particle $\left[\mathrm{m}\right]$. |

${r}_{\mathrm{eff}}$ | Effective radius of the particle $\left[\mathrm{m}\right]$. |

${\rho}_{p}$ | Density of the particles $\left(\right)$. |

${\sigma}_{l}$ | Surface tension of liquid $[\mathrm{N}/\mathrm{m}]$. |

${t}_{\mathrm{exp}}$ | Liquid addition time $\left[\mathrm{s}\right]$. |

${t}_{\mathrm{ref}}$ | Reference liquid bridge filling time [s]. |

${\mathbf{u}}_{ij}^{t}$ | Tangential overlap between particles i and j $\left[\mathrm{m}\right]$. |

${V}_{b}$ | Liquid bridge volume $\left(\right)$. |

${V}_{bf}$ | Liquid bridge fraction $[-]$. |

${\mathbf{v}}_{ij}^{n}$ | Normal relative particle velocity components $[\mathrm{m}/\mathrm{s}]$. |

${\mathbf{v}}_{ij}^{t}$ | Tangential relative particle velocity components $[\mathrm{m}/\mathrm{s}]$. |

${\overline{Z}}_{b}$ | Average number of liquid bridges per particle $[-]$. |

## References

- Kumar, A.; Gernaey, K.V.; De Beer, T.; Nopens, I. Model-based analysis of high shear wet granulation from batch to continuous processes in pharmaceutical production—A critical review. Eur. J. Pharm. Biopharm.
**2013**, 85, 814–832. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Kumar, A.; Gernaey, K.V.; De Beer, T.; Nopens, I. Model-based characterisation of twin-screw granulation system for continuous solid dosage manufacturing. Comput. Aided Chem. Eng.
**2015**, 37, 2165–2170. [Google Scholar] - Barrasso, D.; Eppinger, T.; Pereira, F.E.; Aglave, R.; Debus, K.; Bermingham, S.K.; Ramachandran, R. A multi-scale, mechanistic model of a wet granulation process using a novel bi-directional PBM-DEM coupling algorithm. Chem. Eng. Sci.
**2015**, 123, 500–513. [Google Scholar] [CrossRef] - Lian, G.P.; Thornton, C.; Adams, M.J. Discrete particle simulation of agglomerate impact coalescence. Chem. Eng. Sci.
**1998**, 53, 3381–3391. [Google Scholar] [CrossRef] - McCarthy, J. Micro-modeling of cohesive mixing processes. Powder Technol.
**2003**, 138, 63–67. [Google Scholar] [CrossRef] - Sen, M.; Singh, R.; Vanarase, A.; John, J.; Ramachandran, R. Multi-dimensional population balance modeling and experimental validation of continuous powder mixing processes. Chem. Eng. Sci.
**2012**, 80, 349–360. [Google Scholar] [CrossRef] - Barrasso, D.; Hagrasy, A.E.; Litster, J.D.; Ramachandran, R. Multi-dimensional population balance model development and validation for a twin screw granulation process. Powder Technol.
**2015**, 270, 612–621. [Google Scholar] [CrossRef] - Sarkar, A.; Wassgren, C.R. Simulation of a continuous granular mixer: Effect of operating conditions on flow and mixing. Chem. Eng. Sci.
**2009**, 64, 2672–2682. [Google Scholar] [CrossRef] - Gantt, J.A.; Cameron, I.T.; Litster, J.D.; Gatzke, E.P. Determination of coalescence kernels for high-shear granulation using DEM simulations. Powder Technol.
**2006**, 170, 53–63. [Google Scholar] [CrossRef] - Goldschmidt, M.J.V.; Weijers, G.G.C.; Boerefijn, R.; Kuipers, J.A.M. Discrete element modelling of fluidised bed spray granulation. Powder Technol.
**2003**, 138, 39–45. [Google Scholar] [CrossRef] [Green Version] - Bouffard, J.; Bertrand, F.; Chaouki, J. A multiscale model for the simulation of granulation in rotor-based equipment. Chem. Eng. Sci.
**2012**, 81, 106–117. [Google Scholar] [CrossRef] - Reinhold, A.; Briesen, H. Numerical behavior of a multiscale aggregation models—Coupling population balances and discrete element models. Chem. Eng. Sci.
**2012**, 70, 165–175. [Google Scholar] [CrossRef] - Dhenge, R.M.; Washino, K.; Cartwright, J.J.; Hounslow, M.J.; Salman, A.D. Twin screw granulation using conveying screws: Effects of viscosity of granulation liquids and flow of powders. Powder Technol.
**2013**, 238, 77–90. [Google Scholar] [CrossRef] - Zheng, C.; Zhang, L.; Govender, N.; Wu, C.Y. DEM analysis of residence time distribution during twin screw granulation. Powder Technol.
**2021**, 377, 924–938. [Google Scholar] [CrossRef] - Vercruysse, J.; Toiviainen, M.; Fonteyne, M.; Helkimo, N.; Ketolainen, J.; Juuti, M.; Delaet, U.; Assche, I.V.; Remon, J.P.; Vervaet, C.; et al. Visualization and understanding of the granulation liquid mixing and distribution during continuous twin screw granulation using NIR chemical imaging. Eur. J. Pharm. Biopharm.
**2013**, 86, 383–392. [Google Scholar] [CrossRef] [PubMed] - Tamrakar, A.; Chen, S.W.; Ramachandran, R. A DEM model-based study to quantitatively compare the effect of wet and dry binder addition in high-shear wet granulation processes. Chem. Eng. Res. Des.
**2019**, 142, 307–326. [Google Scholar] [CrossRef] - Kumar, A.; Alakarjula, M.; Vanhoorne, V.; Toiviainen, M.; De Leersnyder, F.; Vercruysse, J.; Juuti, M.; Ketolainen, J.; Vervaet, C.; Remon, J.P.; et al. Linking granulation performance with residence time and granulation liquid distributions in twin-screw granulation: An experimental investigation. Eur. J. Pharm. Sci.
**2016**, 90, 25–37. [Google Scholar] [CrossRef] - Kloss, C.; Goniva, C.; Hager, A.; Amberger, S.; Pirker, S. Models, algorithms and validation for opensource DEM and CFD–DEM. Prog. Comput. Fluid Dyn. Int. J.
**2012**, 12, 140–152. [Google Scholar] [CrossRef] - Litster, J.; Ennis, B. The Science and Engineering of Granulation Processes; Springer: Berlin, Germany, 2004; Volume 15. [Google Scholar]
- Mikami, T.; Kamiya, H.; Horio, M. Numerical simulation of cohesive powder behavior in a fluidized bed. Chem. Eng. Sci.
**1998**, 53, 1927–1940. [Google Scholar] [CrossRef] - Mohan, B.; Kloss, C.; Khinast, J.; Radl, S. Regimes of liquid transport through sheared beds of inertial smooth particles. Powder Technol.
**2014**, 264, 377–395. [Google Scholar] [CrossRef] - Lees, A.; Edwards, S. The computer study of transport processes under extreme conditions. J. Phys. C
**1972**, 5, 1921. [Google Scholar] [CrossRef] - Chialvo, S.; Sun, J.; Sundaresan, S. Bridging the rheology of granular flows in three regimes. Phys. Rev. E
**2012**, 85, 021305. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Perkins, M.; Ebbens, S.J.; Hayes, S.; Roberts, C.J.; Madden, C.E.; Luk, S.Y.; Patel, N. Elastic modulus measurements from individual lactose particles using atomic force microscopy. Int. J. Pharm.
**2007**, 332, 168–175. [Google Scholar] [CrossRef] [PubMed] - LIGGGHTS v3.X Documentation—Gran Model Hooke Model. Available online: https://www.cfdem.com/media/DEM/docu/gran_model_hooke.html (accessed on 19 June 2021).

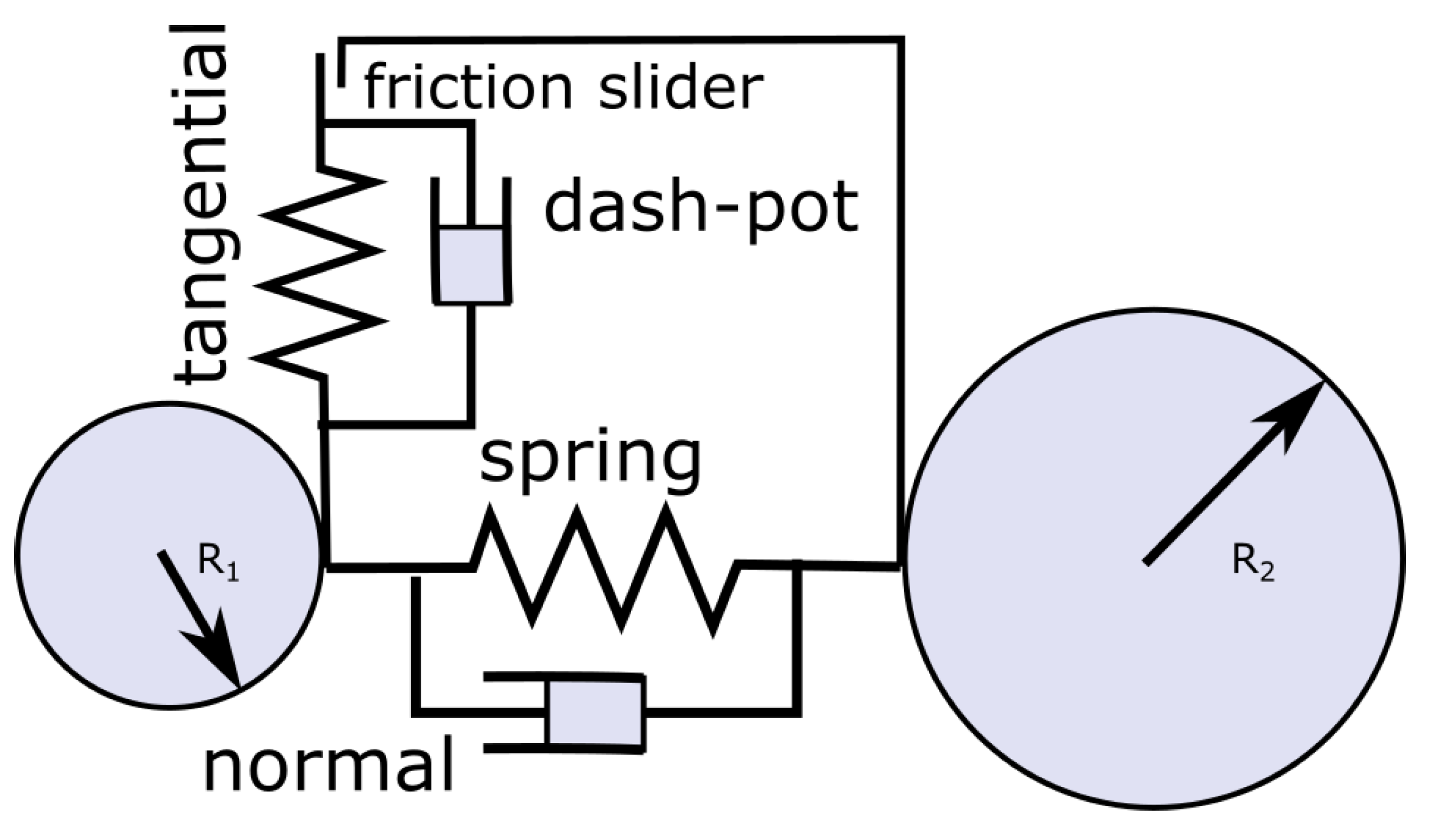

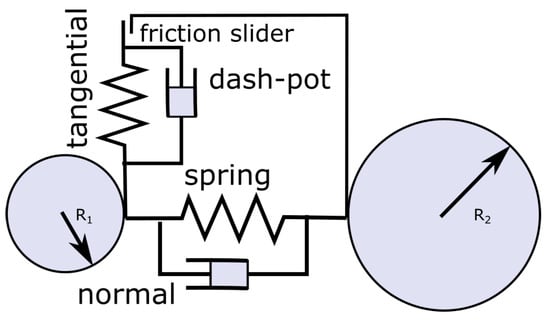

**Figure 1.**Representation of normal and tangential contact forces using a spring, dash-pot and slider approach.

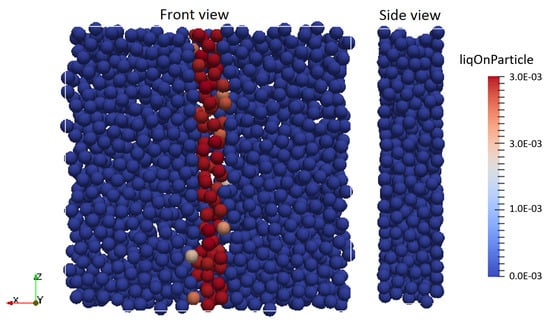

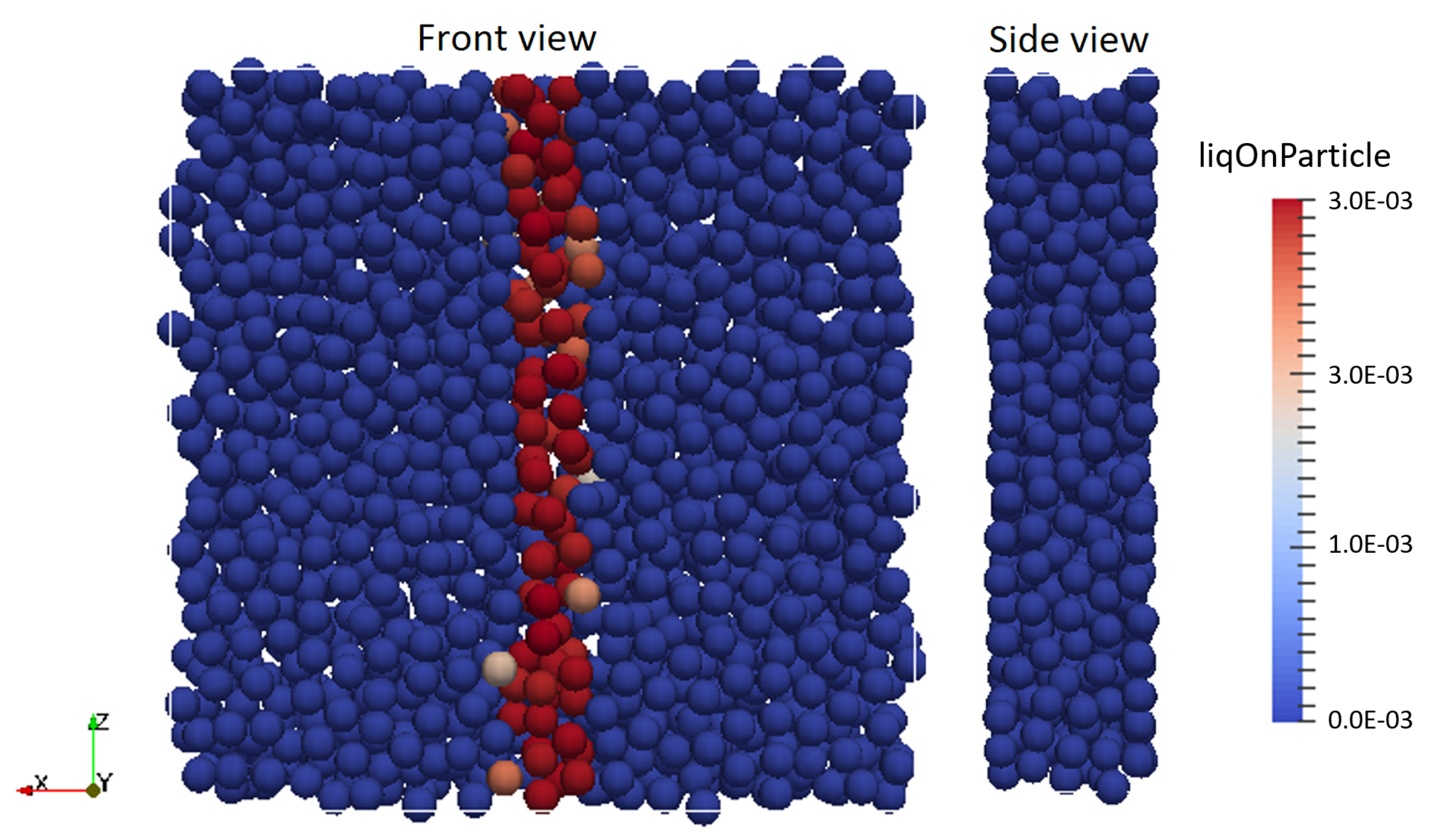

**Figure 2.**Shear box initial condition, front and side views. The red coloured particles indicate the liquid addition region (i.e., the wetting zone).

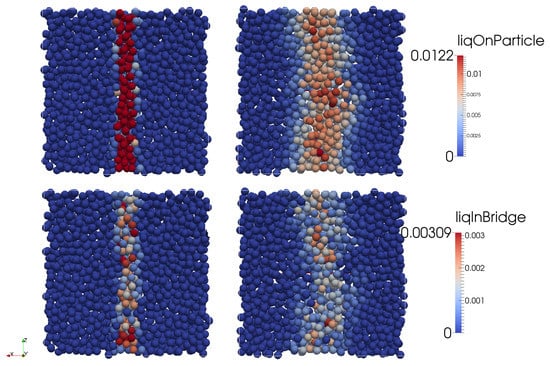

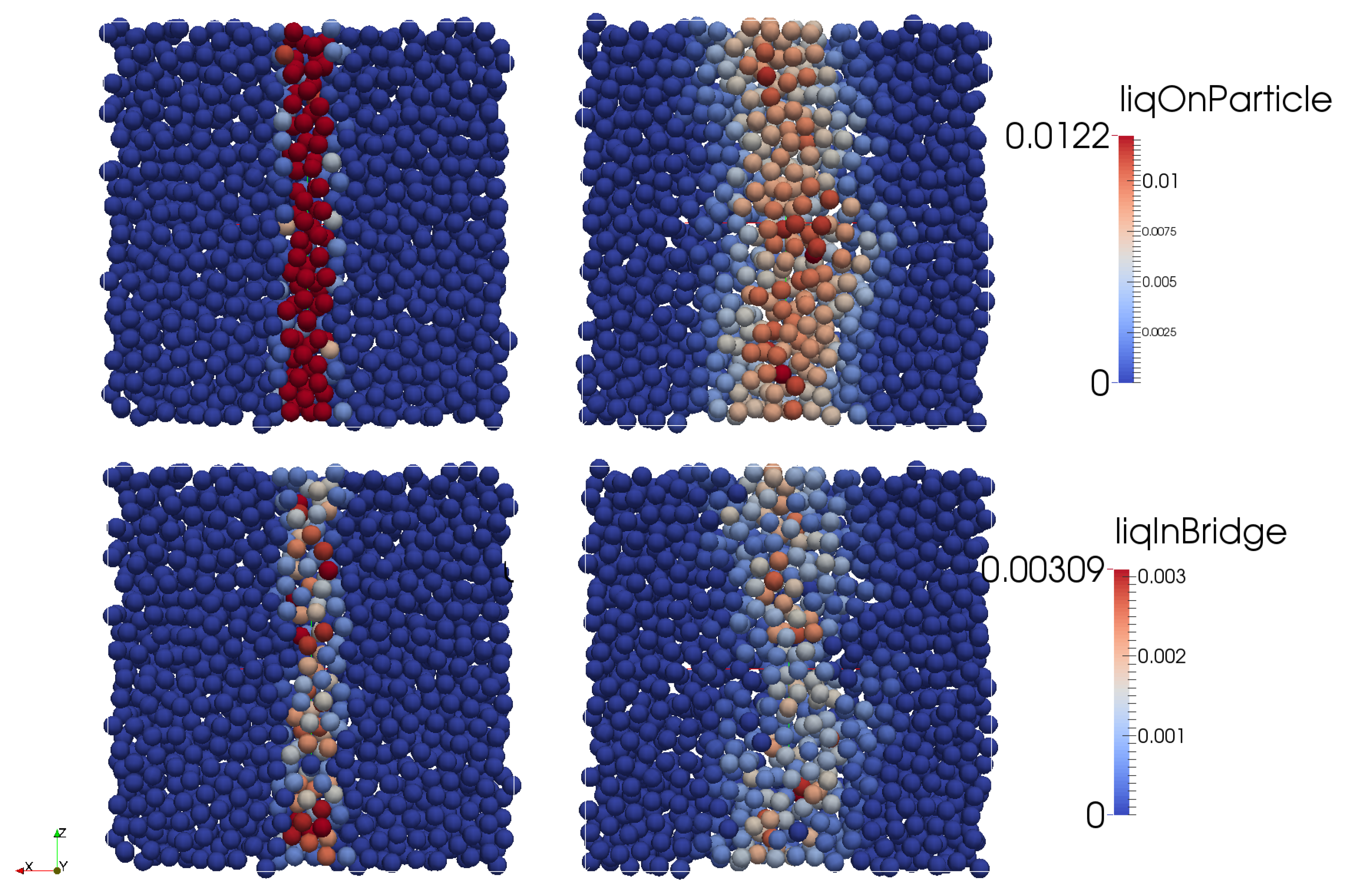

**Figure 4.**Transfer of liquid from particle surface (

**top left**) to other particles by convective transport (

**top right**) and transfer of liquid from particle surface to liquid bridges between particles by conductive transport before (

**bottom left**) and after shearing (

**bottom right**).

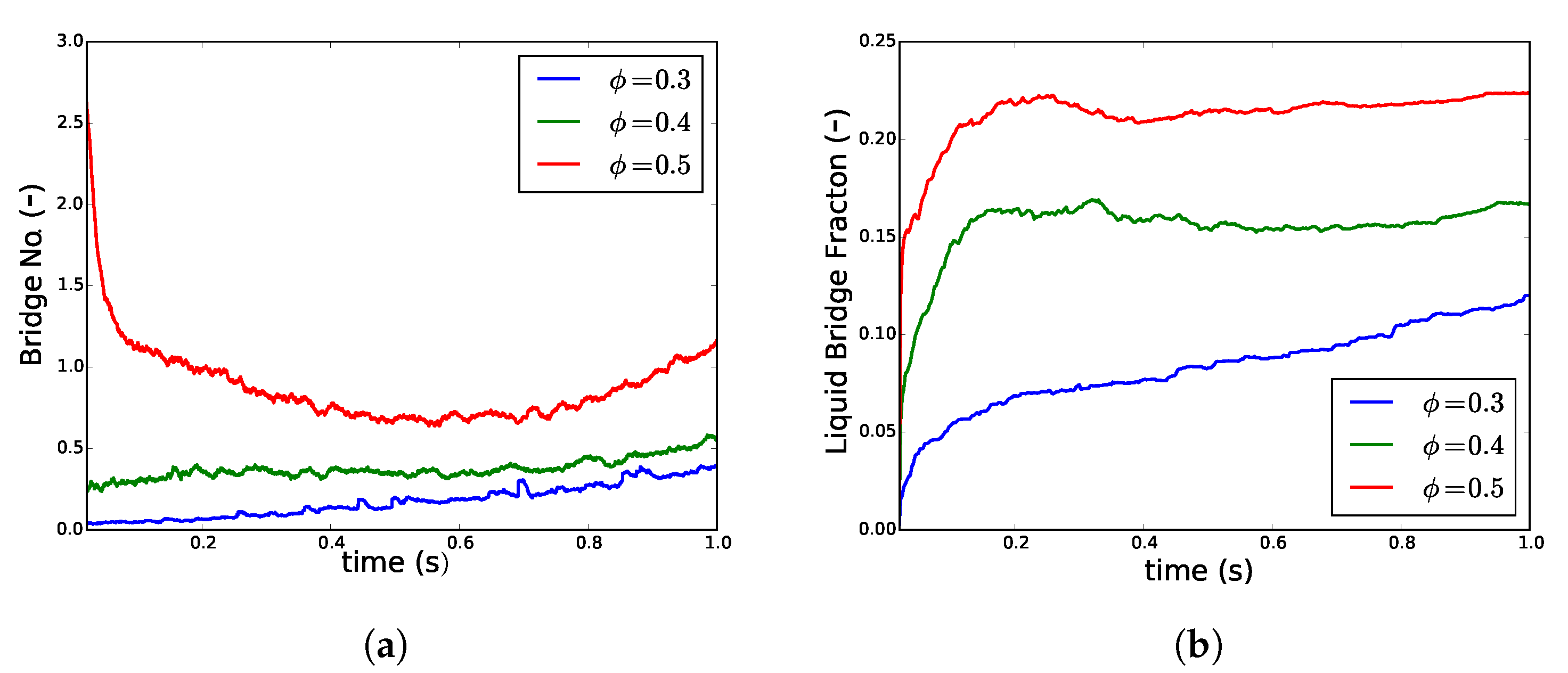

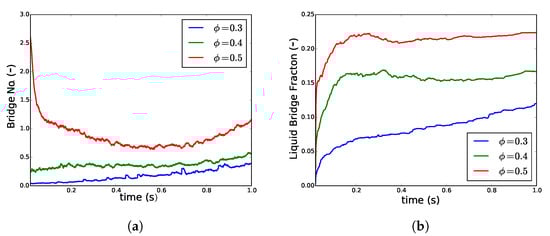

**Figure 5.**Changes in (

**a**) average number of liquid bridges per particle ${\overline{Z}}_{b}$ and (

**b**) the volume fraction of liquid in bridges ${V}_{bf}$ when the particle volume fraction $\varphi $ was increased from 0.3 to 0.5 for liquid loading of 7.5 × 10

^{−4}.

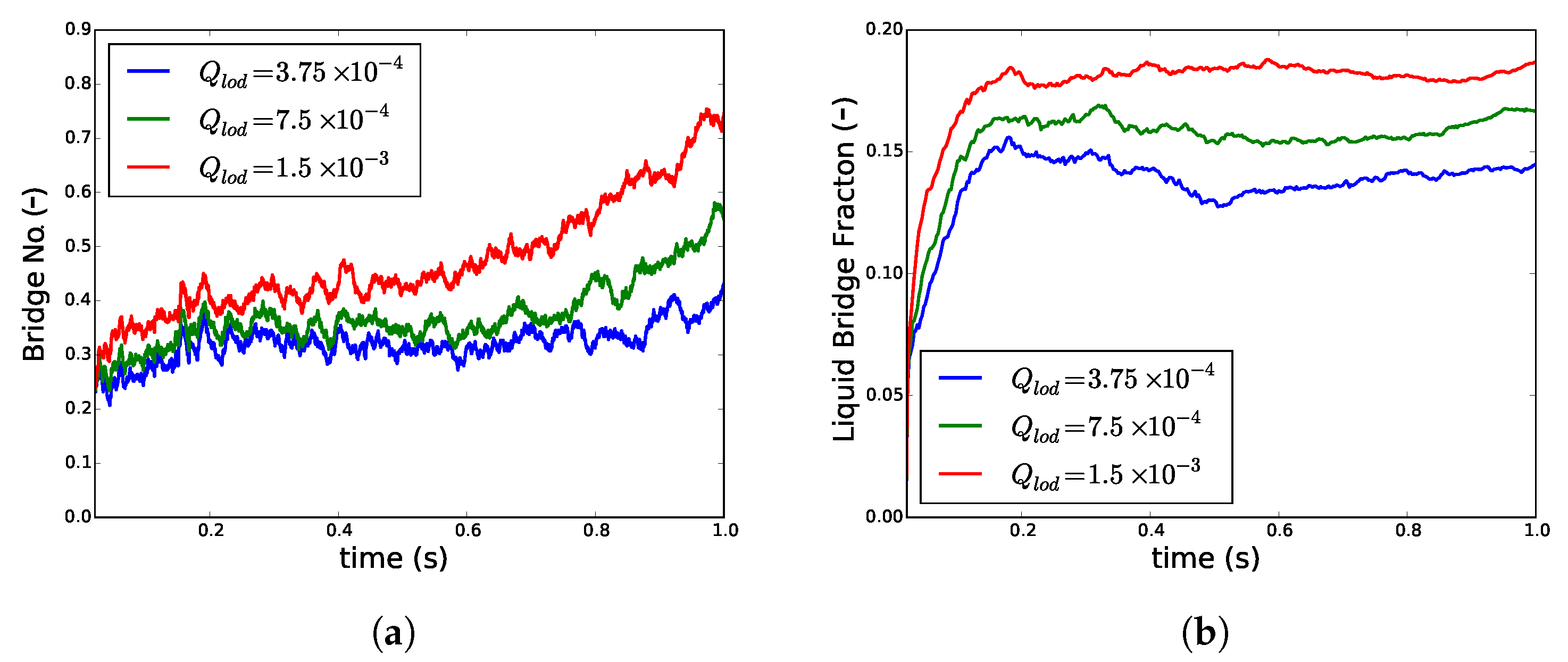

**Figure 6.**Changes in (

**a**) average number of liquid bridges per particle ${\overline{Z}}_{b}$ and (

**b**) volume fraction of liquid in bridges V

_{bf}when the liquid loading on particles Q

_{lod}was increased at particle volume fraction ϕ of 0.4.

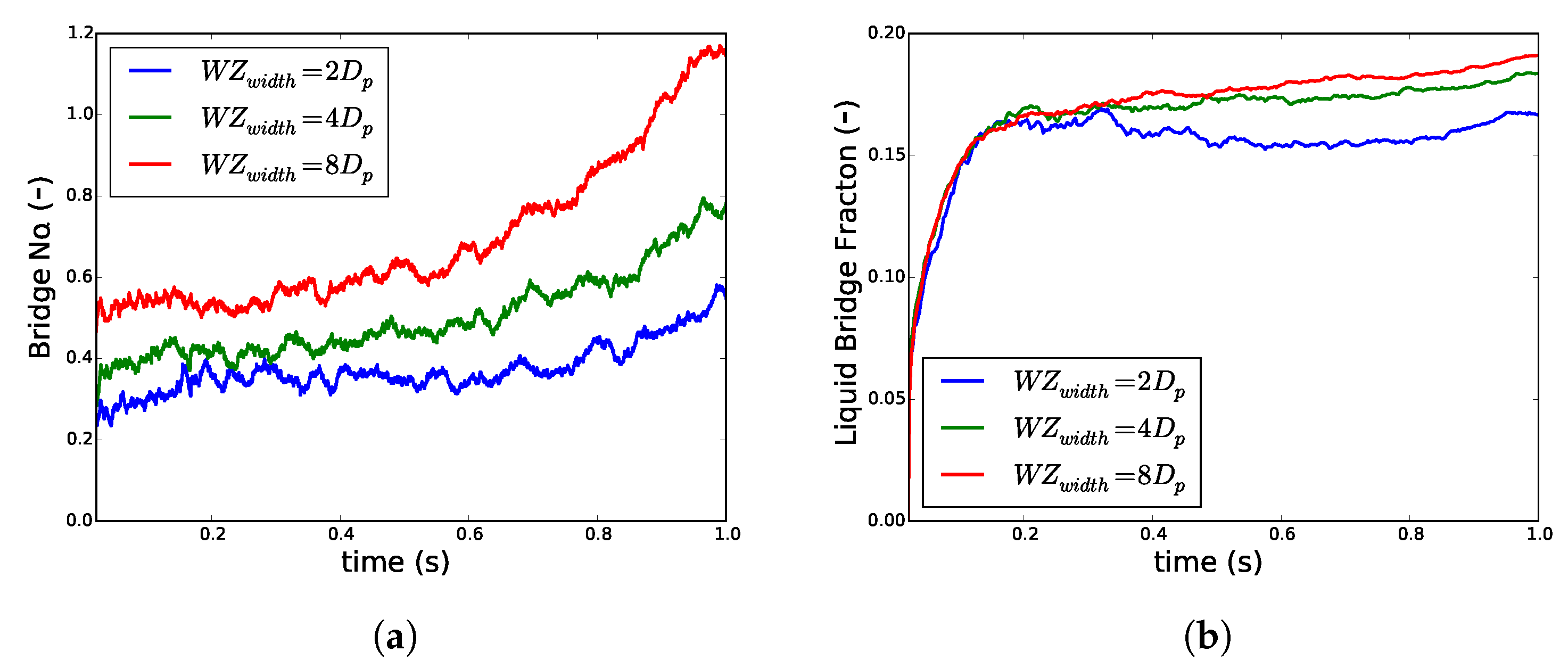

**Figure 7.**Changes in (

**a**) average number of liquid bridges per particle ${\overline{Z}}_{b}$ and (

**b**) volume fraction of liquid in bridges V

_{bf}when the wetting zone width WZ

_{width}was increased, keeping the flux of liquid addition constant and particle volume fraction ϕ of 0.4.

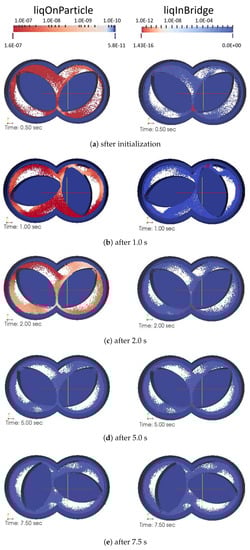

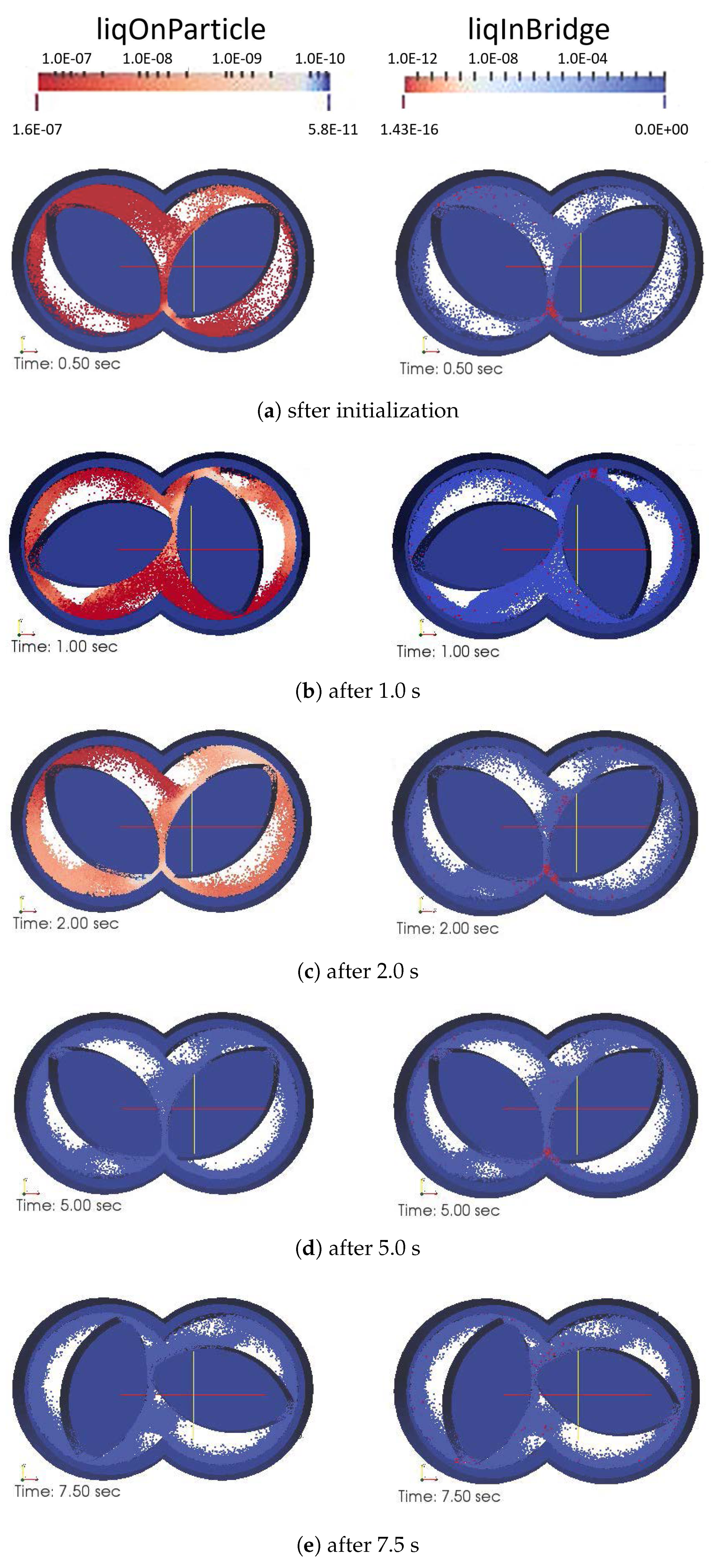

**Figure 8.**Changes in volume of liquid on particle surface (left side snapshot in each sub-plot) and liquid in bridges (right side snapshot in each sub-plot) when two kneading discs were co-rotating at 100 rpm. The plots below every snapshot indicate the volume of liquid on particle and volume of liquid in bridge for each particle in the system.

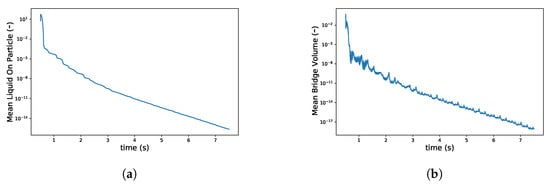

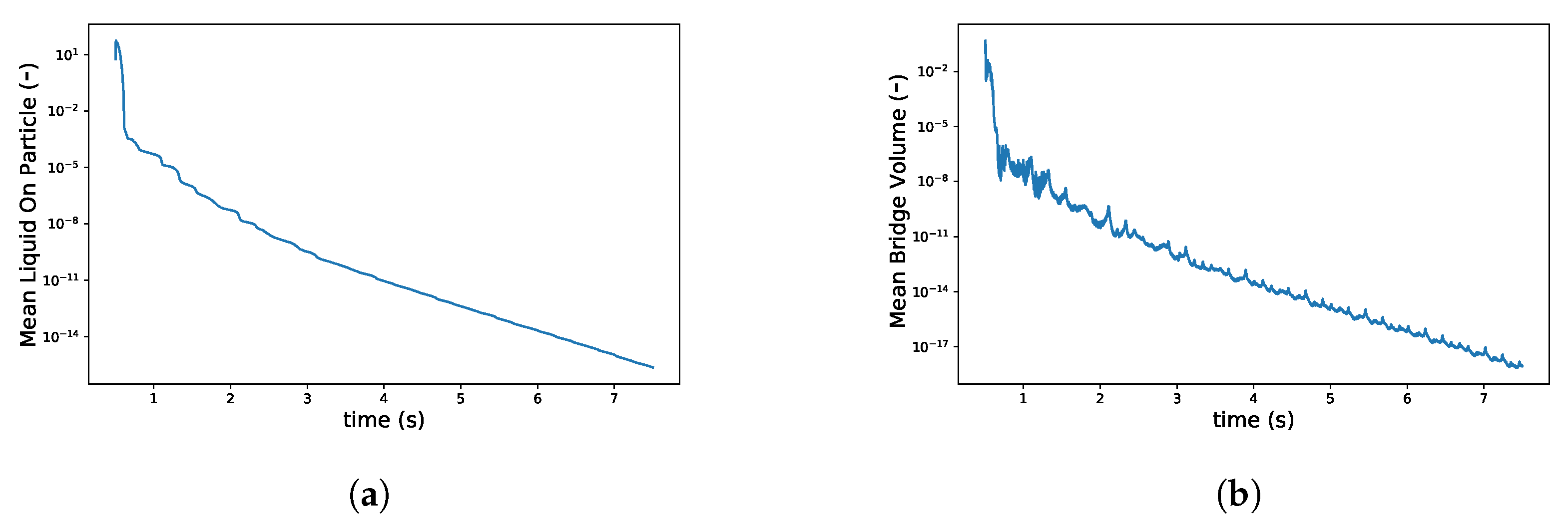

**Figure 9.**Changes in (

**a**) volume of liquid on particle surface and (

**b**) liquid in bridges when two kneading discs were co-rotating at 100 rpm.

Quantity | Symbol | Value | Unit |
---|---|---|---|

Particle diameter | ${d}_{p}$ | 1.00E-03 | [m] |

Young’s modulus | G | 3.45E+9 | [N/m^{2}] |

Initial particle velocity | ${v}_{x}$, ${v}_{y}$ | 1, 0.1 | [m/s] |

Coefficient of restitution | ${e}_{n}$ | 0.9 | [–] |

Coefficient of friction | µ | 0.1 | [–] |

Poisson ratio | $\nu $ | 0.33 | [–] |

Film thickness | ${h}_{0}$/${r}_{\mathrm{eff}}$ | 1.00E-02 | [–] |

Dimensionless filling rate coefficient | ${c}_{f}$ | 1 | [–] |
