Large Volume Direct Injection Ultra-High Performance Liquid Chromatography–Tandem Mass Spectrometry-Based Comparative Pharmacokinetic Study between Single and Combinatory Uses of Carthamus tinctorius Extract and Notoginseng Total Saponins
Abstract
1. Introduction
2. Materials and Methods
2.1. Plant Materials
2.2. Animals and Rat Liver Microsomes
2.3. Plasma Pharmacokinetic Studies
2.4. Incubation Procedure and CYP450 Activity Assay
2.5. LVDI-UHPLC-MS/MS Analysis
2.6. Method Validations
2.7. Data Processing
3. Results

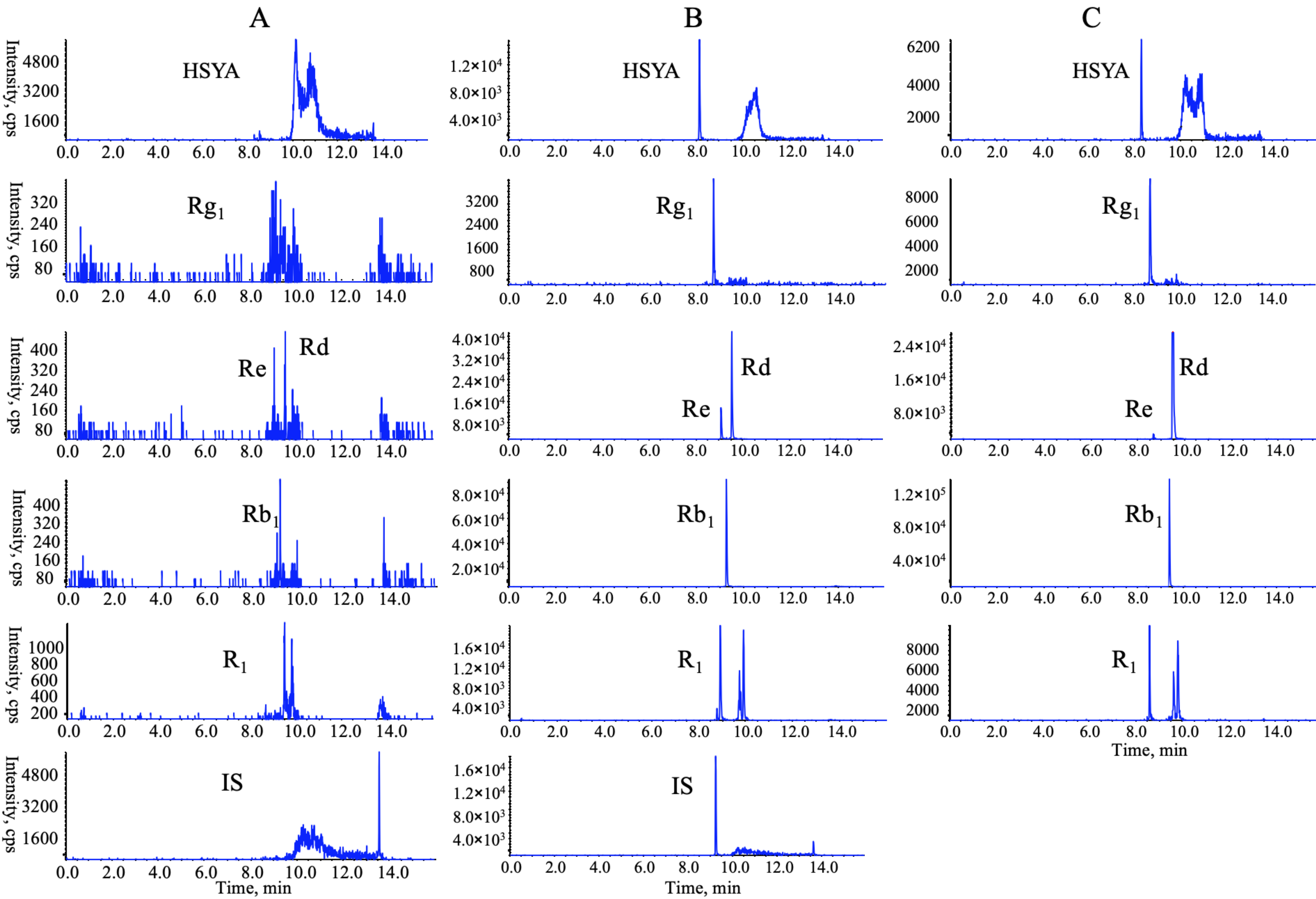

3.1. Injection Solvent Optimization

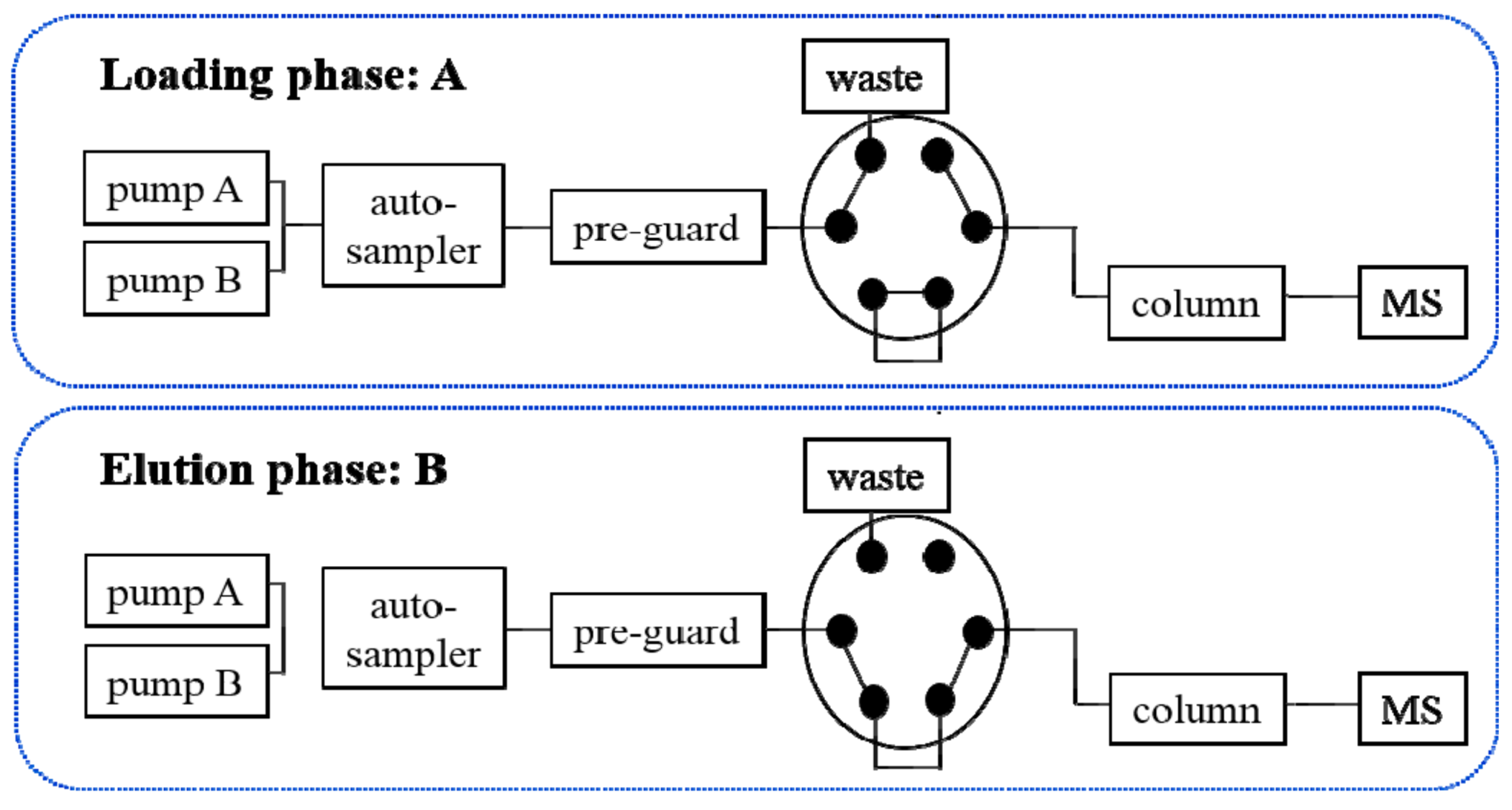

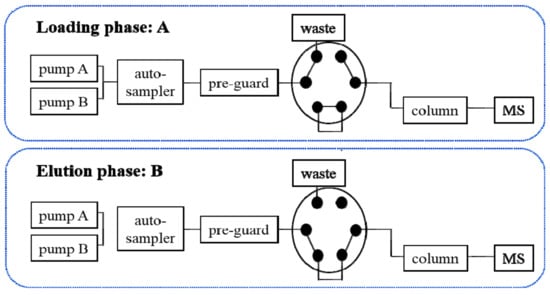

3.2. Optimization of the Loading Phase for the LVDI-UHPLC-MS/MS-Based Method

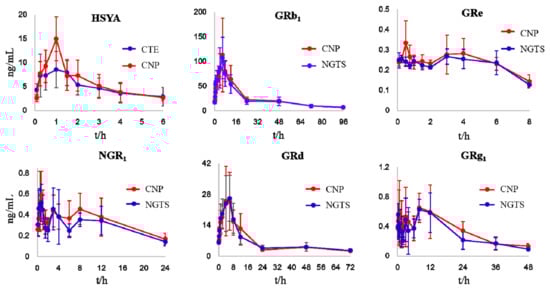

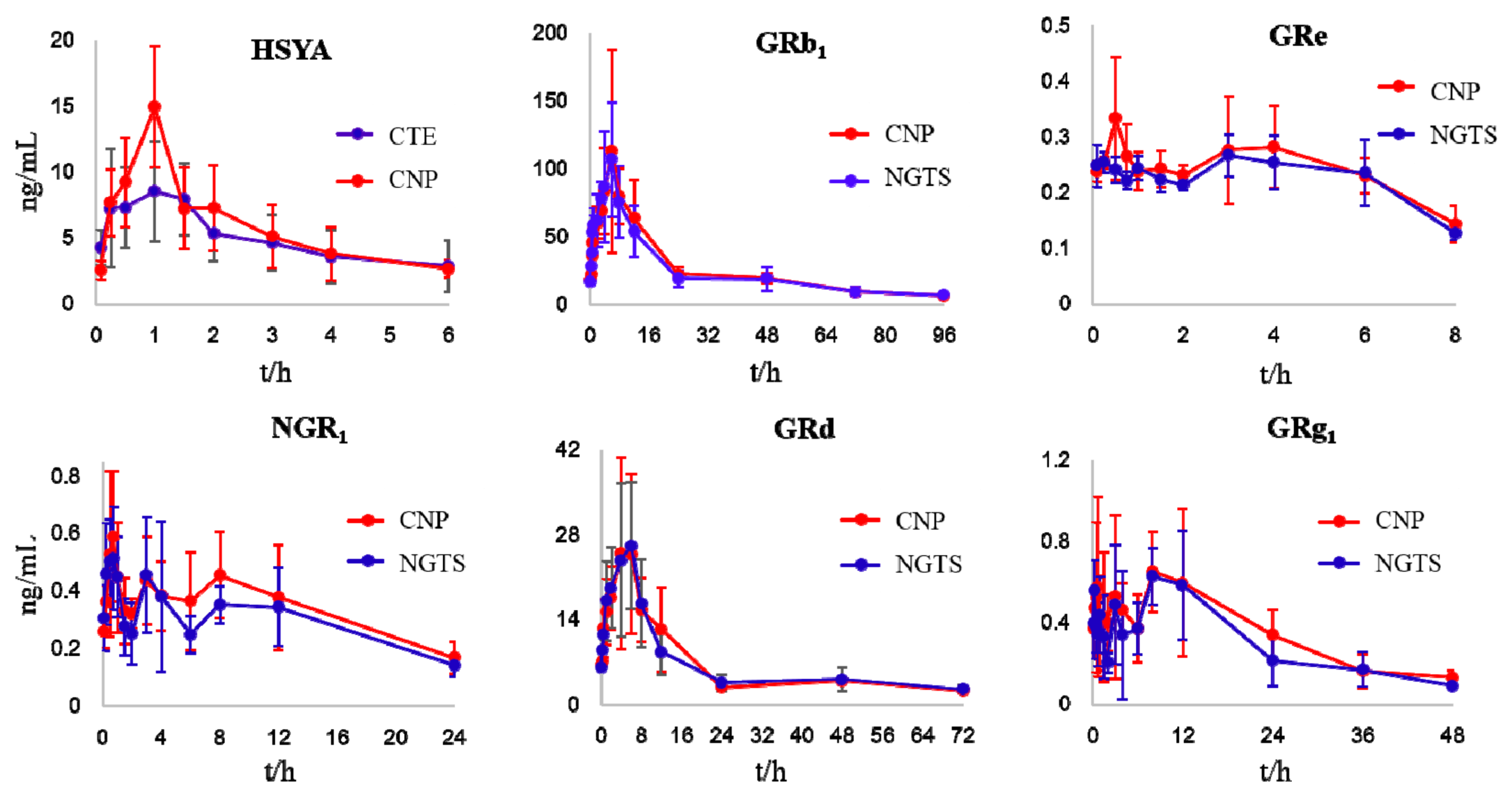

3.3. Comparative Multiple-Component PK Studies

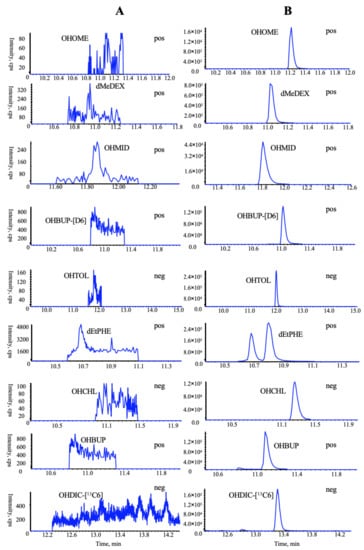

3.4. CYP450-Mediated Herb–Herb Interactions
3.5. Discussion
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Conflicts of Interest
References
- Han, S.Y.; Li, H.X.; Ma, X.; Zhang, K.; Ma, Z.Z.; Jiang, Y.; Tu, P.F. Evaluation of the anti-myocardial ischemia effect of individual and combined extracts of Panax notoginseng and Carthamus tinctorius in rats. J. Ethnopharmacol. 2013, 145, 722–727. [Google Scholar] [CrossRef] [PubMed]
- Meng, Y.; Du, Z.; Li, Y.; Wang, L.; Gao, P.; Gao, X.; Li, C.; Zhao, M.; Jiang, Y.; Tu, P.; et al. Integration of metabolomics with pharmacodynamics to elucidate the anti-myocardial ischemia effects of combination of notoginseng total saponins and safflower total flavonoids. Front. Pharmacol. 2018, 9, 667. [Google Scholar] [CrossRef] [PubMed]
- Han, S.Y.; Li, H.X.; Bai, C.C.; Wang, L.; Tu, P.F. Component analysis and free radical-scavenging potential of Panax notoginseng and Carthamus tinctorius extracts. Chem. Biodivers. 2010, 7, 383–391. [Google Scholar] [CrossRef] [PubMed]
- Zhou, D.; Andersson, T.B.; Grimm, S.W. In vitro evaluation of potential drug-drug interactions with ticagrelor: Cytochrome P450 reaction phenotyping, inhibition, induction, and differential kinetics. Drug Metab. Dispos. 2011, 39, 703–710. [Google Scholar] [CrossRef] [PubMed]
- Dong, L.C.; Fan, Y.X.; Yu, Q.; Ma, J.; Dong, X.; Li, P.; Li, H.J. Synergistic effects of rhubarb-gardenia herb pair in cholestatic rats at pharmacodynamic and pharmacokinetic levels. J. Ethnopharmacol. 2015, 175, 67–74. [Google Scholar] [CrossRef] [PubMed]
- Wang, L.; Zhang, D.; Raghavan, N.; Yao, M.; Ma, L.; Frost, C.E.; Maxwell, B.D.; Chen, S.Y.; He, K.; Goosen, T.C.; et al. In vitro assessment of metabolic drug-drug interaction potential of apixaban through cytochrome P450 phenotyping, inhibition, and induction studies. Drug Metab. Dispos. 2010, 38, 448–458. [Google Scholar] [CrossRef] [PubMed]
- Spaggiari, D.; Geiser, L.; Daali, Y.; Rudaz, S. A cocktail approach for assessing the in vitro activity of human cytochrome P450s: An overview of current methodologies. J. Pharm. Biomed. Anal. 2014, 101, 221–237. [Google Scholar] [CrossRef] [PubMed]
- Pharmacopoeia Committee. Pharmacopoeia of the Peoples’s Republic of China; Part 1; Medical Science and Technology Press: Beijing, China, 2015; pp. 393–394. [Google Scholar]
- Chen, J.; Guo, X.; Song, Y.; Zhao, M.; Tu, P.; Jiang, Y. MRM-based strategy for the homolog-focused detection of minor ginsenosides from notoginseng total saponins by ultra-performance liquid chromatography coupled with hybrid triple quadrupole-linear ion trap mass spectrometry. RSC Adv. 2016, 6, 96376–96388. [Google Scholar] [CrossRef]
- Chen, J.; Tu, P.; Jiang, Y. HPLC fingerprint-oriented preparative separation of major flavonoids from safflower extract by preparative pressurized liquid chromatography. J. Chin. Pharm. Sci. 2014, 23, 6. [Google Scholar] [CrossRef]
- Walsky, R.L.; Boldt, S.E. In vitro cytochrome P450 inhibition and induction. Curr. Drug Metab. 2008, 9, 928–939. [Google Scholar] [CrossRef] [PubMed]
- U.S. Food and Drug Administration. Bioanalytical Method Validation Guidance for Industry. 2018. Available online: https://www.fda.gov/regulatory-information/search-fda-guidance-documents/bioanalytical-method-validation-guidance-industry (accessed on 18 February 2020).
- Tsimidou, M.; Macrae, R. Reversed-phase chromatography of triglycerides-theoretical and practical aspects of the influence of injection solvents. J. Chromatogr. Sci. 1985, 23, 155–160. [Google Scholar] [CrossRef] [PubMed]
- U.S. Food and Drug Administration. Clinical Drug Interaction Studies-Study Design, Data Analysis, and Clinical Implications Guidance for Industry. 2017. Available online: https://www.fda.gov/regulatory-information/search-fda-guidance-documents/clinical-drug-interaction-studies-cytochrome-p450-enzyme-and-transporter-mediated-drug-interactions (accessed on 18 February 2020).
- Chen, J.F.; Song, Y.L.; Guo, X.Y.; Tu, P.F.; Jiang, Y. Characterization of the herb-derived components in rats following oral administration of Carthamus tinctorius extract by extracting diagnostic fragment ions (DFIs) in the MS(n) chromatograms. Analyst 2014, 139, 6474–6485. [Google Scholar] [CrossRef] [PubMed]
- Liu, H.; Yang, J.; Du, F.; Gao, X.; Ma, X.; Huang, Y.; Xu, F.; Niu, W.; Wang, F.; Mao, Y.; et al. Absorption and disposition of ginsenosides after oral administration of Panax notoginseng extract to rats. Drug Metab. Dispos. 2009, 37, 2290–2298. [Google Scholar] [CrossRef] [PubMed]
- Hu, Z.; Yang, J.; Cheng, C.; Huang, Y.; Du, F.; Wang, F.; Niu, W.; Xu, F.; Jiang, R.; Gao, X.; et al. Combinatorial metabolism notably affects human systemic exposure to ginsenosides from orally administered extract of Panax notoginseng roots (Sanqi). Drug Metab. Dispos. 2013, 41, 1457–1469. [Google Scholar] [CrossRef] [PubMed]
- Ung, C.Y.; Li, H.; Cao, Z.W.; Li, Y.X.; Chen, Y.Z. Are herb-pairs of traditional Chinese medicine distinguishable from others? Pattern analysis and artificial intelligence classification study of traditionally defined herbal properties. J. Ethnopharmacol. 2007, 111, 371–377. [Google Scholar] [CrossRef] [PubMed]
- Song, Y.; Zhang, N.; Jiang, Y.; Li, J.; Zhao, Y.; Shi, S.; Tu, P. Simultaneous determination of aconite alkaloids and ginsenosides using online solid phase extraction hyphenated with polarity switching ultra-high performance liquid chromatography coupled with tandem mass spectrometry. RSC Adv. 2015, 5, 6419–6428. [Google Scholar] [CrossRef]
- Rendic, S.; Guengerich, F.P. Survey of human oxidoreductases and cytochrome p450 enzymes involved in the metabolism of xenobiotic and natural chemicals. Chem. Res. Toxicol. 2015, 28, 38–42. [Google Scholar] [CrossRef] [PubMed]
Analyte | Group | t1/2 (h) | Tmax (h) | Cmax (ng·mL−1) | AUC0–t (ng·h·mL−1) | AUC0–∞ (ng·h·mL−1) |
---|---|---|---|---|---|---|
HSYA | CTE | 2.01 ± 0.34 | 0.88 ± 0.54 | 12.16 ± 3.09 | 33.05 ± 10.70 | 33.85 ± 10.78 |
CNP | 1.68 ± 0.79 | 1.17 ± 0.41 | 15.17 ± 4.39 | 38.33 ± 8.42 | 38.94 ± 8.60 | |
NGR1 | NGTS | 10.53 ± 3.06 | 1.15 ± 1.06 | 0.64 ± 0.18 | 6.30 ± 2.41 | 8.14 ± 3.60 |
CNP | 12.36 ± 4.48 | 1.04 ± 0.97 | 0.79 ± 0.18 | 8.12 ± 1.53 | 11.49 ±3.54 | |
GRb1 | NGTS | 36.89 ± 9.65 | 5.50 ± 1.80 | 113.08 ± 41.78 | 2317.66 ± 682.70 | 2808.87 ± 617.99 |
CNP | 34.47 ± 8.45 | 6.33 ± 3.45 | 129.00 ± 65.97 | 2472.33 ± 394.72 | 2816.01 ± 563.44 | |
GRd | NGTS | 42.75 ± 8.84 * | 4.50 ± 1.76 | 29.43 ± 10.69 | 460.90 ± 117.22 | 618.90 ± 157.23 |
CNP | 27.79 ± 6.94 | 6.33 ± 3.44 | 31.07 ± 16.78 | 459.04 ± 51.04 | 549.18 ± 58.09 | |
GRg1 | NGTS | 11.68 ± 2.09 * | 4.71 ± 3.71 | 0.78 ± 0.13 | 13.99 ± 5.03 | 16.72 ± 3.93 |
CNP | 15.11 ± 8.89 | 5.38 ± 4.66 | 1.04 ± 0.34 | 16.69 ± 3.42 | 20.23 ± 3.35 | |
GRe | NGTS | 5.25 ± 2.27 | 2.60 ± 0.89* | 0.29 ± 0.04* | 1.82 ± 0.19 | 2.90 ± 0.60 |
CNP | 5.99 ± 3.86 | 0.80 ± 0.41 | 0.39 ± 0.08 | 1.93 ± 0.19 | 3.33 ± 1.13 |
No. | IC50 (µg·mL−1/μM) # | ||||||
---|---|---|---|---|---|---|---|
CYP2C9 | CYP2E1 | CYP2C19 | CYP2D6 | CYP2B6 | CYP1A2 | CYP3A4 | |
CNP | 21.66 ± 1.15 | 31.85 ± 4.15 | 62.95 ± 1.17 | 25.27 ± 0.25 | 52.19 ± 2.24 | 26.36 ± 6.98 | 91.77 ± 5.16 |
CTE | 183.30 ± 17.98 | 35.47 ± 2.98 | >200 | 126.17 ± 17.63 | 58.09 ± 13.41 | 138.60 ± 14.36 | >200 |
NGTS | 9.32 ± 0.56 | 16.12 ± 2.59 | 40.85 ± 6.98 | 12.23 ± 4.25 | 43.90 ± 7.91 | 60.68 ± 2.26 | 106.27 ± 14.00 |
GRg1 (A1) | 36.49 ± 1.32 | 34.08 ± 4.76 | 78.12 ± 5.25 | 55.73 ± 6.08 | 11.02 ± 0.87 | 13.09 ± 8.24 | 39.25 ± 4.57 |
GRb1 (A2) | 17.57 ± 2.03 | 27.96 ± 2.39 | 16.80 ± 2.52 | 17.06 ± 1.29 | 120.83 ± 10.89 | 5.84 ± 0.14 | 30.04 ± 2.47 |
GRd (A3) | 73.01 ± 3.71 | 43.46 ± 0.06 | 71.36 ± 14.28 | 64.81 ± 11.68 | >200 | 4.36 ± 2.31 | 61.43 ± 14.32 |
GRe (A4) | >200 | 25.59 ± 9.03 | 50.53 ± 15.39 | >200 | 39.40 ± 4.81 | 94.41 ± 4.52 | 75.11 ± 7.24 |
NGR1 (A5) | 154.47 ± 16.65 | 121.70 ± 8.96 | 107.59 ± 29.58 | 20.42 ± 3.45 | >200 | 112.07 ± 7.72 | 84.59 ± 1.79 |
A6 | 55.84 ± 3.40 | 40.76 ± 1.65 | 53.67 ± 0.22 | 19.46 ± 2.83 | 114.70 ± 3.04 | 52.77 ± 1.93 | 26.45 ± 1.39 |
A7 | 80.47 ± 1.05 | 13.59 ± 0.60 | 18.50 ± 1.60 | 31.02 ± 4.17 | 177.17 ± 4.21 | 153.27 ± 8.73 | 126.70 ± 4.24 |
A8 | 1.21 ± 0.51 | 9.06 ± 1.85 | 111.26 ± 21.57 | 10.54 ± 1.11 | >200 | >200 | 34.38 ± 9.16 |
A9 (HSYA) | 0.17 ± 0.02 | 0.73 ± 0.15 | 49.33 ± 3.28 | 0.14 ± 0.06 | >200 | >200 | 9.42 ± 2.26 |
A10 | 39.06 ± 0.09 | >200 | >200 | >200 | >200 | >200 | >200 |
A11 | 24.92 ± 4.96 | 5.45 ± 1.37 | >200 | 64.55 ± 7.71 | 17.33 ± 0.96 | 53.17 ± 6.12 | 16.18 ± 4.30 |
A12 | >200 | >200 | >200 | 98.56 ± 12.30 | >200 | >200 | >200 |
A13 | 93.00 ± 2.56 | 10.22 ± 0.65 | 48.91 ± 4.36 | 37.12 ± 8.85 | 21.02 ± 2.31 | 13.35 ± 2.27 | 58.52 ± 0.66 |
A14 | >200 | >200 | >200 | >200 | >200 | >200 | >200 |
A15 | >200 | >200 | >200 | >200 | >200 | 127.47 ± 6.55 | >200 |
A16 | 13.48 ± 2.41 | 20.29 ± 4.13 | 46.35 ± 7.05 | 31.11 ± 3.91 | 68.48 ± 9.88 | 41.22 ± 3.18 | 73.74 ± 13.64 |
A17 | 14.92 ± 4.24 | 32.46 ± 5.79 | 70.38 ± 1.18 | 59.17 ± 1.01 | >200 | 21.46 ± 4.50 | 117.00 ± 6.77 |
A18 | 2.13 ± 0.64 | 4.27 ± 1.30 | 1.79 ± 0.52 | 0.98 ± 0.38 | 4.42 ± 1.31 | 0.12 ± 0.01 | 2.48 ± 0.48 |
