Article

Secreted Expression of the Cap Gene of Porcine Circovirus Type 2 in Classical Swine Fever Virus C-Strain: Potential of C-Strain Used as a Vaccine Vector

1
State Key Laboratory of Veterinary Biotechnology, Harbin Veterinary Research Institute, Chinese Academy of Agricultural Sciences, Harbin 150069, China
2
Laoshan District Agriculture and Conservancy Bureau, Qingdao 266061, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Viruses 2017, 9(10), 298; https://doi.org/10.3390/v9100298
Submission received: 3 September 2017 / Revised: 10 October 2017 / Accepted: 13 October 2017 / Published: 16 October 2017
(This article belongs to the Section Viral Immunology, Vaccines, and Antivirals)

Abstract

:
Bivalent vaccines based on live attenuated viruses expressing a heterologous protein are an attractive strategy to address co-infections with various pathogens in the field. Considering the excellent efficacy and safety of the lapinized live attenuated vaccine C-strain (HCLV strain) of classical swine fever virus (CSFV), we proposed that C-strain has the potential as a viral vector for developing bivalent vaccines. To this end, we generated three recombinant viruses based on C-strain, one expressing the capsid (Cap) gene of porcine circovirus type 2 (PCV2) with the nuclear localization signal (NLS) (rHCLV-2ACap), and the other two expressing the PCV2 Cap gene without the NLS yet containing the signal peptide of the prolactin gene (rHCLV-pspCap) or that of the ubiquitin-specific peptidase gene (rHCLV-uspCap). All the recombinant viruses exhibited phenotypes similar to those of the parental virus and produced high-level anti-CSFV neutralizing antibodies (NAbs) in rabbits. Interestingly, rHCLV-uspCap and rHCLV-pspCap, but not rHCLV-2ACap, elicited detectable anti-Cap and -PCV2 NAbs in rabbits. Taken together, our data demonstrate that C-strain can be used as a viral vector to develop bivalent vaccines.

1. Introduction

Classical swine fever (CSF) is often a devastating viral disease in pigs, leading to significant economic losses to the pig industry in many countries. The disease is characterized by fever, high mortality, immunosuppression, and reproduction failure in pigs [1]. CSF is caused by classical swine fever virus (CSFV), which belongs to the genus Pestivirus of the family Flaviviridae, including bovine viral diarrhea virus (BVDV), border disease virus (BDV), and other members. CSFV contains a single-stranded, positive-sense RNA genome, which possesses a 5′-untranslated region (UTR), a single large open reading frame (ORF), and a 3′-UTR. The ORF encodes a precursor polyprotein, upon proteolytic processing, giving rise to four structural proteins (C, Erns, E1, and E2) and eight nonstructural proteins (Npro, p7, NS2, NS3, NS4A, NS4B, NS5A, and NS5B) [2,3].
Porcine circovirus type 2 (PCV2) has emerged as one of the most devastating viral diseases of pigs. Since the first description at the beginning of the 20th century, PCV2 has been divided into five genotypes, PCV2a, PCV2b, PCV2c, PCV2d, and PCV2e, and the population sizes of the individual genotypes of PCV2 have been changing over time [4,5,6]. PCV2 belongs to the genus Circovirus of the family Circoviridae and is the primary causative agent of porcine circovirus-associated disease (PCVAD), which results in tremendous economic losses to the swine industry worldwide [7]. The characteristic symptoms of PCVAD are weight loss, enlarged lymph nodes and dyspnea [8]. The genome of PCV2 contains two major ORFs, one coding for the replicase protein and the other coding for the capsid (Cap) protein containing a nuclear localization signal (41 amino acids of the N-terminus) [9]. The Cap protein, as the major immunogenic protein of the virus, can provide complete protection against PCV2 infection [10].
Even though PCV2 infection leads to immune system dysregulation on its own [11], co-infections of PCV2 with other swine pathogens, such as CSFV, porcine reproductive and respiratory syndrome virus (PRRSV), and pseudorabies virus (PRV), usually result in a more severe disease syndrome [12,13]. Bivalent vaccines based on live attenuated viruses expressing the heterologous protein are an attractive strategy to address co-infections. Various bivalent vaccines have been developed [14,15,16,17]. For example, the bivalent vaccine rPRVTJ-delgE/gI/TK-E2 expressing the E2 protein of CSFV in the background of an attenuated PRV was safe and provided complete protection against lethal challenge with PRV and CSFV [16].
C-strain, also called HCLV strain, was developed through hundreds of passages of a highly virulent CSFV in rabbits in China [18,19]. This vaccine strain is an efficacious live attenuated vaccine that is able to protect pigs from lethal challenge of CSFV. Considering the excellent efficacy and safety of C-strain, we proposed that C-strain has the potential as a viral vector for developing bivalent vaccines. To this end, we generated three recombinant viruses based on C-strain expressing the PCV2 capsid protein with or without nuclear localization signal (NLS) and evaluated their immunogenicity in rabbits.

2. Materials and Methods

2.1. Cells, Viruses, and Vaccine

SK6 (a swine kidney cell line) cells were grown in Dulbecco’s modified Eagle’s medium (DMEM) (Gibco, Gaithersburg, MD, USA) and propagated with 5% fetal bovine serum (FBS) (Gibco) at 37 °C in a humidified 5% CO2 incubator. The three recombinant viruses and the parental virus rHCLV (GenBank accession number AY805221) generated from the infectious cDNA clones (below) were cultured in SK6 cells. A commercial inactivated vaccine (LG-vaccine) against PCV2 infections based on the LG strain (GenBank accession number HM038034) was developed by Harbin Veterinary Research Institute of Chinese Academy of Agricultural Sciences. The PCV2 TJ-2013 strain was isolated by our group.

2.2. Construction of the Infectious Clones

To construct the infectious clone pHCLV-2ACap (Figure 1), a fusion gene containing a 7-aa linker, the Cap gene and the porcine teschovirus 1 2A (P2A) (GenBank accession number NC_003985) self-cleaving peptide encoding sequence were introduced between the Npro and C genes in the infectious full-length cDNA clone of the CSFV C-strain, which was constructed by using the same strategy as the CSFV Shimen strain infectious clone [20]. The other two infectious clones (Figure 1), pHCLV-uspCap containing the signal peptide of the ubiquitin-specific peptidase gene (usp) (GenBank accession number ABY84357) of Lactococcus lactis and pHCLV-pspCap containing the signal peptide of the bovine prolactin gene (psp) (GenBank accession number NP_776378), were constructed. The Npro, Cap or its derivatives, and C genes were fused by overlapping PCR. Then the fusion fragment was digested with Xho I and Nsi I and subsequently ligated into the infectious cDNA clone of C-strain cut with the same enzymes. All primers used for amplifying the fusion genes are listed in Table 1.

2.3. Generation of the Recombinant Viruses

The recombinant viruses rHCLV-2ACap, rHCLV-uspCap, and rHCLV-pspCap were generated by transfecting the above infectious clones into SK6 cells as described previously [20]. The transfected cells were passaged 15 times (P0–15) and harvested by three cycles of freezing and thawing. The recombinant viruses were identified using the CSFV antigen test kit (IDEXX, Westbrook, ME, USA) according to the manufacturer’s instructions and tested by an indirect immunofluorescence assay (IFA, see below) using the CSFV E2-specific monoclonal antibody (MAb) HQ06 [21]. In addition, the viral RNA was extracted from the progeny virus supernatants using TRIzol reagent (Invitrogen, Carlsbad, CA, USA) and treated with DNase I to remove the genomic DNA. The isolated RNA was reverse transcribed into cDNA with avian myeloblastosis virus (AMV) reverse transcriptase XL. The Cap, E2, NS5B, NS5A, and other genes were amplified from the cDNA by PCR and sequenced. Three samples of each gene were subjected to sequencing by Invitrogen and the results were analyzed by the DNAStar sequence alignment and analysis software (version 7.0) (Madison, WI, USA).

2.4. Immunofluorescence Assay and Antigen-Capture ELISA

To examine the expression of the PCV2 Cap protein, SK6 cells were infected with rHCLV-2ACap, rHCLV-uspCap, rHCLV-pspCap or rHCLV in 96-well plates at a multiplicity of infection (MOI) of 0.1. After a 48 h inoculation, the cells were washed three times with phosphate-buffered saline (PBS) and then fixed with cold absolute ethyl alcohol at 4 °C for 15 min. The cells were incubated with a mouse MAb against the PCV2 Cap (1:1000) (Ingenasa, Madrid, Spain) at 37 °C for 2 h, washed three times with PBS, and incubated with an FITC-labeled goat anti-mouse IgG (1:100) (Sigma-Aldrich, St. Louis, MO, USA) at 37 °C for 1 h away from direct light. After washing three times with PBS, the cells were strained with the 4′,6-diamidino-2-phenylindole (DAPI) (1:1000) (Sigma-Aldrich) at room temperature for 10 min and analyzed under a fluorescence microscope (TE2000-U, Nikon, Tokyo, Japan).
SK6 cells were infected with the recombinant viruses. After incubation at 37 °C for 48 h, the PCV2 Cap protein in the supernatants was tested using the PCV2 Cap antigen-capture test kit (Ingenasa) according to the manufacturer’s instructions.

2.5. Growth Curves of the Recombinant Viruses

To analyze the growth kinetics of rHCLV-2ACap, rHCLV-uspCap, and rHCLV-pspCap, SK6 cells grown in 24-well plates (Corning, NY, USA) were infected with the recombinant viruses or the parental virus at an MOI of 0.1. After incubation at 37 °C for 2 h, the inocula were replaced with fresh media containing 5% FBS. The supernatants were harvested at 12 h intervals and the titers of each virus were tested by IFA and expressed as 50% tissue culture infective dose (TCID50) per milliliter (mL) using the Reed–Münch method [22].

2.6. Inoculation and Challenge Experiment in Rabbits

The animal experiments were approved by the Animal Ethics Committee of Harbin Veterinary Research Institute, Chinese Academy of Agricultural Sciences with the license SYXK (Heilongjiang) 2011022 in the February 13, 2017. Thirty-nine 14-week-old New Zealand white rabbits were randomly allocated into seven groups (3 or 6 animals each) and inoculated intravenously with 104 TCID50 rHCLV-2ACap (Group A), rHCLV-uspCap (Group B), rHCLV-pspCap (Group C), rHCLV (Group D), C-strain (Group E), 1 mL of LG-vaccine (Group F), or DMEM (Group G), respectively (Table 2). The LG-vaccine group was used as a positive control and the DMEM group as a negative control. After inoculation, the rectal temperatures of all the animals except the LG-vaccine group were recorded every 6 h. At 3 d post-inoculation (dpi), three randomly selected rabbits in each group except the LG-vaccine group were euthanized, and the total CSFV RNA in the spleens of these rabbits was extracted and determined using qRT-PCR, as described previously [23]. The remaining three rabbits were boost-immunized with the corresponding viruses at 3 weeks post-inoculation. At 8 weeks post-inoculation, all the rabbits were euthanized. Serum samples were collected from the rabbits every 1 week following inoculation when the rabbits were kept sedated using a rabbit restraining device.

2.7. Blocking Enzyme-Linked Immunosorbent Assay

All serum samples were tested for E2-specific antibodies by a blocking enzyme-linked immunosorbent assay (ELISA)-based CSFV antibody detection kit (IDEXX) and for Cap-specific antibodies by a blocking ELISA-based PCV2 antibody detection kit (Synbiotics, Lyon, France) following the manufacturer’s instructions.

2.8. Immunoperoxidase Monolayer Assay (IPMA)

PK-15 cells grown in 96-well plates were infected with PCV2 TJ-2013 strain at an MOI of 0.1. After a 48 h inoculation, the cells were washed three times with PBS and then fixed with cold absolute ethyl alcohol at 4 °C for 15 min. The sera (1:100) of the rabbits and the anti-Cap antibodies (Ingenasa) as a positive control were added to the plates, and incubated for 2 h at 37 °C. After washing three times with PBS, each well was incubated with HRP-conjugated goat anti-rabbit IgG (1:2500) (Sigma-Aldrich) for 1 h. After washing three times with PBS, 3-amino-9-ethylcarbazole (AEC) (Solarbio, Beijing, China) was added to the wells and incubated at room temperature for 10 min, and the cells were washed with PBS and examined using a light microscopy (TE2000-U, Nikon).

2.9. Virus Neutralization Assay

Virus neutralization assay was performed as described previously [24]. Briefly, serially 2-fold-diluted sera of the rabbits were incubated with 100 TCID50 CSFV Shimen strain or PCV2 TJ-2013 strain at 37 °C. After incubation for 1 h, the mixture was added to PK-15 cells grown in 96-well plate. After incubation for 2 h at 37 °C, the cells were washed with DMEM and cultured in DMEM containing 3% FBS for 48 h. The neutralization activity of the sera in the virus-infected cells was detected using IFA or IPMA.

2.10. Statistical Analysis

Differences between groups were examined for statistical significance using Student’s t-test by SPSS software (version 14.0) (SPSS Inc., Chicago, IL, USA). An unadjusted p-value of less than 0.05 was considered to be significant.

3. Results

3.1. Generation of the Recombinant Viruses from the Cloned cDNAs

Three recombinant viruses, rHCLV-2ACap, rHCLV-uspCap, and rHCLV-pspCap, were generated from the recombinant infectious cDNA clones. The recombinant viruses were identified by antigen-capture ELISA, RT-PCR, and IFA. The Erns protein of rHCLV-2ACap, rHCLV-uspCap or rHCLV-pspCap of P8–10 was detected by antigen-capture ELISA (Figure 2A). The Cap, E2, NS5B, NS5A, and other genes were detected and sequence analysis indicated no mutations in the viral genome. The results demonstrated that the expected recombinant viruses rHCLV-2ACap, rHCLV-uspCap, and rHCLV-pspCap were generated.

3.2. Stability of the Inserted Genes of the Recombinant Viruses in SK6 Cells

To investigate the stability of the inserted genes of the recombinant viruses, the viruses were passaged 20 times on SK6 cells. The Cap genes of the viruses of P15–20 were detected by RT-PCR (Figure 2B–D). The sequence analysis showed that no mutations occurred in the inserted genes of the recombinant viruses.

3.3. Expression of the Cap Protein of the Recombinant Viruses

To determine the expression of the Cap protein of the recombinant viruses, SK6 cells were infected with each recombinant virus and examined at 48 h post-infection. The Cap protein was detected in the nuclei of SK6 cells infected with rHCLV-2ACap, while the Cap protein was detected in the cytoplasm of the cells infected with rHCLV-uspCap or rHCLV-pspCap by IFA (Figure 3A). The antigen-capture ELISA results demonstrated that the Cap protein was secreted into the supernatants of the cells infected with rHCLV-uspCap or rHCLV-pspCap (Figure 3B).

3.4. Growth Curves of the Recombinant Viruses

The growth characteristics of rHCLV-2ACap, rHCLV-uspCap, and rHCLV-pspCap were analyzed relative to the parental virus rHCLV. The growth curves of the recombinant viruses exhibited no significant differences from that of the rHCLV (Figure 4), indicating that the insertion of the Cap gene does not affect the viral growth.

3.5. The Phenotypes of the Recombinant Viruses in Rabbits

To determine the phenotypes of the recombinant viruses in rabbits, the temperature and viral replication in the spleens of the rabbits inoculated with the viruses were monitored. All of the rabbits inoculated with C-strain or rHCLV developed fever at 36 h post-inoculation, which lasted for 18 to 24 h. Some of the rabbits inoculated with rHCLV-2ACap (4/6), rHCLV-uspCap (4/6), or rHCLV-pspCap (5/6) also exhibited a fever response. At 3 dpi, viral RNA was detected in the spleens of the rabbits inoculated with rHCLV-2ACap, rHCLV-uspCap, or rHCLV-pspCap (Table 3). These data indicate that the recombinants retain the phenotype of the parental virus in rabbits.

3.6. Immunogenicity of the Recombinant Viruses in Rabbits

To determine the immunogenicity of the recombinant viruses in rabbits, the anti-E2 and anti-Cap antibodies in the inoculated rabbits were tested by ELISA and serum-virus neutralization test was used to detect the neutralizing antibodies. The antibodies against the CSFV E2 or PCV2 Cap were detectable in rabbits (Table 3). Compared with the DMEM group, high-level anti-CSFV neutralizing antibodies were detected in the rabbits inoculated with rHCLV-2ACap, rHCLV-uspCap, or rHCLV-pspCap (Table 4) from 14 to 35 dpi. Importantly, rHCLV-uspCap and rHCLV-pspCap, but not rHCLV-2ACap, could induce anti-PCV2 neutralizing antibodies at 3 w after boost immunization (Table 5).

4. Discussion

To date, a number of PCV2 vaccines have been developed and tested, including inactivated vaccines, DNA vaccines, subunit vaccines, and recombinant chimeric live vaccines [25,26,27]. In addition, several bivalent vaccines containing the Cap gene of PCV2 have been reported, including recombinant adenovirus, pseudorabies virus, and swinepox virus [28,29,30]. The advantages of bivalent vaccines include low production costs and less vaccination frequency compared with monovalent vaccines.
CSF is often a highly contagious viral disease causing devastating economic losses and production in the pig industries [31]. C-strain, known as a lapinized live attenuated vaccine strain, has played a vital role in the control of CSF worldwide. The vaccine has been proved to be safe to pigs of all ages and it can provide rapid and complete protection against different genotypes of CSFV [18]. However, the potential use of C-strain as a viral vector was not investigated. In this study, we explored the capacity of C-strain to tolerate the insertion of the Cap gene to construct a bivalent vaccine and our data showed the recombinant viruses rHCLV-pspCap and rHCLV-uspCap expressing the secreted Cap protein could induce the antibodies against both CSFV and PCV2, which indicates that C-strain can be used as a viral vector to explore bivalent vaccines.
Npro is an autoprotease unique to pestiviruses that cleaves itself from the polyprotein [32,33]. Using a reverse genetics system, the enhanced green fluorescent protein (EGFP) was expressed separately by the recombinant BVDV depending on the cleavage of Npro and the foot-and-mouth disease virus (FMDV) 2A protein. It was evidenced that the insertion between the Npro and C genes of BVDV did not interfere with the characteristics of the viral vector and foreign protein expression [34]. In addition, another study showed that the porcine teschovirus P2A is shorter and possesses higher cleavage efficiency than the FMDV 2A [35]. In this study, the Cap protein was expressed separately in the recombinant C-strain rHCLV-2ACap, rHCLV-uspCap, or rHCLV-pspCap depending on the self-cleaving Npro and P2A.
Our results demonstrated that the recombinant C-strain rHCLV-2ACap harboring the Cap and P2A gene exhibited similar phenotypes to the parental virus and produced high-level anti-CSFV antibodies in rabbits. However, no anti-Cap antibodies were produced in the rabbits vaccinated with rHCLV-2ACap. Similar results have been reported by another group. When the green fluorescent protein (GFP) gene was inserted in a rinderpest virus (RPV) vaccine strain, no anti-GFP antibodies were produced in the animals vaccinated with the recombinant virus. However, the recombinant virus in which secreted GFP was designed induced an effective antibody response [36]. Therefore, a possible explanation is that the Cap protein of rHCLV-2ACap was translocated to the nuclei due to the NLS of the Cap gene. Thus, we designed Cap mutants lacking the NLS for secreted expression in rHCLV-uspCap and rHCLV-pspCap.
Several studies have demonstrated that the ability of producing humoral antibodies by heterologous proteins may be associated with the forms of the protein expression, including intracellularly expressed, secreted forms or on the surface of the cells [36,37]. Possibly, the forms of heterologous protein expression affect the antigen concentration and localization for effectively stimulating the immune system or the efficiency of antigen presentation by the class II major histocompatibility complex [37,38]. The animal immunization experiments showed that the levels of anti-CSFV antibodies showed no significant difference in the rabbits inoculated with rHCLV-2ACap, rHCLV-pspCap, or rHCLV-uspCap. However, compared with rHCLV-2ACap, rHCLV-pspCap, or rHCLV-uspCap expressing the Cap protein without the NLS induced high-level anti-Cap antibodies in rabbits. This implies that the NLS on the N-terminus of the gene may impede the secreted expression of the protein and thus hinder the induction of an immune response in animals.
The efficacy of rHCLV-pspCap and rHCLV-uspCap needs to be further evaluated in pigs. Notably, in the field, pigs are often co-infected by CSFV and other viruses, such as PRRSV and PRV [11]. Since C-strain is an efficacious and safe live attenuated vaccine, it is advantageous to develop a bivalent vaccine based on C-strain to control the co-infections with CSFV and other pathogens.
In conclusion, rHCLV-pspCap and rHCLV-uspCap were able to induce immune responses in rabbits, indicating that C-strain has potential as a viral vector to develop bivalent vaccines.

Acknowledgments

This study was supported by the National Natural Science Foundation of China (No. 31400146) and the Scientific Key Project of Harbin, China (No. 2014RFXYJ045).

Author Contributions

Lingkai Zhang, Yongfeng Li and Libao Xie executed experimental procedures. Xiao Wang contributed to experimental procedures. Xulei Gao provided some material. Lingkai Zhang and Yongfeng Li wrote the manuscript. Hua-Ji Qiu, Yongfeng Li, Lingkai Zhang, and Yuan Sun revised the manuscript. Hua-Ji Qiu and Yongfeng Li designed the study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Moennig, V. Introduction to classical swine fever: Virus, disease and control policy. Vet. Microbiol. 2000, 73, 93–102. [Google Scholar] [CrossRef]
  2. Collett, M.S.; Moennig, V.; Horzinek, M.C. Recent advances in pestivirus research. J. Gen. Virol. 1989, 70, 253–266. [Google Scholar] [CrossRef] [PubMed]
  3. Thiel, H.J.; Stark, R.; Weiland, E.; Rümenapf, T.; Meyers, G. Hog cholera virus: Molecular composition of virions from a pestivirus. J. Virol. 1991, 65, 4705–4712. [Google Scholar] [PubMed]
  4. Xiao, C.T.; Halbur, P.G.; Opriessnig, T. Global molecular genetic analysis of porcine circovirus type 2 (PCV2) sequences confirms the presence of four main PCV2 genotypes and reveals a rapid increase of PCV2d. J. Gen. Virol. 2015, 96, 1830–1841. [Google Scholar] [CrossRef] [PubMed]
  5. Xiao, C.T.; Halbur, P.G.; Opriessnig, T. Complete genome sequence of a novel porcine circovirus type 2b variant present in cases of vaccine failures in the United States. J. Virol. 2012, 86, 12469. [Google Scholar] [CrossRef] [PubMed]
  6. Franzo, G.; Cortey, M.; Segalés, J.; Hughes, J.; Drigo, M. Phylodynamic analysis of porcine circovirus type 2 reveals global waves of emerging genotypes and the circulation of recombinant forms. Mol. Phylogenet. Evol. 2016, 100, 269–280. [Google Scholar] [CrossRef] [PubMed]
  7. Hamel, A.L.; Lin, L.L.; Nayar, G.P. Nucleotide sequence of porcine circovirus associated with postweaning multisystemic wasting syndrome in pigs. J. Virol. 1998, 72, 5262–5267. [Google Scholar] [PubMed]
  8. Meng, X.J. Porcine circovirus type 2 (PCV2): Pathogenesis and interaction with the immune system. Annu. Rev. Anim. Biosci. 2013, 1, 43–64. [Google Scholar] [CrossRef] [PubMed]
  9. Liu, Q.; Tikoo, S.K.; Babiuk, L.A. Nuclear localization of the ORF2 protein encoded by porcine circovirus type 2. Virology 2001, 285, 91–99. [Google Scholar] [CrossRef] [PubMed]
  10. Blanchard, P.; Mahé, D.; Cariolet, R.; Keranflec’h, A.; Baudouard, M.A.; Cordioli, P.; Albina, E.; Jestin, A. Protection of swine against post-weaning multisystemic wasting syndrome (PMWS) by porcine circovirus type 2 (PCV2) proteins. Vaccine 2003, 21, 4565–4575. [Google Scholar] [CrossRef]
  11. Klausmann, S.; Sydler, T.; Summerfield, A.; Lewis, F.I.; Weilenmann, R.; Sidler, X.; Brugnera, E. T-cell reprogramming through targeted CD4-coreceptor and T-cell receptor expression on maturing thymocytes by latent Circoviridae family member porcine circovirus type 2 cell infections in the thymus. Emerg. Microbes Infect. 2015, 4, e15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Beach, N.M.; Meng, X.J. Efficacy and future prospects of commercially available and experimental vaccines against porcine circovirus type 2 (PCV2). Virus Res. 2012, 164, 33–42. [Google Scholar] [CrossRef] [PubMed]
  13. Huang, Y.L.; Pang, V.F.; Lin, C.M.; Tsai, Y.C.; Chia, M.Y.; Deng, M.C.; Chang, C.Y.; Jeng, C.R. Porcine circovirus type 2 (PCV2) infection decreases the efficacy of an attenuated classical swine fever virus (CSFV) vaccine. Vet. Res. 2011, 42, 115. [Google Scholar] [CrossRef] [PubMed]
  14. Souza, A.P.; Haut, L.; Reyes-Sandoval, A.; Pinto, A.R. Recombinant viruses as vaccines against viral diseases. Braz. J. Med. Biol. Res. 2005, 38, 509–522. [Google Scholar] [CrossRef] [PubMed]
  15. Choi, K.S. Newcastle disease virus vectored vaccines as bivalent or antigen delivery vaccines. Clin. Exp. Vaccine Res. 2017, 6, 72–82. [Google Scholar] [CrossRef] [PubMed]
  16. Lei, J.L.; Xia, S.L.; Wang, Y.M.; Du, M.L.; Xiang, G.T.; Cong, X.; Luo, Y.Z.; Li, L.F.; Zhang, L.K.; Yu, J.H.; et al. Safety and immunogenicity of a gE/gI/TK gene-deleted pseudorabies virus variant expressing the E2 protein of classical swine fever virus in pigs. Immunol. Lett. 2016, 174, 63–71. [Google Scholar] [CrossRef] [PubMed]
  17. Qian, P.; Li, X.M.; Jin, M.L.; Peng, G.Q.; Chen, H.C. An approach to a FMD vaccine based on genetic engineered attenuated pseudorabies virus: One experiment using VP1 gene alone generates an antibody responds on FMD and pseudorabies in swine. Vaccine 2004, 22, 2129–2136. [Google Scholar] [CrossRef] [PubMed]
  18. Qiu, H.J.; Tong, G.Z.; Shen, R.X. The lapinized Chinese strain of classical swine fever virus: A retrospective review spanning half a century. J. Integr. Agric. 2005, 38, 1675–1685. [Google Scholar] [CrossRef]
  19. Xia, H.; Wahlberg, N.; Qiu, H.J.; Widén, F.; Belák, S.; Liu, L. Lack of phylogenetic evidence that the Shimen strain is the parental strain of the lapinized Chinese strain (C-strain) vaccine against classical swine fever. Arch. Virol. 2011, 156, 1041–1044. [Google Scholar] [CrossRef] [PubMed]
  20. Li, C.; Huang, J.H.; Li, Y.F.; He, F.; Li, D.; Sun, Y.; Han, W.; Qiu, H.J. Efficient and stable rescue of classical swine fever virus from cloned cDNA using an RNA polymerase II system. Arch. Virol. 2013, 158, 901–907. [Google Scholar] [CrossRef] [PubMed]
  21. Peng, W.P.; Hou, Q.; Xia, Z.H.; Chen, D.; Li, N.; Sun, Y.; Qiu, H.J. Identification of a conserved linear B-cell epitope at the N-terminus of the E2 glycoprotein of classical swine fever virus by phage-displayed random peptide library. Virus Res. 2008, 135, 267–272. [Google Scholar] [CrossRef] [PubMed]
  22. Reed, L.J.; Münch, H.A. A simple method of estimating fifty percent end points. Am. J. Hyg. 1938, 27, 709–716. [Google Scholar]
  23. Zhao, J.J.; Cheng, D.; Li, N.; Sun, Y.; Shi, Z.; Zhu, Q.H.; Tu, C.; Tong, G.Z.; Qiu, H.J. Evaluation of a multiplex real-time RT-PCR for quantitative and differential detection of wild-type viruses and C-strain vaccine of classical swine fever virus. Vet. Microbiol. 2008, 126, 1–10. [Google Scholar] [CrossRef] [PubMed]
  24. Sun, Y.; Li, N.; Li, H.Y.; Li, M.; Qiu, H.J. Enhanced immunity against classical swine fever in pigs induced by prime-boost immunization using an alphavirus replicon-vectored DNA vaccine and a recombinant adenovirus. Vet. Immunol. Immunopathol. 2010, 137, 20–27. [Google Scholar] [CrossRef] [PubMed]
  25. Gellért, A.; Salánki, K.; Tombácz, K.; Tuboly, T.; Balázs, E. A cucumber mosaic virus based expression system for the production of porcine circovirus specific vaccines. PLoS ONE 2012, 7, e52688. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Pérez-Martín, E.; Gómez-Sebastián, S.; Argilaguet, J.M.; Sibila, M.; Fort, M.; Nofrarías, M.; Kurtz, S.; Escribano, J.M.; Segalés, J.; Rodríguez, F. Immunity conferred by an experimental vaccine based on the recombinant PCV2 Cap protein expressed in Trichoplusia ni-larvae. Vaccine 2010, 28, 2340–2349. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, K.; Huang, L.; Kong, J.; Zhang, X. Expression of the capsid protein of porcine circovirus type 2 in Lactococcus lactis for oral vaccination. J. Virol. Methods 2008, 150, 1–6. [Google Scholar] [CrossRef] [PubMed]
  28. Lin, H.X.; Ma, Z.; Fan, H.J.; Lu, C.P. Construction and immunogenicity of recombinant swinepox virus expressing capsid protein of PCV2. Vaccine 2012, 30, 6307–6313. [Google Scholar] [CrossRef] [PubMed]
  29. Wang, X.; Jiang, W.; Jiang, P.; Li, Y.; Feng, Z.; Xu, J. Construction and immunogenicity of recombinant adenovirus expressing the capsid protein of porcine circovirus 2 (PCV2) in mice. Vaccine 2006, 1224, 3374–3380. [Google Scholar] [CrossRef] [PubMed]
  30. Song, Y.; Jin, M.; Zhang, S.; Xu, X.; Xiao, S.; Cao, S.; Chen, H. Generation and immunogenicity of a recombinant pseudorabies virus expressing cap protein of porcine circovirus type 2. Vet. Microbiol. 2007, 119, 97–104. [Google Scholar] [CrossRef] [PubMed]
  31. Moennig, V.; Floegel-Niesmann, G.; Greiser-Wilke, I. Clinical signs and epidemiology of classical swine fever: A review of new knowledge. Vet. J. 2003, 165, 11–20. [Google Scholar] [CrossRef]
  32. Stark, R.; Meyers, G.; Rümenapf, T.; Thiel, H.J. Processing of pestivirus polyprotein: Cleavage site between autoprotease and nucleocapsid protein of classical swine fever virus. J. Virol. 1993, 67, 7088–7095. [Google Scholar] [PubMed]
  33. Gottipati, K.; Acholi, S.; Ruggli, N.; Choi, K.H. Autocatalytic activity and substrate specificity of the pestivirus N-terminal protease Npro. Virology 2014, 452, 303–309. [Google Scholar] [CrossRef] [PubMed]
  34. Fan, Z.C.; Dennis, J.C.; Bird, R.C. Bovine viral diarrhea virus is a suitable viral vector for stable expression of heterologous gene when inserted in between Npro and C genes. Virus Res. 2008, 138, 97–104. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, Y.C.; Wang, F.; Wang, R.Y.; Zhao, P.; Xia, Q.Y. 2A self-cleaving peptide-based multi-gene expression system in the silkworm Bombyx mori. Sci. Rep. 2015, 5, 16273. [Google Scholar] [CrossRef] [PubMed]
  36. Walsh, E.P.; Baron, M.D.; Anderson, J.; Barrett, T. Development of a genetically marked recombinant rinderpest vaccine expressing green fluorescent protein. J. Gen. Virol. 2000, 81, 709–718. [Google Scholar] [CrossRef] [PubMed]
  37. Walsh, E.P.; Baron, M.D.; Rennie, L.F.; Monaghan, P.; Anderson, J.; Barrett, T. Recombinant rinderpest vaccines expressing membrane-anchored proteins as genetic markers: Evidence of exclusion of marker protein from the virus envelope. J. Virol. 2000, 74, 10165–10175. [Google Scholar] [CrossRef] [PubMed]
  38. Thompson, S.A.; Burrows, S.R.; Misko, I.S.; Moss, D.J.; Coupar, B.E.; Khanna, R. Targetting a polyepitope protein incorporating multiple class II-restricted viral epitopes to the secretory/endocytic pathway facilitates immune recognition by CD4+ cytotoxic T lymphocytes: a novel approach to vaccine design. J. Virol. 1998, 72, 2246–2252. [Google Scholar]

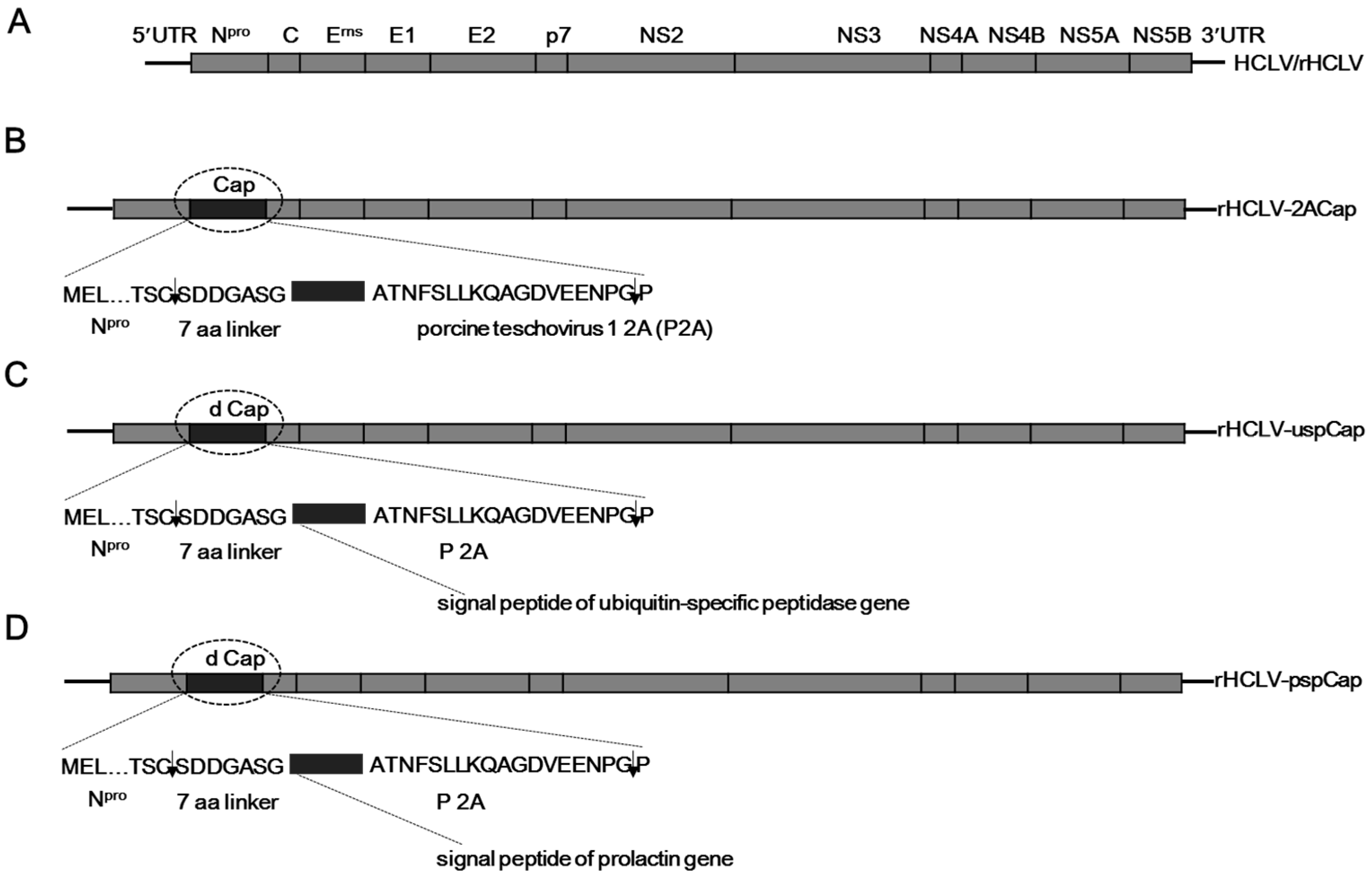

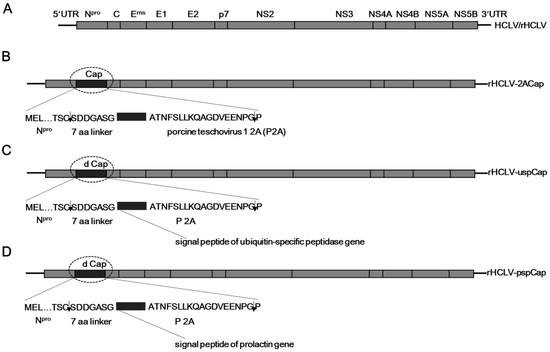

Figure 1. The viral genome organizations of the recombinant viruses derived from the CSFV C-strain. The viral genome organizations of the parental virus HCLV/rHCLV (A) and rHCLV-2ACap (B). The 7-aa linker and the porcine teschovirus 1 2A (P2A) are shown. The cleavage sites of Npro and P2A are indicated as arrows; (C) rHCLV-uspCap harboring the Cap gene without the nuclear localization sequence (dCap) is illustrated, and the signal peptide of ubiquitin-specific peptidase gene is inserted in the N-terminus of dCap; (D) rHCLV-pspCap harboring dCap is illustrated, and the signal peptide of the prolactin gene is inserted in the N-terminus of dCap.
Figure 1. The viral genome organizations of the recombinant viruses derived from the CSFV C-strain. The viral genome organizations of the parental virus HCLV/rHCLV (A) and rHCLV-2ACap (B). The 7-aa linker and the porcine teschovirus 1 2A (P2A) are shown. The cleavage sites of Npro and P2A are indicated as arrows; (C) rHCLV-uspCap harboring the Cap gene without the nuclear localization sequence (dCap) is illustrated, and the signal peptide of ubiquitin-specific peptidase gene is inserted in the N-terminus of dCap; (D) rHCLV-pspCap harboring dCap is illustrated, and the signal peptide of the prolactin gene is inserted in the N-terminus of dCap.
Viruses 09 00298 g001

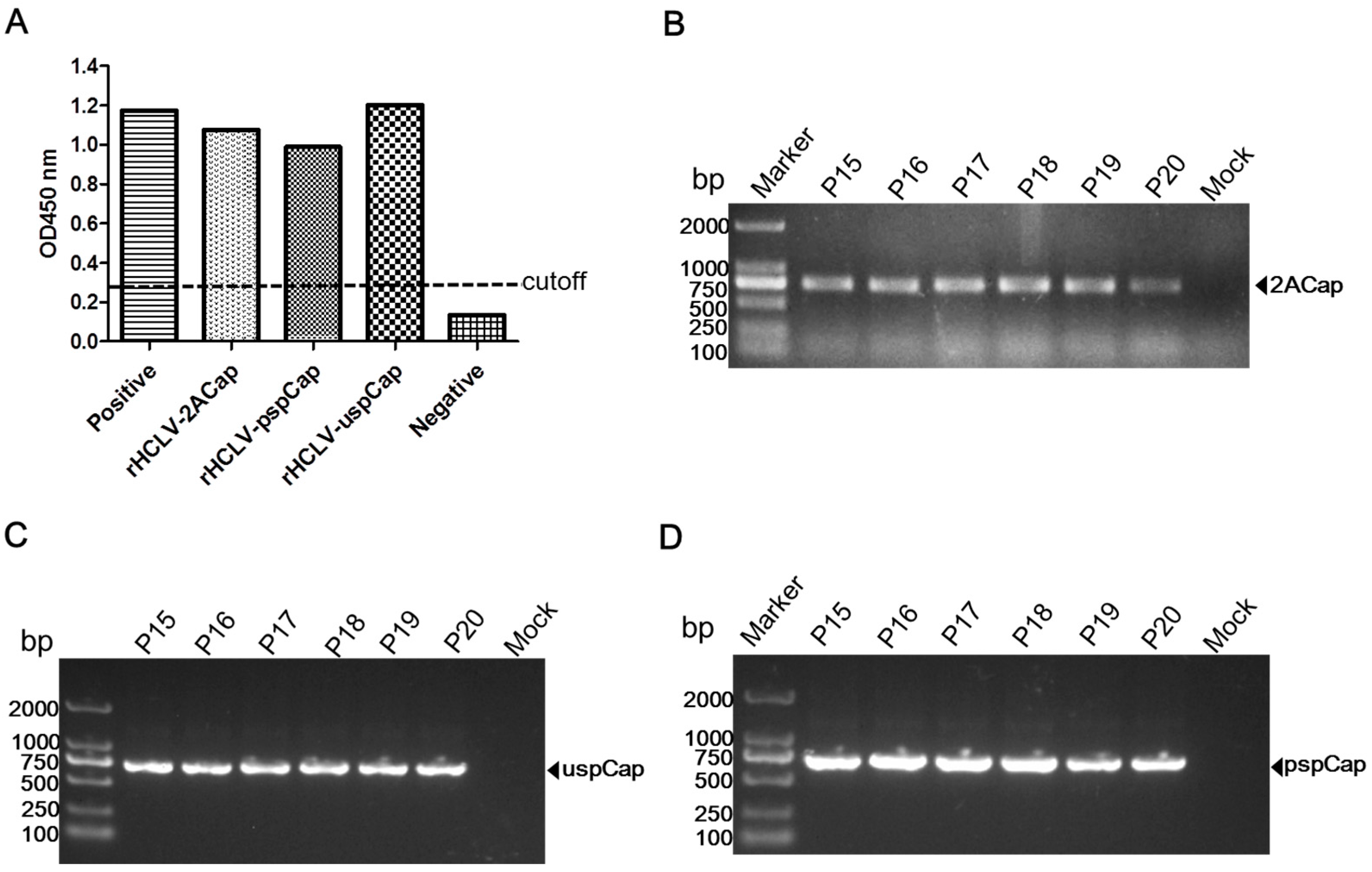

Figure 2. Identification of the generated recombinant viruses. (A) The Erns protein of three recombinant viruses was tested by antigen-capture ELISA. The supernatants from the cells inoculated with the recombinant viruses were tested by an antigen-capture ELISA (IDEXX); (BD) the inserted genes remained stable in the recombinant viruses. The Cap gene was amplified from viral RNA of passage 15 (P15) to P20 rHCLV-2ACap (B), rHCLV-uspCap (C), and rHCLV-pspCap (D) by RT-PCR.
Figure 2. Identification of the generated recombinant viruses. (A) The Erns protein of three recombinant viruses was tested by antigen-capture ELISA. The supernatants from the cells inoculated with the recombinant viruses were tested by an antigen-capture ELISA (IDEXX); (BD) the inserted genes remained stable in the recombinant viruses. The Cap gene was amplified from viral RNA of passage 15 (P15) to P20 rHCLV-2ACap (B), rHCLV-uspCap (C), and rHCLV-pspCap (D) by RT-PCR.
Viruses 09 00298 g002

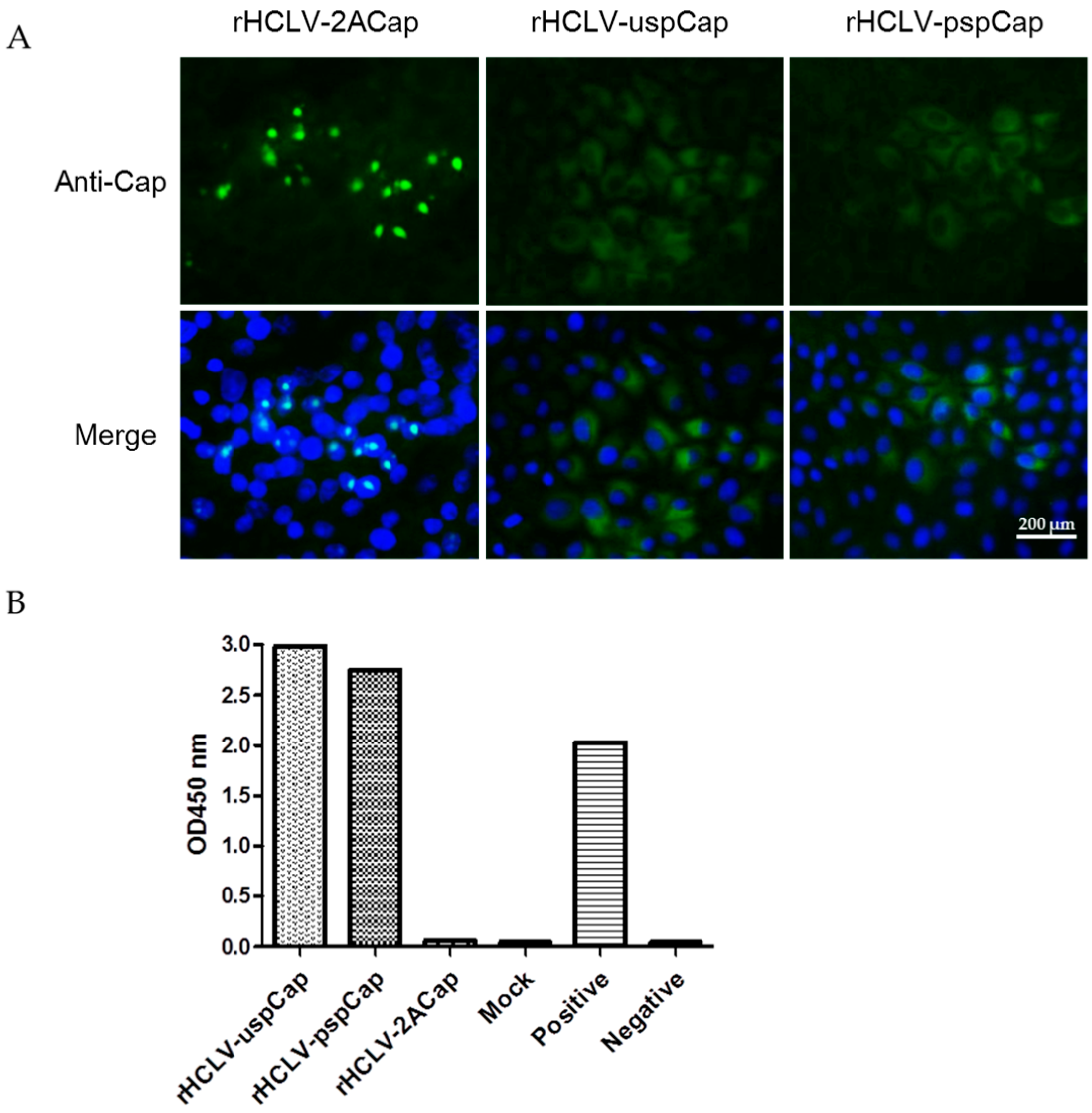

Figure 3. Analysis of the expression of Cap gene in the recombinant viruses by IFA (A) and by antigen-capture ELISA (B). (A) SK6 cells were mock treated or infected with the rescued viruses at an MOI of 0.1, respectively. At 48 h post-infection, the cells were processed by indirect immunofluorescence assay using an anti-Cap monoclonal antibody and the nuclei were strained with the 4′,6-diamidino-2-phenylindole (DAPI). The pictures were taken under a fluorescence microscope (TE2000-U, Nikon). The independent experiments were repeated three times. Bar is 200 µm; (B) The PCV2 Cap protein in the supernatants from the cells infected with the recombinant viruses or DMEM (Mock control) was tested by an antigen-capture ELISA (Ingenasa).
Figure 3. Analysis of the expression of Cap gene in the recombinant viruses by IFA (A) and by antigen-capture ELISA (B). (A) SK6 cells were mock treated or infected with the rescued viruses at an MOI of 0.1, respectively. At 48 h post-infection, the cells were processed by indirect immunofluorescence assay using an anti-Cap monoclonal antibody and the nuclei were strained with the 4′,6-diamidino-2-phenylindole (DAPI). The pictures were taken under a fluorescence microscope (TE2000-U, Nikon). The independent experiments were repeated three times. Bar is 200 µm; (B) The PCV2 Cap protein in the supernatants from the cells infected with the recombinant viruses or DMEM (Mock control) was tested by an antigen-capture ELISA (Ingenasa).
Viruses 09 00298 g003

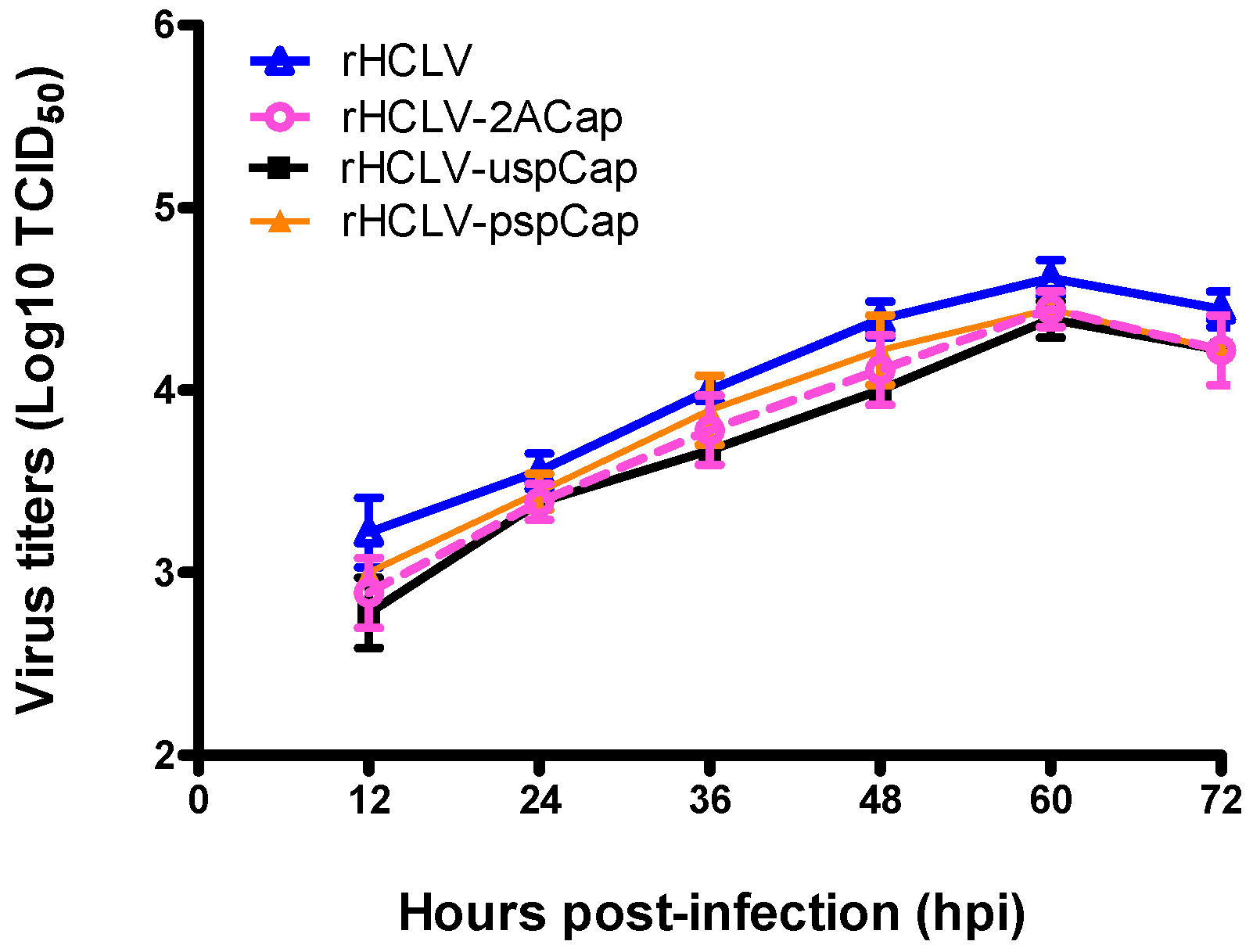

Figure 4. Viral growth properties of the recombinant viruses. SK6 cells were infected with the recombinant viruses or parental virus rHCLV at an MOI of 0.1. The infected cells were harvested by three cycles of freeze-thaw at 12, 24, 36, 48, 60, and 72 h post-inoculation. Viral titers were determined by an indirect immunofluorescence assay and expressed as TCID50/mL. The mean value and standard deviation were calculated for three independent experiments.
Figure 4. Viral growth properties of the recombinant viruses. SK6 cells were infected with the recombinant viruses or parental virus rHCLV at an MOI of 0.1. The infected cells were harvested by three cycles of freeze-thaw at 12, 24, 36, 48, 60, and 72 h post-inoculation. Viral titers were determined by an indirect immunofluorescence assay and expressed as TCID50/mL. The mean value and standard deviation were calculated for three independent experiments.
Viruses 09 00298 g004
Table 1. Primers used for construction of the recombinant infectious clones.
Table 1. Primers used for construction of the recombinant infectious clones.
PrimersSequences (5′→3′)
pHCLV-2ACap-1FCACCTCGAGATGCTACGTG
pHCLV-2ACap-1RCCCACTTGCGCCATCATCGGAGCAACTGGTAACCCACAATGG
pHCLV-2ACap-2FTCCGATGATGGCGCAAGTGGGACGTATCCAAGGAGGCGTTAC
pHCLV-2ACap-2RCCACATCGCCGGCCTGTTTCAGCAGCGAAAAGTTTGTGGCAGGGTTAAGTGGGGGTCTTTAAG
pHCLV-2ACap-3FGCTGAAACAGGCCGGCGATGTGGAGGAGAACCCAGGCCCATCCGATGATGGCGCAAGTGGGAG
pHCLV-2ACap-3RCTGATGCATGCACCTTGACAGTCGTGAATG
pHCLV-uspCap-1FCACCTCGAGATGCTACGTGGACGAGGG
pHCLV-uspCap-1RGGGCTGCAGCAGAAAGTATCACTGTAGACATTAAAATAGCTGAGATAATCTTTTTTTTCATCCCACTTGCGCCATCATC
pHCLV-uspCap-2FCTTTCTGCTGCAGCCCCGTTGTCAGGTGTTTACGCCCTGGAAATAAGCAGCACCTGCGATGCAGGCATCTTCAACACCC
pHCLV-pspCap-2RCTGATGCATGCACCTTGACAGTCGTG
pHCLV-pspCap-1FCACCTCGAGATGCTACGTGGACGAGGG
pHCLV-pspCap-1RGACCACCAGCAGCAGCAGCAGCCGTGATCCTTTCTGGGAGCTCCCCTTACTGTCCATCCCACTTGCGCCATCATCGGAG
pHCLV-pspCap-2FGGCTGCTGCTGCTGCTGGTGGTCAGCAACCTGCTGCTGCCTCAGGGGGTGGTCGGAGGCATCTTCAACACCCGCCTCTC
pHCLV-pspCap-2RCTGATGCATGCACCTTGACAGTCGTG
Note: The sequences coding signal peptides are underlined.
Table 2. The animal experiment design.
Table 2. The animal experiment design.
GroupPrime ImmunizationDose (TCID50)NumberBooster ImmunizationDose (TCID50)
ArHCLV-2ACap1046rHCLV-2ACap104
BrHCLV-pspCap1046rHCLV-pspCap104
CrHCLV-uspCap1046rHCLV-uspCap104
DrHCLV1046rHCLV104
EC-strain1046C-strain104
FLG-vaccine1 mL3LG-vaccine1 mL
GDMEM1 mL6DMEM1 mL
Table 3. Fever response, viral replication, and seroconversion of the rabbits inoculated with the recombinant viruses.
Table 3. Fever response, viral replication, and seroconversion of the rabbits inoculated with the recombinant viruses.
GroupVirusesDose (TCID50)Fever ResponseViral ReplicationSeroconversion of Antibodies Against CSFV E2 (PCV2 Cap)
ArHCLV-2ACap1044/63/33/3 (0/3)
BrHCLV-pspCap1045/63/33/3 (1/3)
CrHCLV-uspCap1044/63/33/3 (2/3)
DrHCLV1045/63/33/3 (0/3)
EC-strain1046/63/33/3 (0/3)
FLG-vaccine1 mLn.d.n.d.n.d. (3/3)
GDMEM1 mL0/60/30/3 (0/3)
Note: n.d., not determined.
Table 4. Anti-CSFV neutralizing antibody titers in the sera from the inoculated rabbits.
Table 4. Anti-CSFV neutralizing antibody titers in the sera from the inoculated rabbits.
GroupsVirusesDays Post-Prime Immunization (Weeks Post-Booster Immunization)
071421 (0)28 (1)35 (2)
ArHCLV-2ACap<10<1075 ± 32158 ± 65710 ± 352>1028
BrHCLV-pspCap<10<1089 ± 50158 ± 95670 ± 252>1028
CrHCLV-uspCap<102089 ± 50182 ± 56630 ± 0>1028
EC-strain<1021 ± 489 ± 50188 ± 0710 ± 352>1028
GDMEM<10<10<10<10<10<10
Table 5. Anti-PCV2 neutralizing antibody titers in the sera from the inoculated rabbits.
Table 5. Anti-PCV2 neutralizing antibody titers in the sera from the inoculated rabbits.
GroupsVirusesDays Post-Prime Immunization (Weeks Post-Booster Immunization)
071421 (0)28 (1)35 (2)42 (3)49 (4)56 (5)
ArHCLV-2ACap<10<10<10<10<10<10<10<10<10
BrHCLV-pspCap<10<10<10<10<10<1080 ± 080 ± 0160 ± 0
CrHCLV-uspCap<10<10<10<10<1020 ± 080 ± 400160 ± 0160 ± 0
FLG-vaccine<10<10<10<10<1040 ± 88320 ± 0640 ± 0640 ± 0
GDMEM<10<10<10<10<10<10<10<10<10
