Assessing Forest Classification in a Landscape-Level Framework: An Example from Central European Forests

by
Antonín Kusbach
1,*,
Michal Friedl
1,
Václav Zouhar
2,
Tomáš Mikita
3 and
Jan Šebesta
1
1
Department of Forest Botany, Dendrology and Geobiocoenology, Faculty of Forestry and Wood Technology, Mendel University in Brno, Zemědělská 3, 613 00 Brno, Czech Republic
2
Forest Management Institute, Brandýs nad Labem, branch Brno, Vrázova 1, 616 00 Brno, Czech Republic
3
Department of Forest Management and Applied Geoinformatics, Faculty of Forestry and Wood Technology, Mendel University in Brno, Zemědělská 3, 613 00 Brno, Czech Republic
*
Author to whom correspondence should be addressed.
Forests 2017, 8(12), 461; https://doi.org/10.3390/f8120461
Submission received: 31 August 2017 / Revised: 30 October 2017 / Accepted: 16 November 2017 / Published: 23 November 2017
(This article belongs to the Section Forest Ecology and Management)
Browse Figures
Versions Notes

Abstract

:
Traditional land classifications developed on the basis of what was once prevailing expert knowledge have since largely become obsolete. We assessed expert knowledge based landscape-level units delineated in central European temperate forests: Natural Forest Areas (NFA) and Forest Vegetation Zones (FVZ). Our focus was determining to what degree these units reflect vegetation-environmental relationships. After considering as many as 49,000 plots with vegetation and 25,000 plots with environmental data within a territory of the Czech Republic, we analyzed 11,885 plots. We used multivariate statistics to discriminate between the landscape-level units. While NFAs performed extremely well, FVZ results were less successful. Classification of the environment provided better results than classification of vegetation for both the Hercynicum and Carpaticum phytogeographic part of the Czech Republic. Taking into account significance of the environment in our analysis, a delimitation of FVZs and similar vegetation-driven structures worldwide via explicit a priori stratification by tree species without consideration of environmental limits would not be supported by our analysis. We suggest not relying only on vegetation in classification analyses, but also including the significant environmental factors for direct classification of FVZ and units in particular in altered vegetation composition setting such as the central European forests. We propose a novel interpretation of FVZ via appropriate vegetation stratification throughout the environment used in conjunction with the zonal concept. Understanding of coarse-scaled vegetation-environmental relationships is not only fundamental in forest ecology and forest management, but is also essential for improving lower classification levels. Valuable expert knowledge should be combined with formal quantification, which is consistent with recent calls for advanced multidisciplinary ecological classifications in Europe and North America and for forming classifications in Asia.

1. Introduction

As a distinctive land feature, vegetation has been a leading component of traditional ecological classifications [1,2]. The concept of potential natural vegetation (PNV) sensu Tüxen [3] fostered the establishment of European and North American land classifications (e.g., [4,5,6,7,8,9,10,11,12]). This relatively complex approach launched a new line of research: ecological land assessment introduced e.g., in a special issue of the Journal of Forestry, October 1978. These ‘eastern’ and ‘western’ classification systems reflected trends in environmental sciences at that time and incorporated, concepts such as forest type [13], phytosociology [14], ecosystem, polyclimax [15] and biogeocoenology [16].
Within classification systems, coarse-scale, landscape-level units are important for fine-scale, lower units, and vice versa, one example being a top-down and bottom-up approach wherein the spatial-functional hierarchy of large land segments are considered [17,18,19]. Top-down based frameworks were established regionally throughout Europe for the purposes of forestry practice and landscape management, for example Zlatník [20] in Slovakia, Plíva and Žlábek [21] in the Czech Republic, Kilian et al. [22] in Austria, Dahdouh-Guebas et al. [23] in Belgium, Blasi et al. [24] in Italy, Gauer and Aldinger [25] in Germany, but also in North America [12,26]. These national systems vary in their specific criteria for defining site types, but in general, they share a fundamental focus on depicting the variation in topography, substrate and vegetation characteristics across the landscape for supporting decisions relevant to forestry [27]. A combined top-down and bottom-up approach was applied in the Biogeoclimatic Ecosystem Classification (BEC) in British Columbia (BC) [11], its ‘sister’ system in Great Britain [28], in Ireland [29] and generalized an idea of ‘forest type’ in the Czech Forest Ecosystem Classification [30].
These ecological classification systems based on expert knowledge relevant at the time have neither been updated nor have they ever been formally quantified with contemporary analytical methods. Landscape ecologists, biogeographers and conservationists alike have gradually considered these systems unreliable, as they have essentially become obsolete [31]. Forest ecologists and practical foresters argue about correct and identical field categorization. We have personally witnessed a criticism of the classification system for its superfluous particularity at a number of meetings in the last decade. We appeal to clarification of this system for researchers, managers and forest owners to minimize issues in application of the system. Except attempts such as Kupfer and Franklin [32], DeLong et al. [33], rigorous quantification of extensive data of both vegetation and the environment does not currently exist [34]. We took advantage of the Database of Czech Forest Ecosystem Classification where various vegetation, environmental, soil properties, and forest management data are available.
Forest managers must have an ecological land classification system in order to manage efficiently. In this study, we assessed expert knowledge based landscape-level units represented by Natural Forest Areas (NFAs) and Forest Vegetation Zones (FVZs) used in forest ecology and related fields in the Czech Republic. We inspected the relevance of these units selected not only for their theoretical importance, but also for their practical involvement in forest ecosystem management. We used available vegetation, environmental data and a soil designation to assess landscape-level units, to identify their potential drawbacks and to suggest a potential solution. The objectives of this study were (i) to determine if vegetation and environmental conditions are related to ecological land classification; (ii) to explore correct differentiating of FVZ and NFA based on vegetation and environmental factors; and (iii) to develop a novel interpretation of FVZ via a proper stratification of vegetation throughout the environment. This study can facilitate minimizing problems in application of the system in the future by providing more unit-specific ecological information.

2. Materials and Methods

2.1. Fundamentals of the Czech Forest Ecosystem Classification

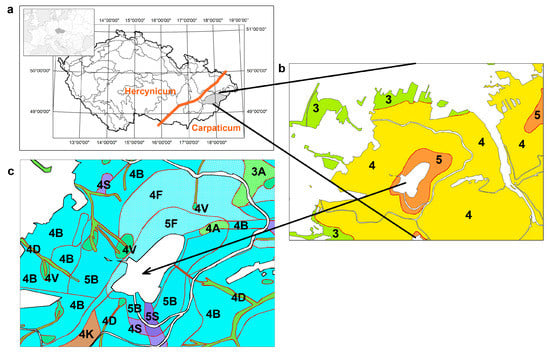

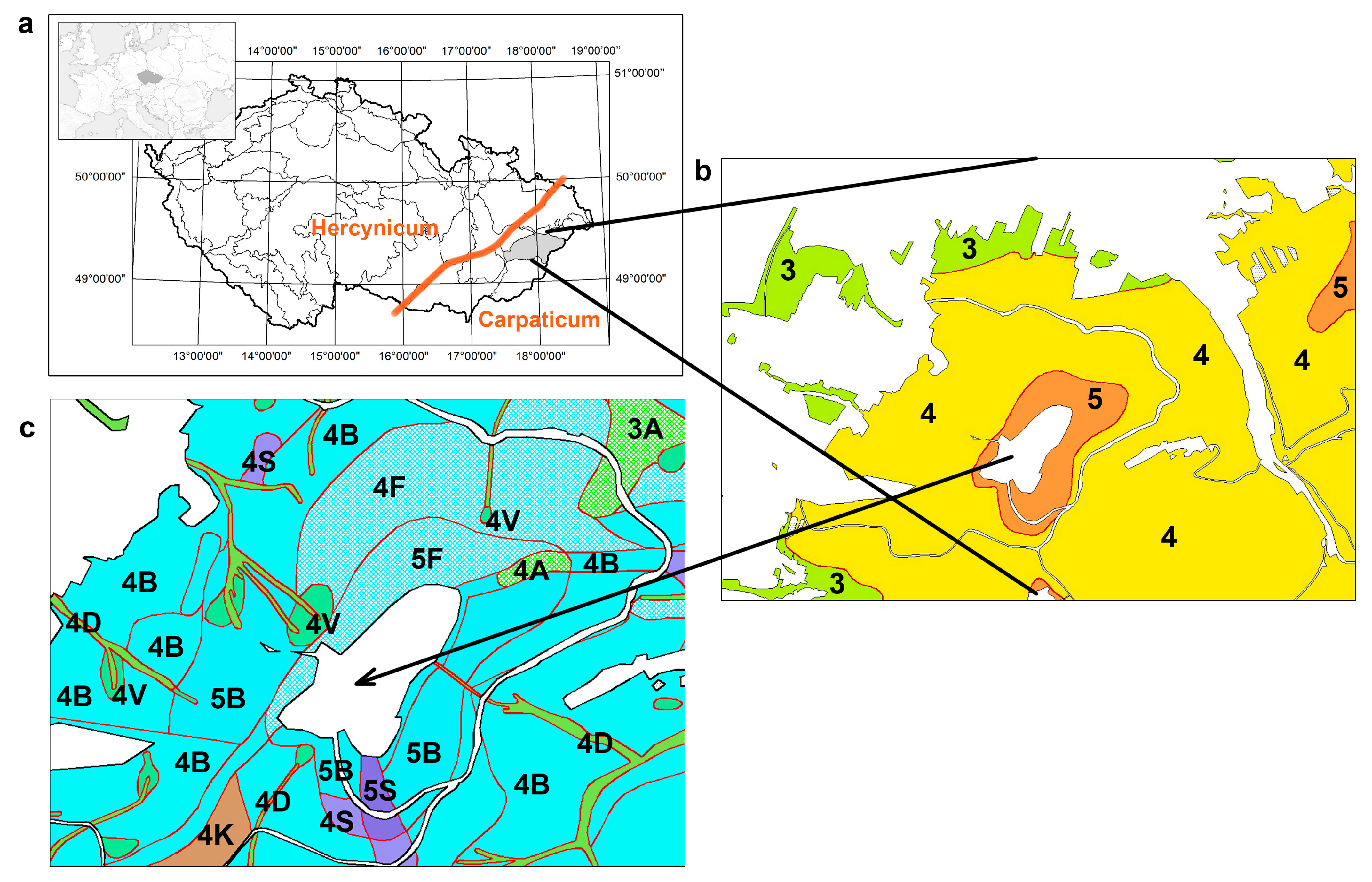

The Czech Forest Ecosystem Classification (CFEC) has served as a national standard for forestry for almost 50 years [35]. It was introduced in 1971 based on a subjective sampling design meaning that plots used for data observations and measurements have been purposefully selected. This means that plots are selected based on expert knowledge and giving preference to areas with mature and close-to-natural vegetation corresponding to the system’s central concept of PNV. The system consists of three hierarchical levels: superstructure, basic, and lower (Figure 1). Superstructure NFAs (Figure 1a) were delineated using a top-down approach to be as homogeneous as possible according to geologic, geomorphologic and overall climatic differences [21]. These are considered the top administrative units within the Czech forestry hierarchy, which drive strategic planning [36]. The NFA concept is similar to the Ecological Regions developed by Bailey [12] in the United States.
The FVZs used in this study are numbered 1 through 9: (1) Quercus, (2) Fagus-Quercus, (3) Quercus-Fagus, (4) Fagus, (5) Abies-Fagus, (6) Picea-Fagus, (7) Fagus-Picea, (8) Picea, (9) Pinus mugo (Figure 1b for FVZs 3–5. See also Machar et al. [37]) [20,30]. They have represented the most important ecological framework for both basic and lower CFEC units, forest management guidelines [38] and state legislation. For each FVZ, potential natural vegetation [3], expressed by climax tree species is an indirect classifier of macroclimatic (altitudinal) and mesoclimatic (local topographic-slope aspect, climate inversions) conditions (e.g., [39]). Forest Vegetation Zones represents a natural community affected by macro and mesoclimate changes [40]. The original FVZ concept links both altitudinal and topographic climate, and thus considers their combined effect on vegetation. While altitudinal changes of environmental factors are relatively well known, local topography, often combined with soil peculiarities, represents a set of complex moisture changes. As a result, FVZs have been mapped as zonal, spatially homogeneous areas driven by macroclimate (Figure 1b), and azonal segments (warmer/drier or cooler/wetter than zonal, nested inside the zonal FVZs) scattered in a landscape driven by mesoclimate (Figure 1c).
Basic and lower level units (especially Forest Site Complexes [35]) has been serving as an ecological framework for Management Complexes, units for forest management differentiation. A framework structure of forest management built on such units makes management recommendations standardized across all types of a forest ownership within the Czech Republic. Besides forestry, the CFEC system units serve e.g., in a sector of nature conservation in detailed site mapping, economic sector for evaluation of a forestland, in soil conservation activities (erosion, landslides after recent frequent extreme run-offs), and other fields where ecological information on forests is needed.
The level scheme has not changed since the CFEC was established in 1971. Except for general assessment of system units [41], these units have not been tested for ecological correctness, i.e., how these units are robust in reflection of vegetation-environmental relationships and how they are able to differentiate between environmental conditions. This system has frequently been criticized for being overly detailed and making practical management more difficult than it should be. In a formal critique, it was suggested that the system be revised [42,43,44,45]. The structure of the CFEC is not systematic and the system is obsolete [44,46,47]. For example, forest managers, practical foresters, nature conservators together with botanists argue about the identical field categorization. In the system, attributes of each unit such as FVZ is supposed to be the same across the territory, which it is designated for. This is not a case of CFEC. A vague structure of FVZ brings troubles not only into forest management structuring but also to forest genetics, and distribution and use of reproductive material such as seeds, seedlings and propagules. It applies also for use of the system units in other sectors already mentioned.

2.2. Data

The Czech forest classification system database [48], managed by the Forest Management Institute, contains almost 49,000 vegetation records and over 25,000 environmental and soil observations and measurements collected throughout the country (78,000 km2) since 1950’s until 2007. Due to the subjective sampling design (explained above), there is no regular distribution of sampling plots within the Czech territory. Standards of establishment has changed minimally during a time. A plot (500 m2 circle) can contain up to three inspections. We used the latest vegetation and environmental description in our analysis, so there were no replicates of plots in the analysis. We eliminated habitats that were represented by less than ten plots, and plots without climatic data. We checked the data for correctness and completeness, e.g., for extreme outliers (Standard Deviation > 5). After this preparation, we used 11,885 plots with vegetation and environmental data for following analytical steps.

2.2.1. Environmental and Soil Data

For each sample plot, we calculated common geomorphic indices using a Digital Terrain Model created on a Digital Relief Model of 4th Generation (Table 1). The Digital Relief Model was generalized with Airborne Laser Scanning of the Czech Republic in 2009–2013 that was measured at a 5 × 5 m resolution [49]. We resampled this dataset to create a coarser 10 × 10 m pixel resolution to achieve: (1) a feasible compromise between the geographical extent of the landscape-level units considered and a grain (a pixel size) characterizing an appropriate level of detail of terrain topography, and (2) faster calculation of the indices. Our aim was to filter out microsites (different microclimate or soil moisture conditions). A description of indices suitable for detecting typical topographic characteristics is available in Supplementary Material A. The slope aspect in azimuth degrees measured in the field was corrected for the magnetic declination and converted for aspect value (av) to the scale 0–1 as a measure of radiation [50]. Soil properties were assessed via designation to soil types and subtypes [51] (Table 1).

2.2.2. Climatic Data

We assigned climate data for each Forest Management Institute sampling plot location by overlaying the plot coordinates with the Czech Hydrometeorological Institute gridded data. We used 1961–1990 weather station records (the 2nd Climatic Normal) and extrapolations of mean temperature, mean precipitation and two vegetation periods (a sum of days with mean temperature >8 and 10 °C) [52] (Table 1).

2.2.3. Vegetation Data

We used a vegetation description of woody, herbaceous and graminoid species abundances in eight layers from seedlings up to overstory trees [40]. We excluded bryophytes, lichens and all invasive species [53]. All subtypes were compiled into species-level aggregates. In total, 1508 species and aggregates were used.
The structure of mid-European forests has changed and the tree species composition is not original [54,55]. Accurate assessment of the relative ‘naturalness’ presents a challenge in such conditions. Relatively natural communities were represented by a selection of climax tree species on one plot [4]: the sessile oak (Quercus petraea (Matt.) Liebl.), European beech (Fagus sylvatica L.), European silver fir (Abies alba Mill.), Norway spruce (Picea abies (L.) H. Karst.), and mountain pine (Pinus mugo Turra). We filtered out the fourth through sixth degree of naturalness with ‘semi natural’ forests [56] to be as close as possible to the assumption of PNV in the concept of FVZs. We thus excluded plots with major introduced species, second growth plantations (spruce/pine monocultures), and seral and ecotone vegetation.
The CFEC system is based on “the vegetation potential” following the concept of PNV and relative stability of site properties (the physical environment). Considering the PNV concept, potential vegetation classifications should be relatively stable through a time so that a class label is applicable for a long time exceeding a rotation period. Considering relatively fast stand development, there are existing vegetation options (existing/actual stand development types) within the Management Complexes for forest management purposes. Those options should be sufficient for up to one rotation period (ca. 100 years).
We designated sampling plots for 41 Natural Forest Areas, 9 Forest Vegetation Zones and two major phytogeographic areas, Hercynicum and Carpaticum (H/C). Natural Forest Areas, FVZs and H/C were hereafter considered analytical classes.

2.3. Data Analysis

(1) We ran Random Forests (RF) [57] of the physical environment represented by external explanatory factors (Table 1) to: (1) discriminate among classes (H/C, NFA, and FVZ); and (2) identify those factors significantly associated with these classes. We used the full data set (11,885 plots) to check discrimination between H/C [46], and then subsets of H/C to discriminate among NFAs and FVZs within H/C and thus confronted H/C by NFAs and FVZs. We dropped NFA 2, 32 and 37 from the analysis due to under sampling (NFA 2/19 plots, 32/27, 37/12). Similarly, we dropped the 9th FVZ (41 plots) from the Hercynicum, and 7th and 8th FVZ (21, 1) from the Carpaticum subset. This approach appeared to be more realistic than ‘artificially’ balancing the data by down or up weighting.
Results were produced for all classes including among-class partial misclassification errors (taken from the RF confusion matrix). Important factors (the most influential when assigning classes to observations in the RF algorithm) were ranked in the RF variable importance analysis (parameter importance) according to Mean Decrease Accuracy and Mean Decrease Gini. For the machine-learning training (to grow a ‘forest’), we used ntree = 500 and 1000 (a number of trees as a function in R) and mtry = 1, 2, 4, 6, 8, 10, 20 (a number of variables randomly used at each split) [58].
(2) We used the principal components analysis (PCA) as a free ordination [59] to interpret principal components (PCs) (gradients in environmental space) associated with important environmental factors defined by the RF classification for both Hercynicum and Carpaticum. Correlation types of a cross-products matrix (data were centralized and standardized) and an orthogonal rotation option were used to get independent, mutually uncorrelated PCs [60]. We transformed the factors with │skewness│ > 1 to be close to multivariate normality and reduce necessary intercorrelations. We checked the dataset for outliers [61]. Significance of PCs were tested using a Monte Carlo randomization test with 1000 runs. We calculated the linear (parametric Pearson’s r) and rank (nonparametric Kendall’s tau) correlation coefficients (loadings) as relationships between the ordination scores (axes) and the environmental factors. We set the threshold for r and tau > 0.4 (e.g., [62]).
(3) While the physical environment is at the core of the concept of NFAs, vegetation is a basis for discrimination of FVZs. Therefore, we analyzed floristic elements to gauge their performance as indirect classifiers of macro- and mesoclimatic conditions.
(a) We used the unconstrained-free nonmetric multidimensional scaling (NMS) of species data: (1) to look for patterns in a complex species-rich space, and (2) to account for expectation of non-linear relationships among species [59]. Prior to the NMS ordination, we deleted rare species with an occurrence of less than 1% in the sample plots. We logged transformed species abundances (a cover percentage was used as the original unit). We checked the data sets’ properties (e.g., common vs. rare species numbers), and then standardized species by the binary relativization with respect to median, mean and generally in order to equalize common and rare species, and emphasize optimal parts of a species range [59,63]. The relationship between common and rare species was checked by dominance curves [59]. We used Sørensen distance and a Monte Carlo randomization test with 250 permutations to test the significance of the NMS ordination [61]. We considered an orthogonal relationship among axes, created a visual simulation of sample plots with their designation to FVZs by constructing convex hulls (envelopes) and calculating potential plot outliers (SD > 2). We then calculated expression between the relationship of the species patterns (represented by significant NMS scores) with the physical environment (significant PC scores) by r and tau loadings. NMS axes are not directly interpretable [59] therefore, the association of vegetation with the environmental ordination was necessary.
Relative positioning of FVZs in the species space was tested using the adonis function to perform multivariate analysis with a Bray–Curtis distance matrix using the vegan package [64,65]. Plot dispersion patterns within each FVZ were compared using the betadisper function in vegan using the same Bray–Curtis dissimilarity index. This function calculates multivariate homogeneity of plot dispersion between plots based on species abundance and is a multivariate analogue of the Levene’s test for homogeneity of variances [65]. To test differences for dispersions in FVZs, analysis of variance was performed to measure the distance between plots and the FVZ centroid.
(b) We ran RF of species data (the same as used in NMS) to: (1) discriminate among FVZ classes; and (2) identify those species significantly associated with these classes. For the machine-learning training, we used ntree = 500 and 1000 and mtry = 10 through 40.
The randomForest package [58]) of R (version 3.0.0 [64]) was used for the RF analysis and PC-ORD 6 [61] for NMS ordination. ArcGIS 10.3 (ESRI, Redlands, LA, USA) software with the Spatial Analyst superstructure and SAGA GIS software (Institute of Geography, University of Hamburg, Hamburg, Germany) were used for the calculation of the geomorphic indices.

3. Results

(1) RF does not constitute any error threshold value. It depends on research objectives and nature of the analysis, where an expected threshold is supposed to be designated. For complex datasets like ours, we designated the error threshold at a level of 20%.
Classification of the entire environmental dataset (11,885 plots, 58 factors) within the supervised framework of the H/C class revealed a general misclassification error of 0.2% (mtry = 4–8, ntree = 500 or 1000). H/C classes revealed a partial within-class error of 0.06 and 0.63% respectively. As this result was consistent with a previous investigation by Kusbach [46], the strong division to the H/C subsets were used in the next assessment of NFAs and FVZs.
Classification of the Hercynicum environmental subset (9349 plots, 58 factors) within the supervised framework of the NFA class revealed a general misclassification error of 4% (mtry = 8, ntree = 500 or 1000). The RF confusion matrix showed the majority of NFAs as very well classified (<10% of the partial error). NFA 6, 15, 26, and 31 revealed satisfactory partial errors of 12, 10, 19, and 15% respectively. The combined RF variable importance (based on both Mean Decrease Accuracy and Mean Decrease Gini) ranked all factors and pointed to climatic factors, especially precipitation, as the most differential among NFAs (Table 2). Climatic factors were better predictors of NFAs than geomorphic indices and soil types for Hercynicum.
Classification of the Carpaticum environmental subset (2524 plots, 58 factors) within the supervised framework of the NFA class revealed a general misclassification error of 2% (mtry = 8, ntree = 500 or 1000). The RF confusion matrix showed a partial error 0.6, 0.5, 1.2, 4.4, 3.1, 5.5% for NFAs 35–41 (except the dropped NFA 37) respectively. The combined RF variable importance ranked all factors, the most differential among NFA see in Table 2. Climatic factors and soil properties were better predictors of NFAs than geomorphic indices for Carpaticum.
Classification of the Hercynicum environmental subset (9308 plots, 58 factors) within the supervised framework of the FVZ class revealed a general misclassification error of 23% (mtry = 16, ntree = 500 or 1000). The RF confusion matrix showed a partial error 32, 31, 23, 32, 15, 22, 14 and 20% for FVZ 1–8 respectively. Neighbors of a given FVZ (along the diagonal of the confusion matrix) comprised a majority of misclassified plots. Thus, these adjacent FVZs overlapped. The Mean Decrease Accuracy variable importance pointed to macroclimatic factors (precipitation and temperatures for Mean Decrease Gini) and soils as the most differential among FVZs (Table 3). Climatic factors and soils were better predictors of FVZs than geomorphic indices for Hercynicum.
Classification of the Carpaticum environmental subset (2514 plots, 58 factors) within the supervised framework of the FVZ class revealed a general misclassification error of 16% (mtry = 16, ntree = 500 or 1000). While the RF confusion matrix showed FVZs 1, 3 and 5 as very good, (a partial error 7.6, 11.8, and 8.2%), FVZs 2, 4, 6 revealed partial errors of 38.1 26.5 and 24.2% respectively. Again, neighbors of a given FVZ comprised a majority of misclassified plots and these adjacent FVZs overlapped. The most differential factors among FVZ of the Carpaticum see in Table 3. Climatic factors were better predictors of FVZs than geomorphic indices and soil properties for Carpaticum.

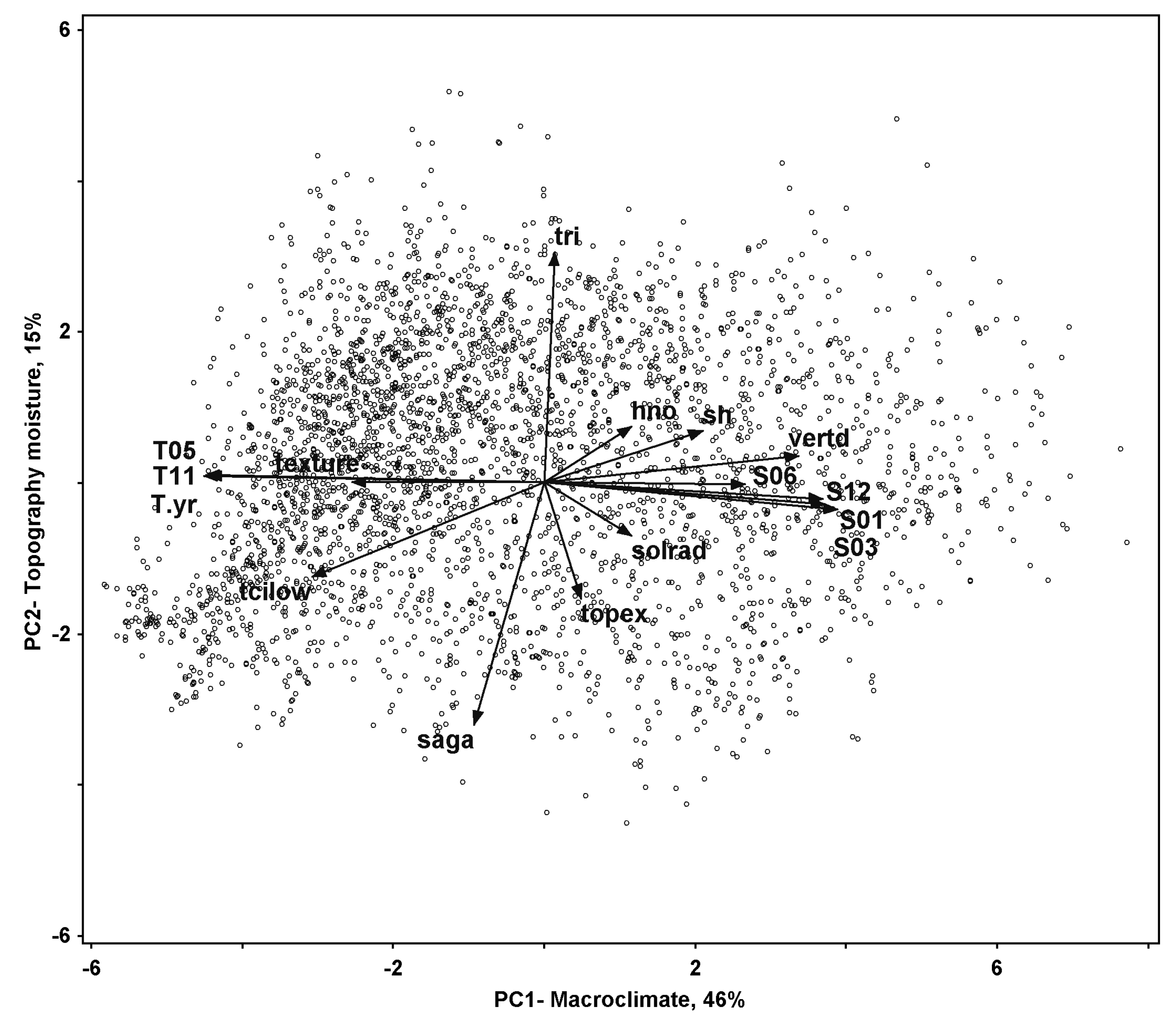

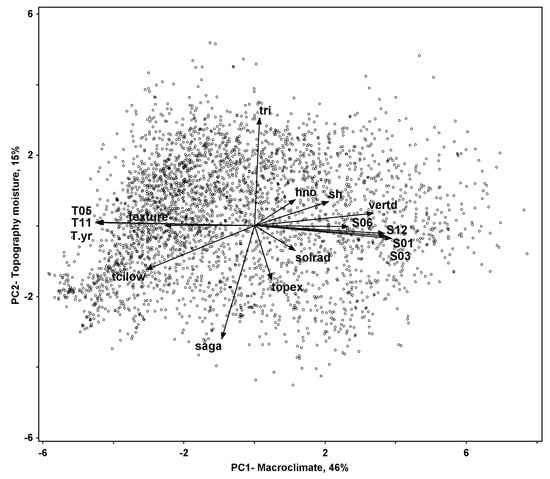

(2) The PCA ordination of the Hercynicum subset (4500 plots, 20 important factors from the RF classification) resulted in three significant PCs (p = 0.001), explaining respectively 46, 15 and 11% of the total variance within the climatic and geomorphic indices (Figure 2). The most important principal component (PC1) was associated with macroclimatic factors (temperature, precipitation). PC1 was interpreted as a macroclimate gradient. PC2 was highly associated with SAGA (r = −0.8, tau = −0.6), TRI (0.8, 0.6), Topex (−0.6, −0.4) and TCIlow (−0.5, −0.4). We interpreted this as a topographically based soil moisture gradient. PC3 was highly associated with VD (−0.9, −0.7), HNO (0.7, 0.5) and Topex (0.6, 0.4), which we interpreted as a valley thermic inversion gradient (Figure 2, Supplementary Material B).

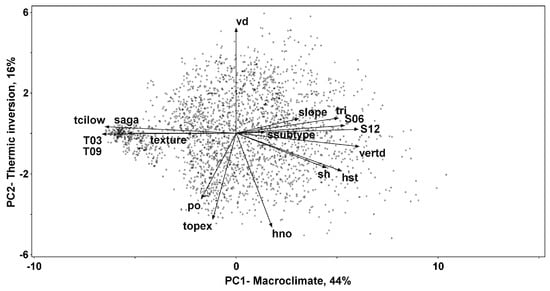

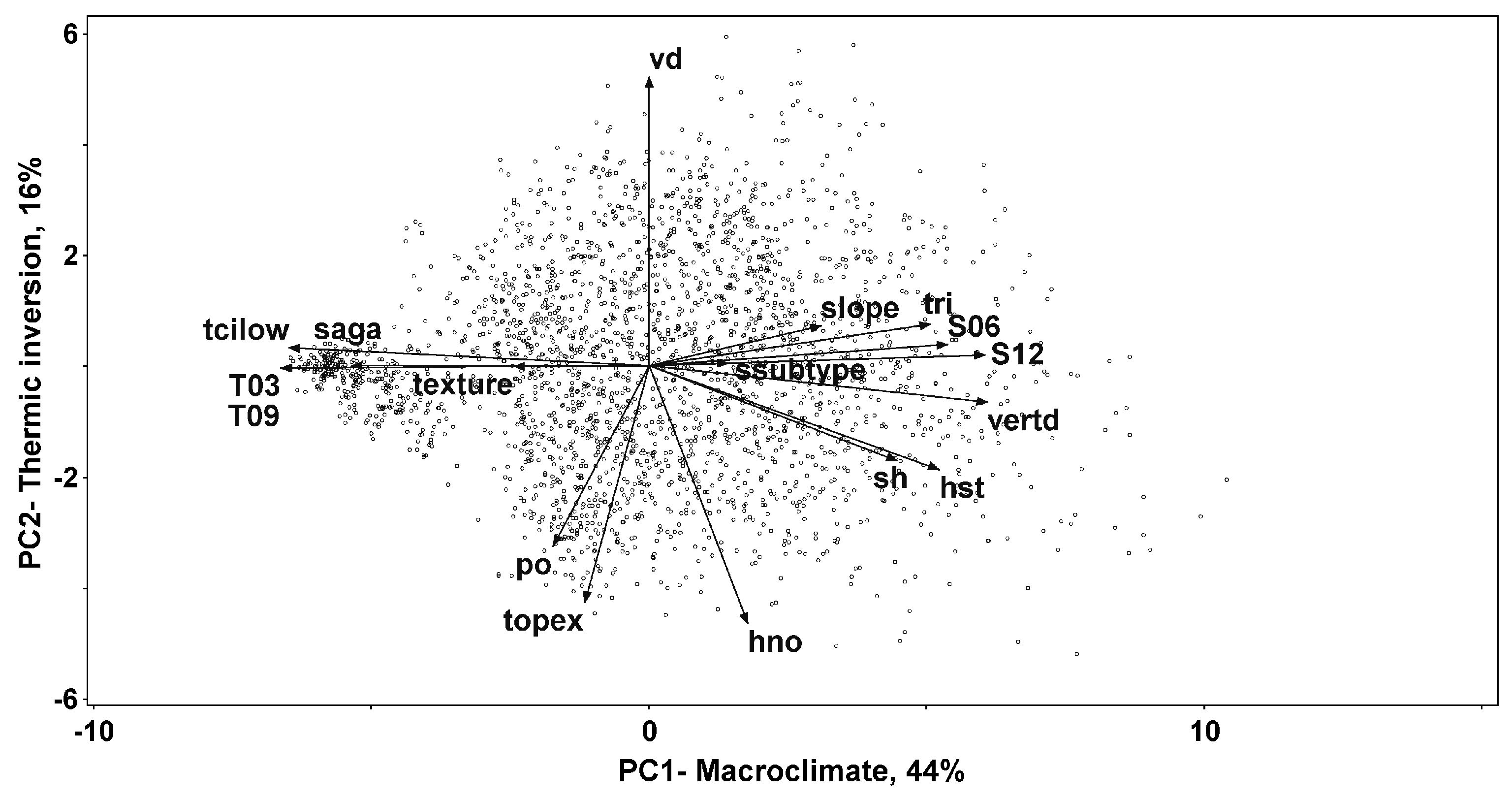

The PCA ordination of the Carpaticum subset (2535 plots, 21 important factors from the RF classification) resulted in three significant PCs (p = 0.001), explaining respectively 44, 16 and 11% of the total variance within the climatic and geomorphic indices (Figure 3). The most important principal component (PC1) was associated with macroclimatic factors (temperature, precipitation). PC1 was interpreted as a macroclimate gradient. PC2 was highly associated with VD (r = 0.8, tau = 0.7), HNO (−0.8, −0.6), Topex (−0.8, −0.6) and PO (−0.7, −0.5). We interpreted this as a valley thermic inversion gradient. PC3 was highly associated with Diur (0.9, 0.8), Solrad (0.9, 0.7) and av (−0.8, −0.6), which we interpreted as an exposure-to-sun gradient (Figure 3, Supplementary Material C).
(3a) In NMS, the binary relativization with respect to median showed the best results compared to the other relativizations. Dominance curves for the H/C subsets were lined up, i.e., a difference between common and rare species was balanced. The ordination produced a meaningful distribution of vegetation plots in the ordination space for this type of relativization.

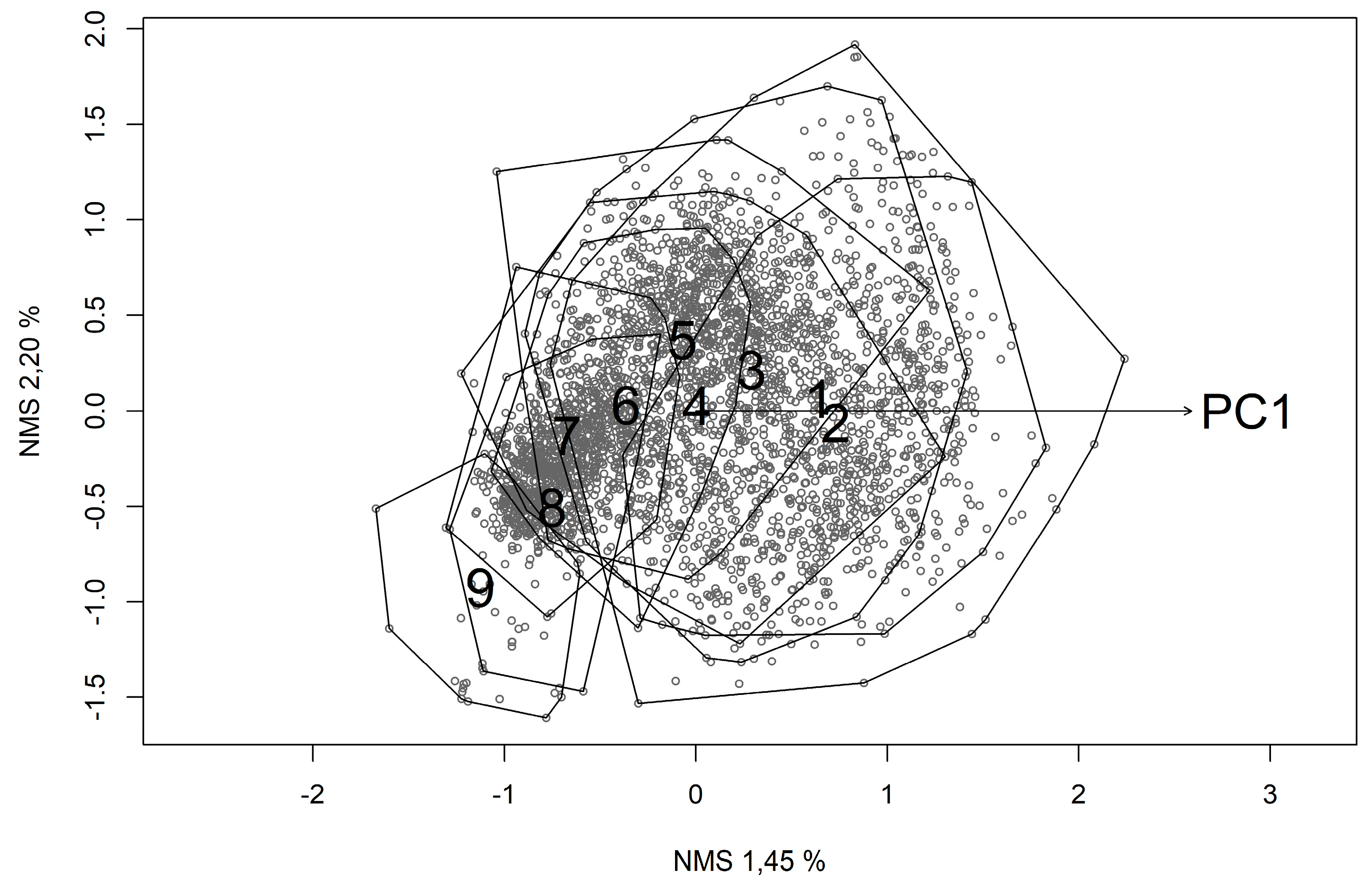

For the Hercynicum subset (3222 plots, 317 species), the final solution after 78 iterations with final stress at 18.5 (p = 0.004) and instability at 0.0 suggested two dimensions (vegetation gradients) representing 65% of the after-the-fact amount of variation within the subset (the first axis 45, second 20%). For the Carpaticum subset (2535 plots, 340 species), the final solution after 111 iterations with final stress at 19.7 (p = 0.004) and instability at 0.0 suggested two dimensions representing 69% of the total amount of variation within the subset (38% of the first axis, 31% of the second).
We found a significant relationship between vegetation and the environment represented by macroclimate (PC1 gradient). PC1 was highly associated with NMS1 for both Hercynicum and Carpaticum (r = −0.7, tau = −0.5) (Supplementary Material D, E). In Hercynicum, the species significantly associated with NMS1 and macroclimate were Picea abies (r = 0.5, tau = 0.4), Vaccinium myrtillus (0.8, 0.6), Vaccinium vitis-idaea (0.6, 0.5), Vaccinium uliginosum (0.5, 0.4), Calamagrostis villosa (0.5, 0.5), Avenella flexuosa (0.5, 0.4) for a colder and wetter part of the gradient. For a warmer and drier part of the gradient, they were Poa nemoralis (−0.6, −0.5), Galium odoratum (−0.5, −0.4), Viola reichenbachiana (−0.5, −0.4), Melica nutans and Mercurialis perennis (−0.4, −0.4). In Carpaticum, the species significantly associated with macroclimate were Fagus sylvatica (0.5, 0.5), Brachypodium sylvaticum (0.5, 0.4), Luzula luzuloides (0.5, 0.4), Vaccinium myrtillus (0.4, 0.4) for a colder and wetter part of the gradient. For a warmer and drier part of the gradient, it was Geum urbanum (−0.5, −0.4). We found no association between the species, designated FVZs and the other environmental gradients interpreted by PCA (Supplementary Material D, E).

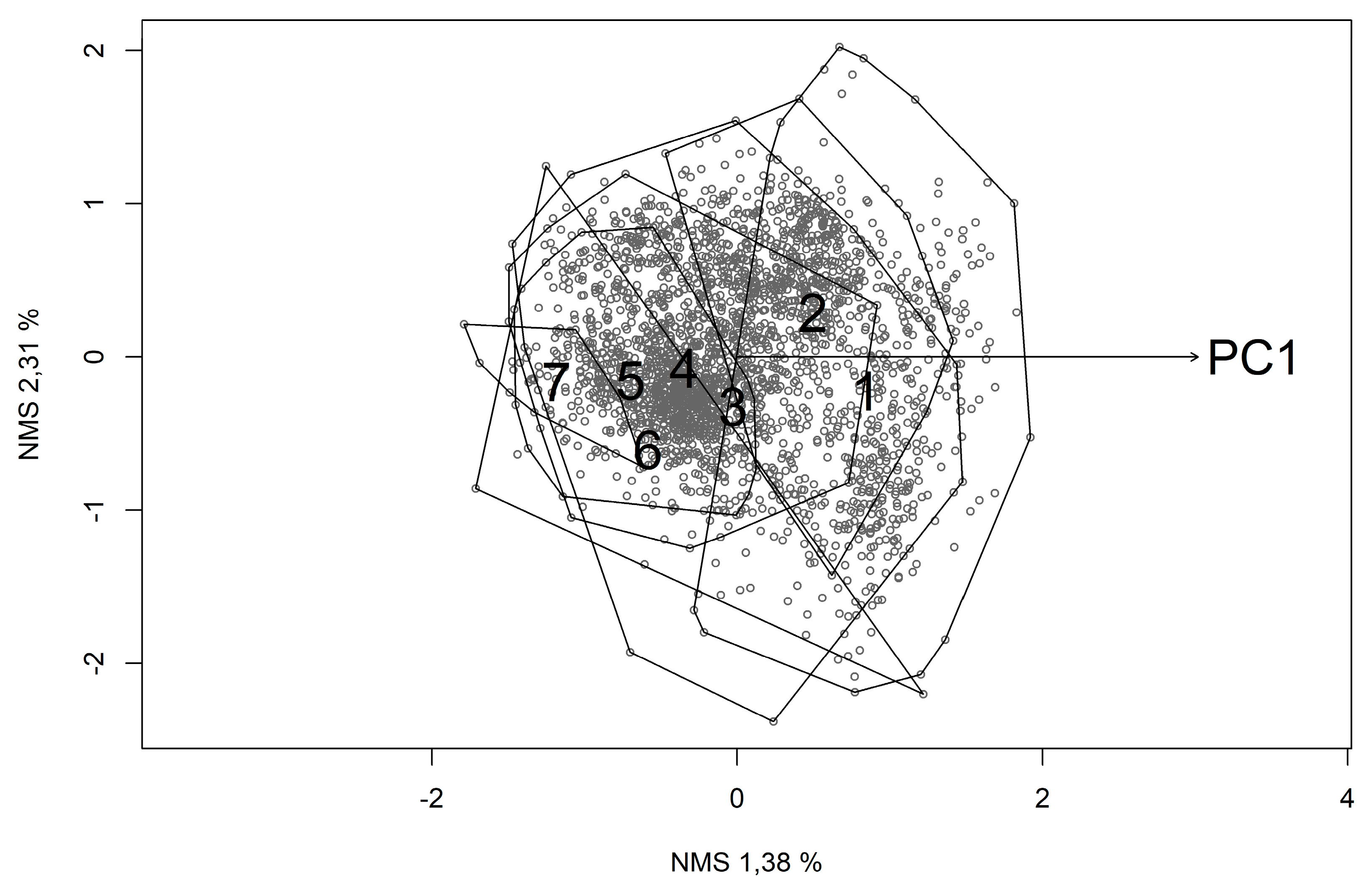

Convex hulls were computed to outline FVZs in the species study areas. FVZs were ordered following the macroclimatic gradient suggested by PCA and RF within NMS biplots (Figure 4 and Figure 5). The plant species composition and its homogeneity among FVZs significantly differed for Hercynicum (adonis: R2 = 0.240, p < 0.01; betadisper: F = 340.43, p < 0.01) and for Carpaticum (adonis: R2 = 0.221, p < 0.01; betadisper: F = 124.59, p < 0.001). For both, the mountain FVZs were more homogenous (average distance to group centroid < 0.5) than the low-elevational FVZs (average distance to centroid > 0.5). A permutation test for adonis results revealed small differences among FVZs (Supplementary Material F). These findings were consistent with misclassification between the FVZ neighbors and overlapping of FVZs. For the worst FVZ in the Hercynicum adonis test, we indicated the plot outliers as azonal sites reflecting mesoclimate rather than macroclimate. Cutting off these outliers improved homogeneity and robustness of the FVZ (Supplementary Material G).
(3b) Classification of the Hercynicum vegetation subset (3222 plots, 317 species) supervised by the FVZ revealed a general misclassification error of 35% (mtry = 20, ntree = 1000). The RF confusion matrix showed a partial error 20, 32, 43, 52, 36, 35, 34 and 28% for FVZ 1–8 respectively. The combined RF variable importance ranked all species. Mean Decrease Accuracy values for important and overlapping species with NMS were: Fagus2 = 48, Calamagrosris villosa = 40, Picea3 = 38, Fagus3 = 37, Vaccinium myrtillus = 33, Abies2 = 33, Avenella flexuosa = 25, Quercus petraea9 = 28, Galium odoratum = 25, Poa nemoralis = 23; Mercurialis perennis= 23. Mean Decrease Gini values were: Calamagrosris villosa = 82, Fagus2 = 76, Picea3 = 63, Fagus3 = 54, Vaccinium myrtillus = 43, Avenella flexuosa = 34, Poa nemoralis = 33, Quercus petraea9 = 33, Abies2 = 31, Galium odoratum = 29, Mercurialis perennis = 22. Climax tree species appeared to be good predictors of FVZs for Hercynicum.
Classification of the Carpaticum vegetation subset (2514 plots, 340 species) supervised by the FVZ revealed a general misclassification error of 22% (mtry = 40, ntree = 500). While the RF confusion matrix showed FVZs 1, 3 and 5 as very good, (a partial error 10, 14, and 7%), FVZs 2, 4, 6 revealed partial errors of 32, 52 and 86% respectively. Neighbors of a given FVZ comprised a majority of misclassified plots and these adjacent FVZs overlapped. The combined RF variable importance ranked all species. Mean Decrease Accuracy values for important and overlapping species with NMS were: Carex pilosa = 38, Fagus2 = 34, Abies2 = 25, Quercus petraea3 = 25, Quercus petraea4 = 25, Vaccinium myrtillus = 17, Picea3 = 14, Luzula luzuloides = 14, Mean Decrease Gini values were: Carex pilosa = 87, Fagus2 = 77, Abies2 = 63, Quercus petraea3 = 62, Quercus petraea4 = 49, Picea3 = 22, Luzula luzuloides = 14, Vaccinium myrtillus = 13. Climax tree species appeared to be good predictors of FVZs for Carpaticum. Major important species (including the understory) revealed by NMS and RF overlapped.

4. Discussion

4.1. Natural Forest Areas

The categorization of Natural Forest Areas generally performed very well in the analysis because of a low misclassification error. However, some areas such as 6, 15, 26, and 31, along with under sampled NFA 2, 32, and 37, appeared incorrect in the analysis but which may serve as examples for further investigations. These areas were either too small or represented lowland to mountain transitions. Expert knowledge attempts were made to move NFA borders closer to ecological reality and retain clear but not ecological borders (artificial channels, roads, railroads). Future actions might utilize RF classifiers, for example, to help to justify fuzzy areas’ borders. RF is useful for identifying problematic plots along these borders based on probabilities being misclassified by using a ‘predict’ command.
Additionally, the conventional division into Hercynicum and Carpaticum should be considered within the system because: (1) it is consistent with continental-scale climatic-vegetation classifications [12,66,67]; and (2), it is ecological, and performed well indicated bythe analysis.

4.2. Forest Vegetation Zones

The classifications of FVZs performed worse than NFAs, despite the fact that they comprised necessary attributes demanded by the FVZ concept [40] i.e., vegetation, macro/mesoclimate and a FVZ field designation. The RF produced analogous results to both ordinations and tests for FVZ significance and homogeneity. Macroclimate was the best predictor of FVZs within the H/C subsets (Figure 4 and Figure 5).
Low-elevational FVZs, however, performed worse than montane zones in both Hercynicum and Carpaticum. Classification results supported by azonal detection of the NMS outliers pointed to a lack of spatial vegetation-environmental relationships, putting into question the vegetation-driven FVZ concept. Two reasons or manifestations may explain a shortage of these relationships (Supplementary Material D, E):
(1) A human-caused disturbance noise. Existing (actual) vegetation is far from PNV in central Europe (e.g., [54]).
We analyzed changes in vegetation composition of forested areas mainly in the Hercynicum area with the naturalness degree 4 [56], as the frequently occurring species such as Picea abies, Pinus sylvestris and Larix decidua are not natural co-dominant species accompanying Quercus petraea and Fagus sylvatica in lower FVZs (1–3), and Picea abies does not naturally accompany Fagus in higher FVZs (4–5). It is probably the reason why Picea abies was the only significant tree species associated with macroclimate accompanied by Vaccinium myrtillus, Vaccinium vitis-idaea, Vaccinium uliginosum, Calamagrostis villosa and Avenella flexuosa at the same end of the macroclimatic gradient in NMS. Results for Pinus mugo may also have been limited by general undersampling of the zone and difficulties associated with precisely delineating FVZ 8 from FVZ 9 due to past pasture management practices and shifting of the upper tree line [68,69,70]. Abies alba occurrence in Hercynicum and Carpaticum has been strongly affected by extensive human impact beginning as early as the Medieval period [71], and subsequently suffered further decline in Modern times in response to conditions such as periods of marked air pollution, i.e., the 1970s and 1980s [72].
In Carpaticum, Fagus sylvatica was revealed as a tree species associated with macroclimate accompanied by Brachypodium sylvaticum, Luzula luzuloides and Vaccinium myrtillus. Other important tree species in classification were Quercus petraea and Abies alba. We suggest that changes in the proportionate occurrence of Fagus and Quercus in NMS were mainly due to past practices of intensive coppice management (e.g., [73,74]).
Better results of vegetation classification for Carpaticum confirmed its more natural floristic composition and a heavier human-caused disturbance vegetation noise especially in a lower-‘agricultural’ Hercynicum landscape. Vegetation classification demonstrated a leading role of climax tree species (edificators) Quercus petraea, Fagus sylvatica, Abies alba and Picea abies in vegetation zonation [40].
(2) Only two significant species dimensions (NMS1–2) represented broad vegetation information. Forty five percent (NMS1) and 38% (NMS 2) of information respective to H/C (Figure 4 and Figure 5) was in fact a response to the one of the three significant environmental gradients (Figure 2 and Figure 3). The remaining vegetation information represented as a noise proved puzzling and consequently, we were unable to correlate it with the environmental data. Macroclimate showed to be the best predictor of FVZs for both H/C in all the analyses. Mesoclimate does not matter in the FVZ landscape-level settings.
The FVZ concept implicitly combines an altitudinal change of macroclimatic factors with mesoclimate detected as independent on macroclimate in our analysis (see also Figure 2 and Figure 3) via explicit designation of FVZs by focal tree generalists. This combination effectively led to the delineation of zonal (driven by macroclimate) and azonal (driven by mesoclimate) FVZs (Figure 1b,c).
Environmental and vegetation results were in agreement with both classification (RF) and NMS ordination. Moreover, classification of the environment provided better results than classification of vegetation for both Hercynicum and Carpaticum. Taking into account significance of the environment in our analysis, we propose that it would be ill-advised to base delineation of forest vegetation zones via explicit a priori designation by climax tree species without taking significant environmental limits such as independence of the environmental gradients into consideration. This is especially true for more compositionally changed forests of Hercynicum. We recommend instead using a novel interpretation of landscape-level vegetation zonation, keeping vegetation responses ‘simple’ by responding to only the most significant environmental gradient, i.e., macroclimate, because again, mesoclimate is not significant at the landscape-level settings in our FVZ analysis. This approach assumes proper stratification of both vegetation and environmental data, for example, by use of the zonal concept [11]. Local climatic, topographical and edaphic extremes (warm south-facing slopes, cool north-facing slopes, cold depressions), are excluded and only intermediate environmental conditions are considered in stratification of late-seral vegetation ([75] sensu [11]). The concept can solve the azonality issue and explicitly include the ‘zonal’ environment into the consideration. Azonality should be excluded from the FVZ concept because this delineation lowers accuracy of existing zonation. A zonal stratification is advantageous for using environmental limits [11], including soil factors applied directly on a site [75]. Use of these limits together with late-seral vegetation strengthens the PNV approach. This concept has worked properly in BEC in BC that way for decades. It was also applied in the Modoc National Forest in northern California [76] and in the central Rocky Mountains [75].
Additionally, relatively new methods in quarter paleoecology such as pedoanthracology (e.g., [77,78]) combined with routine dendrochronological techniques [79,80] may be helpful when reconstructing a landscape and its vegetation ‘story’ to a desirable time period including a historic gradient to the relatively static physical environment. In our opinion, the addition of paleo studies (e.g., [71,81,82,83,84]) will be necessary for a defensible PNV, certainly in the context of forest assessment for central Europe [85].

4.3. Potential of Improved Vegetation-Driven Classifications

We suggest that limited accuracy of FVZs discredits their applied power. Earlier efforts to delineate such units were driven by field experience, or by as little as an educated guess, as rigorous analytical tools did not yet exist. These efforts relied on subjective constructions and over utilization of rather vague expert knowledge [34].
There is an enormous value in ecological classifications when applied to forest ecology, land management, nature conservation (e.g., [31,33,86,87,88]) and other important fields such as climate change and disturbance predictions [89,90]. Additionally, considering ecological classifications in a context of multidisciplinary efforts (e.g., contributing to ongoing work in anthracology, dendrochronology and climatology) may be very useful to further develop ecological classifications worldwide. In BC, for example, a recent topic of ongoing discussion relates to how the application BEC tools to cumulative vegetation-environmental assessments might benefit industries not directly related to forestry, such as the energy sector [91]. Multidisciplinary efforts could also be extremely useful in habitat typing, a typical vegetation-driven land classification system that has been used in forest ecosystem management in extensive areas of USA for more than 50 years. There exists a real need for formal quantification based on enhanced information (e.g., derived from progressive technologies such as remote sensing, or through using new climatic models).

4.4. Perspectives of Ecological Classifications

Our study revealed issues that contradict expert knowledge based concepts respected for decades with respect to approaches via formal quantification of available data, which is consistent with a recent call for advanced classifications in Europe [46,92,93], and in North America [86,87,94,95,96]. Findings of this study may point to similar problems accompanying other classifications where landscape units may not be as strong as expected.
Recently, considerable effort has been invested into formulating stable continental forest unit descriptors [97,98,99] with the view of providing regional structures such as CFEC with a reliable, top-down framework. These structures should be equipped with quality data to support sustainable management as much as possible, in compliance with Pan European legislation [100,101,102]. In regions lacking established ecological classifications such as West Africa [103], Mongolia [104], northwest Himalayas [105], Greenland [106], and Chile [107], this approach holds considerable potential for developing ecologically sound structures aimed at improving local management.
Current advancements in disturbance ecology have rendered conventional ecological frameworks obsolete. These frameworks have been criticized as being ‘static’, and unable to sufficiently reflect ecosystem dynamics. Disturbances shape vegetation patterns faster than relatively stable site factors. Nevertheless, we are convinced that a role of classic site components, including soils and combined with new techniques, in the assessment of vegetation patterns holds considerable potential in a changing world. Forest classifications have been always considered an important part of the ecological basis for developing sustainable management guidelines [107,108]. We propose that our central European study be considered a general methodology and used as an example for verifying landscape-level vegetation classifications where traditional concept settings might be otherwise problematic. Ecological classifications matter in the 21st century!

5. Conclusions

The landscape-level units of the Czech Forest Ecosystem Classification generally succeeded in differentiating environmental conditions. In homogeneous environments of H/C, the NFA proved highly successful, while the FVZ did not succeed as well in classification and ordination of available vegetation and environmental data. Classification of the environment provided better results than classification of vegetation for both Hercynicum and Carpaticum. Using the PNV concept, we suggest not relying only on vegetation and its floristic elements in classification analyses, but including also the significant environment for direct classification of FVZ and similar vegetation-based units mainly in altered compositional settings such as the central European forests. We suggest a novel interpretation of FVZ via a proper stratification of vegetation throughout the environment by employing the zonal concept. Furthering our understanding of coarse-scaled vegetation-environmental relationships is fundamental, not only in the context of forest ecology and management, but towards improving lower, fine-scaled classification levels. Given its broad practical and theoretical acceptance, high-applied value, importance for a local legislation and recent Pan European processes, we recommend re-examination of the concept of FVZ using a new data sources such as (i) the National Forest Inventory with a random plot sampling design; (ii) pedoathracology as a promising historic gradient data source; and (iii) potential mesoclimatic modeling.Valuable expert knowledge and empiricism should be combined with up-to-date, formal quantification in the assessment of accepted but obsolete land classification structures. This study raised similar conceptual issues for other ecological classifications worldwide. It is consistent with recent calls for advanced multidisciplinary ecological classifications in Europe and North America.

Supplementary Materials

The following are available online at www.mdpi.com/1999-4907/8/12/461/s1: A. Description of geomorphic indices based on Digital Terrain Model created on Digital Relief Model of 4th Generation; B. PCA for the Hercynicum phytogeographic region. Parametric Pearson’s r and nonparametric Kendall’s tau correlation coefficients (loadings) for significant ordination axes; C. PCA for the Carpaticum phytogeographic region. Parametric Pearson’s r and nonparametric Kendall’s tau correlation coefficients (loadings) for significant ordination axes; D. A relationship between the PCA and NMS ordinations represented by Pearson’s r and Kendall’s tau correlation coefficients (loadings) for the Hercynicum phytogeographic region; E. A relationship between the PCA and NMS ordinations represented by Pearson’s r and Kendall’s tau correlation coefficients (loadings) for the Carpaticum phytogeographic region; F. A permutation test of the adonis analysis; G. Outliers for the worst FVZ 1 in the Hercynicum phytogeographic region. The outliers (black circles) were identified as azonal sites reflexing mesoclimate rather than macroclimate. Cutting off the outliers improved homogeneity and robustness of the FVZ (average distance to the group centroid dropped).

Acknowledgments

We thank the Czech Forest Management Institute for the data provided for the purpose of this study. We also thank Dean Meason and Aimee Orsini for the English revision and anonymous reviewers for providing invaluable comments and suggestions on drafts of this paper. This paper was supported by the project “Building and development of the multidisciplinary team on a platform of landscape ecology, CZ.1.07/2.3.00/20.0004” and “Internal Grant Agency of the Faculty of Forestry and Wood Technology Mendel University in Brno, LDF_PSV_2017006”.

Author Contributions

A.K. initiated the study, carried out the statistical analysis and drafted the manuscript. J.Š. carried out and reviewed the statistical analysis and the manuscript. V.Z. prepared the database and revised the manuscript. M.F. cleaned and prepared vegetation data, revised and formatted the manuscript, T.M. carried out the G.I.S. analysis.

Conflicts of Interest

The authors declare no conflict of interest.
