Next Article in Journal
Terpenoid Accumulation Links Plant Health and Flammability in the Cypress-Bark Canker Pathosystem
Next Article in Special Issue
The Staining Effect of Iron (II) Sulfate on Nine Different Wooden Substrates
Previous Article in Journal
Health Assessment and Genetic Structure of Monumental Norway Spruce Trees during A Bark Beetle (Ips typographus L.) Outbreak in the Białowieża Forest District, Poland
Previous Article in Special Issue
Effect of Different Hardwood Species and Lay-Up Schemes on the Mechanical Properties of Plywood
Open AccessArticle

Leachability and Decay Resistance of Wood Polyesterified with Sorbitol and Citric Acid

Norwegian Institute of Bioeconomy Research (NIBIO), PO Box 115, NO-1431 Ås, Norway
Forests 2020, 11(6), 650; https://doi.org/10.3390/f11060650
Received: 10 May 2020 / Revised: 2 June 2020 / Accepted: 4 June 2020 / Published: 6 June 2020

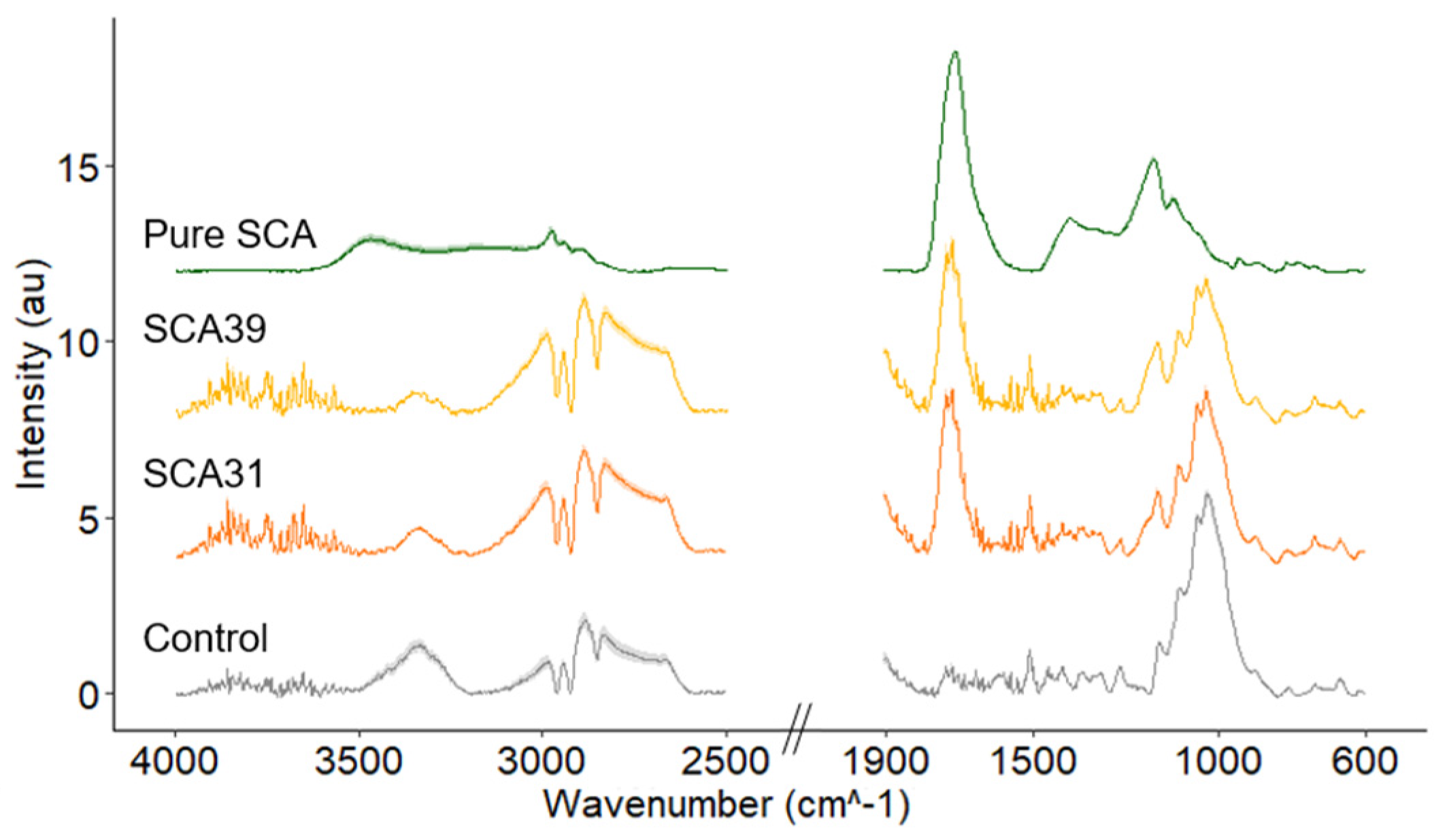

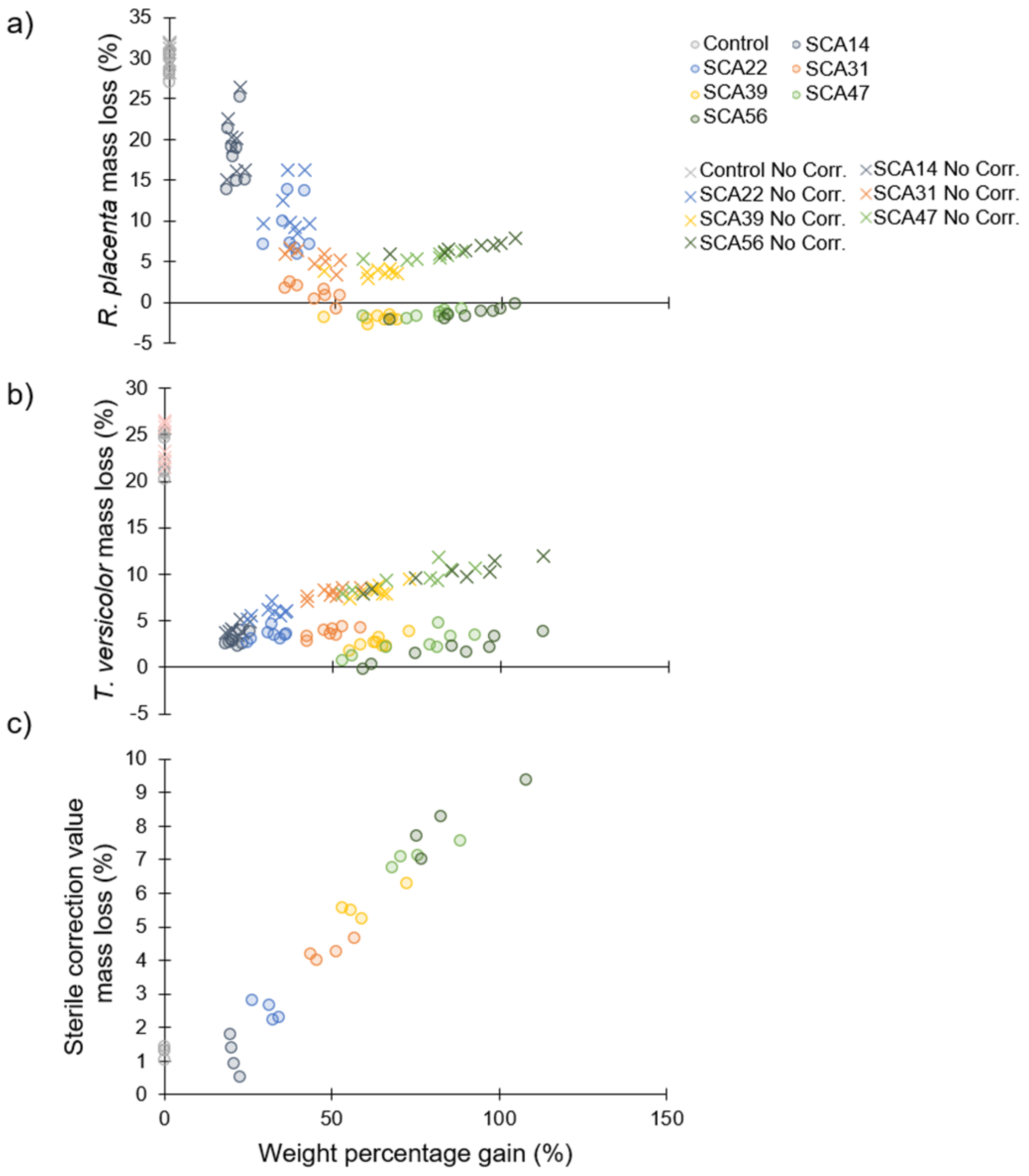

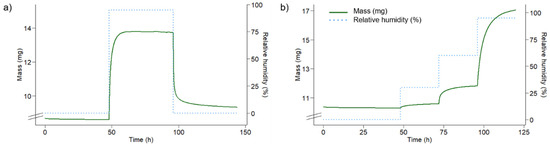

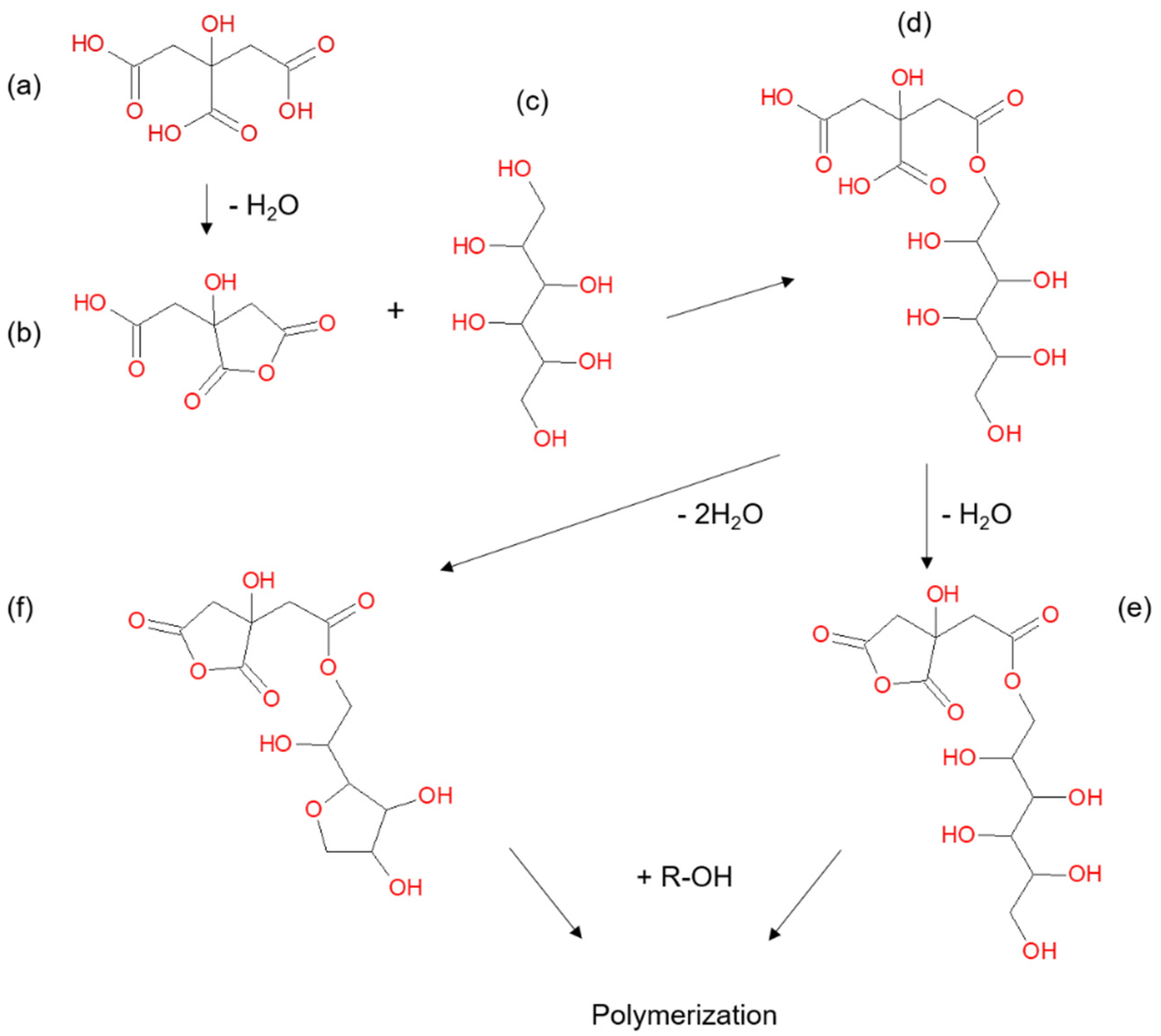

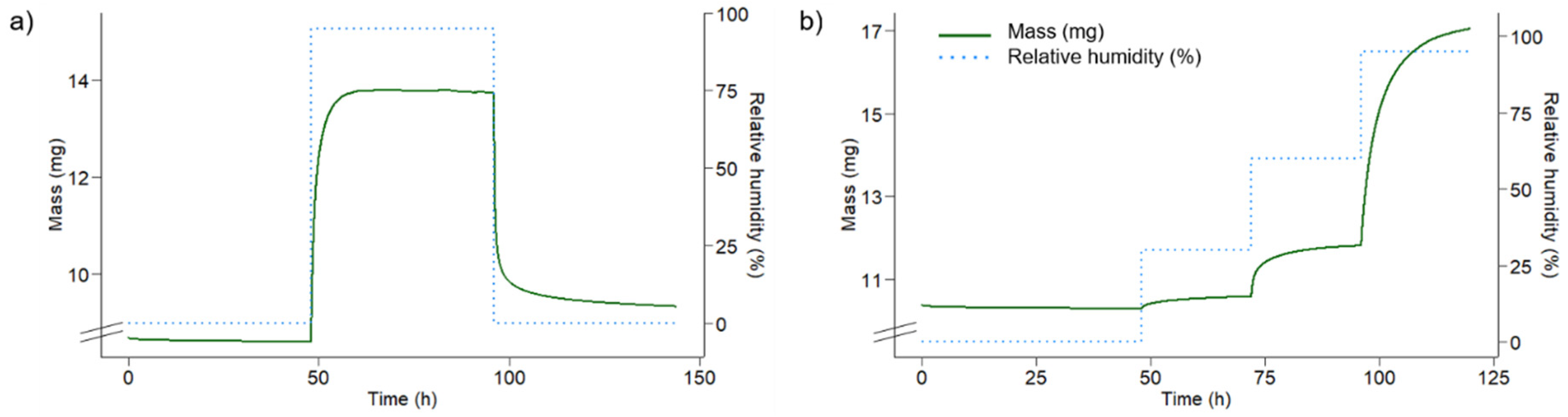

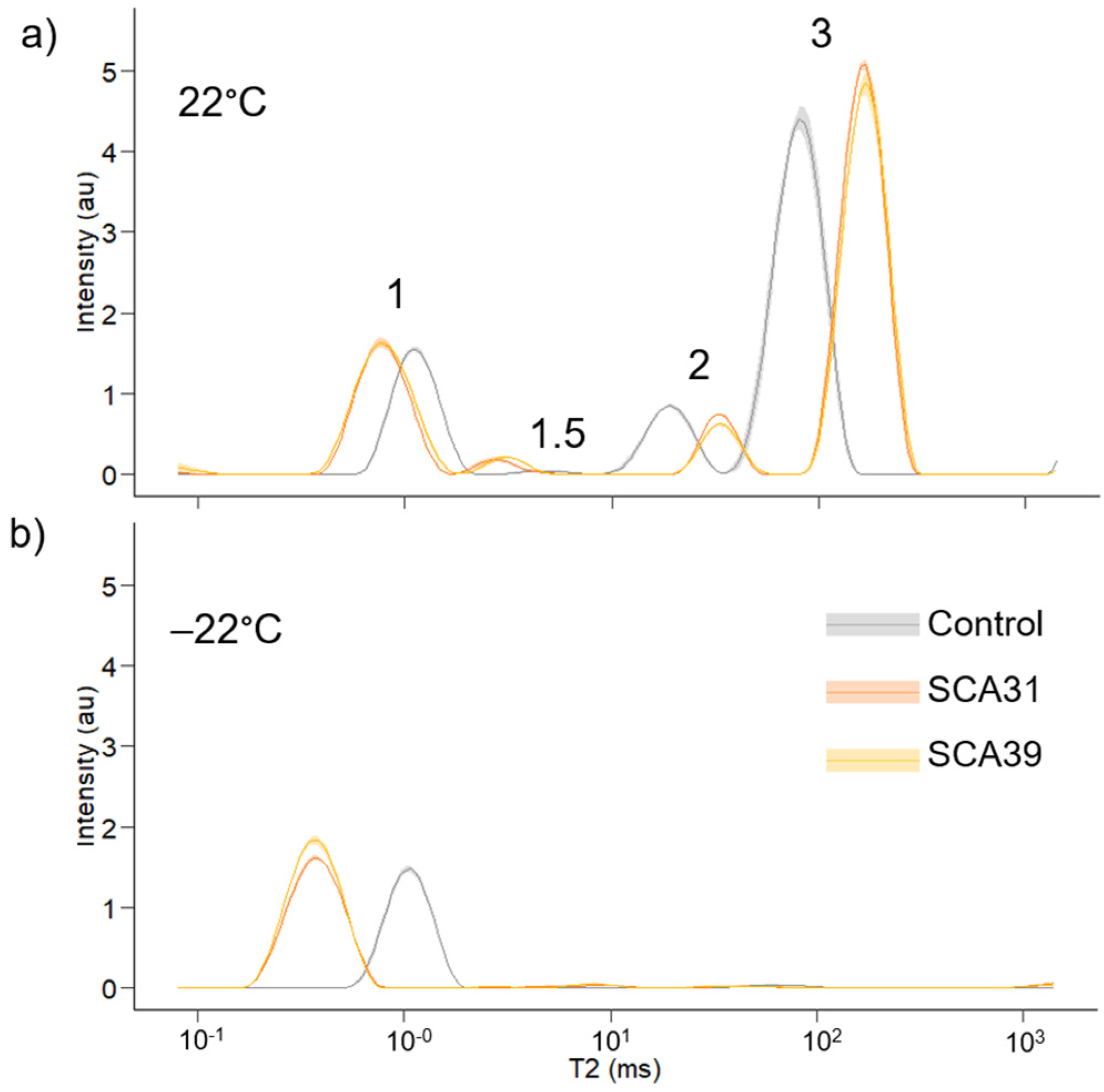

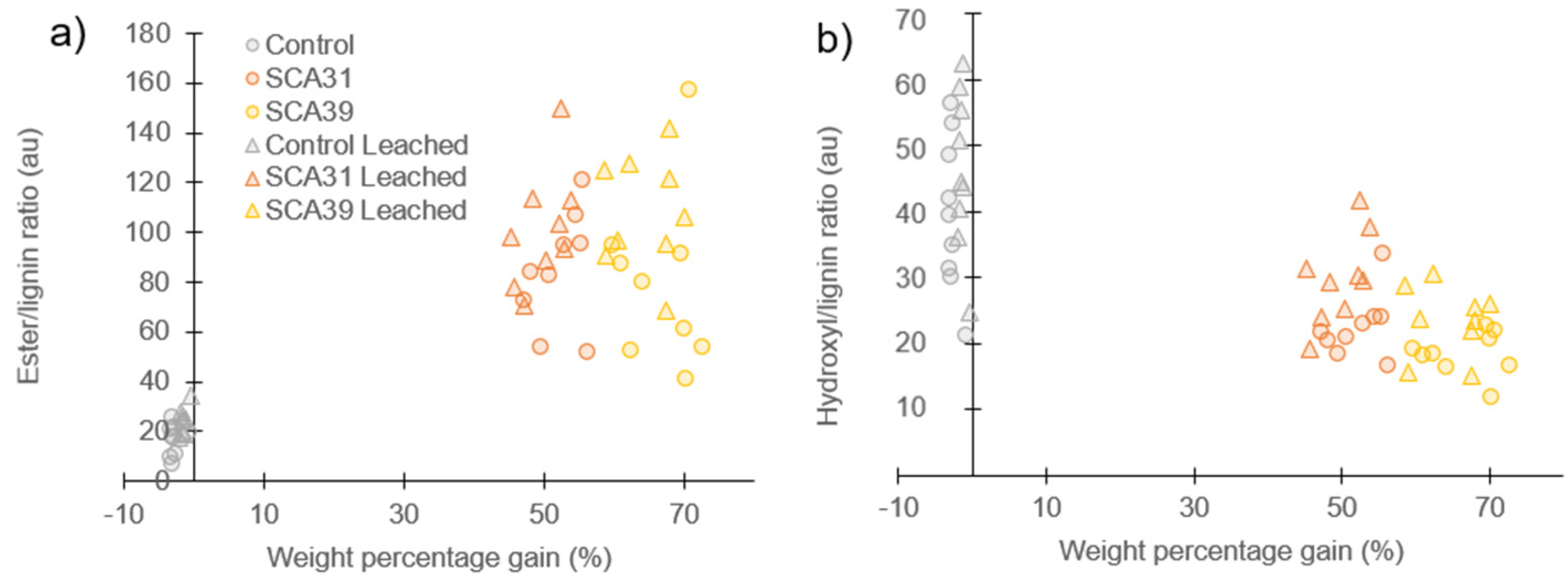

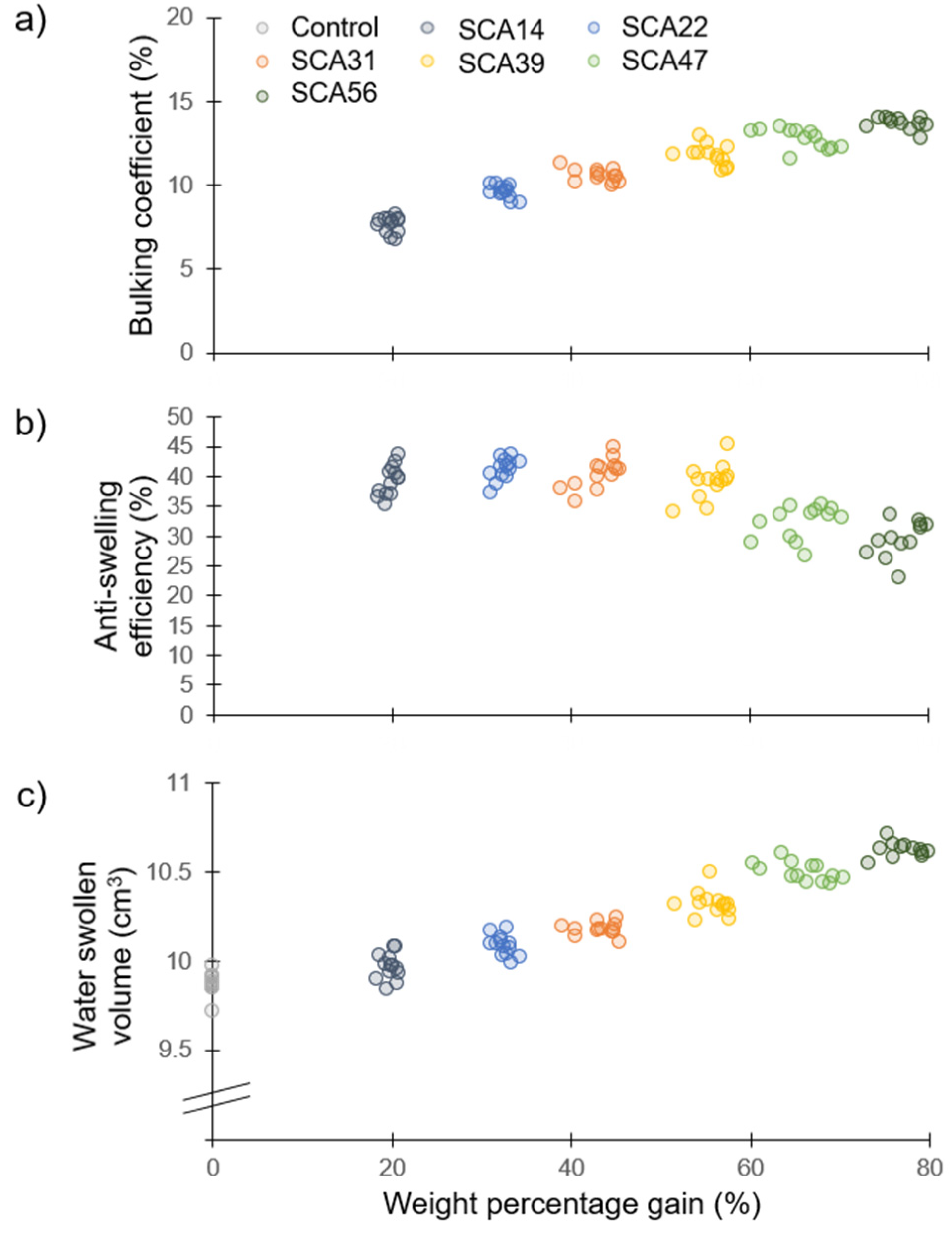

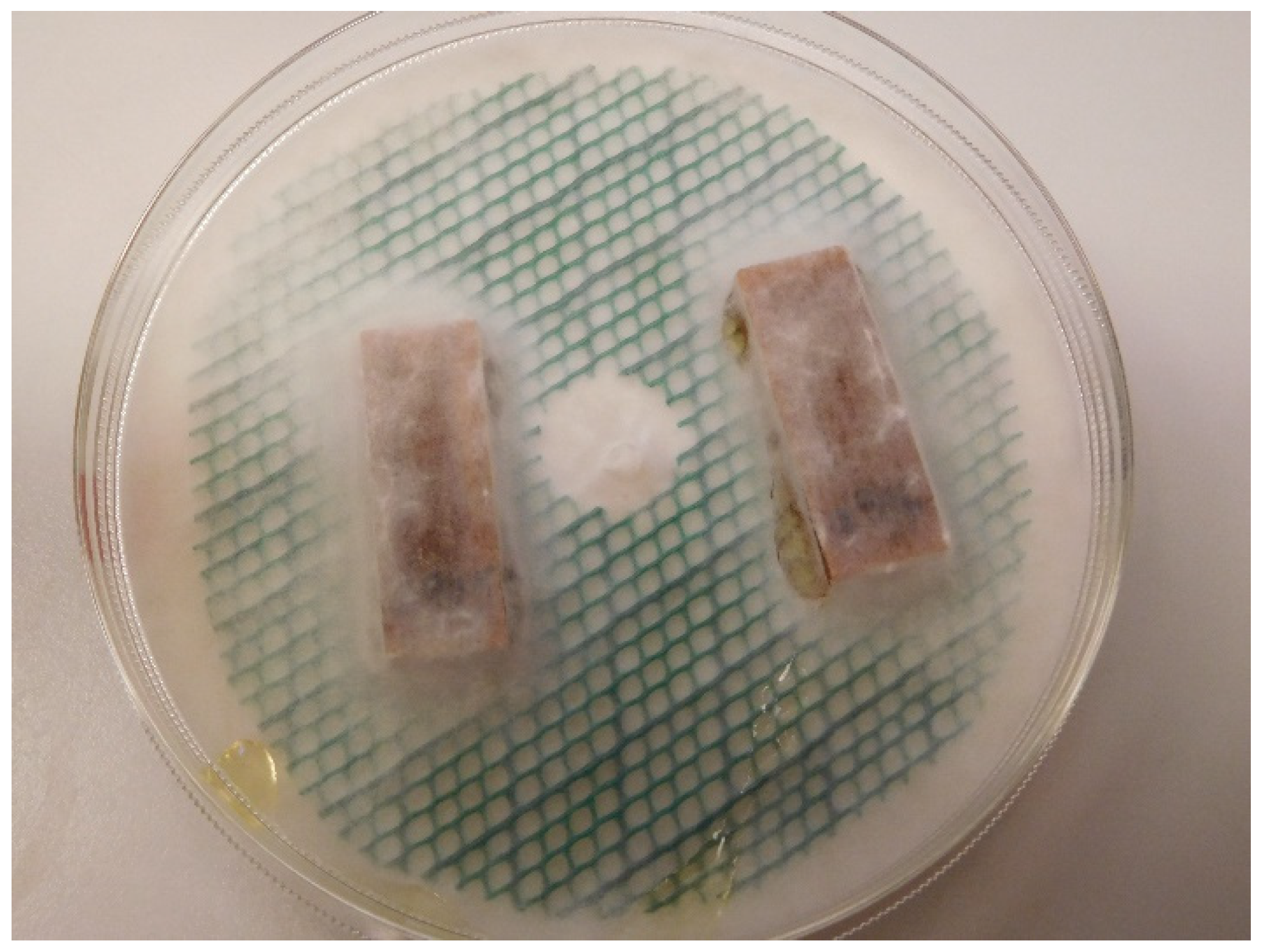

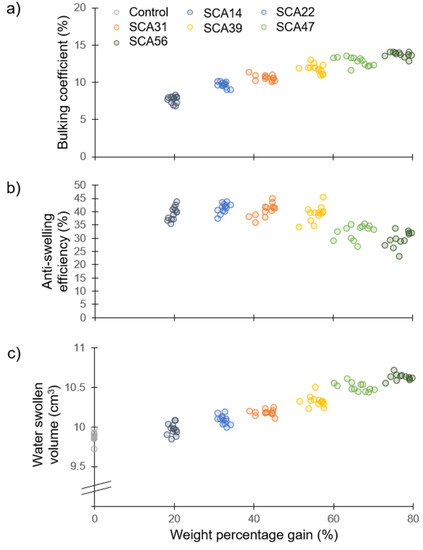

Research Highlights: Polyesterification of wood with sorbitol and citric acid (SCA) increases decay resistance against brown-rot and white-rot fungi without reducing cell wall moisture content but the SCA polymer is susceptible to hydrolysis. Background and Objectives: SCA polyesterification is a low-cost, bio-based chemical wood modification system with potential for commercialisation. Materials and Methods: This study investigates moisture-related properties and decay resistance in SCA-modified wood. Scots pine sapwood was polyesterified at 140 °C with various SCA solution concentrations ranging from 14–56% w/w. Dimensional stability was assessed and leachates were analysed with high-performance liquid chromatography (HPLC). Chemical changes were characterized with attenuated total reflection Fourier-transform infrared spectroscopy (ATR-FTIR) and spectra were quantitatively compared with peak ratios. Low-field nuclear magnetic resonance (LFNMR) relaxometry was used to assess water saturated samples and decay resistance was determined with a modified EN113 test. Results: Anti-swelling efficiency (ASE) ranged from 23–43% and decreased at higher weight percentage gains (WPG). Reduced ASE at higher WPG resulted from increased water saturated volumes for higher treatment levels. HPLC analysis of leachates showed detectable citric acid levels even after an EN84 leaching procedure. ATR-FTIR analysis indicated increased ester content in the SCA-modified samples and decreased hydroxyl content compared to controls. Cell wall water assessed by non-freezing moisture content determined with LFNMR was found to increase because of the modification. SCA-modified samples resisted brown-rot and white-rot decay, with a potential decay threshold of 50% WPG. Sterile reference samples incubated without fungi revealed substantial mass loss due to leaching of the samples in a high humidity environment. The susceptibility of the SCA polymer to hydrolysis was confirmed by analysing the sorption behaviour of the pure polymer in a dynamic vapour sorption apparatus. Conclusions: SCA wood modification is an effective means for imparting decay resistance but, using the curing parameters in the current study, prolonged low-level leaching due to hydrolysis of the SCA polymer remains a problem. View Full-Text
Keywords: ATR-FTIR; chemical wood modification; citric acid; decay resistance; leaching; LFNMR relaxometry; polyesterification; sorbitol; wood-water relationships ATR-FTIR; chemical wood modification; citric acid; decay resistance; leaching; LFNMR relaxometry; polyesterification; sorbitol; wood-water relationships
Show Figures

Figure 1

MDPI and ACS Style

Beck, G. Leachability and Decay Resistance of Wood Polyesterified with Sorbitol and Citric Acid. Forests 2020, 11, 650.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
