Next Article in Journal
Evaluating and Modeling the Internal Diffusion Behaviors of Microencapsulated Rejuvenator in Aged Bitumen by FTIR-ATR Tests
Next Article in Special Issue
Pore Formation Process of Porous Ti3SiC2 Fabricated by Reactive Sintering
Previous Article in Journal
Freckle Defect Formation near the Casting Interfaces of Directionally Solidified Superalloys
Previous Article in Special Issue
Paper Sludge Reuse in Lightweight Aggregates Manufacturing
Open AccessArticle

Separation of Hydrogen from Carbon Dioxide through Porous Ceramics

Department of Chemistry, Biotechnology, and Chemical Engineering, Kagoshima University, Kagoshima 890-0065, Japan
Author to whom correspondence should be addressed.
Academic Editor: Tobias Fey
Materials 2016, 9(11), 930;
Received: 5 September 2016 / Revised: 8 November 2016 / Accepted: 10 November 2016 / Published: 16 November 2016
(This article belongs to the Special Issue Porous Ceramics)

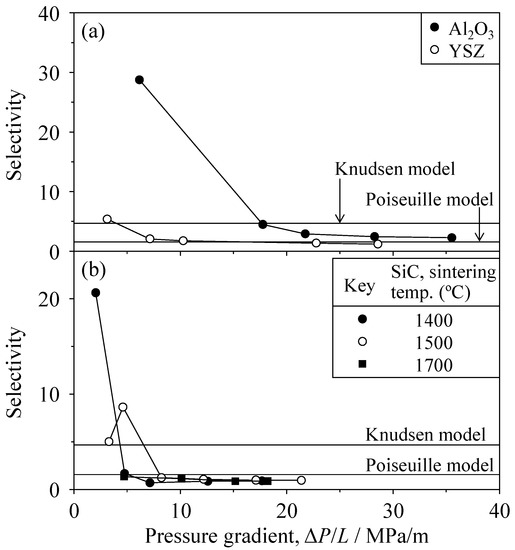

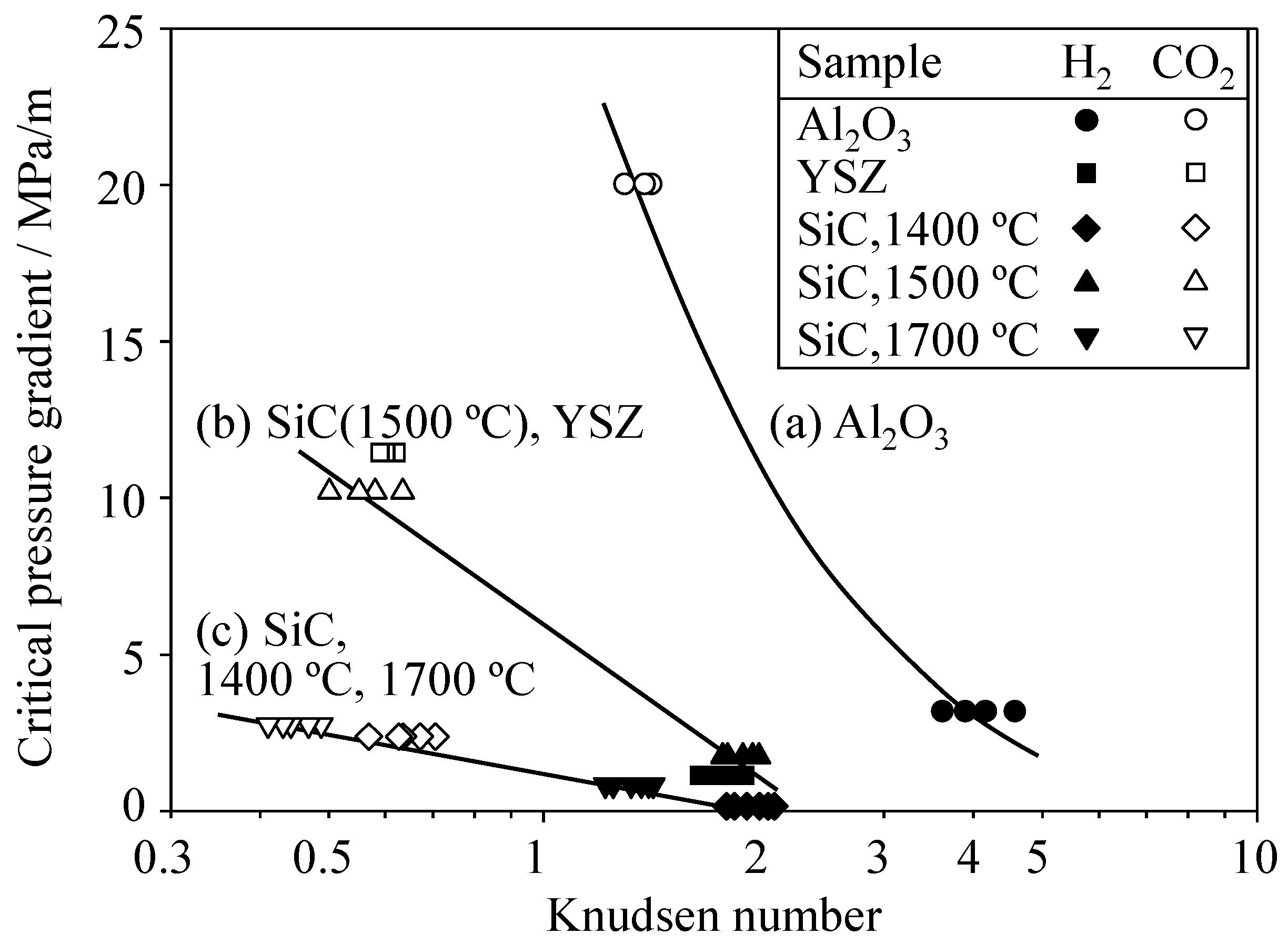

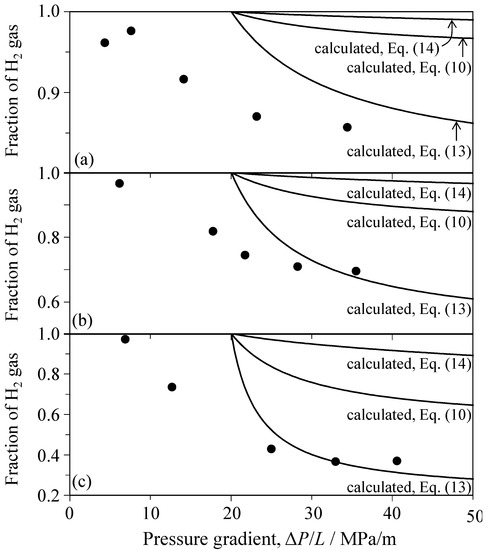

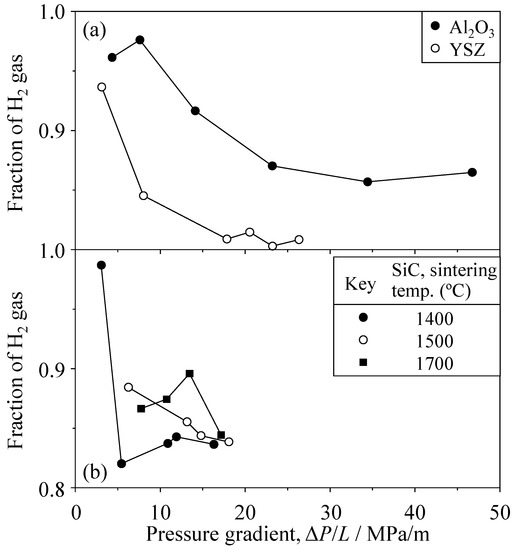

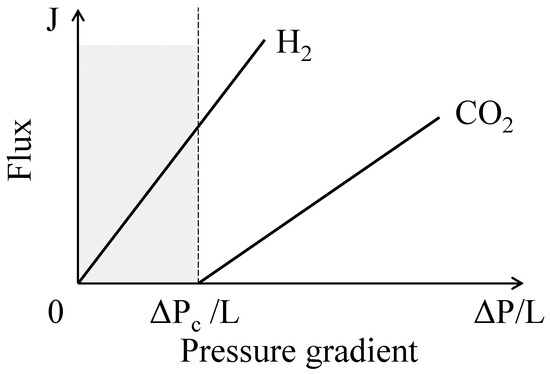

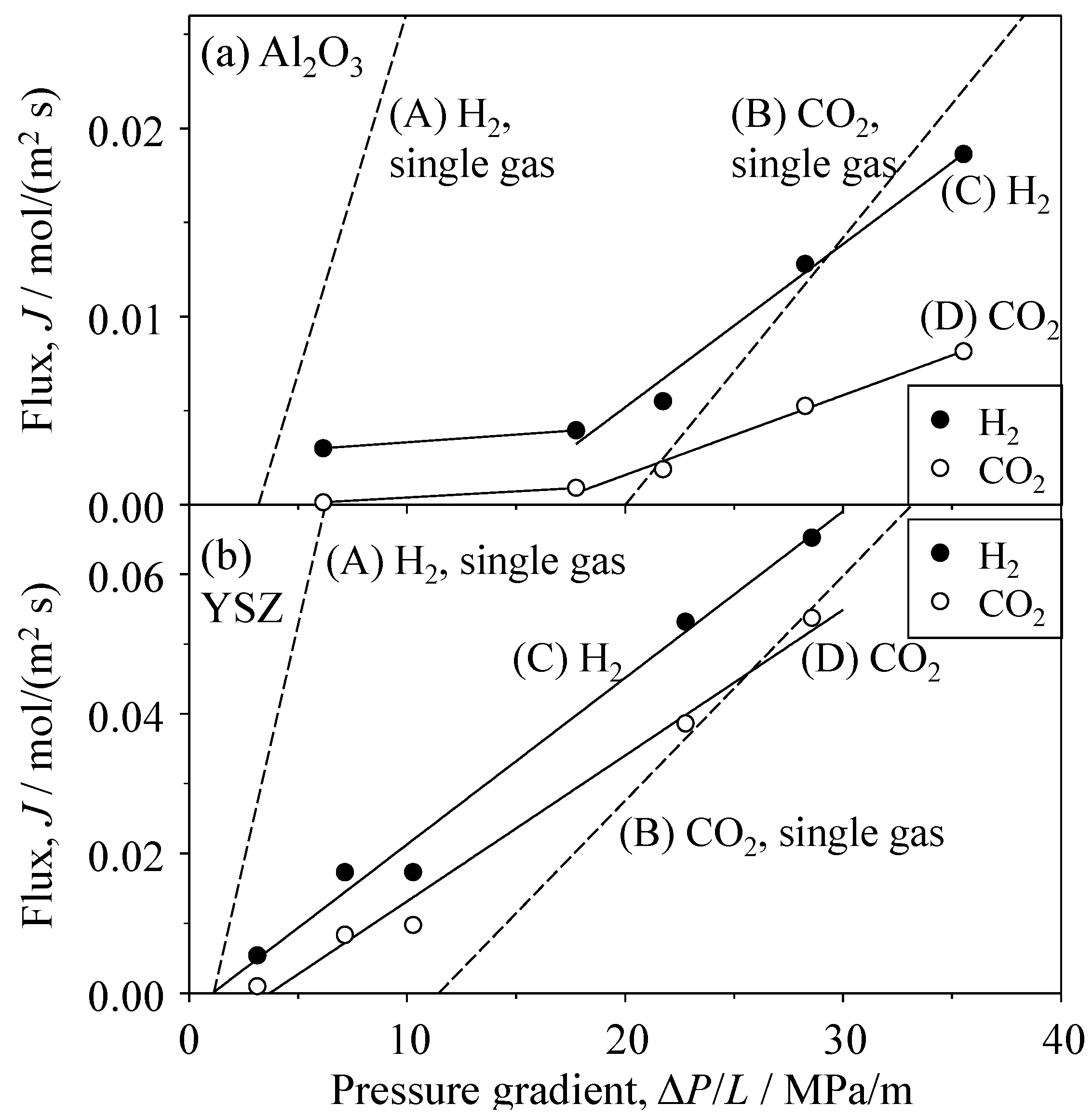

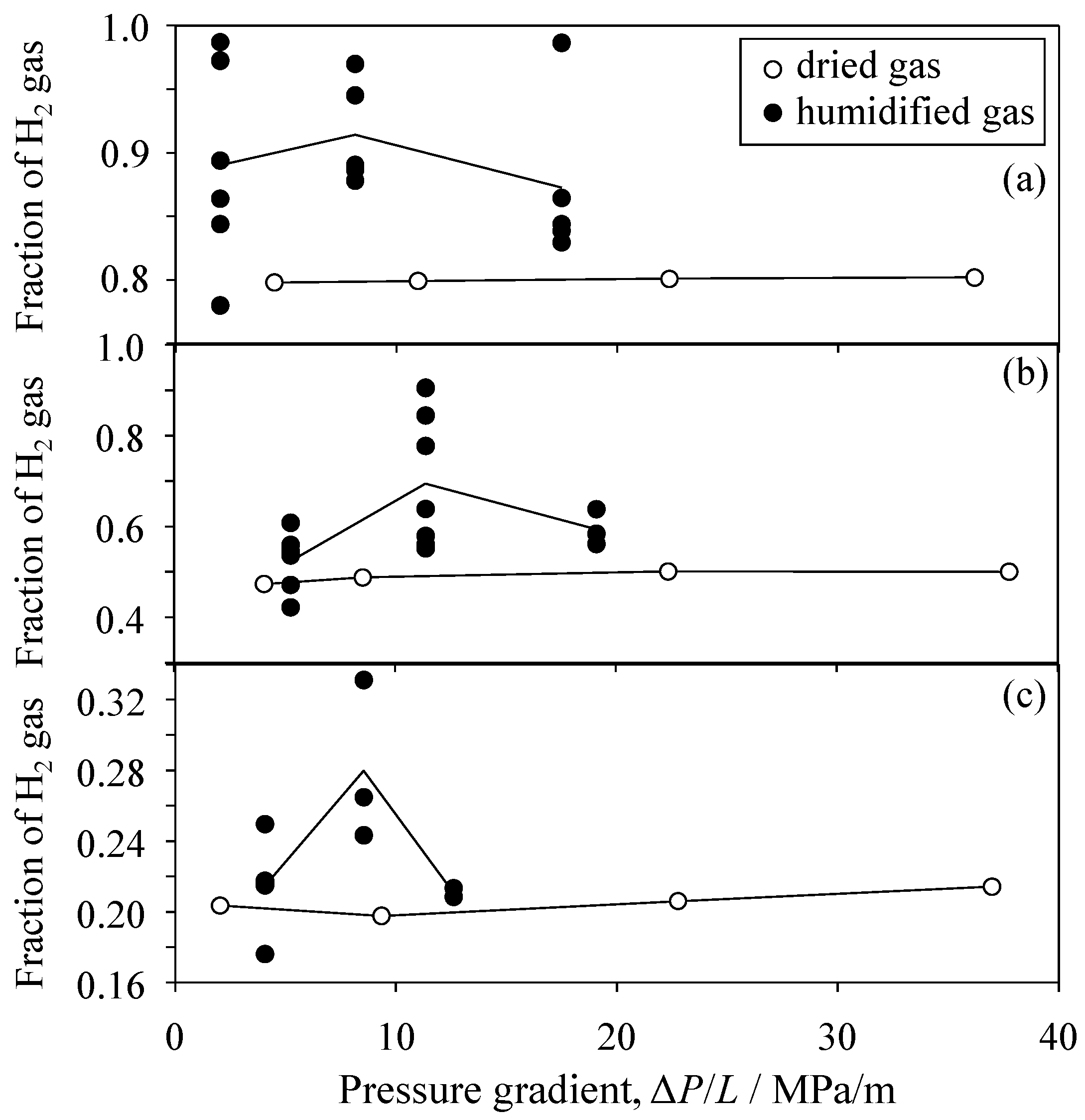

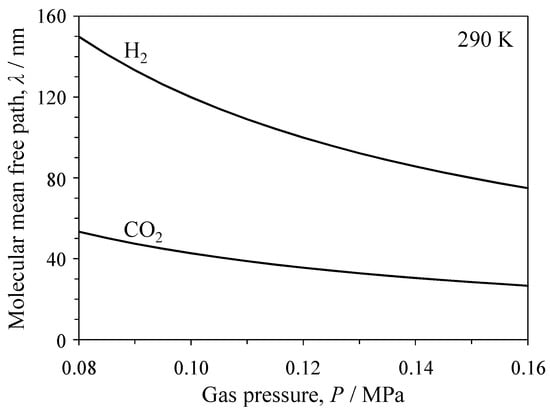

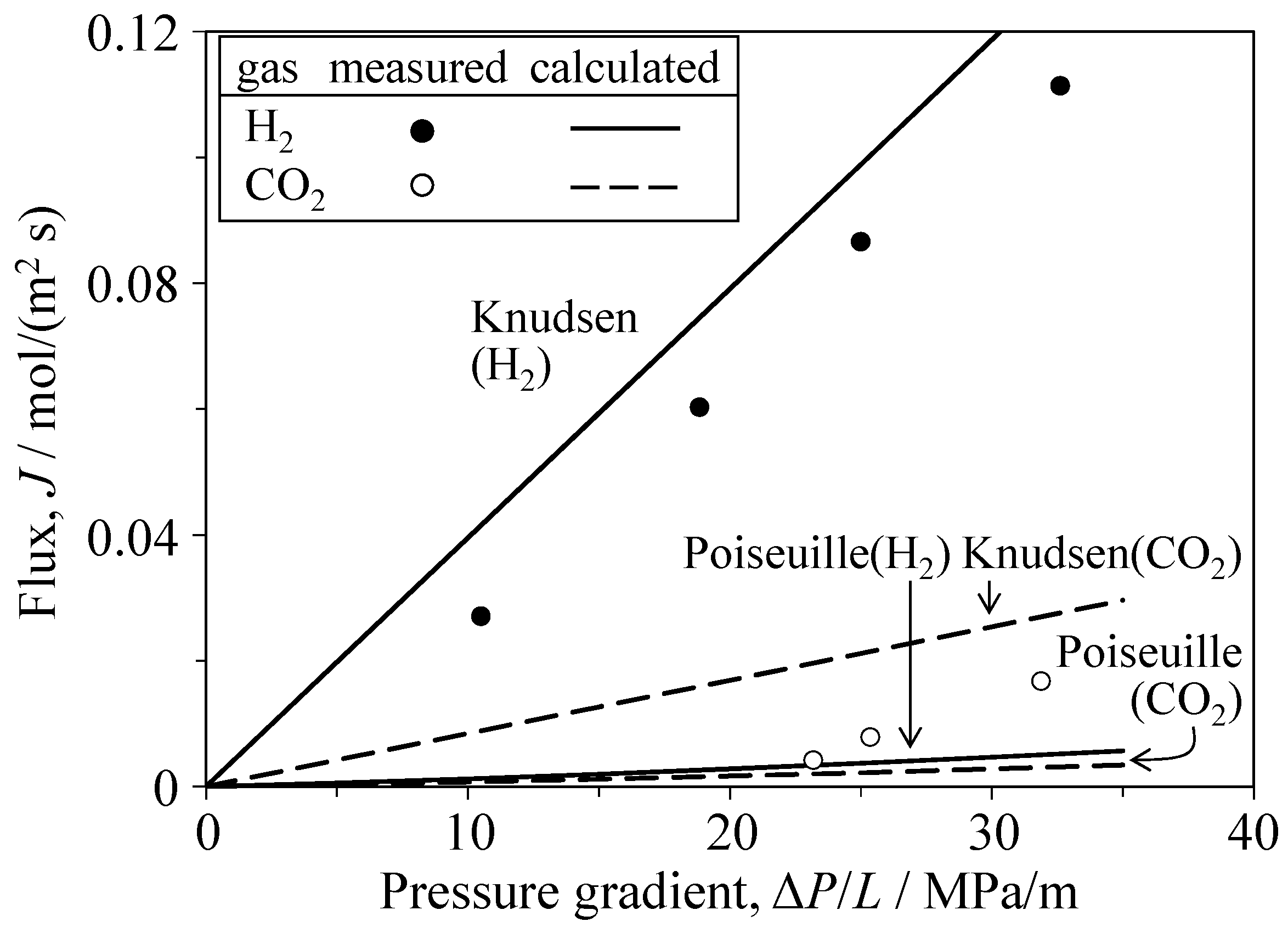

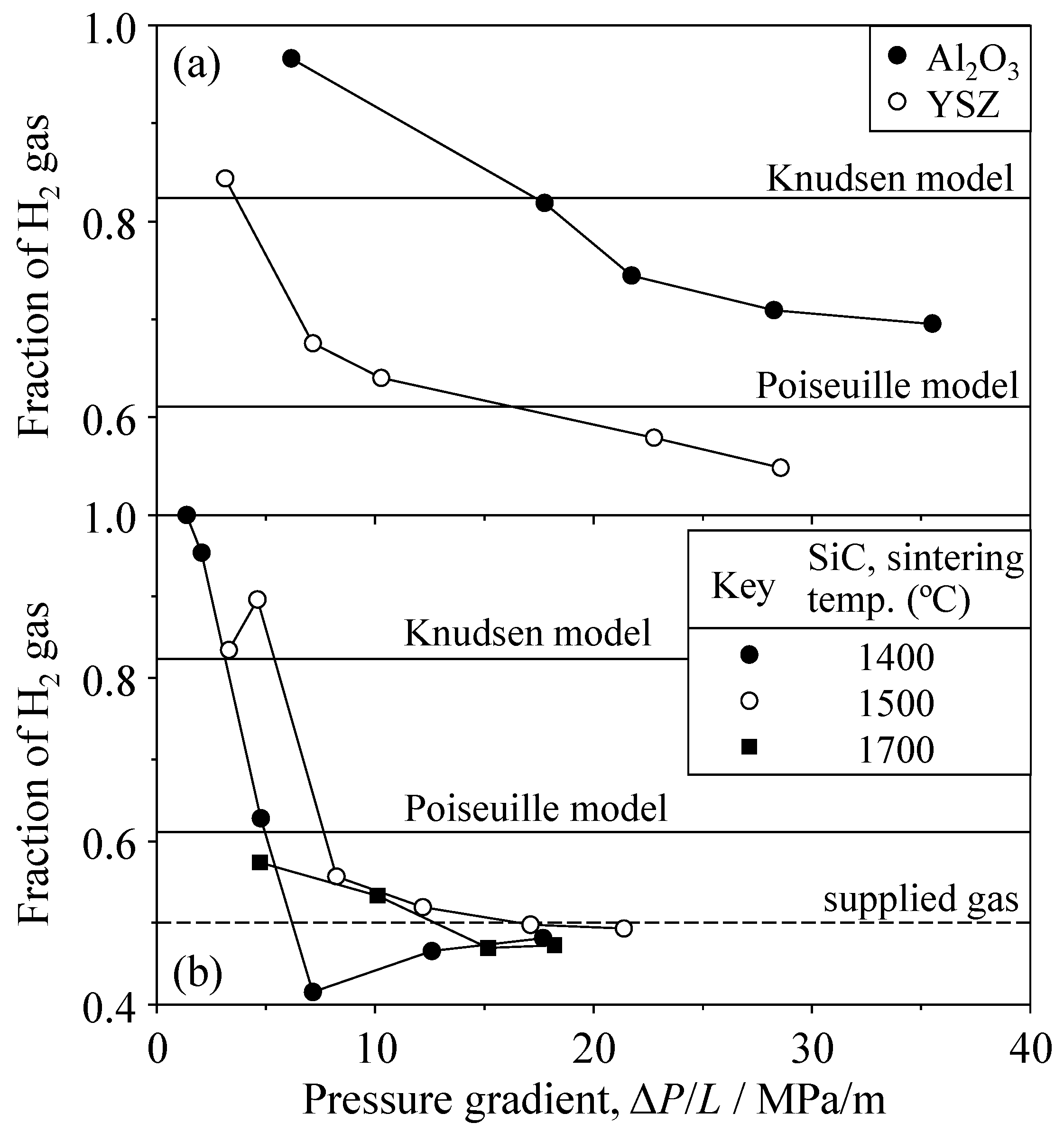

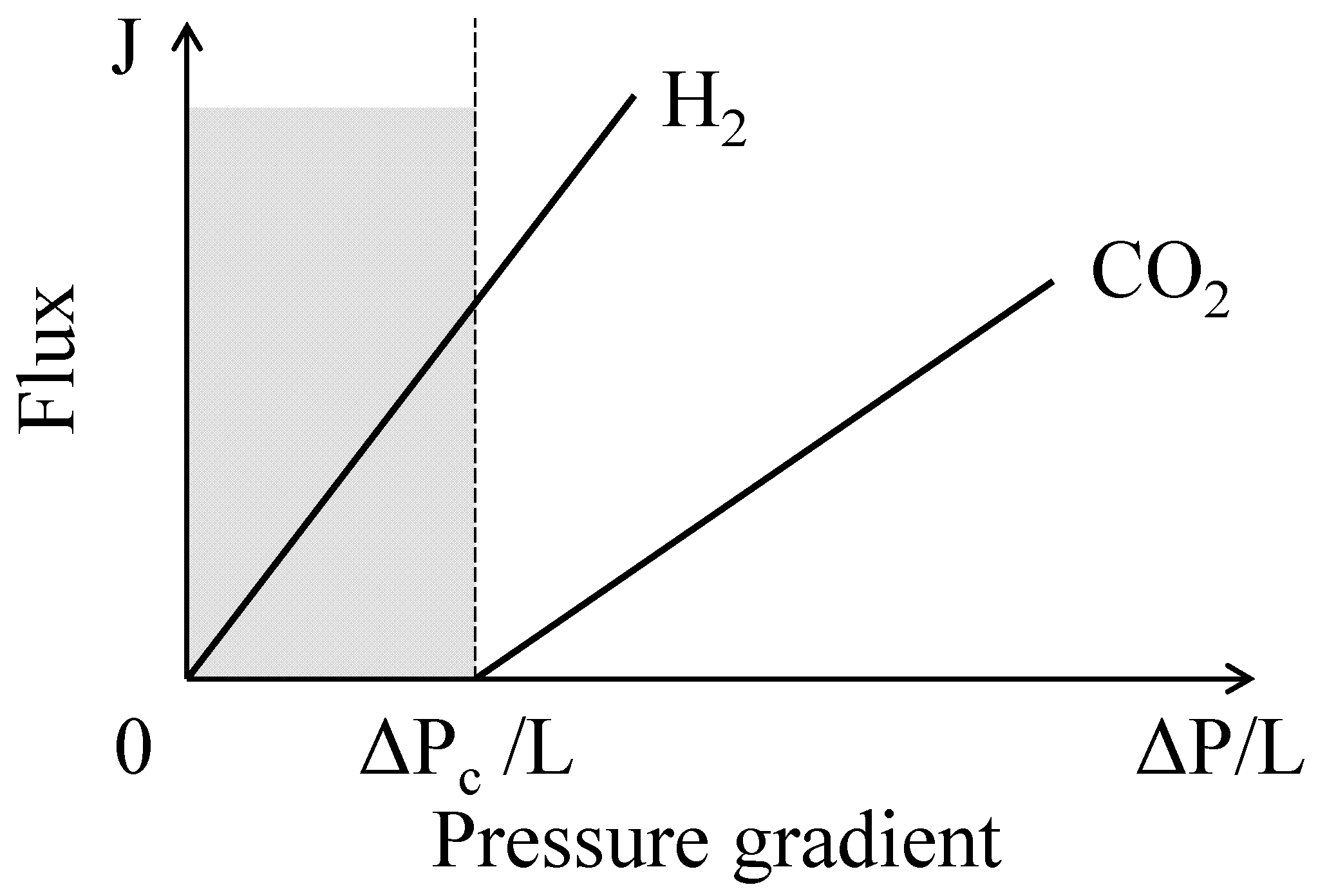

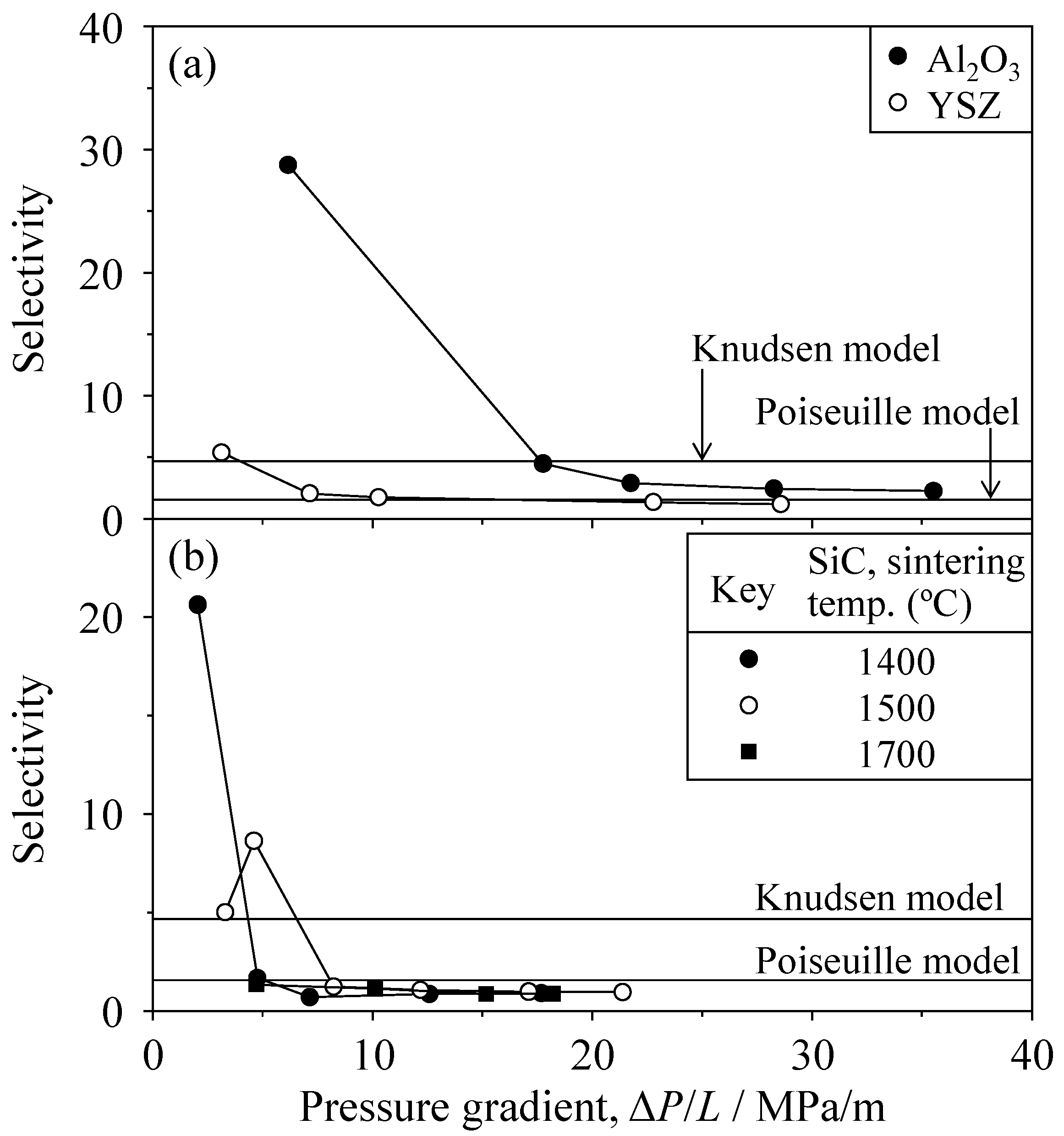

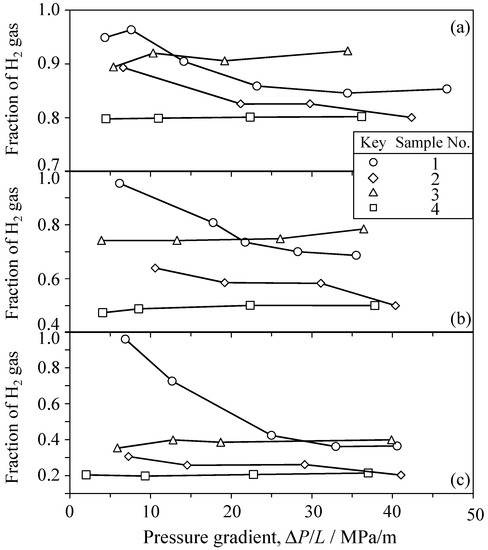

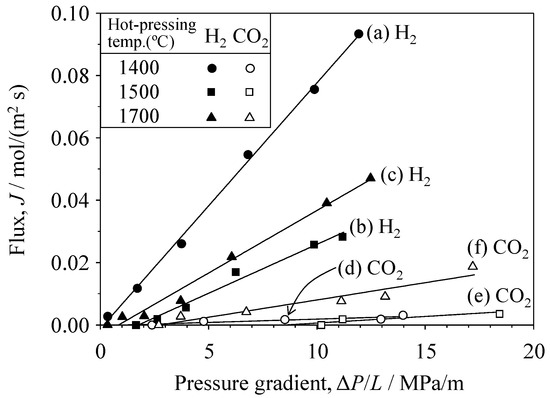

The gas permeability of α-alumina, yttria-stabilized zirconia (YSZ), and silicon carbide porous ceramics toward H2, CO2, and H2–CO2 mixtures were investigated at room temperature. The permeation of H2 and CO2 single gases occurred above a critical pressure gradient, which was smaller for H2 gas than for CO2 gas. When the Knudsen number (λ/r ratio, λ: molecular mean free path, r: pore radius) of a single gas was larger than unity, Knudsen flow became the dominant gas transportation process. The H2 fraction for the mixed gas of (20%–80%) H2–(80%–20%) CO2 through porous Al2O3, YSZ, and SiC approached unity with decreasing pressure gradient. The high fraction of H2 gas was closely related to the difference in the critical pressure gradient values of H2 and CO2 single gas, the inlet mixed gas composition, and the gas flow mechanism of the mixed gas. Moisture in the atmosphere adsorbed easily on the porous ceramics and affected the critical pressure gradient, leading to the increased selectivity of H2 gas. View Full-Text
Keywords: gas separation; hydrogen; carbon dioxide; porous ceramics gas separation; hydrogen; carbon dioxide; porous ceramics

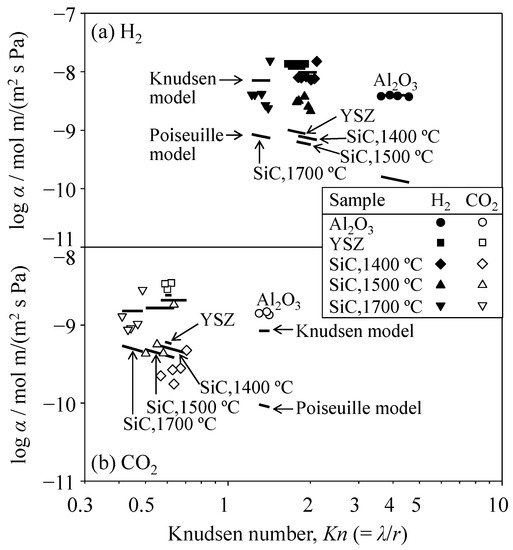

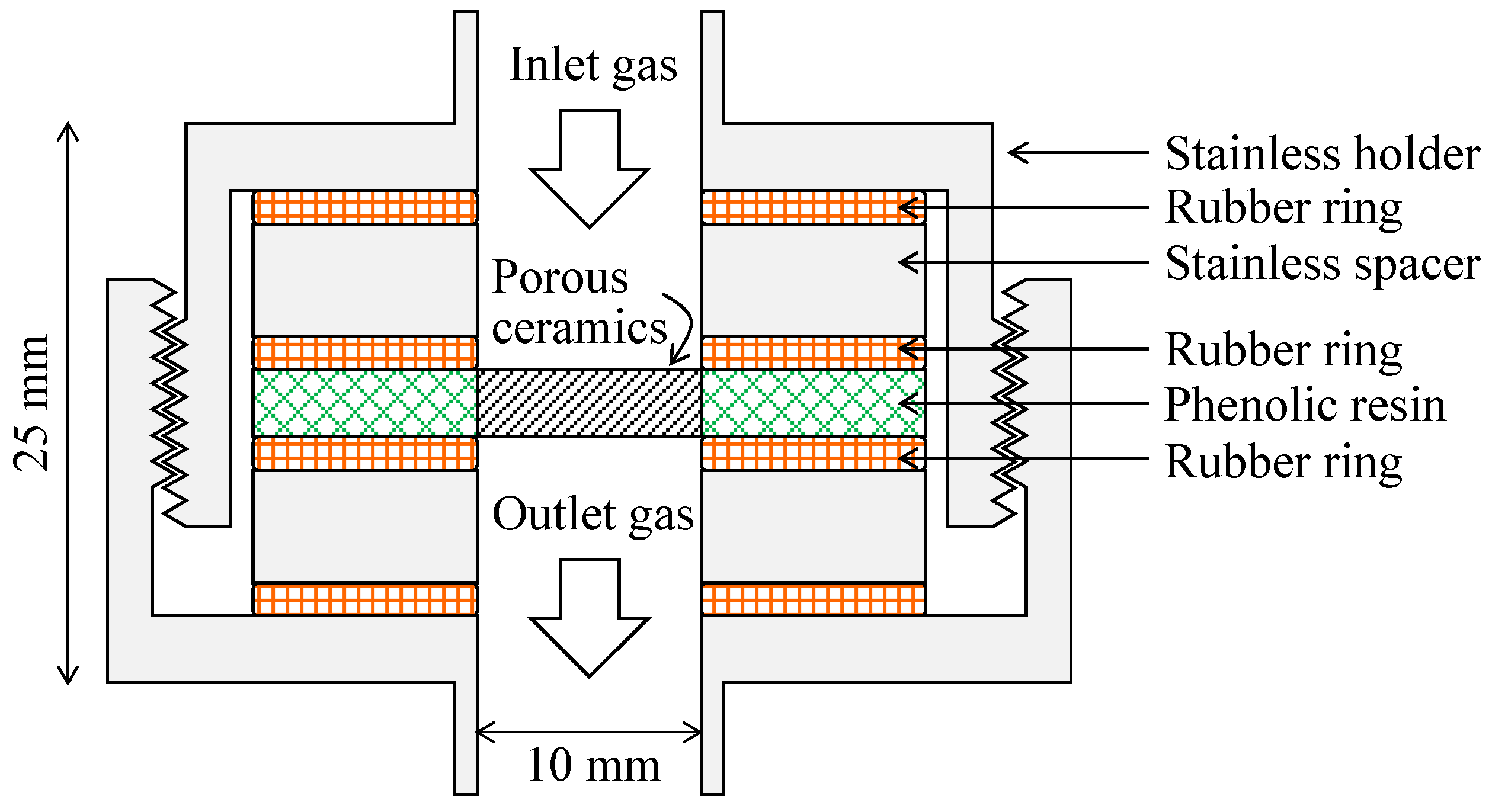

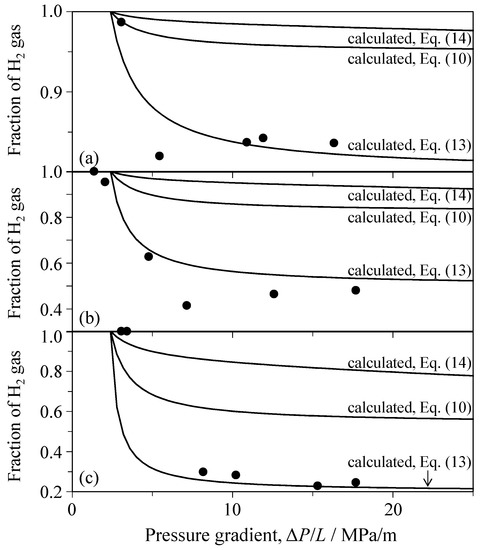

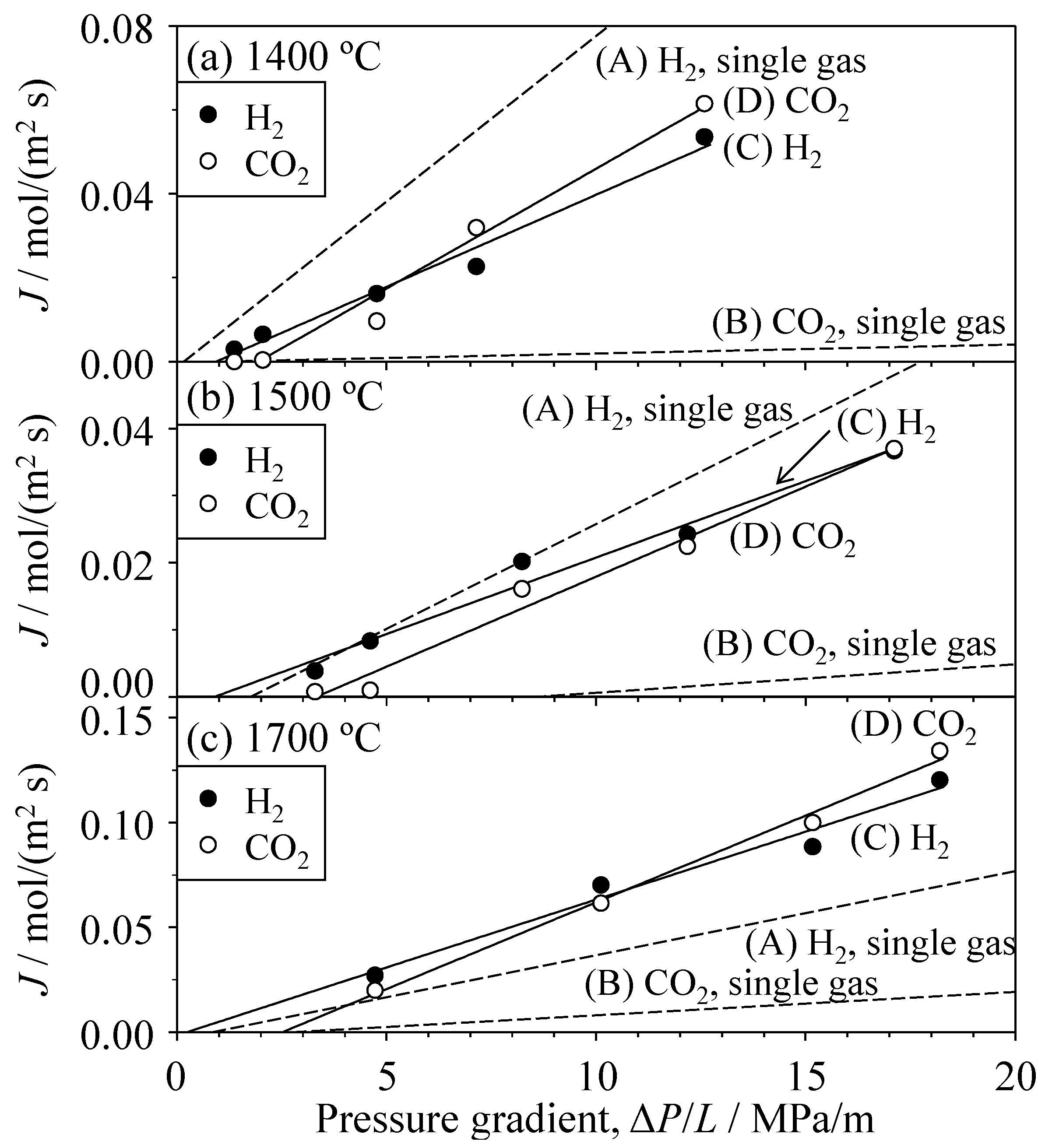

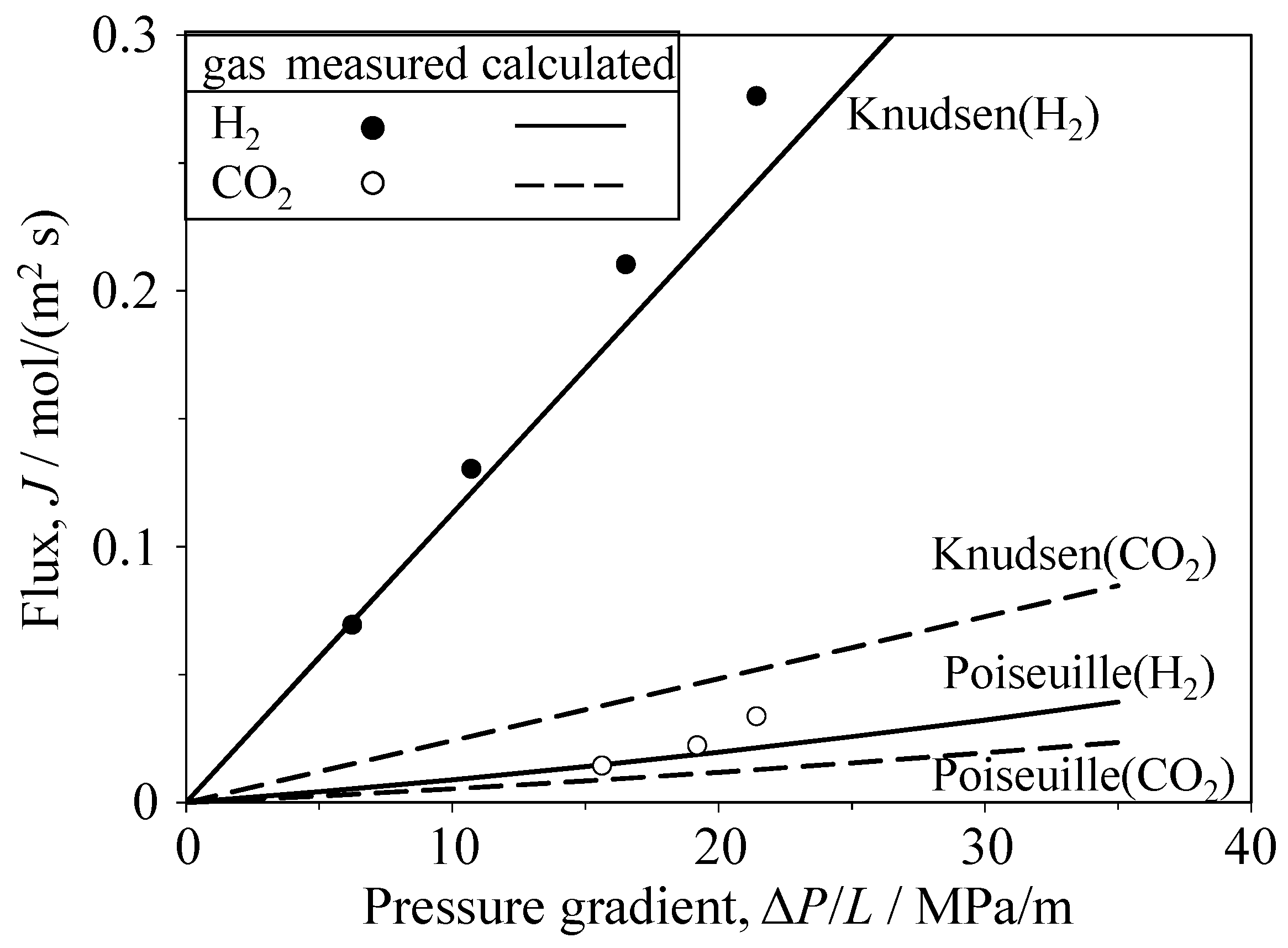

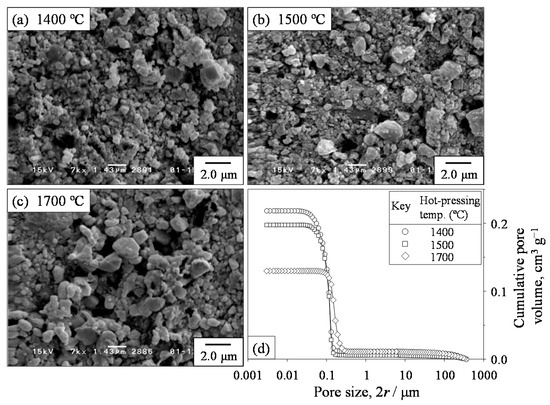

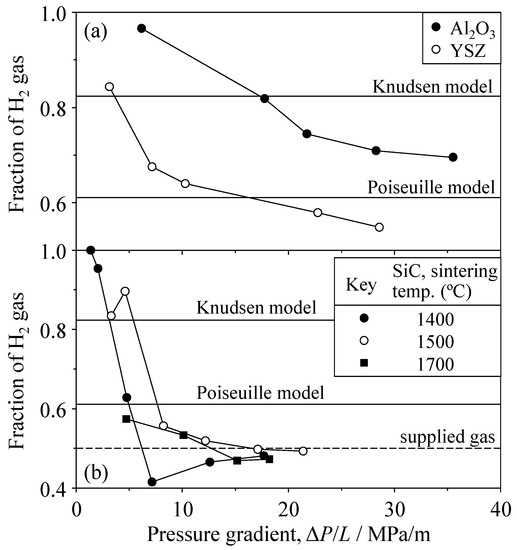

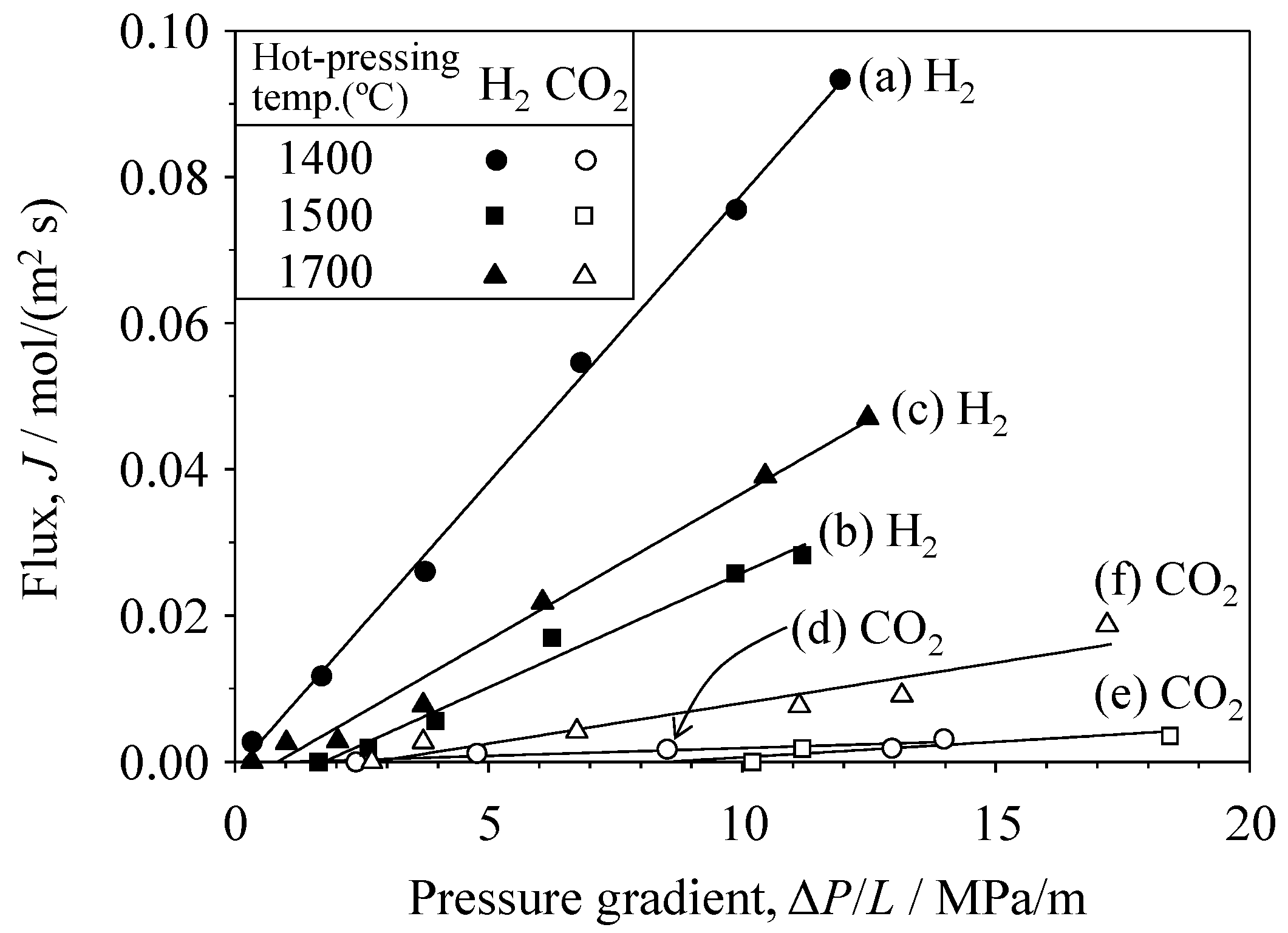

Show Figures

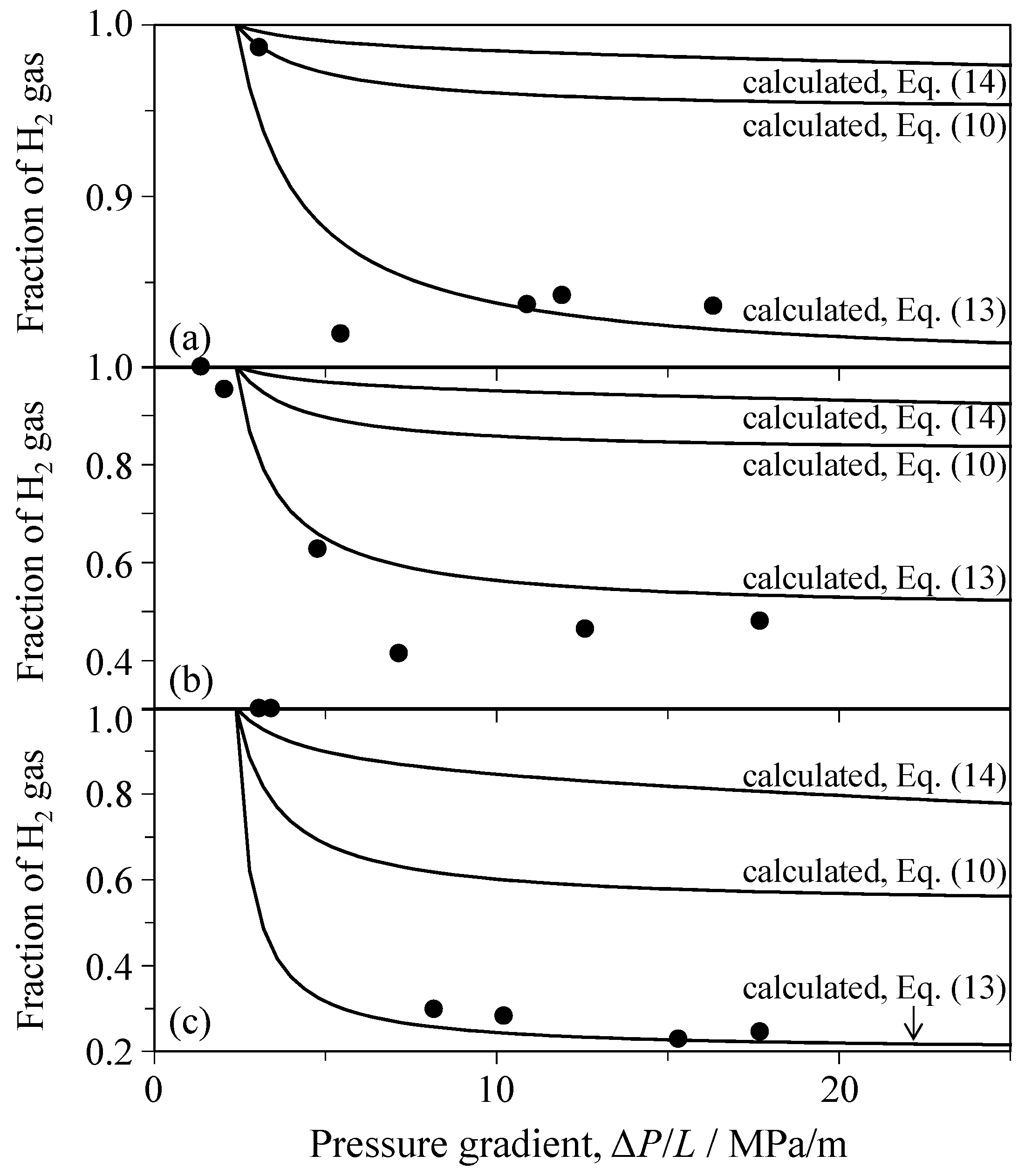

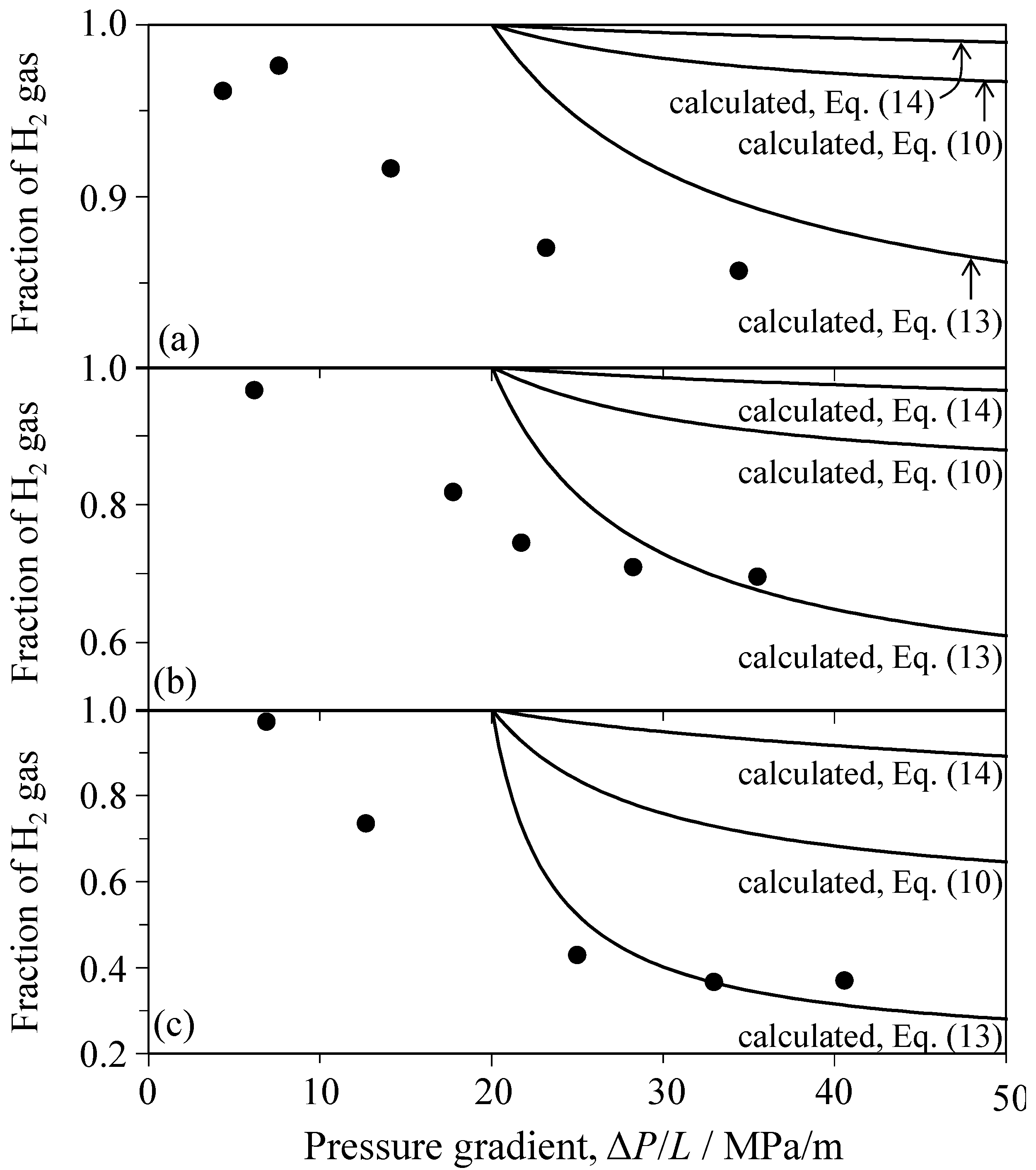

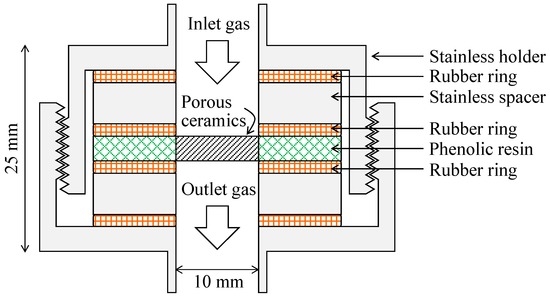

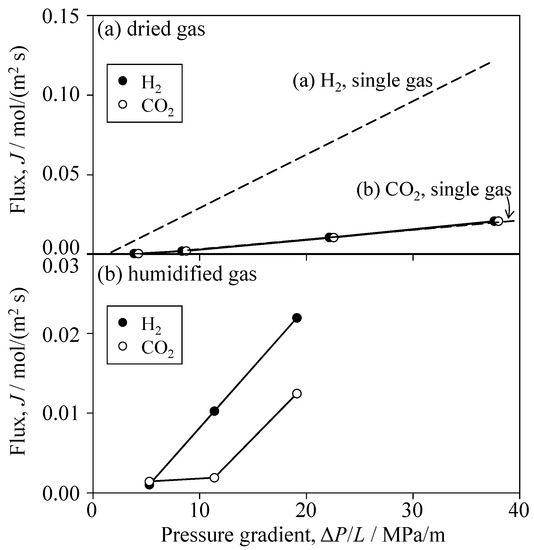

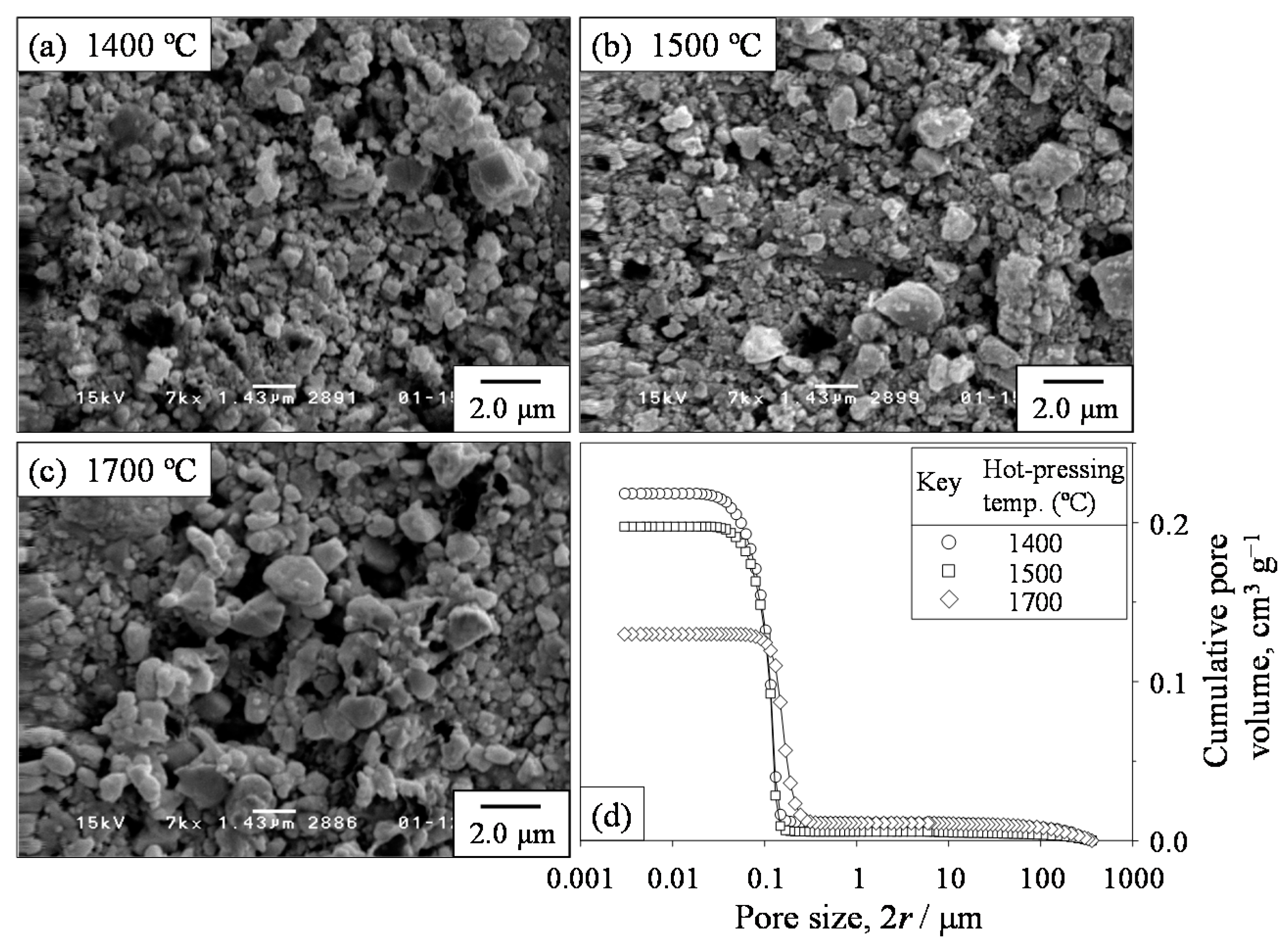

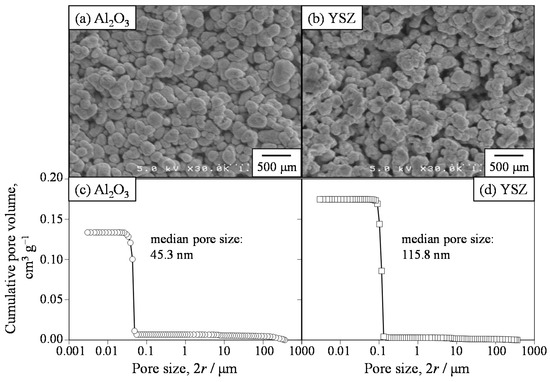

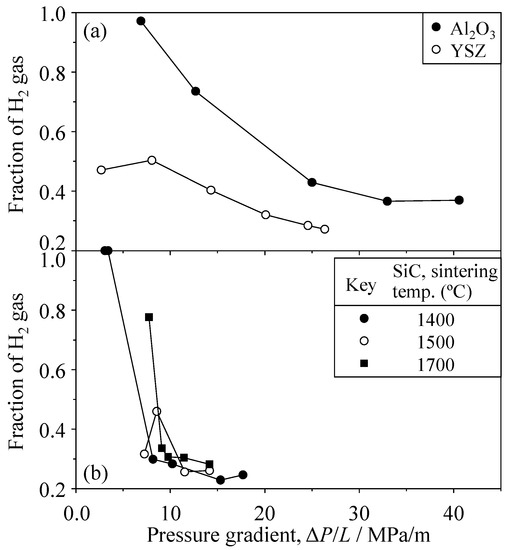

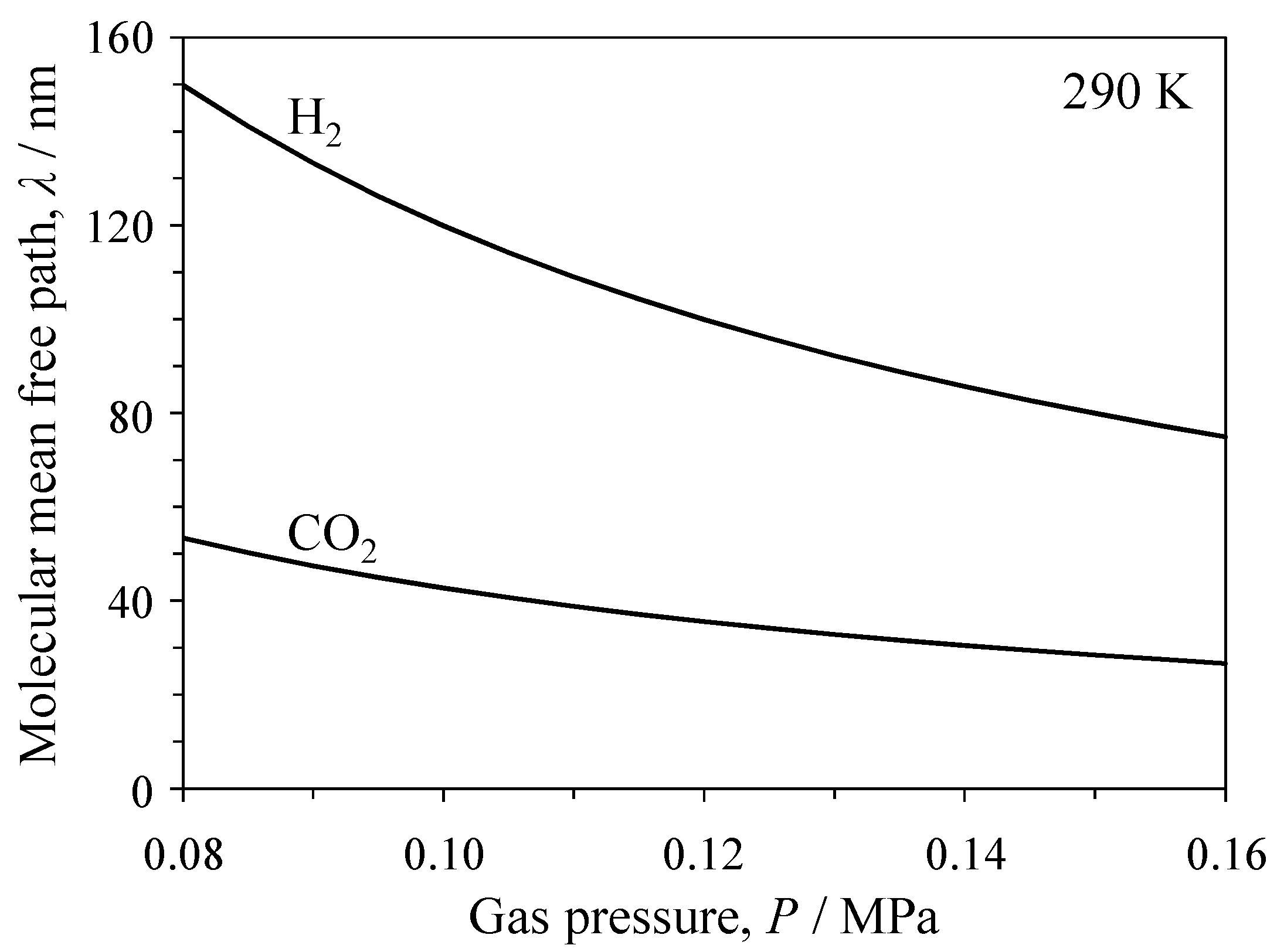

Figure 1

MDPI and ACS Style

Shimonosono, T.; Imada, H.; Maeda, H.; Hirata, Y. Separation of Hydrogen from Carbon Dioxide through Porous Ceramics. Materials 2016, 9, 930.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
