Next Article in Journal
New Polylactic Acid Composites Reinforced with Artichoke Fibers
Next Article in Special Issue
Advances on the Failure Analysis of the Dam—Foundation Interface of Concrete Dams
Previous Article in Journal
Origin of the Electroluminescence from Annealed-ZnO/GaN Heterojunction Light-Emitting Diodes
Previous Article in Special Issue
Surface Irregularity Factor as a Parameter to Evaluate the Fatigue Damage State of CFRP
Article Menu

Export Article

Open AccessReview
Materials 2015, 8(11), 7757-7769;

Creep-Fatigue Failure Diagnosis

EMPA: Swiss Federal Laboratories for Materials Science and Technology Überlandstrasse 129, Dübendorf CH-8600, Switzerland
Academic Editor: Robert Lancaster
Received: 22 October 2015 / Revised: 4 November 2015 / Accepted: 6 November 2015 / Published: 16 November 2015
(This article belongs to the Special Issue Failure Analysis in Materials)
Full-Text   |   PDF [9171 KB, uploaded 16 November 2015]   |


Failure diagnosis invariably involves consideration of both associated material condition and the results of a mechanical analysis of prior operating history. This Review focuses on these aspects with particular reference to creep-fatigue failure diagnosis. Creep-fatigue cracking can be due to a spectrum of loading conditions ranging from pure cyclic to mainly steady loading with infrequent off-load transients. These require a range of mechanical analysis approaches, a number of which are reviewed. The microstructural information revealing material condition can vary with alloy class. In practice, the detail of the consequent cracking mechanism(s) can be camouflaged by oxidation at high temperatures, although the presence of oxide on fracture surfaces can be used to date events leading to failure. Routine laboratory specimen post-test examination is strongly recommended to characterise the detail of deformation and damage accumulation under known and well-controlled loading conditions to improve the effectiveness and efficiency of failure diagnosis. View Full-Text
Keywords: failure diagnosis; creep-fatigue; material condition; mechanical analysis failure diagnosis; creep-fatigue; material condition; mechanical analysis

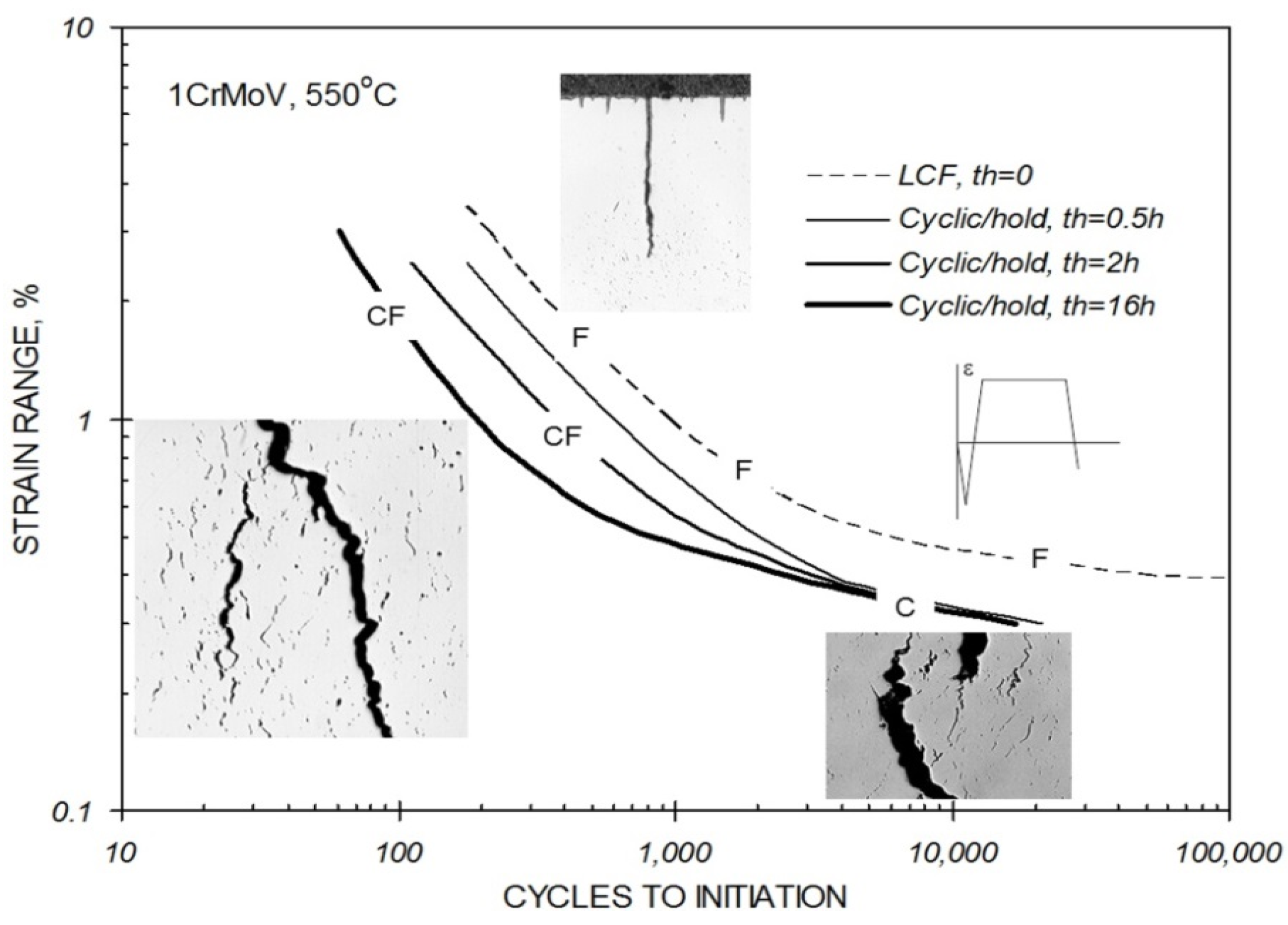

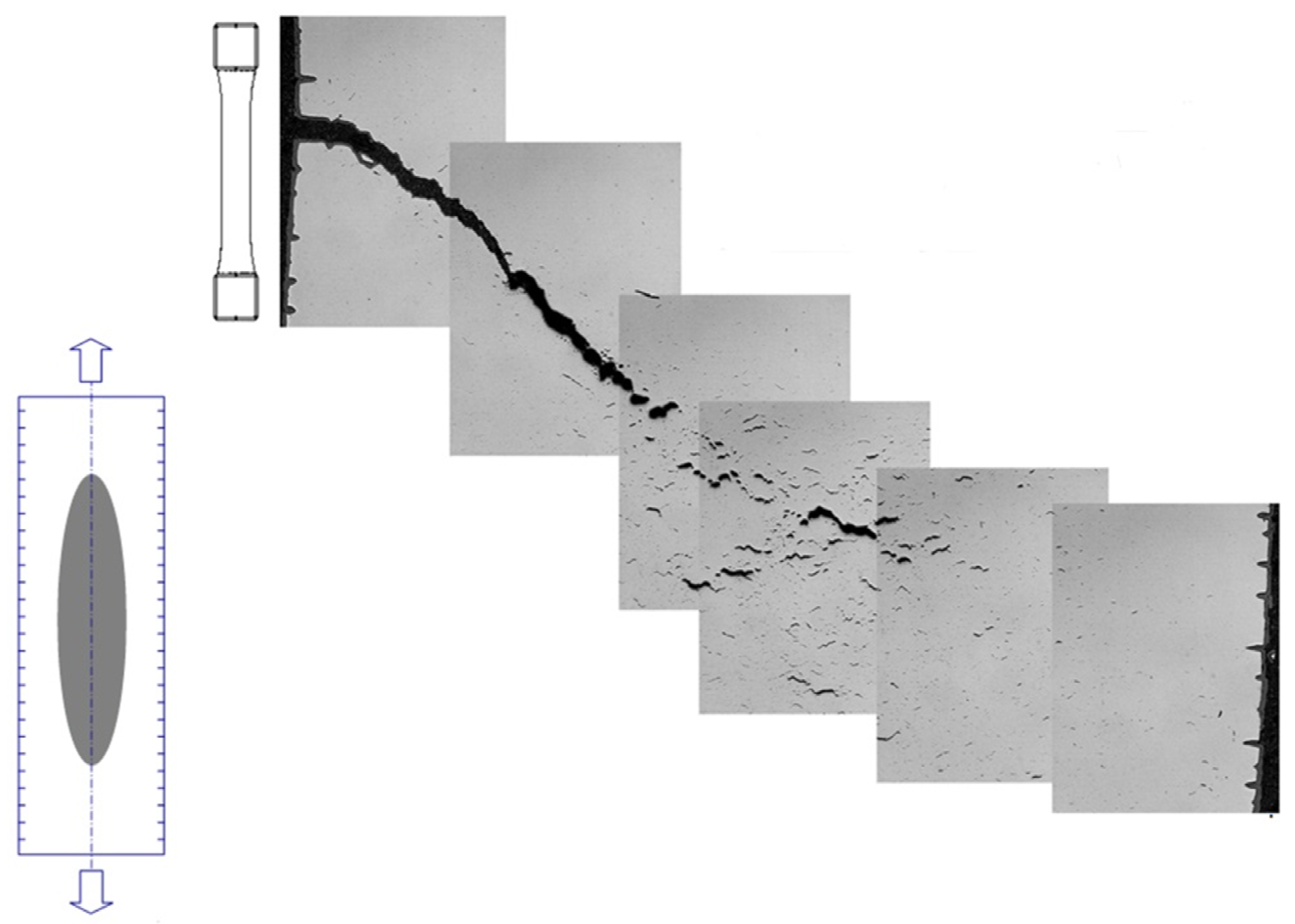

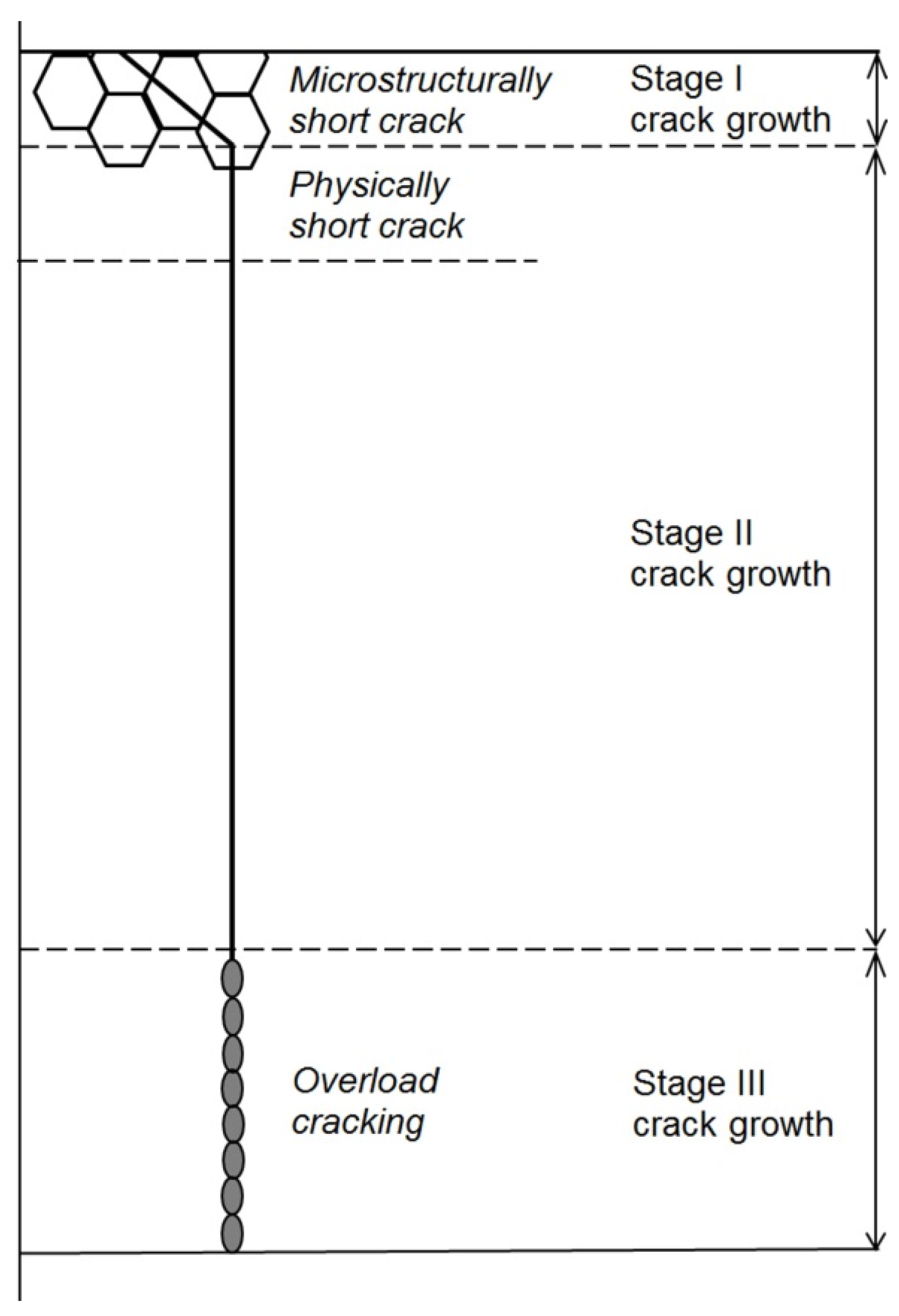

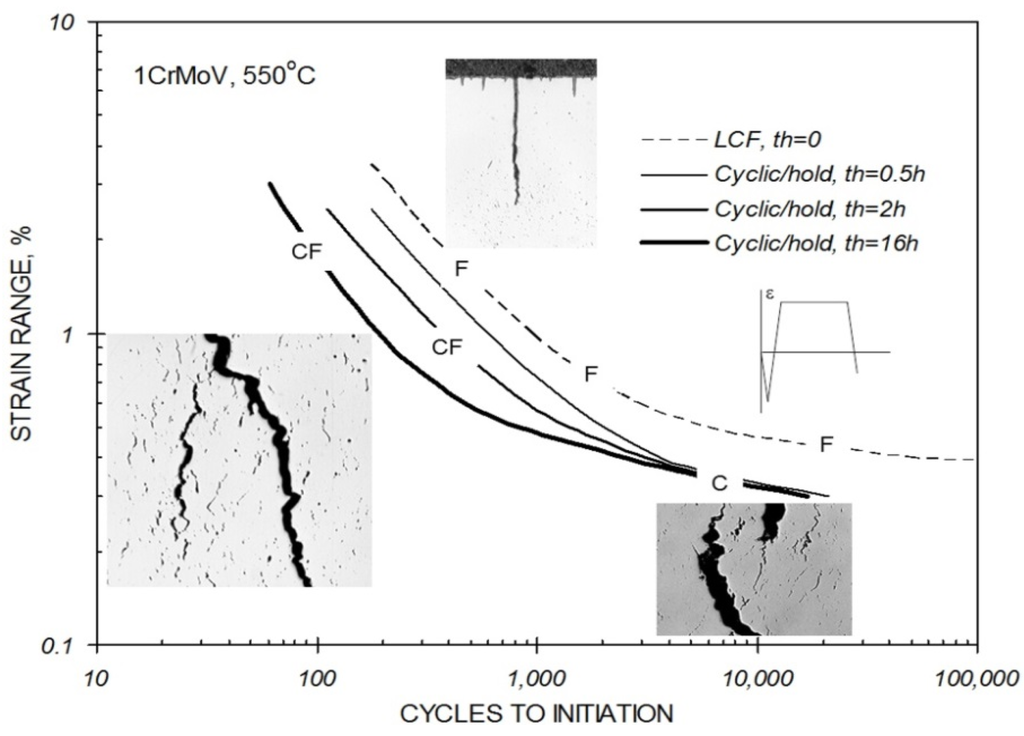

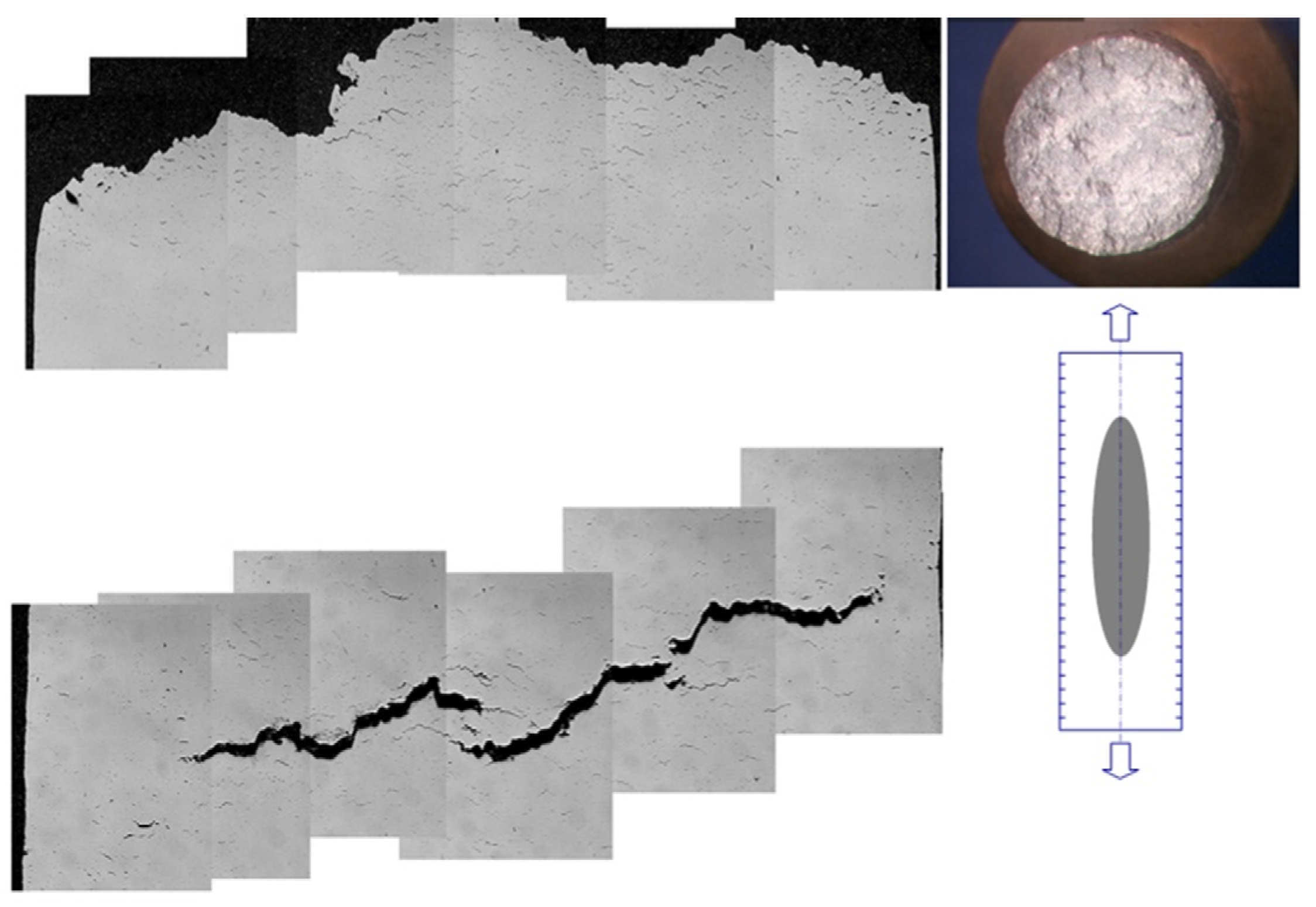

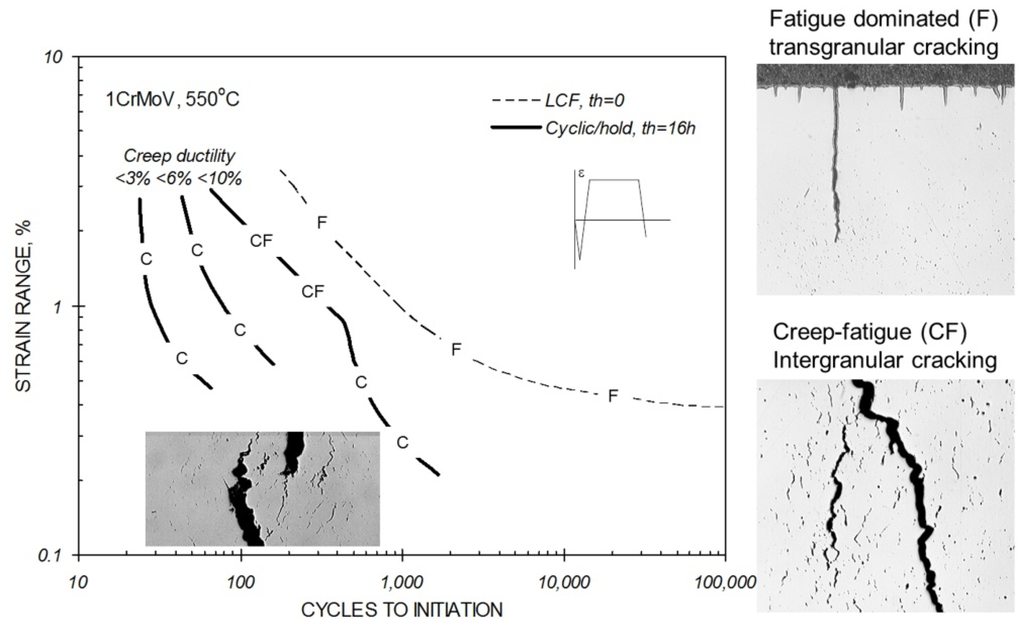

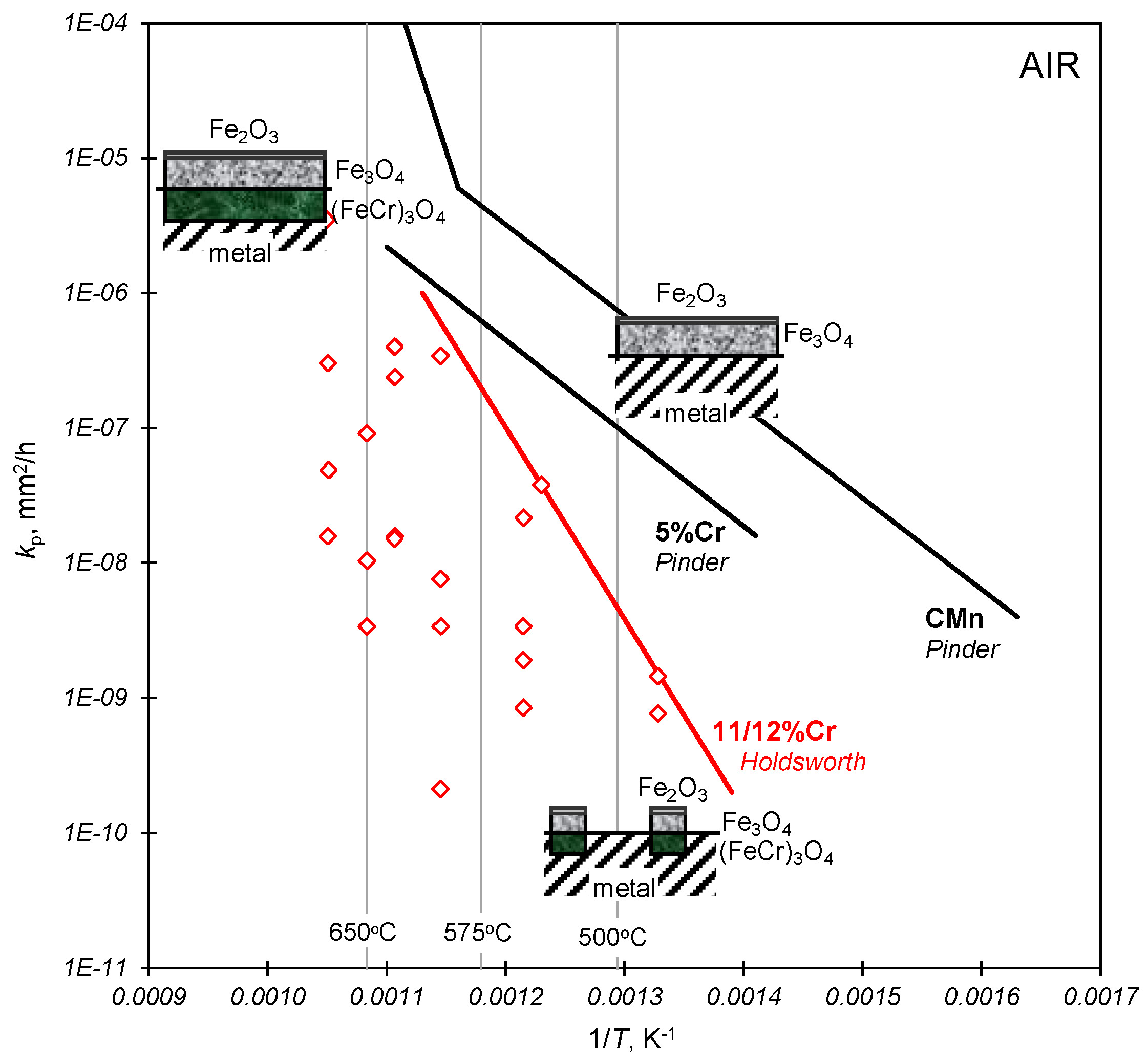

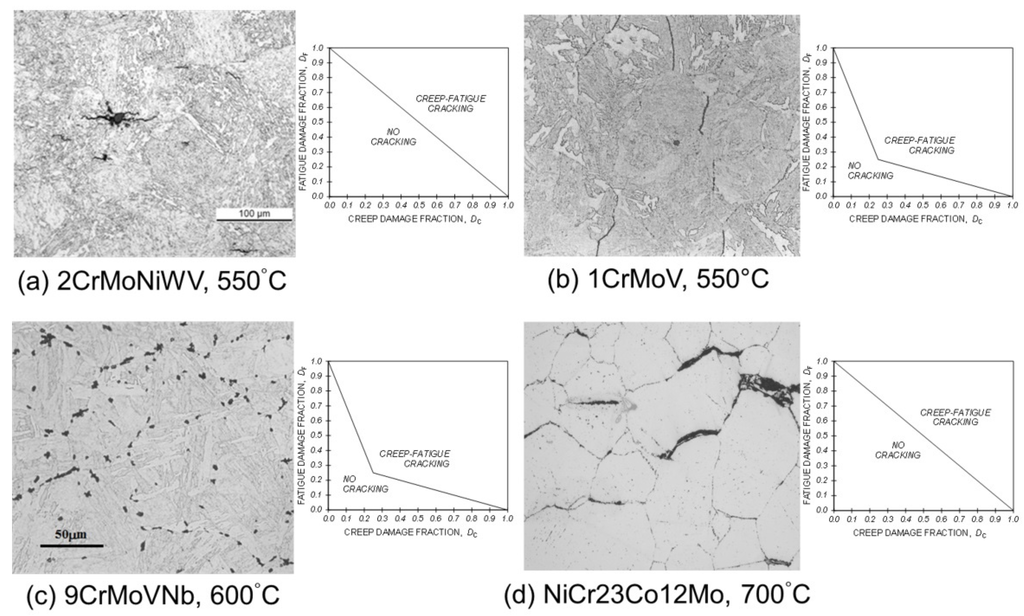

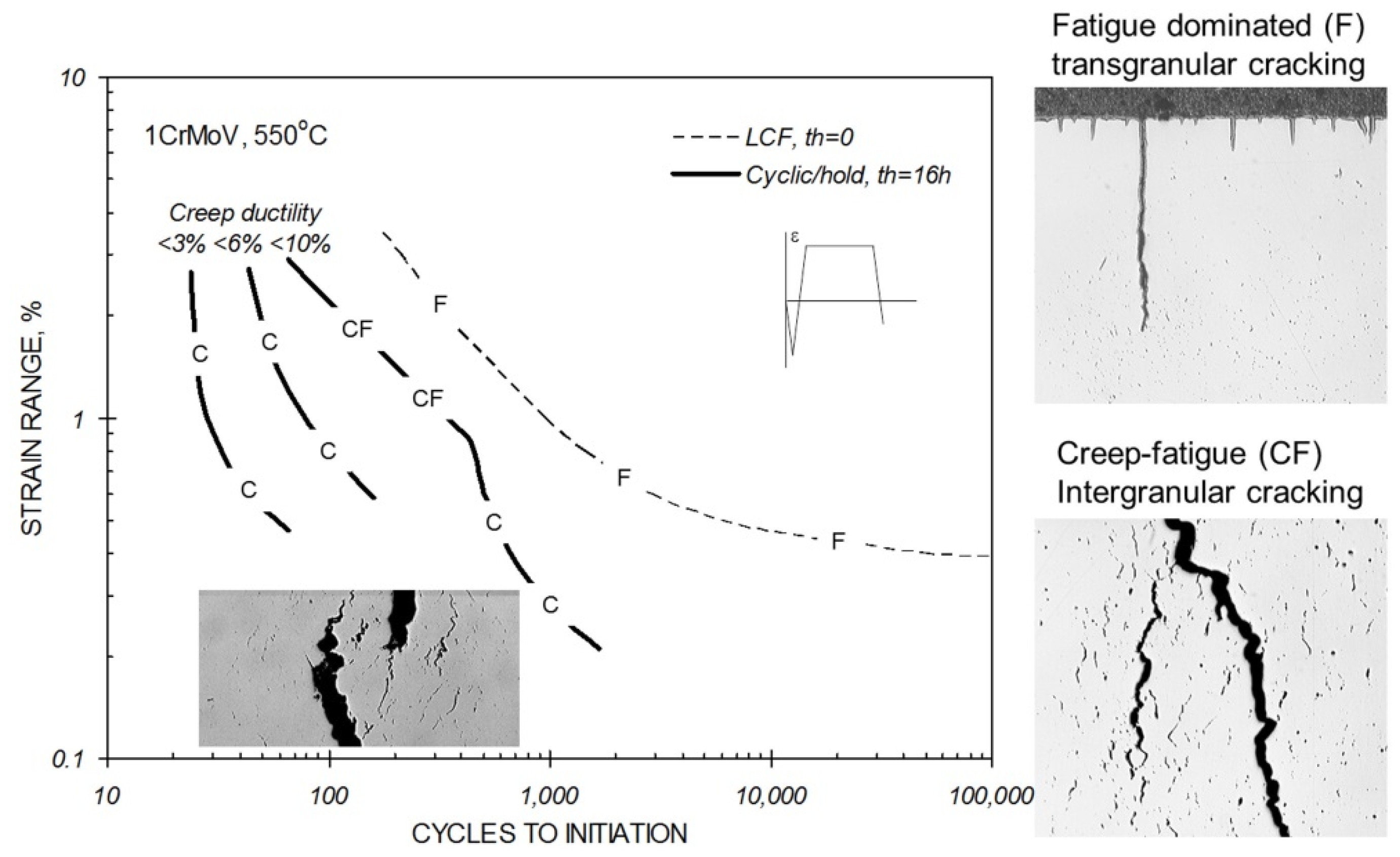

Figure 1

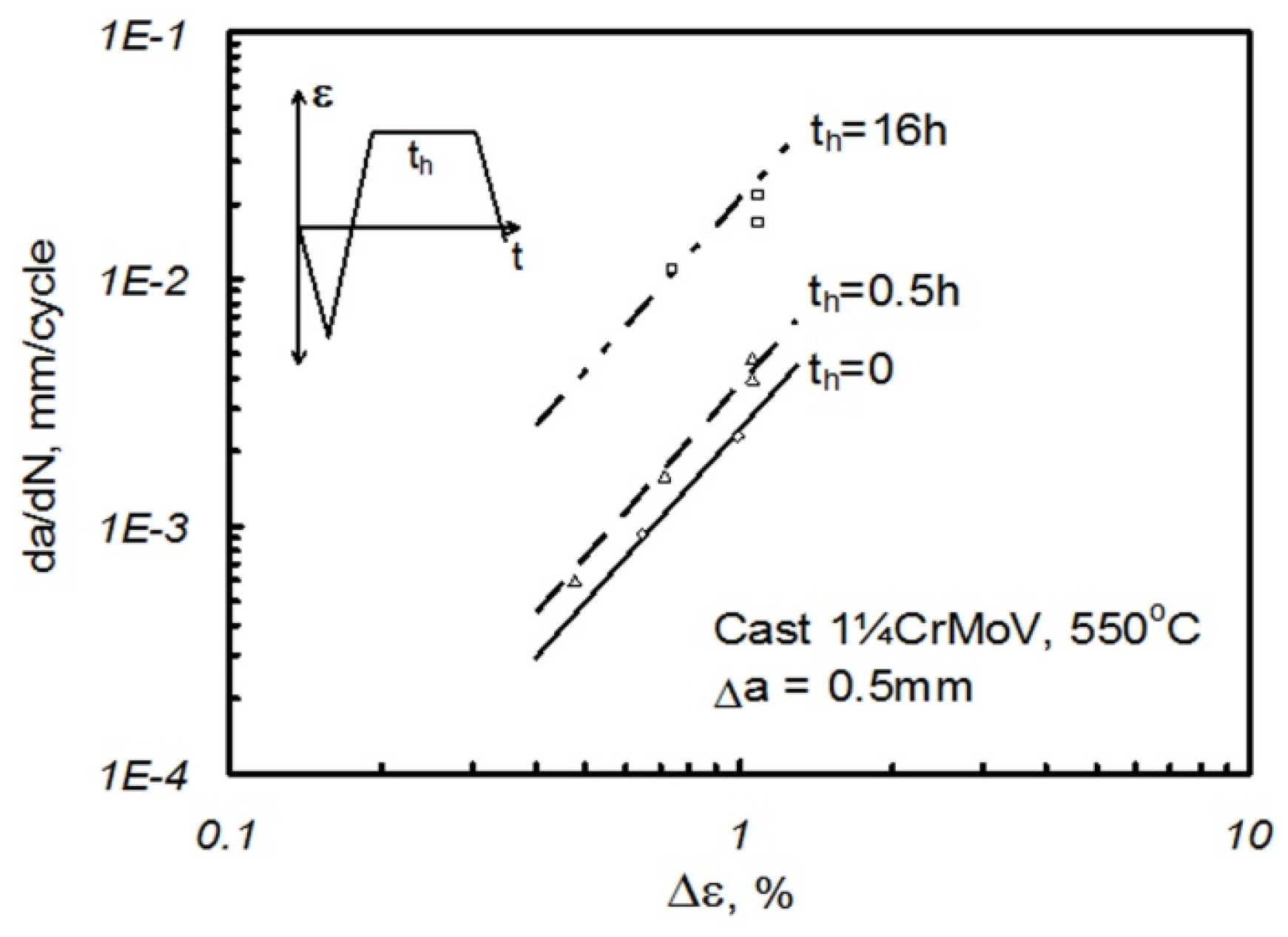

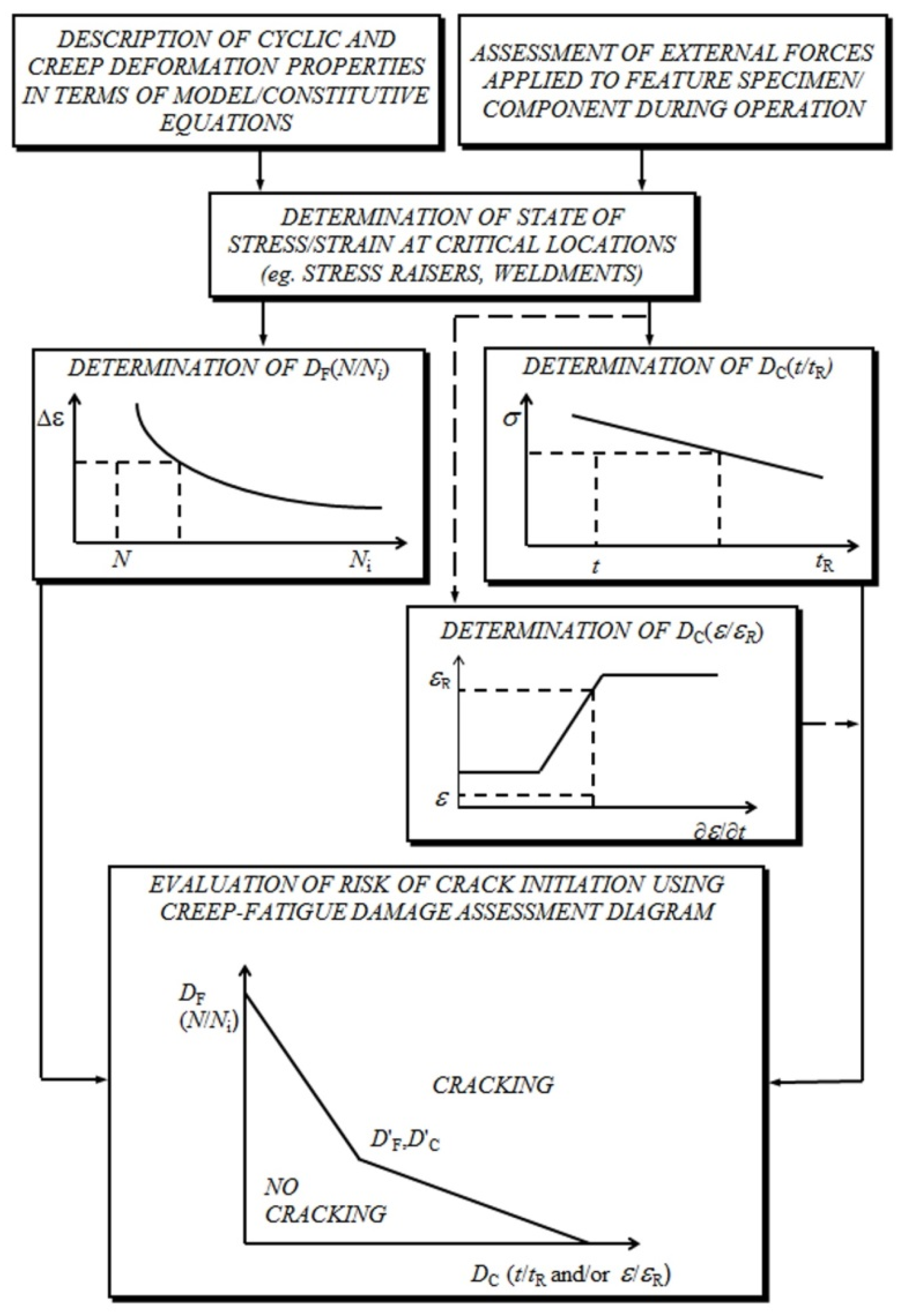

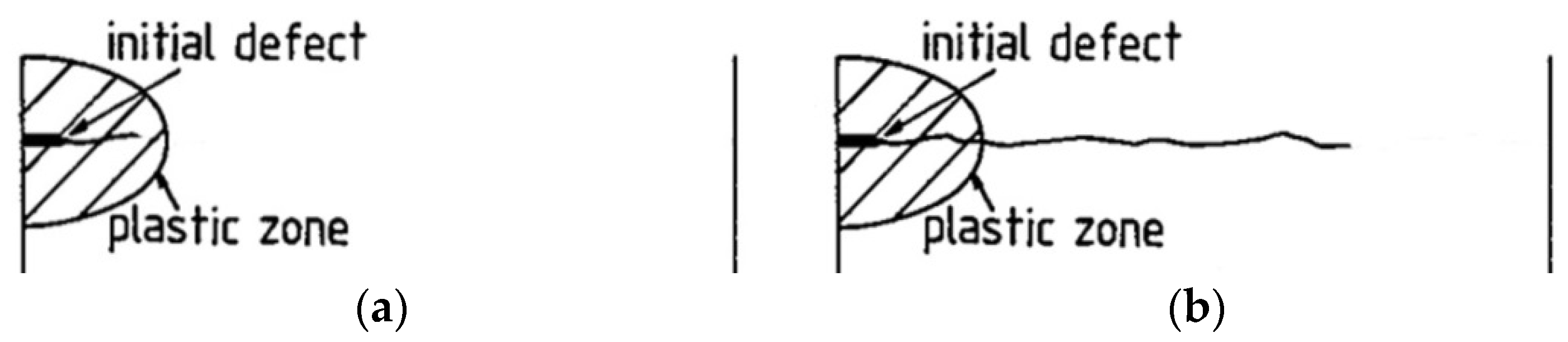

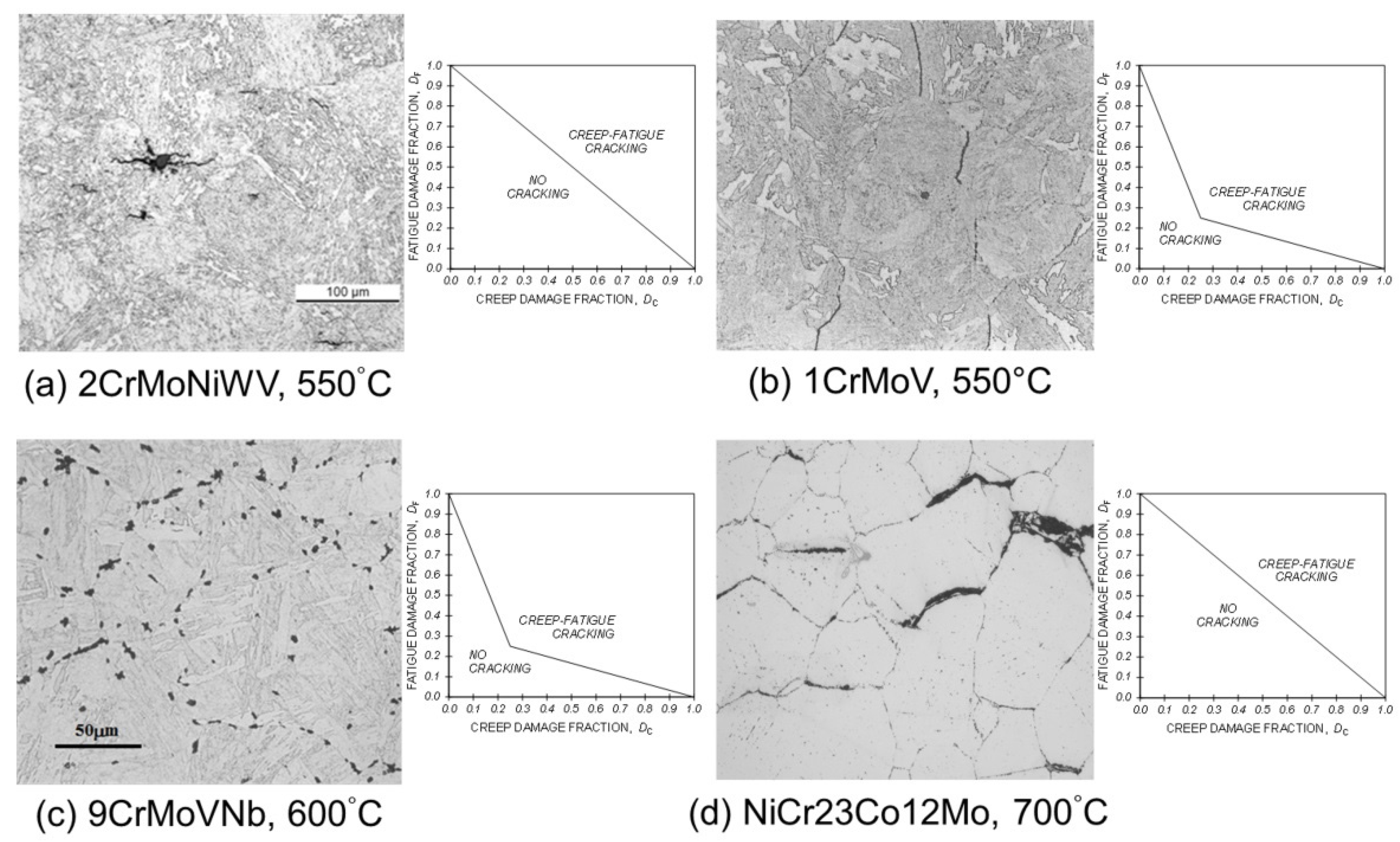

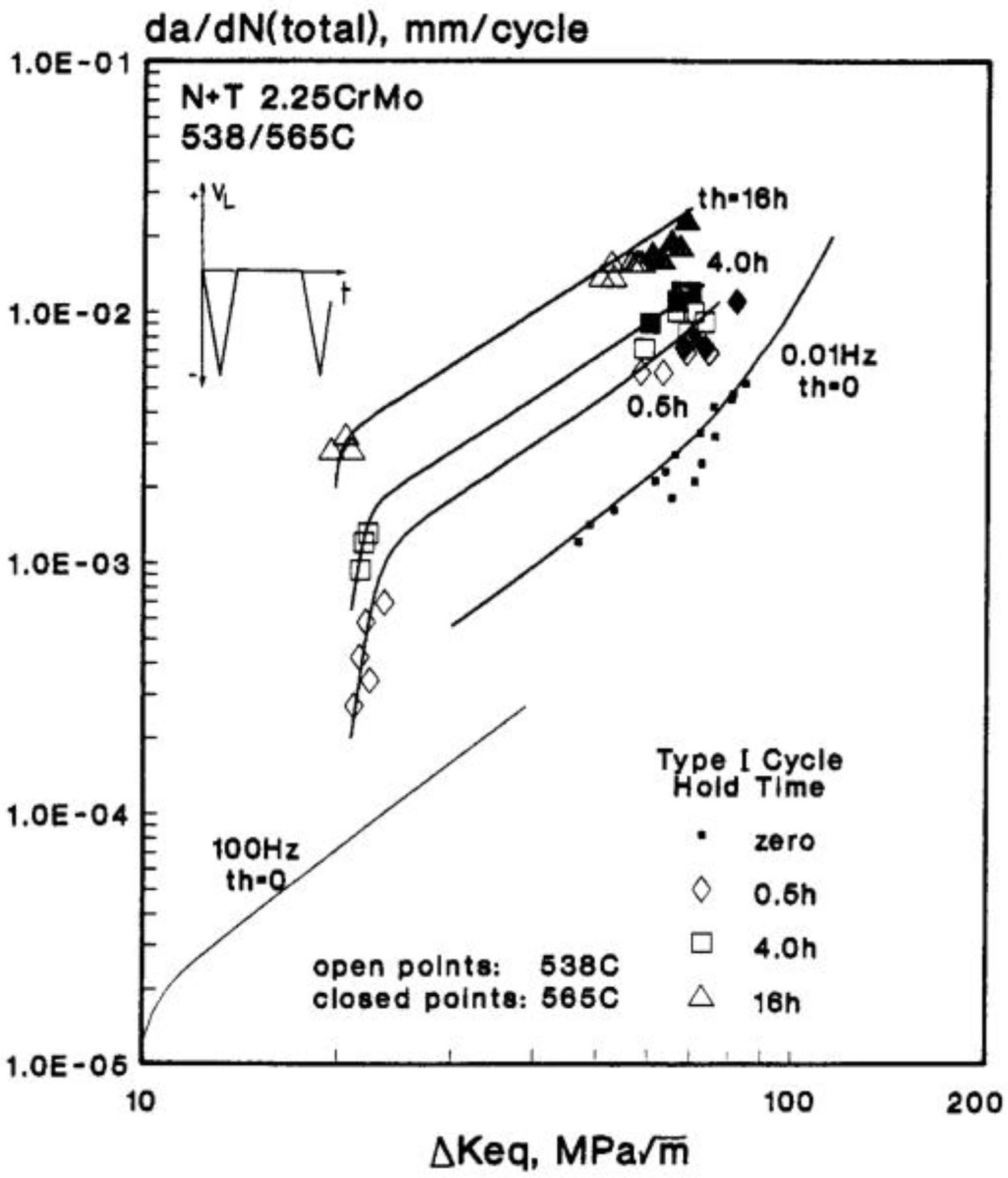

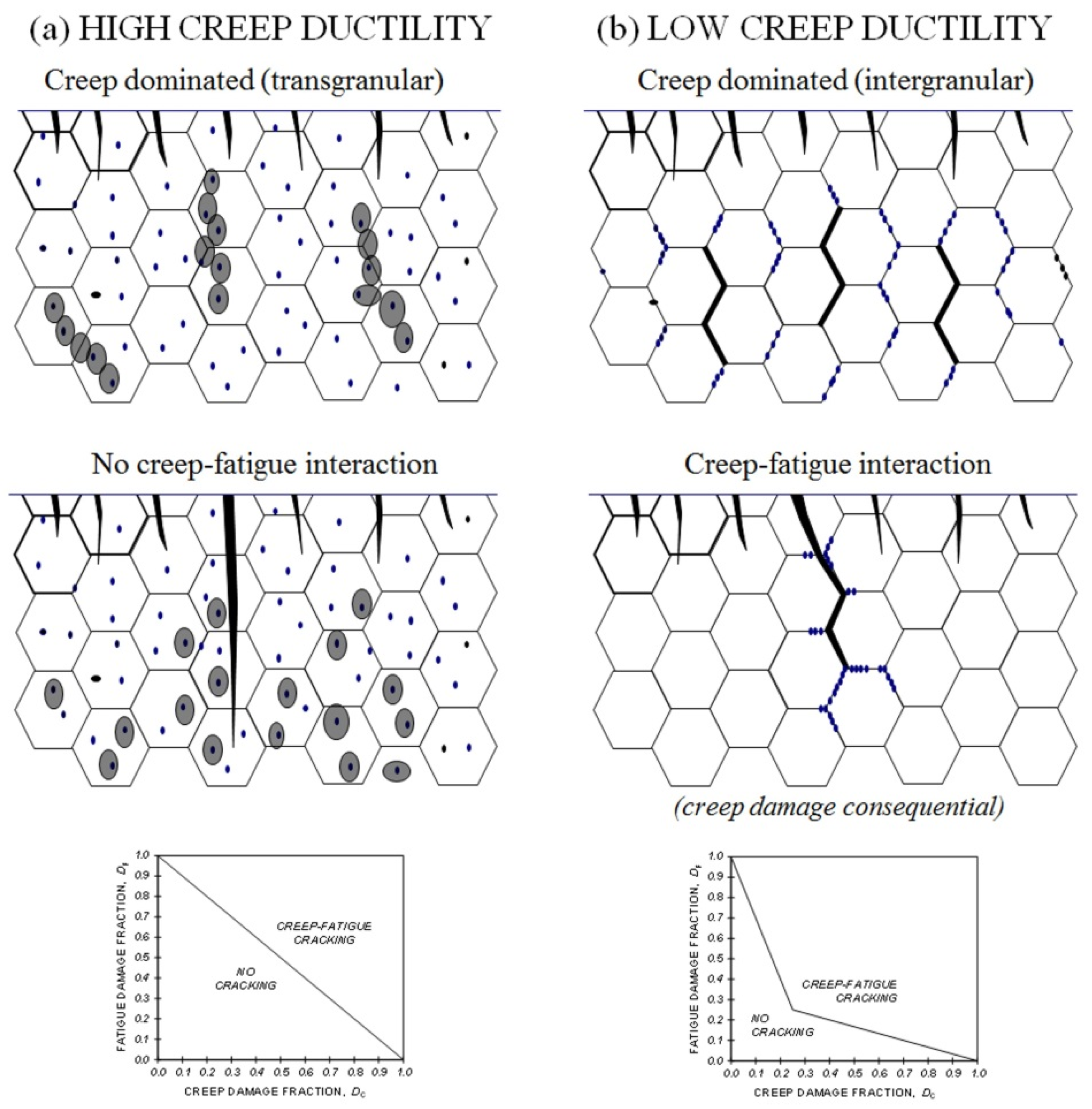

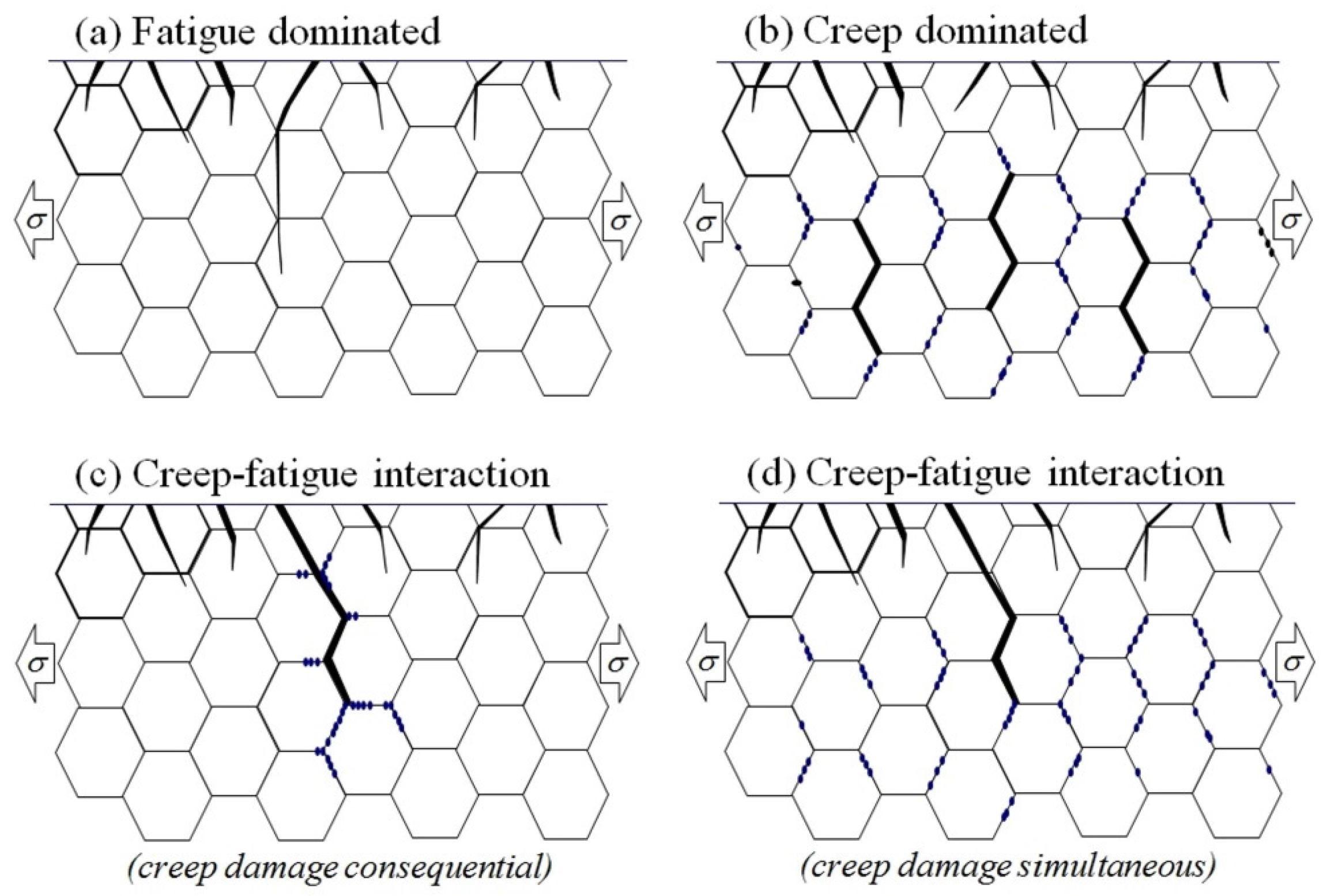

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Holdsworth, S. Creep-Fatigue Failure Diagnosis. Materials 2015, 8, 7757-7769.

Show more citation formats Show less citations formats

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
