Next Article in Journal
Effects on the Thermo-Mechanical and Crystallinity Properties of Nylon 6,6 Electrospun Fibres Reinforced with One Dimensional (1D) and Two Dimensional (2D) Carbon
Previous Article in Journal
Cyclic Deformation of Ultra-Fine Grained Commercial Purity Aluminum Processed by Accumulative Roll-Bonding
Open AccessArticle

Study of Radio Frequency Plasma Treatment of PVDF Film Using Ar, O2 and (Ar + O2) Gases for Improved Polypyrrole Adhesion

1
School of Engineering, Deakin University, Geelong, Victoria 3216, Australia
2
Institute for Frontier Materials, Deakin University, Geelong, Victoria 3216, Australia
*
Author to whom correspondence should be addressed.
Materials 2013, 6(8), 3482-3493; https://doi.org/10.3390/ma6083482
Received: 3 June 2013 / Revised: 31 July 2013 / Accepted: 1 August 2013 / Published: 13 August 2013
(This article belongs to the Special Issue Advances in Surface Coatings)

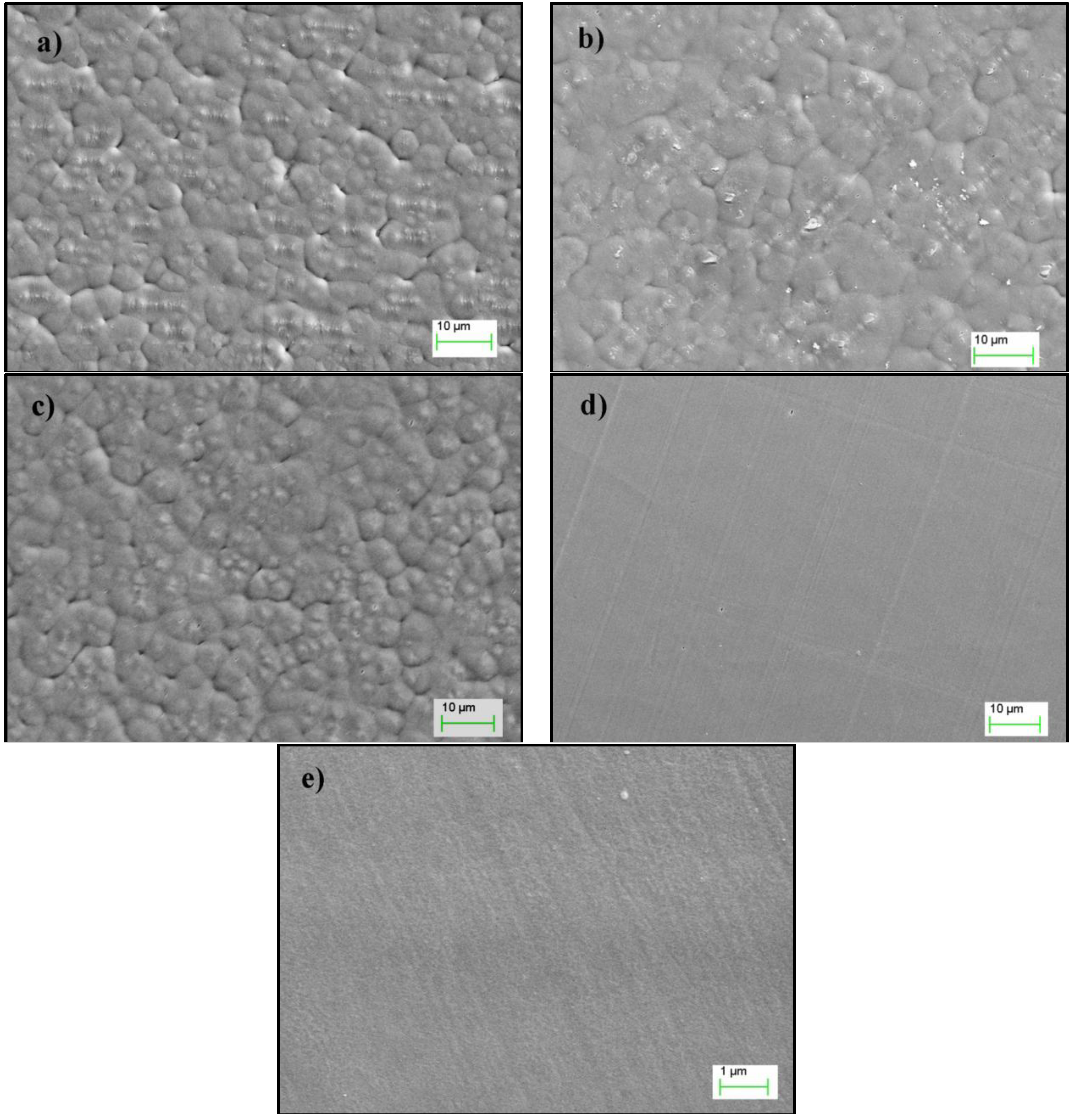

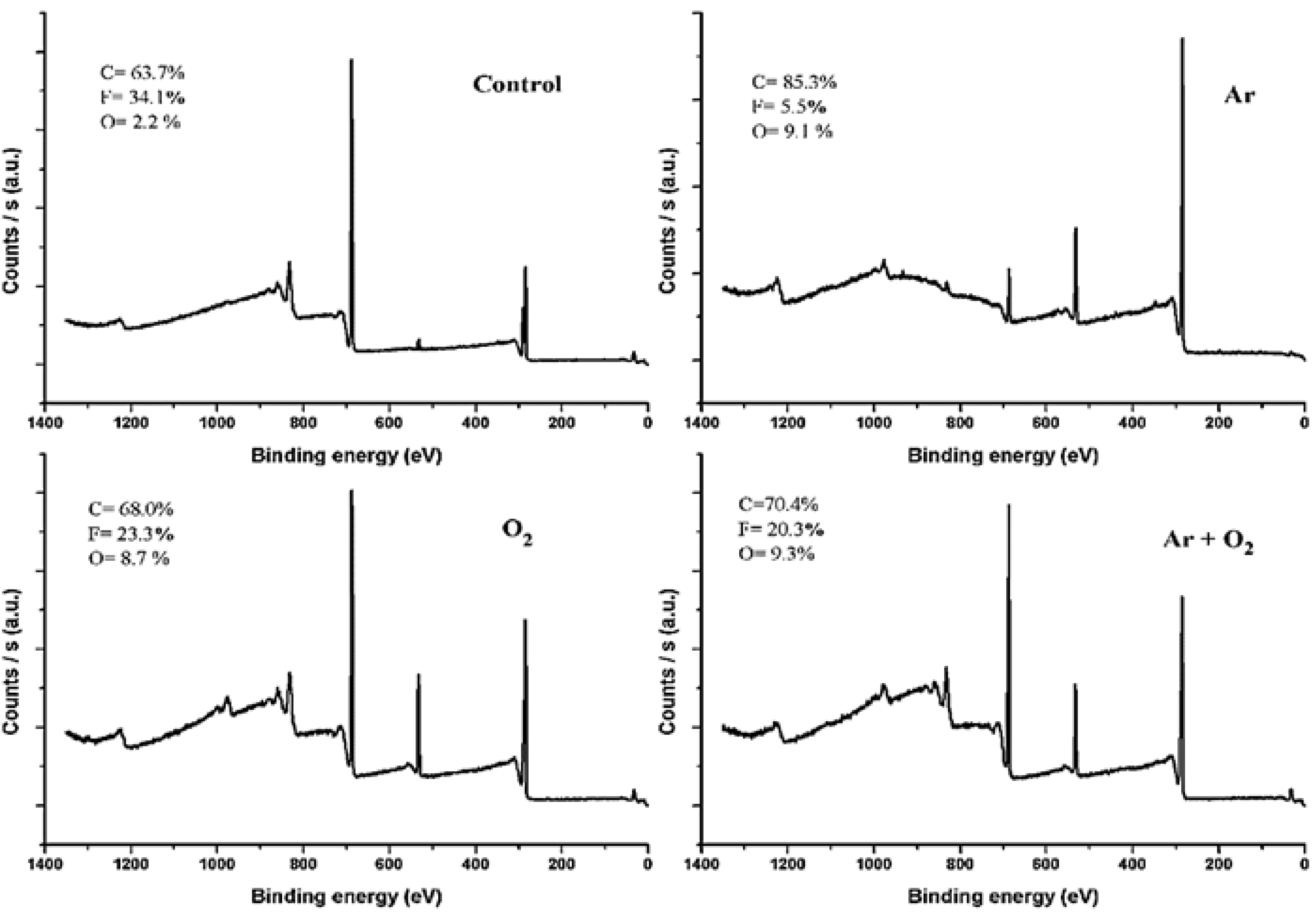

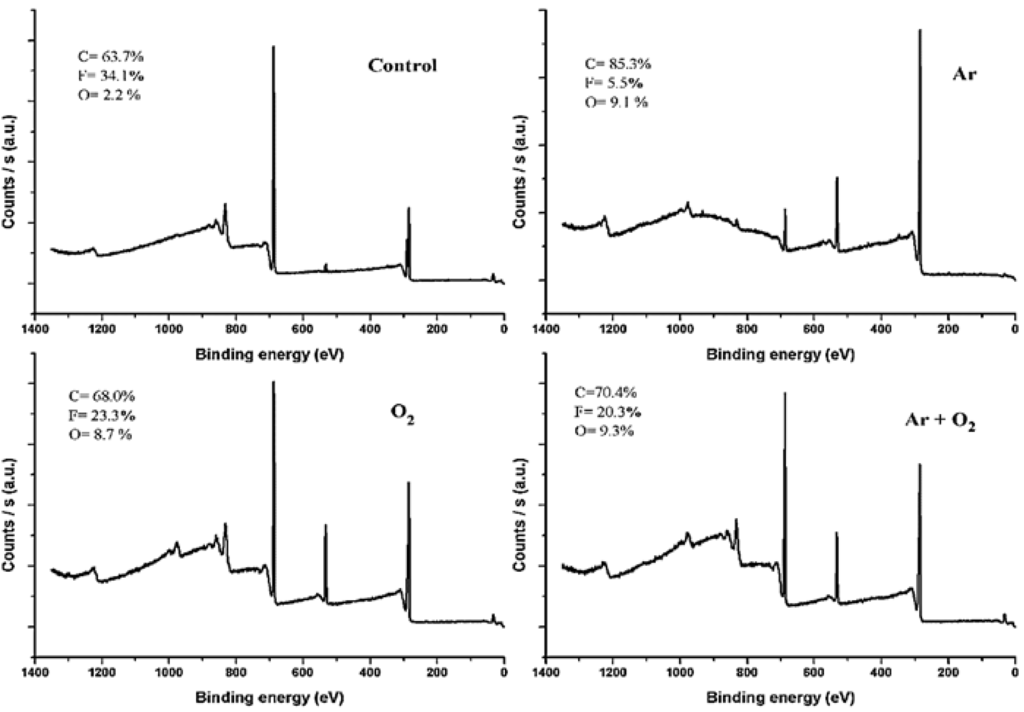

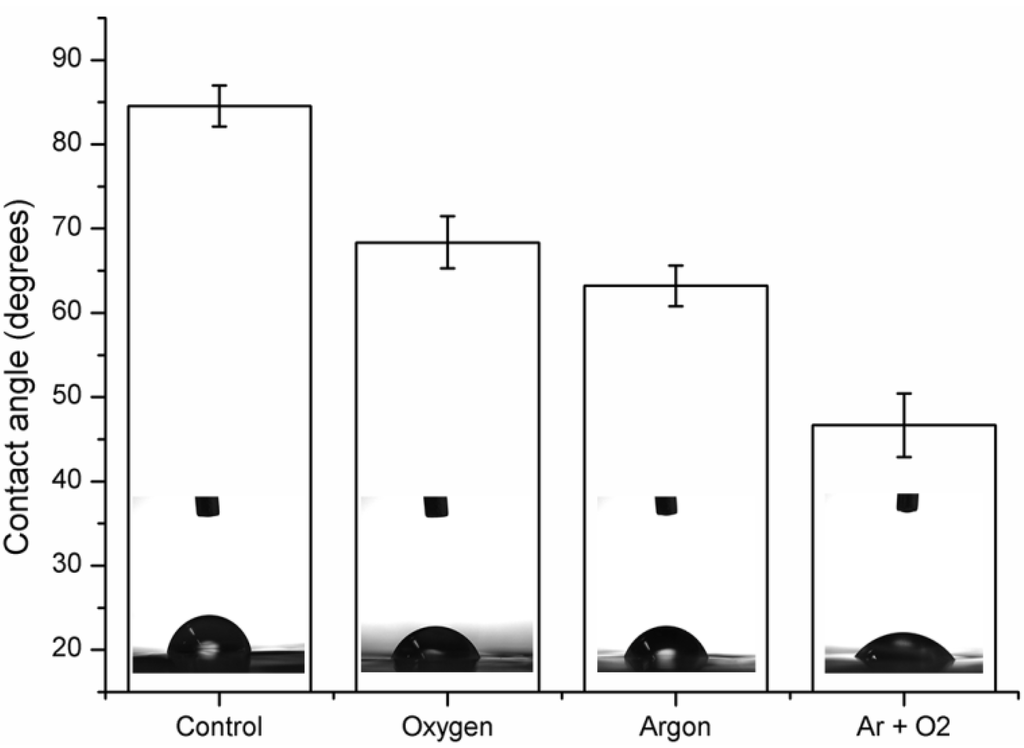

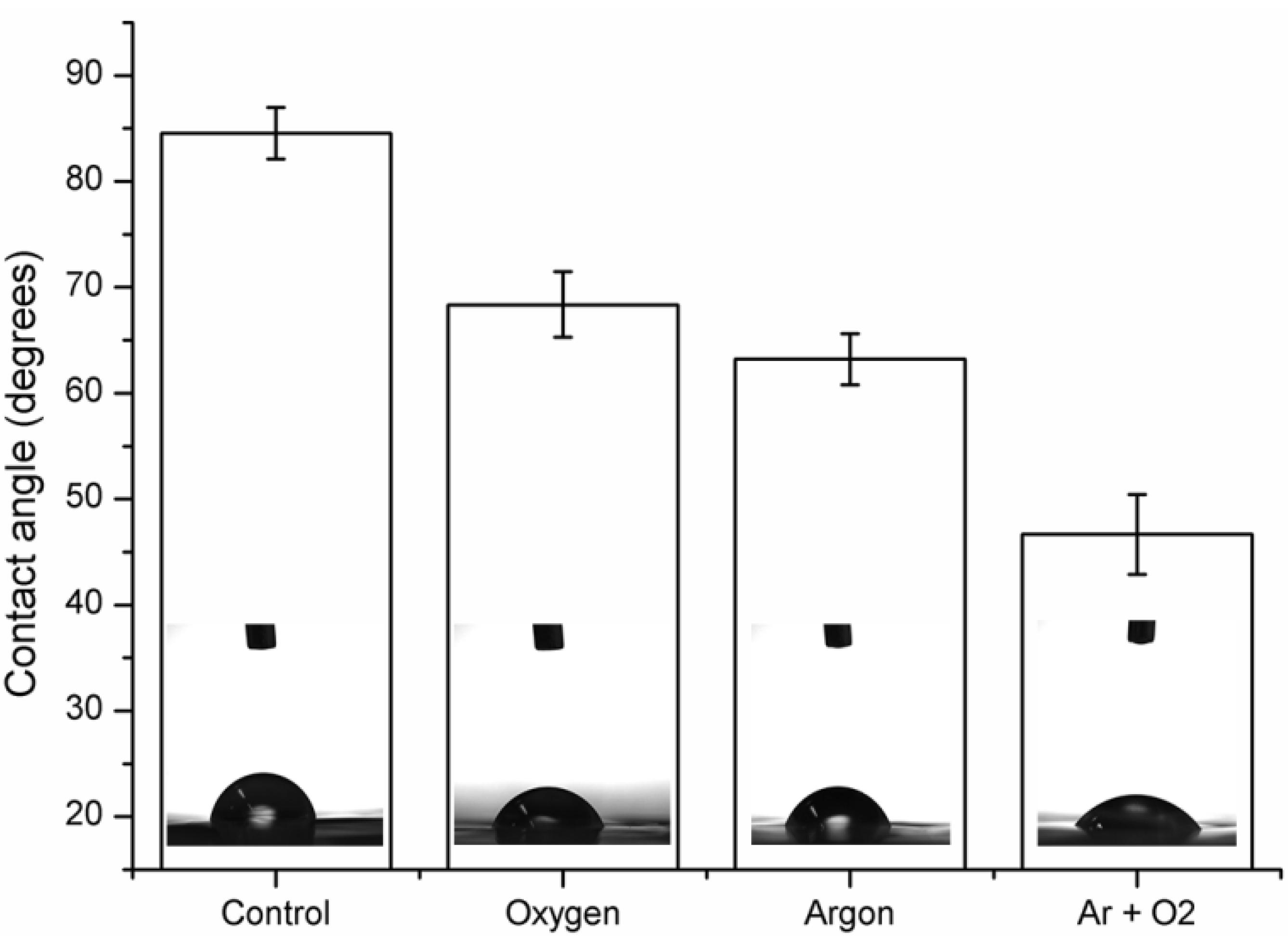

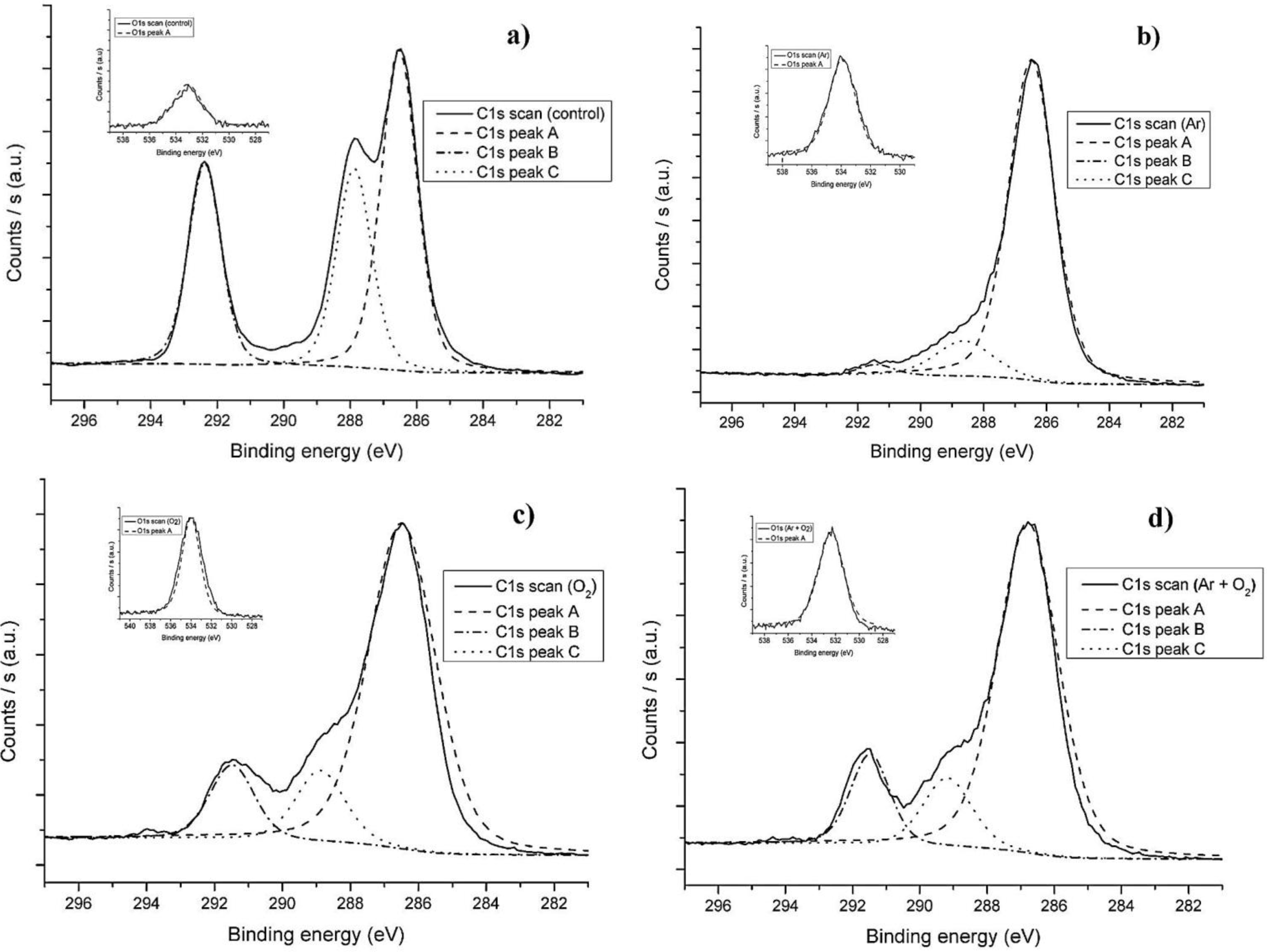

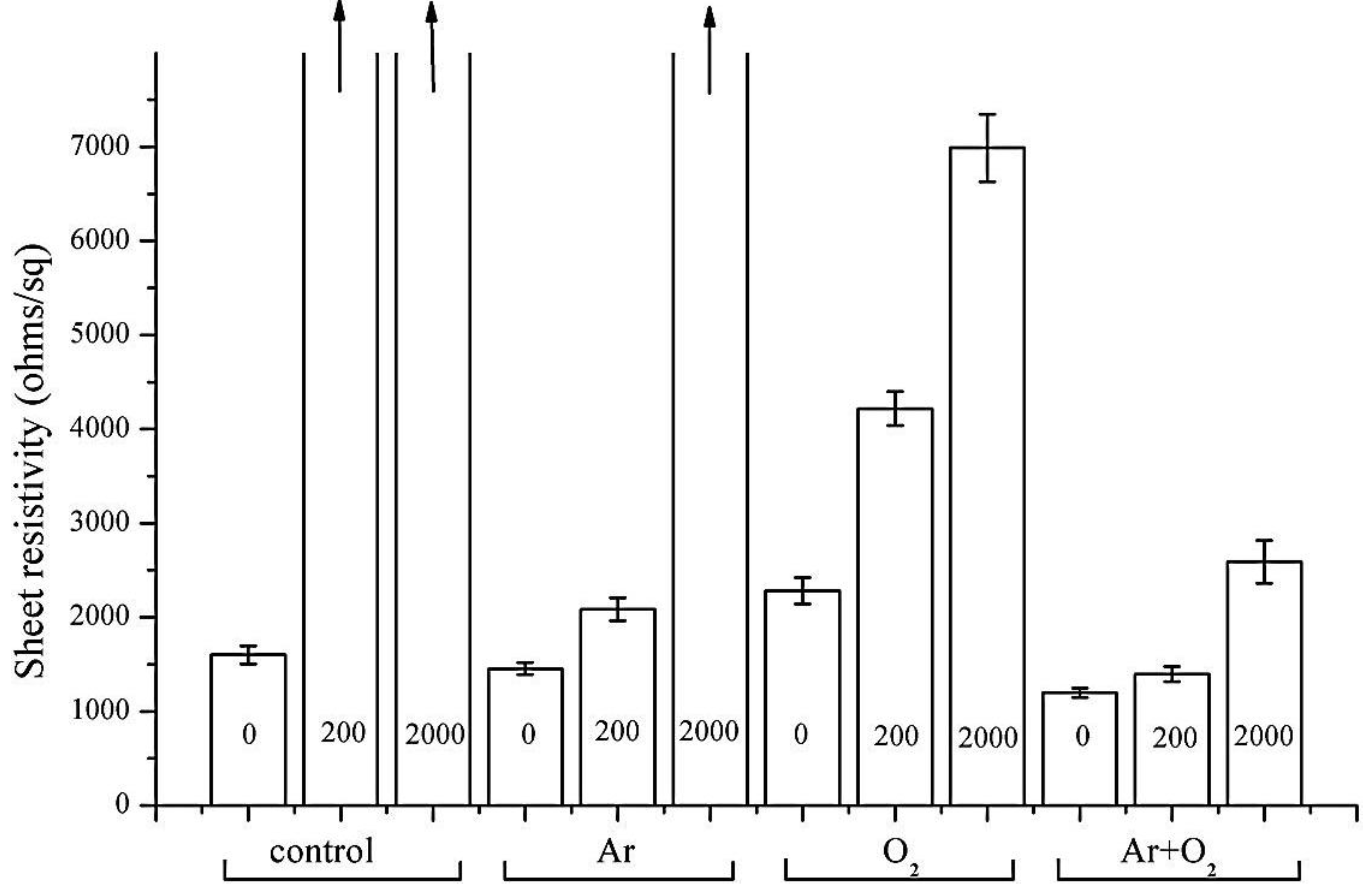

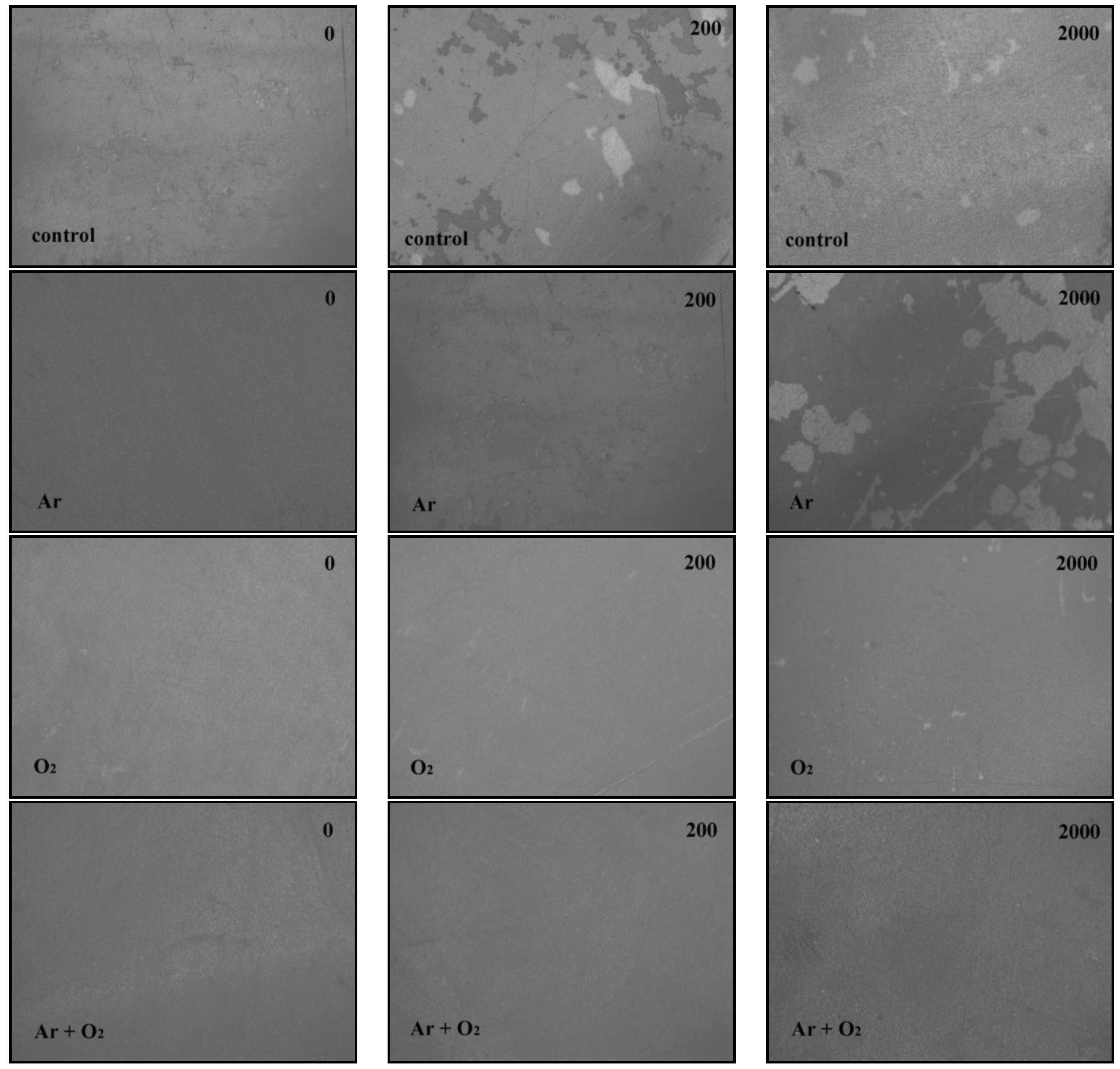

Improvement of the binding of polypyrrole with PVDF (polyvinylidene fluoride) thin film using low pressure plasma was studied. The effects of various plasma gases i.e., Ar, O2 and Ar + O2 gases on surface roughness, surface chemistry and hydrophilicity were noted. The topographical change of the PVDF film was observed by means of scanning electron microscopy and chemical changes by X-ray photoelectron spectroscopy, with adhesion of polypyrrole (PPy) by abrasion tests and sheet resistance measurements. Results showed that the increase in roughness and surface functionalization by oxygen functional groups contributed to improved adhesion and Ar + O2 plasma gave better adhesion. View Full-Text
Keywords: coatings; plasma treatment; surface modification; polypyrrole; interfacial bonding; conducting polymers; PVDF coatings; plasma treatment; surface modification; polypyrrole; interfacial bonding; conducting polymers; PVDF
Show Figures

Figure 1

MDPI and ACS Style

Kaynak, A.; Mehmood, T.; Dai, X.J.; Magniez, K.; Kouzani, A. Study of Radio Frequency Plasma Treatment of PVDF Film Using Ar, O2 and (Ar + O2) Gases for Improved Polypyrrole Adhesion. Materials 2013, 6, 3482-3493.

Show more citation formats Show less citations formats

Article Access Map by Country/Region

1
Only visits after 24 November 2015 are recorded.
Back to TopTop
