CO₂ Methanation: Nickel–Alumina Catalyst Prepared by Solid-State Combustion

Abstract

The development of solvent-free methods for the synthesis of catalysts is one of the main tasks of green chemistry. A nickel–alumina catalyst for CO₂ methanation was synthesized by solid-state combustion method using hexakis-(imidazole) nickel (II) nitrate complex. Using X-ray Powder Diffraction (XRD), Transmission electron microscopy (TEM), X-ray photoelectron spectroscopy (XPS), and Hydrogen temperature-programmed reduction (H₂-TPR), it was shown that the synthesized catalyst is characterized by the localization of easily reduced nickel oxide on alumina surface. This provided low-temperature activation of the catalyst in the reaction mixture containing 4 vol% CO₂. In addition, the synthesized catalyst had higher activity in low-temperature CO₂ methanation compared to industrial NIAP-07-01 catalyst, which contained almost three times more hard-to-reduce nickel–aluminum spinel. Thus, the proposed approaches to the synthesis and activation of the catalyst make it possible to simplify the catalyst preparation procedure and to abandon the use of solvents, which must be disposed of later on.

1. Introduction

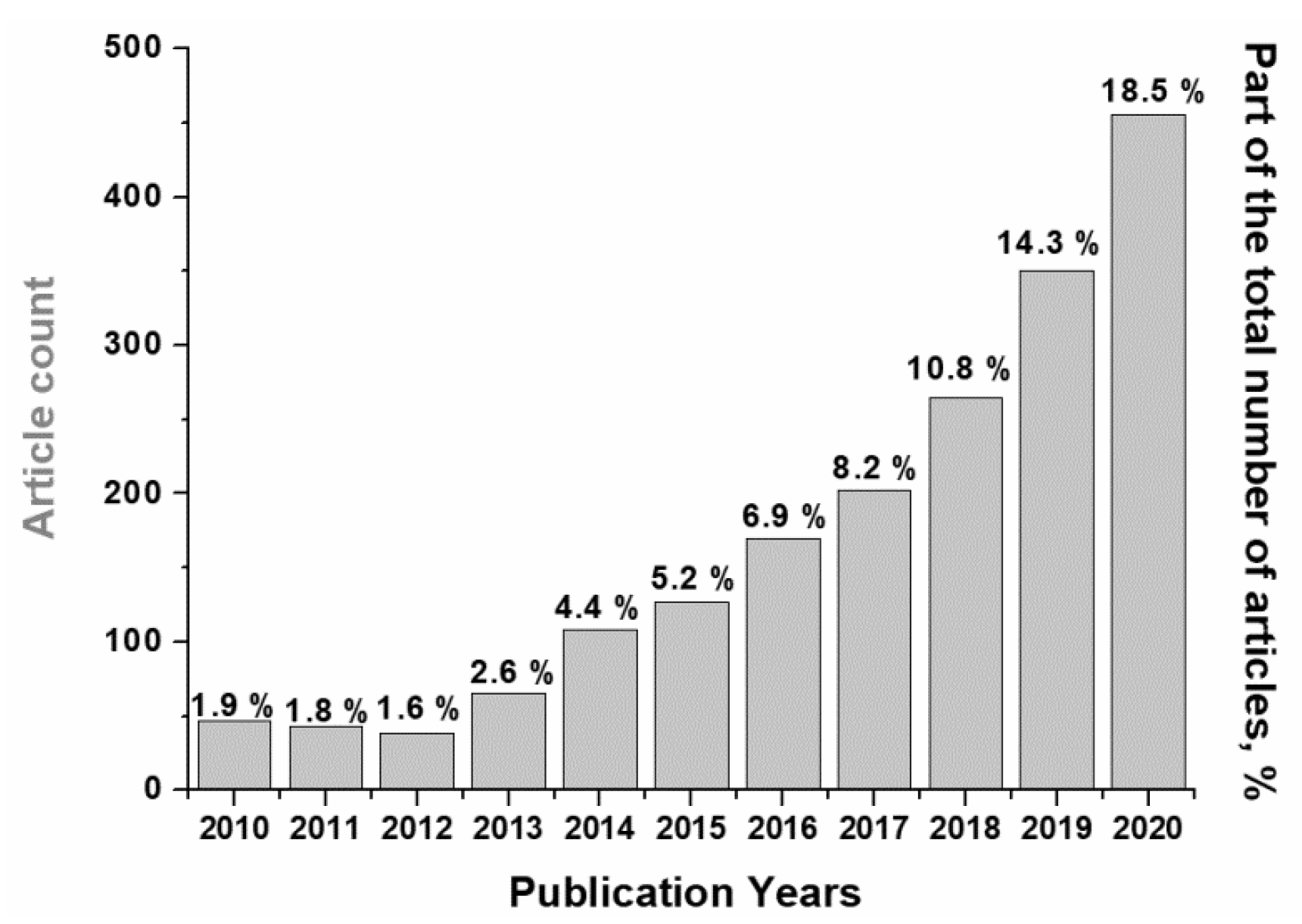

In recent years, the scope of publications regarding carbon dioxide (CO₂) methanation has increased significantly (Figure 1), which is due to growing interest in processes of CO₂ utilization and hydrogen accumulation for the production of synthetic natural gas [1,2,3].

In addition, this process is considered as a promising approach to enhance the concentration of methane within biogas as containing up to 50 vol% of CO₂ [4,5]. Currently, there are already technological solutions being implemented in the industry [6], but the maximum possible methane yield has not been achieved yet as for laboratory conditions.

From a thermodynamic point of view, CO₂ methanation is a favorable and highly exothermic process, but a reversible one.

CO₂ + 4H₂ ↔ CH₄ + 2H₂O    ΔG₂₉₈ = −114 kJ mol⁻¹; ΔH₂₉₈ = −165 kJ mol⁻¹

(1)

Theoretical calculations have revealed that a high CO₂ conversion may be achieved at a temperature below 300 °C, and, upon pressure increase, it may be enhanced [7]. However, within this temperature range, the rate of eight-electron reduction of CO₂ to CH₄ (Figure S1) is low due to high kinetics barriers [8]. To increase effective CO₂ conversion, especially at atmospheric pressure within the low-temperature region (150–300 °C), catalysts are required. Their active component is limited to metals of group VIII [9,10,11,12]. Herewith, the preference is given to nickel, which combines successfully low cost with acceptable catalytic activity in CO₂ methanation [13,14,15]. Various metal oxides are used as a support for nickel [16], but most publications consider catalysts based on cheap and commercially available γ-alumina with a mesoporous structure which is changed moderately up to 600 °C compared to ZrO₂ and CeO₂ [17]. The high thermal stability of nickel–alumina catalysts is a very important parameter since the exothermic nature of CO₂ methanation may lead to a reaction layer strong heating within large-scale reactors.

The mechanism of CO₂ methanation over nickel–alumina catalysts is still considered to be a debatable issue [18,19], but its implementation requires the availability of metallic nickel necessarily [20]. As shown in [21], the higher is the Ni⁰/Ni²⁺ ratio, the more effective is the catalyst. It is believed that the reduced metal activates both hydrogen [22] and carbon dioxide. CO₂ activation is carried out through the formation of CO as an intermediate, according to the XPS data [23]. It is also determined by the density functional method that the most energetically favorable way of CO₂ methanation on the (111) plane of nickel is through CO [24]. It should be noted that the stage of CO₂ dissociation limits the reaction rate [25]. Moreover, despite hydrogen adsorption, the surface of nickel particles is partially oxidized according to Inelastic Neutron Scattering data [26].

Alumina remains practically an inert material for the activation for the reagents up to 300 °C [27] since carbon dioxide is adsorbed irreversibly upon its strong basic centers within this temperature range [22,28]. The resulting carbonate species decompose with CO₂ desorption only at temperatures above 500 °C [29]. In this regard, the role of aluminum oxide in low-temperature methanation of CO₂ (150–300 °C) is to ensure high dispersion of the active component and increase the strength and thermal stability of the catalyst, including the preservation of the porous structure during local overheating in the catalyst bed.

Nickel oxide is preferred as a precursor of the active component of nickel–alumina catalysts for CO₂ methanation since it is reduced by hydrogen under milder conditions than nickel–aluminum spinel [30]. Traditionally, industrial catalysts are reduced by a nitrogen–hydrogen mixture without carbon oxides because they may cause active component loss due to the formation of nickel carbonyl with a boiling point of about 42 °C [31]. However, from a practical point of view, it is advisable to reduce a catalyst directly by a reaction mixture (H₂/CO₂) at a temperature ≤350 °C since within this temperature range production of methane with high selectivity is advantageous thermodynamically [7].

It was noted that the CO₂ methanation rate is influenced not only by the nature of the active component and the support [32,33] but also by their synthesis conditions [34,35]. Industrial nickel–alumina catalysts are obtained by co-precipitation followed by high-temperature treatment to form nickel oxide and alumina [36]. Now nickel precursor of the active component is supported on the surface of commercial alumina using different approaches: wet impregnation [37], evaporation induced self-assembly technique [38], chemical vapor deposition [39], a surfactant-free sol-gel technique [40], mechanochemical activation [41], microwave-assisted hydrothermal synthesis [42], and ultrasound-assisted co-precipitation method [43]. The preparation methods of CO₂ methanation catalysts, as a rule, include two high-temperature stages (500–700 °C): (I) nickel oxide formation and (II) its reduction by hydrogen up to the active state. In addition, most of the above catalyst preparation methods involve the use of solvents, which must then be disposed of. Therefore, the development of energy-saving solvent-free methods for the synthesis of nickel–alumina CO₂ methanation catalysts remains an urgent challenge.

At the moment, a new direction of nanomaterials preparation by combustion method is being actively developed [44]. Due to the rapid redox reactions, the released heat is localized within a finite layer, establishing a high-temperature zone where metal-containing nanoparticles are formed. They are well-crystallized and can be used as catalysts in important chemical processes including CO₂ methanation. Currently, aqueous solutions of nickel nitrate with urea and aluminum hydroxide [34] or nitrate [45] are used for the synthesis of effective nickel-based catalysts by solution combustion technique and self-propagating high-temperature synthesis [46].

This work aims to develop a new approach to the synthesis of nanoscale nickel–alumina catalysts for CO₂ methanation based on solid-state combustion (SSC) without using any solution [44]. Organometallic compounds prepared by solvent-free dry-melt synthesis [47,48] were used as Ni catalyst precursors. In addition to metals, their composition includes energy-intensive organic ligands and oxygen-containing anions, ensuring the initiation of the combustion process during short-term thermal exposure [49,50]. We prepare nickel–alumina catalyst by solid-state combustion from a solid mixture of γ-Al₂O₃ and a hexakis-(imidazole) nickel (II) nitrate complex. Since there are no standardized conditions to research CO₂ methanation, in this work the synthesized catalyst was compared with industrial NIAP-07-01 catalyst [36] obtained by co-precipitation. This allows making a correct conclusion about the prospects of the SSC technique for the synthesis of effective catalysts to ensure low-temperature CO₂ methanation.

2. Materials and Methods

2.1. Synthesis of Hexakis-(Imidazole) Nickel (II) Nitrate Complex

Hexakis-(imidazole) nickel (II) nitrate complex was synthesized from imidazole and nickel nitrate without using solvents. The synthesis was performed within a ceramic crucible at 150 °C. When nickel nitrate (Ni(NO₃)₂·6H₂O, CAS No 13478-00-7) was added in a colorless imidazole (C₃H₄N₂, CAS No 288-32-4) a reaction mixture was colored in green, and then crystallized instantly as a blue powder. The obtained sample was cooled at room temperature and separated into fractions. Nickel–alumina catalyst was prepared using a solid complex with particle size below 0.04 mm.

Oxygen balance of complex was calculated using the following equation:

$$\mathit{Oxygen} \mathit{balance} (\%) = \frac{-1600}{\mathit{Molar} \mathit{mass}}·(2\mathrm{C}+\frac{\mathrm{H}}{2}-\mathrm{MO})$$

(2)

where C is the quantity of carbon atoms, H is quantity of hydrogen atoms, O is the quantity of oxygen atoms, and M is the quantity of metal atoms.

2.2. Catalyst Preparation

The γ-Al₂O₃ (SASOL Pural TM 100; BET specific surface area is 158 m²·g⁻¹) supported nickel catalyst was prepared by solid-state combustion technique. Alumina was ground to a fraction of below 0.04 mm and calcined at 500 °C per 4 h. Then a mechanical mixture of alumina (4.00 g) with hexakis-(imidazole) nickel (II) nitrate complex (10 g) was placed into a ceramic crucible which was preheated up to 300 °C. Melting of the complex was observed and then it ignited with the release of a large amount of gas. It is worth noting that the nickel–alumina catalyst prepared by solid-state combustion technique was not calcined. The obtained powder was granulated. A fraction with a particle size of 0.25–0.5 mm was tested in the CO₂ methanation. Nickel–alumina catalyst was designated as Ni-Al₂O₃-SSC.

Industrial NIAP-07-01 catalyst (TU 2178-003-00209510-2006, NIAP-CATALYST Ltd., Novomoskovsk, Russia) was prepared by precipitation of nickel hydroxide and loaded over γ-Al₂O₃ in one step [36]. Excess water was removed by drying at 120 °C and then the sample was calcined at a temperature of above 400 °C [51]. For comparative studies, a catalyst with a particle size between 0.25 and 0.5 mm was used.

2.3. Catalyst Characterization

Inductively coupled plasma atomic emission spectrometry (Optima 4300 DV, PerkinElmer, Waltham, MA, USA) was used to determine Ni and Al in complex and catalysts. Using an automatic CHNS analyzer EURO EA 3000 (Euro Vector S.p.A., Castellanza, Italy) the contents of C, H, and N were measured. The determination error is in the range of ±0.3–0.5 wt%. From the obtained data, the composition of the complex was calculated and compared with the theoretical ones (Table S1).

The textural characteristics of the catalysts were determined by low-temperature nitrogen adsorption/desorption. Using an ASAP-2400 (Micromeritics Instrument Corporation, Norcross, GA, USA) the adsorption isotherms were obtained at 77 K. The relative error of determination was ±6%.

ATR FTIR spectra were recorded on an Agilent Cary 600 (Agilent Technologies, Santa Clara, CA, USA) spectrometer equipped with a Gladi ATR attachment (PIKE Technologies, Madison, WI, USA).

For thermal analysis a Netzsch STA 449 C Jupiter instrument (NETZSCH, Selb, Germany) equipped with a DSC/TG holder was used. The measurements were performed in the temperature range of 30–600 °C under a He flow (30 mL·min⁻¹). The heating rate: 5 °C·min⁻¹ for complex; 10 °C·min⁻¹ for catalysts. The sample mass was 4 mg.

Using a D8 Advance diffractometer (Bruker AXS GmbH, Karlsruhe, Germany) equipped with a Lynxeye linear detector (CuK_α radiation, λ = 1.5418 Å) the phase composition of complex and catalysts were characterized. The lattice parameter of γ-Al₂O₃ was determined from symmetric reflection at [440] (2θ = 66.9°). The standard deviation was ±0.001 Å.

The structure and microstructure of samples were surveyed by ThemisZ transmission electron microscope with a limiting resolution of 0.07 nm (Thermo Fisher Scientific, Waltham, MA, USA). Using energy dispersive spectrometer SuperX Thermo Fisher Scientific (HAADF) the elemental maps were obtained. Samples for research were fixed onto standard copper grids using ultrasonic dispersion in anhydrate ethanol.

A SPECS photoelectron spectrometer with a PHOIBOS-150-MCD-9 hemispheric analyzer and a FOCUS-500 monochromator (SPECS Surface Nano Analysis GmbH, Berlin, Germany) (AlK_α radiation, 150 W, hν = 1486.74 eV) were used to record XPS spectra. The binding energy (BE) scale of the spectrometer was pre-calibrated using Au4f_7/2 (84.0 eV) and Cu2p_3/2 (932.6 eV) core-level peaks. The binding energies were determined with an accuracy of ±0.1 eV. The XPS analysis depth was about 5 nm. The samples were supported on a conducting scotch. The sample charge was taken into account using C1s lines (284.8 eV). Analysis of individual spectra of elements allowed to determine their electronic state and to calculate the ratio of oxidized to reduced nickel onto catalyst surface, regarding element sensitivity coefficients [52].

H₂-TPR experiments were realized in a flow reactor with gradient-free furnace. The temperature was changed from 30 to 900 °C at a heating rate of 10 °C·min⁻¹. For uniform heating, a quartz glass (fraction: 0.4–0.7 mm) was added to the sample. The hydrogen flow rate (10% H₂ in argon) was 40 mL·min⁻¹. A thermal conductivity detector was used to determine the hydrogen content in the outlet gas flow. A trap with liquid nitrogen was used to remove impurities.

2.4. Experimental Setup

All the catalytic experiments were performed in a fixed-bed reactor with an inner diameter of 12.8 mm under atmospheric pressure. 318 mg of catalyst was placed into the reactor, and heated using a tubular furnace. The temperature was controlled by a thermocouple installed in a catalyst bed. Catalytic tests were carried out at various temperatures from 150 to 450 °C with a step of 50 °C. Typically, the catalyst was kept in the reaction mixture for 20 min at each temperature. In the case of activation, the duration of the isothermal step was varied.

The mixture H₂, CO_2, and Ar flow with the volume ratio of 16:4:80 was introduced into the catalyst bed with a gas mass space velocity of 19,000 mL/g_cat·h. The flow rates were controlled by RRG-12-36 flow meter (“Eltochpribor”, Moscow, Russia) with an accuracy of 1%. The gas composition at the reactor’s outlet was determined using Agilent Cary 600 FTIR-spectrometer (Agilent Technologies Australia, Melbourne, Australia). The internal volume of the gas cell is 100 cm³ and the optical path length was 10 cm.

The amount of carbon-containing products in the reaction medium before and after the reactor was determined using nondispersive infrared sensors (Dynament Limited, Mansfield, UK). The obtained data were used to calculate CO₂ (X_CO2) conversion as follows:

$$X_{C{O}_2}=\left(1-\frac{C_{out}}{C_{in}}\cdot \frac{U_{out}}{U_{in}}\right)\cdot 100\%$$

(3)

where C_in and C_out are CO₂ concentrations at the inlet and outlet of the reactor, and U_in and U_out are gas flow rates at the inlet and outlet of the reactor. Taking into account reaction stoichiometry and the high content of argon in the reaction medium, the U_in/U_out ratio was in the range from 0.92 to 1.

3. Results and Discussion

3.1. Study of the Organometallic Precursor of the Nickel–Alumina Catalyst

An organometallic precursor of nickel–alumina catalyst was prepared first by melting nickel nitrate and imidazole at 150 °C. As a result, a solid powder of blue color was obtained. Its composition corresponded to the calculated composition of the hexakis-(imidazole) nickel (II) nitrate (Table S1).

It should be noted that imidazole is an amphoteric compound since it contains a weak acid group (>N–H) in a five-membered heterocycle, and a nitrogen atom (–N=) containing lone pair available for bonding to proton. Thus, the crystal structure of imidazole is stabilized by intermolecular hydrogen bonds [53], which are absent in complex compounds. In complex compounds, the lone pair of the pyridine nitrogen atom is coordinated by the metal cation. In this case, the N–H group becomes isolated, and the interatomic distance is shortened. According to ATR FTIR spectroscopy data, this leads to an increase in the intensity of stretching vibrations of the N–H bond and a shift of its absorption band (a.b.) to the high-frequency region (Figure 2). It was found that the ATR FTIR spectra of the prepared complex and imidazole (Figure 2) have a very similar set of a.b., which indicates the retention of the imidazole structure during the synthesis of the complex by melting of imidazole and nickel nitrate.

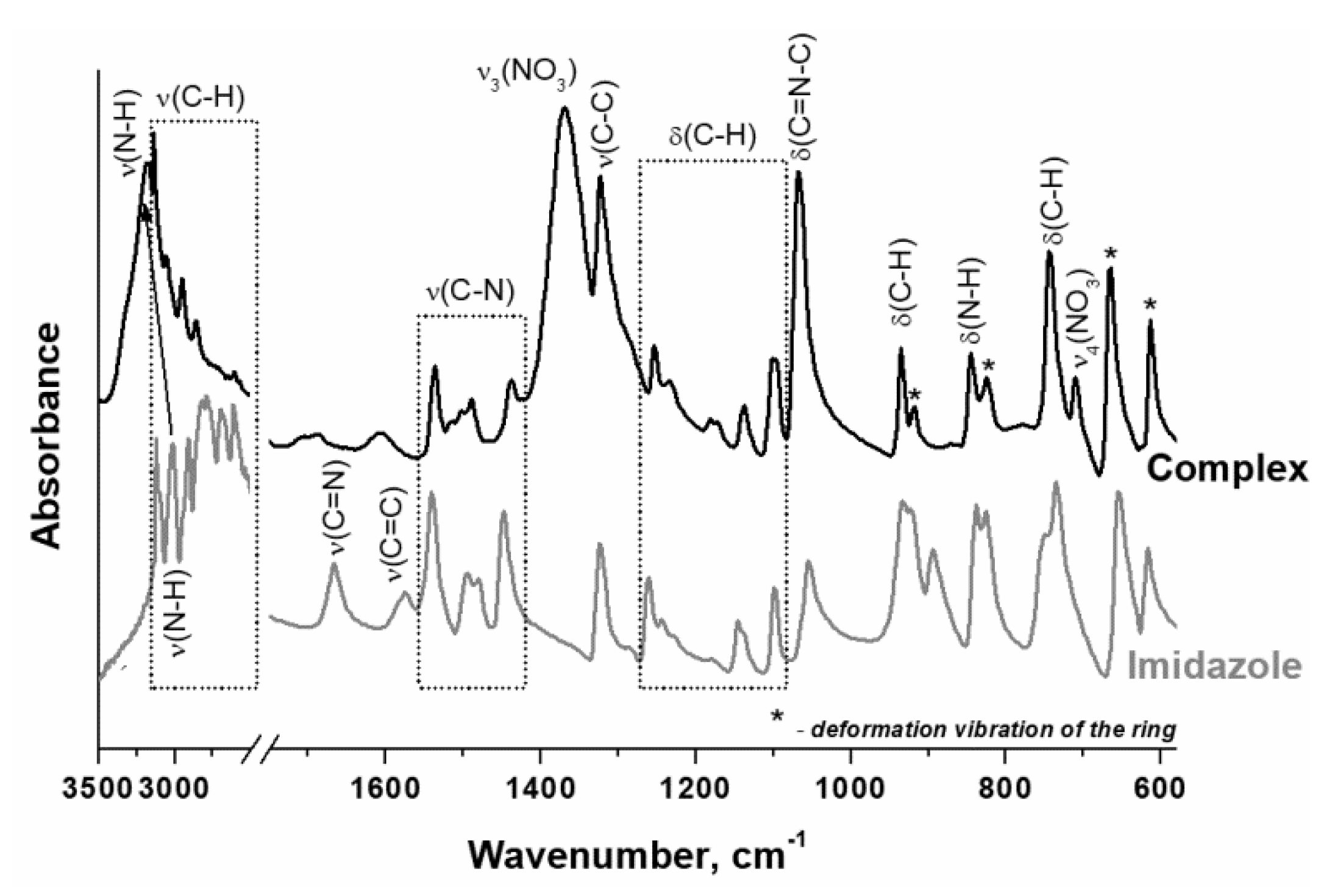

Additional evidence for the formation of hexakis-(imidazole) nickel (II) nitrate complex is provided by thermal analysis (Figure 3) and XRD (Figure S2) data. Thus, the DTA curves show no endothermic peaks at 90 and 265 °C, which corresponds to the melting and boiling of imidazole, respectively. Moreover, there is no mass loss and thermal effects due to the decomposition of nickel nitrate hexahydrate [54]:

Ni(NO₃)₂·6H₂O → Ni(NO₃)₂·4H₂O + 2H₂O                43 °C  Δm = 12.3 wt%

(4)

Ni(NO₃)₂·4H₂O → Ni(NO₃)₂·2H₂O + 2H₂O              80 °C  Δm = 24.8 wt%

(5)

Ni(NO₃)₂·2H₂O → Ni(NO₃)(OH)₂·H₂O + NO₂          145 °C  Δm = 40.6 wt%

(6)

Ni(NO₃)(OH)₂·H₂O → Ni(NO₃)(OH)_1.5O_0.25·H₂O + 0.25H₂O  190 °C  Δm = 42.0 wt%

(7)

Ni(NO₃)(OH)_1.5O_0.25·H₂O → 0.5Ni₂O₃ + HNO₃ + 1.25H₂O   250 °C  Δm = 71.8 wt%

(8)

3Ni₂O₃ → 2Ni₃O₄ + 0.5O₂                  250 °C  Δm = 72.2 wt%

(9)

Ni₃O₄ → 3NiO + 0.5O₂                  300 °C  Δm = 74.0 wt%

(10)

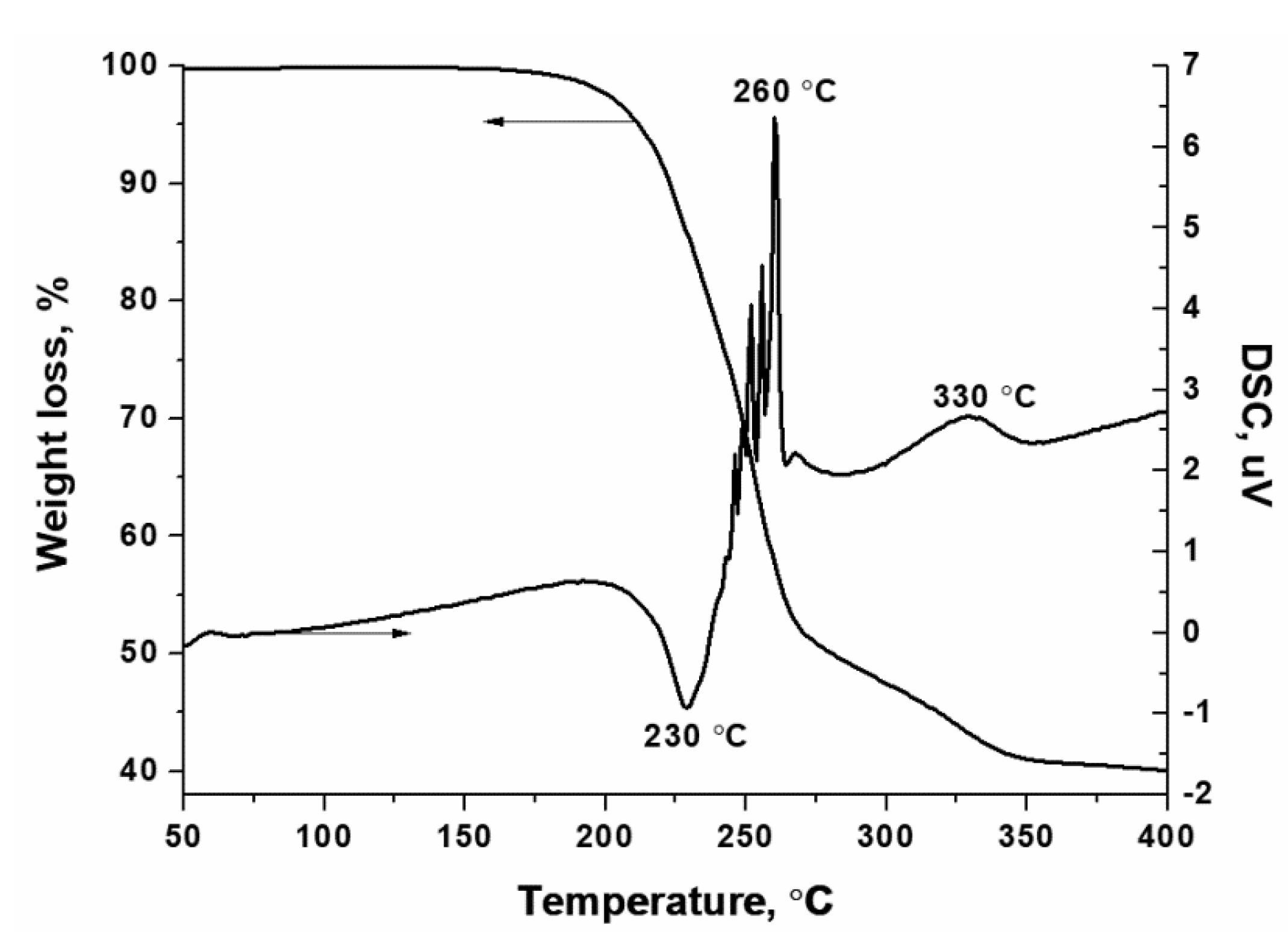

According to thermal analysis (Figure 3), a noticeable decomposition of the complex begins at temperatures above 150 °C with an endothermic effect, but the main weight loss above 230 °C takes place with the release of a large amount of heat. The saw-like form of the exothermic peak indicates the uneven release of heat, which is probably due to the stepwise ligand removal with their simultaneous oxidation. However, complete oxidation of the organic ligand does not occur because their weight loss was only 50% at 270 °C, but not as expected (up to 87.3%). Therefore, the exothermic peak at 330 °C can be attributed to the oxidation of undecomposed complex with the release of gaseous products. For example, in this temperature range, nickel oxide interacts with carbon formed as a result of the carbonization of imidazole.

NiO + C → Ni + CO           300–400 °C

(11)

In general, summing up the study, we can draw the following conclusion. The blue powder obtained by melting nickel nitrate and imidazole at 150 °C is a hexakis-(imidazole) nickel (II) nitrate complex, in which the nickel cation is coordinated by imidazole molecules through the lone pair of the nitrogen atom. The simultaneous presence of imidazole as an energy-intensive ligand and a nitrate-anion as an oxidizing agent makes it possible to use this complex for the synthesis of the nickel oxide by the SSC method.

3.2. Study of Nickel–Alumina Catalyst

Synthesized hexakis-(imidazole) nickel (II) nitrate complex was used as an organometallic precursor of a nickel–alumina catalyst (Ni-Al₂O₃-SSC) for CO₂ methanation. The formation of nickel oxide on the alumina surface was carried out by the SSC method. The prepared Ni-Al₂O₃-SSC catalyst was studied in comparison with the industrial NIAP-07-01 catalyst of CO₂ methanation, which was prepared by wet precipitation [36].

3.2.1. Catalyst Composition

For the Ni-Al₂O₃-SSC catalyst, the ratio of the initial components was determined based on the final content of nickel oxide not less than 20 wt%. As a result, the catalyst was prepared with a calculated NiO content of 20.8 wt% (

Table 1. Calculated and found values of nickel and aluminum content in Ni-Al₂O₃-SSC and NIAP-07-01 catalysts.

Catalyst	Metal Content, wt%		In Terms of Weight Per cent Oxides, wt%		Molar Ratio Ni/Al
	Al	Ni	Al2O3	NiO
Ni-Al2O3-SSC
calculated	42.4	15.7	80	20	0.17
found	29.8	16.4	56.4	20.8	0.25
NIAP-07-01
found	23.4	24.7	44.1	31.3	0.48

). It should be noted that in the industrial NIAP-07-01 catalyst a nickel content was 1.5 times higher (31.3 wt% in terms of oxide) than that the Ni-Al₂O₃-SSC catalyst prepared by the SSC method.

In the Ni-Al₂O₃-SSC and NIAP-07-01 catalysts, an aluminum percentage is about 50 ± 6 wt%, which is lower than expected if metal was present as alumina only, according to XRD data (Figure 4). Impurities can be the reason for the low aluminum content. According to FTIR spectroscopy data, when the catalysts are heated in an inert atmosphere (argon) carbon dioxide, water and ammonia are released (Figure S3). Therefore, the catalysts contain carbonates, water, and products of incomplete oxidation of imidazole as impurities. According to thermal analysis (Figure 5), their content is 13 and 11 wt% for Ni-Al₂O₃-SSC and NIAP-07-01, respectively.

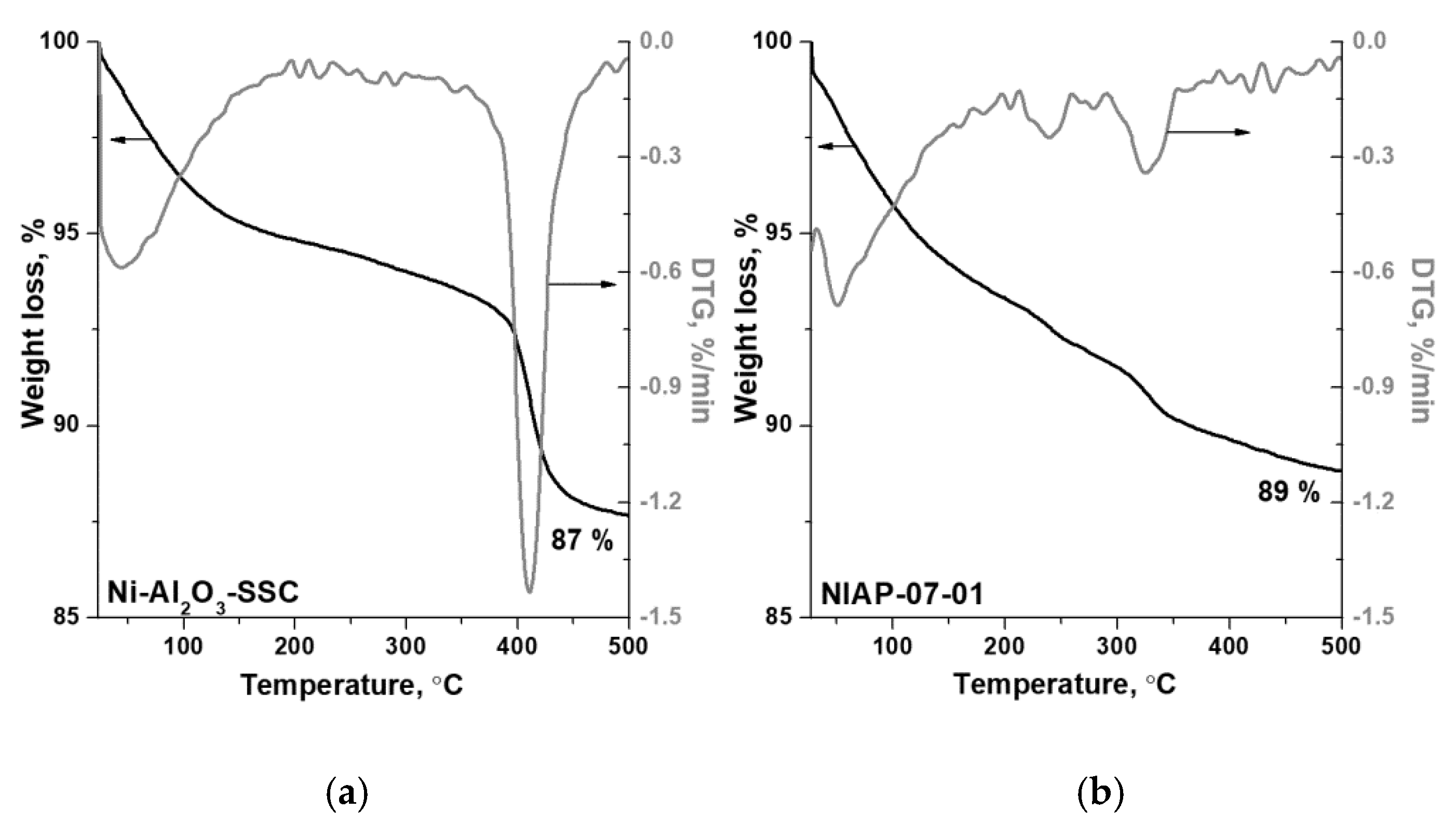

Besides, the low aluminum content (Table 1) can be associated with phase inhomogeneity of catalysts, especially for an industrial NIAP-07-01 catalyst. Its XRD pattern contains an intense peak of graphite (at angle 26.5°), as well as weak intensity peaks at low angles (2θ = 20.4, 23.1°), which could not be interpreted unambiguously. Moreover, for NIAP-07-01, there is an increase of spinel cell parameter of alumina (

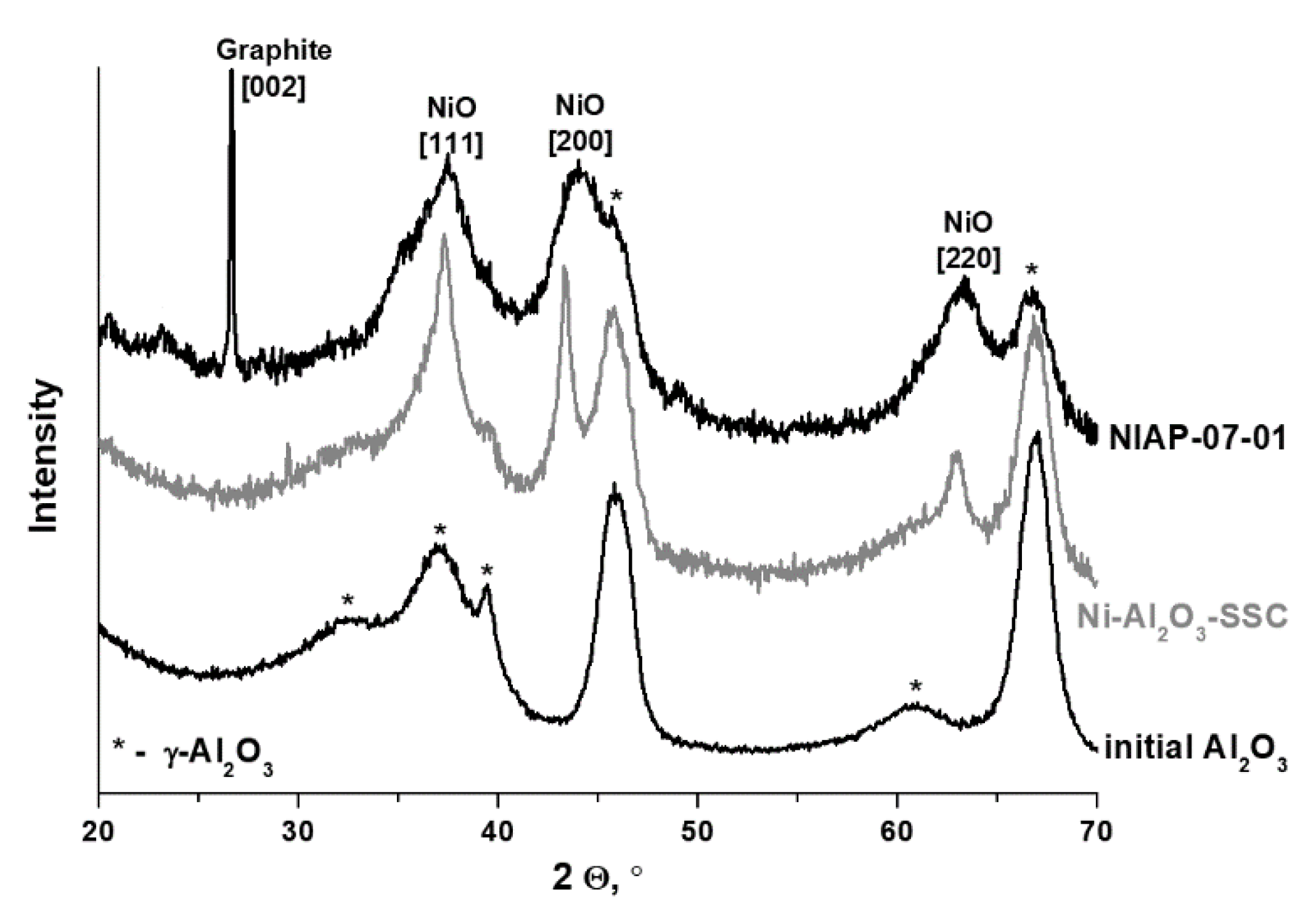

Table 2. The phase composition of Ni-Al₂O₃-SSC and NIAP-07-01 catalysts.

Sample	Phase	Lattice Parameter of γ-Al2O3, Å	PDF Card
initial Al2O3	γ-Al2O3	7.918	10-425
Ni-Al2O3-SSC	γ-Al2O3	7.921	10-425
	NiO		47-1049
NIAP-07-01	γ-Al2O3	7.931	10-425
	NiO		47-1049
	Graphite		41-1487

), probably due to the intercalation of nickel cations with a larger ionic radius than Al³⁺.

In the case of the Ni-Al₂O₃-SSC catalyst, the spinel cell parameter changes insignificantly (Table 2). Apparently, under conditions of short-term high-temperature heating (~1000 °C), nickel oxide is rapidly formed from the hexakis-(imidazole) nickel (II) nitrate complex. Thus, the probability of the intercalation of nickel ions into the alumina lattice decreases.

3.2.2. Local Analysis of Catalyst Particles

Morphology and composition of Ni-Al₂O₃-SSC and NIAP-07-01 particles catalysts were studied by HR TEM. It was noted that the particles of catalysts are of similar size. It varies from a few microns to 10s of nanometers (Figure 6a or Figure 6c). They are loose aggregates from thin plate-like nanoparticles (Figure 6b or Figure 6d). Elemental mapping indicates a different distribution of aluminum and nickel in particles of studied catalysts (Figure 7 and Figure 8). Most of the industrial NIAP-07-01 catalyst particles have an almost uniform distribution of nickel in the aluminum-containing particles, but there are also aluminum-containing particles decorated with a nickel phase (Figure 7b–d). The analysis of individual particles showed that they had crystal faces with interplanar distances of 2.39, 1.99, 2.01, 2.43, 2.08, 1.47, and 1.05 Å (Figure 7e,f). These values almost coincide with the similar characteristics for alumina γ-Al₂O₃ (PDF 10-425: [311]—2.390 Å, and [400]—1.977 Å), nickel–aluminum spinel NiAl₂O₄ (PDF 10-339: [400]—2.013 Å, [311]—2.427 Å, and [800] 1.006 Å) and nickel oxide NiO (PDF 47-1049: [200]—2.089 Å, [220]—1.477 Å, and [400]—1.044 Å). By comparing these results with the XRD pattern (Figure 4), it can be concluded that an increase in the lattice parameters of alumina is due to the presence of the nickel–aluminum spinel in the industrial NIAP-07-01 catalyst.

When the Ni-Al₂O₃-SSC catalyst was studied in detail (Figure 8), it was shown that its particles predominantly contain alumina (interplanar distance is 1.98 Å). If Figure 8a,b are compared, it can be seen that nickel is mainly concentrated on the surface of the alumina particles. The nickel-containing phase consists of a mixture of nickel oxide (2.08, 1.45, and 1.05 Å) and nickel–aluminum spinel (2.01, 1.42, and 1.01 Å), according to their interplanar determined by FFT patterns (insets in Figure 8e,f). Furthermore, the Ni-Al₂O₃-SSC catalyst is characterized by the presence of spherical particles with interplanar spacings of 2.03 and 1.02 Å (Figure 8f), which corresponds to metallic nickel (PDF 4-850: [111]—2.034 Å, and [222]—1.017 Å).

Thus, the formation of the phase of nickel oxide and its anchorage on the alumina surface occurs by the SSC method using a hexakis-(imidazole) nickel (II) nitrate complex. In addition, a small part of the nickel is reduced, probably due to the interaction of nickel oxide with carbon (Equation (11)) formed in the deficiency of an oxidizing agent, since the organometallic precursor has a strongly negative oxygen balance (Table S1).

3.2.3. State of Nickel on the Catalyst Surface

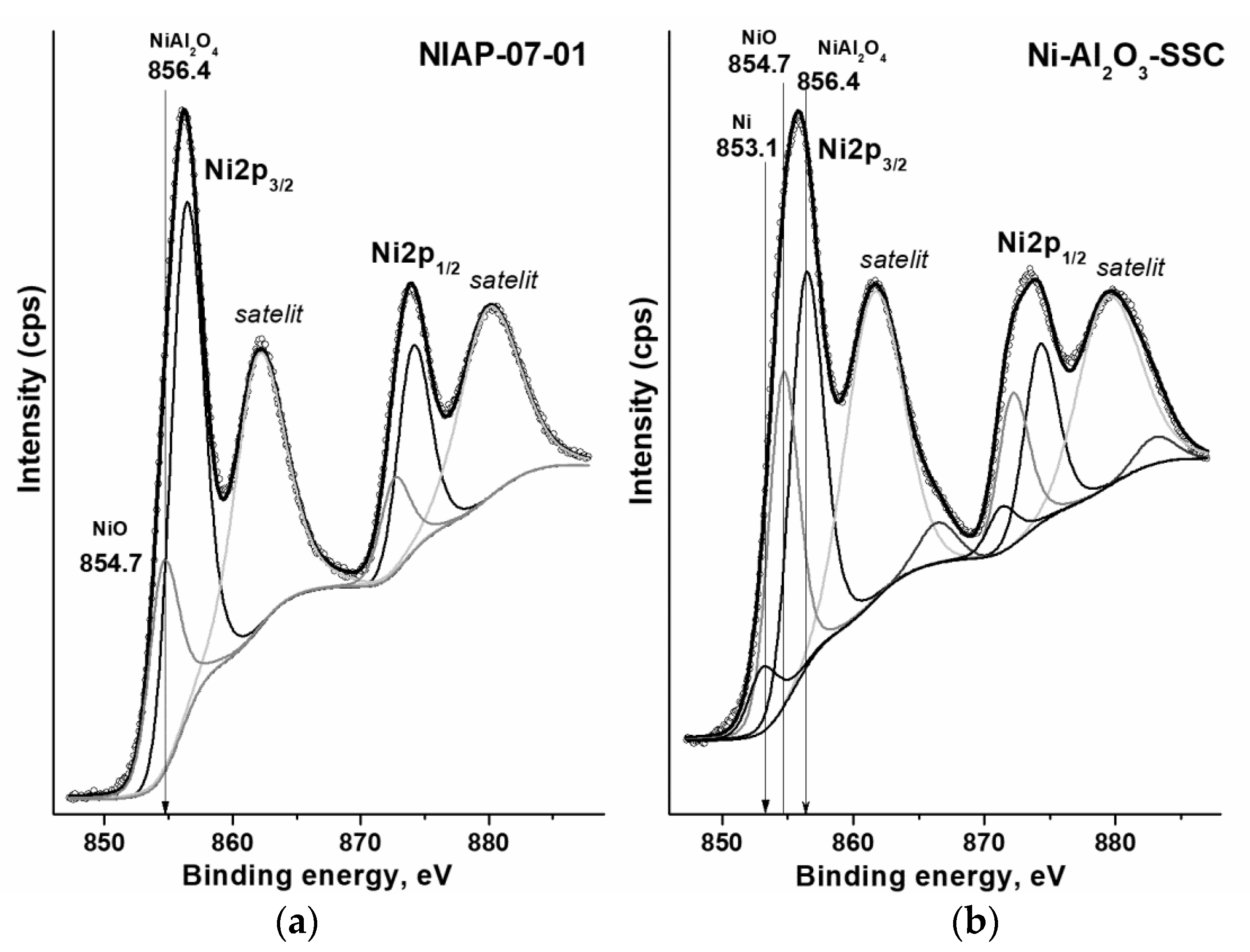

The type of compounds on the surface of catalyst particles affects the formation of the active component. Each compound has its own set of electronic states of elements. By the XPS method (Figure 9), the electronic state of nickel on the surface of Ni-Al₂O₃-SSC and NIAP-07-01 catalysts was studied. From XPS spectra it is seen that the Ni2p_3/2 lines are not symmetric and their deconvolution allows the identification of several electronic states of the metal. The lowest value of the binding energy of 853.1 eV corresponds to metallic nickel Ni⁰ [55] while the binding energies of 854.7 and 856.4 eV are characteristic of nickel oxide NiO [56] and nickel–aluminum spinel with composition NiAl₂O₄ [57], respectively. At the same time, the industrial NIAP-07-01 catalyst is characterized by only two electronic states with binding energies (Figure 9a) corresponding to nickel oxide and nickel–aluminum spinel. Since the atom ratio of NiAl₂O₄/NiO is 4.76, nickel–aluminum spinel predominates on the surface of the industrial NIAP-07-01 catalyst (Table S2). The same trend is typical for Ni-Al₂O₃-SSC catalyst (Figure 9b), but the nickel–aluminum spinel content is only 1.54 times that of nickel oxide. It should be noted that a small amount of reduced nickel (853.1 eV) is present on the surface of this catalyst. This is consistent with the HR TEM results (Figure 8f).

Thus, the developed SSC method using a hexakis-(imidazole) nickel (II) nitrate complex makes it possible to synthesize the nickel–alumina catalyst with a higher content of nickel oxide on the alumina surface as compared to the industrial NIAP-07-01 catalyst of CO₂ methanation. The surface placement of nickel oxide should favorably influence the formation of the active component since it provides direct access for hydrogen to nickel oxide as a catalyst precursor, which is reduced at a lower temperature than nickel–aluminum spinel [30]. Thus, the reduction of bulk NiO takes place up to 300 °C [58], the reduction of NiO species that interact weakly with the alumina is at 300–400 °C, the reduction of NiO species with moderately strong support interactions is at 400–500 °C, while the reduction of NiAl₂O₄ is observed at temperatures above 600 °C [59,60]. Indeed, the H₂-TPR method (Figure 10) confirmed that the Ni-Al₂O₃-SSC catalyst begins to reduce already at 250 °C, and the industrial NIAP-07-01 catalyst is reduced after reaching 300 °C.

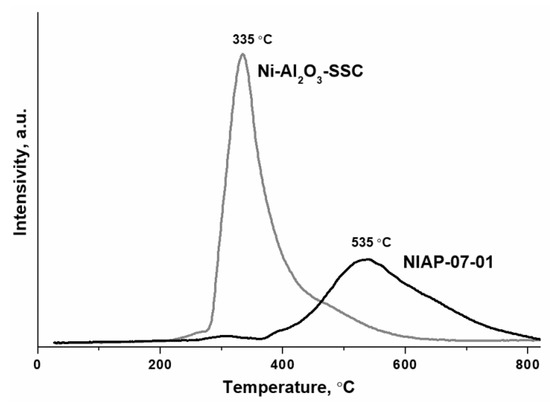

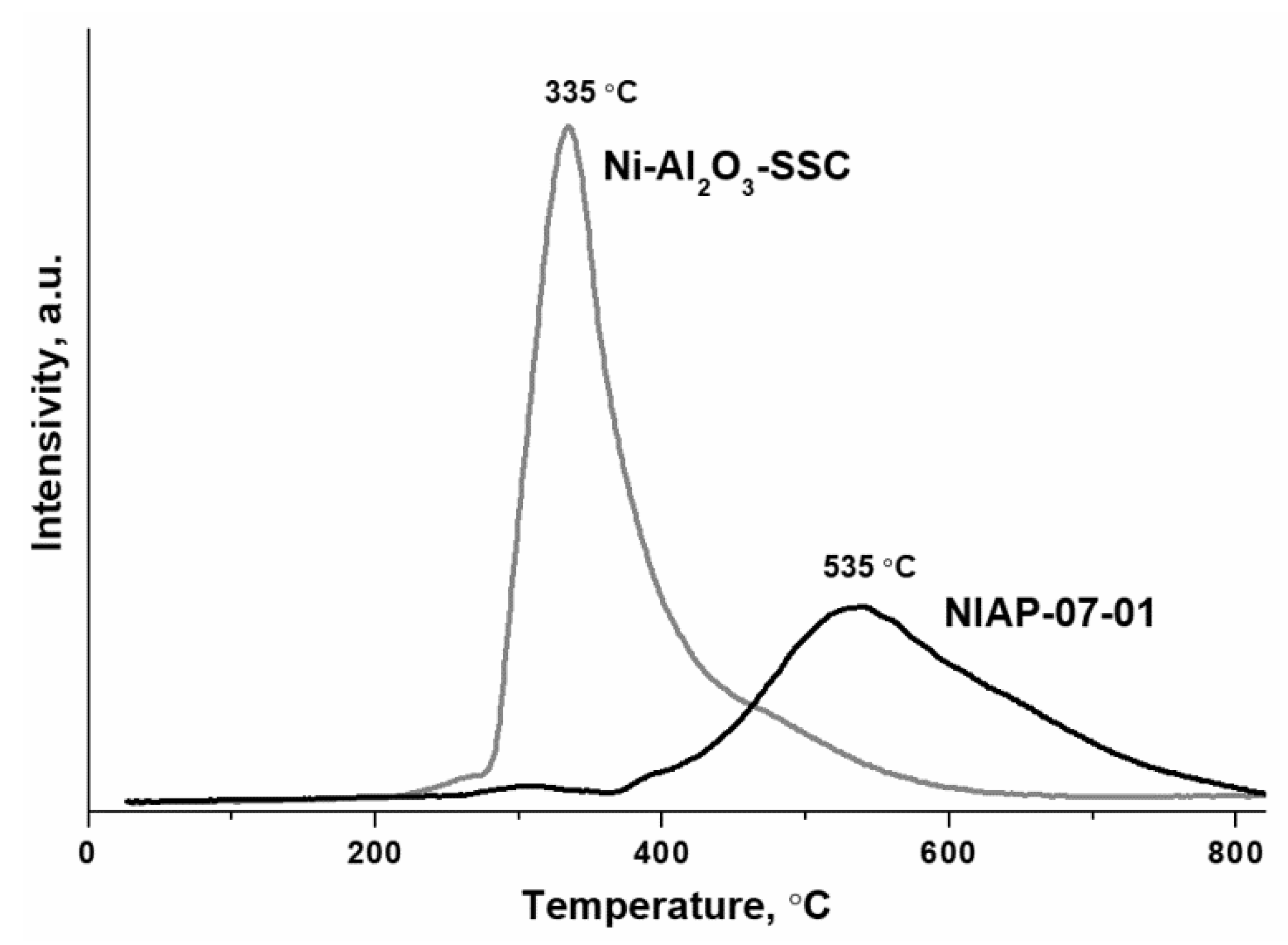

Ni-Al₂O₃-SSC catalyst consumes more hydrogen compared to NIAP-07-01. This is a good precondition for the formation of a more active catalyst due to the larger amount of reduced nickel in the Ni-Al₂O₃-SSC catalyst, despite lower Ni content than with the industrial NIAP-07-01 catalyst (Table 1). However, in the synthesis of the catalyst by the SSC method the formation of impurities cannot be prevented. Survey XPS spectrum confirms the presence of carbon and nitrogen in Ni-Al₂O₃-SSC catalyst (Figure S4). This explains the release of carbon dioxide, water, and ammonia during the thermal treatment of this catalyst (Figure S3).

3.2.4. Porous Structure of Catalysts

For the kinetics of catalytic reactions, internal diffusion is an important characteristic. The diffusion rate depends on the porous structure of the catalyst. Textural characteristics of Ni-Al₂O₃-SSC and NIAP-07-01 catalysts were studied by low-temperature nitrogen adsorption/desorption. The obtained isotherms (Figure S5) correspond to type IV according to the IUPAC classification [61].

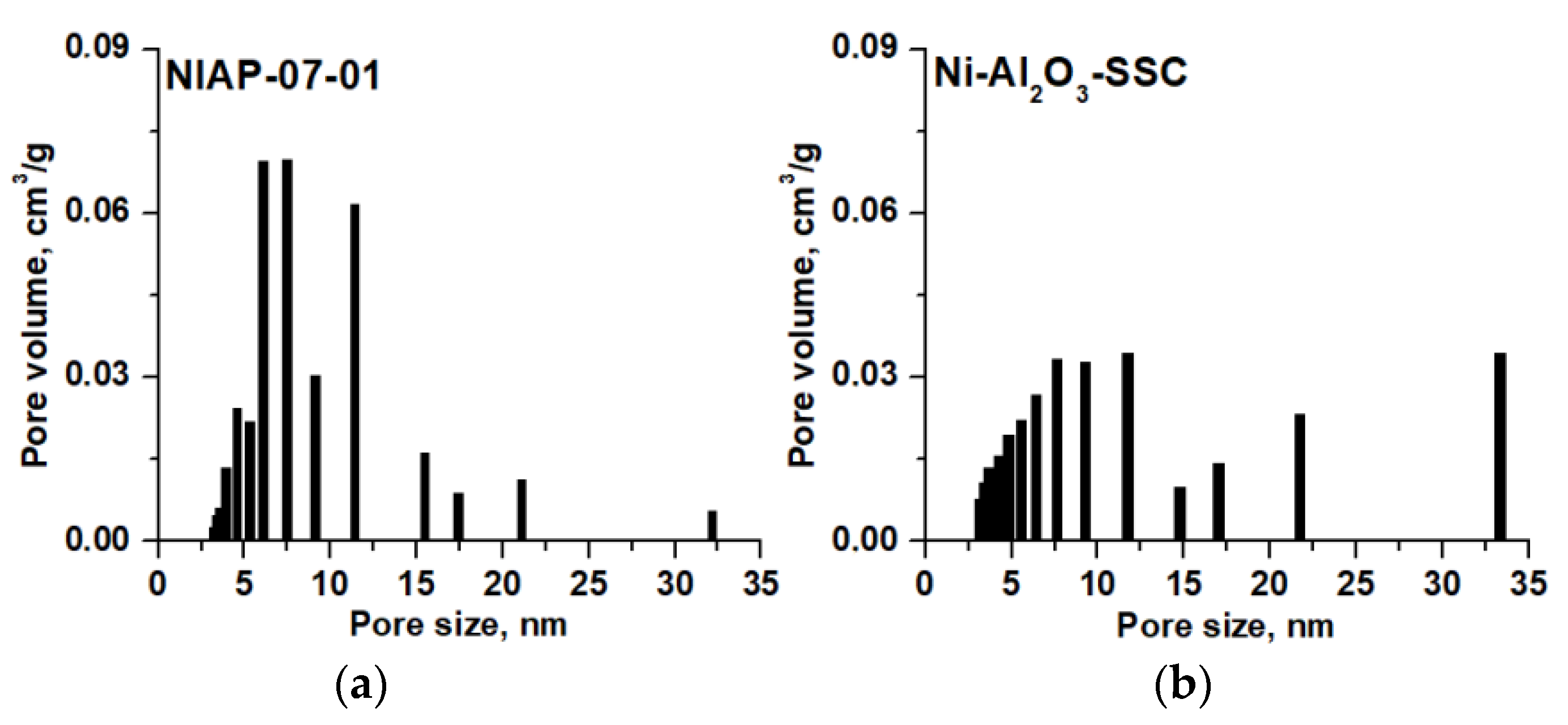

The analysis of the data obtained showed that for Ni-Al₂O₃-SSC and NIAP-07-01 catalysts the pore size distribution is different (Figure 11), but the total pore volume has similar values (

Table 3. Texture characteristics of Ni-Al₂O₃-SSC and NIAP-07-01 catalysts.

Catalyst	Surface Area, m2·g−1	Pore Volume, m3·g−1	Average Pore Diameter, nm
Ni-Al2O3-SSC	157	0.35	8.8
NIAP-07-01	150	0.35	9.2

). Consequently, the effect of the internal diffusion of reactants on the CO₂ methanation rate will be similar for these catalysts.

3.3. Study of CO₂ Methanation

3.3.1. Catalyst Activation

The catalytic conversion of CO₂ to CH₄ requires nickel metal particles located on the surface of the nickel–aluminum catalysts. Traditionally, the reduction of nickel–alumina catalyst is carried out in a flow of pure hydrogen [29] or inert gas diluted hydrogen [62] at temperatures from 500 to 700 °C. As noted earlier (Figure 10), a high temperature is required to form the active component of catalyst from nickel–aluminum spinel.

NiO + H₂ → Ni + H₂O           200–400 °C

(12)

NiAl₂O₄ + H₂ → Ni + H₂O + Al₂O₃      500–800 °C

(13)

In addition, the high-temperature reduction of the catalyst makes it possible to prevent the loss of the active component due to the possible formation of quickly evaporating nickel carbonyl at temperatures below 140 °C, as well as the formation of nickel carbide at 270 °C. However, these processes are observed only in the presence of carbon monoxide.

Ni + 4CO → Ni(CO)₄             50–140 °C

(14)

3Ni + 2CO → Ni₃C + CO₂            500–800 °C

(15)

To simplify the procedure for the reduction of CO₂ methanation catalysts, the activation of Ni-Al₂O₃-SSC and NIAP-07-01 catalysts in a flow of reaction mixture (H₂:CO₂:Ar = 16:4:80) was studied. Since CO₂ and CH₄ have characteristic absorption bands [63] a qualitative assessment of the nickel reduction with varying the temperature of activation was performed by FTIR spectroscopy.

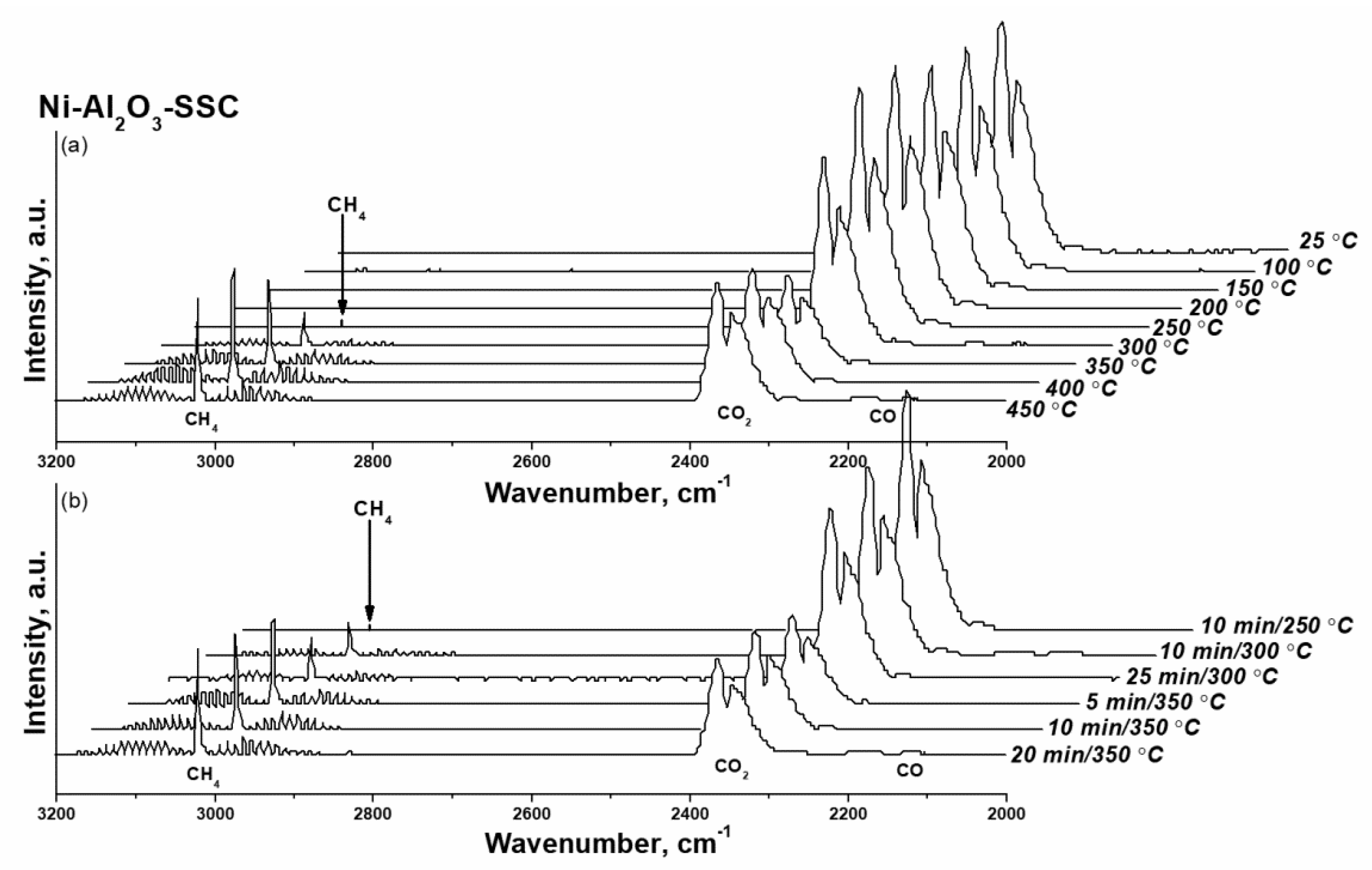

As shown in Figure 12, for Ni-Al₂O₃-SSC catalyst distinguishable a.b. of methane are already observed at 250 °C. Within an hour, their intensity does not change, which is due to the small amount of reduced nickel in the catalyst, both initially present in the sample (Figure 9b) and formed under the action of hydrogen at 250 °C (Figure 10). As the temperature rises to 350 °C the a.b. intensity of methane increases significantly as a result of a growing amount of reduced nickel in a given temperature range (Figure 10). But later on, the FTIR spectra profile of the gas phase (Figure 12) practically does not change either in time or with increasing temperature. It indicates that the activation of the Ni-Al₂O₃-SSC catalyst is already complete at 350 °C, while reduction of industrial NIAP-07-01 catalyst only begins at this temperature (Figure 13). However, the complete activation of the NIAP-07-01 catalyst is not achieved at 350 °C, since the absorption band intensity of methane increases with further growth temperature as shown in Figure 13a. This effect cannot be explained only by the kinetic features of CO₂ methanation over industrial NIAP-07-01 catalyst at different temperatures. However, a more likely reason is the gradual reduction of nickel, which is part of the nickel–aluminum spinel (Figure 9a).

Thus, the combustion of a solid-state mixture γ-Al₂O₃ and hexakis-(imidazole) nickel (II) nitrate complex makes it possible to synthesize a nickel–alumina catalyst for CO₂ methanation with a lower activation temperature than for the industrial NIAP-07-01 catalyst. Herewith the active component of the NIAP-07-01 catalyst is reduced for 1 h at 350 °C, and for the Ni-Al₂O₃-SSC catalyst, a reduction time is only 5 min, even in the presence of CO₂.

3.3.2. Catalyst Activity in CO₂ Methanation

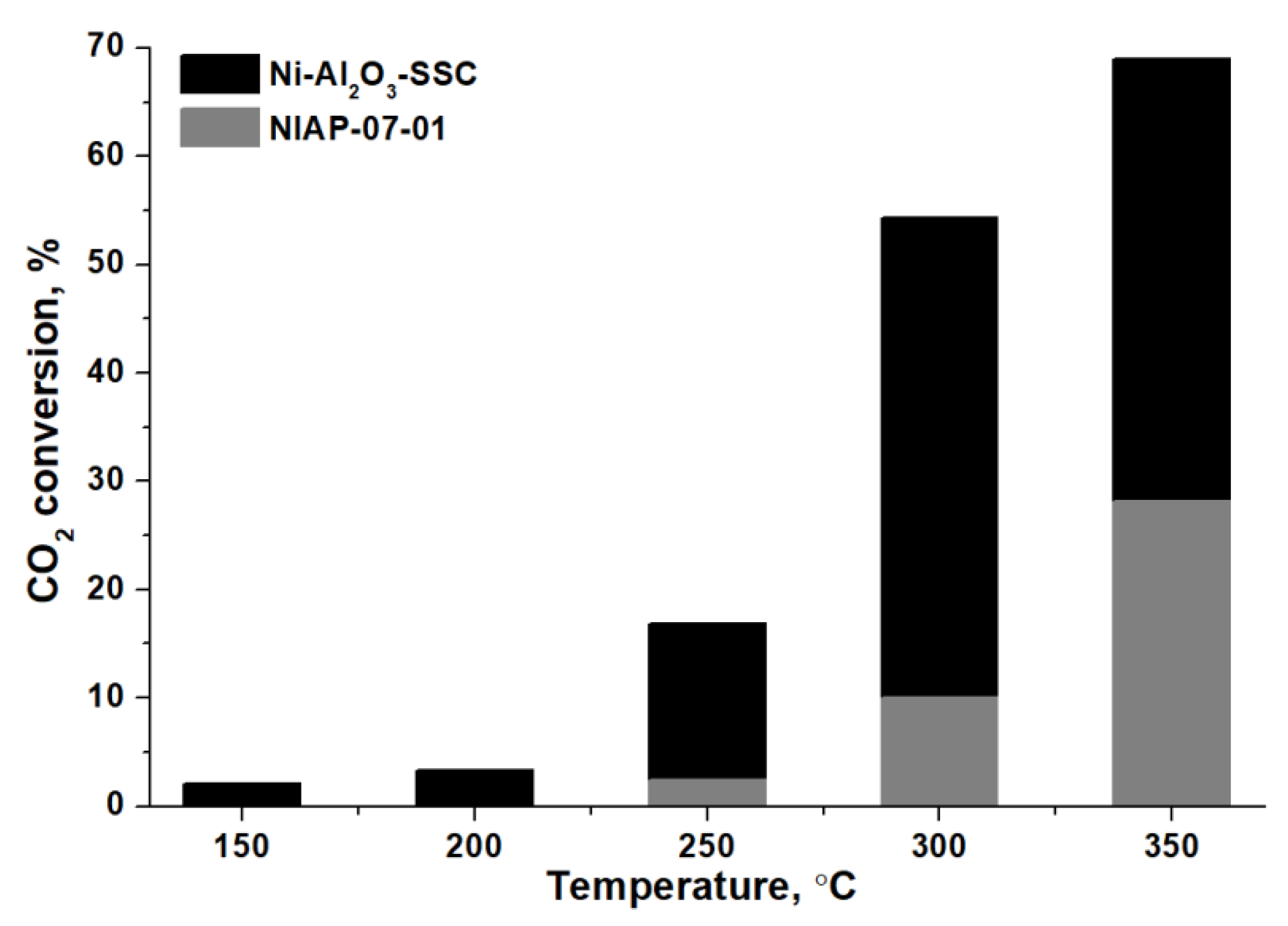

CO₂ methanation of over Ni-Al₂O₃-SSC and NIAP-07-01 catalysts was studied at different temperatures. The activation temperature was 450 °C to increase the percentage of nickel reduction in the industrial NIAP-07-01 catalyst (Figure 13a). Comparing the CO₂ concentration at the inlet and outlet of the reactor (Figure 14), it was found that the Ni-Al₂O₃-SSC catalyst prepared by the SSC method is able to catalyze CO₂ methanation already at 150 °C. This catalyst provides a CO₂ conversion of about 17% without the formation of CO at 250 °C.

The industrial NIAP-07-01 catalyst starts exhibiting low activity only at 250 °C (Figure 14), like most nickel–alumina catalysts for CO₂ methanation, reduced by pure hydrogen at 450–700 °C (

Table 4. Comparison of nickel–alumina catalysts for CO₂ methanation.

Catalyst Preparation Method	Thermal Treatment Conditions	Reduction Conditions	Reaction Conditions	Ni Content, wt%	Temperature, °C	CO2 Conversion *, %	Reference
SSC	-	H2:CO2:Ar = 16:4:80; 100 mL·min−1;350 °C; 20 min	GHSV—19,000 mL·gcat−1·h−1 H2:CO2:Ar = 16:4:80 H2/CO2 = 4	16.4	150	2	This work
					200	3
					250	17
					300	54
					350	69
NIAP-07-01				24.7	150	0
					200	0
					250	2
					300	9
					350	26
Ultrasound assisted co-precipitated	700 °C, 4 h	Pure H2; 25 mL·min−1; 600 °C; 2 h	GHSV—9000 mL·gcat−1·h−1 H2:CO2 = 3.5	15	250	0	[43]
					300	2
					350	18
				20	200	0
					250	6
					300	58
					350	70
Wet impregnation	700 °C, 5 h	20%H2 in helium; 700 °C; 1 h	GHSV—52,300 h−1H2:CO2 = 5 without any dilution; mcat = 44 mg	16	250	1	[62]
					300	6
					400	50
					500	75
				39	250	2
					300	8
					400	78
					500	81
Wet impregnation in presence of citric acid	400 °C, 2 h	Pure H2; 80 mL·min−1; 600 °C; 2 h	GHSV—30,000 mL·gcat−1·h−1 H2:CO2:Ar = 61.6:15.4:23 H2:CO2 = 3.99	10	200	2	[17]
					240	8
					280	39
					320	81
				20	200	3
					240	19
					280	67
					320	90
Wetness incipient impregnation	500 °C, 4 h	20% H2 in helium 300 mL·min−1 500 °C 1 h	GHSV—10,000 h−1 H2:CO2:He = 5:1:1.5 H2:CO2—5	16	200	1	[37]
					250	5
					300	21
					350	65
				20	200	1
					250	7
					300	32
					350	71
Wet impregnation	450 °C, 2 h	Pure H2; 25 mL·min−1; 450 °C; 2 h	GHSV—9000 mL·gcat−1·h−1 H2:CO2 = 3.5	15	200	4	[64]
					250	10
					300	47
					350	70
				20	200	8
					250	42
					300	74
					350	78
Wetness incipient impregnation	800 °C, 2 h	Pure H2 stream; 500 °C; 2 h	GHSV—60,000 mL·gcat−1·h−1 H2:CO2 = 4	15	250	1	[29]
					300	52
					350	77
Solution combustion synthesis	400 °C, 4 h	Pure H2 30 mL·min−1; 400 °C; 2 h	GHSV—3600 mL·gcat−1·h−1 H2:CO2 = 4	20	250	44	[34]
					300	84
					350	85
Solution combustion synthesis	600 °C, 2 h	50% H2 in N2; 40 mL·min−1; 600 °C; 1 h	GHSV—10,000 h−1 H2:CO2:CO:N2 = 39:6.1:4.9:50	15	300	0	[45]
					350	29
Sulfactant-free sol-gel	700 °C, 3 h	Pure H2 25 mL·min−1; 600 °C; 2 h	GHSV—9000 mL·gcat−1·h−1 H2:CO2 = 3.5 without any dilution	15	200	1	[40]
					250	14
					300	61
					350	72
				20	200	2
					250	17
					300	65
					350	72
Wetness incipient impregnation	600 °C, 4 h	Pure H2 60 mL·min−1; 600 °C; 1 h	GHSV—16,000 h−1 H2:CO2 = 4 in N2	15	200	3	[65]
					250	10
					300	28
					350	48

*—determined from CO₂ conversion vs. temperature plots. The definition error is ±2%.

). It should be noted that low amount of carbon monoxide was contained in the gaseous products of CO₂ methanation over industrial NIAP-07-01 catalyst (Figure S6).

Therefore, the combustion of a solid-state mixture of γ-Al₂O₃ and hexakis-(imidazole) nickel (II) nitrate complex allows synthesizing a nickel–alumina catalyst having a high activity and selectivity in low-temperature CO₂ methanation as compared to the commercial NIAP-07-01 catalyst. Moreover, the activity of the Ni-Al₂O₃-SSC catalyst is comparable to the activity of similar catalysts (Table 4) prepared by the sol-gel method [40] and by the solution combustion synthesis [34], which provide CO₂ conversion of 17 and 44% at 250 °C, respectively. However, these values of CO₂ conversion were obtained for nickel–aluminum catalysts with a nickel content of 20 wt%, when a reaction mixture of hydrogen and carbon dioxide (without inert gas) was fed into the reactor at a rate of 5.2 times less than in our study. This is an important point since for a catalyst prepared by the volumetric combustion method it was found that the CO₂ conversion was decreased by 10% when the reagents feed rate is doubled.

4. Conclusions

In this work, a new approach to the solvent-free synthesis of CO₂ methanation catalysts has been considered. A hexakis-(imidazole) nickel (II) nitrate complex was used as a precursor for the active component of the catalyst. This complex was prepared first using the dry-melt synthesis technique. The formation of the complex was confirmed by the results of elemental analysis, as well as XRD, ATR FTIR spectroscopy, and thermal analysis data.

The nickel–alumina catalyst for CO₂ methanation was prepared by solid-state combustion technique without solvent. By XRD, HR TEM, and XPS methods it was shown that a nickel oxide is formed from the complex and is anchored on the surface of γ-Al₂O₃ particles under conditions of short-time high-temperature heating to 300 °C during combustion. In this case, a small amount of nickel is reduced to a metallic state. Nevertheless, the nickel–aluminum spinel formation cannot be prevented, but its content in the Ni-Al₂O₃-SSC catalyst is several times less than in the industrial NIAP-07-01 catalyst.

It should be noted that the localization of nickel oxide on the surface of the Ni-Al₂O₃-SSC catalyst ensures the formation of an active component already at 250 °C in the presence of CO₂. The complete activation of this catalyst is achieved within 5 min at 350 °C. In contrast to the Ni-Al₂O₃-SSC catalyst, the active component of the industrial NIAP-07-01 catalyst only begins to form at this temperature. As the temperature rises to 450 °C the catalyst activity increases apparently due to the gradual reduction of nickel in nickel–aluminum spinel, which is predominant in industrial NIAP-07-01 catalyst.

For Ni-Al₂O₃-SSC and NIAP-07-01 catalysts activated in a reaction mixture (H₂:CO₂:Ar = 16:4:80) at 450 °C, the temperature dependence of their activity in CO₂ methanation was obtained. According to the obtained results, the Ni-Al₂O₃-SSC catalyst provided a CO₂ conversion of 17% at 250 °C without the formation of monoxide. This is comparable to the best similar catalysts prepared by the solution combustion synthesis. It has been demonstrated that the industrial NIAP-07-01 catalyst converts only 2% of CO₂ at 250 °C, like most of the catalysts described in the literature (Table 4).

As a result of the research performed, two practically significant conclusions were drawn. First, the Ni-Al₂O₃-SSC catalyst preparation is simplified due to the absence of a solvent and long-time high-temperature calcination to form nickel oxide. Second, the Ni-Al₂O₃-SSC catalyst is activated in a reaction mixture within CO₂ at 350 °C for 5 min, so no pure hydrogen supply is required in the nickel reduction.
