Development and Performance Evaluation of a High-Permeability and High-Bonding Fog-Sealing Adhesive Material
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials

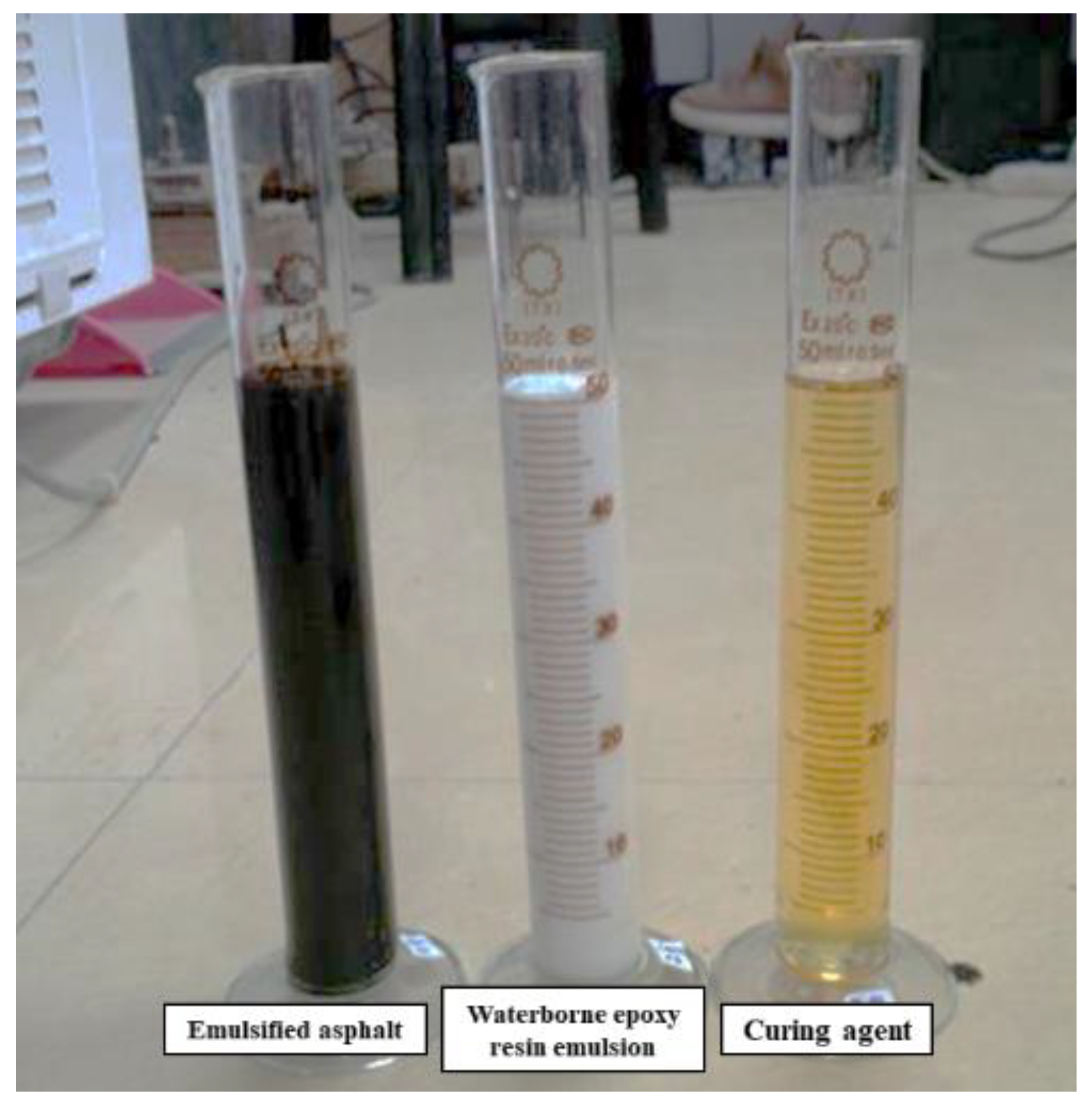

2.1.1. Emulsified Asphalt
2.1.2. Waterborne Epoxy Resin Emulsion
2.1.3. Curing Agent

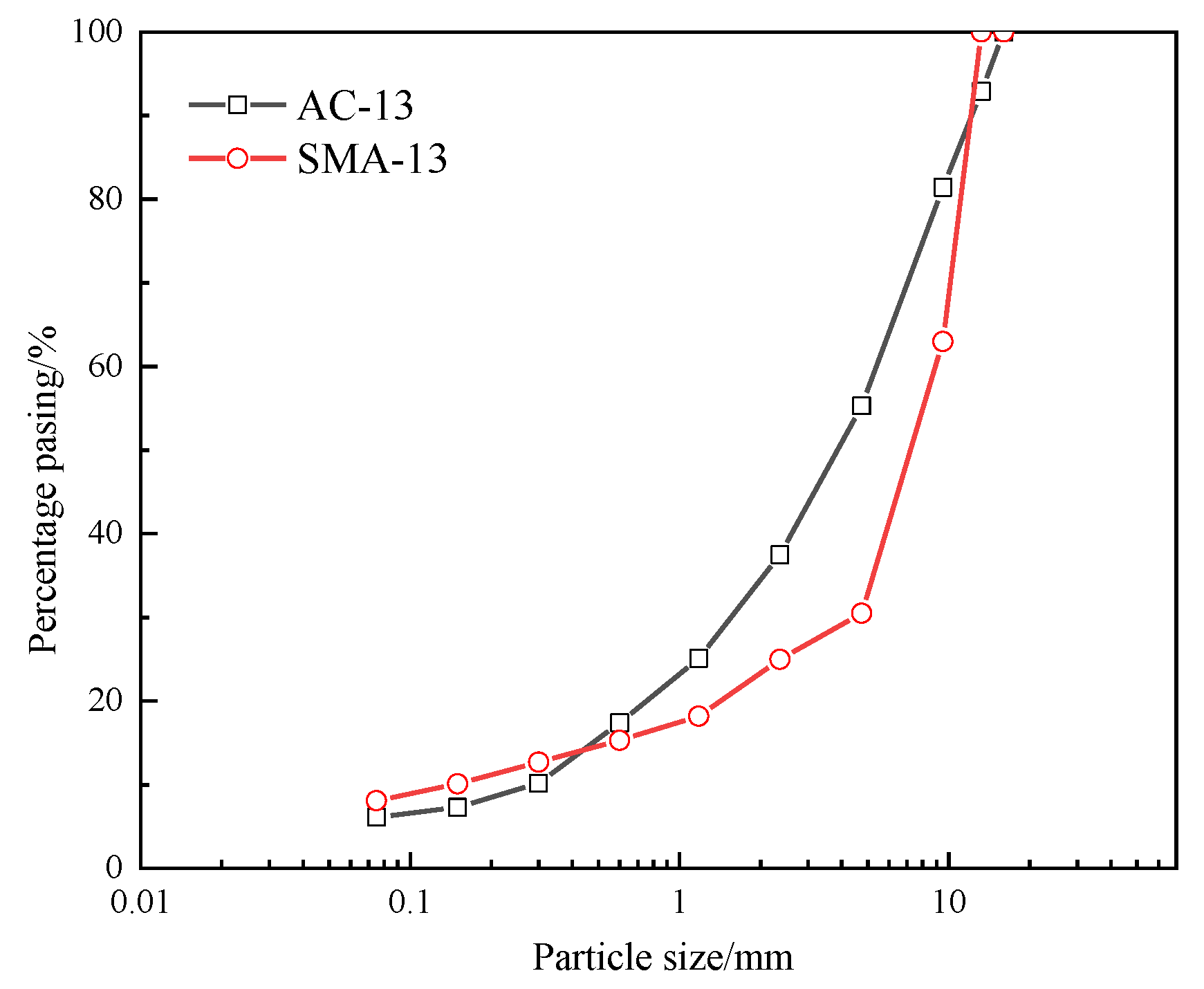

2.1.4. Aggregate Gradations
2.2. Experimental Program
2.3. Test Methods

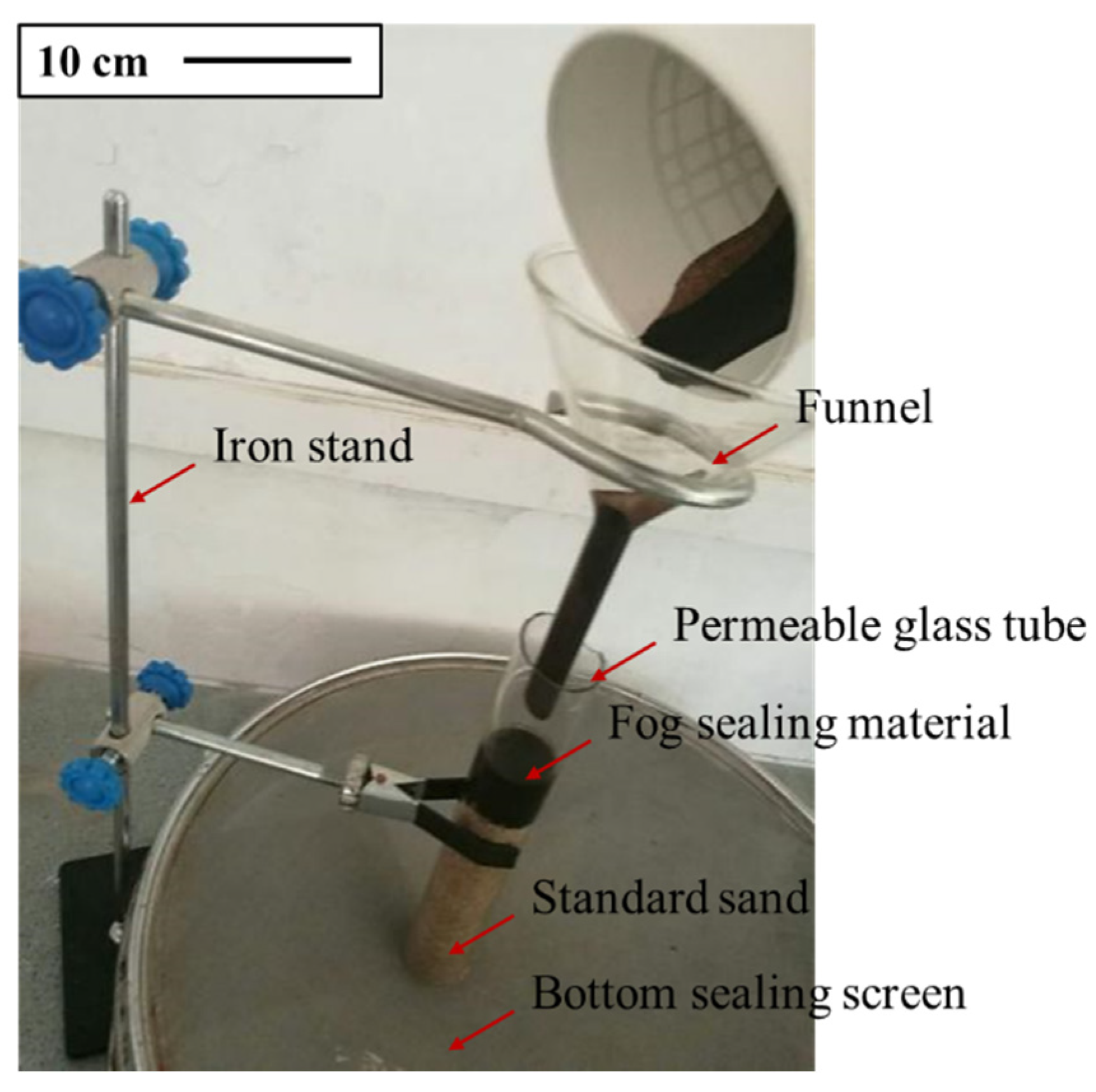

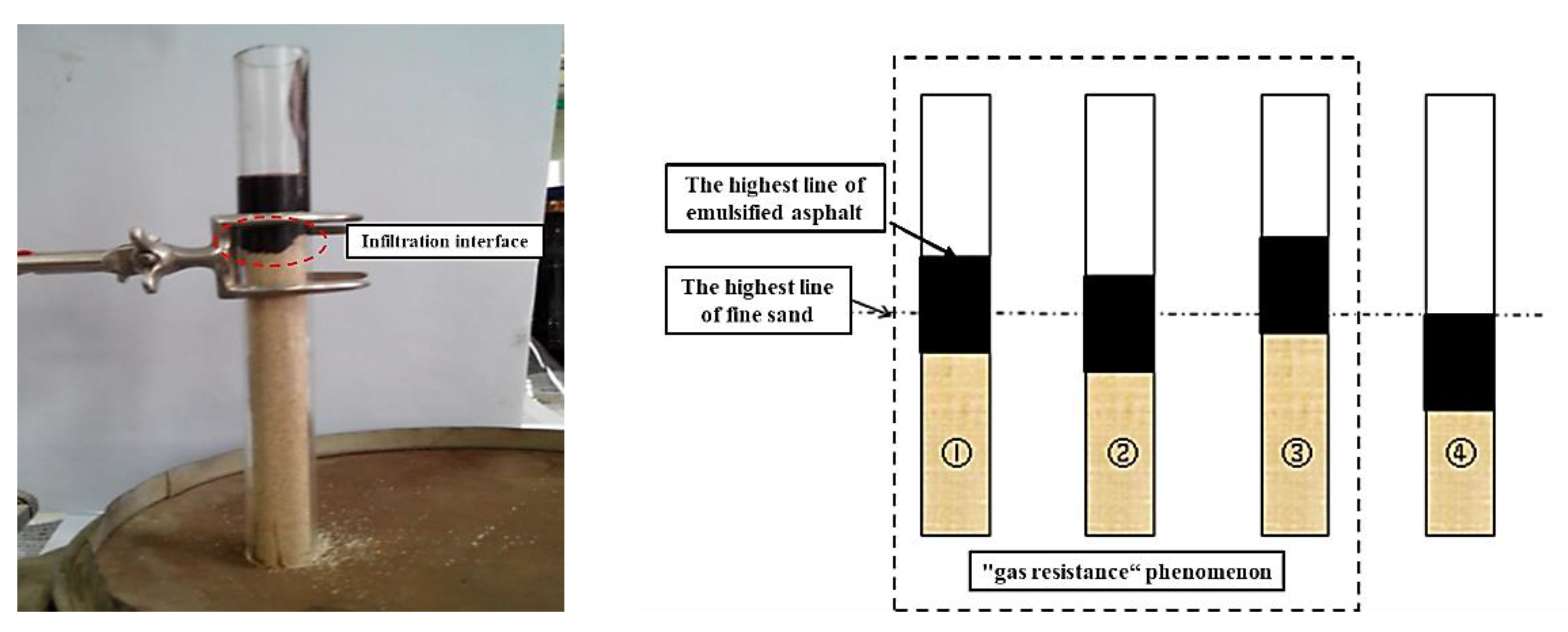

2.3.1. Penetration Test

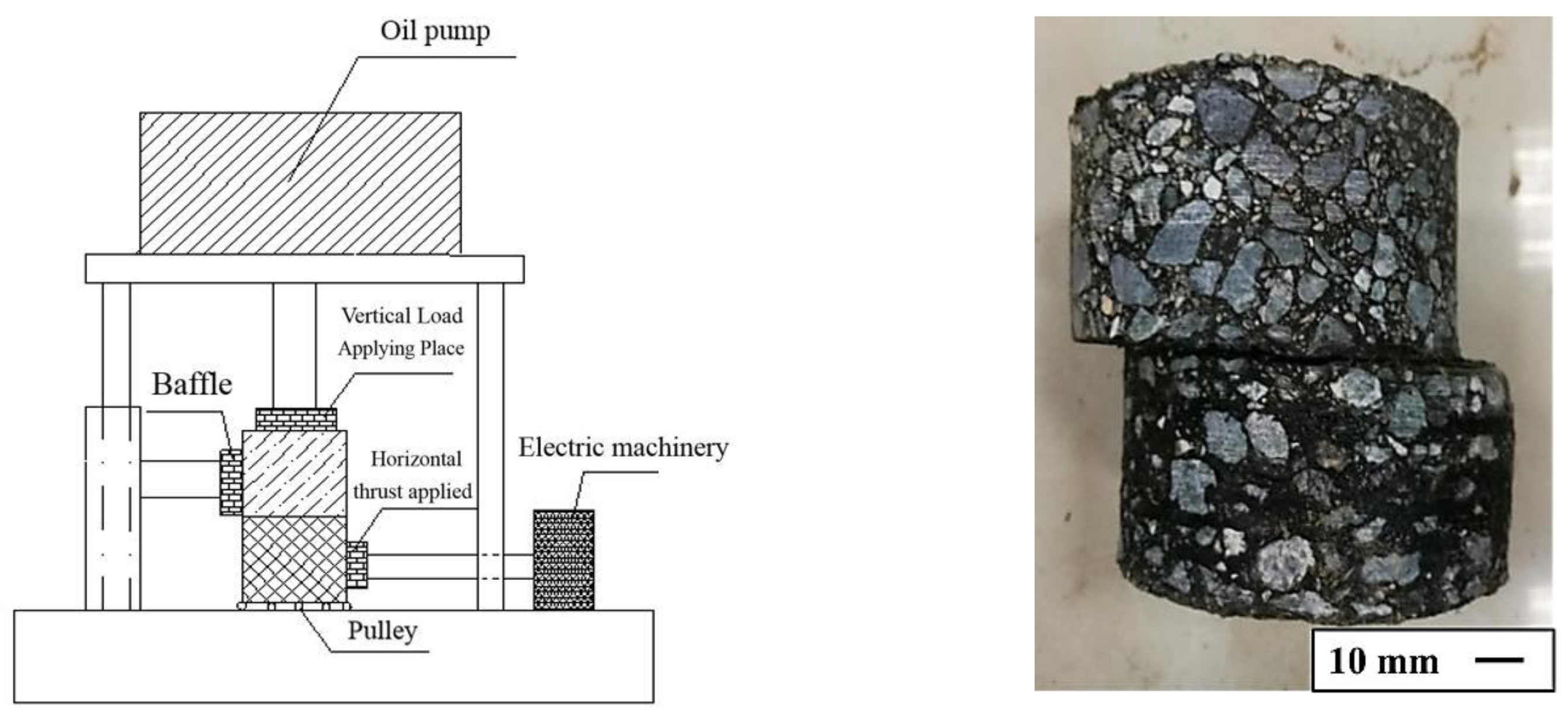

2.3.2. Bond Shear Strength Test
2.3.3. Water Stability Test

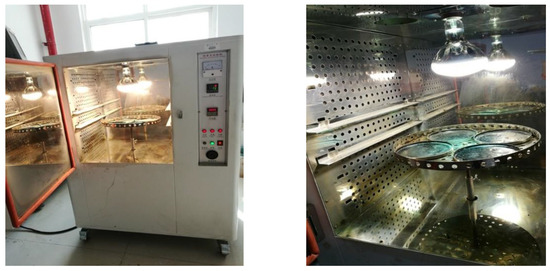

2.3.4. Aging Resistance Test
3. Results and Discussion
3.1. Fabrication of the Fog-Sealing Adhesive Material

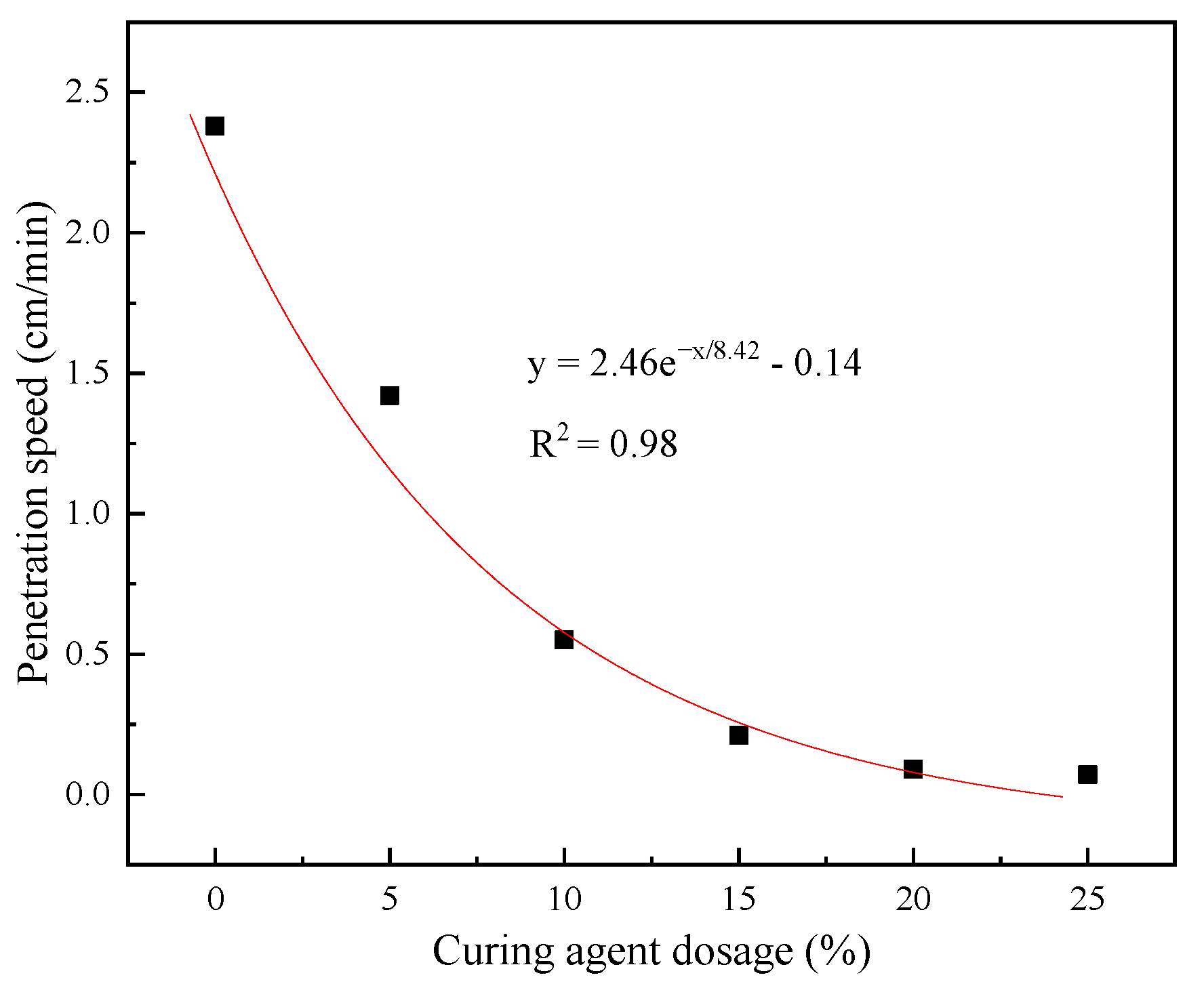

3.1.1. Permeability

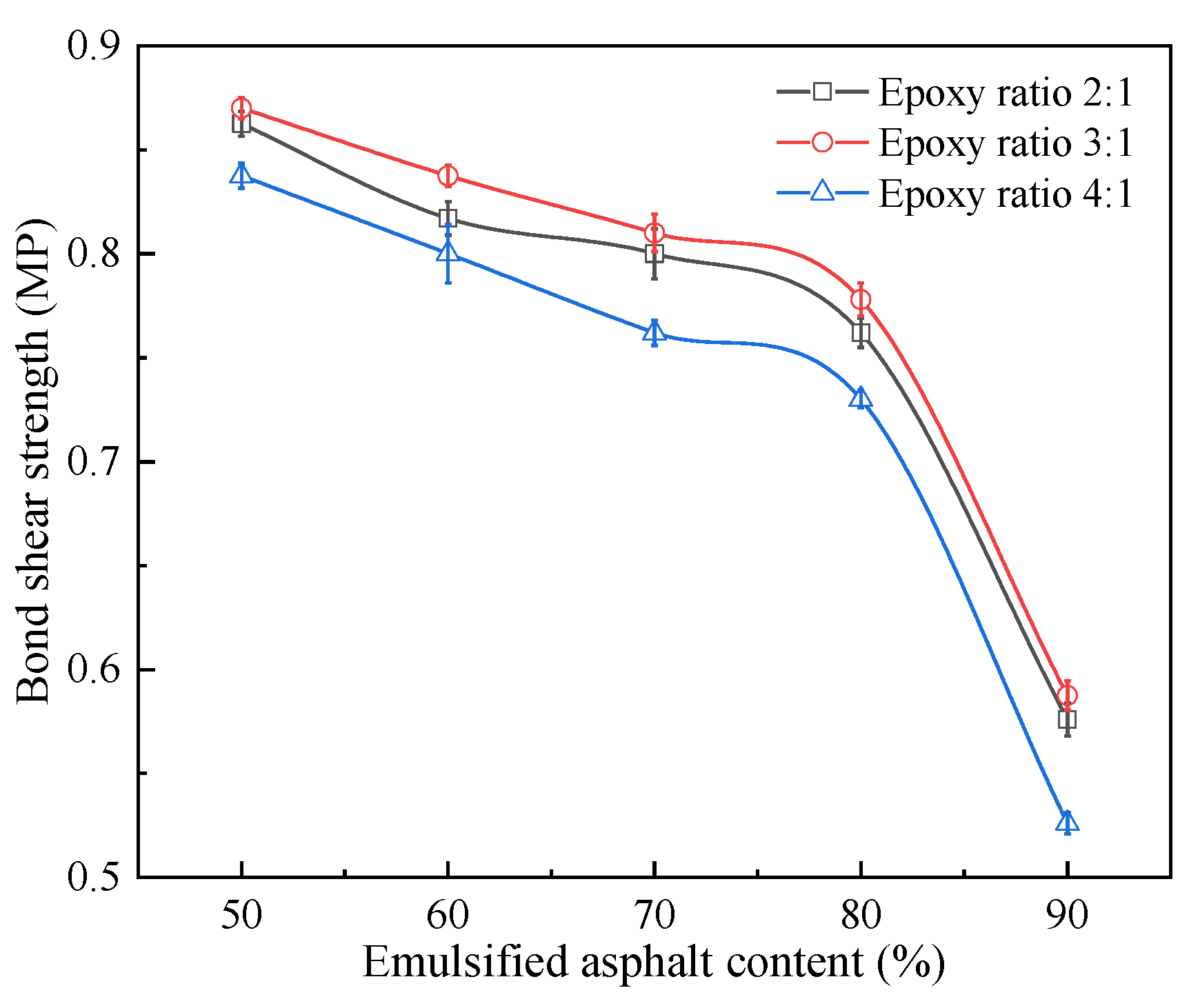

3.1.2. Bond Shear Strength

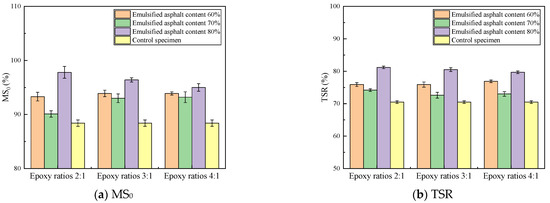

3.1.3. Water Stability

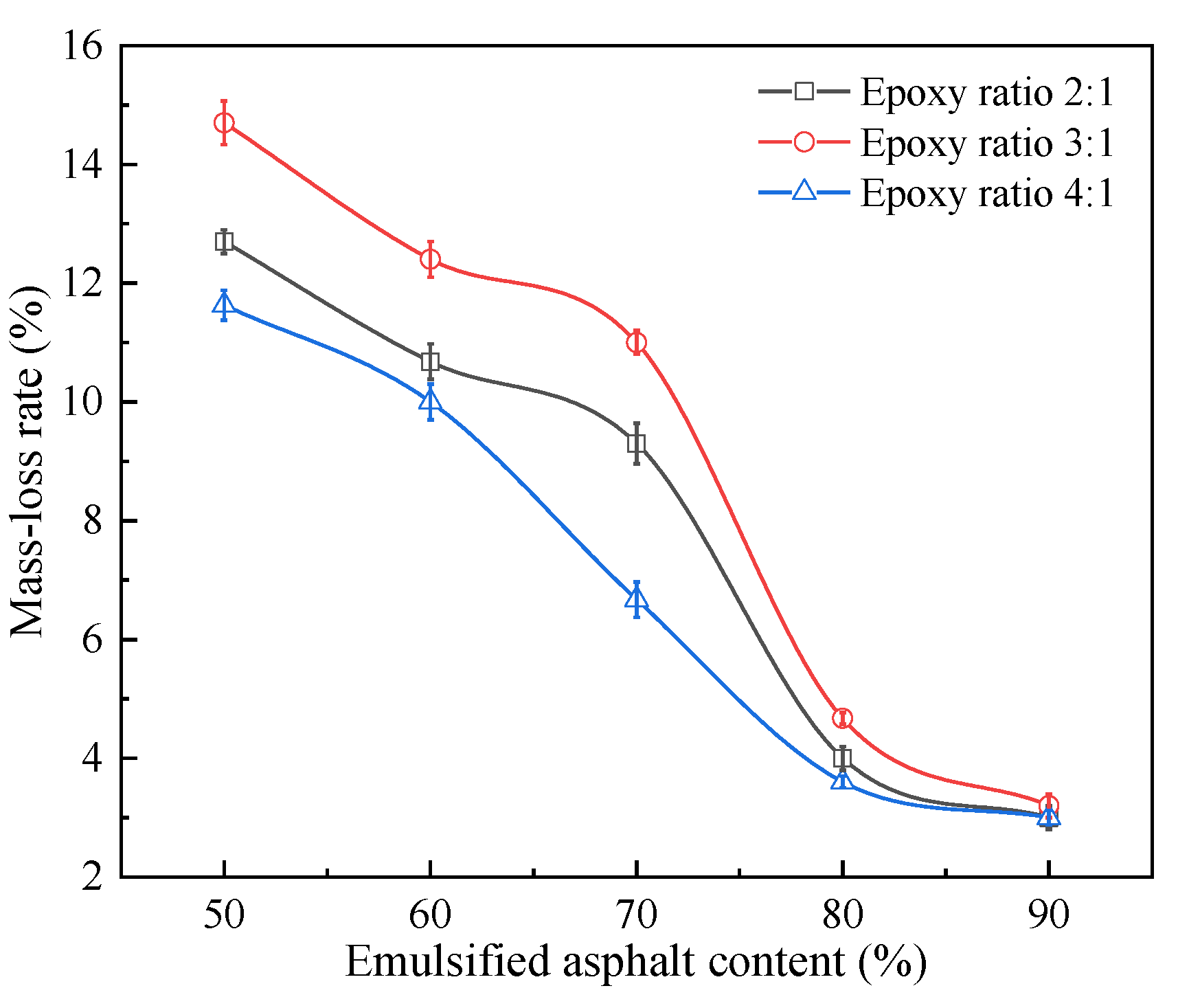

3.1.4. Aging Resistance
3.1.5. Recommended Formula for Fog-Sealing Adhesive Material
3.2. Evaluation of the Fog-Sealing Adhesive Material

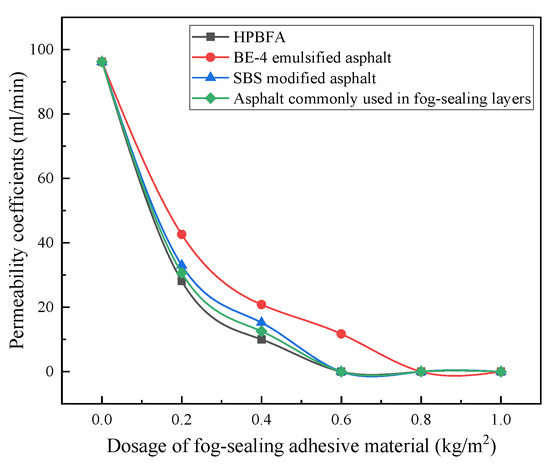

3.2.1. Permeability

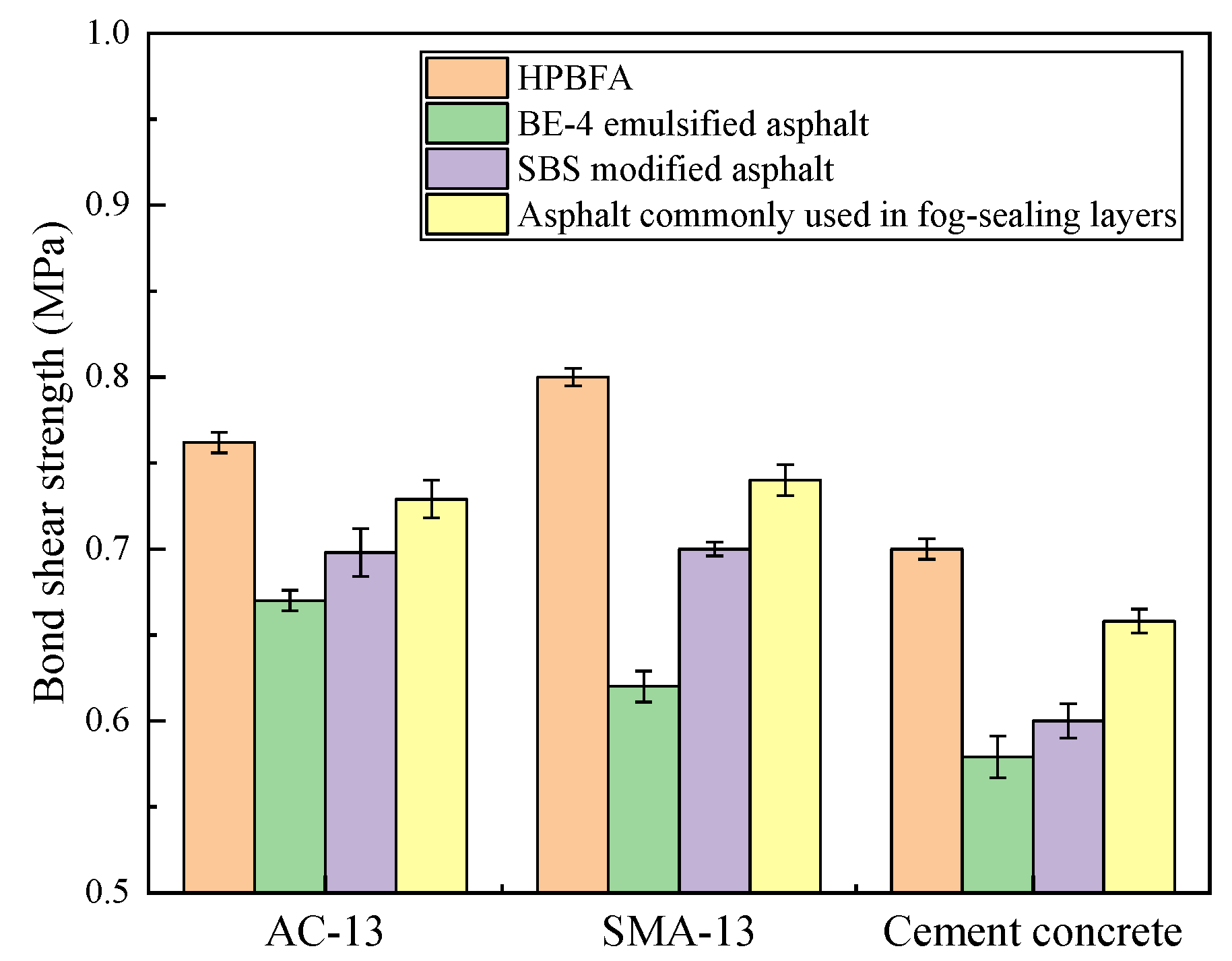

3.2.2. Bond Shear Strength

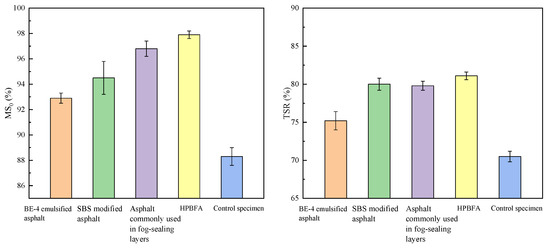

3.2.3. Water Stability
3.2.4. Aging Resistance
4. Microstructure and Strength Formation Mechanism

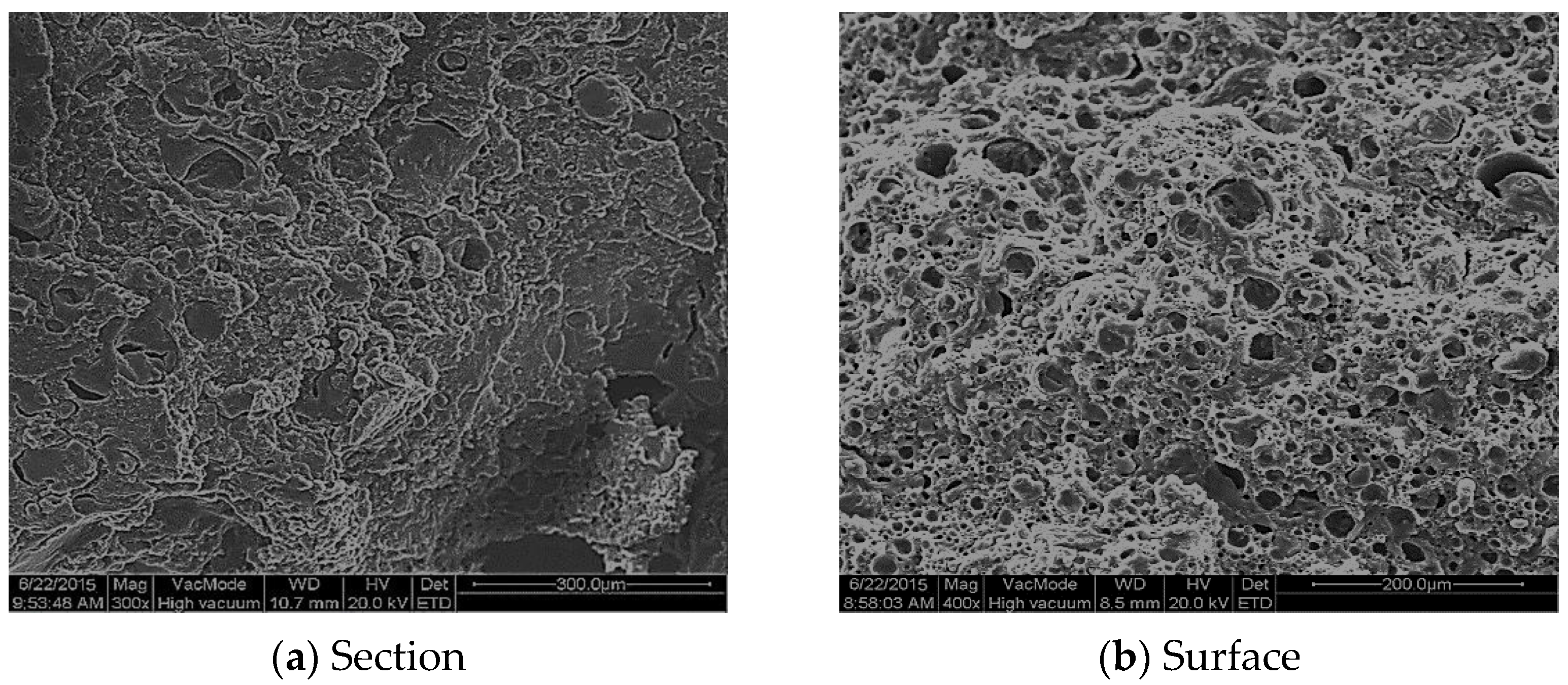

4.1. Micromorphology

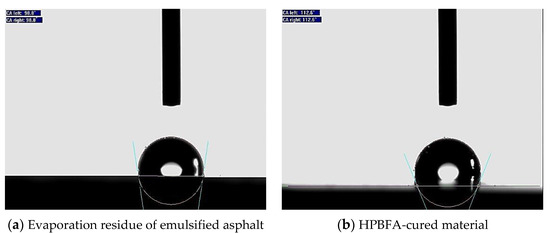

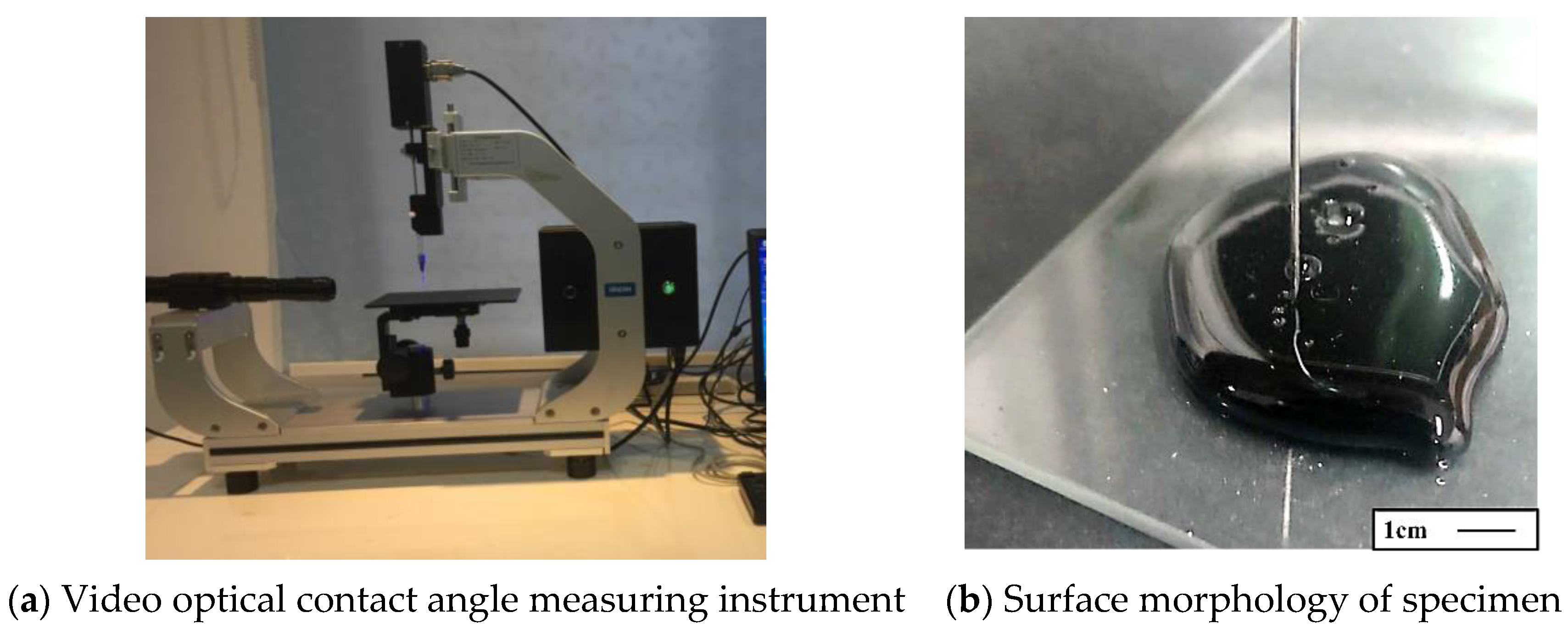

4.2. Hydrophobic

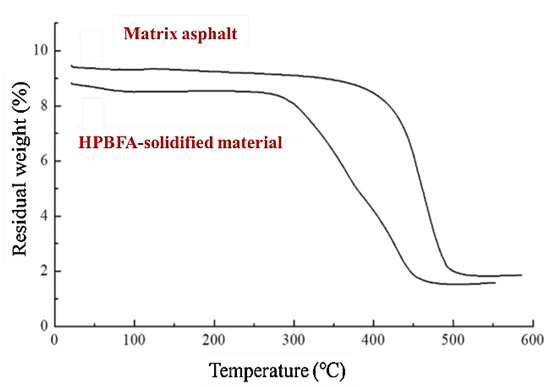

4.3. Thermal Stability
5. Conclusions
- (1)
- Using laboratory tests, the formulation of epoxy-emulsified asphalt with high permeability and bonding performance is proposed as the adhesive material for preparing the fog-sealing layer. The recommended formula is 80% emulsified asphalt and 2:1–3:1 epoxy ratio.
- (2)
- The technical performance of the proposed HPBFA is verified using laboratory tests. Compared with the domestic traditional fog-sealing adhesive material, the recommended formula shows better permeability, bond shear strength, water stability, and aging resistance.
- (3)

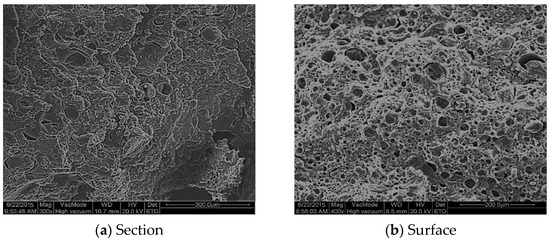

- The microstructural properties of the HPBFA-cured material are analyzed. Results show that the epoxy system in the HPBFA-cured material can form a continuous three-dimensional network structure, which can improve the strength and wear resistance of the material. The cured material shows a good hydrophobic surface, large contact angle, and good permeability. The initial thermal weight loss temperature of the HPBFA-cured material is considerably higher than the environmental aging temperature. Moreover, the maximum temperature decomposition range is 0–160 °C, and the material shows good thermal stability.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Yao, L.Y.; Dong, Q.; Ni, F.J.; Jiang, J.W.; Lu, X.R.; Du, Y.G. Effectiveness and Cost-Effectiveness Evaluation of Pavement Treatments Using Life-Cycle Cost Analysis. J. Transp. Eng. Pt. B-Pavements 2019, 145, 123461. [Google Scholar] [CrossRef]
- Machí, C.T.; Chamorro, A.; Pellicer, E.; Yepes, V.; Videla, C. Sustainable pavement management: Integrating economic, technical and environmental aspects in decision-making. Trans. Res. Rec. 2015, 2523, 56–63. [Google Scholar] [CrossRef]
- Tarefder, R.A.; Ahmad, M. Cost-e_ectiveness analysis of chip seal with and without millings. Int. J. Pavement Eng. 2018, 19, 893–900. [Google Scholar] [CrossRef]
- Liu, M.M.; Han, S.; Wang, Z.Y.; Ren, W.Y.; Li, W. Performance evaluation of new waterborne epoxy resin modified emulsified asphalt micro-surfacing. Constr. Build. Mater. 2019, 214, 93–100. [Google Scholar] [CrossRef]
- Saghafi, M.; Tabatabaee, N.; Nazarian, S. Performance evaluation of slurry seals containing reclaimed asphalt pavement. Transp. Res. Rec. 2019, 2673, 358–368. [Google Scholar] [CrossRef]
- Geng, L.; Ma, T.; Zhang, J.H.; Huang, X.M.; Hu, P.S. Research on performance of a dense graded ultra-thin wearing course mixture. Appl. Sci. 2017, 7, 800. [Google Scholar] [CrossRef] [Green Version]
- Montgomery, S.R.; Haddock, J.E. Fog Seal Performance on Asphalt Mixture Longitudinal Joints (Joint Transportation Research Program Publication No. FHWA/IN/JTRP-2017/18); Purdue University: West Lafayette, IN, USA, 2017; Available online: https://doi.org/10.5703/1288284316572 (accessed on 30 May 2021).
- Qureshi, N.A.; Tran, N.H.; Watson, D.; Jamil, S.M. Effects of rejuvenator seal and fog seal on performance of open-graded friction course pavement. Maejo Int. J. Sci. Technol. Chiang Mai 2013, 7, 189–202. [Google Scholar]
- Li, S.; Noureldin, S.; Jiang, Y.; Sun, Y. Evaluation of Pavement Surface Friction Treatments. In Publication FHWA/IN/JTRP-2012/04. Joint Transportation Research Program; Indiana Department of Transportation and Purdue University: West Lafayette, IN, USA, 2012; Available online: https://doi.org/10.5703/1288284314663 (accessed on 31 May 2021).
- Tran, N.; Watson, D.; Anwer, N. Effect of Using Fog Seals without Sanding on Surface Friction and Durability of Open-Grade Friction Course. In Proceedings of the 91st Annual Meeting of the Transportation Research Board, Washington, DC, USA, 22–26 January 2012. [Google Scholar]
- Song, W.; Shu, X.; Huang, B.; Chandler, M.; Woods, M.; Jia, X. Laboratory Performance of Fog Seal–Treated Open-Graded Friction Course Pavement 2018-1-7 to 2018-1-11. In Proceedings of the Transportation Research Board 97th Annual Meeting, 7–11 January 2018; Available online: http://amonline.trb.org/ (accessed on 30 May 2021).
- Lin, J.T.; Guo, P.D.; Li, W.; Wu, S.P. Laboratory investigation of rejuvenator seal materials on performances of asphalt mixtures. Constr. Build. Mater. 2012, 37, 41–45. [Google Scholar] [CrossRef]
- Kebede, A.A. Asphalt pavement preservation using rejuvenating fog seals. Open Access Theses 2016, 1–63. [Google Scholar]
- Heritage, R. Rare double fog seal among techniques for Oklahoma road. Pavement Preserv. J. 2013, 6, 23–25. [Google Scholar]
- Im, J.H.; Kim, Y.R. Methods for fog seal field test with polymer-modified emulsions development and performance evaluation. Transp. Res. Rec. 2013, 2361, 88–97. [Google Scholar] [CrossRef]
- Islam, R.M.; Arafat, S.; Wasiuddin, N.M. Quantification of reduction in hydraulic conductivity and skid resistance caused by fog seal in low-volume roads. Transp. Res. Rec. 2017, 2657, 99–108. [Google Scholar] [CrossRef]
- Motamed, A.; Salomon, D.; Sakib, N.; Bhasin, A. Emulsified asphalt residue recovery and characterization combined use of moisture analyzer balance and dynamic shear rheometer. Transp. Res. Rec. 2014, 2444, 88–96. [Google Scholar] [CrossRef] [Green Version]
- Yang, G.L.; Wang, C.H.; Fu, H.; Yan, Z.B.; Yin, W.Y. Waterborne epoxy resin-polyurethane-emulsified asphalt: Preparation and properties. J. Mater. Civ. Eng. 2019, 31, 04019265. [Google Scholar] [CrossRef]
- Im, J.H.; Kim, Y.R. Performance evaluation of fog seals on chip seals and verification of fog seal field tests. Can. J. Civ. Eng. 2015, 42, 872–880. [Google Scholar] [CrossRef]
- Chen, X.H.; Wei, H.; Qian, Z.D. Interfacial behaviors of epoxy asphalt surfacing on steel decks. J. Southeast. Univ. 2007, 23, 594–598. [Google Scholar]
- Kwon, H.; Lee, A.S.; Lee, J.H.; Park, N.K.; Kim, G.D.; Cho, B.; Choi, S.Y.; Yu, S. Characterization of liquid state sulfur polymer/epoxy blend as asphalt pavement materials. J. Ind. Eng. Chem. 2017, 53, 386–391. [Google Scholar] [CrossRef]
- Zhang, R.H.; Zou, Y.K.; Yin, Y.M. Application of warm-mix modified asphalt mixture in highway maintenance project. Int. J. Pavement Res. Technol. 2009, 2, 154–161. [Google Scholar]
- Zhao, L. Study on Road Performance of New Emulsified Asphalt Mixture. Master’s Thesis, Chang’an University, Xi’an, China, 2012. (In Chinese). [Google Scholar]
- Liu, Y.; Qian, Z.; Zheng, D.; Zhang, M. Interlaminar thermal effect analysis of steel bridge deck pavement during gussasphalt mixture paving. Int. J. Pavement Eng. 2019, 20, 1323–1335. [Google Scholar] [CrossRef]
- Chang, Y.T.; Chen, Z.D.; Niu, X.H.; Zhou, Z.G. Test of shear resistance of modified emulsified asphalt by waterborne epoxy resin. J. Jiangsu Univ. Nat. Sci. Ed. 2017, 38, 224–229. [Google Scholar] [CrossRef] [Green Version]
- Shen, F.; Huang, S.L.; Sun, Z.; Ding, Q.J. Research on hardening mechanism of cement-emulsified asphalt-epoxy resin. Adv. Mater. Res. 2012, 430–432, 434–437. [Google Scholar] [CrossRef]
- Ding, Q.J.; Shen, F.; Sun, Z.; Huang, S.L. Development and conceptual design of steel deck pavement used cement/emulsified-asphalt/epoxy resin concrete. Adv. Mater. Res. 2011, 287–290, 1168–1174. [Google Scholar] [CrossRef]
- Ding, Q.J.; Shen, F.; Sun, Z.; Huang, S.L. A laboratory investigation into the composite bonding system of cement-emulsified asphalt-epoxy resin. Appl. Mech. Mater. 2011, 80–81, 379–384. [Google Scholar] [CrossRef]
- Guo, Y.Q.; Mi, H.C.; Xu, P.; Qi, F. Preparation and properties of fog seal material. Mod. Chem. Ind. 2015, 35, 101–104. [Google Scholar]
- Chan, Y. Study on Curing Materials and Technology of Ultraviolet Aging Fog Seal Pavement in Alpine Region. Master’s Thesis, Chang’an University, Xi’an, China, 2012. (In Chinese). [Google Scholar]
- Zhang, M.M.; Zhang, J.; Hao, P.W.; Wang, P. Analysis and evaluation of asphalt material and additives for fog seal. China-Foreign Highw. 2010, 30, 247–250. (In Chinese) [Google Scholar]
- Xu, Z.R.; Chen, Z.D.; Chang, Y.T.; Hui, D.D. The study of the design method of expoxy emulsified asphalt mixture. Adv. Mater. Res. 2014, 1030–1032, 246–249. [Google Scholar] [CrossRef]
- Zhang, R.; He, Y.; Ao, Z. An asphalt emulsion modified by compound of epoxy resin and styrene-butadiene rubber emulsion. Int. J. Math. Models Methods Appl. Sci. 2007, 5, 14. [Google Scholar]
- Niu, X.H.; Chen, Z.D.; Chang, Y.T.; Hui, D.D.; Pang, S.H.; Chen, Z.F.; Wu, Y.J. Study on road performance of epoxy-emulsified asphalt mixture. Constr. Technol. 2018. [Google Scholar] [CrossRef] [Green Version]
- Ou, Z.W.; Zhou, S.Y.; Zhao, Z.L.; Ren, J.M.; Zhang, Y.; Chen, Q.; Mo, J.C.; Zhao, X.X. The preparation of compound modified and emulsified asphalt mortar and its micro-analysis. Adv. Mater. Res. 2012, 531, 248–251. [Google Scholar] [CrossRef]
- Min, Z.; Zhang, Z.; Huang, W. Fracture properties of epoxy resin asphalt mixtures with different asphalt volume ratio. China J. Highw. Transp. 2011, 24, 22–28. (In Chinese) [Google Scholar]
- Meng, D.Y. Design and Performance Evaluation of Low Freezing Point Fog Seal Materials. Master’s Thesis, Harbin University of Technology, Harbin, China, 2016. (In Chinese). [Google Scholar]
- Song, X.H. Evaluation Method and Index Study on the Connection State between Base and Surface of Asphalt Pavement. Master’s Thesis, Harbin University of Technology, Harbin, China, 2008. (In Chinese). [Google Scholar]
- Zhang, Y.J.; Cao, D.W.; Zhang, H.Y.; Wu, X.W. The study of curing characteristics of epoxy asphalt. Adv. Mater. Res. 2013, 785–786, 295–299. [Google Scholar] [CrossRef]
- Cui, P.; Wu, S.; Xu, H.; Lv, Y. Silicone Resin Polymer Used in Preventive Maintenance of Asphalt Mixture Based on Fog Seal. Polymers 2019, 11, 1814. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Zhang, X.; Wang, H.N.; Hasan, M.R.M.; Gao, J.F.; Irfan, M. Traffic open time prediction of fog seal with sand using image processing technology. Constr. Build. Mater. 2019, 209, 9–19. [Google Scholar] [CrossRef]
Test Indicators | Tested Values | Standards | |
---|---|---|---|
Demulsification speed | Slow crack | Slow crack | |
Particle charge | + | Cation (+) | |
Residual amount on sieve (1.18 mm sieve) (%) | 0.01 | ≯0.1 | |
Engla viscometer E25 | 3.5 | 1–6 | |
Evaporative residues | Residual content (%) | 50.7 | ≮50 |
Penetration (100 g, 25 °C, 5 s) (0.1 mm) | 88 | 50–300 | |
Ductility (15 °C) (cm) | >100 | ≮40 | |
Storage stability at room temperature | 1 d (%) | 0.3 | ≯1 |
5 d (%) | 2.8 | ≯5 |
Softening Point (℃) | Epoxy Equivalent | Shrinkage Rate (%) | Coefficient of Thermal Expansion (%) | Epoxy Value (Eq/100 g) | Organochlorine (%) | Inorganic Chlorine (ppm) | Volatile (%) |
---|---|---|---|---|---|---|---|
16–24 | 212.6–238.1 | <2 | 6–10.2 | 0.42–0.47 | ≯0.5 | ≯200 | 1.0 |
Test Indicators | Active Ingredient Content (%) | Density (g/cm3) | Viscosity (mPa·s) | Active Hydrogen Equivalent |
---|---|---|---|---|
Test values | 50.0 ± 1.0 | 1.05–1.12 | 5000–20,000 | 287 |
Test Indicators | Emulsified Asphalt | Waterborne Epoxy Resin Emulsion | Curing Agent | Water |
---|---|---|---|---|
Residual sand quality (g) | 49.3 | 49.2 | 57.9 | 49.1 |
Osmotic time (min) | 0.69 | 0.72 | >30 | 0.13 |
Penetration velocity (cm/min) | 2.38 | 2.30 | / | 12.99 |
Test Indicators | Recommended Contents for Following Components | ||
---|---|---|---|
Emulsified Asphalt | Curing Agent | Epoxy Ratio | |
Permeability | - | ≯10% | - |
Bond shear strength | ≯80% | - | 2:1–3:1 |
Water stability | 80% | - | 2:1–4:1 |
Aging resistance | ≮80% | - | 2:1–4:1 |
Test Indicators | HPBFA | BE-4-Emulsified Asphalt | SBS-Modified Emulsified Asphalt | Asphalt Commonly Used in Fog-Sealing Layers |
---|---|---|---|---|
Residual sand mass (g) | 50.4 | 49.3 | 53.2 | 55.5 |
Penetration time (min) | 1.14 | 0.69 | 6.52 | 1.97 |
Seepage velocity (cm/min) | 1.29 | 2.38 | 0.16 | 0.35 |
Type of Fog-Sealing Adhesive Material | HPBFA | BE-4-Emulsified Asphalt | SBS-Modified Emulsified Asphalt | Asphalt Commonly Used in Fog-Sealing Layers |
---|---|---|---|---|
Mass-loss rate (%) | 3.93 | 4.36 | 5.70 | 6.55 |
