Next Article in Journal
Modelling the Surface Plasmon Spectra of an ITO Nanoribbon Grating Adjacent to a Liquid Crystal Layer
Previous Article in Journal
Evaluation of Implants with Different Macrostructures in Type I Bone—Pre-Clinical Study in Rabbits
Open AccessArticle

Study on Tribological Properties and Mechanisms of Different Morphology WS2 as Lubricant Additives

1
School of Mechanical & Electrical Engineering, Jiangsu Normal University, Xuzhou 221116, China
2
School of Mechanical & Electrical Engineering, China University of Mining & Technology, Xuzhou 221116, China
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(7), 1522; https://doi.org/10.3390/ma13071522
Received: 25 February 2020 / Revised: 21 March 2020 / Accepted: 23 March 2020 / Published: 26 March 2020

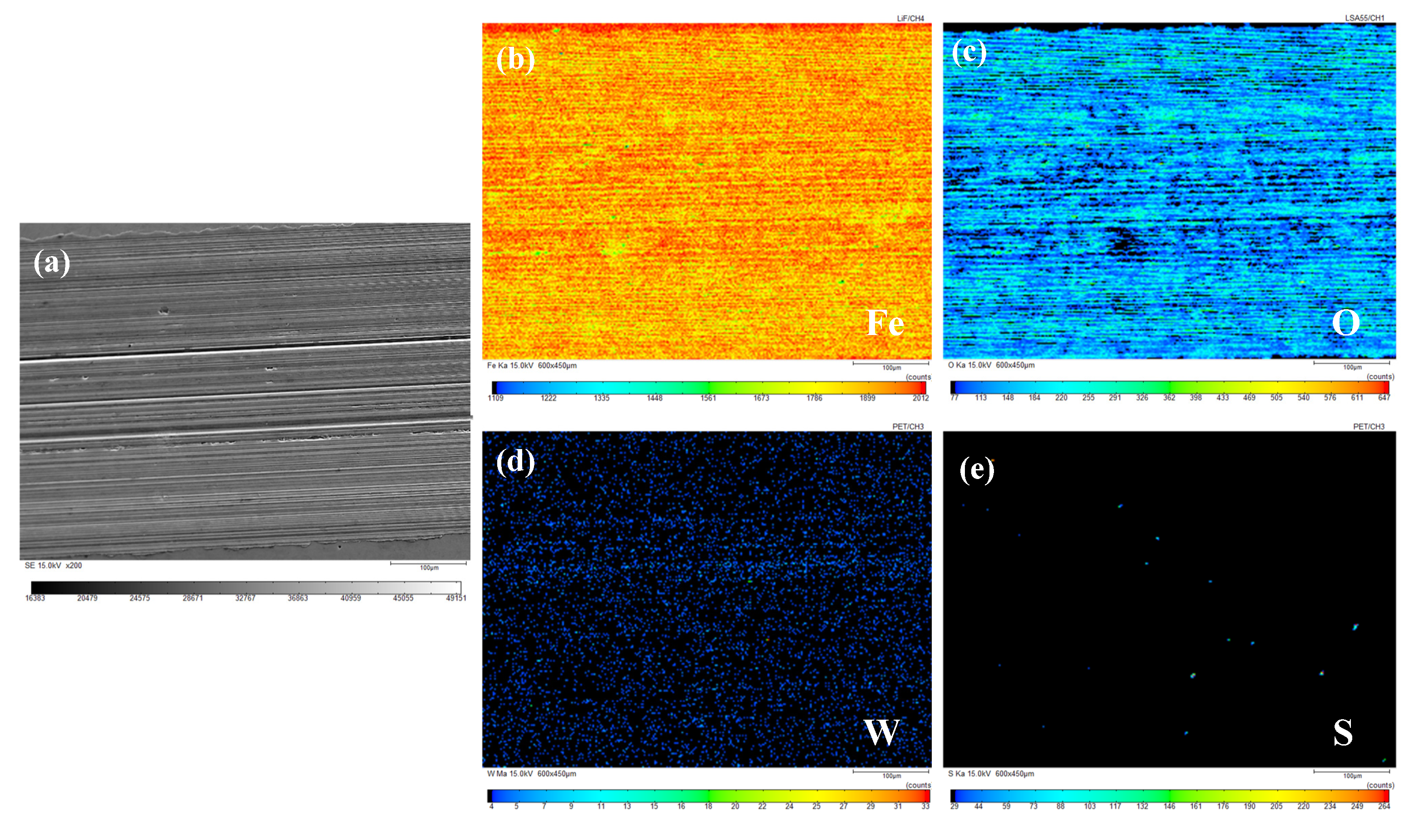

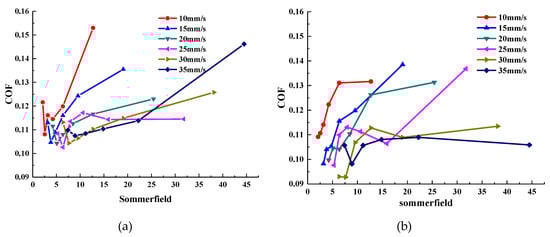

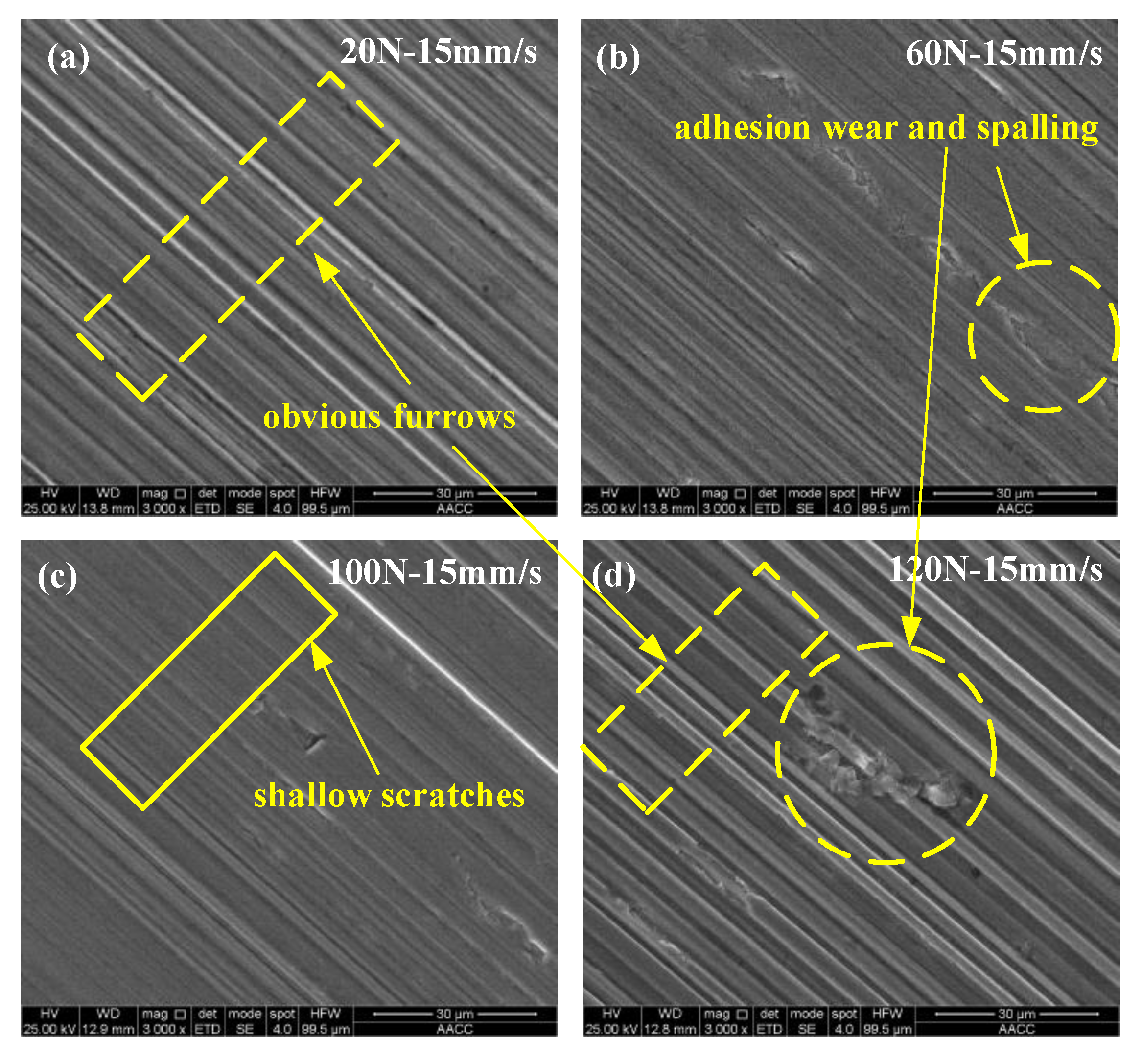

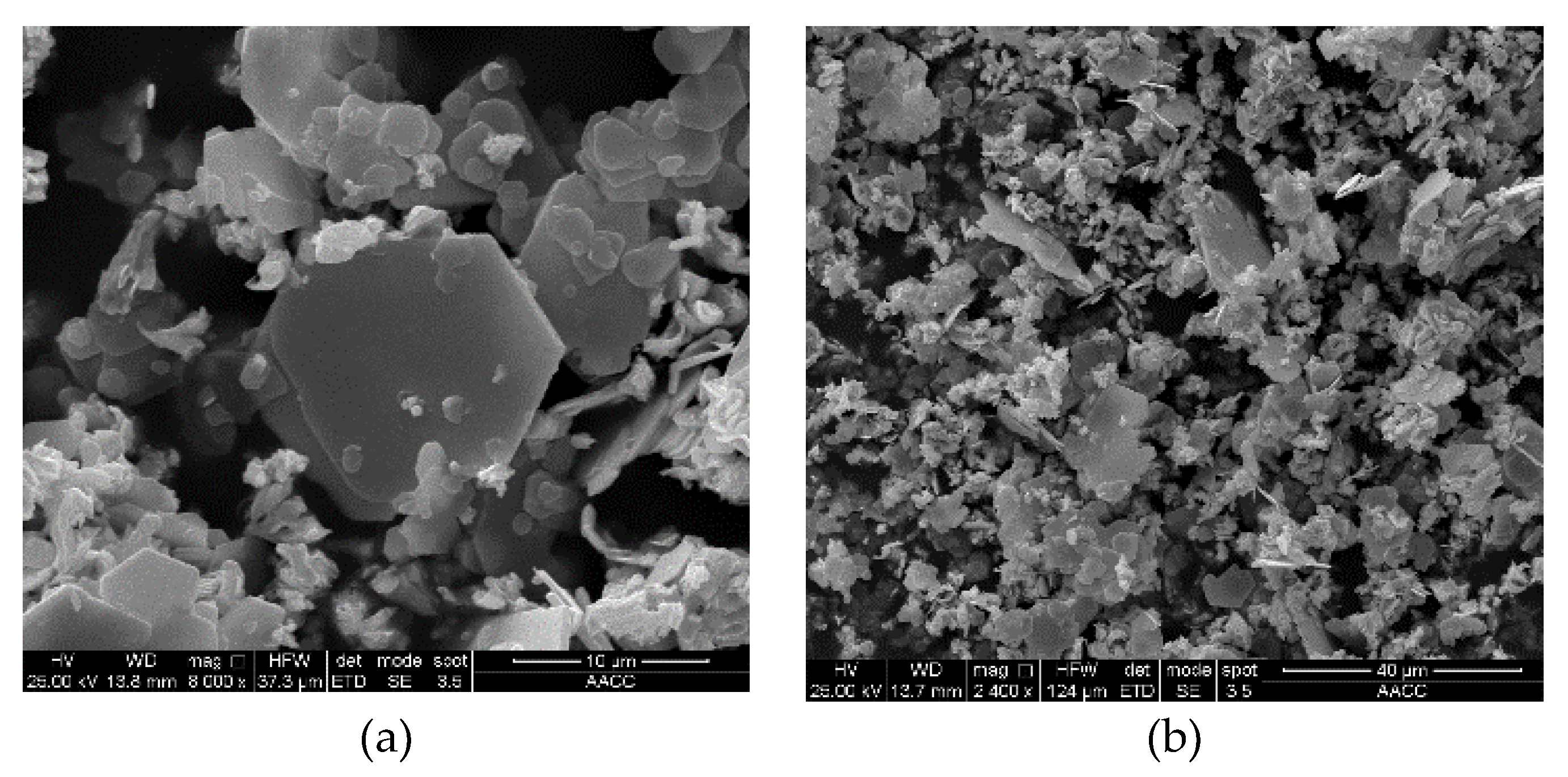

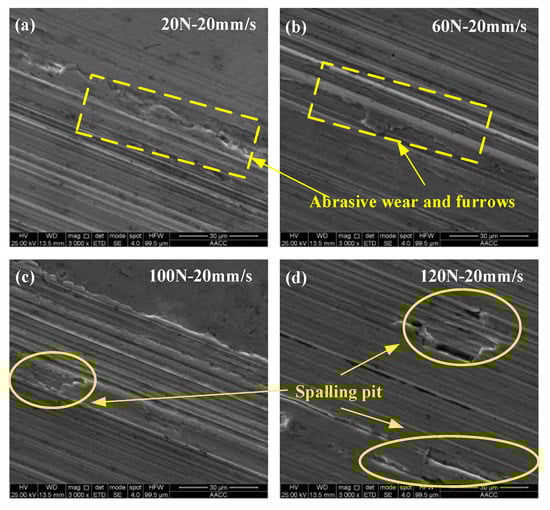

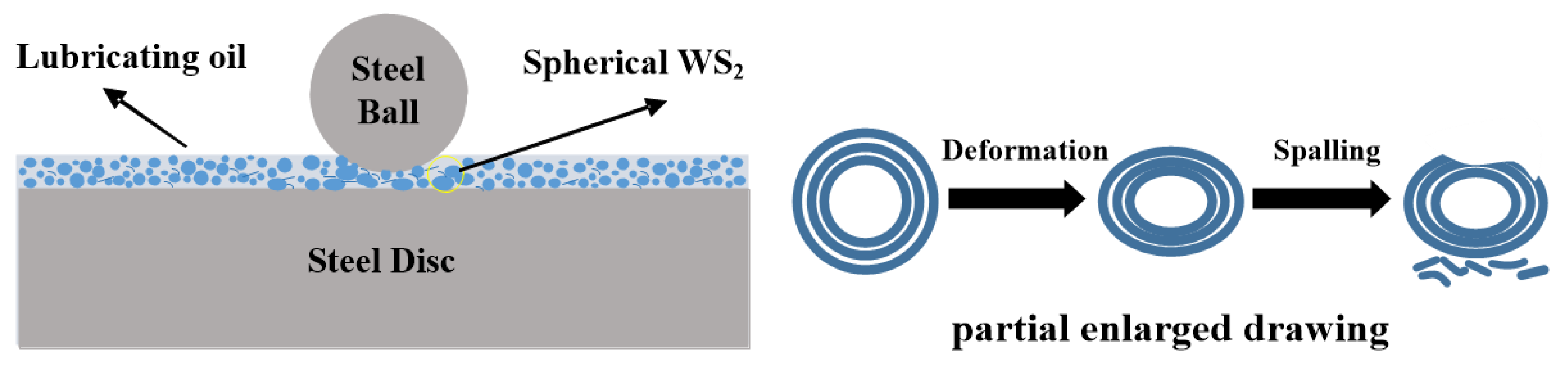

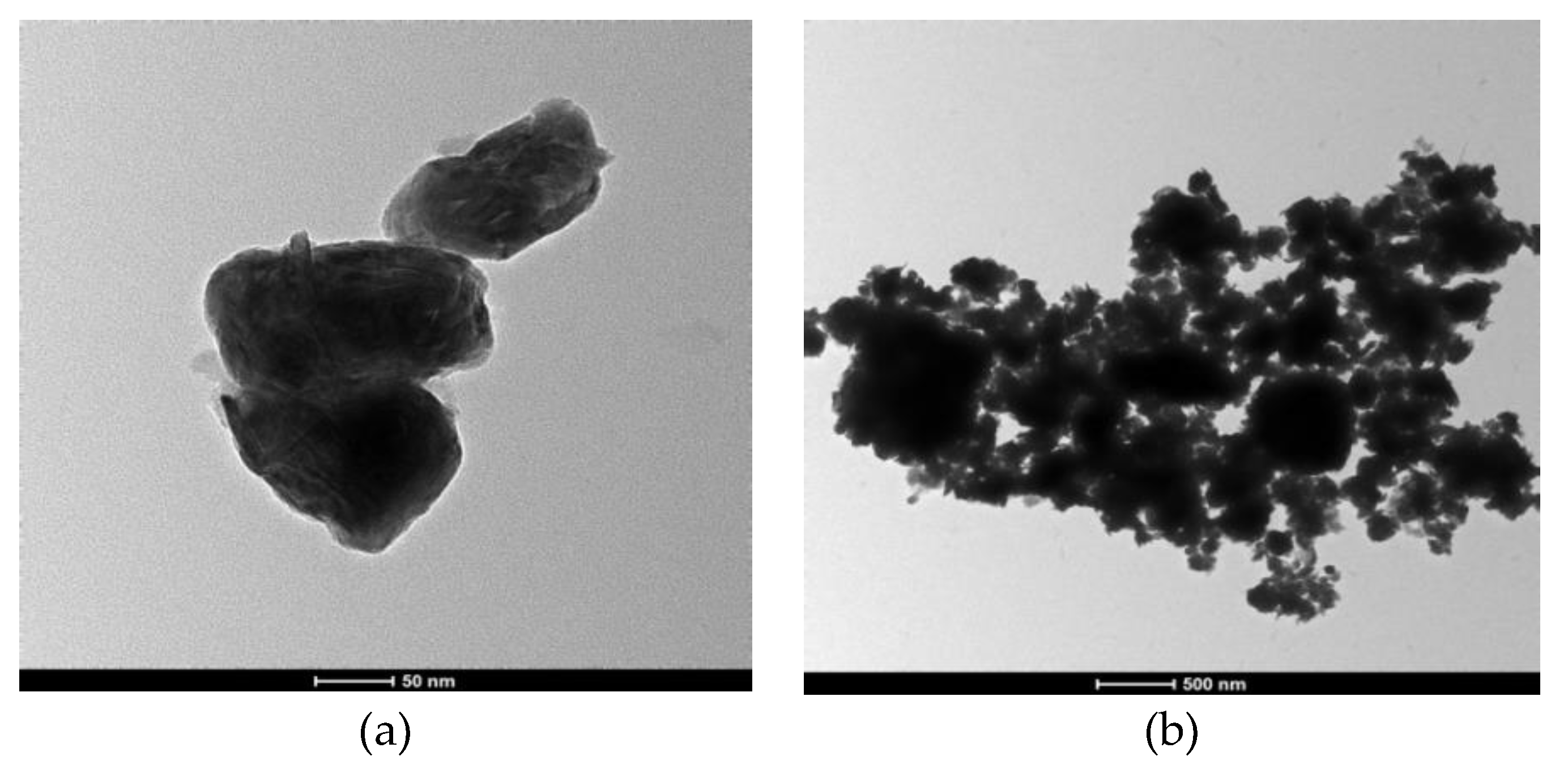

In the present work, the relationship curve of the coefficient of friction (COF) with varying loads of different morphology WS2 lubricating additives in the friction process at various sliding speeds was studied. On this basis, wear marks and elements on the wear surfaces after friction were analyzed, and then the anti-wear and mechanism effects of WS2 of different forms in the lubrication process were discussed. Meanwhile, the Stribeck curve was used to study the lubrication state of the lubricating oil in the friction process. It was revealed that the COF of lubricating oil containing lamellar WS2 decreased by 29.35% at optimum condition and the minimum COF was concentrated at around 100 N. The COF of lubricating oil containing spherical WS2 decreased by 30.24% and the minimum coefficient was concentrated at 120 N. The extreme pressure property of spherical WS2 was better than that of lamellar WS2, and the wear resistance of spherical WS2 was more stable when the load was over 80 N. The different morphology of WS2 additives can play anti-wear and anti-friction roles within a wide range of sliding speeds. View Full-Text
Keywords: WS2; anti-wear; anti-friction; lubricant additives; tribological properties WS2; anti-wear; anti-friction; lubricant additives; tribological properties
Show Figures

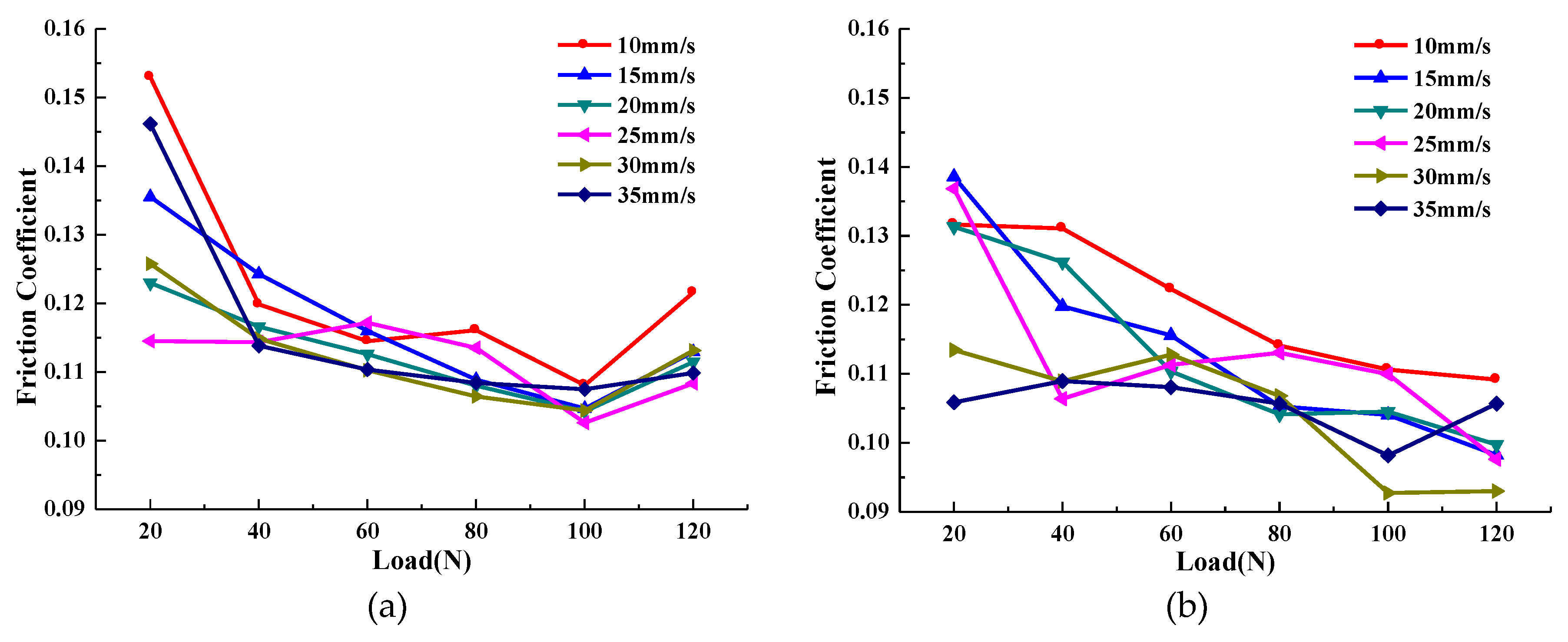

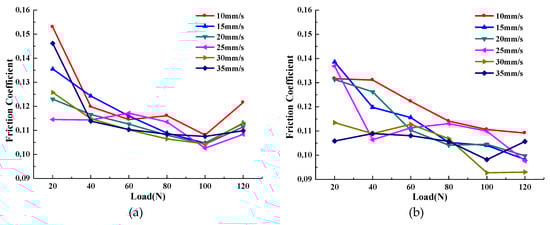

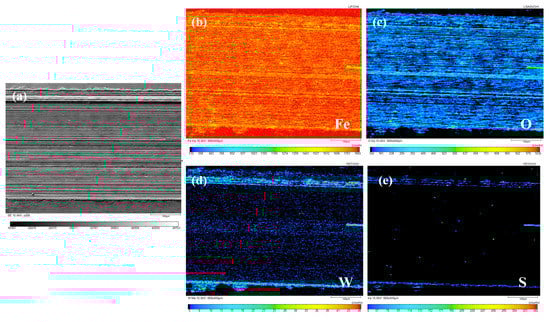

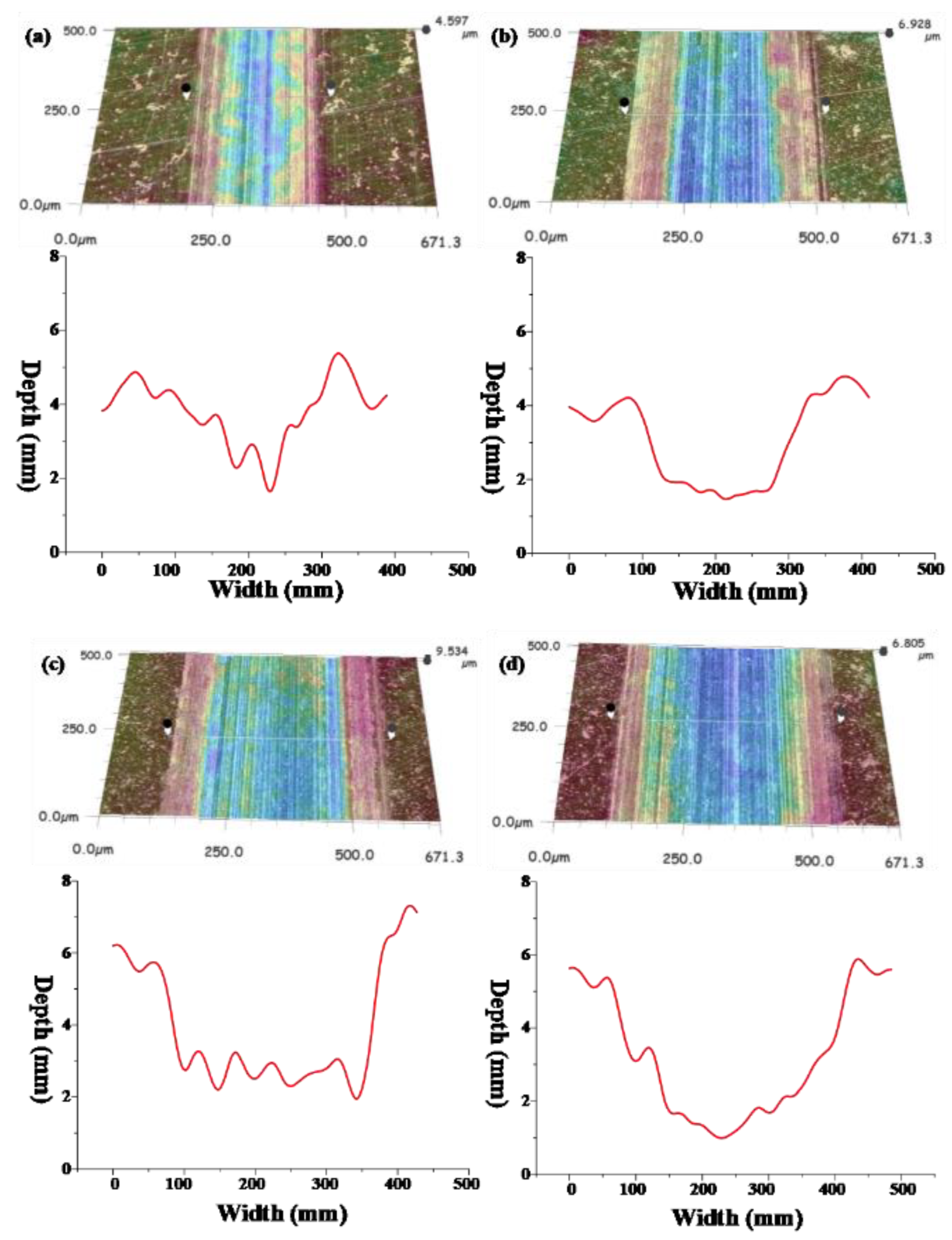

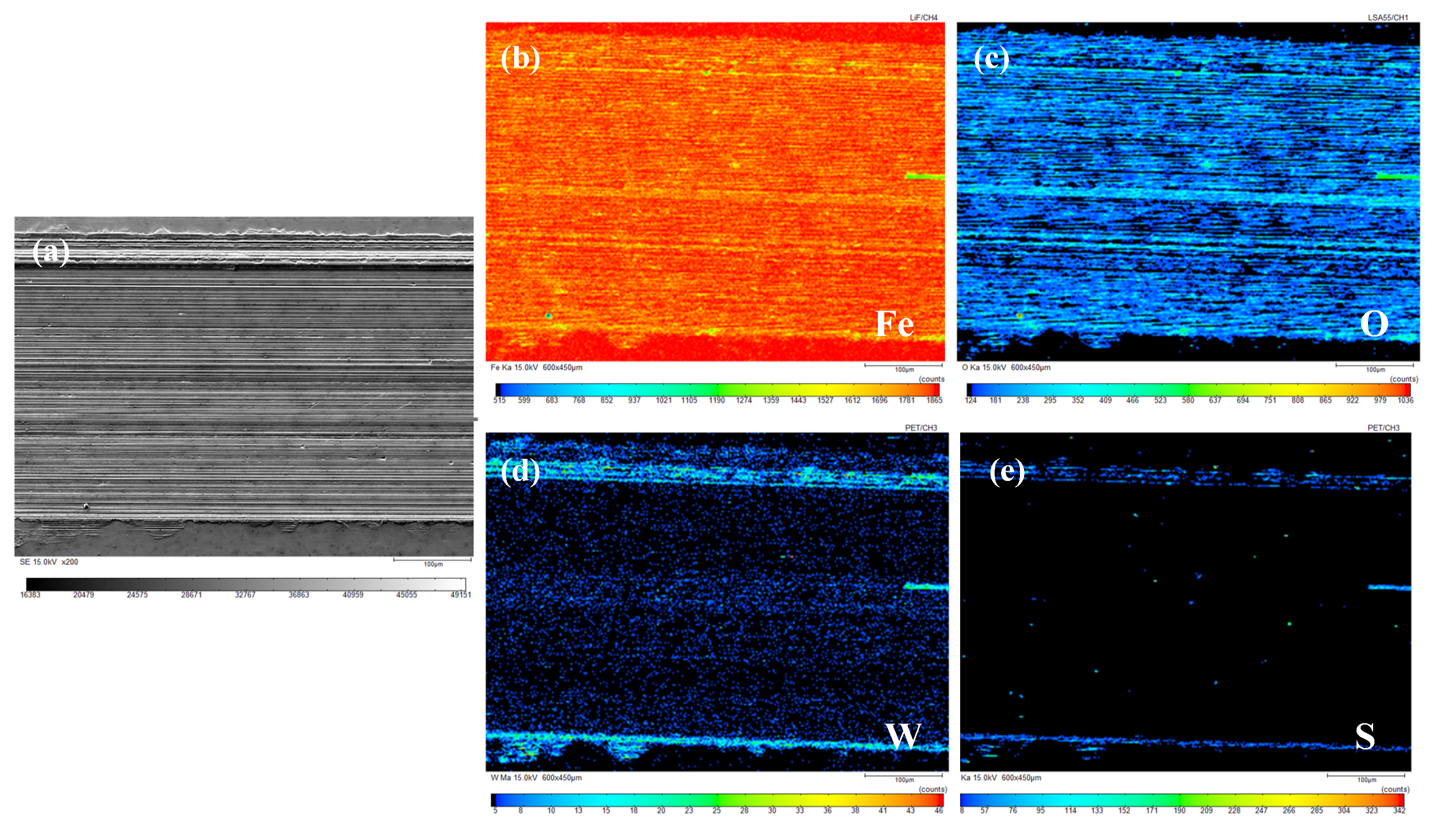

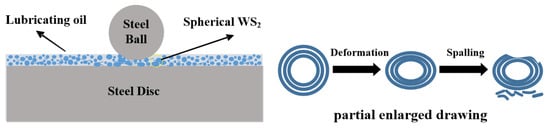

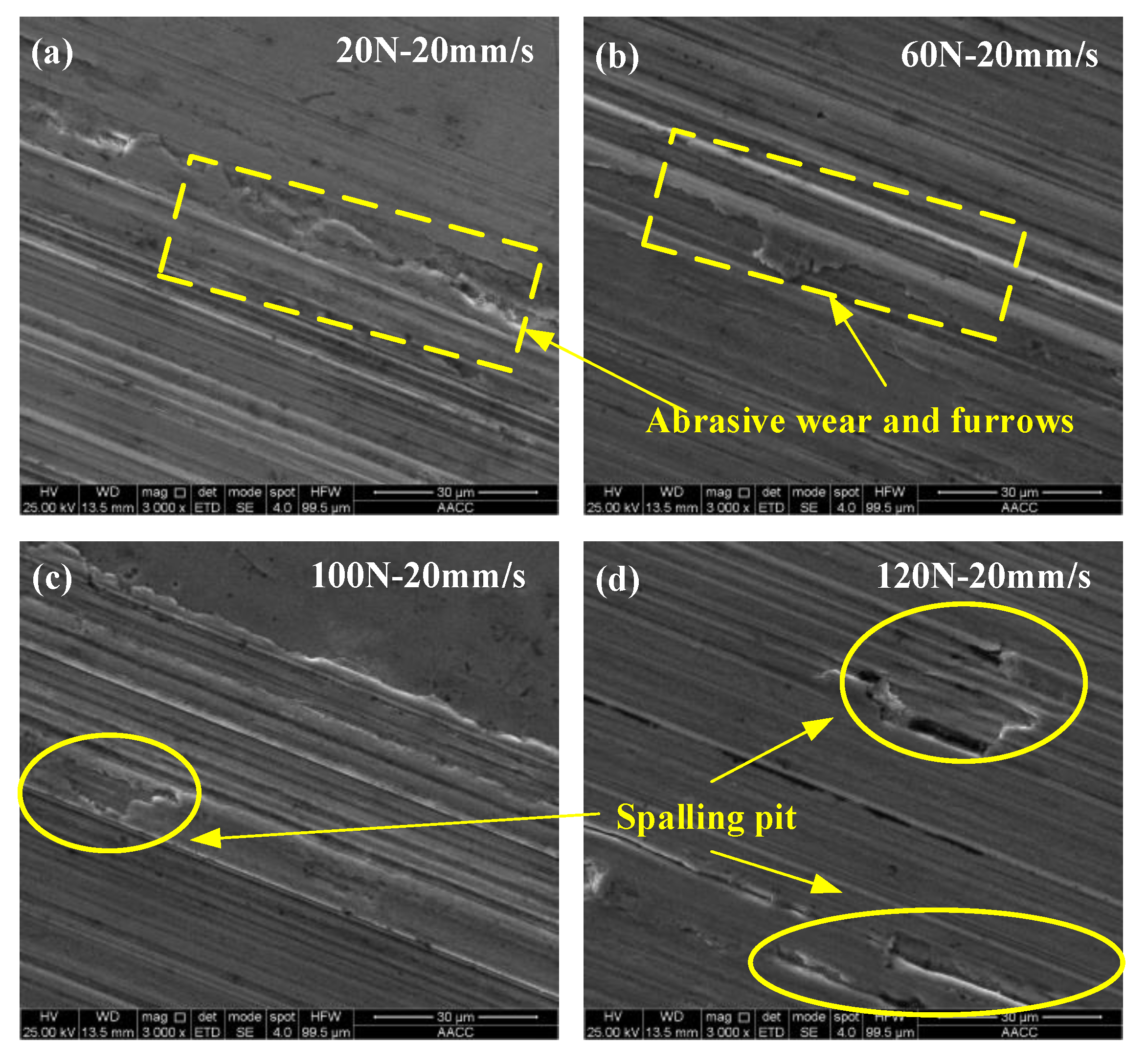

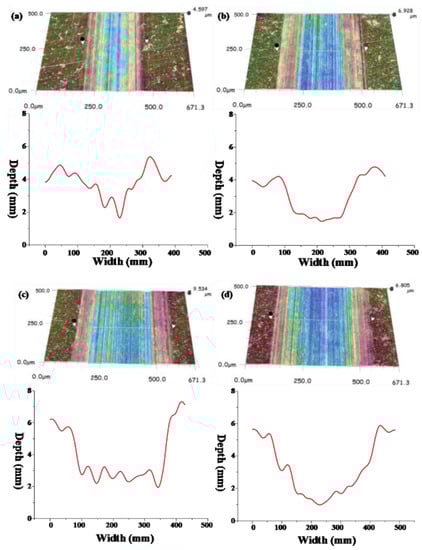

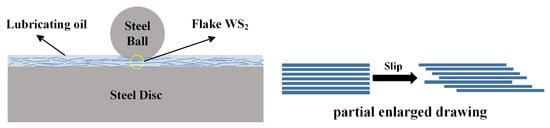

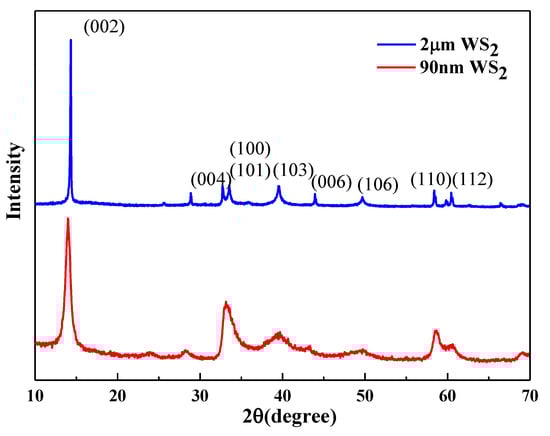

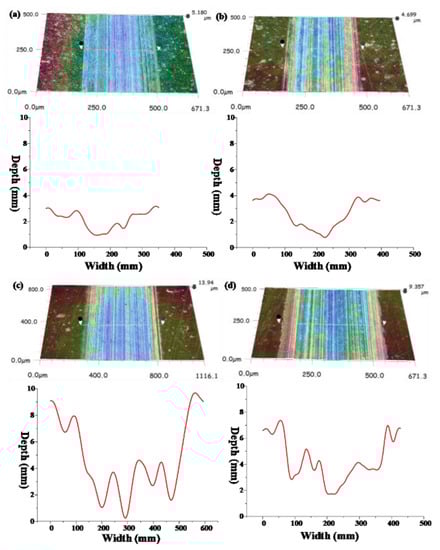

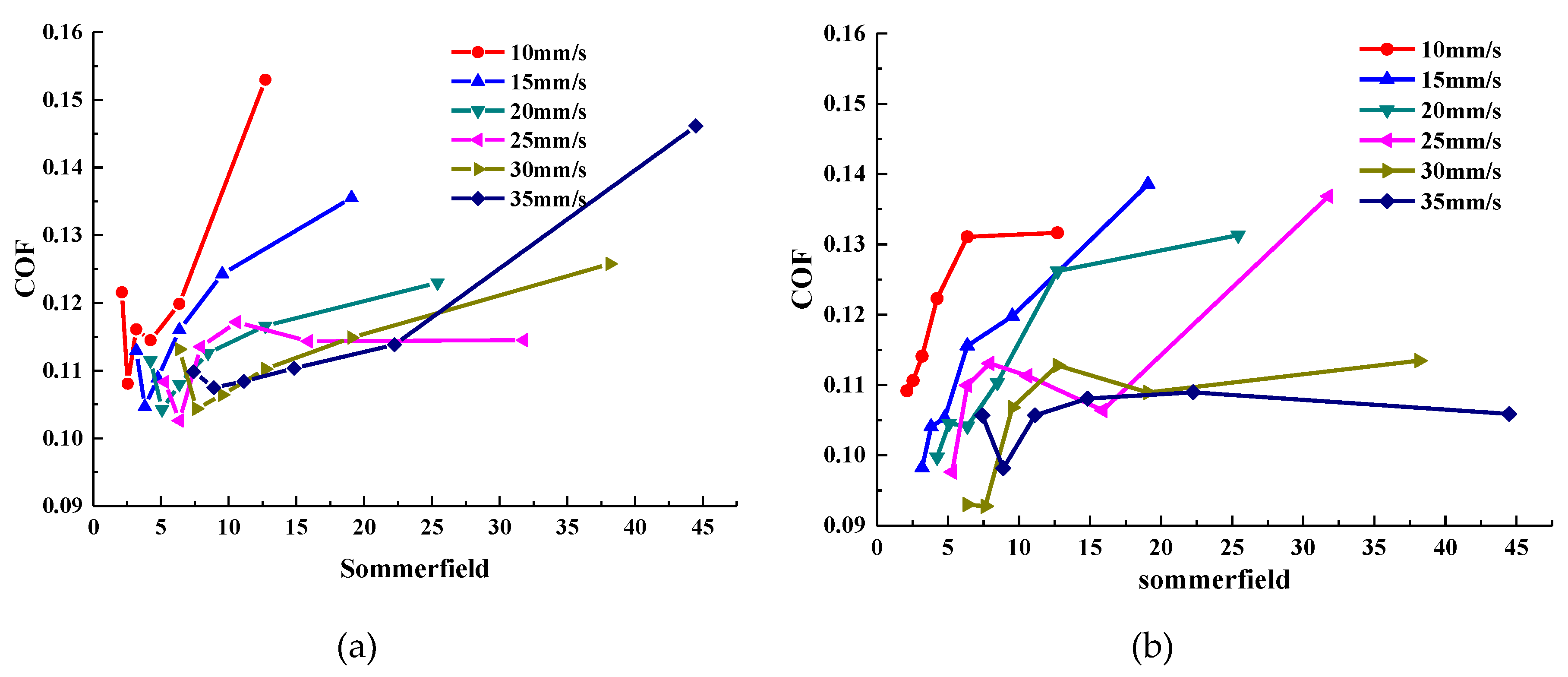

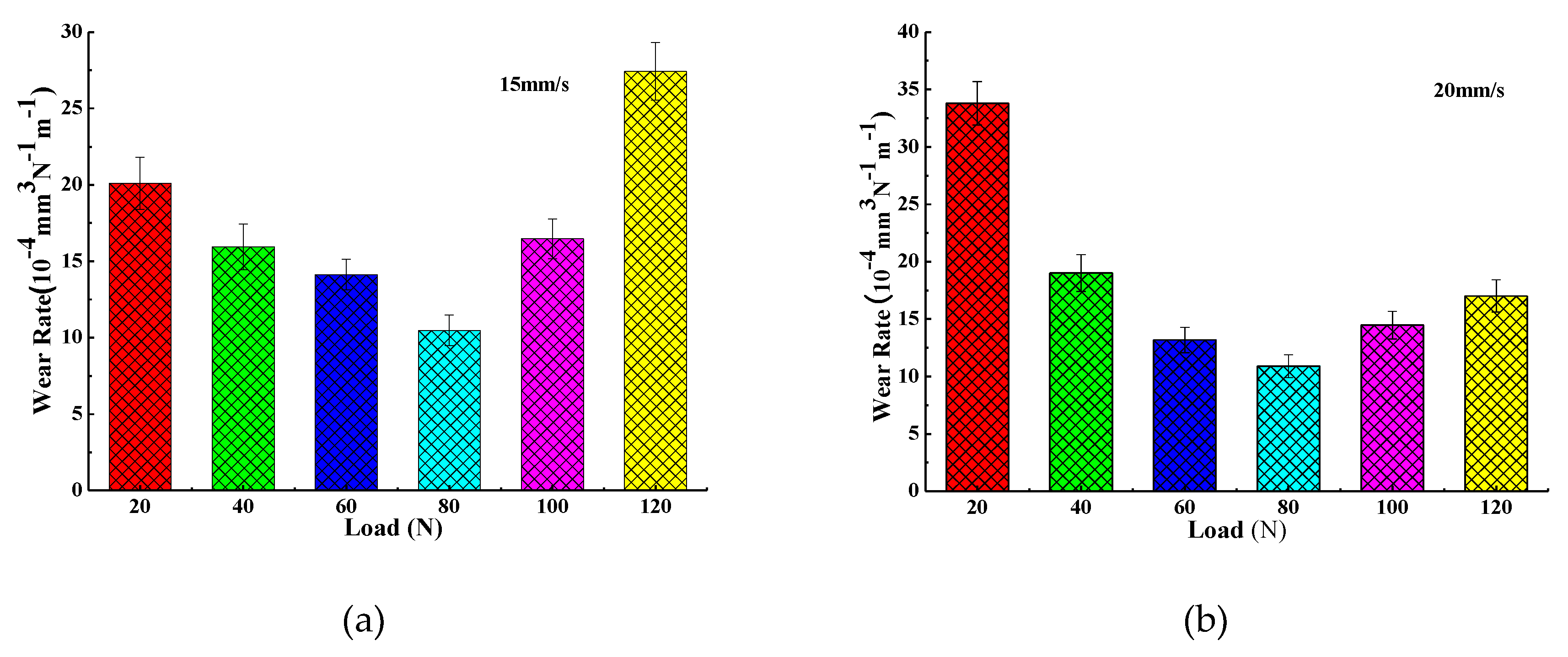

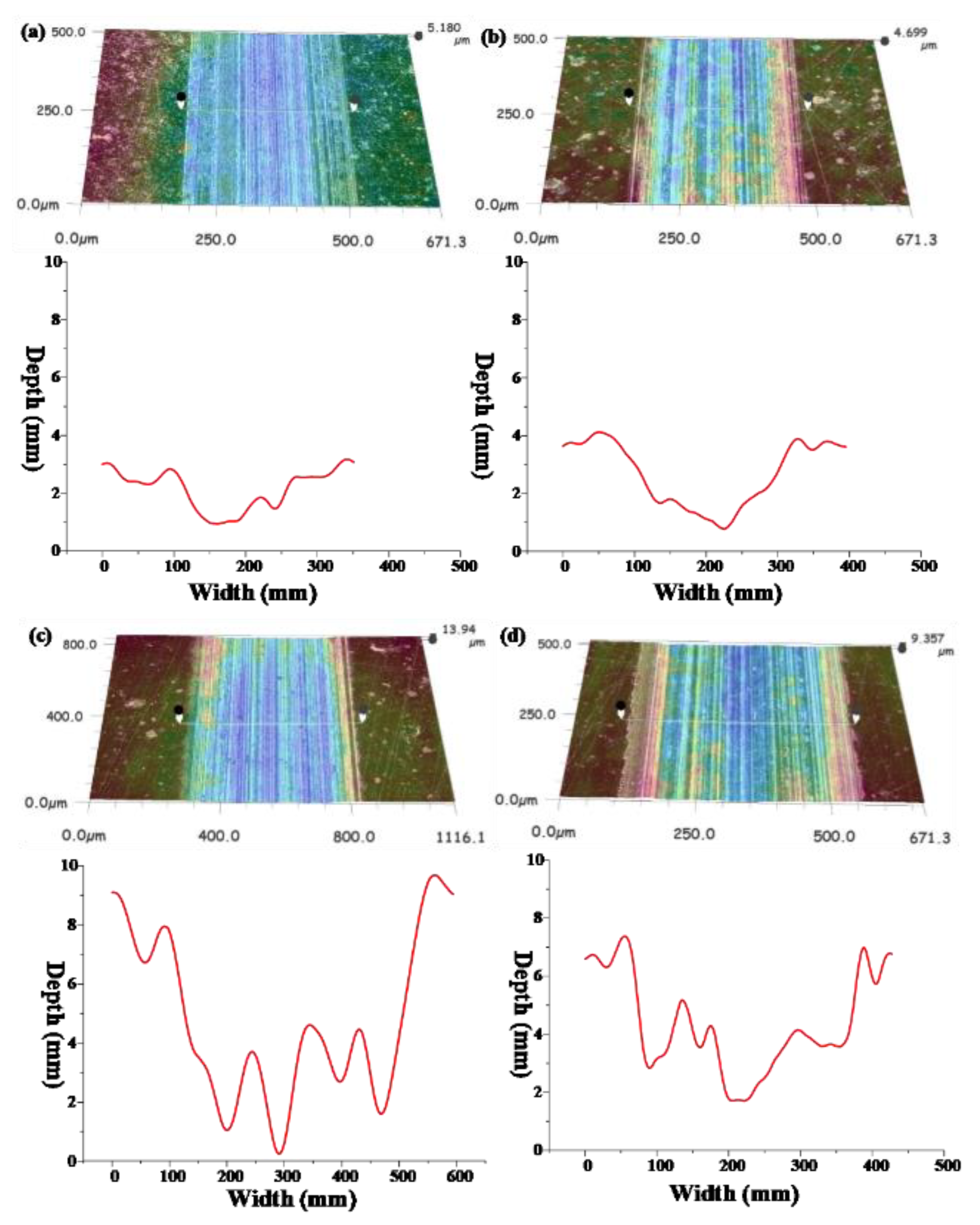

Figure 1

MDPI and ACS Style

Hu, N.; Zhang, X.; Wang, X.; Wu, N.; Wang, S. Study on Tribological Properties and Mechanisms of Different Morphology WS2 as Lubricant Additives. Materials 2020, 13, 1522.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
