Article

SBA-16 Cage-Like Porous Material Modified with APTES as an Adsorbent for Pb2+ Ions Removal from Aqueous Solution

by
Viviana Palos-Barba
1,
Abigail Moreno-Martell
1,
Verónica Hernández-Morales
2,
Carmen L. Peza-Ledesma
2,
Eric M. Rivera-Muñoz
2,
Rufino Nava
1,* and
Barbara Pawelec
3
1
División de Investigación y Posgrado, Facultad de Ingeniería, Universidad Autónoma de Querétaro, Centro Universitario, 76010 Querétaro, Mexico
2
Centro de Física Aplicada y Tecnología Avanzada, Universidad Nacional Autónoma de México, Departamento de Nanotecnología, A.P. 1-1010 Querétaro, Mexico
3
Instituto de Catálisis y Petroleoquímica, CSIC, Cantoblanco, 28049 Madrid, Spain
*
Author to whom correspondence should be addressed.
Materials 2020, 13(4), 927; https://doi.org/10.3390/ma13040927
Submission received: 20 January 2020 / Revised: 12 February 2020 / Accepted: 14 February 2020 / Published: 19 February 2020
(This article belongs to the Special Issue Mesoporous Silica and Their Applications)
Browse Figures
Versions Notes

Abstract

:
Tridimensional cubic mesoporous silica, SBA-16, functionalized with aminopropyl groups, were employed as adsorbents for Pb2+ ion removal from aqueous solution. The adsorption capacity was investigated for the effect of pH, contact time, temperature, and concentration of 3-aminopropyltriethoxysilane (APTES) employed for adsorbent functionalization. The textural properties and morphology of the adsorbents were evaluated by N2 physisorption, small-angle X-ray diffraction (XRD), diffuse reflectance spectroscopy (UV-vis), and transmission electron microscopy (TEM). The functionalization of the SBA-16 was evaluated by elemental analysis (N), thermogravimetric analysis (TG), Fourier transform infrared spectroscopy (FT-IR), and X-ray photoelectron spectroscopy (XPS). Batch adsorption studies show that the total Pb2+ ions removal was archived on adsorbent having an optimized amount of aminopropyl groups (2N-SBA-16). The maximum of Pb2+ ions removal occurred at optimized adsorption conditions: pH = 5–6, contact time 40 min, and at a low initial lead concentration in solution (200 mg L−1). Under the same adsorption conditions, the amino-functionalized SBA-16 with cubic 3D unit cell structure exhibited higher adsorption capability than its SBA-15 counterpart with uniform mesoporous channels.

Graphical Abstract

1. Introduction

Recently, there is an increased interest in the removal of toxic heavy metals from wastewaters using adsorption technology and low-cost lignocellulosic materials as adsorbents [1,2,3,4,5,6]. However, the natural adsorbents, such as wheat straw, coconut coir pith, tree fern, etc., demonstrated a low mechanic resistance to abrasive forces, low loading capacities, and relatively weak interactions with heavy metal cations [7,8,9]. To overcome these drawbacks, recent studies are focused on the use as adsorbents the mesoporous silica materials, such as MCM-41 [10,11], SBA-15 [12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30] and SBA-16 [30,31,32,33,34,35,36] due to their ordered mesoporous structure with high surface area and appropriate pore size for the accommodation of guest molecules [37]. Notwithstanding, as the pure siliceous materials have only silanol groups on their surface, it is necessary to create specific binding sites by functionalization of the adsorbent surface with chemically bonded groups, such as -SH [15,16,17], -COOH [14,17], and -NH2 [4,10,12,19,20,21,22,23,24]. In particular, the effect of amine functionalization of SBA-15 and SBA-16 has been extensively studied for removal of metal ions from various sources [12,19,20,21,22,23,24,27,28,29,30,31,32,33,34,35,36], or controlled drug release [25,26,37] because of easy accommodation of the aminopropyl groups in the ordered pore structure of SBA-15 adsorbent and the efficient van der Waals electrostatic interaction of amino groups with Pb2+ upon optimized adsorption conditions, as it was confirmed by us previously [12].
In order to improve the efficiency of the adsorption process, we investigated the adsorption capacity of SBA-16 substrate, scarcely employed for heavy ions removal [31,32,33,34,35,36]. The SBA-16 substrate exhibits an interesting three-dimensional cubic-like (Im3m) structure with interconnected micro-and mesopores, large surface area, and adequate pore diameter for the accommodation of the guest molecules [38]. Recently, the potential application of SBA-16 material synthesized from rice husk ash as an adsorbent for acetone vapors was investigated by Zeng and Bai [32]. It was found that SBA-16 exhibited superior adsorption capacity than ZSM-5 and MCM-41. This was ascribed to their higher specific surface area, which provides more adsorption sites for adsorption of acetone vapors, and the presence of micropores [32]. Lesaint et al. [35] used SBA-15- and SBA-16 mesoporous silica functionalized with mercaptopropyl groups as adsorbents for Hg2+ ions removal from aqueous solution. For both types of adsorbents, the evaluation of the diffusion rates of Hg2+ species in the mesoporous solids showed faster binding rates for the adsorbents functionalized by post-synthesis grafting than for their counterparts prepared by the one-step co-condensation route [35]. β-diketone functionalized SBA-15 and SBA-16 mesoporous materials were successfully used for the removal of copper from aqueous solution by Ouargli et al. [27]. Their SBA-16-based adsorbent exhibited a larger copper extraction capacity than its SBA-15-based counterpart.
This work aims to study the adsorption capacity of SBA-16 functionalized with variable amounts of amine groups. Considering that lead is one of the most toxic pollutants released into aquatic systems from many industrial processes [12], the adsorption capacity of amine-functionalized SBA-16 adsorbents was investigated for the removal of Pb2+ ions from aqueous solution. In order to optimize adsorption conditions, the adsorption experiments were conducted at varying adsorbent and ligand ratio (TEOS/APTES ratio), contact time, pH, initial Pb2+ concentration, and temperature. The physicochemical characteristics of the amine-modified SBA-16 adsorbents before and after Pb2+ adsorption were investigated by elemental analysis, thermal analysis, N2 adsorption-desorption isotherms, Fourier-transform infrared spectroscopy, DRS UV-vis, and XPS techniques. The influence of the adsorbent morphology on the adsorbent capacity is discussed.

2. Materials and Methods

2.1. Preparation of the Pure SBA-16

The SBA-16 substrate was synthesized according to the method described previously [22,23]. In the synthesis, 8 g of the triblock Pluronic F127 copolymer (EO106PO70EO106, Sigma-Aldrich, 99%) was dissolved in a solution of 60 mL of deionized water and 240 mL of 2M HCl. After 1 h of stirring, 26 mL of tetraethyl orthosilicate (TEOS, Aldrich, 98%) was added to the water-copolymer solution. This mixture was further stirred for 24 h at a constant temperature of 35 °C. The obtained suspension was transferred into a tightly closed polypropylene bottle and kept at 80 °C for 24 h without stirring. The precipitated solid was filtered and washed thoroughly with deionized water. After drying in air at 110 °C, the solid was calcined at 500 °C for 6 h to remove the organic template.

2.2. Functionalization of the SBA-16 with APTES

The SBA-16 mesoporous silica functionalized with 3-aminopropyltriethoxysilane (APTES, Aldrich, 97%) was prepared according to the procedure described in an earlier contribution [1]. Briefly, 1.0 g of dry SBA-16 was introduced into APTES-ethanol solution containing different amounts of APTES while continuously stirring. The molar ratio of TEOS to APTES was 1:0.2, 1:0.3 and 1:0.4, hereinafter called 2.6N/SBA-16, 3.8N/SBA-16, and 5.1N/SBA-16. Then, the liquid suspension was stirred at room temperature in an inert atmosphere for 30 min, whereas deionized water was slowly added to conduct the hydrolysis process of the organic functional group alkoxide from APTES. Then, the solid was dried overnight at room temperature followed by heating at 110 °C for 24 h. The SBA-16 mesoporous materials modified with amine groups will be referred to hereafter as xN/SBA-16, where x corresponds to the N content in the amine-functionalized adsorbents.

2.3. Characterization Techniques

Quantitative determination of the nitrogen content was measured by elemental microanalysis on a elementar Analysensysteme GmbH-vario EL III Element Analyzer (Langenselbold, Germany). The textural properties of the adsorbents were evaluated using a Micromeritics TriStar 3000 apparatus (Micromeritics, Norcross, GA, USA) from the nitrogen adsorption-desorption isotherms recorded at −196 °C. Before the measurement, the samples were degassed at 150 °C for 24 h under a vacuum (10−4 mbar). Their specific total surface area was calculated using the Brunauer-Emmett-Teller (BET) method [24]. The pore size distribution was calculated from the adsorption branch of the N2 isotherm using the BJH method. The total pore volume (Vtotal) was calculated from the amount of nitrogen adsorbed at a relative pressure of 0.99 [25].
X-ray diffraction (XRD) patterns of the powder samples were carried out using the Cu Kα radiation with a wavelength of 1.5406 Å in the range: 0.5–3 (low-angle) on a PANalytical diffractometer (Almelo, The Netherlands). The unit cell parameter (ao) was calculated using Equation (1):
ao = d110√2
where d110 is the position of the (110) diffraction line (from low-angle XRD). The pore-wall thickness (wt), which corresponds to the distance between the centers of adjacent mesopores, was estimated using the Equation (2) [26]:
wt = (ao√3/2) − dp
where dp is the mean pore diameter.
Fourier transform-IR (FT-IR) spectra of the framework vibration (400–1800 cm−1 range) were recorded on a JASCO FT/IR-6300 spectrophotometer (JASCO, Easton, WA, USA) using the potassium bromide pellet method. The stability of the aminopropyl groups was determined by thermogravimetric analysis (Model TGA 2950, TA Inc, New Castle, USA) by weight loss of the samples during their heating in an atmosphere of nitrogen (a heating rate of 5 °C·min−1). The materials after lead adsorption were analyzed by UV-vis diffuse reflectance spectra at room temperature on a CARY 5000 UV-Vis-NIR VARIAN instrument (Varian, Santa Clara, CA, USA). X-ray photoelectron spectroscopic studies of the adsorbents were recorded on a VG Escalab 200R spectrometer (Vacuum Generators, Crowborough, UK) equipped with a hemispherical electron analyzer (Vacuum Generators, Crowborough, UK), using an MgKα (hν = 1253.6 eV, 1 eV = 1.603 × 10−19 J) X-ray source. The details of the XPS measurements are reported elsewhere [1].

2.4. Adsorption Experiments

The Pb2+ adsorption on the SBA-16 and xN/SBA-16 adsorbents was carried out in a batch reactor (Facultad de Ingeniería, Universidad Autónoma de Querétaro, Querétaro, Mexico) using deionized water in all experiments. The various parameters investigated for Pb2+ adsorption were: contact time (20–120 min, with ranges of 20 min), reaction temperature (30, 35, and 40 °C), and pH of solution (the pH value was adjusted using HNO3 or NaOH 0.1 M). Lead solutions were obtained from lead nitrate (Baker, 99.92%). In a typical run, 0.1 g of adsorbent and 20 mL of 200 mg L−1 of lead solution were placed in a shaker (Thermo Scientific, Waltham, MA, USA) at 150 rpm for 1 h (pH = 5) at room temperature. After this period of stirring, the suspension was centrifuged at 2500 rpm for 5 min, and finally, the adsorbents were recovered from through filtration. Inductively coupled plasma atomic emission spectroscopy (ICP-AES) was employed to determine the initial and final lead concentrations with a Perkin Elmer Optima 3300 DV spectrometer (Perkin Elmer, Waltham, MA, USA) calibrated with 0–10 mg L−1 stock solutions. The emission line used was in accordance with the Environmental Protection Agency (EPA) standard method [27]. For each equilibrium point, the amount of adsorbed Pb2+ was determined by the difference between initial and final metal concentrations in the solution. Replica experiments indicated that associated error was within ± 3%. The percentage of adsorbed Pb2+ was calculated according to Equation (3):
% Pb(II) adsorbed = [(Ci − Cf)/Ci] × 100%
where Ci and Cf are the initial and final Pb(II) ions concentration in the solution, respectively.
The adsorption capacity of Pb2+ per unit weight of the modified adsorbent at time t, (Qt; mg g−1), was calculated from the mass balance in Equation (4):
Qt = (Ci − Cf) × V/m
where Ci (mg L−1) and Cf (mg L−1) are the initial and final concentrations of Pb2+ at time t, respectively, V is the volume of the aqueous solution, and m is the mass of adsorbent.

3. Results and Discussion

3.1. Chemical Analysis and Low-Angle X-ray Diffractions

The nitrogen content of the amine-functionalized adsorbates is listed in Table 1. As expected, the nitrogen content increases with an increase of TEOS/APTES ratio. The SBA-16 substrate exhibits interesting morphology consisting of the three-dimensional channel systems corresponding to Im3m space group symmetry and uniform cage-like mesopores with a cubic symmetry [22]. Its 3D structure consisting of ordered and interconnected spherical mesopores makes it easily accessible for Pb(II) ions. The reaction of silanol groups of calcined SBA-16 substrate with ethoxysilanes resulted in the anchorage of aminopropyl functional groups.
The possible structure changes after SBA-16 grafting with -NH2 groups was investigated by powder low-angle XRD technique (Figure 1). The XRD pattern of the calcined SBA-16 shows reflections at 2θ = 0.88°, 1.22°, and 1.50° indexed as [110], [200], and [211]. All these peaks are associated with the cubic symmetry (Im3m) of cage-structured mesoporous SBA-16 silica material. Contrary to the bare SBA-16 substrate, the low-angle XRD patterns of the xN/SBA-16 samples did not show higher Miller indices reflections ([200] and [211] for characteristic cubic Im3m spatial groups) suggesting that functionalization of SBA-16 substrate leads to a structure with minor pore arrangement and a major presence of nitrogen molecules [28].
However, a transmission electron micrograph (TEM) image of the representative 3.8N/SBA-16 sample showed a well-ordered Im3m cubic array of mesopores (Figure 2). Therefore, it can be inferred that the mesoporous structure of SBA-16 adsorbent did not suffer significant modification after its functionalization with amine groups. For 5.1N/SBA-16, the low intensity of its peak at reflection [110] is linked with a high wall thickness/pore size ratio (Table 1) that originated from a large number of micropores located near the wall surface the pore walls [29].
To determine both structure and symmetry of the synthesized samples, the cubic unit cell parameters and the wall thickness were calculated using XRD data and Equations (1) and (2), respectively (Table 2). The cubic unit cell parameter (a0) of all samples was found to be in the range 13.91–14.19 nm, confirming their Im3m structure [30]. Both 2.6N/SBA-16 and 3.8N/SBA-16 samples show smaller cubic unit cell parameters than the bare SBA-16 sample indicating the possible location of amine groups within the porous structure of the SBA-16 substrate. The higher thermal and hydrothermal stability with respect to the bare SBA-16 substrate could be inferred [31]. Noticeably, the functionalization of SBA-16 material with an optimized amount of amine groups did not change the wall thickness (3.8N/SBA-16). On the contrary, an increase of the pore wall thickness observed for the 5.1N/SBA-16 is probably due to the location of the amine group within the pores in addition to the external surface, in good agreement with a large decrease of the specific surface area calculated using Brunauer-Emmett-Teller (BET) equation.

3.2. Textural Properties

Further insight into the textural properties of the samples was evaluated by N2 adsorption-desorption isotherms. To illustrate this, Figure 3a shows the N2 isotherms of bare SBA-16, and amino-functionalized materials. Irreversible type IV isotherms with type an H2 hysteresis loop was observed in all amino-functionalized and bare SBA-16 material. Type H2 hysteresis loop in the range from 0.4 to 0.6 P/P0 is distinctive from materials with pores with diameters between 3–6 nm [32,33], a structural porosity that can be detected because of the characteristic networking pore model from the SBA-16 material. The hysteresis loop observed at high relative pressures corresponds to the textural porosity due to the voids formed between particles during the analysis. These results are typical of materials with cubic pores and pore network connectivity like SBA-16 and reveal that the mesoporous nature of the material is preserved even though the grafting has occurred, as shown in samples 2.6N/SBA-16, 3.8N/SBA-16 and 5.1N/SBA-16. At approximately P/P0 ≈ 0.4, an explicit change is present, and it is related to capillary condensation that fills the mesopores. When the substrate is functionalized with (-NH2), there is an increase of the volume of adsorbed nitrogen, and the inflection point of the step shifted only slightly from relative pressure of 0.4 to 0.41. The minimum value of adsorbed nitrogen suggests the modification in the pores with amine groups, while the slight relative pressure shift of the step is indicative of mesopore sizes, a key requirement to be an efficient adsorbent.
The pore size distributions of bare SBA-16 and xN/SBA-16 substrates are displayed in Figure 3b. Bare SBA-16 and xN/SBA-16 samples showed a uniform and narrow pore size distributions centered at about 3.4 nm, demonstrating that the incorporation of APTES to the SBA-16 does not alter the cubic structure of the raw SBA-16 substrate. Table 1 compiles the values of some textural parameters (BET area, mesopore volume, and pore diameter) for the bare SBA-16 sample and their NH2-modified counterparts. As expected, the BET area and the mesoporous volume strongly decreased after modification according to the sequence SBA-16 (650 m2/g) >> 2.6N/SBA-16 (507 m2/g) > 3.8N/SBA-16 (500 m2/g) > 5.1N/SBA-16 (494 m2/g), suggesting that the grafted species appear concentrated not only on the external surface but also within the mesopore network of the SBA-16 substrate. Interestingly, regardless of APTES concentration, all amine-modified samples exhibit very similar specific surface area (in the range 494–507 m2/g). It is known that the SBA-16 possesses micropores located within the walls of primary mesopores forming a three-dimensional channel system with a connection between the mesopores [34]. The micropores are formed during the synthesis of SBA-16 due to the penetration of more hydrophilic EO chains of the tri-block copolymer in the silica wall [35,36]. Thus, the large loss of total pore volume after SBA-16 modification with APTES should also be explained in terms of blocking micropores by large ligand groups.

3.3. FTIR of Framework Vibration

Direct probe on the functionalization of SBA-16 surface by -NH2 groups were obtained from the FTIR spectra of framework vibrations of xN/SBA-16 samples. In Figure 4 are compared the FTIR-KBr spectra of the 2.6N/SBA-16, 3.8N/SBA-16 and 5.1N/SBA-16 samples with those of bare SBA-16 material used as a reference. The spectra show the absorption bands assigned to the structure sensitive vibrations between (SiO4) tetrahedra at about 800 and 1078 cm−1, as well as the structure insensitive vibrations assigned to the (SiO4) tetrahedra at about 458 and 1238 cm−1 [37]. For the pure SBA-16, the band at 1078 cm−1 exhibits a shoulder at about 970 cm−1, which is due to the Si-O-H stretching vibration of Si-O-R+ groups [38]. For the xN/SBA-16, the absence of this shoulder should be taken as indirect evidence of the functionalization of the SBA-16 substrate with amine groups. The direct evidence of the N-H bending mode vibration should be obtained from the peak at about 1646 cm−1 as well as from a shoulder at about 578 cm−1. Finally, the peak at about 1546 cm−1, could be ascribed to the symmetrical–NH3+ bending vibration.
More information should be obtained by analyzing a very broad band in the wavenumber range 3000–4000 cm−1. For the xN/SBA-16 samples, the N−H stretching vibration is expected to occur at about 3300 cm−1 [39]. Unfortunately, in the same region, all the samples exhibit bands due to silanol groups (ca. 3750 cm−1) and adsorbed molecular or hydrogen-bonded molecules (ca. 3630 cm−1) [40,41]. As seen in Figure 4, for the amine-modified samples, the band in this region is much broader than for the bare SBA-16. The widening of this band should be originated by the symmetric stretching vibration of N−H groups in the terminal amine groups cross-linked with the -SiOH groups [41].

3.4. Thermogravimetry (TG)

Figure 5 displays the weight loss of the samples during thermal treatment of the adsorbents in an atmosphere of nitrogen, as determined by thermogravimetry. The thermogravimetric profiles indicate a significant weight loss, which occurs just at very low temperatures. The total weight loss is approximately 10.5wt.% from room temperature to 600 °C. It shows a first inflection point at 45 °C corresponding to dehydration of the SBA-16 material. A major weight loss, at about 250 °C, can be attributed to surface dihydroxylation or structural rearrangement of the aminopropyl groups [42]. Considering that pure SBA-16 material did not exhibit the weight loss above 300 °C, the weight loss observed in the temperature range 300–600 °C is due to the decomposition of aminopropyl groups of the xN/SBA-16 solids [42]. The thermogravimetric analysis corroborates the successful modification of the SBA-16 with APTES. In good agreement with the literature [42], the aminopropyl groups start to decompose at a temperature of 27 °C, higher than the boiling point of APTES liquid, indicating the chemical bonding of 3-aminopropylsilane with –OH groups of the SBA-16 material.

3.5. DRS UV-Vis

Next to the lead adsorption with initial Pb2+ concentrations of 200 and 400 ppm, UV-Vis spectra were recorded to exhibit the changes on the 3.8N/SBA-16 material. Figure 6 shows only a little larger lead absorption occurring at higher Pb2+ ion concentration in solution (400 mg L−1). The scheme of Pb2+ ions complexation with the amino group of 3.8N/SBA-16 is shown in the inlet of Figure 6. It is assumed that van der Waals electrostatic interaction is taken place at the amino groups in the surface of the adsorbent with the Pb2+ ions, explaining its mechanism of adsorption [1]. The absorption spectra of all adsorbents display two bands: an intense band appears at 210 nm, and a less intense band is observed at ca. 310 nm [43]. These transitions contain both ligand-to-metal charge transfer (N 2p → Pb 6sp) and intraatomic (Pb 6s2 → Pb 6sp) character (for Pb in Oh: a*1g2 → a*1g1t*1u1) [44]. Both absorption bands can be used to gain qualitative information about the affinity of Pb2+ for the amine groups of the xN/SBA-16 adsorbents.

3.6. X-ray Photoelectron Spectroscopy

To clarify the type of Pb species formed on the surface of the amine-functionalized SBA-16 after Pb2+ ion adsorption, the most optimized 3.8N/SBA-16 sample was also studied by the XPS technique. Table 3 lists the binding energies of Si 2p, O 1s, N 1s and Pb 4f7/2 core electrons of 3.8N/SBA-16 sample, whereas Figure 7a,b shows its N 1s and Pb 4f7/2 core-level spectra, respectively. For comparison purposes, some XPS data of the SBA-15-based counterpart [1] are included in Table 3. In good agreement with our previous study [1], the 3.8N/SBA-16 sample shows the O 1s peak at about 532.9 eV which is characteristic of oxygen in Si–O–Si bonds together with two peaks (Pb4f7/2 and Pb4f5/2) derived from spin-orbit splitting (Figure 7b). The binding energy of the Pb 4f7/2 core level appeared at 139.0 eV and 139.2 eV. According to the literature [45], the Pb 4f binding energies are stronger than the energies corresponding to the orthorhombic PbO compound (137.4 eV), and it is similar to those reported for Pb(NO3)2 (138.6 eV). There is no evidence that implies precipitation of Pb occurs as hydroxides or carbonates throughout the adsorption process with the XPS results. Finally, -NH2 bonds are attributed to the binding energy at 400.1 eV, while positively charged -NH3+ groups are identified at binding energies of 402.0 eV [46]. Thus, both -NH2 and protonated NH3+ species seem to be present previous to and afterward Pb2+ adsorption. -NH2 groups are predominant in the material, and these can be coordinated with Pb2+ ions through the pair of free electrons. Noticeably, the nitrogen atoms exposed in the surface for the 3.8N/SBA-16 was much lower than for its SBA-15-based counterpart prepared with the same TEOS/APTES molar ratio of 3.3 (N/Si ratio of 0.071 vs. 0.109). Besides this, both adsorbents exhibited a similar Pb/N atomic ratio (0.133 vs. 0.139), suggesting a similar surface exposure of the Pb2+.

3.7. Adsorption Experiments

Figure 8 shows the percentage of Pb2+ ions adsorption onto xN/SBA-16 adsorbents functionalized with variable amounts of aminopropyl groups and pure silica SBA-16. The adsorption was performed at pH = 5.0, temperature 30 °C, and contact time of 60 min. As seen in this Figure, the adsorption of Pb2+ did not occur on the pure silica SBA-16. On the contrary, all amine-functionalized SBA-16 materials were good adsorbents for Pb2+ removal. The adsorption of Pb2+ increased with an increase of the TEOS/APTES molar ratio up to 3.3. At this point, the maximum percentage of the removal of the Pb2+ ions from the solution was about 99% (3.8N/SBA-16). At higher -NH2 concentration, a drop in the Pb2+ removal percentage occurs (5.1N/SBA-16). Thus, in good agreement with the previous study on the SBA-15-based adsorbents [1], the best results were obtained using a TEOS/APTES molar ratio 3.3. This is probably because a large amount of APTES molecules with aminopropyl chain shielding close to silanol groups limits the entrance of Pb2+ ions into the inner porous structure of the SBA-16 substrate [47]. However, considering the nitrogen content determined by elemental microanalysis (Table 1), the Pb/N atomic ratio follows the trend: 2.6N/SBA-16 > 3.8N/SBA-16 > 5.1N/SBA-16. Taking into account that the same trend follows their specific surface area, one might conclude that both functionalization and textural properties of the adsorbent are important factors influencing the adsorption efficiency.
For the most optimized adsorbent 3.8N/SBA-16, a series of experiments were conducted to determine the optimum contact time, pH, adsorption temperature, and the initial lead concentration in the solution. The influence of temperature on the Pb2+ ions adsorption onto the 3.8N/SBA-16 sample is shown in Figure 9a. The adsorption was performed in the temperature range of 30–40 °C. As seen in this figure, the percentage of the Pb2+ removal in the temperature range studied was very high: 99.5% at 30 °C and 100% at 40 °C, suggesting that the adsorption process is endothermic. Because of the easy mobility of the molecules at 30 °C, this temperature was selected for further experiments.
The effect of contact time on the adsorption capacity of the 3.8N/SBA-16 sample is shown in Figure 9b. The initial concentration of Pb2+ ions in aqueous solution was 200 mg L−1. As seen in Figure 9b, the initial rate of Pb2+ adsorption on the 3.8N/SBA-16 was fast, and equilibrium was reached after 40 min with total Pb2+ removal. Thus, the contact time of 60 min was chosen to perform further adsorption experiments. The comparison of the percentage of Pb2+ removal after a contact time of 120 min indicated a larger adsorption capacity of the 3.8N/SBA-16 sample with respect to its SBA-15-based counterpart [1] (99.8% vs. 91.5%). The fast adsorption of Pb2+ ions during the first 40 min strongly suggests the uniform distribution of-NH2 groups on the surface of SBA-16 adsorbent.
The effect of variation of pH of solution on the capacity of Pb2+ adsorption on the most optimized adsorbent is shown in Figure 9c. In good agreement with a study on SBA-15-based adsorbent [1], the highest adsorption of Pb2+ was achieved at pH > 3. An increase of pH from 3 to 5 led to an increase of Pb2+ adsorption from 25.0 to 99.6wt.%. This result indicates that pH = 5 is the most appropriate to increase the extent of adsorption. This behavior may be likely related to the competitive adsorption of Pb2+, and H3O+ ions on the NH2-modified SBA-16 surface. At low pH, the number of H3O+ exceeds that of the Pb2+ ions being the surface of the adsorbent covered mainly by H3O+ ions leading to a lower extent of Pb2+ adsorption. When pH increases, more and more H3O+ ions leave the adsorbent’s surface, making the sites available to the Pb2+ adsorption [38].
Finally, the effect of initial lead concentration was evaluated (Figure 9d). Initial Pb2+ concentration was adjusted in the ranges of 100–600 mg L−1. As seen in Figure 9d, at a moderate initial lead concentration of 105 and 208 ppm, the adsorption of Pb2+ is high (95.1% and 99.5%, respectively). As expected, an increase in lead concentration from 200 to 600 ppm led to a drastic decrease in adsorption capacity. Assuming that the mechanism of lead adsorption on the siliceous adsorbents modified with -NH2 groups is probably through van der Waals electrostatic interaction of Pb2+ ions with surface -NH2 groups [1], at a higher initial lead concentration (>300 ppm), more Pb2+ was left in solution because lead in solution is much higher than the amount required to saturate the binding site.
Summarizing, the SBA-16 functionalized with an optimized amount of aminopropyl groups demonstrated to be more efficient adsorbent than its SBA-15-based counterpart (Figure 8). The highest sorption capacity was achieved with the 3.3 TEOS/APTES molar ratio adsorbent due to its large specific surface area and unlimited accessibility for Pb2+ ions to -NH2 groups. The SBA-16-based adsorbents were stable until the temperature of 250 °C. The optimum pH value for removal of Pb2+ ions from aqueous solution was found to be in the range 5 to 6. The equilibrium for lead adsorption was reached at about 40 min.
The comparison of the adsorption capacity of the 3.8N/SBA-16 studied in this work with that reported previously for the SBA-15-based counterpart [1] strongly suggests a larger adsorption capacity of the former with respect to the latter (39.8 and 36.4 mg of Pb2+ per g of adsorbent, respectively). The abilities of both adsorbents appeared to be closely related to their pore structure, pore density and the amount of the grafted amine groups. Indeed, because of the much larger amount of organoalkoxysilane precursor, the SBA-15 functionalized with (3-aminopropyl) trimethoxysilane exhibited a larger adsorption capacity [16] than SBA-15 functionalized with (3-aminopropyl) triethoxysilane (APTES) [1] (90 mg g−1 vs. 39.8 mg g−1). This could be explained in terms of the cage-like structure and two-times smaller pore diameter of SBA-16 with respect to SBA-15 counterpart. In such a case, additional Pb2+ ion trapping might well occur within the inner pore structure of SBA-16. Moreover, the easier accessibility of Pb2+ ions to amine groups as well as the steric difficulty for their leaving out from the cubic-structure smaller pores of SBA-16 adsorbent might explain the enhancement of its sorption capacity.

4. Conclusions

This work demonstrated that ordered SBA-16 mesoporous silica material grafted with an optimized amount of amine-functional groups is extremely effective in the removal of lead ions from aqueous solutions.
The highest sorption capacity was achieved with the 3.3 TEOS/APTES molar ratio adsorbent. The cage-like structure of amine-modified SBA-16 demonstrated to be more effective for Pb2+ elimination from the aqueous solution than the two-dimensional channel system of amine-modified SBA-15. The amine-free SBA-16 adsorbent did not show Pb2+ ions adsorption at all. In the case of the SBA-16-based adsorbents, the easier accessibility of Pb2+ ions to amine groups as well as the steric difficulty for their leaving out from the cubic-structure smaller pores might explain the enhancement of its sorption capacity. Although this research was developed to study the adsorption capacity of the material to remove Pb (II) ions on ideal aqueous solutions, it is intended to prove its efficiency on real samples in future work, so the interference of more ions and organic materials could be assessed.

Author Contributions

Resources, E.M.R.-M. and R.N.; Validation, V.H.-M., C.L.P.-L. and B.P.; Supervision, E.M.R.-M. and R.N.; Formal analysis, V.H.-M. and A.M.-M.; Investigation, A.M.-M. and V.P.-B.; Writing and editing, V.P.-B. and R.N. All authors have read and agreed to the published version of the manuscript.

Funding

Financial support by FOFI UAQ-2018 is gratefully acknowledged. V. Palos-Barba and A. Moreno-Martell thank the CONACyT for the scholarships.

Acknowledgments

The authors would like to express their gratitude to R. Gómez Farías (CINVESTAV, QRO.) for performing FT-IR analysis and B. Millán Malo for the technical support with XRD analysis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Morales, V.H.; Nava, R.; Silva, Y.J.A.; Sánchez, S.A.M.; Bueno, J.L.P.; Pawelec, B. Adsorption of Lead (II) on SBA 15 Mesoporous Molecular Sieve Functionalized with -NH2 Groups. Microporoporous Mesoporous Mater. 2012, 160, 133–142. [Google Scholar] [CrossRef]
  2. Vu, D.-H.; Bui, H.-B.; Bui, X.-N.; An-Nguyen, D.; Le, Q.-T.; Do, N.-H.; Nguyen, H. A novel Approach in Adsorption of Heavy Metal Ions from Aqueous Solution Using Synthesized MCM-41 from Coal Bottom Ash. Int. J. Environ. Anal. Chem. 2019, 1–19. [Google Scholar] [CrossRef]
  3. Hong, M.; Yu, L.; Wang, Y.; Zhang, J.; Chen, Z.; Dong, L.; Zan, Q.; Li, R. Heavy Metal Adsorption with Zeolites: The Role of Hierarchical Pore Architecture. Chem. Eng. J. 2019, 359, 363–372. [Google Scholar] [CrossRef]
  4. Anirudhan, T.; Divya, L.; Ramachandran, M. Mercury (II) Removal from Aqueous Solutions and Wastewaters Using a Novel Cation Exchanger Derived from Coconut Coir Pith and Its Recovery. J. Hazard. Mater. 2008, 157, 620–627. [Google Scholar] [CrossRef] [PubMed]
  5. Sahoo, J.K.; Kumar, A.; Rout, L.; Rath, J.; Dash, P.; Sahoo, H. An Investigation of Heavy Metal Adsorption by Hexa Dentate Ligand Modified Magnetic Nanocomposites. Sep. Sci. Technol. 2018, 53, 863–876. [Google Scholar] [CrossRef]
  6. Mahmood-Ul-Hassan, M.; Suthar, V.; Ahmad, R.; Yousra, M. Biosorption of Metal Ions on Lignocellulosic Materials: Batch and Continuous-Flow Process Studies. Environ. Monit. Assess. 2018, 190, 287. [Google Scholar] [CrossRef]
  7. Swarnalatha, K.; Ayoob, S. Adsorption Studies on Coir Pith for Heavy Metal Removal. Int. J. Sustain. Eng. 2016, 9, 1–7. [Google Scholar] [CrossRef]
  8. Todorciuc, T.; Bulgariu, L.; Popa, V. Adsorption of Cu (II) from Aqueous Solution on Wheat Straw Lignin: Equilibrium and Kinetic Studies. Cell Chem. Technol. 2015, 49, 439–447. [Google Scholar]
  9. Šćiban, M.; Klasnja, M.; Skrbic, B. Modified Softwood Sawdust As Adsorbent of Heavy Metal Ions from Water. J. Hazard. Mater. 2006, 136, 266–271. [Google Scholar] [CrossRef]
  10. Bernard, E.; Jimoh, A. Adsorption of Pb, Fe, Cu, and Zn from Industrial Electroplating Wastewater by Orange Peel Activated Carbon. Int. J. Eng. Appl. Sci. 2013, 4, 95–103. [Google Scholar]
  11. Abdallah, B.; Baudu, M.; Derriche, Z.; Basly, J. Aqueous Heavy Metals Removal on Amine-Functionalized Si-MCM-41 and Si-MCM-48. J. Hazard. Mater. 2009, 171, 1001–1008. [Google Scholar]
  12. Liu, A.M.; Hidajat, K.; Kawi, S.; Zhao, D.Y. A New Class of Hybrid Mesoporous Materials with Functionalized Organic Monolayers for Selective Adsorption of Heavy Metal Ions. Chem. Commun. 2000, 13, 1145–1146. [Google Scholar] [CrossRef]
  13. Kang, T.; Park, Y.; Yi, J. Highly Selective Adsorption of Pt2+ and Pd2+ Using Thiol Functionalized Mesoporous Silica. Ind. Eng. Chem. Res. 2004, 43, 1478–1484. [Google Scholar] [CrossRef]
  14. Nooney, R.I.; Kalyanaraman, M.; Kennedy, G.; Maginn, E.J. Heavy Metal Remediation Using Functionalized Mesoporous Silicas with Controlled Macrostructure. Langmuir 2001, 17, 528–533. [Google Scholar] [CrossRef]
  15. Bruzzoniti, M.C.; Prelle, A.; Sarzanini, C.; Onida, B.; Fiorilli, S.; Garrone, E. Retention of Heavy Metals Ion on SBA 15 Mesoporous Silica Functionalized with Carboxylic Groups. J. Sep. Sci. 2007, 30, 2414–2420. [Google Scholar] [CrossRef]
  16. Aguado, J.; Arsuaga, J.M.; Arencibia, A.; Lindo, M.; Gascón, V. Aqueous Heavy Metals Removal by Adsorption on Amine-Functionalized Mesoporous Silica. J. Hazard. Mater. 2009, 163, 213–221. [Google Scholar] [CrossRef]
  17. Yang, H.; Xu, R.; Xue, X.; Li, F.; Li, G. Hybrid Surfactant-Templated Mesoporous Silica Formed in Ethanol and Its Application for Heavy Metal Removal. J. Hazard. Mater. 2008, 152, 690–698. [Google Scholar] [CrossRef]
  18. Giraldo, L.; Moreno-Piraján, J.C. Study on the Adsorption of Heavy Metal Ions from Aqueous Solution on Modified SBA-15. Mater. Res. 2013, 16, 745–754. [Google Scholar] [CrossRef] [Green Version]
  19. Da’Na, E.; Sayari, A. Adsorption of Heavy Metals on Amine-Functionalized SBA-15 Prepared by Co-Condensation: Applications to Real Water Samples. Desalination 2012, 285, 62–67. [Google Scholar] [CrossRef]
  20. Cheraghali, R.; Tavakoli, H.; Sepehrian, H. Preparation, Characterization and Lead Soption Performance of Aliginate SBA 15 Composite as a Novel Adsorbent. Scientia Iranica. F 2013, 20, 1028–1034. [Google Scholar]
  21. Yang, Y.; Wang, D. The Synthesis of Novel thiol/Amino Bifunctionalized SBA-15 and Application on the Cr (VI) Absorption. IOP Conf. Series: Earth Environ. Sci. 2017, 82, 12074. [Google Scholar] [CrossRef] [Green Version]
  22. Flodström, K.; Alfredsson, V. Influence of the Block Length of Triblock Copolymers on the Formation of Mesoporous Silica. Microporous Mesoporous Mater. 2003, 59, 167–176. [Google Scholar] [CrossRef]
  23. Huirache Acuña, R.; Pawelec, B.; Muñoz, E.; Nava, R.; Espino, J.; Fierro, J.L.G. Comparison of the Morphology and HDS Activity of Ternary Co Mo W Catalysts Supported on P Modified SBA 15 and SBA 16 Substrates. Appl. Catal. B Environ. 2009, 92, 168–184. [Google Scholar] [CrossRef]
  24. Brunauer, S.; Emmett, P.H.; Teller, E. Adsorption of Gases in Multimolecular Layers. J. Am. Chem. Soc. 1938, 60, 309–319. [Google Scholar] [CrossRef]
  25. Rouquerol, J.; Rouquerol, F.; Llewellyn, P.L.; Maurin, G.; Sing, K. Adsorption by Powders and Porous Solids. Principles, Methodology and Applications, 2nd ed.; Academic Press: London, UK,, 2013. [Google Scholar]
  26. Grudzien, R.M.; Grabicka, B.E.; Jaroniec, M. Adsorption and Structural Properties of Channel-Like and Cage-Like Organosilicas. Adsorption 2006, 12, 293–308. [Google Scholar] [CrossRef]
  27. Boss, C.B.; Fredeen, K.J. Inductively Coupled Plasma Atomic Emission Spectrometry; Methods for geochemical analysis; The Perkin-Elmer Corporation: Norwalk, CT, USA, 1989. [Google Scholar]
  28. Gallo, J.M.R.; Bisio, C.; Marchese, L.; Pastore, H.O. Surface Acidity of Novel Mesostructurated Silicas with Framework Aluminium Obtained by SBA 16 Related Synthesis. Micropor. Mesopor. Mater. 2008, 111, 632–635. [Google Scholar] [CrossRef]
  29. Sauer, J.; Marlow, F.; Schuth, F. Simulation of Powder Diffraction Patterns of Modified Ordered Mesoporous Materials. Phys. Chem. Chem. Phys. 2001, 3, 5579–5584. [Google Scholar] [CrossRef]
  30. Bottazzi, G.S.B.; Nartínez, M.L.; Costa, M.B.G.; Anunziata, O.A.; Beltramone, A.R. Inhibition of the Hydrogenation of Tetralin by Nitrogen and Sulfur Compounds over Ir/SBA 16. Appl. Catal. A: Gen. 2011, 404, 30–38. [Google Scholar] [CrossRef]
  31. Cheng, C.-F.; Lin, Y.-C.; Cheng, H.-H.; Chen, Y.-C. The Effect and Model of Silica Concentrations on Physical Properties and Particle Sizes of Three-Dimensional SBA-16 Nanoporous Materials. Chem. Phys. Lett. 2003, 382, 496–501. [Google Scholar] [CrossRef]
  32. Walcarius, A.; Etienne, M.; Bessiere, J. Rate of Acess to the Binding Sites in Organically Modified Silicates. Amorphous Silica Gels Grafted with Amine or Thiol Groups. Chem. Mater. 2002, 14, 2757–2766. [Google Scholar] [CrossRef]
  33. Ravikovitch, P.I.; Neimark, A.V. Experimental Confirmation of Different Mechanisms of Evaporation from Ink-Bottle Type Pores: Equilibrium, Pore Blocking, and Cavitation. Langmuir 2002, 18, 9830–9837. [Google Scholar] [CrossRef]
  34. Zhao, D.; Huo, Q.; Feng, J.; Chmelka, B.F.; Stucky, G.D. Nonionic Triblock and Star Diblock Copolymer and Oligomeric Surfactant Syntheses of Highly Ordered, Hydrothermally Stable, Mesoporous Silica Structures. J. Am. Chem. Soc. 1998, 120, 6024–6036. [Google Scholar] [CrossRef]
  35. Boutros, M.; Onfroy, T.; Da Costa, P. Mesostructured or Alumina-Mesostructured Silica SBA-16 As Potential Support for NOx Reduction and Ethanol Oxidation. Catal. Lett. 2010, 139, 50–55. [Google Scholar] [CrossRef]
  36. Stevens, W.J.J.; Lebeau, K.; Mertens, M.; Van Tendeloo, G.; Cool, P.; VanSant, E.F. Investigation of the Morphology of the Mesoporous SBA-16 and SBA-15 Materials. J. Phys. Chem. B 2006, 110, 9183–9187. [Google Scholar] [CrossRef] [PubMed]
  37. Pawelec, B. HDS of Dibenzothiophene over Polyphosphates Supported on Mesoporous Silica. J. Catal. 2004, 223, 86–97. [Google Scholar] [CrossRef]
  38. Decottiguies, M.; Phalippou, J.; Zarzycki, J. Synthesis of Glasses by Hot Pressing of Gels. J. Mater. Sci. 1978, 13, 2605–2618. [Google Scholar] [CrossRef]
  39. White, L.; Tripp, C. Reaction of (3-Aminopropyl) dimethylethoxysilane with Amine Catalysts on Silica Surfaces. J. Colloid Interface Sci. 2000, 232, 400–407. [Google Scholar] [CrossRef]
  40. Scott, R.P.W. Silica Gel and Bonded Phases: Their Production, Properties & Use in LC; Wiley Science: New York, NY, USA, 1993. [Google Scholar]
  41. Chong, A.S.M.; Zhao, X.S. Functionalization of SBA-15 With APTES and Characterization of Functionalized Materials. J. Phys. Chem. B 2003, 107, 12650–12657. [Google Scholar] [CrossRef]
  42. Luan, Z.; Fournier, J.A.; Wooten, J.B.; Miser, D.E. Preparation and Characterization of (3 aminopropyl) triethoxysilane Modified Mesoporous SBA 15 Silica Molecular Sieves. Micropor. Mesopor. Mater. 2005, 83, 150–158. [Google Scholar] [CrossRef]
  43. Payne, J.C.; Horst, M.A.; Godwin, H.A. Lead Fingers: Pb2+ Binding to Structural Zinc Binding Domians Determined Directly by Monitoring Lead Thiolate Charge Transfer Bands. J. Am. Chem. Soc. 1999, 121, 6850–6855. [Google Scholar] [CrossRef]
  44. Vögler, A.; Nikol, H. Photochemistry and Photophysics of Coordination Compounds of the Main Group Metals. Pure Appl. Chem. 1992, 64, 1311–1317. [Google Scholar] [CrossRef] [Green Version]
  45. Mariscal, R.; Soria, J.; Peña, M.A.; Fierro, J.L.G. Structure and Reactivity of Undoped and Sodium Doped PbO/α Al2O3 Catalysts for Oxidative Coupling of Methane. Appl. Catal. A: Gen. 1994, 111, 79–97. [Google Scholar] [CrossRef]
  46. Wagner, C.D.; Naumkin, A.V.; Vass, A.K.; Alisson, J.W.; Powell, C.J.; Rumble, J.R.J. NIST X-Ray Photoelectron Spectroscopy Database 20 Version 3.4; National Institute of Standards and Technology: Gaithersburg, MD, USA, 2003. [Google Scholar]
  47. García, N.; Benito, E.; Guzmán, J.; Tiemblo, P.; Morales, V.; Garcia, R. Functionalization of SBA-15 by an Acid-Catalyzed Approach: A Surface Characterization Study. Microporous Mesoporous Mater. 2007, 106, 129–139. [Google Scholar] [CrossRef]
Materials 13 00927 g001 550

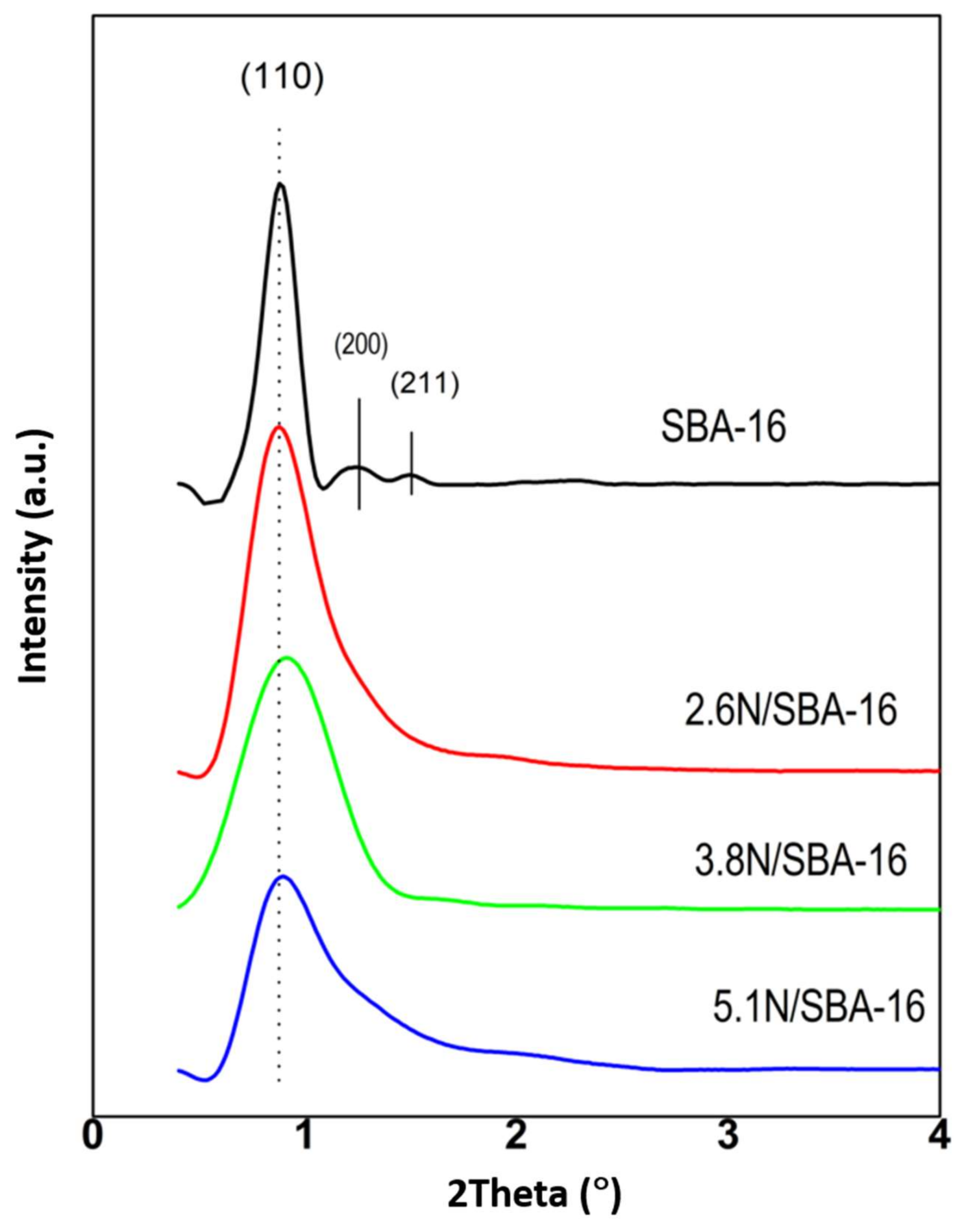

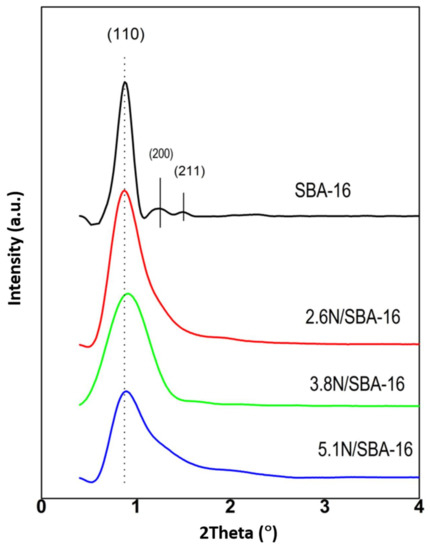

Figure 1. Small-angle X-ray diffraction patterns of pure SBA-16 and amine-functionalized SBA-16 adsorbents.
Figure 1. Small-angle X-ray diffraction patterns of pure SBA-16 and amine-functionalized SBA-16 adsorbents.
Materials 13 00927 g001
Materials 13 00927 g002 550

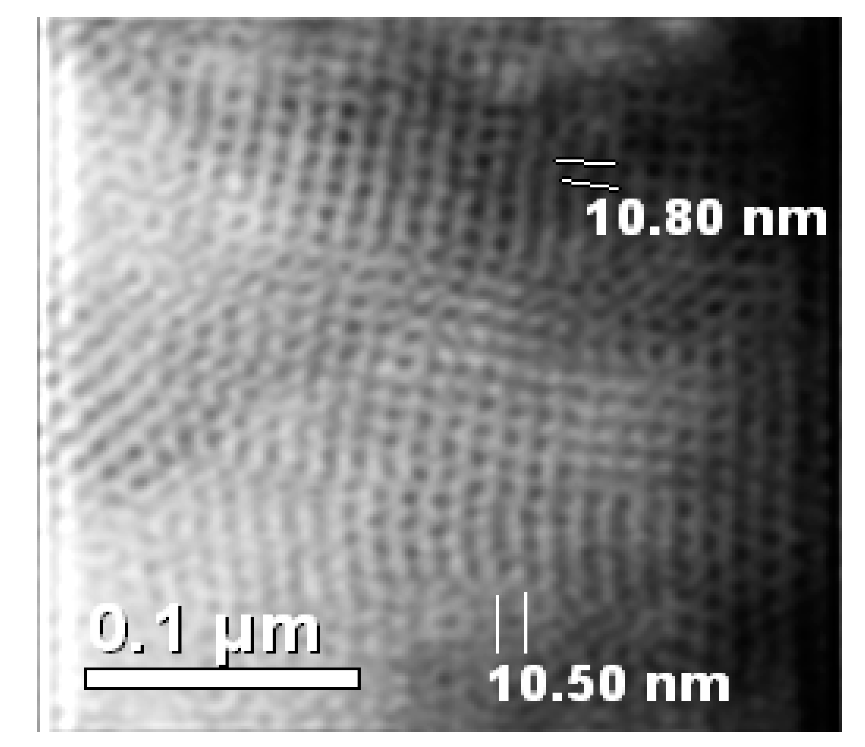

Figure 2. Transmission electron microscopy (TEM) image of the 3.8N/SBA-16 adsorbent showing a well-ordered cubic array of unit cells.
Figure 2. Transmission electron microscopy (TEM) image of the 3.8N/SBA-16 adsorbent showing a well-ordered cubic array of unit cells.
Materials 13 00927 g002
Materials 13 00927 g003 550

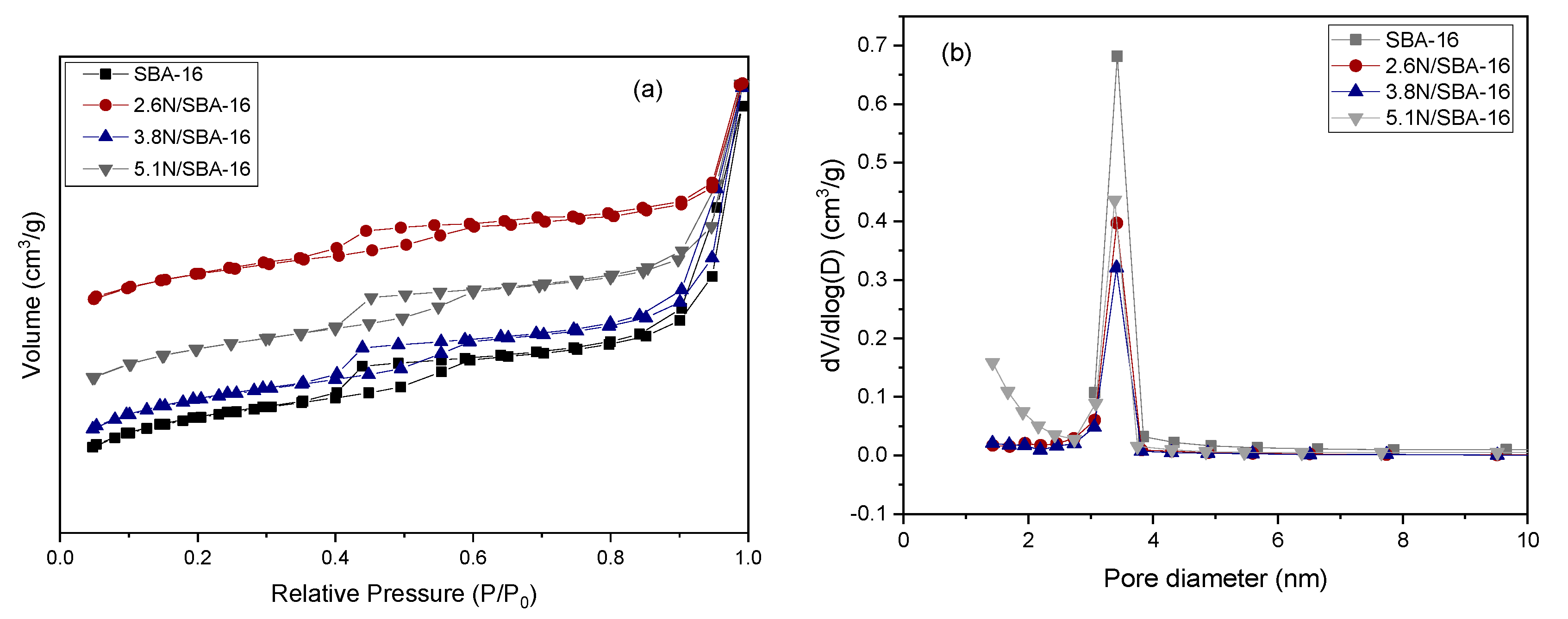

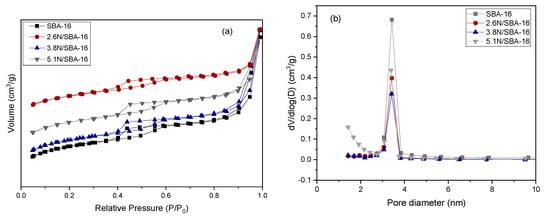

Figure 3. Non-functionalized SBA-16 solid and amino-functionalized adsorbents: (a) N2 adsorption-desorption isotherms, and (b) Pore size distribution.
Figure 3. Non-functionalized SBA-16 solid and amino-functionalized adsorbents: (a) N2 adsorption-desorption isotherms, and (b) Pore size distribution.
Materials 13 00927 g003
Materials 13 00927 g004 550

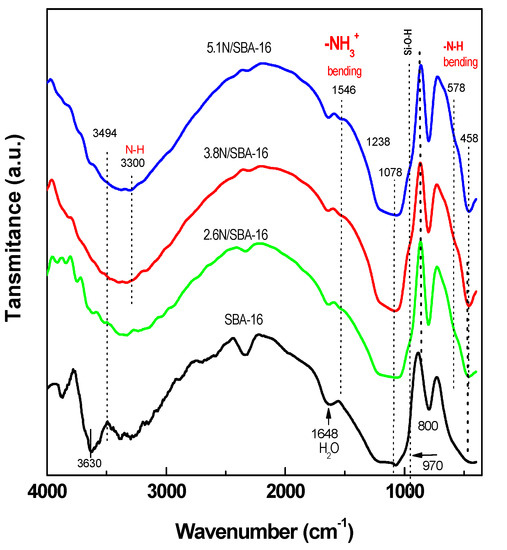

Figure 4. Fourier transform infrared spectra of the framework vibration region of the SBA-16 substrate before and after its grafting with aminopropyl groups.
Figure 4. Fourier transform infrared spectra of the framework vibration region of the SBA-16 substrate before and after its grafting with aminopropyl groups.
Materials 13 00927 g004
Materials 13 00927 g005 550

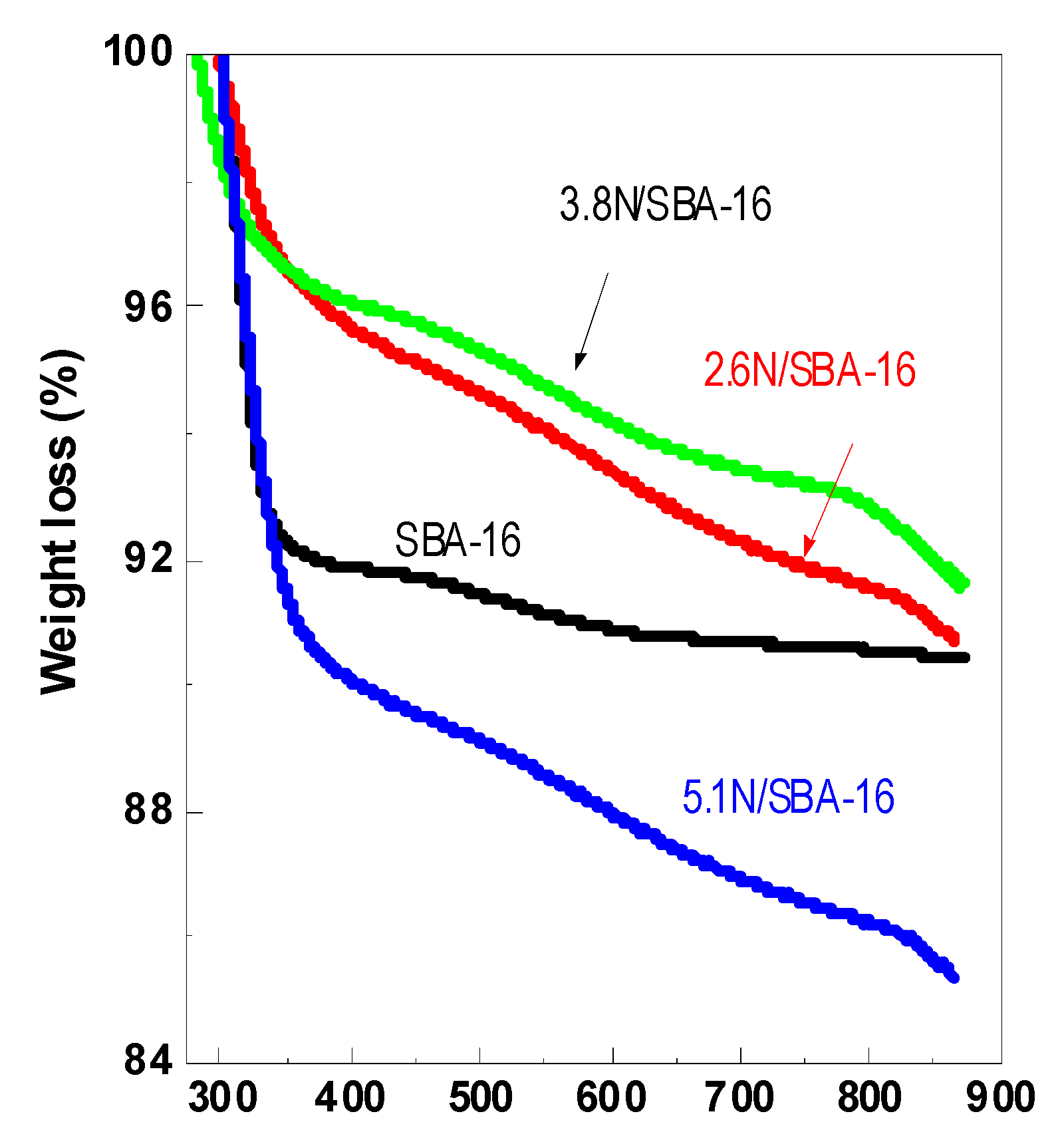

Figure 5. Thermogravimetric curves of SBA-16, 2.6N/SBA-16, 3.8N/SBA-16, and 5.1N/SBA-16 adsorbents.
Figure 5. Thermogravimetric curves of SBA-16, 2.6N/SBA-16, 3.8N/SBA-16, and 5.1N/SBA-16 adsorbents.
Materials 13 00927 g005
Materials 13 00927 g006 550

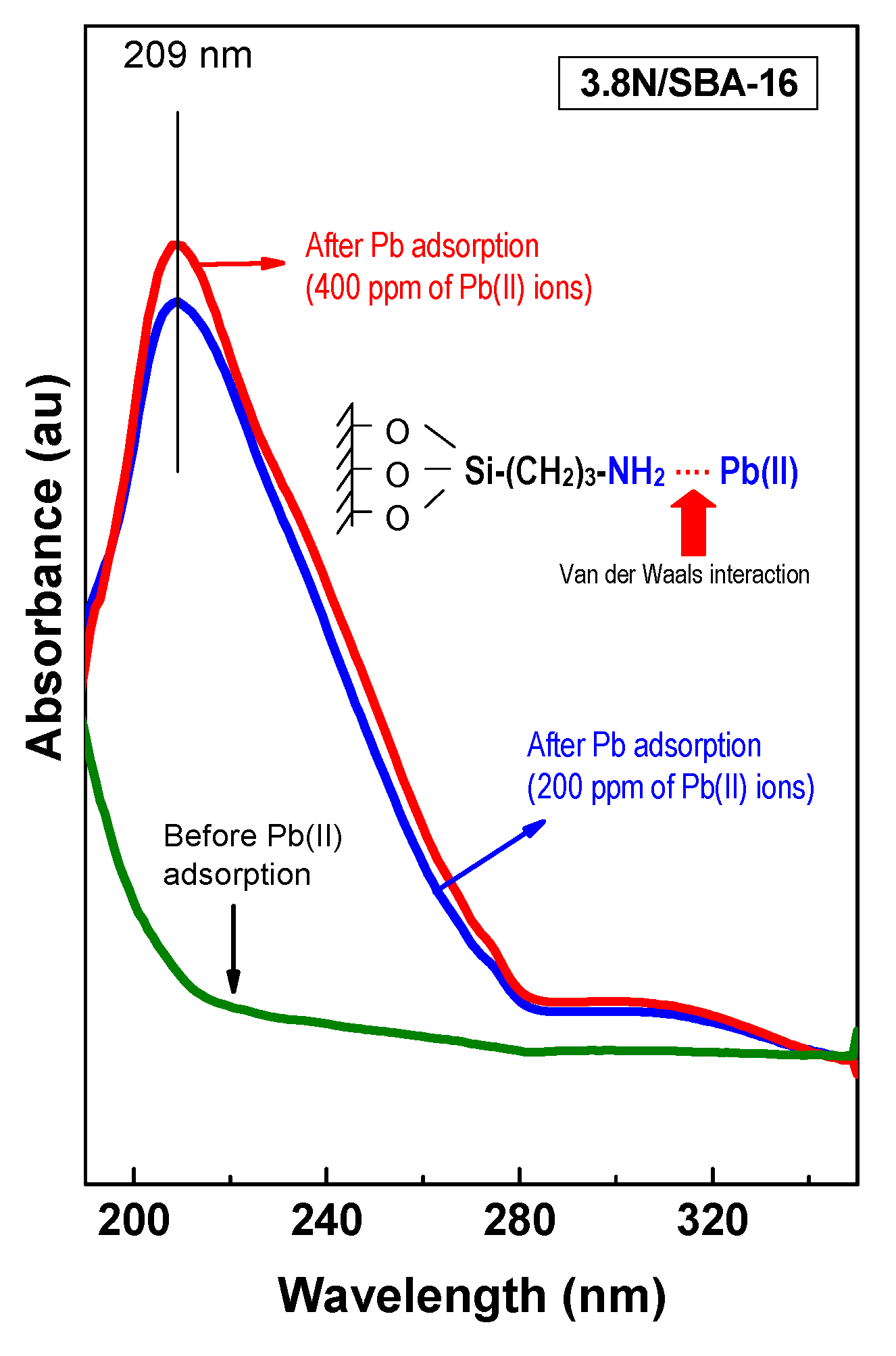

Figure 6. UV-vis spectra for the 3.8N/SBA-16 adsorbent after adsorption (initial Pb2+ concentrations in aqueous solution: 200 and 400 mg L−1). The scheme of the proposed van der Walls interaction of Pb2+ with amino group [1] is shown in the inlet of this figure.
Figure 6. UV-vis spectra for the 3.8N/SBA-16 adsorbent after adsorption (initial Pb2+ concentrations in aqueous solution: 200 and 400 mg L−1). The scheme of the proposed van der Walls interaction of Pb2+ with amino group [1] is shown in the inlet of this figure.
Materials 13 00927 g006
Materials 13 00927 g007 550

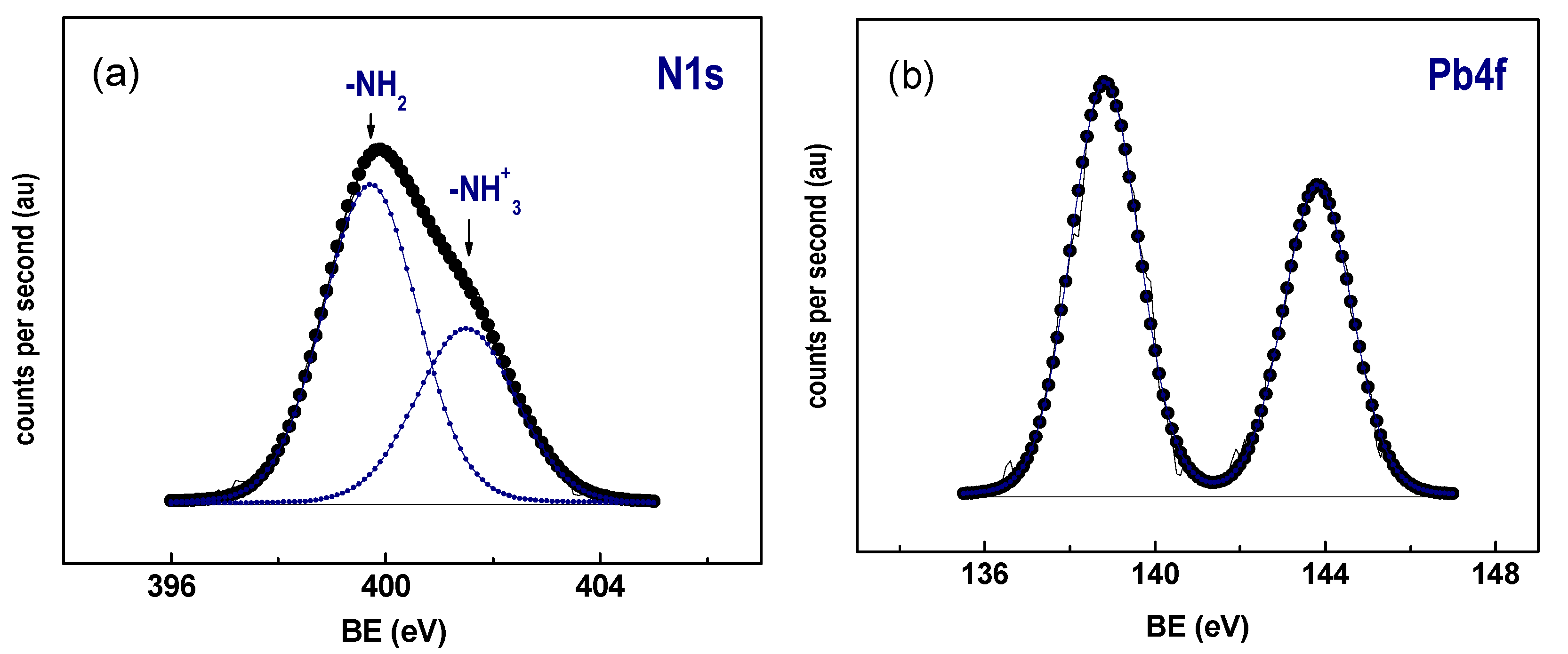

Figure 7. Core level spectra of 3.8N/SBA-16 adsorbate after Pb2+ adsorption: (a) N 1s, and (b) Pb4f (0.1 g of adsorbent, 20 mL of 200 mg L−1 aqueous Pb2+ solution, pH = 5.0, contact time of 60 min, and T = 30 °C).
Figure 7. Core level spectra of 3.8N/SBA-16 adsorbate after Pb2+ adsorption: (a) N 1s, and (b) Pb4f (0.1 g of adsorbent, 20 mL of 200 mg L−1 aqueous Pb2+ solution, pH = 5.0, contact time of 60 min, and T = 30 °C).
Materials 13 00927 g007
Materials 13 00927 g008 550

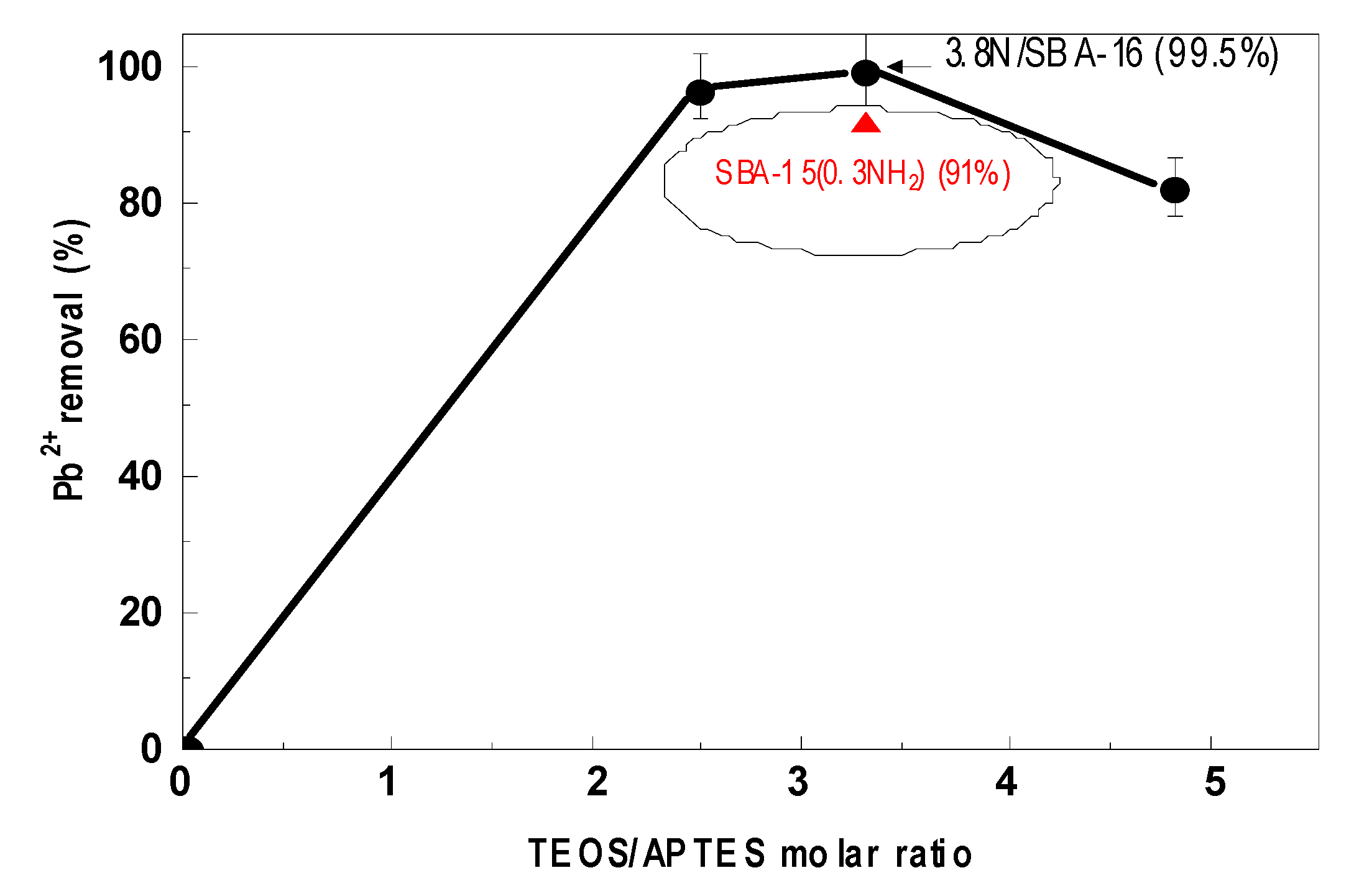

Figure 8. Influence of adsorbent/ligand molar ratio on the Pb2+ adsorption onto SBA-16-based adsorbents. For comparison purposes, the SBA-15-based adsorbent prepared with tetraethyl orthosilicate/3-aminopropyltriethoxysilane (TEOS/APTES) molar ratio of 3.3 is included (from [1]). Conditions were: 20 mL of 200 mg L−1 aqueous Pb2+ solution, 0.10 g of adsorbent, pH = 5.0, contact time of 60 min, and T = 30 °C.
Figure 8. Influence of adsorbent/ligand molar ratio on the Pb2+ adsorption onto SBA-16-based adsorbents. For comparison purposes, the SBA-15-based adsorbent prepared with tetraethyl orthosilicate/3-aminopropyltriethoxysilane (TEOS/APTES) molar ratio of 3.3 is included (from [1]). Conditions were: 20 mL of 200 mg L−1 aqueous Pb2+ solution, 0.10 g of adsorbent, pH = 5.0, contact time of 60 min, and T = 30 °C.
Materials 13 00927 g008
Materials 13 00927 g009 550

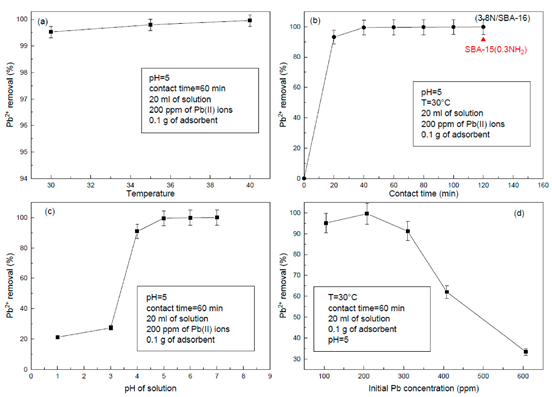

Figure 9. Influence of (a) temperature, (b) contact time, (c) pH, and (d) initial lead concentration on the Pb2+ removal from aqueous solution by the adsorption onto 3.8N/SBA-16. The SBA-15-based counterpart prepared with the same TEOS/APTES molar ratio of 3.3 is used as a reference (from [1]).
Figure 9. Influence of (a) temperature, (b) contact time, (c) pH, and (d) initial lead concentration on the Pb2+ removal from aqueous solution by the adsorption onto 3.8N/SBA-16. The SBA-15-based counterpart prepared with the same TEOS/APTES molar ratio of 3.3 is used as a reference (from [1]).
Materials 13 00927 g009
Table
Table 1. Some textural properties a of the amine-functionalized SBA-16 adsorbents and their adsorption efficiency for Pb2+ removal from aqueous solution b.
Table 1. Some textural properties a of the amine-functionalized SBA-16 adsorbents and their adsorption efficiency for Pb2+ removal from aqueous solution b.
SampleN
(mmol/g)		Pb/N
(Atomic Ratio)		SBET
(m2/g)		Loss of
SBET (%)		Vtotal
(cm3/g)		dp
(nm)
SBA-16--650-0.643.4
2.6N/SBA-162.60.0750722.00.453.1
3.8N/SBA-163.80.0550023.10.423.2
5.1N/SBA-165.10.0349424.00.433.1
a As determined from N2 adsorption-desorption isotherms at 77 K; SBET: specific surface area calculated using Brunauer-Emmett-Teller (BET) equation; Vtotal: adsorption total pore volume; dp: average pore diameter calculated from the isotherm adsorption branch.; b Adsorption efficiency expressed as Pb/N atomic ratio: adsorption conditions were: 0.1 of adsorbent, 20 mL of 200 mg L−1 of Pb2+ aqueous solution, pH = 5, contact time 60 min, T = 30 °C.
Table
Table 2. Unit cell parameter (ao), and pore wall thickness (wt) of the bare SBA-16 and amine-functionalized adsorbents.
Table 2. Unit cell parameter (ao), and pore wall thickness (wt) of the bare SBA-16 and amine-functionalized adsorbents.
Sampleaob
(nm)		wtc
(nm)		wt/dp
Ratio
SBA-1614.138.842.6
2.6N/SBA-1613.918.952.9
3.8N/SBA-1613.918.852.8
5.1N/SBA-1614.199.193.0
b Calculated using the Equation (1); c Estimated using the Equation (2).
Table
Table 3. Binding energies (eV) of core-electrons and surface atomic ratios of the most optimized 3.8N/SBA-16 adsorbent (from XPS) before and after Pb2+ ion adsorption.
Table 3. Binding energies (eV) of core-electrons and surface atomic ratios of the most optimized 3.8N/SBA-16 adsorbent (from XPS) before and after Pb2+ ion adsorption.
XPS DataBefore Pb2+
Adsorption		After Pb2+
Adsorption a
Si 2p (eV)103.5103.5
O 1s (eV)532.7532.7
N 1s (eV)399.7 (60)
401.5 (40)		399.7 (63)
401.5 (37)
Pb4f7/2-138.8
N/Si0.0700.071 (0.109) b
Pb/N-0.133 (0.139) b
a The adsorption conditions were: 0.1 g of adsorbent and 20 mL of aqueous solution containing an initial Pb2+ concentration of 200 mg L−1; pH = 5.0; contact time of 60 min; T = 30 °C; b Data of SBA-15(0.3NH2) sample (from [1]).

Share and Cite

MDPI and ACS Style

Palos-Barba, V.; Moreno-Martell, A.; Hernández-Morales, V.; Peza-Ledesma, C.L.; Rivera-Muñoz, E.M.; Nava, R.; Pawelec, B. SBA-16 Cage-Like Porous Material Modified with APTES as an Adsorbent for Pb2+ Ions Removal from Aqueous Solution. Materials 2020, 13, 927. https://doi.org/10.3390/ma13040927

AMA Style

Palos-Barba V, Moreno-Martell A, Hernández-Morales V, Peza-Ledesma CL, Rivera-Muñoz EM, Nava R, Pawelec B. SBA-16 Cage-Like Porous Material Modified with APTES as an Adsorbent for Pb2+ Ions Removal from Aqueous Solution. Materials. 2020; 13(4):927. https://doi.org/10.3390/ma13040927

Chicago/Turabian Style

Palos-Barba, Viviana, Abigail Moreno-Martell, Verónica Hernández-Morales, Carmen L. Peza-Ledesma, Eric M. Rivera-Muñoz, Rufino Nava, and Barbara Pawelec. 2020. "SBA-16 Cage-Like Porous Material Modified with APTES as an Adsorbent for Pb2+ Ions Removal from Aqueous Solution" Materials 13, no. 4: 927. https://doi.org/10.3390/ma13040927

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
