Next Article in Journal
Hydro-Mechanical Behaviour of an Unbound Granular Base Course Material Used in Low Traffic Pavements
Previous Article in Journal
Mechanical Properties of Concrete Containing Liquefied Red Mud Subjected to Uniaxial Compression Loads
Previous Article in Special Issue
Material Design Methodology for Optimized Wear-Resistant Thermoplastic–Matrix Composites Based on Polyetheretherketone and Polyphenylene Sulfide
Open AccessArticle

Preparation and Tribological Study of Graphene Coating on Glass Fiber-Reinforced Composite Using Modified Percolating-Assisted Resin Film Infusion Method

1
State Key Lab for Manufacturing Systems Engineering, Xi’an Jiaotong University, Xi’an 710049, China
2
Polymer materials and plastics technology, Clausthal University of Technology, 38678 Clausthal-Zellerfeld, Germany
3
College of Mechanical and Electrical Engineering, Henan university of Technology, Zhengzhou 450001, China
*
Author to whom correspondence should be addressed.
Materials 2020, 13(4), 851; https://doi.org/10.3390/ma13040851
Received: 18 January 2020 / Revised: 7 February 2020 / Accepted: 10 February 2020 / Published: 13 February 2020
(This article belongs to the Special Issue Polymer Composites for Tribological Applications)

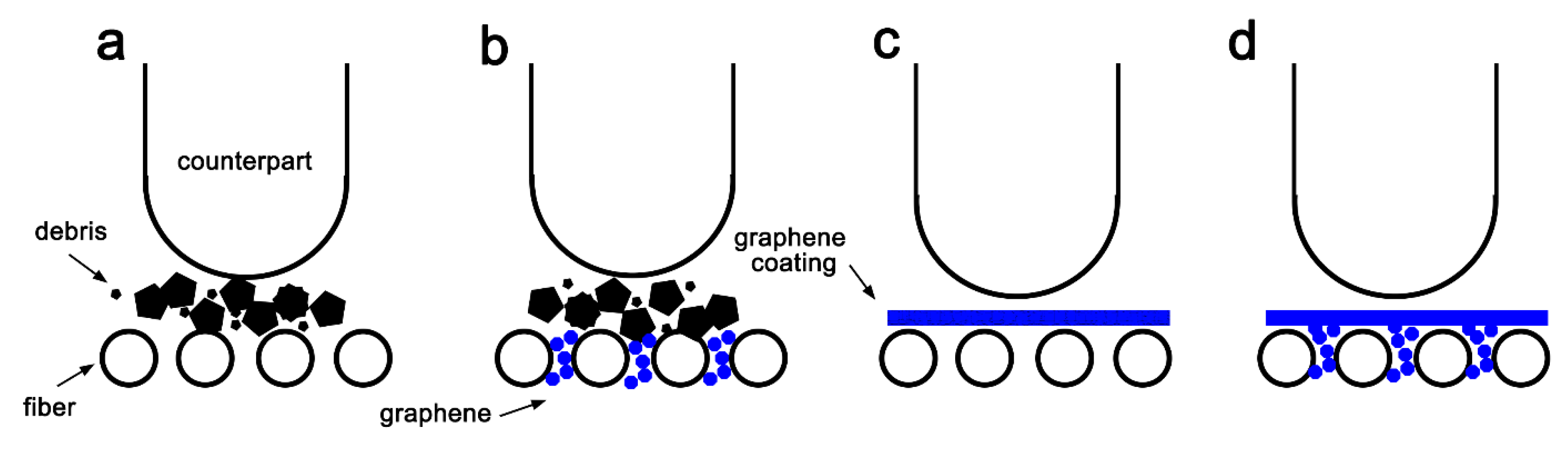

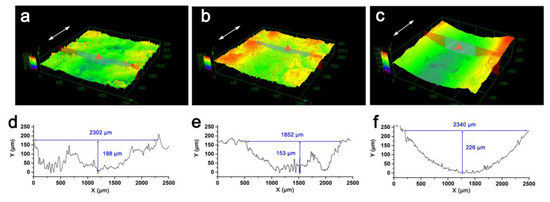

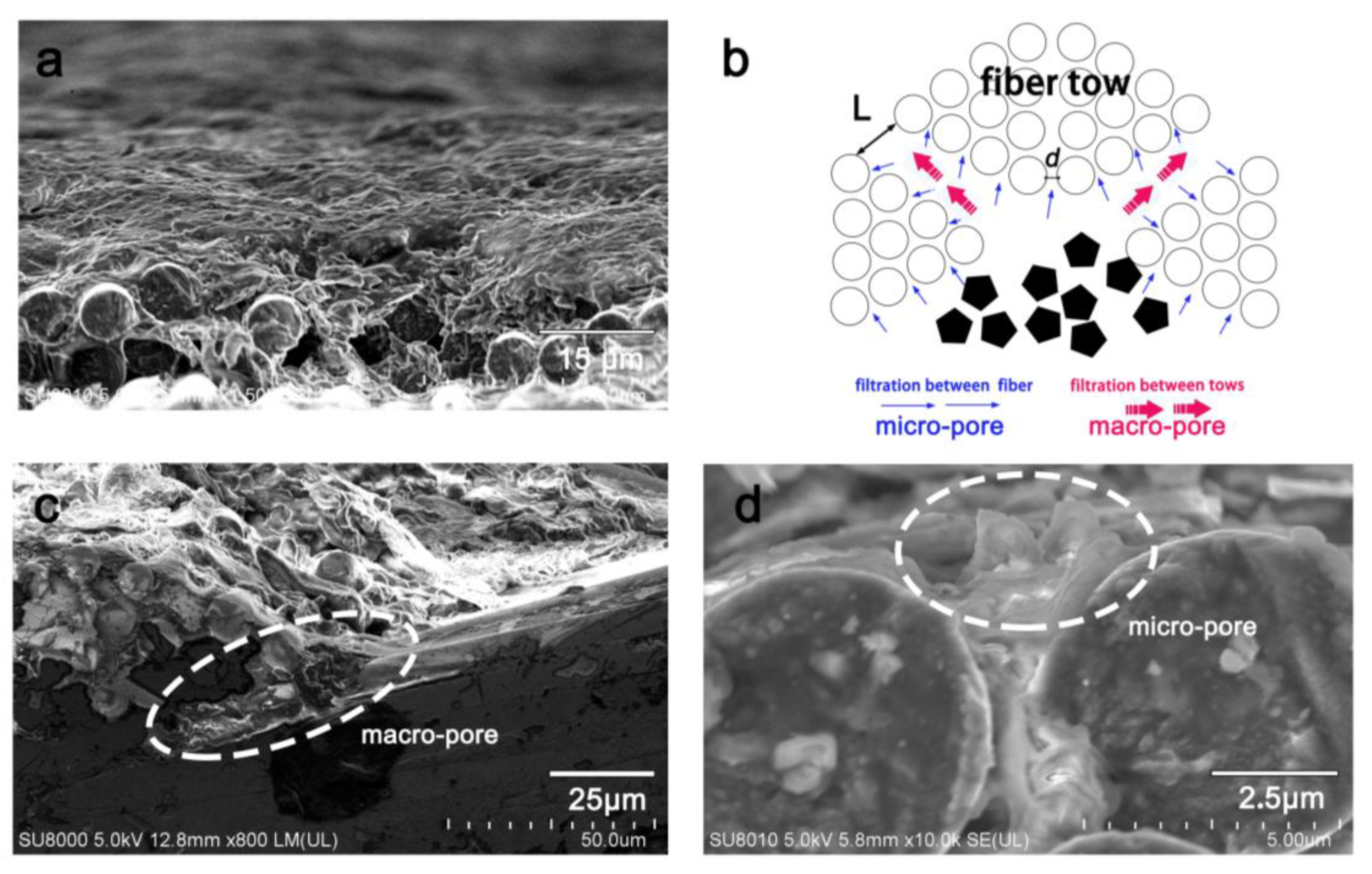

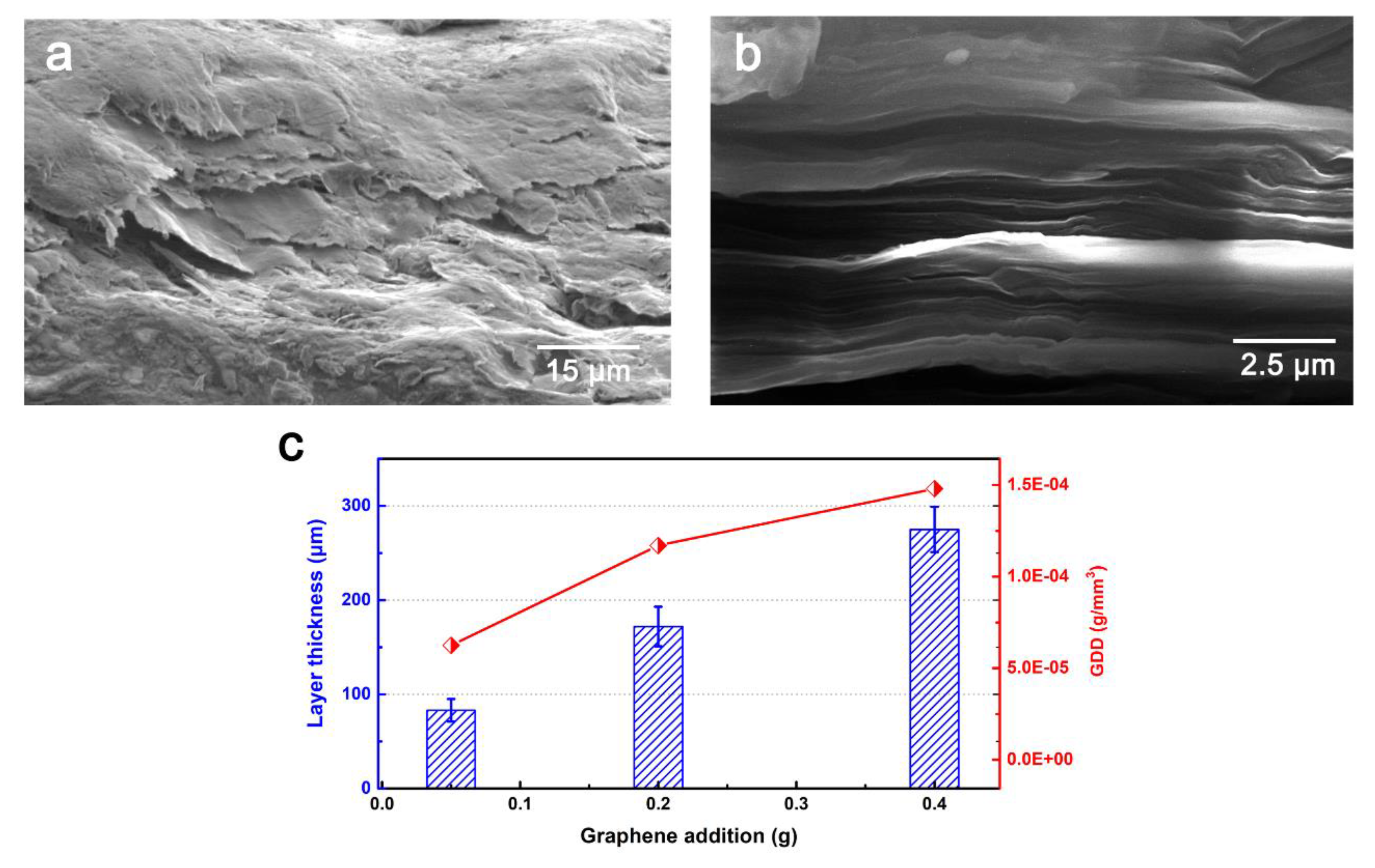

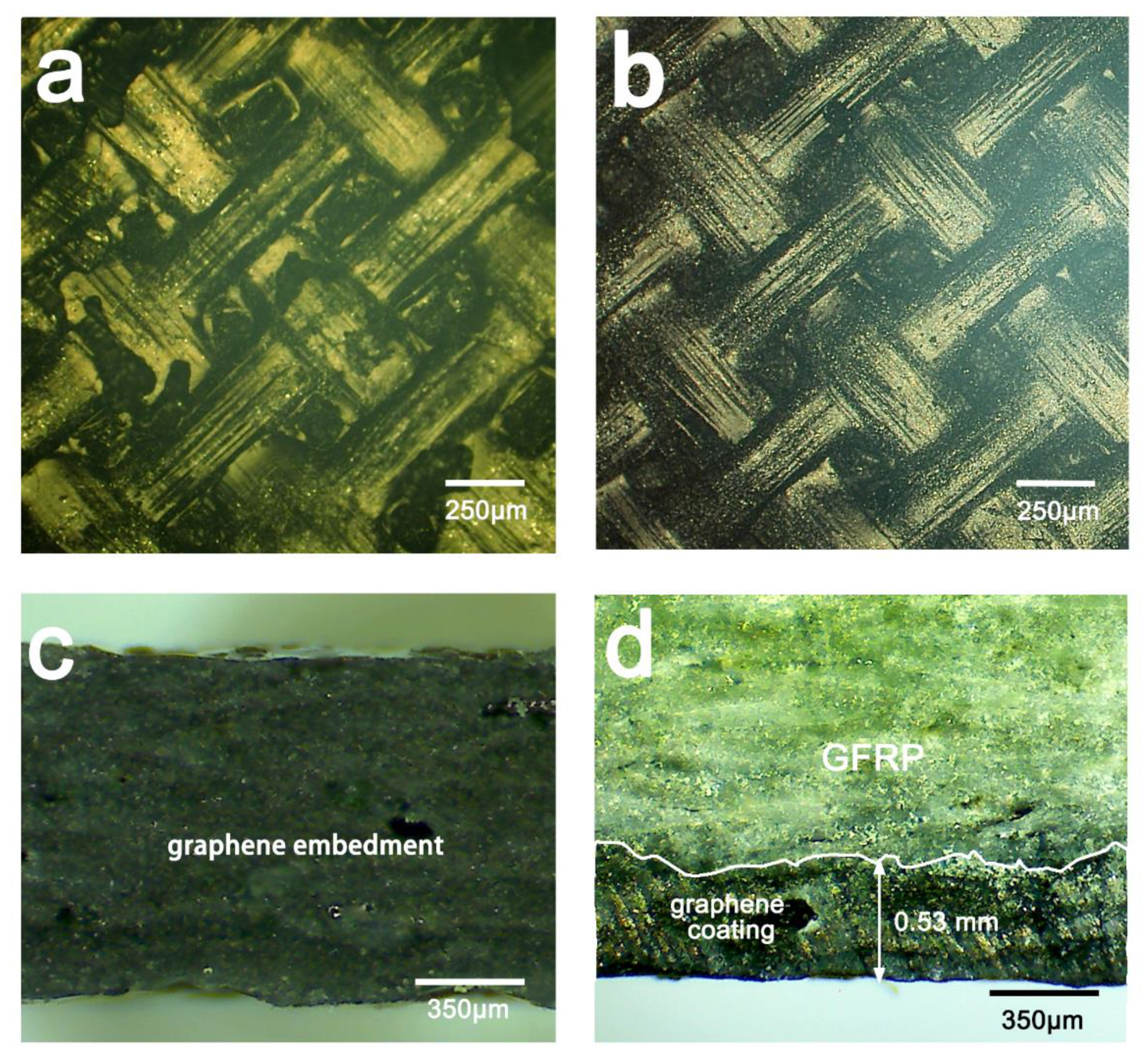

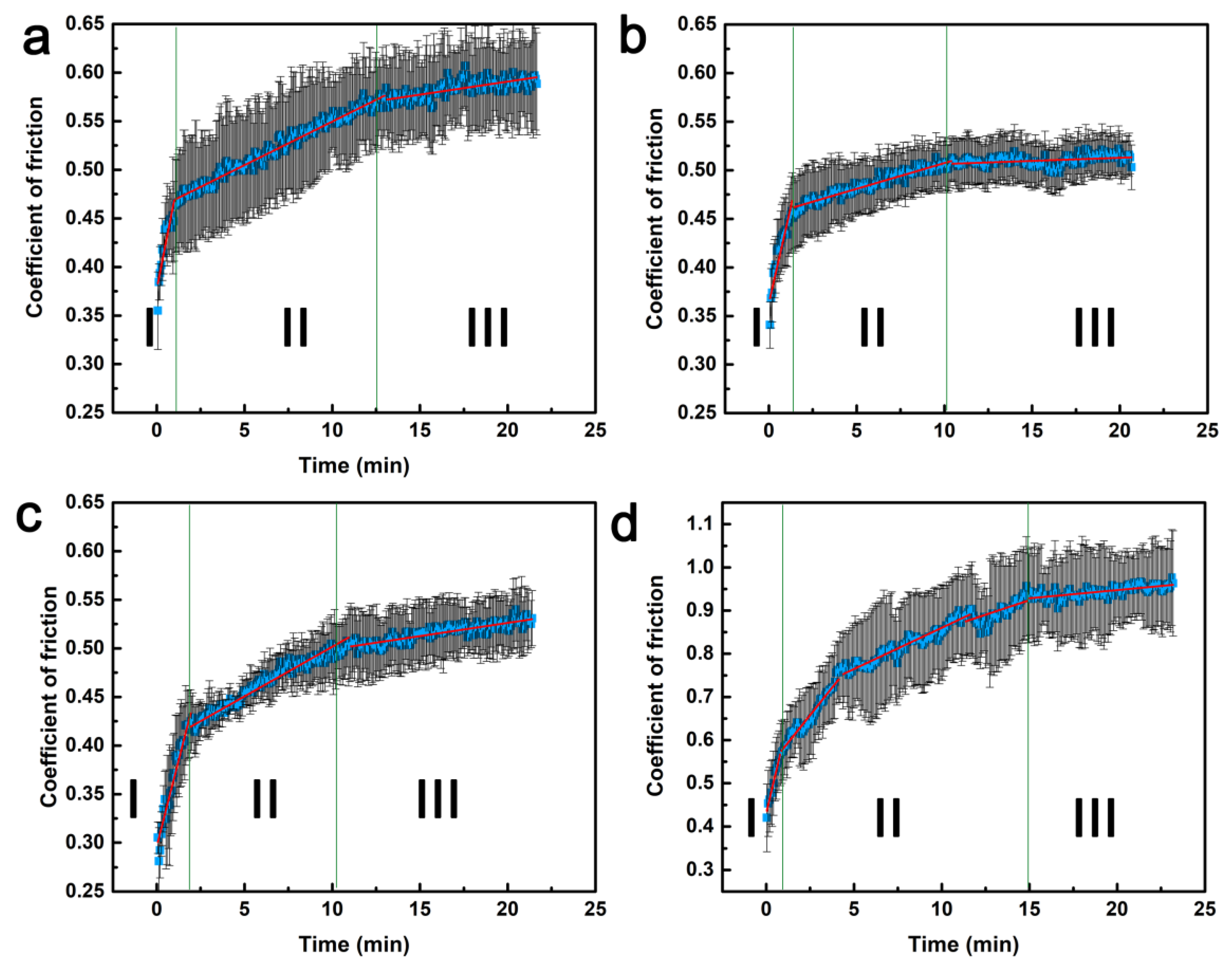

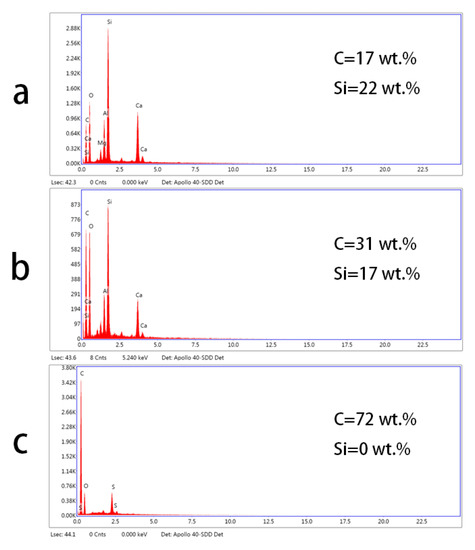

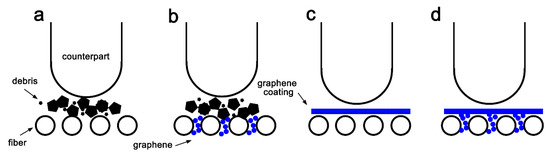

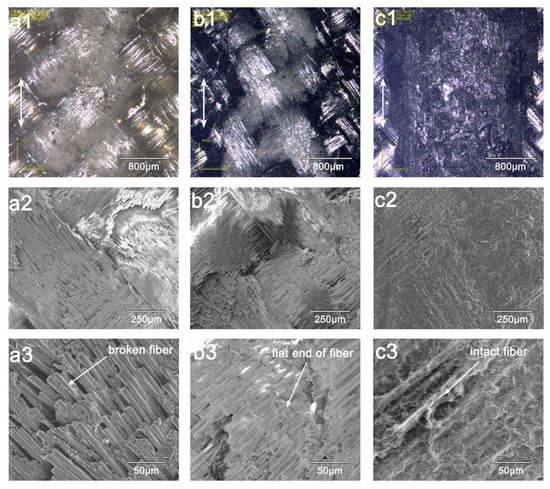

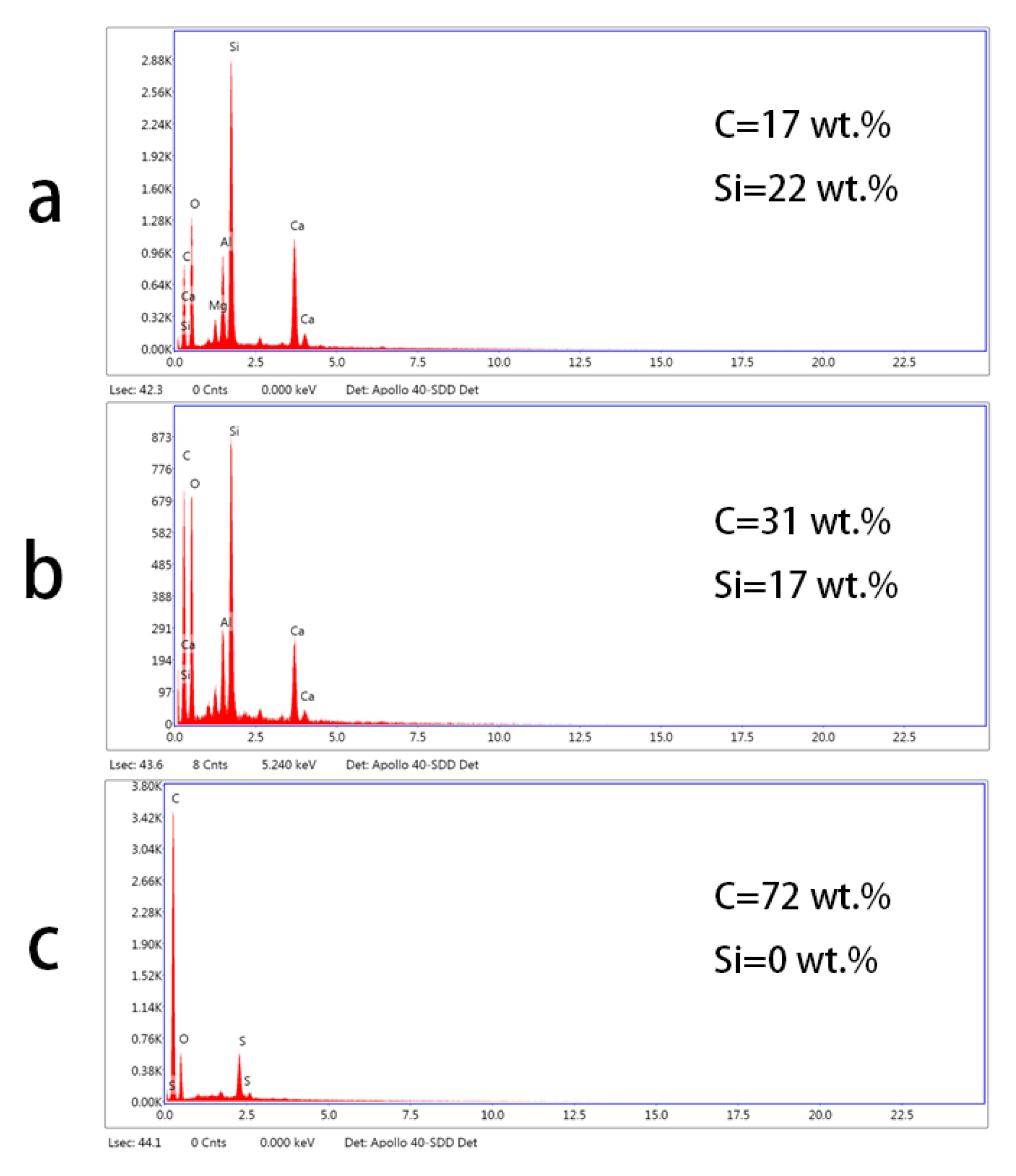

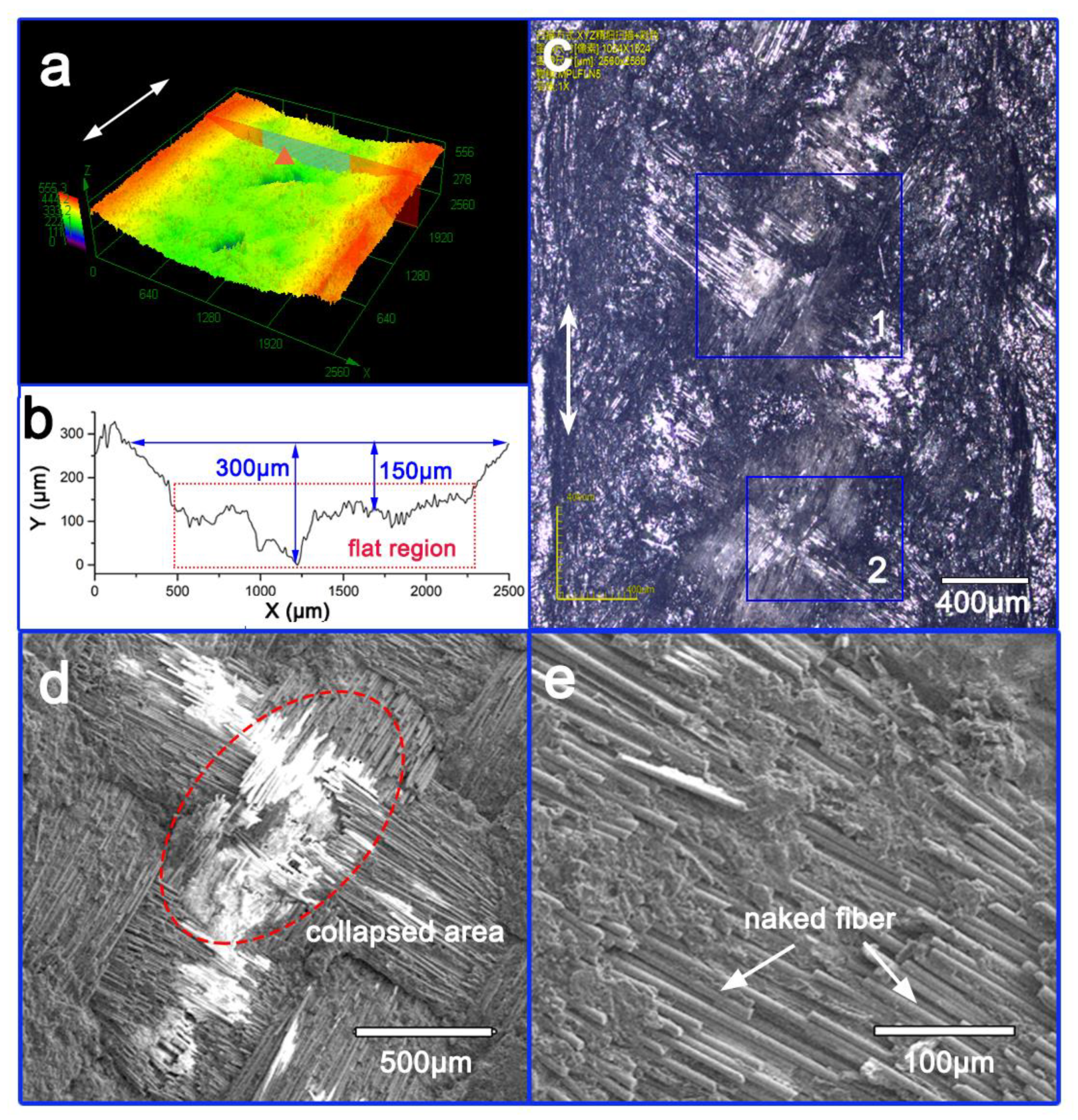

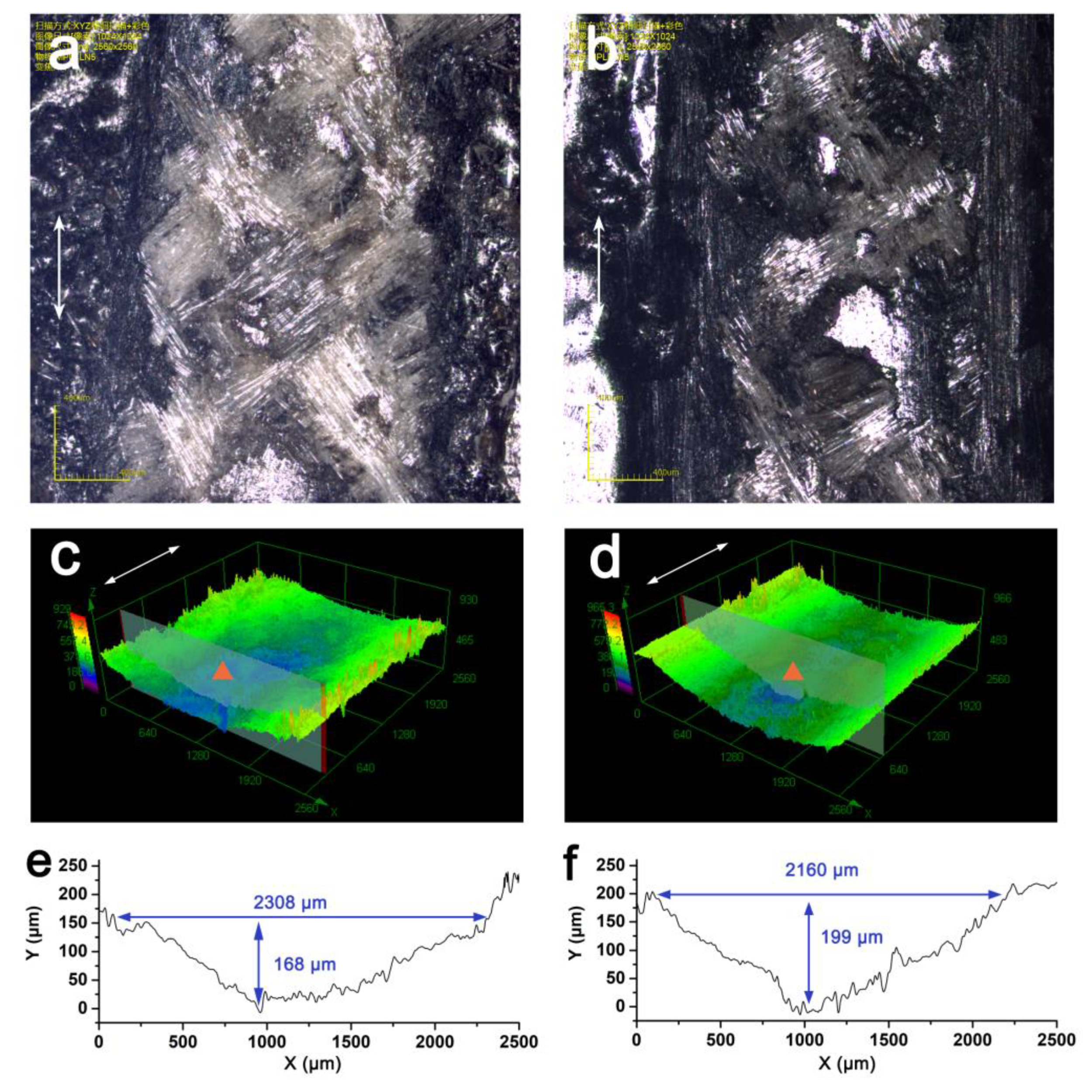

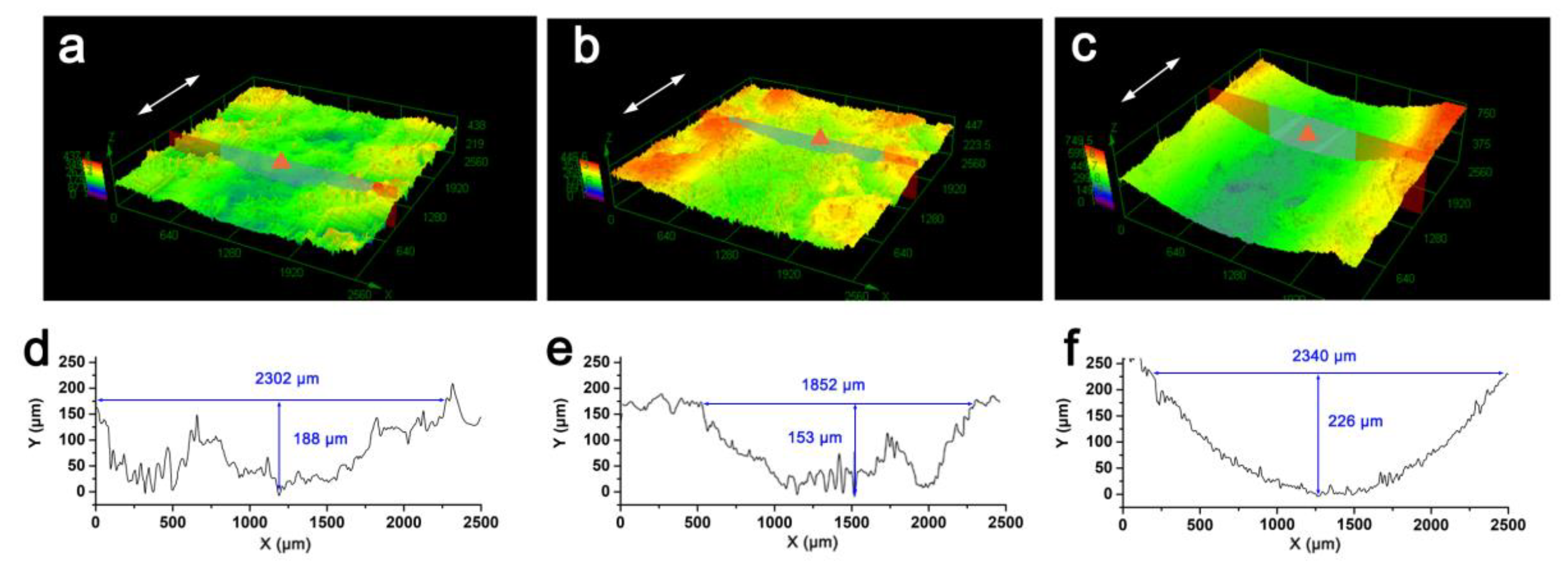

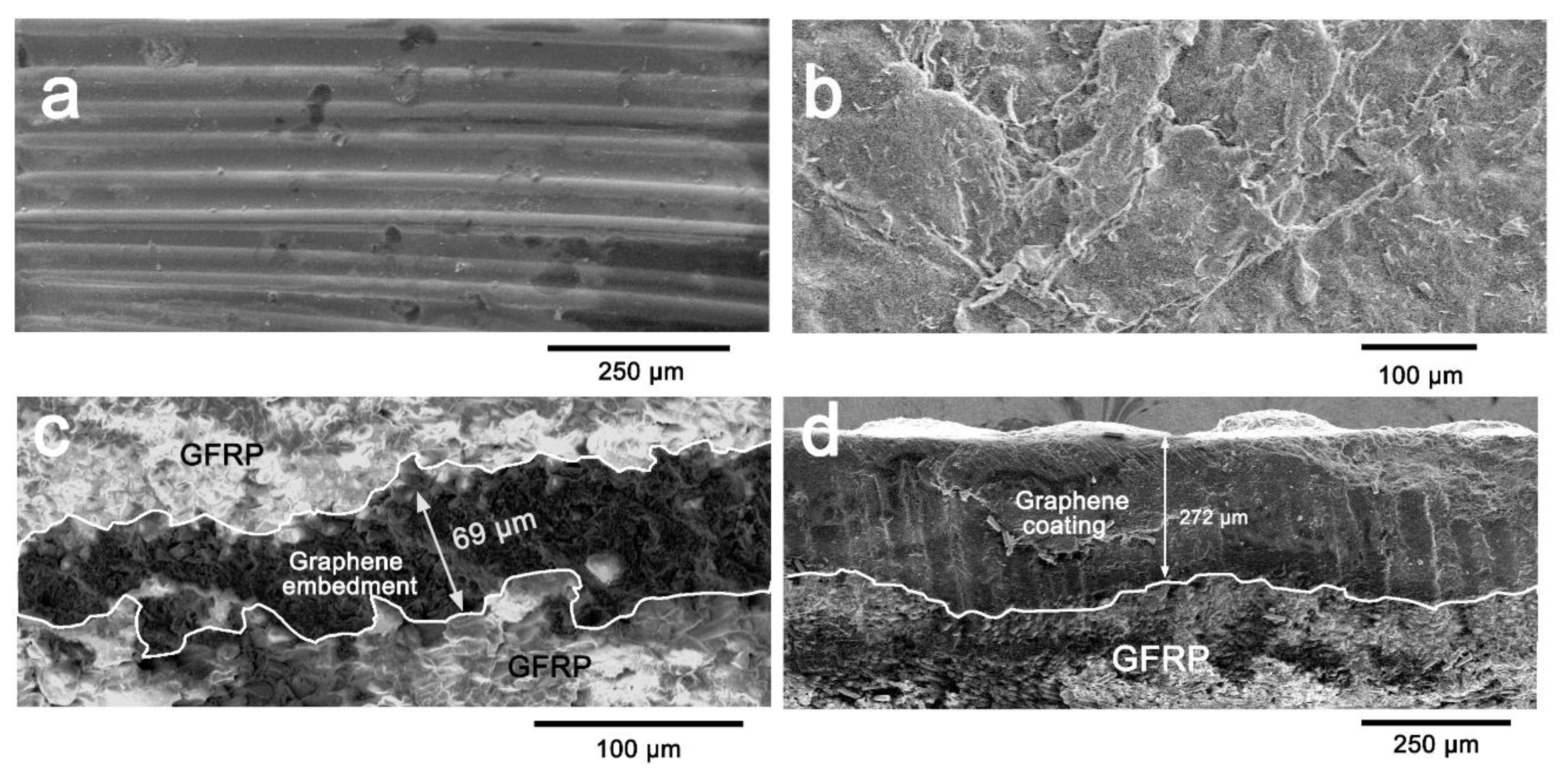

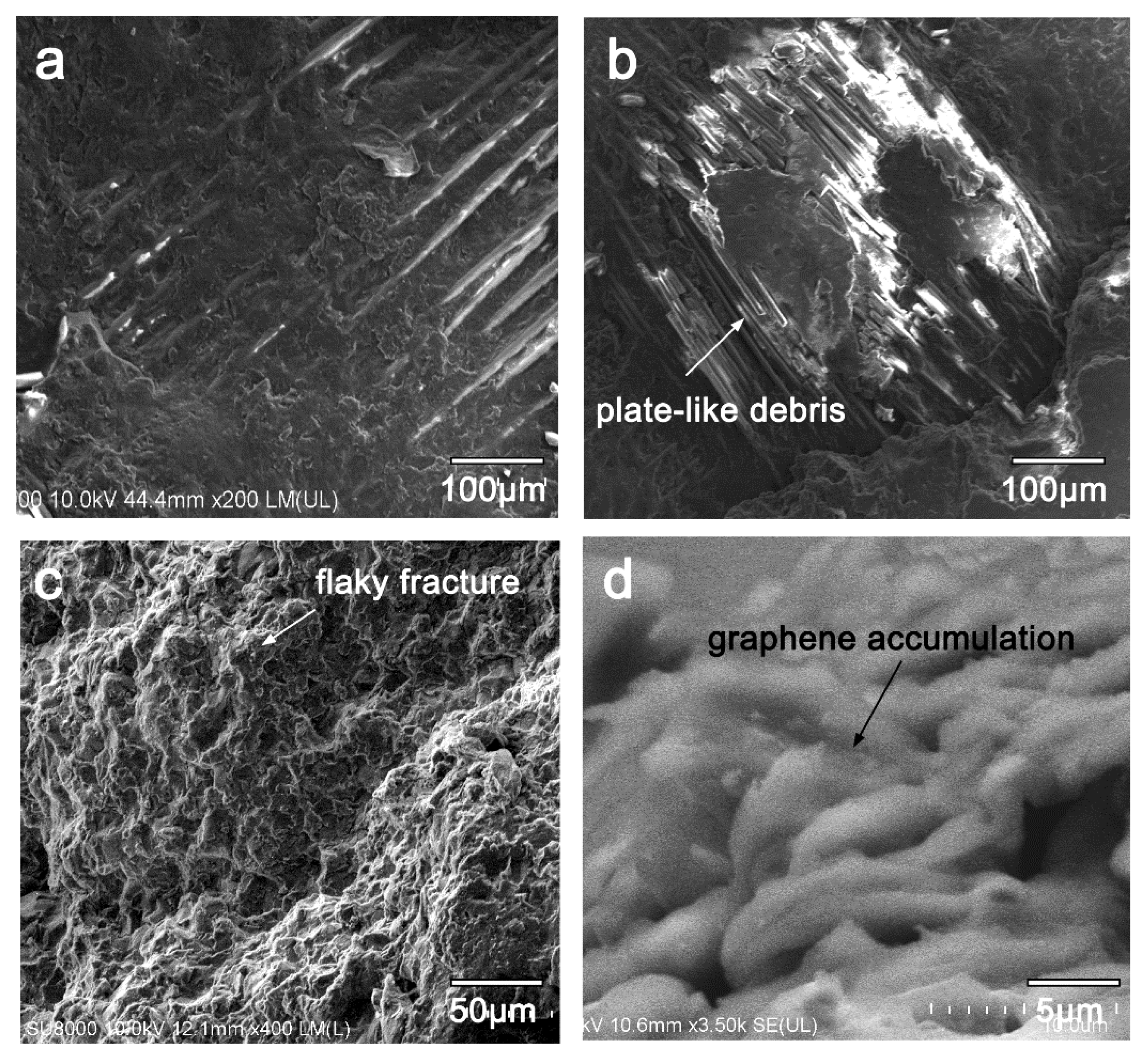

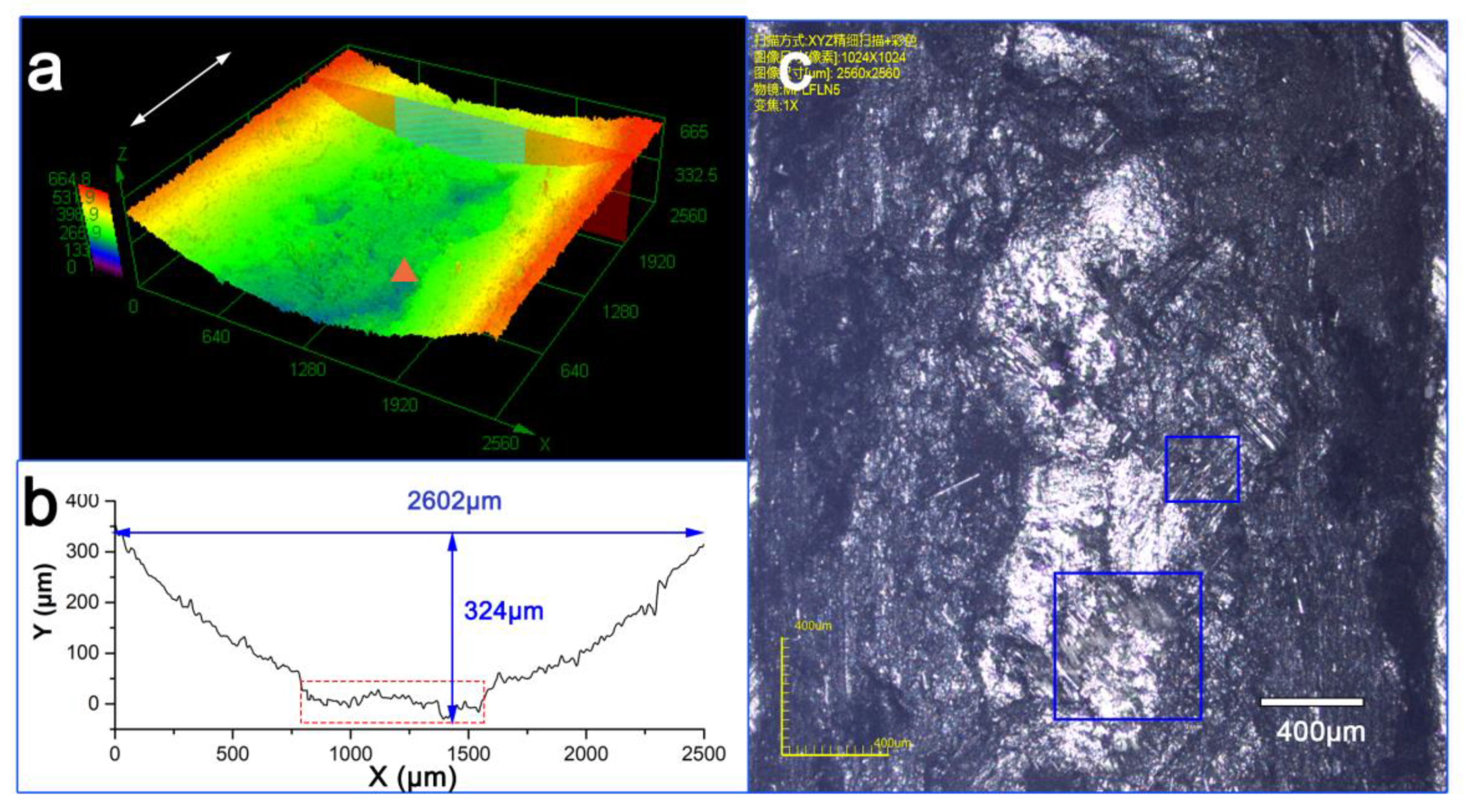

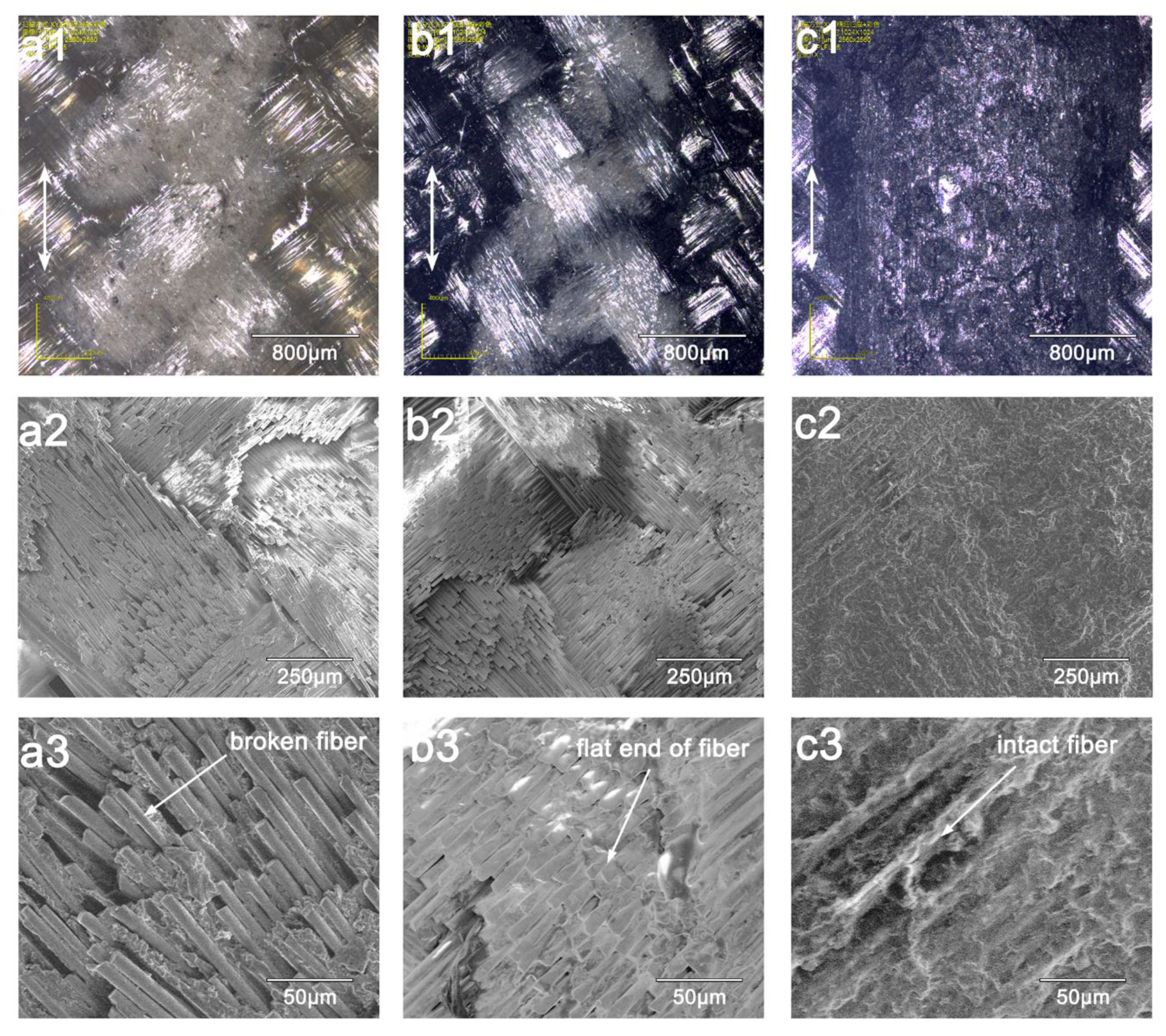

Tribological properties of glass fiber-reinforced polymer (GFRP) composites used in reciprocating contact should be improved to secure the efficiency and safety because of risks of abrasion, adhesion, and fatigue deficiency amidst fiber, matrix, or interphase. This paper investigates the influence of graphene reinforcement on the wear resistance of a GFRP composite. Graphene was integrated into a typical GFRP composite as the surface coating using a modified resin film infusion method with the percolating paper assisted. Dry reciprocating sliding tests were performed against a stainless steel ball moving in a direction 45 degrees to the fiber orientation. The morphology of the worn surface was observed, and the corresponding wear mechanisms are discussed. Results suggest that the prepared graphene coating improves the wear resistance of the GFRP composite. The protected GFRP laminates remained intact during the first 20 min of the wear test and only a small fraction of fibers were broken after 60 min test. Furthermore, abrasive debris and fiber breaks originating from composite were markedly reduced, likely owing to the formation of a protective transfer film between the surface of the modified composite and the rubbing counterpart. View Full-Text
Keywords: friction mechanism; graphene; fiber-reinforced composites; wear resistant friction mechanism; graphene; fiber-reinforced composites; wear resistant
Show Figures

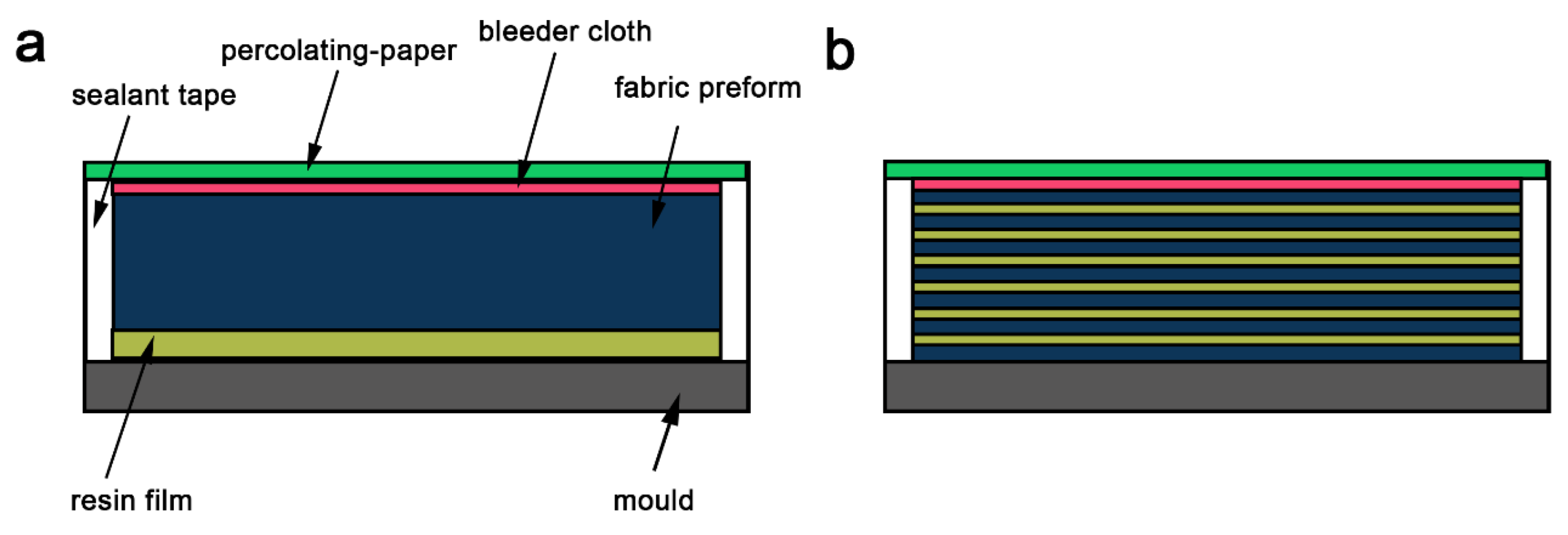

Figure 1

MDPI and ACS Style

Wang, B.; Han, W.; Ming, Y.; Zhang, X.; Zhu, Y.; Duan, Y.; Wang, H.; Zhao, H. Preparation and Tribological Study of Graphene Coating on Glass Fiber-Reinforced Composite Using Modified Percolating-Assisted Resin Film Infusion Method. Materials 2020, 13, 851.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
