Effect of Mill-Rejected Granular Cement Grains on Healing Concrete Cracks
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.1.1. Cement

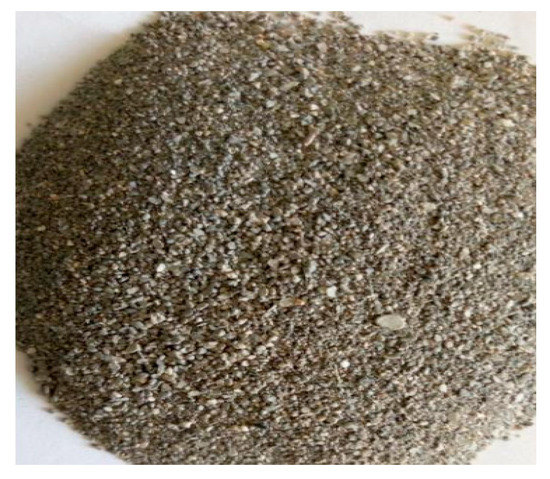

2.1.2. Mill-Rejected Granular Cement (MRGC)

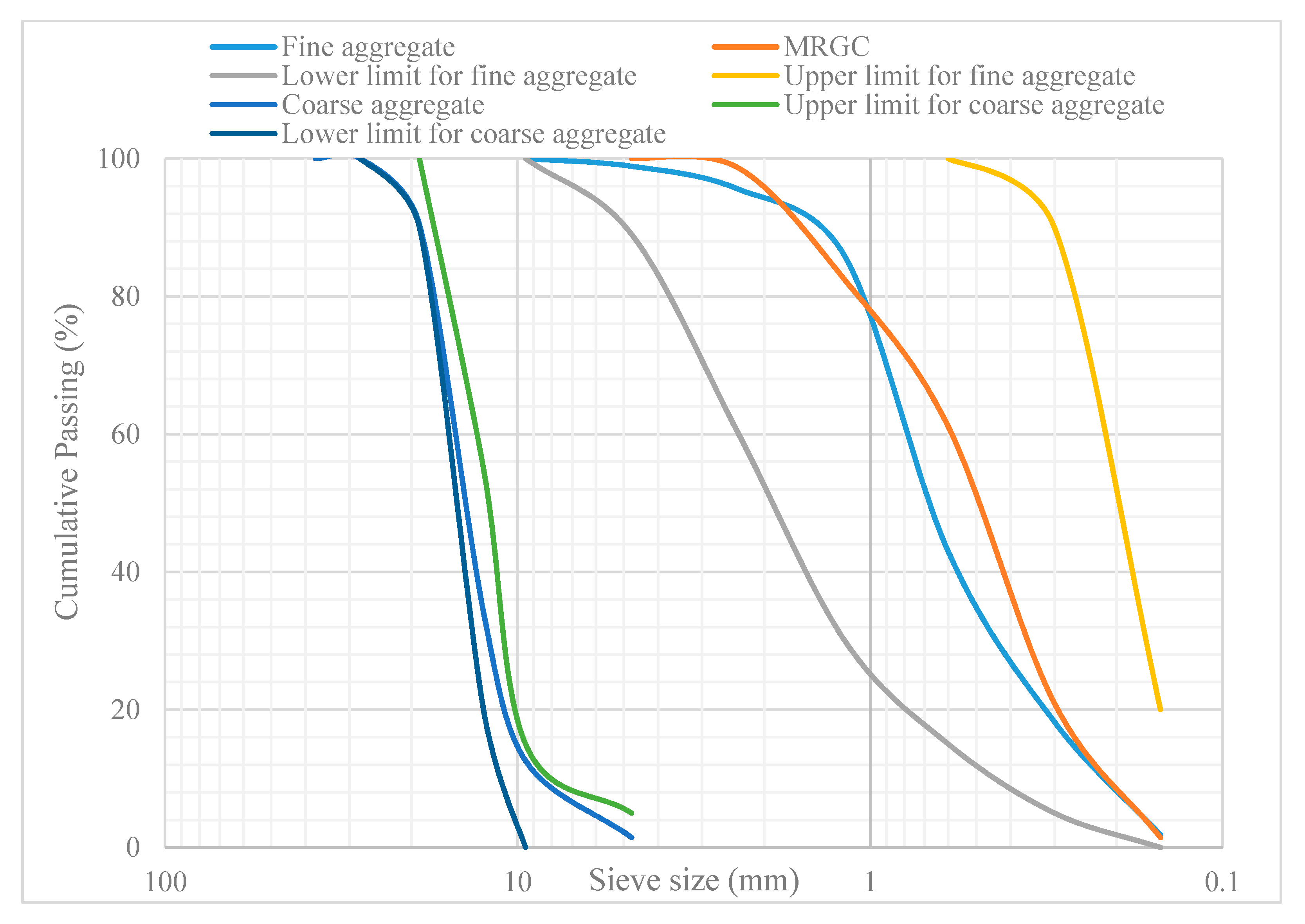

2.1.3. Fine Aggregate
2.1.4. Coarse Aggregate
2.2. Experimental Methods
2.2.1. Concrete Mixing and Specimen Details
2.2.2. Artificial Cracking
2.2.3. Crack Formation Using Compressive Stress
2.2.4. Crack Formation Using Split Tensile Stress

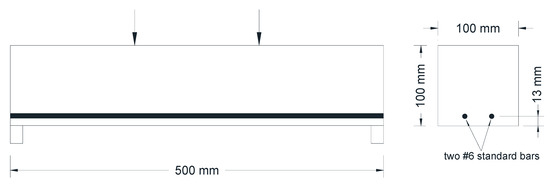

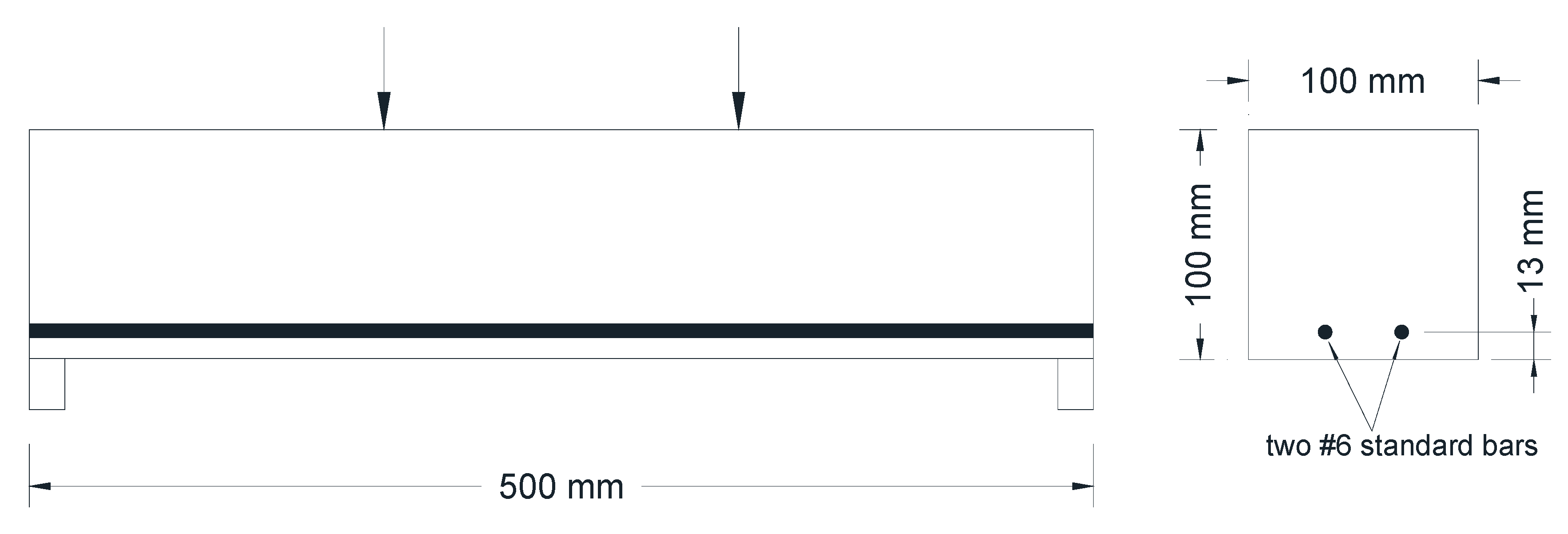

2.2.5. Crack Formation Using Flexural Stress
2.2.6. Evaluation of the Crack-Healing Effect of MRGC
2.2.7. Compressive Strength Test
2.2.8. Indirect Tensile Strength Test
2.2.9. Flexural Strength Test
2.2.10. Water Permeability Test
3. Results and Discussions
3.1. Slump Test Results
3.2. Strength Regains

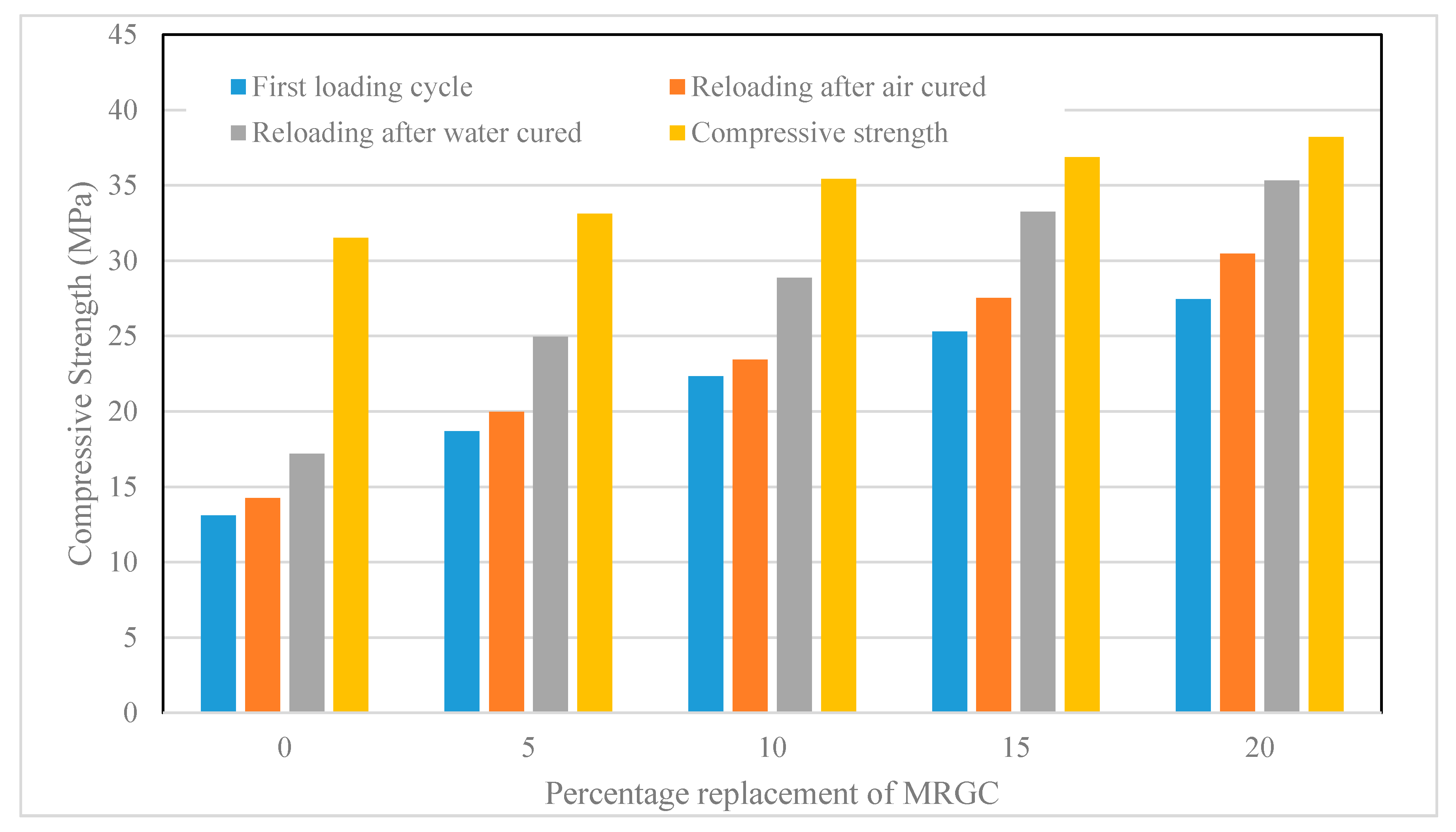

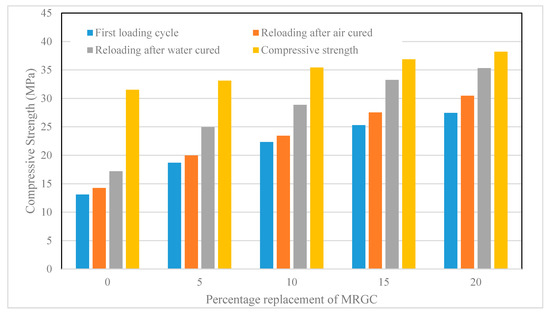

3.2.1. Compressive Strength
3.2.2. Flexural Strength
3.2.3. Splitting Tensile Strength Recovery
3.2.4. Water Permeability
4. Conclusions
- The regain in compressive, flexural, and tensile strengths and the drop in water permeability of concrete after specimens were allowed to heal the induced cracks indicate the occurrence of autogenous crack-healing activities in the concrete.
- The use of mill-rejected granular cement as a partial replacement for a fine aggregate could enable concrete to heal its cracks autogenously. The crack-healing efficiency of concrete could be increased by increasing the MRGC content of the concrete in the presence of sufficient water for hydration.
- The crack-healing effect of MRGC could be attributed to its hydration at a later age. MRGC particles are coarser than OPC particles, which enables the former to hydrate slowly. During the initial hydration, most of the finer OPC particles hydrate while hydration of the MRGC particles is limited to their surface. This could preserve unhydrated cement particles that can be used by concrete to heal cracks forming during its service life autogenously. Therefore, the use of MRGC could help concrete autogenously heal the cracks during its lifetime due to the hydration of the MRGC with the water entering through cracks.
- The mechanical properties of concrete were partially recovered due to the autogenous self-healing capability of concrete with the help of MRGC. The average regained in the mechanical properties of the water-cured specimens was about 90% of the reference strength (first cycle strength).
- The coefficient of permeability of concrete could be reduced by increasing the MRGC content of concrete in the presence of sufficient moisture.
- Based on the trend of the observed results, a further increase in the percentage replacement of MRGC for fine aggregates could improve the mechanical properties and crack-healing efficiency of concrete. However, MRGC is cement by nature and has to be evaluated from an economic viewpoint as well.
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Meyer, C. The greening of the concrete industry. Cem. Concr. Compos. 2009, 31, 601–605. [Google Scholar] [CrossRef]
- Jonkers, H.E. Development of a Bacteria-Based Self Healing Concrete. In Proceedings of the 8th FIB Symposium, Amsterdam, The Netherlands, 18–21 May 2008. [Google Scholar]
- Tittelboom, V.N. Use of bacteria to repair cracks in concrete. Cem. Concr. Res. 2010, 40, 157–166. [Google Scholar] [CrossRef]
- Shaikh, F.U.A. Effect of Cracking on Corrosion of Steel in Concrete. Int. J. Concr. Struct. Mater. 2018, 12, 3. [Google Scholar] [CrossRef] [Green Version]
- Sangadji, S. Can self-healing mechanism helps concrete structure sustainable? Procedia Eng. 2016, 171, 238–249. [Google Scholar] [CrossRef]
- Wang, J.; Basheer, P.A.; Nanukuttan, S.V.; Bai, Y. Influence of Cracking Caused by Structural Loading on Chloride-Induced Corrosion Process in Reinforced Concrete Elements: A Review. In Durability of Reinforced Concrete from Composition to Protection; Springer International Publishing: Cham, Switzerland, 2015. [Google Scholar]
- Bashir, J.; Aditya, I.K.; Tiwary, K.S. Bio Concrete—The Self-Healing Concrete. Indian J. Sci. Technol. 2016, 9, 1–5. [Google Scholar] [CrossRef] [Green Version]
- Ferrara, L.; Krelani, V.; Moretti, F. Autogenous healing on the recovery of mechanical performance of High Performance Fibre Reinforced Cementitious Composites (HPFRCCs): Part 2 e Correlation between healing of mechanical performance and crack sealing. Cem. Concr. Compos. 2016, 73, 299–315. [Google Scholar] [CrossRef]
- Chen, D. Overview of recent work on self-healing in cementitious materials. Materiales de Construcción 2014, 64, 34. [Google Scholar]
- Schlangen, E.; Jonkers, H.; Qian, S.; Garcia, A. Recent advances on self healing of concrete. In Proceedings of the 7th International Conference on Fracture Mechanics of Concrete and Concrete Structures, Jeju Island, Korea, 23–28 May 2010. [Google Scholar]
- Fischer, H. Self-repairing material systems―A dream or a reality? Nat. Sci. 2010, 2, 873–901. [Google Scholar] [CrossRef] [Green Version]
- Li, C.V.; Yang, E.-H. Self Healing in Concrete Materials. In Self Healing Materials; Springer: Dordrecht, The Netherlands, 2007; pp. 161–193. [Google Scholar]
- Xu, J.; Wang, X. Self-healing of concrete cracks by use of bacteria-containing low alkali. Constr. Build. Mater. 2018, 167, 1–14. [Google Scholar] [CrossRef]
- Zhang, J.; Liu, Y.; Feng, T.; Zhou, M.; Zhao, L.; Zhou, A.; Li, Z. Immobilizing bacteria in expanded perlite for the crack self-healing in concrete. Constr. Build. Mater. 2017, 148, 610–617. [Google Scholar] [CrossRef]
- Vijay, K.; Murmu, M.; Deo, S.V. Bacteria based self healing concrete—A review. Constr. Build. Mater. 2017, 152, 1008–1014. [Google Scholar] [CrossRef]
- Gupta, S.; Rathi, C.; Kapur, S. Biologically Inducedself healing concrete: A Futuristic solution for crack repair. Int. J. Appl. Sci. Biotechnol. 2013, 1, 85–89. [Google Scholar] [CrossRef] [Green Version]
- Seifan, M.; Sarmah, A.K.; Ebrahiminezhad, A.; Ghasemi, Y.; Samani, A.K.; Berenjian, A. Bio-reinforced self-healing concrete using magnetic iron oxide nanoparticles. Appl. Microbiol. Biotechnol. 2018, 102, 2167–2178. [Google Scholar] [CrossRef] [PubMed]
- Seifan, M.; Samani, A.K.; Berenjian, A. Bioconcrete: Next generation of self-healing concrete. Appl. Microbiol. Biotechnol 2016, 100, 2591–2602. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Seifan, M.; Sarmah, A.K.; Samani, A.K.; Ebrahiminezhad, A.; Ghasemi, Y.; Berenjian, A. Mechanical properties of bio self-healing concrete containing immobilized bacteria with iron oxide nanoparticles. Appl. Microbiol. Biotechnol. 2018, 102, 1189–4498. [Google Scholar] [CrossRef] [PubMed]
- Seifan, M.; Samani, A.K.; Burgess, J.J.; Berenjian, A. The effectiveness of microbial crack treatment in self-healing concrete. In High Value Processing Technologies; Berenjian, A., Jafarizadeh-Malmiri, H., Song, Y., Eds.; Nova Science Publishers: New York, NY, USA, 2016; pp. 97–125. [Google Scholar]
- Cuenca, E.; Ferrara, L. Self-healing Capacity of Fiber Reinforced Cementitious Composites: State of the Art and Perspectives. KSCE J. Civ. Eng. 2017, 21, 2777–2789. [Google Scholar] [CrossRef]
- Qian, S.; Zho, J.; de Rooij, M.R.; Schlangen, E.; Ye, G.; van Breugel, K. Self-healing behavior of strain hardening cementitious composites incorporating local waste materials. Cem. Concr. Compos. 2009, 31, 613–621. [Google Scholar] [CrossRef]
- Barbero, E.J.; Kevin, J.F. Characterization of Self-Healing Fiber-Reinforced Polymer-Matrix Composite with Distributed Damage. J. Adv. Mater. 2007, 39, 20–27. [Google Scholar]
- Nishiwaki, T.; Koda, M.; Yamada, M.; Mihashi, H.; Kikuta, T. Exprimental study of on self-healing capability of FRCC using differnt types of synthetic fibers. J. Adv. Technol. 2012, 10, 195–206. [Google Scholar]
- Jaroenratanapirom, D.; Sahamitmongkol, R. Self-Crack Closing Ability of Mortar with Different Additives. J. Met. Mater. Miner. 2011, 21, 9–17. [Google Scholar]
- Ahn, T.H.; Kishi, T. Crack Self-healing Behavior of Cementitious Composites Incorporating Various Mineral Admixtures. J. Adv. Concr. Technol. 2010, 8, 171–186. [Google Scholar] [CrossRef] [Green Version]
- Roig-Flores, M.; Pirritano, F.; Serna, P.; Ferrara, L. Effect of crystalline admixtures on the self-healing capability of early-age concrete studied by means of permeability and crack closing tests. Constr. Build. Mater. 2016, 114, 447–457. [Google Scholar] [CrossRef]
- RILEM. Self-Healing Phenomena in Cement-Based Materials; Springer: Dordrecht, The Netherlands, 2013. [Google Scholar]
- Shima, K.B.; Toshiharu, K.; Chang-Sik, C.; Ahn, T.H. Cementitiuous materials for crack self-healing concrete. J. Ceram. Process. Res. 2015, 16, 1–13. [Google Scholar]
- Yang, Y.; Yang, E.-H.; Li, V.C. Autogenous healing of engineered cementitious composites at early age. Cem. Concr. Res. 2011, 41, 176–183. [Google Scholar] [CrossRef]
- Yıldırım, G.; Keskin, Ö.K.; Keskin, S.B.; Şahmaran, M.; Lachemi, M. A review of intrinsic self-healing capability of engineered cementitious composites: Recovery of transport and mechanical properties. Constr. Build. Mater. 2015, 101, 10–21. [Google Scholar] [CrossRef]
- British Standard Institution. BS EN 197-1:2011—Cement. Composition, Specifications and Conformity Criteria for Common Cements; British Standard Institution: London, UK, 2011. [Google Scholar]
- British Standard Institution. BS EN 933-1 Tests for Geometrical Properties of Aggregates. Determination of Particle Size Distribution—Sieving Method; British Standard Institution: London, UK, 2012. [Google Scholar]
- British Standard Institute. BS EN 1097-3 Tests for Mechanical and Physical Properties of Aggregates. Determination of Loose Bulkdensity and Voids; British Standard Institute: London, UK, 1998. [Google Scholar]
- British Standard Institute. BS EN 1097-6:2013 Tests for Mechanical and Physical Properties of Aggregates. In Determination of Particle Density and Water Absorption; British Standard Institute: London, UK, 2000. [Google Scholar]
- British Standard Institute. BS EN 1097-8:2009 Tests for Mechanical and Physical Properties of Aggregates. In Determination of the Polished Stone Value; British Standard Institute: London, UK, 2000. [Google Scholar]
- British Standard Institution. BS EN 206:2013—Specification, Performance, Production and Conformity; British Standard Institution: London, UK, 2013. [Google Scholar]
- British Standard Institute. BS 8500-2:2015 Concrete—Complementary British Standard to BS EN 206—Part 2: Specification Forconstituent Materials and Concrete; British Standard Institute: London, UK, 2015. [Google Scholar]
- British Standard Institute. BS 1881-125 Method for Mixing and Sampling Fresh Concrete in the Laboratory; British Standard Institute: London, UK, 2013. [Google Scholar]
- British Standard Institute. BS EN 12350-2 Testing Fresh Concrete. Slump-Test; British Standard Institute: London, UK, 2019. [Google Scholar]
- British Standard Institute. BS EN 12390-3:2019 Testing Hardened Concrete. In Compressive Strength of Test Specimens; British Standard Institute: London UK, 2019. [Google Scholar]
- British Standard Institution. BS EN 12390-6:2009—Testing Hardened Concrete. In Tensile Splitting Strength of Test Specimens; British Standard Institution: London, UK, 2019. [Google Scholar]
- British Standard Institution. BS EN 12390-5:2019—Testing Hardened Concrete. In Flexural Strength of Test Specimens; British Standard Institution: London, UK, 2019. [Google Scholar]
- British Standard Institution. BS EN 12390-8:2019—Testing Hardened Concrete. In Depth of Penetration of Water under Pressure; British Standard Institution: London, UK, 2019. [Google Scholar]
- ter Heide, N.; Schlangen, E. Self-healing of early age cracks in concrete. In Proceedings of the First International Conference on Self-Healing Materials, Noordwijk aan Zee, The Netherlands, 18–20 April 2007. [Google Scholar]
- Vitor, C.; Li, E.H. Robust self-healing concrete for sustainable infrastructure. J. Adv. Concr. Technol. Mater. Struct. Environ. 2012, 10, 207–218. [Google Scholar]
- Singh, L.P.; Bisht, V.; Aswathy, M.S.; Chaurasia, L.; Gupta, S. Studies on performance enhancement of recycled aggregate by incorporating bio and nano materials. Constr. Build. Mater. 2018, 181, 217–226. [Google Scholar] [CrossRef]
- Kishi, T.; Ahn, T.; Hosoda, A.; Suzuki, S.; Takaoka, H. Self-healing behaviour by cementitious recrystallization of cracked concrete incorporating expansive agent. In Proceedings of the 1st International Conference on Self-Healing Materials, Noordwijk aan Zee, The Netherlands, 18–20 April 2007. [Google Scholar]
- Lepech, M.D.; Li, V.C. Water permeability in engineered cementitious composites. Cem. Concr. Compos. 2009, 31, 744–753. [Google Scholar] [CrossRef]
Composition | Mass % |
SiO2 | 23.5 |
Al2O3 | 3.5 |
Fe2O3 | 3.2 |
CaO | 63.5 |
MgO | 2.6 |
Alkalis | 0.54 |
LOI | 0.82 |
Others | 2.34 |
Physical Properties | |
Specific gravity | 3.11 |
Compressive strength, 28 days (MPa) | 30.5 |
Specific surface, Blaine (m2/kg) | 390 |
Initial/final setting (min) | 140/480 |
Normal consistency (%) | 30 |
Designation | Cement | Fine Aggregate | Coarse Aggregate | W/C | |
---|---|---|---|---|---|
Sand | MRGC | ||||
C0 | 411 | 838 | 0 | 1026 | 0.47 |
C5 | 411 | 796.1 | 41.9 | 1026 | 0.47 |
C10 | 411 | 754.2 | 83.8 | 1026 | 0.47 |
C15 | 411 | 712.3 | 125.7 | 1026 | 0.47 |
C20 | 411 | 670.4 | 167.6 | 1026 | 0.47 |
Designation | CM0 | CM5 | CM10 | CM15 | CM20 |
---|---|---|---|---|---|
Slump (mm) | 40 | 40 | 35 | 30 | 20 |
Designation | Average Compressive Strength (MPa) at 28 Days (SD) | |||
---|---|---|---|---|
Strength | Artificial Cracking | Reloading (after Crack-Healing) | ||
Air-Cured | Water-Cured | |||
C0 | 31.52 (0.33) | 13.11(0.51) | 14.26 (0.34) | 17.19 (0.12) |
C5 | 33.13 (0.21) | 18.69 (0.32) | 19.96 (0.51) | 24.96 (0.22) |
C10 | 35.42 (0.5) | 22.33 (0.41) | 23.43 (0.42) | 28.87 (0.34) |
C15 | 36.87 (0.24) | 25.31 (0.2) | 27.52 (0.4) | 33.25 (0.43) |
C20 | 38.21 (0.15) | 27.46 (0.16) | 30.46 (0.51) | 35.32 (0.26) |

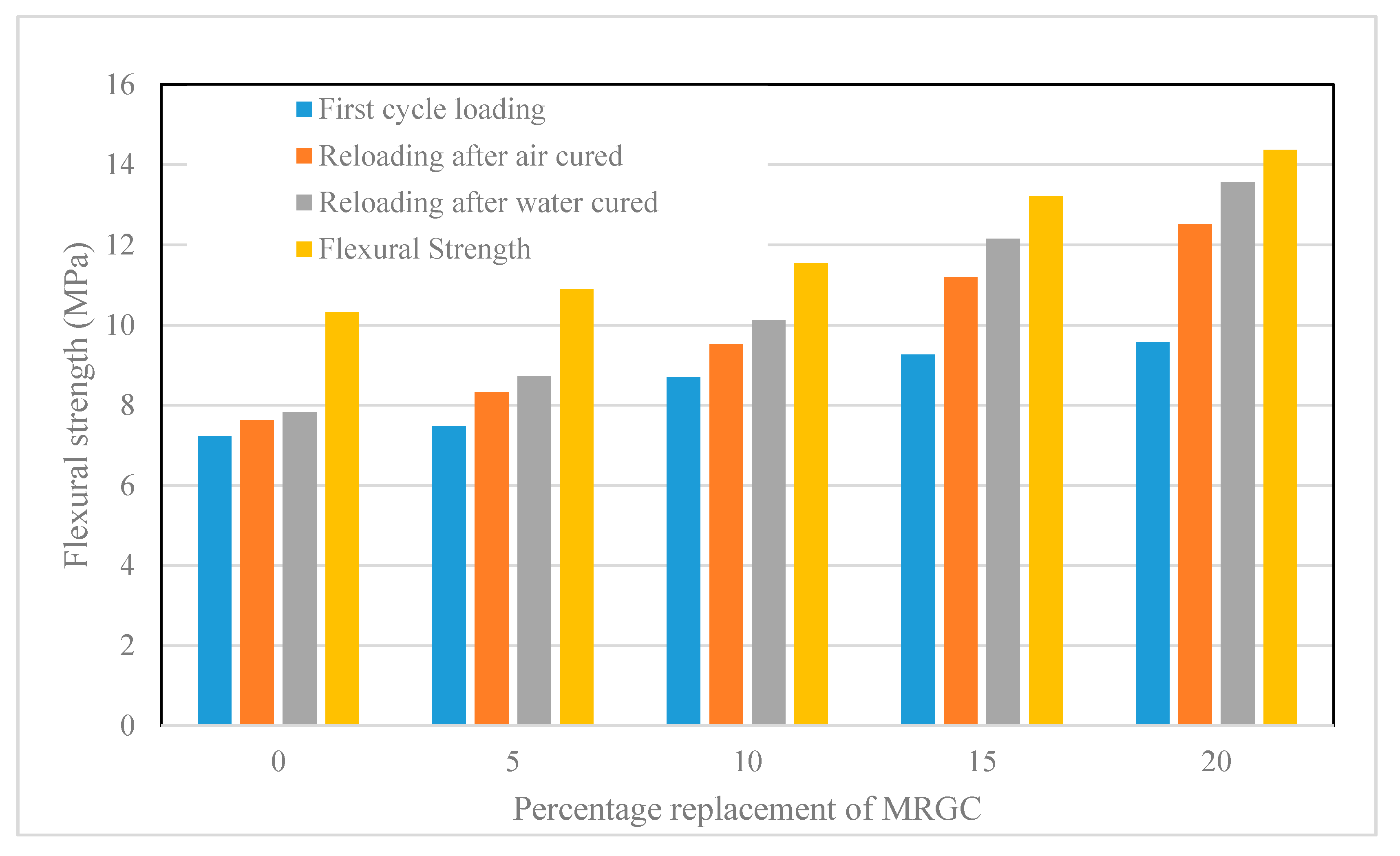

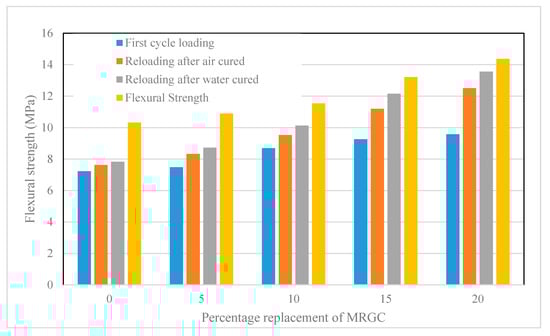

Designation | Average Flexural Strength (MPa) at 28 Days (SD) | |||
---|---|---|---|---|
Strength | Artificial Cracking | Reloading(after Crack-Healing) | ||
Air-Cured | Water-Cured | |||
C0 | 10.32 (0.21) | 7.23 (0.5) | 7.62 (0.4) | 7.83 (0.32) |
C5 | 10.89 (0.14) | 7.48 (0.2) | 8.33 (0.22) | 8.72 (0.33) |
C10 | 11.54 (0.22) | 8.69 (0.25) | 9.53 (0.30) | 10.13 (0.17) |
C15 | 13.21 (0.16) | 9.26 (0.18) | 11.2 (0.11) | 12.15 (0.41) |
C20 | 14.37 (0.20) | 9.58 (0.27) | 12.5 (0.29) | 13.55 (0.50) |

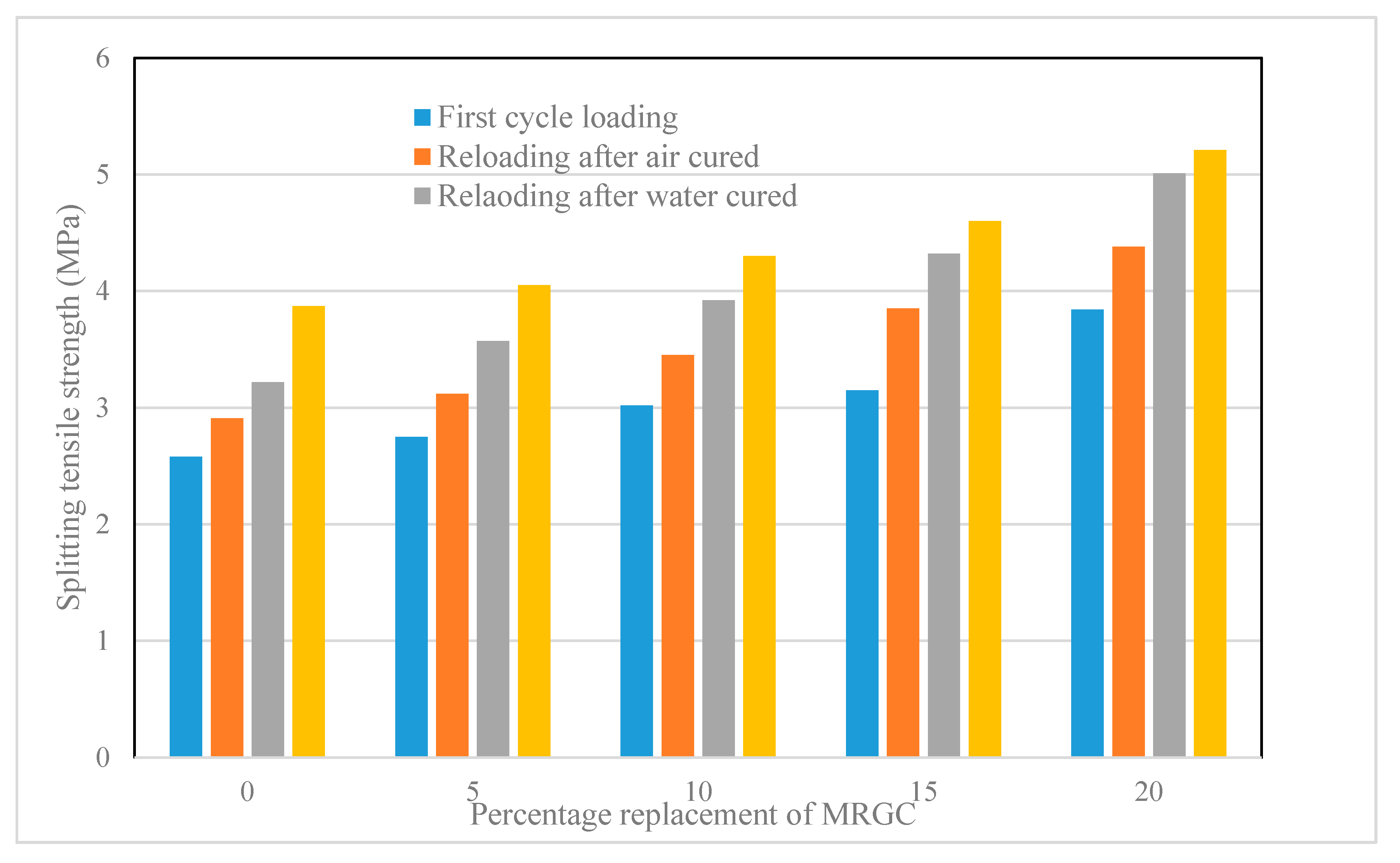

Designation | Average Tensile Strength (MPa) at 28 Days (SD) | |||
---|---|---|---|---|
Strength | Artificial Cracking | Reloading (after Crack-Healing) | ||
Air-Cured | Water-Cured | |||
C0 | 3.87 (0.12) | 2.58 (0.15) | 2.91 (0.2) | 3.22 (0.2) |
C5 | 4.05 (0.11) | 2.75 (0.26) | 3.12 (0.23) | 3.57 (0.13) |
C10 | 4.3 (0.12) | 3.02 (0.23) | 3.45 (0.3) | 3.92 (0.24) |
C15 | 4.6 (0.3) | 3.15 (0.34) | 3.85 (0.13) | 4.32 (0.14) |
C20 | 5.21(0.51) | 3.84 (0.33) | 4.38 (0.22) | 5.01 (0.50) |

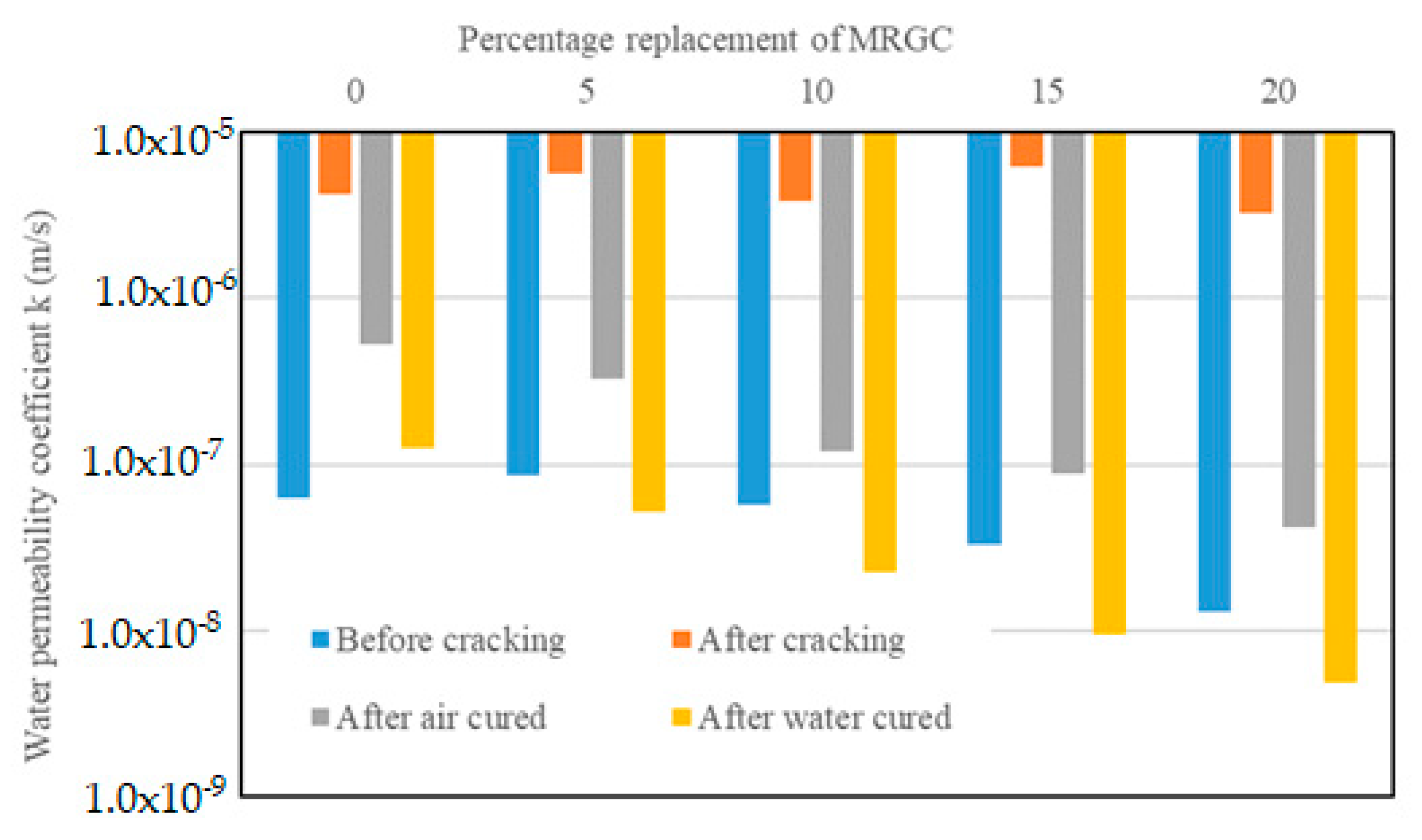

Designation | Coefficient of Permeabilityk (m/s) at 28 Days (SD) (× 10−7) | |||
---|---|---|---|---|
Before Cracking | After Cracking | After Crack-Healing | ||
Air-Cured | Water-Cured | |||
C0 | 0.623 (0.08) | 42.500 (0.6) | 5.240 (0.2) | 1.250 (0.1) |
C5 | 0.862 (0.05) | 56.400 (1.52) | 3.250 (0.12) | 0.521 (0.08) |
C10 | 0.572 (0.09) | 38.200 (0.56) | 1.200 (0.1) | 0.226 (0.05) |
C15 | 0.327 (0.09) | 62.700 (1.17) | 0.870 (0.05) | 0.094 (0.01) |
C20 | 0.131 (0.07) | 32.900 (1.49) | 0.420 (0.07) | 0.048 (0.007) |
