Next Article in Journal
Experimental Study on Water Recovery from Flue Gas Using Macroporous Ceramic Membrane
Previous Article in Journal
Effect of Rough Surface Platforms on the Mucosal Attachment and the Marginal Bone Loss of Implants: A Dog Study
Open AccessArticle

Rodlike YMn2O5 Powders Derived from Hydrothermal Process Using Oxygen as Oxidant

1
Liaoning Key Laboratory for Fabrication and Application of Superfine Inorganic Powders, Dalian Jiaotong University, Dalian 110621, China
2
Department of Materials Science and Engineering, Yingkou Institute of Technology, Yingkou 115014, China
*
Author to whom correspondence should be addressed.
Materials 2020, 13(3), 805; https://doi.org/10.3390/ma13030805
Received: 7 January 2020 / Revised: 6 February 2020 / Accepted: 6 February 2020 / Published: 10 February 2020

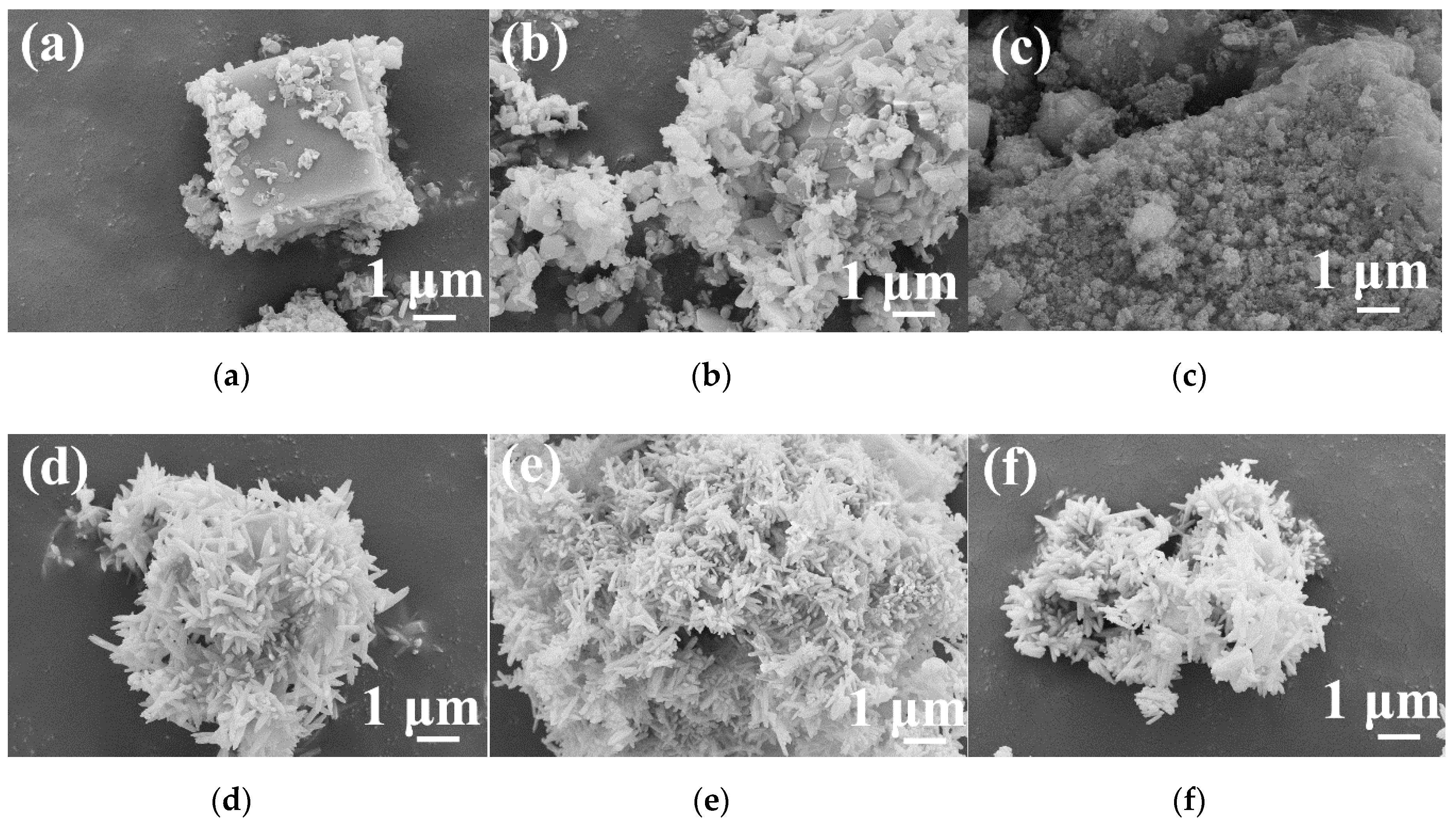

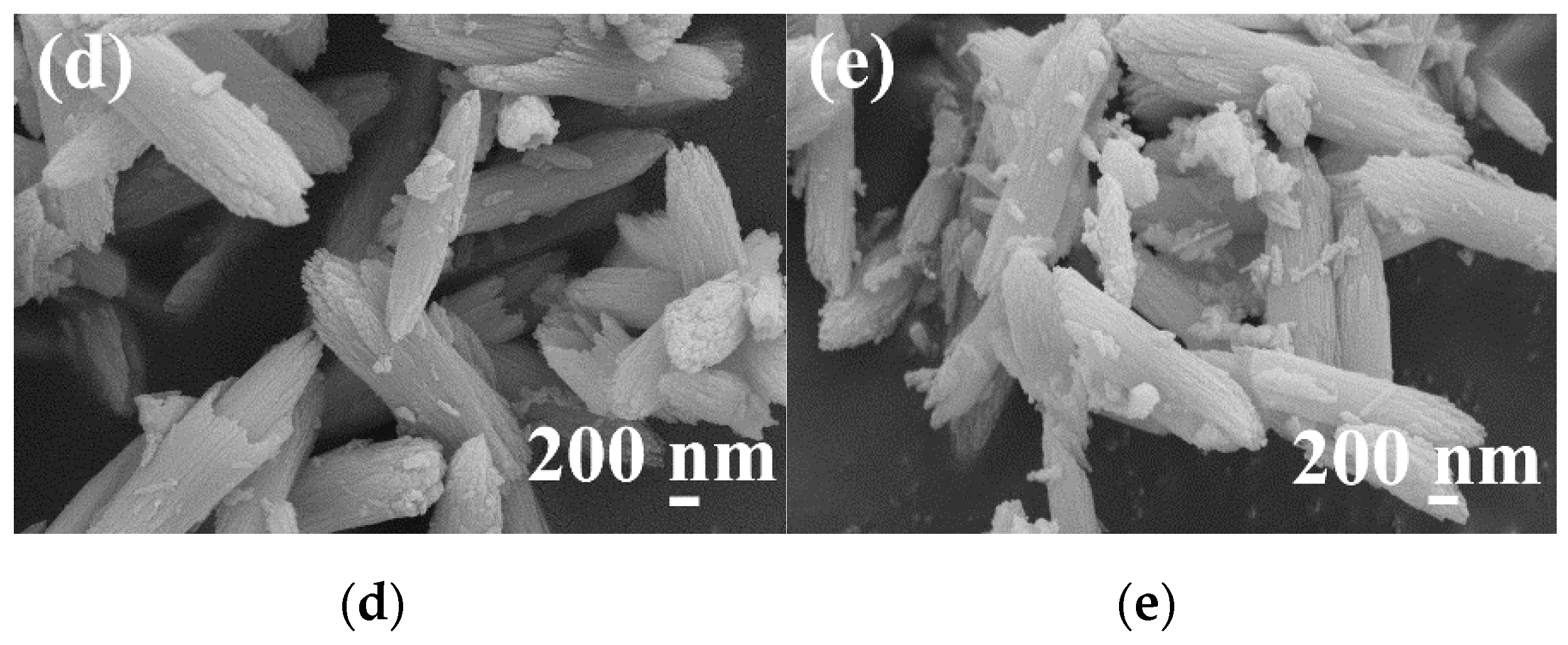

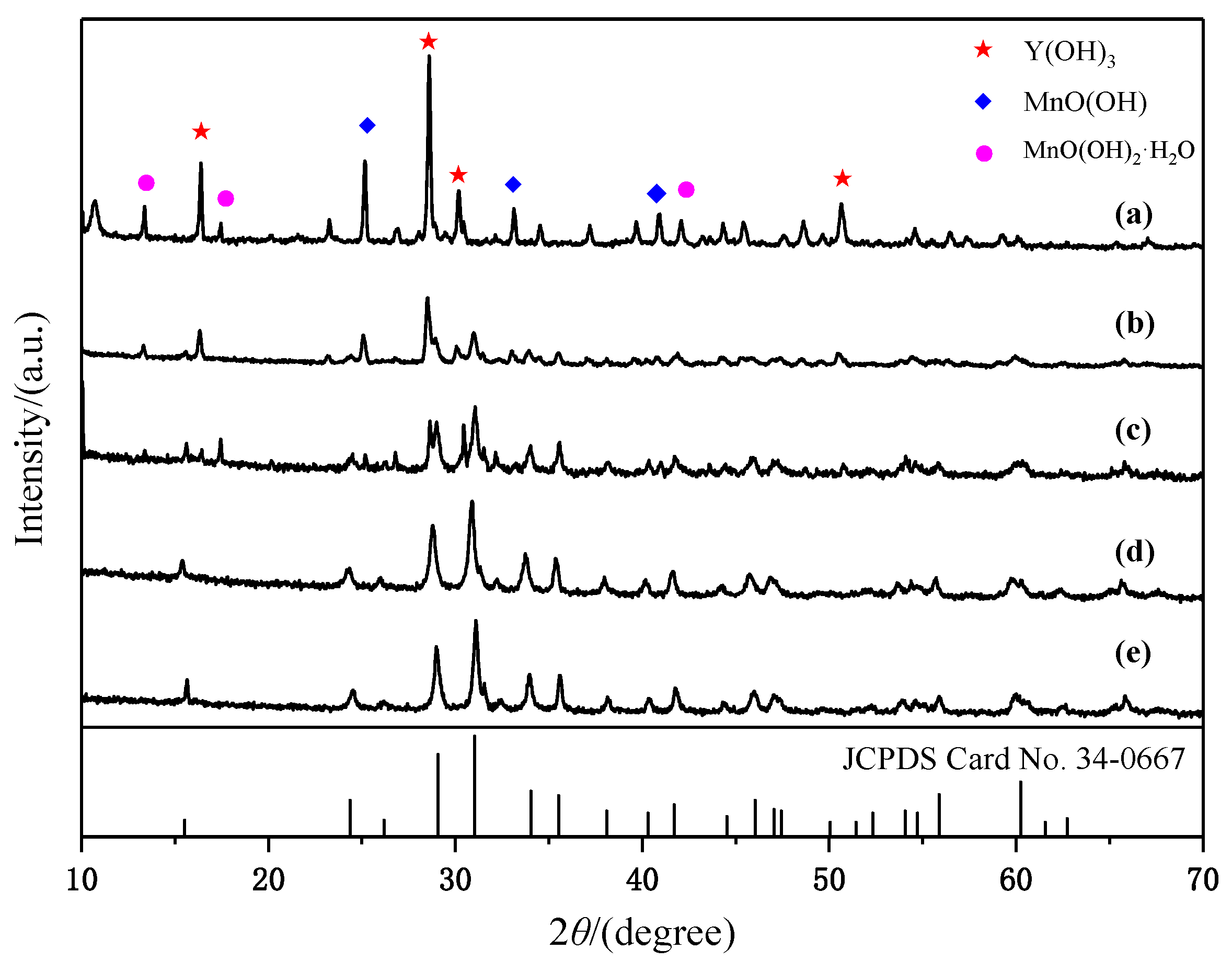

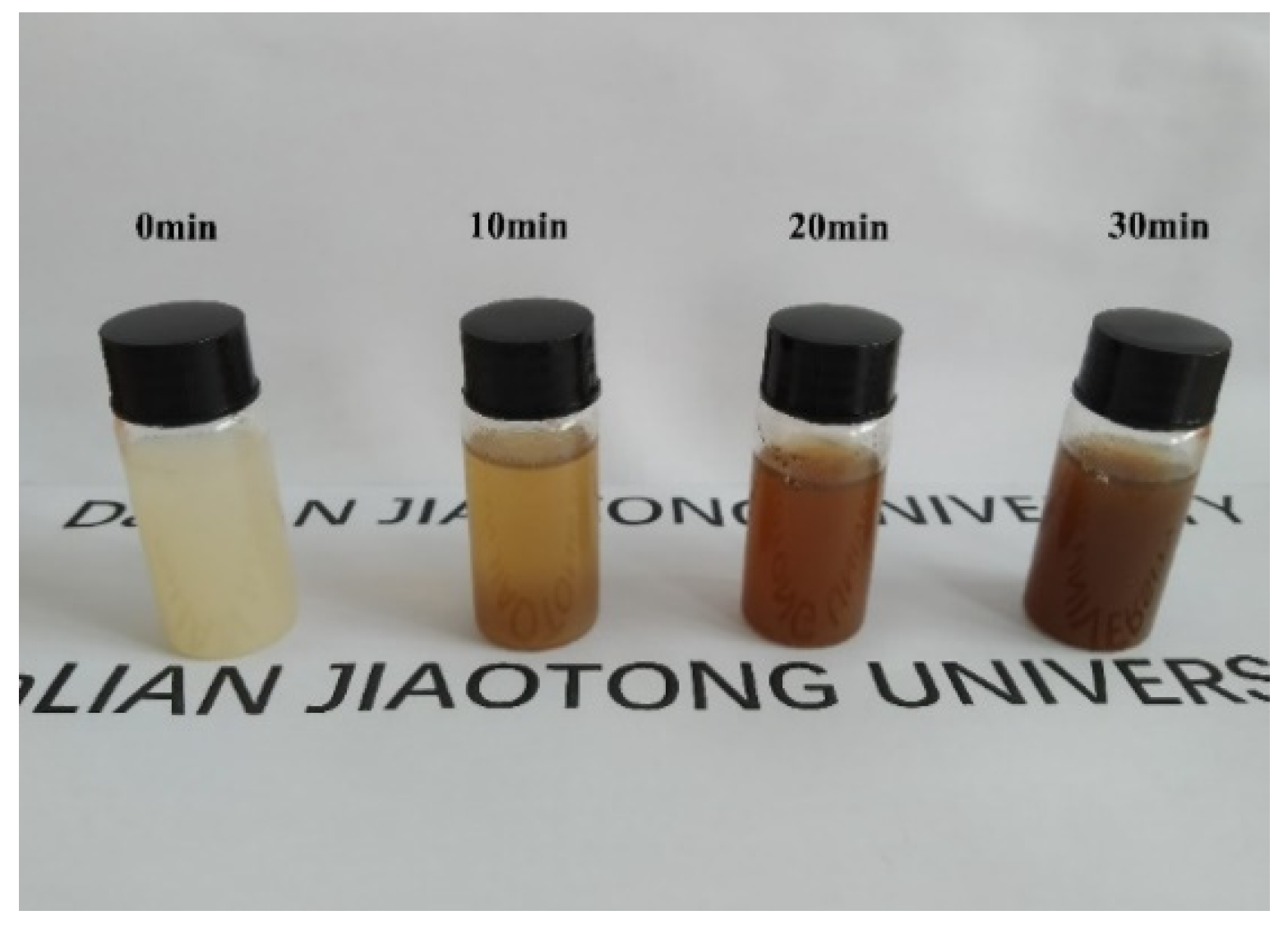

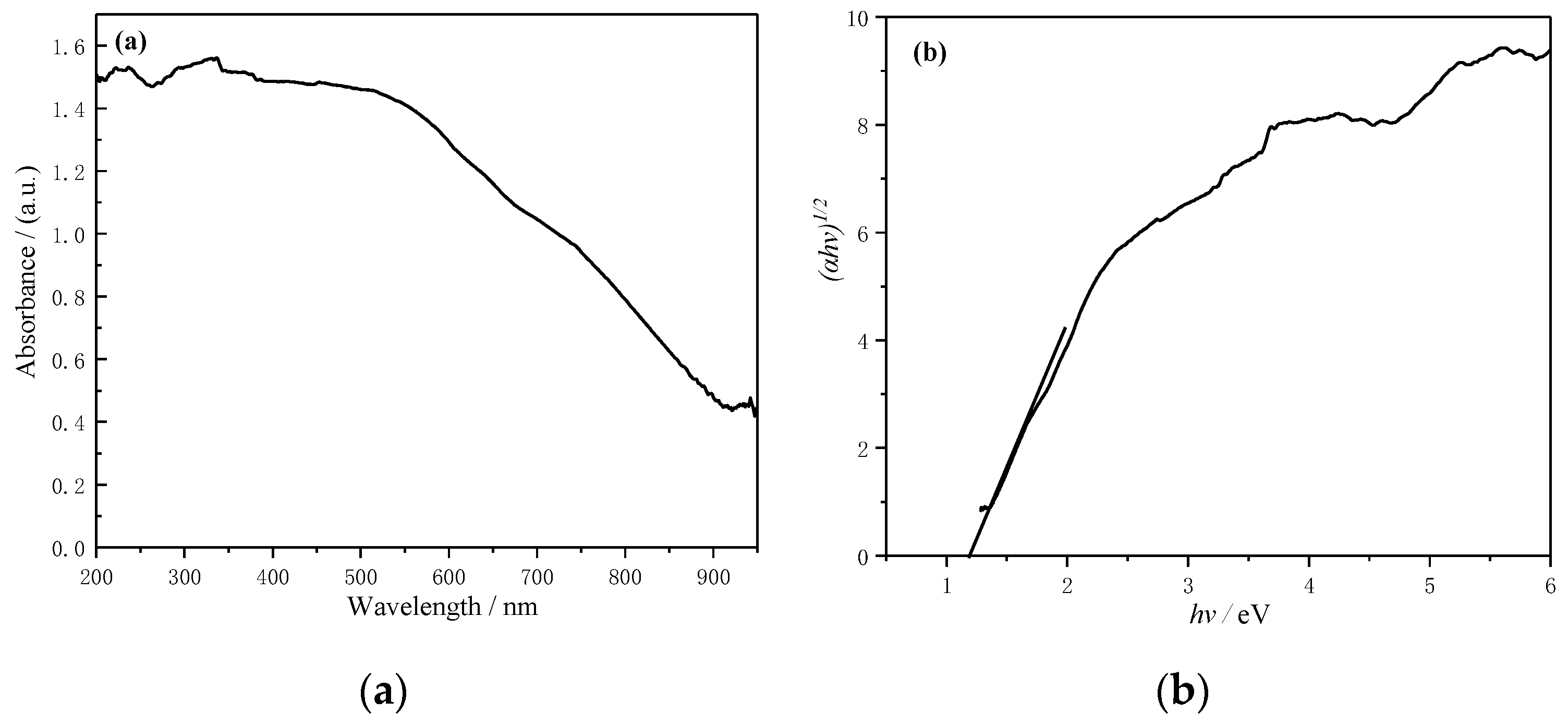

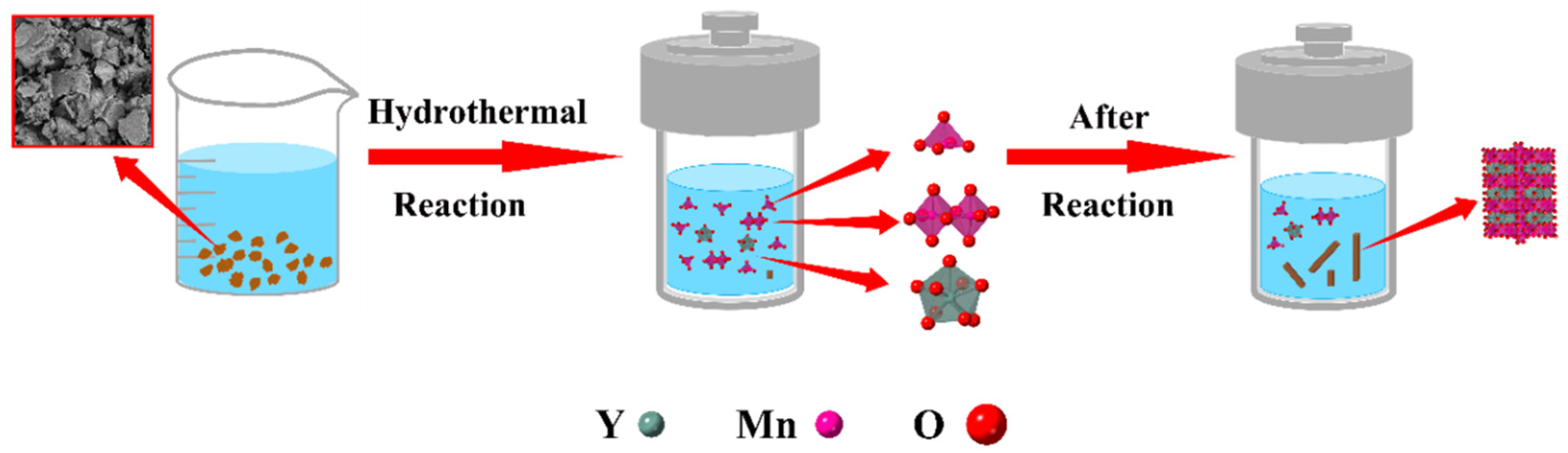

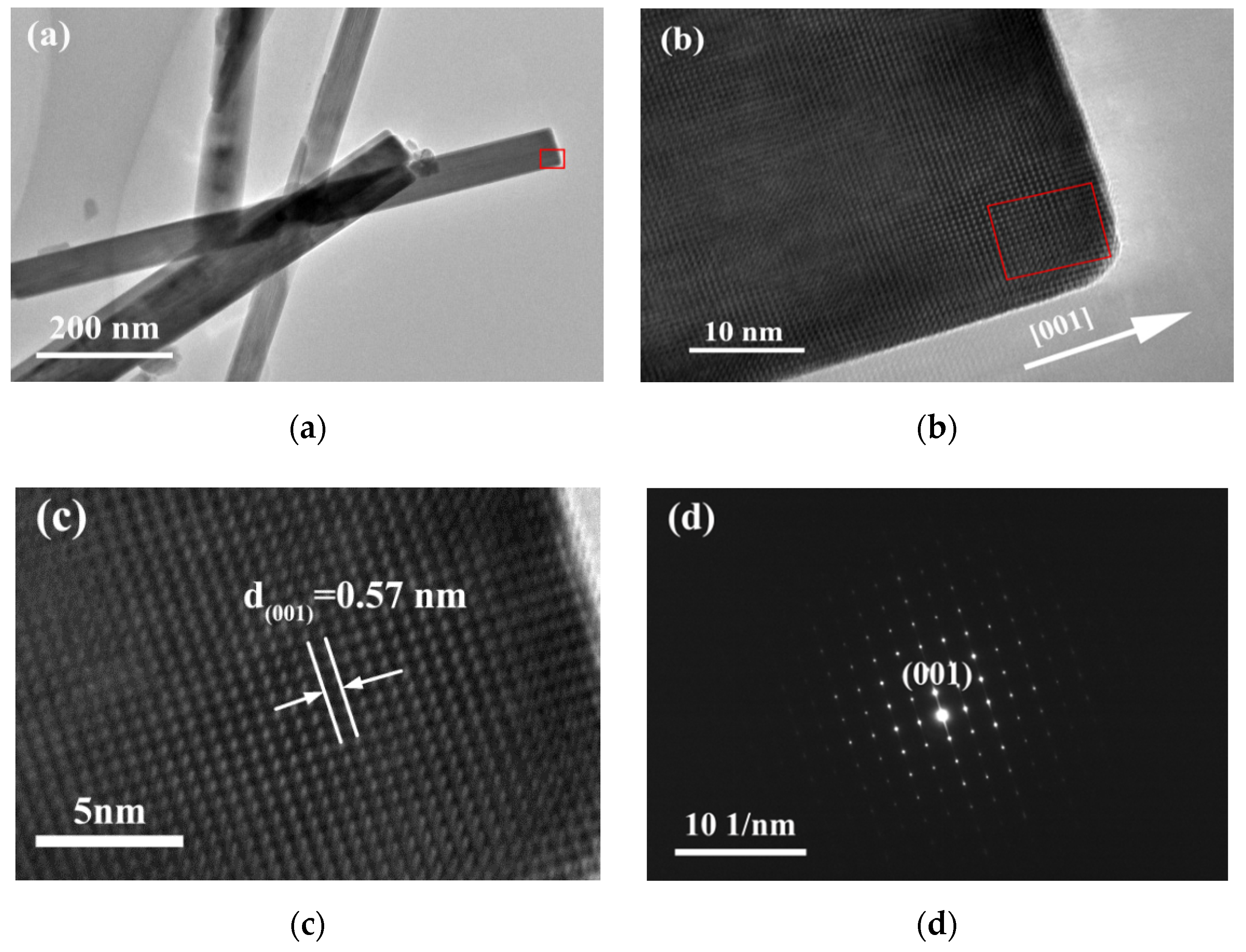

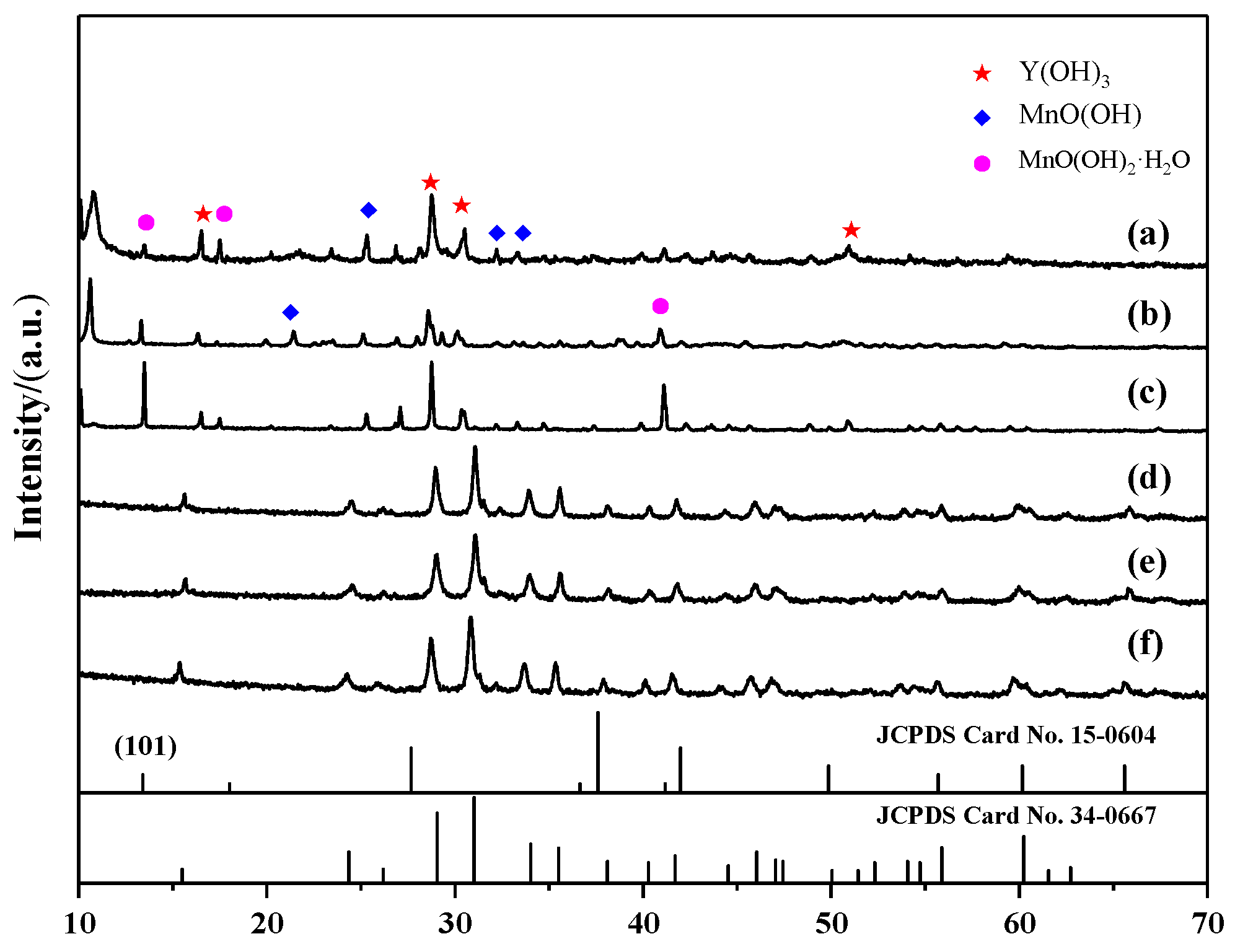

A facile approach is proposed herein to fabricate YMn2O5 powders with the hydrothermal method with oxygen as an oxidant. The structure and morphology of the as-synthesized YMn2O5 powders were characterized by XRD, SEM, and high-resolution transmission electron microscopy (HRTEM). The results manifested that the main factors that affected the formation of the rod-like YMn2O5 structures were the stirring time, hydrothermal temperature, and hydrothermal time. The oxidation time in the air had a remarkable effect on the final product by oxidizing Mn2+ ions to Mn3+ ions and Mn4+ ions. The obtained YMn2O5 powder was single crystalline and possessed a nanorod morphology, where the growth direction was along the c axis. The possible formation mechanism involved a dissolution–crystallization mechanism. Under the 397 nm excitation, the Mn4+ ions exhibited an intense orange emission at 596 nm. The energy bandgap of YMn2O5 powders was 1.18 eV. View Full-Text
Keywords: yttrium manganite; hydrothermal method; formation mechanism; luminescent properties yttrium manganite; hydrothermal method; formation mechanism; luminescent properties

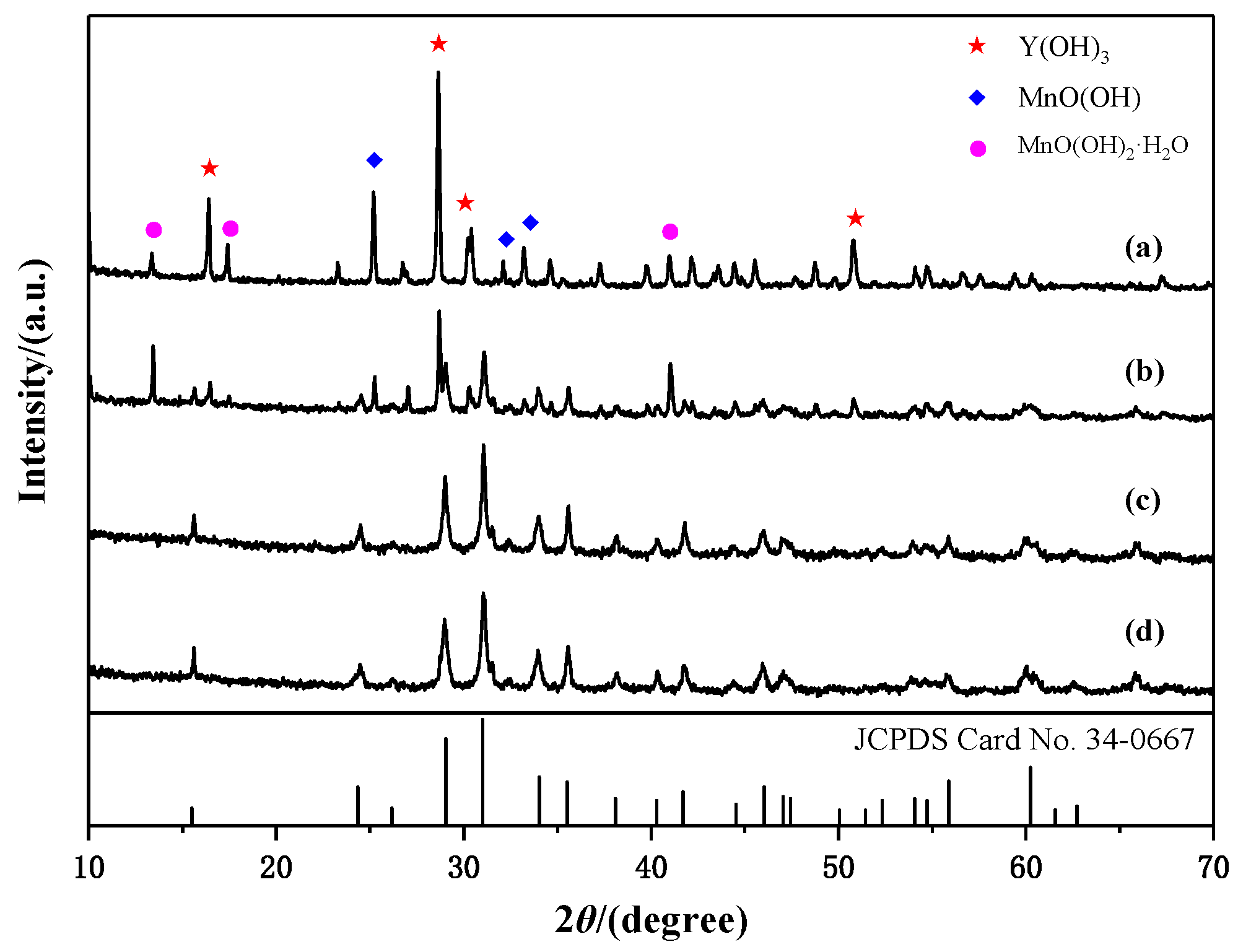

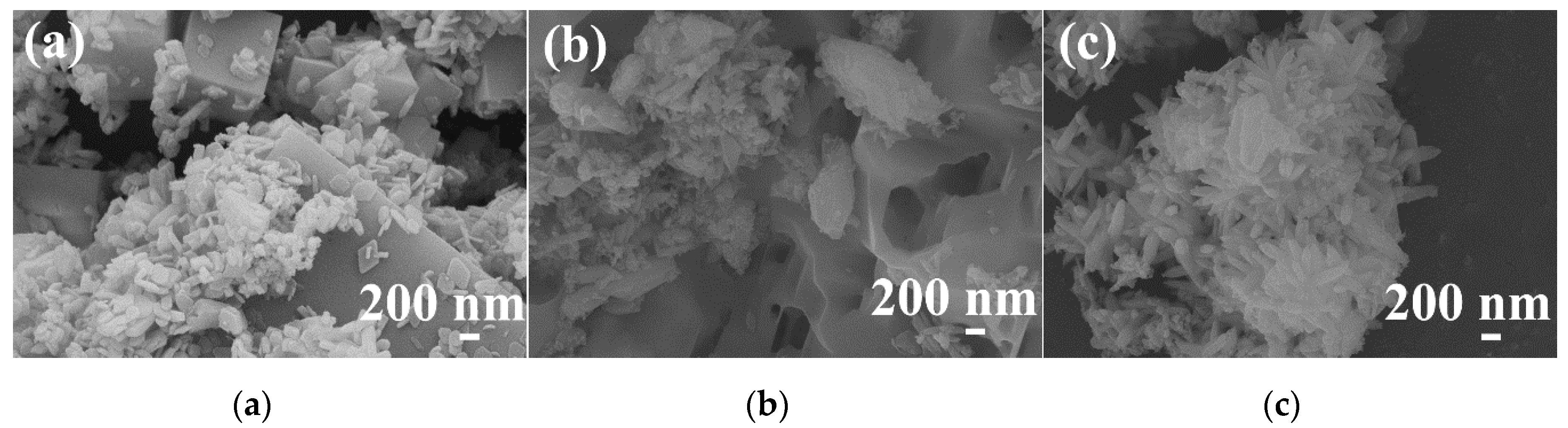

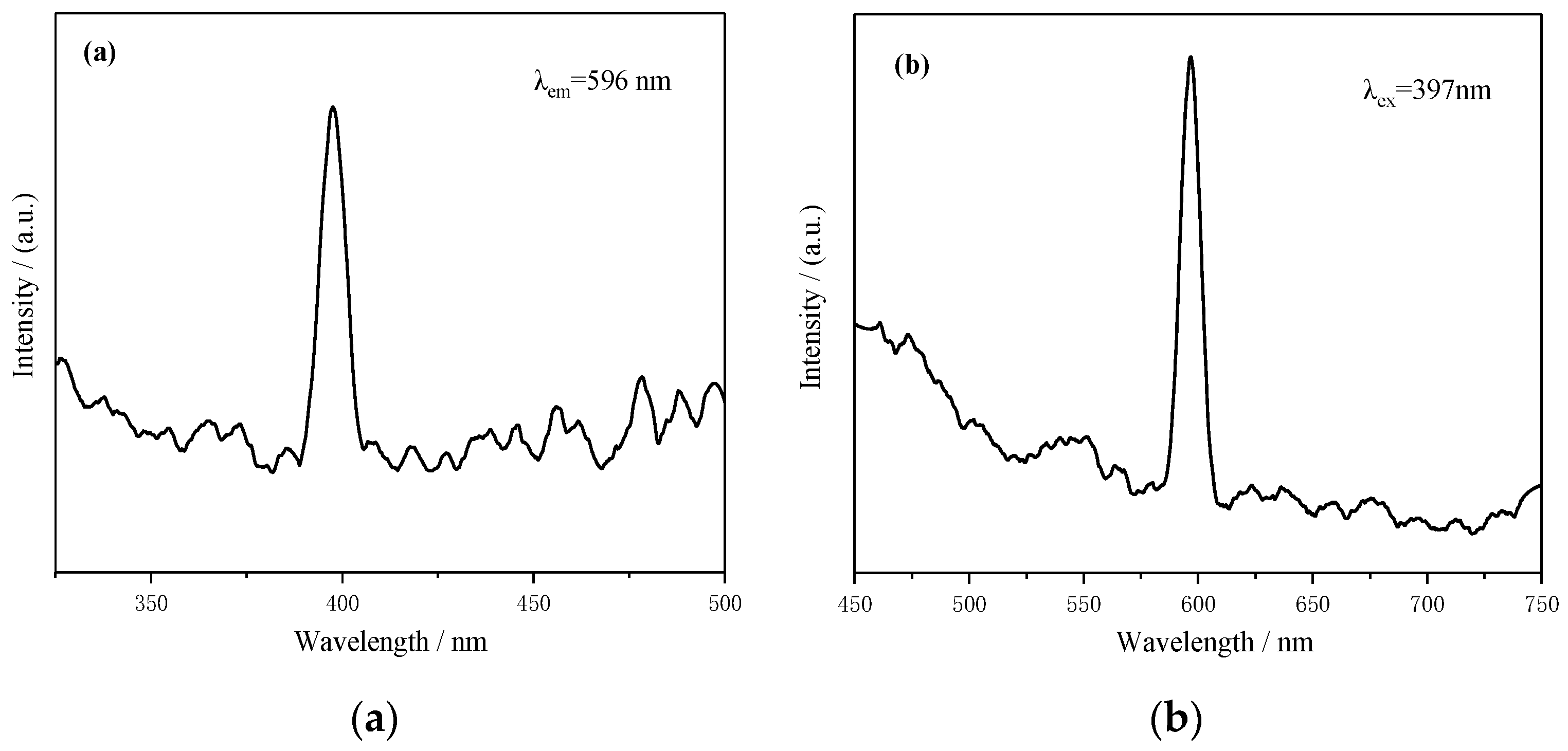

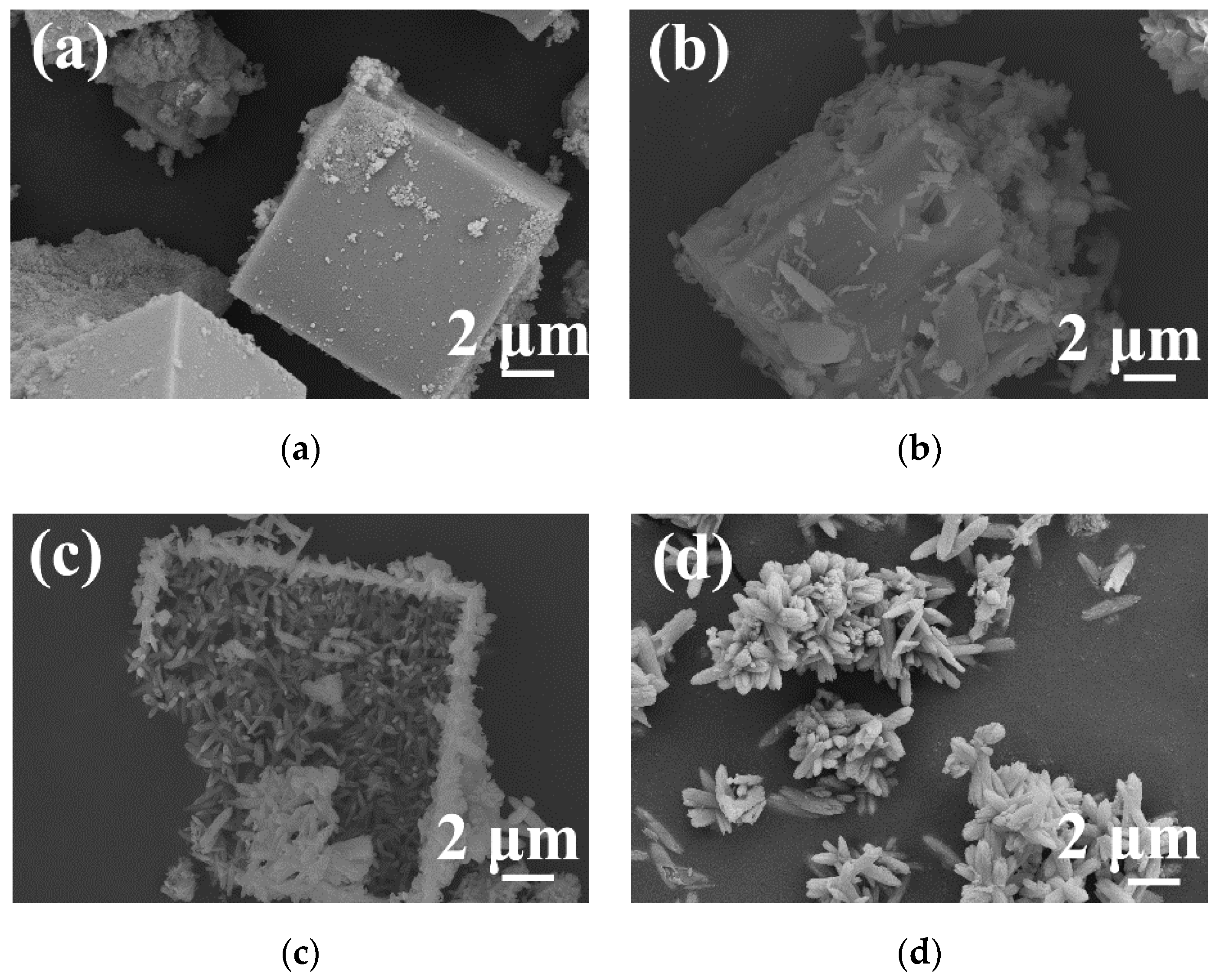

Show Figures

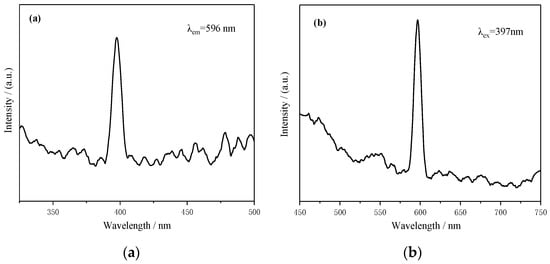

Figure 1

MDPI and ACS Style

Shi, J.; Wang, J.; He, H.; Lu, Y.; Shi, Z. Rodlike YMn2O5 Powders Derived from Hydrothermal Process Using Oxygen as Oxidant. Materials 2020, 13, 805.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
