Color Stability and Micro-Hardness of Bulk-Fill Composite Materials after Exposure to Common Beverages
Abstract
:1. Introduction
2. Materials and Methods
2.1. Specimen Preparation
2.2. Staining Procedure
2.3. Color Change Determination
2.4. Microhardness Measurement
2.5. Statistical Testing
3. Results
3.1. Color Change (ΔE)
3.2. Surface Microhardness
4. Discussion
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
Abbreviations
AUDMA | Aromatic urethane dimethacrylate |
Bis-GMA | Bisphenolglycidyl methacrylate |
Bis-EMA | Ethoxylated bisphenol-A dimethacrylate |
CQ | Camphorquinone |
DDDMA | 1,12-Dodecane dimethacrylate |
TEGDMA | Tri-ethylene-glycol-dimethacrylate |
UDMA | Urethane dimethacrylate |
wt.% | weight percentage |
vol.% | volume percentage |
References
- Demarco, F.F.; Correa, M.B.; Cenci, M.S.; Moraes, R.R.; Opdam, N.J. Longevity of posterior composite restorations: Not only a matter of materials. Dent. Mater. 2012, 28, 87–101. [Google Scholar] [CrossRef]
- Van Ende, A.; De Munck, J.; Lise, D.P.; Van Meerbeek, B. Bulk-Fill Composites: A Review of the Current Literature. J. Adhes. Dent. 2017, 19, 95–109. [Google Scholar]
- Jadhav, S.; Hegde, V.; Aher, G.; Fajandar, N. Influence of light curing units on failure of directcomposite restorations. J. Conserv. Dent. 2011, 14, 225–227. [Google Scholar] [CrossRef] [Green Version]
- Geurtsen, W.; Leyhausen, G.; Garcia-Godoy, F. Effect of storage media on the fluoride release and surface microhardness of four polyacid-modified composite resins (“compomers”). Dent. Mater. 1999, 15, 196–201. [Google Scholar] [CrossRef]
- Rees, J.S.; Jagger, D.C.; Williams, D.R.; Brown, G.; Duguid, W. A reappraisal of the incremental packing technique for light cured composite resins. J. Oral. Rehabil. 2004, 31, 81–84. [Google Scholar] [CrossRef]
- Soares, C.J.; Rodrigues, M.P.; Oliveira, L.R.S.; Braga, S.S.L.; Barcelos, L.M.; Silva, G.R.D.; Giannini, M.; Price, R.B. An Evaluation of the Light Output from 22 Contemporary Light Curing Units. Braz. Dent. J. 2017, 28, 362–371. [Google Scholar] [CrossRef] [Green Version]
- Tjan, A.H.; Bergh, B.H.; Lidner, C. Effect of various incremental techniques on the marginal adaptation of class II composite resin restorations. J. Prosthet. Dent. 1992, 67, 62–66. [Google Scholar] [CrossRef]
- El-Damanhoury, H.; Platt, J. Polymerization shrinkage stress kinetics and related properties of bulk-fill resin composites. Oper. Dent. 2014, 39, 374–382. [Google Scholar] [CrossRef]
- Menees, T.S.; Lin, C.P.; Kojic, D.D.; Burgess, J.O.; Lawson, N.C. Depth of cure of bulk fill composites with monowave and polywave curing lights. Am. J. Dent. 2015, 28, 357–361. [Google Scholar]
- Kim, E.H.; Jung, K.H.; Son, S.A.; Hur, B.; Kwon, Y.H.; Park, J.K. Effect of resin thickness on the microhardness and optical properties of bulk-fill resin composites. Restor. Dent. Endod. 2015, 40, 128–135. [Google Scholar] [CrossRef]
- Monterubbianesi, R.; Orsini, G.; Tosi, G.; Conti, C.; Librando, V.; Procaccini, M.; Putignano, A. Spectroscopic and Mechanical Properties of a New Generation of Bulk Fill Composites. Front. Physiol. 2016, 7, 652. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Bayne, S.C.; Schmalz, G. Reprinting the classic article on USPHS evaluation methods for measuring the clinical research performance of restorative materials. Clin. Oral Investig. 2005, 9, 209–214. [Google Scholar] [CrossRef] [PubMed]
- Duc, O.; Di Bella, E.; Krejci, I.; Betrisey, E.; Abdelaziz, M.; Ardu, S. Staining susceptibility of resin composite materials. Am. J. Dent. 2019, 32, 39–42. [Google Scholar] [PubMed]
- Khatri, A.; Nandlal, B. Staining of a Conventional and a Nanofilled Composite Resin Exposed in vitro to Liquid Ingested by Children. Int. J. Clin. Pediatr. Dent. 2010, 3, 183–188. [Google Scholar] [CrossRef] [PubMed]
- Ardu, S.; Duc, O.; Di Bella, E.; Krejci, I.; Daher, R. Color stability of different composite resins after polishing. Odontology. 2018, 106, 328–333. [Google Scholar] [CrossRef]
- Johnston, W.M. Color measurement in dentistry. J. Dent. 2009, 37 (Suppl. 1), e2–e6. [Google Scholar] [CrossRef]
- Lynch, C.D.; Opdam, N.J.; Hickel, R.; Brunton, P.A.; Gurgan, S.; Kakaboura, A.; Shearer, A.C.; Vanherle, G.; Wilson, N.H. Guidance on posterior resin composites: Academy of Operative Dentistry—European Section. J. Dent. 2014, 42, 377–383. [Google Scholar] [CrossRef]
- Wilson, M.A.; Cowan, A.J.; Randall, R.C.; Crisp, R.J.; Wilson, N.H. A practice-based, randomized, controlled clinical trial of a new resin composite restorative: One-year results. Oper. Dent. 2002, 27, 423–429. [Google Scholar]
- Chandrasekhar, V.; Rudrapati, L.; Badami, V.; Tummala, M. Incremental techniques in direct composite restoration. J. Conserv. Dent. 2017, 20, 386–391. [Google Scholar]
- AlQahtani, M.Q.; Michaud, P.L.; Sullivan, B.; Labrie, D.; AlShaafi, M.M.; Price, R.B. Effect of High Irradiance on Depth of Cure of a Conventional and a Bulk Fill Resin-based Composite. Oper. Dent. 2015, 40, 662–672. [Google Scholar] [CrossRef] [Green Version]
- Pereira, R.; Giorgi, M.C.C.; Lins, R.B.E.; Theobaldo, J.D.; Lima, D.; Marchi, G.M.; Aguiar, F.H.B. Physical and photoelastic properties of bulk-fill and conventional composites. Clin. Cosmet. Investig. Dent. 2018, 10, 287–296. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Bueno, R.P.; Salomone, P.; Villetti, M.A.; Pozzobon, R.T. Effect of bleaching agents on the fluorescence of composite resins. Eur. J. Esthet. Dent. 2013, 8, 582–591. [Google Scholar] [PubMed]
- Tian, F.; Yap, A.U.; Wang, X.; Gao, X. Effect of staining solutions on color of pre-reacted glass-ionomer containing composites. Dent. Mater. J. 2012, 31, 384–388. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Tan, B.L.; Yap, A.U.; Ma, H.N.; Chew, J.; Tan, W.J. Effect of beverages on color and translucency of new tooth-colored restoratives. Oper. Dent. 2015, 40, E56–E65. [Google Scholar] [CrossRef] [Green Version]
- Theobald, A.H.; Wong, B.K.; Quick, A.N.; Thomson, W.M. The impact of the popular media on cosmetic dentistry. N. Z. Dent. J. 2006, 102, 58–63. [Google Scholar]
- Joiner, A. Tooth colour: A review of the literature. J. Dent. 2004, 32 (Suppl. 1), 3–12. [Google Scholar] [CrossRef]
- Ertas, E.; Guler, A.U.; Yucel, A.C.; Koprulu, H.; Guler, E. Color stability of resin composites after immersion in different drinks. Dent. Mater. J. 2006, 25, 371–376. [Google Scholar] [CrossRef] [Green Version]
- Johnston, W.M.; Kao, E.C. Assessment of appearance match by visual observation and clinical colorimetry. J. Dent. 1989, 68, 819–822. [Google Scholar] [CrossRef]
- Tekce, N.; Tuncer, S.; Demirci, M.; Serim, M.E.; Baydemir, C. The effect of different drinks on the color stability of different restorative materials after one month. Restor. Dent. Endod. 2015, 40, 255–261. [Google Scholar] [CrossRef]
- Malekipour, M.R.; Sharafi, A.; Kazemi, S.; Khazaei, S.; Shirani, F. Comparison of color stability of a composite resin in different color media. Dent. Res. J. (Isfahan) 2012, 9, 441–446. [Google Scholar]
- Garoushi, S.; Lassila, L.; Hatem, M.; Shembesh, M.; Baady, L.; Salim, Z.; Vallittu, P. Influence of staining solutions and whitening procedures on discoloration of hybrid composite resins. Acta Odontol. Scand. 2013, 71, 144–150. [Google Scholar] [CrossRef] [PubMed]
- Karadas, M. The effect of different beverages on the color and translucency of flowable composites. Scanning 2016, 38, 701–709. [Google Scholar] [CrossRef] [PubMed]
- Sarafianou, A.; Iosifidou, S.; Papadopoulos, T.; Eliades, G. Color stability and degree of cure of direct composite restoratives after accelerated aging. Oper. Dent. 2007, 32, 406–411. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Ardu, S.; Braut, V.; Gutemberg, D.; Krejci, I.; Dietschi, D.; Feilzer, A.J. A long-term laboratory test on staining susceptibility of esthetic composite resin materials. Quintessence Int. 2010, 41, 695–702. [Google Scholar] [PubMed]
- Ren, Y.F.; Feng, L.; Serban, D.; Malmstrom, H.S. Effects of common beverage colorants on color stability of dental composite resins: The utility of a thermocycling stain challenge model in vitro. J. Dent. 2012, 40 (Suppl. 1), e48–e56. [Google Scholar] [CrossRef] [PubMed]
- Shamszadeh, S.; Sheikh-Al-Eslamian, S.M.; Hasani, E.; Abrandabadi, A.N.; Panahandeh, N. Color Stability of the Bulk-Fill Composite Resins with Different Thickness in Response to Coffee/Water Immersion. Int. J. Dent. 2016, 2016, 7186140. [Google Scholar] [CrossRef] [Green Version]
- Bucuta, S.; Ilie, N. Light transmittance and micro-mechanical properties of bulk fill vs. conventional resin based composites. Clin. Oral. Investig. 2014, 18, 1991–2000. [Google Scholar] [CrossRef]
- Kumagai, R.Y.; Zeidan, L.C.; Rodrigues, J.A.; Reis, A.F.; Roulet, J.F. Bond Strength of a Flowable Bulk-fill Resin Composite in Class II MOD Cavities. J. Adhes. Dent. 2015, 17, 427–432. [Google Scholar]
- Venz, S.; Dickens, B. NIR-spectroscopic investigation of water sorption characteristics of dental resins and composites. J. Biomed. Mater. Res. 1991, 25, 1231–1248. [Google Scholar] [CrossRef]
- Kerby, R.E.; Knobloch, L.A.; Schricker, S.; Gregg, B. Synthesis and evaluation of modified urethane dimethacrylate resins with reduced water sorption and solubility. Dent. Mater. 2009, 25, 302–313. [Google Scholar] [CrossRef]
- Mansouri, S.A.; Zidan, A.Z. Effect of Water Sorption and Solubility on Color Stability of Bulk-Fill Resin Composite. J. Contemp. Dent. Pract. 2018, 19, 1129–1134. [Google Scholar] [PubMed]
- Sideridou, I.; Tserki, V.; Papanastasiou, G. Effect of chemical structure on degree of conversion in light-cured dimethacrylate-based dental resins. Biomaterials 2002, 23, 1819–1829. [Google Scholar] [CrossRef]
- Shobha, H.K.; Sankarapandian, M.; Kalachandra, S.; Taylor, D.F.; McGrath, J.E. Structure property relationship among novel dental composite matrix resins. J. Mater. Sci. Mater. Med. 1997, 8, 385–389. [Google Scholar] [CrossRef] [PubMed]
- Sideridou, I.; Tserki, V.; Papanastasiou, G. Study of water sorption, solubility and modulus of elasticity of light-cured dimethacrylate-based dental resins. Biomaterials 2003, 24, 655–665. [Google Scholar] [CrossRef]
- Kumar, M.S.; Ajay, R.; Miskeen Sahib, S.A.; Chittrarasu, M.; Navarasu, M.; Ragavendran, N.; Burhanuddin Mohammed, O.F. Color Stability Assessment of Two Different Composite Resins with Variable Immersion Time Using Various Beverages: An In vitro Study. J. Pharm. Bioallied. Sci. 2017, 9 (Suppl. 1), S161–S165. [Google Scholar]
- Barutcigil, C.; Barutcigil, K.; Ozarslan, M.M.; Dundar, A.; Yilmaz, B. Color of bulk-fill composite resin restorative materials. J. Esthet. Restor. Dent. 2018, 30, E3–E8. [Google Scholar] [CrossRef]
- Hasan, A.K.; Sunarintyas, S.; Irnawati, D. Color stability of visible light cured composite resin after soft drink immersion. Dent. J. (Maj. Kedokt. Gigi) 2009, 42, 123–125. [Google Scholar] [CrossRef] [Green Version]
- Leprince, J.G.; Palin, W.M.; Vanacker, J.; Sabbagh, J.; Devaux, J.; Leloup, G. Physico-mechanical characteristics of commercially available bulk-fill composites. J. Dent. 2014, 42, 993–1000. [Google Scholar] [CrossRef]
- Ilie, N.; Bucuta, S.; Draenert, M. Bulk-fill resin-based composites: An in vitro assessment of their mechanical performance. Oper. Dent. 2013, 38, 618–625. [Google Scholar] [CrossRef]
- Sunbul, H.A.; Silikas, N.; Watts, D.C. Surface and bulk properties of dental resin- composites after solvent storage. Dent. Mater. 2016, 32, 987–997. [Google Scholar] [CrossRef] [Green Version]
Material, Abbreviation | Category | Resin Matrix | Main Fillers | Filler Load (wt.%/vol.%) | Photoinitiator | Manufacturer |
---|---|---|---|---|---|---|
Filtek Z350 (Z350) | Nano-composite | Bis-GMA, UDMA | Silane-treated ceramic, silica, zirconia | 73/56 | CQ | 3M ESPE, Dental Products, Saint Paul, MN, USA |
Filtek Bulk-Fill (FB) | Nano-hybrid Bulk-Fill composite | AUDMA, UDMA, DDDMA | Silane-treated ceramics, silica, zirconia | 77/59 | CQ | 3M ESPE, Dental Products, Saint Paul, MN, USA |
Tetric N-Ceram Bulk-Fill (TB) | Nano-hybrid Bulk-Fill composite | Bis-GMA, Bis-EMA, UDMA | Barium glass, silicate glass | 81/61 | CQ, dibenzoyl germanium derivative (Ivocerin®) | Ivoclar Vivadent, Zurich, Switzerland |
Sonic Fill 2 (SF2) | Hybrid Bulk-Fill composite | Bis-GMA, TEGDMA, Bis-EMA | Zirconium oxide glass | 81/- | Not disclosed | Kerr Dental, Orange, CA, USA |
SDR Flow (SDR) | Bulk-Fill flowable composite | Bis-EMA, modified UDMA, TEGDMA | Barium-aluminum-fluorosilicate glass | 68/45 | CQ | Dentsply; Konstanz, Germany |
Material | Solution | Vickers Microhardness (Baseline) | Vickers Microhardness (after 90 Days) |
---|---|---|---|
Filtek Z350 | Tea | 74.2 ± 3.6 | 74.1 ± 5.1 |
Coffee | 73.8 ± 1.6 | 75.5 ± 4.8 | |
Berry juice | 74.8 ± 4.6 | 66.9 ± 4.8 | |
Distilled water | 73.8 ± 4.1 | 69.4 ± 10.6 | |
Filtek Bulk-Fill | Tea | 54.0 ± 3.4 | 51.1 ± 6.0 |
Coffee | 55.6 ± 2.0 | 55.4 ± 4.7 | |
Berry juice | 53.4 ± 3.4 | 52.9 ± 4.5 | |
Distilled water | 54.0 ± 4.8 | 46.1 ± 6.0 | |
Tetric N-Ceram Bulk-Fill | Tea | 43.2 ± 2.6 | 47.3 ± 2.4 |
Coffee | 44.4 ± 3.1 | 46.3 ± 2.4 | |
Berry juice | 44.0 ± 2.9 | 43.2 ± 4.7 | |
Distilled water | 42.8 ± 2.6 | 45.1 ± 2.1 | |
Sonic Fill 2 | Tea | 63.6 ± 3.1 | 64.3 ± 3.2 |
Coffee | 65.4 ± 3.4 | 67.7 ± 4.2 | |
Berry juice | 66.0 ± 3.9 | 63.3 ± 2.7 | |
Distilled water | 64.6 ± 0.6 | 64.3 ± 2.7 | |
SDR | Tea | 27.6 ± 2.5 | 35.9 ± 1.5 |
Coffee | 28.0 ± 1.9 | 33.8 ± 5.0 | |
Berry juice | 28.8 ± 2.7 | 29.1 ± 1.6 | |
Distilled water | 27.5 ± 3.5 | 33.8 ± 3.5 |

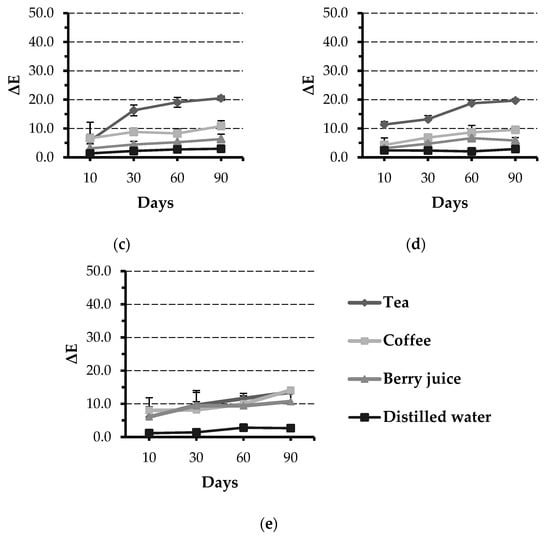

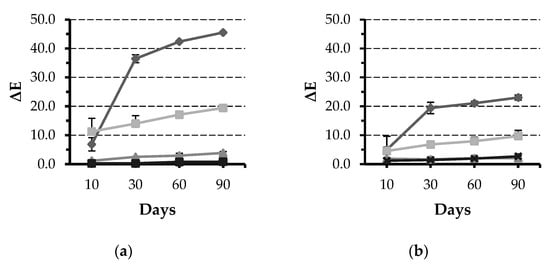

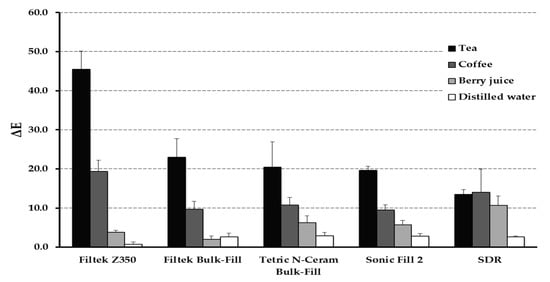

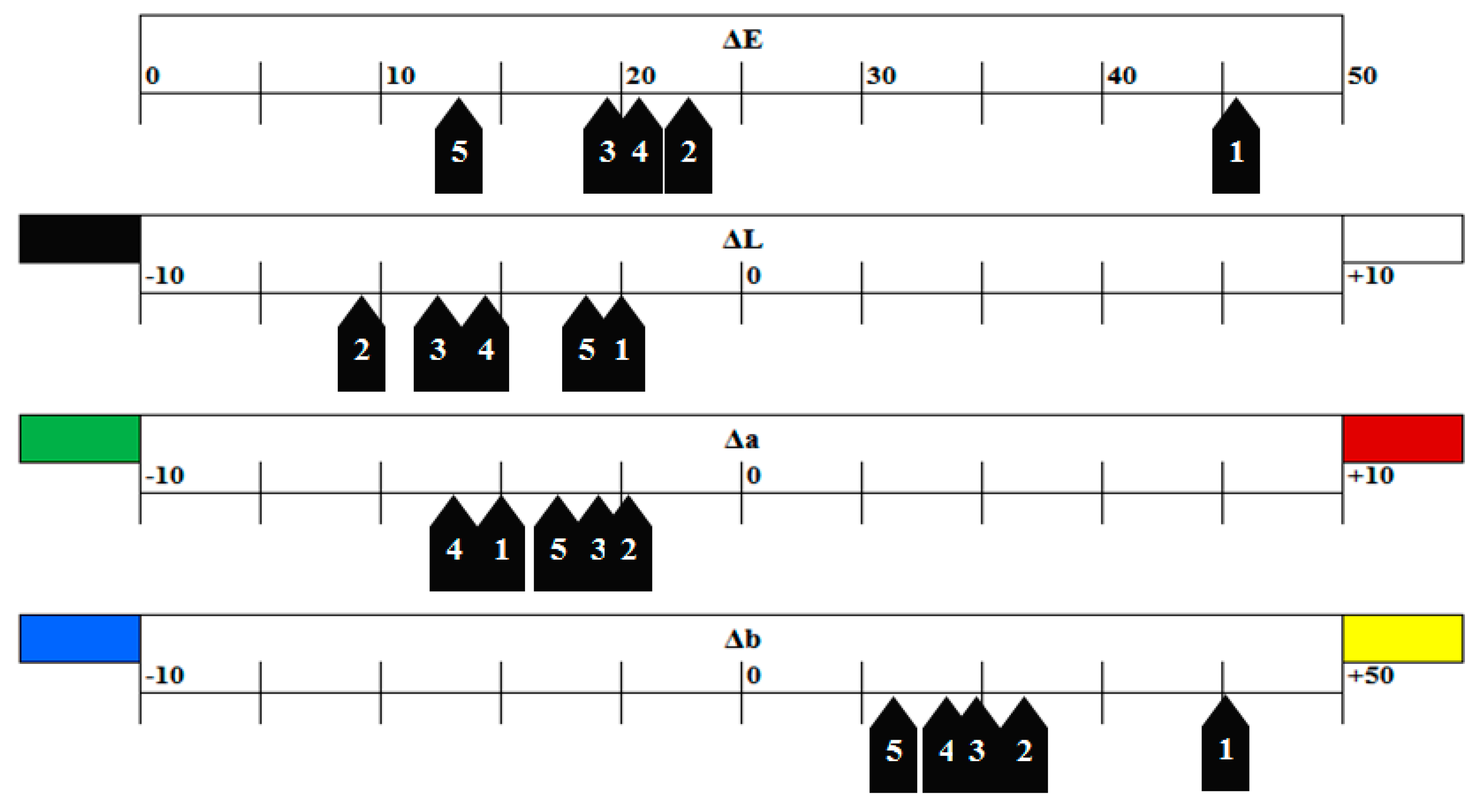

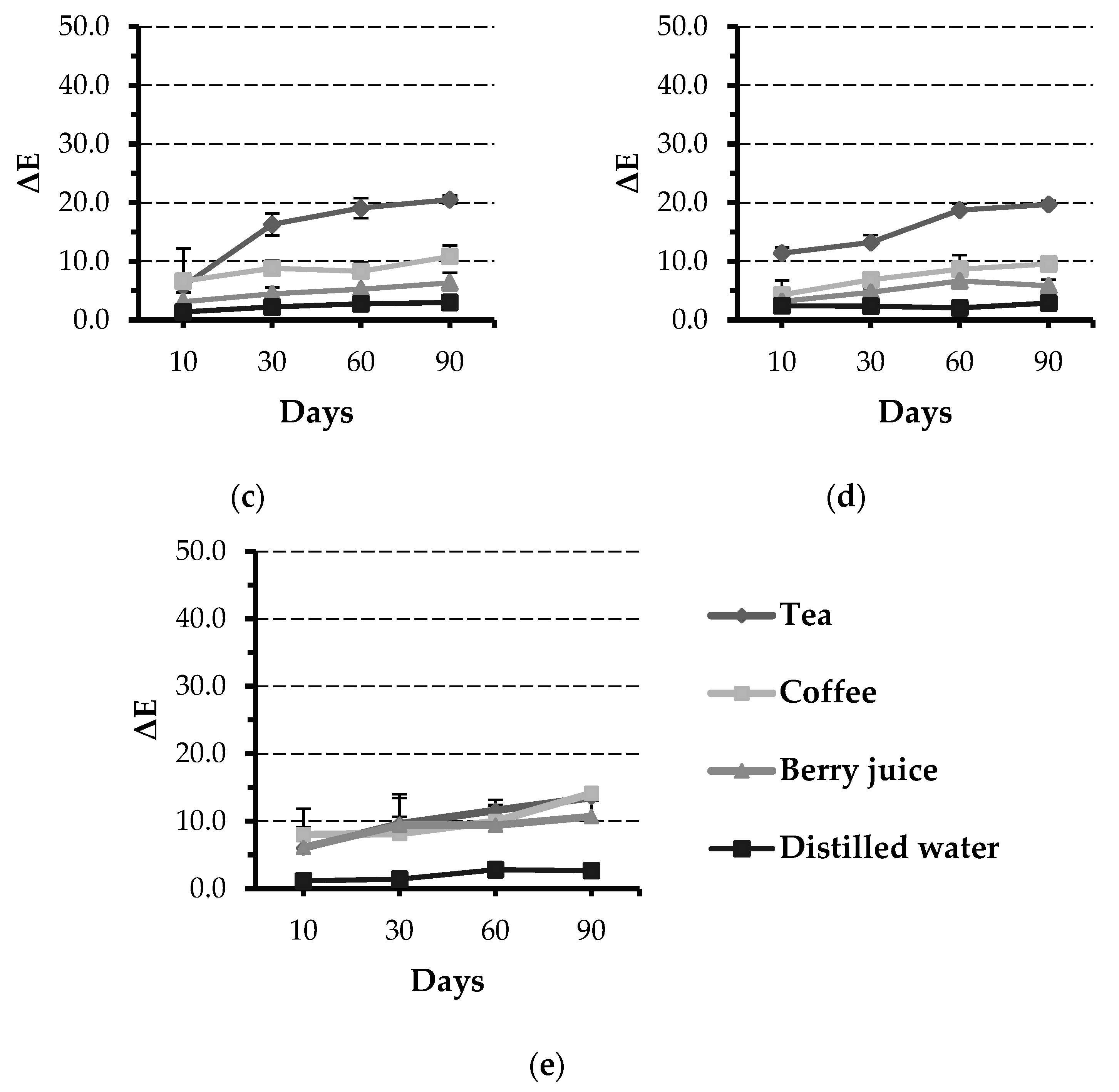

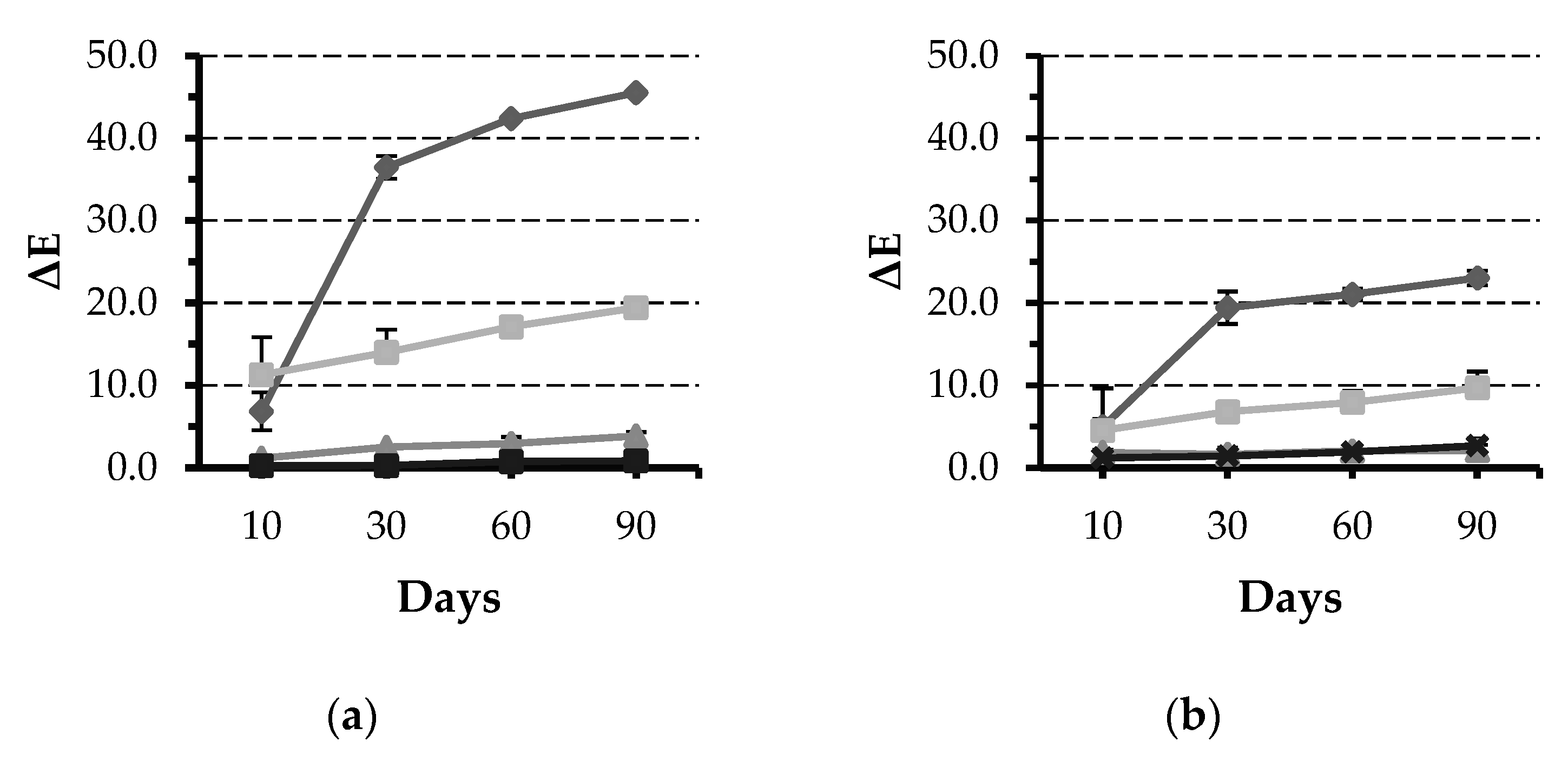

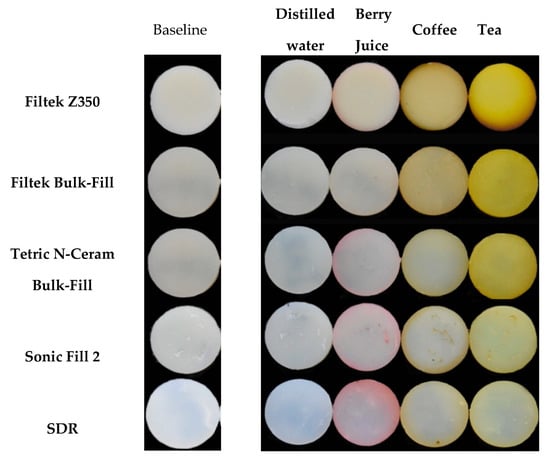

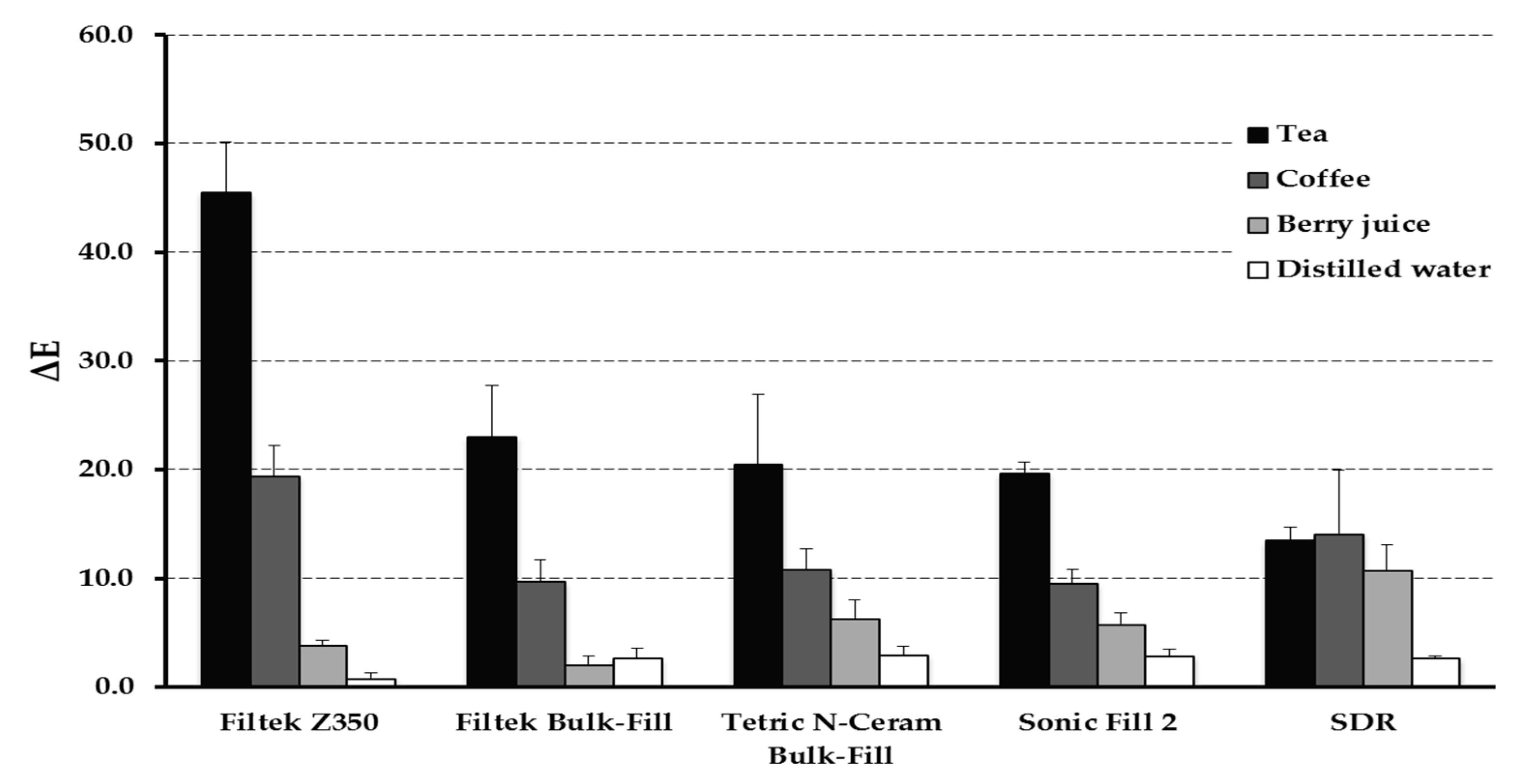

Material | Solution | ΔL | Δa | Δb | ΔE |
---|---|---|---|---|---|
Filtek Z350 | Tea | −6.3 ± 0.5 | −2.0 ± 0.6 | 45.0 ± 4.7 | 45.5 ± 4.6 * |
Coffee | −9.7 ± 2.2 | 2.8 ± 1.0 | 16.6 ± 2.0 | 19.4 ± 2.8 * | |
Berry juice | −2.4 ± 0.5 | 1.7 ± 0.5 | 2.4 ± 0.5 | 3.9 ± 0.5 * | |
Distilled water | −0.7 ± 0.5 | 0.3 ± 0.0 | −0.2 ± 0.3 | 0.9 ± 0.5 | |
Filtek Bulk-Fill | Tea | −2.3 ± 0.8 | −4.2 ± 0.7 | 22.5 ± 4.7 | 23.0 ± 4.7 * |
Coffee | −4.7 ± 1.3 | 0.4 ± 0.3 | 8.4 ± 2.1 | 9.7 ± 2.0 * | |
Berry juice | −1.5 ± 0.9 | 1.3 ± 0.2 | −0.4 ± 0.6 | 2.1 ± 0.7 | |
Distilled water | −1.2 ± 0.9 | 0.4 ± 0.1 | −2.3 ± 0.6 | 2.7 ± 0.9 | |
Tetric N-Ceram Bulk-Fill | Tea | −5.5 ± 1.7 | −2.7 ± 0.8 | 19.6 ± 6.2 | 19.7 ± 1.0 * |
Coffee | −5.8 ± 0.9 | −0.7 ± 0.3 | 9.1 ± 1.7 | 9.6 ± 1.3 * | |
Berry juice | −4.1 ± 0.9 | 4.6 ± 1.4 | 1.3 ± 0.8 | 5.8 ± 1.1 * | |
Distilled water | −2.9 ± 0.7 | 0.8 ± 0.2 | −0.3 ± 0.6 | 2.9 ± 0.6 | |
Sonic Fill 2 | Tea | −4.6 ± 0.7 | −5.3 ± 0.7 | 18.4 ± 1.1 | 20.5 ± 6.4 * |
Coffee | −5.3 ± 0.8 | −1.8 ± 0.3 | 7.7 ± 1.5 | 10.8 ± 1.9 * | |
Berry juice | −4.2 ± 1.0 | 3.9 ± 0.7 | −0.9 ± 0.7 | 6.3 ± 1.7 * | |
Distilled water | −1.5 ± 0.7 | 1.3 ± 0.2 | −2.0 ± 0.6 | 3.0 ± 0.7 | |
SDR | Tea | −2.7 ± 1.1 | −3.5 ± 0.4 | 12.8 ± 1.2 | 13.5 ± 1.1 * |
Coffee | −6.8 ± 8.6 | −1.5 ± 0.1 | 10.8 ± 1.7 | 14.1 ± 5.9 * | |
Berry juice | −3.0 ± 1.2 | 6.4 ± 1.3 | 3.0 ± 8.5 | 10.7 ± 2.4 * | |
Distilled water | −2.0 ± 0.0 | 1.0 ± 1.1 | −1.5 ± 0.42 | 2.7 ± 0.2 |
© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Bahbishi, N.; Mzain, W.; Badeeb, B.; Nassar, H.M. Color Stability and Micro-Hardness of Bulk-Fill Composite Materials after Exposure to Common Beverages. Materials 2020, 13, 787. https://doi.org/10.3390/ma13030787
Bahbishi N, Mzain W, Badeeb B, Nassar HM. Color Stability and Micro-Hardness of Bulk-Fill Composite Materials after Exposure to Common Beverages. Materials. 2020; 13(3):787. https://doi.org/10.3390/ma13030787
Chicago/Turabian StyleBahbishi, Nora, Waad Mzain, Bayan Badeeb, and Hani M. Nassar. 2020. "Color Stability and Micro-Hardness of Bulk-Fill Composite Materials after Exposure to Common Beverages" Materials 13, no. 3: 787. https://doi.org/10.3390/ma13030787
APA StyleBahbishi, N., Mzain, W., Badeeb, B., & Nassar, H. M. (2020). Color Stability and Micro-Hardness of Bulk-Fill Composite Materials after Exposure to Common Beverages. Materials, 13(3), 787. https://doi.org/10.3390/ma13030787
