Cutting Force during Surface Layer Milling of Selected Aluminium Alloys

Abstract

This paper presents the analysis of cutting force during surface layer milling of selected aluminium alloys, which are widely used in the aviation industry. The cutting force is one of the most important parameters determining the machinability of the material and also provides important information about the course of the cutting. The study analysed the influence of the technological parameters, i.e., cutting speed v_c and depth of cut a_p as well as the relation between cutting tool feed direction and rolling direction on the value of cutting force during milling of selected aluminium alloys, i.e., EN AW-2017A T451 and EN AW-2024 T351. The material anisotropy is a very important issue, since the engineering industry faces enormous problems related to the cutting of the tested materials that are usually supplied in the form of rolled plates. The surface layer was cut due to the fact that it accumulates the greatest residual stresses. The measurement process of cutting force was performed by using 9257B Kistler piezoelectric dynamometer. As part of the analysis of the results, the measurement uncertainty was also estimated, which was determined on the basis of two components obtained by using the A and B methods, respectively.

1. Introduction

The requirements related to, among others, with weight reduction while maintaining both high strength and stiffness are imposed on thin-walled aircraft parts. When manufacturing such parts, major difficulties arise in retaining appropriate dimensional and shape accuracy, since undesirable deformations appear after the completion of cutting and removal of the clamping force [1,2]. For this reason, measuring the cutting force, which is one of the factors connected to the aforementioned problem is an important aspect [3]. It should also be noted that due to the need to obtain high efficiency, High Speed Cutting is a widely used technique which is characterised by lower depth of cut a_p and higher cutting speed v_c compared to conventional machining [4].

Taking into account the fact that during cutting, the residual stresses are generated primarily as a result of the cutting force, the analysis of the obtained cutting force values with different technological parameters may be of vital importance for maintaining the required dimensional and shape accuracy [5]. Therefore, it is assumed that during machining, the main model of residual stress formation is the mechanical model. Apart from the cutting force mentioned, the residual stresses result from a number other factors, e.g., clamping force, temperature, etc. [6].

The cutting force is a parameter that determines the machinability of the material, and also provides important information related to the course of the cutting process [7]. On its basis it is possible to decide to change the technological parameters [8] as well as to state that the cutting blades have become worn [9]. Liang et al. [9] also noted that the cutting force provides information about the physical mechanics and dynamics of cutting processes. That is why measurement of the cutting force, especially in real time (“online”), is so significant [10].

It should be emphasised that the cutting force depends on many factors, including, for example, technological parameters [11,12], the properties of the workpiece material, tool material and geometry as well as the cooling method used [13].

Prediction of cutting force is a key issue, especially in terms of increase in production efficiency by maximising the volume of material removed. The dynamic development of numerical methods implies a search for theoretical ways of the cutting force determination. However, due to the complexity of the phenomena accompanying the cutting process, it is difficult to apply it in practice. A mechanistic model of the prediction of milling forces for serrated milling tools was presented in [14]. This type of cutting tool is increasingly used in 5-axis high-performance machining of complex parts. The proposed model applies to both static and dynamic conditions and it allows to take into account, for example, tool parameters and technological parameters. Tsai et al. [15] showed a new geometric force prediction model for ball-end cutter. It described, among others, tool geometry (rake angle), cutting speed and chip flow angle. Urbikain Pelayo [16] presented modelling of static and dynamic milling forces for circle-segment mills. Tool geometry, modal parameters and cutting condition are taken into account.

Currently, cutting force measurements are carried out mainly by two methods: indirect and direct. In the indirect method, the power or current of the spindle motor or the drive motor are measured and the cutting force is calculated on their basis. The direct measurements are performed when the measuring instrument is placed on the table or on the machine tool spindle and for this purpose a dynamometer is used, which is characterised by high repeatability and stability. Its principle of operation is to convert the cutting force into deformation and detect this deformation with flexible sensing elements. Currently, the most widely used are dynamometers, which in the case of instruments mounted on tables, are characterised by the fact that the flexible element has the shape of, among others: an octagonal ring, an oval octagonal ring or a ring. However, in dynamometers mounted on the machine tool spindle, the elastic part is a cylindrical beam, a Γ beam-type or an E-type diaphragm [10,17,18]. As for the type of transducer, there are, inter alia, capacitive, strain gauge, piezoelectric and fibre Bragg grating (FBG) [19,20,21]. Due to the dynamics of the cutting processes and the subsequent signal analysis, piezoelectric dynamometers are currently used to measure the cutting forces [22].

Aluminium alloys have different machinability compared to other materials. It results mainly from their properties, such as: high coefficient of linear expansion, low Young’s modulus and high thermal conductivity (in relation to steel). For aluminium alloys, the value of the cutting force is assumed to be about 30% of the value occurring in the machining of steel, but its precise determination requires experimental tests [23].

Rolled plates are widely used in manufacturing of thin-walled elements from wrought aluminium alloys. They are characterised by the phenomenon of anisotropy, i.e., having different mechanical properties depending on the rolling direction. In addition, the aforementioned anisotropy may cause deformations of parts with thin walls. It is so important to monitor cutting force in precision machining of these elements [24]. Zawada-Michałowska et al. [25] presented the removal of the textured surface layer as one of the pre-machining methods. This operation has a positive effect on minimising deformations of thin-walled elements.

The aim of the paper is to assess the changes in the cutting force as a function of cutting speed v_c, in particular to determine the minimum cutting force values that could occur during pre-machining consisting in removing the textured surface layer formed after the rolling process of plates made of wrought aluminium alloys. This is a very important issue in terms of the aforementioned residual stresses.

2. Materials and Methods

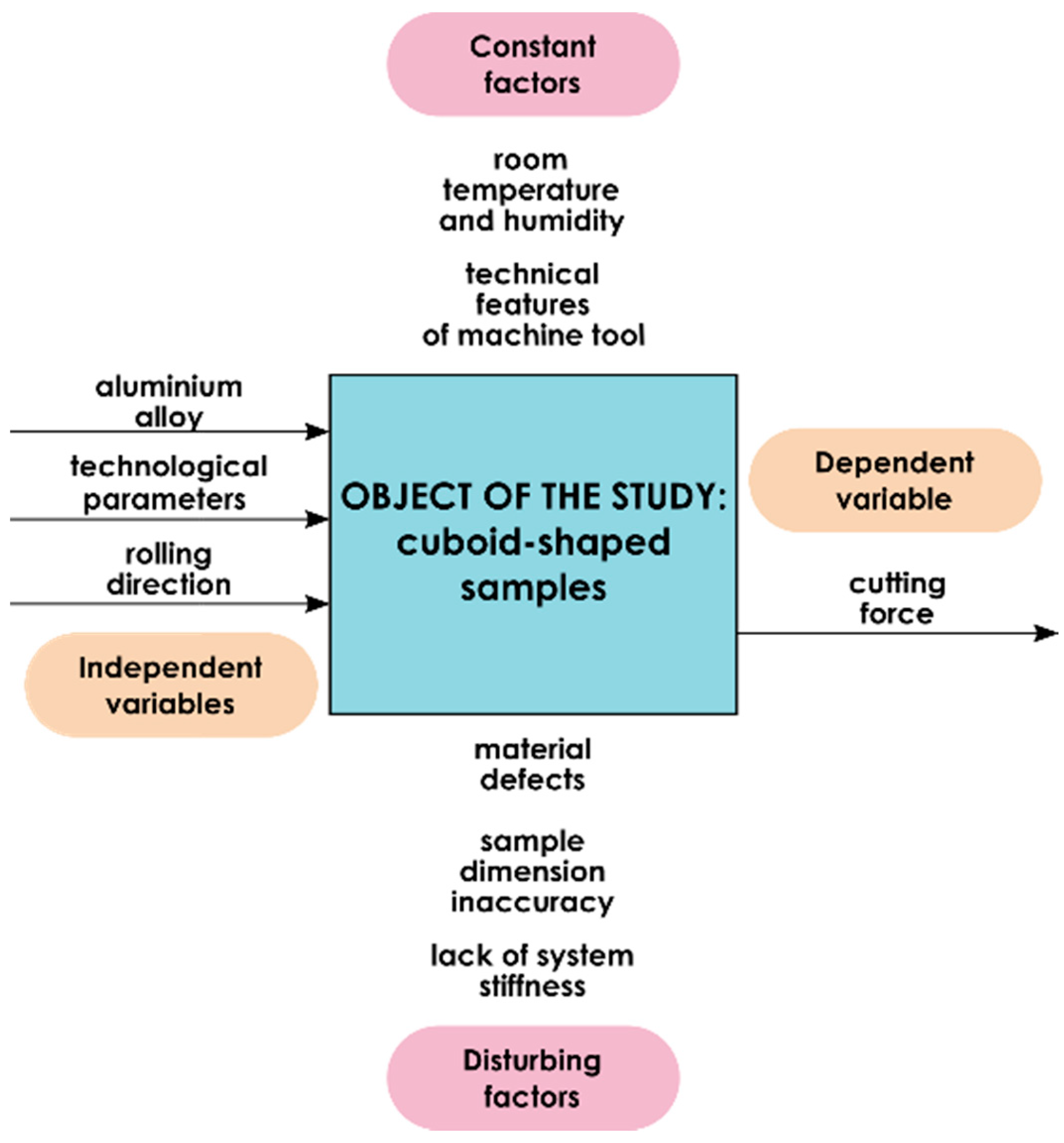

Figure 1 presents the research plan. The cuboid-shaped samples of the following dimensions: 20 mm × 20 mm × 64 mm were defined as the research object. The independent variables were technological parameters, rolling direction and aluminium alloy, while the dependent variable is cutting force. The constant factors include the technical features of the machine tool as well as temperature and humidity of the laboratory room. The disturbing factors were material defects, dimensional inaccuracy of samples and lack of system stiffness.

The tests were performed with the Avia VMC 800HS vertical machining centre (Warsaw, Poland). The machined materials were EN AW-2017A T451 and EN AW-2024 T351 wrought aluminium alloys. They are widely used in the aviation industry. EN AW-2017A T451 has high strength properties—high tensile strength and fatigue strength. It is not very resistant to corrosion and less susceptible to welding. EN AW-2024 T351 has very high strength and high fatigue strength, but it has low corrosion resistance and low weldability. The chemical composition and selected properties of the EN AW-2017A T451 alloy are presented in

Table 1. The chemical composition and selected properties of the EN AW-2017A T451 alloy [26,27].

Chemical Composition (%)
Si	Fe	Mg	Cu	Mn	Cr	Zn	Zr + Ti	Other	Al
0.2–0.8	≤0.7	0.4–1.0	3.5–4.5	0.4–1.0	≤0.1	≤0.25	≤0.25	≤0.15	Rest
Selected Properties
Density ρ (g/cm3)		Young modulus E (GPa)		Tensile strength Rm (MPa)		Yield strength Rp0.2 (MPa)		Brinell hardness (HB)
2.79		72.5		390		250		110

, while for the EN AW-2024 T351 alloy in

Table 2. The chemical composition and selected properties of the EN AW-2024 T351 alloy [26,27].

Chemical Composition (%)
Si	Fe	Mg	Cu	Mn	Cr	Zn	Zr + Ti	Ti	Other	Al
≤0.5	≤0.5	1.2–1.8	3.8–4.9	0.3–0.9	≤0.1	≤0.25	≤0.2	≤0.15	≤0.15	Rest
Selected Properties
Density ρ (g/cm3)		Young modulus E (GPa)		Tensile strength Rm (MPa)		Yield strength Rp0.2 (MPa)		Brinell hardness (HB)
2.78		73		469		324		120

.

The values of the technological parameters used are presented in

Table 3. The technological parameters used.

Technological Parameters
Variable Depth of Cut ap (mm)	Milling Width ae (mm)	Feed Per Tooth fz (mm/tooth)	Variable Cutting Speed vc (m/min)
-	20	0.05	100
0.1			500
0.25			1000
0.4			1500

.

Another analysed variable was rolling direction, i.e., the relation between the cutting tool feed direction and the rolling direction:

• perpendicular direction (milling direction was perpendicular to rolling direction),
• parallel direction (milling direction was parallel to rolling direction).

The cutting process was conducted using a coolant. An end mill (211811) of GARANT (Munich, Germany) was used for research.

Table 4. Specification of milling cutter [28].

Symbol	GARANT 211811
External diameter D (mm)	32
Number of teeth z	2
Overall length L (mm)	47
Helix angle (°)	8
Rake angle (°)	25
Flank angle (°)	7
Cutting insert	VCGX 220508 FR HU 7810 (211856)

shows the specification of the milling cutter.

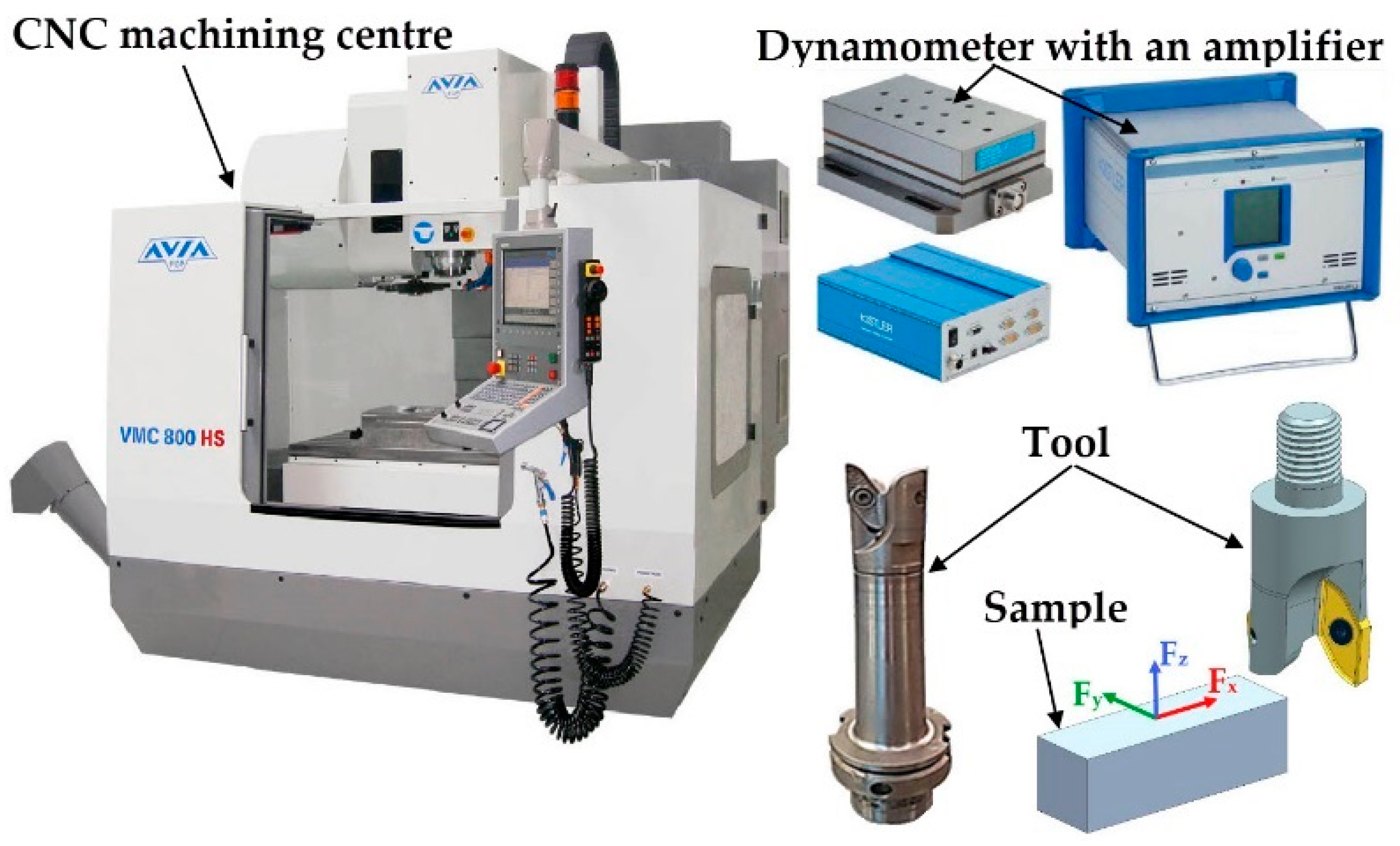

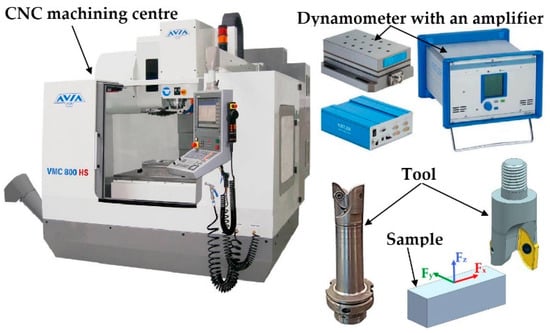

The measuring system used consisted of 9257B piezoelectric dynamometer of Kistler (Winterthur, Switzerland) connected to 5070A charge amplifier. The signal from the amplifier was sent to 5697A DAQ module and it was analysed using the dedicated DynoWare software (2825A, Kistler, Winterthur, Switzerland) [29]. Figure 2 presents the schematic diagram of the methodology.

Within the experiment, the analysis of the microstructures of the surface layer was also carried out for the tested relations between the milling direction and the rolling direction, as well as for the examined aluminium alloys. The Nikon Epiphot inverted metallographic microscope (Nikon, Tokyo, Japan) with the ToupView software was used. The aim of the analysis of the surface layer microstructures was to determine the thickness of the textured surface layer formed after rolling both EN AW-2017A T451 and EN AW-2024 T351.

The tests were repeated five times. The number of repetitions was determined from Equation (1):

$$n=\frac{t_{\left(\alpha ;f\right)}^2{S}_x^2}{{\epsilon }^2}$$

(1)

where: $S_x^2$—variance of the tested variable determined on the basis of the preliminary test results ($S_x^2=$ 4.77), ε—assessment accuracy (ε—5% of obtained average value, ε = 2.5), t—critical value of the Student’s t-test (t = 2.262), α—significance level (α = 0.05), and f—number of degrees of freedom (f = 9).

3. Results

The research began with the analysis of the microstructures of the surface layer formed after rolling for the tested relations between the milling direction and the rolling direction as well as for both aluminium alloys. Figure 3 and Figure 4 show the microstructure images for EN AW-2017A T451 and EN AW-2024, respectively.

Analysing microstructures (Figure 3 and Figure 4), a difference was found between the core and the surface layer. A clearly elongated grains were also observed in the rolling direction, especially in the core of the material. This statement is true for both alloys. In the case of EN AW-2017A T451, the textured surface layer is more visible (Figure 3) than for EN AW-2024 T351 (Figure 4). For EN AW-2017A T451, the grains in the area of the surface layer are significantly dense and fragmented in comparison to the material core and they do not have a clear orientation. A different situation can be observed in the case of the EN AW-2024 T351, i.e., there is no clear difference, especially in the perpendicular direction to the rolling direction, between the surface layer and the core. Some differences between the surface layer and the core for this alloy can be stated for the parallel direction to the rolling direction—the grains are finer and the structure is not clearly oriented in the surface layer. When comparing both alloys, it was found that the microstructure of EN AW-2017A T451 in the core is characterised by greater graininess and the thickness of surface layer is deeper (about 0.4 mm) in comparison to EN AW-2024 T351, where it is approximately 0.25 mm.

Based on the microstructure analysis (Figure 3 and Figure 4), it was found that the thickness of the textured surface layer formed after rolling is from range 0.25–0.4 mm for EN AW-2017A T451 and EN AW-2024 T351 alloys. Hence, it was decided to remove the surface layer with the indicated values of depths of cut a_p in the milling process. In the case of the cutting speed v_c, the values were selected by trying to conduct “delicate machining” (at v_c = 100 m/min) and at significantly higher values (v_c = 1000 m/min and v_c = 1500 m/min).

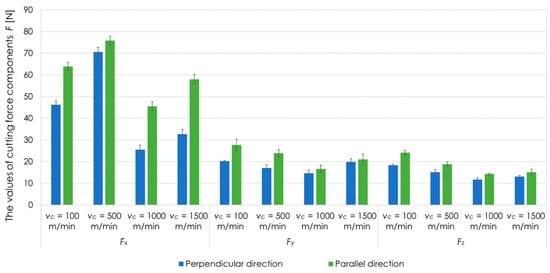

Figure 5 presents the values of the cutting force components F_x, F_y, F_z for EN AW-2017A T451 alloy and analysed cutting speeds v_c at a_p = 0.4 mm. The recorded values of the cutting force components are the effect of various phenomena accompanying the cutting process. The study did not focus on all components of the cutting force and did not analyse the phenomena affecting their value, but only on determining the values of the cutting force depending on the selected technological parameters. In particular, it was bothered to establish for which cutting speed v_c, the cutting force has the lowest value. Lower cutting force is the result of lower cutting resistance, and thus also lower deformations and post-machining residual stresses. In the further part of the paper, the analysis of the component of the cutting force F_x, which had the highest values, in comparison to F_y and F_z, was made.

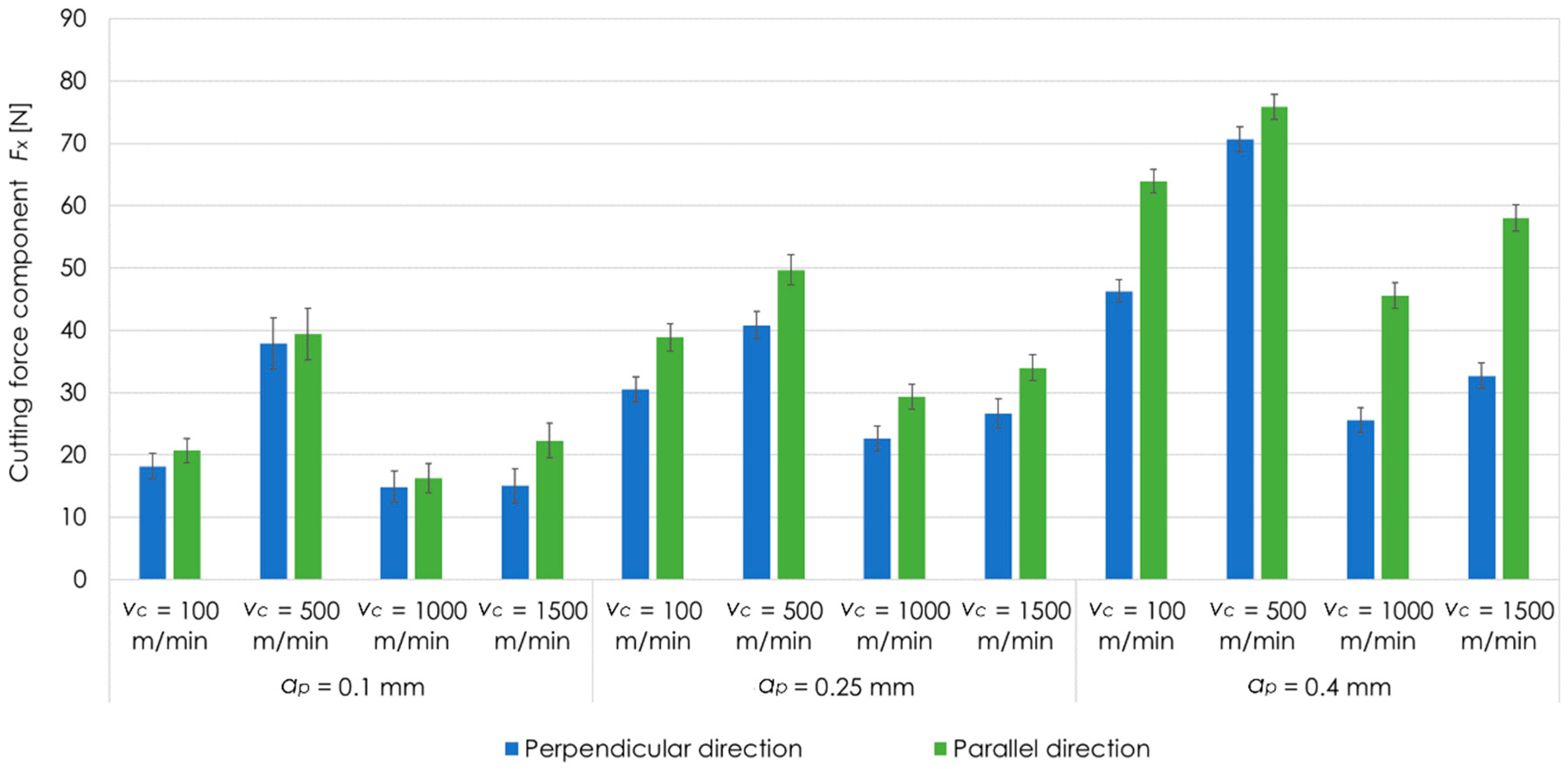

Figure 6 presents the results of cutting force component F_x for EN AW-2017A T451 aluminium alloy, tested cutting speeds v_c, depths of cut a_p as well as perpendicular and parallel milling direction in relation to the rolling direction. Analysing the results, it was found that the highest value of cutting force component F_x was recorded at v_c = 500 m/min, while the lowest one at v_c = 1000 m/min. These dependencies are true for all tested depths of cut a_p. For perpendicular rolling direction and a_p = 0.1 mm, value of cutting force component F_x at v_c = 1000 m/min was lower by over 60% than at v_c = 500 m/min. For a_p = 0.25 mm, the analogous difference was 40%, while for a_p = 0.4 mm, it was about 60%. For parallel rolling direction and a_p = 0.1 mm, the cutting force component F_x was lower by about 60% at v_c = 1000 m/min compared to v_c = 500 m/min. In the case of a_p = 0.25 mm and a_p = 0.4 mm, the differences were about 40%. Additionally, it was observed that higher values of the cutting force component Fx were obtained for parallel milling direction in comparison to perpendicular direction.

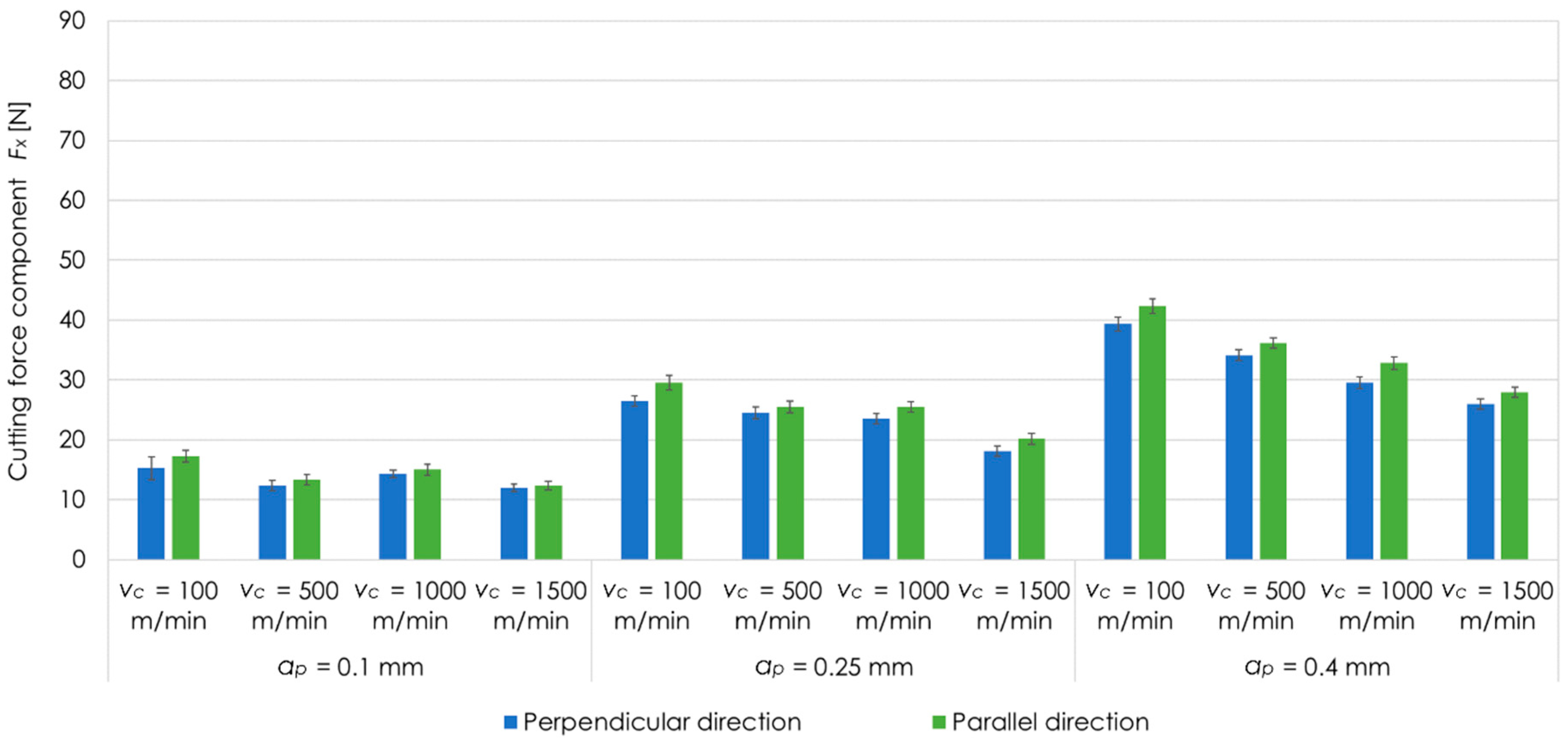

Figure 7 presents the results of cutting force component F_x for EN AW-2024 T351 aluminium alloy, analysed values of cutting speeds v_c, depths of cut a_p as well as perpendicular and parallel milling direction in relation to the rolling direction. On the basis of the results, it can be seen that for EN AW-2024 T351, the maximum values of the cutting force component F_x were noted at v_c = 100 m/min, and the minimum one at v_c = 1500 m/min for all tested depths of cut a_p. For perpendicular rolling direction and a_p = 0.1 mm, value of cutting force component F_x at v_c = 100 m/min was higher by almost 30% in comparison to v_c = 1500 m/min. For a_p = 0.25 mm, it was 45%, while for a_p = 0.4 mm, it was over 50%. The analogous dependence was reached for parallel rolling direction. For a_p = 0.1 mm, the cutting force component F_x was higher by almost 40% at v_c = 100 m/min compared to v_c =1500 m/min. In the case of a_p = 0.25 mm and a_p = 0.4 mm, the differences were about 45% and 50%, respectively. It was also observed that higher values of the cutting force component F_x were received for parallel milling direction than for perpendicular direction.

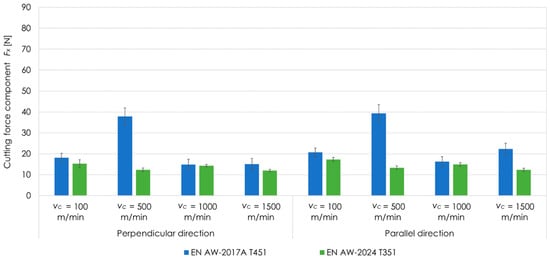

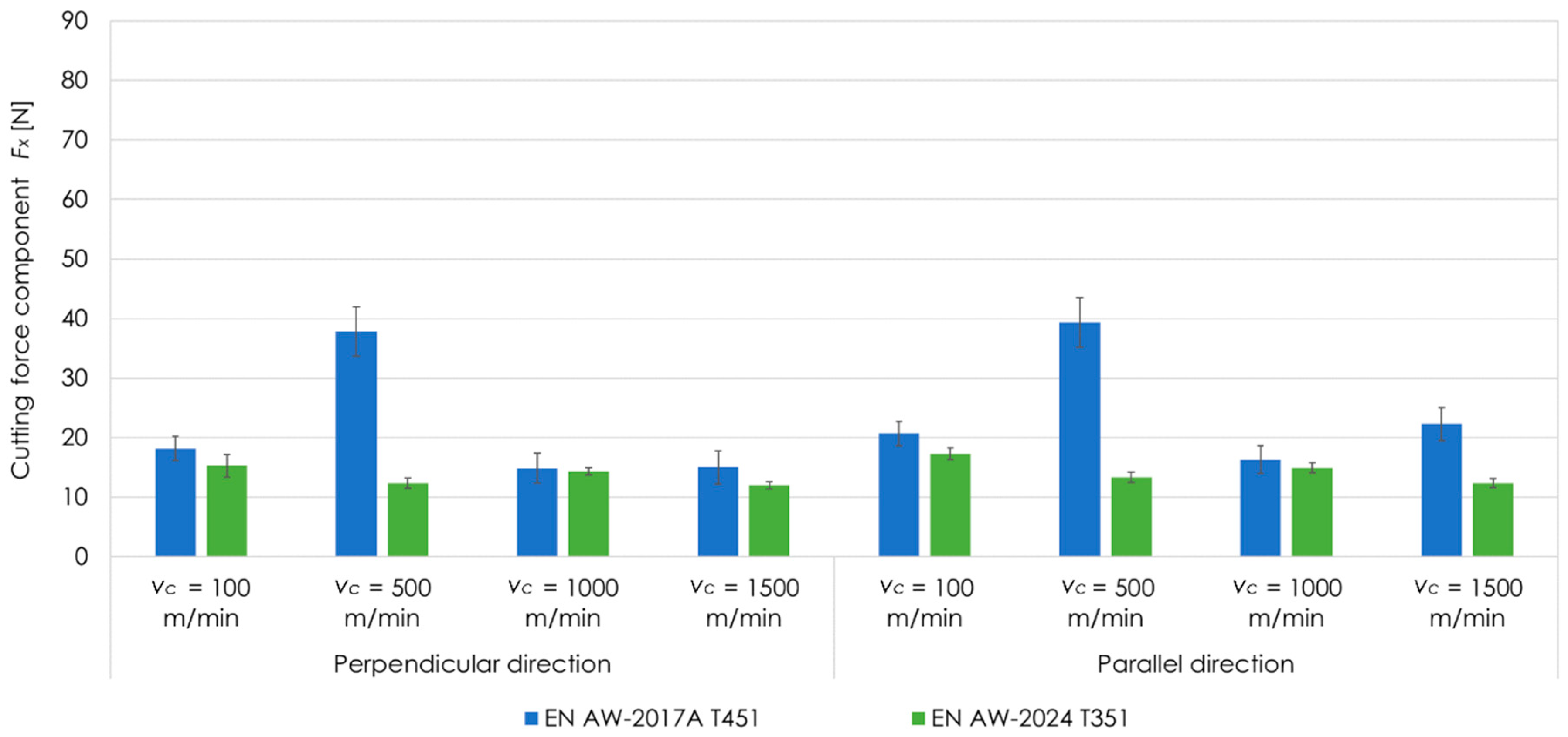

Figure 8 shows the comparison of cutting force component F_x as a function of cutting speed v_c for tested aluminium alloys (EN AW-2017A T451 and EN AW-2024 T351) as well as perpendicular and parallel relations between cutting tool feed direction and rolling direction at a_p = 0.1 mm. On the basis of the results presented, it can be seen that for EN AW-2024 T351, the values of the cutting force component F_x were lower in comparison to EN AW-2017A T451 for all examined cutting speeds v_c and both relations between milling direction and rolling direction.

On the basis of changes in the cutting force as a function of the cutting speed v_c (Figure 5, Figure 6, Figure 7 and Figure 8), it is possible to determine the limit of occurrence of High Speed Cutting. The original definition of HSC stated that it is machining at cutting speeds v_c 5–10 times, depending on the material to be machined, higher than the values used for conventional machining. Now there are new proposals for defining HSC. One of them introduces the concept of the so-called limit cutting speed v_cgr, from which the HSC range begins. Different criteria for the moment of HSC occurrence are applied. Some researchers assume that the HSC can be discussed when an increase in the cutting speed v_c causes a decrease in the cutting forces, in the case of the research conducted, this limit corresponds to the speed v_c = 500 m/min for EN AW-2017A T451 and v_c = 100 m/min for EN AW-2024 T351. In other studies, it is assumed that the limit speed is the cutting speed to which the cutting force decreases significantly and then increases gently. In the case considered, this is speed of about v_c = 1000 m/min for EN AW-2017A T451 and v_c = 1500 m/min for EN AW-2024 T351. The second way of defining HSC, especially when machining thin-walled parts, appears to be more appropriate, as it is important to minimise the cutting forces when machining this type of parts. It can therefore be determined that when machining such elements one ought to use HSC, ensuring minimisation of cutting forces.

An inseparable element of measurement is its uncertainty. It characterises the dispersion of the results obtained and it can be determined on the basis of two methods, i.e., A and B. The uncertainty component of A method is based on the statistical analysis of the measurement results, i.e., the calculation of the standard deviation of the mean, while the uncertainty component of B method takes into account the data included in the calibration certification of the measuring instrument used [3,30].

The estimation procedure of expanded uncertainty U consists in to multiply the combined standard uncertainty u_c by the expansion factor, in this case k = 2, according to Equation (2).

$$U=\pm k{u}_c$$

(2)

Calculating the combined standard uncertainty u_c, it is necessary to take into account the component of standard uncertainty determined by A method u_A and the components of the standard uncertainty assessed by B method u_Bi (Equation (3)).

$$u_c=\pm \sqrt{u_A^2+{\displaystyle \sum }_{i=1}^n{u}_{Bi}^2}$$

(3)

In the case of measurement uncertainty component estimated by using B method, two factors should be taken into account, that is, resulting from the linearity u_Bl as well as from the hysteresis u_Bh (Equation (4)).

$${\displaystyle \sum }_{i=1}^n{u}_{Bi}^2=u_{Bl}^2+u_{Bh}^2$$

(4)

The combined standard uncertainty u_c is therefore estimated according to Equation (5), having regard to all uncertainty components both from A and B methods.

$$u_c=\pm \sqrt{u_A^2+u_{Bl}^2+u_{Bh}^2}$$

(5)

As already mentioned, the uncertainty component estimation by B method is based on the data given in the calibration certificate of the instrument used, in this case the piezoelectric dynamometer. The standard uncertainty components resulting from linearity u_Bl is determined from Equation (6) and from the hysteresis u_Bh from Equation (7). In both cases, a rectangular distribution of measurement results was assumed.

$$u_{Bl}=\pm \frac{1\%·FSO}{\sqrt{3}}$$

(6)

$$u_{Bh}=\pm \frac{0.5\%·FSO}{\sqrt{3}}$$

(7)

Table 5. Uncertainty and its components for EN AW-2017A T451, perpendicular and parallel milling direction in relation to the rolling direction as well as a_p = 0.4 mm.

Uncertainty	vc = 100 m/min		vc = 500 m/min		vc = 1000 m/min		vc = 1500 m/min
	$\perp$	$\parallel$	$\perp$	$\parallel$	$\perp$	$\parallel$	$\perp$	$\parallel$
uA (N)	2.07	1.99	4.15	4.14	2.56	2.37	2.76	2.77
uBl (N)	2.88	2.88	2.88	2.88	2.88	2.88	2.88	2.88
uBh (N)	1.44	1.44	1.44	1.44	1.44	1.44	1.44	1.44
uc (N)	3.83	3.79	5.25	5.24	4.11	4.00	4.24	4.25
U (N)	7.66	7.57	10.51	10.49	8.23	8.00	8.48	8.49

Note: $\perp$—milling direction was perpendicular to the rolling direction; $\parallel$—milling direction was parallel to the rolling direction.

and

Table 6. Uncertainty and its components for EN AW-2024 T351, perpendicular and parallel milling direction in relation to the rolling direction as well as a_p = 0.4 mm.

Uncertainty	vc = 100 m/min		vc = 500 m/min		vc = 1000 m/min		vc = 1500 m/min
	$\perp$	$\parallel$	$\perp$	$\parallel$	$\perp$	$\parallel$	$\perp$	$\parallel$
uA (N)	1.17	1.26	0.90	0.87	0.95	0.99	0.89	0.87
uBl (N)	2.88	2.88	2.88	2.88	2.88	2.88	2.88	2.88
uBh (N)	1.44	1.44	1.44	1.44	1.44	1.44	1.44	1.44
uc (N)	3.43	3.46	3.34	3.34	3.36	3.37	3.34	3.34
U (N)	6.85	6.92	6.69	6.67	6.71	6.74	6.68	6.67

Note: $\perp$—milling direction was perpendicular to the rolling direction; $\parallel$—milling direction was parallel to the rolling direction.

present estimated uncertainties and their components of A and B methods for perpendicular and parallel milling direction in relation to the rolling direction, selected depth of cut a_p = 0.4 mm as well as tested EN AW-2017A T451 and EN AW-2024 T351 aluminium alloys, respectively.

In other cases, the uncertainty was determined analogously. Summarising, for EN AW-2017A T451 the values of expanded uncertainty U ranges from 7 to 11 N, while for EN AW-2024 T351—around 6.5 N. The uncertainty components from B method are constant for all variables. They result from the data available in the calibration certificate. The differences appear in the case of A method, which takes into account the standard deviation of the mean.

4. Conclusions

The conducted research and analysis of results allow to formulate the following conclusions:

• The textured surface layer after rolling was removed during milling. This type of pre-machining is often performed in industrial conditions and it is aimed at preventing of deformations of the manufactured elements, especially thin-walled ones. It is important to generate the lowest possible post-machining residual stresses. The values of these stresses are correlated, among others, with cutting resistance and therefore cutting force. The lowest cutting force values were obtained for the EN AW-2017A T451 alloy at v_c = 1000 m/min, and for the EN AW-2024 T351 alloy at v_c = 1500 m/min, respectively.
• On the basis of results, it can also be stated that for each of applied depth of cut a_p, the lowest values of cutting forces as a function of cutting speed v_c for individual alloys were always obtained for the same cutting speed v_c. It can be concluded that the minimum value of the cutting force as a function of cutting speed v_c is a characteristic value for a given material.
• The cutting speed v_c for which the minimum cutting force value is obtained is a limit parameter that defines the transition from conventional machining to the High Speed Cutting. Therefore, it can be assumed that for EN AW-2017A T451 alloy, HSC occurs at v_c = 1000 m/min, and for EN AW-2024 T351 at v_c = 1500 m/min.
• It was also found that during milling with parallel feed direction of the cutting tool to rolling direction, the generated cutting forces were higher than for the perpendicular direction. The clear difference in the values of these forces results from the fact that only the surface layer, which is characterised by a significant anisotropy of properties in these two directions, was cut. It is also seen in the microstructure images.
• According to literature data and previously research results obtained, materials characterised by lower strength, stiffness and greater plasticity have a higher cutting speed v_c limit at which HSC occurs. From these two aluminium alloys tested, the EN AW-2017A T451 alloy is undoubtedly such a material. However, this alloy is characterised by a lower cutting speed v_c limit. Therefore, it should be considered whether it may be caused by greater stresses and deformations of the surface layer compared to the EN AW-2024 T351, which translated into hardening and strengthening of the surface layer of the EN AW-2017A T451. This thesis may be confirmed by higher cutting forces for the EN AW-2017A T451 in comparison to EN AW-2024 T351.
