# Effects of Monovacancy and Divacancies on Hydrogen Solubility, Trapping and Diffusion Behaviors in fcc-Pd by First Principles

^{1}

^{2}

^{3}

^{4}

^{5}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Computational Methodology

^{2}and the force convergent criteria is −0.03 eV/Å. According to our first principles computations, the equilibrium lattice parameters of fcc-Pd are a = b = c = 3.940 Å, are well agreed with the experimental values [39] (a = b = c = 3.908 Å) and previous calculations (a = b = c = 3.854 Å) [32].

_{pd,int,h}, E

_{pd}and ${E}_{{H}_{2}}$ represent the total energy of one H dissolve in the interstitial of super-cell Pd, the total energy of super-cell Pd and the energy of H

_{2}molecule, respectively; ${E}_{\left(N-x\right)pd,V,H}$ and ${E}_{\left(N-x\right)Pd,V}$ are the total energy of one H dissolved in super-cell Pd containing vacancies [x = 1 (monovacancy) or x = 2 (divacancy)] and the total energy of super-cell Pd containing vacancies, respectively.

_{trap}) of H atoms at the vacancy in Pd was calculated by

## 3. Results and Discussion

#### 3.1. Dissolution Behavior of H in Interstitial Sites, Monovacancies and Divacancies

Sites | E_{S} (DFT) (eV) | E_{S} (Experiments) (eV) | |
---|---|---|---|

This Work (eV) | Others ^{a} (eV) | ||

O-site | −0.129 | −0.11 | −0.10 ^{b} |

T-site | −0.099 | −0.09 | 0.31 ^{c} |

1vac-3f | −0.352 | −0.20 | - |

1vac-4f | −0.295 | −0.16 | - |

1vac-top | −0.109 | 0.04 | - |

1vac-NOS | −0.133 | - | - |

2vac-3f−1 | −0.382 | −0.23 | - |

2vac-3f−2 | −0.382 | −0.23 | - |

2vac-3f−3 | −0.377 | −0.22 | - |

2vac-4f−1 | −0.291 | −0.16 | - |

2vac-4f−2 | −0.324 | −0.16 | - |

2vac-4f−3 | −0.416 | −0.28 | - |

2vac-NOS | −0.133 | - | - |

#### 3.2. Multiple H Atoms Trapping in Monovacancies and Divacancies

_{trap}) as a function of H number (n). According to the definition of H-trapping energy, the negative trapping energy means a stable nH-vacancy complex, that is, H atoms are more inclined to be trapped by the vacancies than dispersed at different O-sites. The trapping energies are negative initially, indicating that H atoms are inclined to be trapped by the vacancies at this stage. As a whole, the trapping energies increase with more implanted H atoms for both monovacancy and divacancy defects, and finally turns from negative to positive, indicating that there is a limit to the number of hydrogen atoms that can be trapped by the vacancies. The number of H atoms that can be trapped in a monovacancy and divacancy are 8 and 12, respectively. More H atoms can be trapped at a divacancy defect, indicating that larger vacancy defects in the lattice could accommodate more H impurities, which may be because the larger vacancy can provide a larger optimal electron density isosurface for H atoms. Notably, a single vacancy can trap up to eight H atoms, and each vacancy in a divacancy defect can trap up to six H atoms on average. That is, although the divacancy defect possesses a stronger H-trapping ability, its H-trapping efficiency is reduced, which may be due to its larger Coulomb repulsion interaction.

#### 3.3. The Behavior of H Diffusion in Interstitial Sites, Monovacancies and Divacancies

## 4. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Anderson, I.; Andreani, C.; Carpenter, J.; Festa, G.; Gorini, G.; Loong, C.-K.; Senesi, R. Research opportunities with compact accelerator-driven neutron sources. Phys. Rep.
**2016**, 654, 1–58. [Google Scholar] [CrossRef] [Green Version] - Barth, R.; Soloway, A.; Fairchild, R. Boron neutron capture therapy of cancer: New developments. Congr. Proc.
**1992**, 50, 623–628. [Google Scholar] [CrossRef] - Astrelin, V.; Burdakov, A.; Bykov, P.; Ivanov, I.; Jongen, Y.; Konstantinov, S.; Kudryavtsev, A.; Kuklin, K.; Mekler, K.; Polosatkin, S.; et al. Blistering of the selected materials irradiated by intense 200 keV proton beam. J. Nucl. Mater.
**2010**, 396, 43–48. [Google Scholar] [CrossRef] - Bruemmer, S.; Simonen, E.; Scott, P.; Andresen, P.; Was, G.; Nelson, J. Radiation-induced material changes and susceptibility to intergranular failure of light-water-reactor core internals. J. Nucl. Mater.
**1999**, 274, 299–314. [Google Scholar] [CrossRef] - Cotterill, P. The hydrogen embrittlement of metals. Prog. Mater. Sci.
**1961**, 9, 205–301. [Google Scholar] [CrossRef] - Cheng, L.; De Temmerman, G.; Morgan, T.; Schwarz-Selinger, T.; Yuan, Y.; Zhou, H.; Wang, B.; Zhang, Y.; Lu, G. Mitigated blistering and deuterium retention in tungsten exposed to high-flux deuterium–neon mixed plasmas. Nucl. Fusion
**2017**, 57, 046028. [Google Scholar] [CrossRef] - Wang, S.; Zhu, X.; Cheng, L.; Guo, W.; Liu, M.; Xu, C.; Yuan, Y.; Fu, E.; Cao, X.; Lu, G.-H. Effect of heavy ion pre-irradiation on blistering and deuterium retention in tungsten exposed to high-fluence deuterium plasma. J. Nucl. Mater.
**2018**, 508, 395–402. [Google Scholar] [CrossRef] - Zhu, X.-L.; Zhang, Y.; Kreter, A.; Shi, L.-Q.; Yuan, Y.; Cheng, L.; Linsmeier, C.; Lu, G.-H. Aggravated blistering and increased deuterium retention in iron-damaged tungsten after exposure to deuterium plasma with various surface temperatures. Nucl. Fusion
**2018**, 58, 106005. [Google Scholar] [CrossRef] - Garner, F.; Simonen, E.; Oliver, B.; Greenwood, L.; Grossbeck, M.; Wolfer, W.; Scott, P. Retention of hydrogen in fcc metals irradiated at temperatures leading to high densities of bubbles or voids. J. Nucl. Mater.
**2006**, 356, 122–135. [Google Scholar] [CrossRef] - Venezuela, J.; Liu, Q.; Zhang, M.; Zhou, Q.; Atrens, A. A review of hydrogen embrittlement of martensitic advanced high-strength steels. Corros. Rev.
**2016**, 34, 153–186. [Google Scholar] [CrossRef] - Murty, K.L.; Charit, I. Structural materials for Gen-IV nuclear reactors: Challenges and opportunities. J. Nucl. Mater.
**2008**, 383, 189–195. [Google Scholar] [CrossRef] - Zhang, P.; Zhao, J.; Wen, B. Vacancy trapping mechanism for multiple hydrogen and helium in beryllium: A first-principles study. J. Phys. Condens. Matter
**2012**, 24, 95004. [Google Scholar] [CrossRef] [PubMed] - Sun, L.; Jin, S.; Li, X.-C.; Zhang, Y.; Lu, G.-H. Hydrogen behaviors in molybdenum and tungsten and a generic vacancy trapping mechanism for H bubble formation. J. Nucl. Mater.
**2013**, 434, 395–401. [Google Scholar] [CrossRef] - Kumada, H.; Kurihara, T.; Yoshioka, M.; Kobayashi, H.; Matsumoto, H.; Sugano, T.; Sakurai, H.; Sakae, T.; Matsumura, A. Development of beryllium-based neutron target system with three-layer structure for accelerator-based neutron source for boron neutron capture therapy. Appl. Radiat. Isot.
**2015**, 106, 78–83. [Google Scholar] [CrossRef] - Bayanov, B.; Belov, V.; Taskaev, S. Neutron producing target for accelerator based neutron capture therapy. J. Phys. Conf. Ser.
**2006**, 41, 460–465. [Google Scholar] [CrossRef] [Green Version] - Badrutdinov, A.; Bykov, T.; Gromilov, S.; Higashi, Y.; Kasatov, D.; Kolesnikov, I.; Koshkarev, A.; Makarov, A.; Miyazawa, T.; Shchudlo, I.; et al. In Situ Observations of Blistering of a Metal Irradiated with 2-MeV Protons. Metals
**2017**, 7, 558. [Google Scholar] [CrossRef] [Green Version] - Lee, K.; Yuan, M.; Wilcox, J. Understanding Deviations in Hydrogen Solubility Predictions in Transition Metals through First-Principles Calculations. J. Phys. Chem. C
**2015**, 119, 19642–19653. [Google Scholar] [CrossRef] - Myers, S.M.; Baskes, M.I.; Birnbaum, H.K.; Corbett, J.W.; DeLeo, G.G.; Estreicher, S.K.; Haller, E.E.; Jena, P.; Johnson, N.M.; Kirchheim, R.; et al. Hydrogen interactions with defects in crystalline solids. Rev. Mod. Phys.
**1992**, 64, 559–617. [Google Scholar] [CrossRef] - Nørskov, J.K.; Besenbacher, F.; Bøttiger, J.; Nielsen, B.B.; Pisarev, A.A. Interaction of Hydrogen with Defects in Metals: Interplay between Theory and Experiment. Phys. Rev. Lett.
**1982**, 49, 1420–1423. [Google Scholar] [CrossRef] - Besenbacher, F.; Myers, S.; Nørskov, J. Interaction of hydrogen with defects in metals. Nucl. Instruments Methods Phys. Res. Sect. B Beam Interact. Mater. Atoms.
**1985**, 7, 55–66. [Google Scholar] [CrossRef] - Deng, Y.; Hajilou, T.; Barnoush, A. Hydrogen-enhanced cracking revealed by in situ micro-cantilever bending test inside environmental scanning electron microscope. Philos. Trans. R. Soc. A Math. Phys. Eng. Sci.
**2017**, 375, 20170106. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Matsui, H.; Kimura, H.; Moriya, S. The effect of hydrogen on the mechanical properties of high purity iron I. Softening and hardening of high purity iron by hydrogen charging during tensile deformation. Mater. Sci. Eng.
**1979**, 40, 207–216. [Google Scholar] [CrossRef] - Lu, G.; Zhang, Q.; Kioussis, N.; Kaxiras, E. Hydrogen-Enhanced Local Plasticity in Aluminum: AnAb InitioStudy. Phys. Rev. Lett.
**2001**, 87, 095501. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Lynch, S. Hydrogen embrittlement (HE) phenomena and mechanisms. Stress Corros. Crack.
**2011**, 30, 90–130. [Google Scholar] [CrossRef] - Fukai, Y. Superabundant Vacancies Formed in Metal—Hydrogen Alloys. Phys. Scr.
**2003**, 103, 11–14. [Google Scholar] [CrossRef] - Fukai, Y.; Ōkuma, N. Formation of Superabundant Vacancies in Pd Hydride under High Hydrogen Pressures. Phys. Rev. Lett.
**1994**, 73, 1640–1643. [Google Scholar] [CrossRef] - Louthan, M.R. Hydrogen Embrittlement of Metals: A Primer for the Failure Analyst. J. Fail. Anal. Prev.
**2008**, 8, 289–307. [Google Scholar] [CrossRef] [Green Version] - Rogers, H.C. Hydrogen Embrittlement of Metals: Atomic hydrogen from a variety of sources reduces the ductility of many metals. Science
**1968**, 159, 1057–1064. [Google Scholar] [CrossRef] - Lu, G.; Kaxiras, E. Hydrogen Embrittlement of Aluminum: The Crucial Role of Vacancies. Phys. Rev. Lett.
**2005**, 94, 155501. [Google Scholar] [CrossRef] [Green Version] - Robertson, I.M.; Sofronis, P.; Nagao, A.; Martin, M.L.; Wang, S.; Gross, D.W.; Nygren, K.E. Hydrogen Embrittlement Understood. Met. Mater. Trans. A
**2015**, 46, 1085–1103. [Google Scholar] [CrossRef] - Liu, Y.-L.; Zhang, Y.; Zhou, H.-B.; Lu, G.-H.; Liu, F.; Luo, G.-N. Vacancy trapping mechanism for hydrogen bubble formation in metal. Phys. Rev. B
**2009**, 79, 172103. [Google Scholar] [CrossRef] [Green Version] - Vekilova, O.Y.; Bazhanov, D.I.; Simak, S.I.; Abrikosov, I.A. First-principles study of vacancy-hydrogen interaction in Pd. Phys. Rev. B
**2009**, 80, 024101. [Google Scholar] [CrossRef] [Green Version] - Ren, F.; Yin, W.; Yu, Q.; Jia, X.; Zhao, Z.; Wang, B. Solution and diffusion of hydrogen isotopes in tungsten-rhenium alloy. J. Nucl. Mater.
**2017**, 491, 206–212. [Google Scholar] [CrossRef] - Hawthorne, J.R.; Watson, H.E. Properties of Reactor Structural Alloys after Neutron or Particle Irradiation; ASTM STP 570; American Society for Testing and Materials: West Conshohocken, PA, USA, 1975; pp. 103–105. [Google Scholar]
- Kresse, G.; Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B
**1996**, 54, 11169–11186. [Google Scholar] [CrossRef] - Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett.
**1996**, 77, 3865–3868. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Methfessel, M.; Paxton, A.T. High-precision sampling for Brillouin-zone integration in metals. Phys. Rev. B
**1989**, 40, 3616–3621. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Henkelman, G.; Uberuaga, B.P.; Jónsson, H. A climbing image nudged elastic band method for finding saddle points and minimum energy paths. J. Chem. Phys.
**2000**, 113, 9901–9904. [Google Scholar] [CrossRef] [Green Version] - McKeehan, L.W. The Crystal Structures of the System Palladium-Hydrogen. Phys. Rev.
**1923**, 21, 334–342. [Google Scholar] [CrossRef] - Adams, B.D.; Wu, G.; Nigro, S.; Chen, A. Facile Synthesis of Pd−Cd Nanostructures with High Capacity for Hydrogen Storage. J. Am. Chem. Soc.
**2009**, 131, 6930–6931. [Google Scholar] [CrossRef] - Nazarov, R.; Hickel, T.; Neugebauer, J. Ab initio study of H-vacancy interactions in fcc metals: Implications for the formation of superabundant vacancies. Phys. Rev. B
**2014**, 89, 144108.1–144108.8. [Google Scholar] [CrossRef] - Carstanjen, H.D.; Dünstl, J.; Löbl, G.; Sizmann, R. Lattice location and determination of thermal amplitudes of deuterium in α-PdD
_{0.007}by channeling. Phys. Status Solidi**1978**, 45, 529–536. [Google Scholar] [CrossRef] - Fukai, Y.; Ishii, Y.; Goto, Y.; Watanabe, K. Formation of superabundant vacancies in Pd–H alloys. J. Alloy. Compd.
**2000**, 313, 121–132. [Google Scholar] [CrossRef] - Fukai, Y. The Metal-Hydrogen System. Metal Hydr. Syst.
**2005**, 172–174, 8–19. [Google Scholar] [CrossRef] - Myers, S.; Wampler, W.; Besenbacher, F.; Robinson, S.; Moody, N. Ion beam studies of hydrogen in metals. Mater. Sci. Eng.
**1985**, 69, 397–409. [Google Scholar] [CrossRef] - Puska, M.J.; Nieminen, R.M.; Manninen, M. Atoms embedded in an electron gas: Immersion energies. Phys. Rev. B
**1981**, 24, 3037–3047. [Google Scholar] [CrossRef] [Green Version] - Liu, X.; Chen, H.; Tong, J.; He, W.; Li, X.; Liang, T.; Li, Y.; Yin, W. The Kinetic Behaviors of H Impurities in the Li/Ta Bilayer: Application for the Accelerator-Based BNCT. Nanomaterials
**2019**, 9, 1107. [Google Scholar] [CrossRef] [Green Version] - Zhou, X.W.; Zimmerman, J.A.; Wong, B.M.; Hoyt, J.J. An embedded-atom method interatomic potential for Pd–H alloys. J. Mater. Res.
**2008**, 23, 704–718. [Google Scholar] [CrossRef] [Green Version] - Kamakoti, P. A comparison of hydrogen diffusivities in Pd and CuPd alloys using density functional theory. J. Membr. Sci.
**2003**, 225, 145–154. [Google Scholar] [CrossRef]

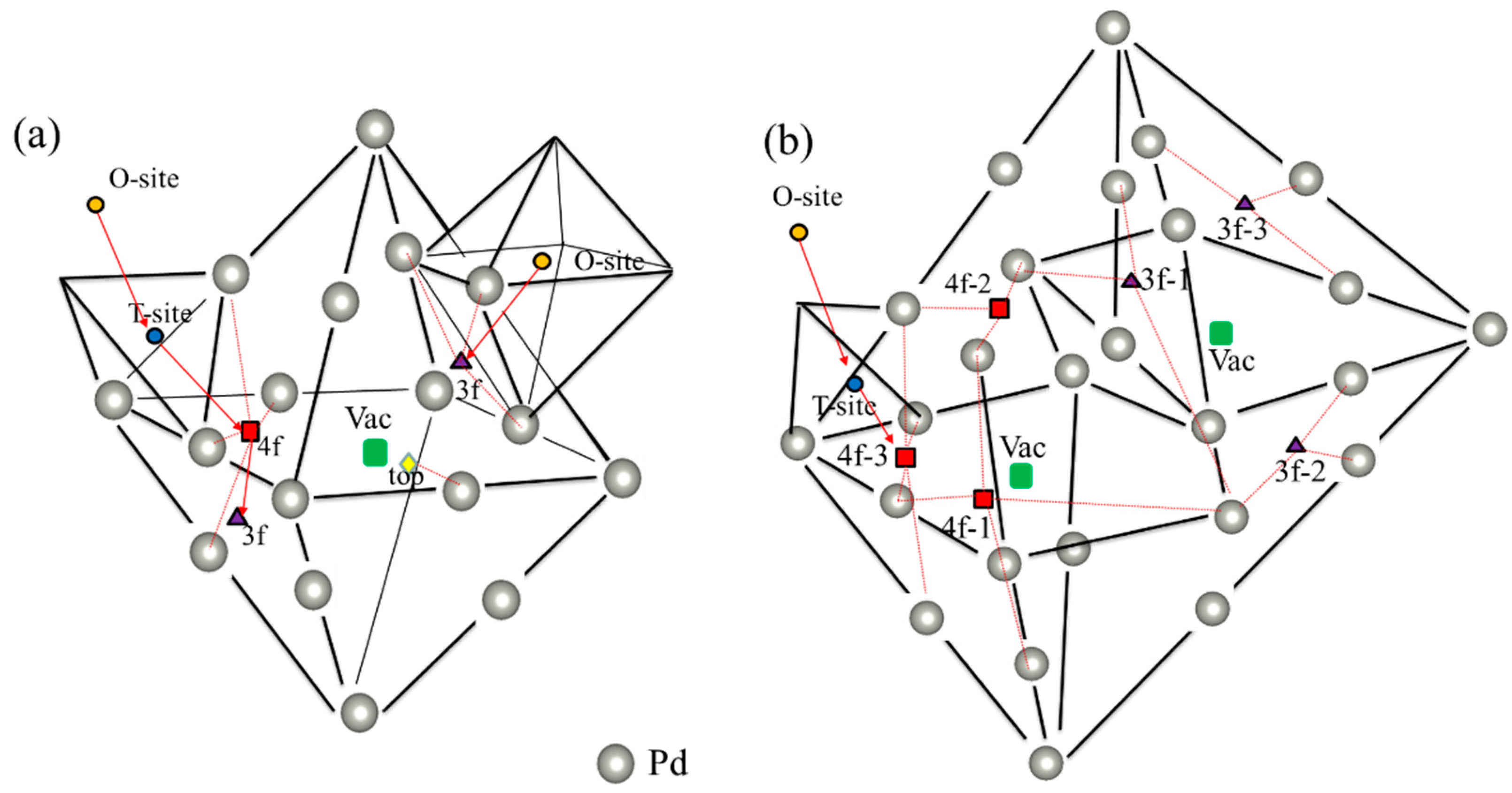

**Figure 1.**Visualization of relevant interstitial sites at the (

**a**) monovacancy and (

**b**) divacancy, such as 1vac_top (yellow diamond), 1vac_3f (purple triangle), 1vac_4f (red square), 2Vac_3f−x (x = 1−3) (purple triangle), 2vac_4f−x (x = 1–3) (red square), as well as the vacancy-nearing O-site (NOS) (orange circle) and T-site (NTS) (blue circle). The red arrow shows the diffusion path of H atom. The path of (1vac_NOS → 1vac_3f) and (1vac_NOS → 1vac_NOT → 1vac_4f → 1vac_3f) is considered a monovacancy, and the path of (2vac_NOS → 2vac_TOS → 2vac_4f−3) is considered a divacancy.

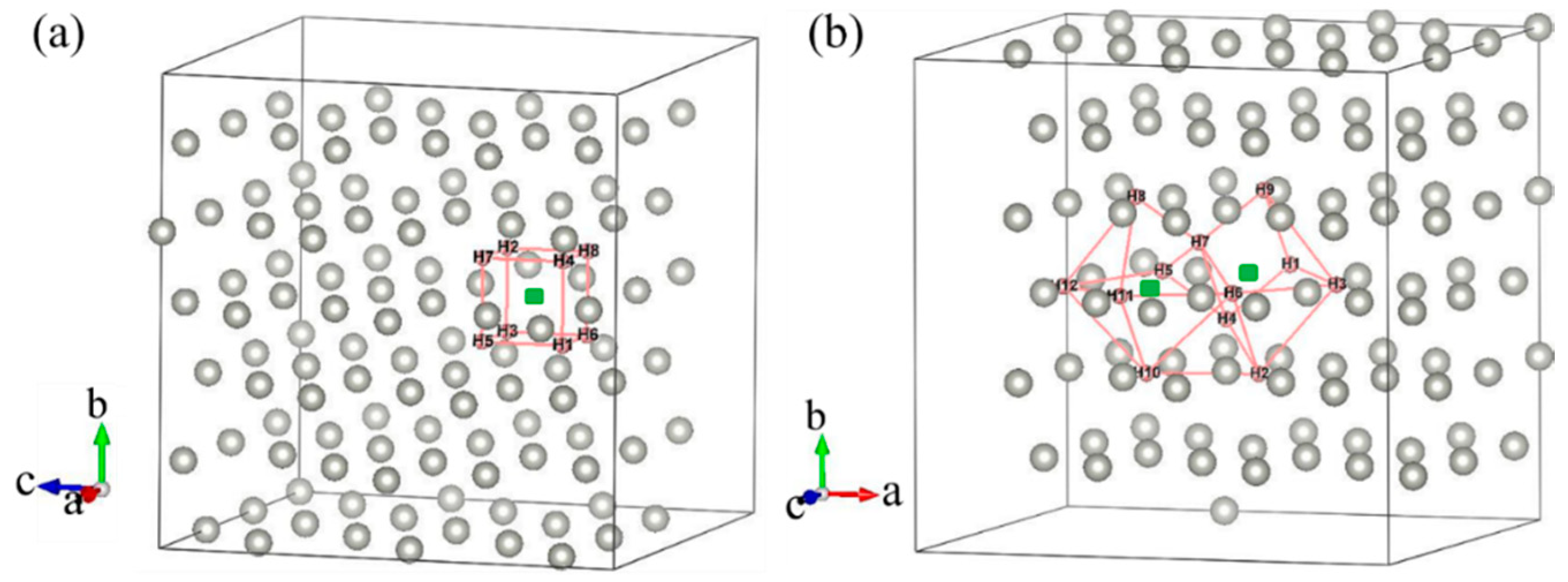

**Figure 2.**Structure diagram of H dissolved in monovacancy (

**a**) and divacancy (

**b**) defects of fcc-Pd. The sequence of H bonding positions is shown.

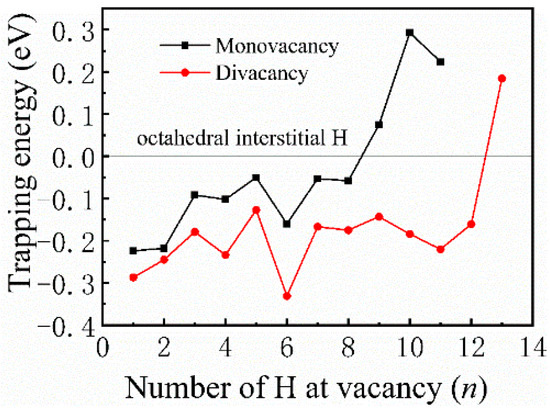

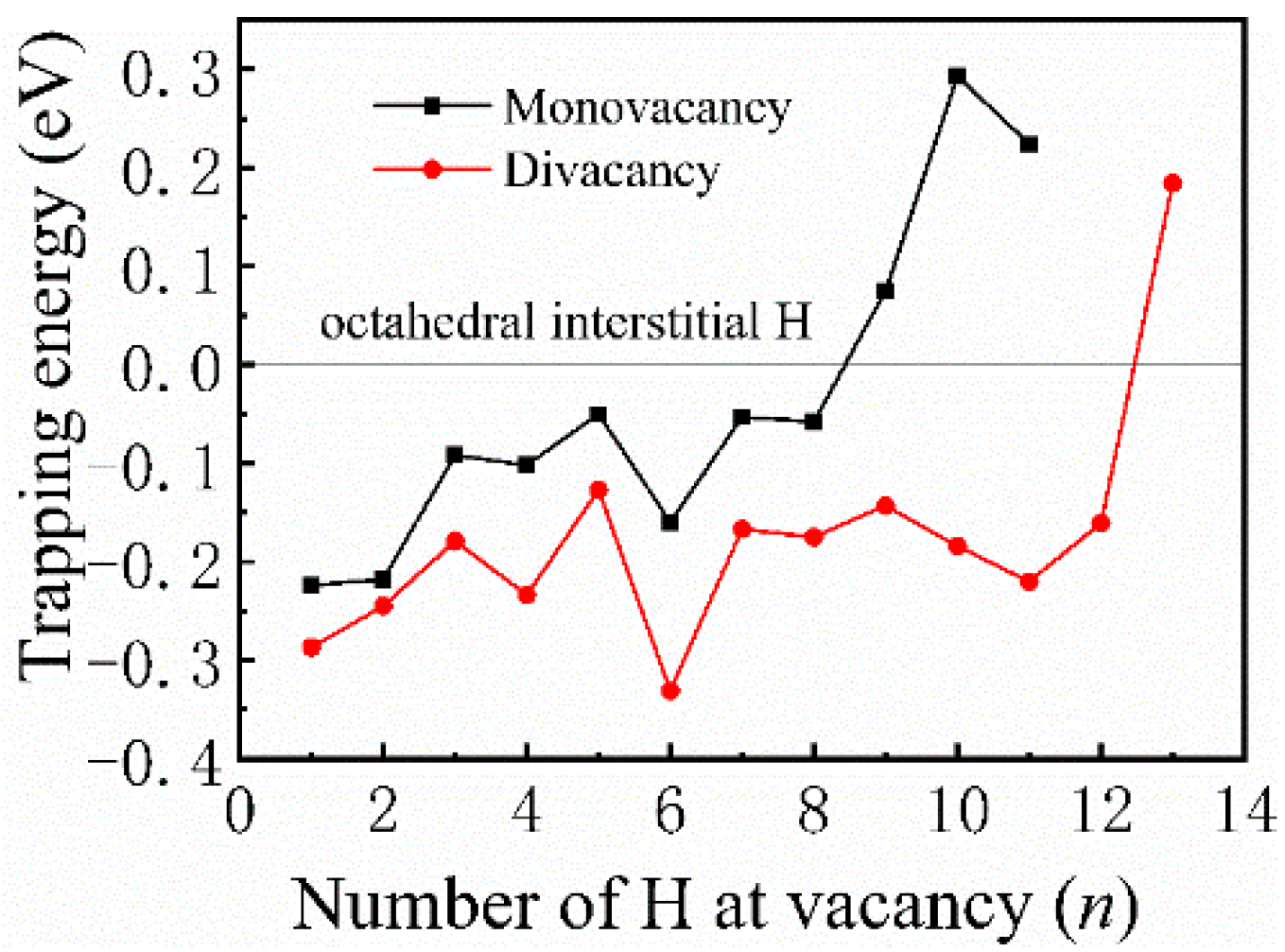

**Figure 3.**Trapping energies as a function of the number of H atoms embedded in monovacancy and divacancy defects.

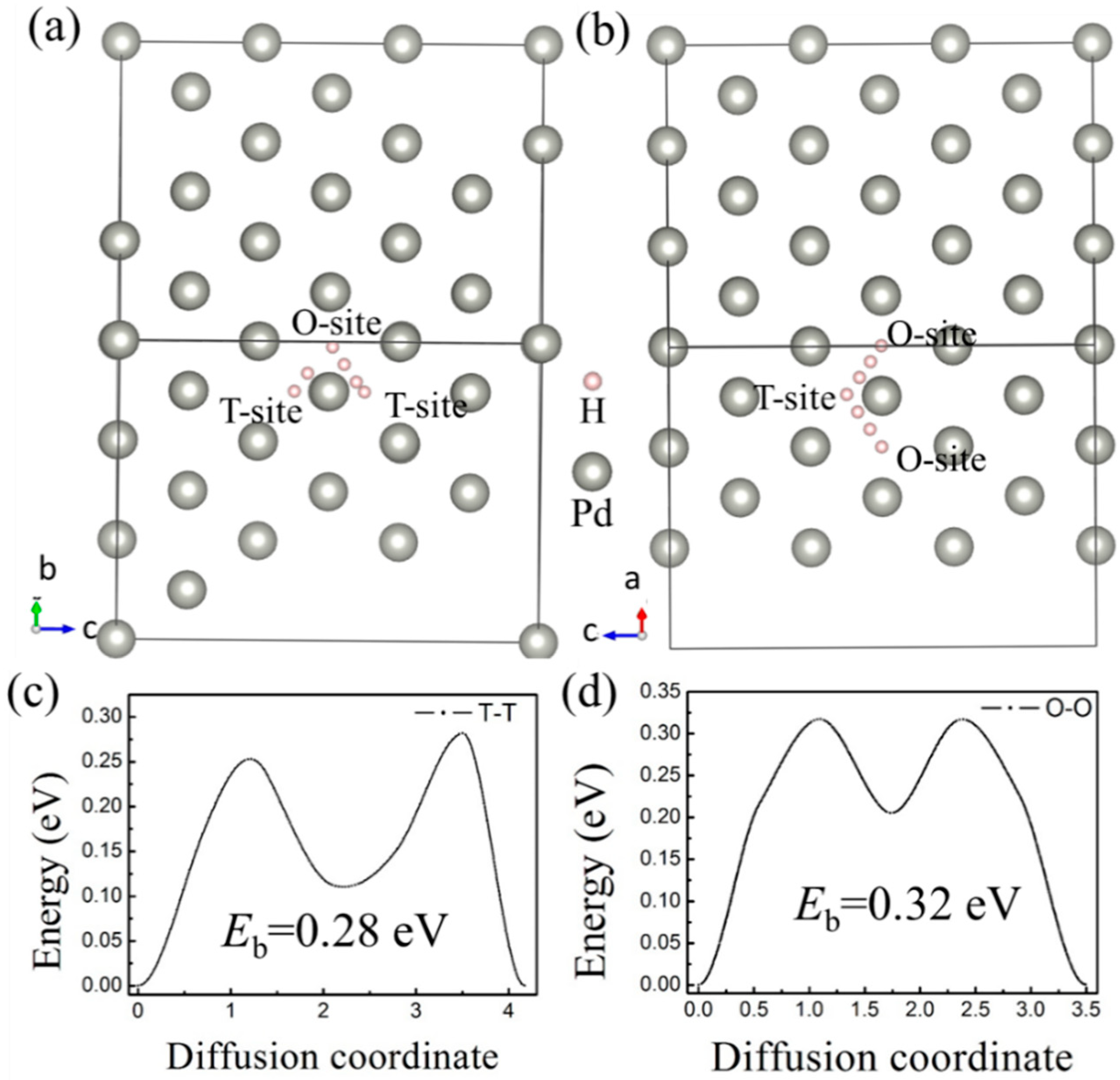

**Figure 4.**Diffusion pathways from (

**a**) T-site to T-site (T-T) and (

**b**) O-site to O-site (O-O) in bulk Pd. The corresponding diffusion barrier energy of (

**c**) T-T and (

**d**) O-O.

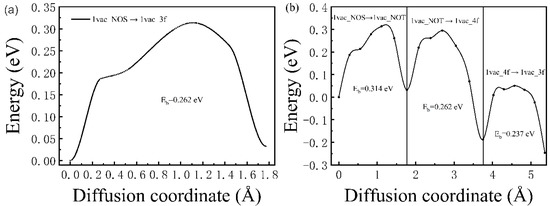

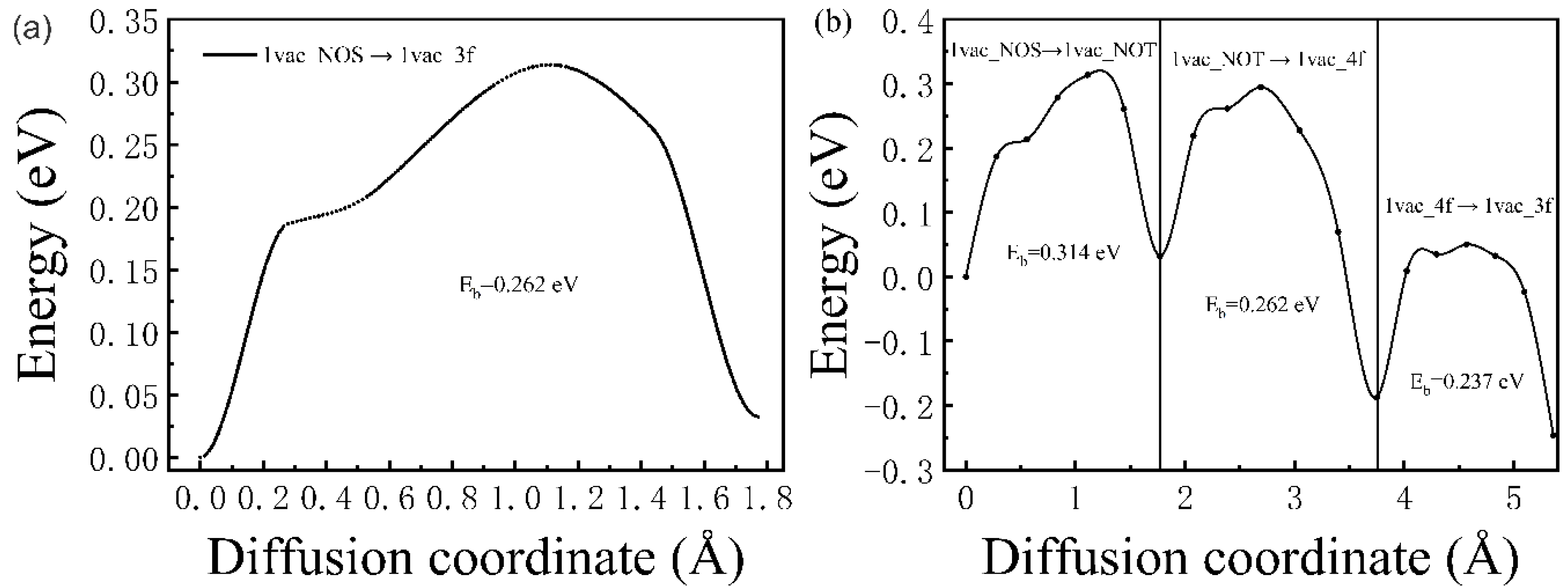

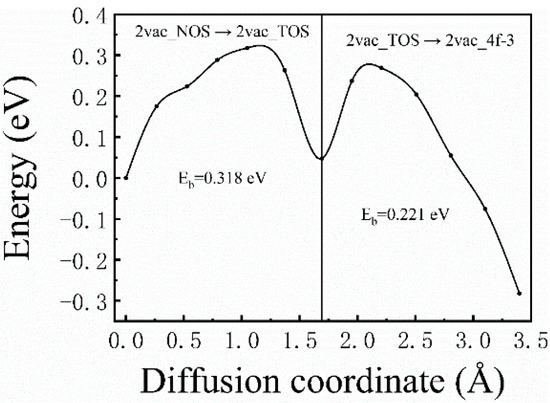

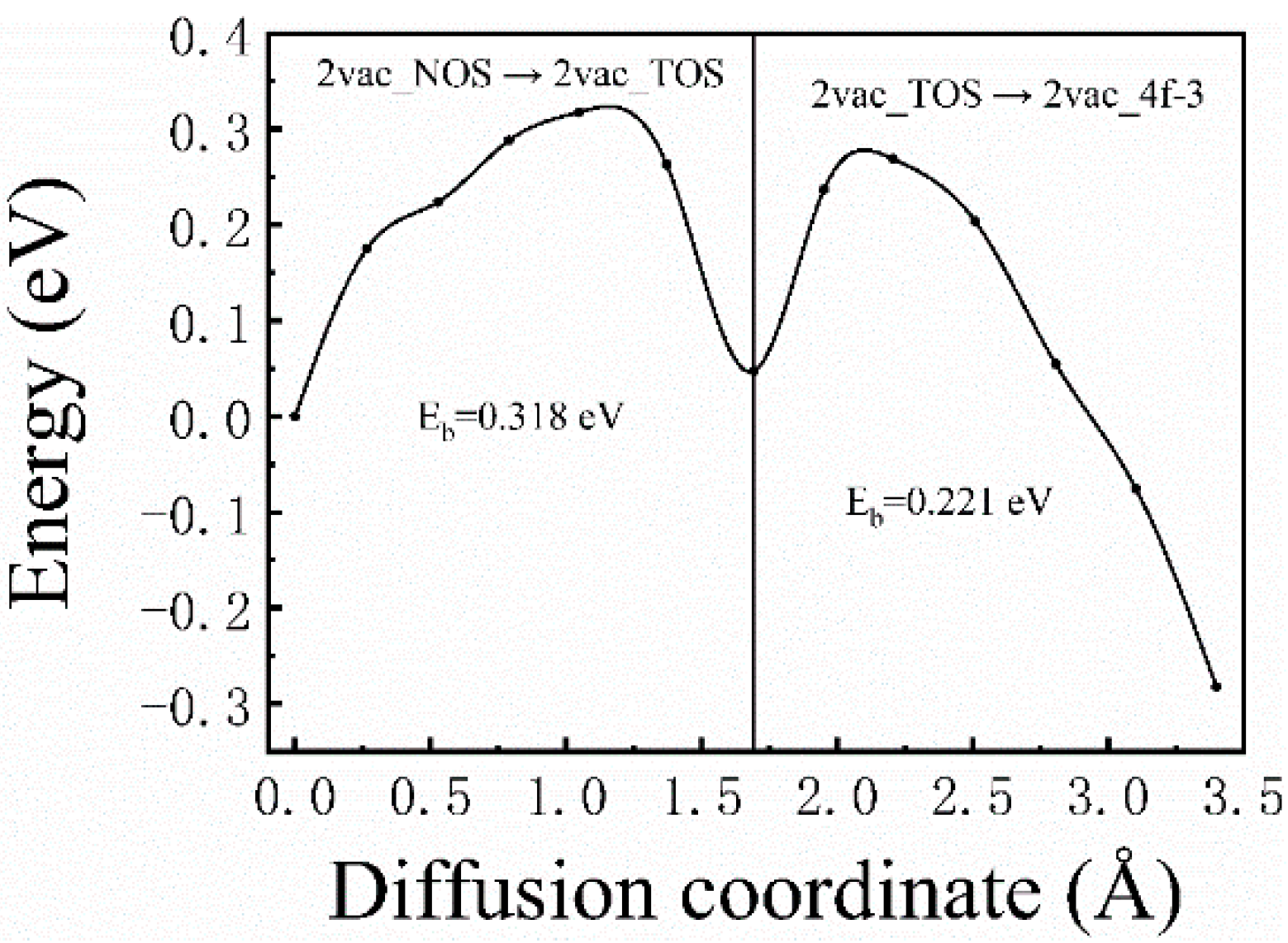

**Figure 5.**The corresponding diffusion barrier energies of (

**a**) 1vac_NOS → 1vac_3f and (

**b**) 1vac_NOS → 1vac_NOT → 1vac_4f → 1vac_3f.

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |

© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Ma, B.-L.; Wu, Y.-Y.; Guo, Y.-H.; Yin, W.; Zhan, Q.; Yang, H.-G.; Wang, S.; Wang, B.-T.
Effects of Monovacancy and Divacancies on Hydrogen Solubility, Trapping and Diffusion Behaviors in fcc-Pd by First Principles. *Materials* **2020**, *13*, 4876.
https://doi.org/10.3390/ma13214876

**AMA Style**

Ma B-L, Wu Y-Y, Guo Y-H, Yin W, Zhan Q, Yang H-G, Wang S, Wang B-T.
Effects of Monovacancy and Divacancies on Hydrogen Solubility, Trapping and Diffusion Behaviors in fcc-Pd by First Principles. *Materials*. 2020; 13(21):4876.
https://doi.org/10.3390/ma13214876

**Chicago/Turabian Style**

Ma, Bao-Long, Yi-Yuan Wu, Yan-Hui Guo, Wen Yin, Qin Zhan, Hong-Guang Yang, Sheng Wang, and Bao-Tian Wang.
2020. "Effects of Monovacancy and Divacancies on Hydrogen Solubility, Trapping and Diffusion Behaviors in fcc-Pd by First Principles" *Materials* 13, no. 21: 4876.
https://doi.org/10.3390/ma13214876
