Liquid Regions of Lanthanum-Bearing Aluminosilicates

Abstract

The Al₂O₃-SiO₂, La₂O₃-Al₂O₃, and La₂O₃-SiO₂ binary phase diagrams were estimated by Redlich–Kister expression. La_4.67Si₃O₁₃ (=La_4.67(SiO₄)₃O) was introduced to improve the existing phase diagrams. The Al₂O₃-SiO₂-La₂O₃ ternary phase diagram extrapolated by Kohler method was optimized. Then, the liquidus of Al₂O₃-SiO₂-La₂O₃ system at 1600 °C was compared with Al₂O₃-SiO₂-RE₂O₃ (RE = Rare Earth Elements) systems and experimental results in other literature. The high temperature experiments were conducted in the tube furnace at 1500 °C. Then the field emission scanning electron microscope (FE-SEM), energy dispersive spectrometer (EDS), and X-ray diffraction (XRD) were employed to verify the calculated liquid region and precipitates phase at 1500 °C. Moreover, the liquidus of binary systems were compared with FactSage results and experiments. The optimized ternary phase diagram shows the relatively reliable region of liquid phase, and it is significant to the seal glass of solid oxide fuel cells and other fields being related to RE containing silicates.

1. Introduction

Aluminosilicate glasses containing rare-earth (RE) elements have been suggested for various applications owing to its favorable chemical, mechanical and optical properties and so on [1,2,3]. They can constitute host materials in optical devices and are proposed for radioactive waste-storage [4]. Moreover, RE-bearing silicate glass is the favorable material to be the seal glass for solid oxide fuel cells (SOFC) owing to the critical thermal properties [5]. RE₂O₃-Al₂O₃-SiO₂ systems reveal relatively wide glass formation regions when prepared from melts of given compositions between approximately 1500 °C and 2000 °C [6,7]. To well understand the glass formation region and the associated microstructure and reaction thermodynamics of the mentioned system, an explicit phase diagram of RE₂O₃-Al₂O₃-SiO₂ systems can provide precise information of these. However, few of experimental data of the phase diagrams are available to present the liquid region (homogeneous glass formation region) in RE₂O₃-Al₂O₃-SiO₂ systems (RE elements are mainly La [8], Y [9,10,11,12] and Gd [11,12]) and the nonstoichiometric phases in each binary system. Mullite and spinel are always formed simultaneously or in order in the Al₂O₃-SiO₂ system [13]. The oxyapatite phase is found in the La₂O₃-SiO₂ system [14]. The RE₂O₃-Al₂O₃-SiO₂ systems (RE = Nd, Sm, Gd and La) were computed by simplified thermodynamic properties associating with symmetric extrapolated expression [15,16,17]. Nevertheless, the liquid region of La₂O₃-Al₂O₃-SiO₂ system is much different from the experimental results given by Iftekhar [18]. Only limited publications can be consulted about the isothermal section information of the La₂O₃-Al₂O₃-SiO₂ system diagram, not to mention the projection map. The phase diagram of La₂O₃-Al₂O₃-SiO₂ system cannot be worked out by any thermodynamic software by now as a result of lacking parameters of mixed solution. Therefore, the primary task of the present work is to determine the liquid region and precipitates at high temperature (≥1500 °C) of possible glass formation, whereas the solid solutions found at 1300 °C by Mazza [8] was not considered in the present work because the temperature is low and there is no homogeneous glass formation.

A plenty of optimized systematic phase diagrams have been worked out by Computer Coupling of Phase Diagrams and Thermochemistry (CALPHAD) technique based on various solution models, which are released to describe the solution phase, such as regular solution model, sublattice model and quasi-chemical model and so on. In addition, a variety of empirical or mathematical expressions, such as Margules, Redlich–Kister, and Bale–Pletion expressions, are generated during the process of development. In the present work, the Redlich–Kister [19] expression based on the subregular solution model was adopted to calculate the Al₂O₃-SiO₂, A₂O₃-La₂O₃, and La₂O₃-SiO₂ binary systems, and the La₂O₃-Al₂O₃-SiO₂ ternary system was extrapolated by Kohler method [20]. Then the optimized ternary system phase diagram was critically assessed by comparing with existing experimental results. The obtained ternary phase diagram is providing a theoretical basis for the glass production process and other fields, such as metallurgical flux preparation and green comprehensive utilization of complex cogenetic ore containing rare earth elements.

2. Calculation Method and Experimental Procedure

The phase boundary lines in phase diagrams are definitely drawn by connecting a series of equilibrium points at the given temperature and pressure. Every equilibrium point is carefully calculated based on the total Gibbs principle of minimum free energy under some constraints. The totally absolute Gibbs free energy of mixed system can be written as

$$G=G^{ref}+G_{mix}^{id}+G^E={\displaystyle \sum }_i{x}_i{G}_i^0+\mathrm{RT}{\displaystyle \sum }_i{x}_i\ln x_i+G^E$$

(1)

where x_i is the mole fraction of component i; $G_i^0$ is the standard Gibbs free energy of pure substance i, J·mol⁻¹; R is the gas constant, 8.314 J mol⁻¹·K⁻¹; T is the temperature, Kelvin; and G^E is excess Gibbs free energy, J·mol⁻¹.

The $G_i^0$ can be derived by Gibbs–Helmholtz expression, G = H − TS, from essential thermodynamic properties, such as standard enthalpy, standard entropy and isobaric heat capacity. The referable data mentioned above related to the base members in this work are listed in

Table 1. Thermodynamic properties of pure substances.

Formula	Phase	${\mathit{H}}_{298}^0(\mathbf{k}·\mathbf{J}·{\mathbf{mol}}^{-1})$	${\mathit{S}}_{298}^0(\mathbf{J}·{\mathbf{mol}}^{-1}·{\mathbf{K}}^{-1})$	Cp = A + B·10−3 T + C·105 T−2 + D·10−6 T2 (J·mol−1·K−1)				Applicable Temperature
				A	B	C	D	(K)
La2O3	S [21]	−1793.702	127.319	119.733	14.225	−13.506	-	298–2553
	L [22]	−1728.858	152.423	119.729	14.230	−13.500	-	2553–3000
Al2O3	S [21]	−1675.692	50.936	109.909	22.065	−33.284	−4.085	298–2327
	L [23]	−1596.533	43.569	192.464	-	-	-	2327–3000
SiO2	S [21]	−910.857	41.463	72.923	1.148	−41.848	0.036	298–1996
	L [21]	−906.604	51.029	85.772	-	-	-	1996–3000
LaAlO3	S [24]	−1794.300	85.936	111.010	13.481	−21.129	-	800–1500
LaAl11O18	S [22]	−10,107.591	383.296	697.843	103.054	−258.334	−19.660	298–2201
La33Al7O60	S [22]	−35,652.907	2404.150	2381.521	295.843	−382.856	−12.510	298–2161
La2Si2O7	S [25,26]	−3815.699	210.271	220.760	72.124	−41.832	−0.029	298–1000
La2SiO5	S *	−2853.310	168.782	182.9117	27.278	−33.6	-	298–3000
La4.67Si3O13	S *	−7302.500	421.467	463.165	73.192	−86.8	-	298–3000

* Derived from thermodynamic properties of La₂O₃ and SiO₂ [27].

. For some substances such as LaAlO₃ of which applicable temperature is out of the scope for direct calculation, the extrapolation based on the C_p expression is adopted in the current optimization process.

G^E in Equation (1) is the most important parameter to represent the interaction of components except for entropy value increase contributed by ideal mixture. In the present work, it can be obtained in the binary system by the Redlich–Kister expression as follows,

$$\begin{array}{ll}{G}^E& =x_1{x}_2{\displaystyle {\displaystyle \sum }_{j=0}^n}{L}_j{\left(x_1-x_2\right)}^j\\ & \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}=x_1{x}_2{L}_0+x_1{x}_2{L}_1\left(x_1-x_2\right)+x_1{x}_2{L}_2{\left(x_1-x_2\right)}^2+\cdots \end{array}$$

(2)

where L_j (j = 0, 1, 2, …) is the interaction energy or interaction parameter between two end members. It can be written in the general form of Gibbs free energy as follows,

$$L=a+bT+cT\ln \left(T\right)+d{T}^2+e{T}^3+f{T}^{-1}$$

(3)

where a, b, c, d, e, and f are the constant parameters usually obtained through empirical or semi-empirical method. Only the first two parameters a and b are considered and optimized later in this work as the deviation is acceptable in this situation.

The commercial software FactSage 7.1 which is popular in phase diagram optimization by CALPHAD technique was applied to conduct the optimization process and also used to draw the final phase diagrams according to the user-define database. All the thermodynamic properties in Table 1 were included in the user-define database. The data of solid solution phase “mullite” was chosen from the FToxid database which is strong in the calculations of mixed oxides systems. These existing experimental data in the available literature, such as liquidus temperature and activity, were adopted to assess the calculation results in the binary phase diagrams. The modules, Solution, Equilib, Phase Diagram, and OptiSage, were employed to achieve the parameters optimization and phase diagrams calculation. Then, the calculated data points were export to the software Origin 8.5 to draw the phase diagram comparing with the reference data points or experimental results. Moreover, the optimized binary phase diagrams Al₂O₃-SiO₂ and La₂O₃-Al₂O₃ systems were compared with the results computed by FactSage 7.1 where the FToxid database was employed. And the activity curves of CaO and Al₂O₃ in the Al₂O₃-SiO₂ system were compared with the limited experimental points at 1877 °C (2150 K).

After the G^E values of binary phase diagrams were obtained, the extrapolation portion of La₂O₃-Al₂O₃-SiO₂ ternary phase diagram was derived by Kohler method. Considering that the results calculated by extrapolation methods are not accurate enough, an additional G^E parameter optimized from the ternary eutectic temperature of La₂O₃-Al₂O₃-SiO₂ system was introduced to correct the deviation.

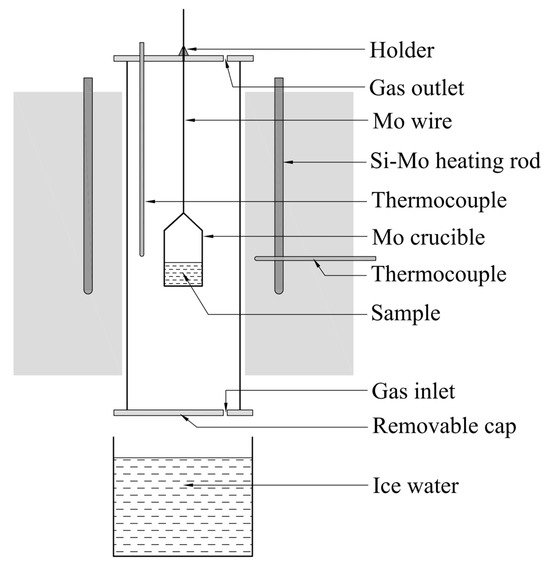

When the ternary phase diagram of La₂O₃-Al₂O₃-SiO₂ system were worked out, the liquid region of the system at 1600 °C was compared with the experimental results in published references. At the same time, validation experiments of liquid region at 1500 °C were carried out in a tube furnace heated by MoSi₂ rods, the schematic of which is shown as Figure 1.

The Al₂O₃, SiO₂, and La₂O₃ powders with the purity of 4 N supplied by Sinopharm Chemical Reagent Company were pretreated in the Muffle furnace at 1000 °C for 2 h to remove moisture, impurity and volatiles. Then the material powders were grinded and sieved. The particles with the size less than 74 μm were intensively mixed in the agate mortar at the given mole ratios (as the 18 experimental points marked in the figures later). One gram of individual sample was taken from the evenly mixed powders and then transferred into a Mo crucible with the inner diameter of 1 cm and wall thickness of 1 mm. The powdered sample in the Mo crucible was compacted by the glass road and then pricked with stainless steel needle to make holes to avoid eruption during the heating process. Afterwards, the Mo crucible hung by the Mo wire was placed into a tube furnace at ambient temperature under argon atmosphere at a flow rate of 5.0 L·min⁻¹. Then, the furnace was heated up and held at 1600 °C for 1 h to pre-melting and to ensure the totally uniformity of the sample at good flow conditions. Thereafter, the furnace temperature was slowly decreased to 1500 °C and held for 2 h. Subsequently, the holder at the top side of furnace was loosened and the sample rapidly fall under gravity to be quenched into ice water from 1500 °C to 0 °C through the bottom side of furnace as shown in Figure 1. The obtained sample was mounted in the ethoxyline resin and polished by various scale of abrasive paper and polishing cloth in order under the aid of grinding paste SiC. Gold powder was sprayed on the polished surface of sample to ensure the electrical conductivity before the following analysis. Finally, the FE-SEM with EDS and XRD were used to determine the morphology, chemical composition and mineral phase of the quenched sample.

3. Results and Discussion

3.1. Binary Phase Diagram of Al₂O₃-SiO₂-La₂O₃ System

When the Redlich–Kister expression based on subregular solution model and Kohler method were employed to optimize all the binary systems, the related interaction parameters were worked out and are listed in

Table 2. Optimization parameters of the binary systems.

Li = a + bT	-	L0	L1	L2	L3
Al2O3-SiO2	a	19,570.28	14,875.48	5640.02	-
	b	−10.49	−0.71	1.21	-
La2O3-Al2O3	a	−129,195.34	−15,094.54	393,830.17	-
	b	−26.05	0.72	−176.58	-
La2O3-SiO2	a	−352,587.83	−119,125.74	513,748.94	435,926.54
	b	78.86	22.64	−211.27	−166.77

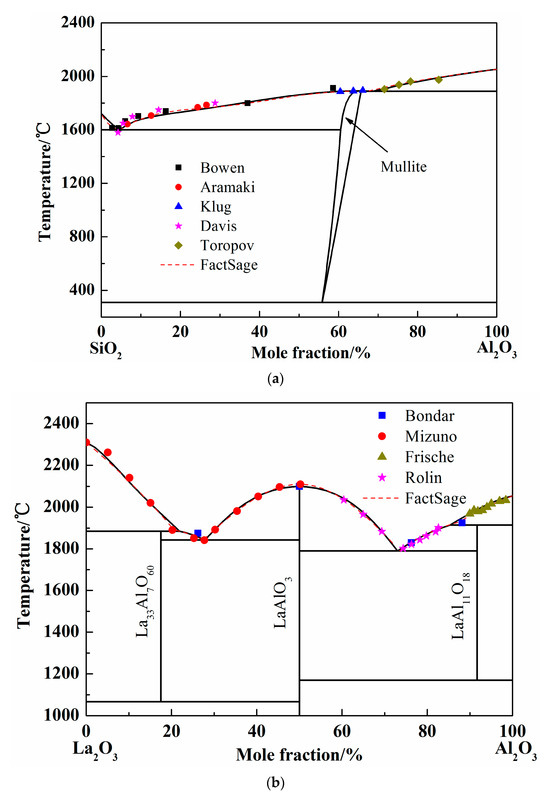

and all the binary phase diagrams are present in Figure 2.

3.1.1. The SiO₂-Al₂O₃ System

To study the stable phases in the SiO₂-Al₂O₃ system, various models were introduced and the “mullite” region was considered as solution phase or pure substance in previous researches. In 1979, the SiO₂-Al₂O₃ phase diagram was calculated by DÖrner using regular solution model [28]. However, the liquidus was different from the available experimental results. Thereafter, the Gibbs free energy of mixing liquid was introduced using an associated solution model by Ball in 1993 [29]. The mullite region is in good agreement with the experimental results. At the same time, Eriksson conducted the calculation using modified quasi-chemical model [30] and the results were acceptable. In 2005, the two-sublattice model was adopted to calculate the SiO₂-Al₂O₃ system and the optimized results coincide well with the experimental data. Besides, when the mullite was considered as pure substance, the calculated liquidus of Al₂O₃-SiO₂ system showed more accuracy [15,31]. In present work, the mullite data form FactSage database was introduced and the solution phase was calculated by Redlich–Kister expression. The calculated SiO₂-Al₂O₃ phase diagram was shown as Figure 2a [32,33,34,35,36]. The dash line in Figure 2a is the liquidus worked out by FactSage 7.1 when the solution phase was chosen form FToxide database. It is obvious that the liquid region calculated by Redlich–Kister expression is almost the same as the FactSage result. In addition, the experimental points employed conformably meet the calculated liquidus.

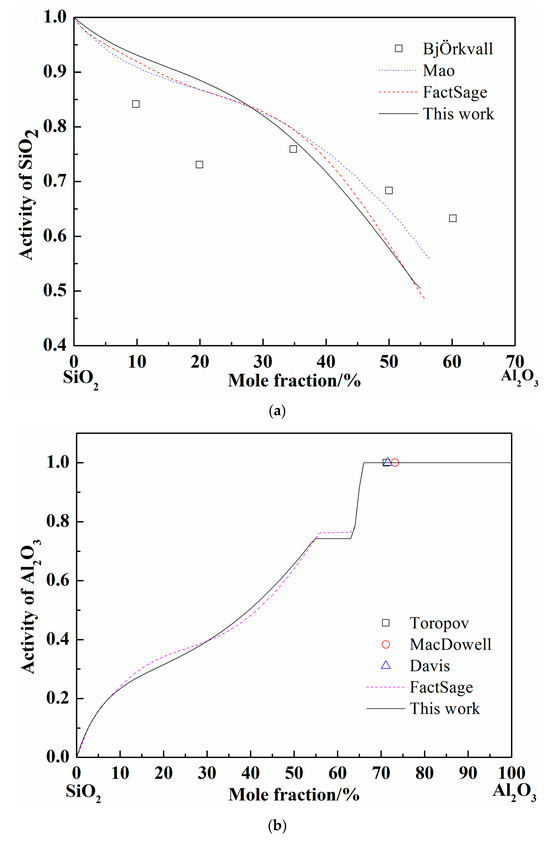

When the pure liquid phase was chosen as the standard state, the activity of SiO₂ was calculated and compared with the FactSage and others’ results at 1877 °C, as shown in Figure 3a [37,38]. The activity of SiO₂ worked out by different calculation (Mao, FactSage, and present work) adopted different models are nearly coincident. The calculated curves show the same tendency with the experimental results by BjÖkvall et al. Figure 3b shows the calculation results of Al₂O₃ activity at 1877 °C [36,37,39], when the pure solid phase was chosen as the standard state. The experimental points by Toropov et al. show the pure solid Al₂O₃ formation site as the Al₂O₃ content increase at 1877 °C and the Al₂O₃ activity is definitely 1. The variation trend of Al₂O₃ activity calculated by FactSage and in present work are consistent and the activity value reaches 1 at the same point (66% of Al₂O₃ in mole fraction). Generally, the optimized SiO₂-Al₂O₃ system by Redlich–Kister expression is accurate according to the above comparison.

3.1.2. The La₂O₃-Al₂O₃ System

Only a few of experimental studies and calculations on the phase diagram La₂O₃-Al₂O₃ system are published so far. The La₂O₃-Al₂O₃ phase diagram was calculated using quasi-chemical model by Wu in 1992 [20], and using Redlich–Kister expression by Li [15]. However, the fusion enthalpy and entropy in the work of Li et al. are simplified to temperature-independent constants. The more precise thermodynamic properties should be introduced, and the La₂O₃-Al₂O₃ system was calculated by Redlich–Kister expression. The calculation results and the experimental points in the present work are shown in Figure 2b [40,41,42,43]. The FactSage results and all the experimental points by former scholars were almost coincided with the current calculated liquidus, which indicates the reliability of optimized binary phase diagram of La₂O₃-Al₂O₃ system.

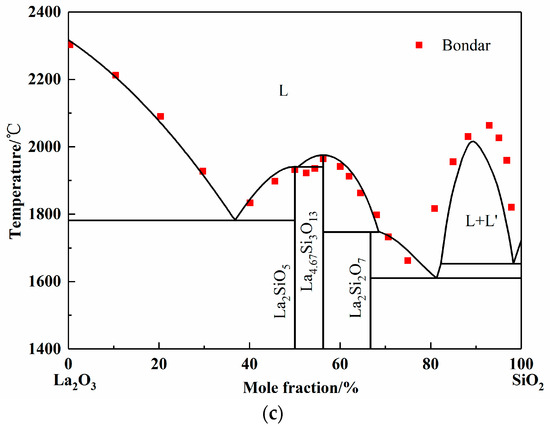

3.1.3. The La₂O₃-SiO₂ System

The La₂O₃-SiO₂ system is rarely studied by experiment or simulation, and different opinions on the intermediate phases have always been there. In 1961, Toropov released the La₂O₃-SiO₂ phase diagram, and the intermediate compounds are La₂Si₂O₇, La₂SiO₅, and La₄Si₃O₁₂. In 1982, Bondar, from the same research group as Toropov, modified the La₄Si₃O₁₂ phase to La_4.67Si₃O₁₃. Li finished the calculated La₂O₃-SiO₂ system employing simplified thermodynamic properties in 1999 [11]. However, the adoptive compound was La₄Si₃O₁₂. Kim only calculated the two-liquid region using the Redlich–Kister expression [44]. However, the number and values of parameters given by Li and Kim are completely different. In this work, La₂Si₂O₇, La₂SiO₅, and La_4.67Si₃O₁₃ were chosen as the intermediate compounds, which were found in the equilibrium experimental results, as shown in Figure 5 later. Since the available experimental points are from Toropov and Bondar, the interaction energy of solution phase and the derived thermodynamic parameters of silicates were optimized. The calculated phase diagram is presented in Figure 2c [45,46]. It can be seen that most of the experiment points have good agreement with the calculation results.

3.2. Ternary Phase Diagram of Al₂O₃-SiO₂-La₂O₃ System

After all the binary phase diagrams of Al₂O₃-SiO₂, La₂O₃-Al₂O₃, and La₂O₃-SiO₂ systems were worked out, the thermodynamic property of Al₂O₃-SiO₂-La₂O₃ system was extrapolated by Kohler method. In 1999, Li published this ternary phase diagram when the ternary interaction coefficients of solution phases were set to zero [11]. Consequently, the calculated results were distinct from others studies. In the present work, the ternary coefficients were calculated through references to the ternary eutectic temperature 1380 °C [7] and the Al₂O₃-Ce₂Si₂O₇ system [47]. The additional G^E optimized from the ternary eutectic temperature of Al₂O₃-SiO₂-La₂O₃ system is $-\mathrm{450,000}{x}_{{\mathrm{La}}_2{\mathrm{O}}_3}{x}_{{\mathrm{Al}}_2{\mathrm{O}}_3}{x}_{{\mathrm{SiO}}_2}^2$.

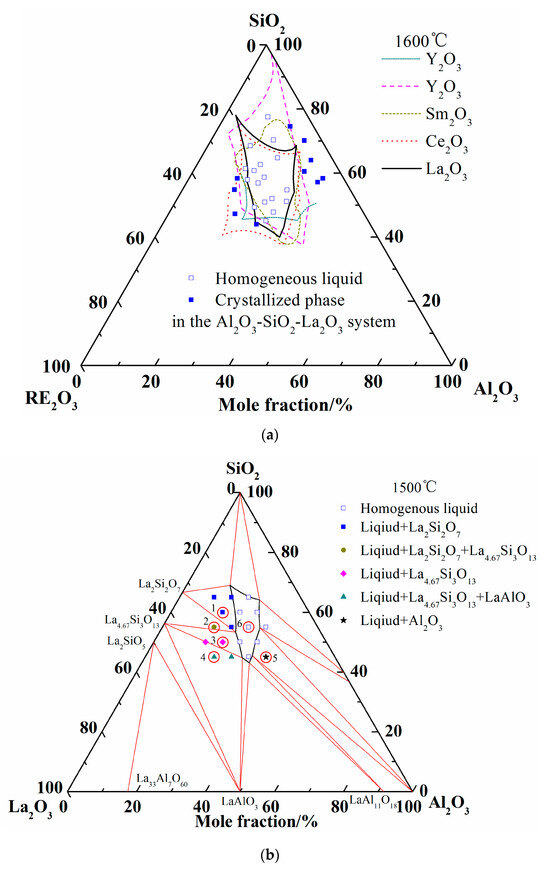

Abundant experimental results about the glass formation region at 1600 °C from publications are available, so no more experiments were conducted in the present work. Considering the analogous chemical and physical properties of rare earth elements, the liquidus of Al₂O₃-SiO₂-La₂O₃, Al₂O₃-SiO₂-Sm₂O₃, Al₂O₃-SiO₂-Ce₂O₃, and Al₂O₃-SiO₂-Y₂O₃ at 1600 °C are summarized in Figure 4a [7,8,9,18,48]. It can be seen that the liquid regions of different system are roughly located in the same region. When the experimental results of Iftekhar et al. were introduced, only two experimental points of homogenous liquid phase are located outside the calculated liquid region. It may be caused by the deviation of the La₂O₃-SiO₂ ternary system. Furthermore, other liquid phases and crystallized phases are located inside and outside of liquidus at 1600 °C, respectively.

Figure 4b shows the calculated isothermal section diagram at 1500 °C associating with the experimental results in the tube furnace. All the 18 prepared samples were observed and the symbols with the same shape indicate the same precipitated phase. For example, four solid squares located at the top left corner mean the precipitated phase analyzed by EDS and XRD is La₂Si₂O₇. The micromorphology and phase compositions of quenched samples marked with circles in Figure 4b are given in Figure 5, and the elements ratio of EDS results of detecting points in Figure 5a, such as A1, B1, and D, are listed in Figure 5b. The compounds predicted from EDS results and XRD analysis are also given in Figure 5b. For the 18th sample (★ in Figure 4b), the peak of Al₂O₃ can be detected although the main phase is LaAl₁₁O₁₈. As the magnified image of the 5th picture shown in Figure 5a, some darker precipitates are present on the lighter phase. It was hard to distinguish the Al₂O₃ phase and LaAl₁₁O₁₈ phase from the EDS analysis because of the limited resolution of FE-SEM. However, both the Al₂O₃ and LaAl₁₁O₁₈ phases are detected from the XRD analysis.

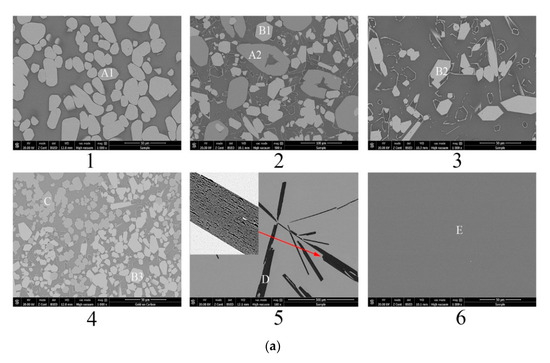

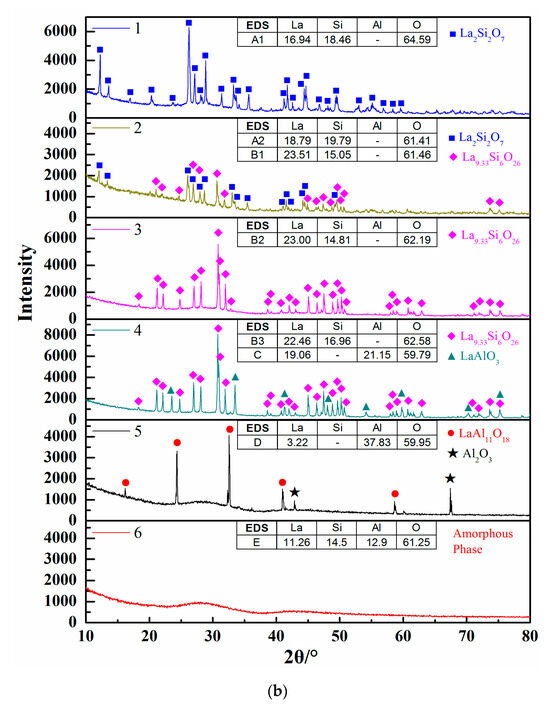

It can be seen from Figure 4b that the precipitates of experimental results are located in the corresponding primary crystal region of calculated phase diagram. The homogenous liquid phase points all locate within the region of liquidus at 1500 °C except for the rightmost point. It is easily concluded from Figure 5b that the precipitated phase in the La₂O₃-SiO₂ system is not La₄Si₃O₁₂ but La_4.67Si₃O₁₃, which is recognized as La_9.33Si₆O₂₆ in the XRD results.

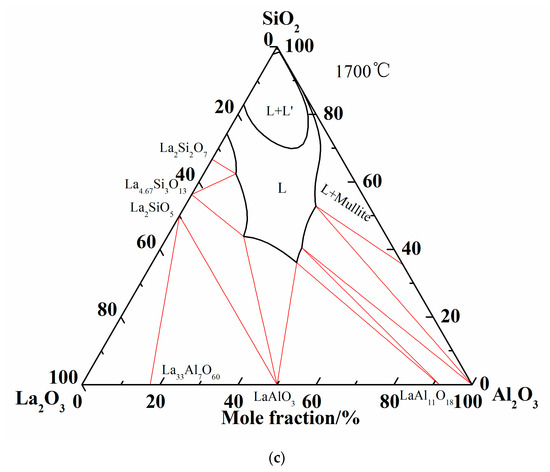

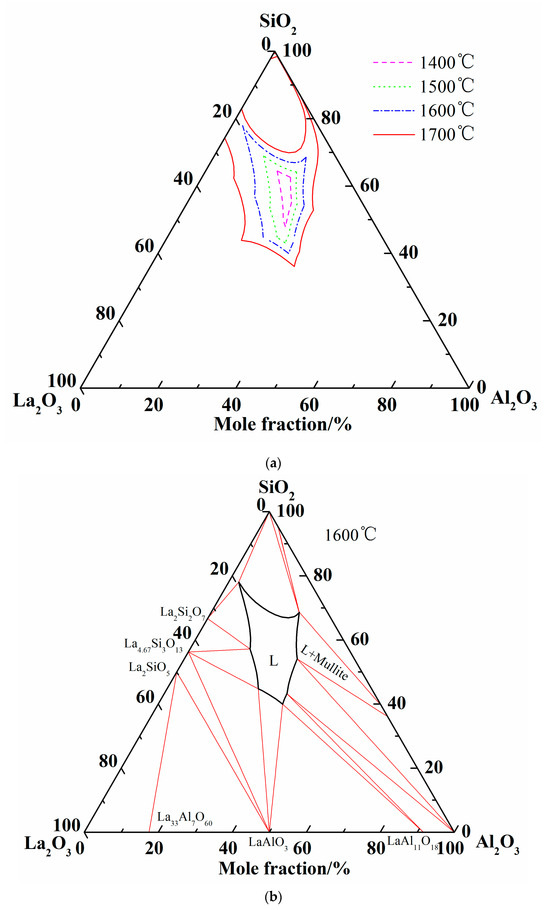

Summing up the above comparison of calculated phase diagram with the experimental results in former literature at 1600 °C and equilibrium experimental results at 1500 °C, it is obvious that the optimized thermodynamic parameters are reliable and the extrapolated Al₂O₃-SiO₂-La₂O₃ phase diagram is reasonably precise. Therefore, the liquidus and isothermal sections of 1600 °C and 1700 °C are summarized in Figure 6. As shown in Figure 6c, two-liquid region (L + L’) is emerged in the isothermal section diagram of 1700 °C.

4. Summary

La_4.67Si₃O₁₃ was first introduced to calculate the La₂O₃-SiO₂ system by Redlich–Kister expression, and the Al₂O₃-SiO₂ and La₂O₃-Al₂O₃ binary phase diagrams were also optimized by Redlich–Kister expression. The activities of Al₂O₃ and SiO₂ were calculated in the Al₂O₃-SiO₂ binary system, and then the Al₂O₃-SiO₂-La₂O₃ ternary phase diagram was extrapolated by Kohler method. The conclusions are summarized as follows.

1. The liquid regions at 1500 °C and 1600 °C was verified by both experiments and data from publications. Comparing others’ work, the calculated ternary phase diagram is reliable and presents more precise.

2. It clearly indicated the compound in La₂O₃-SiO₂ system is not La₄Si₃O₁₂ but La_4.67Si₃O₁₃.

3. Based on the calculation results in the present study, a more reasonable model should be found to estimate the La₂O₃-SiO₂ system in the future because of the deviation from experimental points. However, the ternary phases diagram in the present work present the relatively reliable region of liquid phase, and it is significant to the glass manufacture and other fields.
