Influence of Sintering Process on Microstructure and Mechanical Properties of Ti(C,N)-Based Cermet
1
Institute of Manufacturing Engineering, Huaqiao University, Xiamen 361021, China
2
Institute of Manufacturing Engineering, Fujian Engineering Research Center of Intelligent Manufacturing for Brittle Materials, Xiamen 361021, China
3
Xiamen Golden Egret Special Alloy Co., Ltd., Xiamen 361006, China
*
Author to whom correspondence should be addressed.
Materials 2020, 13(18), 3938; https://doi.org/10.3390/ma13183938
Received: 6 July 2020
/
Revised: 26 August 2020
/
Accepted: 3 September 2020
/
Published: 5 September 2020
(This article belongs to the Section Advanced Composites)

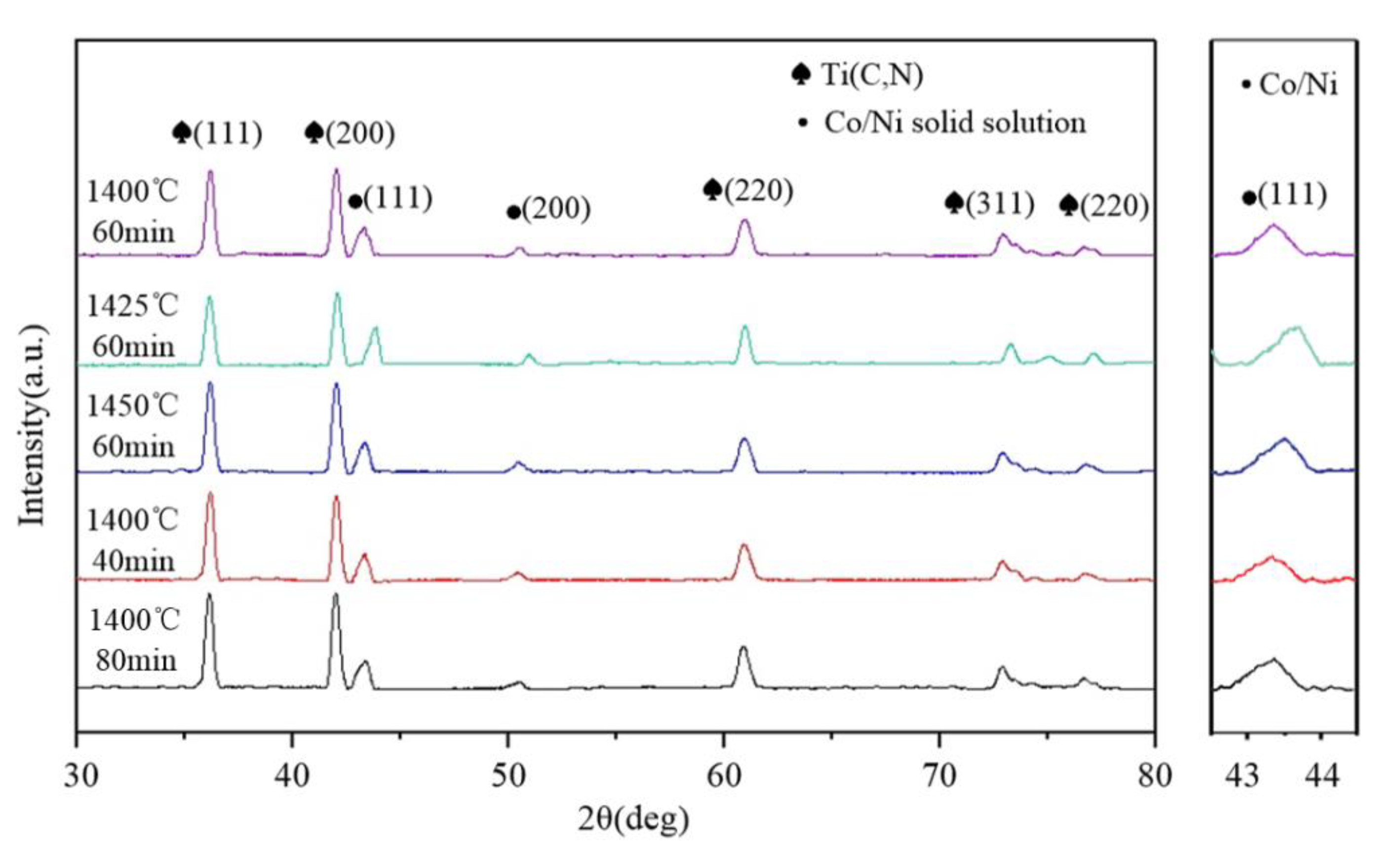

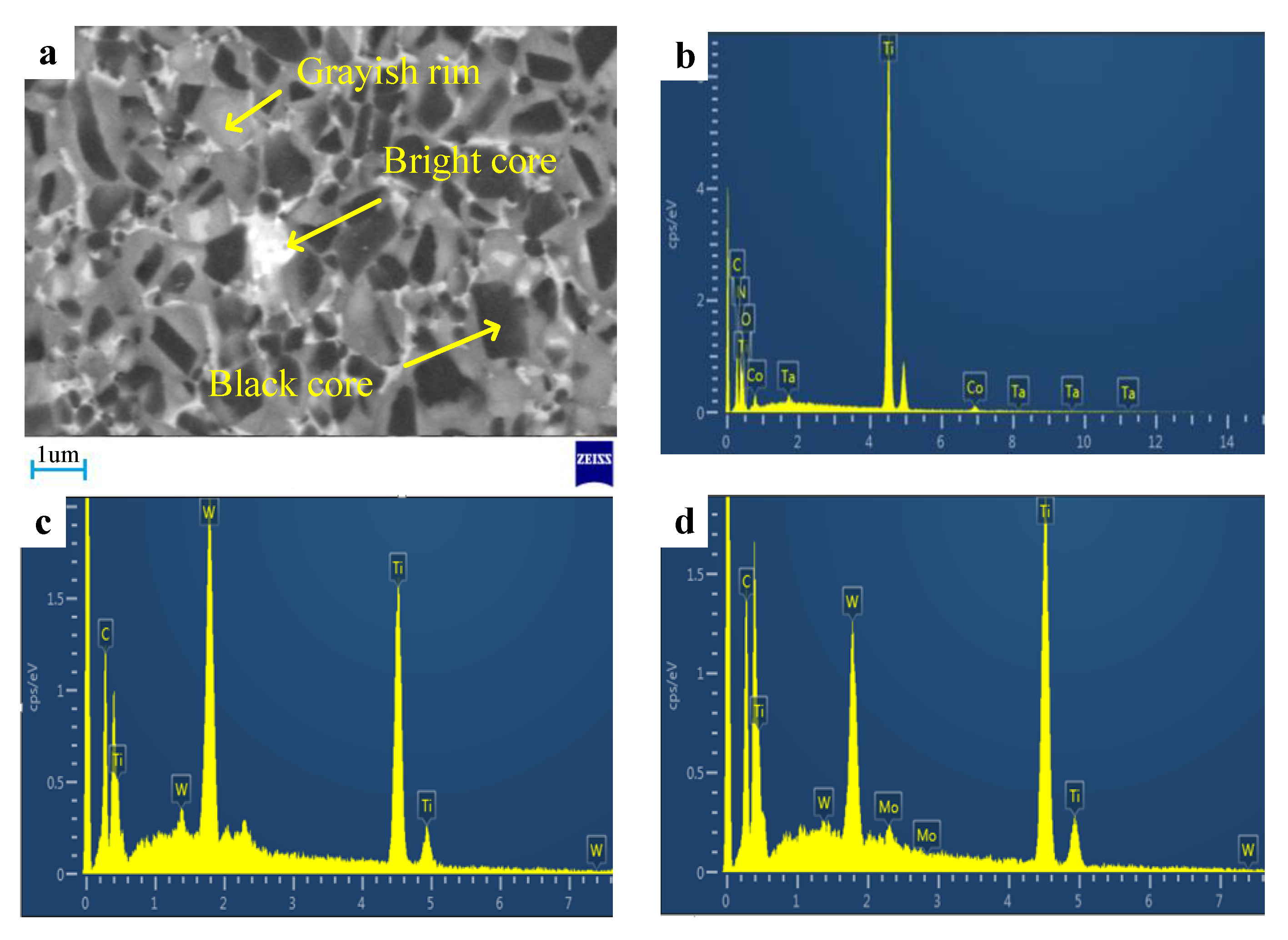

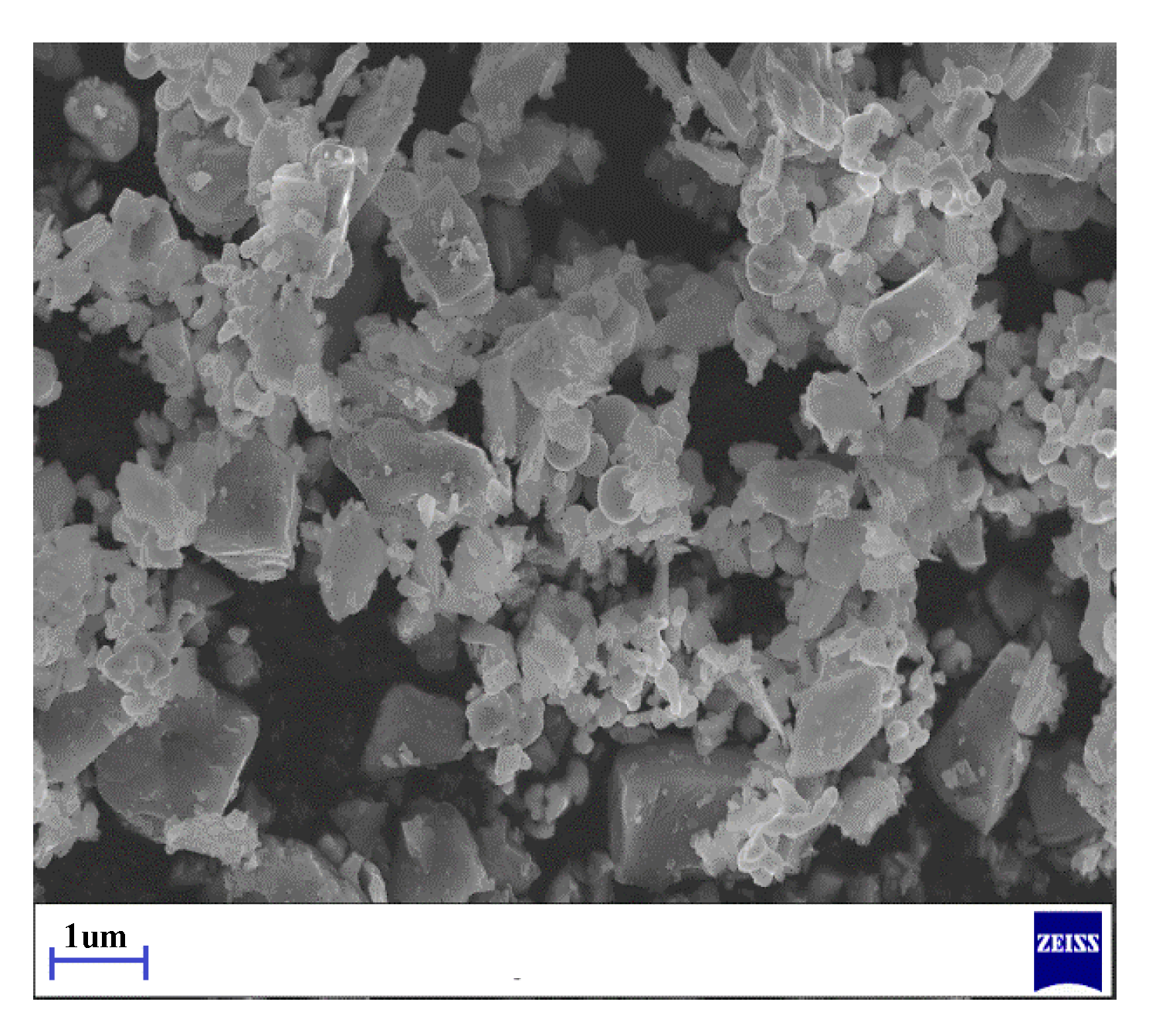

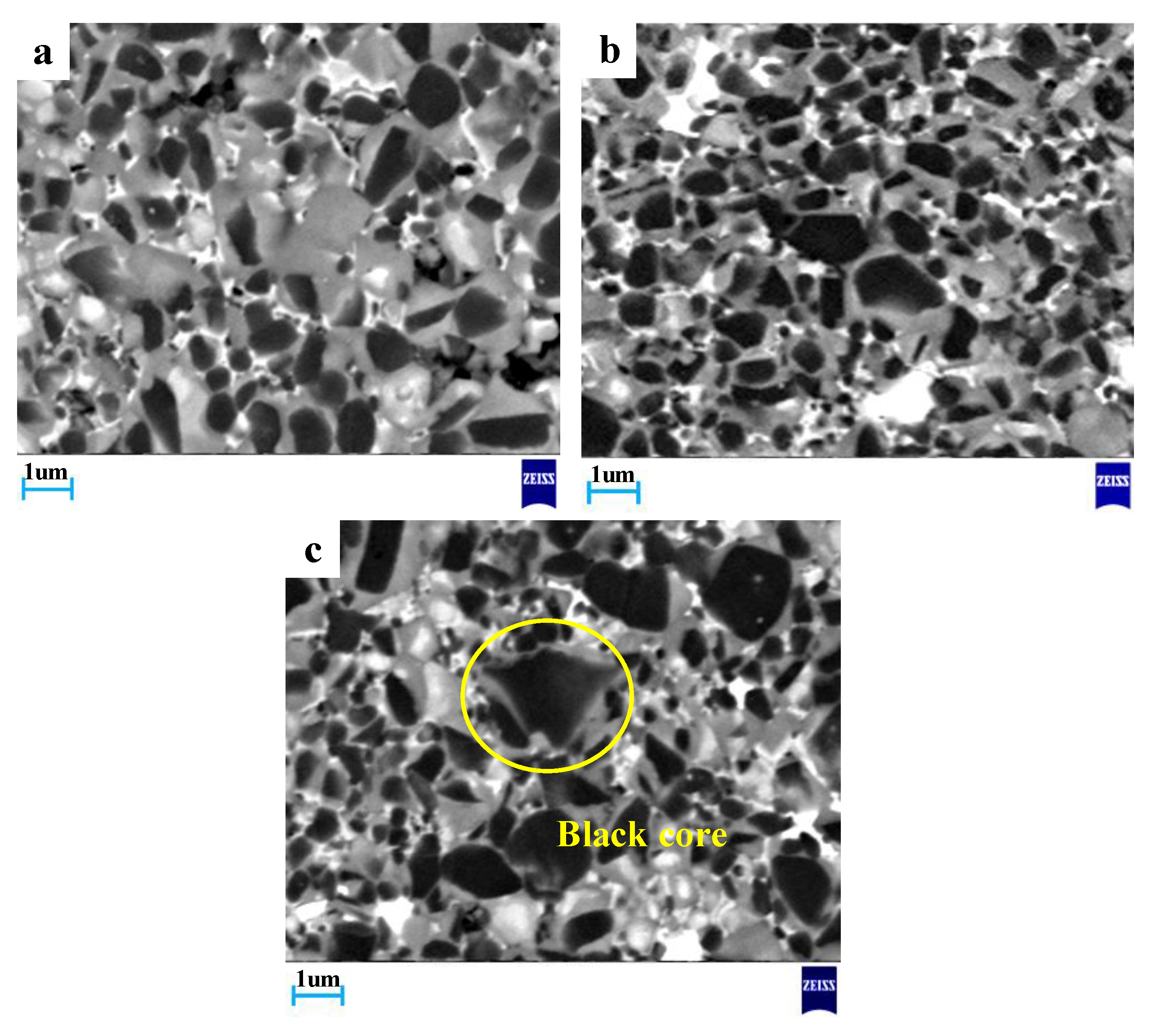

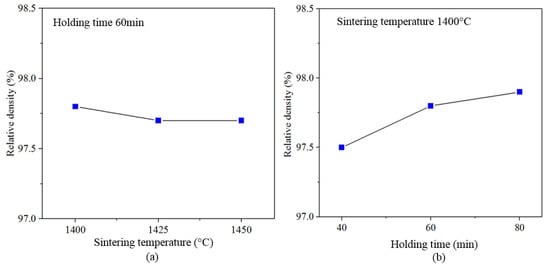

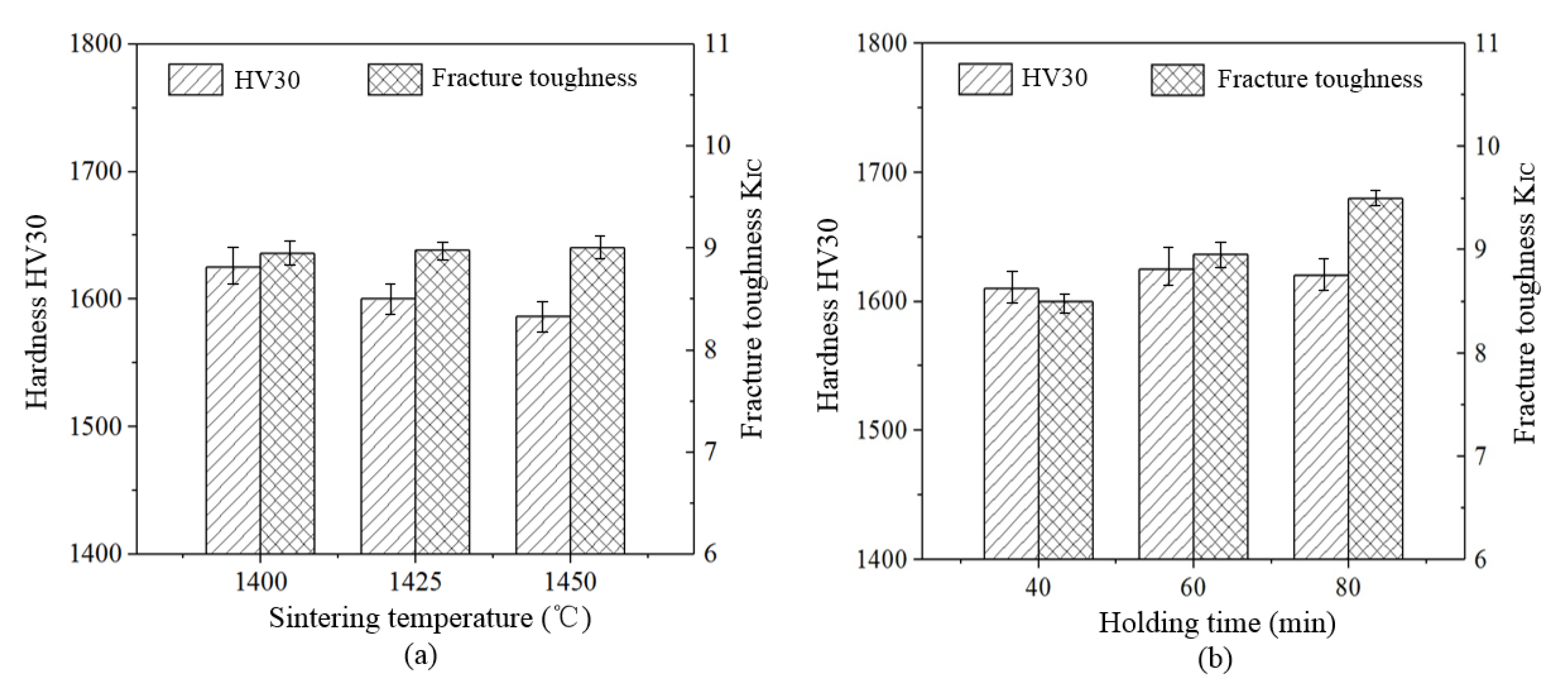

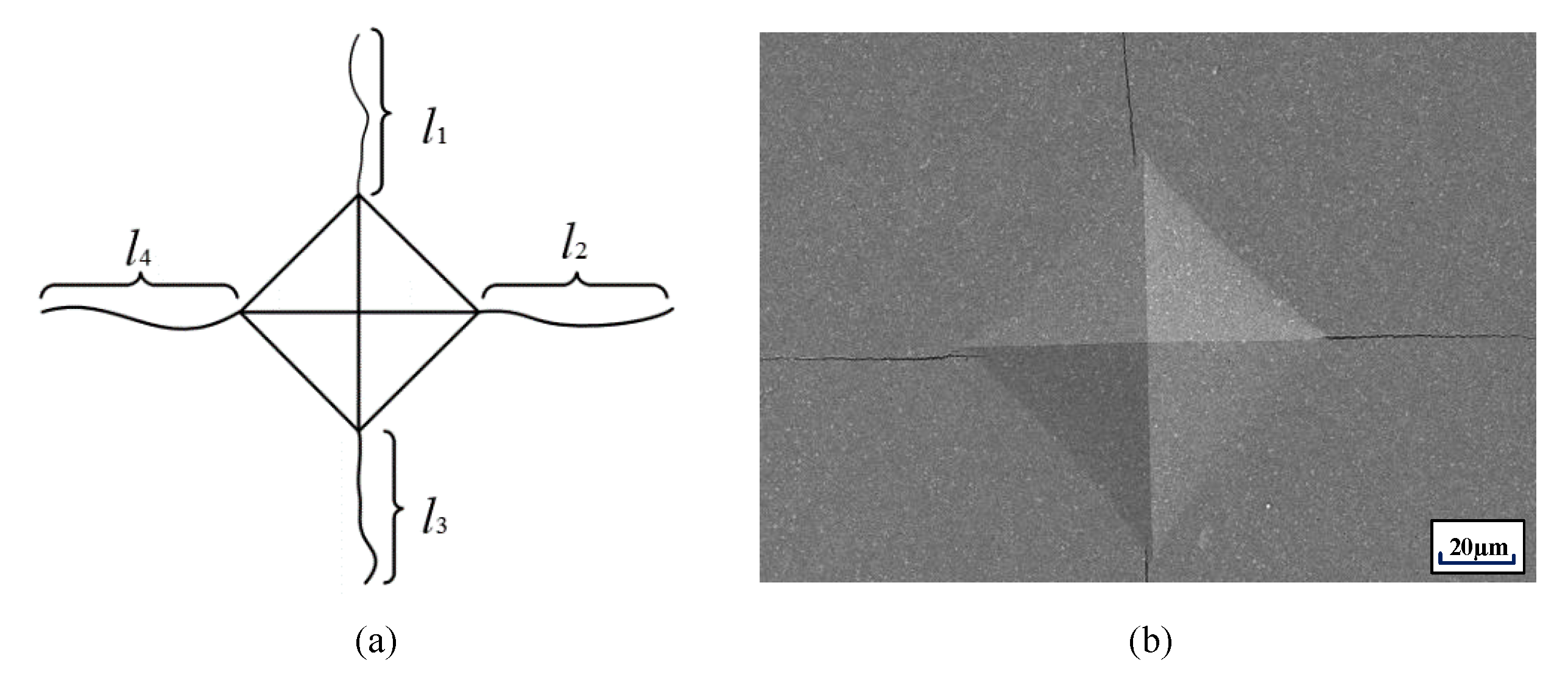

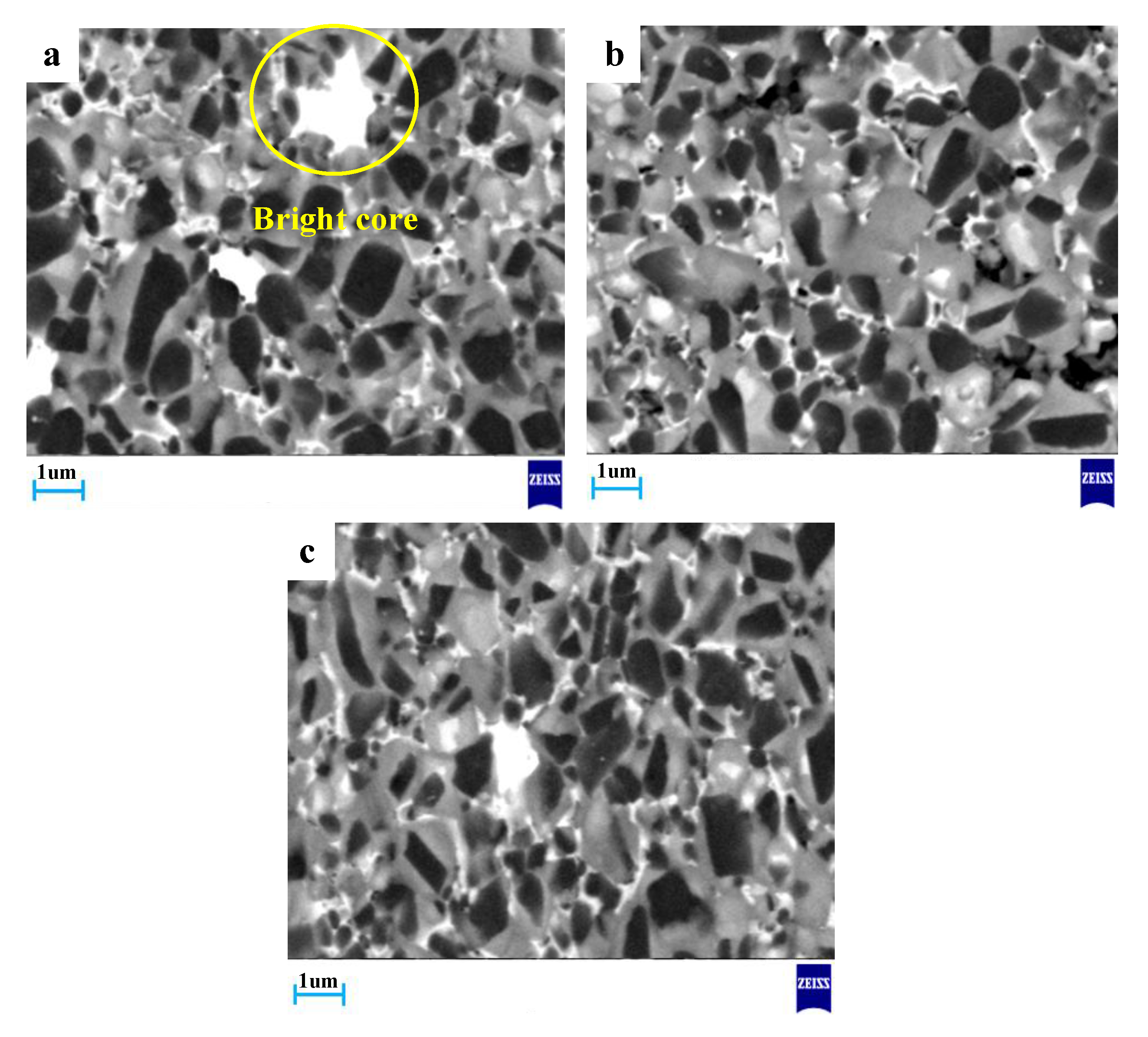

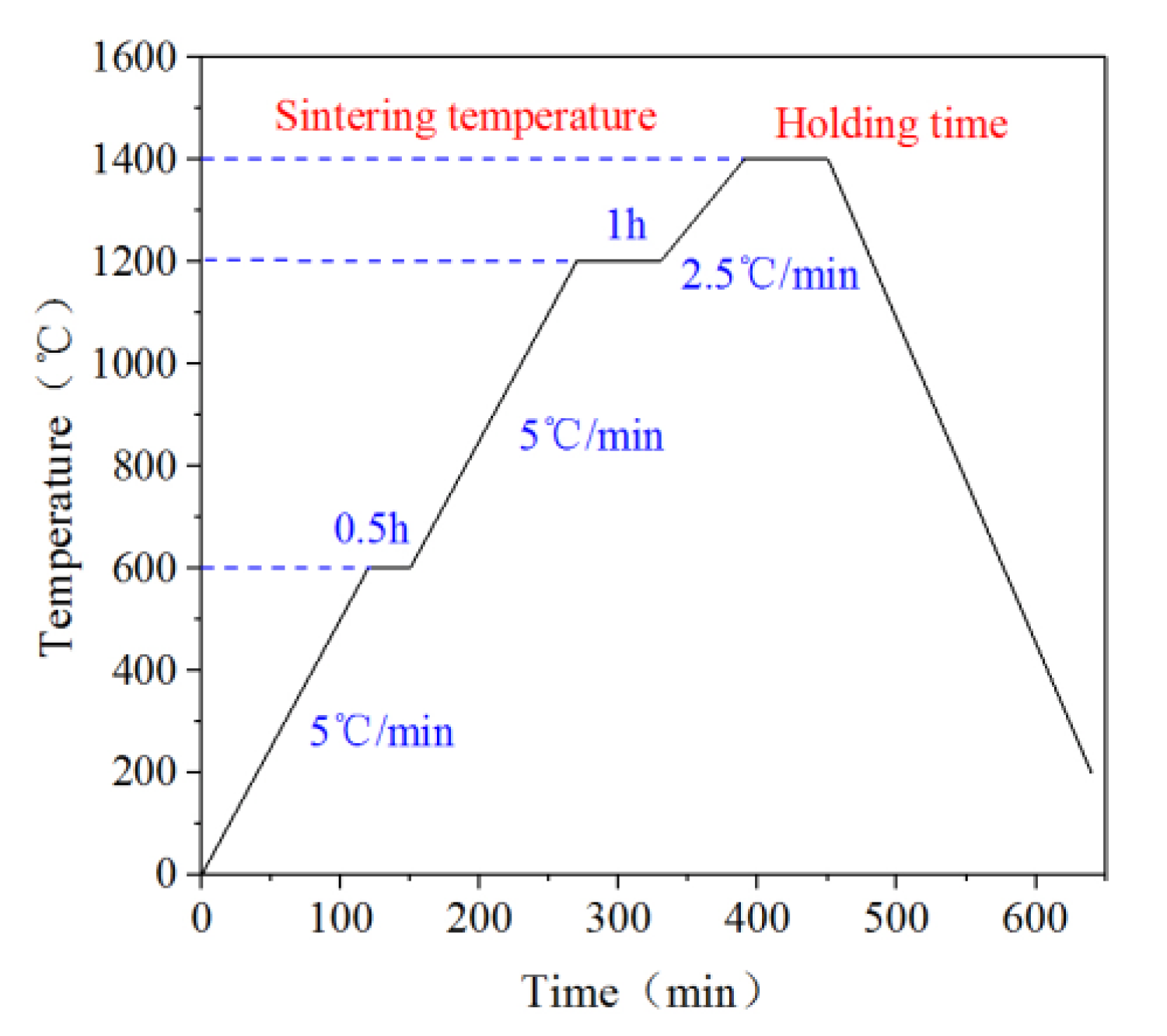

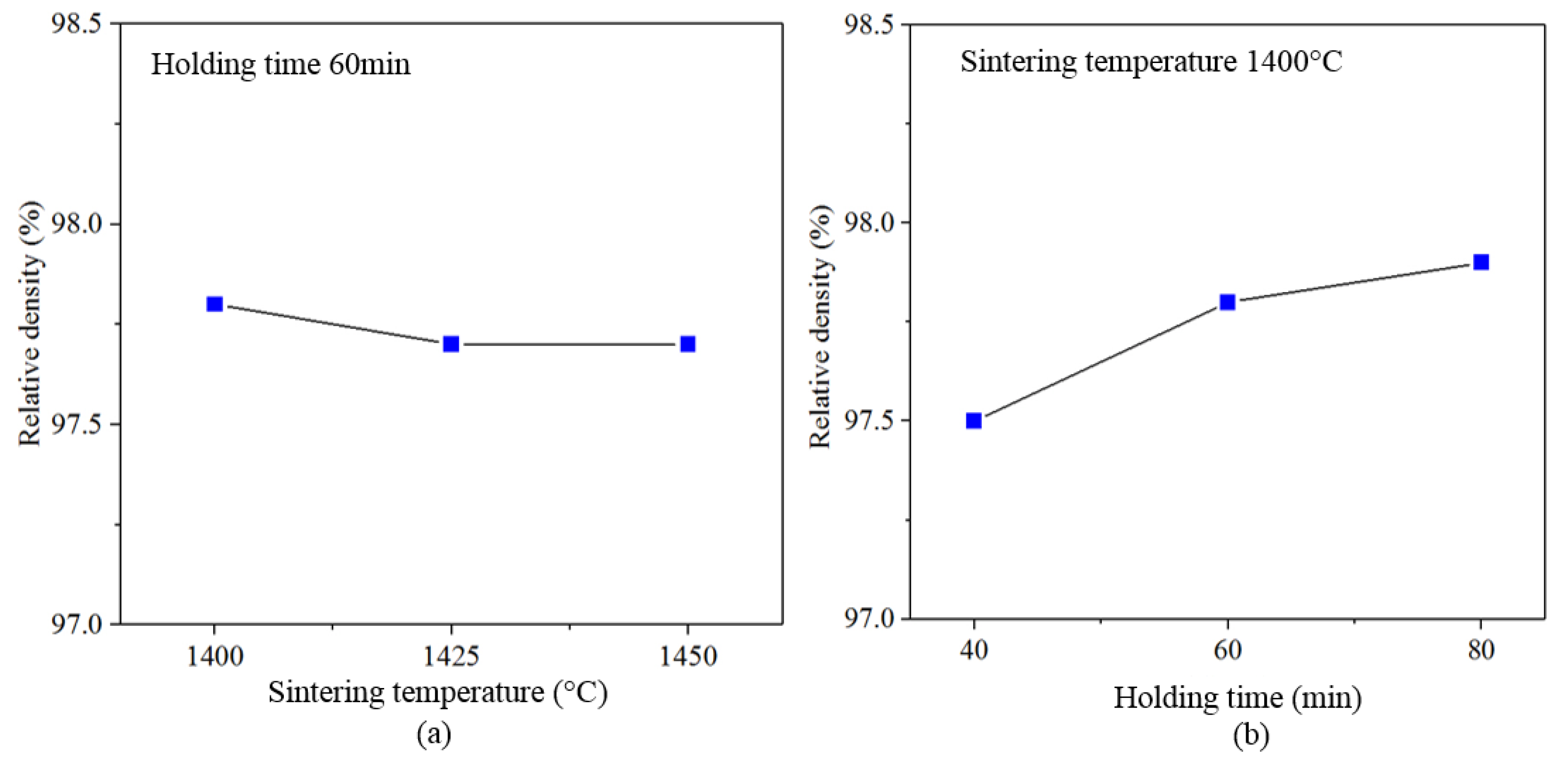

In this study, a Ti(C,N)-based cermet material was prepared through vacuum sintering. The research also investigates how holding time and maximum sintering temperature influence the material microstructure and mechanical properties. X-ray diffraction (XRD), energy dispersive spectroscopy (EDS) were used to analyze the composition of the cermet. The microstructure of the cermet was analyzed and examined using a scanning electron microscope (SEM). A Vickers hardness tester was used to test the mechanical properties of the materials. As indicated by testing results, the hardness of the material decreases as the temperature of sintering increases, and its fracture toughness increases gradually as holding time increases. Ti(C,N)-based cermet manifested the optimal mechanical properties when sintering was conducted under 1400 °C with 80 min of holding time. Moreover, the material microstructure is significantly affected by the sintering process. The grain size of Ti(C,N) cermets increases as the sintering temperature increases. The microstructure tends to be uniform and the complete core-rim structures are established as the holding time increases.
View Full-Text
Keywords:
Ti(C,N)-based cermet; vacuum sintering; hardness; fracture toughness
▼
Show Figures
Figure 1
This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
MDPI and ACS Style
Ji, K.; Meng, Y.; Wang, F.; Li, Y. Influence of Sintering Process on Microstructure and Mechanical Properties of Ti(C,N)-Based Cermet. Materials 2020, 13, 3938. https://doi.org/10.3390/ma13183938
AMA Style
Ji K, Meng Y, Wang F, Li Y. Influence of Sintering Process on Microstructure and Mechanical Properties of Ti(C,N)-Based Cermet. Materials. 2020; 13(18):3938. https://doi.org/10.3390/ma13183938
Chicago/Turabian StyleJi, Kaixun, Yanxin Meng, Fuzeng Wang, and Yousheng Li. 2020. "Influence of Sintering Process on Microstructure and Mechanical Properties of Ti(C,N)-Based Cermet" Materials 13, no. 18: 3938. https://doi.org/10.3390/ma13183938
Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.
