Fused Filament Fabricated Polypropylene Composite Reinforced by Aligned Glass Fibers

1
Laboratory of Nanomaterials, Center for Photonics and Quantum Materials, Skolkovo Institute of Science and Technology, Moscow 121205, Russia
2
Center for Design, Manufacturing & Materials, Skolkovo Institute of Science and Technology, Moscow 121205, Russia
3
Department of General and Experimental physics, Kemerovo State University, Kemerovo 650043, Russia
4
Department of Chemistry and Materials science, Aalto University, P.O. Box 16100, FI-00076 Espoo, Finland
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(16), 3442; https://doi.org/10.3390/ma13163442
Received: 24 June 2020 / Revised: 30 July 2020 / Accepted: 30 July 2020 / Published: 5 August 2020

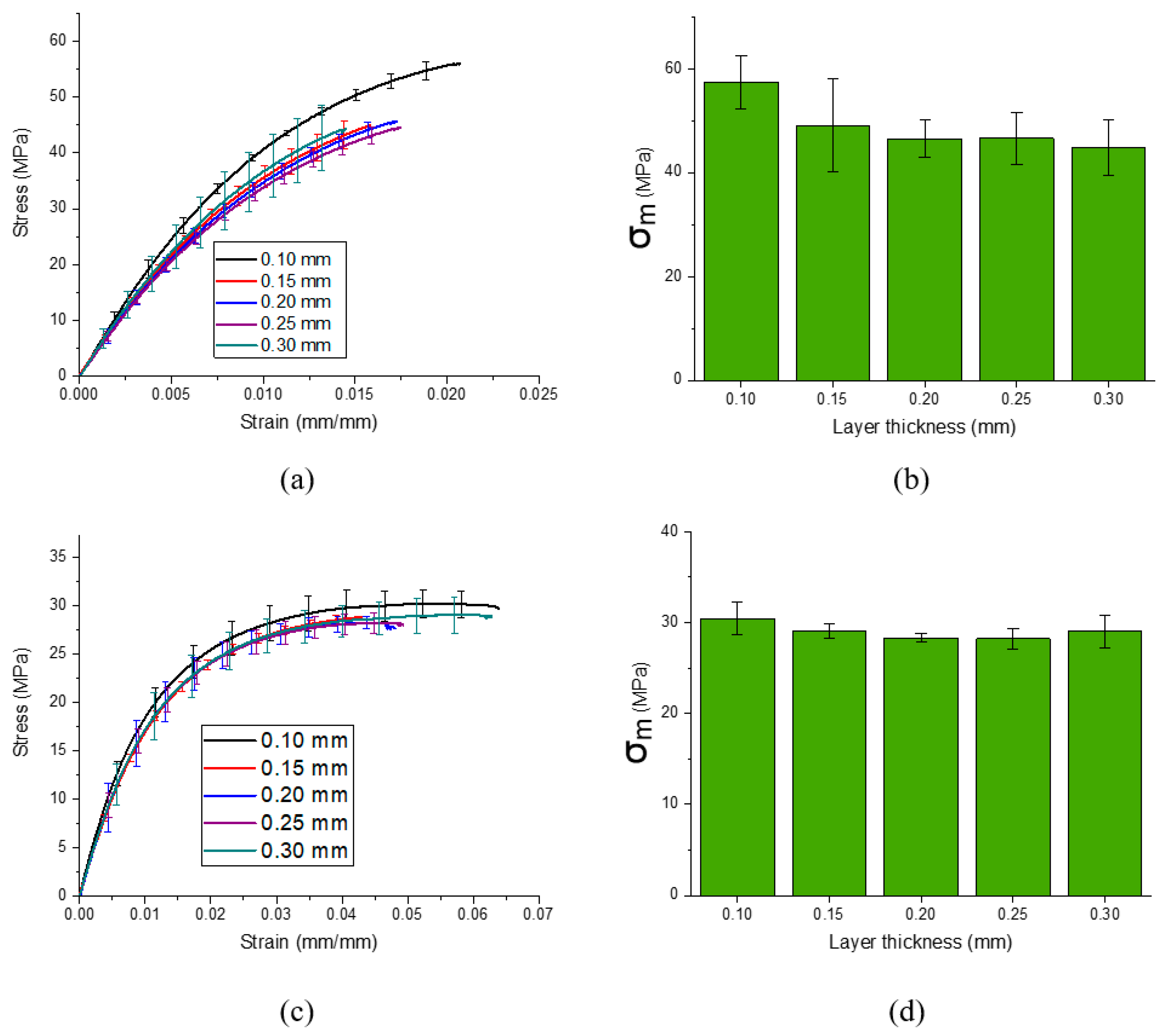

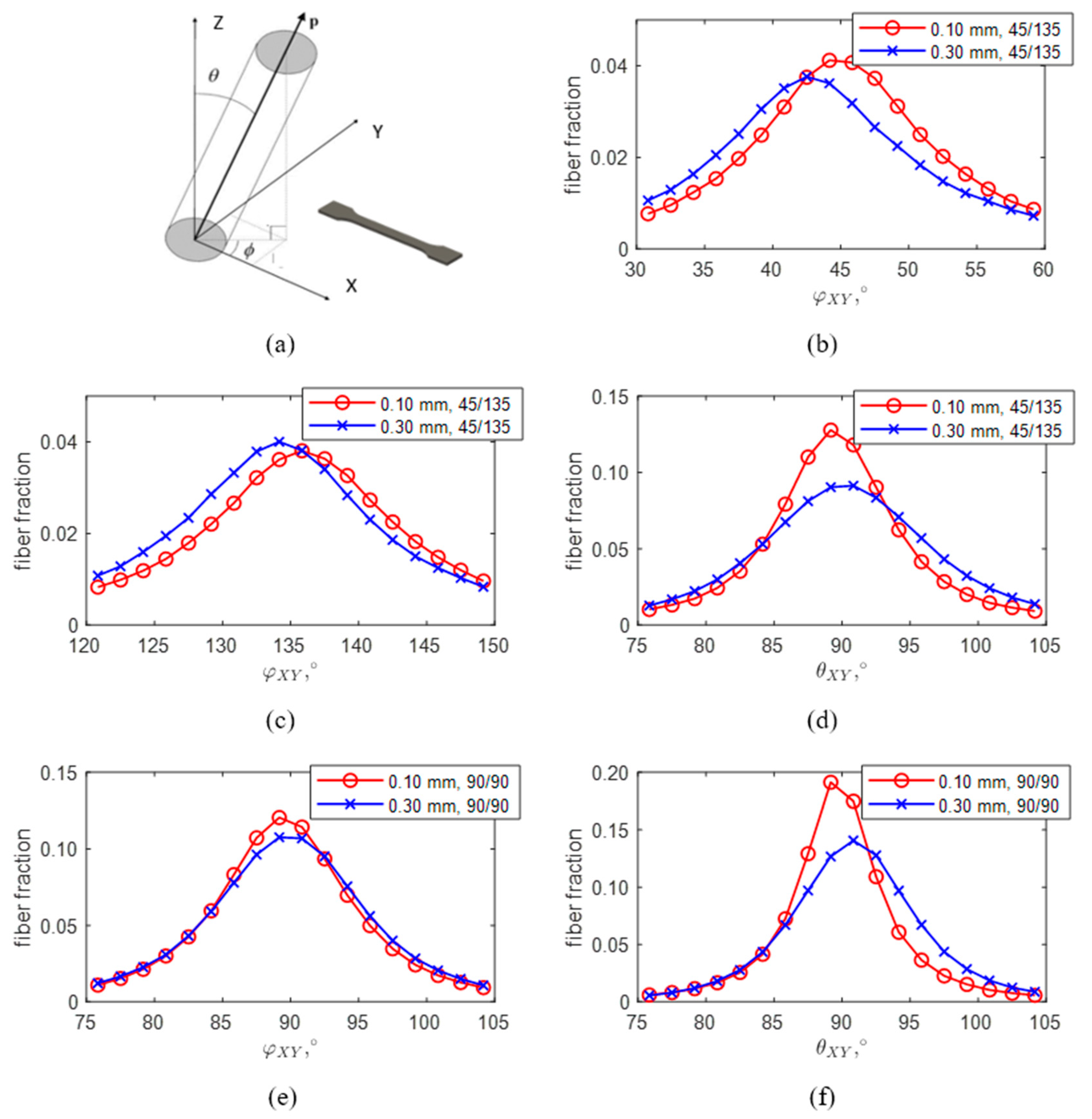

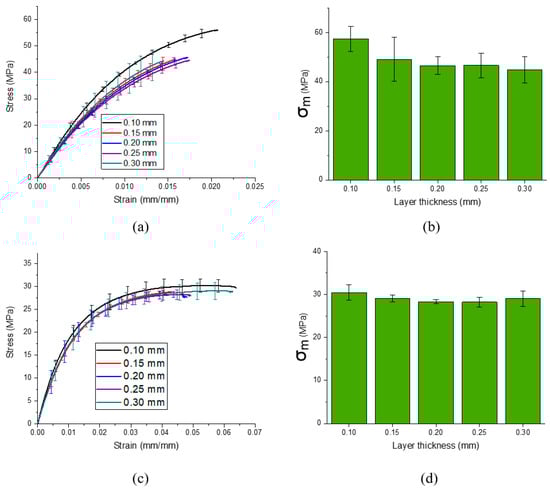

3D printing using fused composite filament fabrication technique (FFF) allows prototyping and manufacturing of durable, lightweight, and customizable parts on demand. Such composites demonstrate significantly improved printability, due to the reduction of shrinkage and warping, alongside the enhancement of strength and rigidity. In this work, we use polypropylene filament reinforced by short glass fibers to demonstrate the effect of fiber orientation on mechanical tensile properties of the 3D printed specimens. The influence of the printed layer thickness and raster angle on final fiber orientations was investigated using X-ray micro-computed tomography. The best ultimate tensile strength of 57.4 MPa and elasticity modulus of 5.5 GPa were obtained with a 90° raster angle, versus 30.4 MPa and 2.5 GPa for samples with a criss-cross 45°, 135° raster angle, with the thinnest printed layer thickness of 0.1 mm. View Full-Text
Keywords: 3D printing; short glass fibers; FFF; polypropylene; fiber orientation; micro CT 3D printing; short glass fibers; FFF; polypropylene; fiber orientation; micro CT
Show Figures

Graphical abstract
