Next Article in Journal
The Optoelectronic Properties of p-Type Cr-Deficient Cu[Cr0.95−xMg0.05]O2 Films Deposited by Reactive Magnetron Sputtering
Previous Article in Journal
Fatigue Behavior of PBO FRCM Composite Applied to Concrete Substrate
Previous Article in Special Issue
Novel Coating to Minimize Corrosion of Glass-Ceramics for Dental Applications
Open AccessArticle

Annealing and N2 Plasma Treatment to Minimize Corrosion of SiC-Coated Glass-Ceramics

1
Chemical Engineering Department, University of Florida College of Engineering, Gainesville, FL 32611, USA
2
Department of Restorative Dental Sciences, University of Florida College of Dentistry, Gainesville, FL 32610, USA
3
Plasma and Radiation Physics, National Institute for Laser, Laser Department, RO-077125 Bucharest, Romania
*
Author to whom correspondence should be addressed.
Materials 2020, 13(10), 2375; https://doi.org/10.3390/ma13102375
Received: 25 April 2020 / Revised: 9 May 2020 / Accepted: 19 May 2020 / Published: 21 May 2020
(This article belongs to the Special Issue Corrosion Science in Biomedical Materials)

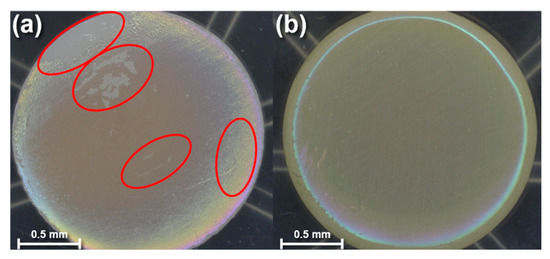

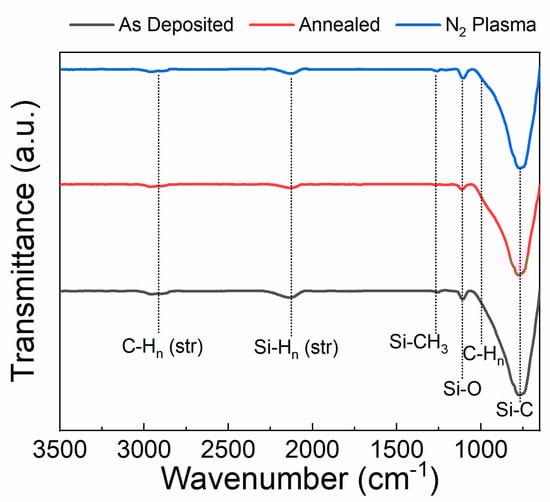

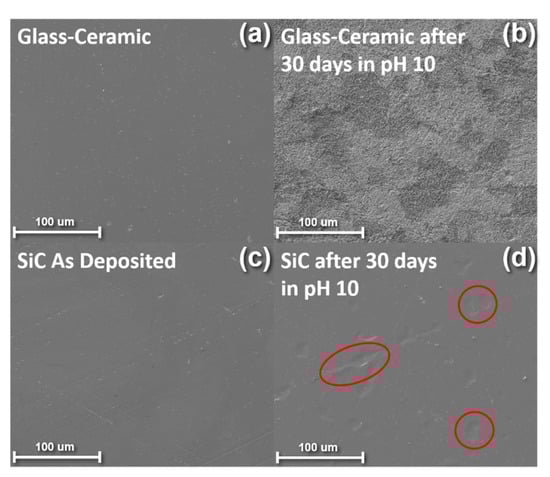

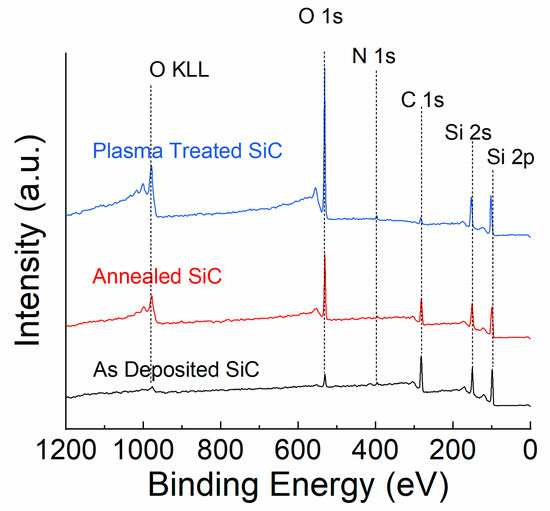

To improve the chemical durability of SiC-based coatings on glass-ceramics, the effects of annealing and N2 plasma treatment were investigated. Fluorapatite glass-ceramic disks were coated with SiC via plasma-enhanced chemical vapor deposition (PECVD), treated with N2 plasma followed by an annealing step, characterized, and then immersed in a pH 10 buffer solution for 30 days to study coating delamination. Post-deposition annealing was found to densify the deposited SiC and lessen SiC delamination during the pH 10 immersion. When the SiC was treated with a N2 plasma for 10 min, the bulk properties of the SiC coating were not affected but surface pores were sealed, slightly improving the SiC’s chemical durability. By combining N2 plasma-treatment with a post-deposition annealing step, film delamination was reduced from 94% to 2.9% after immersion in a pH 10 solution for 30 days. X-ray Photoelectron spectroscopy (XPS) detected a higher concentration of oxygen on the surface of the plasma treated films, indicating a thin SiO2 layer was formed and could have assisted in pore sealing. In conclusion, post-deposition annealing and N2 plasma treatment where shown to significantly improve the chemical durability of PECVD deposited SiC films used as a coating for glass-ceramics. View Full-Text
Keywords: plasma treatment; coating; corrosion; pore sealing; glass ceramic; biomaterials plasma treatment; coating; corrosion; pore sealing; glass ceramic; biomaterials
Show Figures

Figure 1

MDPI and ACS Style

Fares, C.; Elhassani, R.; Partain, J.; Hsu, S.-M.; Craciun, V.; Ren, F.; Esquivel-Upshaw, J.F. Annealing and N2 Plasma Treatment to Minimize Corrosion of SiC-Coated Glass-Ceramics. Materials 2020, 13, 2375.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
