Next Article in Journal
Luminescent Mesoporous Silica Nanohybrid Based on Drug Derivative Terbium Complex
Next Article in Special Issue
Microstructural Characterization of Porous Clay-Based Ceramic Composites
Previous Article in Journal
Characterization of SiC Ceramic Joints Brazed Using Au–Ni–Pd–Ti High-Temperature Filler Alloy
Previous Article in Special Issue
Evaluation and Selection of De-Icing Salt Based on Multi-Factor
Article Menu
Issue 6 (March-2) cover image

Export Article

Open AccessArticle

Reactivity and Hydration Property of Synthetic Air Quenched Slag with Different Chemical Compositions

College of Materials Science and Engineering, Key Laboratory of Advanced Functional Materials, Education Ministry of China, Beijing University of Technology, Beijing 100124, China
*
Author to whom correspondence should be addressed.
Materials 2019, 12(6), 932; https://doi.org/10.3390/ma12060932
Received: 3 March 2019 / Revised: 13 March 2019 / Accepted: 15 March 2019 / Published: 20 March 2019
(This article belongs to the Special Issue Sustainability in Construction and Building Materials)
  |
PDF [6926 KB, uploaded 20 March 2019]
  |

Abstract

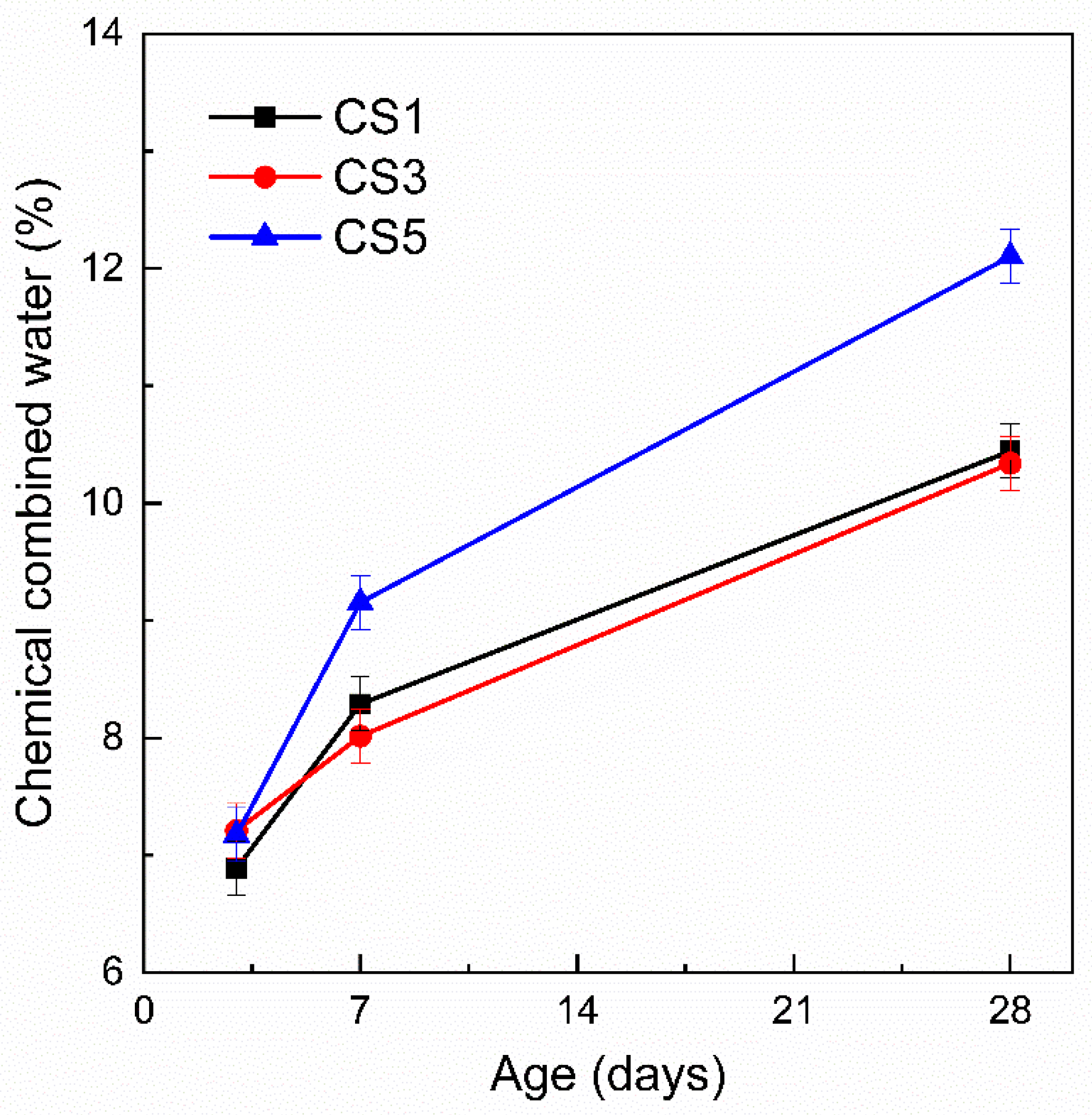

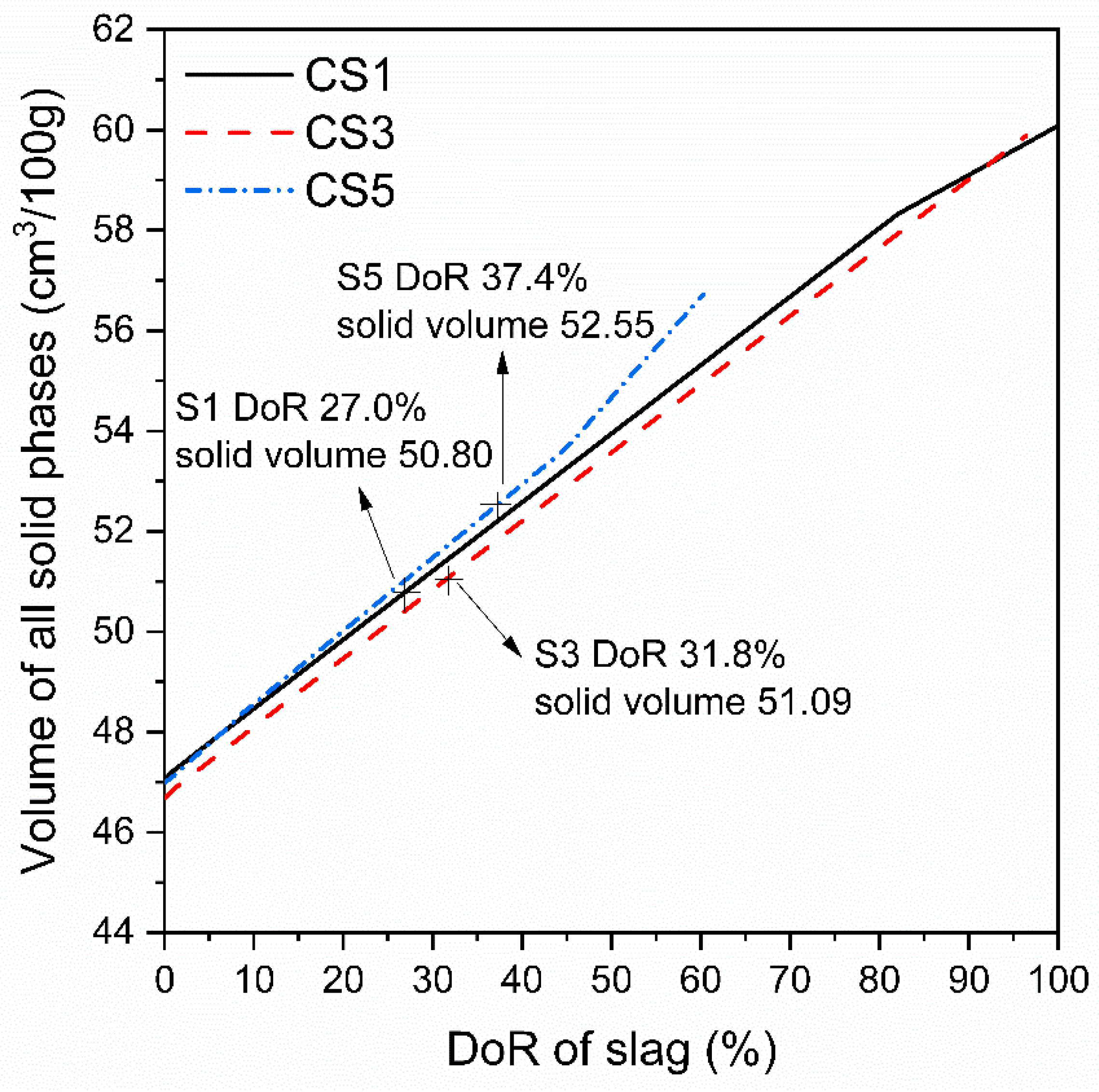

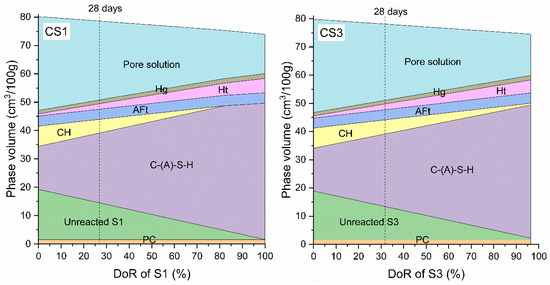

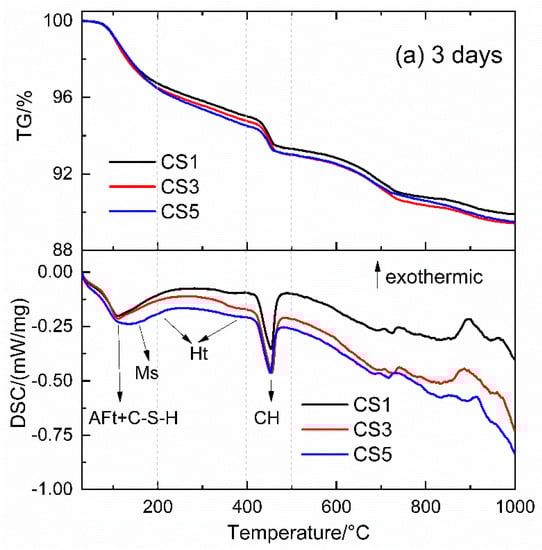

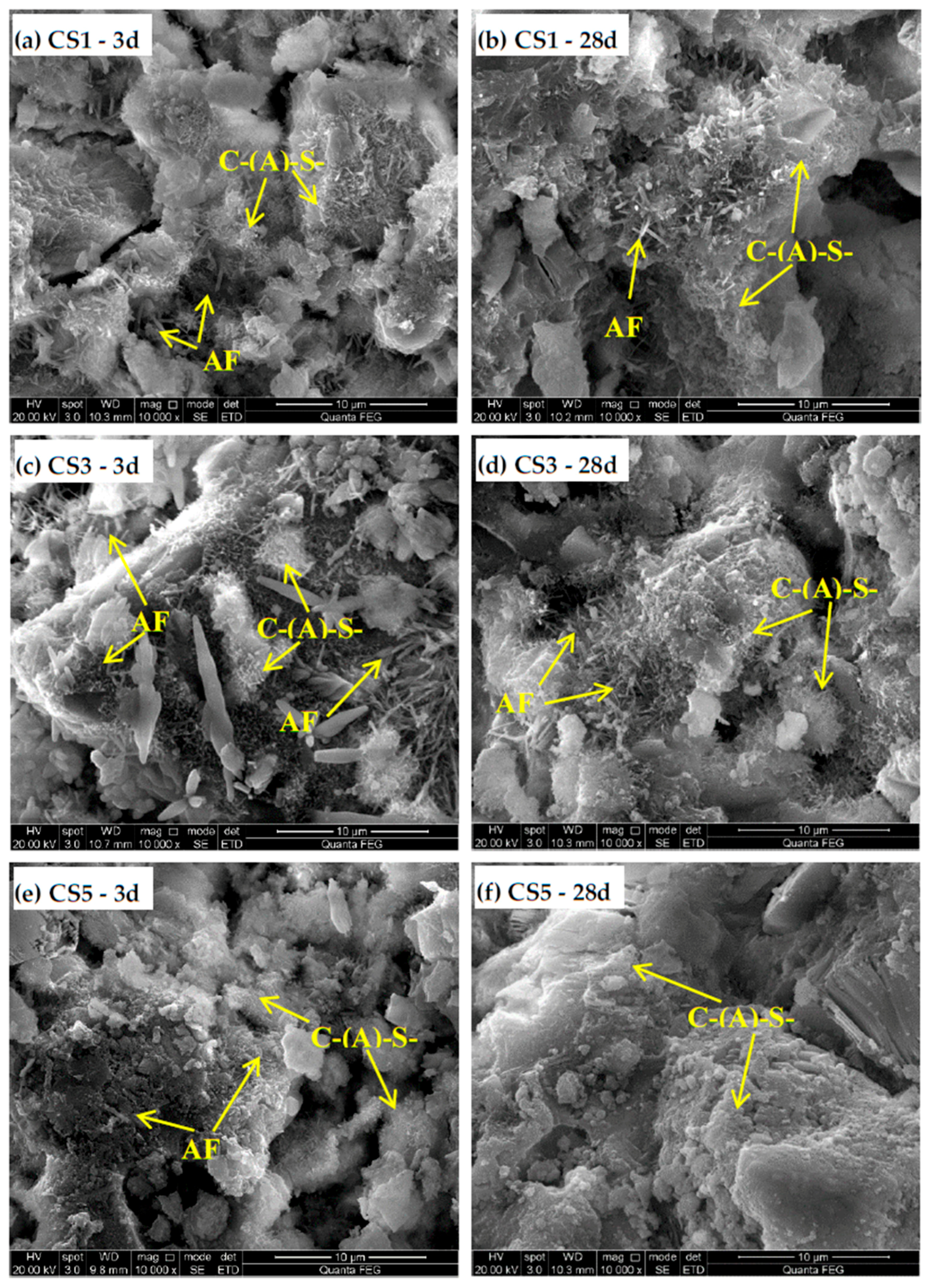

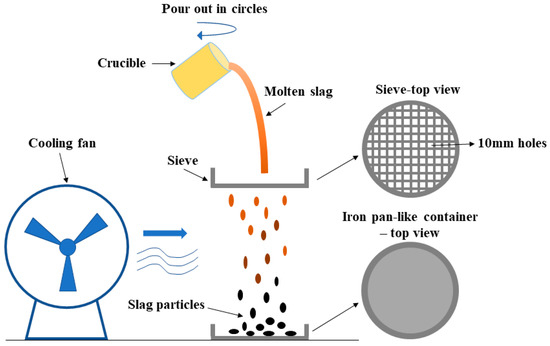

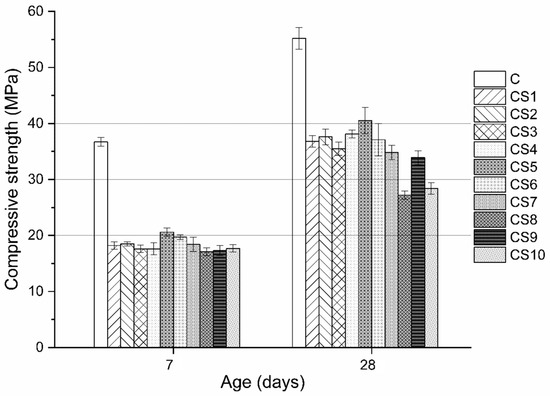

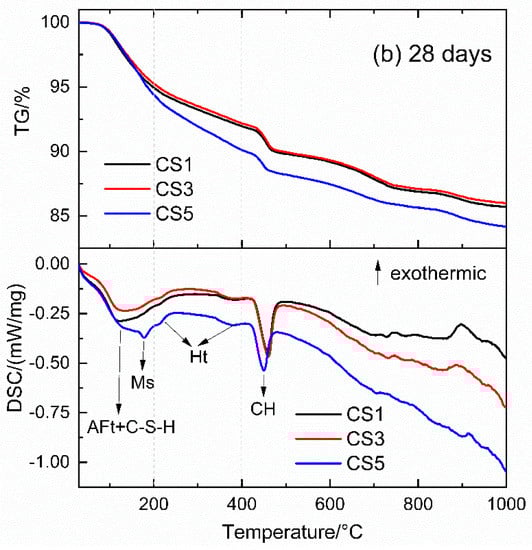

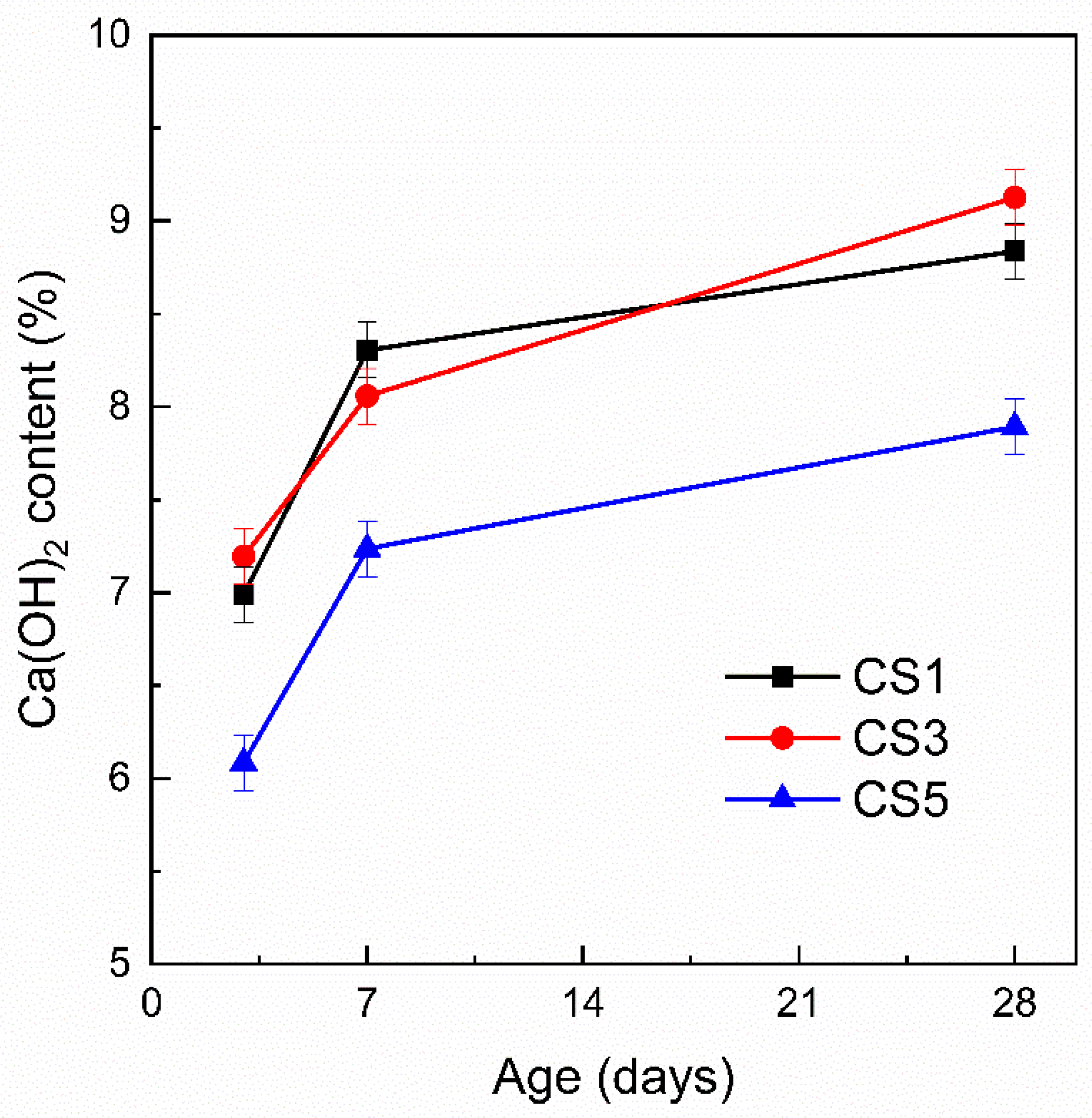

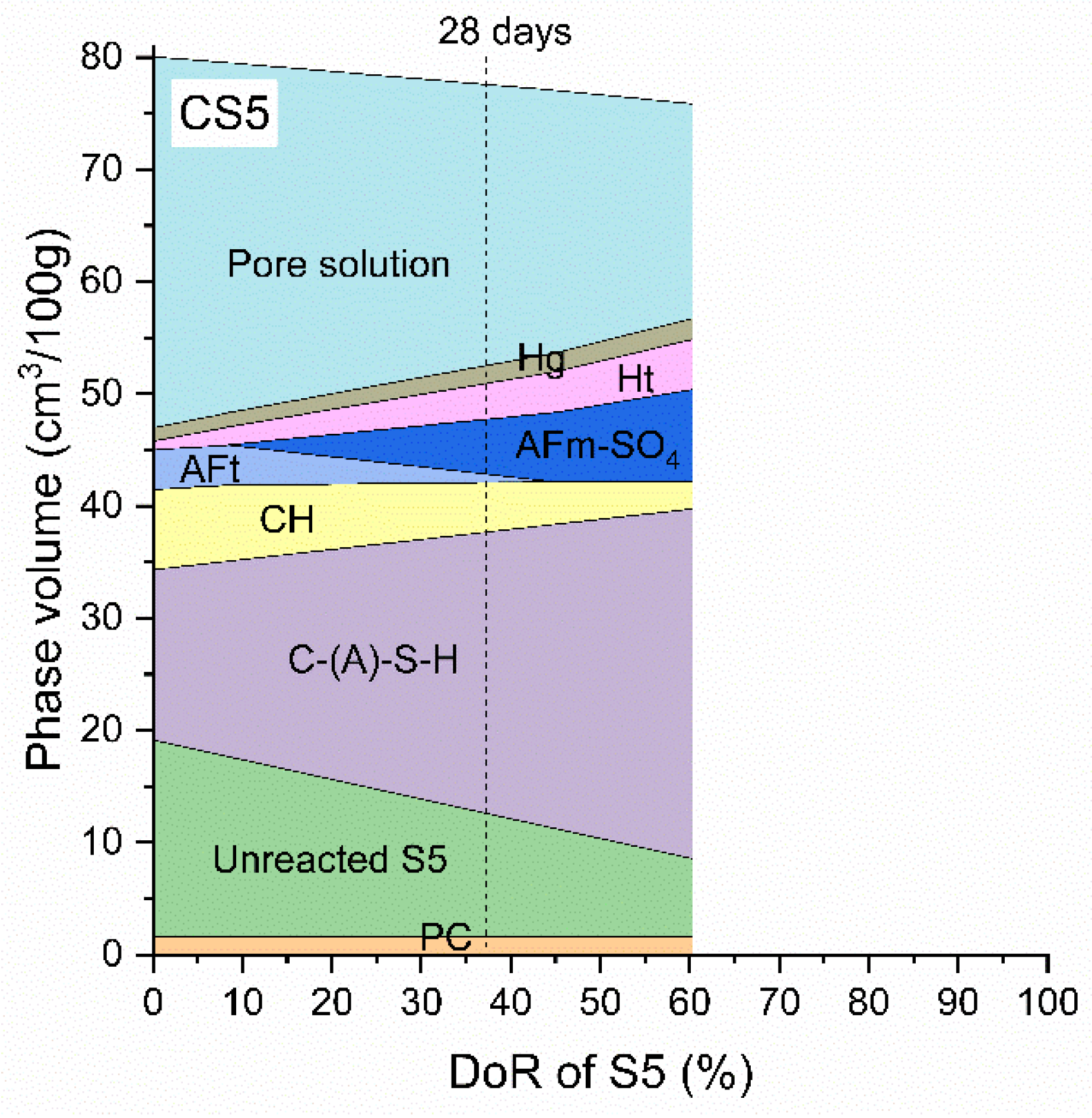

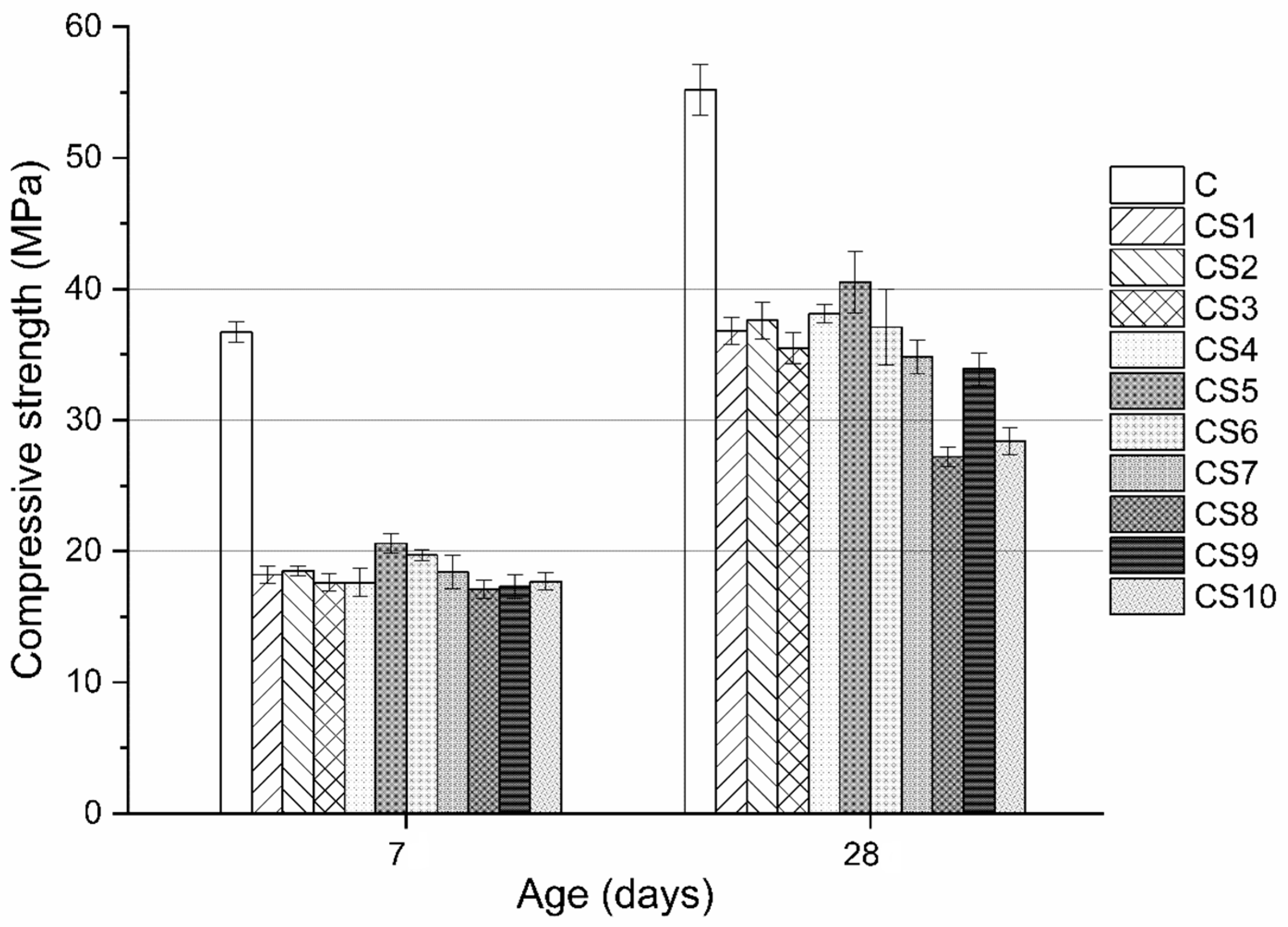

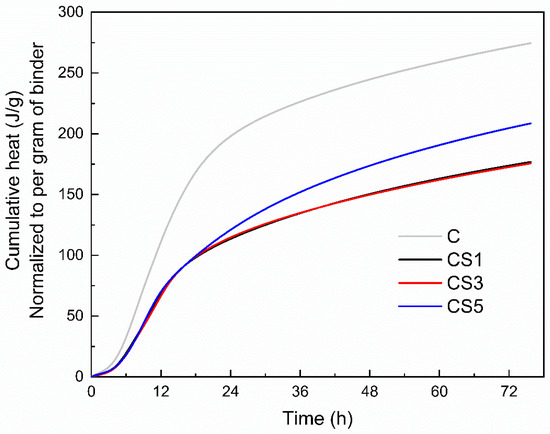

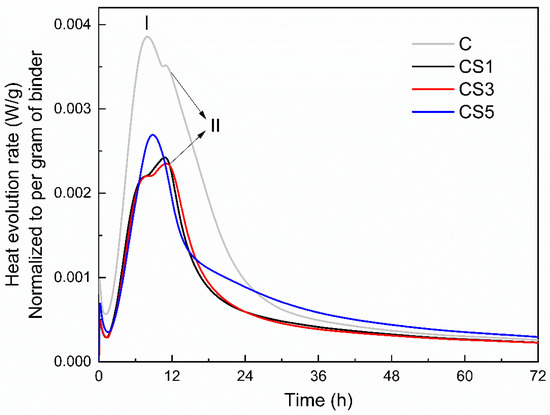

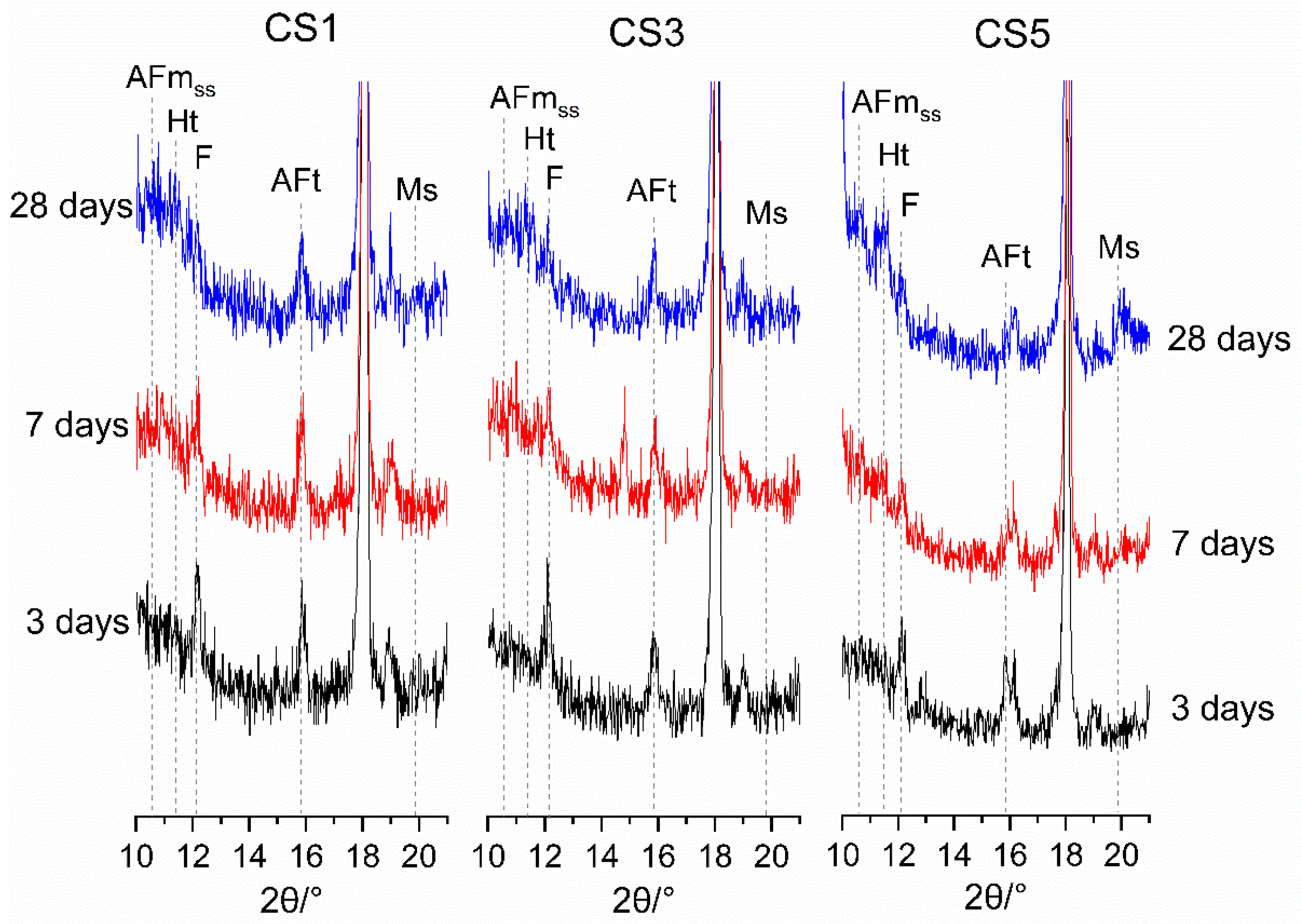

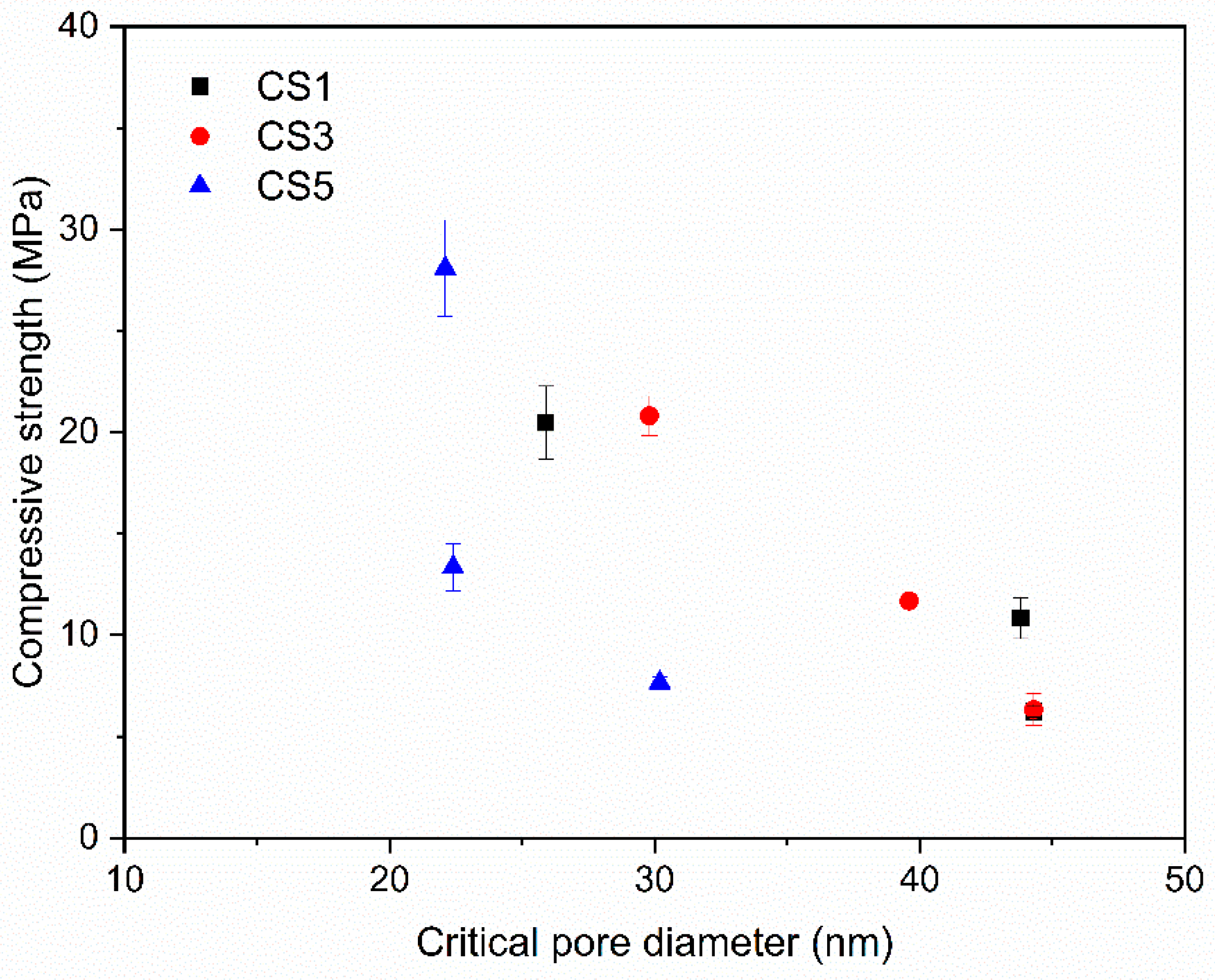

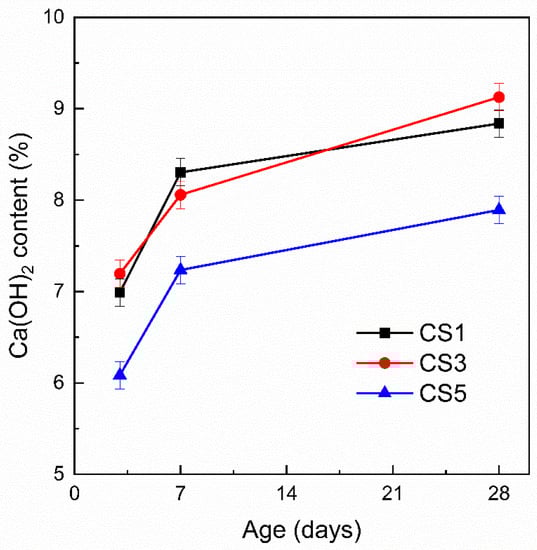

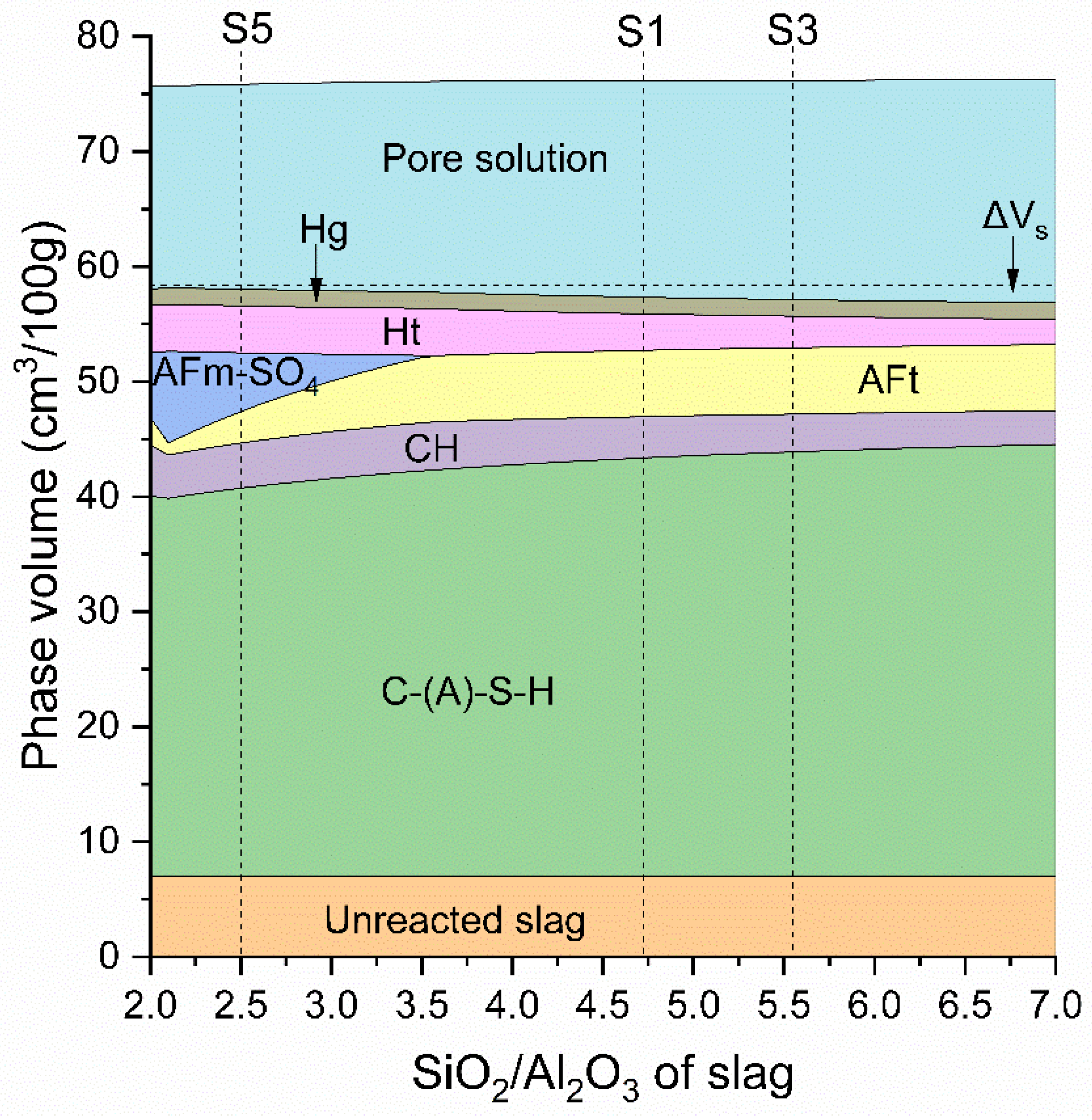

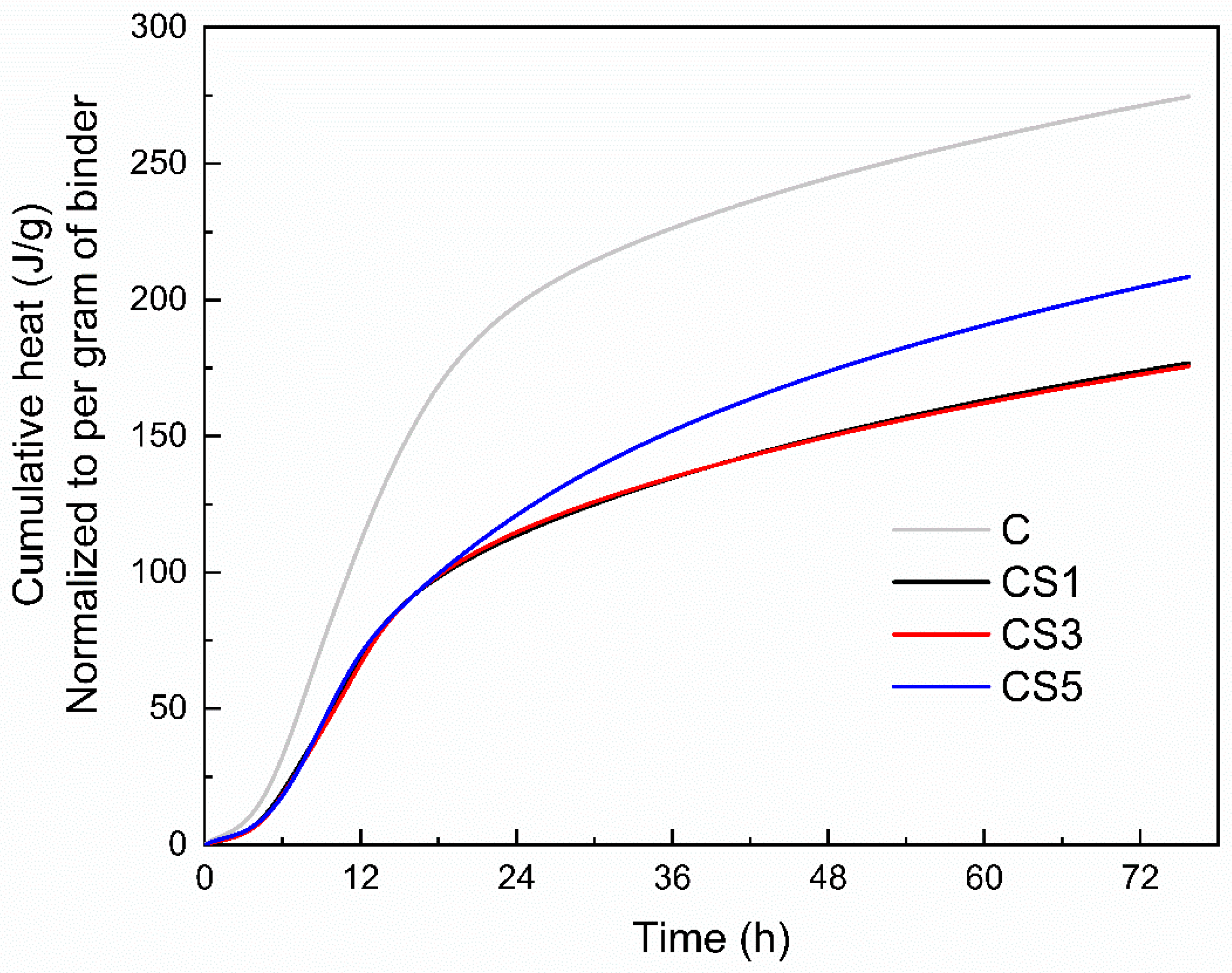

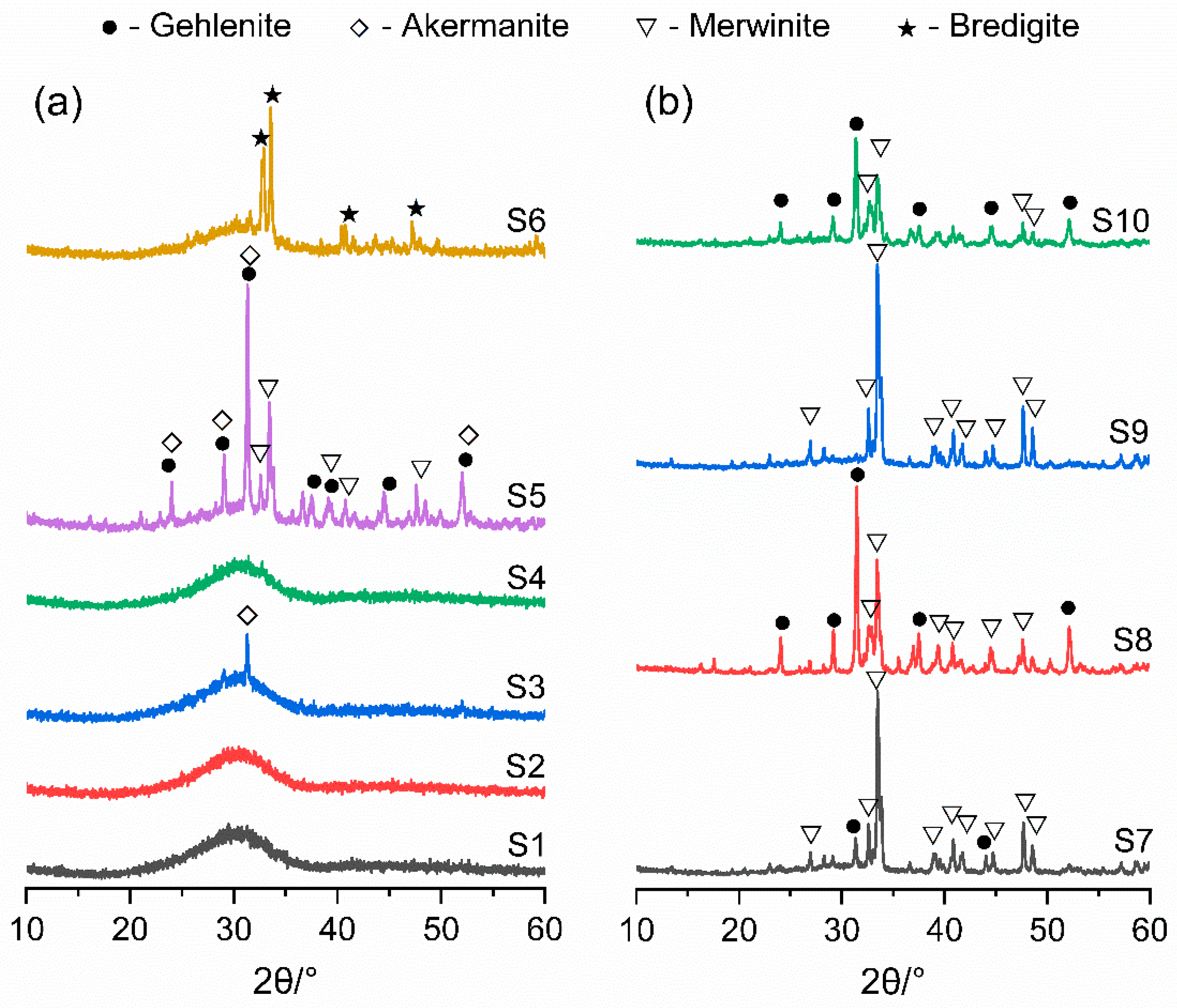

Air quenched slag is processed by a fast air cooling method which is developed with the advantages of recovering heat from molten slag and water conservation compared to the water quenching method. Air quenched slags with different chemical compositions are synthesized in the lab by designing three chemical composition ratios: (CaO + MgO)/(SiO2 + Al2O3), CaO/MgO and SiO2/Al2O3, which are donated as CM/SA, C/M and S/A, respectively. The effect of different chemical compositions on the phase compositions of synthetic air quenched slag, the strength and hydration properties of slag blends were investigated by using various characterization techniques. The results show that the amorphous content of air quenched slag decreased with the increasing basicity CM/SA of slag. The S/A ratio of slag was the dominant factor for the compressive strength of slag blends at 28 days and negatively correlated with strength. Decreasing the S/A ratio of slag increased the reactivity of slag and its reaction degree indicated by higher hydration heat release, lower CH content, greater chemical combined water amount and denser microstructure. Moreover, thermodynamic modelling revealed that a higher S/A of slag leads to the increase of C-(A)-S-H and AFt contents, whilst decreasing the amounts of Ht, AFm-SO4 phases and the total volume of hydrates. View Full-Text
Keywords: air quenched slag; chemical composition ratios; amorphous content; compressive strength; hydration air quenched slag; chemical composition ratios; amorphous content; compressive strength; hydration
Figures

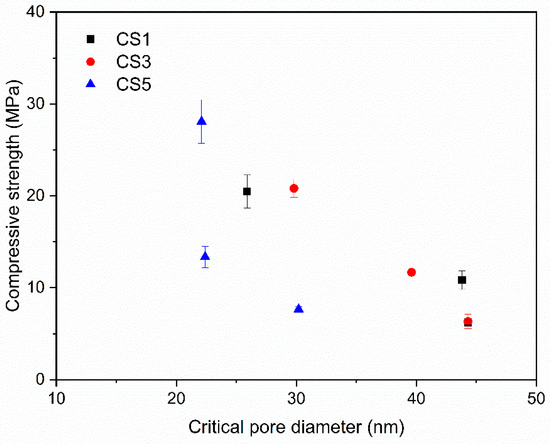

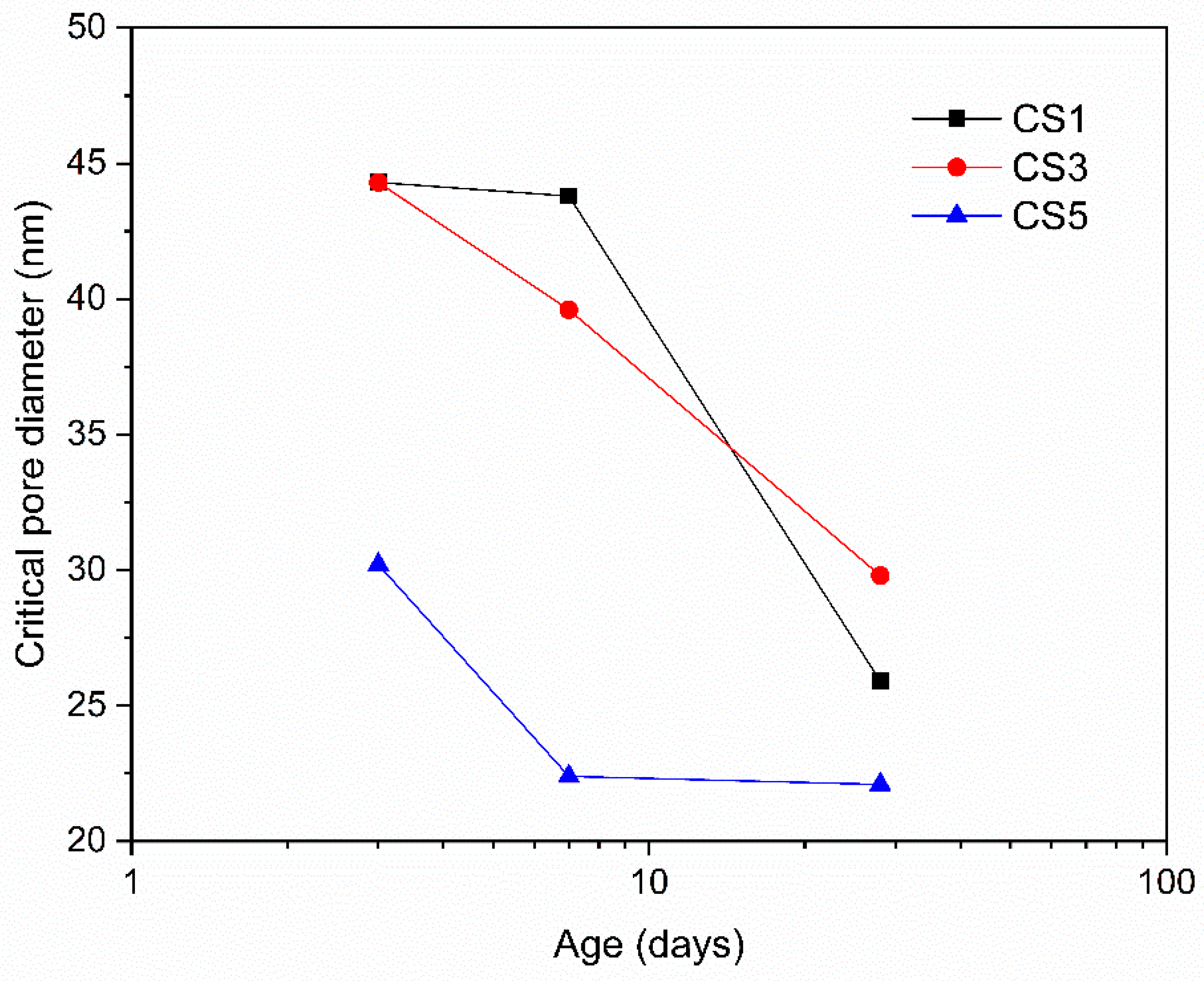

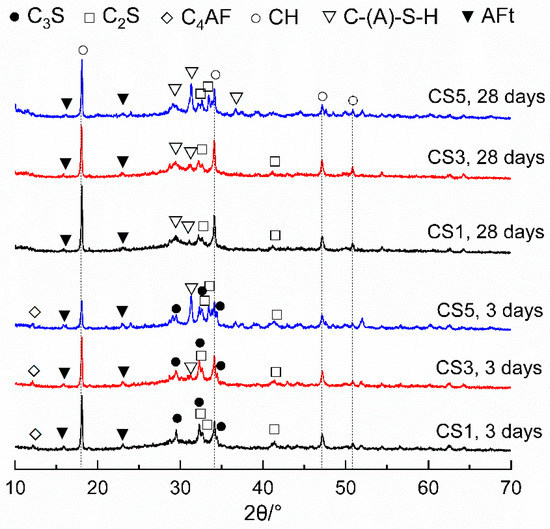

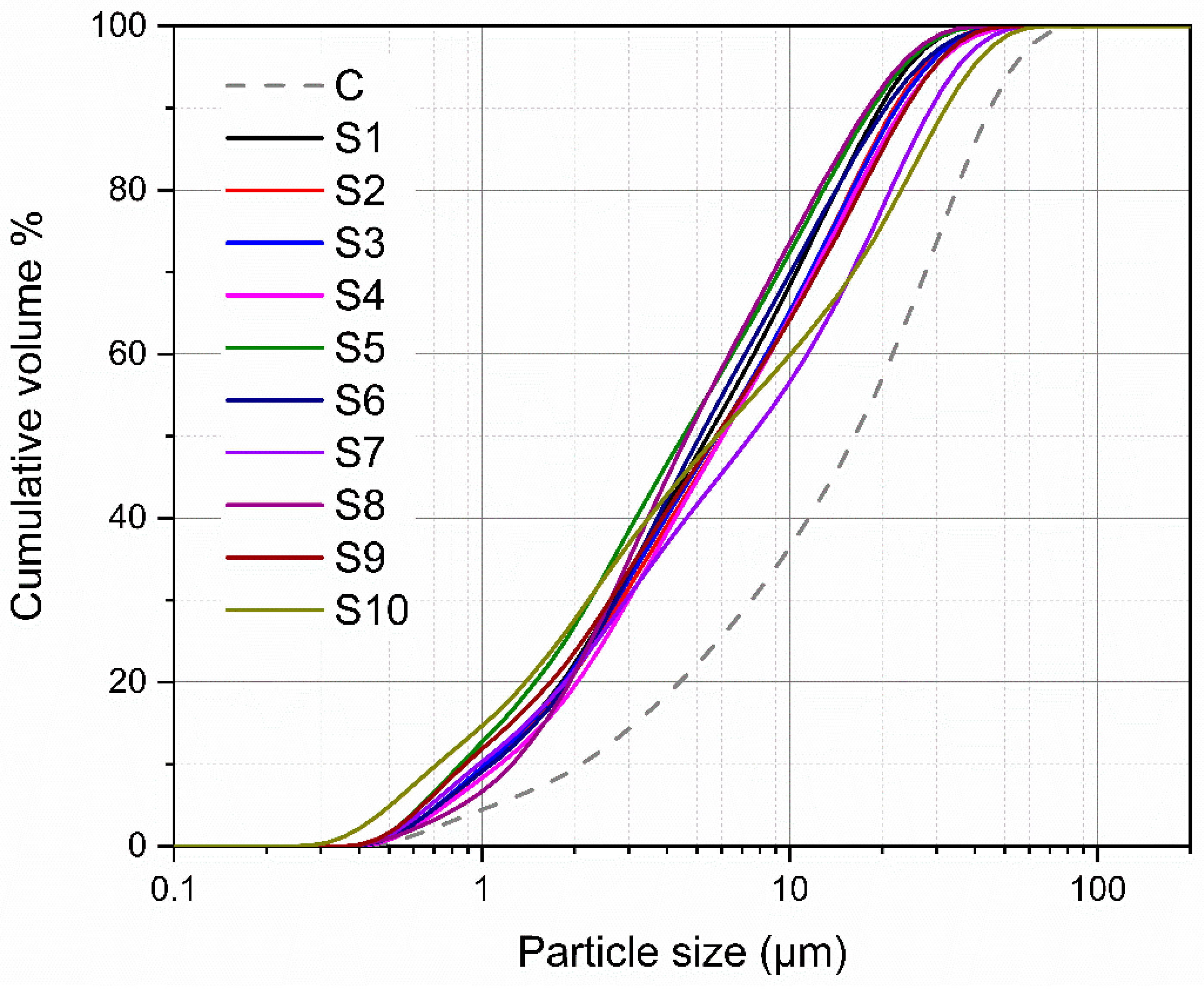

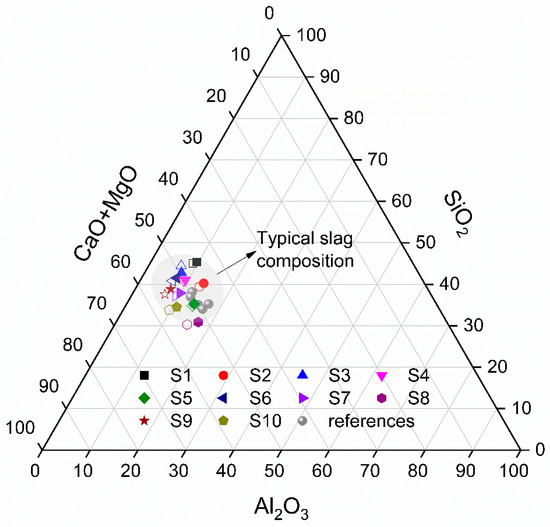

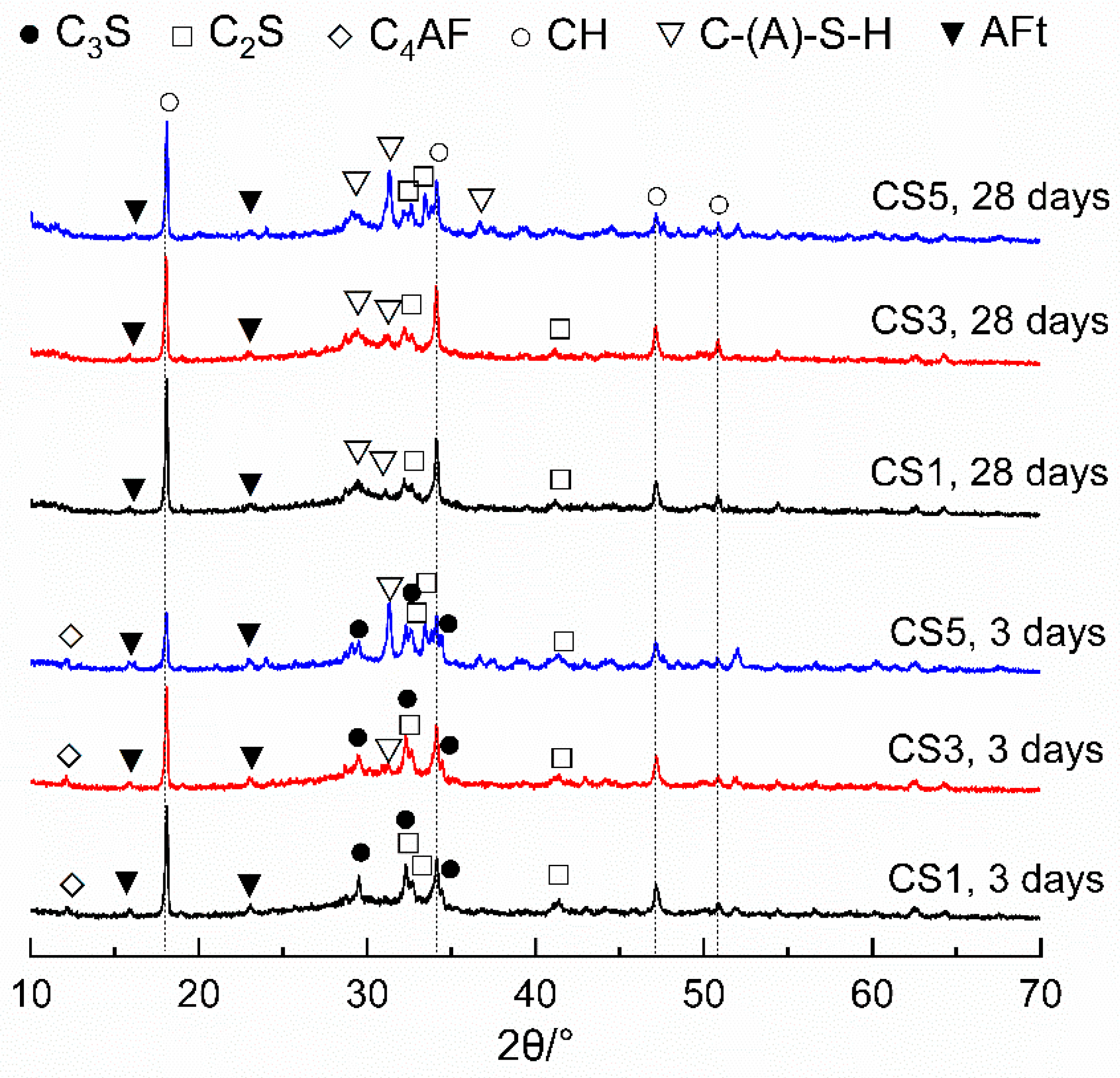

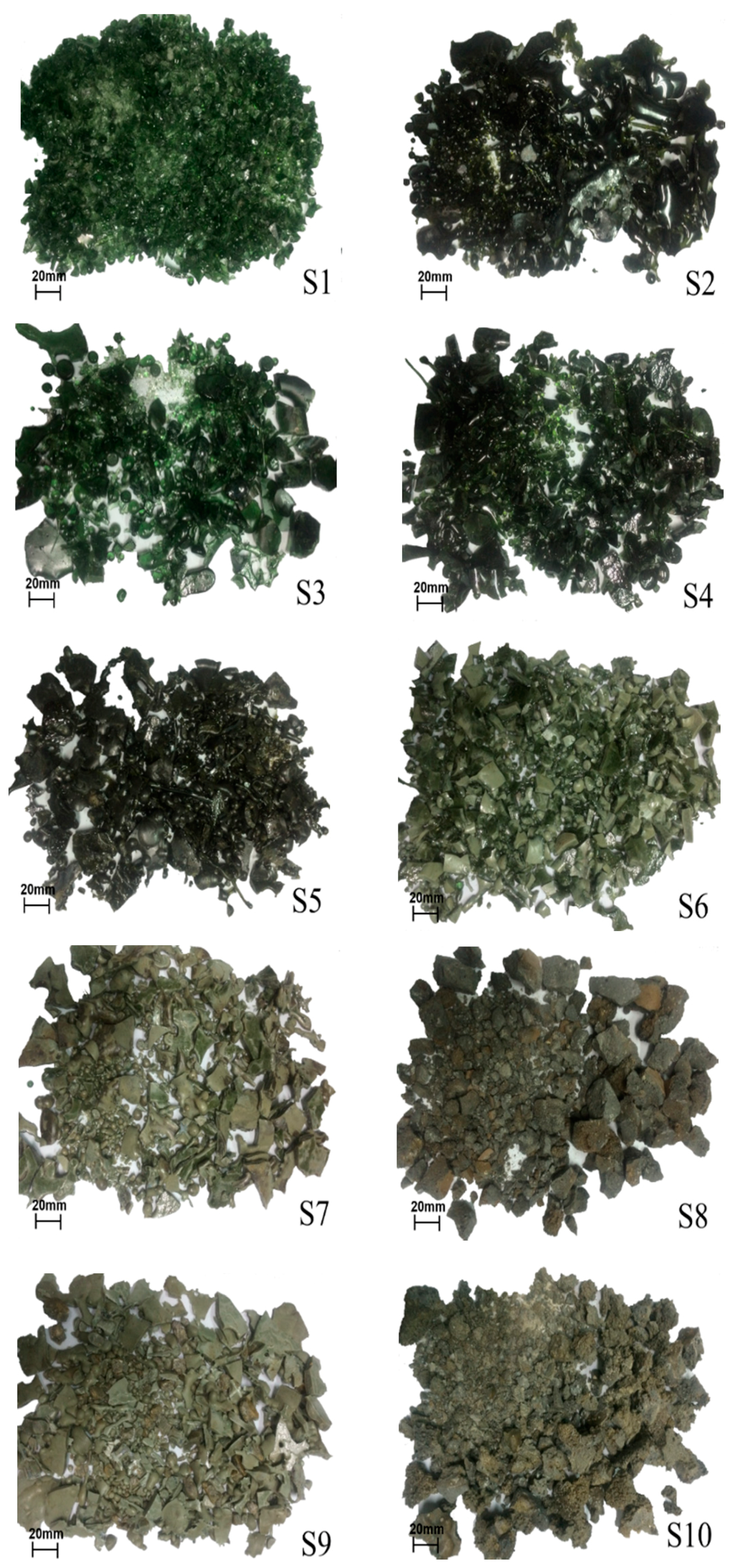

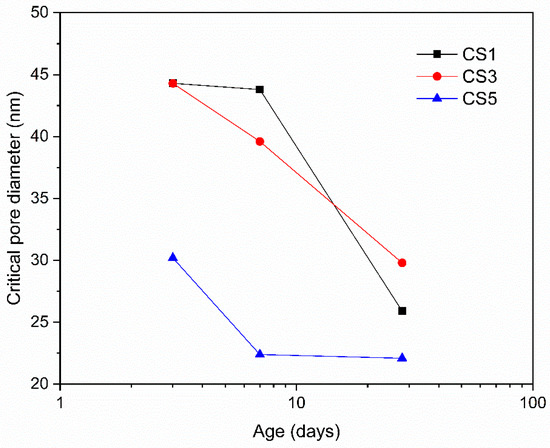

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Wang, H.; Wang, Y.; Cui, S.; Wang, J. Reactivity and Hydration Property of Synthetic Air Quenched Slag with Different Chemical Compositions. Materials 2019, 12, 932.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
