# Residual Magnetic Field Non-Destructive Testing of Gantry Cranes

## Abstract

**:**

## 1. Introduction

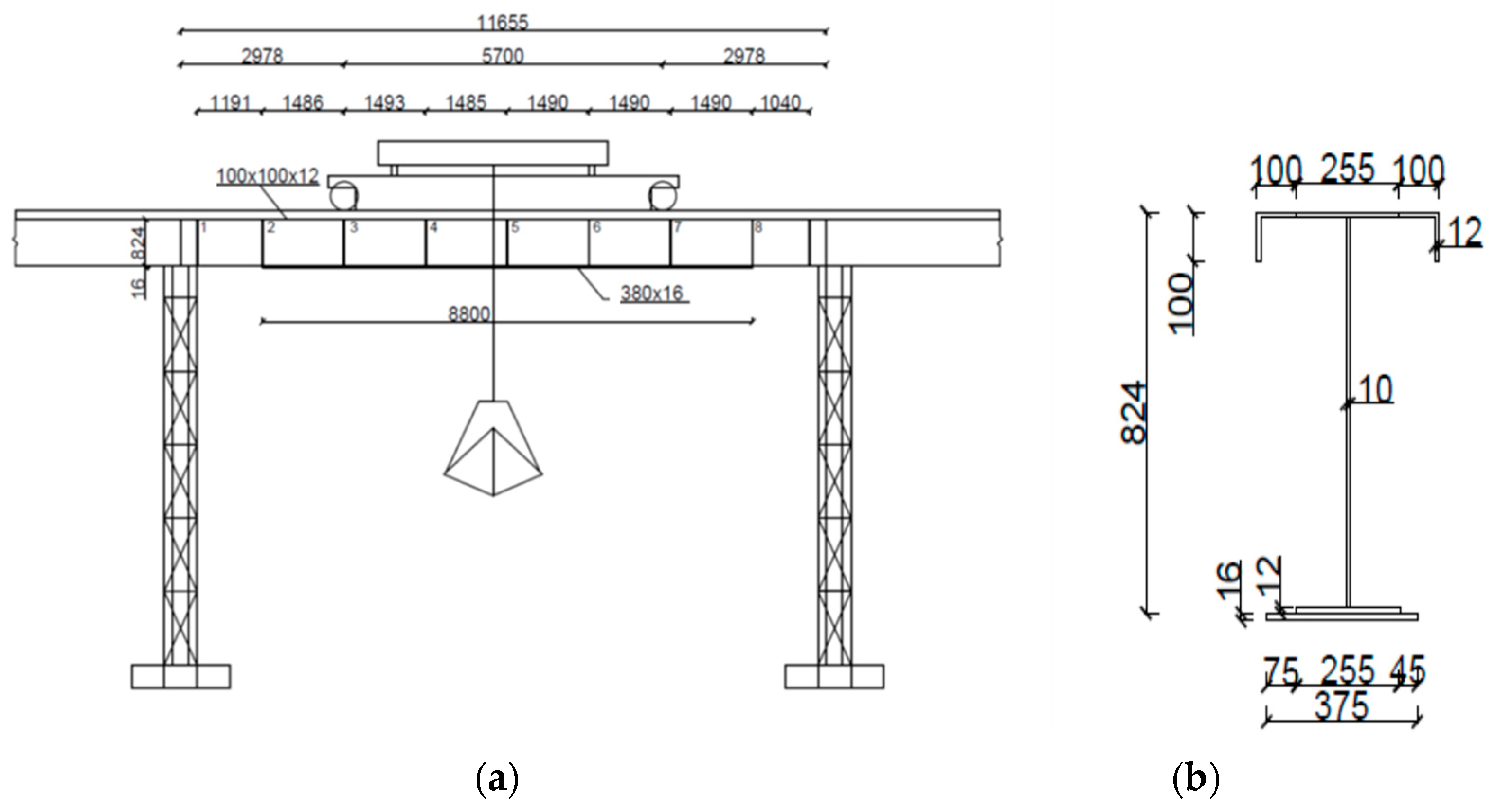

## 2. Materials and Methods

#### RMF Methods

- ${B}_{p}$ is the induction component perpendicular to the metal surface;
- ${\mu}_{0}=2\pi \ast {10}^{-7}$ is the air magnetic permeability.

- tangential component ${H}_{p\left(x\right)}$;
- normal component ${H}_{p\left(y\right)}$.

- $r=\left[x-l,y\right]$ is a vector, a variable related to the element surface;
- $\rho $ is a function defining the boundary condition presenting the distribution of the magnetic charge density on the specimen surface, which depends directly on the dislocation density and indirectly on the stress;
- x, y are the coordinates of the point on the tested element surface;
- l is the dislocation length;
- b is the dislocation width.

- ${K}_{in}$ is the RMF gradient;
- $\left|\Delta {H}_{p}\right|$ is the absolute value of the difference in ${H}_{p}$ between two control points located at equal distances ${l}_{k}$ on both sides of the line ${H}_{p}$ = 0.

- $\Delta M\left({H}_{0}\right)$ is the rise in magnetization under the influence of a weak magnetic field;
- $\Delta {M}^{\sigma}\left[{H}_{0};\sigma \left(x,\alpha \right)\right]$ is the rise in magnetization under the influence of elastic stresses in the presence of a weak magnetic field.

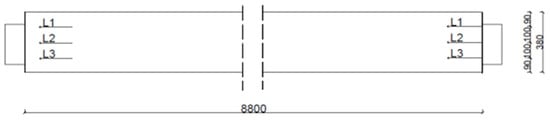

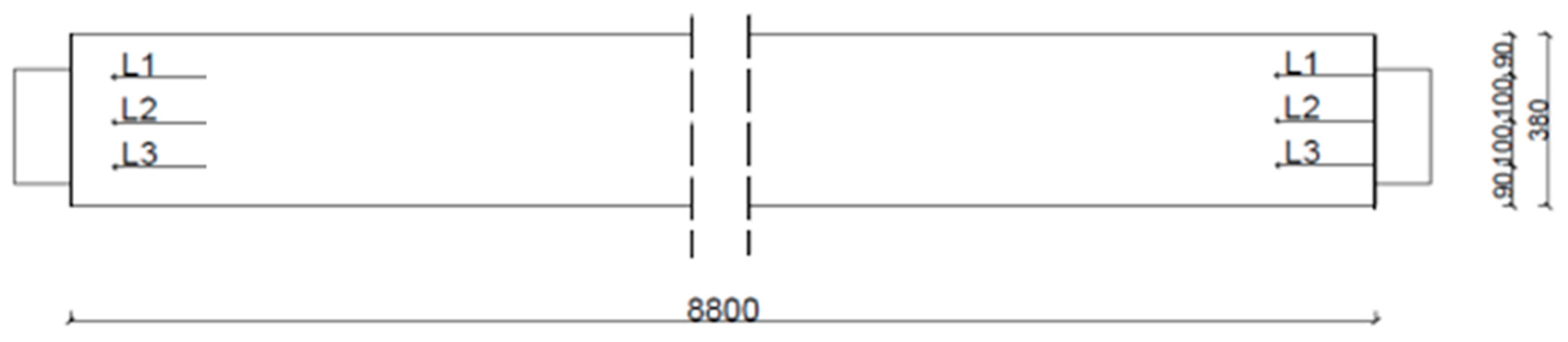

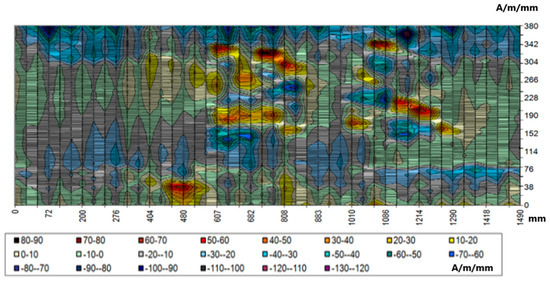

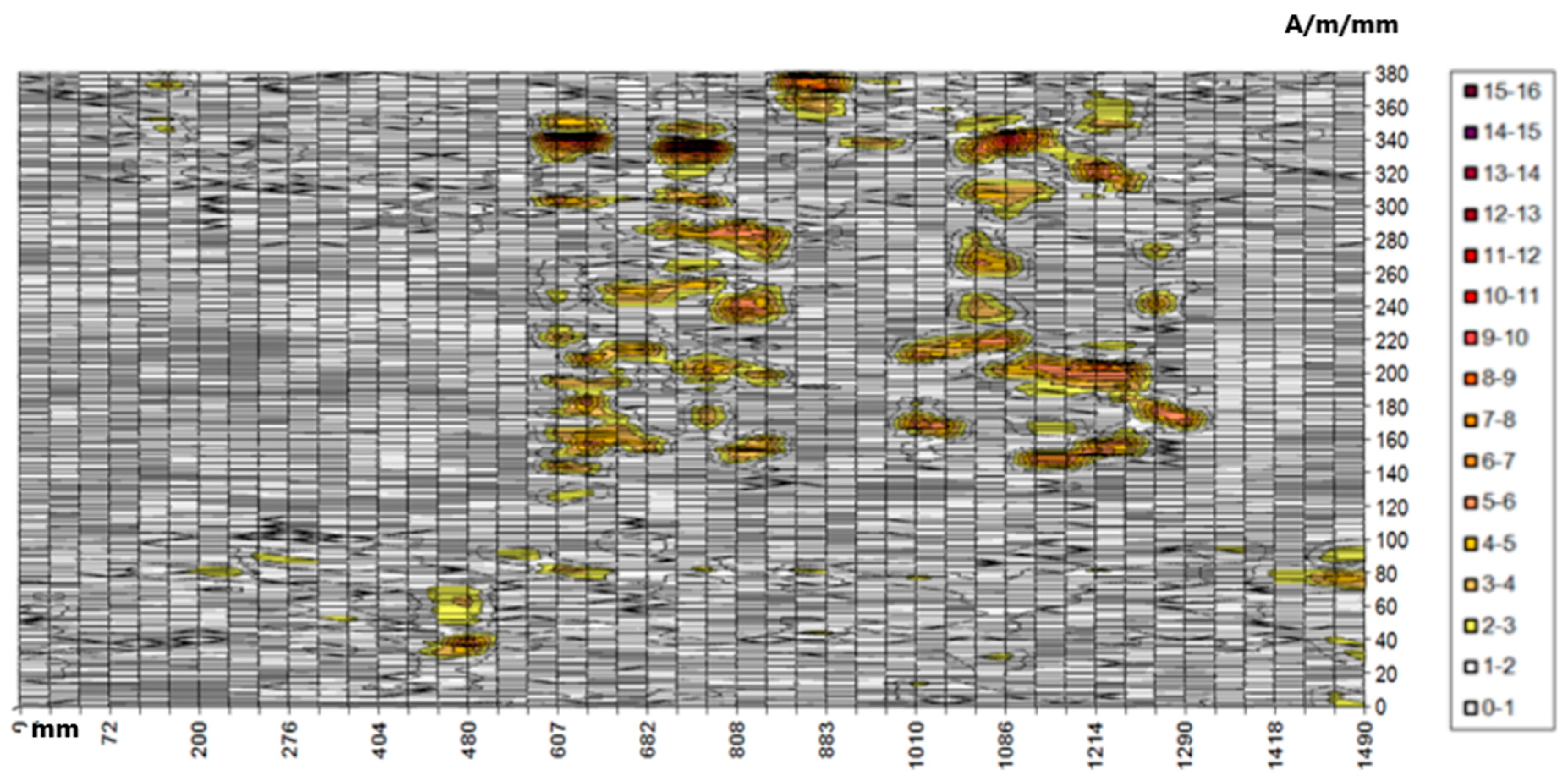

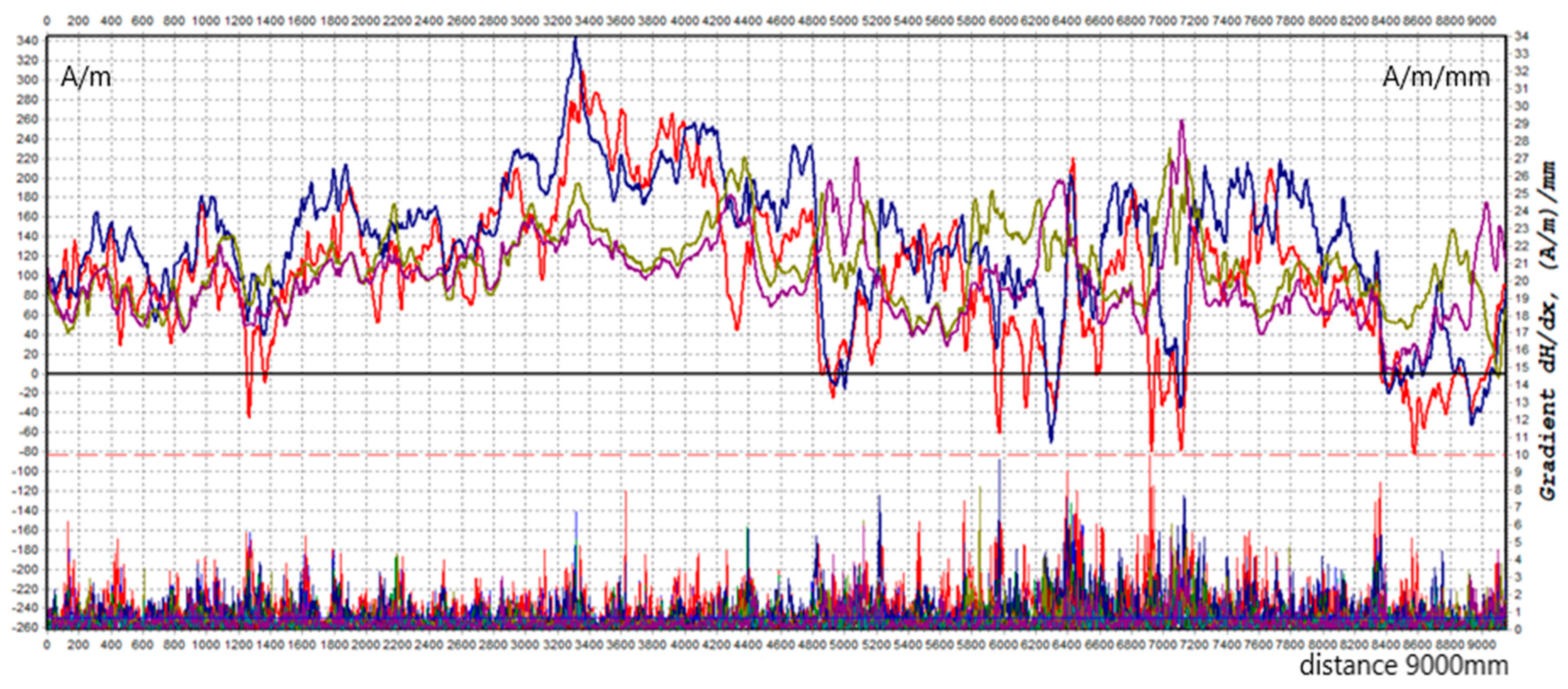

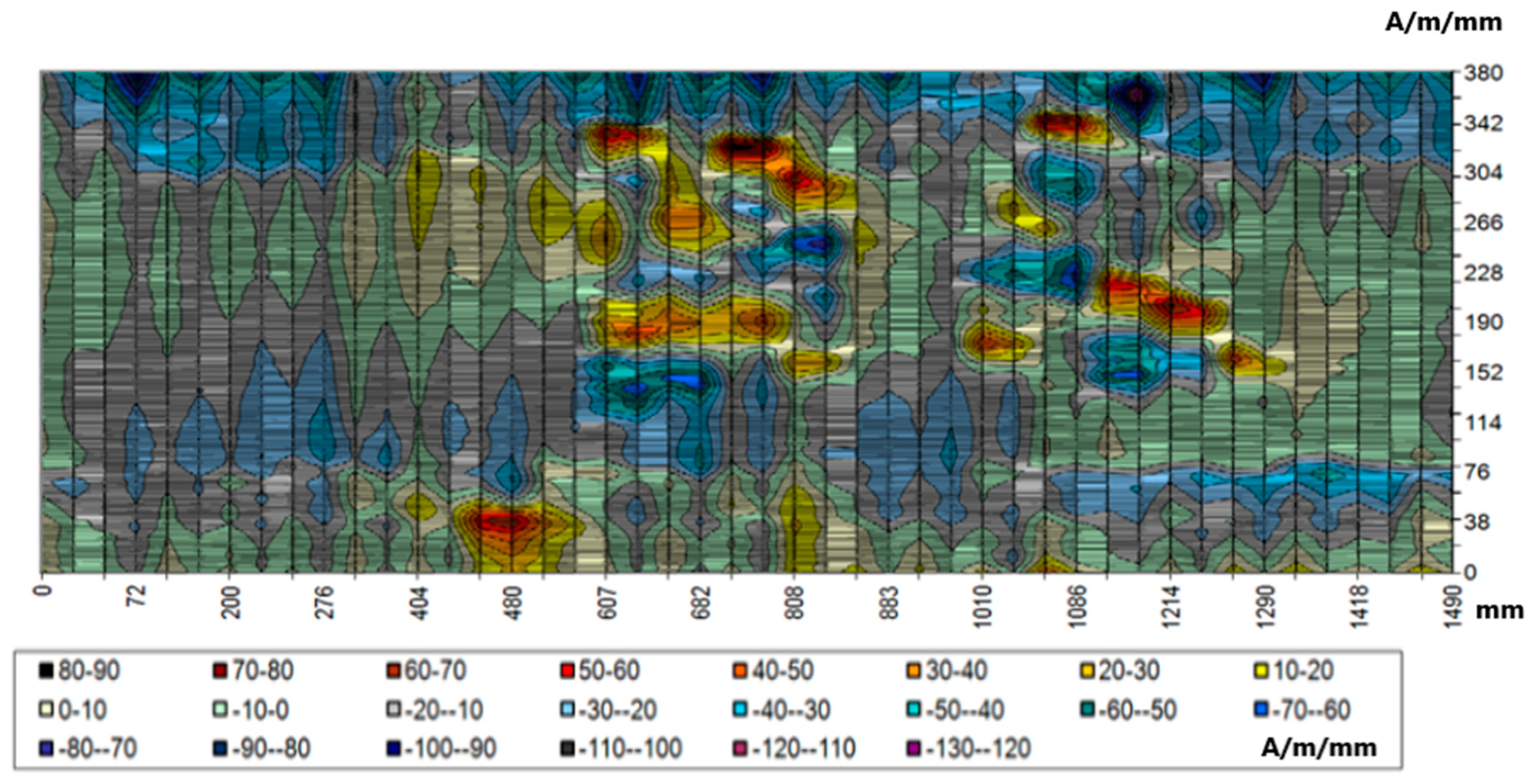

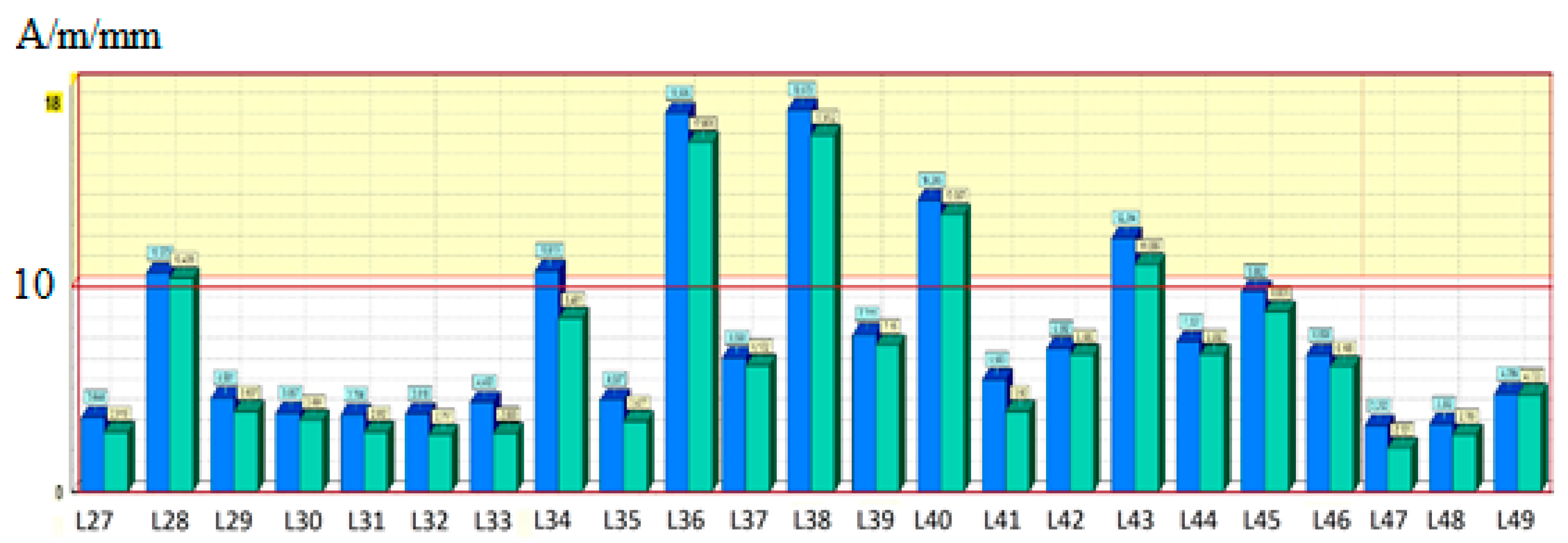

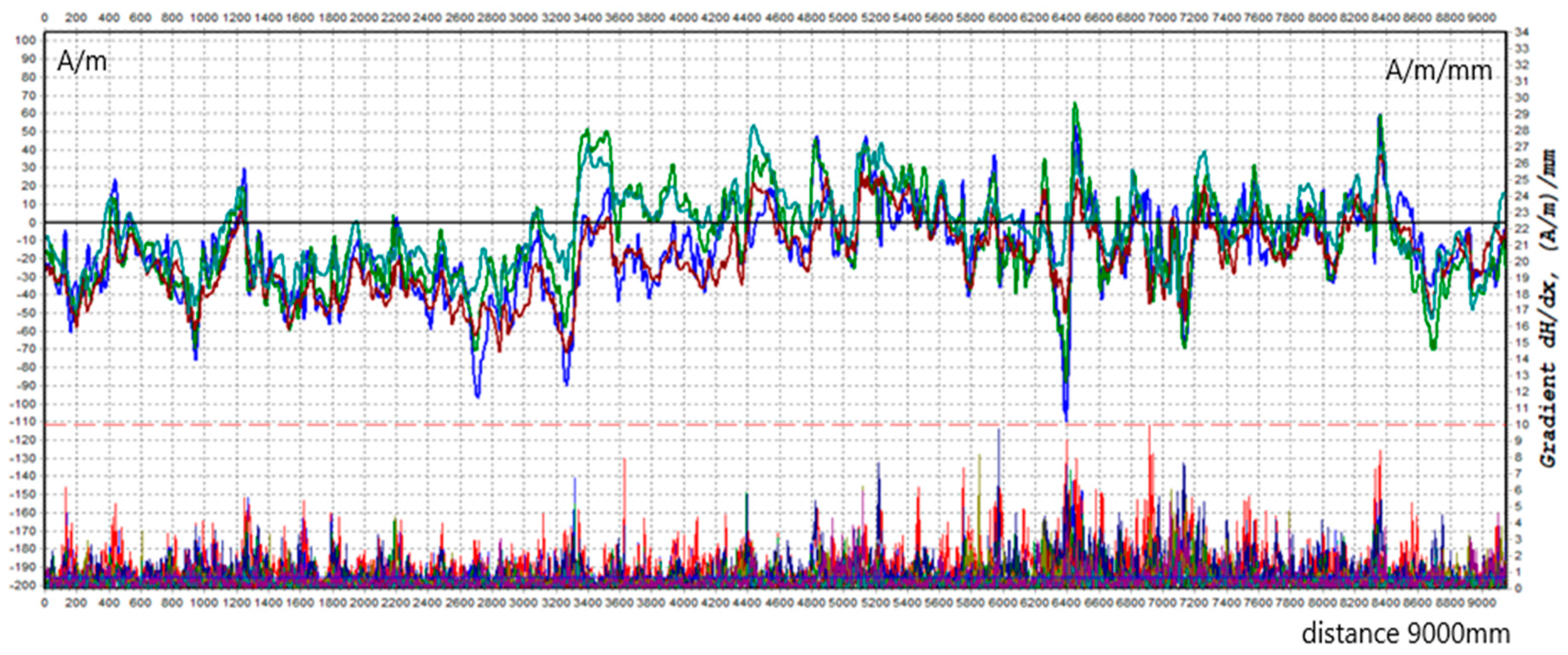

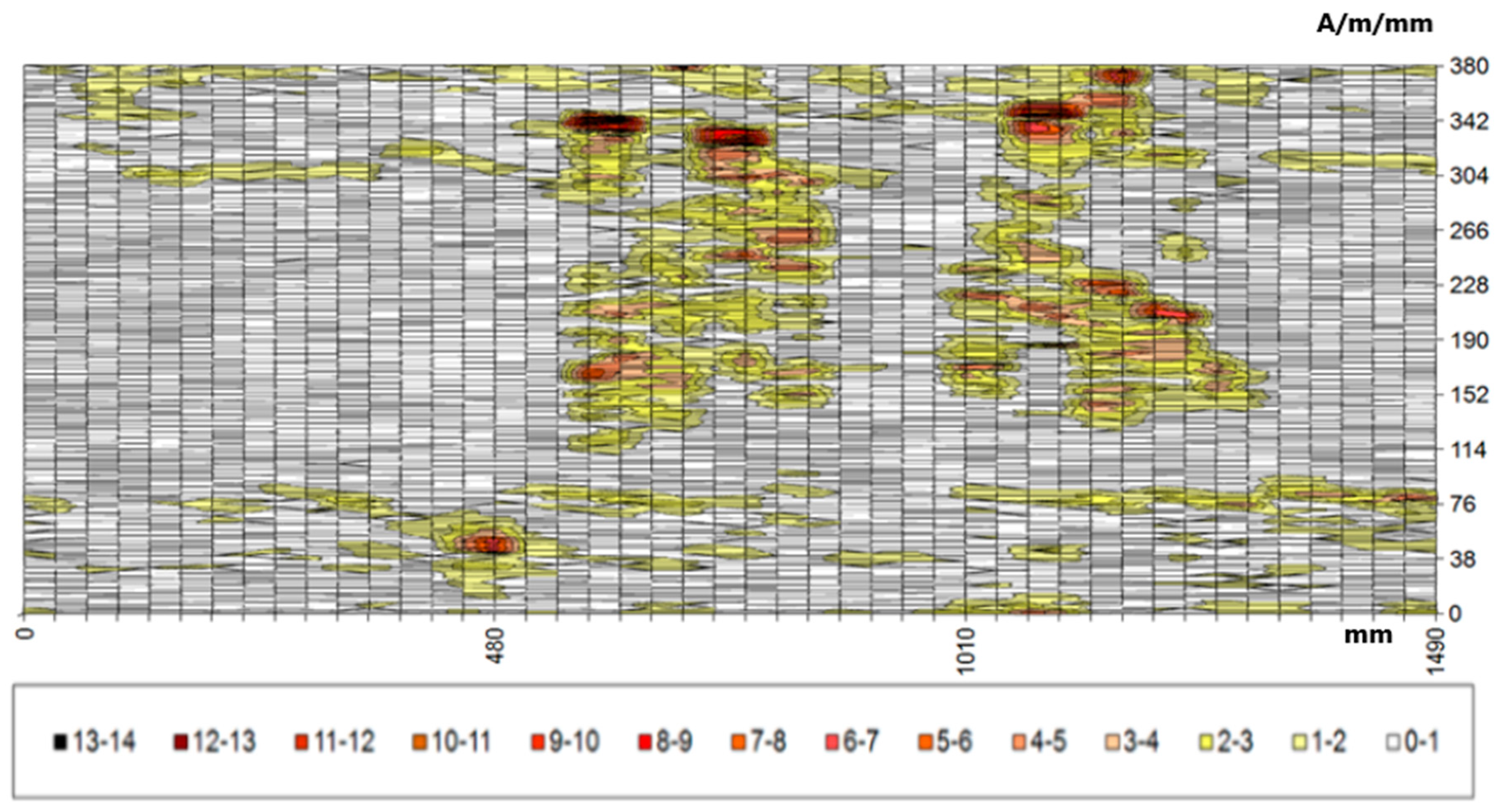

## 3. Results of the RMF Scanning

- $Hp\left(x\right)$ is the RMF intensity value in the point where the gradient was determined;
- ${H}_{p}\left(x+a\right)$ is the RFM intensity value for the next measuring point;
- a is the distance between consecutive points on the measuring line.

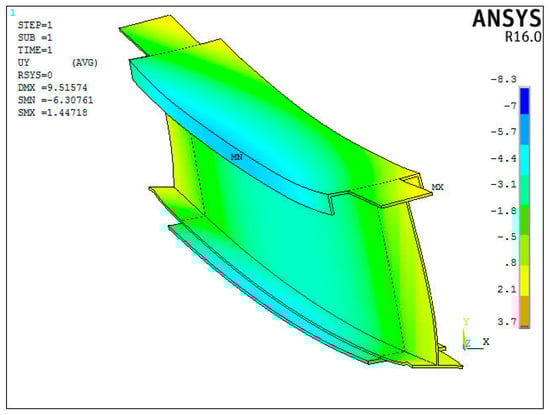

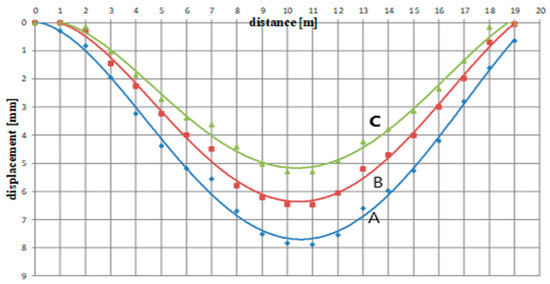

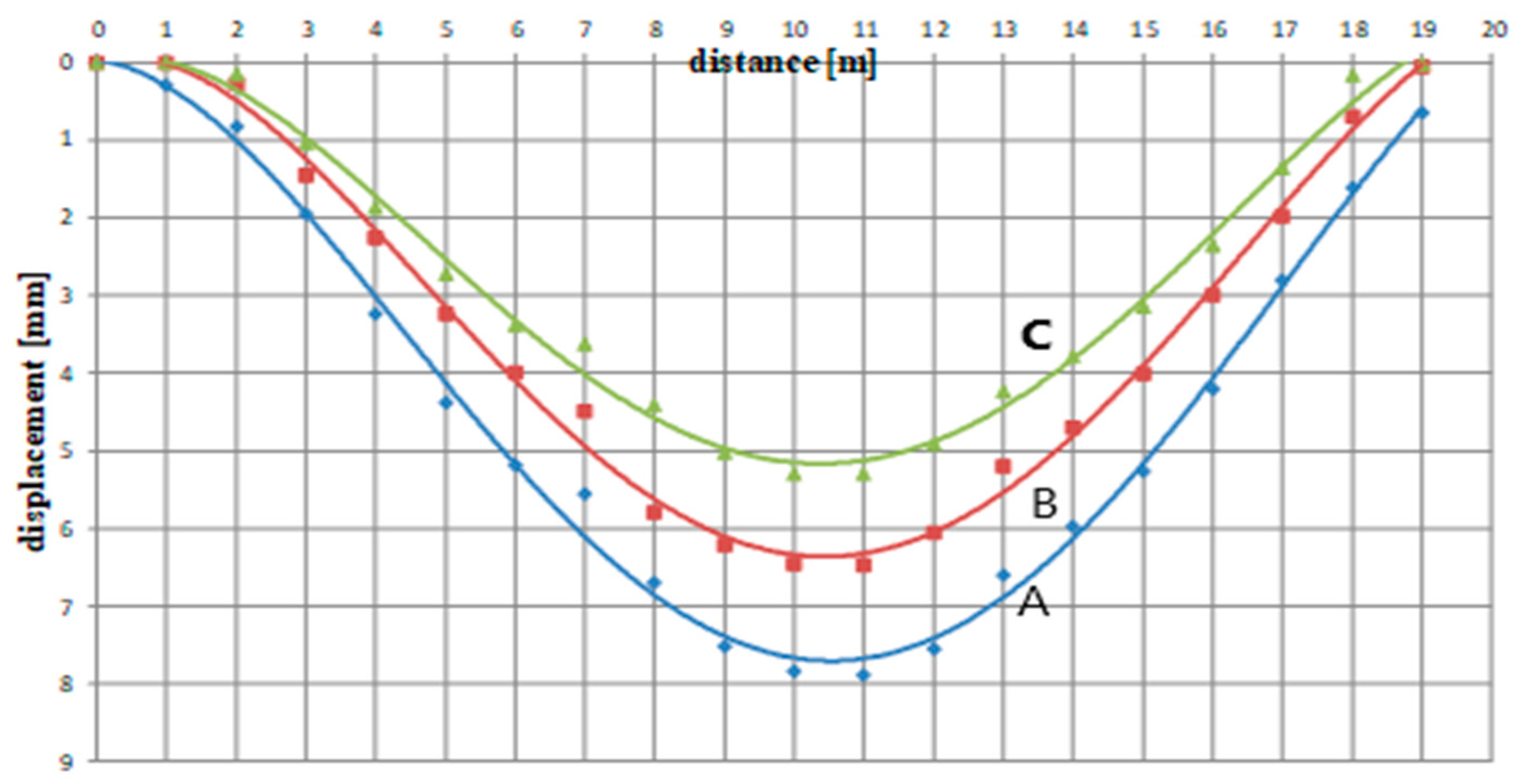

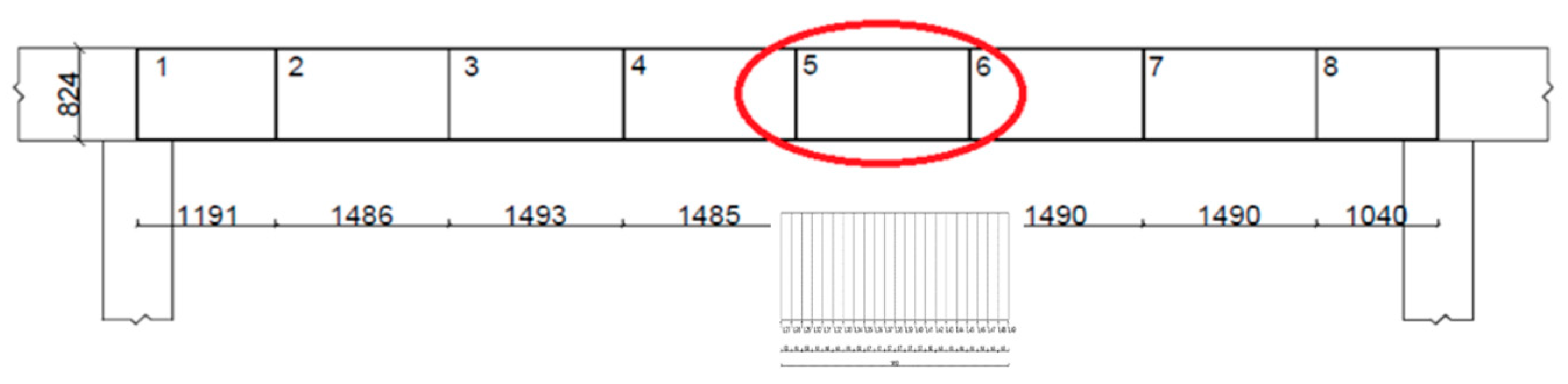

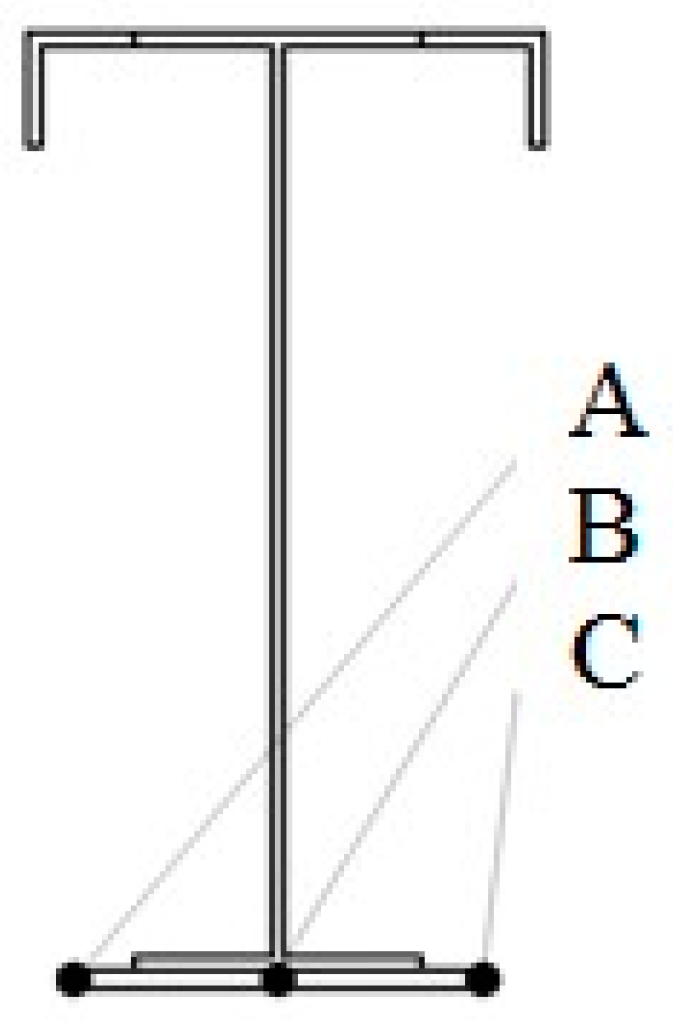

## 4. Validation and Numerical Simulation

## 5. Conclusions

- The RMF technique enabled the effective location of stress concentration zones in the analyzed crane beam by determining the gradient of the RMF tangential component.

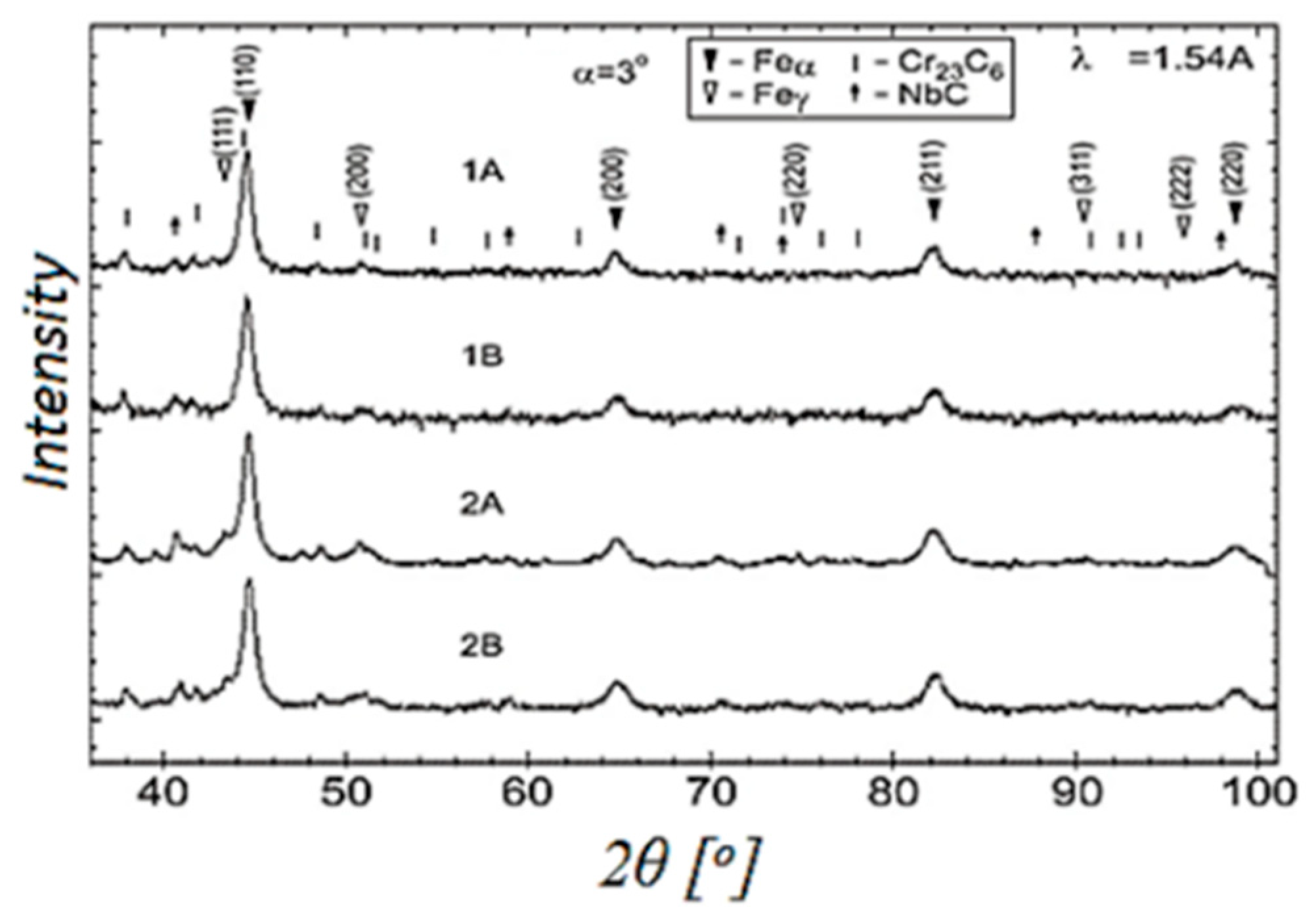

- The experimental verification using the X-ray diffraction method confirmed the stress concentration zones in the beam.
- Creating a relational database of magnetograms of the ferromagnetic structure from the beginning of its operation seems to be an interesting addition to standard magnetic diagnostic methods.
- Combining different methods and measurement techniques, for example a fiber optic beam deflection measurement system using the FEM method which implements boundary conditions from optical fiber measurements, with residual magnetic field techniques can significantly contribute to the identification of stress concentration zones.
