Next Article in Journal
Shrinkage and Mitigation Strategies to Improve the Dimensional Stability of CaO-FeOx-Al2O3-SiO2 Inorganic Polymers
Previous Article in Journal
Chlorine Reduction Kinetics and its Mass Balance in Copper Premise Plumbing Systems During Corrosion Events
Open AccessArticle

Morphological and Spectroscopic Study of an Apatite Layer Induced by Fast-Set Versus Regular-Set EndoSequence Root Repair Materials

1
Endodontic Department, Faculty of Dentistry, King Abdulaziz University, Jeddah 21589, Saudi Arabia
2
Endodontic Department, Faculty of Dentistry, Cairo University, Cairo 12613, Egypt
3
Division of Biomaterials, Restorative Dentistry Department, Faculty of Dentistry, King Abdulaziz University, Jeddah 21589, Saudi Arabia
4
Biomaterials Department, Faculty of Dentistry, Tanta University, Tanta 31512, Egypt
5
UCL Eastman Dental Institute, Biomaterials and Tissue Engineering Division, 256 Gray’s Inn Road, London WC1X 8LD, UK
*
Author to whom correspondence should be addressed.
Materials 2019, 12(22), 3678; https://doi.org/10.3390/ma12223678 (registering DOI)
Received: 3 October 2019 / Revised: 26 October 2019 / Accepted: 5 November 2019 / Published: 8 November 2019

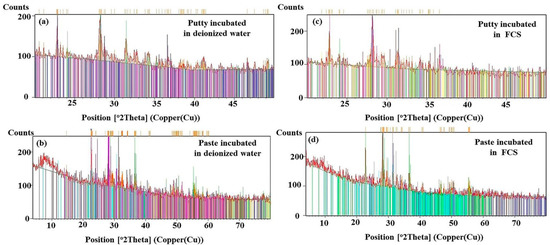

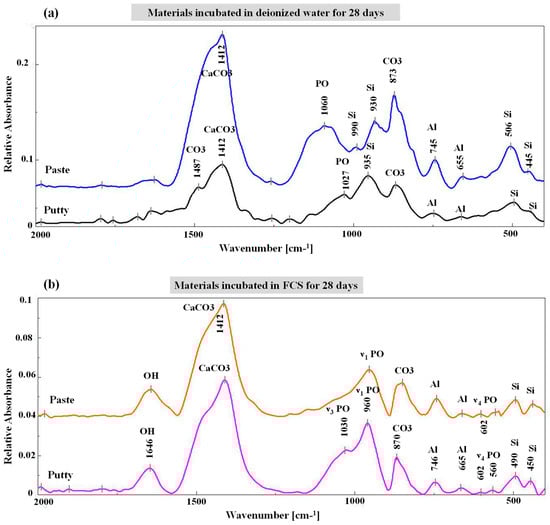

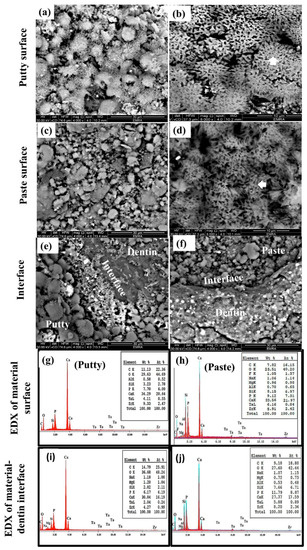

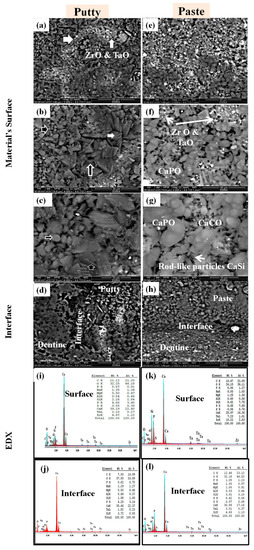

This study aimed to evaluate the morphology and chemistry of an apatite layer induced by fast-set versus regular-set EndoSequence root repair materials using spectroscopic analysis. Holes of a 4 mm diameter were created in the root canal dentin, which were filled with the test material. Fetal calf serum was used as the incubation medium, and the samples incubated in deionized water were used as controls. The material-surface and material-dentin interfaces were analyzed after 28 days using Raman and infrared spectroscopy, scanning electron microscopy/energy dispersive X-ray, and X-ray diffraction. After incubation in fetal calf serum, both materials formed a uniform layer of calcium phosphate precipitate on their surfaces, with the dentinal interface. This precipitated layer was a combination of hydroxyapatite and calcite or aragonite, and had a high mineral maturity with the regular-set paste. However, its crystallinity index was high with the fast-set putty. Typically, both consistencies (putty and paste) of root repair material have an apatite formation ability when they are incubated in fetal calf serum. This property could be beneficial in improving their sealing ability for root canal dentin. View Full-Text
Keywords: apatite formation; bioactivity; Ca/P and CO3/PO4 ratios; root repair; spectroscopy analysis apatite formation; bioactivity; Ca/P and CO3/PO4 ratios; root repair; spectroscopy analysis
Show Figures

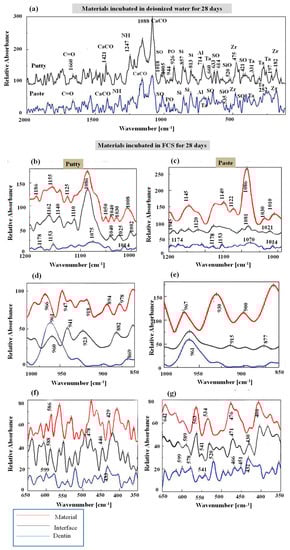

Figure 1

MDPI and ACS Style

Abu Zeid, S.T.; Alamoudi, R.A.; Abou Neel, E.A.; Mokeem Saleh, A.A. Morphological and Spectroscopic Study of an Apatite Layer Induced by Fast-Set Versus Regular-Set EndoSequence Root Repair Materials. Materials 2019, 12, 3678.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
