Superior Strength and Ductility of In Situ Nano TiB2/Al–Cu–Mg Composites by Cold Rolling and Post-Aging Treatment

1
School of Materials Science and Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
2
State Key Laboratory of Metal Matrix Composites, Shanghai Jiao Tong University, Shanghai 200240, China
*
Authors to whom correspondence should be addressed.
Materials 2019, 12(21), 3626; https://doi.org/10.3390/ma12213626
Received: 15 October 2019 / Revised: 1 November 2019 / Accepted: 1 November 2019 / Published: 4 November 2019
(This article belongs to the Section Advanced Composites)

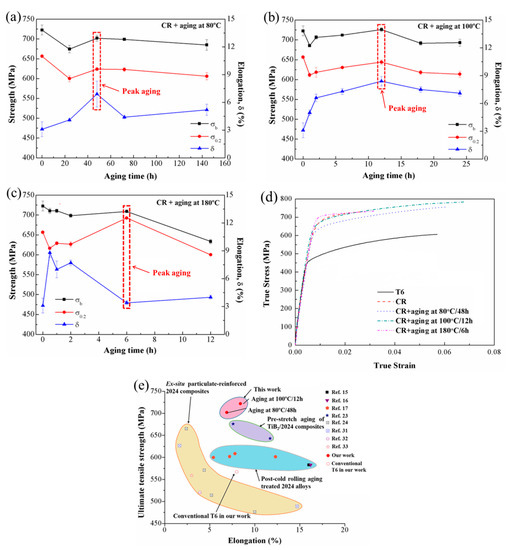

In this work, the combination of cold rolling with post-aging treatment is developed to achieve the optimal strength–ductility for the in situ nano TiB2/Al–Cu–Mg composite. The microstructure and mechanical properties of the composite subjected to 20% thickness reduction of cold rolling at room temperature and their evolutions upon post-aging at different temperatures were investigated by means of a tensile test, differential scanning calorimetry, scanning electron microscopy, and transmission electron microscopy. It was found that the TiB2 particles were effective in dislocation pinning and accumulation during the cold-rolling process. The tensile tests indicated that both the yield and ultimate tensile strengths of the cold-rolling sample increased a lot due to the dislocation strengthening and precipitation strengthening generated by dynamic precipitation during cold rolling in comparison with the conventional T6 sample. After aging at 100 °C/12 h, the elongation to failure reached ~8.4%, which was higher than the conventional T6 sample. Meanwhile, there was also a dramatic increase of strength. The yield and ultimate tensile strengths are ~644 MPa and ~726 MPa, respectively. This remarkable strength–ductility combination was due to the modified microstructure caused prior to artificial aging by the cold-rolling method and the formation of nanosized Guinier–Preston–Bagaryatsky (GPB) zones. The underlying mechanisms related to the superior strength–ductility combination were discussed regarding the microstructural characteristics in the composite. View Full-Text
Keywords: Al composite; in situ TiB2 particles; mechanical properties; aging behavior; GPB zones Al composite; in situ TiB2 particles; mechanical properties; aging behavior; GPB zones
Show Figures

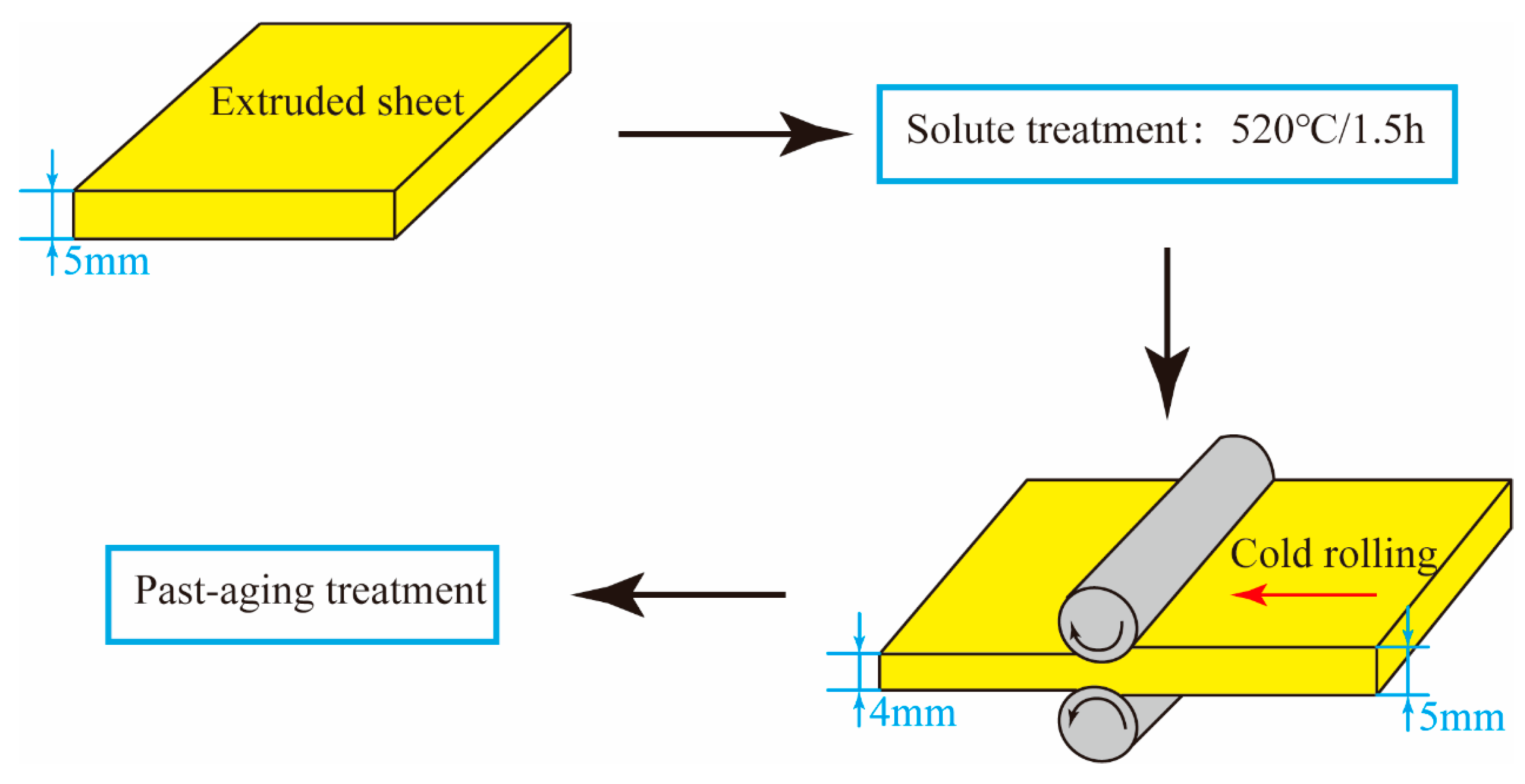

Figure 1

MDPI and ACS Style

Tang, J.; Geng, J.; Xia, C.; Wang, M.; Chen, D.; Wang, H. Superior Strength and Ductility of In Situ Nano TiB2/Al–Cu–Mg Composites by Cold Rolling and Post-Aging Treatment. Materials 2019, 12, 3626.
